Gentamicin (Thomson 2003)
Source:vignettes/articles/Thomson_2003_gentamicin.Rmd
Thomson_2003_gentamicin.RmdModel and source
- Citation: Thomson AH, Kokwaro GO, Muchohi SN, English M, Mohammed S, Edwards G. Population pharmacokinetics of intramuscular gentamicin administered to young infants with suspected severe sepsis in Kenya. Br J Clin Pharmacol. 2003;56(1):25-31.
- Article: https://doi.org/10.1046/j.1365-2125.2003.01819.x
- Packaged structural model: one-compartment IV-bolus disposition (the published 8 mg/kg intramuscular dose is modelled as an IV bolus because the published analysis could not identify the first-order absorption rate from the sparse 1 h / next-morning sampling).
Population
The model was developed from 107 young infants (39 female, 68 male) admitted to Kilifi District Hospital, Kenya, with suspected severe sepsis. Postnatal age ranged from 0 to 99 days (median 10 days) and body weight from 1.24 to 6.72 kg (median 3.05 kg). Admission creatinine ranged from 17 to 173 micromol/L (median 52 micromol/L), white blood cell count from 2.1 to 51.6 x 10^9/L, and haemoglobin from 4.2 to 21.5 g/dL. Demographics are from Thomson 2003 Table 1.
Each infant received a single 8 mg/kg intramuscular dose, with a peak sample drawn approximately 1 h after the dose (97 samples; median time 1.05 h, range 0.49 - 2.9 h) and a next-morning sample before the second dose (106 samples; median time 16.87 h, range 8.35 - 32.85 h). The full 203-observation data set was modelled in NONMEM using a one-compartment IV-bolus structural model; first-order absorption could not be characterised because the sparse design gave too few early-peak samples to identify the absorption rate constant (Thomson 2003 Results “Pharmacokinetic analysis”, para. 1).
The packaged model object exposes the same baseline information via
its population metadata; see
inst/modeldb/specificDrugs/Thomson_2003_gentamicin.R.
Source trace
Per-parameter origins are also recorded inline at each
ini() entry in
inst/modeldb/specificDrugs/Thomson_2003_gentamicin.R. The
table collects them in one place for review.
| Equation / parameter | Value | Source location |
|---|---|---|
lcl (theta1, L/h/kg) |
0.0913 | Thomson 2003 Table 4, “CL = theta1 * wt * [(age + 1)/11]^theta2”, q1 row (RSE 4.2%) |
e_pna_cl (theta2) |
0.130 | Thomson 2003 Table 4, q2 row (RSE 24%) |
lvc (theta3, L) |
2.02 | Thomson 2003 Table 4, “V = theta3 * [1 + theta4 * (wt - 3)]”, q3 row (RSE 4.0%) |
e_wt_vc (theta4) |
0.277 | Thomson 2003 Table 4, q4 row (RSE 11%) |
etalcl (IIV CL, %CV) |
42% | Thomson 2003 Table 4, IIV column on q1 (RSE 12%) |
etalvc (IIV V, %CV) |
40% | Thomson 2003 Table 4, IIV column on q3 (RSE 15%) |
addSd (mg/L, FIXED) |
0.0001 | Thomson 2003 Table 4, “Residual error (mg/L)” row; fixed to a negligible value because FOCE achieved perfect agreement with sparse sampling (Thomson 2003 Results “Pharmacokinetic analysis”, para. 5) |
Structural ODE: d/dt(central) = -kel * central
|
n/a | Thomson 2003 Methods “Data analysis” para. 2 (one-compartment, monoexponential decline, IV bolus input) |
| Reference WT = 3 kg | n/a | Thomson 2003 Table 4 footnote: “V is 2.02 L for a child weighing 3 kg and changes by 28% per kg body weight” |
| Reference (PNA + 1) = 11 days | n/a | Thomson 2003 Table 4 footnote: “1 was added to the recorded and median ages to avoid 0 appearing in the model. CL for an infant of median age (10 days) is therefore 0.0913 L/h/kg, i.e. 0.274 L/h for a child of median weight (3 kg)” |
Virtual cohort
Original observed data are not publicly available. The figures below use a virtual population of 200 infants whose covariate distributions approximate the Thomson 2003 demographics. Body weight is sampled log-normally with median 3 kg and SD on the log scale chosen so the 1.24 - 6.72 kg range covers roughly +/- 2 SD; postnatal age is sampled log-normally with median 10 days (0.329 months) and a similar SD; both are clipped to the published ranges.
set.seed(20030701)
n_subj <- 200L
# Weight: log-normal centred at 3.0 kg covering 1.24 - 6.72 kg
wt_log <- rnorm(n_subj, mean = log(3.0), sd = 0.40)
wt_kg <- pmin(pmax(exp(wt_log), 1.24), 6.72)
# Postnatal age in DAYS first, then converted to canonical PNA (months).
# Cohort median 10 days, range 0 - 99 days; log-normal in days with a small
# floor at 1 day to avoid log(0) collisions with the model's +1 day shift.
pna_days <- pmin(pmax(round(exp(rnorm(n_subj, mean = log(10), sd = 1.10))), 0L), 99L)
pna_mo <- pna_days / 30.4375
cohort <- tibble(
id = seq_len(n_subj),
WT = wt_kg,
PNA = pna_mo,
PNA_DAYS = pna_days
)
summary(cohort[, c("WT", "PNA_DAYS", "PNA")])
#> WT PNA_DAYS PNA
#> Min. :1.240 Min. : 0.00 Min. :0.0000
#> 1st Qu.:2.206 1st Qu.: 5.00 1st Qu.:0.1643
#> Median :2.965 Median :12.00 Median :0.3943
#> Mean :3.186 Mean :18.23 Mean :0.5988
#> 3rd Qu.:3.934 3rd Qu.:23.00 3rd Qu.:0.7556
#> Max. :6.720 Max. :99.00 Max. :3.2526Simulation
A single 8 mg/kg IV-bolus dose is administered at time 0 to each
infant. Plasma concentrations are simulated out to 32 h to span the
published “next-day” sampling window. The event table carries
WT and PNA so the covariate effects are
applied subject-by-subject in rxSolve().
mod <- readModelDb("Thomson_2003_gentamicin")
# Per-subject dose 8 mg/kg into central; dense observation grid to t = 32 h.
obs_times <- c(seq(0, 4, by = 0.25), seq(4.5, 32, by = 0.5))
events <- cohort |>
rowwise() |>
do({
.id <- .$id; .wt <- .$WT; .pna <- .$PNA
dose_row <- tibble(id = .id, time = 0,
evid = 1L, amt = 8 * .wt, cmt = "central",
WT = .wt, PNA = .pna)
obs_rows <- tibble(id = .id, time = obs_times,
evid = 0L, amt = NA_real_, cmt = "central",
WT = .wt, PNA = .pna)
bind_rows(dose_row, obs_rows)
}) |>
ungroup() |>
arrange(id, time, desc(evid))
sim <- rxode2::rxSolve(mod, events = events, keep = c("WT", "PNA"))
#> ℹ parameter labels from comments will be replaced by 'label()'Replicate published figures

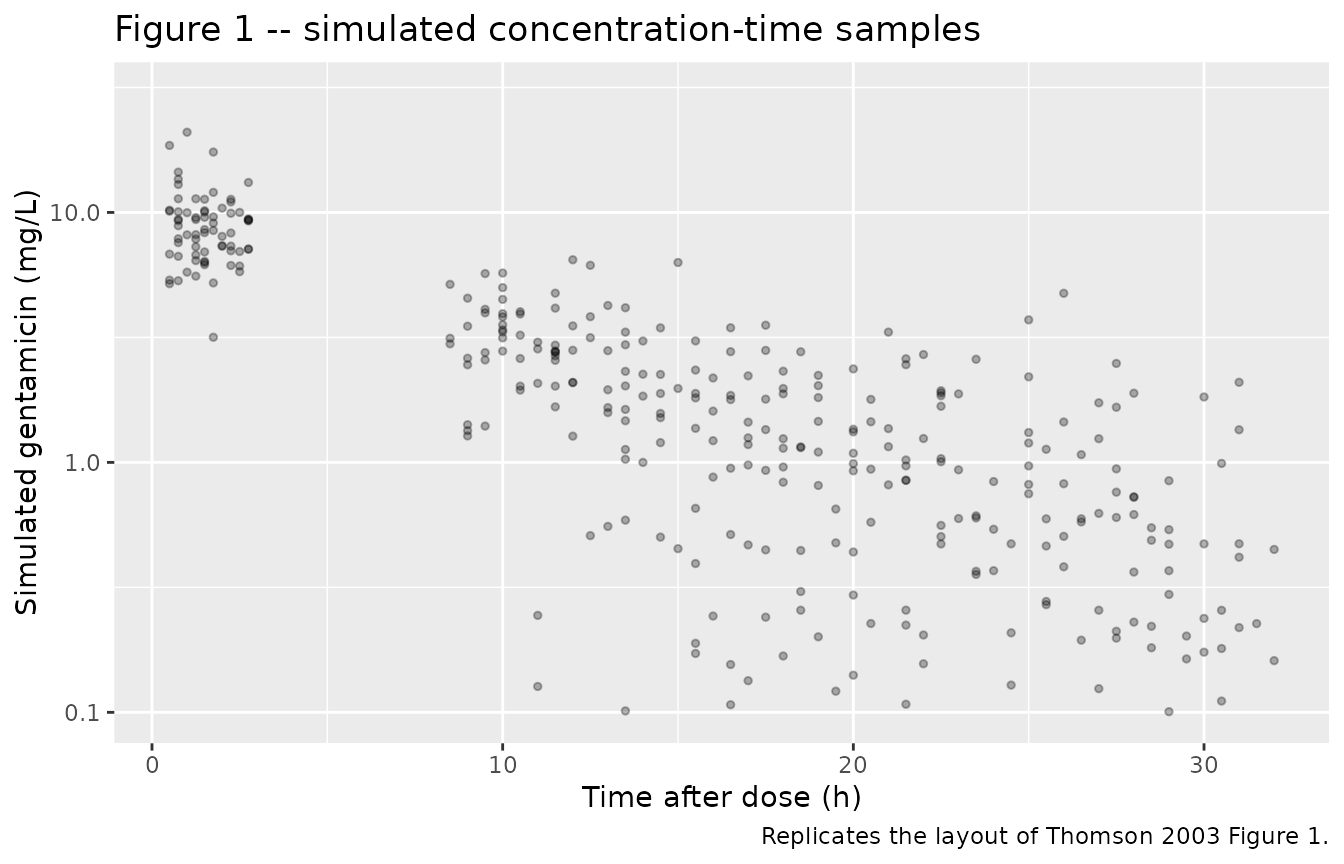

Figure 1 – individual concentration-time profiles
Thomson 2003 Figure 1 shows the 203 observed gentamicin concentrations against time after dose (one panel, all infants overlaid). Here we plot the equivalent simulated population, sampled at the times the paper recorded data: a “peak” window 0.49 - 2.9 h and a “next-day” window 8.35 - 32.85 h.
peak_window <- c(0.49, 2.90)
nextday_window <- c(8.35, 32.85)
sim_obs <- sim |>
dplyr::filter(
(time >= peak_window[1] & time <= peak_window[2]) |
(time >= nextday_window[1] & time <= nextday_window[2])
) |>
dplyr::group_by(id) |>
dplyr::slice_sample(n = 2) |>
dplyr::ungroup()
ggplot(sim_obs, aes(time, Cc)) +
geom_point(alpha = 0.3, size = 1) +
scale_y_log10(limits = c(0.1, 30)) +
labs(x = "Time after dose (h)",
y = "Simulated gentamicin (mg/L)",
title = "Figure 1 -- simulated concentration-time samples",
caption = "Replicates the layout of Thomson 2003 Figure 1.")
#> Warning: Removed 61 rows containing missing values or values outside the scale range
#> (`geom_point()`).

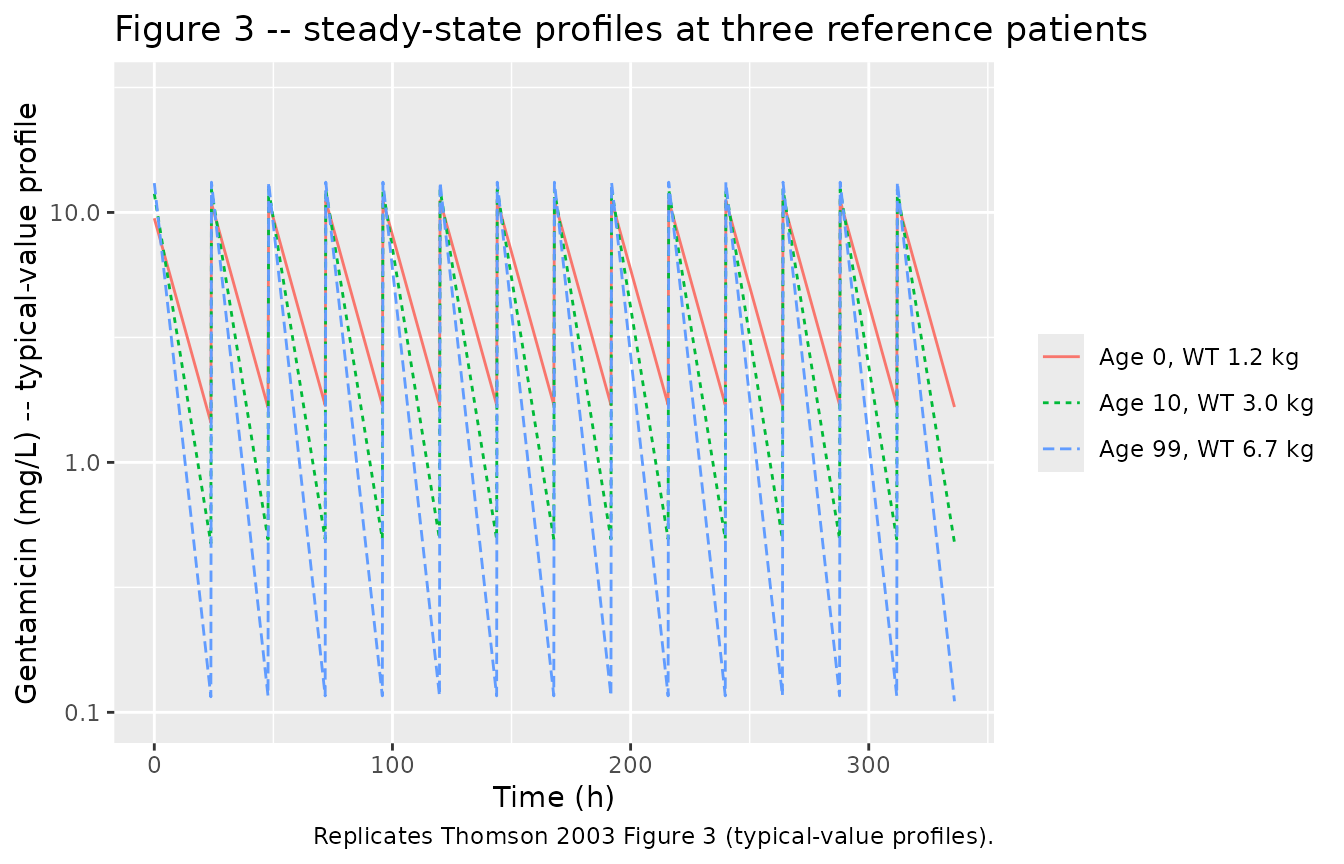

Figure 3 – steady-state profiles at minimum, median, and maximum age / weight
Thomson 2003 Figure 3 shows population-predicted profiles for three reference infants given 8 mg/kg daily at steady state: (age 0 days, WT 1.2 kg), (age 10 days, WT 3.0 kg), and (age 99 days, WT 6.7 kg). The simulation below zeroes the random effects to get typical-value predictions and runs to steady state over 14 daily doses.
mod_typical <- rxode2::zeroRe(mod)
#> ℹ parameter labels from comments will be replaced by 'label()'
profiles <- tibble(
label = c("Age 0, WT 1.2 kg", "Age 10, WT 3.0 kg", "Age 99, WT 6.7 kg"),
WT = c(1.2, 3.0, 6.7),
PNA_DAYS = c(0, 10, 99),
id = c(1L, 2L, 3L)
) |>
mutate(PNA = PNA_DAYS / 30.4375)
dose_times_h <- seq(0, by = 24, length.out = 14)
obs_grid <- seq(0, 14 * 24, by = 0.25)
events_profiles <- profiles |>
rowwise() |>
do({
.id <- .$id; .wt <- .$WT; .pna <- .$PNA
dose_rows <- tibble(id = .id, time = dose_times_h,
evid = 1L, amt = 8 * .wt, cmt = "central",
WT = .wt, PNA = .pna)
obs_rows <- tibble(id = .id, time = obs_grid,
evid = 0L, amt = NA_real_, cmt = "central",
WT = .wt, PNA = .pna)
bind_rows(dose_rows, obs_rows)
}) |>
ungroup() |>
arrange(id, time, desc(evid))
sim_typical <- rxode2::rxSolve(mod_typical, events = events_profiles, keep = c("WT", "PNA"))
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc'
#> Warning: multi-subject simulation without without 'omega'
sim_typical_labelled <- sim_typical |>
dplyr::mutate(label = profiles$label[match(id, profiles$id)])
ggplot(sim_typical_labelled, aes(time, Cc, colour = label, linetype = label)) +
geom_line() +
scale_y_log10(limits = c(0.1, 30)) +
labs(x = "Time (h)", y = "Gentamicin (mg/L) -- typical-value profile",
colour = NULL, linetype = NULL,
title = "Figure 3 -- steady-state profiles at three reference patients",
caption = "Replicates Thomson 2003 Figure 3 (typical-value profiles).")
PKNCA validation
Because the published model is IV bolus, simulated Cc
reaches its maximum at time 0 (the bolus instant). For an NCA comparison
aligned with the paper’s sampling, the table below restricts the NCA to
observations at or after the first scheduled measurement (0.5 h) so Cmax
reflects the early-sampled peak rather than the unsampled bolus
instant.
sim_nca <- sim |>
dplyr::filter(!is.na(Cc), time >= 0.5) |>
dplyr::mutate(treatment = "im_8mgkg_first_dose") |>
dplyr::select(id, time, Cc, treatment)
dose_df <- events |>
dplyr::filter(evid == 1L) |>
dplyr::mutate(treatment = "im_8mgkg_first_dose") |>
dplyr::select(id, time, amt, treatment)
conc_obj <- PKNCA::PKNCAconc(sim_nca, Cc ~ time | treatment + id,
concu = "mg/L", timeu = "hour")
dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | treatment + id,
doseu = "mg")
intervals <- data.frame(
start = 0,
end = Inf,
cmax = TRUE,
tmax = TRUE,
aucinf.obs = TRUE,
half.life = TRUE,
clast.obs = TRUE,
lambda.z = TRUE
)
nca_data <- PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals)
nca_res <- PKNCA::pk.nca(nca_data)
