SKL10406 (Park 2014)

Source: vignettes/articles/Park_2014_SKL10406.Rmd
Park_2014_SKL10406.Rmd

Model and source

  • Citation: Park JS, Lee J, Meyer J, Ilankumaran P, Han S, Yim DS. Serotonin transporter occupancy of SKL10406 in humans: comparison of pharmacokinetic-pharmacodynamic modeling methods for estimation of occupancy parameters. Transl Clin Pharmacol. 2014;22(2):83-91. doi:10.12793/tcp.2014.22.2.83
  • Description: Two-compartment first-order oral absorption population PK with effect-compartment Emax PK-PD model for striatal serotonin transporter (SERT) occupancy by SKL10406 (a triple monoamine reuptake inhibitor candidate) in healthy adult volunteers (Park 2014; EME variant, Table 3)
  • Article: https://doi.org/10.12793/tcp.2014.22.2.83

Population

SKL10406 is a triple monoamine reuptake inhibitor (TRI) candidate under development as an antidepressant. The Park 2014 study enrolled 15 healthy adult volunteers in four cohorts (three subjects per cohort) at a single PET centre in Toronto, Canada; 11 subjects completed both PK and PET assessments (Park 2014 Table 1). Cohorts 1 and 2 received SKL10406 50 mg every 12 h orally for 6 days. Cohorts 3 and 4 received 50 mg every 12 h for 4 days followed by 75 mg every 12 h for 6 days. Cohorts 1 and 3 underwent striatal SERT-occupancy [11C]DASB PET scans (n = 6 subjects); cohorts 2 and 4 underwent striatal DAT-occupancy [11C]PE2I PET scans (n = 5 subjects). The pop-PK model was fit to all 11 completers; the EME PK / PD model was fit to the 6 SERT subjects because DAT occupancies were too sparse to support a robust PD fit (Park 2014 Results).

Demographics for the 11 completers (Park 2014 Table 1): 10 male / 1 female; age 43.5 +/- 8.21 years (range 18-50 by inclusion criterion); BMI 25.7 +/- 2.90 kg/m^2 (range 19.0-30.0 by inclusion); 10 White and 1 Black or African American; body weight < 125 kg by inclusion criterion (no separate weight summary reported).

The same information is available programmatically via readModelDb("Park_2014_SKL10406")$population.

Source trace

Per-parameter origin is recorded as an in-file comment next to each ini() entry in inst/modeldb/specificDrugs/Park_2014_SKL10406.R. The table below collects them for review.

Equation / parameter Value Source location
Structural model 2-compartment first-order oral absorption with lag + effect-compartment Emax Park 2014 Methods (Population PK Model Building for ME; EME); Figure 2; Table 3
lcl (CL/F) log(49.6) L/h Table 3 ME row: CL = 49.6 L/h
lvc (V2/F central) log(176) L Table 3 ME row: V2 = 176 L
lka (absorption rate) log(5.05) 1/h Table 3 ME row: ka = 5.05 1/h
lvp (V3/F peripheral) log(63.7) L Table 3 ME row: V3 = 63.7 L
lq (Q/F) log(21.1) L/h Table 3 ME row: Q = 21.1 L/h
ltlag (ALAG) log(0.336) h Table 3 ME row: ALAG = 0.336 h
lemax (max SERT occupancy) log(68.6) % Table 3 EME row: Emax = 68.6%, no IIV (estimation did not converge with eta on Emax)
lec50 (effect-site EC50) log(40.2) ng/mL Table 3 EME row: EC50 = 40.2 ng/mL
lke0 (equilibration rate) log(0.288) 1/h Table 3 EME row: ke0 = 0.288 1/h; t1/2 = 2.41 h
etalcl (IIV CL) log(0.622^2 + 1) Table 3 ME row: IIV CL = 62.2% CV
etalvc (IIV V2) log(0.416^2 + 1) Table 3 ME row: IIV V2 = 41.6% CV
etalec50 (IIV EC50) log(0.683^2 + 1) Table 3 EME row: IIV EC50 = 68.3% CV
addSd, propSd, propSd_TO fixed(...) library defaults Park 2014 Methods state “combined” PK residual and “proportional” PD residual; numeric values NOT reported in the paper. See Errata.
d/dt(effect) = ke0 * (Cc - effect) effect compartment ODE Park 2014 Eq. 3
TO = emax * effect / (ec50 + effect) Emax PD on effect compartment Park 2014 Methods (EME paragraph)

Virtual cohort

The published individual-level data are not available. The cohort below approximates Park 2014 Table 1 demographics and the two dosing regimens the study used. Cohort A receives 50 mg PO every 12 h for 6 days (Park 2014 Cohorts 1 + 2). Cohort B receives 50 mg every 12 h for 4 days followed by 75 mg every 12 h for 6 days (Park 2014 Cohorts 3 + 4). The SERT-occupancy PD fit (EME) used only Cohorts 1 (n = 3) and 3 (n = 3); for visualisation we simulate a larger virtual cohort to make the prediction intervals legible.

set.seed(20141204) # Park 2014 accepted date
n_per_arm <- 100

cohort <- tibble(
  id        = seq_len(2 * n_per_arm),
  treatment = factor(rep(c("50 mg bid (Cohort 1)", "75 mg bid (Cohort 3)"),
                          each = n_per_arm),
                     levels = c("50 mg bid (Cohort 1)", "75 mg bid (Cohort 3)"))
)

Dosing and observation events. For the 50 mg bid arm we administer SKL10406 50 mg PO every 12 h for 6 days (12 doses). For the 75 mg bid arm we mirror Park 2014 Cohort 3: 50 mg every 12 h for 4 days followed by 75 mg every 12 h for 6 days. We sample PK on the steady-state dosing day at the protocol times (0, 0.5, 1, 1.5, 2, 2.5, 3, 4, 6, 8, 12, 16 h after the morning dose) and sample SERT occupancy at the two protocol PET timepoints (4 h and 16 h after the steady-state morning dose).

# Per-arm dosing schedules
dose_schedule <- function(arm, id_v) {
  if (arm == "50 mg bid (Cohort 1)") {
    # 50 mg every 12 h for 6 days
    times <- seq(0, by = 12, length.out = 12)
    amts  <- rep(50, length(times))
  } else {
    # 50 mg every 12 h for 4 days followed by 75 mg every 12 h for 6 days
    pre   <- seq(0,        by = 12, length.out = 8)   # 4 days x 2 doses/day
    post  <- seq(96,       by = 12, length.out = 12)  # 6 days x 2 doses/day starting at 96 h
    times <- c(pre, post)
    amts  <- c(rep(50, length(pre)), rep(75, length(post)))
  }
  tidyr::expand_grid(id = id_v, dose_idx = seq_along(times)) |>
    dplyr::mutate(
      time = times[dose_idx],
      amt  = amts[dose_idx],
      cmt  = "depot",
      evid = 1L
    ) |>
    dplyr::select(id, time, amt, cmt, evid)
}

doses <- dplyr::bind_rows(
  dose_schedule("50 mg bid (Cohort 1)",
                cohort |> dplyr::filter(treatment == "50 mg bid (Cohort 1)") |> dplyr::pull(id)),
  dose_schedule("75 mg bid (Cohort 3)",
                cohort |> dplyr::filter(treatment == "75 mg bid (Cohort 3)") |> dplyr::pull(id))
)

# Steady-state observation day: morning dose at t_ss
# Cohort 1: PK observed on Day 6 (i.e. dose 11 at t = 120 h is the SS morning dose)
# Cohort 3: PK observed on Day 10 (i.e. dose 19 at t = 216 h is the SS morning dose)
t_ss <- tibble(
  treatment = factor(c("50 mg bid (Cohort 1)", "75 mg bid (Cohort 3)"),
                     levels = c("50 mg bid (Cohort 1)", "75 mg bid (Cohort 3)")),
  ss_time = c(120, 216)
)

pk_grid <- c(0, 0.5, 1, 1.5, 2, 2.5, 3, 4, 6, 8, 12, 16)
pd_grid <- c(0, 4, 16) # baseline and the two protocol PET scans

obs_cc <- cohort |>
  dplyr::left_join(t_ss, by = "treatment") |>
  tidyr::crossing(dt = pk_grid) |>
  dplyr::mutate(time = ss_time + dt, amt = 0, cmt = "Cc", evid = 0L) |>
  dplyr::select(id, time, amt, cmt, evid)

obs_to <- cohort |>
  dplyr::left_join(t_ss, by = "treatment") |>
  tidyr::crossing(dt = pd_grid) |>
  dplyr::mutate(time = ss_time + dt, amt = 0, cmt = "TO", evid = 0L) |>
  dplyr::select(id, time, amt, cmt, evid)

events <- dplyr::bind_rows(doses, obs_cc, obs_to) |>
  dplyr::left_join(cohort, by = "id") |>
  dplyr::arrange(id, time, dplyr::desc(evid))

stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid", "cmt")])))

Simulation

mod <- rxode2::rxode2(readModelDb("Park_2014_SKL10406"))
#> ℹ parameter labels from comments will be replaced by 'label()'
conc_unit <- mod$units[["concentration"]]
sim <- rxode2::rxSolve(
  mod, events = events,
  keep = c("treatment"),
  returnType = "data.frame"
)

# Multi-output: filter by observation compartment so each timepoint contributes
# exactly one row per output. Compartment ordering follows the d/dt() and
# observation-equation declaration order in model(): depot=1, central=2,
# peripheral1=3, effect=4, Cc=5, TO=6.
sim_cc <- sim |> dplyr::filter(CMT == 5)
sim_to <- sim |> dplyr::filter(CMT == 6)

Replicate published figures

Typical-value PK and SERT occupancy over the steady-state interval

mod_typical <- mod |> rxode2::zeroRe()

typical_cohort <- tibble(
  id = 1:2,
  treatment = factor(c("50 mg bid (Cohort 1)", "75 mg bid (Cohort 3)"),
                     levels = c("50 mg bid (Cohort 1)", "75 mg bid (Cohort 3)"))
)

typical_doses <- dplyr::bind_rows(
  dose_schedule("50 mg bid (Cohort 1)", 1L),
  dose_schedule("75 mg bid (Cohort 3)", 2L)
)

dense_dt <- seq(0, 16, by = 0.25)
typical_obs_cc <- typical_cohort |>
  dplyr::left_join(t_ss, by = "treatment") |>
  tidyr::crossing(dt = dense_dt) |>
  dplyr::mutate(time = ss_time + dt, amt = 0, cmt = "Cc", evid = 0L) |>
  dplyr::select(id, time, amt, cmt, evid)

typical_obs_to <- typical_cohort |>
  dplyr::left_join(t_ss, by = "treatment") |>
  tidyr::crossing(dt = dense_dt) |>
  dplyr::mutate(time = ss_time + dt, amt = 0, cmt = "TO", evid = 0L) |>
  dplyr::select(id, time, amt, cmt, evid)

typical_events <- dplyr::bind_rows(typical_doses, typical_obs_cc, typical_obs_to) |>
  dplyr::left_join(typical_cohort, by = "id") |>
  dplyr::arrange(id, time, dplyr::desc(evid))

sim_typical <- rxode2::rxSolve(
  mod_typical, events = typical_events,
  keep = c("treatment"),
  returnType = "data.frame"
)
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalec50'
#> Warning: multi-subject simulation without without 'omega'
sim_typical_cc <- sim_typical |> dplyr::filter(CMT == 5)
sim_typical_to <- sim_typical |> dplyr::filter(CMT == 6)

# Re-express time as hours since the steady-state morning dose so both arms align.
sim_typical_cc <- sim_typical_cc |>
  dplyr::left_join(t_ss, by = "treatment") |>
  dplyr::mutate(dt = time - ss_time)
sim_typical_to <- sim_typical_to |>
  dplyr::left_join(t_ss, by = "treatment") |>
  dplyr::mutate(dt = time - ss_time)

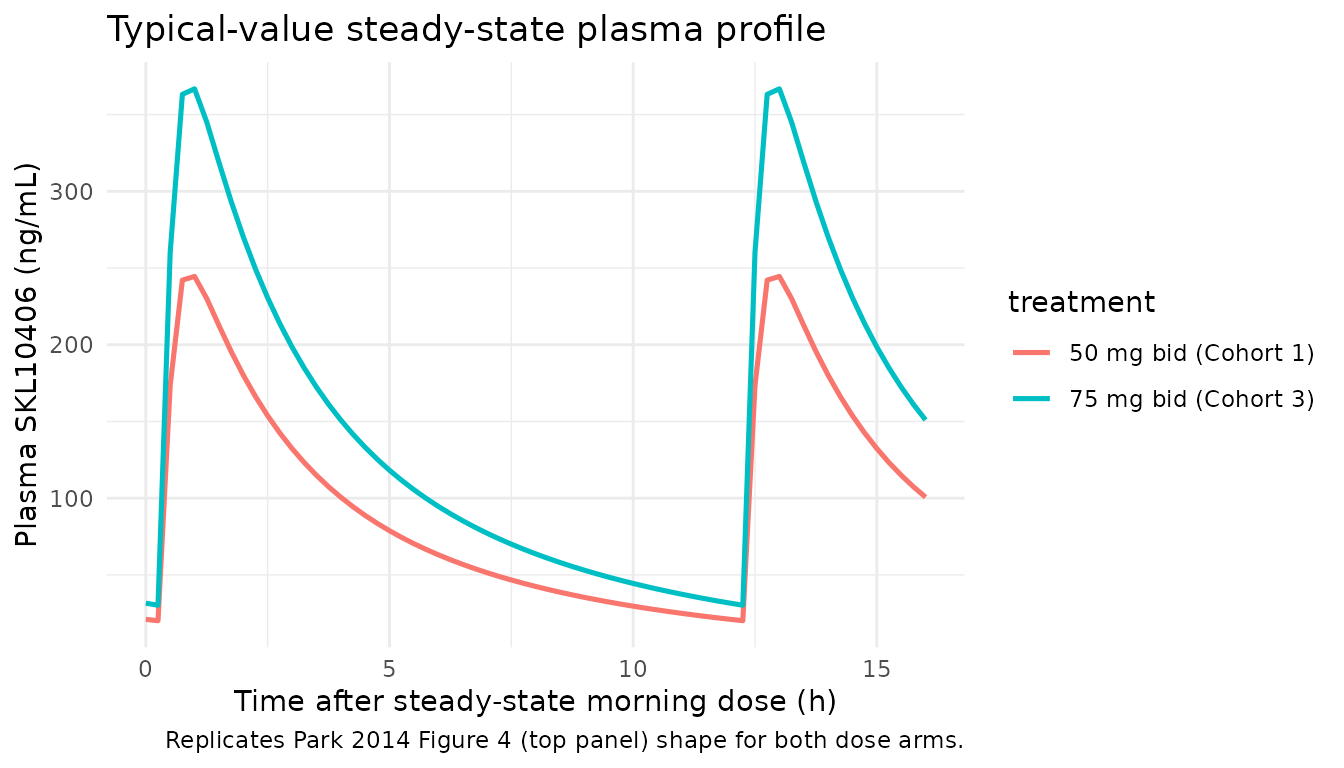

ggplot(sim_typical_cc, aes(dt, Cc, colour = treatment)) +
  geom_line(linewidth = 0.9) +
  labs(x = "Time after steady-state morning dose (h)",
       y = paste0("Plasma SKL10406 (", conc_unit, ")"),
       title = "Typical-value steady-state plasma profile",
       caption = "Replicates Park 2014 Figure 4 (top panel) shape for both dose arms.") +
  theme_minimal()

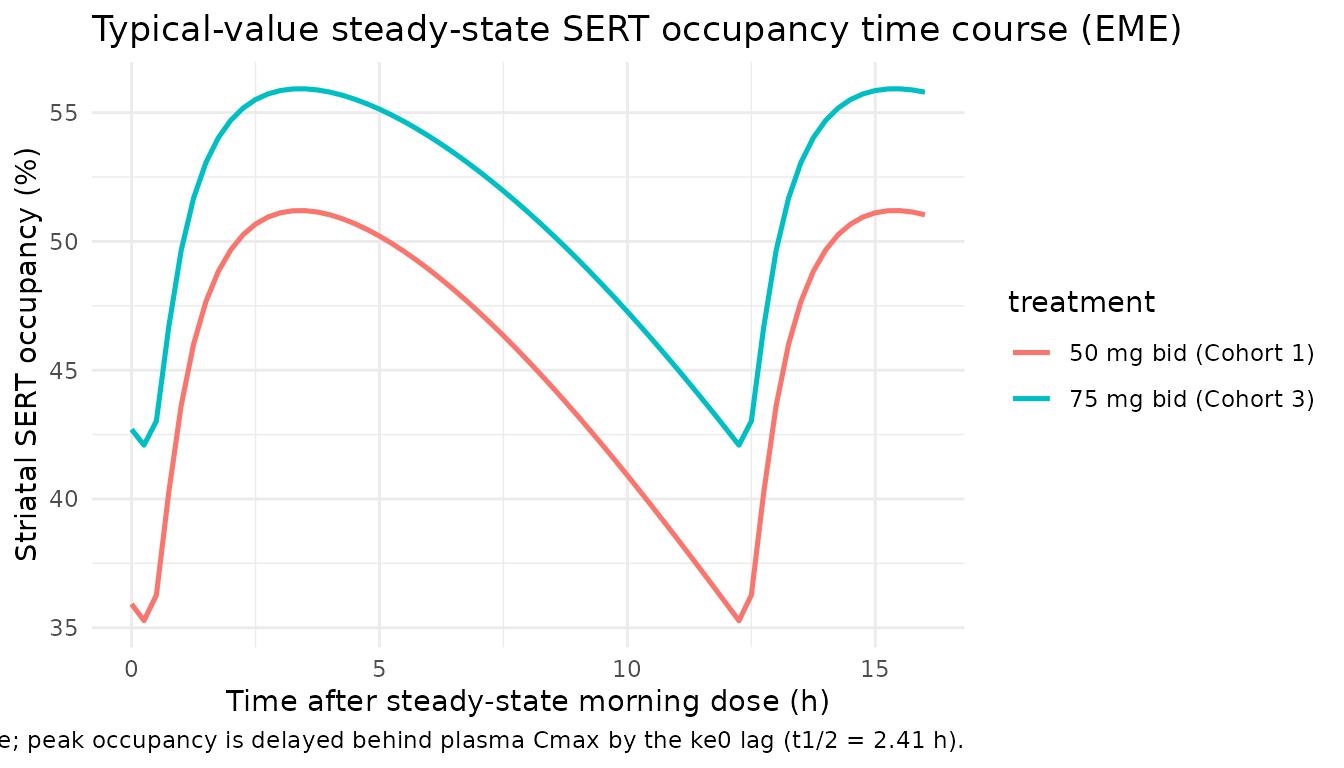

ggplot(sim_typical_to, aes(dt, TO, colour = treatment)) +
  geom_line(linewidth = 0.9) +
  labs(x = "Time after steady-state morning dose (h)",
       y = "Striatal SERT occupancy (%)",
       title = "Typical-value steady-state SERT occupancy time course (EME)",
       caption = "Replicates Park 2014 Figure 4 (bottom panel, EME) shape; peak occupancy is delayed behind plasma Cmax by the ke0 lag (t1/2 = 2.41 h).") +
  theme_minimal()

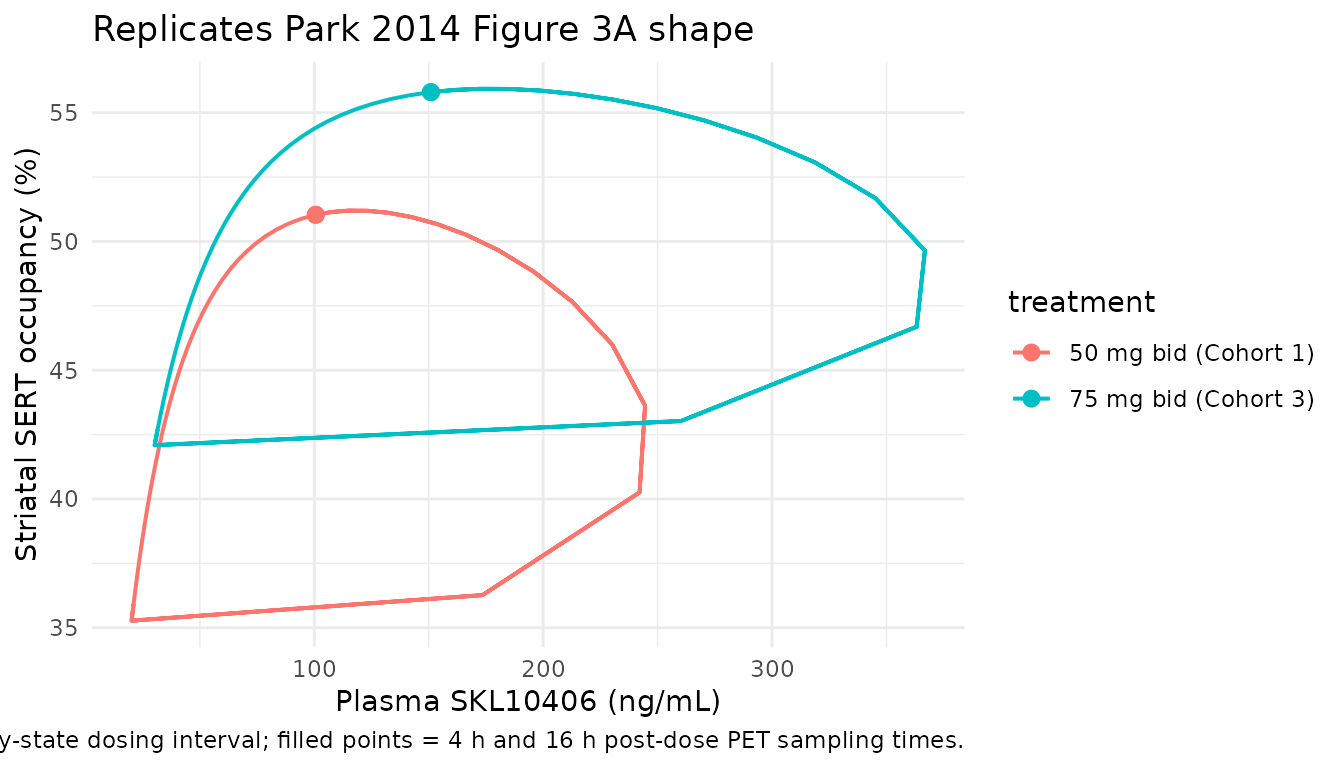

Concentration vs SERT occupancy (Figure 3A shape)

Park 2014 Figure 3A plots steady-state plasma concentration against striatal SERT occupancy at the two PET sampling times. The library model reproduces this nonlinear effect-compartment relationship across the full SS interval; the hysteresis loop is the EME-specific signature (Park 2014 Methods, EME paragraph) that distinguishes the EME from the DME / NPM variants.

sim_typical_cp_vs_to <- sim_typical_cc |>
  dplyr::select(treatment, dt, Cc) |>
  dplyr::inner_join(
    sim_typical_to |> dplyr::select(treatment, dt, TO),
    by = c("treatment", "dt")
  )

ggplot(sim_typical_cp_vs_to, aes(Cc, TO, colour = treatment)) +
  geom_path(linewidth = 0.7) +
  geom_point(data = sim_typical_cp_vs_to |> dplyr::filter(dt %in% c(4, 16)),
             size = 2.5) +
  labs(x = paste0("Plasma SKL10406 (", conc_unit, ")"),
       y = "Striatal SERT occupancy (%)",
       title = "Replicates Park 2014 Figure 3A shape",
       caption = "Hysteresis loop traced over the steady-state dosing interval; filled points = 4 h and 16 h post-dose PET sampling times.") +
  theme_minimal()

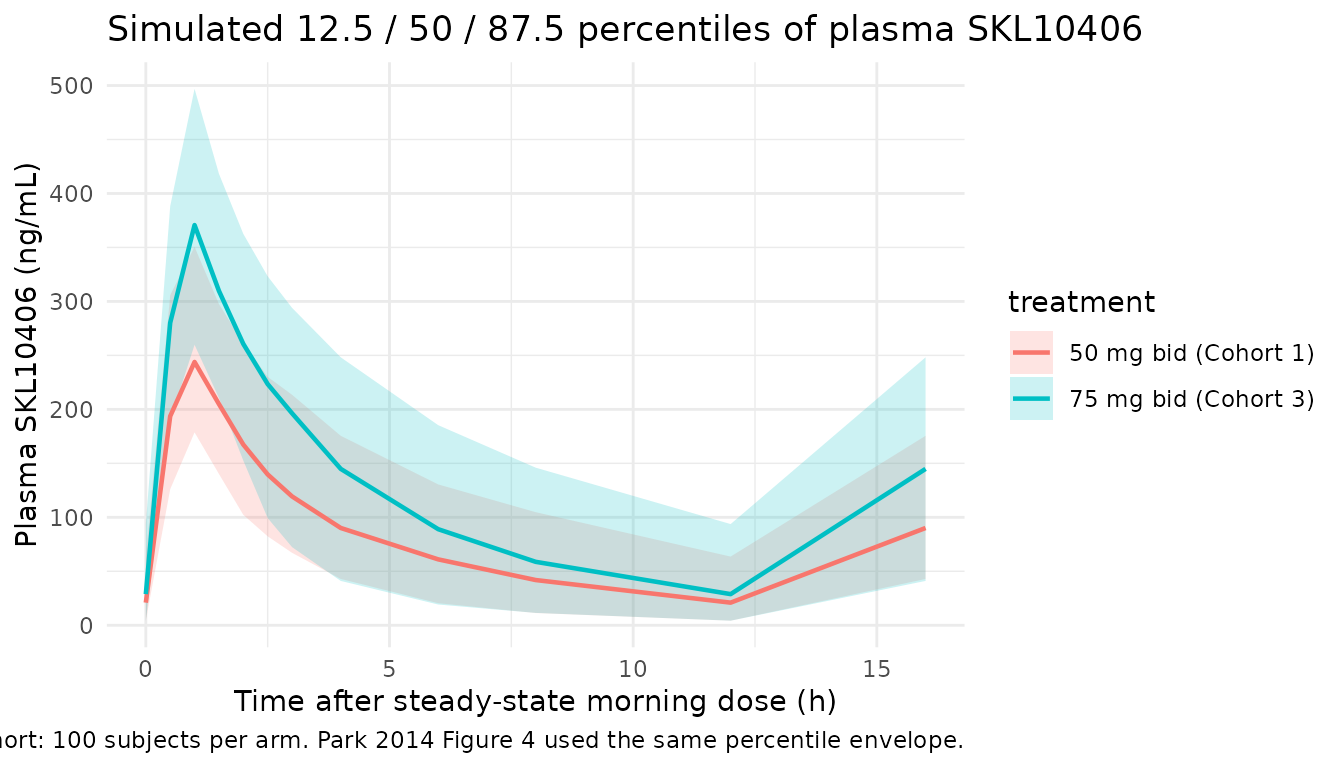

Stochastic VPC across the steady-state dosing interval

sim_cc_ss <- sim_cc |>
  dplyr::left_join(t_ss, by = "treatment") |>
  dplyr::mutate(dt = time - ss_time)

sim_cc_ss |>
  dplyr::group_by(dt, treatment) |>
  dplyr::summarise(
    Q125 = quantile(Cc, 0.125, na.rm = TRUE),
    Q50  = quantile(Cc, 0.50,  na.rm = TRUE),
    Q875 = quantile(Cc, 0.875, na.rm = TRUE),
    .groups = "drop"
  ) |>
  ggplot(aes(dt, Q50, colour = treatment, fill = treatment)) +
  geom_ribbon(aes(ymin = Q125, ymax = Q875), alpha = 0.20, colour = NA) +
  geom_line(linewidth = 0.8) +
  labs(x = "Time after steady-state morning dose (h)",
       y = paste0("Plasma SKL10406 (", conc_unit, ")"),
       title = "Simulated 12.5 / 50 / 87.5 percentiles of plasma SKL10406",
       caption = "Cohort: 100 subjects per arm. Park 2014 Figure 4 used the same percentile envelope.") +
  theme_minimal()

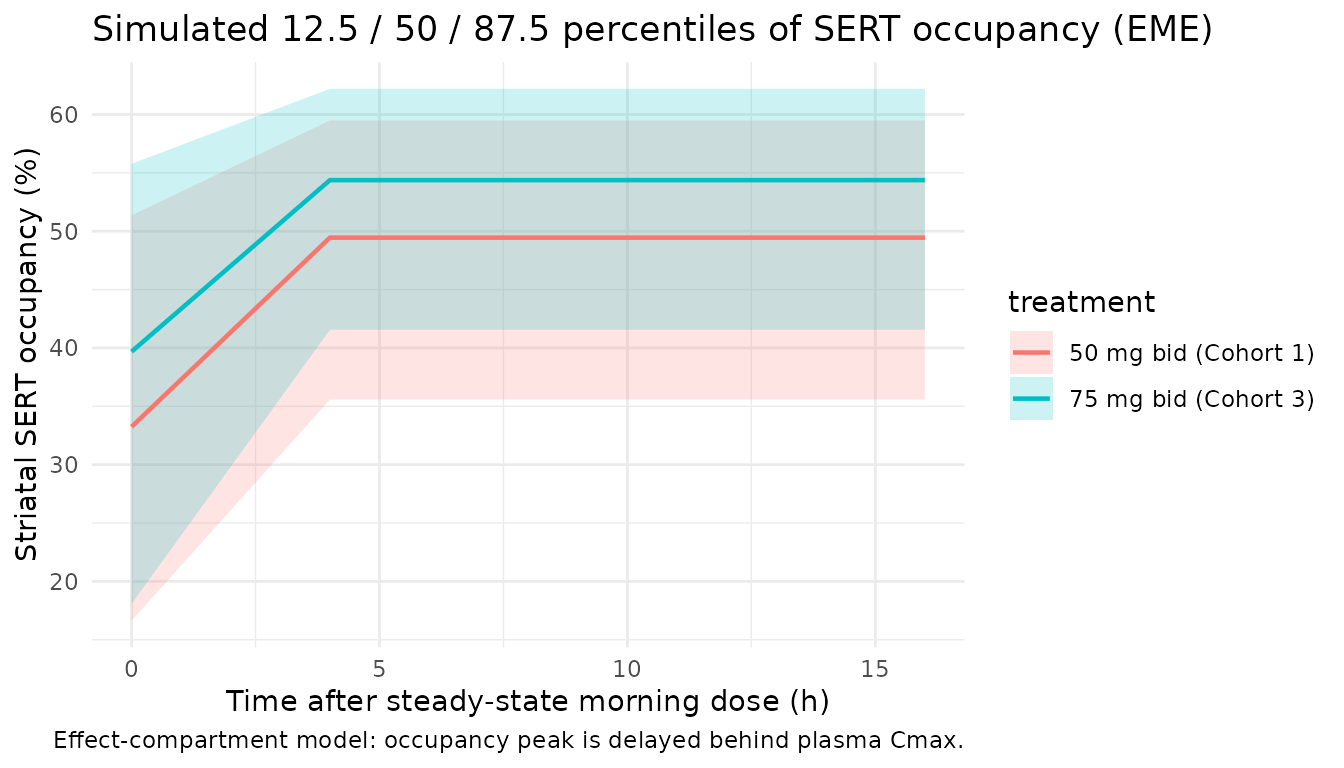

sim_to_ss <- sim_to |>
  dplyr::left_join(t_ss, by = "treatment") |>
  dplyr::mutate(dt = time - ss_time)

sim_to_ss |>
  dplyr::group_by(dt, treatment) |>
  dplyr::summarise(
    Q125 = quantile(TO, 0.125, na.rm = TRUE),
    Q50  = quantile(TO, 0.50,  na.rm = TRUE),
    Q875 = quantile(TO, 0.875, na.rm = TRUE),
    .groups = "drop"
  ) |>
  ggplot(aes(dt, Q50, colour = treatment, fill = treatment)) +
  geom_ribbon(aes(ymin = Q125, ymax = Q875), alpha = 0.20, colour = NA) +
  geom_line(linewidth = 0.8) +
  labs(x = "Time after steady-state morning dose (h)",
       y = "Striatal SERT occupancy (%)",
       title = "Simulated 12.5 / 50 / 87.5 percentiles of SERT occupancy (EME)",
       caption = "Effect-compartment model: occupancy peak is delayed behind plasma Cmax.") +
  theme_minimal()

PKNCA validation

PKNCA is run on the simulated plasma profiles over a single steady-state dosing interval (recipe 2 of pknca-recipes.md, steady-state). The 12-h tau is from the q12h dosing schedule. Per-cohort results are stratified by treatment.

# Steady-state interval: morning dose at ss_time, tau = 12 h.
sim_nca <- sim_cc |>
  dplyr::left_join(t_ss, by = "treatment") |>
  dplyr::mutate(dt = time - ss_time) |>
  dplyr::filter(dt >= 0, dt <= 12) |>
  dplyr::select(id, time = dt, Cc, treatment)

dose_df <- events |>
  dplyr::filter(evid == 1) |>
  dplyr::left_join(t_ss, by = "treatment") |>
  dplyr::filter(time == ss_time) |>
  dplyr::mutate(time = 0) |>
  dplyr::select(id, time, amt, treatment)

conc_obj <- PKNCA::PKNCAconc(sim_nca, Cc ~ time | treatment + id)
dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | treatment + id)

intervals <- data.frame(
  start    = 0,
  end      = 12,
  cmax     = TRUE,
  tmax     = TRUE,
  auclast  = TRUE,
  ctrough  = TRUE
)

nca_data <- PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals)
nca_res  <- PKNCA::pk.nca(nca_data)
knitr::kable(summary(nca_res),
  caption = "Single-tau steady-state NCA per dose arm (n = 100 per arm).")
Single-tau steady-state NCA per dose arm (n = 100 per arm).
start end treatment N auclast cmax tmax ctrough
0 12 50 mg bid (Cohort 1) 100 1010 [56.7] 251 [35.5] 1.00 [0.500, 1.00] 17.9 [201]
0 12 75 mg bid (Cohort 3) 100 1410 [56.9] 367 [29.2] 1.00 [0.500, 1.00] 22.3 [230]

Steady-state SERT occupancy: simulated vs reported

Park 2014 Discussion states: “50 mg bid and 75 mg bid multiple dosing of SKL10406 resulted in approximately 30-50% median SERT occupancy in the simulation step based upon the final PK-PD models used in this study.” Table 2 reports the median (range) striatal occupancy by cohort and PET sampling time (4 h and 16 h post-dose). The library simulation median across the SS dosing interval should land in the same 30-50% band for both arms.

ss_summary <- sim_to_ss |>
  dplyr::filter(dt >= 0, dt <= 12) |>
  dplyr::group_by(treatment) |>
  dplyr::summarise(
    occupancy_median = median(TO, na.rm = TRUE),
    occupancy_q125   = quantile(TO, 0.125, na.rm = TRUE),
    occupancy_q875   = quantile(TO, 0.875, na.rm = TRUE),
    occupancy_at_4h  = median(TO[dt == 4], na.rm = TRUE),
    occupancy_at_16h = median(TO[dt == 16], na.rm = TRUE),
    .groups = "drop"
  )

knitr::kable(ss_summary,
  caption = "Simulated steady-state SERT occupancy (%) per dose arm. Compare to Park 2014 Table 2 (median, range): 50 mg bid 4 h = 40%, 16 h = 17%; 75 mg bid 4 h = 53%, 16 h = 15%.",
  digits = 1)
Simulated steady-state SERT occupancy (%) per dose arm. Compare to Park 2014 Table 2 (median, range): 50 mg bid 4 h = 40%, 16 h = 17%; 75 mg bid 4 h = 53%, 16 h = 15%.
treatment occupancy_median occupancy_q125 occupancy_q875 occupancy_at_4h occupancy_at_16h
50 mg bid (Cohort 1) 44.3 22.4 57.9 49.5 NA
75 mg bid (Cohort 3) 49.0 26.1 60.6 54.4 NA

Assumptions and deviations

  • Residual error magnitudes are library defaults, not paper-reported values. Park 2014 Methods state that a “combined” (additive + proportional) residual-error model was used for plasma SKL10406 and a “proportional” residual-error model for the EME SERT occupancy fit (“successful convergence was not achieved with either the additive or combined error models for both DME and EME”). The numeric magnitudes are not tabulated in Park 2014 Table 3 nor stated in the paper text. The library encodes the residuals as fixed(propSd = 0.20) and fixed(addSd = 1.0 ng/mL) for PK and fixed(propSd_TO = 0.15) for PD as pragmatic defaults so that downstream stochastic simulation produces plausible-magnitude prediction intervals. Users with access to the underlying NONMEM output (e.g., via S. Han / D. S. Yim, the senior authors) should replace these defaults with the published estimates before using the model for fitting or quantitative regulatory analyses.
  • PD model variant. Park 2014 reports three PD models on the same SERT occupancy data: NPM (naive pooled, no IIV), DME (direct mixed-effects Emax), and EME (effect-compartment mixed-effects Emax). The library packages only the EME variant because it is the only one that produces a meaningful PD time course (effect-site hysteresis behind plasma Cmax). The DME and NPM fits are reported in Park 2014 Table 3 but are not packaged separately:
    • NPM: Emax = 74.1%, EC50 = 36.8 ng/mL (no IIV).
    • DME: Emax = 53.4% (IIV 20.7%), EC50 = 11.8 ng/mL (IIV 44.9%).
  • No IIV on Emax in the EME variant. Park 2014 Discussion explains that the EME estimation step did not converge with eta on Emax, and so Emax was estimated without inter-individual variability. The library accordingly carries etalemax as no IIV (only etalec50 is encoded).
  • No covariates. Park 2014 did not report covariates on PK or PD parameters; the dataset (n = 11 PK, n = 6 PD) is too small to support covariate-effect estimation. The library model is therefore a structural-only fit with no WT, AGE, or other covariate effects.
  • Body weight / size effects. The PK parameters are reported as apparent values (CL/F, V/F, etc.) for a 70 kg-range adult cohort (BMI 19-30 kg/m^2 by inclusion criterion; body weight < 125 kg). No allometric scaling was estimated. Users who want to extrapolate to other body-weight ranges should pair this model with an external allometric assumption (e.g., (WT/70)^0.75 on CL/F and (WT/70)^1 on V/F).
  • Sample size limitations. The PD model was fit to 6 SERT subjects with 2 post-dose PET scans per subject. Park 2014 Discussion observes that “the simple NPM may be better for estimating both of the occupancy parameters (Emax and EC50, herein) with sparsely sampled PET data in a small number of subjects as in the present study.” The EME fit is therefore the most mechanistically complete but not the only defensible choice; see DME and NPM rows of Table 3 for the alternatives.
  • Virtual cohort. The vignette simulates 100 subjects per arm to produce legible prediction intervals; the original Park 2014 PD fit used only 6 SERT subjects. The simulated cohort is therefore a visualisation expansion and not a re-sampling of the original individuals.
  • DAT occupancy not modelled. Park 2014 reports DAT occupancies (Cohorts 2 and 4) but did not fit a PD model to those data because observed DAT occupancy > 50% was seen only twice across the cohort (Park 2014 Results). The library model covers SERT only.
