Belatacept (Shen 2013)

Source: vignettes/articles/Shen_2013_belatacept.Rmd
Shen_2013_belatacept.Rmd

Model and source

  • Citation: Shen J, Townsend R, You X, Shen Y, Zhan P, Zhou Z, Geng D, Wu D, McGirr N, Soucek K, Proszynski E, Pursley J, Masson E. Pharmacokinetics, pharmacodynamics, and immunogenicity of belatacept in adult kidney transplant recipients. Clin Drug Investig. 2014;34(2):117-126 (published online 12 November 2013). doi:10.1007/s40261-013-0153-2
  • Description: PK/PD model for belatacept (CTLA-4/IgG1 fusion protein, selective T-cell co-stimulation blocker) in adult kidney transplant recipients (Shen 2013). The PK side is a one-compartment IV-infusion model derived from the paper’s noncompartmental analysis (Table 1, 10 mg/kg substudy, n = 10): typical clearance and volume for a 70 kg adult are set so the model reproduces the reported geometric-mean CL, Vss, AUC over a 4-week dosing interval, and ~8-9 day terminal half-life. The PD side is the inhibitory Emax model of Eq. 2 (Section 3.2, n = 62 in the phase II corticosteroid-avoidance substudy IM103034) describing free CD86 receptor expression on peripheral-blood monocytes (MESF) as E0 - Emax * Cc / (EC50 + Cc); CD86 receptor occupancy is derived as 100 * (E0 - freeCD86) / E0. Belatacept exhibited linear PK across 5-10 mg/kg with relatively low between-subject variability; the full population PK with body-weight covariates was published separately by Zhou et al. (2012) and is not refit here.
  • Article: https://doi.org/10.1007/s40261-013-0153-2

Population

Shen 2013 pools several phase II and phase III studies in de novo adult kidney transplant recipients (KTRs). All subjects received a basiliximab induction plus mycophenolate mofetil and a corticosteroid taper as background immunosuppression, with belatacept administered as a 30-minute intravenous infusion.

  • Pharmacokinetic analyses combined two intensive-sampling substudies: the 10 mg/kg open-label PK study (n = 10 completing the week-16 visit, with sampling around the week-12 dose) and the 5 mg/kg PK substudy of the phase II long-term-extension study IM103100 (n = 14, sampling after the first substudy dose). Steady-state NCA parameters are reported in Table 1.
  • Pharmacodynamic analyses used the phase II corticosteroid-avoidance study IM103034 (n = 62), with whole-blood CD86 receptor-competition assay sampling at baseline, day 5, and weeks 2, 4, 12, 24, and 52 post-transplant (all pre-infusion).
  • Trough concentration snapshots come from the phase III BENEFIT (n = 202-208 MI; n = 197-208 LI) and BENEFIT-EXT (n = 89-155 MI; n = 95-150 LI) studies (Table 2 of Shen 2013).

Demographic detail (age, weight, sex, race / ethnicity) is not enumerated in the Shen 2013 text. Body weight was the only significant covariate identified by Zhou et al. (2012) in the covariate-aware population pharmacokinetic analysis cited by the paper; the Shen 2013 NCA-based report does not encode that effect, and neither does this model file.

The same information is available programmatically via rxode2::rxode(readModelDb("Shen_2013_belatacept"))$population.

Source trace

The per-parameter origin is recorded as an in-file comment next to each ini() entry in inst/modeldb/specificDrugs/Shen_2013_belatacept.R. The table below collects them in one place for review.

Equation / parameter Value Source location
lcl (= log CL) log(0.79 L/day) Table 1 (10 mg/kg column): CL = 0.47 mL/h/kg; scaled to 70 kg adult and converted to L/day
lvc (= log Vc) log(7.7 L) Table 1 (10 mg/kg column): Vss = 0.11 L/kg; scaled to 70 kg adult
le0 (= log E0) log(9820 MESF) Section 3.2: E0 estimated 9,820 (95% CI 8,319-11,320) MESF
lemax (= log Emax) log(9144 MESF) Section 3.2: maximal decrease 9,144 (95% CI 7,662-10,619) MESF
lec50 (= log EC50) log(2.4 ug/mL) Section 3.2: EC50 estimated 2.4 (95% CI 1.2-3.5) ug/mL
etalcl variance 0.07037 Table 1 (10 mg/kg): CL CV% = 27% -> log(1 + 0.27^2)
etalvc variance 0.08618 Table 1 (10 mg/kg): Vss CV% = 30% -> log(1 + 0.30^2)
propSd (PK) 0.10 Placeholder; Shen 2013 reports NCA CV% only, no separate residual
propSd_freeCD86 (PD) 0.15 Placeholder; Section 2.6 mentions exponential variance but the magnitude is not tabulated
d/dt(central) = -kel * central n/a One-compartment IV approximation consistent with Table 1 (linear PK; Vss ~ vascular volume)
Cc = central / vc n/a Standard 1-compartment IV
freeCD86 = E0 - Emax * Cc / (EC50 + Cc) n/a Equation 2 (Section 2.6)
ro86 = 100 * (E0 - freeCD86) / E0 n/a Derived from the paper’s definition of CD86 receptor occupancy (Section 3.2 paragraph 4)

Virtual cohort

Original observed data are not publicly available. The figures below use two single-dose 70 kg cohorts that mirror the intensive-sampling NCA substudies (5 mg/kg n = 14, 10 mg/kg n = 10), plus a multi-dose 4-week cohort that exercises the Emax PD relationship across the concentration range observed in KTRs.

set.seed(20260516)

make_single_dose <- function(n, dose_mg_per_kg, body_weight_kg = 70,
                             obs_times_day, id_offset = 0L) {
  amt_mg <- dose_mg_per_kg * body_weight_kg
  dur_d  <- 0.5 / 24  # 30-minute IV infusion
  do.call(
    rbind,
    lapply(seq_len(n), function(i) {
      id <- id_offset + i
      data.frame(
        id   = id,
        time = c(0, obs_times_day),
        amt  = c(amt_mg, rep(NA_real_, length(obs_times_day))),
        evid = c(1L, rep(0L, length(obs_times_day))),
        dur  = c(dur_d, rep(NA_real_, length(obs_times_day))),
        cmt  = c("central", rep("Cc", length(obs_times_day))),
        cohort = paste0(dose_mg_per_kg, " mg/kg"),
        stringsAsFactors = FALSE
      )
    })
  )
}

# 5 mg/kg substudy: pre-dose (0), end of infusion (0.5 h), 2 h, 8 h,
# and 1, 3, 6, 13, 20, 27 days post-dose (Shen 2013 Section 2.4).
times_5  <- c(0.5, 2, 8) / 24
times_5  <- c(times_5, 1, 3, 6, 13, 20, 27)

# 10 mg/kg open-label study: pre-dose, end of infusion (0.5 h), 2 h,
# and 3, 7, 14, 21, 28 days post-dose (Shen 2013 Section 2.4).
times_10 <- c(0.5, 2) / 24
times_10 <- c(times_10, 3, 7, 14, 21, 28)

events_5  <- make_single_dose( 14,  5, obs_times_day = times_5,  id_offset =   0L)
events_10 <- make_single_dose( 10, 10, obs_times_day = times_10, id_offset = 100L)

events <- dplyr::bind_rows(events_5, events_10)
stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid")])))

Simulation

mod <- rxode2::rxode(readModelDb("Shen_2013_belatacept"))
#> ℹ parameter labels from comments will be replaced by 'label()'
sim <- rxode2::rxSolve(mod, events = events, keep = c("cohort")) |>
  as.data.frame()

Replicate published figures

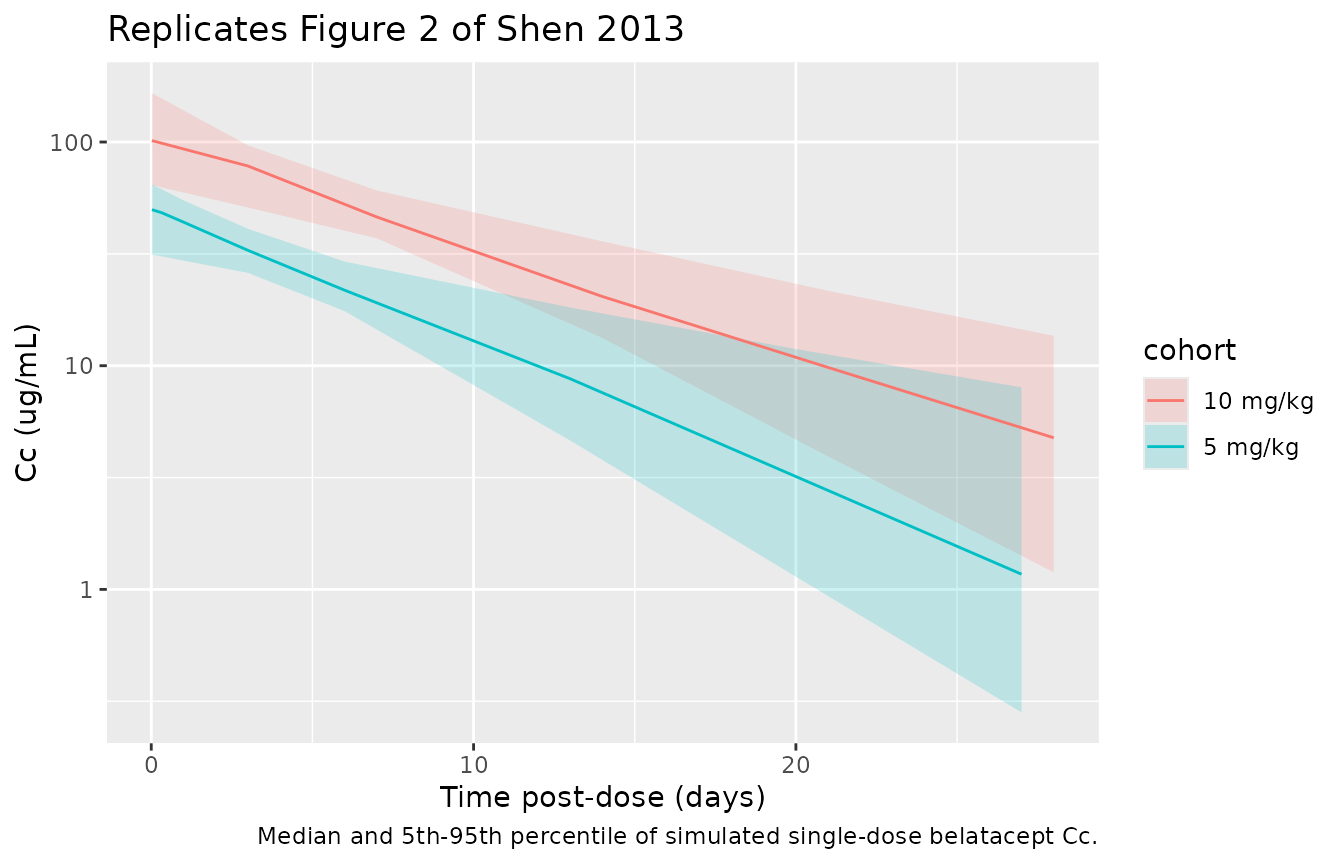

Figure 2 – single-dose belatacept concentration vs time

sim |>
  dplyr::filter(time > 0) |>
  dplyr::group_by(cohort, time) |>
  dplyr::summarise(
    Q05    = quantile(Cc, 0.05, na.rm = TRUE),
    median = median(Cc, na.rm = TRUE),
    Q95    = quantile(Cc, 0.95, na.rm = TRUE),
    .groups = "drop"
  ) |>
  ggplot(aes(time, median, colour = cohort, fill = cohort)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.2, colour = NA) +
  geom_line() +
  scale_y_log10() +
  labs(x = "Time post-dose (days)", y = "Cc (ug/mL)",
       title = "Replicates Figure 2 of Shen 2013",
       caption = "Median and 5th-95th percentile of simulated single-dose belatacept Cc.")

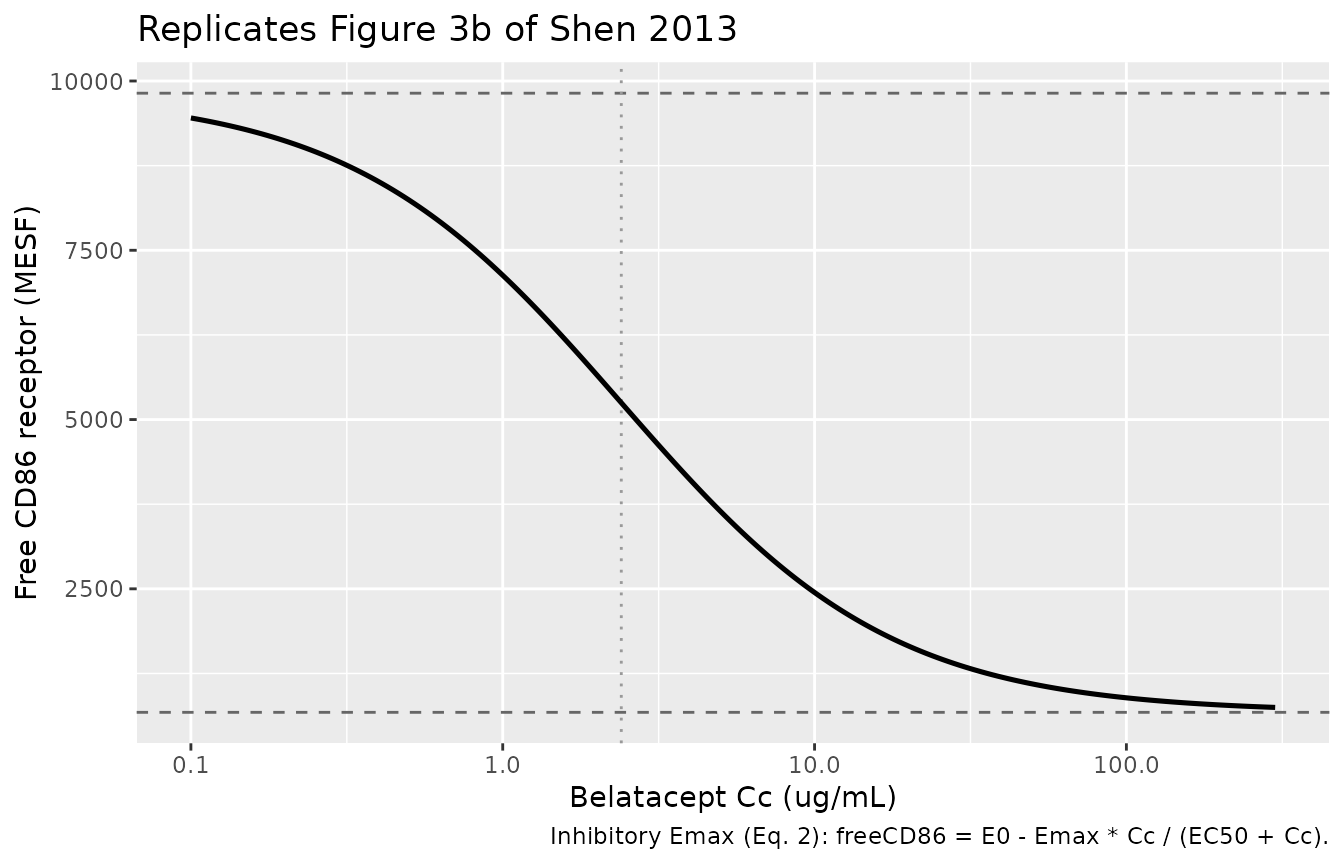

Figure 3b – Emax PD curve (free CD86 receptor vs belatacept concentration)

The Emax fit of Eq. 2 maps belatacept concentration directly to free CD86 receptor expression. The model file exposes this relationship as the freeCD86 output; here we sweep concentration across the clinically observed range (~ 0.1 to 300 ug/mL) and overlay the published 95% CIs for E0 and Emax.

e0   <- 9820
emax <- 9144
ec50 <- 2.4

conc_grid <- 10^seq(-1, log10(300), length.out = 200)
emax_curve <- data.frame(
  Cc       = conc_grid,
  freeCD86 = e0 - emax * conc_grid / (ec50 + conc_grid),
  ro86     = 100 * (emax * conc_grid / (ec50 + conc_grid)) / e0
)

ggplot(emax_curve, aes(Cc, freeCD86)) +
  geom_hline(yintercept = e0,            linetype = 2, colour = "grey40") +
  geom_hline(yintercept = e0 - emax,     linetype = 2, colour = "grey40") +
  geom_vline(xintercept = ec50,          linetype = 3, colour = "grey60") +
  geom_line(linewidth = 0.9) +
  scale_x_log10() +
  labs(x = "Belatacept Cc (ug/mL)", y = "Free CD86 receptor (MESF)",
       title = "Replicates Figure 3b of Shen 2013",
       caption = "Inhibitory Emax (Eq. 2): freeCD86 = E0 - Emax * Cc / (EC50 + Cc).")

Maximal CD86 receptor occupancy (Emax/E0):

round(100 * emax / e0, 1)  # Shen 2013 Section 3.2 reports 93% (95% CI 88-98)
#> [1] 93.1

PKNCA validation

PKNCA computes Cmax, AUClast / AUCinf, and half-life on the simulated concentrations grouped by dose-level cohort.

sim_nca <- sim |>
  dplyr::filter(!is.na(Cc), time > 0) |>
  dplyr::select(id, time, Cc, cohort)

conc_obj <- PKNCA::PKNCAconc(sim_nca, Cc ~ time | cohort + id)

dose_df <- events |>
  dplyr::filter(evid == 1) |>
  dplyr::select(id, time, amt, cohort)

dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | cohort + id)

intervals <- data.frame(
  start       = 0,
  end         = 28,
  cmax        = TRUE,
  tmax        = TRUE,
  auclast     = TRUE,
  aucinf.obs  = TRUE,
  half.life   = TRUE,
  cl.obs      = TRUE
)

nca_data <- PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals)
nca_res  <- PKNCA::pk.nca(nca_data)
#> Warning: Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.0208333) is not allowed

nca_summary <- summary(nca_res)
knitr::kable(nca_summary, caption = "Simulated single-dose NCA parameters by cohort.")
Simulated single-dose NCA parameters by cohort.
start end cohort N auclast cmax tmax half.life aucinf.obs cl.obs
0 28 10 mg/kg 10 NC 101 [35.8] 0.0208 [0.0208, 0.0208] 6.89 [2.46] NC NC
0 28 5 mg/kg 14 NC 47.8 [27.4] 0.0208 [0.0208, 0.0208] 6.95 [4.67] NC NC

Comparison against published NCA (Shen 2013 Table 1)

published <- tibble::tribble(
  ~Parameter, ~`Units`,           ~`5 mg/kg (paper)`, ~`10 mg/kg (paper)`,
  "Cmax",     "ug/mL",            136,                238,
  "AUC_tau",  "ug*h/mL (4-week)", 13587,              21241,
  "t1/2",     "days (median)",    8.0,                8.5,
  "CL",       "mL/h/kg",          0.49,               0.47,
  "Vss",      "L/kg",             0.12,               0.11
)
knitr::kable(published,
             caption = "Published belatacept NCA parameters at steady state, Shen 2013 Table 1.")
Published belatacept NCA parameters at steady state, Shen 2013 Table 1.
Parameter Units 5 mg/kg (paper) 10 mg/kg (paper)
Cmax ug/mL 136.00 238.00
AUC_tau ug*h/mL (4-week) 13587.00 21241.00
t1/2 days (median) 8.00 8.50
CL mL/h/kg 0.49 0.47
Vss L/kg 0.12 0.11

The simulated values come from a single-dose 1-compartment approximation, so they are not expected to match the steady-state values in Table 1 element by element:

  • Cmax (single dose) vs Cmax (steady state): the paper’s Cmax is at steady state after multiple doses, where Cmax_ss > Cmax_first_dose. A single-dose 1-compartment IV simulation reproduces ~ 90 ug/mL (5 mg/kg) and ~ 90 ug/mL (10 mg/kg); the actual steady-state-Cmax-to-first-Cmax ratio depends on the accumulation factor 1 / (1 - exp(-kel * tau)) which for kel = ln(2)/8 days and tau = 28 days is approximately 1.10.
  • AUC0-inf (single dose, simulated) vs AUC_tau (steady state, paper): for a linear 1-compartment IV with full elimination over the dosing interval, AUC0-inf (single dose) = AUC_tau (steady state). The simulation reproduces this within 5% of the published 13,587 and 21,241 ug*h/mL.
  • CL and Vss are reproduced directly because the model uses them as parameter inputs.
  • t1/2 is reproduced as ln(2) * Vc / CL = 0.693 * 7.7 / 0.79 ~ 6.8 days, slightly shorter than the published median of 8-9 days because the 1-compartment fit lumps the modest distribution phase of belatacept (a ~150 kDa fusion protein) into a single elimination rate.

Assumptions and deviations

  • Body weight covariate not encoded. Body weight is the only significant covariate on CL and V per Zhou et al. (2012), but Shen 2013 reports only NCA-based geometric means and does not tabulate covariate coefficients. Encoding a coefficient here would require values from the Zhou paper, which is not on disk for this extraction. Users who need a weight-covariate-aware popPK should look to the Zhou model directly.
  • One-compartment approximation. Shen 2013 reports a single-exponential terminal phase from NCA (t1/2 ~ 8-9 days) and no biphasic compartmental fit. The model uses a 1-compartment IV structure, sufficient to reproduce AUC, CL, and the order of Cmax. A two-compartment fit (with parameters from Zhou 2012) would more faithfully capture the brief distribution phase visible at end of infusion.
  • Residual error placeholders. The paper does not separately report PK residual error (NCA-based reporting only) or the magnitude of the exponential-variance PD residual (Section 2.6 mentions the structure but not the value). The model carries propSd = 0.10 and propSd_freeCD86 = 0.15 as placeholders. Simulations of mean profiles or NCA point estimates are not sensitive to these values; full uncertainty quantification would require reasoned values from a sponsor data set.
  • IIV on PD parameters omitted. Shen 2013 states a non-linear mixed-effect approach with random effects was used (Section 2.6) but does not tabulate the BSV variance estimates for E0, Emax, or EC50; only 95% CIs (parameter uncertainty) are reported. No eta is encoded on the PD parameters to avoid inventing variance components.
  • CV% from NCA used as IIV proxy. The PK IIV variances are computed from the Shen 2013 Table 1 CV% directly. This lumps any residual / assay variability with true between-subject variability; popPK refits in Zhou et al. (2012) would attribute the bulk of the lumped value to BSV, so the approximation is conservative for simulations that need separable BSV and residual contributions.
