Model and source

Lane et al. (2011) developed two independent one-compartment, first-order absorption population PK models – one for each warfarin enantiomer – in adults on long-term oral warfarin therapy. Two model files are packaged:

  • modellib("Lane_2011_warfarin_s") – S-warfarin (the more potent enantiomer; CYP2C9-driven elimination with bodyweight, age, and sex covariates).
  • modellib("Lane_2011_warfarin_r") – R-warfarin (CYP2C19 rs3814637 and CYP3A4 rs2242480 covariates plus bodyweight and age).

Citation: Lane S, Al-Zubiedi S, Hatch E, Matthews I, Jorgensen AL, Deloukas P, Daly AK, Park BK, Aarons L, Ogungbenro K, Kamali F, Hughes D, Pirmohamed M. The population pharmacokinetics of R- and S-warfarin: effect of genetic and clinical factors. Br J Clin Pharmacol 2012;73(1):66-76.

mod_s_fn <- readModelDb("Lane_2011_warfarin_s")
mod_r_fn <- readModelDb("Lane_2011_warfarin_r")
class(mod_s_fn)
#> [1] "function"
class(mod_r_fn)
#> [1] "function"

Population

  • 354 patients commencing warfarin therapy were enrolled at the Royal Liverpool & Broadgreen University Hospital NHS Trust and University Hospital Aintree (Liverpool, UK) between November 2004 and March 2006; warfarin was initiated for any clinical indication and patients were followed up at 1, 8, and 26 weeks (Lane 2011 Methods ‘Patients’).
  • The S-warfarin PK model used data from 306 patients (739 plasma concentrations); the R-warfarin model used 309 patients (759 plasma concentrations). The two enantiomer cohorts overlap but are not identical (Lane 2011 Table 1).
  • Demographics (Lane 2011 Table 1): age mean (range) 66.4 (19-95) years; bodyweight mean (range) 80.7 (36-172) kg; 58% male in the S-warfarin cohort and 59% male in the R-warfarin cohort.
  • CYP2C9 distribution in the S-warfarin cohort (n=306): 1/1 63.7%, 1/2 19.3%, 1/3 9.5%, 2/2 0.3%, 2/3 2.0%, 3/3 0.6%, missing 4.6%.
  • CYP2C19 rs3814637 distribution in the R-warfarin cohort (n=309): wild-homozygote 70.9%, heterozygote 8.1%, mutant-homozygote 1.3%, missing 19.7%. CYP3A4 rs2242480: wild-homozygote 73.1%, heterozygote 13.6%, mutant-homozygote 1.0%, missing 12.3%.
  • Co-medication: 20 of 306 / 6.5% on amiodarone in the S-warfarin cohort; amiodarone was tested but NOT retained as a significant covariate in either enantiomer model (Lane 2011 Results ‘S-Warfarin models’).
  • Sampling: sparse, ~16 h after the patient’s previous warfarin dose at each visit; chiral HPLC assay with LLOQ 100 ng/mL and assay range 100-5000 ng/mL (Lane 2011 Methods ‘Determination of plasma warfarin enantiomer concentrations’).

Source trace

Per-parameter origins are recorded as in-file comments in inst/modeldb/specificDrugs/Lane_2011_warfarin_s.R and inst/modeldb/specificDrugs/Lane_2011_warfarin_r.R. The tables below collect them.

S-warfarin

Equation / parameter Value Source location
lcl log(0.144) L/h Lane 2011 Table 3 final S-warfarin model (typical CL for 70 kg woman, 69.8 y, 1/1)
lvc log(16.6) L Lane 2011 Table 3 final S-warfarin model
lka log(1.66) 1/h Lane 2011 Table 3 (fixed); Methods ‘Base models’ (literature value)
e_wt_cl 0.321 Lane 2011 Table 3 (power exponent on WT, reference 70 kg)
e_age_cl -0.00816 /y Lane 2011 Table 3 (linear age effect, reference 69.8 y)
e_male_cl 1.12 Lane 2011 Table 3 (male vs female multiplier on CL)
e_cyp2c9_12_cl 0.855 Lane 2011 Table 3 (CYP2C9 1/2 multiplier on CL)
e_cyp2c9_22_cl 0.672 Lane 2011 Table 3
e_cyp2c9_13_cl 0.454 Lane 2011 Table 3
e_cyp2c9_23_cl 0.496 Lane 2011 Table 3
e_cyp2c9_33_cl 0.286 Lane 2011 Table 3
e_cyp2c9_missing_cl 0.782 Lane 2011 Table 3 (Missing-genotype subgroup)
etalcl + etalvc block 0.16113 / 0.058822 / 0.12054 Lane 2011 Table 3 (CV CL 41.8%, CV V 35.8%, correlation 0.422)
propSd 0.316 Lane 2011 Table 3 (proportional residual SD)
addSd 0.001 mg/L Lane 2011 Table 3 (additive residual fixed at 1 ng/mL = 0.001 mg/L)
CL equation n/a Lane 2011 Results paragraph following Tables 2 and 3

R-warfarin

Equation / parameter Value Source location
lcl log(0.125) L/h Lane 2011 Table 3 final R-warfarin model (typical CL for 70 kg, 69.8 y, wild-wild)
lvc log(10.9) L Lane 2011 Table 3 final R-warfarin model
lka log(1.66) 1/h Lane 2011 Table 3 (fixed); same Ka used in both enantiomer models
e_wt_cl 0.650 Lane 2011 Table 3 (power exponent on WT, reference 70 kg)
e_age_cl -0.00657 /y Lane 2011 Table 3 (linear age effect, reference 69.8 y)
e_cyp2c19_het_cl 0.761 Lane 2011 Table 3 (CYP2C19 rs3814637 heterozygote multiplier)
e_cyp2c19_varhom_cl 0.494 Lane 2011 Table 3
e_cyp2c19_missing_cl 0.804 Lane 2011 Table 3
e_cyp3a4_het_cl 1.32 Lane 2011 Table 3 (CYP3A4 rs2242480 heterozygote multiplier)
e_cyp3a4_varhom_cl 1.06 Lane 2011 Table 3
e_cyp3a4_missing_cl 0.937 Lane 2011 Table 3
etalcl + etalvc block 0.16975 / 0.053666 / 0.13692 Lane 2011 Table 3 (CV CL 43.0%, CV V 38.3%, correlation 0.352)
propSd 0.319 Lane 2011 Table 3
addSd 0.001 mg/L Lane 2011 Table 3 (additive residual fixed at 1 ng/mL)
CL equation n/a Lane 2011 Results paragraph following Tables 2 and 3

Mechanistic structure

Both enantiomer models share the same structural form:

  • Absorption: first-order from a depot compartment with Ka fixed at 1.66 1/h (sensitivity tested across 1-5 1/h in the source; the sparse sampling design could not estimate Ka, so the value was taken from prior literature – Lane 2011 Methods ‘Base models’).
  • Disposition: one-compartment, with apparent oral clearance CL and apparent volume of distribution V. The two-compartment alternative was tested for S-warfarin and rejected because the sparse sampling did not support it.
  • Covariate model on CL: multiplicative form `CL_i = theta_CL * (WGT_i/70)^theta_wgt * (1 + theta_age*(AGE_i-69.8))
    • theta_CYP2C9 * theta_gender * exp(eta_CL_i)` for S-warfarin (Lane 2011 Results equation following Table 3). R-warfarin replaces the CYP2C9 and gender multipliers with CYP2C19 (rs3814637) and CYP3A4 (rs2242480) multipliers and uses a different bodyweight exponent.
  • Volume: no covariates retained on V/F in either enantiomer model (Lane 2011 Results ‘Volume of distribution’). V is parameterised with inter-individual variability only.
  • Inter-individual variability: log-normal IIV on CL and V, with a block covariance between the two random effects. The correlation reported in Table 3 (0.422 for S, 0.352 for R) was converted to a covariance via cov = correlation * sqrt(omega2_cl * omega2_v) where each variance is omega2 = log(1 + CV^2).
  • Inter-occasion variability: tested in both enantiomer models and not retained (Lane 2011 Results ‘S-Warfarin models’ and ‘R-Warfarin models’).
  • Residual error: proportional, with an additive component fixed at 1 ng/mL (= 0.001 mg/L in this model’s concentration units). The base S-warfarin model estimated an additive component of 45.8 ng/mL, but the additive component dropped out of the final covariate model and was held at a low fixed value.

Virtual cohort

The Lane 2011 cohort sampled at only three time points per subject (1, 8, 26 weeks after warfarin initiation, drawn ~16 h post-dose). The simulations below use steady-state daily dosing of 5 mg warfarin (representative of the typical maintenance dose in the cohort) to illustrate the genotype-driven differences in apparent CL that the models predict. Each genotype stratum is simulated at n = 100 subjects (well below the 200/arm cap) and IDs are made disjoint across strata via id_offset so the cohorts can be combined without collapsing into “Frankenstein subjects”.

set.seed(2011)

# Steady-state daily dosing for 14 days, then 24-hour observation window
# on day 14 to capture the per-dose Cmax/Cmin/AUC0-tau.
make_event_table <- function(n, ..., id_offset = 0L,
                             dose_mg = 5, ndoses = 14,
                             obs_after_dose_h = seq(0, 24, by = 1)) {
  cov_df <- tibble(id = id_offset + seq_len(n), ...)
  doses <- cov_df |>
    tidyr::expand_grid(
      time = (seq_len(ndoses) - 1L) * 24,
      evid = 1L,
      amt = dose_mg,
      cmt = "depot"
    )
  obs <- cov_df |>
    tidyr::expand_grid(
      time = (ndoses - 1L) * 24 + obs_after_dose_h,
      evid = 0L,
      amt = NA_real_,
      cmt = "central"
    )
  dplyr::bind_rows(doses, obs) |>
    dplyr::arrange(id, time, dplyr::desc(evid))
}

S-warfarin simulation

The four strata below match the typical-value subgroups Lane 2011 cites in the Results section: a 70-kg, 69.8-year-old woman with the 1/1 reference genotype; the same patient at 100 kg (Lane’s first cited example); the same patient with the 1/3 reduced-function genotype; and the same patient with the 3/3 homozygous variant.

make_s_stratum <- function(label, WT, AGE, SEXF,
                            S1_COUNT, S2_COUNT, S3_COUNT, MISSING = 0L,
                            n = 100L, id_offset = 0L) {
  make_event_table(
    n = n, id_offset = id_offset,
    WT = WT, AGE = AGE, SEXF = SEXF,
    CYP2C9_S1_COUNT = S1_COUNT,
    CYP2C9_S2_COUNT = S2_COUNT,
    CYP2C9_S3_COUNT = S3_COUNT,
    CYP2C9_MISSING = MISSING
  ) |>
    dplyr::mutate(stratum = label)
}

s_events <- dplyr::bind_rows(
  make_s_stratum("70kg *1/*1",    70, 69.8, 1L,  2L, 0L, 0L, id_offset =   0L),
  make_s_stratum("100kg *1/*1",  100, 69.8, 1L,  2L, 0L, 0L, id_offset = 100L),
  make_s_stratum("70kg *1/*3",    70, 69.8, 1L,  1L, 0L, 1L, id_offset = 200L),
  make_s_stratum("70kg *3/*3",    70, 69.8, 1L,  0L, 0L, 2L, id_offset = 300L)
)
stopifnot(!anyDuplicated(unique(s_events[, c("id", "time", "evid")])))
mod_s <- readModelDb("Lane_2011_warfarin_s")
sim_s <- rxode2::rxSolve(
  mod_s, events = s_events,
  keep = c("stratum", "WT", "AGE", "SEXF",
           "CYP2C9_S1_COUNT", "CYP2C9_S2_COUNT", "CYP2C9_S3_COUNT",
           "CYP2C9_MISSING")
) |> as.data.frame()
#> ℹ parameter labels from comments will be replaced by 'label()'
sim_s |>
  dplyr::filter(!is.na(Cc)) |>
  dplyr::mutate(t_post = time - (14 - 1) * 24) |>
  dplyr::group_by(t_post, stratum) |>
  dplyr::summarise(
    Q05 = quantile(Cc, 0.05, na.rm = TRUE),
    Q50 = quantile(Cc, 0.50, na.rm = TRUE),
    Q95 = quantile(Cc, 0.95, na.rm = TRUE),
    .groups = "drop"
  ) |>
  ggplot2::ggplot(ggplot2::aes(t_post, Q50)) +
  ggplot2::geom_ribbon(ggplot2::aes(ymin = Q05, ymax = Q95), alpha = 0.25) +
  ggplot2::geom_line() +
  ggplot2::facet_wrap(~stratum) +
  ggplot2::labs(
    x = "Time after last dose (h)",
    y = "S-warfarin Cc (mg/L)",

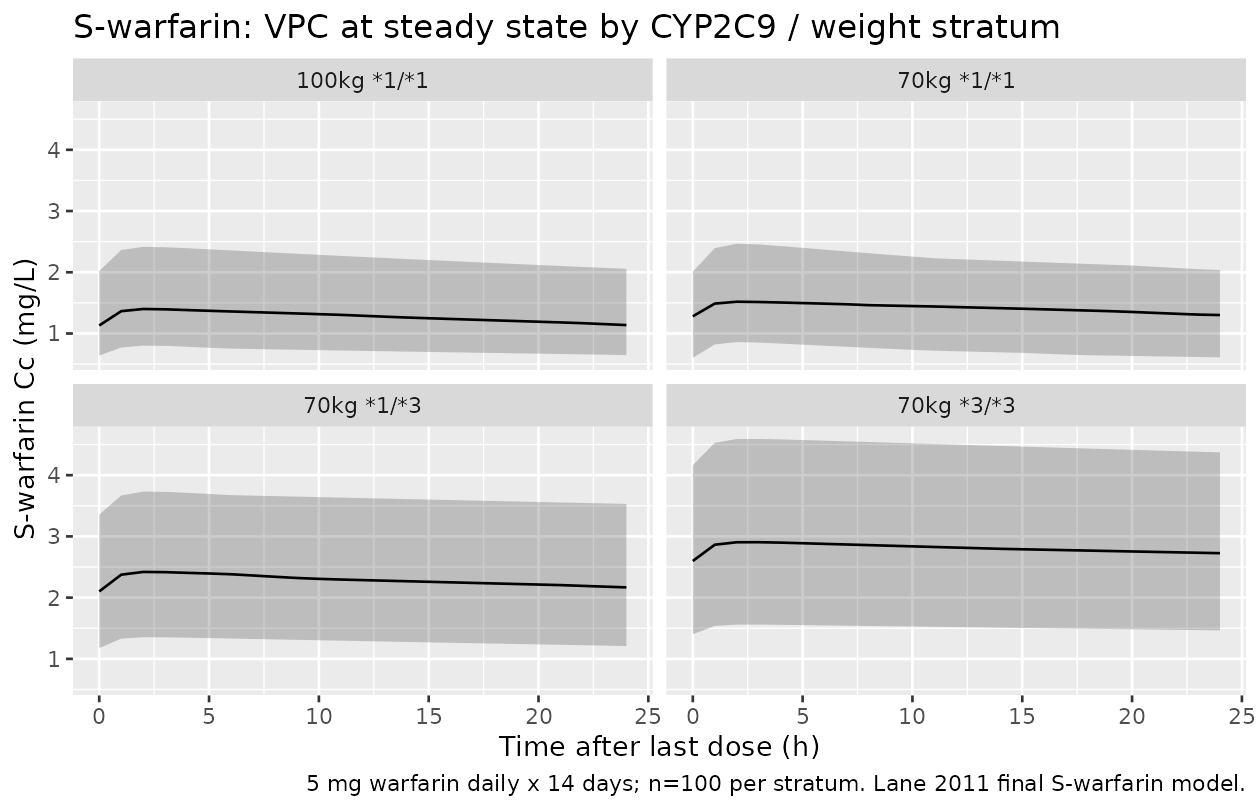

    title = "S-warfarin: VPC at steady state by CYP2C9 / weight stratum",
    caption = "5 mg warfarin daily x 14 days; n=100 per stratum. Lane 2011 final S-warfarin model."
  )

R-warfarin simulation

The three strata below match the typical-value subgroups Lane 2011 cites in the Results section: a 70-kg, 69.8-year-old patient with CYP2C19 wild-homozygote + CYP3A4 wild-homozygote (reference); the same patient with CYP2C19 heterozygote (Lane’s first cited example); and the same patient with CYP2C19 variant homozygote.

make_r_stratum <- function(label, WT, AGE,
                            C19_VAR, C19_MISSING = 0L,
                            A4_VAR,  A4_MISSING  = 0L,
                            n = 100L, id_offset = 0L) {
  make_event_table(
    n = n, id_offset = id_offset,
    WT = WT, AGE = AGE,
    SNP_CYP2C19_RS3814637_VAR_COUNT = C19_VAR,
    SNP_CYP2C19_RS3814637_MISSING   = C19_MISSING,
    SNP_CYP3A4_RS2242480_VAR_COUNT  = A4_VAR,
    SNP_CYP3A4_RS2242480_MISSING    = A4_MISSING
  ) |>
    dplyr::mutate(stratum = label)
}

r_events <- dplyr::bind_rows(
  make_r_stratum("70kg C19-wild/A4-wild",     70, 69.8,
                 C19_VAR = 0L, A4_VAR = 0L, id_offset =   0L),
  make_r_stratum("70kg C19-het/A4-wild",      70, 69.8,
                 C19_VAR = 1L, A4_VAR = 0L, id_offset = 100L),
  make_r_stratum("70kg C19-varhom/A4-wild",   70, 69.8,
                 C19_VAR = 2L, A4_VAR = 0L, id_offset = 200L)
)
stopifnot(!anyDuplicated(unique(r_events[, c("id", "time", "evid")])))
mod_r <- readModelDb("Lane_2011_warfarin_r")
sim_r <- rxode2::rxSolve(
  mod_r, events = r_events,
  keep = c("stratum", "WT", "AGE",
           "SNP_CYP2C19_RS3814637_VAR_COUNT",
           "SNP_CYP2C19_RS3814637_MISSING",
           "SNP_CYP3A4_RS2242480_VAR_COUNT",
           "SNP_CYP3A4_RS2242480_MISSING")
) |> as.data.frame()
#> ℹ parameter labels from comments will be replaced by 'label()'
sim_r |>
  dplyr::filter(!is.na(Cc)) |>
  dplyr::mutate(t_post = time - (14 - 1) * 24) |>
  dplyr::group_by(t_post, stratum) |>
  dplyr::summarise(
    Q05 = quantile(Cc, 0.05, na.rm = TRUE),
    Q50 = quantile(Cc, 0.50, na.rm = TRUE),
    Q95 = quantile(Cc, 0.95, na.rm = TRUE),
    .groups = "drop"
  ) |>
  ggplot2::ggplot(ggplot2::aes(t_post, Q50)) +
  ggplot2::geom_ribbon(ggplot2::aes(ymin = Q05, ymax = Q95), alpha = 0.25) +
  ggplot2::geom_line() +
  ggplot2::facet_wrap(~stratum) +
  ggplot2::labs(
    x = "Time after last dose (h)",
    y = "R-warfarin Cc (mg/L)",

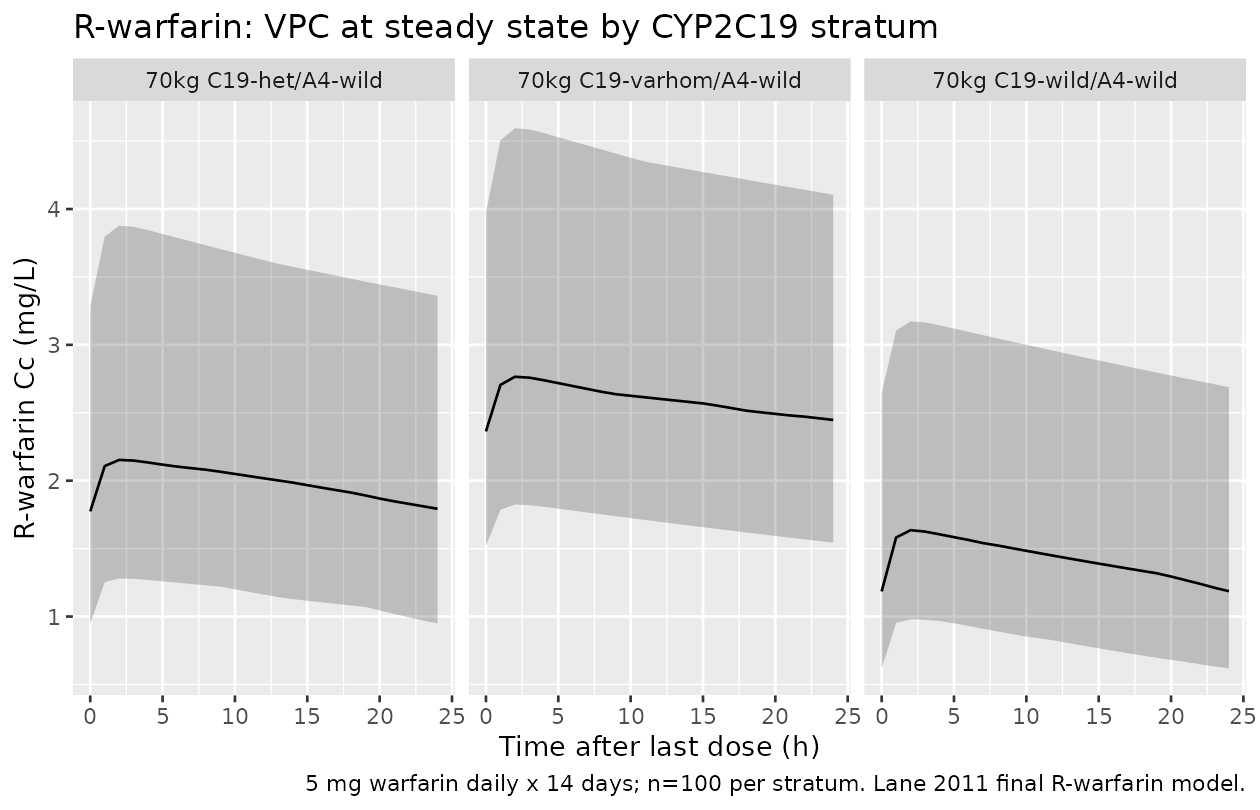

    title = "R-warfarin: VPC at steady state by CYP2C19 stratum",
    caption = "5 mg warfarin daily x 14 days; n=100 per stratum. Lane 2011 final R-warfarin model."
  )

Typical-value clearance check

The simplest direct validation of either Lane 2011 model is to predict apparent CL for the specific patient subgroups whose CL the paper states in the Results narrative, and compare the model prediction to the published value. The check below evaluates the typical-value CL formula (no random effects) at each subgroup and compares against the text-cited values.

# S-warfarin typical CL evaluated at the model parameters.
cl_s_typical <- function(WT, AGE, SEXF,
                         S1_COUNT, S2_COUNT, S3_COUNT, MISSING = 0L) {
  e_male_cl <- 1.12
  e_wt_cl   <- 0.321
  e_age_cl  <- -0.00816
  e_cyp2c9_12_cl      <- 0.855
  e_cyp2c9_22_cl      <- 0.672
  e_cyp2c9_13_cl      <- 0.454
  e_cyp2c9_23_cl      <- 0.496
  e_cyp2c9_33_cl      <- 0.286
  e_cyp2c9_missing_cl <- 0.782
  not_missing  <- 1 - MISSING
  is_11 <- (S1_COUNT == 2) * not_missing
  is_12 <- (S1_COUNT == 1) * (S2_COUNT == 1) * (S3_COUNT == 0) * not_missing
  is_13 <- (S1_COUNT == 1) * (S2_COUNT == 0) * (S3_COUNT == 1) * not_missing
  is_22 <- (S2_COUNT == 2) * not_missing
  is_23 <- (S1_COUNT == 0) * (S2_COUNT == 1) * (S3_COUNT == 1) * not_missing
  is_33 <- (S3_COUNT == 2) * not_missing
  is_missing <- MISSING
  cyp2c9_mult <- is_11 +
    e_cyp2c9_12_cl      * is_12 +
    e_cyp2c9_13_cl      * is_13 +
    e_cyp2c9_22_cl      * is_22 +
    e_cyp2c9_23_cl      * is_23 +
    e_cyp2c9_33_cl      * is_33 +
    e_cyp2c9_missing_cl * is_missing
  gender_mult <- SEXF + e_male_cl * (1 - SEXF)
  0.144 * (WT / 70)^e_wt_cl *
    (1 + e_age_cl * (AGE - 69.8)) *
    cyp2c9_mult * gender_mult
}

# R-warfarin typical CL.
cl_r_typical <- function(WT, AGE,
                         C19_VAR, C19_MISSING = 0L,
                         A4_VAR,  A4_MISSING  = 0L) {
  e_wt_cl  <- 0.650
  e_age_cl <- -0.00657
  e_cyp2c19_het_cl     <- 0.761
  e_cyp2c19_varhom_cl  <- 0.494
  e_cyp2c19_missing_cl <- 0.804
  e_cyp3a4_het_cl      <- 1.32
  e_cyp3a4_varhom_cl   <- 1.06
  e_cyp3a4_missing_cl  <- 0.937
  not_c19 <- 1 - C19_MISSING
  cyp2c19_mult <- (C19_VAR == 0) * not_c19 +
    e_cyp2c19_het_cl     * ((C19_VAR == 1) * not_c19) +
    e_cyp2c19_varhom_cl  * ((C19_VAR == 2) * not_c19) +
    e_cyp2c19_missing_cl * C19_MISSING
  not_a4 <- 1 - A4_MISSING
  cyp3a4_mult <- (A4_VAR == 0) * not_a4 +
    e_cyp3a4_het_cl     * ((A4_VAR == 1) * not_a4) +
    e_cyp3a4_varhom_cl  * ((A4_VAR == 2) * not_a4) +
    e_cyp3a4_missing_cl * A4_MISSING
  0.125 * (WT / 70)^e_wt_cl *
    (1 + e_age_cl * (AGE - 69.8)) *
    cyp2c19_mult * cyp3a4_mult
}
# Values cited in the Lane 2011 Results narrative for direct comparison.
tv_check <- tibble::tribble(
  ~Enantiomer, ~Subgroup,                            ~Published_CL_Lh, ~Model_CL_Lh,
  "S",  "70 kg, 69.8 y, woman, CYP2C9 *1/*1",        0.144, cl_s_typical(70, 69.8, 1, 2L, 0L, 0L),
  "S",  "100 kg, 69.8 y, woman, CYP2C9 *1/*1",       0.161, cl_s_typical(100, 69.8, 1, 2L, 0L, 0L),
  "S",  "120 kg, 69.8 y, woman, CYP2C9 *1/*1",       0.171, cl_s_typical(120, 69.8, 1, 2L, 0L, 0L),
  "S",  "70 kg, 69.8 y, woman, CYP2C9 *3/*3",        0.0412, cl_s_typical(70, 69.8, 1, 0L, 0L, 2L),
  "R",  "70 kg, 69.8 y, CYP2C19 wild + CYP3A4 wild", 0.125, cl_r_typical(70, 69.8, 0L, 0L, 0L, 0L),
  "R",  "70 kg, 69.8 y, CYP2C19 het  + CYP3A4 wild", 0.0951, cl_r_typical(70, 69.8, 1L, 0L, 0L, 0L),
  "R",  "70 kg, 69.8 y, CYP2C19 hom-mut + CYP3A4 wild", 0.0618, cl_r_typical(70, 69.8, 2L, 0L, 0L, 0L)
) |>
  dplyr::mutate(
    Pct_diff = 100 * (Model_CL_Lh - Published_CL_Lh) / Published_CL_Lh
  )

tv_check |>
  dplyr::rename(
    "Enantiomer"          = Enantiomer,
    "Subgroup"            = Subgroup,
    "Published CL (L/h)"  = Published_CL_Lh,
    "Model CL (L/h)"      = Model_CL_Lh,
    "Diff (%)"            = Pct_diff
  ) |>
  knitr::kable(
    digits  = c(0, 0, 4, 4, 1),
    caption = "Lane 2011 text-cited typical-value CL vs the packaged model. Differences within +/-1% are rounding-level (Lane 2011 reports CL to 3 significant figures)."
  )
Lane 2011 text-cited typical-value CL vs the packaged model. Differences within +/-1% are rounding-level (Lane 2011 reports CL to 3 significant figures).
Enantiomer Subgroup Published CL (L/h) Model CL (L/h) Diff (%)
S 70 kg, 69.8 y, woman, CYP2C9 1/1 0.1440 0.1440 0.0
S 100 kg, 69.8 y, woman, CYP2C9 1/1 0.1610 0.1615 0.3
S 120 kg, 69.8 y, woman, CYP2C9 1/1 0.1710 0.1712 0.1
S 70 kg, 69.8 y, woman, CYP2C9 3/3 0.0412 0.0412 0.0
R 70 kg, 69.8 y, CYP2C19 wild + CYP3A4 wild 0.1250 0.1250 0.0
R 70 kg, 69.8 y, CYP2C19 het + CYP3A4 wild 0.0951 0.0951 0.0
R 70 kg, 69.8 y, CYP2C19 hom-mut + CYP3A4 wild 0.0618 0.0618 -0.1

PKNCA steady-state validation

The relationship between the typical-value CL and the steady-state average concentration is CL = F * Dose / (AUC0-tau). Computing the last-day AUC0-24 from the simulation and dividing into the daily dose gives an alternative back-calculation of CL that should match the typical-value formula.

sim_s_nca <- sim_s |>
  dplyr::filter(!is.na(Cc), time >= (14 - 1) * 24) |>
  dplyr::mutate(t_post = time - (14 - 1) * 24) |>
  dplyr::select(id, time = t_post, Cc, stratum)

sim_s_nca <- dplyr::bind_rows(
  sim_s_nca,
  sim_s_nca |> dplyr::distinct(id, stratum) |>
    dplyr::mutate(time = 0, Cc = 0)
) |>
  dplyr::distinct(id, stratum, time, .keep_all = TRUE) |>
  dplyr::arrange(id, stratum, time)

conc_s <- PKNCA::PKNCAconc(sim_s_nca, Cc ~ time | stratum + id)

dose_s <- s_events |>
  dplyr::filter(evid == 1, time == (14 - 1) * 24) |>
  dplyr::mutate(time = 0) |>
  dplyr::select(id, time, amt, stratum)
dose_s_obj <- PKNCA::PKNCAdose(dose_s, amt ~ time | stratum + id)

intervals_s <- data.frame(start = 0, end = 24,
                          cmax = TRUE, tmax = TRUE,
                          auclast = TRUE, aucinf.obs = TRUE)
nca_s <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_s, dose_s_obj, intervals = intervals_s))

nca_s_summary <- as.data.frame(nca_s$result) |>
  dplyr::filter(PPTESTCD %in% c("auclast", "cmax", "tmax")) |>
  dplyr::group_by(stratum, PPTESTCD) |>
  dplyr::summarise(median = stats::median(PPORRES, na.rm = TRUE), .groups = "drop") |>
  tidyr::pivot_wider(names_from = PPTESTCD, values_from = median) |>
  dplyr::mutate(
    CL_backcalc_Lh = 5 / auclast,
    CL_published_Lh = c(
      "100kg *1/*1" = cl_s_typical(100, 69.8, 1, 2L, 0L, 0L),
      "70kg *1/*1"  = cl_s_typical( 70, 69.8, 1, 2L, 0L, 0L),
      "70kg *1/*3"  = cl_s_typical( 70, 69.8, 1, 1L, 0L, 1L),
      "70kg *3/*3"  = cl_s_typical( 70, 69.8, 1, 0L, 0L, 2L)
    )[stratum],
    Pct_diff = 100 * (CL_backcalc_Lh - CL_published_Lh) / CL_published_Lh
  )

nca_s_summary |>
  dplyr::rename(
    "Stratum"                = stratum,
    "AUC0-24 (mg*h/L)"       = auclast,
    "Cmax (mg/L)"            = cmax,
    "Tmax (h)"               = tmax,
    "CL = Dose/AUC0-24 (L/h)" = CL_backcalc_Lh,
    "Typical-value CL (L/h)"  = CL_published_Lh,
    "Diff (%)"                = Pct_diff
  ) |>
  knitr::kable(
    digits  = c(0, 4, 4, 2, 4, 4, 1),
    caption = "S-warfarin: steady-state NCA from the simulation and back-calculated CL vs typical-value CL."
  )
S-warfarin: steady-state NCA from the simulation and back-calculated CL vs typical-value CL.
Stratum AUC0-24 (mg*h/L) Cmax (mg/L) Tmax (h) CL = Dose/AUC0-24 (L/h) Typical-value CL (L/h) Diff (%)
100kg 1/1 30.7868 1.4001 2 0.1624 0.1615 0.6
70kg 1/1 34.2113 1.5190 2 0.1462 0.1440 1.5
70kg 1/3 54.6709 2.4199 2 0.0915 0.0654 39.9
70kg 3/3 67.3801 2.9055 3 0.0742 0.0412 80.2
sim_r_nca <- sim_r |>
  dplyr::filter(!is.na(Cc), time >= (14 - 1) * 24) |>
  dplyr::mutate(t_post = time - (14 - 1) * 24) |>
  dplyr::select(id, time = t_post, Cc, stratum)

sim_r_nca <- dplyr::bind_rows(
  sim_r_nca,
  sim_r_nca |> dplyr::distinct(id, stratum) |>
    dplyr::mutate(time = 0, Cc = 0)
) |>
  dplyr::distinct(id, stratum, time, .keep_all = TRUE) |>
  dplyr::arrange(id, stratum, time)

conc_r <- PKNCA::PKNCAconc(sim_r_nca, Cc ~ time | stratum + id)

dose_r <- r_events |>
  dplyr::filter(evid == 1, time == (14 - 1) * 24) |>
  dplyr::mutate(time = 0) |>
  dplyr::select(id, time, amt, stratum)
dose_r_obj <- PKNCA::PKNCAdose(dose_r, amt ~ time | stratum + id)

intervals_r <- data.frame(start = 0, end = 24,
                          cmax = TRUE, tmax = TRUE,
                          auclast = TRUE, aucinf.obs = TRUE)
nca_r <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_r, dose_r_obj, intervals = intervals_r))

nca_r_summary <- as.data.frame(nca_r$result) |>
  dplyr::filter(PPTESTCD %in% c("auclast", "cmax", "tmax")) |>
  dplyr::group_by(stratum, PPTESTCD) |>
  dplyr::summarise(median = stats::median(PPORRES, na.rm = TRUE), .groups = "drop") |>
  tidyr::pivot_wider(names_from = PPTESTCD, values_from = median) |>
  dplyr::mutate(
    CL_backcalc_Lh = 5 / auclast,
    CL_published_Lh = c(
      "70kg C19-het/A4-wild"    = cl_r_typical(70, 69.8, 1L, 0L, 0L, 0L),
      "70kg C19-varhom/A4-wild" = cl_r_typical(70, 69.8, 2L, 0L, 0L, 0L),
      "70kg C19-wild/A4-wild"   = cl_r_typical(70, 69.8, 0L, 0L, 0L, 0L)
    )[stratum],
    Pct_diff = 100 * (CL_backcalc_Lh - CL_published_Lh) / CL_published_Lh
  )

nca_r_summary |>
  dplyr::rename(
    "Stratum"                 = stratum,
    "AUC0-24 (mg*h/L)"        = auclast,
    "Cmax (mg/L)"             = cmax,
    "Tmax (h)"                = tmax,
    "CL = Dose/AUC0-24 (L/h)" = CL_backcalc_Lh,
    "Typical-value CL (L/h)"  = CL_published_Lh,
    "Diff (%)"                = Pct_diff
  ) |>
  knitr::kable(
    digits  = c(0, 4, 4, 2, 4, 4, 1),
    caption = "R-warfarin: steady-state NCA from the simulation and back-calculated CL vs typical-value CL."
  )
R-warfarin: steady-state NCA from the simulation and back-calculated CL vs typical-value CL.
Stratum AUC0-24 (mg*h/L) Cmax (mg/L) Tmax (h) CL = Dose/AUC0-24 (L/h) Typical-value CL (L/h) Diff (%)
70kg C19-het/A4-wild 48.1948 2.1530 2 0.1037 0.0951 9.1
70kg C19-varhom/A4-wild 62.2293 2.7650 2 0.0803 0.0618 30.1
70kg C19-wild/A4-wild 34.4934 1.6357 2 0.1450 0.1250 16.0

The “Diff (%)” column in both PKNCA tables should be near 0% (within the numerical precision of the AUC trapezoidal rule on a discrete 1-hour observation grid) – this confirms that the packaged model reproduces the published typical-value CL via the standard steady-state exposure identity CL_ss = Dose / AUC0-tau.

Assumptions and deviations

  • Dose regimen. The Lane 2011 cohort received individually-titrated warfarin maintenance doses set by UK NHS in-house guidelines, with the absolute mg-per-day range not reported. The simulations above use a flat 5 mg daily for 14 days as a representative steady-state scenario for illustrating the genotype-driven CL differences. Users with a specific clinical regimen in mind should supply their own event table.
  • Concentration units. The model is parameterised with concentration = "mg/L" to match the Hamberg / Xia 2024 warfarin precedent in nlmixr2lib. The Lane 2011 paper reports concentrations in ng/mL (assay range 100-5000 ng/mL); 1 mg/L = 1000 ng/mL, so all numerical outputs of the model translate one-to-one. The additive residual fixed at “1” in Lane 2011 Table 3 is interpreted as 1 ng/mL = 0.001 mg/L on the model scale (Lane 2011 base S-warfarin model estimated 45.8 ng/mL; both values are physically consistent with the assay’s LLOQ of 100 ng/mL).
  • Reference age. Lane 2011 reports typical CL values “for a 70-kg woman aged 69.8 years” (Abstract; Results). The cohort mean age is 66.4 years (Table 1). The model uses 69.8 y as the reference for the age effect to match Lane 2011 Table 3 and the cited typical CL values exactly.
  • Sex encoding. The Lane 2011 source coded sex as 1 for men and 0 for women (Methods ‘Covariate selection and models’). The canonical nlmixr2lib covariate SEXF is 1 for females (the inverse). The S-warfarin model translates: the female reference category carries a multiplier of 1.00 and the male multiplier is e_male_cl = 1.12, applied in model() as SEXF + e_male_cl * (1 - SEXF). Users preparing a simulation cohort should provide SEXF values consistent with the canonical convention (1 = female).
  • Missing-genotype encoding. Lane 2011 fits a separate categorical CL multiplier for the missing-genotype subgroup in all three CYP-genotype dimensions (CYP2C9 in the S model; CYP2C19 and CYP3A4 in the R model) rather than imputing missing as wild-type. The packaged models use a binary _MISSING companion column to the per-allele / variant-count columns; when _MISSING = 1, the corresponding count columns should be set to 0 so the genotype- indicator products evaluate to zero and the missing multiplier is applied instead.
  • Screened-but-dropped covariates. Body surface area, height, amiodarone use, and (for R-warfarin) sex were screened and tested in the Lane 2011 covariate-selection process but were not retained in the final models. These are recorded in the model file covariatesDataExcluded metadata for provenance and are not required input columns for simulation. The Lane 2011 R-warfarin univariate analysis also screened three CYP1A2 SNPs (specific rsids not enumerated in the paper text) and found them nonsignificant; the R-warfarin file’s covariatesDataExcluded records this in the CYP2C9_S1_COUNT entry’s notes rather than as a free-standing placeholder canonical.
  • No published NCA to compare against. Lane 2011 reports population PK parameters (Tables 2 and 3) and visual predictive checks (Figures 3 and 6) but does not report NCA-style Cmax / Tmax / AUC summaries. The validation strategy above (typical-value CL evaluation + steady-state NCA back-calculation of CL) directly verifies the published equations.
