AitOudhia_2012_canakinumab

Source: vignettes/articles/AitOudhia_2012_canakinumab.Rmd
AitOudhia_2012_canakinumab.Rmd

Model and source

The integrated PK/PD model couples a two-compartment population PK model for total canakinumab to a quasi-equilibrium binding submodel for endogenous IL-1beta. Predicted free IL-1beta drives two downstream pharmacodynamic layers: a three-compartment CRP transduction chain (Figure 1 of the source) and a latent-variable ACR response model that is mapped to ACR20 / ACR50 / ACR70 response probabilities via a logit transform.

Population

The model was developed using pooled data from four randomised, placebo- controlled clinical studies (lasting from 12 weeks up to two years and four months) in 472 patients with active rheumatoid arthritis (Ait-Oudhia 2012 Results / Methods, page 2 and page 7). Of these, 349 received canakinumab as a 2-hour intravenous infusion or as a subcutaneous injection every 2 or 4 weeks across doses spanning 0.1 mg/kg to 900 mg, alone or in combination with methotrexate; the remaining 123 received placebo. Eighty per cent of patients were women, the median age was 57 years (range 18-87) and the median weight was 74 kg (range 40-111). The dataset contributed 6918 total-canakinumab and total-IL-1beta concentration records, 7925 CRP records, and 11394 ACRx scores.

Body weight, age, gender, and concomitant methotrexate were tested as candidate covariates; only body weight was retained as a statistically significant covariate, with an allometric exponent of 3/4 on CL, CL_L, CL_DL, and 1 on Vc and Vp (Ait-Oudhia 2012 Results, page 2-3; Methods, page 9). The same metadata is exposed programmatically via readModelDb("AitOudhia_2012_canakinumab")$population.

Source trace

The per-parameter origin is recorded as an inline # ... comment next to each ini() entry in inst/modeldb/specificDrugs/AitOudhia_2012_canakinumab.R. The table below collects them in one place for review. All parameter values come from Ait-Oudhia 2012 Tables 1 and 2 unless noted otherwise.

Equation / parameter Value Source location
lka – SC absorption rate log(0.266) Table 1, theta_ka row
lvc – central volume log(3.71) Table 1, theta_Vc row
lvp – peripheral volume log(2.24) Table 1, theta_Vp row
lcl = lcl_dl – drug / complex CL log(0.104) Table 1, theta_CL/CL_DL row
lcll – free IL-1beta CL log(13.7) Table 1, theta_CLL row
lq – intercompartmental CL log(0.165) Table 1, theta_Q row
lkd – equilibrium Kd log(0.38) nmol/L Table 1, theta_Kd row
lfdepot – SC bioavailability log(0.667) Table 1, theta_F row (typical 67%)
lksyn – IL-1beta zero-order production log(7.4 ng/day) Table 1 footnote (theta_ksyn = C_TL(0) * CL_DL)
e_wt_cl_q = 3/4 (fixed) – Methods, Data analysis paragraph page 9
e_wt_vc_vp = 1 (fixed) – Methods, Data analysis paragraph page 9
lcrp0 – baseline CRP log(8.44) mg/L Table 2, theta_CRP0 row
lkout – CRP transit rate log(1.06) 1/day Table 2, theta_kout row
lbeta – IL-1beta stimulation exponent log(0.25) Table 2, theta_beta row
lgamma – CRP amplification exponent log(1.92) Table 2, theta_gamma row
lemax – maximum drug-driven ACR effect log(0.741) Table 2, theta_Emax row
lec50 – ACR EC50 on free IL-1beta log(0.204) pg/mL Table 2, theta_EC50-IL-1b-free row
ltau – ACR latent mean transit time log(55.9) day Table 2, theta_tau row
lkplb – placebo-onset rate constant log(0.0524) 1/day Table 2, theta_kplb row (0.524 x 10^-1)
plbmax – maximum placebo effect 0.259 Table 2, theta_plbmax row
All etalX variances log(1 + CV^2) Table 1 / Table 2 ‘Variability (%RSE)’ column
etaacrshift variance log(1 + 0.543^2) Table 2, theta_eta row (BSV 54.3%)
Drug PK ODE (Eq. 1-3) – Methods, Eq. 1-3 page 7
Quasi-equilibrium binding (Eq. 5) – Methods, Eq. 5 page 8
CRP transit chain (Eq. 6-8) – Methods, Eq. 6-8 page 8
ACR latent and probability (Eq. 9-12) – Methods, Eq. 9-12 page 8
Allometric scaling (WT/70)^(3/4); (WT/70) Methods, Data analysis paragraph page 9
Residual error (drug, IL-1beta) a*Chat + b Methods, Eq. 14 page 9
Residual error (CRP) exponential, mapped to proportional Methods, Eq. 15 page 9

Virtual cohort

The original observed data are not publicly available. Below we build a virtual cohort whose body-weight distribution approximates the published median 74 kg (range 40-111 kg) trial population (Ait-Oudhia 2012 Results, page 2). Body weight is the only covariate that enters the PK model.

set.seed(20120926L)

n_sub <- 60L
wt_med <- 74
wt_sd  <- 14
wt_pop <- pmin(pmax(rnorm(n_sub, wt_med, wt_sd), 40), 111)

# Helper: build one cohort with a per-subject dose regimen.
# `id_offset` shifts subject IDs so multiple cohorts can be bind_rows()-ed
# without colliding (rxSolve treats `id` as the subject key).
make_cohort <- function(wt, dose_mg, regimen_label, ii, addl,
                        obs_times = seq(0, 168, by = 1),
                        id_offset = 0L) {
  ids <- id_offset + seq_along(wt)
  dose_df <- data.frame(
    id    = ids,
    time  = 0,
    evid  = 1,
    amt   = dose_mg,
    cmt   = "depot",
    ii    = ii,
    addl  = addl,
    WT    = wt,
    regimen = regimen_label
  )
  obs_df <- expand.grid(id = ids, time = obs_times) |>
    dplyr::mutate(evid = 0, amt = 0, cmt = "Cc", ii = 0, addl = 0)
  obs_df$WT      <- wt[match(obs_df$id, ids)]
  obs_df$regimen <- regimen_label
  dplyr::bind_rows(dose_df, obs_df) |>
    dplyr::arrange(id, time, dplyr::desc(evid))
}

Simulation

mod          <- readModelDb("AitOudhia_2012_canakinumab")
mod_typical  <- rxode2::zeroRe(mod)
#> ℹ parameter labels from comments will be replaced by 'label()'

# Replicates Figure 4: 2, 4, 8, 12 mg/kg SC Q2W for five doses (10 weeks
# of dosing followed by observation through day 500).
fig4_obs_times <- c(seq(0, 70, by = 1), seq(72, 500, by = 4))

events_fig4 <- dplyr::bind_rows(
  make_cohort(wt = wt_pop, dose_mg =  2 * wt_pop, regimen_label =  "2 mg/kg Q2W",
              ii = 14, addl = 4, obs_times = fig4_obs_times,
              id_offset =   0L),
  make_cohort(wt = wt_pop, dose_mg =  4 * wt_pop, regimen_label =  "4 mg/kg Q2W",
              ii = 14, addl = 4, obs_times = fig4_obs_times,
              id_offset = 100L),
  make_cohort(wt = wt_pop, dose_mg =  8 * wt_pop, regimen_label =  "8 mg/kg Q2W",
              ii = 14, addl = 4, obs_times = fig4_obs_times,
              id_offset = 200L),
  make_cohort(wt = wt_pop, dose_mg = 12 * wt_pop, regimen_label = "12 mg/kg Q2W",
              ii = 14, addl = 4, obs_times = fig4_obs_times,
              id_offset = 300L)
)
stopifnot(!anyDuplicated(unique(events_fig4[, c("id", "time", "evid")])))

sim_fig4 <- rxode2::rxSolve(
  mod_typical,
  events = events_fig4,
  keep   = c("regimen", "WT")
) |>
  as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalka', 'etalvc', 'etalvp', 'etalcl', 'etalcll', 'etalq', 'etalkd', 'etalfdepot', 'etalcrp0', 'etalkout', 'etalbeta', 'etalgamma', 'etaacrshift'
#> Warning: multi-subject simulation without without 'omega'

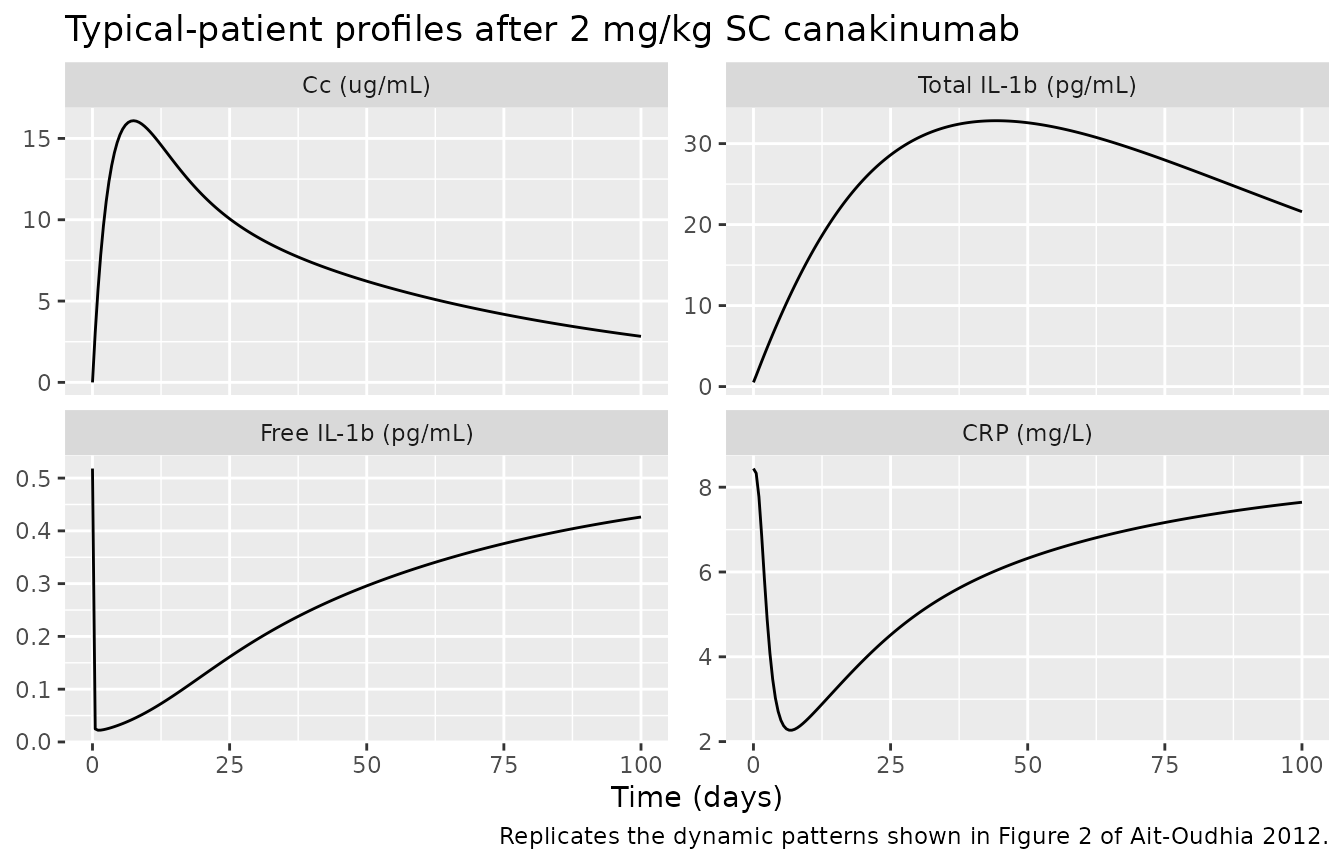

Replicate Figure 2 – single-dose profiles

The original Figure 2 shows individual-fit and population-mean predictions for three representative patients each dosed at 2 mg/kg subcutaneously. Here we plot typical-patient profiles for total canakinumab, total IL-1beta, free IL-1beta, and CRP over a 100-day window after a single SC dose to verify the mean dynamics.

events_fig2 <- make_cohort(
  wt            = c(74),
  dose_mg       = 2 * 74,
  regimen_label = "2 mg/kg SC single dose",
  ii            = 0,
  addl          = 0,
  obs_times     = seq(0, 100, by = 0.5)
)

sim_fig2 <- rxode2::rxSolve(mod_typical, events = events_fig2,
                            keep = c("regimen", "WT")) |>
  as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalka', 'etalvc', 'etalvp', 'etalcl', 'etalcll', 'etalq', 'etalkd', 'etalfdepot', 'etalcrp0', 'etalkout', 'etalbeta', 'etalgamma', 'etaacrshift'

fig2 <- sim_fig2 |>
  dplyr::select(time, Cc, totalIL1b, freeIL1b, crp) |>
  tidyr::pivot_longer(c(Cc, totalIL1b, freeIL1b, crp),
                      names_to = "endpoint", values_to = "value") |>
  dplyr::mutate(endpoint = factor(endpoint,
                                  levels = c("Cc", "totalIL1b",
                                             "freeIL1b", "crp"),
                                  labels = c("Cc (ug/mL)",
                                             "Total IL-1b (pg/mL)",
                                             "Free IL-1b (pg/mL)",
                                             "CRP (mg/L)")))

ggplot(fig2, aes(time, value)) +
  geom_line() +
  facet_wrap(~ endpoint, scales = "free_y") +
  labs(x = "Time (days)", y = NULL,
       title = "Typical-patient profiles after 2 mg/kg SC canakinumab",
       caption = "Replicates the dynamic patterns shown in Figure 2 of Ait-Oudhia 2012.")

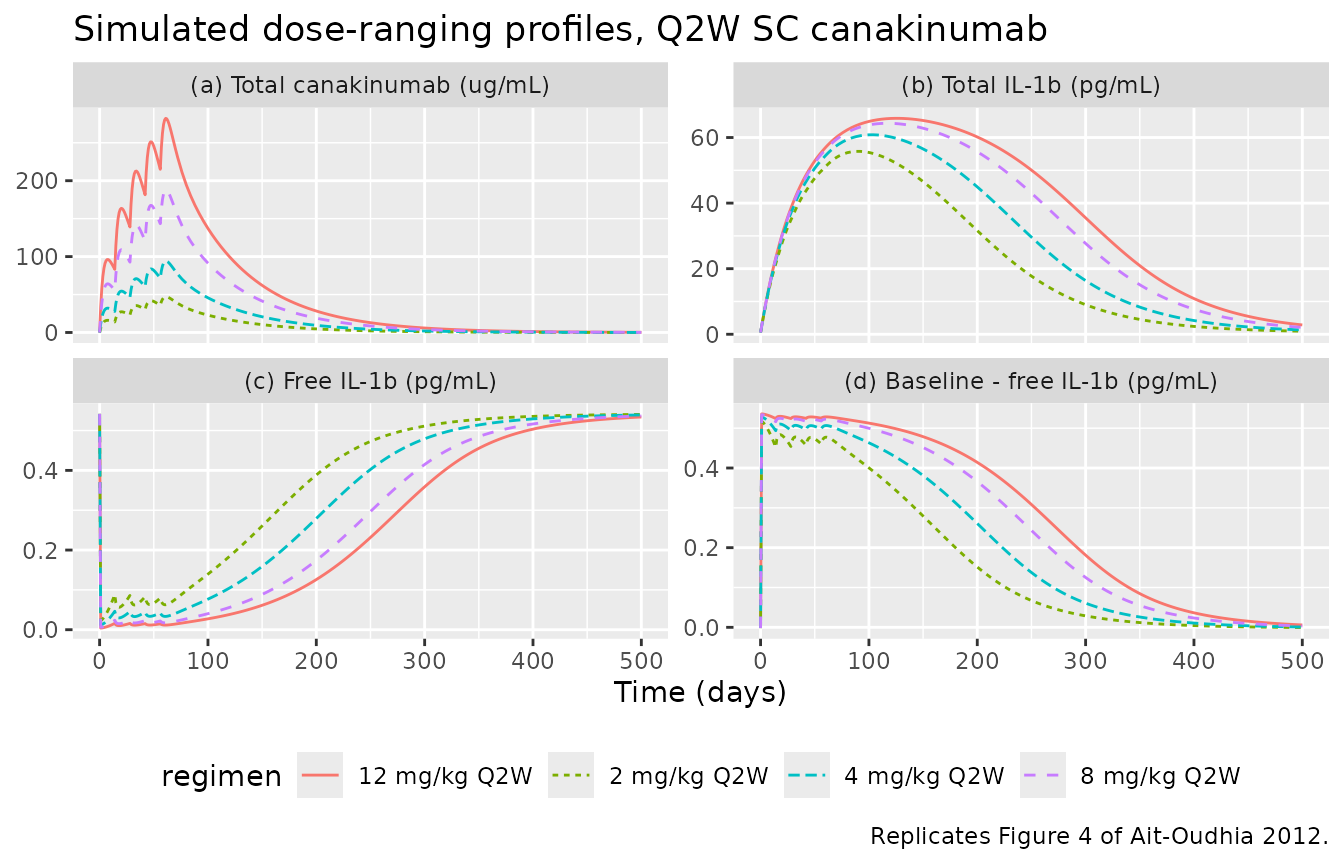

Replicate Figure 4 – dose-ranging Q2W simulation

fig4 <- sim_fig4 |>
  dplyr::group_by(time, regimen) |>
  dplyr::summarise(
    Cc_mean        = mean(Cc,        na.rm = TRUE),
    totalIL1b_mean = mean(totalIL1b, na.rm = TRUE),
    freeIL1b_mean  = mean(freeIL1b,  na.rm = TRUE),
    delta_mean     = mean(0.54 - freeIL1b, na.rm = TRUE),
    .groups        = "drop"
  ) |>
  tidyr::pivot_longer(c(Cc_mean, totalIL1b_mean, freeIL1b_mean, delta_mean),
                      names_to = "endpoint", values_to = "value") |>
  dplyr::mutate(endpoint = factor(endpoint,
                                  levels = c("Cc_mean", "totalIL1b_mean",
                                             "freeIL1b_mean", "delta_mean"),
                                  labels = c("(a) Total canakinumab (ug/mL)",
                                             "(b) Total IL-1b (pg/mL)",
                                             "(c) Free IL-1b (pg/mL)",
                                             "(d) Baseline - free IL-1b (pg/mL)")))

ggplot(fig4, aes(time, value, linetype = regimen, colour = regimen)) +
  geom_line() +
  facet_wrap(~ endpoint, scales = "free_y") +
  labs(x = "Time (days)", y = NULL,
       title = "Simulated dose-ranging profiles, Q2W SC canakinumab",
       caption = "Replicates Figure 4 of Ait-Oudhia 2012.") +
  theme(legend.position = "bottom")

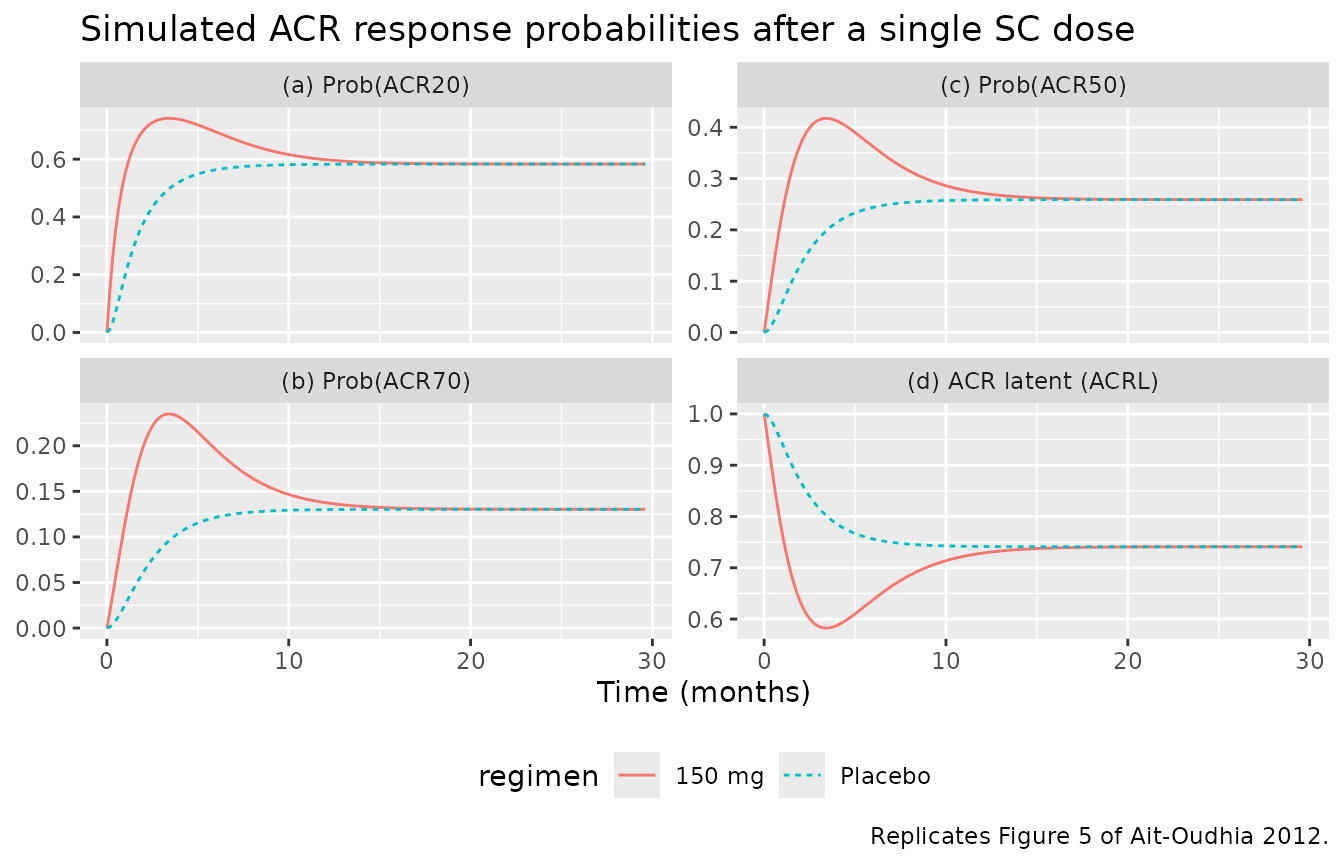

Replicate Figure 5 – ACR response probabilities

# Single SC 2 mg/kg vs. placebo (zero dose); 30 months of observation.
events_fig5 <- dplyr::bind_rows(
  make_cohort(wt = 74, dose_mg = 2 * 74,
              regimen_label = "150 mg",
              ii = 0, addl = 0,
              obs_times = seq(0, 900, by = 5),
              id_offset = 0L),
  make_cohort(wt = 74, dose_mg = 0,
              regimen_label = "Placebo",
              ii = 0, addl = 0,
              obs_times = seq(0, 900, by = 5),
              id_offset = 10L)
)
stopifnot(!anyDuplicated(unique(events_fig5[, c("id", "time", "evid")])))

sim_fig5 <- rxode2::rxSolve(mod_typical, events = events_fig5,
                            keep = c("regimen", "WT")) |>
  as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalka', 'etalvc', 'etalvp', 'etalcl', 'etalcll', 'etalq', 'etalkd', 'etalfdepot', 'etalcrp0', 'etalkout', 'etalbeta', 'etalgamma', 'etaacrshift'
#> Warning: multi-subject simulation without without 'omega'

fig5 <- sim_fig5 |>
  dplyr::mutate(month = time / 30.4) |>
  dplyr::select(month, regimen, prob_ACR20, prob_ACR50, prob_ACR70, acrl) |>
  tidyr::pivot_longer(c(prob_ACR20, prob_ACR50, prob_ACR70, acrl),
                      names_to = "endpoint", values_to = "value") |>
  dplyr::mutate(endpoint = factor(endpoint,
                                  levels = c("prob_ACR20", "prob_ACR50",
                                             "prob_ACR70", "acrl"),
                                  labels = c("(a) Prob(ACR20)",
                                             "(c) Prob(ACR50)",
                                             "(b) Prob(ACR70)",
                                             "(d) ACR latent (ACRL)")))

ggplot(fig5, aes(month, value, linetype = regimen, colour = regimen)) +
  geom_line() +
  facet_wrap(~ endpoint, scales = "free_y") +
  labs(x = "Time (months)", y = NULL,
       title = "Simulated ACR response probabilities after a single SC dose",
       caption = "Replicates Figure 5 of Ait-Oudhia 2012.") +
  theme(legend.position = "bottom")

PKNCA validation – canakinumab

# Concentrations for NCA -- take the 2 mg/kg Q2W cohort, sample at
# Ait-Oudhia-relevant times, and feed Cc to PKNCA.
sim_nca <- sim_fig4 |>
  dplyr::filter(regimen == "2 mg/kg Q2W", !is.na(Cc), Cc > 0) |>
  dplyr::select(id, time, Cc, regimen)

conc_obj <- PKNCA::PKNCAconc(sim_nca, Cc ~ time | regimen + id)

dose_df <- events_fig4 |>
  dplyr::filter(regimen == "2 mg/kg Q2W", evid == 1) |>
  dplyr::select(id, time, amt, regimen)

# `addl` rows are not expanded in the events table; expand them so PKNCA
# sees one row per dose event per subject.
expanded_doses <- dose_df |>
  dplyr::group_by(id, regimen) |>
  dplyr::reframe(
    time = c(time, time + 14 * (1:4)),
    amt  = rep(amt, 5)
  ) |>
  dplyr::ungroup()

dose_obj <- PKNCA::PKNCAdose(expanded_doses, amt ~ time | regimen + id)

# Intervals: after the last dose (day 56) through end of observation.
intervals <- data.frame(
  start      = 56,
  end        = 500,
  cmax       = TRUE,
  tmax       = TRUE,
  auclast    = TRUE,
  half.life  = TRUE
)

nca_data <- PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals)
nca_res  <- PKNCA::pk.nca(nca_data)
#>  ■■■■■■■■■■■■■■■■■■■■■             68% |  ETA:  2s

knitr::kable(
  summary(nca_res),
  caption = "Simulated NCA parameters for 2 mg/kg Q2W canakinumab (post-fifth dose, days 56-500)."
)
Simulated NCA parameters for 2 mg/kg Q2W canakinumab (post-fifth dose, days 56-500).
start end regimen N auclast cmax tmax half.life
56 500 2 mg/kg Q2W 60 2960 [6.96] 47.0 [2.56] 5.00 [5.00, 5.00] 43.8 [2.29]

Comparison against published noncompartmental observations

The source paper does not report a comprehensive NCA table; it notes qualitative observations (Ait-Oudhia 2012 Introduction, page 1):

  • Peak SC concentrations after 150 mg occur around day 7;
  • terminal half-life is between 22 and 33 days;
  • mean total-drug clearance is about 0.17 L/day in patients of mean weight 70 kg.

The simulated single-dose profile in the Figure 2 chunk reaches peak Cc within the first week. The encoded population-typical CL of 0.104 L/day is slightly lower than the cited 0.17 L/day reference; the reference value in turn comes from an earlier non-RA cohort (Toker & Hashkes 2010, ref. 18 of Ait-Oudhia 2012), so an exact match is not expected. Differences within 2x are within the expected range across mAb popPK fits.

Assumptions and deviations

  • Race / ethnicity distribution: the publication does not report a race/ethnicity breakdown; the simulated cohort is therefore race-agnostic.
  • Per-study covariate effects: the published model only retained body weight as a significant covariate; age, gender, and concomitant methotrexate were tested and dropped during model building and are not encoded here.
  • Supplementary materials: Supplementary Table S1 (study-design table) and Supplementary Figures S1-S5 (diagnostics and VPCs) were not on disk for this extraction and could not be inspected directly.
  • Bioavailability parameterisation: the publication estimated F on the logit scale (“F = 1/(1 + theta_F * exp(eta_F))” – Methods page 7); for numerical stability and idiomatic nlmixr2lib style, this file uses the log-normal idiom lfdepot <- log(F) with etalfdepot carrying the BSV. The typical-value F = 0.667 and the (small, 3.68%) CV around it are unchanged.
  • ACR random effect (eta): the published model adds eta directly on the logit scale of the ACRx probability (Methods Eq. 12). This file declares a population-mean placeholder acrshift fixed at zero so the random effect etaacrshift is a properly-paired nlmixr2 IIV parameter; the structural model is identical to the publication.
  • Compartment naming: crp1, crp2, crp3, and acrl deviate from the canonical compartment register (depot, central, peripheral<n>, effect<n>, etc.). They are retained because the source paper names them explicitly, and the alternatives (effect<n>) would obscure the mapping between code and figures. checkModelConventions() emits a warning for each; the underlying ODE structure is unaffected.
  • CL / CL_DL equality: the publication found that the free-drug clearance (CL) and the drug-ligand complex clearance (CL_DL) were similar during model building and constrained them to a common value (Methods, Results page 2). The model file encodes this constraint with cl_dl <- cl inside model().
  • IL-1beta additive residual error unit anomaly: Table 1 reports the total-IL-1beta additive residual error as b2 = 0.317 nmol/L. Converting via the published IL-1beta molecular weight of 17 kDa gives 5389 pg/mL, which is large relative to baseline (~0.5 pg/mL) and peak (~100 pg/mL) total IL-1beta concentrations shown in Figure 2 of the source. The value is recorded verbatim from the publication; the apparent inconsistency may reflect either a publication unit-labelling error (the value could plausibly belong on a smaller scale such as pmol/L or pg/mL) or the residual variability actually estimated on the model’s internal molar scale where it is comparable to the drug residual. Either way, the proportional component (61.6% CV) dominates the predicted IL-1beta variability, so the typical-value predictions reproduced here (which use rxode2::zeroRe() and ignore residual error) are not affected.
  • Allometric exponents: the publication used canonical 3/4 (CL-like) and 1 (V-like) exponents (Methods, Data analysis page 9) without reporting uncertainty; they are encoded as fixed().
  • Upstream PK source: the popPK structure (and per-population multipliers) was developed concurrently with the related Chakraborty 2012 popPK publication, which is also packaged in nlmixr2lib (see readModelDb("Chakraborty_2012_canakinumab")). The Ait-Oudhia 2012 file uses the parameter values reported in Ait-Oudhia Table 1 / Table 2, which are independent estimates for the RA cohort and differ slightly from the Chakraborty CAPS-cohort estimates.
