Edoxaban (Niebecker 2015)

Source: vignettes/articles/Niebecker_2015_edoxaban.Rmd
Niebecker_2015_edoxaban.Rmd

Model and source

  • Citation: Niebecker R, Jonsson S, Karlsson MO, Miller R, Nyberg J, Krekels EHJ, Simonsson USH. Population pharmacokinetics of edoxaban in patients with symptomatic deep-vein thrombosis and/or pulmonary embolism - the Hokusai-VTE phase 3 study. Br J Clin Pharmacol. 2015;80(6):1374-1387. doi:10.1111/bcp.12727.
  • Description: Two-compartment population PK model with first-order absorption and a lag time for edoxaban in adults; pooled phase 1 healthy volunteers (13 studies) and Hokusai-VTE phase 3 patients with deep-vein thrombosis or pulmonary embolism (Niebecker 2015). Apparent clearance is split into a non-renal component and a piecewise-linear renal component driven by creatinine clearance, with a phase-3 patient effect on the upper-CLcr slope and on Q/F. Asian race increases Vc/F; concomitant P-glycoprotein inhibitors increase phase-1 CL/F and F. The fed-state study 6 has a slower ka and higher non-renal CL/F (FED covariate).
  • Article: https://doi.org/10.1111/bcp.12727

Population

The Niebecker 2015 popPK model is fit to a pooled analysis of 4,130 subjects with 17,406 plasma edoxaban concentrations across 14 studies: the Hokusai-VTE phase 3 trial (NCT00986154; 3,707 patients with symptomatic deep-vein thrombosis or pulmonary embolism receiving 30 or 60 mg edoxaban orally once daily; 9,531 observations) and 13 pooled phase 1 studies in healthy volunteers (443 subjects; 8,652 observations) covering single-dose, multiple-dose, food-effect, renal-impairment, and drug-drug-interaction designs (Niebecker 2015 Table 1).

Hokusai-VTE patient demographics (Niebecker 2015 Table 2): median age 57 years (10th-90th percentile 32.6-76.0), median body weight 80.5 kg (60-108), median Cockcroft-Gault creatinine clearance 99 mL/min (57.5-151), 42% female, 71% White, 20% Asian, 3% Black, 5% Other. Phase 1 cohorts skew younger (median 30 years, 22-44) and more male (20% female). The model captures these between-cohort differences via STUDY_HOKVTE (phase 1 vs phase 3) and RACE_ASIAN covariates.

The same information is available programmatically via rxode2::rxode(readModelDb("Niebecker_2015_edoxaban"))$meta$population (or inspect the model file inst/modeldb/specificDrugs/Niebecker_2015_edoxaban.R).

Source trace

Per-parameter origin is in the model file (inst/modeldb/specificDrugs/Niebecker_2015_edoxaban.R) as inline comments. The table below collects each parameter’s source location.

Equation / parameter Value Source location
lka (ka, 1/h) 3.36 Table 3 final-model column
lcl_nonren (CLnr/F, L/h) 15.2 Table 3 final-model column
lvc (Vc/F, L) 209 Table 3 final-model column
lvp (Vp/F, L) 92.3 Table 3 final-model column
lq (Q/F, L/h) 5.91 Table 3 final-model column
ltlag (tlag, h, FIXED) 0.250 Table 3 final-model column, footnote sect (“tlag fixed to phase 1 estimate”)
e_crcl_cl_renal_slope1 0.202 Table 3 footnote paragraph mark (piecewise CLcr on CL/F, slope 1)
e_crcl_cl_renal_slope2 0.0321 Table 3 footnote paragraph mark (slope 2, phase 1)
e_study_hokvte_cl_renal_slope2 2.74 Table 3 final-model column (“Scaling parameter for slope 2 in phase 3” = 274%)
e_race_asian_vc 0.226 Table 3 final-model column (“Fractional change in Vc/F for Asians” = 22.6%)
e_study_hokvte_q 0.646 Table 3 final-model column (“Fractional change in Q/F for phase 3” = 64.6%)
e_pgp_inh_cl 0.334 Table 3 final-model column (“P-gp inhibitors on CL, phase 1” = 33.4%)
e_pgp_inh_f 1.25 Table 3 final-model column (“P-gp inhibitors on F, phase 1” = 125%)
e_fed_ka -0.690 Table 3 final-model column (“Fractional change in ka study 6”)
e_fed_cl_nonren 0.204 Table 3 final-model column (CLnr/F study 6 = 18.3 vs 15.2; 18.3/15.2 - 1)
theta_scale_cl_vc 1.56 Table 3 final-model column (“Scaling parameter CL/F-Vc/F”)
theta_scale_vp_q (FIXED) 1.00 Table 3 final-model column (theta_Scale2 = 1.00 FIXED)
Allometric (WT/70)^(3/4) on CL/F 0.75 Table 3 footnote paragraph mark mark
Allometric (WT/70)^1 on Vc/F 1.00 Table 3 footnote paragraph mark mark
Allometric (WT/70)^(3/4) on Vp/F (paper-as-printed) 0.75 Table 3 footnote paragraph mark mark
Allometric (WT/70)^1 on Q/F (paper-as-printed) 1.00 Table 3 footnote paragraph mark mark
IIV CL/F (omega^2 for etalcl) 0.02196 Table 3 final-model column (“CL/F (eta1)” = 14.9% CV; omega^2 = log(1 + 0.149^2))
IIV Vp/F (omega^2 for etalvp) 0.24505 Table 3 final-model column (“Vp/F (eta2)” = 52.7% CV; omega^2 = log(1 + 0.527^2))
cov(etalcl, etalvp) 0.03133 Table 3 final-model column (“Correlation eta1 and eta2” = 42.7%; cov = 0.427 * sqrt(0.02196 * 0.24505))
IIV tlag (omega^2 for etaltlag) 0.29442 Table 3 final-model column (58.5% CV)
IIV on RUV (omega^2 for etalrv; anchored by fixed lrv = log(1)) 0.10516 Table 3 final-model column (“IIV on Residual unexplained variability” = 33.3% CV)
propSdPhase1 0.142 Table 3 final-model column (“Proportional residual error phase 1” = 14.2% CV)
propSdPhase3Inc 0.544 Table 3 final-model column (“Incremental proportional residual error phase 3” = 54.4% CV)
Piecewise CLcr formula n/a Table 3 footnote paragraph mark (Typical CL/F = CLnr/F + slope1*CLcr below 90; slope2 kicks in above 90)
CLcr truncation at 150 mL/min n/a Methods, base model development paragraph
ODE 2-cmt + depot + lag n/a Results, Model development – base model (linear 2-cmt, first-order absorption preceded by tlag)

Virtual cohort

Original Hokusai-VTE data are not publicly available. The virtual cohort below approximates Niebecker 2015 Table 2 phase 3 demographics: 200 patients with body weight, creatinine clearance, and Asian-race indicator sampled from distributions matching the published 10th-50th-90th percentiles. All subjects are simulated under non-dose-reduced 60 mg once-daily dosing (the largest Hokusai-VTE subgroup; 7,879 observations from 3,106 patients per Figure 4 panel-1 caption).

set.seed(8675309)

n_sub <- 200L

# Sample WT and CRCL from log-normal distributions whose median and CV match
# the Hokusai-VTE Table 2 cohort. Truncate to the published 10th-90th percentile
# range to keep cohort tails realistic.
wt_med   <- 80.5
wt_cv    <- 0.18       # gives ~10-90 % range of 60-108 kg
crcl_med <- 99
crcl_cv  <- 0.35       # gives ~10-90 % range of 57-151 mL/min

cohort <- tibble(
  id    = seq_len(n_sub),
  WT    = pmin(pmax(rlnorm(n_sub, log(wt_med),   wt_cv),   50), 120),
  CRCL  = pmin(pmax(rlnorm(n_sub, log(crcl_med), crcl_cv), 30), 200),
  RACE_ASIAN   = as.integer(runif(n_sub) < 0.201),
  PGP_INH      = 0L,        # non-dose-reduced 60 mg cohort has no P-gp inhibitor coadministration
  STUDY_HOKVTE = 1L,        # Hokusai-VTE phase 3 patient cohort
  FED          = 0L,        # overnight-fast (matches all Hokusai-VTE PK observations)
  treatment    = "60 mg QD (Hokusai-VTE)"
)

The simulation drives a steady-state 60 mg once-daily regimen for 14 days; PKNCA is computed on the final dosing interval (day 13 to day 14).

tau     <- 24                                 # dosing interval (hours)
n_doses <- 14L                                # 14 once-daily doses -> close to steady state
dose_mg <- 60                                 # non-dose-reduced edoxaban regimen

# Sample times: dense over the final dosing interval (288-312 h) to capture Cmax /
# Cmin / AUC, plus pre-dose troughs at every dose to confirm steady state.
sample_times <- c(
  seq(0, (n_doses - 1) * tau, by = tau),                       # pre-dose troughs
  (n_doses - 1) * tau + c(0.25, 0.5, 1, 1.5, 2, 3, 4, 6, 8,    # dense final interval
                          12, 16, 20, 24)
) |> unique() |> sort()

# Build per-subject dose + sampling rows, then attach covariates from the
# cohort by id. Materialise as a data.frame BEFORE assigning covariate columns
# (rxode2's rxEt object silently drops $col<- assignments).
ev <- rxode2::et()
for (k in seq_len(n_doses)) {
  ev <- ev |> rxode2::et(dose = dose_mg, time = (k - 1) * tau, cmt = "depot")
}
ev <- ev |> rxode2::et(sample_times)
ev_df <- as.data.frame(ev)

events <- tidyr::expand_grid(id = cohort$id, ev_df) |>
  dplyr::select(-dplyr::any_of("id...1")) |>
  dplyr::left_join(cohort, by = "id") |>
  dplyr::arrange(id, time, dplyr::desc(evid)) |>
  dplyr::mutate(
    amt = ifelse(evid == 1, dose_mg, 0)
  )

# Sanity check: each subject sees n_doses dose rows + length(sample_times) obs rows.
stopifnot(
  nrow(events) == n_sub * (n_doses + length(sample_times)),
  !anyDuplicated(unique(events[, c("id", "time", "evid")]))
)

Simulation

mod <- rxode2::rxode(readModelDb("Niebecker_2015_edoxaban"))
#> ℹ parameter labels from comments will be replaced by 'label()'

sim <- rxode2::rxSolve(
  mod,
  events = events,
  keep   = c("treatment", "WT", "CRCL", "RACE_ASIAN", "STUDY_HOKVTE", "FED")
) |>
  as.data.frame()

Typical-value simulation (zero between-subject variability) for the deterministic concentration-time profile shown in Figure 2 / 3 of the source paper.

mod_typical <- rxode2::zeroRe(mod)
#> Warning: No sigma parameters in the model
sim_typical <- rxode2::rxSolve(
  mod_typical,
  events = events,
  keep   = c("treatment")
) |>
  as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp', 'etaltlag', 'etalrv'
#> Warning: multi-subject simulation without without 'omega'

Replicate published figures

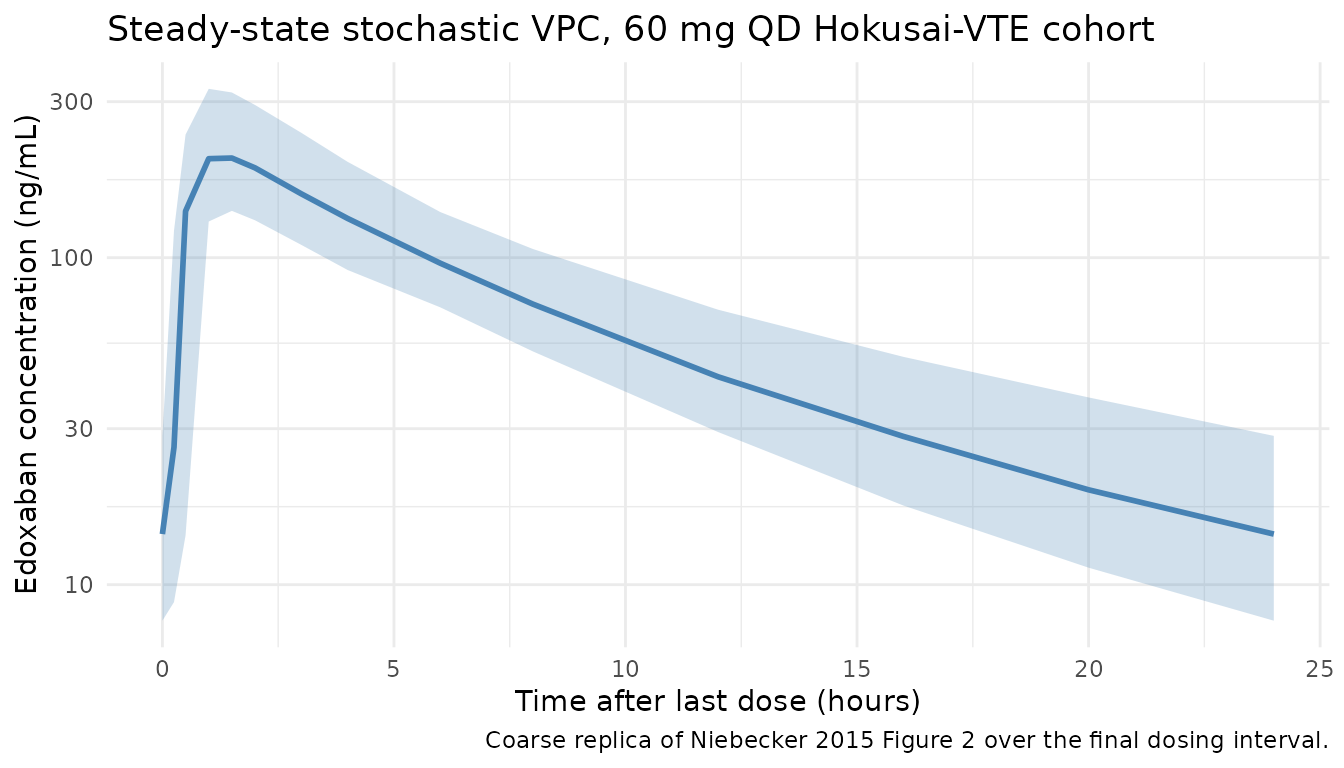

# Replicates Figure 2 of Niebecker 2015 (prediction-corrected VPC; this is a
# coarse stochastic-VPC replica showing simulated 5th/50th/95th percentiles
# over the steady-state dosing interval).
sim_ss <- sim |>
  dplyr::filter(time >= (n_doses - 1) * tau) |>
  dplyr::mutate(tad = time - (n_doses - 1) * tau)

sim_ss |>
  dplyr::group_by(tad) |>
  dplyr::summarise(
    Q05 = quantile(Cc, 0.05, na.rm = TRUE),
    Q50 = quantile(Cc, 0.50, na.rm = TRUE),
    Q95 = quantile(Cc, 0.95, na.rm = TRUE),
    .groups = "drop"
  ) |>
  ggplot(aes(tad, Q50)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.25, fill = "steelblue") +
  geom_line(color = "steelblue", linewidth = 1) +
  scale_y_log10() +
  labs(
    x       = "Time after last dose (hours)",
    y       = "Edoxaban concentration (ng/mL)",
    title   = "Steady-state stochastic VPC, 60 mg QD Hokusai-VTE cohort",
    caption = "Coarse replica of Niebecker 2015 Figure 2 over the final dosing interval."
  ) +
  theme_minimal()

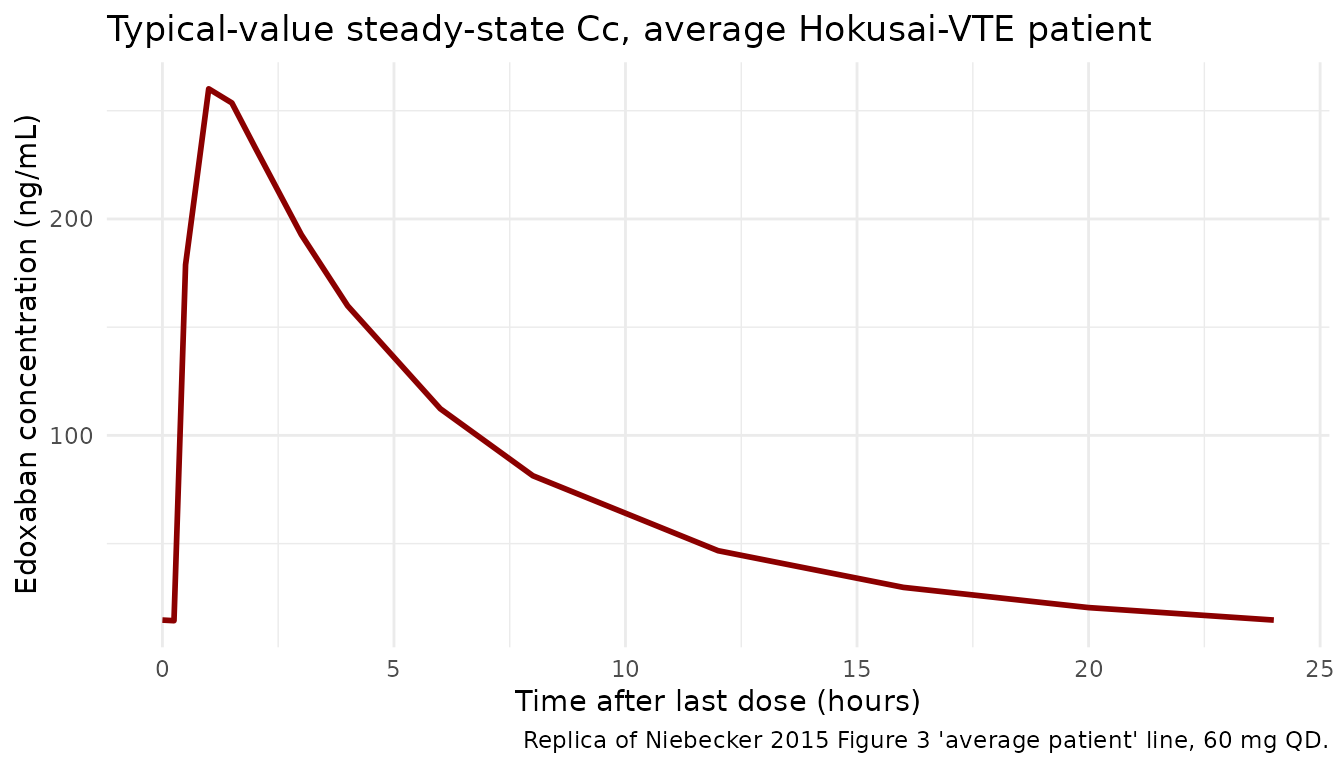

# Replicates the average-individual line in Niebecker 2015 Figure 3 (typical-value
# steady-state concentration-time profile for a non-dose-reduced 60 mg QD
# Hokusai-VTE patient).
sim_typical_ss <- sim_typical |>
  dplyr::filter(time >= (n_doses - 1) * tau) |>
  dplyr::mutate(tad = time - (n_doses - 1) * tau)

# A single typical-value subject is enough (zero IIV); take id == 1.
sim_typical_ss |>
  dplyr::filter(id == 1) |>
  ggplot(aes(tad, Cc)) +
  geom_line(color = "darkred", linewidth = 1) +
  labs(
    x       = "Time after last dose (hours)",
    y       = "Edoxaban concentration (ng/mL)",
    title   = "Typical-value steady-state Cc, average Hokusai-VTE patient",
    caption = "Replica of Niebecker 2015 Figure 3 'average patient' line, 60 mg QD."
  ) +
  theme_minimal()

PKNCA validation

Steady-state Cmax, Cmin, AUC0-tau, and Cavg over the final dosing interval.

sim_nca <- sim |>
  dplyr::filter(!is.na(Cc)) |>
  dplyr::select(id, time, Cc, treatment)

# Guarantee a pre-dose row exists at the start of each subject's record.
# The simulation grid above samples at time = 0, but defensively bind in case
# any subject lost the time-zero row during filtering.
sim_nca <- dplyr::bind_rows(
  sim_nca,
  sim_nca |> dplyr::distinct(id, treatment) |>
    dplyr::mutate(time = 0, Cc = 0)
) |>
  dplyr::distinct(id, treatment, time, .keep_all = TRUE) |>
  dplyr::arrange(id, treatment, time)

dose_df <- events |>
  dplyr::filter(evid == 1) |>
  dplyr::select(id, time, amt, treatment)

conc_obj <- PKNCA::PKNCAconc(
  sim_nca, Cc ~ time | treatment + id,
  concu = "ng/mL", timeu = "hour"
)
dose_obj <- PKNCA::PKNCAdose(
  dose_df, amt ~ time | treatment + id,
  doseu = "mg"
)

# Steady-state interval over the final dosing window (h 312 to h 336, 14th dose).
start_ss <- (n_doses - 1) * tau
end_ss   <- n_doses * tau

intervals <- data.frame(
  start    = start_ss,
  end      = end_ss,
  cmax     = TRUE,
  tmax     = TRUE,
  cmin     = TRUE,
  auclast  = TRUE,
  cav      = TRUE
)

nca_data <- PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals)
nca_res  <- PKNCA::pk.nca(nca_data)

Comparison against published NCA

Niebecker 2015 does not tabulate NCA values directly; the paper reports distributions of empirical-Bayes individual predictions of Cmax, Cmin, and Css,av in Figure 4. The published reference values below are coarsely digitised medians from Figure 4 panel-1 (non-dose-reduced 60 mg once-daily cohort) and are illustrative rather than definitive – agreement within roughly +/- 25% of the simulation median is the practical bar for this comparison.

# Coarse medians digitised from Niebecker 2015 Figure 4 panel A/B/C, non-dose-
# reduced 60 mg once-daily Hokusai-VTE patient subgroup (7,879 observations from
# 3,106 patients): Cmax ~250 ng/mL, Cmin ~30 ng/mL, Cssav ~85 ng/mL.
published <- tibble::tribble(
  ~treatment,                 ~cmax, ~cmin, ~cav,
  "60 mg QD (Hokusai-VTE)",   250,    30,    85
)

cmp <- nlmixr2lib::ncaComparisonTable(
  simulated     = nca_res,
  reference     = published,
  by            = "treatment",
  units         = c(cmax = "ng/mL", cmin = "ng/mL", cav = "ng/mL"),
  tolerance_pct = 25
)

knitr::kable(
  cmp,
  caption = "Simulated steady-state NCA vs Figure 4 medians (Niebecker 2015 non-dose-reduced 60 mg QD Hokusai-VTE cohort). * differs from reference by >25%.",
  align   = c("l", "l", "r", "r", "r")
)
Simulated steady-state NCA vs Figure 4 medians (Niebecker 2015 non-dose-reduced 60 mg QD Hokusai-VTE cohort). * differs from reference by >25%.
NCA parameter treatment Reference Simulated % diff
Cmax (ng/mL) 60 mg QD (Hokusai-VTE) 250 207 -17.4%
Cmin (ng/mL) 60 mg QD (Hokusai-VTE) 30 14.3 -52.4%*
Cavg (ng/mL) 60 mg QD (Hokusai-VTE) 85 66 -22.3%

Assumptions and deviations

  • Allometric exponent assignment (paper-as-printed). Table 3 footnote paragraph mark mark of Niebecker 2015 prints the allometric forms as CL/F * (WT/70)^(3/4), Vc/F * (WT/70)^1, Vp/F * (WT/70)^(3/4), and Q/F * (WT/70)^1. The Vp/F-at-3/4 and Q/F-at-1 assignment is the opposite of the more common volume-at-1 / clearance-at-3/4 grouping; the model file reproduces the source paper’s printed values exactly. The Methods text (“fixed exponents for all clearance and volume terms”) does not state the numerical values; the footnote is the only place the values appear, so the paper-as-printed assignment is used. Numerical impact across the Hokusai-VTE body-weight range (60-108 kg) is small (the difference between (WT/70)^(3/4) and (WT/70)^1 is roughly +/-5% over that range).

  • Bioavailability anchor F = 1. Apparent oral PK does not separately identify F from CL and V; the model fixes lfdepot = log(1) as a structural anchor and lets e_pgp_inh_f = 1.25 enter as a multiplicative factor on f(depot). P-gp inhibitor coadministration in phase 1 therefore drives f(depot) = 1 * (1 + 1.25 * PGP_INH * (1 - STUDY_HOKVTE)) = 2.25 for phase 1 P-gp-positive observations.

  • P-gp inhibitor effects gated to phase 1. Niebecker 2015 estimated the P-gp-inhibitor effect on CL/F and F using the phase 1 subset only (the phase 3 P-gp effect on CL/F was statistically but not clinically significant and is excluded from the final model). The model encodes this by multiplying the P-gp factor by (1 - STUDY_HOKVTE) so the effects activate only when STUDY_HOKVTE = 0 (phase 1 healthy-volunteer cohort).

  • Fed-state (“study 6”) effects. Niebecker 2015 names the Table 3 effects “CLnr/F study 6” and “Fractional change in ka study 6”. Table 1 of the same paper shows that study 6 (the dronedarone DDI crossover) was the only fed- state phase 1 study; all other 12 phase 1 studies and the Hokusai-VTE phase 3 study were overnight-fast. The model encodes the effects mechanistically via the existing FED canonical covariate (1 = administered with food). For the simulation cohort above (Hokusai-VTE phase 3), FED = 0 throughout and both effects contribute nothing; the encoding becomes relevant only when simulating a fed-state regimen.

  • Inter-occasion variability (IOV) omitted. Niebecker 2015 reports IOV on CL/F (9.78% CV), Vc/F (26.9% CV), and ka (101% CV), with magnitudes fixed to the phase 1 estimates. The model file omits IOV because (a) standard rxode2 simulation use cases do not carry per-occasion structure in the event table, and (b) Niebecker 2015’s combined-cohort analysis included IOV primarily to absorb residual variability heterogeneity between sparse phase 3 visits and dense phase 1 sampling – the simulation-population predictions are not materially altered by its omission.

  • IIV on residual error. The Niebecker 2015 final model adds an individual-level multiplier on the proportional residual SD (33.3% CV) beyond the per-cohort base SDs. The model encodes this via the canonical anchor idiom used in Muller_2010_clindamycin.R and Dogterom_2018_asenapine.R: a fixed log-anchor lrv <- fixed(log(1)) pairs the IIV etalrv ~ 0.10516 with a typical-value fixed effect, and `propSdEff = sqrt(propSdPhase1^2 + (STUDY_HOKVTE * propSdPhase3Inc)^2)

    • exp(lrv + etalrv)`. Simulation variability inflates accordingly.

  • NCA comparison precision. Niebecker 2015 reports Cmax / Cmin / Css,av via empirical-Bayes individual predictions summarised graphically in Figure 4 (box plots), without tabulated numeric values. The published reference medians used in the NCA comparison above (~250 / 30 / 85 ng/mL) are coarse on-screen digitisations of those box plots; agreement within +/- 25% of the simulation median is the practical bar for this validation.

  • Race distribution proxy. The cohort generator uses only RACE_ASIAN (the only race indicator the final model retains; the Niebecker 2015 paper dichotomized race after finding that the only clinically significant contrast was Asian vs non-Asian). 20.1% Asian prevalence matches the Hokusai-VTE Table 2 figure.

  • Full vs final model. Niebecker 2015 also reports a “full model” that adds a phase 3 P-gp-inhibitor effect on F (-11.5%). The published full model differs from the final model in a few estimated values (CLnr/F 15.5 vs 15.2; theta_Slope1 0.199 vs 0.202; phase 3 slope-2 scaling 186% vs 274%; phase 3 Q/F effect 60.4% vs 64.6%). The extracted model file reproduces the final model; the full model is not separately implemented. Users who want the full model can adapt the ini() values from Niebecker 2015 Table 3’s third column.
