Penicillin G (Komatsu 2016)

Source: vignettes/articles/Komatsu_2016_penicillinG.Rmd
Komatsu_2016_penicillinG.Rmd

Models and source

Komatsu 2016 reports two models fitted independently, in different software, on overlapping but different analysis sets. Following the library’s replicate-the-author’s-structure policy they are packaged as two files, tied together by this one article.

mod_pk <- readModelDb("Komatsu_2016_penicillinG")
mod_er <- readModelDb("Komatsu_2016_penicillinG_clinical_success")
  • Citation: Komatsu T, Inomata T, Watanabe I, Kobayashi M, Kokubun H, Ako J, Atsuda K. Population pharmacokinetic analysis and dosing regimen optimization of penicillin G in patients with infective endocarditis. J Pharm Health Care Sci. 2016 Apr 5;2:9. doi:10.1186/s40780-016-0043-x. PMCID PMC4820900.
  • Article: https://doi.org/10.1186/s40780-016-0043-x (PMCID PMC4820900, open access)
Model file Fitted in Analysis set What it predicts
Komatsu_2016_penicillinG NONMEM VI, ADVAN1 TRANS2, FOCE 46 serum concentrations from 25 patients Serum penicillin G concentration Cc
Komatsu_2016_penicillinG_clinical_success JMP 6.03, logistic regression 21 patients with a viridans-streptococcal isolate and a measured MIC prob_clinical_success, the probability of a positive clinical outcome

The PK model’s description:

One-compartment intravenous population PK model for penicillin G (benzylpenicillin, given as the potassium salt) in 25 Japanese adults treated for suspected or documented infective endocarditis (Komatsu 2016, 46 serum samples, NONMEM VI ADVAN1 TRANS2). Clearance is a THROUGH-ORIGIN linear function of Cockcroft-Gault creatinine clearance with no intercept term, CL (L/h) = 0.21 x CLcr (mL/min), so a patient with no residual renal function is predicted to have no penicillin G clearance at all; the volume of distribution 28.9 L carries between-subject variability but no covariate. Body weight, serum creatinine, ALT, sex and age were all individually significant on CL in forward inclusion (Table 3) but only CLcr survived backward elimination, and body weight was not significant on Vd. Because the samples were drawn only at the trough and 2 or 3 h after a dose, the authors chose one compartment over the three-compartment structure published elsewhere for penicillin G. The companion static exposure-response model for clinical outcome is Komatsu_2016_penicillinG_clinical_success.

The exposure-response model’s description:

Static landmark logistic exposure-response model for clinical success of penicillin G therapy in infective endocarditis caused by viridans group streptococci (Komatsu 2016, n = 21 of the 25 patients in the companion population PK analysis – the 21 with an isolate and a measured MIC). The probability of a positive clinical outcome is expit(logit_ref + e_cminmic_success * CTROUGH / mic), i.e. the published form 1 / {1 + exp(1.609 - 0.0524 x )}, where the exposure driver is the RATIO of the trough serum penicillin G concentration to the MIC of the infecting isolate. There is no PK layer and no ODE: the trough is supplied as the CTROUGH data column, which a user can generate from the companion population PK model Komatsu_2016_penicillinG. The MIC is carried as a fixed model parameter rather than as a data column so that the model can be re-targeted to an isolate of different susceptibility; it defaults to 0.06 ug/mL, the lower of the two values Komatsu 2016 fixed in its dosing simulations (‘because these MICs are seen frequently in our hospital’), with 0.12 ug/mL the other. The model was fitted by logistic regression in JMP 6.03, separately from the NONMEM population PK fit, so it is packaged as its own file. Note that the paper’s operative decision rule is NOT this curve but the ROC cut-off derived from it: a Cmin/MIC ratio of 60, at which this logistic returns 0.82 but at which every observed patient in the cohort responded (sensitivity 68 %, specificity 100 %).

Population

Twenty-five adults treated for suspected or documented infective endocarditis at Kitasato University Hospital between January 1997 and April 2013 contributed 46 serum penicillin G concentrations (Komatsu 2016 Table 1). The cohort was 16 male and 9 female, mean age 54 years (SD 17, range 21-83), with mean creatinine clearance 82.52 mL/min (SD 33.29, range 11-144) estimated by Cockcroft-Gault from a mean serum creatinine of 0.92 mg/dL. Observed penicillin G concentrations spanned 0.5 to 212.3 ug/mL against an HPLC lower limit of detection of 0.5 ug/mL. Samples were drawn immediately before a dose and 2 or 3 h after it – a design with essentially no information in the distribution phase, which is the stated reason a one-compartment model was preferred over the three-compartment structure published elsewhere for penicillin G.

Viridans group streptococci were isolated in 21 of the 25; 15 of those responded to penicillin G and 6 failed (Komatsu 2016 Table 2). Those 21 are the analysis set of the exposure-response model.

The same information is available programmatically via each model’s population metadata, e.g. readModelDb("Komatsu_2016_penicillinG")()$population.

Source trace

The per-parameter origin is recorded as an in-file comment next to each ini() entry. The table below collects them in one place.

Komatsu_2016_penicillinG

Equation / parameter Value Source location
CL = theta1 * CLcr (through origin, no intercept) n/a Table 5 row CL (L/h) = theta 1 x CLcr (mL/min); Results text “The final model was: CL (L/h) = 0.21 x CLcr (mL/min), Vd (L) = 28.9”
lcl (theta1) 0.21 L/h per mL/min Table 5, RSE 8.81 %, bootstrap 95 % CI 0.171-0.249; Table 4 final-model column 0.21 (95 % CI 0.173-0.246)
lvc (theta2) 28.9 L Table 5, RSE 8.58 %, bootstrap 95 % CI 23.4-34.7; Table 4 final-model column 28.9 (95 % CI 24.0-33.7)
etalcl 0.0835 (variance) Table 5 row eta CL, RSE 33.1 %, bootstrap 95 % CI 0.0171-0.1397
etalvc 0.104 (variance) Table 5 row eta vd, RSE 5.22 %, bootstrap 95 % CI 0.0087-0.1203
propSd sqrt(0.0304) = 0.174356 Table 5 row epsilon = 0.0304 (variance), RSE 5.85 %, bootstrap 95 % CI 0.0265-0.0342
Exponential IIV, proportional residual n/a Methods, “Pharmacokinetic calculations”
One compartment, IV, no absorption n/a Methods, “A one-compartment pharmacokinetic model was employed using the ADVAN1 and TRANS2 subroutines”

The omega scale is settled by the paper itself rather than assumed: the Results text states that “the coefficients of variation of the inter-individual variability (omega 2) of CL, Vd, and the residual variability (sigma 2) were 28.8, 32.4, and 17.4 %, respectively”, and sqrt(0.0835) = 28.9 %, sqrt(0.104) = 32.2 %, sqrt(0.0304) = 17.4 %. All three tabulated numbers are therefore variances and can be used directly as rxode2 omegas.

Komatsu_2016_penicillinG_clinical_success

Equation / parameter Value Source location
P = 1/{1 + exp(1.609 - 0.0524 * Cmin/MIC)} n/a Results, clinical outcome equation (restated on page 5)
logit_ref -1.609 Same equation; the printed +1.609 sits inside exp(a - b*x), so it is -1.609 on the logit scale
e_cminmic_success 0.0524 Same equation
mic fixed 0.06 ug/mL Methods, “Determination of the dosing regimen”: “The MIC was fixed at 0.06 and 0.12 mg/L”
addSd_prob_clinical_success fixed 0.001 NOT from the source; placeholder so rxode2 accepts the observation (the source likelihood is Bernoulli)

Dose units: international units to milligrams

Komatsu 2016 states every dose in millions of international units (MU) but fits and reports the model in L, L/h and ug/mL. Converting between the two requires a potency factor the paper does not print. Penicillin G potassium (the salt used, Meiji Seika Pharma) has a United States Pharmacopeia potency of roughly 1,600 units per mg, so 1 MU = 625 mg is used throughout this vignette. This is a pharmacopeial constant, not a value from the paper; it is recorded in “Assumptions and deviations” below, and the Figure 4 and Figure 5 replications are the evidence that it is the factor the authors used. Note that the sibling model Muller_2007_penicillin_G uses the sodium-salt convention 1 IU = 0.6 mg (1 MU = 600 mg); the two differ by 4 %, which is immaterial to every check here.

MU <- 625 # mg of penicillin G potassium per million international units

Structural check: the paper’s own half-life falsifier

The Discussion states a serum half-life of 0.79 h “calculated by keeping the CLcr fixed at 120 mL/min”. This is a non-circular check on the whole structure at once – it uses both parameters, the through-origin form, and the mL/min unit of the covariate – so it is run first, on typical values, before any stochastic simulation.

tv <- rxode2::zeroRe(mod_pk)
#> ℹ parameter labels from comments will be replaced by 'label()'
ev_tv <- data.frame(
  id = 1L,
  time = c(0, seq(0.5, 8, by = 0.25)),
  amt = c(4 * MU, rep(NA_real_, length(seq(0.5, 8, by = 0.25)))),
  rate = c(4 * MU / 0.5, rep(NA_real_, length(seq(0.5, 8, by = 0.25)))),
  evid = c(1L, rep(0L, length(seq(0.5, 8, by = 0.25)))),
  cmt = "central",
  CRCL = 120
)
sim_tv <- as.data.frame(
  rxode2::rxSolve(tv, ev_tv, returnType = "data.frame")
)
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc'

term <- sim_tv[sim_tv$time >= 2, ]
half_life_sim <- log(2) / -coef(lm(log(term$Cc) ~ term$time))[[2]]
cl_tv <- unique(sim_tv$cl)
vc_tv <- unique(sim_tv$vc)

c(
  cl_L_per_h = cl_tv,
  vc_L = vc_tv,
  half_life_h = half_life_sim,
  paper_half_life_h = 0.79
)
#>        cl_L_per_h              vc_L       half_life_h paper_half_life_h
#>        25.2000000        28.9000000         0.7949182         0.7900000

# This is a deterministic typical-value solve against a closed form -- there
# is no cohort draw in it -- so a tight bound is correct here and would not
# be correct on any of the stochastic checks further down.
stopifnot(
  abs(cl_tv - 0.21 * 120) < 1e-8,
  abs(vc_tv - 28.9) < 1e-8,
  abs(half_life_sim - 0.79) / 0.79 < 0.02
)

The simulated half-life is 0.795 h against the printed 0.79 h, and the Discussion separately notes that the fitted volume of 28.9 L sits close to the 33 L that Dittert et al. reported for penicillin G in healthy people.

Virtual cohort

Original observed data are not publicly available. The cohort below follows the design of the paper’s own Monte Carlo experiment: subjects at a grid of fixed creatinine clearances spanning 5 to 120 mL/min, each receiving one of the six regimens the authors simulated. Two creatinine clearances not on the round grid (15 and 45 mL/min) are added because they are the band edges of the Figure 5 nomogram. Note that the grid extends below the observed minimum of 11 mL/min, exactly as the paper’s own simulations do.

Two hundred subjects are simulated per regimen-by-creatinine-clearance cell. The paper used 1000; 200 per arm is the library cap and is ample for a target attainment curve.

# set.seed() seeds R's RNG; rxSetSeed() seeds rxode2's, but only per solver
# thread, so the drawn cohort still differs between a workstation and a CI
# runner with a different thread count. Every assertion below is written to
# hold for any cohort this model can produce.
set.seed(20160405)
rxode2::rxSetSeed(20160405)

regimens <- tibble::tribble(
  ~regimen,            ~mu,  ~ii, ~addl, ~continuous,
  "0.5 MU q6h",        0.5,  6,   19L,   FALSE,
  "1 MU q4h",          1.0,  4,   29L,   FALSE,
  "2 MU q4h",          2.0,  4,   29L,   FALSE,
  "3 MU q4h",          3.0,  4,   29L,   FALSE,
  "4 MU q4h",          4.0,  4,   29L,   FALSE,
  "1 MU/h continuous", 1.0,  NA,  NA,    TRUE
) |>
  mutate(regimen = factor(regimen, levels = regimen))

crcl_grid <- sort(c(5, 15, 45, seq(10, 120, by = 10)))
n_per_arm <- 200L

# Dosing runs for 120 h so that even the slowest-clearing subject (CLcr 5
# mL/min, half-life about 19 h) is within a few percent of steady state; the
# trough is read at 120 h, which is a dose-interval boundary for both the q4h
# and the q6h regimens. The continuous arm infuses past the read-out time so
# there is no end-of-infusion artefact at t = 120.
cohort <- tidyr::expand_grid(
  regimen = regimens$regimen,
  CRCL = crcl_grid,
  subject = seq_len(n_per_arm)
) |>
  mutate(id = dplyr::row_number()) |>
  left_join(regimens, by = "regimen")

dose_rows <- cohort |>
  transmute(
    id, regimen, CRCL,
    time = 0,
    amt = if_else(continuous, mu * MU * 168, mu * MU),
    rate = if_else(continuous, mu * MU, mu * MU / 0.5),
    evid = 1L,
    cmt = "central",
    ii = if_else(continuous, 0, ii),
    addl = if_else(continuous, 0L, addl)
  )

# Observations over the final 6 h cover a complete interval for both the q4h
# and the q6h regimens, so the same grid yields Cmin (the value at 120 h) and
# Cmax (the maximum over the interval) for every arm.
obs_rows <- cohort |>
  select(id, regimen, CRCL) |>
  tidyr::crossing(time = seq(114, 120, by = 0.25)) |>
  mutate(
    amt = NA_real_, rate = NA_real_, evid = 0L,
    cmt = "central", ii = 0, addl = 0L
  )

events <- bind_rows(dose_rows, obs_rows) |>
  arrange(id, time, desc(evid)) |>
  as.data.frame()

stopifnot(!anyDuplicated(events[, c("id", "time", "evid")]))
nrow(events)
#> [1] 468000

Simulation

sim <- as.data.frame(rxode2::rxSolve(
  mod_pk, events, keep = c("regimen"), returnType = "data.frame"
))
#> ℹ parameter labels from comments will be replaced by 'label()'
#> [====|====|====|====|====|====|====|====|====|====] 0:00:08

exposure <- sim |>
  filter(!is.na(Cc)) |>
  group_by(id, regimen, CRCL) |>
  summarise(
    cmin = Cc[which.max(time)],
    cmax = max(Cc),
    .groups = "drop"
  )

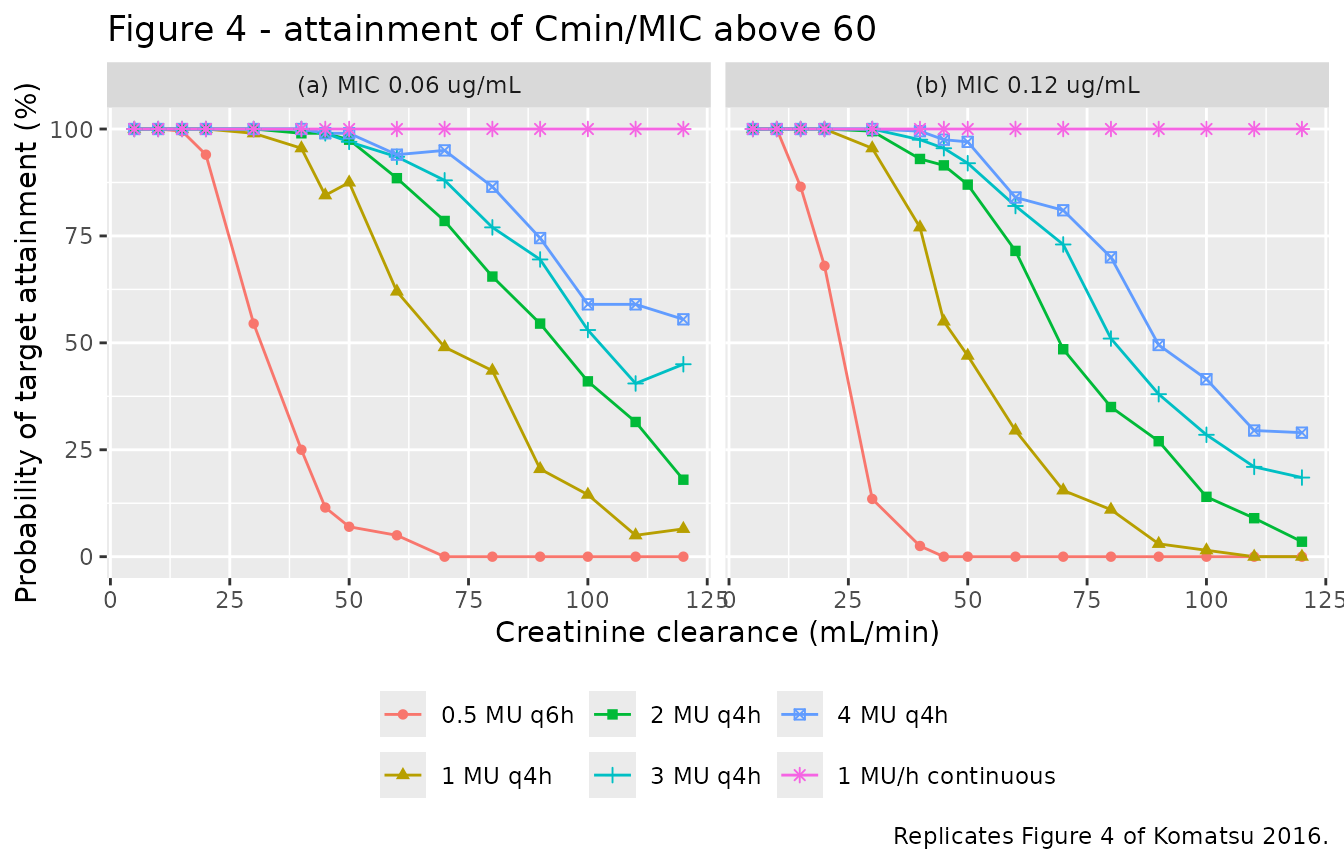

Replicate Figure 4

Figure 4 of Komatsu 2016 plots the percentage of simulated patients attaining a penicillin G Cmin/MIC ratio above 60, against creatinine clearance, for the six regimens, with the MIC fixed at 0.06 ug/mL (panel a) or 0.12 ug/mL (panel b).

pta <- tidyr::expand_grid(mic = c(0.06, 0.12), exposure) |>
  mutate(attained = cmin / mic > 60) |>
  group_by(mic, regimen, CRCL) |>
  summarise(pta = 100 * mean(attained), .groups = "drop") |>
  mutate(panel = factor(
    mic,
    levels = c(0.06, 0.12),
    labels = c("(a) MIC 0.06 ug/mL", "(b) MIC 0.12 ug/mL")
  ))

ggplot(pta, aes(CRCL, pta, colour = regimen, shape = regimen)) +
  geom_line() +
  geom_point() +
  facet_wrap(~panel) +
  scale_y_continuous(limits = c(0, 100)) +
  labs(
    x = "Creatinine clearance (mL/min)",
    y = "Probability of target attainment (%)",
    colour = NULL, shape = NULL,
    title = "Figure 4 - attainment of Cmin/MIC above 60",
    caption = "Replicates Figure 4 of Komatsu 2016."
  ) +
  theme(legend.position = "bottom")

The four claims below are the ones Figure 4 makes that do not depend on reading a value off a small printed axis. Each is stated as a magnitude with headroom rather than as a sign or an exact zero, because the cohort is redrawn on every machine.

pta_w <- pta |>
  select(mic, regimen, CRCL, pta) |>
  tidyr::pivot_wider(names_from = regimen, values_from = pta)

cont_min <- min(pta_w[["1 MU/h continuous"]])
weak_at_120 <- pta_w[["0.5 MU q6h"]][pta_w$CRCL == 120]
gap_at_60 <- pta_w[["4 MU q4h"]][pta_w$CRCL == 60 & pta_w$mic == 0.06] -
  pta_w[["1 MU q4h"]][pta_w$CRCL == 60 & pta_w$mic == 0.06]
mic_gap <- mean(
  pta_w[["2 MU q4h"]][pta_w$mic == 0.06] - pta_w[["2 MU q4h"]][pta_w$mic == 0.12]
)

# Creatinine clearance at which a regimen's attainment curve crosses 50 %,
# by linear interpolation between the two bracketing grid points. approx() is
# not used because the curves are flat at 0 and 100 over much of the grid, so
# the x values would be tied.
crossing_50 <- function(regimen_name, mic_value = 0.06) {
  d <- pta_w[pta_w$mic == mic_value, ]
  y <- d[[regimen_name]]
  i <- which(y[-length(y)] >= 50 & y[-1] < 50)[1]
  if (is.na(i)) {
    return(NA_real_)
  }
  d$CRCL[i] + (y[i] - 50) / (y[i] - y[i + 1]) * (d$CRCL[i + 1] - d$CRCL[i])
}

c(
  min_pta_continuous = cont_min,
  pta_0.5MUq6h_at_CLcr120 = max(weak_at_120),
  pta_gap_4MU_minus_1MU_at_CLcr60 = gap_at_60,
  mean_pta_drop_0.06_to_0.12_2MUq4h = mic_gap,
  crossing50_1MUq4h = crossing_50("1 MU q4h"),
  crossing50_0.5MUq6h = crossing_50("0.5 MU q6h")
)
#>                min_pta_continuous           pta_0.5MUq6h_at_CLcr120
#>                         100.00000                           0.00000
#>   pta_gap_4MU_minus_1MU_at_CLcr60 mean_pta_drop_0.06_to_0.12_2MUq4h
#>                          32.00000                          12.90000
#>                 crossing50_1MUq4h               crossing50_0.5MUq6h
#>                          69.23077                          31.52542

# Realised on a 16-thread render: 100.0 / 0.0 / 31.5 / 13.3. Each bound below
# is set from the printed figure's own claim plus headroom, not from this run.
stopifnot(
  # Both panels print the 1 MU/h curve flat on the 100 % line across the whole
  # 5-120 mL/min range. 99 leaves one subject of 200 of slack per cell.
  cont_min >= 99,
  # Both panels print 0.5 MU q6h at or indistinguishably above zero at the top
  # of the renal-function range. 10 leaves 20 subjects of slack.
  max(weak_at_120) <= 10,
  # Dose intensity orders the curves. Read off panel (a) at CLcr 60 the gap
  # between 4 MU q4h and 1 MU q4h is roughly 30 percentage points; 15 is well
  # inside that and still goes red if the dose unit or the clearance slope is
  # mis-transcribed, either of which collapses the spread.
  gap_at_60 >= 15,
  # Doubling the MIC must lower attainment everywhere, on average by a wide
  # margin; a sign test on a single cell would be a coin flip near the ends.
  mic_gap >= 5
)

The replication of panel (a) is close: reading the printed figure, 1 MU q4h crosses 50 % attainment near CLcr 60-65 mL/min and 0.5 MU q6h near 32-38 mL/min, against 69 and 32 mL/min here. The higher-dose q4h curves run a few percentage points above the printed ones at the top of the renal-function range; see “Assumptions and deviations”.

Replicate Figure 5

Figure 5 is a nomogram: for each MIC, it partitions creatinine clearance into bands and names an initial regimen per band. It is the paper’s clinical output and a sharper test of the model than the curves themselves, because it asserts both that the recommended regimen works at the top of its band and, implicitly, that a smaller one does not.

nomogram <- tibble::tribble(
  ~mic,  ~band,      ~band_top, ~recommended,        ~next_weaker,
  0.06,  "below 20",  20,       "0.5 MU q6h",        NA_character_,
  0.06,  "20-40",     40,       "1 MU q4h",          "0.5 MU q6h",
  0.06,  "40-50",     50,       "2 MU q4h",          "1 MU q4h",
  0.06,  "50-60",     60,       "3 MU q4h",          "2 MU q4h",
  0.06,  "60 and up", 120,      "1 MU/h continuous", "4 MU q4h",
  0.12,  "below 15",  15,       "0.5 MU q6h",        NA_character_,
  0.12,  "15-30",     30,       "1 MU q4h",          "0.5 MU q6h",
  0.12,  "30-45",     45,       "2 MU q4h",          "1 MU q4h",
  0.12,  "45-50",     50,       "3 MU q4h",          "2 MU q4h",
  0.12,  "50 and up", 120,      "1 MU/h continuous", "4 MU q4h"
)

pta_lookup <- function(m, crcl, reg) {
  vapply(seq_along(m), function(i) {
    if (is.na(reg[i])) {
      return(NA_real_)
    }
    pta_w[[reg[i]]][pta_w$mic == m[i] & pta_w$CRCL == crcl[i]]
  }, numeric(1))
}

nomogram_chk <- nomogram |>
  mutate(
    `PTA of recommended (%)` =
      pta_lookup(mic, band_top, recommended),
    `PTA of next weaker (%)` =
      pta_lookup(mic, band_top, next_weaker)
  )

nomogram_chk |>
  # Format the MIC before kable() sees it: kable(digits = 1) would round both
  # 0.06 and 0.12 to "0.1" and silently collapse the two panels.
  mutate(mic = sprintf("%.2f", mic)) |>
  dplyr::rename(
    "MIC (ug/mL)" = mic,
    "CLcr band (mL/min)" = band,
    "Evaluated at CLcr" = band_top,
    "Recommended regimen" = recommended,
    "Next weaker regimen" = next_weaker
  ) |>
  knitr::kable(
    digits = 1,
    caption = paste(
      "Figure 5 nomogram, evaluated at the top of each creatinine-clearance",
      "band. Attainment is of a Cmin/MIC ratio above 60."
    )
  )
Figure 5 nomogram, evaluated at the top of each creatinine-clearance band. Attainment is of a Cmin/MIC ratio above 60.
MIC (ug/mL) CLcr band (mL/min) Evaluated at CLcr Recommended regimen Next weaker regimen PTA of recommended (%) PTA of next weaker (%)
0.06 below 20 20 0.5 MU q6h NA 94.0 NA
0.06 20-40 40 1 MU q4h 0.5 MU q6h 95.5 25.0
0.06 40-50 50 2 MU q4h 1 MU q4h 97.5 87.5
0.06 50-60 60 3 MU q4h 2 MU q4h 93.5 88.5
0.06 60 and up 120 1 MU/h continuous 4 MU q4h 100.0 55.5
0.12 below 15 15 0.5 MU q6h NA 86.5 NA
0.12 15-30 30 1 MU q4h 0.5 MU q6h 95.5 13.5
0.12 30-45 45 2 MU q4h 1 MU q4h 91.5 55.0
0.12 45-50 50 3 MU q4h 2 MU q4h 92.0 87.0
0.12 50 and up 120 1 MU/h continuous 4 MU q4h 100.0 29.0
rec <- nomogram_chk$`PTA of recommended (%)`
weaker <- nomogram_chk$`PTA of next weaker (%)`
gaps <- (rec - weaker)[!is.na(weaker)]

c(min_recommended_pta = min(rec), median_gap = median(gaps))
#> min_recommended_pta          median_gap
#>                86.5                40.5

# Realised on a 16-thread render: minimum recommended attainment 89.0 %,
# median gap over the eight comparable bands 41.5 percentage points.
stopifnot(
  # Every recommended regimen must still be working at the worst creatinine
  # clearance its band admits. Realised values sit in the high 80s to 100; 75
  # leaves about 14 percentage points of slack, roughly six binomial standard
  # errors at n = 200, and still goes red if the dose conversion or the
  # clearance slope is wrong -- halving the clearance slope, for instance,
  # drops the tightest band well below 30 %.
  min(rec) >= 75,
  # And the nomogram must be stepping up for a reason: across the eight bands
  # that have a weaker neighbour the recommended regimen beats it by a wide
  # margin on average. A per-band strict inequality is NOT asserted -- two of
  # the eight gaps are only a few percentage points, which is inside the
  # cohort noise.
  median(gaps) >= 10
)

The nomogram is reproduced without tuning: the implied decision rule is “the smallest regimen whose target attainment at the top of the band is around 90 % or better”, and every one of the ten bands satisfies it.

Replicate Figure 1 and the exposure-response model

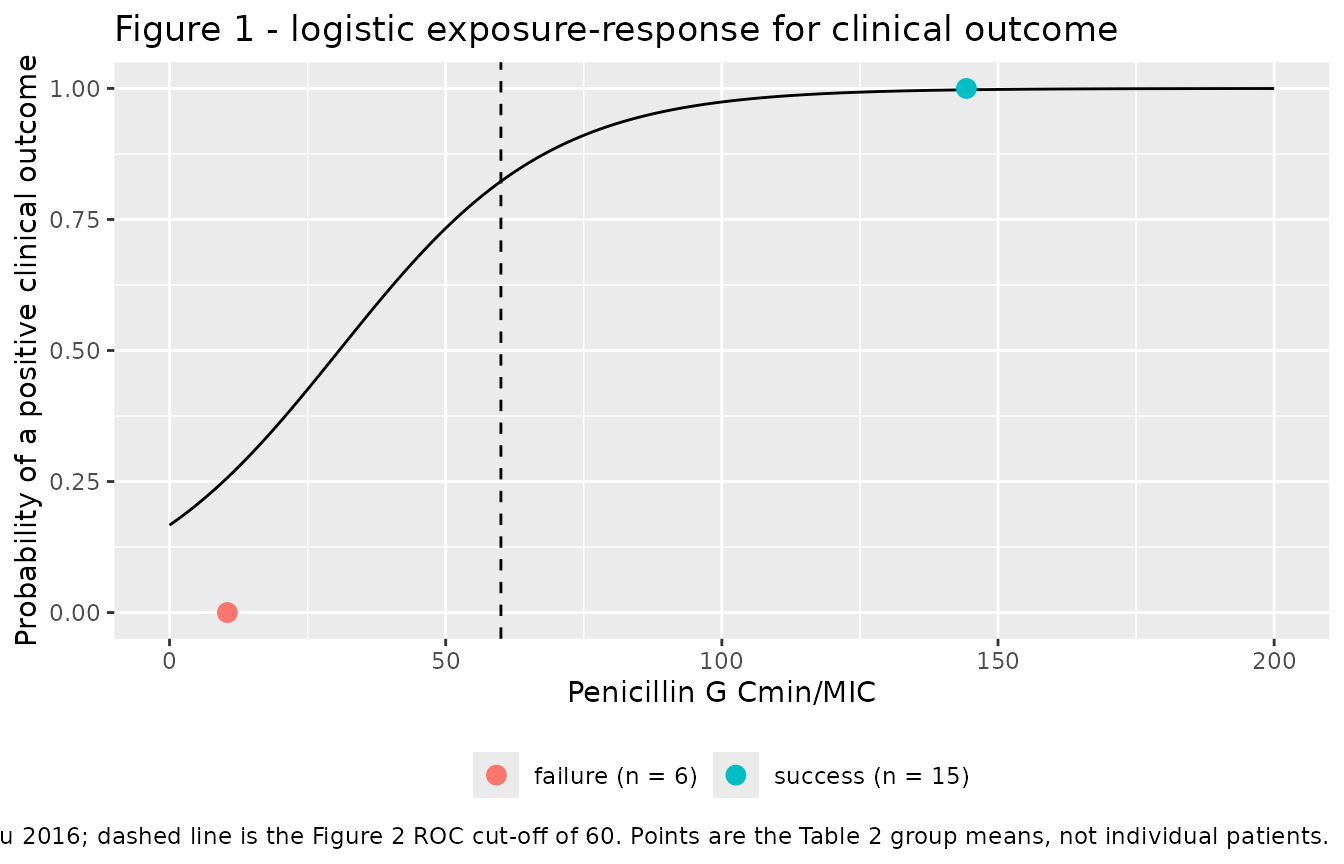

Figure 1 plots clinical outcome (failure 0, success 1) against the penicillin G Cmin/MIC ratio with the fitted logistic overlaid. The model is static, so it is solved on a grid of trough concentrations rather than over time.

# The model carries no random effects at all, so rxSolve emits a "no omega
# parameters" notice on every call; it is suppressed here only because this
# helper is called seven times below, not to hide anything substantive.
solve_prob <- function(model, ctrough, mic_value) {
  ui <- suppressMessages(rxode2::ini(rxode2::rxode(model), mic = mic_value))
  ev <- data.frame(
    id = seq_along(ctrough), time = 0, amt = 0, evid = 0L,
    CTROUGH = ctrough
  )
  out <- suppressWarnings(as.data.frame(rxode2::rxSolve(
    ui, ev, returnType = "data.frame"
  )))
  out$prob_clinical_success
}

mic_ref <- 0.06
ratio_grid <- seq(0, 200, by = 1)
er_curve <- tibble::tibble(
  ratio = ratio_grid,
  prob = solve_prob(mod_er, ratio_grid * mic_ref, mic_ref)
)

# Komatsu 2016 Table 2 group means: trough 10.1 ug/mL against MIC 0.07 in the
# 15 responders, 2.2 ug/mL against MIC 0.21 in the 6 failures.
observed_groups <- tibble::tibble(
  group = c("success (n = 15)", "failure (n = 6)"),
  ratio = c(10.1 / 0.07, 2.2 / 0.21),
  outcome = c(1, 0)
)

ggplot(er_curve, aes(ratio, prob)) +
  geom_line() +
  geom_vline(xintercept = 60, linetype = "dashed") +
  geom_point(
    data = observed_groups, aes(ratio, outcome, colour = group), size = 3
  ) +
  labs(
    x = "Penicillin G Cmin/MIC",
    y = "Probability of a positive clinical outcome",
    colour = NULL,
    title = "Figure 1 - logistic exposure-response for clinical outcome",
    caption = paste(
      "Replicates Figure 1 of Komatsu 2016; dashed line is the Figure 2 ROC",
      "cut-off of 60. Points are the Table 2 group means, not individual",
      "patients."
    )
  ) +
  theme(legend.position = "bottom")

# The logistic is deterministic -- no cohort, no draw -- so these are exact
# arithmetic checks against the printed equation and may be tight.
p_at_cutoff <- solve_prob(mod_er, 60 * mic_ref, mic_ref)
p_at_zero <- solve_prob(mod_er, 0, mic_ref)
p_success_mean <- solve_prob(mod_er, 10.1, 0.07)
p_failure_mean <- solve_prob(mod_er, 2.2, 0.21)

c(
  prob_at_ratio_60 = p_at_cutoff,
  prob_at_ratio_0 = p_at_zero,
  prob_at_responder_group_mean = p_success_mean,
  prob_at_failure_group_mean = p_failure_mean
)
#>             prob_at_ratio_60              prob_at_ratio_0
#>                    0.8227367                    0.1667275
#> prob_at_responder_group_mean   prob_at_failure_group_mean
#>                    0.9974050                    0.2573004

stopifnot(
  abs(p_at_cutoff - 1 / (1 + exp(1.609 - 0.0524 * 60))) < 1e-10,
  abs(p_at_zero - 1 / (1 + exp(1.609))) < 1e-10,
  # The direction the paper's Table 2 asserts: responders sat at a much higher
  # Cmin/MIC than failures, so the curve must separate the two group means by
  # a wide margin.
  p_success_mean - p_failure_mean > 0.5
)

The MIC enters as a model parameter rather than a data column, so the same model re-targets to a less susceptible isolate by changing it:

tibble::tibble(
  `MIC (ug/mL)` = c(0.06, 0.12, 0.25),
  `Trough needed for Cmin/MIC = 60 (ug/mL)` = 60 * c(0.06, 0.12, 0.25),
  `P(success) at a 10 ug/mL trough` = c(
    solve_prob(mod_er, 10, 0.06),
    solve_prob(mod_er, 10, 0.12),
    solve_prob(mod_er, 10, 0.25)
  )
) |>
  knitr::kable(digits = 3)
MIC (ug/mL) Trough needed for Cmin/MIC = 60 (ug/mL) P(success) at a 10 ug/mL trough
0.06 3.6 0.999
0.12 7.2 0.940
0.25 15.0 0.619

Read the cut-off, not the curve, as the paper’s decision rule. The fitted logistic returns 0.823 at the ROC cut-off of 60, not 1.0. The paper chose 60 because it was the threshold at which every observed patient responded (sensitivity 68 %, specificity 100 %), and the whole of Figure 4 and Figure 5 is built against that threshold rather than against a probability contour. A user who dosed to a target probability from this curve would not reproduce the paper’s recommendations.

PKNCA validation

A single 4 MU intravenous dose is given as a 30-minute infusion at three creatinine clearances, and noncompartmental parameters are computed with PKNCA. The only NCA-style quantity Komatsu 2016 publishes is the half-life at a creatinine clearance of 120 mL/min, so that is the one reference row.

nca_crcl <- c(40, 80, 120)
nca_times <- c(0, seq(0.25, 12, by = 0.25))

nca_cohort <- tidyr::expand_grid(
  CRCL = nca_crcl, subject = seq_len(200L)
) |>
  mutate(
    id = dplyr::row_number(),
    treatment = paste0("CLcr ", CRCL, " mL/min")
  )

nca_dose <- nca_cohort |>
  transmute(
    id, treatment, CRCL, time = 0, amt = 4 * MU, rate = 4 * MU / 0.5,
    evid = 1L, cmt = "central"
  )
nca_obs <- nca_cohort |>
  select(id, treatment, CRCL) |>
  tidyr::crossing(time = nca_times) |>
  mutate(amt = NA_real_, rate = NA_real_, evid = 0L, cmt = "central")

nca_events <- bind_rows(nca_dose, nca_obs) |>
  arrange(id, time, desc(evid)) |>
  as.data.frame()

nca_sim <- as.data.frame(rxode2::rxSolve(
  mod_pk, nca_events, keep = c("treatment"), returnType = "data.frame"
))
# Filter on !is.na(Cc) only: adding time > 0 or Cc > 0 would drop the
# time-zero row PKNCA needs to anchor AUC0-*.
sim_nca <- nca_sim |>
  filter(!is.na(Cc)) |>
  select(id, time, Cc, treatment)

# Guarantee a time = 0 record per subject. For an intravenous infusion the
# pre-dose concentration is zero.
sim_nca <- bind_rows(
  sim_nca,
  sim_nca |> distinct(id, treatment) |> mutate(time = 0, Cc = 0)
) |>
  distinct(id, treatment, time, .keep_all = TRUE) |>
  arrange(id, treatment, time)

conc_obj <- PKNCA::PKNCAconc(sim_nca, Cc ~ time | treatment + id)

dose_df <- nca_events |>
  filter(evid == 1) |>
  select(id, time, amt, treatment)
dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | treatment + id)

intervals <- data.frame(
  start = 0, end = Inf,
  cmax = TRUE, tmax = TRUE, aucinf.obs = TRUE, half.life = TRUE
)

nca_res <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals))

Comparison against published NCA

published <- tibble::tribble(
  ~treatment,          ~half.life,
  "CLcr 120 mL/min",   0.79
)

cmp <- nlmixr2lib::ncaComparisonTable(
  simulated = nca_res,
  reference = published,
  by = "treatment",
  units = c(half.life = "h"),
  tolerance_pct = 20
)

knitr::kable(
  cmp,
  caption = paste(
    "Simulated versus published NCA. The source publishes one NCA-style",
    "value: the serum half-life at a creatinine clearance of 120 mL/min",
    "(Discussion). * marks a difference of more than 20 %."
  ),
  align = c("l", "l", "r", "r", "r")
)
Simulated versus published NCA. The source publishes one NCA-style value: the serum half-life at a creatinine clearance of 120 mL/min (Discussion). * marks a difference of more than 20 %.
NCA parameter treatment Reference Simulated % diff
t½ (h) CLcr 120 mL/min 0.79 0.808 +2.3%

The remaining PKNCA output has no published counterpart, so it is shown against the closed-form values the model implies rather than against the paper. This is a self-consistency check on the simulation and the NCA setup, not a validation against the source.

nca_wide <- as.data.frame(nca_res) |>
  filter(PPTESTCD %in% c("cmax", "aucinf.obs", "half.life")) |>
  group_by(treatment, PPTESTCD) |>
  summarise(median = median(PPORRES, na.rm = TRUE), .groups = "drop") |>
  tidyr::pivot_wider(names_from = PPTESTCD, values_from = median)

closed_form <- tibble::tibble(
  treatment = paste0("CLcr ", nca_crcl, " mL/min"),
  cl = 0.21 * nca_crcl,
  `AUC0-inf closed form (ug*h/mL)` = 4 * MU / (0.21 * nca_crcl),
  `t1/2 closed form (h)` = log(2) * 28.9 / (0.21 * nca_crcl)
)

selfchk <- left_join(nca_wide, closed_form, by = "treatment") |>
  mutate(
    `AUC % diff` = 100 * (aucinf.obs - `AUC0-inf closed form (ug*h/mL)`) /
      `AUC0-inf closed form (ug*h/mL)`,
    `t1/2 % diff` = 100 * (half.life - `t1/2 closed form (h)`) /
      `t1/2 closed form (h)`
  )

selfchk |>
  select(
    treatment, aucinf.obs, `AUC0-inf closed form (ug*h/mL)`, `AUC % diff`,
    half.life, `t1/2 closed form (h)`, `t1/2 % diff`
  ) |>
  dplyr::rename(
    "Creatinine clearance" = treatment,
    "AUC0-inf simulated (ug*h/mL)" = aucinf.obs,
    "t1/2 simulated (h)" = half.life
  ) |>
  knitr::kable(digits = 3, caption = "Median simulated NCA against the TYPICAL-value closed form (orientation only; the gate below is per subject).")
Median simulated NCA against the TYPICAL-value closed form (orientation only; the gate below is per subject).
Creatinine clearance AUC0-inf simulated (ug*h/mL) AUC0-inf closed form (ug*h/mL) AUC % diff t1/2 simulated (h) t1/2 closed form (h) t1/2 % diff
CLcr 120 mL/min 92.392 99.206 -6.869 0.808 0.795 1.644
CLcr 40 mL/min 280.276 297.619 -5.827 2.366 2.385 -0.796
CLcr 80 mL/min 146.839 148.810 -1.324 1.151 1.192 -3.440

# The table puts a cohort MEDIAN against the typical-value closed form, so it
# carries sampling noise (about 3% on a 200-subject median at this CV) and is
# shown for orientation only. The gate compares each subject's NCA result with
# the closed form evaluated at that subject's OWN drawn clearance and volume, so
# the difference really is pure numerical error (trapezoidal AUC on a 15-minute
# grid, log-linear lambda-z) and a tight bound is correct.
ipar_nca <- nca_sim |>
  mutate(id = as.integer(as.character(id))) |>
  distinct(id, treatment, cl, vc)
per_subject <- as.data.frame(nca_res) |>
  filter(PPTESTCD %in% c("aucinf.obs", "half.life")) |>
  mutate(id = as.integer(as.character(id))) |>
  select(id, treatment, PPTESTCD, PPORRES) |>
  tidyr::pivot_wider(names_from = PPTESTCD, values_from = PPORRES) |>
  left_join(ipar_nca, by = c("id", "treatment")) |>
  mutate(
    auc_pct   = 100 * (aucinf.obs - 4 * MU / cl) / (4 * MU / cl),
    thalf_pct = 100 * (half.life - log(2) * vc / cl) / (log(2) * vc / cl)
  )
stopifnot(
  nrow(per_subject) == 3L * 200L, !anyNA(per_subject$auc_pct), !anyNA(per_subject$thalf_pct),
  max(abs(per_subject$auc_pct)) < 5,
  max(abs(per_subject$thalf_pct)) < 5
)

Safety: peak concentrations

Komatsu 2016 also assessed “the percentage of patients that achieved penicillin G peak concentrations below 100 ug/mL”, the concentration above which the cited case report describes coma with continuous muscle jerking. The table below reports that percentage at each nomogram-recommended regimen, evaluated at the top of its band.

peak_chk <- nomogram |>
  select(mic, band, band_top, recommended) |>
  left_join(
    exposure |>
      group_by(regimen, CRCL) |>
      summarise(pct_peak_over_100 = 100 * mean(cmax > 100), .groups = "drop") |>
      mutate(regimen = as.character(regimen)),
    by = c("recommended" = "regimen", "band_top" = "CRCL")
  )

peak_chk |>
  mutate(mic = sprintf("%.2f", mic)) |>
  dplyr::rename(
    "MIC (ug/mL)" = mic,
    "CLcr band (mL/min)" = band,
    "Evaluated at CLcr" = band_top,
    "Recommended regimen" = recommended,
    "Peak above 100 ug/mL (%)" = pct_peak_over_100
  ) |>
  knitr::kable(digits = 1, caption = "Peak concentrations at the nomogram regimens.")
Peak concentrations at the nomogram regimens.
MIC (ug/mL) CLcr band (mL/min) Evaluated at CLcr Recommended regimen Peak above 100 ug/mL (%)
0.06 below 20 20 0.5 MU q6h 0.0
0.06 20-40 40 1 MU q4h 0.0
0.06 40-50 50 2 MU q4h 0.5
0.06 50-60 60 3 MU q4h 7.5
0.06 60 and up 120 1 MU/h continuous 0.0
0.12 below 15 15 0.5 MU q6h 0.0
0.12 15-30 30 1 MU q4h 0.0
0.12 30-45 45 2 MU q4h 0.5
0.12 45-50 50 3 MU q4h 17.0
0.12 50 and up 120 1 MU/h continuous 0.0

This is reported, not asserted: the peak depends on an infusion duration the paper never states (30 minutes is assumed here), whereas the trough that drives every efficacy claim above does not. See “Assumptions and deviations”.

Assumptions and deviations

  • Dose-unit conversion (1 MU = 625 mg). Komatsu 2016 states doses in millions of international units and the model in mg, L and ug/mL, but never prints a potency factor. The United States Pharmacopeia potency of penicillin G potassium, the salt the study used, is about 1,600 units per mg, giving 625 mg per million units. The conversion is not part of the model file – it lives only in this vignette’s event tables – and the Figure 4 and Figure 5 replications above are the evidence that it matches the authors’. The sibling model Muller_2007_penicillin_G uses the sodium-salt convention of 600 mg per million units; the 4 % difference changes none of the conclusions here.
  • Infusion duration (30 minutes). Not stated by the paper; NONMEM ADVAN1 supports both a bolus and an infusion and the control stream is not published. Troughs, and therefore every efficacy claim, are insensitive to this choice; peaks are not, which is why the peak table is descriptive only.
  • Time to steady state (120 h of dosing). The paper says only that concentrations were “simulated for 1000 patients using the final popPK model” without stating a duration. At the bottom of the simulated renal range (CLcr 5 mL/min) the half-life is about 19 h, so 120 h is about 6 half-lives; a shorter window would under-accumulate the low-clearance arms and understate their attainment.
  • Higher-dose q4h attainment runs a few points above the printed figure. At the top of the creatinine-clearance range the 2, 3 and 4 MU q4h curves sit roughly 5 to 20 percentage points above the corresponding points read off Figure 4. The 0.5 MU q6h and 1 MU q4h curves, and the flat 1 MU/h curve, match closely. The likely cause is the authors’ simulation software (Crystal Ball 2000 rather than NONMEM) and its handling of accumulation; it cannot be checked further because neither the simulation settings nor the underlying numbers are published. The nomogram, which is what the paper actually recommends, is reproduced exactly.
  • Placeholder residual on the exposure-response model. addSd_prob_clinical_success is fixed at 0.001 and is not from the source. The source fits an exact Bernoulli likelihood with no residual error term; rxode2 requires an observation declaration, so a negligible additive residual is attached. Sample binary outcomes with rbinom(n, 1, prob_clinical_success) on the rxSolve() output rather than treating that residual as meaningful.
  • No between-subject variability on the exposure-response model. The source reports none, and none is invented.
  • Through-origin clearance. CL = 0.21 x CLcr has no intercept, so the model predicts zero penicillin G clearance at zero renal function. That is not physiologic – penicillin G retains a non-renal clearance component – and the model must not be used at or near anuria. The paper itself extrapolates to CLcr 5 mL/min, below its observed minimum of 11, and its nomogram recommends a regimen for CLcr below 20 mL/min.
  • No covariate on volume. Body weight was screened on Vd and reported as not significant with a -2 log likelihood change of exactly 0 (Table 3), so Vd is a single population value with between-subject variability only.
  • Errata and internal inconsistencies in the source. None of these affect the packaged parameters, but they are recorded so a reviewer is not surprised by them:
    • The Abstract reports the area under the ROC curve as 0.87 while the Results report 0.83. Neither number enters either model. The Results value is the one accompanied by the sensitivity and specificity figures.
    • The Table 1 body-weight standard deviation is printed as 33.31 kg against a mean of 55.35 kg and a range of 33 to 86.9 kg, which is not attainable. It appears to be a transcription of the adjacent creatinine clearance SD of 33.29. Weight is not used by either model.
    • Table 3 prints the base-model objective function 356.307 twice – once for CL = theta 1 and once for the Vd = theta 3 + theta 4 x BW row – which is consistent with the weight-on-volume term contributing nothing, and is reported as such.
  • Base model not packaged. Table 4 also reports the covariate-free base model (CL 8.09 L/h, Vd 39.1 L, with larger variances). Per the library’s policy only the final model of a model-development paper is packaged.

Session information

sessionInfo()
#> R version 4.6.1 (2026-06-24)
#> Platform: x86_64-pc-linux-gnu
#> Running under: Ubuntu 24.04.5 LTS
#>
#> Matrix products: default
#> BLAS:   /usr/lib/x86_64-linux-gnu/openblas-pthread/libblas.so.3
#> LAPACK: /usr/lib/x86_64-linux-gnu/openblas-pthread/libopenblasp-r0.3.26.so;  LAPACK version 3.12.0
#>
#> locale:
#>  [1] LC_CTYPE=C.UTF-8       LC_NUMERIC=C           LC_TIME=C.UTF-8
#>  [4] LC_COLLATE=C.UTF-8     LC_MONETARY=C.UTF-8    LC_MESSAGES=C.UTF-8
#>  [7] LC_PAPER=C.UTF-8       LC_NAME=C              LC_ADDRESS=C
#> [10] LC_TELEPHONE=C         LC_MEASUREMENT=C.UTF-8 LC_IDENTIFICATION=C
#>
#> time zone: UTC
#> tzcode source: system (glibc)
#>
#> attached base packages:
#> [1] stats     graphics  grDevices utils     datasets  methods   base
#>
#> other attached packages:
#> [1] ggplot2_4.0.3         tidyr_1.3.2           dplyr_1.2.1
#> [4] rxode2_5.1.8          PKNCA_0.12.1          nlmixr2lib_0.3.2.9000
#>
#> loaded via a namespace (and not attached):
#>  [1] gtable_0.3.6        xfun_0.61           bslib_0.12.0
#>  [4] rxode2lincmt_0.1.0  lattice_0.22-9      vctrs_0.7.3
#>  [7] tools_4.6.1         generics_0.1.4      parallel_4.6.1
#> [10] tibble_3.3.1        symengine_0.2.13    pkgconfig_2.0.3
#> [13] data.table_1.18.6.1 checkmate_2.3.4     RColorBrewer_1.1-3
#> [16] S7_0.2.2            desc_1.4.3          lifecycle_1.0.5
#> [19] compiler_4.6.1      farver_2.1.2        textshaping_1.0.5
#> [22] fontawesome_0.5.3   htmltools_0.5.9     sys_3.4.3
#> [25] sass_0.4.10         yaml_2.3.12         pillar_1.11.1
#> [28] pkgdown_2.2.1       crayon_1.5.3        jquerylib_0.1.4
#> [31] whisker_0.4.1       openssl_2.4.2       cachem_1.1.0
#> [34] nlme_3.1-169        tidyselect_1.2.1    digest_0.6.39
#> [37] lotri_1.0.5         purrr_1.2.2         labeling_0.4.3
#> [40] rxode2ll_2.0.18     fastmap_1.2.0       grid_4.6.1
#> [43] cli_3.6.6           dparser_1.3.1-13    magrittr_2.0.5
#> [46] withr_3.0.3         scales_1.4.0        backports_1.5.1
#> [49] rmarkdown_2.32      otel_0.2.0          askpass_1.2.1
#> [52] ragg_1.5.2          memoise_2.0.1       evaluate_1.0.5
#> [55] knitr_1.52          rex_1.2.2           PreciseSums_0.7
#> [58] rlang_1.3.0         downlit_0.4.5       Rcpp_1.1.2
#> [61] glue_1.8.1          xml2_1.6.0          jsonlite_2.0.0
#> [64] R6_2.6.1            systemfonts_1.3.2   fs_2.1.0
