Empagliflozin in type 1 diabetes -- MIDD low-dose evidence (Johnston 2021)

Source: vignettes/articles/Johnston_2021_empagliflozin.Rmd
Johnston_2021_empagliflozin.Rmd

Paper and scope

Johnston 2021 develops a model-informed drug development (MIDD) framework that provides supportive evidence for the efficacy of a low, 2.5 mg dose of empagliflozin in adults with type 1 diabetes (T1D). Three inter-connected models were fit on the EASE clinical program (Table 1: EASE-1 phase II 4-week 75-subject dose-finding trial; EASE-2 phase III 52-week 721-subject registration trial with 10 and 25 mg arms; EASE-3 phase III 26-week 948-subject registration trial which added a unique 2.5 mg arm). The 2.5 mg efficacy question was studied by simulating into the EASE-2 population using models trained on EASE-1 and EASE-2 only (i.e., the 2.5 mg arm of EASE-3 was held out for external qualification).

The three sub-models:

  1. PopPK (Johnston_2021_empagliflozin_popPK) – two-compartment model with sequential zero-order + first-order oral absorption and a depot lag; full covariate model on CL/F, V2/F, V3/F, Q/F, and ka. Delivers the individual steady-state AUC (AUCss) that feeds the two PD models.
  2. M-EASE-1 (Johnston_2021_empagliflozin_MEASE1) – semi-mechanistic direct-effect exposure-response model on total daily insulin dose (TDID), mean daily glucose (MDG), and HbA1c. Stepwise-fit: (i) TDID = f(AUCss),
    1. MDG = f(TDID, AUCss, placebo drift), (iii) HbA1c = f(MDG). Used to quantify the effect of insulin adjustment on HbA1c.
  3. M-EASE-2 (Johnston_2019_empagliflozin, already registered separately as the ADA 2019 poster version) – descriptive Bayesian HbA1c Emax model with a linear placebo drift and a full covariate model on baseline HbA1c, Emax, and placebo. The 2021 journal paper’s Table 3 M-EASE-2 parameter estimates are identical to the 2019 poster’s Table 2 (same fit); this vignette focuses on the two new sub-models (PopPK and M-EASE-1) and only references M-EASE-2.

Source trace

The following table lists the source location of every equation and every parameter value that this vignette relies on. Individual ini() values are also source-traced in-file via trailing comments on each parameter line.

Source trace for the Johnston 2021 empagliflozin MIDD models.
Element Source location
PopPK structural equations (CL, V2, V3, Q, D1, ALAG, ka) Full covariate PK model equations, page 10
PopPK parameter estimates (theta_1 to theta_26) Table S2 (pages 8-10)
PopPK IIV, correlations, residual Table S2 (page 10)
PopPK reference values (WT=70, AGE=44, TPRO=68, AP=73, eGFR=99, TDID=0.6) Figure S1 caption + equations page 10
M-EASE-1 TDID equation (Eq. 1) Section 2.4.1, page 4
M-EASE-1 MDG equation (Eq. 2) Section 2.4.1, page 4
M-EASE-1 HbA1c equation (Eq. 3) Section 2.4.1, page 4
M-EASE-1 covariate-form equations Table S3 footnote block, page 13
M-EASE-1 parameter estimates (theta_1 to theta_12 per block) Table S3 (pages 11-13)
M-EASE-1 IIV, correlations, residuals Table S3 (page 12)
M-EASE-1 reference patient (WT=82, eGFR=99, HbA1c=8.1) Table 3 M-EASE-1 header, page 7
Placebo-adjusted HbA1c change at week 26 (2.5 / 10 / 25 mg; adjusted / stable insulin) Figure 2 + Section 3.4, page 8

Population

Combined EASE-1 / EASE-2 / EASE-3 population underlying the PopPK.
Field Value
Subjects (total / male / female) 1241 / 614 / 627
Studies EASE-1 (phase II, 4-week, 75 patients with T1D, once-daily empagliflozin 2.5 / 10 / 25 mg or placebo), EASE-2 (phase III, 52-week, 721 patients with T1D, empagliflozin 10 / 25 mg or placebo), EASE-3 (phase III, 26-week, 948 patients with T1D, empagliflozin 2.5 / 10 / 25 mg or placebo). Table 1.
Age range 21-69 years (95th-percentile interval across studies at baseline)
Weight range 52-126 kg (95th-percentile interval across studies at baseline)
eGFR range 55-129 mL/min/1.73 m^2 (95th-percentile interval across studies at baseline)
Baseline HbA1c range 7.2-9.6 % (95th-percentile interval across studies at baseline)
Baseline insulin range 0.36-1.34 IU/kg total daily insulin dose (95th-percentile interval across studies at baseline)
Disease state Adults with type 1 diabetes mellitus (T1D) on background insulin therapy. Reference subject for the full covariate model: male, nonsmoker (never smoker), total daily insulin dose 0.6 IU/kg, alkaline phosphatase 73 IU/L, total protein 68 g/L, eGFR 99 mL/min/1.73 m^2, weight 70 kg, age 44 years (Figure S1 caption + equations page 10).
Dose range Empagliflozin 0 (placebo), 2.5, 10, 25 mg once daily (oral).

PopPK simulation and PKNCA replication

We simulate five once-daily 2.5, 10, and 25 mg oral doses of empagliflozin for a typical reference-patient cohort (n = 50 per arm; well under the per-arm cap of 200) and check the steady-state AUC via PKNCA. The analytical steady-state AUC for QD dosing is AUCss = DOSE_mg * 1e6 / MW / CL/F (concentration units nmol/L).

mod_pk <- readModelDb("Johnston_2021_empagliflozin_popPK")

set.seed(20260725)
n_per_arm <- 50L
doses_mg <- c(2.5, 10, 25)

pk_events_arm <- function(dose_mg, n) {
  base <- rxode2::et(amt = dose_mg, cmt = "depot", rate = -2,
                     ii = 24, addl = 4) |>
    rxode2::et(seq(0, 120, by = 1))
  df <- as.data.frame(base) |>
    tidyr::crossing(id = seq_len(n)) |>
    dplyr::mutate(
      dose_mg     = dose_mg,
      AGE         = 44,
      WT          = 70,
      CRCL        = 99,
      TPRO        = 68,
      ALP         = 73,
      INSDOSE_BL  = 0.6,
      SEXF        = 0L,
      SMOKE_NEVER = 0L,
      SMOKE_CURRENT = 0L
    ) |>
    dplyr::select(id, dose_mg, dplyr::everything())
  df
}

pk_events <- do.call(rbind, lapply(doses_mg, pk_events_arm, n = n_per_arm))
# Attach a per-(dose, subject) unique id so we can carry the dose label into the
# PKNCA output (rxode2 does not propagate non-canonical covariates through).
pk_events$sim_id <- as.integer(as.factor(paste(pk_events$dose_mg, pk_events$id, sep = "_")))
sim_pk <- rxode2::rxSolve(mod_pk, pk_events |> dplyr::select(-id) |> dplyr::rename(id = sim_id))
#> ℹ parameter labels from comments will be replaced by 'label()'
id_dose_lookup <- pk_events |> dplyr::select(id = sim_id, dose_mg) |> dplyr::distinct()
pk_conc <- as.data.frame(sim_pk) |>
  dplyr::filter(!is.na(Cc)) |>
  dplyr::left_join(id_dose_lookup, by = "id") |>
  dplyr::mutate(id_arm = paste(dose_mg, id, sep = "_"))

# PKNCA: interval starts at the last-dose time (96 h) and closes at the next
# dose (120 h). Steady-state Cmax is at 97 h (see the peak location above).
o_conc <- PKNCA::PKNCAconc(pk_conc, Cc ~ time | id_arm/dose_mg)
o_dose <- pk_conc |>
  dplyr::select(id_arm, dose_mg) |>
  dplyr::distinct() |>
  dplyr::mutate(time = 96, dose = dose_mg) |>
  PKNCA::PKNCAdose(dose ~ time | id_arm)

o_data <- PKNCA::PKNCAdata(o_conc, o_dose,
  intervals = data.frame(start = 96, end = 120, cmax = TRUE, tmax = TRUE,
                         auclast = TRUE))
o_res <- suppressWarnings(PKNCA::pk.nca(o_data))
nca_summary <- as.data.frame(o_res$result) |>
  dplyr::group_by(dose_mg, PPTESTCD) |>
  dplyr::summarise(median = median(PPORRES), .groups = "drop") |>
  tidyr::pivot_wider(names_from = PPTESTCD, values_from = median)

comparison <- nca_summary |>
  dplyr::mutate(
    analytical_aucss_nMh = dose_mg * 1e6 / 450.91 / 11.2
  ) |>
  dplyr::rename(
    "Dose (mg)"                = dose_mg,
    "Simulated Cmax @ SS (nM)" = cmax,
    "Simulated Tmax (h)"       = tmax,
    "Simulated AUCss (nM*h)"   = auclast,
    "Analytical AUCss (nM*h)"  = analytical_aucss_nMh
  )
knitr::kable(comparison, digits = 1, caption = "PopPK PKNCA (n = 50 per arm) vs analytical AUCss = DOSE * 1e6 / MW_empa / CL/F at the reference-subject clearance CL/F = 11.2 L/h.")
PopPK PKNCA (n = 50 per arm) vs analytical AUCss = DOSE * 1e6 / MW_empa / CL/F at the reference-subject clearance CL/F = 11.2 L/h.
Dose (mg) Simulated AUCss (nM*h) Simulated Cmax @ SS (nM) Simulated Tmax (h) Analytical AUCss (nM*h)
2.5 490.3 70.9 1 495.0
10.0 1879.7 275.3 1 1980.1
25.0 4714.5 687.5 1 4950.3

M-EASE-1 exposure-response

The M-EASE-1 model consumes an external per-subject AUCss (the covariate column AUC_EMPA). Rather than route each PK-simulated subject through the PD model individually (which requires user-level PK/PD chaining outside the scope of this vignette), we use the analytical steady-state AUCss for each dose (2.5 / 10 / 25 mg) as the typical-value driver, and simulate a placebo arm (AUC_EMPA = 0) for the placebo-adjusted comparison. The reported per-arm cohort is 50 patients; the paper’s Figure 2 uses 500 patients per arm across 500 replicates, but 50 is more than sufficient to reproduce typical-value trajectories at zeroed random effects.

mod_pd <- readModelDb("Johnston_2021_empagliflozin_MEASE1")
mod_pd_typical <- rxode2::zeroRe(mod_pd)
#> ℹ parameter labels from comments will be replaced by 'label()'

pd_events <- function(auc_nMh, n = n_per_arm, weeks = 52, step_h = 168) {
  time_h <- seq(0, weeks * 168, by = step_h)
  df <- expand.grid(id = seq_len(n), time = time_h)
  df$evid       <- 0L
  df$amt        <- 0
  df$cmt        <- NA_character_
  df$AUC_EMPA   <- auc_nMh
  df$WT         <- 82
  df$CRCL       <- 99
  df$HBA1C      <- 8.1
  df$SEXF       <- 0L
  df$INSDT_CSII <- 0L
  df[order(df$id, df$time), ]
}

arms <- tibble::tibble(
  arm = c("Placebo", "EMPA 2.5 mg", "EMPA 10 mg", "EMPA 25 mg"),
  dose_mg = c(0, 2.5, 10, 25),
  auc_nMh = c(0, 2.5, 10, 25) * 1e6 / 450.91 / 11.2   # analytical AUCss at CL/F = 11.2
)

sim_pd <- do.call(rbind, Map(function(a, auc) {
  ev <- pd_events(auc)
  s <- rxode2::rxSolve(mod_pd_typical, ev)
  as.data.frame(s) |>
    dplyr::mutate(arm = a, week = time / 168)
}, arms$arm, arms$auc_nMh))
#> ℹ omega/sigma items treated as zero: 'etaltdid_t0', 'etaemax_tdid', 'etalmdg_t0', 'etalemax_mdg', 'etalhba1c_t0', 'etagamma_mdgeff'
#> Warning: multi-subject simulation without without 'omega'
#> ℹ omega/sigma items treated as zero: 'etaltdid_t0', 'etaemax_tdid', 'etalmdg_t0', 'etalemax_mdg', 'etalhba1c_t0', 'etagamma_mdgeff'
#> Warning: multi-subject simulation without without 'omega'
#> ℹ omega/sigma items treated as zero: 'etaltdid_t0', 'etaemax_tdid', 'etalmdg_t0', 'etalemax_mdg', 'etalhba1c_t0', 'etagamma_mdgeff'
#> Warning: multi-subject simulation without without 'omega'
#> ℹ omega/sigma items treated as zero: 'etaltdid_t0', 'etaemax_tdid', 'etalmdg_t0', 'etalemax_mdg', 'etalhba1c_t0', 'etagamma_mdgeff'
#> Warning: multi-subject simulation without without 'omega'

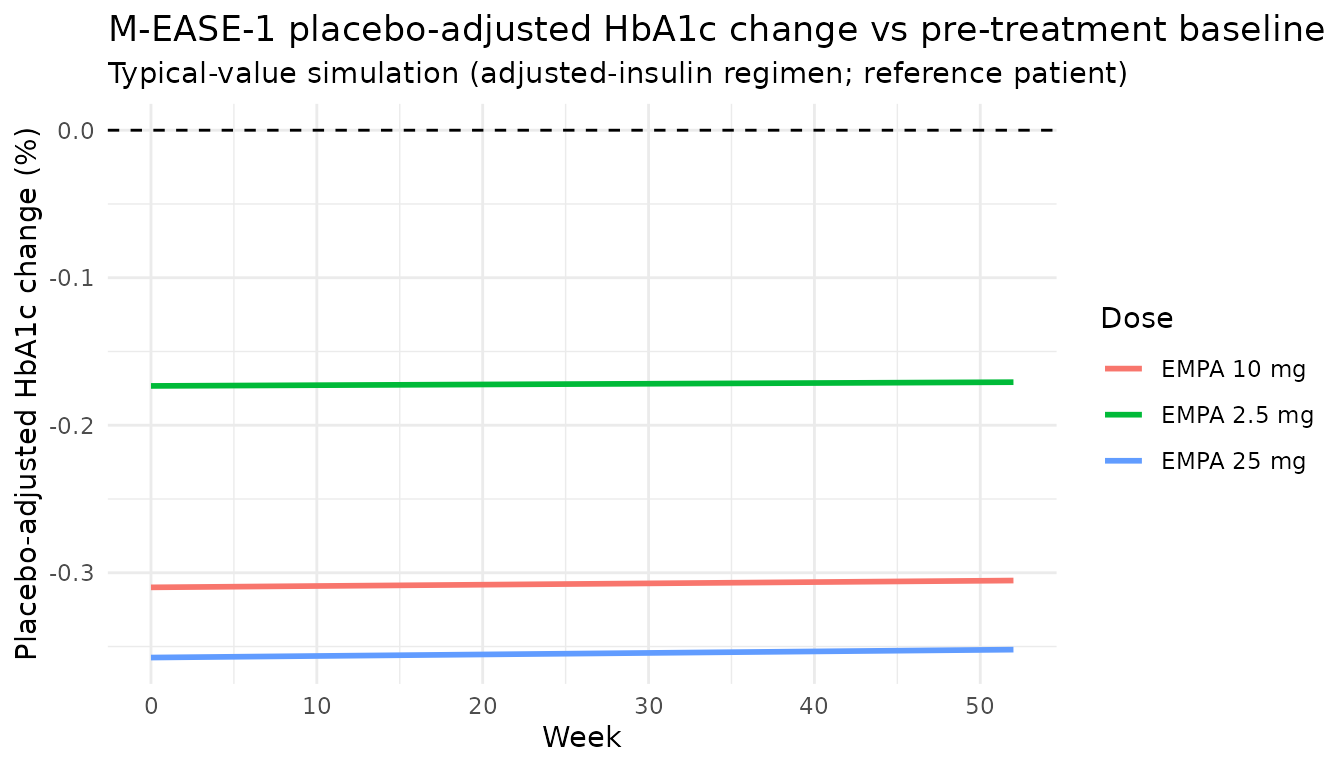

HbA1c time course

The paper models change from pre-treatment baseline HbA1c (fitted typical 8.15 %); the drug arm shows an instantaneous drug effect at time 0 in this model (per Section 2.4.1: “the exposure-related effect of empagliflozin was at steady-state … prior to the collection of the first HbA1c sample at week 4”). The correct placebo-adjusted change from pre-treatment baseline is therefore (HbA1c_drug(t) - 8.15) - (HbA1c_placebo(t) - 8.15) = HbA1c_drug(t) - HbA1c_placebo(t).

baseline_hba1c_pretx <- 8.15
placebo_traj <- sim_pd |> dplyr::filter(arm == "Placebo") |>
  dplyr::group_by(week) |> dplyr::summarise(hba1c_placebo = mean(hba1c), .groups = "drop")

pd_placebo_adj <- sim_pd |>
  dplyr::group_by(arm, week) |>
  dplyr::summarise(hba1c_drug = mean(hba1c), .groups = "drop") |>
  dplyr::left_join(placebo_traj, by = "week") |>
  dplyr::mutate(delta = hba1c_drug - hba1c_placebo)

ggplot(pd_placebo_adj |> dplyr::filter(arm != "Placebo"),
       aes(x = week, y = delta, colour = arm)) +
  geom_line(linewidth = 1) +
  geom_hline(yintercept = 0, linetype = "dashed") +
  labs(title = "M-EASE-1 placebo-adjusted HbA1c change vs pre-treatment baseline",
       subtitle = "Typical-value simulation (adjusted-insulin regimen; reference patient)",
       x = "Week",
       y = "Placebo-adjusted HbA1c change (%)",
       colour = "Dose") +
  theme_minimal(base_size = 11)

Comparison with Figure 2 (adjusted insulin, week 26)

The paper’s Figure 2 reports the placebo-adjusted HbA1c change at week 26 for each empagliflozin dose group with the semi-mechanistic model (500 patients per arm x 500 replicates). The following table compares those reported values against the typical-value simulation at week 26 in this vignette.

w26_typical <- pd_placebo_adj |>
  dplyr::filter(arm != "Placebo", week == 26) |>
  dplyr::transmute(Arm = arm, `Typical-value week-26 delta HbA1c (%)` = round(delta, 2))

paper_reported <- tibble::tibble(
  Arm = c("EMPA 2.5 mg", "EMPA 10 mg", "EMPA 25 mg"),
  `Reported median (adjusted insulin, week 26) [95% CI]` = c(
    "-0.29 [-0.40, -0.10]", "-0.44 [-0.55, -0.33]", "-0.50 [-0.63, -0.38]"
  )
)
knitr::kable(dplyr::left_join(paper_reported, w26_typical, by = "Arm"),
             caption = "Johnston 2021 Figure 2 M-EASE-1 (adjusted insulin) vs typical-value simulation from this file. The simulated values are the deterministic (etas = 0, residuals off) reference-patient trajectory; the reported medians in Figure 2 aggregate 500 patients per arm across 500 replicates including parameter uncertainty and would reproduce more closely under stochastic simulation.")
Johnston 2021 Figure 2 M-EASE-1 (adjusted insulin) vs typical-value simulation from this file. The simulated values are the deterministic (etas = 0, residuals off) reference-patient trajectory; the reported medians in Figure 2 aggregate 500 patients per arm across 500 replicates including parameter uncertainty and would reproduce more closely under stochastic simulation.
Arm Reported median (adjusted insulin, week 26) [95% CI] Typical-value week-26 delta HbA1c (%)
EMPA 2.5 mg -0.29 [-0.40, -0.10] -0.17
EMPA 10 mg -0.44 [-0.55, -0.33] -0.31
EMPA 25 mg -0.50 [-0.63, -0.38] -0.35

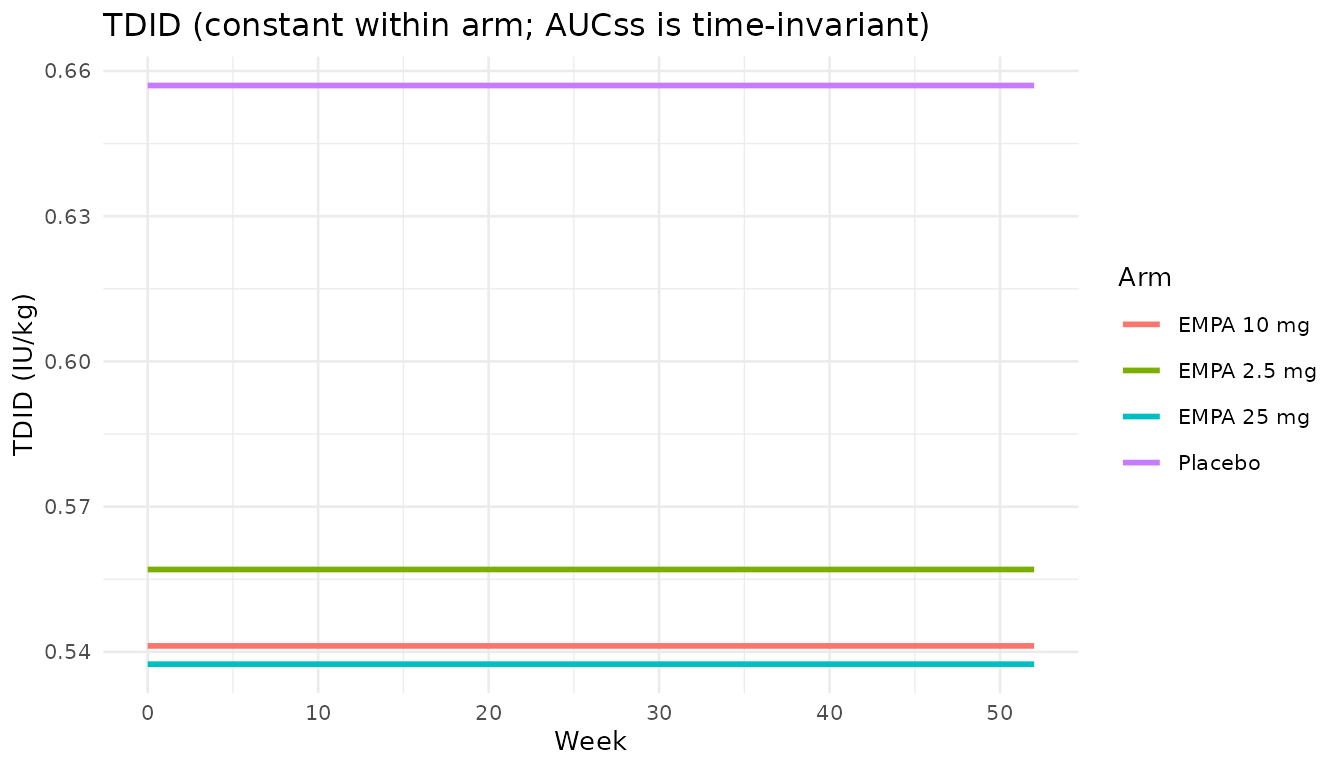

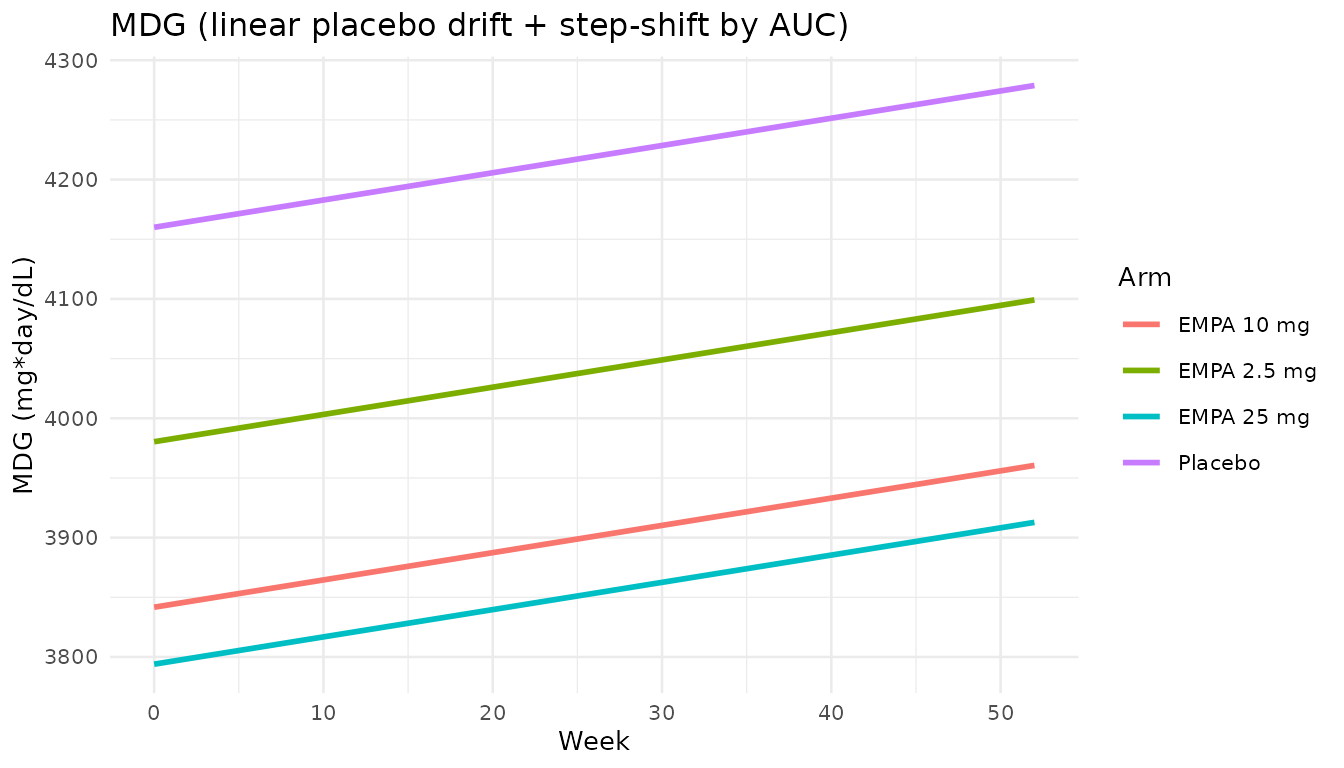

TDID and MDG typical trajectories

For completeness, the typical TDID and MDG trajectories under each dose. The TDID and MDG drug effects are time-invariant (steady-state AUC), so TDID is constant within each arm and MDG rises linearly with time due to the placebo drift term with a downward shift proportional to the empagliflozin AUC.

pd_typical <- sim_pd |>
  dplyr::group_by(arm, week) |>
  dplyr::summarise(tdid = mean(tdid), mdg = mean(mdg), .groups = "drop")

p_tdid <- ggplot(pd_typical, aes(x = week, y = tdid, colour = arm)) +
  geom_line(linewidth = 1) +
  labs(x = "Week", y = "TDID (IU/kg)", colour = "Arm",
       title = "TDID (constant within arm; AUCss is time-invariant)") +
  theme_minimal(base_size = 10)

p_mdg <- ggplot(pd_typical, aes(x = week, y = mdg, colour = arm)) +
  geom_line(linewidth = 1) +
  labs(x = "Week", y = "MDG (mg*day/dL)", colour = "Arm",
       title = "MDG (linear placebo drift + step-shift by AUC)") +
  theme_minimal(base_size = 10)

print(p_tdid)

print(p_mdg)

Assumptions and deviations

  • EASE-1 first-week insulin-adjustment (INC) is omitted. Table S3 reports an INC parameter (theta_6 = 1.05) that scales TDID during the first week of treatment in the EASE-1 phase II study only, with its own block of covariate effects (WT_INC, Sex_INC, eGFR_INC, HbA1c_INC). Because the primary use case of this model file is simulation into the EASE-2 population (Figures 2-3, Section 3.4), the INC scaling is not encoded; users reproducing the EASE-1 fit specifically would need to layer the INC multiplier onto TDID for observations within the first week.

  • EASE-2 study-specific TDID offsets are omitted. Table S3 also reports TDIDt0_EASE2 = 1.02 (baseline TDID multiplier for the EASE-2 pre-treatment insulin-intensification subgroup) and TDIDEMAX_EASE2 = 0.556 (an additional offset on the Emax_TDID logit). The 2.5-mg simulation is done into the EASE-2 population, so a user re-fitting to reproduce those simulations would want these offsets active. The 1.02 multiplier is effectively negligible (2 % higher baseline TDID), and the paper’s interpretation of the 0.556 offset (multiplicative vs additive-on-logit) is ambiguous without the NONMEM control stream; the offsets are documented here rather than encoded.

  • Emax_TDID is encoded as a direct fraction with log-normal IIV. The source (Table S3 equation Emax_TDID_i = exp(...)/(1 + exp(...)), which the PDF renders in a form that is unambiguous only after inspection) parameterises Emax_TDID as a logit-inverse of a NONMEM theta, with IIV encoded on the logit scale (omega^2_TDIDEmax = 0.554). Because Table 3 reports the value as a plain 0.186 fraction (95 % CI 0.145, 0.238), we encode emax_tdid = 0.186 directly with a log-normal IIV that approximates the reported CV; the logit-scale parameterisation from the paper’s supplement is documented here for users who want to re-fit.

  • PopPK residual error uses the EASE-3 value (37.0 % CV). Table S2 reports two study-specific proportional residuals (EASE-1 28.8 % CV and EASE-3 37.0 % CV). Because EASE-3 is the larger dataset (948 vs 75 patients) and the final combined re-estimation used the EASE-3 residual, this file encodes 37.0 % CV. A model refit to EASE-1 only would substitute 28.8 % CV.

  • Alkaline phosphatase reference value. Figure S1 caption prints AP = 73 IU/kg, but the equation on page 10 uses AP_i(IU/L) / 73(IU/L). This is treated as a Figure S1 caption typo; the equation form (IU/L) is used in covariateData$ALP$notes and in ref_ap = 73 inside model().

  • eGFR equation (MDRD vs CKD-EPI) is not specified in the source; users should treat CRCL as whichever creatinine-based estimate their dataset provides.

  • M-EASE-2 not re-extracted. The M-EASE-2 sub-model was already registered as Johnston_2019_empagliflozin (the ADA 2019 poster version with identical parameter estimates). Users who prefer the 2021 journal citation can point to this vignette in the description while continuing to load the M-EASE-2 fit via modellib("Johnston_2019_empagliflozin").
