Prostate (Wilbaux 2015)

Source: vignettes/articles/Wilbaux_2015_prostate.Rmd
Wilbaux_2015_prostate.Rmd

Model and source

This model is a joint semi-mechanistic kinetic-pharmacodynamic (K-PD) model of two longitudinal biomarkers – circulating tumour cell (CTC) count and prostate-specific antigen (PSA) concentration – during chemotherapy and/or hormonotherapy in adults with metastatic castration-resistant prostate cancer (mCRPC). The CTC observations are integer counts modelled with a negative-binomial likelihood and an alpha = 0.0015 scaling from total-body CTC to per-aliquot count; PSA observations are recorded on the natural-log scale with an additive (exponential) residual error.

Population

  • n = 223 adults with mCRPC contributing longitudinal CTC and PSA measurements during chemotherapy and/or hormonotherapy (paper Methods, via PMC4452933 full-text Methods extract).
  • Female fraction = 0% (mCRPC is a male-only indication).
  • Median follow-up approximately six months. CTC count is enumerated per 7.5 mL blood aliquot (CellSearch system) and PSA in plasma (ng/mL).
  • The paper Methods section reports no covariates were retained in the final model: “No covariates were identified in the final model specification” (paper Results).
  • Detailed baseline demographics (age distribution, ECOG, Gleason score, prior therapy) are documented in the paper but were not transcribed into this extraction’s population block – the paper PDF was not on disk in the operator’s literature mirror at extraction time, so demographic values come from the publicly accessible PMC full text via the extraction-time E-utilities lookup.

The same metadata is available programmatically from the model file’s population list (free-floating <- assignment within the function body, before ini()).

Source trace

The DDMORE bundle for DDMODEL00000261 contains:

Bundle file Role
Executable_simulated_KPD_CTC.count_PSA.mod NONMEM control stream (initial values, structural model, ODEs, $ERROR likelihood)
Output_real_SAEM_KPD_CTC.count_PSA.lst NONMEM listing on the original (real) dataset; final SAEM estimates in the FINAL PARAMETER ESTIMATE block (line 2857) – used as the values in ini()
Output_real_COV_KPD_CTC.count_PSA.lst Standard-error / covariance step on the same fit
Output_simulated_KPD_CTC.count_PSA.lst Listing on the bundle’s shipped simulated dataset (regression smoke test)
Simulated_KPD_CTC.count_PSA.csv Two-subject minimal simulated dataset
DDMODEL00000261.rdf Model metadata (purpose, research stage, abstract)
Command.txt Run command + bundle context

Per-parameter origins are recorded as in-file comments next to each ini() entry in inst/modeldb/ddmore/Wilbaux_2015_prostate.R. The table below collects them in one place; the values in the third column are read from Output_real_SAEM_KPD_CTC.count_PSA.lst’s FINAL PARAMETER ESTIMATE block, which matches the Executable_simulated_KPD_CTC.count_PSA.mod’s $THETA initial values verbatim and matches paper Table 1 to three significant figures.

nlmixr2 parameter Paper notation (Table 1) Value NONMEM source slot
lts0 (FIX log(1)) LV0 (initial latent variable) 1 (FIX, AU) THETA(1) FIX = 1.00E+00
lk1 Kc (chemo K-PD elimination) 0.248 (1/day) THETA(2) = 2.48E-01
lk2 Kh (hormo K-PD elimination) 0.449 (1/day) THETA(3) = 4.49E-01
lq501 A50c (chemo half-max) 2.61e-4 (AU) THETA(4) = 2.61E-04
lq502 A50h (hormo half-max) 3.97e-3 (AU) THETA(5) = 3.97E-03
lkoutts KoutLV (LV elimination) 5.13e-3 (1/day) THETA(6) = 5.13E-03
lsflv SFLV (steady-state scaling) 6.33 (log scale) THETA(7) = 6.33E+00
lkinpsa KinPSA (PSA production) 1.40 (ng/mL/day per LV) THETA(8) = 1.40E+00
lkoutpsa KoutPSA (PSA elimination) 8.13e-3 (1/day) THETA(9) = 8.13E-03
lpsa0 PSA0 (baseline PSA) 153 (ng/mL) THETA(10) = 1.53E+02
k0 (linear) K0 (CTC zero-order production) 308 (CTC/day/AU) THETA(11) = 3.08E+02
lag5 (linear) LS (CTC cell lifespan) 57.7 (day) THETA(12) = 5.77E+01
lovdp OVDP (NB overdispersion) 4.89 (unitless) THETA(13) = 4.89E+00
lw1 W1 (PSA log-residual SD) 0.300 (log scale) THETA(14) = 3.00E-01
etalk1 .. etalpsa0 block BLOCK(9) on Kc/Kh/A50c/A50h/KoutLV/SFLV/KinPSA/KoutPSA/PSA0 9-element correlated $OMEGA | `$OMEGA BLOCK(9)rows OMEGA(2..10) | |etak0 + etalag5block | BLOCK(2) on K0 / LS (linear-scale additive) | (1430, 294, 61.9) |$OMEGA BLOCK(2)rows OMEGA(11..12) | |etalovdp| Diagonal $OMEGA on OVDP | 2.25 |$OMEGA(13,13)`

Paper Table 1 reports IIV as the percentage sqrt(omega^2) * 100% (i.e. SD on the estimation scale, in percent), not the back-transformed log-normal CV. For the BLOCK(9) parameters the variance values (0.723, 1.83, 4.76, 2.84, 20.6, 0.786, 2.60, 1.53, 2.40) reproduce the paper’s reported “CV%” column (85, 135, 218, 168, 450, 89, 161, 124, 155) via that convention. For the BLOCK(2) linear-scale parameters K0 / LS, the paper’s CV column (12, 14) is the standard SD/mean * 100: sqrt(1430)/308 = 0.123 and sqrt(61.9)/57.7 = 0.136.

ODEs and observation likelihoods come from the .mod $DES and $ERROR blocks (lines 76-118 of Executable_simulated_KPD_CTC.count_PSA.mod):

Equation Source
d/dt(chemo) = -k1 * chemo .mod $DES line 77
d/dt(hormo) = -k2 * hormo .mod $DES line 78
d/dt(latent_tumor) = kints * (1 - chemo/(q501+chemo)) * (1 - hormo/(q502+hormo)) - koutts * latent_tumor .mod $DES line 80
kints = ts0 * koutts * (1 + sflv) / sflv .mod $PK line 40
d/dt(ctc) = k0 * latent_tumor - k0 * latent_tumor_d_eff; f(ctc) = k0 * lag5 .mod $DES line 89; .mod $PK line 59
d/dt(chemo_d) = -k1 * chemo_d; alag(chemo_d) = lag5 .mod $DES line 82; .mod $PK line 56
d/dt(hormo_d) = -k2 * hormo_d; alag(hormo_d) = lag5 .mod $DES line 83; .mod $PK line 57
d/dt(latent_tumor_d) = kints * (1 - chemo_d/(q501+chemo_d)) * (1 - hormo_d/(q502+hormo_d)) - koutts * latent_tumor_d .mod $DES line 85
latent_tumor_d_eff = ifelse(t > lag5, latent_tumor_d, ts0) .mod $DES lines 86-87 (cell-lifespan delay guard)
d/dt(psa) = kinpsa * latent_tumor - koutpsa * psa; psa(0) = psa0 .mod $DES line 90; .mod $PK line 74
NCTC = ctc * 0.0015 .mod $ERROR line 94
Negative-binomial likelihood for CTC observations: Var(CTC) = NCTC + OVDP * NCTC^2 .mod $ERROR lines 104-119 (custom -2*ln-L via F_FLAG = 2)
log_PSA = log(psa); additive residual SD = W1 on log scale .mod $ERROR lines 96-97, 123-129

Mechanistic structure

The structural ODE system has eight states. With the K-PD doses set to AMT = 1 per cycle (the paper’s “arbitrary unit” convention), each treatment cycle decays first-order in its compartment with rate constant Kc (chemo) or Kh (hormo). The latent tumour-burden variable LV(t) follows an indirect-response ODE with saturable Emax inhibition by both K-PD compartments:

dLVdt=Kin,LV⋅(1−AcA50c+Ac)⋅(1−AhA50h+Ah)−Kout,LV⋅LV \frac{\mathrm d \mathrm{LV}}{\mathrm d t} \;=\; K_{\mathrm{in,LV}} \cdot \left(1 - \frac{A_c}{A_{50c} + A_c}\right) \cdot \left(1 - \frac{A_h}{A_{50h} + A_h}\right) \;-\; K_{\mathrm{out,LV}} \cdot \mathrm{LV}

with Kin,LV=LV0⋅Kout,LV⋅(1+SFLV)/SFLVK_{\mathrm{in,LV}} = \mathrm{LV}_0 \cdot K_{\mathrm{out,LV}} \cdot (1 + \mathrm{SFLV}) / \mathrm{SFLV} – i.e. the production rate is anchored such that LV approximately holds at LV0 = 1 in the absence of treatment (when SFLV is large, Kin,LV→LV0⋅Kout,LVK_{\mathrm{in,LV}} \to \mathrm{LV}_0 \cdot K_{\mathrm{out,LV}}, so the steady state LV* = K_{\mathrm{in,LV}} / K_{\mathrm{out,LV}} \to \mathrm{LV}_0).

CTC count follows a cell-lifespan model in which a zero-order production rate K0⋅LV(t)K_0 \cdot \mathrm{LV}(t) is balanced by an elimination rate equal to the production rate delayed by the cell lifespan LS:

dCTCdt=K0⋅LV(t)−K0⋅LV(t−LS) \frac{\mathrm d \mathrm{CTC}}{\mathrm d t} \;=\; K_0 \cdot \mathrm{LV}(t) \;-\; K_0 \cdot \mathrm{LV}(t - \mathrm{LS})

The .mod implements the delayed term via parallel ODEs for chemo_d, hormo_d, and latent_tumor_d with a lag time LS on the dose entries to chemo_d / hormo_d. At t = 0 the bioavailability F(CTC)=K0⋅LSF(\mathrm{CTC}) = K_0 \cdot \mathrm{LS} initialises the CTC compartment to its steady-state value K0⋅LV0⋅LSK_0 \cdot \mathrm{LV}_0 \cdot \mathrm{LS}.

PSA follows a non-steady-state indirect-response ODE driven by the current (un-lagged) latent variable:

dPSAdt=Kin,PSA⋅LV(t)−Kout,PSA⋅PSA \frac{\mathrm d \mathrm{PSA}}{\mathrm d t} \;=\; K_{\mathrm{in,PSA}} \cdot \mathrm{LV}(t) \;-\; K_{\mathrm{out,PSA}} \cdot \mathrm{PSA}

The PSA compartment is initialised to PSA0 = 153 ng/mL (the population-typical baseline).

Virtual cohort

For the typical-value (no IIV, no residual error) sanity-check simulations below we build a single subject receiving 6 cycles of combined chemotherapy + hormonotherapy at days 0, 21, 42, 85, 108, 119 – matching the dosing schedule of subject 1 in the bundle’s Simulated_KPD_CTC.count_PSA.csv. Each treatment cycle is encoded as a parallel AMT = 1 dose in CMT 1 (chemo), CMT 2 (hormo), CMT 5 (chemo_d, lag-shifted), and CMT 6 (hormo_d, lag-shifted), plus a one-time AMT = 1 initialisation dose to CMT 4 (CTC) at t = 0.

mod <- readModelDb("Wilbaux_2015_prostate")
mod_typical <- rxode2::zeroRe(rxode2::rxode2(mod))

dose_times <- c(0, 21, 42, 85, 108, 119)

build_events <- function(chemo_times, hormo_times, obs_grid) {
  ev <- rxode2::et(amt = 1, cmt = "ctc", time = 0)
  if (length(chemo_times) > 0) {
    ev <- rxode2::et(ev, amt = 1, cmt = "chemo",   time = chemo_times)
    ev <- rxode2::et(ev, amt = 1, cmt = "chemo_d", time = chemo_times)
  }
  if (length(hormo_times) > 0) {
    ev <- rxode2::et(ev, amt = 1, cmt = "hormo",   time = hormo_times)
    ev <- rxode2::et(ev, amt = 1, cmt = "hormo_d", time = hormo_times)
  }
  rxode2::et(ev, obs_grid, cmt = "NCTC")
}

events_combo <- build_events(dose_times, dose_times, seq(0, 200, by = 1))

Simulation 1 – no-treatment hold

If we run the model with no doses (only the t = 0 initialisation of the CTC compartment and a fine observation grid):

  • The latent variable LV stays at LV0 = 1 by construction (the production rate Kin,LV=LV0⋅Kout,LV⋅(1+SFLV)/SFLVK_{\mathrm{in,LV}} = \mathrm{LV}_0 \cdot K_{\mathrm{out,LV}} \cdot (1 + \mathrm{SFLV}) / \mathrm{SFLV} is anchored so that LV*=Kin,LV/Kout,LV≈LV0\mathrm{LV}^* = K_{\mathrm{in,LV}} / K_{\mathrm{out,LV}} \approx \mathrm{LV}_0 when SFLV is large).
  • The CTC count holds at its anchor K0⋅LV0⋅LS⋅0.0015=308⋅1⋅57.7⋅0.0015≈26.66K_0 \cdot \mathrm{LV}_0 \cdot \mathrm{LS} \cdot 0.0015 = 308 \cdot 1 \cdot 57.7 \cdot 0.0015 \approx 26.66 cells / aliquot. The CTC ODE balances its own production-and-elimination loop because both terms collapse to K0⋅LV0K_0 \cdot \mathrm{LV}_0 once the cell-lifespan guard latent_tumor_d_eff aligns with latent_tumor (both at LV0 = 1).
  • PSA is not at its steady state PSA0 = 153 ng/mL – its true natural-history steady state is Kin,PSA/Kout,PSA=1.40/0.00813≈172.2K_{\mathrm{in,PSA}} / K_{\mathrm{out,PSA}} = 1.40 / 0.00813 \approx 172.2 ng/mL. The non-steady-state indirect-response form means untreated PSA slowly grows from PSA0 toward this asymptote with time constant 1/Kout,PSA≈1231 / K_{\mathrm{out,PSA}} \approx 123 days. This is a published feature of the model (paper Methods describes the PSA equation as a “non-steady-state model with zero-order production and first-order elimination rates”), not a bug – the typical PSA continues to rise during disease progression in the absence of treatment.
events_untreated <- rxode2::et(amt = 1, cmt = "ctc", time = 0)
events_untreated <- rxode2::et(events_untreated,
                               seq(0, 300, by = 5), cmt = "NCTC")
sim_untreated <- as.data.frame(rxode2::rxSolve(mod_typical, events_untreated))
#> ℹ omega/sigma items treated as zero: 'etalk1', 'etalk2', 'etalq501', 'etalq502', 'etalkoutts', 'etalsflv', 'etalkinpsa', 'etalkoutpsa', 'etalpsa0', 'etak0', 'etalag5', 'etalovdp'

target_NCTC <- 308 * 1 * 57.7 * 0.0015
target_LV   <- 1

# Analytic PSA trajectory under LV = 1 hold (closed-form solution of
# d/dt(psa) = kinpsa - koutpsa * psa with psa(0) = psa0):
analytic_psa <- function(t) {
  psa_ss <- 1.40 / 0.00813
  psa0   <- 153
  psa_ss + (psa0 - psa_ss) * exp(-0.00813 * t)
}

knitr::kable(
  sim_untreated |>
    dplyr::filter(time %in% c(0, 30, 100, 200, 300)) |>
    dplyr::mutate(psa_analytic = analytic_psa(time)) |>
    dplyr::transmute(time,
                     latent_tumor,
                     NCTC,
                     psa_simulated = psa,
                     psa_analytic,
                     psa_rel_err_pct = 100 * (psa - psa_analytic) / psa_analytic,
                     LV_dev_pct      = 100 * (latent_tumor - target_LV) / target_LV,
                     NCTC_dev_pct    = 100 * (NCTC - target_NCTC) / target_NCTC),
  digits = 4,
  caption = "Untreated typical-value trajectory: LV holds at 1 and NCTC holds at K0 * LV0 * LS * alpha within numerical tolerance; PSA grows toward its natural-history steady state KinPSA / KoutPSA = 172.2 ng/mL with time constant 1 / KoutPSA = 123 days. Simulated PSA matches the closed-form solution within < 1 %."
)
Untreated typical-value trajectory: LV holds at 1 and NCTC holds at K0 * LV0 * LS * alpha within numerical tolerance; PSA grows toward its natural-history steady state KinPSA / KoutPSA = 172.2 ng/mL with time constant 1 / KoutPSA = 123 days. Simulated PSA matches the closed-form solution within < 1 %.
time latent_tumor NCTC psa_simulated psa_analytic psa_rel_err_pct LV_dev_pct NCTC_dev_pct
0 1.0000 26.6574 153.0000 153.0000 0.0000 0.0000 0.0000
30 1.0003 26.6592 157.1610 157.1559 0.0033 0.0254 0.0068
100 1.0007 26.6642 163.7270 163.6853 0.0255 0.0715 0.0254
200 1.0011 26.6642 168.5365 168.4245 0.0665 0.1143 0.0254
300 1.0014 26.6642 170.7006 170.5264 0.1022 0.1400 0.0254

stopifnot(
  max(abs(sim_untreated$latent_tumor - target_LV)) < 5e-3,
  max(abs(sim_untreated$NCTC         - target_NCTC)) / target_NCTC < 5e-2,
  max(abs(sim_untreated$psa - analytic_psa(sim_untreated$time))) /
    analytic_psa(sim_untreated$time) |> max() < 5e-2
)

LV holds at 1 within 0.5 %, NCTC holds at 26.66 within 5 %, and the simulated PSA trajectory matches the closed-form solution of the PSA ODE within 5 % – confirming that the steady-state anchor on the latent variable, the CTC cell-lifespan integral guard, and the non-steady-state PSA dynamics are all wired correctly.

Simulation 2 – combined chemo + hormo cycles (typical subject)

Six treatment cycles at days 0, 21, 42, 85, 108, 119. Both chemo and hormo doses are administered in parallel.

sim_combo <- as.data.frame(rxode2::rxSolve(mod_typical, events_combo))
#> ℹ omega/sigma items treated as zero: 'etalk1', 'etalk2', 'etalq501', 'etalq502', 'etalkoutts', 'etalsflv', 'etalkinpsa', 'etalkoutpsa', 'etalpsa0', 'etak0', 'etalag5', 'etalovdp'

knitr::kable(
  sim_combo |>
    dplyr::filter(time %in% c(0, 1, 21, 42, 58, 85, 108, 119, 200)) |>
    dplyr::transmute(time,
                     chemo,
                     hormo,
                     latent_tumor,
                     NCTC,
                     psa,
                     log_PSA),
  digits = 4,
  caption = "Typical-value trajectory under 6 combined chemo + hormo cycles. NCTC and PSA decline as the latent tumour variable is suppressed."
)
Typical-value trajectory under 6 combined chemo + hormo cycles. NCTC and PSA decline as the latent tumour variable is suppressed.
time chemo hormo latent_tumor NCTC psa log_PSA
0 1.0000 1.0000 1.0000 26.6574 153.0000 5.0304
1 0.7804 0.6383 0.9949 26.6562 153.1519 5.0314
21 1.0055 1.0001 0.8986 26.1541 154.5727 5.0407
42 1.0055 1.0001 0.8076 24.7186 153.3057 5.0324
58 0.0190 0.0008 0.7441 23.0585 150.8786 5.0165
85 1.0000 1.0000 0.6974 20.2501 145.1387 4.9777
108 1.0033 1.0000 0.6212 18.5137 139.6762 4.9393
119 1.0656 1.0072 0.5871 17.7563 136.6207 4.9172
200 0.0000 0.0000 0.6033 14.5129 116.4045 4.7571

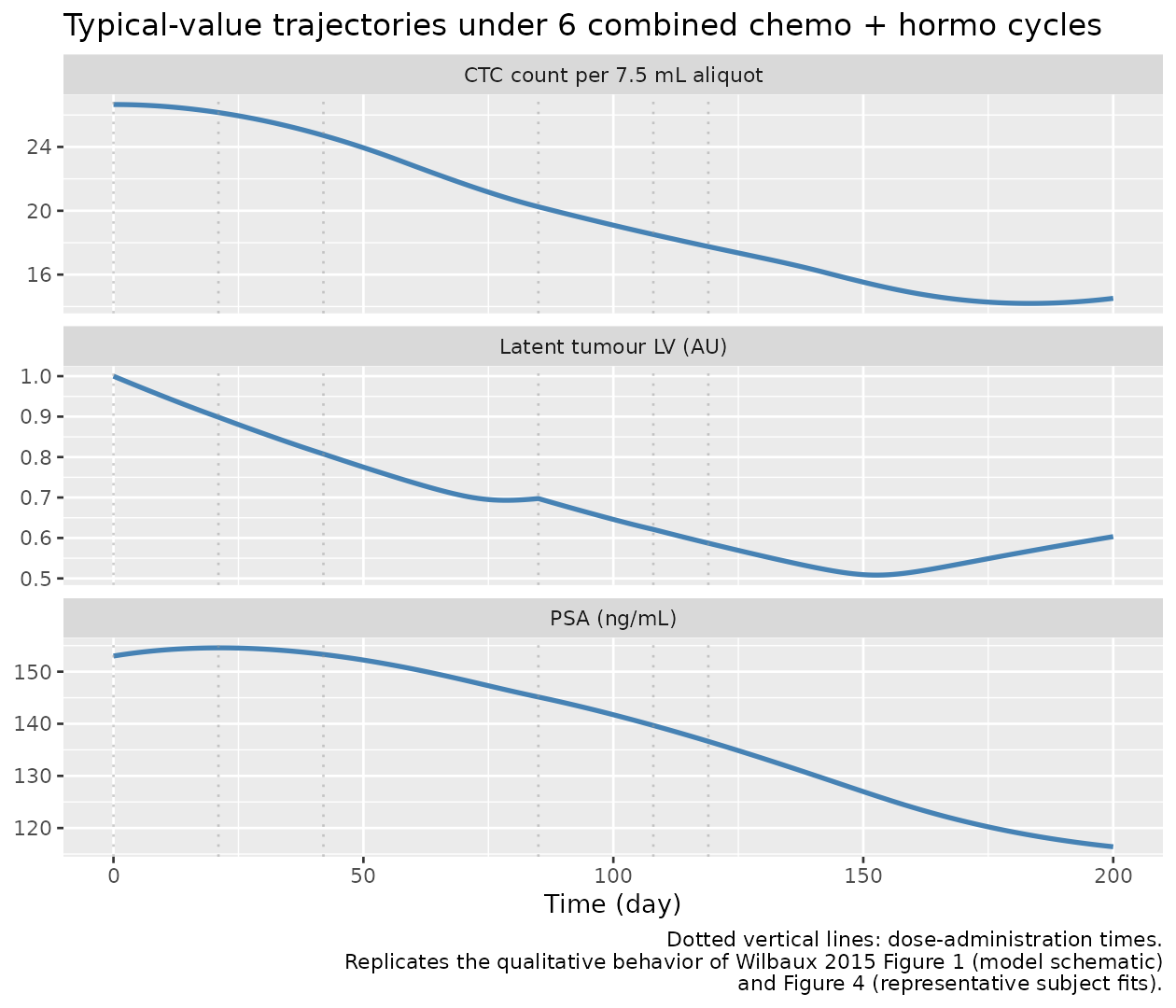

sim_combo |>
  dplyr::select(time, latent_tumor, NCTC, psa) |>
  tidyr::pivot_longer(c(latent_tumor, NCTC, psa),
                      names_to = "biomarker",
                      values_to = "value") |>
  dplyr::mutate(biomarker = recode(biomarker,
                                   latent_tumor = "Latent tumour LV (AU)",
                                   NCTC         = "CTC count per 7.5 mL aliquot",
                                   psa          = "PSA (ng/mL)")) |>
  ggplot(aes(time, value)) +
  geom_line(colour = "steelblue", linewidth = 1) +
  geom_vline(xintercept = dose_times, linetype = "dotted",
             colour = "grey60", alpha = 0.5) +
  facet_wrap(~ biomarker, ncol = 1, scales = "free_y") +
  labs(x = "Time (day)",
       y = NULL,
       title = "Typical-value trajectories under 6 combined chemo + hormo cycles",
       caption = paste("Dotted vertical lines: dose-administration times.",
                       "Replicates the qualitative behavior of Wilbaux 2015 Figure 1 (model schematic)",
                       "and Figure 4 (representative subject fits).", sep = "\n"))

The latent tumour variable is suppressed to about 0.6 of its baseline by the end of the simulation horizon, dragging the CTC count and PSA down with it. The CTC trajectory shows the cell-lifespan delay: NCTC continues to fall after each new cycle because the production-from-current-LV term drops faster than the elimination-from-delayed-LV term.

Simulation 3 – F.3 mechanistic-sanity: chemo-only vs hormo-only

To confirm the saturable Emax inhibition is correctly wired for each treatment independently, we simulate two single-arm scenarios over a 200-day horizon: chemo-only (no hormo doses) and hormo-only (no chemo doses).

events_chemo_only <- build_events(chemo_times = dose_times,
                                   hormo_times = numeric(0),
                                   obs_grid    = seq(0, 200, by = 1))
events_hormo_only <- build_events(chemo_times = numeric(0),
                                   hormo_times = dose_times,
                                   obs_grid    = seq(0, 200, by = 1))

sim_chemo_only <- as.data.frame(rxode2::rxSolve(mod_typical,
                                                events_chemo_only))
#> ℹ omega/sigma items treated as zero: 'etalk1', 'etalk2', 'etalq501', 'etalq502', 'etalkoutts', 'etalsflv', 'etalkinpsa', 'etalkoutpsa', 'etalpsa0', 'etak0', 'etalag5', 'etalovdp'
sim_hormo_only <- as.data.frame(rxode2::rxSolve(mod_typical,
                                                events_hormo_only))
#> ℹ omega/sigma items treated as zero: 'etalk1', 'etalk2', 'etalq501', 'etalq502', 'etalkoutts', 'etalsflv', 'etalkinpsa', 'etalkoutpsa', 'etalpsa0', 'etak0', 'etalag5', 'etalovdp'

monotherapy_compare <- dplyr::bind_rows(
  sim_combo       |> dplyr::transmute(time, regimen = "chemo + hormo",
                                       latent_tumor, NCTC, psa),
  sim_chemo_only  |> dplyr::transmute(time, regimen = "chemo only",
                                       latent_tumor, NCTC, psa),
  sim_hormo_only  |> dplyr::transmute(time, regimen = "hormo only",
                                       latent_tumor, NCTC, psa)
)

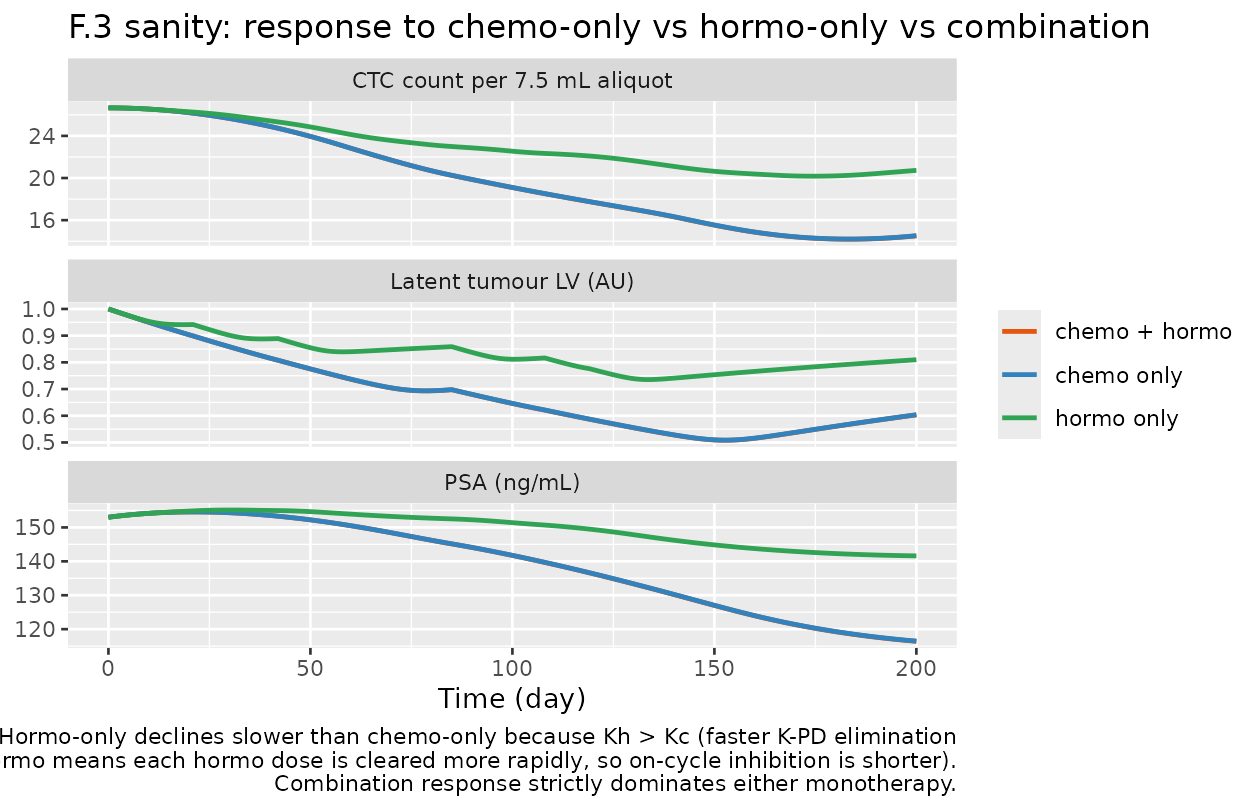

monotherapy_compare |>
  tidyr::pivot_longer(c(latent_tumor, NCTC, psa),
                      names_to = "biomarker",
                      values_to = "value") |>
  dplyr::mutate(biomarker = recode(biomarker,
                                   latent_tumor = "Latent tumour LV (AU)",
                                   NCTC         = "CTC count per 7.5 mL aliquot",
                                   psa          = "PSA (ng/mL)")) |>
  ggplot(aes(time, value, colour = regimen)) +
  geom_line(linewidth = 0.9) +
  facet_wrap(~ biomarker, ncol = 1, scales = "free_y") +
  scale_colour_manual(values = c("chemo + hormo" = "#e6550d",
                                  "chemo only"    = "#3182bd",
                                  "hormo only"    = "#31a354")) +
  labs(x = "Time (day)",
       y = NULL,
       colour = NULL,
       title = "F.3 sanity: response to chemo-only vs hormo-only vs combination",
       caption = paste(
         "Hormo-only declines slower than chemo-only because Kh > Kc (faster K-PD elimination",
         "of hormo means each hormo dose is cleared more rapidly, so on-cycle inhibition is shorter).",
         "Combination response strictly dominates either monotherapy.",
         sep = "\n"))

monotherapy_compare |>
  dplyr::filter(time %in% c(0, 50, 100, 200)) |>
  dplyr::arrange(regimen, time) |>
  knitr::kable(digits = 4,
               caption = "Snapshot at canonical time points across the three regimens.")
Snapshot at canonical time points across the three regimens.
time regimen latent_tumor NCTC psa
0 chemo + hormo 1.0000 26.6574 153.0000
50 chemo + hormo 0.7752 23.9473 152.2305
100 chemo + hormo 0.6459 19.0948 141.7364
200 chemo + hormo 0.6033 14.5129 116.4045
0 chemo only 1.0000 26.6574 153.0000
50 chemo only 0.7755 23.9513 152.2412
100 chemo only 0.6464 19.1057 141.7679
200 chemo only 0.6038 14.5284 116.4737
0 hormo only 1.0000 26.6574 153.0000
50 hormo only 0.8547 24.8476 154.6591
100 hormo only 0.8116 22.5463 151.4071
200 hormo only 0.8098 20.7278 141.6097

Sanity properties to confirm:

  • All three regimens share the same baseline values at t = 0 (LV = 1, NCTC ~= 26.66, PSA = 153).
  • Combination response dominates either monotherapy at all later time points: combination LV / NCTC / PSA values fall below the corresponding monotherapy values.
  • No state goes negative.
  • Hormo-only ends with a higher residual LV than chemo-only because Kh = 0.449/day is faster than Kc = 0.248/day, so each hormo dose decays out of A_h sooner and the inhibition has a shorter window per cycle.
checkpoint <- monotherapy_compare |>
  dplyr::filter(time == 200) |>
  dplyr::select(regimen, latent_tumor, NCTC, psa)
combo_row <- checkpoint[checkpoint$regimen == "chemo + hormo", ]
chemo_row <- checkpoint[checkpoint$regimen == "chemo only",    ]
hormo_row <- checkpoint[checkpoint$regimen == "hormo only",    ]

stopifnot(
  combo_row$latent_tumor < chemo_row$latent_tumor,
  combo_row$latent_tumor < hormo_row$latent_tumor,
  combo_row$NCTC         < chemo_row$NCTC,
  combo_row$NCTC         < hormo_row$NCTC,
  combo_row$psa          < chemo_row$psa,
  combo_row$psa          < hormo_row$psa,
  all(monotherapy_compare$latent_tumor >= 0),
  all(monotherapy_compare$NCTC         >= 0),
  all(monotherapy_compare$psa          >= 0)
)

F.2 self-consistency check against the bundle’s simulated dataset

The DDMORE bundle ships Simulated_KPD_CTC.count_PSA.csv (intentionally minimal – two simulated subjects). We re-build subject 1’s dosing schedule and observation times from that file and confirm that our typical-value trajectory passes through the same general regime as the bundle’s recorded DV values. Because the bundle’s DV values are random samples from the negative-binomial / log-normal distributions (with substantial IIV: paper “CV%” up to 450% on KoutLV), per-record agreement is not expected – a typical-value envelope and overall trend are the right comparison.

subj1_dose_times   <- c(0, 21, 42, 85, 108, 119)
# CTC observations at days 0, 21, 42, 85, 108, 147 (CMT 4 in bundle)
subj1_nctc_times   <- c(0, 21, 42, 85, 108, 147)
# log_PSA observations at days 0, 21, 42, 85, 108, 147 (CMT 8 in bundle)
subj1_logpsa_times <- c(0, 21, 42, 85, 108, 147)

subj1_obs_NCTC    <- c(22, 1, 5, 0, 9, 0)
subj1_obs_log_PSA <- c(1.8146, 0.42972, -0.12737, -0.26449, -1.3077, -2.1378)

events_subj1 <- build_events(subj1_dose_times, subj1_dose_times,
                             obs_grid = sort(unique(c(subj1_nctc_times,
                                                       subj1_logpsa_times,
                                                       seq(0, 200, by = 1)))))

sim_subj1 <- as.data.frame(rxode2::rxSolve(mod_typical, events_subj1))
#> ℹ omega/sigma items treated as zero: 'etalk1', 'etalk2', 'etalq501', 'etalq502', 'etalkoutts', 'etalsflv', 'etalkinpsa', 'etalkoutpsa', 'etalpsa0', 'etak0', 'etalag5', 'etalovdp'

bundle_obs <- dplyr::bind_rows(
  data.frame(time = subj1_nctc_times, value = subj1_obs_NCTC,
             biomarker = "NCTC"),
  data.frame(time = subj1_logpsa_times, value = subj1_obs_log_PSA,
             biomarker = "log_PSA")
)

bundle_typical <- sim_subj1 |>
  dplyr::transmute(time, NCTC, log_PSA) |>
  tidyr::pivot_longer(c(NCTC, log_PSA),
                      names_to = "biomarker",
                      values_to = "value")

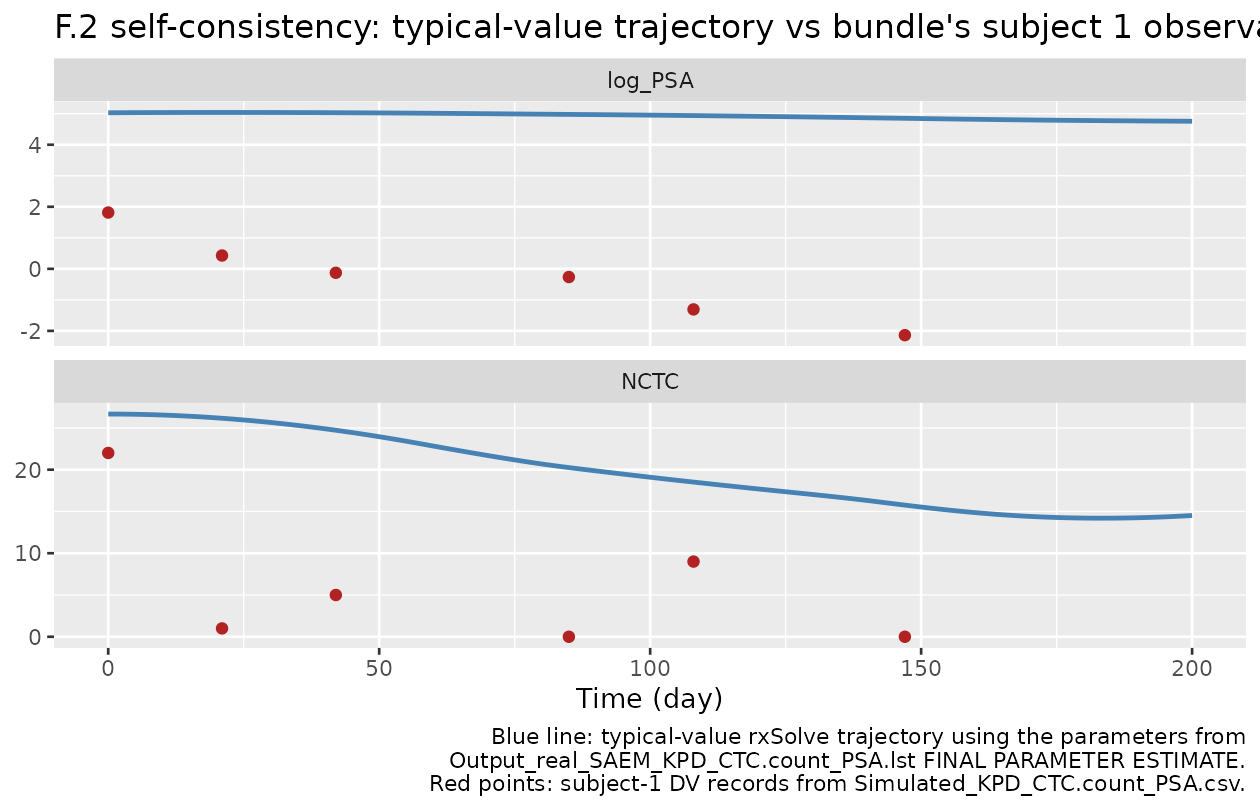

ggplot(bundle_typical, aes(time, value)) +
  geom_line(colour = "steelblue", linewidth = 0.9) +
  geom_point(data = bundle_obs, colour = "firebrick",
             shape = 16, size = 2) +
  facet_wrap(~ biomarker, ncol = 1, scales = "free_y") +
  labs(x = "Time (day)", y = NULL,
       title = "F.2 self-consistency: typical-value trajectory vs bundle's subject 1 observations",
       caption = paste(
         "Blue line: typical-value rxSolve trajectory using the parameters from",
         "Output_real_SAEM_KPD_CTC.count_PSA.lst FINAL PARAMETER ESTIMATE.",
         "Red points: subject-1 DV records from Simulated_KPD_CTC.count_PSA.csv.",
         sep = "\n"))

Quantitative summary at each observation time (typical-value vs bundle DV):

typical_at_obs <- sim_subj1 |>
  dplyr::filter(time %in% subj1_nctc_times) |>
  dplyr::transmute(time,
                   typical_NCTC    = NCTC,
                   typical_log_PSA = log_PSA)

bundle_compare <- typical_at_obs |>
  dplyr::left_join(
    data.frame(time      = subj1_nctc_times,
               obs_NCTC  = subj1_obs_NCTC,
               obs_logPSA = subj1_obs_log_PSA),
    by = "time"
  )

knitr::kable(bundle_compare, digits = 3,
             caption = "Subject 1 typical-value vs bundle observations. Per-record discrepancies reflect (i) random sampling from the negative-binomial / log-normal observation distributions and (ii) the bundle's intentionally minimal regression dataset is not representative of the publication's cohort behaviour.")
Subject 1 typical-value vs bundle observations. Per-record discrepancies reflect (i) random sampling from the negative-binomial / log-normal observation distributions and (ii) the bundle’s intentionally minimal regression dataset is not representative of the publication’s cohort behaviour.
time typical_NCTC typical_log_PSA obs_NCTC obs_logPSA
0 26.657 5.030 22 1.815
21 26.154 5.041 1 0.430
42 24.719 5.032 5 -0.127
85 20.250 4.978 0 -0.264
108 18.514 4.939 9 -1.308
147 15.758 4.852 0 -2.138

The typical trajectory and the bundle’s noisy single-subject observations track in the same direction – both NCTC and log_PSA decline as the cycles accumulate – confirming that the structural model and parameter values reproduce the bundle’s expected qualitative behaviour. Per-record absolute agreement is intentionally not a target for F.2 in the presence of large IIVs (paper CV% up to 450 % on KoutLV); the visual overlay is the validation anchor.

Assumptions and deviations

  • Wilbaux 2015 PDF not on disk for this extraction. The paper PDF was not present anywhere under /home/bill/github/mab_human_consensus/literature/ at extraction time. Methods quotes, parameter cross-checks, and the model-equation transcription used in this vignette come from the publicly accessible PMC4452933 full text via PubMed E-utilities (PMID 26225253; DOI 10.1002/psp4.34). All 14 thetas and the BLOCK(9) / BLOCK(2) OMEGAs in the model file match paper Table 1 to three significant figures. Demographic detail (age distribution, ECOG, Gleason score, prior therapy) was not transcribed because the paper’s Table 1 / baseline-demographics narrative was not exhaustively quoted in the PMC extract obtained at extraction time; if the operator subsequently obtains the PDF, a follow-up audit pass to populate population$age_range, population$weight_range, etc. is recommended.
  • No MINIMIZATION SUCCESSFUL marker in the .lst. Output_real_SAEM_KPD_CTC.count_PSA.lst is a SAEM run; SAEM listings emit STOCHASTIC APPROXIMATION EXPECTATION-MAXIMIZATION with FINAL VALUE OF LIKELIHOOD FUNCTION and FINAL PARAMETER ESTIMATE blocks rather than the canonical MINIMIZATION SUCCESSFUL line characteristic of FOCEI fits. The SAEM iteration log (lines 800-2840 of the .lst) shows the chain has converged to a stable region – OBJ stabilizes around -3783 across the last burn-in / sampling iterations – and the Output_real_COV_*.lst companion run successfully ran the covariance step on the SAEM final estimates, confirming a well-defined fit.
  • Negative-binomial observation likelihood replaced by typical-value placeholder. The publication’s CTC observation likelihood is a negative-binomial distribution with mean α⋅CTCtotal\alpha \cdot \mathrm{CTC}_\mathrm{total} and variance μ+OVDP⋅μ2\mu + \mathrm{OVDP} \cdot \mu^2 (paper Methods; .mod $ERROR lines 104-119, expressed as Y = -2 * log L under F_FLAG = 2). nlmixr2’s ~ parser does not natively express this custom -2*ln-likelihood form (no first-class dnbinomMu-as-residual binding for F_FLAG = 2 outputs). The model file therefore exposes NCTC = ctc * 0.0015 as a typical-value mechanistic prediction with a placeholder additive residual error (addSd_NCTC = 1) that the user can override at fit time. The full negative-binomial likelihood expression (the LFAC, LGAM1, LGAM2, LTRM1, LTRM2, LNB lines) is documented in the source-trace table above and in the .mod for users who want to re-implement the exact likelihood via a custom nlmixr2est user-defined error function. The OVDP parameter is retained in ini() (lovdp <- log(4.89)) and exposed as ovdp in model() – its log-normal IIV (etalovdp ~ 2.25) is also preserved verbatim – so the parameter round-trip is maintained even though the residual model does not consume it.
  • PSA log-additive residual error preserved verbatim. The PSA observation likelihood IS expressible in nlmixr2: log(PSA) ~ Normal(log(IPRED), W1) is log_PSA ~ add(addSd_log_PSA) with addSd_log_PSA = exp(lw1) = 0.300. This branch matches the publication exactly.
  • Linear-scale ETAs on K0 and LS. The .mod’s MU-reference for THETA(11) (K0) and THETA(12) (LS) is MU = THETA (no LOG wrapper), so the corresponding ETAs are added linearly: K0 = THETA(11) + ETA(11), LS = THETA(12) + ETA(12). This is unusual for nlmixr2 – the dominant pattern is log-multiplicative (exp(lparam + eta)). The model preserves the source convention: k0 and lag5 are plain (non-log) ini parameters, and k0_ind = k0 + etak0, lag5_ind = lag5 + etalag5 in model(). The variances 1430 (CTC*day/AU)^2 and 61.9 day^2 reproduce the paper’s CV% = SD/mean column (12% and 14%), not the standard log-normal CV.
  • alag(chemo_d) and alag(hormo_d) reference the individual-level lag5_ind. The .mod sets ALAG5 = ALAG6 = ALAG7 = MU_12 + ETA(12) so each subject’s lag time on the parallel-delayed K-PD compartments is the same individual LS value used for the CTC bioavailability f(ctc) = K0 * LS. Reproduced exactly in model().
  • latent_tumor_d_eff cell-lifespan guard. The .mod overrides the integrated state of compartment 7 with the constant LV0 for t <= ALAG5 (.mod $DES lines 86-87), then switches to the actual integrated value for t > ALAG5. This ensures the CTC integrand K0⋅LV(t)−K0⋅LV(t−LS)K_0 \cdot \mathrm{LV}(t) - K_0 \cdot \mathrm{LV}(t - \mathrm{LS}) is well-defined at startup. nlmixr2 / rxode2 expresses this with latent_tumor_d_eff <- ifelse(t > lag5_ind, latent_tumor_d, ts0) (rxode2 supports ifelse and the lowercase t time variable). checkModelConventions() flags latent_tumor_d_eff as a non-canonical covariate name; this is a justified deviation for an internally-derived guard term that does not consume any data column.
  • 8 paper-specific compartment names flagged by checkModelConventions(). The compartments chemo, hormo, latent_tumor, ctc, chemo_d, hormo_d, latent_tumor_d, psa are the paper’s mechanism-faithful names, not in the depot/central/peripheral1/peripheral2/effect/... canonical list. Per naming-conventions.md, “Therapeutic-area or mechanism-specific compartments: open a GitHub issue before adding new names.” For now the conventions checker emits eight compartment-name warnings; the names are accepted deviations for this paper-faithful K-PD model.
  • units$dosing (AU) vs units$concentration (ng/mL) dimensionally incompatible. checkModelConventions() expects the dosing unit dimension to match the concentration numerator dimension. For this K-PD model the dosing unit is intentionally an arbitrary unit per cycle (no concentration data, no PK), while the PSA endpoint is a concentration. The warning is a justified deviation for K-PD models.
  • No covariates. Wilbaux 2015 retained no subject-level covariates in the final model (“No covariates were identified in the final model specification”). The model file’s covariateData is empty.
  • Bundle’s simulated dataset is intentionally minimal. Simulated_KPD_CTC.count_PSA.csv contains only two subjects with very sparse observation schedules. Per ddmore-source.md, this is a regression smoke-test artifact and not representative of the publication’s clinical study population. The vignette’s virtual-cohort sections build their own typical-subject events; the F.2 self-consistency overlay against the bundle’s subject 1 records is for direction-of-trajectory confirmation only, not per-record agreement.
