Torsemide PBPK-PD in healthy adults, CYP2C9 phenotypes and patient groups (Jeong 2022)

Source: vignettes/articles/Jeong_2022_torsemide_pbpk.Rmd
Jeong_2022_torsemide_pbpk.Rmd

Model and source

  • Citation: Jeong S-H, Jang J-H, Lee Y-B. Torsemide Pharmacometrics in Healthy Adult Populations Including CYP2C9 Genetic Polymorphisms and Various Patient Groups through Physiologically Based Pharmacokinetic-Pharmacodynamic Modeling. Pharmaceutics. 2022;14(12):2720. doi:10.3390/pharmaceutics14122720

  • Article: Pharmaceutics 2022;14(12):2720 (open access; the supplement holds Tables S1-S3 and Figures S1-S21)

Jeong, Jang and Lee built a minimal physiologically based pharmacokinetic-pharmacodynamic (PBPK-PD) model of the loop diuretic torsemide in Berkeley Madonna. A single blood pool exchanges with the lung, kidney, liver, GI-tract and the rest of the body. All of these tissues sit in parallel, and the hepatic-vein outflow collects the hepatic-artery and GI-tract flows. Each blood-tissue flow is multiplied by the unbound fraction Fr and the plasma-to-blood-cell partition ratio Pr (Appendix A).

An oral dose is absorbed first-order into the GI-tract tissue, which also loses drug through a first-order GI elimination Ke. The liver metabolises torsemide by Michaelis-Menten kinetics (CYP2C9), and the kidney excretes it first-order into urine. The pharmacodynamic endpoint is the urinary sodium excretion rate, a direct baseline sigmoid-Emax function of the urinary torsemide excretion rate (Table 5).

The model was built from mean healthy-adult data. It was then extended without refitting to CYP2C9 extensive / intermediate / poor metabolizers (Table 1) and to liver cirrhosis, chronic kidney disease (CKD) and congestive heart failure (CHF) by substituting physiological parameters (Tables 2-4). A sibling population-PK model of the same group’s healthy Korean cohort is shipped as Jeong_2022_torsemide.

mod <- rxode2::rxode(readModelDb("Jeong_2022_torsemide_pbpk"))

The model is deterministic: the paper reports no inter-individual or residual variability, so every simulation below is a typical-value solve.

Population

The model was not fitted to individual data. Mean (or median) plasma or serum concentration, cumulative urinary excretion and urinary sodium excretion profiles were digitised from published clinical studies (Table S1). These were 11 healthy-adult studies (5-20 mg oral or IV; most subjects male; ages 19-83 years) including the authors’ own 112-subject Korean pop-PK cohort, one CKD study (Gehr 1994, 100 mg), one cirrhosis study (Schwartz 1993) and six CHF studies (5-200 mg). Organ volumes and blood flows describe a reference adult (Table S2).

str(readModelDb("Jeong_2022_torsemide_pbpk")()$population, give.attr = FALSE)
#> List of 11
#>  $ species       : chr "human"
#>  $ n_subjects    : int NA
#>  $ n_studies     : int 17
#>  $ age_range     : chr "19-83 years across the pooled healthy-adult studies (Table S1)"
#>  $ weight_range  : NULL
#>  $ sex_female_pct: num NA
#>  $ race_ethnicity: chr "Mixed: Korean bioequivalence and pop-PK cohorts plus European and US clinical-pharmacology studies (Table S1)."
#>  $ disease_state : chr "Healthy adults (including CYP2C9 EM / IM / PM) for model building; liver cirrhosis, chronic kidney disease and "| __truncated__
#>  $ dose_range    : chr "Healthy: 5, 10 and 20 mg single oral or IV, 10 mg once daily oral; CKD: 100 mg oral or IV; cirrhosis: 10 mg ora"| __truncated__
#>  $ regions       : chr "Republic of Korea, Europe and USA (literature studies of Table S1)."
#>  $ notes         : chr "No individual-level data set. Mean (or median) plasma / serum concentration, cumulative urinary excretion and u"| __truncated__

Source trace

Every ini() value carries an in-file comment pointing at its source; the table collects them.

Parameter Value Source
v_blood, v_lung, v_kidney, v_liver, v_gut 5.4, 1.2, 0.3, 1.5, 2.4 L Table S2 (5400, 1200, 300, 1500, 2400 mL; literature)
lv_remainder log(62.43 L) Table S2 Vrb 6.243e4 mL (estimated)
q_lung 379.8 L/h Table S2 Qlu = Qbl = 3.798e5 mL/h
q_kidney, q_gut, q_hepatic_artery 74.4, 66, 87 L/h Table S2 Qki, Qgi, Qliar
lq_remainder log(152.4 L/h) Table S2 Qrb 1.524e5 mL/h (estimated)
lkp_lung, lkp_kidney, lkp_liver, lkp_gut, lkp_remainder log(0.23, 0.15, 0.11, 0.18, 1.03) Table S2 Klu, Kki, Kli, Kgi, Krb (Simcyp prediction)
fu 0.05 Table S2 Fr
krbc 0.28 Table S2 Pr
lvmax, lkm log(1.11 ug/mL/h), log(3.90 ug/mL) Table S2 Vmax, Km
e_cyp2c9em_lvmax, e_cyp2c9em_lkm log(2.216/1.11), log(1.951/3.90) Table 1 Vmax,EM, Km,EM
e_cyp2c9im_lvmax, e_cyp2c9im_lkm log(0.886/1.11), log(5.073/3.90) Table 1 Vmax,IM, Km,IM
e_cyp2c9pm_lvmax, e_cyp2c9pm_lkm log(0.222/1.11), log(8.242/3.90) Table 1 Vmax,PM, Km,PM
lka, lkurine, lkgutex log(5.50, 18.50, 1.00 1/h) Table S2 Ka, Ku, Ke (estimated)
le0, lemax, lec50, hill log(4.39 mEq/h), log(105.1 mEq/h), log(345.5 ug/h), 2.13 Table 5 Healthy (P = -2.13)
e_hepimp_* E0 4.33, Emax 65.24, EC50 388.8, P -2.82 Table 5 Cirrhosis, as shifts from Healthy
e_chf_* E0 3.25, Emax 83.45, EC50 3985, P -1.16 Table 5 CHF, as shifts from Healthy
Cirrhosis fractions and levels CP-A / B / C Table 2
Cirrhosis partition coefficients 0.233/0.237/0.243 (lung) … 1.041/1.078/1.139 (rest) Figure S10, digitised by the maintainers
CKD fractions mild / moderate / severe Table 3
CHF fractions mild / moderate / severe Table 4
Mass balances – Appendix A, Equations (A1)-(A10)
PD equation – Table 5 (see Assumptions and deviations)

The disease rules (Sections 2.6.2-2.6.4) are coded in model(). Their outputs can be read from a solve and compared with the bar charts of Figures S10 (cirrhosis), S14 (CKD) and S16 (CHF):

covs_ref <- c(
  CYP2C9_EM = 0, CYP2C9_IM = 0, CYP2C9_PM = 0,
  HEPIMP_MILD = 0, HEPIMP_MOD = 0, HEPIMP_SEV = 0,
  RENALIMP_MILD = 0, RENALIMP_MOD = 0, RENALIMP_SEV = 0,
  DIS_CHF_NYHA2 = 0, DIS_CHF_NYHA3 = 0, DIS_CHF_NYHA4 = 0
)
scenarios <- c(
  "Healthy" = "none",
  "Cirrhosis CP-A" = "HEPIMP_MILD", "Cirrhosis CP-B" = "HEPIMP_MOD",
  "Cirrhosis CP-C" = "HEPIMP_SEV",
  "CKD mild" = "RENALIMP_MILD", "CKD moderate" = "RENALIMP_MOD",
  "CKD severe" = "RENALIMP_SEV",
  "CHF mild" = "DIS_CHF_NYHA2", "CHF moderate" = "DIS_CHF_NYHA3",
  "CHF severe" = "DIS_CHF_NYHA4",
  "CYP2C9 EM" = "CYP2C9_EM", "CYP2C9 IM" = "CYP2C9_IM", "CYP2C9 PM" = "CYP2C9_PM"
)

# One typical subject: dose events plus an observation grid, with every
# covariate column set (0 except the active scenario indicator).
make_events <- function(dose, cmt, scenario = "none", times = seq(0, 12, by = 0.05),
                        ii = 0, n_doses = 1) {
  ev <- rxode2::et(amt = dose, cmt = cmt, ii = ii, addl = n_doses - 1) |>
    rxode2::et(times)
  d <- as.data.frame(ev)
  covs <- covs_ref
  if (scenario != "none") covs[[scenario]] <- 1
  for (nm in names(covs)) d[[nm]] <- covs[[nm]]
  d
}
solve_typ <- function(...) {
  as.data.frame(rxode2::rxSolve(mod, events = make_events(...), returnType = "data.frame"))
}

physio <- lapply(names(scenarios), function(lab) {
  s <- solve_typ(10, "depot", scenarios[[lab]], times = c(0, 1))
  data.frame(
    Scenario = lab,
    `Vli (L)` = s$vli[1], `Vki (L)` = s$vki[1],
    `Qlu (L/h)` = s$qlu[1], `Qki (L/h)` = s$qki[1], `Qgi (L/h)` = s$qgi[1],
    `Qliar (L/h)` = s$qliar[1], `Qlive (L/h)` = s$qlive[1], `Qrb (L/h)` = s$qrb[1],
    Fr = s$fr[1], Pr = s$pr[1], `Vmax (ug/mL/h)` = s$vmax[1], `Km (ug/mL)` = s$km[1],
    `Ke (1/h)` = s$kgutex[1], `Ku (1/h)` = s$kurine[1],
    check.names = FALSE
  )
}) |> bind_rows()
knitr::kable(physio, digits = 3, caption = "Physiology and drug parameters per scenario, as computed in model().")
Physiology and drug parameters per scenario, as computed in model().
Scenario Vli (L) Vki (L) Qlu (L/h) Qki (L/h) Qgi (L/h) Qliar (L/h) Qlive (L/h) Qrb (L/h) Fr Pr Vmax (ug/mL/h) Km (ug/mL) Ke (1/h) Ku (1/h)
Healthy 1.500 0.300 379.800 74.400 66.00 87.00 153.00 152.400 0.050 0.280 1.110 3.900 1.000 18.500
Cirrhosis CP-A 1.215 0.300 440.568 52.080 60.06 122.67 182.73 205.758 0.054 0.313 0.766 3.900 0.775 18.500
Cirrhosis CP-B 0.975 0.300 501.336 43.152 41.58 140.94 182.52 275.664 0.065 0.349 0.578 3.900 0.658 18.500
Cirrhosis CP-C 0.795 0.300 535.518 40.920 36.30 166.17 202.47 292.128 0.082 0.359 0.366 3.900 0.503 18.500
CKD mild 1.500 0.297 379.800 73.656 66.00 87.00 153.00 153.144 0.050 0.280 1.110 3.900 1.000 18.315
CKD moderate 1.500 0.279 379.800 63.984 66.00 87.00 153.00 162.816 0.050 0.280 0.766 3.900 1.000 12.580
CKD severe 1.500 0.261 379.800 53.568 66.00 87.00 153.00 173.232 0.050 0.280 0.577 3.900 1.000 6.845
CHF mild 1.500 0.300 262.062 58.032 50.16 66.12 116.28 86.868 0.050 0.280 0.844 3.900 1.000 18.500
CHF moderate 1.500 0.300 189.900 40.920 35.64 46.98 82.62 67.056 0.050 0.280 0.599 3.900 1.000 18.500
CHF severe 1.500 0.300 159.516 46.872 30.36 40.02 70.38 42.672 0.050 0.280 0.511 3.900 1.000 18.500
CYP2C9 EM 1.500 0.300 379.800 74.400 66.00 87.00 153.00 152.400 0.050 0.280 2.216 1.951 1.000 18.500
CYP2C9 IM 1.500 0.300 379.800 74.400 66.00 87.00 153.00 152.400 0.050 0.280 0.886 5.073 1.000 18.500
CYP2C9 PM 1.500 0.300 379.800 74.400 66.00 87.00 153.00 152.400 0.050 0.280 0.222 8.242 1.000 18.500

# Spot checks against values that follow arithmetically from the printed
# tables (Figure S10/S14/S16 show the same numbers as bars).
stopifnot(
  abs(physio$`Qrb (L/h)`[physio$Scenario == "Cirrhosis CP-B"] - (379.8 * 1.32 - 74.4 * 0.58 - (87 * 1.62 + 66 * 0.63))) < 1e-6,
  abs(physio$Fr[physio$Scenario == "Cirrhosis CP-C"] - 1 / (1 + 0.95 * (29.69 / 50.34) / 0.05)) < 1e-9,
  abs(physio$`Vmax (ug/mL/h)`[physio$Scenario == "CHF severe"] - 1.11 * 0.46) < 1e-9,
  abs(physio$`Qrb (L/h)`[physio$Scenario == "CKD severe"] - (152.4 + 74.4 * (1 - 0.72))) < 1e-9,
  abs(physio$`Vmax (ug/mL/h)`[physio$Scenario == "CYP2C9 PM"] - 0.222) < 1e-9
)

Healthy adults (Figures S3, S5, S6)

healthy <- bind_rows(lapply(c(5, 10, 20), function(dd) {
  bind_rows(
    solve_typ(dd, "depot") |> mutate(route = "Oral"),
    solve_typ(dd, "a_blood") |> mutate(route = "IV bolus")
  ) |> mutate(dose = paste(dd, "mg"))
})) |>
  mutate(dose = factor(dose, levels = c("5 mg", "10 mg", "20 mg")))

ggplot(healthy, aes(time, Cc, colour = dose)) +
  geom_line() +
  facet_wrap(~route) +
  scale_y_log10() +
  labs(
    x = "Time (h)", y = "Torsemide (ug/mL)", colour = NULL,

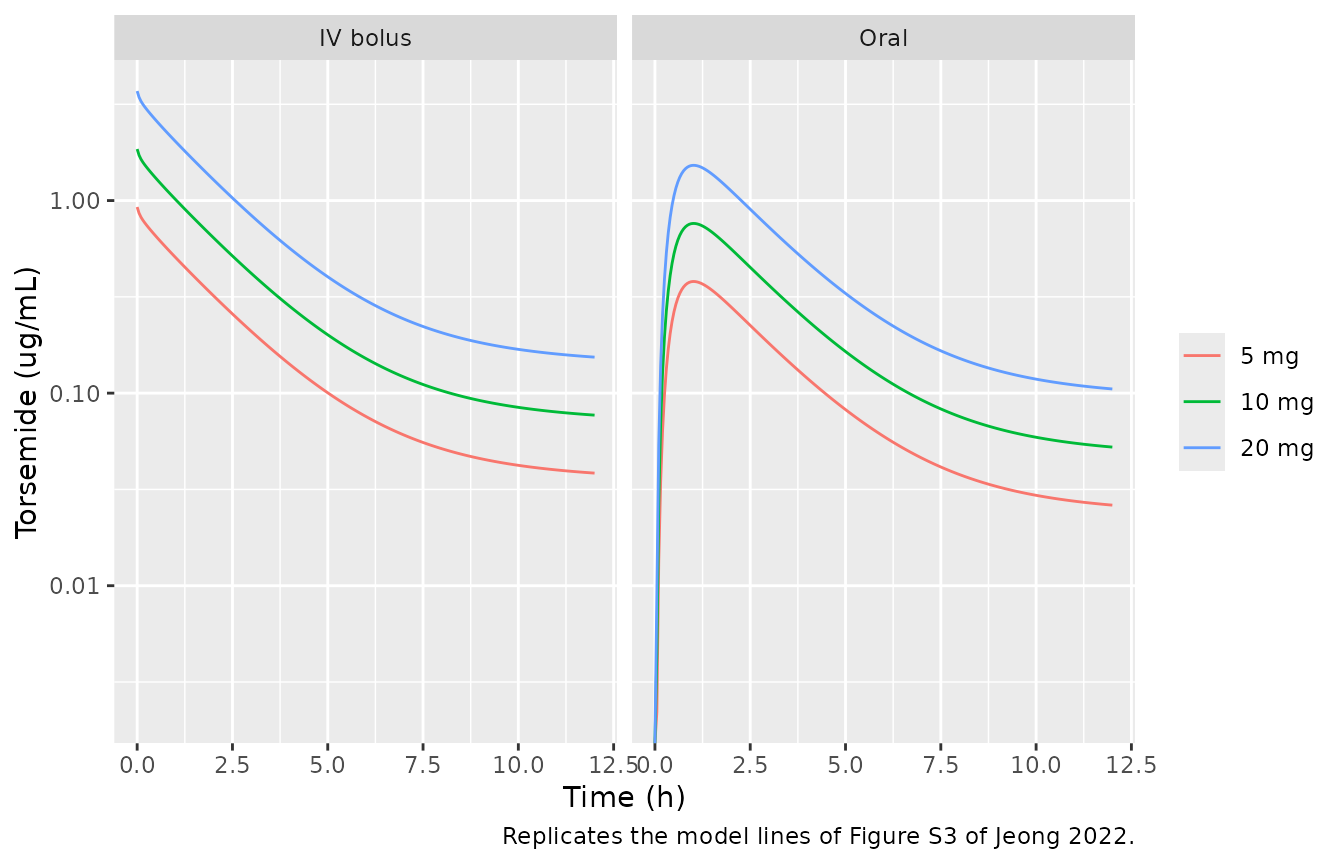

    caption = "Replicates the model lines of Figure S3 of Jeong 2022."
  )
#> Warning in scale_y_log10(): log-10 transformation introduced infinite values.


ggplot(healthy, aes(time, 1000 * a_urine, colour = dose)) +
  geom_line() +
  facet_wrap(~route) +
  labs(
    x = "Time (h)", y = "Cumulative urinary torsemide (ug)", colour = NULL,

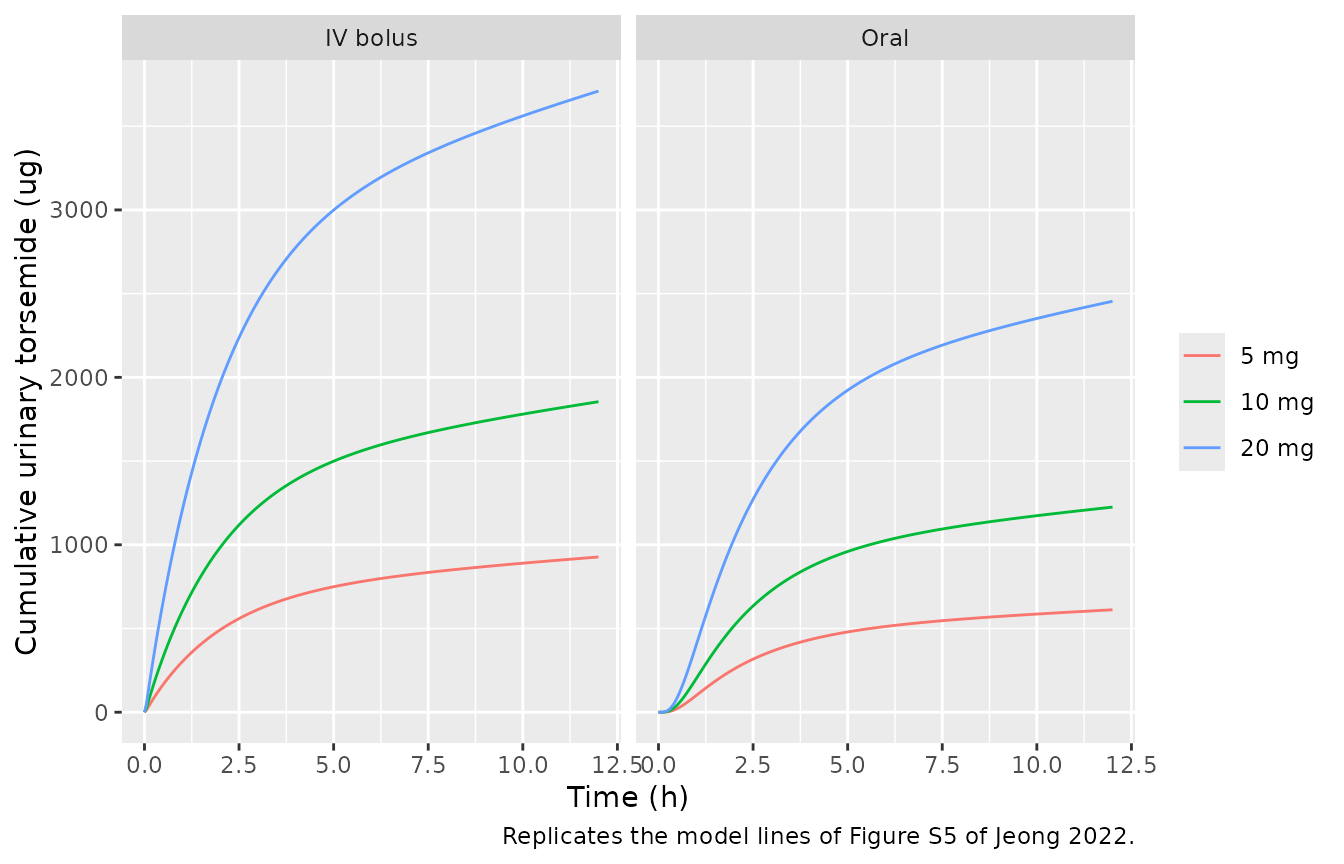

    caption = "Replicates the model lines of Figure S5 of Jeong 2022."
  )


ggplot(healthy, aes(time, sodium_excr_rate, colour = dose)) +
  geom_line() +
  facet_wrap(~route) +
  scale_y_log10() +
  labs(
    x = "Time (h)", y = "Urinary sodium excretion rate (mEq/h)", colour = NULL,

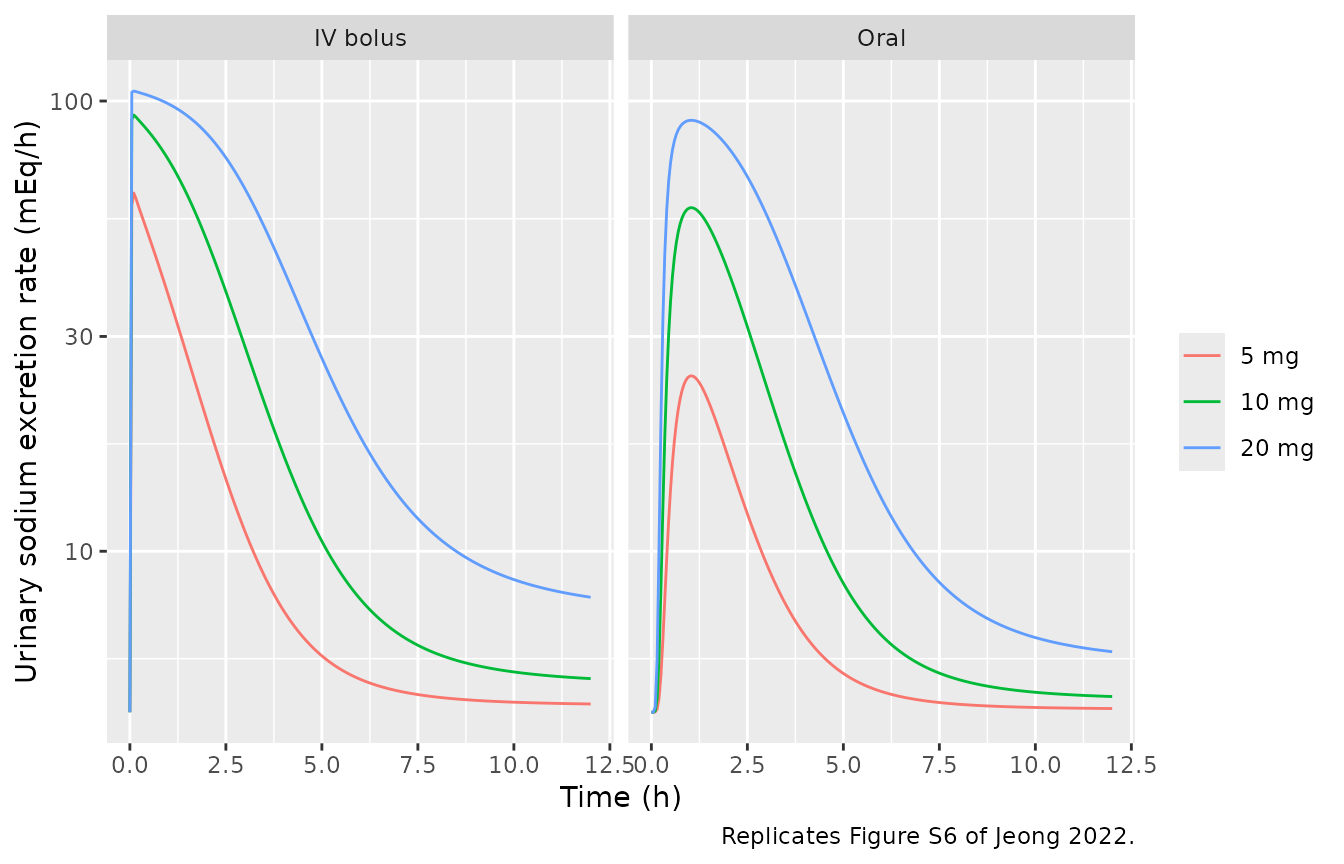

    caption = "Replicates Figure S6 of Jeong 2022."
  )

The model lines of Figures S5 and S6 were read off the figures by the maintainers (roughly +/-2% of the axis span). The table compares them with the simulation:

healthy_summary <- healthy |>
  group_by(route, dose) |>
  summarise(
    urine_12h_ug = 1000 * a_urine[time == 12],
    na_peak = max(sodium_excr_rate),
    .groups = "drop"
  )
healthy_ref <- tibble::tribble(
  ~route, ~dose, ~quantity, ~read_from_figure,
  "Oral", "10 mg", "urine_12h_ug", 1240,
  "Oral", "20 mg", "urine_12h_ug", 2480,
  "IV bolus", "10 mg", "urine_12h_ug", 1880,
  "Oral", "5 mg", "na_peak", 25,
  "Oral", "10 mg", "na_peak", 58,
  "Oral", "20 mg", "na_peak", 90
)
healthy_cmp <- healthy_summary |>
  mutate(dose = as.character(dose)) |>
  pivot_longer(c(urine_12h_ug, na_peak), names_to = "quantity", values_to = "simulated") |>
  inner_join(healthy_ref, by = c("route", "dose", "quantity")) |>
  mutate(pct_diff = 100 * (simulated / read_from_figure - 1))
healthy_cmp |>
  dplyr::rename(
    Route = route, Dose = dose, Quantity = quantity,
    Simulated = simulated, `Figure S5 / S6` = read_from_figure, `% diff` = pct_diff
  ) |>
  knitr::kable(digits = 1)
Route Dose Quantity Simulated Figure S5 / S6 % diff
IV bolus 10 mg urine_12h_ug 1854.5 1880 -1.4
Oral 5 mg na_peak 24.5 25 -1.9
Oral 10 mg urine_12h_ug 1225.0 1240 -1.2
Oral 10 mg na_peak 58.0 58 -0.1
Oral 20 mg urine_12h_ug 2454.3 2480 -1.0
Oral 20 mg na_peak 90.6 90 0.7
# A wrong unit, volume or rate constant moves these by far more than 10%.
stopifnot(all(abs(healthy_cmp$pct_diff) < 10))

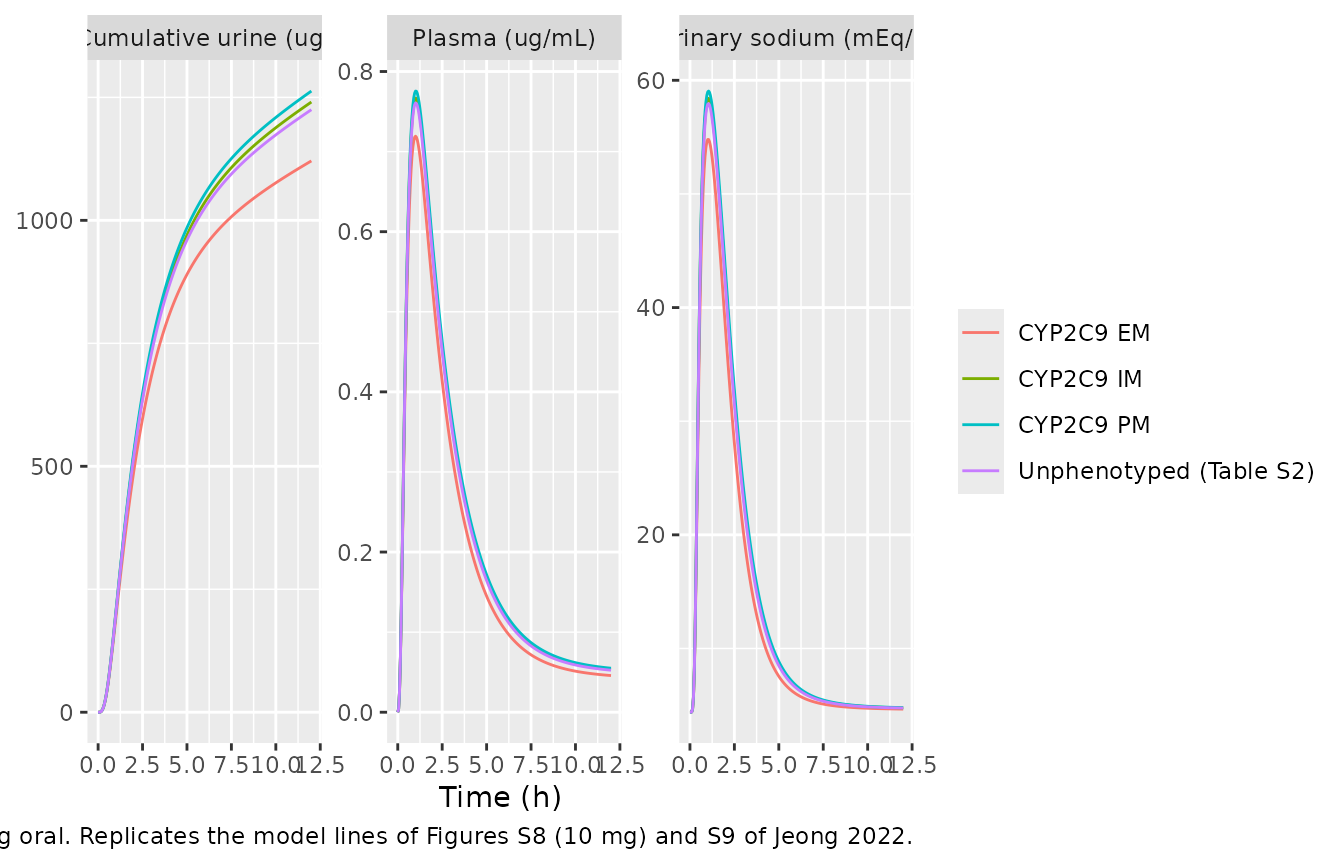

CYP2C9 phenotypes (Figures S8, S9)

cyp <- bind_rows(lapply(c("CYP2C9 EM", "CYP2C9 IM", "CYP2C9 PM", "Healthy"), function(lab) {
  solve_typ(10, "depot", scenarios[[lab]]) |> mutate(phenotype = lab)
})) |>
  mutate(phenotype = recode(phenotype, Healthy = "Unphenotyped (Table S2)"))

cyp |>
  select(phenotype, time, `Plasma (ug/mL)` = Cc, `Cumulative urine (ug)` = a_urine,
         `Urinary sodium (mEq/h)` = sodium_excr_rate) |>
  mutate(`Cumulative urine (ug)` = 1000 * `Cumulative urine (ug)`) |>
  pivot_longer(-c(phenotype, time)) |>
  ggplot(aes(time, value, colour = phenotype)) +
  geom_line() +
  facet_wrap(~name, scales = "free_y") +
  labs(
    x = "Time (h)", y = NULL, colour = NULL,
    caption = "10 mg oral. Replicates the model lines of Figures S8 (10 mg) and S9 of Jeong 2022."
  )


cyp_end <- cyp |> filter(time == 12)
# Section 3.3: urinary excretion and sodium excretion increase from EM to IM to PM.
stopifnot(
  cyp_end$a_urine[cyp_end$phenotype == "CYP2C9 PM"] > cyp_end$a_urine[cyp_end$phenotype == "CYP2C9 EM"]
)

The EM-to-PM differences are small because the hepatic intrinsic clearance Vmax/Km is a minor share of total elimination at these concentrations. This is the paper’s own conclusion (Section 3.9: steady-state plasma differences of 1.17-1.20-fold between phenotypes).

Cirrhosis (Figures S11-S13)

cirr_lab <- c("Cirrhosis CP-A", "Cirrhosis CP-B", "Cirrhosis CP-C", "Healthy")
cirr <- bind_rows(lapply(cirr_lab, function(lab) {
  dd <- if (lab == "Healthy") 10 else 20
  bind_rows(
    solve_typ(dd, "depot", scenarios[[lab]]) |> mutate(route = "Oral"),
    solve_typ(dd, "a_blood", scenarios[[lab]]) |> mutate(route = "IV bolus")
  ) |> mutate(group = paste0(lab, " (", dd, " mg)"))
}))

cirr |>
  select(group, route, time, `Plasma (ug/mL)` = Cc, `Cumulative urine (ug)` = a_urine) |>
  mutate(`Cumulative urine (ug)` = 1000 * `Cumulative urine (ug)`) |>
  pivot_longer(-c(group, route, time)) |>
  ggplot(aes(time, value, colour = group)) +
  geom_line() +
  facet_grid(name ~ route, scales = "free_y") +
  labs(
    x = "Time (h)", y = NULL, colour = NULL,

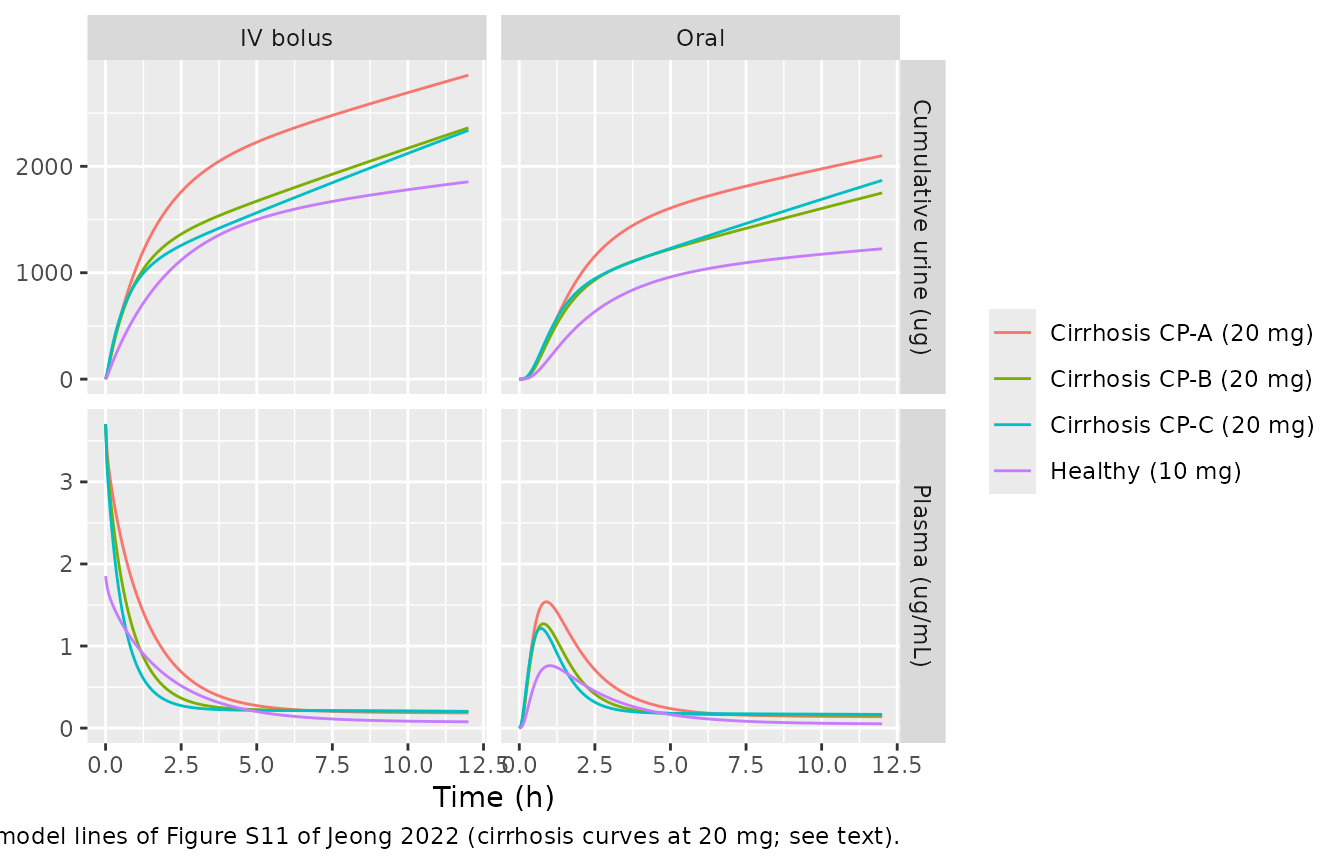

    caption = "Replicates the model lines of Figure S11 of Jeong 2022 (cirrhosis curves at 20 mg; see text)."
  )


cirr |>
  filter(group != "Healthy (10 mg)") |>
  ggplot(aes(time, sodium_excr_rate, colour = group)) +
  geom_line() +
  facet_wrap(~route) +
  scale_y_log10() +
  labs(
    x = "Time (h)", y = "Urinary sodium excretion rate (mEq/h)", colour = NULL,

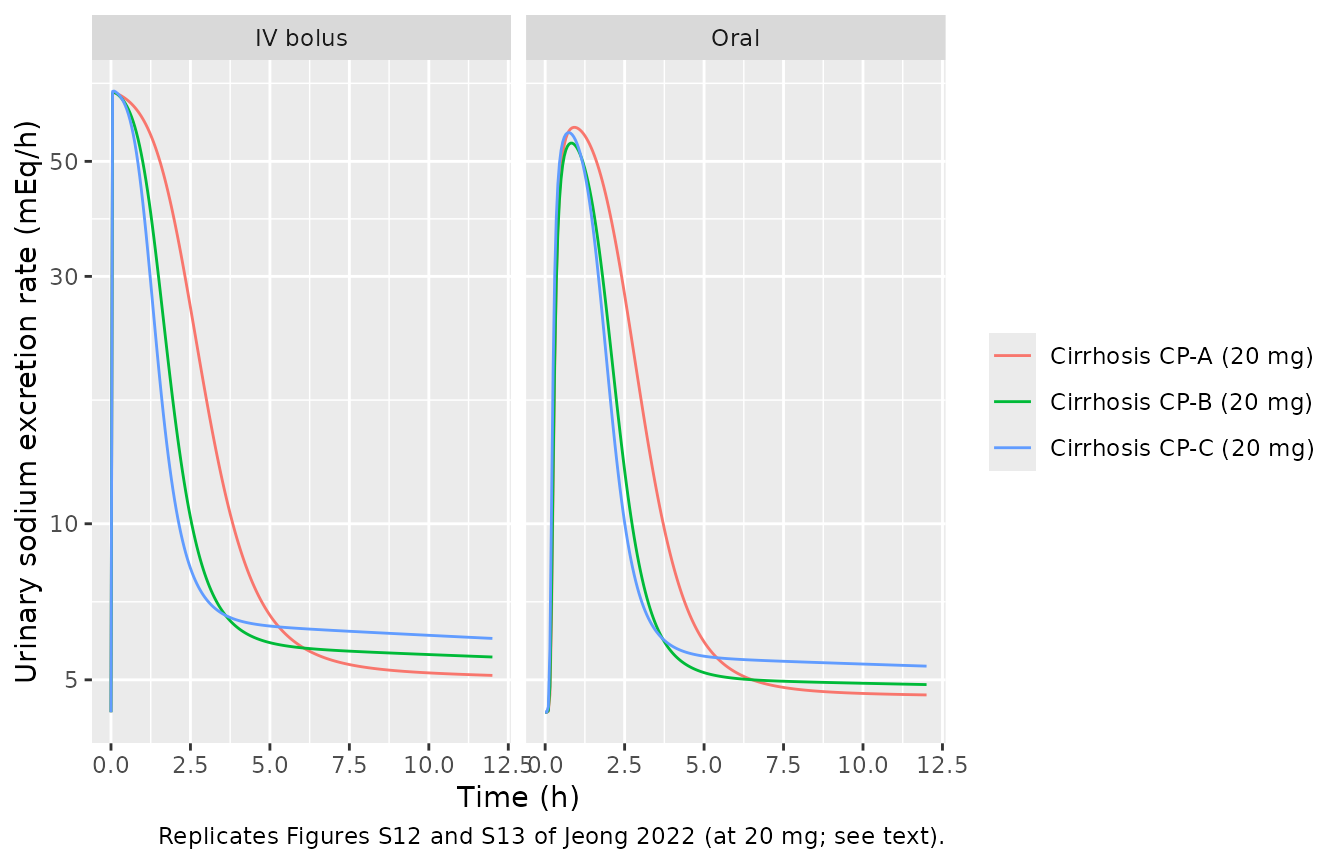

    caption = "Replicates Figures S12 and S13 of Jeong 2022 (at 20 mg; see text)."
  )

Figures S11-S13 are captioned “10 mg” for the cirrhosis groups, but their model lines are reproduced by a 20 mg dose. The healthy reference line in Figure S11 does correspond to 10 mg. At 20 mg the simulation matches every cirrhosis curve that can be read off the figures:

cirr_cmp <- cirr |>
  filter(group != "Healthy (10 mg)", time == 12) |>
  transmute(group, route, simulated = 1000 * a_urine) |>
  left_join(
    tibble::tribble(
      ~group, ~route, ~read_from_figure,
      "Cirrhosis CP-A (20 mg)", "Oral", 2080,
      "Cirrhosis CP-B (20 mg)", "Oral", 1760,
      "Cirrhosis CP-C (20 mg)", "Oral", 1880,
      "Cirrhosis CP-A (20 mg)", "IV bolus", 2850,
      "Cirrhosis CP-B (20 mg)", "IV bolus", 2390,
      "Cirrhosis CP-C (20 mg)", "IV bolus", 2350
    ),
    by = c("group", "route")
  ) |>
  mutate(pct_diff = 100 * (simulated / read_from_figure - 1))
cirr_cmp |>
  dplyr::rename(
    Group = group, Route = route, `Simulated 12-h urine (ug)` = simulated,
    `Figure S11 (ug)` = read_from_figure, `% diff` = pct_diff
  ) |>
  knitr::kable(digits = 1)
Group Route Simulated 12-h urine (ug) Figure S11 (ug) % diff
Cirrhosis CP-A (20 mg) Oral 2099.7 2080 0.9
Cirrhosis CP-A (20 mg) IV bolus 2856.2 2850 0.2
Cirrhosis CP-B (20 mg) Oral 1749.9 1760 -0.6
Cirrhosis CP-B (20 mg) IV bolus 2361.6 2390 -1.2
Cirrhosis CP-C (20 mg) Oral 1868.1 1880 -0.6
Cirrhosis CP-C (20 mg) IV bolus 2338.0 2350 -0.5
stopifnot(all(abs(cirr_cmp$pct_diff) < 10))

At the captioned 10 mg every one of these values would be half as large; the PK is linear at these concentrations. Figure 4 (below) simulates cirrhosis at 10 mg every 12 h, and there the model reproduces the printed steady-state values at 10 mg.

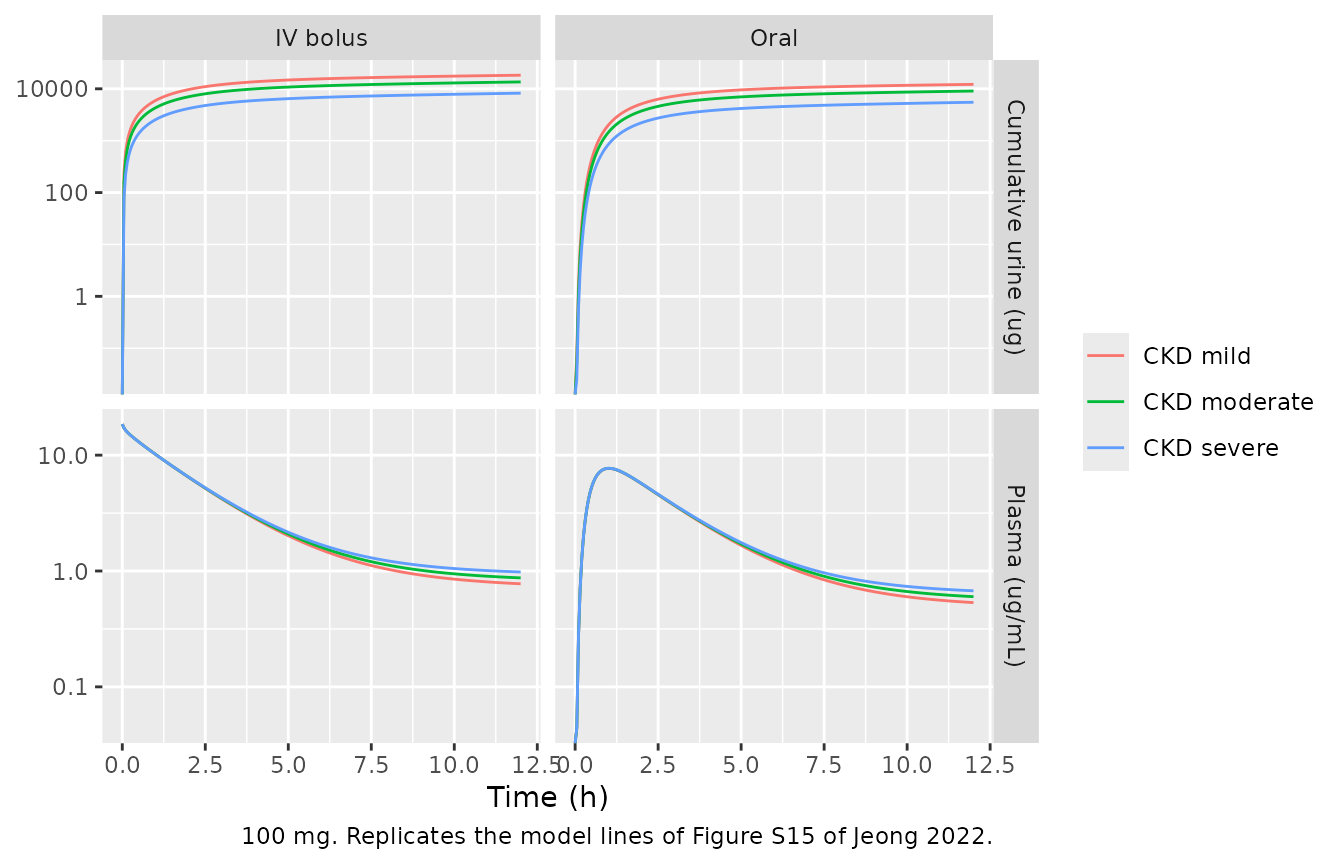

Chronic kidney disease (Figure S15)

ckd <- bind_rows(lapply(c("CKD mild", "CKD moderate", "CKD severe"), function(lab) {
  bind_rows(
    solve_typ(100, "depot", scenarios[[lab]]) |> mutate(route = "Oral"),
    solve_typ(100, "a_blood", scenarios[[lab]]) |> mutate(route = "IV bolus")
  ) |> mutate(group = lab)
}))
ckd |>
  select(group, route, time, `Plasma (ug/mL)` = Cc, `Cumulative urine (ug)` = a_urine) |>
  mutate(`Cumulative urine (ug)` = 1000 * `Cumulative urine (ug)`) |>
  pivot_longer(-c(group, route, time)) |>
  ggplot(aes(time, value, colour = group)) +
  geom_line() +
  facet_grid(name ~ route, scales = "free_y") +
  scale_y_log10() +
  labs(
    x = "Time (h)", y = NULL, colour = NULL,
    caption = "100 mg. Replicates the model lines of Figure S15 of Jeong 2022."
  )
#> Warning in scale_y_log10(): log-10 transformation introduced infinite values.

Plasma profiles barely differ between CKD stages, while urinary recovery falls with severity (about 12, 9 and 5.5 mg at 12 h after 100 mg oral). This is the pattern of Figure S15 and Section 3.5.

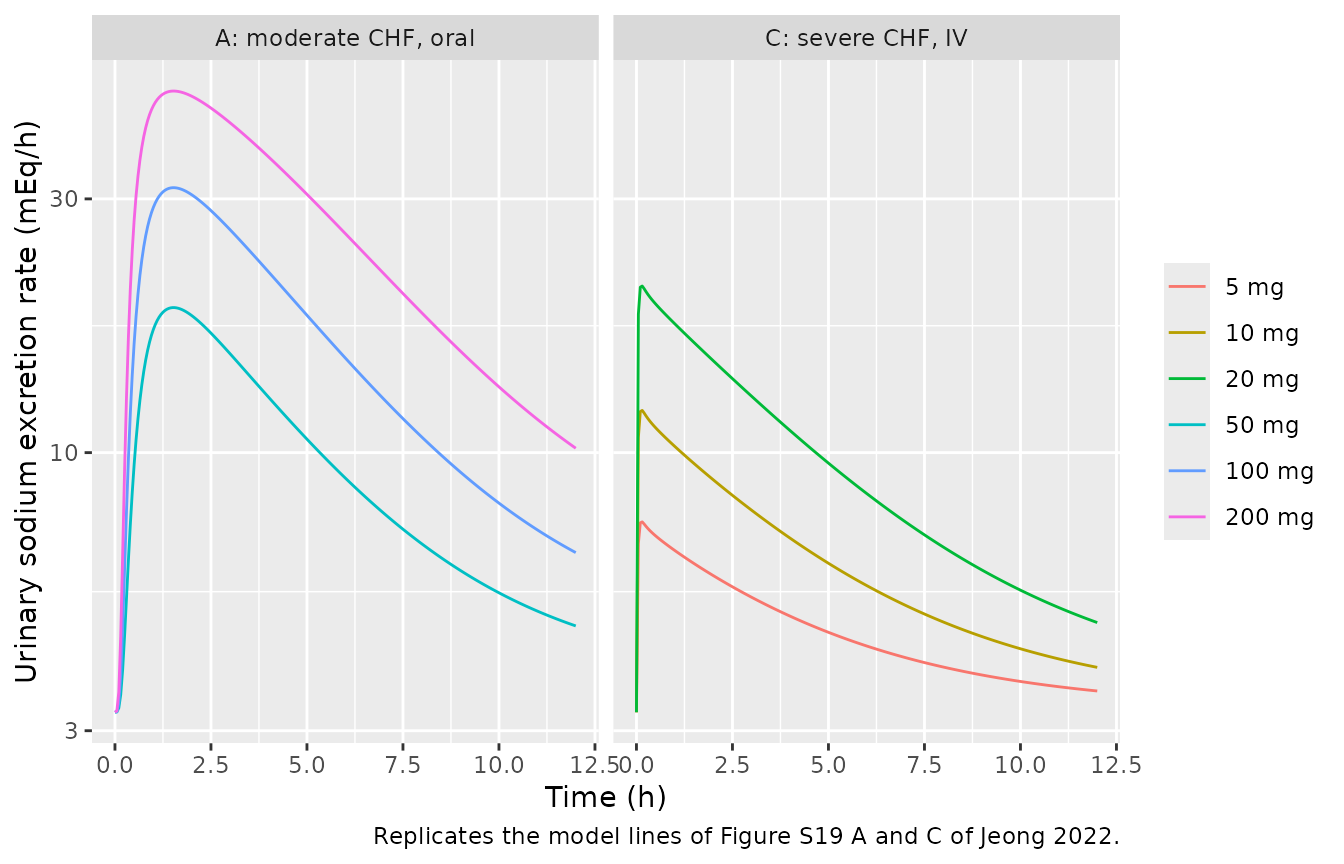

Congestive heart failure (Figures S17-S19)

chf_oral <- bind_rows(lapply(c(50, 100, 200), function(dd) {
  solve_typ(dd, "depot", "DIS_CHF_NYHA3") |> mutate(dose = paste(dd, "mg"))
})) |> mutate(panel = "A: moderate CHF, oral")
chf_iv <- bind_rows(lapply(c(5, 10, 20), function(dd) {
  solve_typ(dd, "a_blood", "DIS_CHF_NYHA4") |> mutate(dose = paste(dd, "mg"))
})) |> mutate(panel = "C: severe CHF, IV")
bind_rows(chf_oral, chf_iv) |>
  mutate(dose = factor(dose, levels = paste(c(5, 10, 20, 50, 100, 200), "mg"))) |>
  ggplot(aes(time, sodium_excr_rate, colour = dose)) +
  geom_line() +
  facet_wrap(~panel) +
  scale_y_log10() +
  labs(
    x = "Time (h)", y = "Urinary sodium excretion rate (mEq/h)", colour = NULL,
    caption = "Replicates the model lines of Figure S19 A and C of Jeong 2022."
  )


chf_cmp <- bind_rows(chf_oral, chf_iv) |>
  group_by(panel, dose) |>
  summarise(simulated = max(sodium_excr_rate), .groups = "drop") |>
  left_join(
    tibble::tribble(
      ~panel, ~dose, ~read_from_figure,
      "A: moderate CHF, oral", "50 mg", 18,
      "A: moderate CHF, oral", "100 mg", 31,
      "A: moderate CHF, oral", "200 mg", 47,
      "C: severe CHF, IV", "5 mg", 7.3,
      "C: severe CHF, IV", "10 mg", 12,
      "C: severe CHF, IV", "20 mg", 21
    ),
    by = c("panel", "dose")
  ) |>
  mutate(pct_diff = 100 * (simulated / read_from_figure - 1))
chf_cmp |>
  dplyr::rename(
    Panel = panel, Dose = dose, `Simulated peak (mEq/h)` = simulated,
    `Figure S19 peak (mEq/h)` = read_from_figure, `% diff` = pct_diff
  ) |>
  knitr::kable(digits = 1)
Panel Dose Simulated peak (mEq/h) Figure S19 peak (mEq/h) % diff
A: moderate CHF, oral 100 mg 31.5 31.0 1.6
A: moderate CHF, oral 200 mg 47.8 47.0 1.8
A: moderate CHF, oral 50 mg 18.7 18.0 4.1
C: severe CHF, IV 10 mg 12.0 12.0 0.1
C: severe CHF, IV 20 mg 20.6 21.0 -2.0
C: severe CHF, IV 5 mg 7.4 7.3 1.5
stopifnot(all(abs(chf_cmp$pct_diff) < 10))

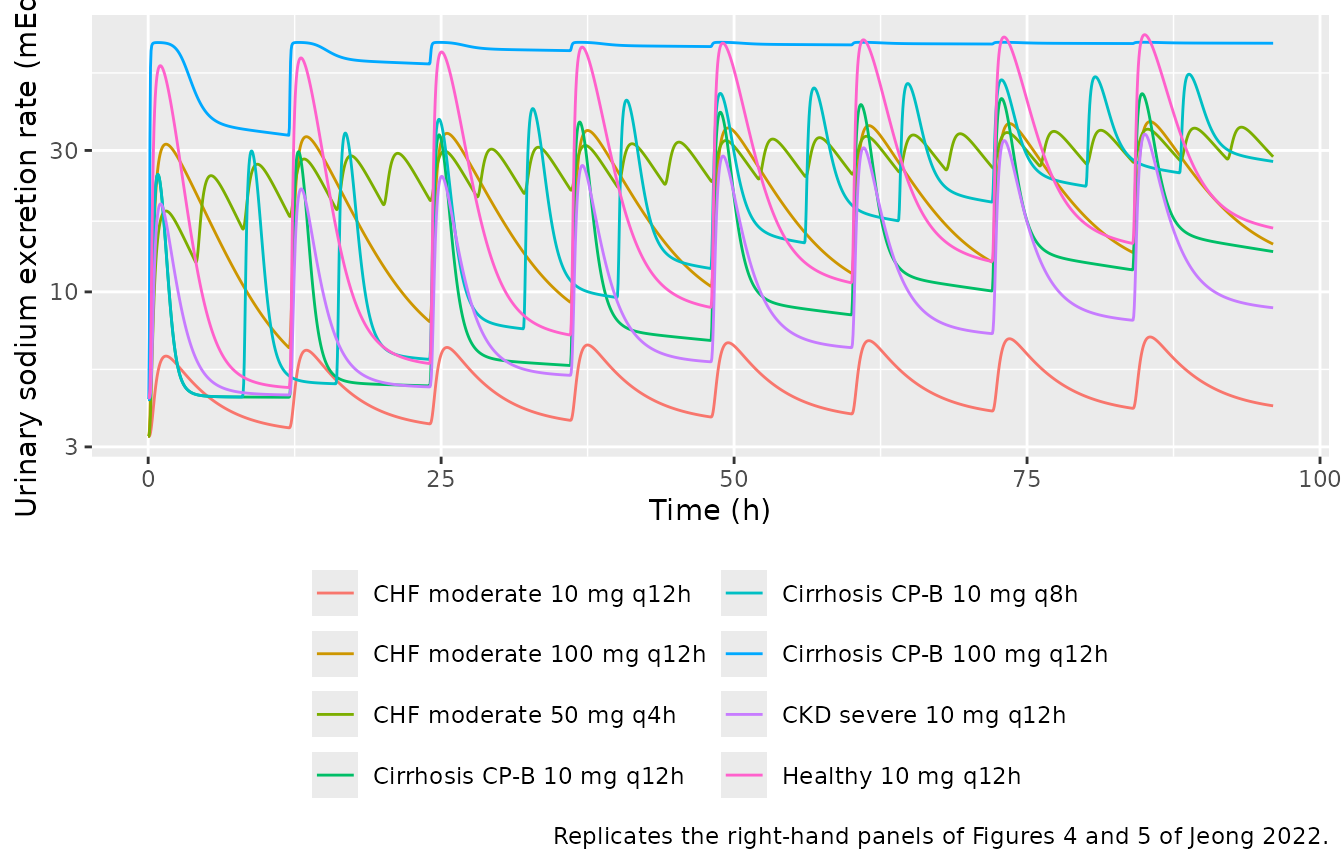

Steady-state scenarios (Figures 3-5) and PKNCA validation

Figures 4 and 5 print the steady-state average plasma concentration and the average urinary sodium excretion rate of each regimen after 96 h of oral dosing. Here the plasma average is computed with PKNCA as cav over the last dosing interval, and the sodium average as the time-average of the simulated rate over the same interval.

regimens <- tibble::tribble(
  ~treatment, ~scenario, ~dose, ~ii, ~figure, ~cav_ref, ~na_ref,
  "Healthy 10 mg q12h", "none", 10, 12, "Figure 4", 0.46, 31.97,
  "CKD severe 10 mg q12h", "RENALIMP_SEV", 10, 12, "Figure 4", 0.52, 14.57,
  "Cirrhosis CP-B 10 mg q12h", "HEPIMP_MOD", 10, 12, "Figure 4", 0.54, 19.33,
  "CHF moderate 10 mg q12h", "DIS_CHF_NYHA3", 10, 12, "Figure 4", 0.45, 5.18,
  "Cirrhosis CP-B 100 mg q12h", "HEPIMP_MOD", 100, 12, "Figure 5A", 5.42, 33.67,
  "CHF moderate 100 mg q12h", "DIS_CHF_NYHA3", 100, 12, "Figure 5A", 4.60, 23.77,
  "Cirrhosis CP-B 10 mg q8h", "HEPIMP_MOD", 10, 8, "Figure 5B", 0.76, 31.90,
  "CHF moderate 50 mg q4h", "DIS_CHF_NYHA3", 50, 4, "Figure 5B", 6.81, 32.34
)

ss <- bind_rows(lapply(seq_len(nrow(regimens)), function(i) {
  r <- regimens[i, ]
  solve_typ(r$dose, "depot", r$scenario,
    times = seq(0, 96, by = 0.05), ii = r$ii, n_doses = 96 / r$ii
  ) |>
    mutate(id = i, treatment = r$treatment, amt_dose = r$dose)
}))

ggplot(ss, aes(time, sodium_excr_rate, colour = treatment)) +
  geom_line() +
  scale_y_log10() +
  labs(
    x = "Time (h)", y = "Urinary sodium excretion rate (mEq/h)", colour = NULL,
    caption = "Replicates the right-hand panels of Figures 4 and 5 of Jeong 2022."
  ) +
  theme(legend.position = "bottom") +
  guides(colour = guide_legend(ncol = 2))


# PKNCA: concentrations and doses per regimen; cav over the last interval.
conc_df <- ss |>
  filter(!is.na(Cc)) |>
  select(id, treatment, time, Cc)
dose_df <- regimens |>
  mutate(id = row_number()) |>
  rowwise() |>
  reframe(id = id, treatment = treatment, time = seq(0, 96 - ii, by = ii), amt = dose)
conc_obj <- PKNCA::PKNCAconc(conc_df, Cc ~ time | treatment + id)
dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | treatment + id)
intervals <- regimens |>
  transmute(treatment, start = 96 - ii, end = 96, cav = TRUE)
nca_res <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals))

cmp <- nlmixr2lib::ncaComparisonTable(
  simulated = nca_res,
  reference = regimens |> select(treatment, cav = cav_ref),
  by = "treatment",
  units = c(cav = "ug/mL"),
  tolerance_pct = 20
)
knitr::kable(
  cmp,
  caption = "Steady-state average plasma torsemide over the last dosing interval: PKNCA vs the values printed in Figures 4 and 5. * differs by >20%."
)
Steady-state average plasma torsemide over the last dosing interval: PKNCA vs the values printed in Figures 4 and 5. * differs by >20%.
NCA parameter treatment Reference Simulated % diff
Cavg (ug/mL) Healthy 10 mg q12h 0.46 0.467 +1.5%
Cavg (ug/mL) CKD severe 10 mg q12h 0.52 0.582 +12.0%
Cavg (ug/mL) Cirrhosis CP-B 10 mg q12h 0.54 0.542 +0.4%
Cavg (ug/mL) CHF moderate 10 mg q12h 0.45 0.459 +2.0%
Cavg (ug/mL) Cirrhosis CP-B 100 mg q12h 5.42 5.44 +0.3%
Cavg (ug/mL) CHF moderate 100 mg q12h 4.6 4.64 +0.9%
Cavg (ug/mL) Cirrhosis CP-B 10 mg q8h 0.76 0.813 +7.0%
Cavg (ug/mL) CHF moderate 50 mg q4h 6.81 6.95 +2.0%
na_avg <- ss |>
  inner_join(regimens |> select(treatment, ii), by = "treatment") |>
  filter(time >= 96 - ii) |>
  group_by(treatment, ii) |>
  arrange(time, .by_group = TRUE) |>
  summarise(
    simulated = sum(diff(time) * (head(sodium_excr_rate, -1) + tail(sodium_excr_rate, -1)) / 2) / first(ii),
    .groups = "drop"
  ) |>
  inner_join(regimens |> select(treatment, figure, na_ref), by = "treatment") |>
  mutate(
    pct_diff = 100 * (simulated / na_ref - 1),
    deviation = treatment == "Cirrhosis CP-B 100 mg q12h"
  )
na_avg |>
  select(treatment, figure, na_ref, simulated, pct_diff, deviation) |>
  dplyr::rename(
    Regimen = treatment, Figure = figure, `Printed (mEq/h)` = na_ref,
    `Simulated (mEq/h)` = simulated, `% diff` = pct_diff, `Known deviation` = deviation
  ) |>
  knitr::kable(digits = 2, caption = "Steady-state average urinary sodium excretion rate over the last dosing interval.")
Steady-state average urinary sodium excretion rate over the last dosing interval.
Regimen Figure Printed (mEq/h) Simulated (mEq/h) % diff Known deviation
CHF moderate 10 mg q12h Figure 4 5.18 5.17 -0.25 FALSE
CHF moderate 100 mg q12h Figure 5A 23.77 23.75 -0.08 FALSE
CHF moderate 50 mg q4h Figure 5B 32.34 32.56 0.68 FALSE
CKD severe 10 mg q12h Figure 4 14.57 14.34 -1.57 FALSE
Cirrhosis CP-B 10 mg q12h Figure 4 19.33 19.30 -0.18 FALSE
Cirrhosis CP-B 10 mg q8h Figure 5B 31.90 34.63 8.56 FALSE
Cirrhosis CP-B 100 mg q12h Figure 5A 33.67 69.15 105.37 TRUE
Healthy 10 mg q12h Figure 4 31.97 31.81 -0.51 FALSE

# `% diff` is formatted text such as "+12.0%" (with "*" past tolerance).
cav_pct <- as.numeric(gsub("[%*+]", "", cmp$`% diff`))
stopifnot(
  !anyNA(cav_pct), length(cav_pct) == nrow(regimens),
  # Plasma: a mis-transcribed volume, flow, Kp or Vmax shifts these by tens
  # of percent; the largest gap (CKD severe, +12%) is within 20%.
  abs(median(cav_pct)) < 5,
  all(abs(cav_pct) < 20),
  # Natriuresis: every regimen except the documented Figure 5A cirrhosis
  # case is within 10% of the printed value.
  all(abs(na_avg$pct_diff[!na_avg$deviation]) < 10)
)

The 100 mg cirrhosis regimen of Figure 5A is the one value not reproduced: the model gives about 69 mEq/h, against 33.67 mEq/h printed. The plasma average of the same regimen matches (5.44 vs 5.42 ug/mL). With 100 mg the urinary torsemide excretion rate lies far above the cirrhosis EC50 (388.8 ug/h), so the Table 5 cirrhosis curve sits at its ceiling E0 + Emax = 69.6 mEq/h. The printed 33.67 mEq/h cannot be reached with those parameters. Applying the Table 5 CHF PD parameters to the same cirrhosis PK gives 33.6 mEq/h:

chf_pd_on_cirrhosis <- c(
  e_hepimp_le0 = log(3.25 / 4.39), e_hepimp_lemax = log(83.45 / 105.1),
  e_hepimp_lec50 = log(3985 / 345.5), e_hepimp_hill = 1.16 - 2.13
)
s5a <- as.data.frame(rxode2::rxSolve(
  mod,
  events = make_events(100, "depot", "HEPIMP_MOD", times = seq(0, 96, by = 0.05), ii = 12, n_doses = 8),
  params = chf_pd_on_cirrhosis, returnType = "data.frame"
)) |>
  filter(time >= 84)
round(sum(diff(s5a$time) * (head(s5a$sodium_excr_rate, -1) + tail(s5a$sodium_excr_rate, -1)) / 2) / 12, 2)
#> [1] 33.64

That panel was therefore most likely drawn with the wrong PD parameter set. The packaged model keeps the Table 5 cirrhosis parameters as printed.

Single-dose NCA in healthy adults

The paper reports no NCA table (its two-fold check is shown only graphically), so the single-dose NCA is shown for reference.

sd_conc <- healthy |>
  filter(!is.na(Cc)) |>
  mutate(treatment = paste(route, dose), id = as.integer(factor(treatment))) |>
  select(id, treatment, time, Cc)
sd_dose <- sd_conc |>
  distinct(id, treatment) |>
  mutate(time = 0, amt = as.numeric(sub(".* ([0-9]+) mg", "\\1", treatment)))
sd_res <- PKNCA::pk.nca(PKNCA::PKNCAdata(
  PKNCA::PKNCAconc(sd_conc, Cc ~ time | treatment + id),
  PKNCA::PKNCAdose(sd_dose, amt ~ time | treatment + id),
  intervals = data.frame(start = 0, end = 12, cmax = TRUE, tmax = TRUE, auclast = TRUE)
))
as.data.frame(sd_res) |>
  select(treatment, PPTESTCD, PPORRES) |>
  pivot_wider(names_from = PPTESTCD, values_from = PPORRES) |>
  dplyr::rename(
    Treatment = treatment, `Cmax (ug/mL)` = cmax, `Tmax (h)` = tmax,
    `AUC0-12 (ug*h/mL)` = auclast
  ) |>
  knitr::kable(digits = 3)
Treatment AUC0-12 (ug*h/mL) Cmax (ug/mL) Tmax (h)
IV bolus 10 mg 4.010 1.852 0
IV bolus 20 mg 8.023 3.704 0
IV bolus 5 mg 2.005 0.926 0
Oral 10 mg 2.649 0.761 1
Oral 20 mg 5.307 1.524 1
Oral 5 mg 1.323 0.380 1

Assumptions and deviations

  • PD equation. Table 5 prints E = E0 + Emax / (1 + x/EC50)^P with a negative P. Read literally, that gives E = E0 + Emax before any drug and grows without bound. It contradicts both the paper’s definition of E0 as the basal rate and its fitted curves (Figure S1), whose sodium excretion returns to E0 (Figures S6, S12). The model uses the standard form E0 + Emax / (1 + (x/EC50)^P), written as E0 + Emax * x^hill / (EC50^hill + x^hill) with hill = -P. This form reproduces Figures S6, S12, S19 and the printed steady-state averages.
  • Cirrhosis figures S11-S13 are drawn at 20 mg. Their captions say 10 mg, but every cirrhosis model line matches a 20 mg dose and not 10 mg. The 10 mg Figure 4 cirrhosis regimen matches at 10 mg. The model itself is unaffected. Table S1 lists the source cirrhosis study (Schwartz 1993) at 10 mg, and that dose could not be checked against the primary report.
  • Figure 5A cirrhosis natriuresis is not reproduced with the Table 5 cirrhosis PD parameters; see the steady-state section. The printed value corresponds to the CHF PD set.
  • Cirrhosis partition coefficients are shown only in Figure S10 and were digitised by the maintainers to about +/-0.004. The Fr, Pr, Vmax and flow bars of the same figure, recomputed from Table 2, agree with the digitisation to that precision.
  • Ke in cirrhosis. Section 2.6.2 describes Ke as the product of the healthy Ke and the villous-flow ratio, but Figure S10 shows Ke falling to 0.78 / 0.66 / 0.50 1/h, which equals 1.00 divided by the Table 2 villous fractions 1.29 / 1.52 / 1.99. The model follows the figure (division).
  • Hematocrit ratio. Pr in cirrhosis is Pr * 43 / Hct, which reproduces the Figure S10 Pr bars (0.31 / 0.35 / 0.36).
  • Qlive and Qrb are computed rather than read from Table S2. Qlive is Qliar + Qgi (153 L/h, as printed), which keeps the blood pool in mass balance. In the healthy state the estimated Qrb 152.4 L/h equals Qbl - Qki - Qlive, and the same closure gives the cirrhosis Qrb bars of Figure S10.
  • Plasma output. Appendix A has no separate plasma compartment; the blood-pool concentration Cbl is the simulated “plasma (or serum)” concentration of the paper’s figures and is returned as Cc.
  • Scenario combinations. The paper simulates one disease group at a time. The disease indicators are mutually exclusive within a disease. Setting indicators of two different diseases at once is outside the paper’s scope. CYP2C9 phenotype acts on the Table S2 base Vmax and Km, which the disease rules then scale; the paper does not simulate disease and phenotype together.
  • CKD natriuresis. The paper has no CKD PD model; like its Figure 4, the model applies the healthy PD parameters to CKD.
  • Variability. No inter-individual or residual variability is reported; the proportional residual error is fixed to zero.
  • Simulation outputs. Cc (ug/mL), a_urine (cumulative urinary torsemide, mg), urine_excr_rate (ug/h) and sodium_excr_rate (mEq/h) are all available in the rxSolve() output.
  • No correction notice is linked to the article in Europe PMC (PMID
    1. as of 2026-10-16.
