Model and source

Citation: Ng CM, Tang F, Seeholzer SH, Zou Y, De Leon DD. Population pharmacokinetics of exendin-(9-39) and clinical dose selection in patients with congenital hyperinsulinism. Br J Clin Pharmacol. 2018;84(3):520-528. doi:10.1111/bcp.13463
Description: Two-compartment intravenous-infusion population PK model for exendin-(9-39) in patients with congenital hyperinsulinism (Ng 2018). Pooled paediatric (neonates and children) and adult cohort with allometric scaling fixed at 0.75 on CL and Q and 1.0 on Vc and Vp (reference WT 70 kg); inter-individual variability retained only on CL. Residual variability follows the NONMEM Poisson error model (Var(Y|F) = F * sigma^2), encoded as a power-error with fixed exponent 0.5.
Article: Br J Clin Pharmacol 2018;84(3):520-528

Population

The model was developed from 182 plasma exendin-(9-39) concentrations in 26 patients with congenital hyperinsulinism (KATP-HI) pooled across three open-label crossover pilot trials at The Children’s Hospital of Philadelphia (Ng 2018 Table 1):

Adult Study (NCT00571324): 9 older adolescents / adults, median age 19 years (range 15-47), median weight 69.1 kg (range 58.2-130).
Children Study (NCT00897676): 10 children, median age 5 years (range 2-15), median weight 21.0 kg (range 11.8-69.2).
Neonate Study (NCT00835328): 7 neonates, median age 0.11 years (range 0.06-0.41), median weight 6.25 kg (range 3.92-6.60).

The pooled cohort was 14/26 (53.8%) female and 24/26 Caucasian (2 of unknown race). Subjects received intravenous infusions of exendin-(9-39) at 0.02-0.1 mg/kg/h over 2 h per dose level (Adult and Children studies; cumulative 6 h across three rate steps) or 6-12 h single-rate infusions (Neonate Study). Bioanalysis was LC-MS/MS with a calibration range of 10-1390 ng/mL; 16/182 samples (8.8%) were below the LLOQ and were retained via the Beal M3 method during the original NONMEM 7.3 fit. The same metadata are available programmatically via readModelDb("Ng_2018_exendin939")$population.

Source trace

Every numeric value in ini() carries an in-file comment pointing to the Ng 2018 source location. The table below collects them in one place for review.

Equation / parameter	Value	Source location
`lcl` (CL_TV)	11.6 L/h	Table 2, row “CL TV”
`lvc` (V1_TV)	9.59 L	Table 2, row “V1 TV”
`lq` (Q_TV)	2.20 L/h	Table 2, row “Q TV”
`lvp` (V2_TV)	8.89 L	Table 2, row “V2 TV”
`e_wt_cl_q`	0.75 (fixed)	Table 2, row “WT effect on CL and Q (fixed)”
`e_wt_vc_vp`	1.00 (fixed)	Table 2, row “WT effect on V1 and V2 (fixed)”
`etalcl` (omega^2_CL)	0.0572	Table 2, row “omega^2 CL”
`powSd` (sqrt(Sigma_pois))	sqrt(3.66) = 1.913	Table 2, row “Sigma poisson” (variance scale)
Reference weight (70 kg)	70 kg	Methods (Equation 3 footnote: “the standard adult weight of 70 kg was used as WTref”)
Allometric scaling form	(WT / 70)^exponent	Methods (Equation 3)
Two-compartment IV PK	ADVAN3 TRANS4	Results para. “PopPK model”
Poisson residual error	W = sqrt(F); Y = F + W * EPS	Methods para. “Residual error was initially modelled…” + Results para. “the Poisson error model was the most stable”
Final covariate set	Allometric WT only	Results para. “After the effects of weight on PK parameters were accounted for using allometric scaling, none of the other covariates tested (age, CrCL, gender and patient groups) had significant effects on CL”

Virtual cohort

Original observed data are not publicly available. The cohorts below mirror the three age strata described in Ng 2018 Table 1, plus the neonatal dose-selection simulation in the Results subsection “Dose determination in neonatal clinical studies”. Each cohort contains n_sub virtual subjects so the stochastic ribbons reflect the inter-individual variability under the published omega^2_CL.

set.seed(20260530)

n_sub <- 50L

# Helper: build one cohort of `n_sub` subjects all receiving the same
# IV infusion regimen. `id_offset` keeps IDs disjoint across cohorts.
build_cohort <- function(label, weight_kg, rate_mgkgh, infusion_h,
                         n_doses = 1L, dose_interval_h = NA_real_,
                         id_offset = 0L,
                         obs_grid = NULL) {
  ids <- id_offset + seq_len(n_sub)
  amt_per_dose <- rate_mgkgh * weight_kg * infusion_h          # mg
  infusion_rate <- amt_per_dose / infusion_h                   # mg/h
  if (n_doses == 1L) {
    dose_times <- 0
  } else {
    dose_times <- seq(0, by = dose_interval_h, length.out = n_doses)
  }

  dose_rows <- tidyr::expand_grid(id = ids, time = dose_times) |>
    mutate(
      evid   = 1L,
      amt    = amt_per_dose,
      cmt    = "central",
      rate   = infusion_rate,
      cohort = label,
      WT     = weight_kg
    )

  if (is.null(obs_grid)) {
    last_dose <- max(dose_times)
    obs_grid <- sort(unique(c(
      seq(0, infusion_h, by = infusion_h / 12),
      seq(infusion_h, last_dose + infusion_h, by = 0.25),
      seq(last_dose + infusion_h, last_dose + infusion_h + 24, by = 0.5)
    )))
  }

  obs_rows <- tidyr::expand_grid(id = ids, time = obs_grid) |>
    mutate(
      evid   = 0L,
      amt    = 0,
      cmt    = NA_character_,
      rate   = 0,
      cohort = label,
      WT     = weight_kg
    )

  bind_rows(dose_rows, obs_rows) |> arrange(id, time, desc(evid))
}

# Three age strata at their median weights (Ng 2018 Table 1):
#   adult     median 69.1 kg, representative adult-study regimen
#   children  median 21.0 kg, representative children-study regimen
#   neonate   median  6.25 kg, representative neonate-study regimen
#
# Plus the 3.7 kg neonatal dose-selection simulation cohorts at
# 0.02, 0.1, 1.0, and 6.0 mg/kg/h over 6 h (subset of the paper's
# 14-rate grid; chosen to span 3 orders of magnitude).
events <- bind_rows(
  build_cohort("adult_0.1_2h",      69.1, rate_mgkgh = 0.1,  infusion_h = 2,
               id_offset =     0L),
  build_cohort("child_0.1_2h",      21.0, rate_mgkgh = 0.1,  infusion_h = 2,
               id_offset =  1000L),
  build_cohort("neonate_0.04_12h",   6.25, rate_mgkgh = 0.04, infusion_h = 12,
               id_offset =  2000L),
  build_cohort("neo_3p7_0.02_6h",    3.7, rate_mgkgh = 0.02, infusion_h = 6,
               id_offset =  3000L),
  build_cohort("neo_3p7_0.1_6h",     3.7, rate_mgkgh = 0.1,  infusion_h = 6,
               id_offset =  4000L),
  build_cohort("neo_3p7_1.0_6h",     3.7, rate_mgkgh = 1.0,  infusion_h = 6,
               id_offset =  5000L),
  build_cohort("neo_3p7_6.0_6h",     3.7, rate_mgkgh = 6.0,  infusion_h = 6,
               id_offset =  6000L)
)

stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid")])))

Simulation

mod <- readModelDb("Ng_2018_exendin939")

sim <- rxode2::rxSolve(mod, events = events, keep = c("cohort", "WT")) |>
  as.data.frame()
#> ℹ parameter labels from comments will be replaced by 'label()'

For deterministic typical-value replications (paper Table 2 analytical CL and t1/2 by weight stratum), simulate with random effects zeroed:

mod_typical <- mod |> rxode2::zeroRe()
#> ℹ parameter labels from comments will be replaced by 'label()'
sim_typical <- rxode2::rxSolve(mod_typical, events = events,
                               keep = c("cohort", "WT")) |>
  as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalcl'
#> Warning: multi-subject simulation without without 'omega'

Replicate published figures

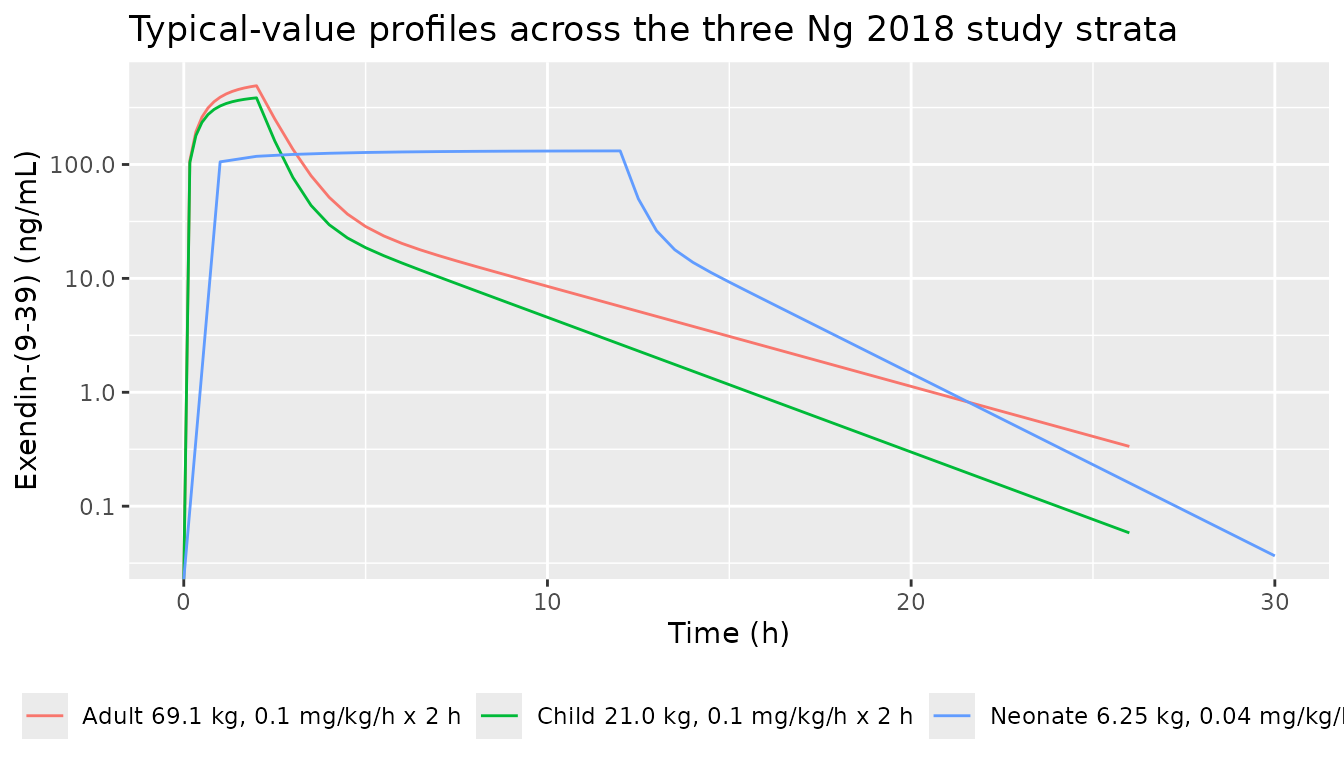

Three-cohort concentration-time profiles

Ng 2018 does not include a stratified observed-vs-predicted figure in the main text (Figure 1 is a pooled diagnostic plot). The plot below shows the typical-value simulation for each of the three age strata under a representative regimen from the corresponding clinical study; it lets a reader confirm the model’s expected concentration ranges before turning to the dose-selection NCA below.

sim_typical |>
  filter(cohort %in% c("adult_0.1_2h", "child_0.1_2h", "neonate_0.04_12h")) |>
  filter(time <= 30) |>
  mutate(stratum = factor(cohort,
                          levels = c("adult_0.1_2h", "child_0.1_2h",
                                     "neonate_0.04_12h"),
                          labels = c("Adult 69.1 kg, 0.1 mg/kg/h x 2 h",
                                     "Child 21.0 kg, 0.1 mg/kg/h x 2 h",
                                     "Neonate 6.25 kg, 0.04 mg/kg/h x 12 h"))) |>
  ggplot(aes(time, Cc, colour = stratum)) +
  geom_line() +
  scale_y_log10() +
  labs(x = "Time (h)", y = "Exendin-(9-39) (ng/mL)", colour = NULL,
       title = "Typical-value profiles across the three Ng 2018 study strata") +
  theme(legend.position = "bottom")
#> Warning in scale_y_log10(): log-10 transformation introduced infinite values.

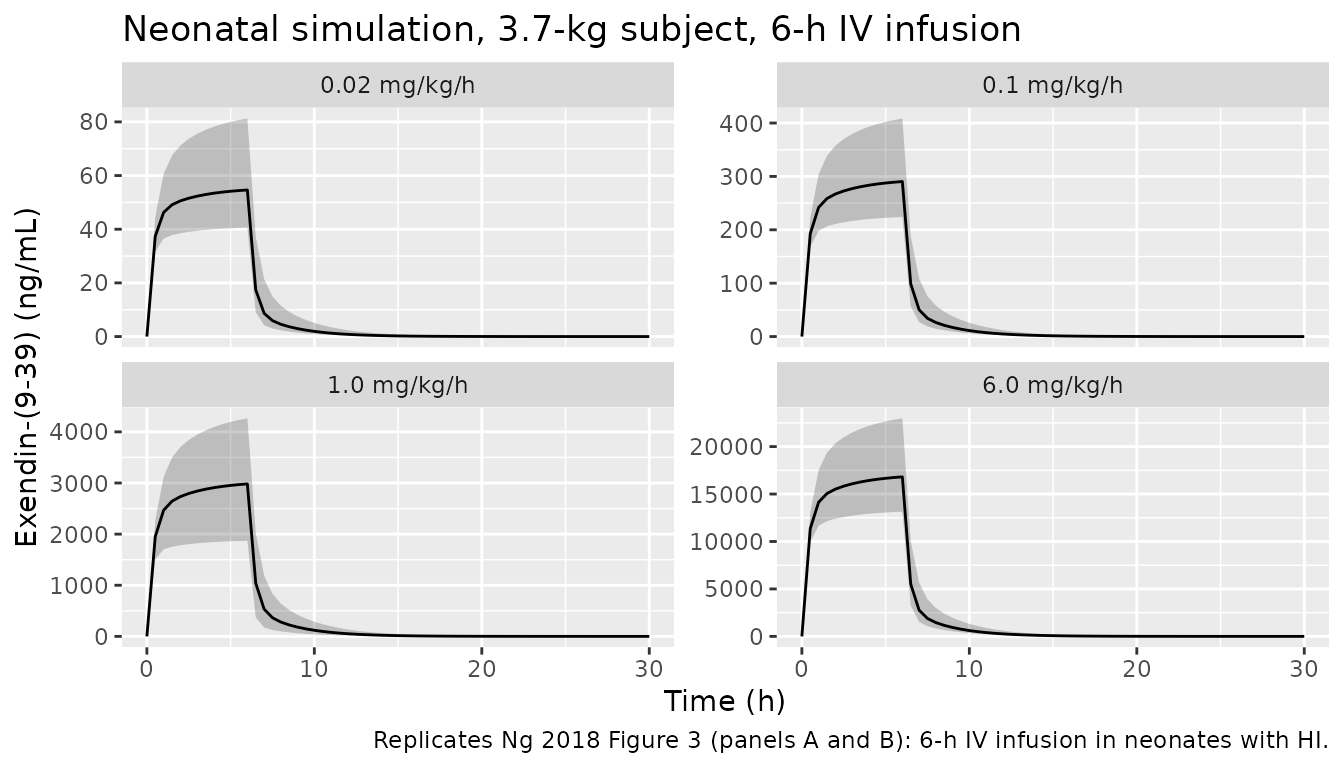

Figure 3 - neonatal AUC0-inf and Cmax across 6 h infusion rates

Ng 2018 Figure 3 plots simulated AUC0-inf and Cmax for 14 IV infusion rates (0.02-6.0 mg/kg/h) in 3.7-kg neonates over 6 and 9 h durations. The replication below shows the four 6-h-infusion rates that span three orders of magnitude (0.02, 0.1, 1.0, 6.0 mg/kg/h); each ribbon reflects the inter-individual variability in CL.

sim |>
  filter(cohort %in% c("neo_3p7_0.02_6h", "neo_3p7_0.1_6h",
                       "neo_3p7_1.0_6h",  "neo_3p7_6.0_6h")) |>
  filter(time <= 30) |>
  group_by(cohort, time) |>
  summarise(
    Q05 = quantile(Cc, 0.05, na.rm = TRUE),
    Q50 = quantile(Cc, 0.50, na.rm = TRUE),
    Q95 = quantile(Cc, 0.95, na.rm = TRUE),
    .groups = "drop"
  ) |>
  mutate(rate_label = factor(cohort,
                             levels = c("neo_3p7_0.02_6h", "neo_3p7_0.1_6h",
                                        "neo_3p7_1.0_6h",  "neo_3p7_6.0_6h"),
                             labels = c("0.02 mg/kg/h",  "0.1 mg/kg/h",
                                        "1.0 mg/kg/h",   "6.0 mg/kg/h"))) |>
  ggplot(aes(time, Q50)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.25) +
  geom_line() +
  facet_wrap(~ rate_label, scales = "free_y") +
  labs(x = "Time (h)", y = "Exendin-(9-39) (ng/mL)",
       title = "Neonatal simulation, 3.7-kg subject, 6-h IV infusion",
       caption = "Replicates Ng 2018 Figure 3 (panels A and B): 6-h IV infusion in neonates with HI.")

PKNCA validation

The block below computes AUC0-inf and Cmax for the four neonatal infusion rates above and compares the simulated medians against the values that Ng 2018 reports verbatim in the Results subsection “Dose determination in neonatal clinical studies”.

nca_cohorts <- c("neo_3p7_0.02_6h", "neo_3p7_0.1_6h",
                 "neo_3p7_1.0_6h",  "neo_3p7_6.0_6h")

sim_nca <- sim |>
  filter(cohort %in% nca_cohorts, !is.na(Cc), time > 0) |>
  select(id, time, Cc, cohort)

dose_df <- events |>
  filter(cohort %in% nca_cohorts, evid == 1) |>
  select(id, time, amt, cohort)

conc_obj <- PKNCA::PKNCAconc(sim_nca, Cc ~ time | cohort + id,
                             concu = "ng/mL", timeu = "hr")
dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | cohort + id,
                             doseu = "mg")

intervals <- data.frame(
  start      = 0,
  end        = Inf,
  cmax       = TRUE,
  tmax       = TRUE,
  aucinf.obs = TRUE,
  half.life  = TRUE
)

nca_data <- PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals)
nca_res  <- PKNCA::pk.nca(nca_data)
