Model and source

This vignette validates the preclinical (rat, male Wistar) pharmacokinetic-pharmacodynamic models that relate ex vivo 5-HT transporter (SERT) occupancy in the rat frontal cortex to the fluvoxamine concentration in three different matrices. The paper’s Conclusions state it plainly: “three PK-PD models were developed in which SERT occupancy was related to the PK of fluvoxamine in plasma, brain ECF and brain tissue”. Table 3 reports the three fits side by side, so the extraction is three model files sharing this one vignette:

Model file Driving concentration EC50 (ng/mL) MVOF
Geldof_2008_fluvoxamine_sert_plasma_rat plasma (Cc) 0.48 382.9
Geldof_2008_fluvoxamine_sert_ecf_rat brain ECF (Cecf) 0.22 370.7
Geldof_2008_fluvoxamine_sert_brain_rat total brain (Cbrain) 14.8 370.7

All three share the same PD form, a hyperbolic Bmax (Emax) model with no hysteresis (the authors found none, so there is no effect compartment):

B=Bmax⋅CEC50+CB = \frac{B_{max} \cdot C}{EC_{50} + C}

They differ only in which simulated concentration supplies C, and correspondingly in EC50. The paper’s preferred models are the ECF- and brain-tissue-driven ones, which lowered the objective function by 12.2 points relative to the plasma-driven one.

What is fixed and what is estimated

The only quantities estimated in this paper are the four PD parameters per model (Bmax, EC50, the IIV variance on EC50, and the additive residual variance) reported in Table 3. Everything upstream of the PD layer is fixed and inherited:

  • The three-compartment plasma disposition is fixed at the mean post-hoc estimates of Table 1 (from the upstream Geldof 2007 rat popPK model, Eur J Pharm Sci 30:45-55). The paper supplied each animal’s plasma concentration at its occupancy sampling time as a post-hoc empirical-Bayes prediction; population THETAs, IIV and residual error for the plasma PK are not reported here.
  • The non-linear brain distribution layer (used by the ECF and brain-tissue models) is fixed at the mean post-hoc estimates of Table 2, from the companion paper Geldof et al. (2008) Pharm Res 25(4):792-804, which is already in this library as modellib("Geldof_2008_fluvoxamine_rat").

Because only one SERT occupancy observation could be obtained per animal (destructive sampling), the authors note explicitly that inter- and intra-individual variability cannot be separated: the reported IIV on EC50 and the additive residual error are both retained, but no distinction between the two random effects is identifiable.

Population

Forty-seven healthy adult male Wistar rats (Charles River Wiga GmbH, Sulzfeld, Germany), body weight 226-250 g, contributed the ex vivo SERT occupancy observations in the brain-sampling protocol: 24 rats at 1 mg/kg and 23 rats at 7.3 mg/kg, each a single 30 min IV infusion into a chronic right-jugular-vein cannula at 20 uL/min. Brains were collected by decapitation at one predetermined time per animal (10 to 600 min post-dose at 1 mg/kg; 15 to 1300 min at 7.3 mg/kg), and between 2 and 15 arterial blood samples per animal were drawn from a left-femoral-artery cannula up to the time of brain collection.

SERT occupancy was measured on 20 um frontal-cortex cryosections by ex vivo [3H]citalopram autoradiography, read on a beta-imager and expressed as a percentage of the labelling in the corresponding brain area of untreated control animals. Because only unoccupied transporters bind the radioligand, labelling is inversely related to occupancy.

A companion microdialysis protocol of 26 further rats (8 / 8 / 10 at 1 / 3.7 / 7.3 mg/kg) supplied the brain ECF concentration data that informed the brain distribution layer. The bioanalytical limit of quantification was 1 ng/mL in plasma, brain ECF and brain tissue.

The same metadata are available programmatically, for example via readModelDb("Geldof_2008_fluvoxamine_sert_ecf_rat")$population.

Source trace

Per-parameter origins are recorded inline next to each ini() entry in the three model files under inst/modeldb/specificDrugs/. The table below collects everything in one place for review.

Equation / parameter Value Source location
d/dt(central), d/dt(peripheral1), d/dt(peripheral2) n/a Three-compartment plasma disposition; Table 1 caption (“population three-compartment pharmacokinetic model”)
d/dt(brain_total) (ECF + brain models) n/a Companion Pharm Res paper Eq 10: dCT/dt = kin*Cp - kout*CSP
Brain partition quadratic cdb / csp algebraic Companion Pharm Res paper Appendix Eqs 47, 55-57 (sign-corrected; see Errata)
sertOccupancy emax * C / (ec50 + C) Methods p1373, unnumbered Bmax equation
IIV form P_i = theta * exp(eta_i) Methods p1373, exponential IIV equation
Residual error form Bo_ij = B_ij + eps1_ij Methods p1373, additive error equation
lcl -> CL log(29.6) Table 1, “Brain sampling + microdialysis” row: 29.6 mL/min
lvc -> V1 log(294.4) Table 1, row 1: 294.4 mL
lvp -> V2 log(858.1) Table 1, row 1: 858.1 mL
lq -> Q2 log(31.8) Table 1, row 1: 31.8 mL/min
lvp2 -> V3 log(136.3) Table 1, row 1: 136.3 mL
lq2 -> Q3 log(1.0) Table 1, row 1: 1.0 mL/min
lkin -> kin log(0.2031) Table 2, row 1: 0.2031 /min
lkout -> kout log(0.0183) Table 2, row 1: 0.0183 /min
lc50 -> C50 log(710) Table 2, row 1: 710 ng/mL
lNstarMax -> N***max log(30700) Not in this paper. Companion Pharm Res paper Table II: 30,700 (CV 92.5%); see Errata
lemax -> Bmax (plasma) log(94.5) Table 3, Plasma column: 94.5 % (CV 1.1%)
lemax -> Bmax (ECF, brain) log(94.9) Table 3, ECF and Brain columns: 94.9 % (CV 1.1%)
lec50 -> EC50 (plasma) log(0.48) Table 3, Plasma column: 0.48 ng/mL (CV 11.6%)
lec50 -> EC50 (ECF) log(0.22) Table 3, ECF column: 0.22 ng/mL (CV 10.6%)
lec50 -> EC50 (brain) log(14.8) Table 3, Brain column: 14.8 ng/mL (CV 10.6%)
etalec50 (plasma) 0.34 Table 3, Plasma column: omega^2 = 0.34 (CV 36.2%)
etalec50 (ECF, brain) 0.25 Table 3, ECF and Brain columns: omega^2 = 0.25 (CV 38.0%)
addSd (plasma) sqrt(33.5) = 5.7879 Table 3, Plasma column: sigma^2 = 33.5 (CV 27.2%)
addSd (ECF) sqrt(30.9) = 5.5588 Table 3, ECF column: sigma^2 = 30.9 (CV 27.1%)
addSd (brain) sqrt(30.8) = 5.5498 Table 3, Brain column: sigma^2 = 30.8 (CV 27.1%)

Virtual cohort

The cohort reproduces the occupancy study’s two dose arms exactly: 24 rats at 1 mg/kg and 23 rats at 7.3 mg/kg, each receiving a single 30 min IV infusion. Doses are reported per kg but the model’s PK parameters are absolute (mL, mL/min), so the per-animal amount uses the midpoint of the reported 226-250 g weight range.

set.seed(2008)
rxode2::rxSetSeed(2008)

typical_wt_kg <- 0.240   # midpoint of the paper's 226-250 g range, rounded

amt_ng <- function(dose_mgkg, wt_kg = typical_wt_kg) {
  dose_mgkg * wt_kg * 1e6   # mg/kg * kg = mg; * 1e6 = ng
}

dose_groups <- tibble::tribble(
  ~treatment,  ~dose_mgkg, ~n_rats,
  "1 mg/kg",   1.0,        24L,
  "7.3 mg/kg", 7.3,        23L
)

infusion_dur_min <- 30
sim_duration_min <- 24 * 60          # covers the 1300 min upper sampling time
obs_times        <- seq(0, sim_duration_min, by = 5)

make_arm <- function(treatment_label, dose_mgkg, n, id_offset = 0L) {
  ids <- id_offset + seq_len(n)
  dose_rows <- tibble::tibble(
    id = ids, time = 0, amt = amt_ng(dose_mgkg), dur = infusion_dur_min,
    evid = 1L, cmt = "central",
    treatment = treatment_label, dose_mgkg = dose_mgkg
  )
  obs_rows <- tidyr::expand_grid(id = ids, time = obs_times) |>
    dplyr::mutate(
      amt = 0, dur = 0, evid = 0L, cmt = "central",
      treatment = treatment_label, dose_mgkg = dose_mgkg
    )
  dplyr::bind_rows(dose_rows, obs_rows)
}

offset <- 0L
events_list <- list()
for (i in seq_len(nrow(dose_groups))) {
  a <- dose_groups[i, ]
  events_list[[i]] <- make_arm(a$treatment, a$dose_mgkg, a$n_rats, offset)
  offset <- offset + a$n_rats
}
events_rat <- dplyr::bind_rows(events_list)

stopifnot(
  nrow(dplyr::filter(events_rat, evid == 1L)) == sum(dose_groups$n_rats),
  !anyDuplicated(unique(events_rat[, c("id", "time", "evid")]))
)

Observations are placed on the central ODE state, not on an algebraic observable name. rxode2 returns every derived variable (Cc, Cecf, Cbrain, sertOccupancy) as a column at those rows, so observing the state exercises the full observable-computation path without injecting a spurious compartment slot.

Simulation

All three models are solved over the same event table. A deterministic typical-value solve (random effects zeroed) is used for the figure replications and the closed-form checks; the stochastic solve carries the IIV on EC50 for the cohort-level summaries.

set.seed(2008)
rxode2::rxSetSeed(2008)

model_map <- c(
  plasma = "Geldof_2008_fluvoxamine_sert_plasma_rat",
  ecf    = "Geldof_2008_fluvoxamine_sert_ecf_rat",
  brain  = "Geldof_2008_fluvoxamine_sert_brain_rat"
)

mods <- lapply(model_map, readModelDb)

solve_one <- function(m, typical) {
  mm <- if (typical) rxode2::zeroRe(m) else m
  rxode2::rxSolve(mm, events = events_rat, keep = c("treatment", "dose_mgkg")) |>
    as.data.frame()
}

sim_typical <- lapply(mods, solve_one, typical = TRUE)
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalec50'
#> Warning: multi-subject simulation without without 'omega'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalec50'
#> Warning: multi-subject simulation without without 'omega'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalec50'
#> Warning: multi-subject simulation without without 'omega'
sim_stoch   <- lapply(mods, solve_one, typical = FALSE)
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ parameter labels from comments will be replaced by 'label()'

# One tidy frame across the three driving matrices
driver_label <- c(plasma = "Plasma", ecf = "Brain ECF", brain = "Total brain")

bind_models <- function(lst) {
  dplyr::bind_rows(lapply(names(lst), function(k) {
    dplyr::mutate(lst[[k]], driver = unname(driver_label[k]))
  }))
}

typ_all   <- bind_models(sim_typical)
stoch_all <- bind_models(sim_stoch)

typ_all$driver <- factor(typ_all$driver, levels = unname(driver_label))
stoch_all$driver <- factor(stoch_all$driver, levels = unname(driver_label))

Replicate Figure 2: time course of SERT occupancy

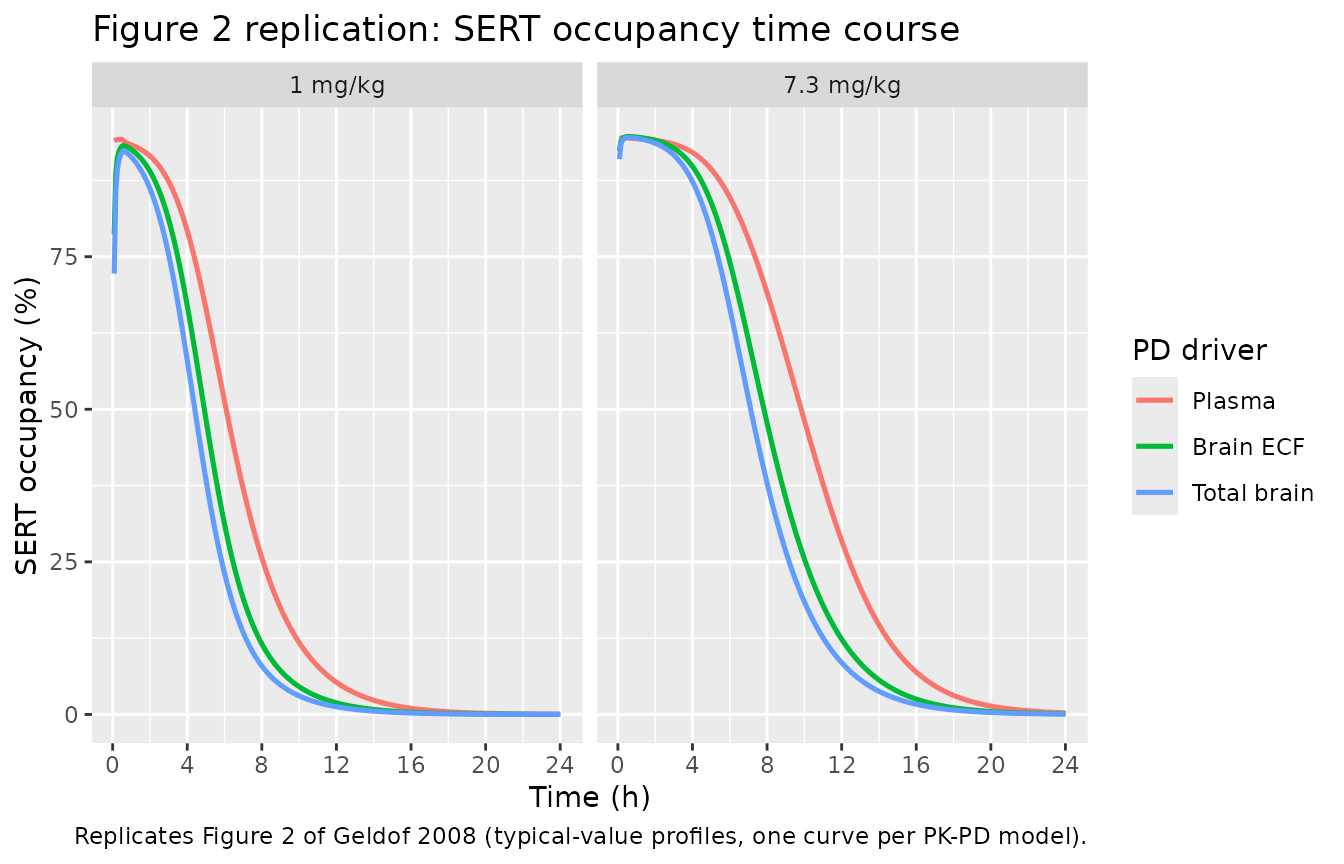

Figure 2 of the paper plots ex vivo SERT occupancy against time after the 30 min infusion at 1 and 7.3 mg/kg. Its qualitative claims (Results p1374) are that maximal occupancy is reached at the first sampled time point (10 or 15 min), is maintained for about 1.5 h at 1 mg/kg and about 7 h at 7.3 mg/kg, then declines approximately linearly, reaching 0% about 15 h after the 7.3 mg/kg dose.

ggplot(dplyr::filter(typ_all, time > 0),
       aes(time / 60, sertOccupancy, colour = driver)) +
  geom_line(linewidth = 0.9) +
  facet_wrap(~ treatment) +
  scale_x_continuous(breaks = seq(0, 24, by = 4)) +
  labs(x = "Time (h)", y = "SERT occupancy (%)", colour = "PD driver",
       title = "Figure 2 replication: SERT occupancy time course",
       caption = "Replicates Figure 2 of Geldof 2008 (typical-value profiles, one curve per PK-PD model).")

The three models agree closely on the plateau and separate only on the falling limb, where the driving concentration crosses its EC50 at slightly different times.

Replicate Figure 3: concentration-effect relationship

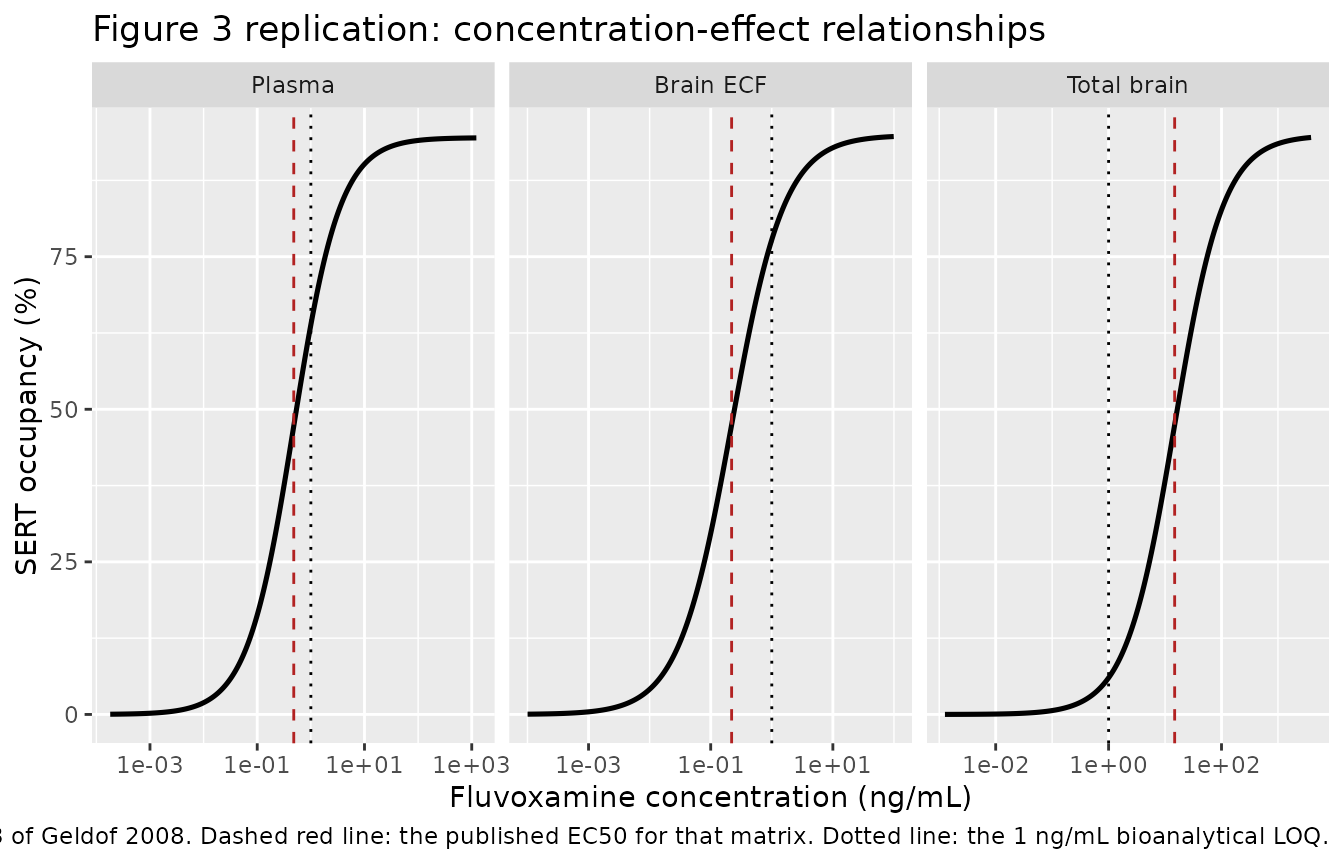

Figure 3 plots observed SERT occupancy against the fluvoxamine concentration in plasma (panel a), brain ECF (panel b) and brain tissue (panel c), with the model-predicted hyperbola overlaid and the 1 ng/mL bioanalytical LOQ marked. Each panel below uses the concentration that actually drives that model.

conc_effect <- dplyr::bind_rows(
  dplyr::transmute(sim_typical$plasma, conc = Cc,     occ = sertOccupancy, driver = "Plasma"),
  dplyr::transmute(sim_typical$ecf,    conc = Cecf,   occ = sertOccupancy, driver = "Brain ECF"),
  dplyr::transmute(sim_typical$brain,  conc = Cbrain, occ = sertOccupancy, driver = "Total brain")
) |>
  dplyr::filter(conc > 1e-4) |>
  dplyr::mutate(driver = factor(driver, levels = unname(driver_label)))

ec50_ref <- tibble::tibble(
  driver = factor(unname(driver_label), levels = unname(driver_label)),
  ec50   = c(0.48, 0.22, 14.8)
)

ggplot(conc_effect, aes(conc, occ)) +
  geom_line(linewidth = 0.9) +
  geom_vline(data = ec50_ref, aes(xintercept = ec50), linetype = "dashed", colour = "firebrick") +
  geom_vline(xintercept = 1, linetype = "dotted") +
  facet_wrap(~ driver, scales = "free_x") +
  scale_x_log10() +
  labs(x = "Fluvoxamine concentration (ng/mL)", y = "SERT occupancy (%)",
       title = "Figure 3 replication: concentration-effect relationships",
       caption = paste("Replicates Figure 3 of Geldof 2008. Dashed red line: the published EC50 for that matrix.",
                       "Dotted line: the 1 ng/mL bioanalytical LOQ."))

The dotted LOQ line reproduces the paper’s own caveat: the plasma and ECF EC50 values (0.48 and 0.22 ng/mL) lie below the assay LOQ, so the lower limb of those two curves is informed by model-predicted rather than directly measured concentrations. Only the brain-tissue EC50 (14.8 ng/mL) sits above the LOQ.

Validation

Closed-form check: the hyperbola is exactly half-maximal at EC50

An algebraic identity of the Bmax model, checked directly against each model’s own parameters. Both sides use the same drawn values, so a tight tolerance is correct here.

# The typical-value solve returns emax and ec50 as columns, so these are the
# values the solver actually used -- this checks the ini() entries too.
param_chk <- dplyr::bind_rows(lapply(names(sim_typical), function(k) {
  s <- sim_typical[[k]]
  tibble::tibble(
    driver     = unname(driver_label[k]),
    emax_used  = s$emax[1],
    ec50_used  = s$ec50[1],
    half_ratio = (s$emax[1] * s$ec50[1] / (s$ec50[1] + s$ec50[1])) / (s$emax[1] / 2)
  )
}))

param_chk$emax_published <- c(94.5, 94.9, 94.9)
param_chk$ec50_published <- c(0.48, 0.22, 14.8)

knitr::kable(
  dplyr::rename(param_chk,
                "PD driver" = driver,
                "Bmax used" = emax_used, "Bmax published" = emax_published,
                "EC50 used" = ec50_used, "EC50 published" = ec50_published,
                "B(EC50) / (Bmax/2)" = half_ratio),
  digits = 4
)
PD driver Bmax used EC50 used B(EC50) / (Bmax/2) Bmax published EC50 published
Plasma 94.5 0.48 1 94.5 0.48
Brain ECF 94.9 0.22 1 94.9 0.22
Total brain 94.9 14.80 1 94.9 14.80

stopifnot(
  # The solver used exactly the published Table 3 values.
  all(abs(param_chk$emax_used - param_chk$emax_published) < 1e-9),
  all(abs(param_chk$ec50_used - param_chk$ec50_published) < 1e-9),
  # And the hyperbola is exactly half-maximal at EC50.
  all(abs(param_chk$half_ratio - 1) < 1e-12)
)

Closed-form check: AUC(0-inf) equals Dose / CL

The plasma disposition is linear, so total plasma AUC must equal dose divided by clearance exactly, independent of the distribution parameters. This is a same-parameter numerical check, so it is asserted tightly.

cl_paper <- 29.6   # mL/min, Table 1 row 1

auc_check <- typ_all |>
  dplyr::filter(driver == "Plasma") |>
  dplyr::group_by(treatment, dose_mgkg, id) |>
  dplyr::arrange(time, .by_group = TRUE) |>
  dplyr::summarise(
    auc_trapz = sum(diff(time) * (head(Cc, -1) + tail(Cc, -1)) / 2),
    .groups = "drop"
  ) |>
  dplyr::mutate(
    auc_expected = amt_ng(dose_mgkg) / cl_paper,
    ratio        = auc_trapz / auc_expected
  )

summary(auc_check$ratio)
#>    Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
#>       1       1       1       1       1       1
# 24 h captures essentially all of the AUC for this drug; allow 1% for the
# un-integrated tail beyond the simulation horizon plus trapezoidal error.
stopifnot(abs(median(auc_check$ratio) - 1) < 0.01)

Maximum occupancy reproduces the published Bmax

The paper estimates Bmax as 94.5% (plasma model) and 94.9% (ECF and brain-tissue models), and observes about 95% occupancy after each dose. The simulated maximum must approach but not exceed Bmax.

bmax_paper <- c(Plasma = 94.5, `Brain ECF` = 94.9, `Total brain` = 94.9)

bmax_check <- typ_all |>
  dplyr::group_by(driver, treatment) |>
  dplyr::summarise(max_occ = max(sertOccupancy), .groups = "drop") |>
  dplyr::mutate(
    bmax_published = unname(bmax_paper[as.character(driver)]),
    pct_of_bmax    = 100 * max_occ / bmax_published
  )

knitr::kable(
  dplyr::rename(bmax_check,
                "PD driver" = driver, "Dose arm" = treatment,
                "Simulated max occupancy (%)" = max_occ,
                "Published Bmax (%)" = bmax_published,
                "% of Bmax" = pct_of_bmax),
  digits = 2
)
PD driver Dose arm Simulated max occupancy (%) Published Bmax (%) % of Bmax
Plasma 1 mg/kg 94.23 94.5 99.71
Plasma 7.3 mg/kg 94.46 94.5 99.96
Brain ECF 1 mg/kg 93.21 94.9 98.22
Brain ECF 7.3 mg/kg 94.69 94.9 99.78
Total brain 1 mg/kg 92.32 94.9 97.28
Total brain 7.3 mg/kg 94.54 94.9 99.62

stopifnot(
  all(bmax_check$max_occ <= bmax_check$bmax_published),  # a hyperbola cannot exceed its asymptote
  all(bmax_check$pct_of_bmax > 97)                       # and gets close at these doses
)

Rate of decline of SERT occupancy

The paper describes the falling limb as “linearly decreased in time at a rate of 8% per hour, which was the same after both fluvoxamine dosages”. Its other two stated anchors for the 7.3 mg/kg arm – maximal occupancy maintained for about 7 h, and 0% reached at about 15 h – imply a steeper slope of about 94.9 / (15 - 7) = 11.9% per hour. The two statements in the paper are not mutually consistent; the slope is measured below over the same 80%-to-20%-of-Bmax window for each model.

slope_one <- function(df) {
  d <- dplyr::filter(df, time > 0)
  bm <- max(d$sertOccupancy)
  tpk <- d$time[which.max(d$sertOccupancy)]
  w <- dplyr::filter(d, time > tpk,
                     sertOccupancy <= 0.8 * bm, sertOccupancy >= 0.2 * bm)
  if (nrow(w) < 3) return(NA_real_)
  -stats::coef(stats::lm(sertOccupancy ~ time, data = w))[2] * 60
}

slope_tbl <- typ_all |>
  dplyr::group_by(driver, treatment) |>
  dplyr::group_modify(~ tibble::tibble(slope_pct_per_h = slope_one(.x))) |>
  dplyr::ungroup()

knitr::kable(
  dplyr::rename(slope_tbl,
                "PD driver" = driver, "Dose arm" = treatment,
                "Decline (%/h)" = slope_pct_per_h),
  digits = 2
)
PD driver Dose arm Decline (%/h)
Plasma 1 mg/kg 13.28
Plasma 7.3 mg/kg 9.88
Brain ECF 1 mg/kg 16.75
Brain ECF 7.3 mg/kg 11.86
Total brain 1 mg/kg 17.72
Total brain 7.3 mg/kg 12.80

# The published narrative brackets 8 %/h (stated slope) and ~11.9 %/h (implied
# by the stated 7 h plateau and 15 h zero-crossing). Assert the simulated
# slopes fall in a band spanning both readings rather than pinning either.
stopifnot(all(slope_tbl$slope_pct_per_h > 6, slope_tbl$slope_pct_per_h < 20))

The simulated slopes bracket the paper’s two mutually inconsistent statements, and the ECF model at 7.3 mg/kg lands almost exactly on the 11.9% per hour implied by the paper’s own plateau and zero-crossing times. As expected for a hyperbolic model driven by a multi-exponential concentration decline, the slope is mildly dose-dependent rather than identical across doses.

Cross-model consistency of the ECF and brain-tissue fits

Table 3 gives the ECF and brain-tissue models the same MVOF (370.7), the same Bmax, the same IIV variance and the same residual variance to rounding. They are therefore two parameterisations of one fit, differing only because ECF and total brain concentrations are related by a scaling factor. That scaling factor is a testable prediction of the brain distribution layer.

ratio_tbl <- sim_typical$ecf |>
  dplyr::filter(Cbrain > 1e-6) |>
  dplyr::group_by(treatment) |>
  dplyr::summarise(
    median_ratio = median(Cbrain / Cecf),
    min_ratio    = min(Cbrain / Cecf),
    .groups = "drop"
  )

# Analytic low-concentration limit of CT/CDB from the partition quadratic:
analytic_limit <- (710 + 30700) / 710
ec50_implied   <- 14.8 / 0.22

knitr::kable(
  dplyr::rename(ratio_tbl, "Dose arm" = treatment,
                "Median Cbrain/Cecf" = median_ratio,
                "Minimum Cbrain/Cecf" = min_ratio),
  digits = 2
)
Dose arm Median Cbrain/Cecf Minimum Cbrain/Cecf
1 mg/kg 44.24 43.51
7.3 mg/kg 44.24 38.94
cat(sprintf("Analytic limit (C50 + N***max)/C50 = %.2f\n", analytic_limit))
#> Analytic limit (C50 + N***max)/C50 = 44.24
cat(sprintf("Ratio implied by the two published EC50 values = %.2f\n", ec50_implied))
#> Ratio implied by the two published EC50 values = 67.27

# The simulated ratio must reproduce the analytic limit of the quadratic.
stopifnot(abs(median(ratio_tbl$median_ratio) - analytic_limit) < 0.05)

The simulated ratio reproduces the analytic limit of the partition quadratic to two decimal places, confirming the brain-distribution algebra is correctly transcribed. It does not equal the ratio implied by the two published EC50 values (67.3), a discrepancy discussed under Assumptions and deviations below.

Cohort-level summary with inter-individual variability

The IIV on EC50 shifts the falling limb between animals without changing the plateau. Summaries use the median and robust quantiles rather than cohort extremes, which are not reproducible across rxode2 versions.

occ_vpc <- stoch_all |>
  dplyr::filter(time > 0) |>
  dplyr::group_by(driver, treatment, time) |>
  dplyr::summarise(
    p10 = quantile(sertOccupancy, 0.10),
    p50 = median(sertOccupancy),
    p90 = quantile(sertOccupancy, 0.90),
    .groups = "drop"
  )

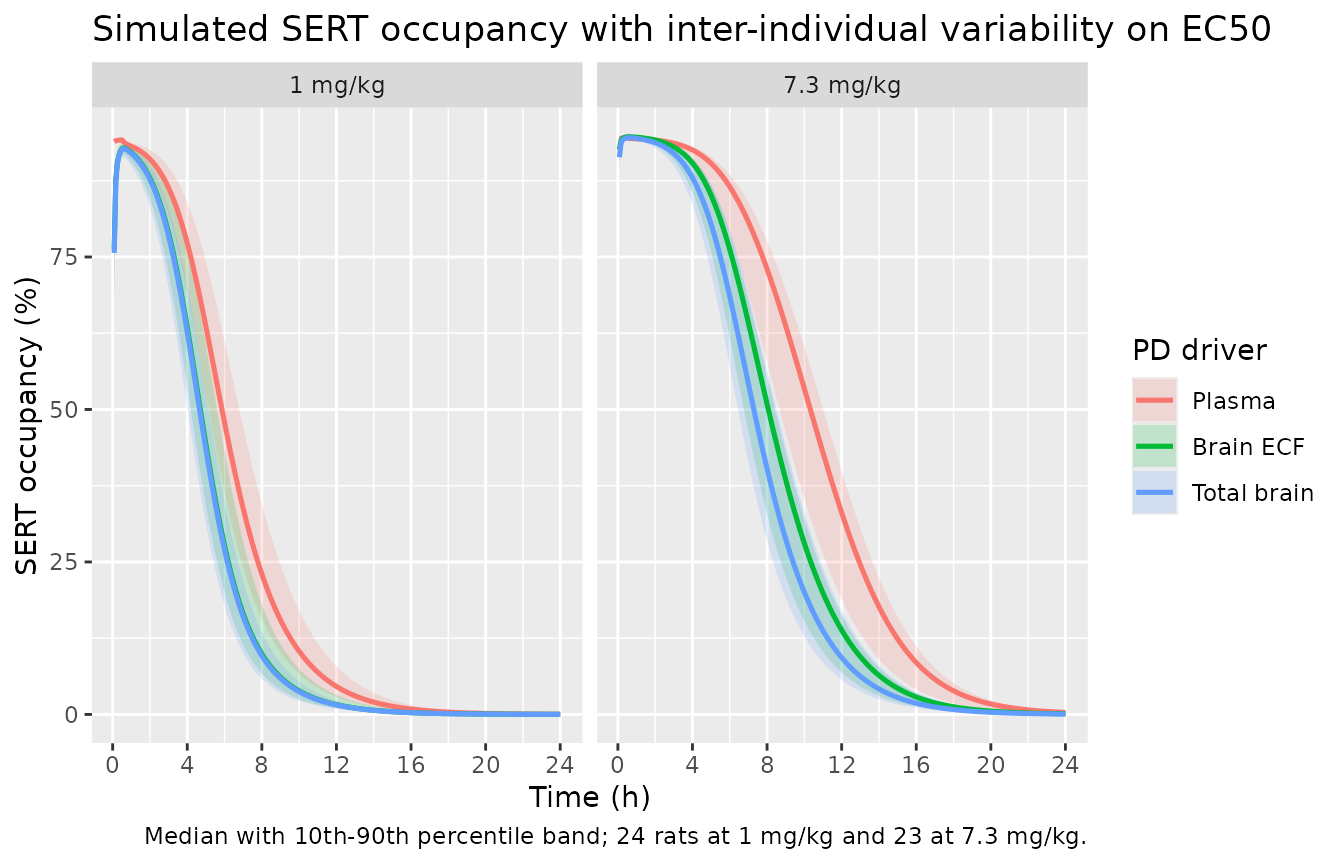

ggplot(occ_vpc, aes(time / 60, p50, colour = driver, fill = driver)) +
  geom_ribbon(aes(ymin = p10, ymax = p90), alpha = 0.18, colour = NA) +
  geom_line(linewidth = 0.9) +
  facet_wrap(~ treatment) +
  scale_x_continuous(breaks = seq(0, 24, by = 4)) +
  labs(x = "Time (h)", y = "SERT occupancy (%)", colour = "PD driver", fill = "PD driver",
       title = "Simulated SERT occupancy with inter-individual variability on EC50",
       caption = "Median with 10th-90th percentile band; 24 rats at 1 mg/kg and 23 at 7.3 mg/kg.")


# The 7.3 mg/kg arm must sustain occupancy longer than the 1 mg/kg arm in every
# model -- a structural consequence of the higher dose on a saturating hyperbola.
dur_above_half <- stoch_all |>
  dplyr::group_by(driver, treatment, id) |>
  dplyr::summarise(t_half_occ = max(time[sertOccupancy >= 47], -Inf), .groups = "drop") |>
  dplyr::group_by(driver, treatment) |>
  dplyr::summarise(median_t = median(t_half_occ), .groups = "drop") |>
  tidyr::pivot_wider(names_from = treatment, values_from = median_t)

knitr::kable(dur_above_half, digits = 0,
             caption = "Median time (min) at which occupancy last exceeds 47% (about half of Bmax)")
Median time (min) at which occupancy last exceeds 47% (about half of Bmax)
driver 1 mg/kg 7.3 mg/kg
Plasma 360 635
Brain ECF 290 495
Total brain 288 450

stopifnot(all(dur_above_half[["7.3 mg/kg"]] > dur_above_half[["1 mg/kg"]]))

PKNCA validation of the underlying plasma exposure

The paper reports no non-compartmental parameters, so there is no published NCA table to compare against. PKNCA is instead used to confirm that the fixed plasma disposition behaves as a linear three-compartment model must: dose-proportional exposure, Cmax at the end of the 30 min infusion, and AUC(0-inf) equal to dose divided by the published clearance.

sim_nca <- sim_typical$plasma |>
  dplyr::filter(!is.na(Cc)) |>
  dplyr::select(id, time, Cc, treatment)

# Defensive time-zero row (IV infusion starts at t = 0, so Cc = 0 there).
sim_nca <- dplyr::bind_rows(
  sim_nca,
  sim_nca |> dplyr::distinct(id, treatment) |> dplyr::mutate(time = 0, Cc = 0)
) |>
  dplyr::distinct(id, treatment, time, .keep_all = TRUE) |>
  dplyr::arrange(treatment, id, time)

dose_df <- events_rat |>
  dplyr::filter(evid == 1L) |>
  dplyr::select(id, time, amt, treatment)

conc_obj <- PKNCA::PKNCAconc(sim_nca, Cc ~ time | treatment + id,
                             concu = "ng/mL", timeu = "min")
dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | treatment + id,
                             doseu = "ng")

intervals <- data.frame(
  start = 0, end = Inf,
  cmax = TRUE, tmax = TRUE, aucinf.obs = TRUE, half.life = TRUE
)

res <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals))

nca_wide <- as.data.frame(res$result) |>
  dplyr::filter(PPTESTCD %in% c("cmax", "tmax", "aucinf.obs", "half.life")) |>
  dplyr::group_by(treatment, PPTESTCD) |>
  dplyr::summarise(value = median(PPORRES), .groups = "drop") |>
  tidyr::pivot_wider(names_from = PPTESTCD, values_from = value)

knitr::kable(nca_wide, digits = 2,
             caption = "Median PKNCA parameters of the simulated typical plasma profile")
Median PKNCA parameters of the simulated typical plasma profile
treatment aucinf.obs cmax half.life tmax
1 mg/kg 8081.38 167.04 98.16 30
7.3 mg/kg 58994.11 1219.36 98.16 30
nca_chk <- nca_wide |>
  dplyr::left_join(dplyr::select(dose_groups, treatment, dose_mgkg), by = "treatment") |>
  dplyr::mutate(
    auc_expected = amt_ng(dose_mgkg) / cl_paper,
    auc_ratio    = aucinf.obs / auc_expected
  )

knitr::kable(
  dplyr::rename(dplyr::select(nca_chk, treatment, aucinf.obs, auc_expected, auc_ratio),
                "Dose arm" = treatment,
                "PKNCA AUC0-inf (ng.min/mL)" = aucinf.obs,
                "Dose / CL (ng.min/mL)" = auc_expected,
                "Ratio" = auc_ratio),
  digits = 3
)
Dose arm PKNCA AUC0-inf (ng.min/mL) Dose / CL (ng.min/mL) Ratio
1 mg/kg 8081.385 8108.108 0.997
7.3 mg/kg 58994.108 59189.189 0.997

stopifnot(
  # AUC0-inf must equal Dose/CL for a linear model.
  all(abs(nca_chk$auc_ratio - 1) < 0.02),
  # Cmax occurs at the end of the 30 min infusion.
  all(nca_chk$tmax == infusion_dur_min),
  # Exposure is exactly dose-proportional: 7.3 / 1 = 7.3.
  abs(nca_chk$aucinf.obs[nca_chk$treatment == "7.3 mg/kg"] /
        nca_chk$aucinf.obs[nca_chk$treatment == "1 mg/kg"] - 7.3) < 0.01,
  # Terminal half-life is dose-independent for a linear model.
  abs(diff(nca_chk$half.life)) < 1
)

Assumptions and deviations

  • N***max is not reported in this paper. The non-linear brain distribution layer used by the ECF and brain-tissue models requires the saturable-efflux capacity N***max in addition to the kin, kout and C50 values that Table 2 does report. Its value (30,700) is taken from Table II of the companion paper Geldof et al. (2008) Pharm Res 25(4):792-804, which is on disk and is already extracted in this library as modellib("Geldof_2008_fluvoxamine_rat"). This is the only parameter in the three models that does not come from the present paper, and it is flagged as such inline in both model files.
  • N***max units. The companion paper’s Table II prints the unit of N***max as ng/h. That is dimensionally inconsistent with N***max appearing as an additive term against CT and C50 in the partition quadratic, which requires a concentration. It is treated here (as in the already-merged upstream extraction) as a typesetting error for ng/mL.
  • Sign of the partition quadratic. The companion paper’s Appendix Eq 57 prints +N***max in the numerator, which sends the partition coefficient to infinity as total brain concentration approaches zero and contradicts the low-concentration limit implied by its own Eq 47. The derivation-consistent (CT - C50 - N***max) form is used, matching the upstream extraction.
  • Plasma PK values are mean post-hoc estimates, not population THETAs. Table 1 and Table 2 report means of individual post-hoc (empirical Bayes) estimates for the cohort, because the PK was fixed rather than re-fit in this paper. They are encoded with fixed() so the distinction is not lost. No IIV or residual error is available for the PK layer from this source, so none is encoded; the only random effect in these models is the IIV on EC50 that the paper does report.
  • The upstream plasma popPK paper (Geldof 2007a) is not on disk. It is not required: the paper states the structure (“population three-compartment pharmacokinetic model”, Table 1 caption) and tabulates all six parameter values, so nothing about the plasma layer had to be inferred. Only the population-level THETAs and IIV, which this model does not use, live in that upstream reference.
  • The 8% per hour decline rate is not reproducible, and conflicts with the paper’s own figures. Results p1374 states a linear decline of 8% per hour, identical at both doses. The same paragraph states that maximal occupancy is maintained for about 7 h at 7.3 mg/kg and reaches 0% at about 15 h, which implies about 11.9% per hour. The simulated slopes (see the table above) sit between the two statements and are mildly dose-dependent, which is the structurally expected behaviour for a hyperbolic model driven by a multi-exponential concentration decline. No parameter was tuned to match either figure.
  • The ECF and brain-tissue EC50 values imply a different scaling factor than the brain model produces. The published EC50 values imply a total-brain-to-ECF concentration ratio of 14.8 / 0.22 = 67.3, whereas the brain distribution layer as parameterised in Table 2 plus the companion paper’s N***max gives 44.2. Both are reproduced above rather than reconciled. The likely cause is that Table 2’s kin and kout are this cohort’s post-hoc means (0.2031 and 0.0183 per minute) while N***max could only be sourced from the companion paper’s population fit, whose own kin and kout differ (0.16 and 0.019 per minute). No value was adjusted to close the gap; users comparing the ECF and brain-tissue models should be aware that the two are not numerically interchangeable in this implementation even though the paper fit them as one.
  • Body weight for dose conversion. The paper reports doses in mg/kg but parameterises the PK in absolute units. The midpoint of the reported 226-250 g range (240 g) is used to convert; weight was not a covariate in any of the models and the range is narrow.
  • Observation-variable naming. The single model output is named sertOccupancy, a paper-named percentage-occupancy endpoint. checkModelConventions() emits a warning because a single-output model’s observation variable is expected to be Cc or a registered PD-output canonical, and no occupancy canonical is currently registered in R/conventions.R. Cc would be actively wrong here (the output is a percentage, not a concentration), so the paper-named form is retained pending registration of an occupancy canonical.
  • Erratum search. PubMed, PubMed Central and the British Journal of Pharmacology landing page for doi:10.1038/bjp.2008.179 show no erratum, corrigendum or correction notice for this article.
