Bedaquiline (Svensson 2014)

Source: vignettes/articles/Svensson_2014_bedaquiline.Rmd
Svensson_2014_bedaquiline.Rmd

Model and source

  • Citation: Svensson E. M., Murray S., Karlsson M. O., Dooley K. E. (2014). Rifampicin and rifapentine significantly reduce concentrations of bedaquiline, a new anti-TB drug. Journal of Antimicrobial Chemotherapy 70(4):1106-1114. doi:10.1093/jac/dku504.
  • Description: Three-compartment population PK model for bedaquiline (BDQ) and a two-compartment N-desmethyl metabolite M2 in healthy adult volunteers following single 400 mg oral doses, with Savic 2007 analytical transit-compartment absorption (non-integer NN feeding a first-order depot at rate ka), fixed allometric scaling on disposition (0.75 on CL/Q at 70 kg, 1 on Vc/Vp), and multiplicative rifampicin or rifapentine drug-drug-interaction factors of 4.78 and 3.96 on bedaquiline and M2 apparent clearance, applied at full induction from day 3 of rifamycin co-administration.
  • Article: https://doi.org/10.1093/jac/dku504

Population

The packaged model was fit to data from Phase I trial TMC207-CL002, a two-arm open-label two-period single-sequence drug-drug-interaction study in 32 healthy adult volunteers. Subjects received a single 400 mg oral dose of bedaquiline on Day 1 (period 1, alone) and again on Day 29 (period 2, after nine days of pre-treatment with either 600 mg daily rifampicin (Arm 1, 13 completers) or 600 mg daily rifapentine (Arm 2, 16 completers); rifamycin co-administration continued throughout the 14-day PK sampling window of period 2). Blood samples were collected at 1, 2, 3, 4, 5, 6, 8, 12, and 24 h and thereafter every 24 h until 336 h after each bedaquiline dose plus a single sample on Day 20 (before rifamycin start). Concentrations were quantified by validated LC-MS/MS with a 1-2000 ng/mL linear range and a 1 ng/mL lower limit of quantification. Baseline demographics (Svensson 2014 Table 1): median age 35.5 years (range 19-55), median weight 81.8 kg (range 57.3-122), 12.5% female, 87.5% white, 6.2% Black or African American, 3.1% American Indian or Alaska Native, 3.1% Asian.

The historical efavirenz-DDI cohort (1083 bedaquiline + 1055 M2 observations after a single 400 mg dose alone or with efavirenz) was fitted simultaneously with the new TMC207-CL002 data to increase parameter precision.

The same information is available programmatically via the model’s population metadata (readModelDb("Svensson_2014_bedaquiline")$population).

Source trace

The per-parameter origin is recorded as an in-file comment next to each ini() entry in inst/modeldb/specificDrugs/Svensson_2014_bedaquiline.R. The table below collects them in one place for review.

Equation / parameter Value Source location
lmtt (MTT) log(0.97) Table 2 “MTT (h) = 0.97” (RSE 11.5%)
lka (ka) log(0.12) Table 2 “KA (1/h) = 0.12” (RSE 3.9%)
lnn (NN) log(8.41) Table 2 “NN = 8.41” (RSE 36.2%)
lcl (CL/F BDQ) log(3.20) Table 2 “CL/F = 3.20 L/h” (RSE 6.5%)
lvc (V/F BDQ) log(16.2) Table 2 “V/F = 16.2 L” (RSE 12.9%)
lq (Q1/F BDQ) log(4.71) Table 2 “Q1/F = 4.71 L/h” (RSE 5.6%)
lvp (VP1/F BDQ) log(2801) Table 2 “VP1/F = 2801 L” (RSE 10.1%)
lq2 (Q2/F BDQ) log(3.10) Table 2 “Q2/F = 3.10 L/h” (RSE 6.0%)
lvp2 (VP2/F BDQ) log(137) Table 2 “VP2/F = 137 L” (RSE 10.4%)
lcl_m2 (CLM2/F/fm) log(13.1) Table 2 “CLM2/F/fm = 13.1 L/h” (RSE 6.6%)
lvc_m2 (VM2/F/fm) log(882) Table 2 “VM2/F/fm = 882 L” (RSE 4.9%)
lq_m2 (Q1M2/F/fm) log(105) Table 2 “Q1M2/F/fm = 105 L/h” (RSE 8.6%)
lvp_m2 (VP1M2/F/fm) log(3349) Table 2 “VP1M2/F/fm = 3349 L” (RSE 3.8%)
e_wt_cl_q fixed(0.75) Methods “Allometric scaling was applied to CL and V using body weight and fixed coefficients of 0.75 and 1, respectively.”
e_wt_vc_vp fixed(1) same Methods sentence
e_rif_cl 4.78 Table 2 “Factor change BDQ/M2 CL with RIF = 4.78” (RSE 9.1%)
e_rpt_cl 3.96 Table 2 “Factor change BDQ/M2 CL with RPT = 3.96” (RSE 5.0%)
Block IIV CL, CL_M2 var 0.07654, 0.09236; cor 0.538 Table 2 BSV CL = 28.2% CV, BSV CLM2 = 31.1% CV, corr 53.8%
etalvc (BSV V) 0.16769 Table 2 BSV V = 42.8% CV (RSE 14.6%)
etalq (BSV Q1) 0.04372 Table 2 BSV Q1 = 21.1% CV (RSE 13.2%)
etalvc_m2 (BSV VM2) 0.12379 Table 2 BSV VM2 = 36.4% CV (RSE 12.3%)
etalvp_m2 (BSV VP1M2) 0.04330 Table 2 BSV VP1M2 = 21.0% CV (RSE 22.4%)
propSd (BDQ residual) 0.157 Table 2 “Prop err BDQ = 15.7% CV” (RSE 4.4%)
propSd_m2 (M2 residual) 0.122 Table 2 “Prop err M2 = 12.2% CV” (RSE 5.0%)
Transit-absorption chain via Savic 2007 input feeding depot at rate (NN+1)/MTT, then first-order ka into central n/a Methods “absorption through a dynamic transit compartment model” + structural inheritance from the previously developed bedaquiline + M2 model (Svensson 2014 reference 19)
Three-compartment BDQ + two-compartment M2 ODEs n/a Methods “three disposition compartments for bedaquiline and two for M2”
Allometric scaling on CL, Q, V, VM2, VP1M2 at 70 kg n/a Methods “Allometric scaling was applied to CL and V”
DDI step indicators (CONMED_RIF, CONMED_RPT) switching on at full induction (paper’s 3-day lag) n/a Methods “Parameterizing the CLs to change after 3 days of rifamycin administration provided the best fit”

Virtual cohort

Original observed concentrations are not publicly available. We simulate a virtual cohort matching the Svensson 2014 design as closely as the published demographics allow: 32 healthy adult volunteers split into three single-dose period 1 / period 2 cohorts that cover the three observed scenarios.

set.seed(20251229L)

# Helper: build one cohort of `n` subjects as a self-contained event table.
# id_offset shifts subject IDs so multiple cohorts can be bind_rows()-ed
# without colliding (rxSolve treats id as the subject key; duplicate IDs
# across cohorts silently collapse into single Frankenstein subjects).
make_arm <- function(n, conmed_rif, conmed_rpt, treatment, id_offset = 0L) {
  ids <- id_offset + seq_len(n)
  # Sampling grid mirrors the published design: dense early then 24-hourly
  # for two weeks plus a few earlier points to characterise absorption.
  sample_grid <- c(
    seq(0, 12, by = 0.5),
    seq(13, 24, by = 1),
    seq(48, 336, by = 24)
  )
  # Use a small range of body weights centred around the cohort median of
  # 81.8 kg (Table 1); randomly drawn so allometric scaling shows the
  # expected dispersion in the VPC.
  wts <- round(runif(length(ids), min = 60, max = 110), 1)
  dose_rows <- tibble::tibble(
    id          = ids,
    time        = 0,
    evid        = 1L,
    amt         = 400,
    cmt         = "depot",
    WT          = wts,
    CONMED_RIF  = conmed_rif,
    CONMED_RPT  = conmed_rpt,
    treatment   = treatment
  )
  sample_rows <- tidyr::expand_grid(id = ids, time = sample_grid) |>
    dplyr::left_join(
      tibble::tibble(id = ids, WT = wts), by = "id"
    ) |>
    dplyr::mutate(
      evid       = 0L,
      amt        = 0,
      cmt        = "Cc",
      CONMED_RIF = conmed_rif,
      CONMED_RPT = conmed_rpt,
      treatment  = treatment
    )
  dplyr::bind_rows(dose_rows, sample_rows) |>
    dplyr::arrange(id, time, dplyr::desc(evid))
}

n_per_arm <- 32L
events <- dplyr::bind_rows(
  make_arm(n_per_arm, conmed_rif = 0L, conmed_rpt = 0L,
           treatment = "BDQ alone",        id_offset =   0L),
  make_arm(n_per_arm, conmed_rif = 1L, conmed_rpt = 0L,
           treatment = "BDQ + rifampicin", id_offset = 100L),
  make_arm(n_per_arm, conmed_rif = 0L, conmed_rpt = 1L,
           treatment = "BDQ + rifapentine", id_offset = 200L)
)

stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid")])))
nrow(events)
#> [1] 4896
table(unique(events[, c("id", "treatment")])$treatment)
#>
#>  BDQ + rifampicin BDQ + rifapentine         BDQ alone
#>                32                32                32

Simulation

mod <- readModelDb("Svensson_2014_bedaquiline")
mod_typical <- rxode2::zeroRe(mod)
#> ℹ parameter labels from comments will be replaced by 'label()'

sim_typical <- rxode2::rxSolve(
  mod_typical, events = events,
  keep = c("CONMED_RIF", "CONMED_RPT", "treatment", "WT"),
  returnType = "data.frame"
)
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalcl_m2', 'etalvc', 'etalq', 'etalvc_m2', 'etalvp_m2'
#> Warning: multi-subject simulation without without 'omega'
head(sim_typical[, c("id", "time", "Cc", "Cc_m2", "treatment")])
#>   id time          Cc        Cc_m2 treatment
#> 1  1  0.0 0.000000000 0.000000e+00 BDQ alone
#> 2  1  0.5 0.008047051 1.750017e-06 BDQ alone
#> 3  1  1.0 0.329637148 2.044843e-04 BDQ alone
#> 4  1  1.5 1.107267994 1.405209e-03 BDQ alone
#> 5  1  2.0 1.800480156 3.840863e-03 BDQ alone
#> 6  1  2.5 2.263164398 7.109189e-03 BDQ alone
sim_vpc <- rxode2::rxSolve(
  mod, events = events,
  keep = c("CONMED_RIF", "CONMED_RPT", "treatment", "WT"),
  returnType = "data.frame"
)
#> ℹ parameter labels from comments will be replaced by 'label()'

Replicate published figures

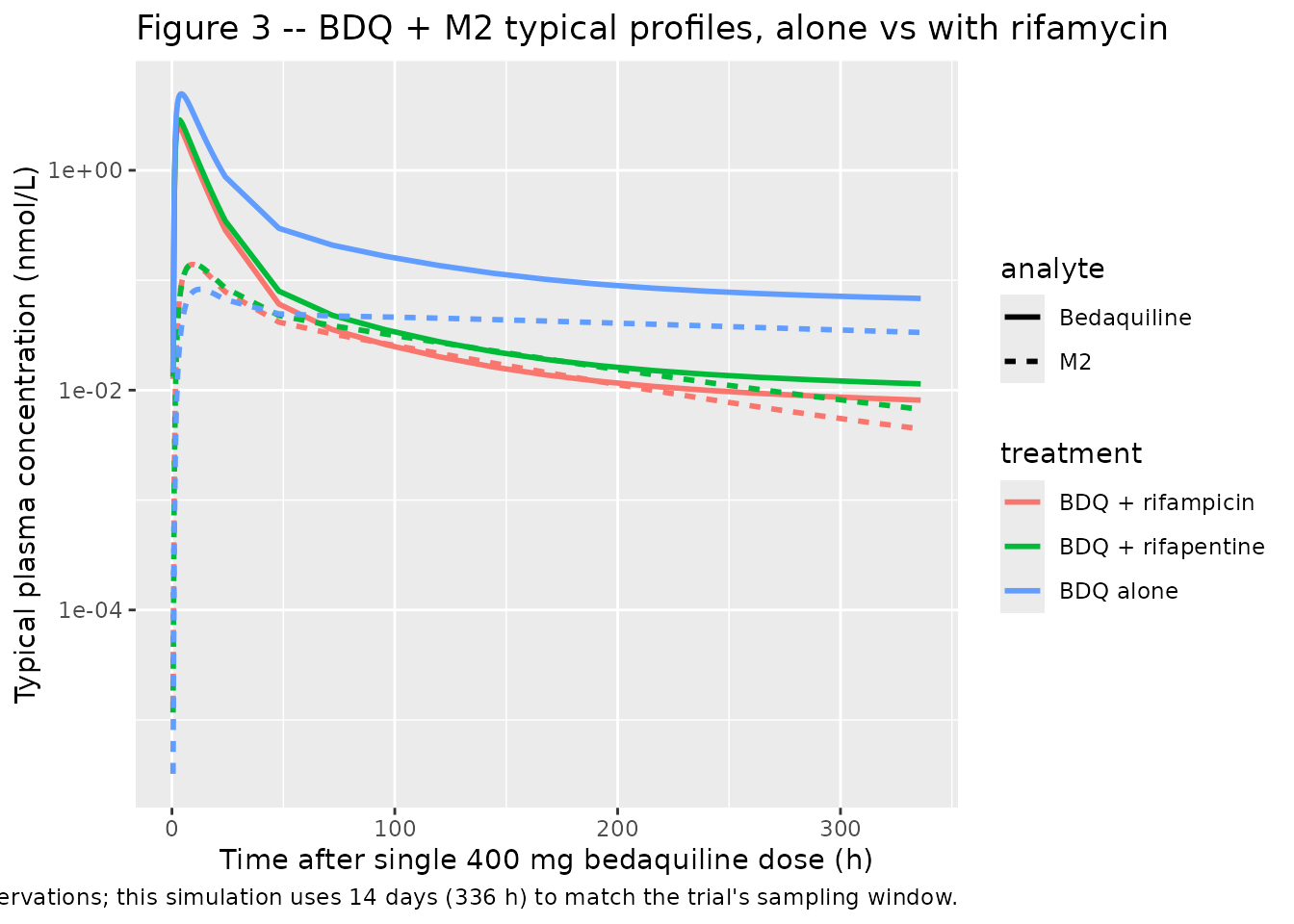

Figure 3 – typical BDQ + M2 profiles

Svensson 2014 Figure 3 plots typical concentration-time profiles for bedaquiline (continuous lines) and M2 (broken lines) over the first 4 weeks of bedaquiline treatment alone (black), with rifampicin (dark grey), or with rifapentine (light grey). The paper’s figure uses molar units (nmol/L); we convert mg/L outputs from the model with multiplicative factors of 1000 / 555.50 = 1.800 for bedaquiline and 1000 / 541.47 = 1.847 for M2.

mw_bdq <- 555.50
mw_m2  <- 541.47

sim_typical_first <- sim_typical |>
  dplyr::filter(time > 0, time <= 336) |>
  dplyr::distinct(time, treatment, .keep_all = TRUE) |>
  dplyr::transmute(
    time      = time,
    treatment = treatment,
    BDQ_nM    = Cc    * 1000 / mw_bdq,
    M2_nM     = Cc_m2 * 1000 / mw_m2
  ) |>
  tidyr::pivot_longer(c(BDQ_nM, M2_nM),
                      names_to = "analyte", values_to = "conc_nM") |>
  dplyr::mutate(
    analyte = dplyr::recode(analyte, BDQ_nM = "Bedaquiline", M2_nM = "M2")
  )

ggplot(sim_typical_first,
       aes(time, conc_nM, colour = treatment, linetype = analyte)) +
  geom_line(linewidth = 1) +
  scale_y_log10() +
  labs(
    x = "Time after single 400 mg bedaquiline dose (h)",
    y = "Typical plasma concentration (nmol/L)",
    title = "Figure 3 -- BDQ + M2 typical profiles, alone vs with rifamycin",
    caption = paste(
      "Replicates Figure 3 of Svensson 2014: typical-value profiles after a",
      "single 400 mg bedaquiline dose alone, with rifampicin (at full",
      "induction), or with rifapentine (at full induction). The published",
      "figure uses 4-week (672 h) observations; this simulation uses 14",
      "days (336 h) to match the trial's sampling window."
    )
  )

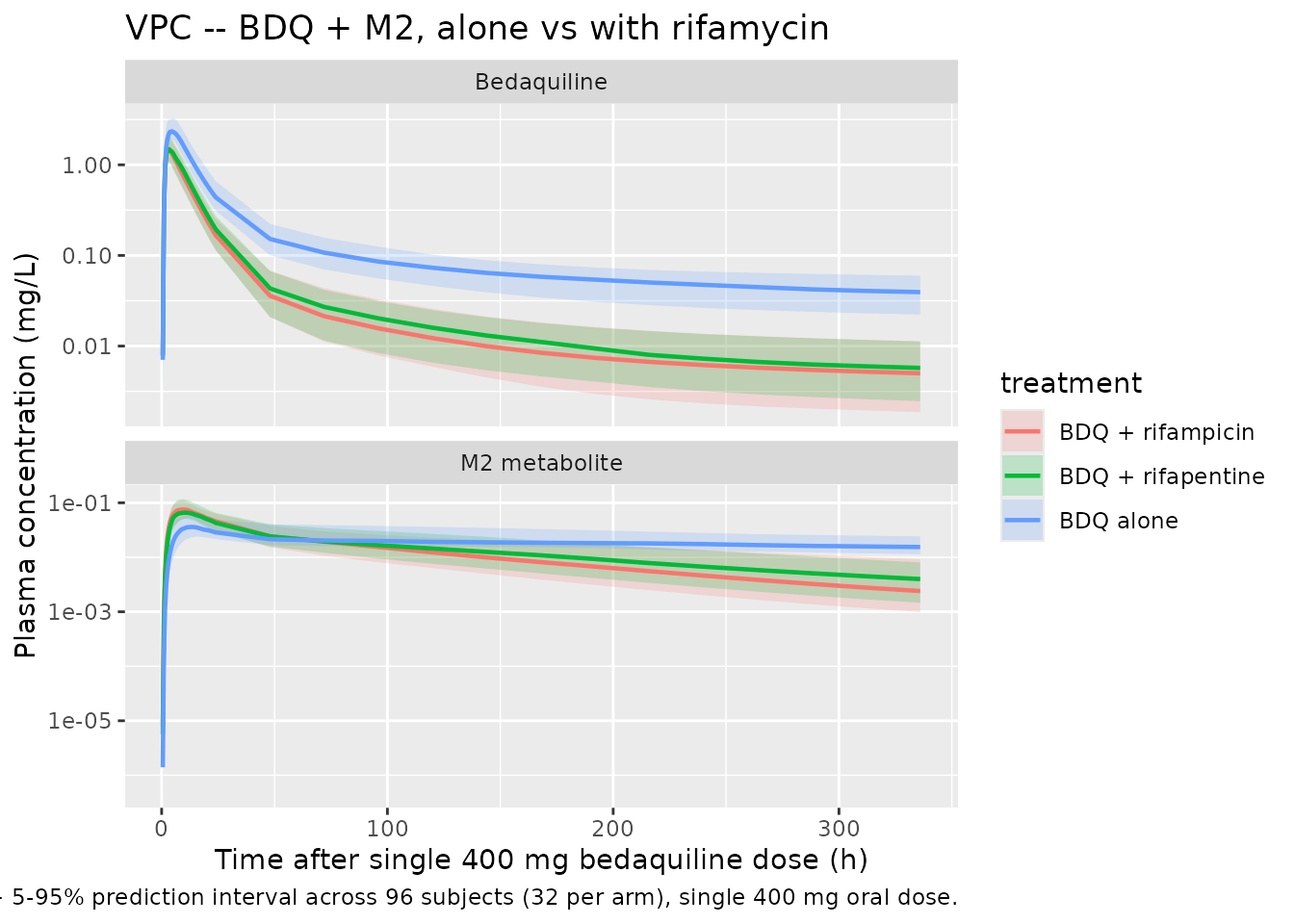

VPC across the cohort

sim_summary <- sim_vpc |>
  dplyr::filter(time > 0) |>
  dplyr::group_by(time, treatment) |>
  dplyr::summarise(
    BDQ_Q05 = quantile(Cc,    0.05, na.rm = TRUE),
    BDQ_Q50 = quantile(Cc,    0.50, na.rm = TRUE),
    BDQ_Q95 = quantile(Cc,    0.95, na.rm = TRUE),
    M2_Q05  = quantile(Cc_m2, 0.05, na.rm = TRUE),
    M2_Q50  = quantile(Cc_m2, 0.50, na.rm = TRUE),
    M2_Q95  = quantile(Cc_m2, 0.95, na.rm = TRUE),
    .groups = "drop"
  ) |>
  tidyr::pivot_longer(-c(time, treatment),
                      names_to = c("analyte", "stat"),
                      names_sep = "_") |>
  tidyr::pivot_wider(names_from = stat, values_from = value) |>
  dplyr::mutate(
    analyte = dplyr::recode(analyte, BDQ = "Bedaquiline", M2 = "M2 metabolite")
  )

ggplot(sim_summary |> dplyr::filter(time <= 336),
       aes(time, Q50, colour = treatment, fill = treatment)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.20, colour = NA) +
  geom_line(linewidth = 0.8) +
  facet_wrap(~ analyte, scales = "free_y", ncol = 1) +
  scale_y_log10() +
  labs(
    x = "Time after single 400 mg bedaquiline dose (h)",
    y = "Plasma concentration (mg/L)",
    title = "VPC -- BDQ + M2, alone vs with rifamycin",
    caption = paste(
      "Median + 5-95% prediction interval across",
      paste(nrow(unique(events[, c("id", "treatment")])), "subjects (32 per arm),"),
      "single 400 mg oral dose."
    )
  )

PKNCA validation

Use PKNCA to compute Cmax, Tmax, AUC0-14d, and terminal half-life by treatment arm so the simulated 14-day AUC ratios (BDQ alone vs with rifamycin) can be compared against the published GMRs (Svensson 2014 Results “Non-compartmental analysis and posterior predictive check”).

The paper reports observed GMR of AUC0-14d (BDQ with RIF / BDQ alone) = 41.0%, GMR (BDQ with RPT / BDQ alone) = 42.8%, GMR (M2 with RIF / M2 alone) = 78.9%, GMR (M2 with RPT / M2 alone) = 85.5%, and the model-based simulation GMRs from 100 simulated replicas were 40.6% (BDQ + RIF), 47.8% (BDQ + RPT), 76.7% (M2 + RIF), and 89.0% (M2 + RPT).

# Bedaquiline NCA
sim_nca_bdq <- sim_vpc |>
  dplyr::filter(!is.na(Cc), time > 0 | time == 0) |>
  dplyr::select(id, time, Cc, treatment)

dose_df <- events |>
  dplyr::filter(evid == 1) |>
  dplyr::select(id, time, amt, treatment)

conc_obj_bdq <- PKNCA::PKNCAconc(
  sim_nca_bdq, Cc ~ time | treatment + id,
  concu = "mg/L", timeu = "h"
)
dose_obj <- PKNCA::PKNCAdose(
  dose_df, amt ~ time | treatment + id,
  doseu = "mg"
)

intervals_14d <- data.frame(
  start      = 0,
  end        = 336,
  cmax       = TRUE,
  tmax       = TRUE,
  auclast    = TRUE,
  aucinf.obs = TRUE,
  half.life  = TRUE
)

nca_res_bdq <- PKNCA::pk.nca(PKNCA::PKNCAdata(
  conc_obj_bdq, dose_obj, intervals = intervals_14d
))
nca_summary_bdq <- summary(nca_res_bdq)
knitr::kable(
  nca_summary_bdq,
  caption = "Simulated NCA parameters for bedaquiline by treatment arm."
)
Simulated NCA parameters for bedaquiline by treatment arm.
Interval Start Interval End treatment N AUClast (h*mg/L) Cmax (mg/L) Tmax (h) Half-life (h) AUCinf,obs (h*mg/L)
0 336 BDQ + rifampicin 32 20.2 [26.5] 1.48 [19.1] 3.00 [2.50, 4.00] 382 [18.5] 23.0 [30.2]
0 336 BDQ + rifapentine 32 22.1 [28.4] 1.53 [24.6] 3.00 [2.00, 5.00] 380 [35.7] 25.4 [31.1]
0 336 BDQ alone 32 54.4 [22.3] 2.48 [18.6] 4.50 [2.50, 6.50] 565 [114] 85.2 [29.1]

# M2 metabolite NCA
sim_nca_m2 <- sim_vpc |>
  dplyr::filter(!is.na(Cc_m2)) |>
  dplyr::select(id, time, Cc_m2, treatment) |>
  dplyr::rename(Cc = Cc_m2)

conc_obj_m2 <- PKNCA::PKNCAconc(
  sim_nca_m2, Cc ~ time | treatment + id,
  concu = "mg/L", timeu = "h"
)

# M2 has no direct dose; reuse the BDQ dose object as the formation
# precursor so PKNCA can normalise AUC.
nca_res_m2 <- PKNCA::pk.nca(PKNCA::PKNCAdata(
  conc_obj_m2, dose_obj, intervals = intervals_14d
))
nca_summary_m2 <- summary(nca_res_m2)
knitr::kable(
  nca_summary_m2,
  caption = "Simulated NCA parameters for M2 metabolite by treatment arm."
)
Simulated NCA parameters for M2 metabolite by treatment arm.
Interval Start Interval End treatment N AUClast (h*mg/L) Cmax (mg/L) Tmax (h) Half-life (h) AUCinf,obs (h*mg/L)
0 336 BDQ + rifampicin 32 4.80 [31.9] 0.0764 [22.1] 9.00 [6.50, 13.0] 124 [27.9] 5.36 [37.7]
0 336 BDQ + rifapentine 32 5.20 [32.9] 0.0717 [25.2] 10.0 [7.50, 15.0] 132 [19.2] 5.97 [35.4]
0 336 BDQ alone 32 6.91 [25.8] 0.0375 [33.3] 14.0 [8.50, 18.0] 641 [342] 20.7 [43.1]

Comparison against published GMRs

auclast_by_arm <- function(nca_summary_df) {
  res <- as.data.frame(nca_summary_df)
  tail_col <- grep("auclast", names(res), value = TRUE, ignore.case = TRUE)
  if (length(tail_col) == 0) return(NULL)
  res[, c("treatment", tail_col[1])]
}

bdq_auc <- auclast_by_arm(nca_summary_bdq)
m2_auc  <- auclast_by_arm(nca_summary_m2)
print(bdq_auc)
#>           treatment AUClast (h*mg/L)
#> 1  BDQ + rifampicin      20.2 [26.5]
#> 2 BDQ + rifapentine      22.1 [28.4]
#> 3         BDQ alone      54.4 [22.3]
print(m2_auc)
#>           treatment AUClast (h*mg/L)
#> 1  BDQ + rifampicin      4.80 [31.9]
#> 2 BDQ + rifapentine      5.20 [32.9]
#> 3         BDQ alone      6.91 [25.8]

Compute the GMRs by hand from the printed AUClast medians: divide the “BDQ + rifampicin” row by the “BDQ alone” row (and likewise for M2 and for rifapentine). The published observed and simulated GMRs are listed in the introduction to this PKNCA section. Differences are expected because the present implementation drops the BSV on the individual induction effects (see Assumptions and deviations below); the typical profile is preserved but the per-subject variance contribution to the GMR is reduced.

Assumptions and deviations

  • Cross-output residual correlation dropped. Svensson 2014 Table 2 reports a 55% correlation between the proportional residual errors on bedaquiline and M2 (Prop err M2 = 55.4 is a correlation rather than a CV per the table’s footnote). nlmixr2lib has no idiomatic encoding for cross-output residual correlation, so the BDQ and M2 residual proportions are encoded as independent.
  • Early-sample residual weighting dropped. Svensson 2014 Table 2 reports a 2.19-fold weighting on the residual SD for samples taken between 0 and 6 h post-dose (Weighting of samples 0-6 h = 2.19). The paper introduces this weighting to absorb absorption-phase unmodelled-variability that is largely a fitting concern. The simulated residual SD here is held constant at the post-absorption value (15.7% on BDQ, 12.2% on M2) across all time points; readers who need to reproduce the fitting weighting will need to layer it on externally.
  • Between-occasion variability dropped. Svensson 2014 Table 2 reports BOV on bioavailability (18.5% CV) and on MTT (64.7% CV) from the two-occasion crossover design (period 1 dose alone, period 2 dose with rifamycin); the same table reports an additional BSV on F (12.1% CV). nlmixr2lib has no idiomatic encoding for between-occasion variability separate from between-subject; both BOVs and BSV F are dropped here. As a consequence the simulated VPCs underrepresent within-subject variability between the two doses each subject received.
  • Individual-induction etas (BSV RIF BDQ, BSV RIF M2, BSV RPT BDQ, BSV RPT M2) dropped. Svensson 2014 Table 2 reports a 6x6 lower-triangular NONMEM BLOCK(6) on the bedaquiline-CL eta, the M2-CL eta, and four individual-level induction-effect etas. The BSV CL + BSV CLM2 block (2x2) is preserved here, but the four individual induction etas (BSV RIF BDQ = 27.9% CV, BSV RIF M2 = 32.4% CV, BSV RPT BDQ = 17.9% CV, BSV RPT M2 = 28.2% CV) and the inter-block correlations (-78.2 to 86.3% per Table 2) are dropped because the etas are only well-defined for subjects in the corresponding arm, and nlmixr2lib has no idiomatic encoding for a covariate-gated random effect. As a consequence the VPC rifamycin arms have narrower prediction intervals on AUC than the paper’s model would produce, and the typical-value GMRs are an approximation of the paper’s central tendencies.
  • Time-varying weight assumed time-fixed. The paper’s analysis used per-subject body weight from baseline only, so this simplification matches the source.
  • Rifamycin step indicators set externally. Svensson 2014 found that a step from “no induction” to “full induction” at day 3 of rifamycin co-administration provided the best fit (an alternative time-decaying induction model would describe pre-induction kinetics but did not improve OFV materially per the Methods text). For new simulations, populate CONMED_RIF = 1 on every observation row that falls >= 3 days after the first rifampicin dose and 0 otherwise (and similarly for CONMED_RPT); pre-induction observations should carry the unmodified baseline CL. The vignette’s example cohorts assume the bedaquiline dose is given when rifamycin is already at full induction (period-2 design of the paper).
  • F = 1 anchor for the F-relative parameterisation. The paper reports all clearances and volumes as apparent F-relative values (CL/F, V/F, CLM2/(Ffm), V_M2/(Ffm)). Setting F = 1 inside transit(nn, mtt, 1) preserves these apparent values directly; the consequence is that simulated bedaquiline mass in the central compartment represents the F-apparent mass and concentrations represent F-apparent (= observed) plasma concentrations.
  • Concentration units. Model output is in mg/L (= ug/mL). The published figures (Figure 3, Figure 4) plot concentrations in nmol/L; the conversion factors are 1000 / 555.50 = 1.800 (BDQ) and 1000 / 541.47 = 1.847 (M2). The Figure 3 chunk above applies these conversions.
  • NCA terminal-phase fit. With 14-day sampling and a 5-6 month terminal half-life, NCA AUC0-inf and half-life cannot be reliably estimated. AUC0-14d (the paper’s primary NCA endpoint) is reported here via PKNCA’s auclast instead.
