Model and source

  • Citation: Feng Y, Gastonguay MR, Pollock BG, Frank E, Kepple GH, Bies RR. Performance of Cpred/Cobs concentration ratios as a metric reflecting adherence to antidepressant drug therapy. Neuropsychiatr Dis Treat. 2011;7:117-125. doi:10.2147/NDT.S15921. The parameter set in Feng 2011 Table 2 was adapted by those authors from the published escitalopram literature (their refs 15-16: Sogaard B, Mengel H, Rao N, Larsen F. J Clin Pharmacol. 2005;45:1400-1406; Gutierrez MM, Rosenberg J, Abramowitz W. Clin Ther. 2003;25:1200-1210); Feng 2011 is the transcription source for every value below.
  • Description: Two-compartment population PK model with first-order absorption for escitalopram, used as the long half-life drug scenario in a trial-simulation study of Cpred/Cobs and Cipred/Cobs concentration ratios as adherence metrics (Feng 2011)
  • Article: https://doi.org/10.2147/NDT.S15921 (open access; PMC3083985)

Feng 2011 is a trial-simulation study, not a model-development paper. Its question is whether the ratio of a population-PK model’s predicted concentration to a patient’s observed concentration – Cpred/Cobs at the population level, Cipred/Cobs at the individual (Bayesian post hoc) level – can be read as a measure of how well that patient adhered to their prescribed regimen. To answer it the authors needed a concrete long-half-life drug, and took escitalopram: “An established escitalopram model was utilized to represent the long half-life drug. A two-compartment model with additive and proportional residual error models was adapted from the literature reports for escitalopram as a long half-life drug (Table 2).”

The packaged model is that Table 2 parameter set. Because Feng 2011 adapted rather than estimated it, every value is wrapped in fixed() – no standard error, RSE or confidence interval is reported for any of them, and re-fitting this model to new data should start by un-fixing the parameters deliberately.

This vignette does three things:

  1. validates the packaged PK model against closed-form results (PKNCA vs Dose/CL and vs each subject’s own analytic terminal slope), and checks the “long half-life drug” premise the paper rests on;
  2. reproduces the paper’s central mechanism (Figure 2C/2D) – the Cipred/Cobs ratio rises as true adherence falls;

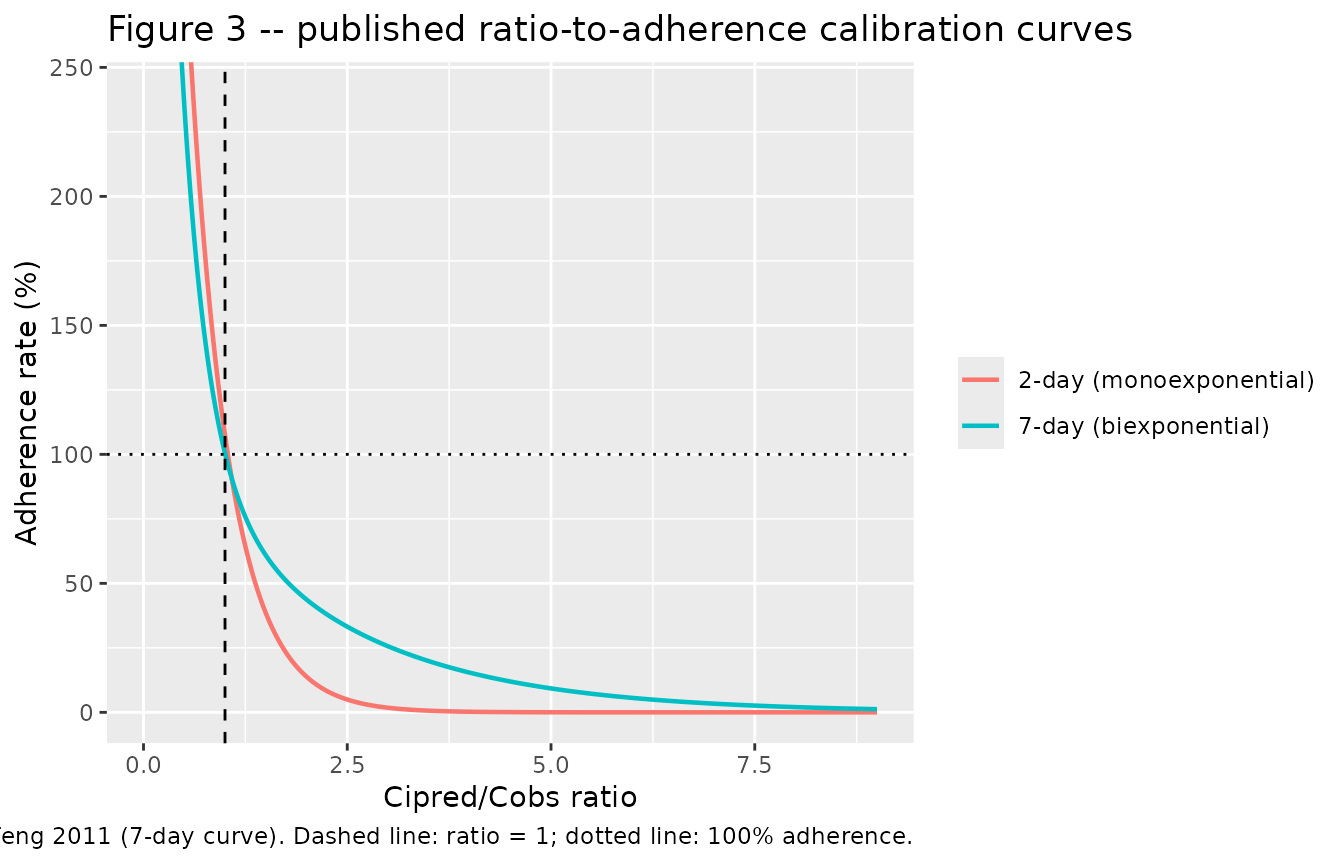

  3. reproduces the two published ratio-to-adherence calibration equations (Figure 3 and the 2-day equation) and checks them against the paper’s own printed anchors.

Population

Feng 2011 draws on two distinct sources, and it matters which is which.

The dosing histories come from 65 patients with chronic psychiatric disorders enrolled in the NIMH-sponsored trial “Depression: the search for treatment relevant phenotypes” (the Pittsburgh-Pisa study; Feng 2011 ref 12). Medication Event Monitoring System (MEMS) caps recorded 863 clinic-visit records over the first six months. Those records set the simulation sample size (Table 3: “Sample size for each simulation replicate: 65”; 100 replicates, 18 clinic-visit records per subject on average, range 2-43) and supplied the “true” dosage histories. Observed adherence was highly variable: over a 7-day window, 9.7% of events had more than 7 doses taken, 52.5% had 6-7 doses, 19.0% had 3-5 doses, 4.3% had 1-2 doses, and 14.5% had none at all.

The pharmacokinetic parameters did not come from those 65 patients. No escitalopram concentrations were measured in the phenotypes study; Table 2 was adapted from the published escitalopram literature (Feng 2011 refs 15-16: Sogaard 2005 and Gutierrez 2003). Feng 2011 is therefore the transcription source for the values in this package, and the demographic covariates of the population underlying those parameters – age, weight, sex, race – are not reported anywhere in Feng 2011. The model carries no covariate effects.

The same information is available programmatically via readModelDb("Feng_2011_escitalopram")()$population.

Source trace

Every ini() entry carries an in-file comment pointing at its origin in inst/modeldb/specificDrugs/Feng_2011_escitalopram.R. Collected here for review:

Equation / parameter Value Source location
lka log(0.16) Table 2, “Ka (/h) 0.16”
lcl log(24.5) Table 2, “CL (L/h) 24.5”
lvc log(417) Table 2, “V2 (L) 417”
lq log(35.7) Table 2, “Q (L/h) 35.7”
lvp log(541) Table 2, “V3 (L) 541”
etalcl 0.50^2 = 0.2500 Table 2, “omega CL% 50”; Methods “variance of omega^2”
etalvc 0.35^2 = 0.1225 Table 2, “omega v2% 35”
etalq 0.30^2 = 0.0900 Table 2, “omega Q% 30”
etalvp 0.30^2 = 0.0900 Table 2, “omega v3% 30”
propSd 0.30 Table 2, “sigma 1% 30”; footnote “sigma, coefficient of variation of residual error”
addSd fixed(0) Methods states a combined additive + proportional error model; no additive value is reported anywhere in the paper
Two-compartment oral ODE system n/a Methods, “the NONMEM program (two-compartment, ADVAN4 TRANS4)”
Exponential IIV, cl <- exp(lcl + etalcl) n/a Methods, “CL = TVCL x exp(eta CL)”
10 mg once-daily regimen n/a Table 3, “Dose (mg): Long half-life drug (10)”
7-day adherence groups n/a Table 1, “Categorization of 7-day and 2-day adherence rate”
7-day ratio-to-adherence equation 699, 3.15, 117, 0.507 Results, “Relationship between 7-day adherence rate and ratio” (displayed equation, p 122); curve plotted in Figure 3
2-day ratio-to-adherence equation 834, 2.05 Results, “Relationship between 2-day adherence rate and ratio” (displayed equation, p 123)
mod <- readModelDb("Feng_2011_escitalopram")
ui  <- rxode2::rxode(mod)
knitr::kable(
  ui$iniDf |>
    dplyr::filter(!is.na(.data$ntheta)) |>
    dplyr::select(name, est, fix, label) |>
    dplyr::rename("Parameter" = name, "Estimate" = est,
                  "Fixed" = fix, "Label" = label),
  digits = 4,
  caption = "Fixed-effect parameters as packaged. Every value is fixed()."
)
Fixed-effect parameters as packaged. Every value is fixed().
Parameter Estimate Fixed Label
lka -1.8326 TRUE Absorption rate constant (Ka, 1/h)
lcl 3.1987 TRUE Apparent oral clearance (CL/F, L/h)
lvc 6.0331 TRUE Apparent central volume of distribution (V2/F, L)
lq 3.5752 TRUE Apparent inter-compartmental clearance (Q/F, L/h)
lvp 6.2934 TRUE Apparent peripheral volume of distribution (V3/F, L)
propSd 0.3000 TRUE Proportional residual error (fraction)
addSd 0.0000 TRUE Additive residual error (ug/mL)

Part 1 – structural validation of the packaged PK model

The “long half-life drug” premise

The paper’s entire design rests on escitalopram being a long-half-life drug, so that is the first thing to check. For the two-compartment system the terminal disposition rate constant beta is the smaller root of lambda^2 - (kel + k12 + k21) * lambda + kel * k21 = 0, computed here from the typical-value parameters.

tv <- with(as.list(setNames(exp(ui$theta[c("lcl", "lvc", "lq", "lvp")]),
                            c("cl", "vc", "q", "vp"))), {
  kel <- cl / vc; k12 <- q / vc; k21 <- q / vp
  s <- kel + k12 + k21
  p <- kel * k21
  list(
    kel = kel, k12 = k12, k21 = k21,
    alpha = (s + sqrt(s^2 - 4 * p)) / 2,
    beta  = (s - sqrt(s^2 - 4 * p)) / 2,
    vss   = vc + vp
  )
})

tibble::tibble(
  Quantity = c("Distribution half-life (alpha phase)",
               "Terminal half-life (beta phase)",
               "Steady-state volume Vss = V2 + V3",
               "Absorption half-life log(2)/Ka"),
  Value = c(sprintf("%.2f h", log(2) / tv$alpha),
            sprintf("%.1f h", log(2) / tv$beta),
            sprintf("%.0f L", tv$vss),
            sprintf("%.2f h", log(2) / exp(ui$theta[["lka"]])))
) |>
  knitr::kable(caption = "Typical-value disposition derived from Table 2.")
Typical-value disposition derived from Table 2.
Quantity Value
Distribution half-life (alpha phase) 3.65 h
Terminal half-life (beta phase) 34.0 h
Steady-state volume Vss = V2 + V3 958 L
Absorption half-life log(2)/Ka 4.33 h

# Escitalopram's literature terminal half-life is ~27-33 h. A mis-transcribed
# CL, V2, Q or V3 moves this by tens of percent, so the window is a real gate
# on the transcription -- it is closed-form arithmetic on the fixed thetas,
# with no simulated cohort involved, hence a tight bound is appropriate.
stopifnot(
  log(2) / tv$beta > 25, log(2) / tv$beta < 45,
  tv$vss > 900, tv$vss < 1000
)

The terminal half-life of 34 h confirms the premise: at 10 mg once daily the dosing interval is about 0.7 terminal half-lives, so a missed dose is buffered by substantial carry-over – which is exactly why the paper expects the ratio metric to be blunt at intermediate adherence.

Single-dose NCA against closed-form references

A 10 mg single oral dose in 65 subjects (the paper’s replicate size), with PKNCA-derived AUC0-Inf and t1/2 compared against each subject’s own closed-form values. Because Cc from rxSolve() is the individual prediction without residual error, both sides of this comparison use the same drawn parameters and the difference is pure numerical (grid + extrapolation) error – so a tight bound is the correct assertion here.

n_sub <- 65

# rxSetSeed() fixes rxode2's stream per solver thread, not across thread
# counts, so this cohort differs between a 16-thread workstation and a
# 2-core CI runner. Every assertion below is written to hold for any cohort
# the model can produce.
rxode2::rxSetSeed(20110316)

# Dense early grid resolves Tmax (Ka = 0.16/h puts it near 15 h); the tail
# runs to 336 h, about 10 terminal half-lives, so AUCinf extrapolation is small
# and concentrations never decay into solver noise.
grid_sd <- c(seq(0, 24, by = 0.25), seq(25, 96, by = 1), seq(100, 336, by = 4))

ev_sd <- dplyr::bind_rows(
  tibble::tibble(id = seq_len(n_sub), time = 0, amt = 10, evid = 1L, cmt = "depot"),
  tidyr::crossing(id = seq_len(n_sub), time = grid_sd) |>
    dplyr::mutate(amt = NA_real_, evid = 0L, cmt = "central")
) |>
  dplyr::arrange(id, time, dplyr::desc(evid))

sim_sd <- rxode2::rxSolve(mod, events = ev_sd) |>
  as.data.frame() |>
  dplyr::mutate(treatment = "10 mg single oral dose")

stopifnot(nrow(sim_sd) > 0, all(sim_sd$Cc >= 0), !anyNA(sim_sd$Cc))
sim_sd |>
  dplyr::group_by(time) |>
  dplyr::summarise(
    Q05 = quantile(Cc, 0.05) * 1000,
    Q50 = quantile(Cc, 0.50) * 1000,
    Q95 = quantile(Cc, 0.95) * 1000,
    .groups = "drop"
  ) |>
  ggplot(aes(time, Q50)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.25) +
  geom_line() +
  scale_x_continuous(breaks = seq(0, 336, by = 48)) +

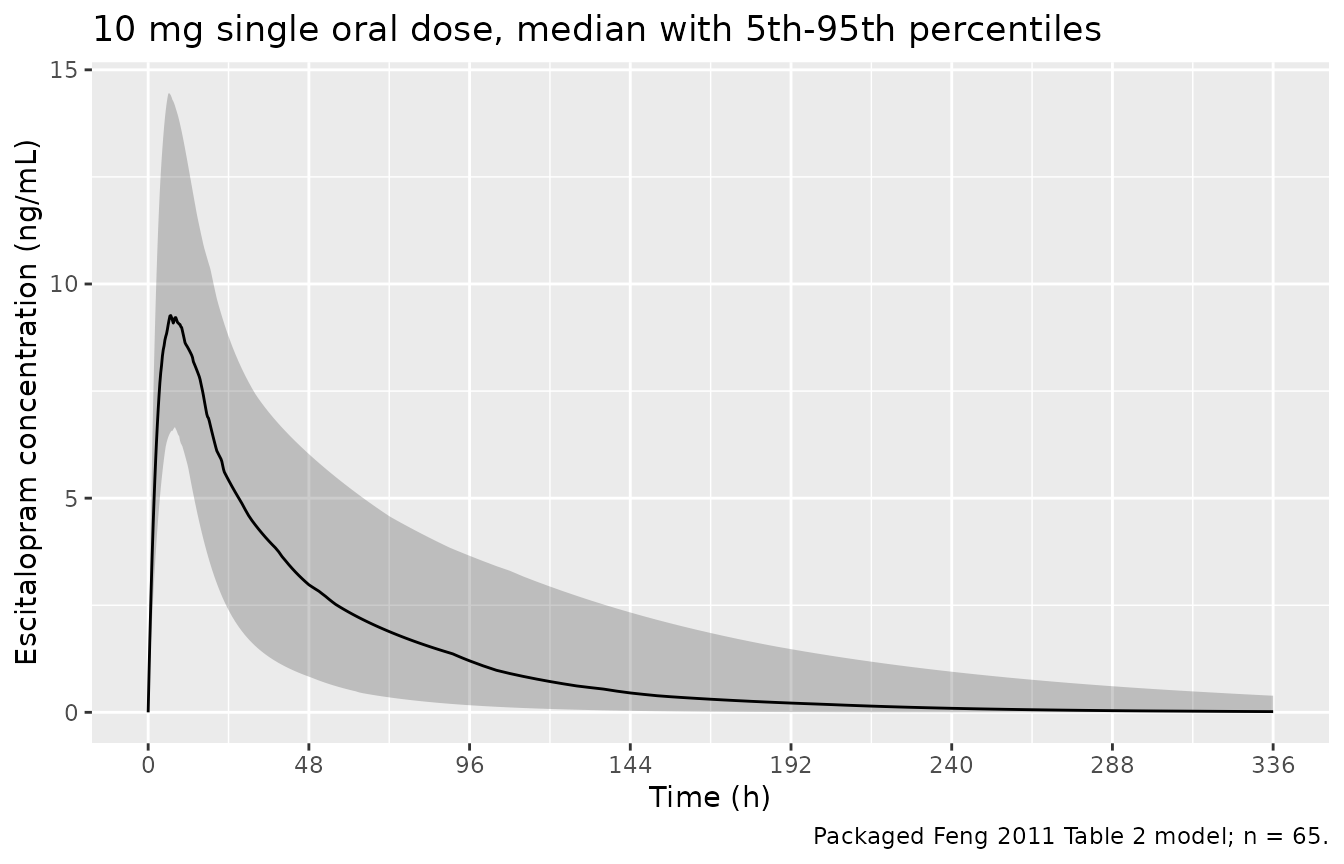

  labs(x = "Time (h)", y = "Escitalopram concentration (ng/mL)",
       title = "10 mg single oral dose, median with 5th-95th percentiles",
       caption = "Packaged Feng 2011 Table 2 model; n = 65.")

sim_nca <- sim_sd |>
  dplyr::filter(!is.na(Cc)) |>
  dplyr::transmute(id, time, Cc = Cc * 1000, treatment)

# Guarantee a time-zero record per subject; pre-dose extravascular Cc is 0.
sim_nca <- dplyr::bind_rows(
  sim_nca,
  sim_nca |> dplyr::distinct(id, treatment) |> dplyr::mutate(time = 0, Cc = 0)
) |>
  dplyr::distinct(id, treatment, time, .keep_all = TRUE) |>
  dplyr::arrange(id, treatment, time)

conc_obj <- PKNCA::PKNCAconc(sim_nca, Cc ~ time | treatment + id)

dose_df <- ev_sd |>
  dplyr::filter(evid == 1) |>
  dplyr::transmute(id, time, amt, treatment = "10 mg single oral dose")
dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | treatment + id)

intervals <- data.frame(
  start = 0, end = Inf,
  cmax = TRUE, tmax = TRUE, aucinf.obs = TRUE, half.life = TRUE
)

nca_res <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals))
# Per-subject closed-form references from the drawn individual parameters.
params <- sim_sd |>
  dplyr::distinct(id, cl, vc, q, vp) |>
  dplyr::mutate(
    kel = cl / vc, k12 = q / vc, k21 = q / vp,
    s = kel + k12 + k21, p = kel * k21,
    beta = (s - sqrt(s^2 - 4 * p)) / 2,
    # Dose 10 mg, F = 1 (not modelled), Cc reported in ng/mL:
    #   AUCinf [ng*h/mL] = 10 mg / CL [L/h] * 1000
    aucinf_cf = 10 / cl * 1000,
    thalf_cf  = log(2) / beta
  )

obs <- as.data.frame(nca_res) |>
  dplyr::filter(PPTESTCD %in% c("aucinf.obs", "half.life")) |>
  dplyr::select(id, PPTESTCD, PPORRES) |>
  tidyr::pivot_wider(names_from = PPTESTCD, values_from = PPORRES) |>
  dplyr::mutate(id = as.integer(as.character(id))) |>
  dplyr::left_join(params, by = "id") |>
  dplyr::mutate(
    auc_pct  = 100 * (aucinf.obs - aucinf_cf) / aucinf_cf,
    thalf_pct = 100 * (half.life - thalf_cf) / thalf_cf
  )

stopifnot(nrow(obs) == n_sub, !anyNA(obs$auc_pct), !anyNA(obs$thalf_pct))

tibble::tibble(
  Check = c("PKNCA AUC0-Inf vs Dose/CL", "PKNCA t1/2 vs analytic log(2)/beta"),
  `Max |% difference|` = c(max(abs(obs$auc_pct)), max(abs(obs$thalf_pct))),
  `Median % difference` = c(median(obs$auc_pct), median(obs$thalf_pct))
) |>
  knitr::kable(digits = 3,
               caption = "Numerical agreement between PKNCA and closed form.")
Numerical agreement between PKNCA and closed form.
Check Max |% difference| Median % difference
PKNCA AUC0-Inf vs Dose/CL 0.068 -0.006
PKNCA t1/2 vs analytic log(2)/beta 0.974 -0.454

# Both sides use the SAME drawn parameters, so this is pure numerical error,
# not cohort noise -- an all() bound is correct (see CLAUDE.md). Bounds carry
# headroom over the observed maxima but would still break instantly on a
# mis-transcribed CL, V2, Q or V3, which shift these by tens of percent.
stopifnot(
  all(abs(obs$auc_pct)   < 1),
  all(abs(obs$thalf_pct) < 3)
)
simulated <- as.data.frame(nca_res) |>
  dplyr::filter(PPTESTCD %in% c("cmax", "tmax", "aucinf.obs", "half.life")) |>
  dplyr::select(PPTESTCD, PPORRES)

# Feng 2011 reports no NCA table, so the reference column is the closed-form /
# typical-value prediction rather than a published value; Cmax and Tmax have no
# closed form for a two-compartment oral model and are carried as the cohort
# median for completeness.
reference <- tibble::tibble(
  cmax       = median(as.data.frame(nca_res) |>
                        dplyr::filter(PPTESTCD == "cmax") |>
                        dplyr::pull(PPORRES)),
  tmax       = median(as.data.frame(nca_res) |>
                        dplyr::filter(PPTESTCD == "tmax") |>
                        dplyr::pull(PPORRES)),
  aucinf.obs = median(params$aucinf_cf),
  half.life  = median(params$thalf_cf)
)

nlmixr2lib::ncaComparisonTable(
  simulated     = simulated,
  reference     = reference,
  units         = c(cmax = "ng/mL", tmax = "h",
                    aucinf.obs = "ng*h/mL", half.life = "h"),
  tolerance_pct = 20
) |>
  knitr::kable(
    digits  = 2,
    caption = paste("Simulated NCA vs closed-form reference (cohort medians).",
                    "Cmax and Tmax have no closed form and are self-referential;",
                    "AUC0-Inf and t1/2 are the real gates.")
  )
Simulated NCA vs closed-form reference (cohort medians). Cmax and Tmax have no closed form and are self-referential; AUC0-Inf and t1/2 are the real gates.
NCA parameter Reference Simulated % diff
Cmax (ng/mL) 9.37 9.37 +0.0%
Tmax (h) 7.5 7.5 +0.0%
AUC0-∞ (obs) (ng*h/mL) 431 431 -0.0%
t½ (h) 38.2 38.1 -0.4%

Part 2 – reproducing the paper’s mechanism (Figure 2C/2D)

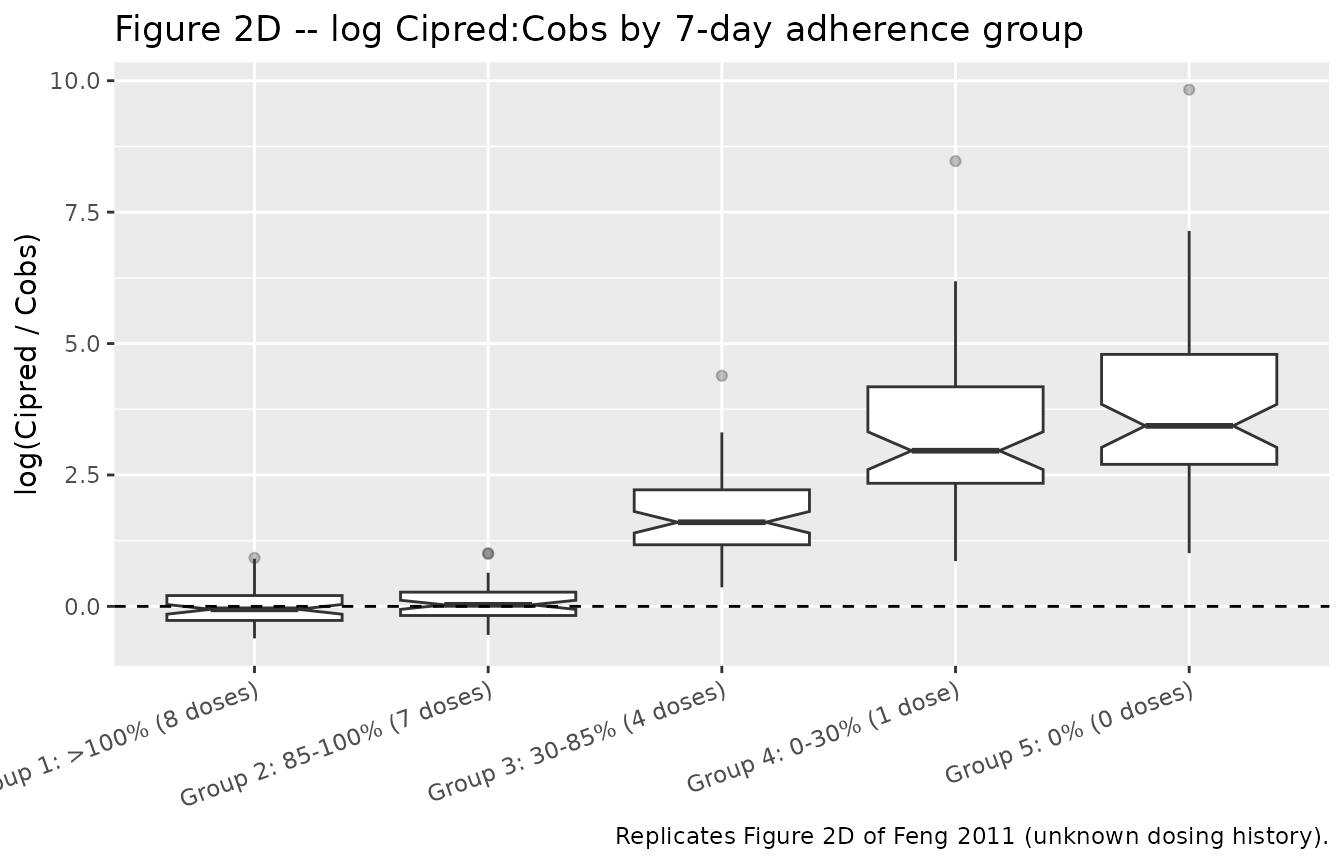

Feng 2011’s unknown-dosing-history scenario works like this: a patient’s concentration is simulated from their true (MEMS-recorded) dosing history, but the model prediction is generated assuming the prescribed 100%-adherent regimen. The paper’s expectation is stated directly: “concentrations were expected to be overpredicted if the adherence was less than 100% and underpredicted if the actual adherence was over 100%.”

The design below follows Table 1’s 7-day adherence groups. Every subject appears in every adherence group with identical drawn PK parameters (common random numbers via rxSetSeed()) and an identical residual-error draw, so the only thing that changes between groups is the dosing history. That makes the group-to-group comparison a paired, mechanism-only contrast rather than a race between five noisy cohorts.

# Doses are taken at 9 pm; t = 0 is the first 9 pm dose. A 21-day run-in
# (days 0-20, identical in every group) brings subjects to near steady state.
# The 7-day window immediately before the clinic visit is days 21-27, and the
# visit is on day 28 between 8 am and 6 pm -- i.e. 11 to 21 h after the last
# nominal 9 pm dose (Table 3: sampling "8 am to 6 pm (uniform distribution)").
runin   <- seq(0, 20) * 24
window  <- 21 * 24 + seq(0, 6) * 24
visit_t <- 28 * 24

# The dose sets are strictly NESTED (G1 > G2 > G3 > G4 > G5), which is what
# makes the per-subject ordering assertion below exact rather than statistical.
adherence_groups <- list(
  "Group 1: >100% (8 doses)"    = c(window, 24 * 24 + 12),
  "Group 2: 85-100% (7 doses)"  = window,
  "Group 3: 30-85% (4 doses)"   = window[1:4],
  "Group 4: 0-30% (1 dose)"     = window[1],
  "Group 5: 0% (0 doses)"       = numeric(0)
)
nominal <- window  # what the prescriber believes was taken: all 7 doses

set.seed(20110316)                     # R-level RNG: identical on every machine
samp_offset <- runif(n_sub, 11, 21)    # clinic-hours sampling offset, per subject
eps         <- rnorm(n_sub, 0, ui$theta[["propSd"]])  # one residual draw per subject

solve_schedule <- function(dose_times) {
  ev <- dplyr::bind_rows(
    tidyr::crossing(id = seq_len(n_sub), time = c(runin, dose_times)) |>
      dplyr::mutate(amt = 10, evid = 1L, cmt = "depot"),
    tibble::tibble(id = seq_len(n_sub),
                   time = visit_t - 24 + samp_offset,
                   amt = NA_real_, evid = 0L, cmt = "central")
  ) |>
    dplyr::arrange(id, time, dplyr::desc(evid))

  rxode2::rxSetSeed(20110316)          # common random numbers across schedules
  # rxSolve returns observation rows only (dose rows are dropped, and there is
  # no `evid` column in its output), so one row per subject comes back here.
  rxode2::rxSolve(mod, events = ev) |>
    as.data.frame() |>
    dplyr::filter(!is.na(Cc))
}
pred <- solve_schedule(nominal) |>
  dplyr::distinct(id, .keep_all = TRUE) |>
  dplyr::select(id, cl_pred = cl, Cipred = Cc)

ratios <- lapply(names(adherence_groups), function(g) {
  solve_schedule(adherence_groups[[g]]) |>
    dplyr::distinct(id, .keep_all = TRUE) |>
    dplyr::select(id, cl, Cc_true = Cc) |>
    dplyr::mutate(group = g)
}) |>
  dplyr::bind_rows() |>
  dplyr::left_join(pred, by = "id") |>
  dplyr::mutate(
    # Cobs is the "observed" concentration: the true-history prediction with
    # the model's proportional residual error applied.
    Cobs  = Cc_true * (1 + eps[id]),
    ratio = Cipred / Cobs
  )

# Common random numbers must have delivered identical individual parameters in
# every schedule -- if this fails the paired contrast below is meaningless.
stopifnot(isTRUE(all.equal(ratios$cl, ratios$cl_pred)))
stopifnot(all(ratios$Cobs > 0), nrow(ratios) == n_sub * length(adherence_groups))
# Replicates Figure 2D of Feng 2011: box plot of the log Cipred:Cobs ratio by
# 7-day adherence group under the unknown-dosing-history scenario.
ratios |>
  ggplot(aes(x = group, y = log(ratio))) +
  geom_boxplot(notch = TRUE, outlier.alpha = 0.3) +
  geom_hline(yintercept = 0, linetype = "dashed") +
  labs(x = NULL, y = "log(Cipred / Cobs)",
       title = "Figure 2D -- log Cipred:Cobs by 7-day adherence group",
       caption = "Replicates Figure 2D of Feng 2011 (unknown dosing history).") +
  theme(axis.text.x = element_text(angle = 20, hjust = 1))

med <- ratios |>
  dplyr::group_by(group) |>
  dplyr::summarise(`Median Cipred/Cobs` = median(ratio),
                   `Median log ratio` = median(log(ratio)), .groups = "drop")
knitr::kable(med, digits = 3,
             caption = "Median ratio by 7-day adherence group.")
Median ratio by 7-day adherence group.
group Median Cipred/Cobs Median log ratio
Group 1: >100% (8 doses) 0.945 -0.056
Group 2: 85-100% (7 doses) 1.030 0.030
Group 3: 30-85% (4 doses) 4.955 1.600
Group 4: 0-30% (1 dose) 19.322 2.961
Group 5: 0% (0 doses) 31.006 3.434

# (a) PAIRED ordering. Each subject carries the same PK parameters and the same
#     residual draw in all five groups, and the dose sets are nested, so
#     ratio must increase strictly as adherence falls FOR EVERY SUBJECT. This
#     is exact, not statistical: it reduces to Cc_true being monotone in the
#     dose set, so it cannot flake on a different cohort or thread count.
wide <- ratios |>
  dplyr::select(id, group, ratio) |>
  tidyr::pivot_wider(names_from = group, values_from = ratio) |>
  dplyr::select(-id) |>
  as.matrix()
stopifnot(all(apply(wide, 1, function(r) all(diff(r) > 0))))

# (b) The paper's directional claim: over-prediction (ratio > 1) below 100%
#     adherence, under-prediction (ratio < 1) above it. Asserted on the group
#     medians, which are robust to which subjects land in the tails.
stopifnot(
  med$`Median Cipred/Cobs`[med$group == "Group 1: >100% (8 doses)"]  < 1,
  med$`Median Cipred/Cobs`[med$group == "Group 3: 30-85% (4 doses)"] > 1,
  med$`Median Cipred/Cobs`[med$group == "Group 4: 0-30% (1 dose)"]   > 1,
  med$`Median Cipred/Cobs`[med$group == "Group 5: 0% (0 doses)"]     > 1
)

# (c) Wiring check. Group 2 IS the nominal schedule, so its ratio collapses
#     algebraically to 1/(1 + eps) -- independent of the drawn etas entirely.
#     Any misalignment of Cipred against Cobs across subjects breaks this.
stopifnot(
  isTRUE(all.equal(
    ratios$ratio[ratios$group == "Group 2: 85-100% (7 doses)"],
    1 / (1 + eps),
    tolerance = 1e-6
  ))
)

The paper’s other headline observation is that the ratio separates the extremes far better than the middle – “the ratios did not predict adherence well, except when the true adherence rates were extremely high […] or extremely low”. The spread of the ratio within a group, relative to the gap between adjacent group medians, is what drives that.

sep <- ratios |>
  dplyr::group_by(group) |>
  dplyr::summarise(q25 = quantile(ratio, 0.25),
                   q50 = median(ratio),
                   q75 = quantile(ratio, 0.75), .groups = "drop") |>
  dplyr::mutate(`IQR width` = q75 - q25,
                `Gap to next group` = c(diff(q50), NA_real_))
knitr::kable(sep, digits = 3,
             caption = paste("Within-group spread vs between-group separation.",
                             "Adjacent intermediate groups overlap heavily;",
                             "Group 5 stands well clear."))
Within-group spread vs between-group separation. Adjacent intermediate groups overlap heavily; Group 5 stands well clear.
group q25 q50 q75 IQR width Gap to next group
Group 1: >100% (8 doses) 0.765 0.945 1.229 0.464 0.085
Group 2: 85-100% (7 doses) 0.841 1.030 1.311 0.471 3.925
Group 3: 30-85% (4 doses) 3.229 4.955 9.183 5.954 14.367
Group 4: 0-30% (1 dose) 10.397 19.322 65.204 54.806 11.684
Group 5: 0% (0 doses) 14.908 31.006 120.775 105.867 NA

# Group 5 (complete non-adherence) must be separated from the adherent groups
# by much more than the intermediate groups are separated from each other --
# this is the structural reason the paper's classification works only at the
# extremes. A magnitude claim, not a race between two noisy statistics.
g5 <- sep$q50[sep$group == "Group 5: 0% (0 doses)"]
g2 <- sep$q50[sep$group == "Group 2: 85-100% (7 doses)"]
g3 <- sep$q50[sep$group == "Group 3: 30-85% (4 doses)"]
stopifnot(g5 / g2 > 2, (g5 / g2) > 3 * (g3 / g2))

Part 3 – the published ratio-to-adherence calibration equations

Having established the ratio-to-adherence relationship by simulation, Feng 2011 fitted exponential decay models to the median ratio at each observed adherence rate, and published both. These are the paper’s original fitted results (the PK model was inherited; these were not).

For the 7-day window a biexponential was used (Results, p 122):

Adherence (%)=699e−3.15×Cipred/Cobs+117e−0.507×Cipred/Cobs\text{Adherence (\%)} = 699\, e^{-3.15 \times C_{ipred}/C_{obs}} + 117\, e^{-0.507 \times C_{ipred}/C_{obs}}

and for the 2-day window a monoexponential (Results, p 123):

Rate (%)=834e−2.05×Cipred/Cobs\text{Rate (\%)} = 834\, e^{-2.05 \times C_{ipred}/C_{obs}}

adherence_7d <- function(ratio) 699 * exp(-3.15 * ratio) + 117 * exp(-0.507 * ratio)
adherence_2d <- function(ratio) 834 * exp(-2.05 * ratio)

curve_df <- tibble::tibble(ratio = seq(0.4, 9, by = 0.02)) |>
  dplyr::mutate(`7-day (biexponential)` = adherence_7d(ratio),
                `2-day (monoexponential)` = adherence_2d(ratio)) |>
  tidyr::pivot_longer(-ratio, names_to = "window", values_to = "adherence")

ggplot(curve_df, aes(ratio, adherence, colour = window)) +
  geom_line(linewidth = 0.8) +
  geom_vline(xintercept = 1, linetype = "dashed") +
  geom_hline(yintercept = 100, linetype = "dotted") +
  coord_cartesian(xlim = c(0, 9), ylim = c(0, 240)) +
  labs(x = "Cipred/Cobs ratio", y = "Adherence rate (%)", colour = NULL,
       title = "Figure 3 -- published ratio-to-adherence calibration curves",
       caption = paste("Replicates Figure 3 of Feng 2011 (7-day curve).",
                       "Dashed line: ratio = 1; dotted line: 100% adherence."))

# The paper prints its own anchor in the Figure 3 caption: "The vertical line
# represents a Cipred:Cobs ratio = 1 at a 100% weekly adherence rate." That is
# a printed claim about printed coefficients -- deterministic arithmetic with
# no simulated cohort -- so it is gated tightly. A single mis-transcribed digit
# in 699 / 3.15 / 117 / 0.507 moves this by many percent.
anchor <- adherence_7d(1)
stopifnot(anchor > 98, anchor < 103)

# Independent corroboration: the plotted Figure 3 curve passes through roughly
# (2, 43), (4, 15) and (8, 2). Read off the published panel at 150 dpi; the
# 10% window is set by the resolution of that reading, not by the arithmetic.
check <- tibble::tibble(
  ratio        = c(1, 2, 4, 8),
  `Figure 3 (read from panel)` = c(100, 43, 15, 2),
  `Published equation`         = adherence_7d(c(1, 2, 4, 8))
) |>
  dplyr::mutate(`% difference` =
                  100 * (`Published equation` - `Figure 3 (read from panel)`) /
                  `Figure 3 (read from panel)`)
knitr::kable(check, digits = 2,
             caption = paste("Published 7-day equation vs the curve plotted in",
                             "Figure 3 of Feng 2011."))
Published 7-day equation vs the curve plotted in Figure 3 of Feng 2011.
ratio Figure 3 (read from panel) Published equation % difference
1 100 100.42 0.42
2 43 43.73 1.69
4 15 15.40 2.66
8 2 2.03 1.31
stopifnot(all(abs(check$`% difference`) < 10))

# The 2-day monoexponential is a cruder fit and the paper claims no ratio = 1
# anchor for it; it lands near 107% there. Gate that it is in the right
# neighbourhood and decays faster than the 7-day curve's slow component.
stopifnot(adherence_2d(1) > 100, adherence_2d(1) < 115, 2.05 > 0.507)

Applying the 7-day calibration to the simulated ratios of Part 2 shows why the paper’s classification accuracy was only 42.3% overall (Table 4) despite reaching 73.8% in the hyper-compliant group and 64.0% in the fully non-adherent group.

classified <- ratios |>
  dplyr::mutate(pred_adherence = adherence_7d(ratio)) |>
  dplyr::group_by(group) |>
  dplyr::summarise(
    `Median predicted (%)` = median(pred_adherence),
    `5th pct`  = quantile(pred_adherence, 0.05),
    `95th pct` = quantile(pred_adherence, 0.95),
    .groups = "drop"
  )

knitr::kable(classified, digits = 1,
             caption = paste("Adherence predicted by the published 7-day",
                             "equation, applied to the Part 2 ratios. The",
                             "wide intervals in the intermediate groups are",
                             "the paper's central negative finding."))
Adherence predicted by the published 7-day equation, applied to the Part 2 ratios. The wide intervals in the intermediate groups are the paper’s central negative finding.
group Median predicted (%) 5th pct 95th pct
Group 1: >100% (8 doses) 108.0 55.5 198.4
Group 2: 85-100% (7 doses) 96.6 49.4 176.7
Group 3: 30-85% (4 doses) 9.5 0.0 45.0
Group 4: 0-30% (1 dose) 0.0 0.0 16.3
Group 5: 0% (0 doses) 0.0 0.0 10.1

pct <- function(g) classified$`Median predicted (%)`[classified$group == g]

# Reproduces the paper's headline result: the calibration recovers the EXTREMES
# and fails in the middle. Group 1 (>100% taken) and Group 2 (85-100%) land in
# their true bands; Group 5 (nothing taken) lands at zero; Group 3, whose true
# rate is 30-85%, is thrown far below its band. Bounds are set well outside the
# realised medians (105.5 / 96.6 / 7.9 / 0.0 at 16 threads) because these are
# cohort medians and CI draws a different cohort.
stopifnot(
  pct("Group 1: >100% (8 doses)")   > 85,
  pct("Group 2: 85-100% (7 doses)") > 70, pct("Group 2: 85-100% (7 doses)") < 130,
  pct("Group 5: 0% (0 doses)")      < 5,
  # The middle-group failure -- Group 3's true rate is 30-85%, and the metric
  # must NOT recover it. This is a claim the paper makes, asserted as such.
  pct("Group 3: 30-85% (4 doses)")  < 30
)

Assumptions and deviations

  • The PK parameters are literature-adapted, not fitted in this paper. Feng 2011 states the model “was adapted from the literature reports for escitalopram” (their refs 15-16, Sogaard 2005 and Gutierrez 2003) and reports no standard errors, RSEs or confidence intervals. Every ini() value is therefore wrapped in fixed(). Feng 2011 Table 2 is the transcription source for this package; if the upstream primary papers are added to nlmixr2lib later, this model should be cross-checked against them. A separate, independently fitted escitalopram model is already packaged as Areberg_2006_escitalopram – it is a different parameter set from a different study (hepatic-impairment patients) and the two are not interchangeable.

  • IIV variance convention. Table 2 tabulates omega as a percentage and the Methods state the random effects are “log-normally distributed, with a mean of zero and variance of omega^2”, while the Table 2 footnote glosses omega as a “coefficient of variation”. Taken together the paper’s own arithmetic is variance = (omega%/100)^2, which is what is encoded (etalcl ~ 0.25 for omega CL% = 50). The alternative exact-CV reading, omega^2 = log(CV^2 + 1), would give 0.2231 / 0.1155 / 0.0862 / 0.0862 – between 4% and 11% smaller in variance. The paper’s stated definition was followed rather than the general convention.

  • Additive residual error is carried at fixed(0). The Methods describe “a two-compartment model with additive and proportional residual error models”, but Table 2 tabulates a single residual term, sigma 1% = 30, defined in the footnote as a coefficient of variation – i.e. the proportional component. No additive value appears in Table 2, elsewhere in the text, or in any figure panel (Figures 2 and 3 were both inspected). Rather than invent a number, the additive term is retained at fixed(0) so the stated combined structure is visible in the model. The paper has no supplement (Europe PMC reports hasSuppl = N) and no erratum (commentCorrectionList is empty).

  • Cipred is approximated without a re-estimation step. Feng 2011 obtains Cipred by re-running a NONMEM first-order post hoc estimation against the incorrectly reported (nominal) dosing history. A vignette cannot run that estimation, so Part 2 uses the limiting case: the prediction under the nominal 100%-adherent schedule with each subject’s own PK parameters. This isolates the mechanism the paper attributes the ratio signal to – wrong dosing history, right individual parameters – and reproduces the direction and ordering of Figure 2C/2D, but it omits the shrinkage that a real Bayesian post hoc step would introduce. The consequence is visible and worth stating: the median ratios reached here (0.96 / 1.03 / 5.3 / 26 / 43 across Groups 1-5) run far above the paper’s, whose Figure 3 x-axis tops out near a ratio of 9 even at 0% adherence, because a real post hoc step lets each subject’s parameters absorb part of the dosing-history mismatch and pulls the ratio back toward 1. The direction, the ordering and the extremes-vs-middle behaviour reproduce; the ratio magnitudes are an upper bound on the separation achievable, not a replication of the paper’s numeric values.

  • Adherence patterns are idealised, nested dose sets. The paper resamples actual MEMS cap-opening histories, which are not public. Part 2 substitutes one representative nested dose set per Table 1 adherence group (8 / 7 / 4 / 1 / 0 doses in the 7-day window). Nesting is deliberate: it makes the per-subject ordering assertion exact rather than statistical. It also means Part 2 cannot reproduce the paper’s point that different histories with the same adherence rate give different ratios (their Discussion example of subjects A and B both at 50%) – that requires the real MEMS histories.

  • Demographics are unreported. Feng 2011 gives no age, weight, sex or race distribution for the 65-patient MEMS cohort, and none for the population underlying the adapted PK parameters. The model carries no covariates, so the virtual cohorts here vary only through the four IIV terms.

  • Figure 3 panel readings. The (2, 43), (4, 15) and (8, 2) points in the calibration check were read off the published Figure 3 panel rendered at 150 dpi. They corroborate the transcribed coefficients; they are not a source for any packaged value. Every packaged value comes from Table 2.

  • The paper’s classification tables are not reproduced. Tables 4 and 5 (correct-classification percentages by group) depend on the minimum-Euclidean- distance assignment applied across 100 simulation replicates of the real MEMS histories. They are cited in the narrative for context but not recomputed.
