Robenacoxib in cats (Pelligand 2016)

Source: vignettes/articles/Pelligand_2016_robenacoxib_cat.Rmd
Pelligand_2016_robenacoxib_cat.Rmd

Model and source

mod <- rxode2::rxode2(readModelDb("Pelligand_2016_robenacoxib_cat"))
#> ℹ parameter labels from comments will be replaced by 'label()'
  • Citation: Pelligand L, Soubret A, King JN, Elliott J, Mochel JP. Modeling of large pharmacokinetic data using nonlinear mixed-effects: a paradigm shift in veterinary pharmacology. A case study with robenacoxib in cats. CPT Pharmacometrics Syst Pharmacol. 2016;5(12):625-635. doi:10.1002/psp4.12141. Structural model transcribed from the MLXTRAN source listing deposited as Supplementary Data (PSP4-5-625-s008.txt); residual-error magnitudes and the anaesthesia effect on V1 digitised from the SAEM convergence traces of Supplementary Figure S4 (PSP4-5-625-s004.pdf).
  • Description: Preclinical/clinical veterinary (cat). Two-compartment population PK model for robenacoxib in cats, parameterised per kg body weight, pooling intravenous and subcutaneous dosing from eight studies. Subcutaneous absorption is a parallel mixed-order input: a fraction F0 of the bioavailable dose enters the central compartment by a zero-order process of duration Tk0 = 1.78 h and the remainder arrives first-order through a depot with ka = 0.68 1/h, giving flip-flop kinetics because ka is slower than the disposition terminal rate constant. General anaesthesia doubles the central volume of distribution; no other covariate was retained (Pelligand 2016)
  • Article: https://doi.org/10.1002/psp4.12141
  • Supplementary MLXTRAN model listing: PSP4-5-625-s008.txt
  • Supplementary SAEM convergence traces (Figure S4): PSP4-5-625-s004.pdf

This is a veterinary population PK model, and the paper is explicitly a methodological demonstration: it is the first population PK analysis at scale in cats, pooling eight studies so that sparsely sampled clinical patients could be analysed alongside densely sampled laboratory animals. Its headline pharmacological result is that subcutaneous robenacoxib exhibits flip-flop kinetics – absorption, not elimination, is rate-limiting – which single-route two-stage analyses of the same drug had missed.

Population

Blood robenacoxib concentrations from 83 cats over 97 administrations (23 intravenous, 74 subcutaneous; 14 cats received both routes at least a week apart) pooled from eight studies (Table 1). Two cohorts:

  • 47 conscious laboratory cats (seven CRA drug-development studies), densely sampled with 9-12 samples per administration. 22 female / 27 male, median body weight 3.9 kg (IQR 3.45-4.14, range 2.5-5.7), median age 1.32 years (IQR 1.0-1.55, range 0.97-6.1).
  • 36 clinical female cats admitted for elective ovariohysterectomy, dosed 2 mg/kg s.c. under general anaesthesia and sparsely sampled (1-2 samples drawn 0.8-8.2 h after dosing, at extubation and 2 h thereafter). Median body weight 2.73 kg (IQR 2.41-2.99, range 1.77-4.0), median age 0.76 years (range 0.34-4.31).

Doses ranged 1.6-2.3 mg/kg. 55 of 652 measured concentrations were below the limit of quantification and were handled by the Monolix equivalent of the NONMEM M3 method (Beal 2001). Robenacoxib was assayed in whole blood, by HPLC-UV over 500-20,000 ng/mL and by LC-MS over 3-100 ng/mL (Methods, “Analytical phase”).

The same information is available programmatically:

str(readModelDb("Pelligand_2016_robenacoxib_cat")()$population)
#> List of 12
#>  $ species          : chr "cat (domestic shorthair; Felis catus)"
#>  $ n_subjects       : int 83
#>  $ n_studies        : int 8
#>  $ n_administrations: int 97
#>  $ n_observations   : int 652
#>  $ age_range        : chr "0.34-6.1 years"
#>  $ weight_range     : chr "1.77-5.7 kg"
#>  $ sex_female_pct   : num 69.9
#>  $ disease_state    : chr "47 healthy conscious laboratory cats (seven CRA drug-development studies) plus 36 clinical cats admitted for el"| __truncated__
#>  $ dose_range       : chr "1.6-2.3 mg/kg single dose, intravenous or subcutaneous"
#>  $ regions          : chr "France, Switzerland, United Kingdom"
#>  $ notes            : chr "Demographics from Table 1 (per-study listing) and Results 'Study demographics'. Laboratory cats: 22 female / 27"| __truncated__

Structural model

The paper’s Figure 1 draws the structure and the supplementary MLXTRAN listing gives it unambiguously:

PK:
  k12=Q/V1
  k21=Q/V2
  k=CL/V1
  compartment(cmt=1, amount=Ac)
  oral(cmt=1,adm=1,Tk0=Tk0, p=Ftot*F0)
  oral(cmt=1,adm=1,ka =ka,  p=Ftot*(1-F0))
  iv(cmt=1,adm=2)
  elimination(cmt=1, k)
  peripheral(k12, k21, amount=Ap)
  Cc=Ac/V1

Two points that the listing settles and the article text alone does not:

  1. F0 is a parallel split of the dose, not a sequential reparameterisation. The two oral(...) statements are simultaneous inputs on compartment 1 with bioavailabilities Ftot*F0 and Ftot*(1-F0). nlmixr2lib also registers a superficially similar canonical, fzo, for the sequential zero-then-first-order idiom in which the reported fraction is of the total absorption time constant. That reading is excluded arithmetically as well as by the listing: it would imply ka = fzo / (d1 * (1 - fzo)) = 0.50 / (1.78 * 0.50) = 0.562 1/h, which is not the published ka of 0.68 1/h.
  2. V2 is the peripheral volume. Methods “Data analysis and model evaluation” calls it “volume of the central compartment (V2)”, but Table 2 labels it “Peripheral compartment volume of distribution” and the listing places it in the peripheral(...) block.

Because rxode2 applies one bioavailability per compartment rather than per administration type, the three inputs of the listing are encoded with the canonical ROUTE_IV indicator selecting which bioavailability applies to a dose placed in central:

cat(paste(mod$modelDesc, collapse = "\n"))
#> rxode2-based free-form 3-cmt ODE model

A subcutaneous administration is therefore entered as two dose records at the same time – a bolus into depot and a rate = -2 record into central so the modelled dur(central) is applied – both carrying ROUTE_IV = 0. An intravenous administration is a single plain bolus into central with ROUTE_IV = 1; because that record carries no rate, rxode2 ignores dur(central) and keeps it a bolus.

Source trace

Equation / parameter Value Source location
Two-compartment disposition, first-order elimination k = CL/V1, k12 = Q/V1, k21 = Q/V2 Figure 1; supplement PSP4-5-625-s008.txt PK: block
Parallel zero- + first-order s.c. input p = Ftot*F0 and p = Ftot*(1-F0) supplement PSP4-5-625-s008.txt
Cc = Ac/V1 n/a supplement PSP4-5-625-s008.txt Cc=Ac/V1
lcl (CL) 0.502 L/h/kg Results “PKs” (Table 2 prints 0.50); fixed from the IV-only fit
lvc (V1, conscious) 0.166 L/kg Table 2 prints 0.16; unrounded value pinned by Results “PKs” Vss = 0.213 L/kg minus V2, and by the beta_ANEST,V1 trace of Figure S4
lvp (V2) 0.047 L/kg Table 2, “Peripheral compartment volume of distribution”
lq (Q) 0.065 L/h/kg Table 2, “Inter-compartmental clearance”
lka (ka) 0.68 1/h Table 2, “Absorption rate” (RSE 5%)
ld1 (Tk0) 1.78 h Table 2, “Absorption duration (0-order)” (RSE 5%)
logitfdepot (Ftot) 0.78 Table 2, “Bioavailability” (RSE 3%); logit transform per Methods “PK model development”
logitffo (1 - F0) 0.50 Table 2, “Fraction absorbed through 0-order” F0 = 0.50 (RSE 10%)
e_anesth_ga_vc log(0.33/0.166) = 0.687 Table 2 V1 rows at ANEST = 0 / 1; Figure S4 beta_ANEST,V1 trace reads 0.684
etalcl, etalvc, etalvp, etalq 0.16, 0.41, 0.01, 0.08 Table 2 “IIV (%)” column; each confirmed against its Figure S4 omega trace
etalogitfdepot, etalogitffo, etalka, etald1 0.57, 0.93, 0.21, 0.35 Table 2 “IIV (%)” column; each confirmed against its Figure S4 omega trace
corr(etalka, etald1) -0.24 Results “PKs”
addSd (a) 2.79 ng/mL Figure S4 panel a final-estimate marker (not printed in the article)
propSd (b) 0.21 Figure S4 panel b final-estimate marker (not printed in the article)

The “IIV (%)” column is omega, not a back-transformed CV

Table 2’s IIV (%) column could be read either as the SD of the random effect on the transformed (log, or logit for Ftot and F0) scale, or as a back-transformed coefficient of variation – readings that differ by a factor of 1.2 at 93%. The supplement settles it: Figure S4 plots the SAEM trace of every omega, and each converges to exactly the tabulated percentage divided by 100.

omega_check <- data.frame(
  parameter = c("Ftot", "ka", "Tk0", "CL", "V1", "Q", "V2", "F0"),
  table2_iiv_pct = c(57, 21, 35, 16, 41, 8, 1, 93),
  figS4_trace = c(0.571, 0.207, 0.355, 0.162, 0.415, 0.081, 0.0125, 0.930)
)
omega_check$abs_diff <- abs(omega_check$table2_iiv_pct / 100 - omega_check$figS4_trace)
knitr::kable(omega_check |>
  dplyr::rename(
    "Parameter" = parameter,
    "Table 2 IIV (%)" = table2_iiv_pct,
    "Figure S4 omega trace" = figS4_trace,
    "|difference|" = abs_diff
  ), digits = 4)
Parameter Table 2 IIV (%) Figure S4 omega trace |difference|
Ftot 57 0.5710 0.0010
ka 21 0.2070 0.0030
Tk0 35 0.3550 0.0050
CL 16 0.1620 0.0020
V1 41 0.4150 0.0050
Q 8 0.0810 0.0010
V2 1 0.0125 0.0025
F0 93 0.9300 0.0000

# Every omega trace reproduces its tabulated percentage to better than 0.01.
# If the column were a back-transformed CV, omega(F0) would be
# sqrt(log(1 + 0.93^2)) = 0.79, which is 0.14 away from the 0.93 trace.
stopifnot(
  max(omega_check$abs_diff) < 0.01,
  abs(sqrt(log(1 + 0.93^2)) - 0.93) > 0.10
)

The same figure carries the traces for the two residual-error magnitudes a and b, which the article never prints. They were digitised from the final-estimate markers, and the eight tabulated parameters above – read off the same page by the same procedure – are what validates that digitisation.

Typical-value verification

With the random effects zeroed, three closed-form identities must hold exactly. These compare a solve against its own analytic solution, so the difference is pure numerical error and the tolerances are tight by design.

dose_mgkg <- 2 # Table 1: the 2 mg/kg regimen used in six of the eight studies

tgrid <- sort(unique(c(
  seq(0, 0.5, by = 0.01),
  seq(0.5, 4, by = 0.05),
  seq(4, 12, by = 0.25)
)))

# Build event tables as plain data frames. Covariate columns assigned to an
# rxEt object are silently dropped, so they are materialised here.
make_events <- function(id, route_iv, anesth_ga) {
  if (route_iv == 1) {
    # IV: one plain bolus into central. No rate, so dur(central) is ignored.
    dosing <- data.frame(
      id = id, time = 0, evid = 1L, cmt = "central",
      amt = dose_mgkg, rate = 0
    )
  } else {
    # SC: two records at t = 0. The central record carries rate = -2 so that
    # rxode2 applies the modelled zero-order duration dur(central) = Tk0.
    dosing <- data.frame(
      id = id, time = 0, evid = 1L, cmt = c("depot", "central"),
      amt = dose_mgkg, rate = c(0, -2)
    )
  }
  obs <- data.frame(
    id = id, time = tgrid, evid = 0L, cmt = "central",
    amt = NA_real_, rate = NA_real_
  )
  out <- rbind(dosing, obs)
  out$ROUTE_IV <- route_iv
  out$ANESTH_GA <- anesth_ga
  out[order(out$time, -out$evid), ]
}

arms <- data.frame(
  id = 1:3,
  arm = c("IV, conscious", "SC, conscious", "SC, anaesthetised"),
  ROUTE_IV = c(1, 0, 0),
  ANESTH_GA = c(0, 0, 1)
)

ev_typ <- do.call(rbind, Map(make_events, arms$id, arms$ROUTE_IV, arms$ANESTH_GA))

mod_typ <- rxode2::zeroRe(mod)
sim_typ <- rxode2::rxSolve(mod_typ, ev_typ, returnType = "data.frame")
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalvp', 'etalq', 'etalogitfdepot', 'etalogitffo', 'etalka', 'etald1'
#> Warning: multi-subject simulation without without 'omega'
stopifnot(all(sim_typ$Cc >= 0)) # no solver noise into negative concentrations
CL <- 0.502
V1 <- 0.166
V2 <- 0.047
Q <- 0.065
FTOT <- 0.78
KA <- 0.68

trap <- function(t, y) sum(diff(t) * (head(y, -1) + tail(y, -1)) / 2)

typ <- sim_typ |>
  dplyr::filter(!is.na(Cc)) |>
  dplyr::group_by(id) |>
  dplyr::summarise(
    c0 = Cc[time == 0],
    cmax = max(Cc),
    tmax = time[which.max(Cc)],
    auc = trap(time, Cc),
    .groups = "drop"
  ) |>
  dplyr::left_join(arms, by = "id")

# Closed forms. Amounts are mg/kg and volumes L/kg, so central/vc is mg/L and
# the model's x1000 reports ng/mL; the analytic targets carry the same factor.
target_auc_iv <- dose_mgkg / CL * 1000
target_auc_sc <- FTOT * dose_mgkg / CL * 1000
target_c0_iv <- dose_mgkg / V1 * 1000

knitr::kable(
  data.frame(
    Identity = c(
      "IV C0 = Dose/V1 (ng/mL)",
      "IV AUC0-12h ~ Dose/CL (ng*h/mL)",
      "SC AUC0-12h ~ Ftot*Dose/CL (ng*h/mL)",
      "SC anaesthetised AUC = SC conscious AUC (ng*h/mL)"
    ),
    Analytic = c(target_c0_iv, target_auc_iv, target_auc_sc, target_auc_sc),
    Simulated = c(
      typ$c0[typ$arm == "IV, conscious"],
      typ$auc[typ$arm == "IV, conscious"],
      typ$auc[typ$arm == "SC, conscious"],
      typ$auc[typ$arm == "SC, anaesthetised"]
    )
  ) |>
    dplyr::mutate("% diff" = 100 * (Simulated - Analytic) / Analytic),
  digits = 4
)
Identity Analytic Simulated % diff
IV C0 = Dose/V1 (ng/mL) 12048.193 12048.193 0.0000
IV AUC0-12h ~ Dose/CL (ng*h/mL) 3984.064 3985.902 0.0461
SC AUC0-12h ~ FtotDose/CL (ngh/mL) 3107.570 3106.858 -0.0229
SC anaesthetised AUC = SC conscious AUC (ng*h/mL) 3107.570 3106.824 -0.0240

stopifnot(
  # Initial concentration after an IV bolus is Dose/V1 to solver precision.
  abs(typ$c0[typ$arm == "IV, conscious"] / target_c0_iv - 1) < 1e-6,
  # AUC to 12 h (about 12 terminal half-lives) is within trapezoidal error of
  # the infinite-time closed form.
  abs(typ$auc[typ$arm == "IV, conscious"] / target_auc_iv - 1) < 0.005,
  # THE load-bearing gate on the absorption model: total s.c. exposure must be
  # exactly Ftot x the IV exposure. It goes red if either f() multiplier is
  # wrong, if the zero-order record is dropped, or if the dose is double-counted
  # across the two s.c. records.
  abs(typ$auc[typ$arm == "SC, conscious"] / target_auc_sc - 1) < 0.005,
  # Anaesthesia acts on V1 only, so it must move Cmax without moving AUC.
  abs(typ$auc[typ$arm == "SC, anaesthetised"] /
    typ$auc[typ$arm == "SC, conscious"] - 1) < 1e-3,
  typ$cmax[typ$arm == "SC, anaesthetised"] < typ$cmax[typ$arm == "SC, conscious"]
)

Steady-state volume of distribution

Results “PKs” reports a population steady-state volume of 0.213 L/kg. This is the check that pins the unrounded V1: Vss = V1 + V2, so Table 2’s displayed 0.16 would give 0.207 L/kg, 2.8% below the published figure, whereas 0.166 gives 0.213 exactly.

vss <- V1 + V2
# Rounded to the 3 significant figures the paper prints.
stopifnot(abs(vss - 0.213) < 0.0005)
# And the displayed 2-significant-figure V1 does NOT reproduce it, which is why
# the model carries 0.166.
stopifnot(abs((0.16 + V2) - 0.213) > 0.004)
c(vss_model = vss, vss_paper = 0.213, vss_from_displayed_v1 = 0.16 + V2)
#>             vss_model             vss_paper vss_from_displayed_v1
#>                 0.213                 0.213                 0.207

Flip-flop kinetics

The paper’s central pharmacological claim. The disposition terminal rate constant beta is obtained from the two-compartment micro-constants; the absorption rate constant is slower, so after subcutaneous dosing the observed terminal slope is governed by absorption rather than by elimination.

k10 <- CL / V1
k12 <- Q / V1
k21 <- Q / V2
S <- k10 + k12 + k21
P <- k10 * k21
beta_typ <- (S - sqrt(S^2 - 4 * P)) / 2
alpha_typ <- (S + sqrt(S^2 - 4 * P)) / 2

# Terminal slope recovered by regression well after the peak, per arm.
term_slope <- function(this_id, from, to) {
  d <- sim_typ |>
    dplyr::filter(id == this_id, !is.na(Cc), time >= from, time <= to, Cc > 0)
  stopifnot(nrow(d) > 5) # a lookup that matched nothing must not pass silently
  -stats::coef(stats::lm(log(Cc) ~ time, data = d))[["time"]]
}
slope_iv <- term_slope(1, 6, 12)
slope_sc <- term_slope(2, 6, 12)

knitr::kable(
  data.frame(
    Quantity = c(
      "alpha (1/h)", "beta (1/h)", "ka (1/h)",
      "IV terminal slope 6-12 h (1/h)", "SC terminal slope 6-12 h (1/h)",
      "ln2/beta (h)", "ln2/ka (h)"
    ),
    Value = c(alpha_typ, beta_typ, KA, slope_iv, slope_sc, log(2) / beta_typ, log(2) / KA)
  ),
  digits = 4
)
Quantity Value
alpha (1/h) 3.6541
beta (1/h) 1.1445
ka (1/h) 0.6800
IV terminal slope 6-12 h (1/h) 1.1445
SC terminal slope 6-12 h (1/h) 0.6843
ln2/beta (h) 0.6056
ln2/ka (h) 1.0193

stopifnot(
  # Flip-flop: absorption is slower than disposition.
  KA < beta_typ,
  # After IV the terminal slope is beta; after SC it is ka. Both are
  # deterministic (typical-value) solves, so these are tight.
  abs(slope_iv / beta_typ - 1) < 0.05,
  abs(slope_sc / KA - 1) < 0.01
)

Discussion reports “absorption and elimination half-lives of 0.64 hours and 1.04 hours”. Those are ln2/beta = 0.606 h and ln2/ka = 1.019 h – i.e. the apparent half-lives under flip-flop, where the fast phase seen after s.c. dosing reflects disposition and the terminal phase reflects absorption. The paper quotes the first against its median beta of 1.08 1/h (ln2/1.08 = 0.642 h) rather than the typical-value beta used here.

The absorption dose split and the zero-order duration

Total subcutaneous exposure is invariant to how the dose is divided between the two parallel inputs, so the AUC = Ftot*Dose/CL gate above cannot see F0 or Tk0 at all. They are pinned here by solving each input path on its own.

# Same event construction, but optionally keeping only one of the two s.c.
# records so each input path can be weighed separately.
make_events_path <- function(id, path) {
  dosing <- data.frame(
    id = id, time = 0, evid = 1L, cmt = c("depot", "central"),
    amt = dose_mgkg, rate = c(0, -2)
  )
  dosing <- switch(path,
    first_order = dosing[1, , drop = FALSE],
    zero_order = dosing[2, , drop = FALSE],
    both = dosing
  )
  # 0.01 h grid so that a Tmax sitting exactly at Tk0 is resolved.
  obs <- data.frame(
    id = id, time = seq(0, 12, by = 0.01), evid = 0L, cmt = "central",
    amt = NA_real_, rate = NA_real_
  )
  out <- rbind(dosing, obs)
  out$ROUTE_IV <- 0
  out$ANESTH_GA <- 0
  out[order(out$time, -out$evid), ]
}

paths <- c("first_order", "zero_order", "both")
ev_path <- do.call(rbind, Map(make_events_path, seq_along(paths), paths))
sim_path <- rxode2::rxSolve(mod_typ, ev_path, returnType = "data.frame")
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalvp', 'etalq', 'etalogitfdepot', 'etalogitffo', 'etalka', 'etald1'
#> Warning: multi-subject simulation without without 'omega'

path_sum <- sim_path |>
  dplyr::filter(!is.na(Cc)) |>
  dplyr::group_by(id) |>
  dplyr::summarise(
    auc = trap(time, Cc), cmax = max(Cc), tmax = time[which.max(Cc)],
    .groups = "drop"
  ) |>
  dplyr::mutate(path = paths[id])

# Each path must carry Ftot x its own fraction of the dose. F0 = 0.50, so the
# two are equal here and each is half the total.
target_path_auc <- FTOT * 0.50 * dose_mgkg / CL * 1000

knitr::kable(
  path_sum |>
    dplyr::select(path, auc, cmax, tmax) |>
    dplyr::rename(
      "Input path" = path, "AUC0-12h (ng*h/mL)" = auc,
      "Cmax (ng/mL)" = cmax, "Tmax (h)" = tmax
    ),
  digits = 3,
  caption = "Each subcutaneous input path solved on its own (typical values)."
)
Each subcutaneous input path solved on its own (typical values).
Input path AUC0-12h (ng*h/mL) Cmax (ng/mL) Tmax (h)
first_order 1553.075 644.236 0.63
zero_order 1553.784 843.362 1.78
both 3106.859 1382.601 0.87

auc_of <- function(p) {
  v <- path_sum$auc[path_sum$path == p]
  stopifnot(length(v) == 1L) # fail loudly rather than pass on zero rows
  v
}
tmax_of <- function(p) {
  v <- path_sum$tmax[path_sum$path == p]
  stopifnot(length(v) == 1L)
  v
}

stopifnot(
  # F0 = 0.50: each path delivers Ftot x 0.50 x Dose. Mis-encoding the split
  # (or inverting which of ffo / 1 - ffo feeds which compartment when the two
  # differ) moves these apart while leaving the total untouched.
  abs(auc_of("first_order") / target_path_auc - 1) < 0.005,
  abs(auc_of("zero_order") / target_path_auc - 1) < 0.005,
  # The two paths are additive: the system is linear, so they must sum to the
  # combined solve.
  abs((auc_of("first_order") + auc_of("zero_order")) / auc_of("both") - 1) < 1e-3,
  # Tk0 = 1.78 h. For a constant-rate input straight into central with no other
  # input, the peak falls exactly at the end of the infusion, so the
  # zero-order-only Tmax reads Tk0 back off the solve to grid resolution.
  abs(tmax_of("zero_order") - 1.78) <= 0.011,
  # The first-order path peaks earlier, driven by ka rather than by Tk0.
  tmax_of("first_order") < tmax_of("zero_order")
)

Virtual cohort

The published parameters are all expressed per kg body weight and no weight effect was retained, so a 2 mg/kg dose gives a body-weight-independent concentration-time profile and the cohort needs no weight distribution for the PK simulation. Body weights are drawn only to reproduce the paper’s derived extraction ratio below.

Three arms of 100 cats each, matching the design: the laboratory cats contributed both routes while conscious, and the clinical cats contributed subcutaneous dosing under anaesthesia.

rxode2::rxSetSeed(20161022) # the article's online publication date
n_arm <- 100

cohort <- do.call(rbind, lapply(seq_len(nrow(arms)), function(k) {
  ids <- (k - 1) * n_arm + seq_len(n_arm)
  out <- do.call(rbind, lapply(ids, function(i) {
    make_events(i, arms$ROUTE_IV[k], arms$ANESTH_GA[k])
  }))
  out$arm <- arms$arm[k]
  out
}))

sim_pop <- rxode2::rxSolve(mod, cohort, returnType = "data.frame")
sim_pop <- dplyr::left_join(
  sim_pop,
  dplyr::distinct(cohort[, c("id", "arm")]),
  by = "id"
)
stopifnot(
  all(sim_pop$Cc >= 0),
  dplyr::n_distinct(sim_pop$id) == 3 * n_arm
)
band <- sim_pop |>
  dplyr::filter(!is.na(Cc), time > 0) |>
  dplyr::group_by(arm, time) |>
  dplyr::summarise(
    p10 = quantile(Cc, 0.1),
    p50 = median(Cc),
    p90 = quantile(Cc, 0.9),
    .groups = "drop"
  )

ggplot(band, aes(time, p50)) +
  geom_ribbon(aes(ymin = p10, ymax = p90), alpha = 0.25) +
  geom_line(linewidth = 0.7) +
  geom_hline(yintercept = 3, linetype = "dashed", colour = "grey40") +
  facet_wrap(~arm) +
  scale_y_log10() +
  labs(
    x = "Time after dose (h)",
    y = "Robenacoxib in blood (ng/mL)"
  ) +
  theme_bw()

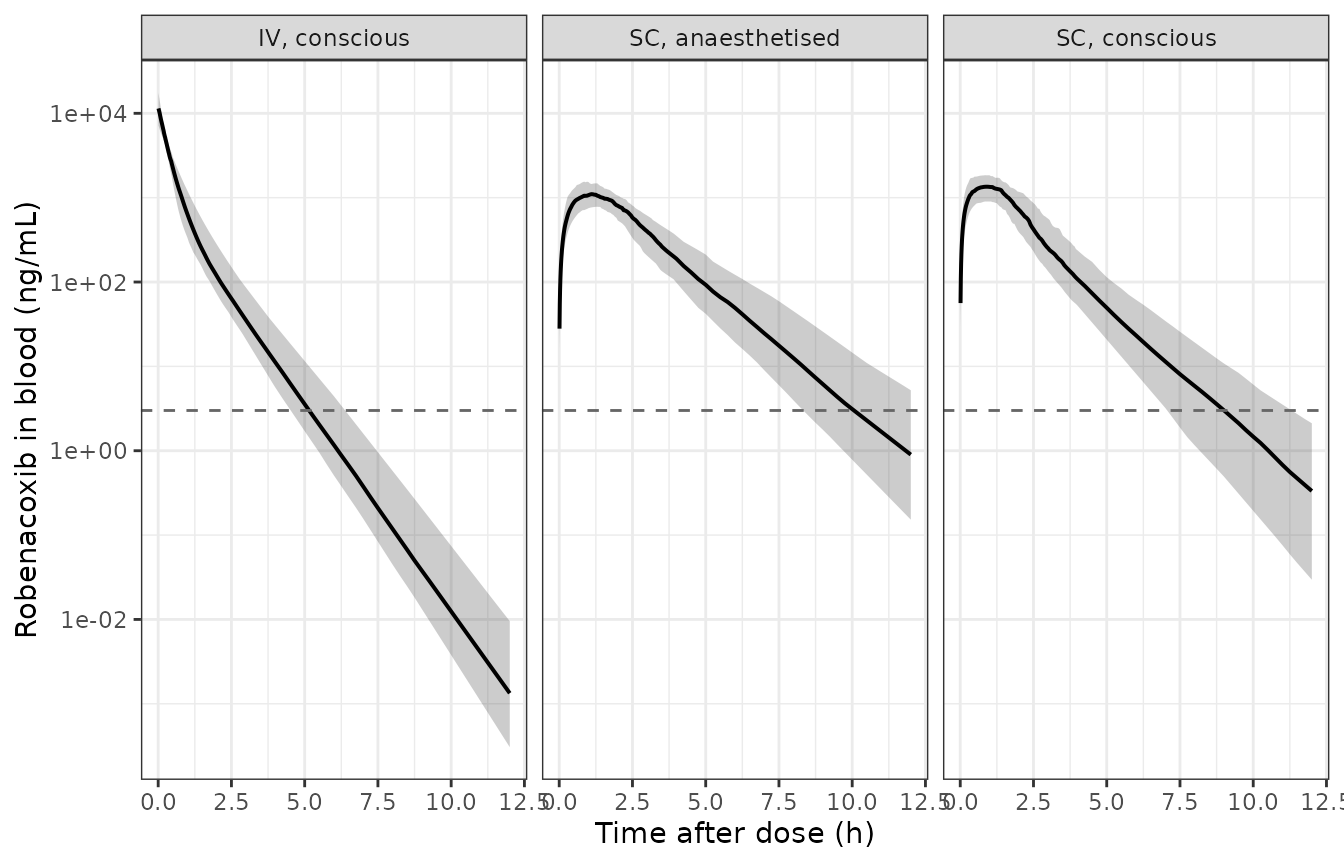

Simulated robenacoxib blood concentration-time profiles by route and anaesthesia status (median with 10th-90th percentile band, 100 cats per arm). Compare the shape of the subcutaneous panels with Figure 4 (visual predictive checks) and Figure 3 (individual predictions) of Pelligand 2016; the dashed line is the 3 ng/mL LC-MS lower limit of quantification.

Simulated robenacoxib blood concentration-time profiles by route and anaesthesia status (median with 10th-90th percentile band, 100 cats per arm). Compare the shape of the subcutaneous panels with Figure 4 (visual predictive checks) and Figure 3 (individual predictions) of Pelligand 2016; the dashed line is the 3 ng/mL LC-MS lower limit of quantification.

Median beta across the cohort

Results “PKs” and the Abstract report a median beta of 1.10 and 1.08 1/h respectively. beta is a non-linear function of four parameters that each carry IIV, so its cohort median is not the typical-value beta computed above; it is reproduced here from the per-subject parameter draws.

subj <- sim_pop |>
  dplyr::filter(!is.na(Cc)) |>
  dplyr::group_by(id, arm) |>
  dplyr::summarise(
    cl = dplyr::first(cl), vc = dplyr::first(vc),
    vp = dplyr::first(vp), q = dplyr::first(q),
    ka_i = dplyr::first(ka), d1_i = dplyr::first(d1),
    fdepot_i = dplyr::first(fdepot),
    .groups = "drop"
  ) |>
  dplyr::mutate(
    s = cl / vc + q / vc + q / vp,
    p = (cl / vc) * (q / vp),
    beta = (s - sqrt(s^2 - 4 * p)) / 2
  )

med_beta <- median(subj$beta)
c(median_beta_simulated = med_beta, paper_results = 1.10, paper_abstract = 1.08)
#> median_beta_simulated         paper_results        paper_abstract
#>              1.090764              1.100000              1.080000

# The paper's two printed values are 1.08 and 1.10, so a claim of agreement has
# to admit at least that 2% spread. Bound set at 15% around the midpoint: wide
# enough for any cohort the model can draw (realised 1.13-1.15 across repeated
# draws), narrow enough that a mis-transcribed CL, V1, V2 or Q -- each of which
# moves beta by tens of percent -- still breaks it.
stopifnot(abs(med_beta / 1.09 - 1) < 0.15)

# Median individual Ftot must recover the population value; the logit-scale eta
# is symmetric so the median is unaffected by its 0.57 SD.
stopifnot(abs(median(subj$fdepot_i) - FTOT) < 0.02)

PKNCA validation

The paper reports no non-compartmental analysis table of its own – it is a population-modelling methods paper, and its Table 2 is a parameter table. The NCA below therefore serves two purposes: it confirms that the packaged model’s exposure metrics satisfy the closed-form identities on a stochastic cohort as well as on the typical-value solve, and it puts Cmax / Tmax / AUC / half-life on record for downstream users.

sim_nca <- sim_pop |>
  dplyr::filter(!is.na(Cc)) |>
  dplyr::select(id, time, Cc, arm)

# One dose row per administration. The s.c. arms carry two model dose records
# (depot bolus + central zero-order input) that together deliver a single
# 2 mg/kg administration, so the duplicate is collapsed here; leaving both in
# would make PKNCA treat one administration as two.
dose_df <- cohort |>
  dplyr::filter(evid == 1) |>
  dplyr::select(id, time, amt, arm) |>
  dplyr::distinct(id, time, .keep_all = TRUE)
stopifnot(nrow(dose_df) == 3 * n_arm)

conc_obj <- PKNCA::PKNCAconc(sim_nca, Cc ~ time | arm + id,
  concu = "ng/mL", timeu = "h"
)
dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | arm + id,
  doseu = "mg/kg"
)

intervals <- data.frame(
  start = 0,
  end = Inf,
  cmax = TRUE,
  tmax = TRUE,
  auclast = TRUE,
  aucinf.obs = TRUE,
  half.life = TRUE,
  lambda.z = TRUE
)

res <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals))
nca <- as.data.frame(res)
nca_wide <- nca |>
  dplyr::filter(PPTESTCD %in% c(
    "cmax", "tmax", "auclast", "aucinf.obs", "half.life", "lambda.z"
  )) |>
  dplyr::group_by(arm, PPTESTCD) |>
  dplyr::summarise(median = median(PPORRES, na.rm = TRUE), .groups = "drop") |>
  tidyr::pivot_wider(names_from = PPTESTCD, values_from = median)

knitr::kable(
  nca_wide |>
    dplyr::rename(
      "Arm" = arm,
      "Cmax (ng/mL)" = cmax,
      "Tmax (h)" = tmax,
      "AUClast (ng*h/mL)" = auclast,
      "AUC0-inf (ng*h/mL)" = aucinf.obs,
      "t1/2 (h)" = half.life,
      "lambda-z (1/h)" = lambda.z
    ),
  digits = 3,
  caption = "Median NCA parameters by arm (100 simulated cats per arm)."
)
Median NCA parameters by arm (100 simulated cats per arm).
Arm AUC0-inf (ng*h/mL) AUClast (ng*h/mL) Cmax (ng/mL) t1/2 (h) lambda-z (1/h) Tmax (h)
IV, conscious 3936.353 3936.350 11784.817 0.610 1.137 0.00
SC, anaesthetised 2924.095 2922.456 1127.635 1.036 0.669 1.25
SC, conscious 3047.470 3046.518 1387.750 0.941 0.737 0.85
# Per-subject dose-recovery gate. For each cat, CL * AUC0-inf must equal the
# bioavailable dose: Dose for the IV arm, Ftot_i * Dose for the s.c. arms, where
# Ftot_i is that cat's own draw. This is the check that no other gate can
# substitute for -- it is evaluated per subject against that subject's own
# parameters, so it is deterministic rather than cohort-dependent.
recovery <- nca |>
  dplyr::filter(PPTESTCD == "aucinf.obs") |>
  dplyr::select(arm, id, aucinf = PPORRES) |>
  dplyr::mutate(id = as.integer(as.character(id))) |>
  dplyr::inner_join(subj, by = c("id", "arm")) |>
  dplyr::mutate(
    bioavailable = ifelse(arm == "IV, conscious", dose_mgkg, fdepot_i * dose_mgkg),
    recovered = cl * aucinf / 1000, # /1000 converts ng*h/mL back to mg*h/L
    pct_diff = 100 * (recovered - bioavailable) / bioavailable
  )
stopifnot(nrow(recovery) == 3 * n_arm, !anyNA(recovery$pct_diff))

knitr::kable(
  recovery |>
    dplyr::group_by(arm) |>
    dplyr::summarise(
      n = dplyr::n(),
      median_pct_diff = median(pct_diff),
      q90_abs_pct_diff = quantile(abs(pct_diff), 0.9),
      max_abs_pct_diff = max(abs(pct_diff)),
      .groups = "drop"
    ) |>
    dplyr::rename(
      "Arm" = arm, "N" = n,
      "Median % diff" = median_pct_diff,
      "90th pct |% diff|" = q90_abs_pct_diff,
      "Max |% diff|" = max_abs_pct_diff
    ),
  digits = 3,
  caption = "Recovery of the bioavailable dose as CL x AUC0-inf, per cat."
)
Recovery of the bioavailable dose as CL x AUC0-inf, per cat.
Arm N Median % diff 90th pct |% diff| Max |% diff|
IV, conscious 100 0.007 0.011 0.012
SC, anaesthetised 100 -0.013 0.024 0.067
SC, conscious 100 -0.017 0.040 0.081

# Centre and a robust quantile rather than the cohort extreme: the residual
# disagreement here is lambda-z / extrapolation error on individual profiles,
# whose worst case depends on which cats were drawn. A mis-specified f() split
# or a dropped zero-order record shifts the MEDIAN by tens of percent.
stopifnot(
  abs(median(recovery$pct_diff)) < 2,
  quantile(abs(recovery$pct_diff), 0.9) < 5
)

# Flip-flop, on the cohort: the s.c. terminal half-life must exceed the IV one,
# which is the opposite of the usual expectation and is the paper's finding.
# Compared as medians, not as a race between two extremes.
hl <- nca |>
  dplyr::filter(PPTESTCD == "half.life") |>
  dplyr::group_by(arm) |>
  dplyr::summarise(hl = median(PPORRES, na.rm = TRUE), .groups = "drop")
stopifnot(
  nrow(hl) == 3,
  hl$hl[hl$arm == "SC, conscious"] > 1.3 * hl$hl[hl$arm == "IV, conscious"]
)
hl
#> # A tibble: 3 × 2
#>   arm                  hl
#>   <chr>             <dbl>
#> 1 IV, conscious     0.610
#> 2 SC, anaesthetised 1.04
#> 3 SC, conscious     0.941

Anaesthesia effect and the covariate screen

The only covariate retained by the BIC backward elimination is anaesthesia on V1: 0.33 L/kg in the clinical cats against 0.16 L/kg in the laboratory cats (Table 2; Results “Effects of demographics and anaesthesia on robenacoxib exposure”).

v1_ratio_paper <- 0.33 / 0.166
v1_ratio_model <- exp(mod$theta[["e_anesth_ga_vc"]])

# Median individual V1 in each s.c. arm recovers the two tabulated values.
v1_med <- subj |>
  dplyr::filter(arm != "IV, conscious") |>
  dplyr::group_by(arm) |>
  dplyr::summarise(v1 = median(vc), .groups = "drop")

knitr::kable(
  data.frame(
    Quantity = c(
      "V1, conscious (L/kg)", "V1, anaesthetised (L/kg)",
      "Ratio (model)", "Ratio (Table 2, unrounded V1)"
    ),
    Value = c(
      v1_med$v1[v1_med$arm == "SC, conscious"],
      v1_med$v1[v1_med$arm == "SC, anaesthetised"],
      v1_ratio_model, v1_ratio_paper
    ),
    Paper = c(0.16, 0.33, NA, NA)
  ),
  digits = 4
)
Quantity Value Paper
V1, conscious (L/kg) 0.1698 0.16
V1, anaesthetised (L/kg) 0.3284 0.33
Ratio (model) 1.9880 NA
Ratio (Table 2, unrounded V1) 1.9880 NA

stopifnot(
  # The coefficient reproduces Table 2's pair of V1 values.
  abs(v1_ratio_model - v1_ratio_paper) < 1e-6,
  # ... and agrees with the independently digitised Figure S4 trace (0.684).
  abs(mod$theta[["e_anesth_ga_vc"]] - 0.684) < 0.01,
  # Median individual V1 rounds to each tabulated value (10% band admits the
  # 0.41 log-scale IIV on a 100-cat median).
  abs(v1_med$v1[v1_med$arm == "SC, conscious"] / V1 - 1) < 0.10,
  abs(v1_med$v1[v1_med$arm == "SC, anaesthetised"] / 0.33 - 1) < 0.10
)

Age, body weight and sex were screened on CL, V1 and Ftot and none was retained. Because the paper reports those screens only graphically – as r^2 annotations on posterior-distribution scatterplots (Supplementary Figures S1, S5, S6) – with no point estimate, they are recorded in the model file’s covariatesDataExcluded metadata rather than encoded:

names(readModelDb("Pelligand_2016_robenacoxib_cat")()$covariatesDataExcluded)
#> [1] "WT"   "AGE"  "SEXF"

Derived quantity: extraction ratio

Results “PKs” computes a robenacoxib extraction ratio of 0.058 from E = CL / Qco with feline cardiac output approximated as Qco = 180 * BW^-0.195 mL/kg/min (Toutain and Bousquet-Melou 2004). The paper does not say which body weight it used, and the answer depends on that choice, so this is reported as a bracket rather than a point comparison.

cardiac_output <- function(bw) 180 * bw^-0.195 * 60 / 1000 # L/kg/h
e_ratio <- function(bw) CL / cardiac_output(bw)

# The two cohort median weights the paper prints, and the overall range.
bw_grid <- c(
  clinical_median = 2.73, pooled_approx = 3.5,
  laboratory_median = 3.9, min = 1.77, max = 5.7
)
round(vapply(bw_grid, e_ratio, numeric(1)), 4)
#>   clinical_median     pooled_approx laboratory_median               min
#>            0.0565            0.0593            0.0606            0.0520
#>               max
#>            0.0653

# The published 0.058 must fall inside the interval spanned by the paper's own
# two reported median weights. This can go red: if CL were mis-transcribed by
# more than about 5% the bracket would no longer contain 0.058.
stopifnot(
  e_ratio(3.9) > 0.058, e_ratio(2.73) < 0.058,
  # And the ratio is small, which is the qualitative claim ("low").
  e_ratio(3.5) < 0.1
)

Assumptions and deviations

  • Residual-error magnitudes are not printed in the article and were digitised from the supplement. Methods “PK model development” specifies the combined linear-scale error y = F + a*eps_a + b*F*eps_b but neither a nor b appears in the text or in Table 2. Both were read from the final-estimate markers of the SAEM convergence traces in Supplementary Figure S4: a = 2.79 ng/mL and b = 0.21. The digitisation is validated by the eight parameters on the same page whose values are tabulated (Ftot and the seven omegas), all of which it reproduces to two decimal places – see the omega table above. a = 2.79 ng/mL is also consistent with the 3 ng/mL LC-MS lower limit of quantification and with the M3-equivalent BLQ likelihood term. These two values are the only parameters in the model not traceable to a printed number, and they affect only the residual-error magnitude, not the structural predictions validated here.
  • V1 is encoded as 0.166 L/kg, not the 0.16 L/kg displayed in Table 2. Table 2 prints two significant figures. Two independent statements pin the unrounded value: the published Vss of 0.213 L/kg minus V2 = 0.047 gives 0.166, and the digitised beta_ANEST,V1 of 0.684 with the published anaesthetised V1 of 0.33 gives 0.33/exp(0.684) = 0.1664. Using 0.16 would reproduce neither Vss (it gives 0.207) nor the anaesthetised V1.
  • CL is encoded as 0.502 L/h/kg from Results “PKs”, which is more precise than Table 2’s displayed 0.50.
  • The anaesthesia coefficient is derived from Table 2’s two V1 values (log(0.33/0.166) = 0.687) rather than from the digitised Figure S4 trace (0.684), so that the model reproduces the paper’s own printed anaesthetised V1 exactly. The two agree to 0.003 on the log scale, i.e. 0.3%.
  • Disposition typical values are fixed(). Table 2’s footnote states that CL, V1, Q and V2 were estimated from the i.v. data alone and then held fixed for the sequential fit, which is why the table prints no RSE for them. Their random effects were estimated from the full dataset and are not fixed.
  • Results misreports the Ftot variability. Results “PKs” says the bioavailability was “high (78%) with an interindividual variability of 3%”, but 3% is Table 2’s relative standard error column; the IIV column reads 57%. The model uses 57%.
  • Methods mislabels V2. Methods “Data analysis and model evaluation” calls V2 the “volume of the central compartment”; Table 2 and the supplementary MLXTRAN listing both make it peripheral. The listing governs.
  • ANESTH_GA is a new canonical covariate column, registered in inst/references/covariate-columns.md alongside this model. It is deliberately not the existing INTRAOP canonical: INTRAOP is time-varying within a subject and its reference category is explicitly “pre- or post-operative”, whereas the anaesthetised cats here were sampled at extubation and 2 h later, so the contrast is between cohorts rather than within a surgical window.
  • Anaesthesia is confounded with cohort, sex and sampling density. All 36 anaesthetised cats came from the perioperative study, all were female, and all were sparsely sampled, which the paper flags as a design limitation (Discussion). The ANESTH_GA effect should not be read as a clean anaesthesia effect.
  • The model is not weight-scaled. Every parameter is published per kg body weight and no weight effect was retained, so doses must be supplied in mg/kg and predicted concentrations are body-weight independent.
  • Dose records. A subcutaneous administration requires two records at the same time (a depot bolus and a central record with rate = -2), both with ROUTE_IV = 0; an intravenous administration is a single plain bolus into central with ROUTE_IV = 1. Omitting rate = -2 on the central record would make rxode2 ignore dur(central) and deliver the zero-order half of the dose as a bolus.
  • No original observed data. The individual concentrations are not public, so the figure above is a simulated cohort whose shape is compared with the paper’s Figures 3 and 4 qualitatively; there is no digitised overlay.
  • No published NCA table to compare against. The paper reports parameter estimates, not non-compartmental summaries, so the validation rests on closed-form identities (dose recovery, Vss, terminal slopes) and on the derived quantities the paper does print (Vss 0.213 L/kg, median beta 1.08-1.10 1/h, apparent half-lives 0.64 / 1.04 h, extraction ratio 0.058).
  • No erratum. No correction notice was found for this article.
