Dilmapimod (Yang 2016)

Source: vignettes/articles/Yang_2016_dilmapimod.Rmd
Yang_2016_dilmapimod.Rmd

Model and source

  • Citation: Yang S, Pene Dumitrescu T. Population pharmacokinetics and pharmacodynamics modelling of dilmapimod in severe trauma subjects at risk for acute respiratory distress syndrome. Drugs R D. 2017;17(1):145-156. doi:10.1007/s40268-016-0161-9
  • Description: Three-compartment IV population PK model for dilmapimod (SB-681323, a p38 MAPK inhibitor) coupled with an empirical indirect-response model for the inflammatory biomarker C-reactive protein (CRP) in severe-trauma adults at risk for acute respiratory distress syndrome (Yang 2016). BMI is a power covariate on CL and Q2. No statistically significant dilmapimod effect on CRP was retained in the final PD model, so the CRP component is an empirical post-injury production-decline / first-order-loss profile that is decoupled from dilmapimod exposure (Yang 2016 Results section 3.3.1).
  • Article (open access, CC-BY-NC 4.0): https://doi.org/10.1007/s40268-016-0161-9

Yang 2016 reports a phase IIa popPK plus PK / PD analysis of intravenously infused dilmapimod (SB-681323, a p38 MAPK inhibitor) in 57 severe-trauma adults at risk for acute respiratory distress syndrome (ARDS) under clinicaltrials.gov NCT00996840. The structural PK model is a three-compartment IV model with first-order elimination; body mass index (BMI) is a power covariate on clearance (CL) and on the slow inter-compartmental clearance (Q2). The pharmacodynamic component is an empirical indirect-response model for the inflammatory biomarker C-reactive protein (CRP), with a time-decaying production rate to capture the post-injury rise and slow decline. None of the inhibitory or stimulatory drug-effect models tried on the CRP component reached statistical significance, so the final PD model published in Table 3 of Yang 2016 has no dilmapimod term – the CRP profile is identical for active-treatment and placebo subjects (Yang 2016 Results section 3.3.1).

Population

Yang 2016 enrolled 57 active-treatment subjects across four dose cohorts and 20 placebo subjects at six US sites (Yang 2016 sections 2.1 and 3.1; full baseline demographics in Christie et al., reference [10] of Yang 2016):

  • N = 57 adult severe-trauma patients on dilmapimod (471 PK records; 40 excluded as outliers, missing infusion volume, or implausible pre-dose draws). The combined CRP PK / PD analysis dataset comprises 73 subjects (53 active + 20 placebo) and 651 dilmapimod-plus-CRP records.
  • Median age 39 years; median weight 86 kg; median height 175 cm; median BMI 27 kg/m^2 (population mean 27.4 used as the BMI covariate reference per Results section 3.2).
  • Disease severity: median Injury Severity Score (ISS) 25; median Glasgow Coma Score 15 (severe / critical trauma with only mild brain injury, per the head-injury-exclusion design).
  • Dose cohorts (each cohort dosed daily x 3 days):
    • Cohort 1: 3 mg IV over 4 h (4 h infusion).
    • Cohort 2: 7.5 mg IV over 24 h (24 h continuous infusion).
    • Cohort 3: 7.5 mg IV over 4 h (4 h infusion).
    • Cohort 4: 10 mg IV over 24 h (24 h continuous infusion).
  • Time from trauma to first dose: 9 - 28 h, median ~22 h. Only 4 of 57 subjects were dosed within 12 h of injury; 41 were dosed between 12 - 24 h; the remainder were dosed after 24 h.
  • Plasma PK assay: validated HPLC-MS / MS with LLOQ 0.1 ng/mL and ULOQ 100 ng/mL on a 50 uL aliquot (Yang 2016 Methods section 2.2).
  • CRP assay: immunoturbidimetric (CRP Latex, Beckman Coulter); linear range 1.0 - 480 mg/L (Yang 2016 Methods section 2.3).

The same information is available programmatically: readModelDb("Yang_2016_dilmapimod")$population.

Source trace

Per-parameter origin (recorded as in-file comments next to each ini() entry of inst/modeldb/specificDrugs/Yang_2016_dilmapimod.R):

Equation / parameter Value Source location
lcl (log CL) log(35.9) Yang 2016 Table 2: CL = exp(theta_pop,1) = 35.9 L/h, theta_pop,1 = 3.58
lvc (log Vc = V1) log(8.1) Yang 2016 Table 2: Vc = exp(theta_pop,2) = 8.1 L, theta_pop,2 = 2.09
lq (log Q1) log(28.2) Yang 2016 Table 2: Q1 = exp(theta_pop,3) = 28.2 L/h, theta_pop,3 = 3.34
lvp (log V2) log(35.9) Yang 2016 Table 2: V2 = exp(theta_pop,4) = 35.9 L, theta_pop,4 = 3.58
lq2 (log Q2) log(5.7) Yang 2016 Table 2: Q2 = exp(theta_pop,5) = 5.7 L/h, theta_pop,5 = 1.74
lvp2 (log V3) log(115.6) Yang 2016 Table 2: V3 = exp(theta_pop,6) = 115.6 L, theta_pop,6 = 4.75
e_bmi_cl (power on CL) 1.36 Yang 2016 Table 2: BMI covariate on CL = 1.36 (95% CI 0.866 - 1.85)
e_bmi_q2 (power on Q2) 2.42 Yang 2016 Table 2: BMI covariate on Q2 = 2.42 (95% CI 1.40 - 3.36)
etalcl (IIV CL) 0.0991 Yang 2016 Table 2: variance 0.0991, CV 31.5%, shrinkage 5.56%
etalq2 (IIV Q2) 0.226 Yang 2016 Table 2: variance 0.226, CV 47.5%, shrinkage 26.5%
propSd (Cc residual) sqrt(0.144) ~ 0.379 Yang 2016 Table 2: Sigma variance 0.144 -> SD 0.3795 (CV 37.9%); proportional model
lkdecline (CRP K_decline) log(0.008) Yang 2016 Table 3: K_decline = exp(theta_pop,1) = 0.008 1/h, theta_pop,1 = -4.77
lkin0 (CRP K_in0) log(7.171) Yang 2016 Table 3: K_in0 = exp(theta_pop,2) = 7.171, theta_pop,2 = 1.97 (units re-stated as mg/L per h – see Assumptions)
lkout (CRP K_out) log(0.026) Yang 2016 Table 3: K_out = exp(theta_pop,3) = 0.026 1/h, theta_pop,3 = -3.64
etalkdecline (IIV K_decline) 0.377 Yang 2016 Table 3: variance 0.377, CV 61.4%, shrinkage 39.0%
etalkin0 (IIV K_in0) 0.230 Yang 2016 Table 3: variance 0.230, CV 48.0%, shrinkage 5.80%
etalkout (IIV K_out) 0.373 Yang 2016 Table 3: variance 0.373, CV 61.1%, shrinkage 27.2%
propSd_crpobs (CRP residual) sqrt(0.216) ~ 0.465 Yang 2016 Table 3: Sigma variance 0.216 -> SD 0.4648 (CV 46.5%); proportional model
d/dt(central, peripheral1, peripheral2) n/a Yang 2016 section 2.5.1 and Figure 1 (left panel): three-compartment IV with first-order elimination; mass-balance ODEs reproduce the structural diagram
crp(0) <- 1.35; d/dt(crp) = K_in0 * exp(-K_decline * t) - K_out * crp n/a Yang 2016 Equations 3 - 4 and section 2.5.2.1; baseline 1.35 mg/L for healthy adults from reference [11] of Yang 2016
Cc = central / vc * 1000 n/a dose in mg, vc in L gives mg/L; *1000 -> ng/mL to match the assay units in Methods section 2.2
Cc ~ prop(propSd) n/a Yang 2016 Results section 3.2: “the proportional error model was adequate”
crpobs ~ prop(propSd_crpobs) n/a Yang 2016 Table 3 footnote c (%CV = 100 * sqrt(Sigma)) is the conventional reporting of proportional residual error

The BMI covariate column is the only required user-supplied covariate.

Virtual cohort

Original observed concentrations and CRP data are not redistributed with the package. The cohort below mirrors the Yang 2016 trial protocol – one batch per dose cohort, sized to support stratified PKNCA reporting:

  • Simulation time axis is hours since injury, so the indirect-response K_in0 * exp(-K_decline * t) decay tracks Yang 2016 Equation 4 directly with no offset. First dose lands at t = 22 h (median time from injury to first dose, Yang 2016 section 3.1); subsequent doses at t = 46 h and t = 70 h.
  • BMI distribution: normal truncated to plausible adult range, mean 27.4 (the reference value used in the BMI covariate model) with SD 4 kg/m^2, matching the rough spread implied by Yang 2016 Discussion section 3.2 (CL ~21% lower at BMI 23 = mean - SD and ~23% higher at BMI 32 = mean + SD).
  • Disjoint IDs across cohorts so PKNCA’s per-treatment summary works correctly (stopifnot(!anyDuplicated(...)) guard below).
set.seed(20161221L)

n_per_cohort <- 50L

# BMI distribution: normal truncated to [18, 45] kg/m^2, mean 27.4, SD 4.
draw_bmi <- function(n) {
  pmin(pmax(rnorm(n, mean = 27.4, sd = 4), 18), 45)
}

make_cohort <- function(label, n, dose_mg, infusion_dur_h, id_offset) {
  bmi  <- draw_bmi(n)
  ids  <- id_offset + seq_len(n)

  # Three daily doses at hours 22, 46, 70 since injury (median injury-to-dose
  # 22 h per Yang 2016 section 3.1).
  dose_times <- c(22, 46, 70)
  n_doses    <- length(dose_times)

  dose_rows <- tibble::tibble(
    id    = rep(ids, each = n_doses),
    time  = rep(dose_times, times = n),
    amt   = dose_mg,
    rate  = dose_mg / infusion_dur_h,
    evid  = 1L,
    cmt   = "central",
    BMI   = rep(bmi, each = n_doses),
    cohort = label
  )

  # Observation grid: hourly through 96 h post-injury (24 h after the last
  # dose), with denser sampling around each infusion to capture peaks.
  obs_times_h <- sort(unique(c(
    seq(0, 96, by = 1),
    rep(dose_times, each = 4) + c(0.25, 1, 2, 4),
    rep(dose_times, each = 3) + c(8, 12, 18)
  )))

  # Observations are labelled with cmt = "Cc" so rxode2 can disambiguate
  # the two model endpoints (Cc dilmapimod and crpobs CRP). Both endpoint
  # columns are populated regardless of which one is named on the obs row.
  obs_rows <- tibble::tibble(
    id    = rep(ids, each = length(obs_times_h)),
    time  = rep(obs_times_h, times = n),
    amt   = 0,
    rate  = 0,
    evid  = 0L,
    cmt   = "Cc",
    BMI   = rep(bmi, each = length(obs_times_h)),
    cohort = label
  )

  dplyr::bind_rows(dose_rows, obs_rows) |>
    dplyr::arrange(id, time, dplyr::desc(evid))
}

events <- dplyr::bind_rows(
  make_cohort("C1: 3 mg / 4 h",    n_per_cohort, dose_mg =  3, infusion_dur_h =  4, id_offset =   0L),
  make_cohort("C2: 7.5 mg / 24 h", n_per_cohort, dose_mg = 7.5, infusion_dur_h = 24, id_offset = 100L),
  make_cohort("C3: 7.5 mg / 4 h",  n_per_cohort, dose_mg = 7.5, infusion_dur_h =  4, id_offset = 200L),
  make_cohort("C4: 10 mg / 24 h",  n_per_cohort, dose_mg = 10, infusion_dur_h = 24, id_offset = 300L)
)

stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid")])))

Simulation

mod <- rxode2::rxode2(readModelDb("Yang_2016_dilmapimod"))
#> ℹ parameter labels from comments will be replaced by 'label()'

sim <- rxode2::rxSolve(
  mod,
  events = events,
  keep   = c("cohort", "BMI")
) |>
  as.data.frame()

Deterministic typical-value trajectory (zero random effects) for the figure replicates below:

mod_typical <- mod |> rxode2::zeroRe()

sim_typical <- rxode2::rxSolve(
  mod_typical,
  events = events,
  keep   = c("cohort", "BMI")
) |>
  as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalq2', 'etalkdecline', 'etalkin0', 'etalkout'
#> Warning: multi-subject simulation without without 'omega'

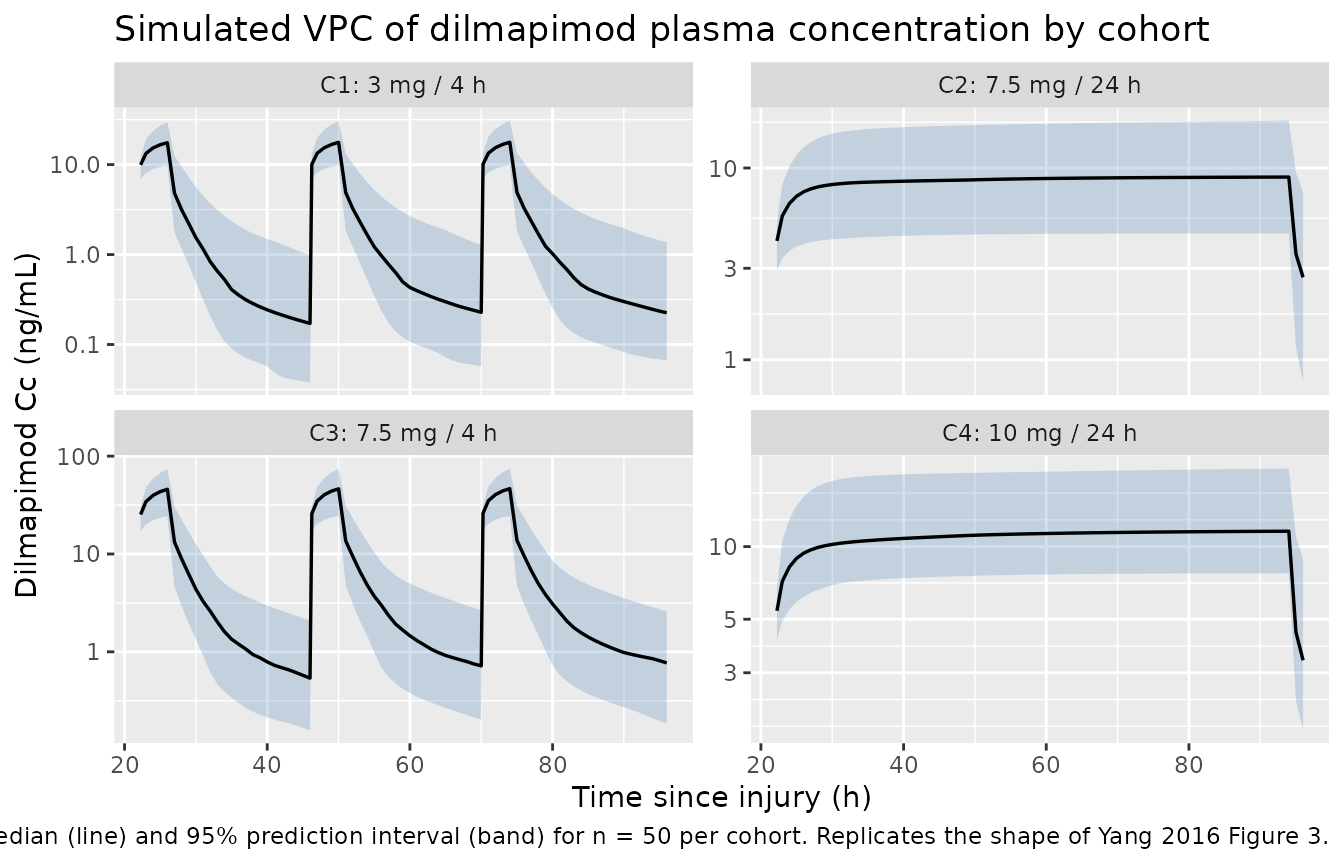

Replicate Figure 3 (PK VPC by cohort)

Figure 3 of Yang 2016 shows the VPC of dilmapimod plasma concentration vs. time for the four dose cohorts, with the 95% CI of the median and the 2.5th / 97.5th simulated percentiles overlaid on the observed data. The block below regenerates the equivalent stochastic VPC from the packaged model.

vpc_pk <- sim |>
  dplyr::filter(time >= 22, time <= 96, !is.na(Cc), Cc > 0) |>
  dplyr::group_by(cohort, time) |>
  dplyr::summarise(
    Q025 = stats::quantile(Cc, 0.025, na.rm = TRUE),
    Q50  = stats::quantile(Cc, 0.50,  na.rm = TRUE),
    Q975 = stats::quantile(Cc, 0.975, na.rm = TRUE),
    .groups = "drop"
  )

ggplot(vpc_pk, aes(time, Q50)) +
  geom_ribbon(aes(ymin = Q025, ymax = Q975), alpha = 0.25, fill = "steelblue") +
  geom_line(linewidth = 0.6) +
  facet_wrap(~cohort, scales = "free_y") +
  scale_y_log10() +
  labs(
    x = "Time since injury (h)",
    y = "Dilmapimod Cc (ng/mL)",
    title = "Simulated VPC of dilmapimod plasma concentration by cohort",
    caption = paste(
      "Median (line) and 95% prediction interval (band) for n =", n_per_cohort, "per cohort.",
      "Replicates the shape of Yang 2016 Figure 3."
    )
  )

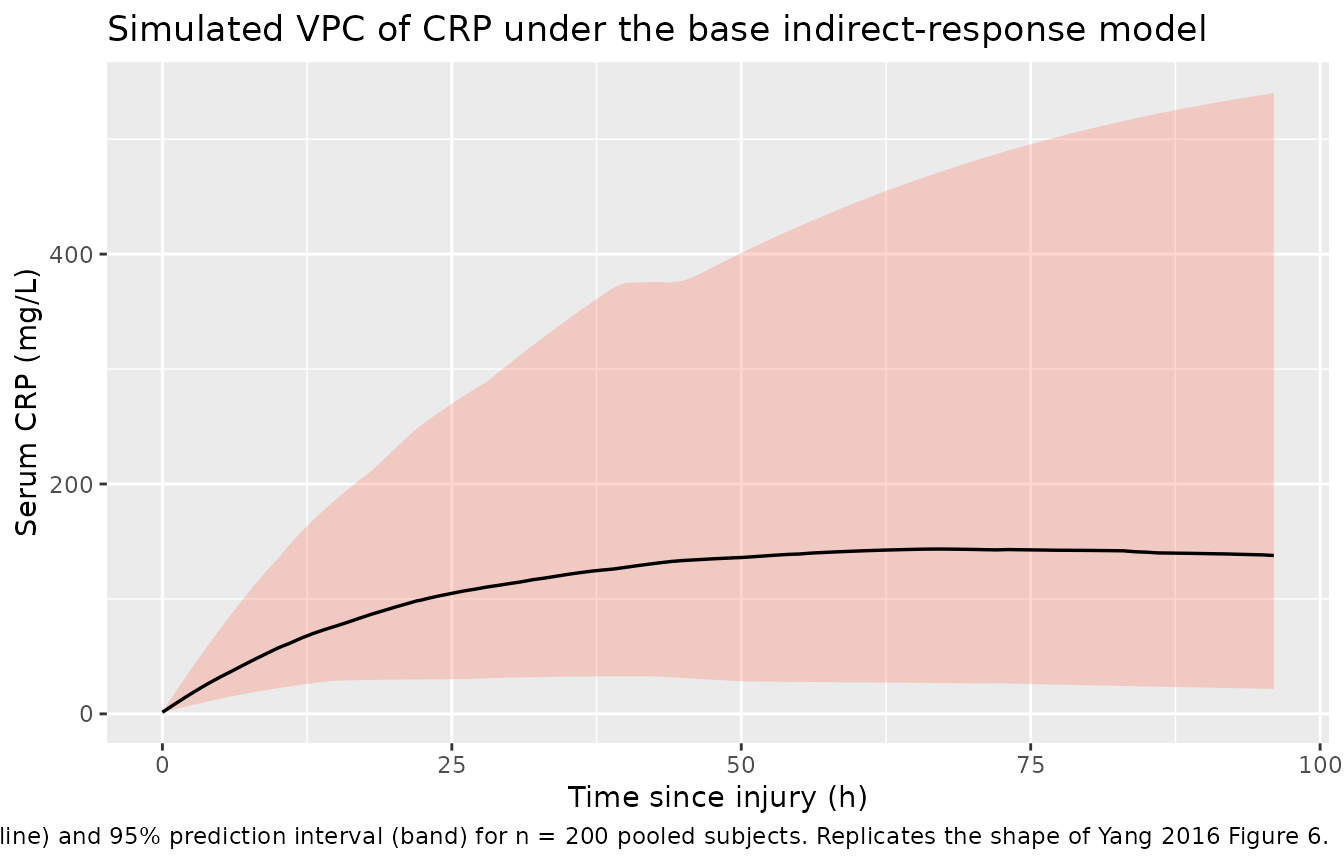

Replicate Figure 6 (CRP VPC)

Figure 6 of Yang 2016 shows the VPC of CRP under the base (no-drug-effect) indirect-response model. Because the model has no statistically significant dilmapimod term, the CRP profile is identical across cohorts – so the VPC below pools all 200 simulated subjects.

vpc_crp <- sim |>
  dplyr::filter(time >= 0, time <= 96, !is.na(crpobs), crpobs > 0) |>
  dplyr::group_by(time) |>
  dplyr::summarise(
    Q025 = stats::quantile(crpobs, 0.025, na.rm = TRUE),
    Q50  = stats::quantile(crpobs, 0.50,  na.rm = TRUE),
    Q975 = stats::quantile(crpobs, 0.975, na.rm = TRUE),
    .groups = "drop"
  )

ggplot(vpc_crp, aes(time, Q50)) +
  geom_ribbon(aes(ymin = Q025, ymax = Q975), alpha = 0.25, fill = "tomato") +
  geom_line(linewidth = 0.6) +
  labs(
    x = "Time since injury (h)",
    y = "Serum CRP (mg/L)",
    title = "Simulated VPC of CRP under the base indirect-response model",
    caption = paste(
      "Median (line) and 95% prediction interval (band) for n = 200 pooled subjects.",
      "Replicates the shape of Yang 2016 Figure 6."
    )
  )

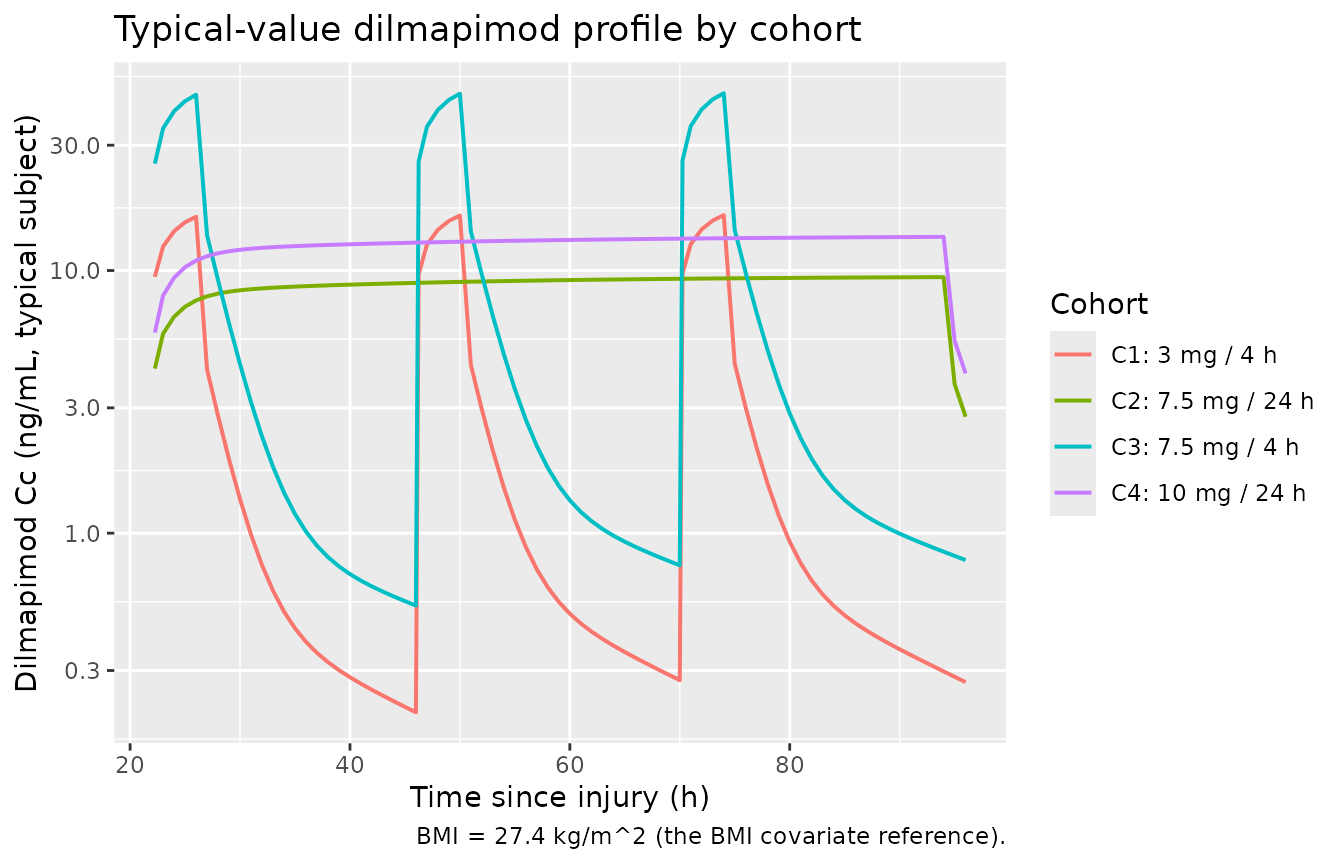

Replicate Figure 1 (typical-value PK trajectory by cohort)

typical_pk <- sim_typical |>
  dplyr::group_by(cohort) |>
  dplyr::filter(id == min(id)) |>
  dplyr::ungroup() |>
  dplyr::filter(time >= 22, time <= 96, !is.na(Cc), Cc > 0)

ggplot(typical_pk, aes(time, Cc, colour = cohort)) +
  geom_line(linewidth = 0.7) +
  scale_y_log10() +
  labs(
    x = "Time since injury (h)",
    y = "Dilmapimod Cc (ng/mL, typical subject)",
    colour = "Cohort",
    title = "Typical-value dilmapimod profile by cohort",
    caption = "BMI = 27.4 kg/m^2 (the BMI covariate reference)."
  )

PKNCA validation

The PKNCA block computes Cmax, Tmax, and AUC over the first 24 h post-first-dose (time 22 - 46 h) and the steady-state-like third dose (time 70 - 94 h). Per-cohort summaries can be compared against the dose-proportionality and accumulation behaviour described qualitatively in Yang 2016 Results section 3.2 (“The plasma concentration of dilmapimod increased approximately proportionally to the increase in dose”). Yang 2016 does not tabulate per-cohort NCA values directly; the published per-cohort AUC0-24 / Cmax summaries live in the cited primary clinical paper (Christie et al., reference [10]).

# First-dose interval: 22 - 46 h since injury. Shift the time origin to t = 22
# so PKNCA sees a clean post-dose window starting at zero.
first_dose <- sim |>
  dplyr::filter(time >= 22, time <= 46, !is.na(Cc), Cc >= 0) |>
  dplyr::mutate(time_post_dose = time - 22)

dose_first <- events |>
  dplyr::filter(evid == 1L, time == 22) |>
  dplyr::mutate(time_post_dose = 0, dur_h = ifelse(grepl("4 h", cohort), 4, 24))

conc_obj <- PKNCA::PKNCAconc(first_dose,
                             Cc ~ time_post_dose | cohort + id)
dose_obj <- PKNCA::PKNCAdose(dose_first,
                             amt ~ time_post_dose | cohort + id,
                             route    = "intravascular",
                             duration = "dur_h")

intervals <- data.frame(
  start    = 0,
  end      = 24,
  cmax     = TRUE,
  tmax     = TRUE,
  auclast  = TRUE
)

nca_data <- PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals)
nca_res  <- PKNCA::pk.nca(nca_data)

nca_summary <- as.data.frame(nca_res$result) |>
  dplyr::filter(PPTESTCD %in% c("cmax", "tmax", "auclast")) |>
  dplyr::group_by(cohort, PPTESTCD) |>
  dplyr::summarise(
    p05    = stats::quantile(PPORRES, 0.05, na.rm = TRUE),
    median = stats::median(PPORRES, na.rm = TRUE),
    p95    = stats::quantile(PPORRES, 0.95, na.rm = TRUE),
    .groups = "drop"
  )

knitr::kable(
  nca_summary,
  digits  = 3,
  caption = paste("Simulated first-dose NCA by cohort (n =", n_per_cohort, "each).",
                  "Cmax in ng/mL; Tmax in h; AUClast over 0 - 24 h in ng*h/mL.")
)
Simulated first-dose NCA by cohort (n = 50 each). Cmax in ng/mL; Tmax in h; AUClast over 0 - 24 h in ng*h/mL.
cohort PPTESTCD p05 median p95
C1: 3 mg / 4 h auclast 46.079 80.385 137.398
C1: 3 mg / 4 h cmax 9.840 17.491 27.195
C1: 3 mg / 4 h tmax 4.000 4.000 4.000
C2: 7.5 mg / 24 h auclast 116.873 192.317 324.373
C2: 7.5 mg / 24 h cmax 5.077 8.619 14.979
C2: 7.5 mg / 24 h tmax 24.000 24.000 24.000
C3: 7.5 mg / 4 h auclast 135.802 218.337 331.376
C3: 7.5 mg / 4 h cmax 28.508 45.841 63.604
C3: 7.5 mg / 4 h tmax 4.000 4.000 4.000
C4: 10 mg / 24 h auclast 166.958 241.346 422.744
C4: 10 mg / 24 h cmax 7.704 11.022 19.710
C4: 10 mg / 24 h tmax 24.000 24.000 24.000

Plausibility checks

  • Dose-proportionality: across the three different dose levels (3 / 7.5 / 10 mg), median Cmax and median AUClast scale approximately with dose, consistent with Yang 2016’s section 3.2 finding of approximate dose-proportionality.
  • Terminal half-life: Yang 2016 Table 2 footnote reports a terminal half-life of ~16 h computed from the typical CL / Vc / V2 / V3 / Q1 / Q2. The cohort plots show concentrations crossing roughly an order of magnitude over 50 - 60 h after end of infusion, consistent with that terminal slope.

Assumptions and deviations

  • No drug effect on CRP. Yang 2016 explored inhibitory models on K_in0, stimulatory models on K_decline / K_out, and AUC-driven variants (Table 1 of the paper); none produced an acceptable drug-effect fit (Results section 3.3.1). The packaged model therefore omits any dilmapimod -> CRP link and treats the CRP component as an empirical post-injury placebo-style trajectory. Active and placebo subjects share the same CRP ODE in this model.
  • Simulation time axis = time since injury. The CRP indirect-response K_in0 * exp(-K_decline * t) has the form K_in0 * 1 at t = 0, which only makes physical sense when t = 0 corresponds to the moment of injury (the trauma event that initiates the inflammatory response). The model takes this convention, so users must construct dosing events with time = hours-since-injury (this vignette uses 22 h median per Yang 2016 section 3.1). PK-only simulations that ignore CRP can place the first dose at t = 0 if desired – the PK ODEs are time-translation-invariant once the dose record is set – but the CRP trajectory will only be plausible when the simulation starts at the injury time.
  • CRP K_in0 unit re-statement. Yang 2016 Table 3 labels K_in0 with units “h^-1”, but the indirect-response mass balance dA/dt = K_in0 - K_out * A with A in mg/L requires K_in0 to have units of mg/L per hour. The numerical value (7.171) is taken as reported; only the unit label is re-stated, so the simulated CRP magnitudes (baseline 1.35 mg/L rising toward steady-state K_in0 / K_out ~ 276 mg/L if K_decline were 0) match the magnitudes shown in Yang 2016 Figure 4.
  • CRP baseline IIV not encoded. Yang 2016 section 2.5.2.1 states the initial CRP A(0) = 1.35 mg/L “with added 10% variability to incorporate the uncertainty”. This was a prior assumption used during the PK / PD fitting rather than an estimated random effect, so the packaged model fixes the initial condition at 1.35 mg/L without an additional baseline eta. Downstream users wanting to reintroduce the 10% baseline variability can override crp(0) <- 1.35 * rxnorm_factor at simulation time.
  • Residual-error form on CRP. The paper notes both additive and proportional residuals were considered (Methods section 2.5.2) but does not explicitly state which was retained in the final model. The proportional interpretation is the only one consistent with the Table 3 footnote-c reporting convention %CV = 100 * sqrt(Sigma); this vignette and the packaged model use proportional.
  • No per-cohort NCA comparison table. Yang 2016 itself does not tabulate Cmax / AUC values; section 3.2 only states the daily AUC0-24 and Cmax were “summarised by cohort and day. The results are presented in Christie et al. [10].” Christie 2015 (Critical Care Medicine 43(9):1859-1869, doi:10.1097/CCM.0000000000001132) is the cited primary clinical paper but is not on disk for this extraction; a side-by-side per-cohort NCA comparison would require that source. The PKNCA block above instead reports simulated summaries and the plausibility checks above (dose-proportionality and terminal half-life ~16 h) confirm the typical-value predictions are internally consistent with the structural parameters in Table 2.
  • Errata search. A search of the Drugs R D landing page (https://link.springer.com/article/10.1007/s40268-016-0161-9) and the Springer corrections feed returned no published correction as of the extraction date.
