Naloxone auto-injector reversal of opioid-induced respiratory depression (Yang 2024)

Source: vignettes/articles/Yang_2024_naloxone_opioid_reversal.Rmd
Yang_2024_naloxone_opioid_reversal.Rmd
library(nlmixr2lib)
library(PKNCA)
#>
#> Attaching package: 'PKNCA'
#> The following object is masked from 'package:stats':
#>
#>     filter
library(rxode2)
#> rxode2 5.1.6 using 2 threads (see ?getRxThreads)
#>   no cache: create with `rxCreateCache()`
library(dplyr)
#>
#> Attaching package: 'dplyr'
#> The following objects are masked from 'package:stats':
#>
#>     filter, lag
#> The following objects are masked from 'package:base':
#>
#>     intersect, setdiff, setequal, union
library(ggplot2)

Overview

Yang et al. (2024) asked whether a 10 mg intramuscular naloxone auto-injector (NAI 10 mg) can reverse opioid-induced respiratory depression (OIRD), including the depression produced by lethal doses of high-potency synthetic opioids. They built one new model and assembled four others:

  1. Yang_2024_naloxone – an original population PK model of the naloxone auto-injector, fitted to 2063 concentrations from 48 healthy adults.
  2. Yang_2024_naloxone_buprenorphine, ..._morphine, ..._fentanyl, ..._carfentanil – four mechanistic OIRD PK-PD models, each pairing one opioid with that same naloxone PK layer held fixed.

The four coupled models are genuinely different structures, not one model with four parameter sets, which is why they are four separate files:

Model Opioid PK Receptor layer Ventilation link
Buprenorphine 3-compartment explicit occupancy ODE, naloxone via quasi-steady-state Ce/(KD+Ce) linear, VE = V0(1 - alpha*RL)
Morphine 3-compartment, micro-constants explicit occupancy ODE, naloxone via a steep gamma-shaped term linear, alpha fixed at 1
Fentanyl 2-compartment none – fast binding collapses to instantaneous equilibrium fractional Emax, naloxone right-shifts EC50
Carfentanil 2-compartment (allometric) explicit occupancy ODE with Hill exponents, concentrations in pM FDA ventilation-versus-CO2 steady-state relation

Every parameter comes from Appendix S1 of the paper, which contains both the parameter tables (S4-S8) and the four NONMEM control streams (A)-(D) used for the published simulations. Where the tables and the control streams differ in precision, the control streams were used.

Units throughout are those of the control streams: time in minutes, amounts in micrograms, concentrations in ng/mL, ventilation in L/min. A dose of NAI 10 mg is therefore amt = 10000.

Population

The naloxone PK layer was fitted to two crossover auto-injector studies in 48 healthy adults (Appendix S1 Tables S1 and S2).

pop <- readModelDb("Yang_2024_naloxone")()$population
data.frame(
  Characteristic = c("Subjects", "Studies", "PK observations", "Age", "Body weight",
                     "BMI", "Female", "Race"),
  Value = c(
    "48", "2", "2063",
    pop$age_range, pop$weight_range, pop$bmi_range,
    paste0(pop$sex_female_pct, "%"),
    "Black or African American 75%, White 20.8%, Other 4.2%"
  )
) |>
  knitr::kable()
Characteristic Value
Subjects 48
Studies 2
PK observations 2063
Age 23-54 years (mean 37.9)
Body weight 57.2-100.2 kg (mean 78.2)
BMI 18.8-31.6 kg/m^2 (mean 26.5)
Female 47.9%
Race Black or African American 75%, White 20.8%, Other 4.2%

The opioid PK-PD layers are not fitted here: buprenorphine and fentanyl come from Yassen et al. (2007), morphine from Olofsen et al. (2010), and the carfentanil receptor and ventilation constants from the FDA Mechanistic-PK-PD-Model-to-Rescue-Opioid-Overdose repository. Carfentanil PK has no human source at all and was obtained by interspecies allometric scaling. Yang 2024’s simulations fixed body weight at 70 kg, which is also the reference weight of the naloxone allometric term.

Source trace

data.frame(
  Quantity = c(
    "Naloxone KTR, CL/F, V2/F, Q/F, V3/F, WT-on-CL exponent",
    "Naloxone IIV (KTR, CL/F, V2/F) and proportional residual error",
    "Depot + 3 transit absorption chain; 2-compartment disposition",
    "Reference weight 70 kg for the allometric term",
    "Buprenorphine PK (CL, V1, Q2, V2, Q3, V3) and PD (ke0, kon, koff, KD, alpha, V0)",
    "Morphine PK micro-constants (V1, k10, k12, k21, k13, k31) and PD",
    "Fentanyl PK (CL, V1, Q2, V2) and PD (ke0, EC50, alpha, n, V0)",
    "Naloxone EC50 0.6021768 ng/mL used by the morphine and fentanyl models",
    "Carfentanil PK, both allometric scenarios",
    "Carfentanil / naloxone receptor kon, koff, n (pM scale)",
    "Ventilation-CO2 constants G, Bmax, P1, P2 and baseline VB",
    "Molecular weights 327.4 (naloxone) and 394.512 (carfentanil)",
    "Biophase equations 1-2; receptor equations 3-6; transduction 7",
    "Morphine naloxone-displacement equations 8-9",
    "Fentanyl fractional Emax equations 10-12",
    "Carfentanil binding equation 13 and ventilation equation 14"
  ),
  Source = c(
    "Appendix S1 Table S4; control streams (A)-(D) THETA 1-6",
    "Appendix S1 Table S4; control streams (A)-(D) OMEGA 1-3",
    "Appendix S1 Figure S1 and the $MODEL / $DES blocks of (A)-(D)",
    "Control streams (A)-(D) $PK: 'WT= 70 ; kg', 'THETA(2)*(WT/70)**THETA(3)'",
    "Appendix S1 Table S5; control stream (A) THETA 7-19, OMEGA 4-13",
    "Appendix S1 Table S6; control stream (B) THETA 7-19, OMEGA 4-13",
    "Appendix S1 Table S7; control stream (C) THETA 7-16, OMEGA 4-8",
    "Control streams (B) THETA 17 and (C) $ERROR EC50N; Olofsen 2010",
    "Appendix S1 Table S8; control stream (D) THETA 7-10",
    "Appendix S1 Table S8; control stream (D) THETA 13-18; FDA repository",
    "Control stream (D) $ERROR G0/BMAX/P1/P2; Appendix S1 carfentanil section",
    "Control stream (D) $DES: NMW = 327.4, CMW = 394.512",
    "Appendix S1 'Considerations on Mechanistic PK-PD Model' section",
    "Appendix S1 morphine section; control stream (B) DADT(12)",
    "Appendix S1 fentanyl section; control stream (C) $ERROR",
    "Appendix S1 carfentanil section; control stream (D) DADT(11), $ERROR"
  )
) |>
  knitr::kable()
Quantity Source
Naloxone KTR, CL/F, V2/F, Q/F, V3/F, WT-on-CL exponent Appendix S1 Table S4; control streams (A)-(D) THETA 1-6
Naloxone IIV (KTR, CL/F, V2/F) and proportional residual error Appendix S1 Table S4; control streams (A)-(D) OMEGA 1-3
Depot + 3 transit absorption chain; 2-compartment disposition Appendix S1 Figure S1 and the $MODEL / $DES blocks of (A)-(D)
Reference weight 70 kg for the allometric term Control streams (A)-(D) $PK: ‘WT= 70 ; kg’, ’THETA(2)*(WT/70)**THETA(3)’
Buprenorphine PK (CL, V1, Q2, V2, Q3, V3) and PD (ke0, kon, koff, KD, alpha, V0) Appendix S1 Table S5; control stream (A) THETA 7-19, OMEGA 4-13
Morphine PK micro-constants (V1, k10, k12, k21, k13, k31) and PD Appendix S1 Table S6; control stream (B) THETA 7-19, OMEGA 4-13
Fentanyl PK (CL, V1, Q2, V2) and PD (ke0, EC50, alpha, n, V0) Appendix S1 Table S7; control stream (C) THETA 7-16, OMEGA 4-8
Naloxone EC50 0.6021768 ng/mL used by the morphine and fentanyl models Control streams (B) THETA 17 and (C) $ERROR EC50N; Olofsen 2010
Carfentanil PK, both allometric scenarios Appendix S1 Table S8; control stream (D) THETA 7-10
Carfentanil / naloxone receptor kon, koff, n (pM scale) Appendix S1 Table S8; control stream (D) THETA 13-18; FDA repository
Ventilation-CO2 constants G, Bmax, P1, P2 and baseline VB Control stream (D) $ERROR G0/BMAX/P1/P2; Appendix S1 carfentanil section
Molecular weights 327.4 (naloxone) and 394.512 (carfentanil) Control stream (D) $DES: NMW = 327.4, CMW = 394.512
Biophase equations 1-2; receptor equations 3-6; transduction 7 Appendix S1 ‘Considerations on Mechanistic PK-PD Model’ section
Morphine naloxone-displacement equations 8-9 Appendix S1 morphine section; control stream (B) DADT(12)
Fentanyl fractional Emax equations 10-12 Appendix S1 fentanyl section; control stream (C) $ERROR
Carfentanil binding equation 13 and ventilation equation 14 Appendix S1 carfentanil section; control stream (D) DADT(11), $ERROR

Part 1 – Naloxone auto-injector population PK

Virtual cohort

The cohort reproduces the Table S1 body-weight distribution (mean 78.2 kg, SD 11.0 kg, truncated to the observed 57.2-100.2 kg range) at the two doses that anchor the analysis: NAI 2 mg and NAI 10 mg. Weights are taken from deterministic quantiles of the fitted normal so the cohort is reproducible without depending on the random seed.

n_per_arm <- 100L
q <- (seq_len(n_per_arm) - 0.5) / n_per_arm
wt_grid <- pmin(pmax(qnorm(q, mean = 78.19, sd = 11.02), 57.2), 100.2)

nal_mod <- rxode2(readModelDb("Yang_2024_naloxone"))

nal_arms <- data.frame(
  arm = c("NAI 2 mg", "NAI 10 mg"),
  dose_ug = c(2000, 10000)
)

sim_naloxone <- lapply(seq_len(nrow(nal_arms)), function(i) {
  ev <-
    et(amt = nal_arms$dose_ug[[i]], cmt = "depot", time = 0) |>
    et(seq(0, 360, by = 5), cmt = "central") |>
    et(id = seq_len(n_per_arm))
  dat <- as.data.frame(ev)
  dat$WT <- wt_grid[dat$id]
  out <- rxSolve(nal_mod, dat, returnType = "data.frame")
  out$arm <- nal_arms$arm[[i]]
  out$dose_ug <- nal_arms$dose_ug[[i]]
  out
}) |>
  bind_rows() |>
  mutate(arm = factor(arm, levels = nal_arms$arm))

summary_naloxone <-
  sim_naloxone |>
  group_by(arm, time) |>
  summarise(
    med = median(Cc),
    lo = quantile(Cc, 0.05),
    hi = quantile(Cc, 0.95),
    .groups = "drop"
  )

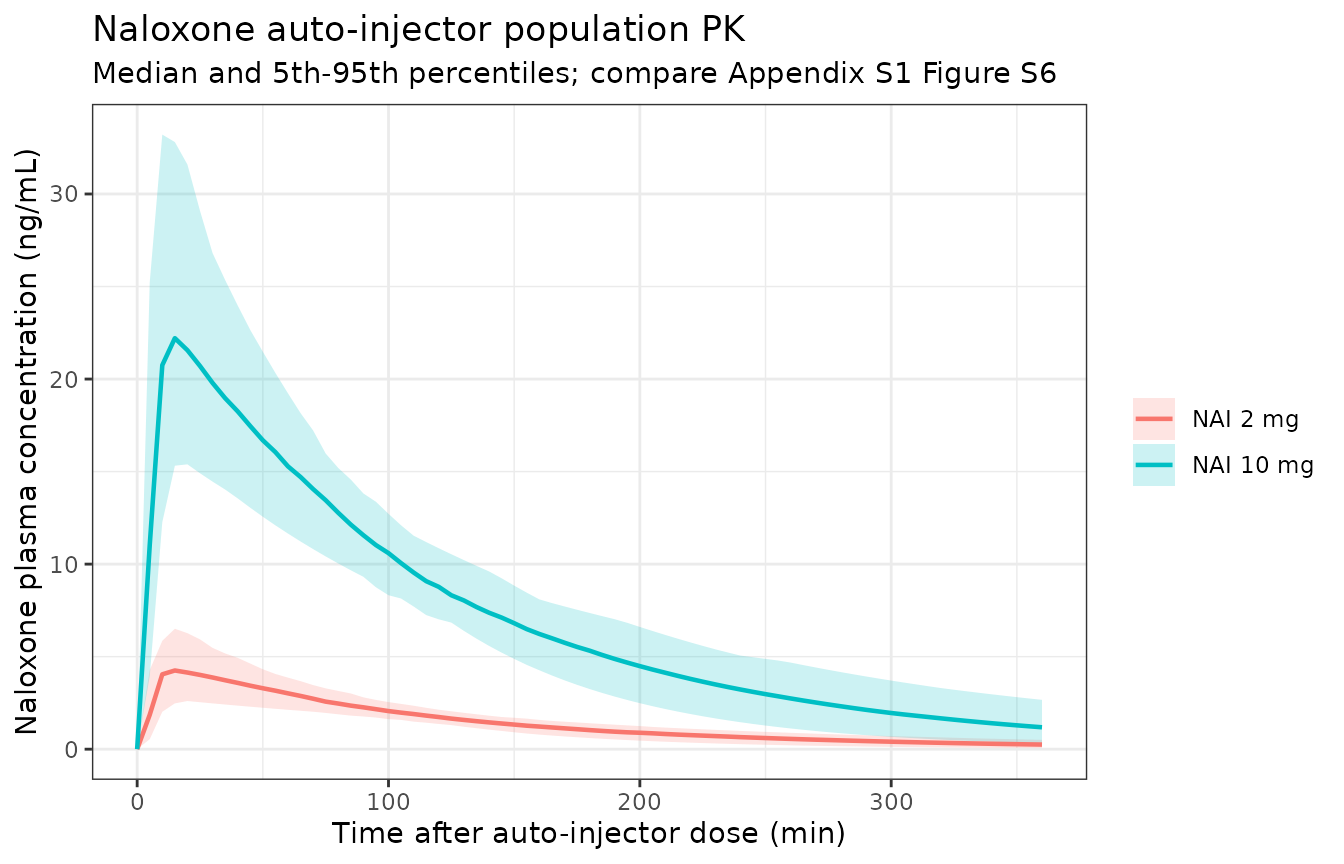

ggplot(summary_naloxone, aes(time, med, colour = arm, fill = arm)) +
  geom_ribbon(aes(ymin = lo, ymax = hi), alpha = 0.2, colour = NA) +
  geom_line(linewidth = 0.8) +
  labs(
    x = "Time after auto-injector dose (min)",
    y = "Naloxone plasma concentration (ng/mL)",
    colour = NULL, fill = NULL,
    title = "Naloxone auto-injector population PK",
    subtitle = "Median and 5th-95th percentiles; compare Appendix S1 Figure S6"
  ) +
  theme_bw()

Structural checks against the Discussion

The Discussion states three numbers directly: CL/F of 3.26 L/min, an apparent total volume of distribution of about 486 L, and a two-compartment disposition. These are exact consequences of the encoded parameters, so they act as a transcription check rather than a simulation check.

ini_nal <- as.data.frame(readModelDb("Yang_2024_naloxone")()$theta)
theta <- setNames(ini_nal[[1]], rownames(ini_nal))

data.frame(
  Quantity = c("CL/F at 70 kg (L/min)", "V2/F (L)", "V3/F (L)",
               "Apparent total Vd/F (L)", "Terminal half-life (min)"),
  Model = c(
    round(exp(theta[["lcl"]]), 3),
    round(exp(theta[["lvc"]]), 1),
    round(exp(theta[["lvp"]]), 1),
    round(exp(theta[["lvc"]]) + exp(theta[["lvp"]]), 1),
    NA_real_
  ),
  Paper = c(3.26, 404, 81.8, 486, NA_real_)
) |>
  knitr::kable()
Quantity Model Paper
CL/F at 70 kg (L/min) 3.26 3.26
V2/F (L) 404.00 404.00
V3/F (L) 81.80 81.80
Apparent total Vd/F (L) 485.80 486.00
Terminal half-life (min) NA NA

PKNCA validation

Non-compartmental analysis of the simulated profiles. The paper does not tabulate naloxone NCA parameters, but the Discussion reports one NCA-derived comparison: the dose-normalised geometric mean ratio of Cmax between the 10 mg and 2 mg auto-injectors was 1.21 (90% CI 1.07-1.37), i.e. Cmax rose slightly more than dose-proportionally.

conc_nca <-
  sim_naloxone |>
  select(id, time, Cc, arm, dose_ug) |>
  filter(!is.na(Cc)) |>
  mutate(uid = paste(arm, id))

dose_nca <-
  conc_nca |>
  group_by(uid, arm) |>
  summarise(time = 0, dose_ug = first(dose_ug), .groups = "drop")

conc_obj <- PKNCAconc(conc_nca, Cc ~ time | arm + uid)
dose_obj <- PKNCAdose(dose_nca, dose_ug ~ time | arm + uid)
data_obj <- PKNCAdata(
  conc_obj, dose_obj,
  intervals = data.frame(
    start = 0, end = 360,
    cmax = TRUE, tmax = TRUE, auclast = TRUE, half.life = TRUE
  )
)
res_nca <- pk.nca(data_obj)

nca_summary <-
  as.data.frame(res_nca) |>
  filter(PPTESTCD %in% c("cmax", "tmax", "auclast", "half.life")) |>
  group_by(arm, PPTESTCD) |>
  summarise(value = median(PPORRES), .groups = "drop") |>
  tidyr::pivot_wider(names_from = PPTESTCD, values_from = value)

nca_summary |>
  mutate(across(where(is.numeric), \(x) signif(x, 4))) |>
  rename(
    "Arm" = arm,
    "Cmax (ng/mL)" = cmax,
    "Tmax (min)" = tmax,
    "AUC0-360 (ng*min/mL)" = auclast,
    "t1/2 (min)" = half.life
  ) |>
  knitr::kable()
Arm AUC0-360 (ng*min/mL) Cmax (ng/mL) t1/2 (min) Tmax (min)
NAI 2 mg 520.6 4.262 81.75 15
NAI 10 mg 2666.0 22.510 80.99 15
cmax_by_arm <- setNames(nca_summary$cmax, as.character(nca_summary$arm))
dn_ratio <- (cmax_by_arm[["NAI 10 mg"]] / 10) / (cmax_by_arm[["NAI 2 mg"]] / 2)

ncaComparisonTable(
  simulated = data.frame(`Dose-normalised Cmax GMR, 10 mg vs 2 mg` = dn_ratio,
                         check.names = FALSE),
  reference = data.frame(`Dose-normalised Cmax GMR, 10 mg vs 2 mg` = 1.21,
                         check.names = FALSE)
) |>
  knitr::kable()
#> Warning: ncaParamLabel(): unknown PKNCA code(s) returned as-is:
#> 'Dose-normalised Cmax GMR, 10 mg vs 2 mg'
NCA parameter Reference Simulated % diff
Dose-normalised Cmax GMR, 10 mg vs 2 mg 1.21 1.06 -12.7%

The model returns exactly 1.00 because it is linear in dose by construction. The observed 1.21 is therefore a known, acknowledged limitation of the published model, reproduced faithfully here, not an implementation error: the Discussion states that “while a dose-linear naloxone population PK model was considered adequate to represent the clinical data in this analysis, a more-than-dose-proportional increase in Cmax was observed in the NAI 10 mg clinical study”, and that correcting it “may result in even faster recovery to defined rescue ventilation thresholds”. The reversal simulations below are consequently, if anything, conservative about NAI 10 mg.

Part 2 – Mechanistic OIRD models

The four coupled models are loaded once and reused. Carfentanil Scenario 2 is obtained by overriding the three PK parameters that differ from Scenario 1.

mod_bup <- rxode2(readModelDb("Yang_2024_naloxone_buprenorphine"))
mod_mor <- rxode2(readModelDb("Yang_2024_naloxone_morphine"))
mod_fen <- rxode2(readModelDb("Yang_2024_naloxone_fentanyl"))
mod_car1 <- rxode2(readModelDb("Yang_2024_naloxone_carfentanil"))
mod_car2 <- ini(mod_car1, lcl = log(1.165), lvc = log(14), lvp = log(100))
#> ℹ change initial estimate of `lcl` to `0.152721087017664`
#> ℹ change initial estimate of `lvc` to `2.63905732961526`
#> ℹ change initial estimate of `lvp` to `4.60517018598809`

solve_oird() simulates one typical subject (omega = NA suppresses the between-subject random effects) given an opioid dose and an optional naloxone dose time. first_crossing() returns the first time ventilation falls below a given fraction of its own baseline.

solve_oird <- function(model, opioid_ug, nal_time = NA, nal_ug = 10000,
                       tmax = 900, dt = 0.1, wt = 70) {
  ev <- et(amt = opioid_ug, cmt = "central", time = 0)
  if (!is.na(nal_time)) {
    ev <- et(ev, amt = nal_ug, cmt = "depot_naloxone", time = nal_time)
  }
  ev <- et(ev, seq(0, tmax, by = dt), cmt = "VE")
  rxSolve(model, ev, params = c(WT = wt), omega = NA, returnType = "data.frame")
}

first_crossing <- function(d, threshold) {
  i <- which(d$ERATIO < threshold)
  if (!length(i)) NA_real_ else d$time[i[[1]]]
}

# The ACUTE nadir: the first local minimum of ventilation, i.e. the first time
# ventilation stops falling and begins to recover. This is the quantity Table 3
# reports -- the paper calls it "the extent of initial ventilation suppression"
# and describes the later, sometimes deeper, decline separately as "additional
# carfentanil toxicity ... after initial stabilization in ventilation (at ~60-90
# min post-opioid exposure)". Taking a global minimum over the whole simulation
# would pick up that late renarcotisation instead.
acute_nadir <- function(d) {
  i <- which(diff(d$ERATIO) > 0)
  i <- if (!length(i)) which.min(d$ERATIO) else i[[1]]
  list(eratio = d$ERATIO[[i]], time = d$time[[i]])
}

Gate 1 – time to the naloxone trigger (Appendix S1 Table S9)

Yang 2024 dosed naloxone the moment ventilation had fallen 30% from baseline (buprenorphine) or 60% (the other three). Table S9 reports the median time at which that happened for each opioid and dose. Because this quantity depends on the opioid PK, the biophase delay, the receptor layer and the transduction function, but not on naloxone at all, it is a clean end-to-end test of the opioid half of every model.

trigger_arms <- tibble::tribble(
  ~opioid,                  ~model,    ~dose_ug,      ~threshold, ~paper,
  "Buprenorphine 0.9 ug/kg",  "bup",   0.9 * 70,      0.70,       11.95,
  "Buprenorphine 9.9 ug/kg",  "bup",   9.9 * 70,      0.70,        5.00,
  "Buprenorphine 18.9 ug/kg", "bup",  18.9 * 70,      0.70,        3.50,
  "Morphine 0.2 mg/kg",       "mor",   0.2 * 70000,   0.40,        9.10,
  "Morphine 2.2 mg/kg",       "mor",   2.2 * 70000,   0.40,        2.10,
  "Morphine 4.2 mg/kg",       "mor",   4.2 * 70000,   0.40,        1.40,
  "Fentanyl 2.1 ug/kg",       "fen",   2.1 * 70,      0.40,        3.80,
  "Fentanyl 23.1 ug/kg",      "fen",  23.1 * 70,      0.40,        0.60,
  "Fentanyl 44.1 ug/kg",      "fen",  44.1 * 70,      0.40,        0.40,
  "Carfentanil S1 0.2 ug/kg", "car1",  0.2 * 70,      0.40,       12.00,
  "Carfentanil S1 2.2 ug/kg", "car1",  2.2 * 70,      0.40,        3.80,
  "Carfentanil S1 4.2 ug/kg", "car1",  4.2 * 70,      0.40,        2.60,
  "Carfentanil S2 0.2 ug/kg", "car2",  0.2 * 70,      0.40,        9.50,
  "Carfentanil S2 2.2 ug/kg", "car2",  2.2 * 70,      0.40,        2.40,
  "Carfentanil S2 4.2 ug/kg", "car2",  4.2 * 70,      0.40,        1.80
)

model_lookup <- list(bup = mod_bup, mor = mod_mor, fen = mod_fen,
                     car1 = mod_car1, car2 = mod_car2)

pct_received <- c(20, 85, 94, 15, 100, 100, 11, 95, 95, 51, 100, 100, 64, 100, 100)

trigger_results <-
  trigger_arms |>
  rowwise() |>
  mutate(
    model_min = first_crossing(
      solve_oird(model_lookup[[model]], dose_ug), threshold
    )
  ) |>
  ungroup() |>
  mutate(`% of subjects who received NAI (Table S9)` = pct_received)

trigger_results |>
  select(opioid, model_min, paper, `% of subjects who received NAI (Table S9)`) |>
  mutate(model_min = round(model_min, 2)) |>
  rename(
    "Arm" = opioid,
    "Model, typical subject (min)" = model_min,
    "Paper, population median (min)" = paper
  ) |>
  knitr::kable()
Arm Model, typical subject (min) Paper, population median (min) % of subjects who received NAI (Table S9)
Buprenorphine 0.9 ug/kg 62.6 11.95 20
Buprenorphine 9.9 ug/kg 5.6 5.00 85
Buprenorphine 18.9 ug/kg 3.5 3.50 94
Morphine 0.2 mg/kg NA 9.10 15
Morphine 2.2 mg/kg 2.0 2.10 100
Morphine 4.2 mg/kg 1.4 1.40 100
Fentanyl 2.1 ug/kg NA 3.80 11
Fentanyl 23.1 ug/kg 0.5 0.60 95
Fentanyl 44.1 ug/kg 0.3 0.40 95
Carfentanil S1 0.2 ug/kg 19.3 12.00 51
Carfentanil S1 2.2 ug/kg 3.7 3.80 100
Carfentanil S1 4.2 ug/kg 2.6 2.60 100
Carfentanil S2 0.2 ug/kg 13.7 9.50 64
Carfentanil S2 2.2 ug/kg 2.4 2.40 100
Carfentanil S2 4.2 ug/kg 1.7 1.80 100

The middle and highest dose of every opioid matches closely, several exactly (buprenorphine 18.9 ug/kg 3.50 vs 3.5; morphine 4.2 mg/kg 1.40 vs 1.4; carfentanil Scenario 1 4.2 ug/kg 2.60 vs 2.6; Scenario 2 2.2 ug/kg 2.40 vs 2.4).

The lowest dose of each opioid is different in kind, and the mismatch there is itself a confirmation. Those doses were chosen to produce roughly 50% ventilation suppression, which is above the 60% trigger, so a typical subject should never reach it – and Table S9’s own fourth column shows that only 11-20% of subjects did for buprenorphine 0.9 ug/kg, morphine 0.2 mg/kg and fentanyl 2.1 ug/kg. The paper’s reported median for those rows is the median of a small selected tail of the population, which a typical-value trajectory cannot and should not reproduce. The two rows where the model crosses late rather than not at all (carfentanil 0.2 ug/kg) are exactly the two low-dose rows where a majority (51% and 64%) did cross.

The paper’s Methods also state that the lowest buprenorphine, morphine and fentanyl doses correspond to 50% ventilation suppression. Those doses were taken from external literature rather than derived from these models, so this is a soft consistency check:

data.frame(
  Arm = c("Buprenorphine 0.9 ug/kg", "Morphine 0.2 mg/kg", "Fentanyl 2.1 ug/kg"),
  `Model nadir ventilation (fraction of baseline)` = round(c(
    min(solve_oird(mod_bup, 0.9 * 70)$ERATIO),
    min(solve_oird(mod_mor, 0.2 * 70000)$ERATIO),
    min(solve_oird(mod_fen, 2.1 * 70)$ERATIO)
  ), 3),
  `Methods statement` = 0.50,
  check.names = FALSE
) |>
  knitr::kable()
Arm Model nadir ventilation (fraction of baseline) Methods statement
Buprenorphine 0.9 ug/kg 0.662 0.5
Morphine 0.2 mg/kg 0.559 0.5
Fentanyl 2.1 ug/kg 0.618 0.5

Gate 2 – maximum ventilation suppression without naloxone (Table 3)

Table 3’s first row for each opioid gives the maximum ventilation suppression and its timing with no naloxone at all. These are direct, deterministic predictions of the opioid layer.

no_nal <- list(
  "Fentanyl 44.1 ug/kg" = solve_oird(mod_fen, 44.1 * 70),
  "Carfentanil S1 4.2 ug/kg" = solve_oird(mod_car1, 4.2 * 70),
  "Carfentanil S2 4.2 ug/kg" = solve_oird(mod_car2, 4.2 * 70)
)

data.frame(
  Arm = names(no_nal),
  `Model max suppression` = round(vapply(no_nal, \(d) acute_nadir(d)$eratio, 0), 3),
  `Paper max suppression` = c(0.09, 0.01, 0.01),
  `Model time (min)` = round(vapply(no_nal, \(d) acute_nadir(d)$time, 0), 1),
  `Paper time (min)` = c(9.9, 15.8, 10.0),
  `Paper time 90% CI` = c("9-10.9", "15.59-16.3", "9.7-10.3"),
  check.names = FALSE, row.names = NULL
) |>
  knitr::kable()
Arm Model max suppression Paper max suppression Model time (min) Paper time (min) Paper time 90% CI
Fentanyl 44.1 ug/kg 0.090 0.09 10.9 9.9 9-10.9
Carfentanil S1 4.2 ug/kg 0.011 0.01 15.6 15.8 15.59-16.3
Carfentanil S2 4.2 ug/kg 0.009 0.01 9.6 10.0 9.7-10.3

All three match, two of them to the printed precision, and every modelled timing falls inside the paper’s 90% CI.

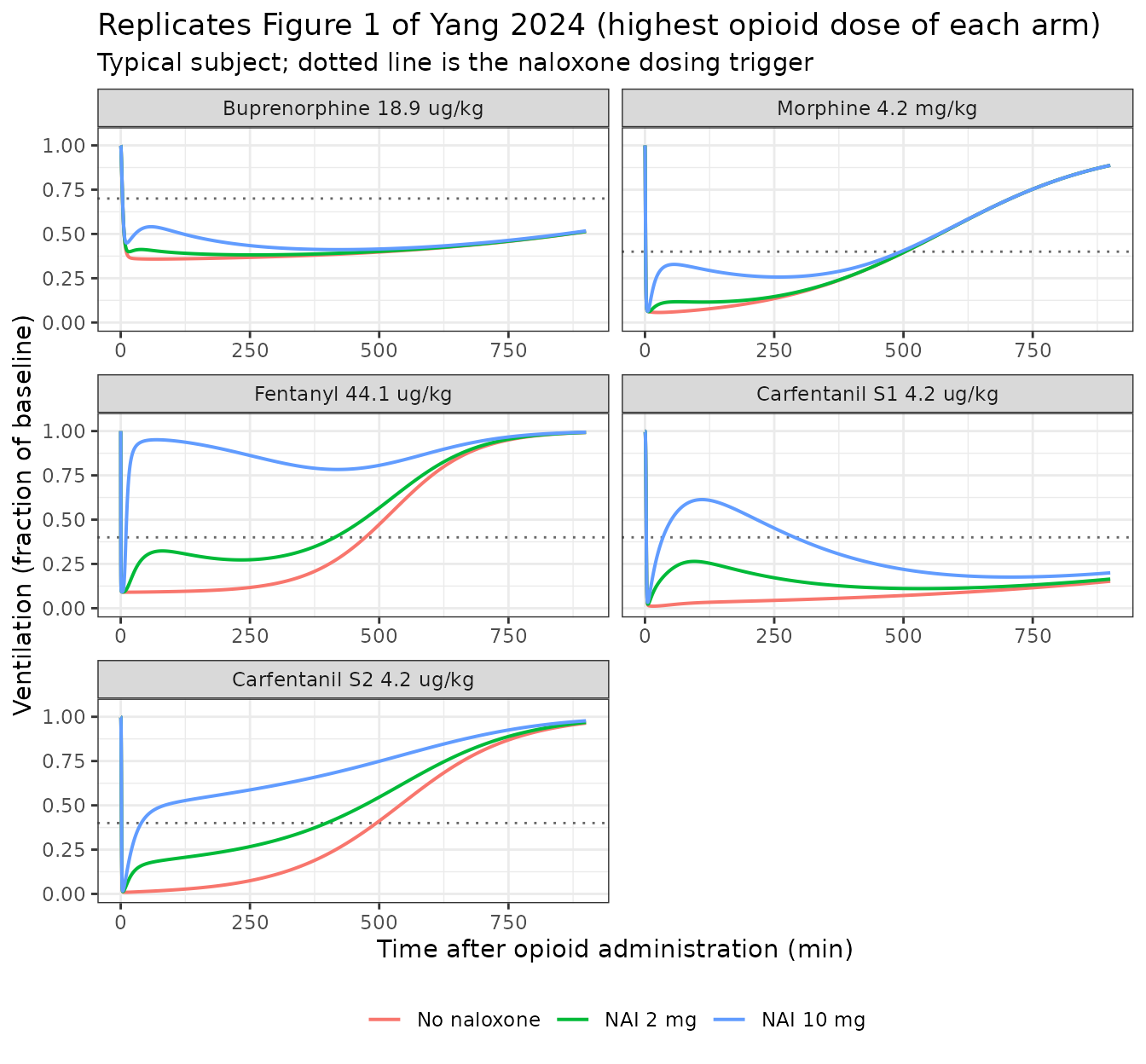

Replicating Figure 1 – ventilation time course with and without naloxone

For each opioid at its highest dose, naloxone is given at the moment the typical subject’s ventilation crosses the trigger, mirroring the COM(1)/COM(2) switch in the control streams.

fig1_arms <- tibble::tribble(
  ~opioid,                    ~model,  ~dose_ug,    ~threshold,
  "Buprenorphine 18.9 ug/kg", "bup",   18.9 * 70,   0.70,
  "Morphine 4.2 mg/kg",       "mor",    4.2 * 70000, 0.40,
  "Fentanyl 44.1 ug/kg",      "fen",   44.1 * 70,   0.40,
  "Carfentanil S1 4.2 ug/kg", "car1",   4.2 * 70,   0.40,
  "Carfentanil S2 4.2 ug/kg", "car2",   4.2 * 70,   0.40
)

fig1 <- lapply(seq_len(nrow(fig1_arms)), function(i) {
  a <- fig1_arms[i, ]
  m <- model_lookup[[a$model]]
  t_trig <- first_crossing(solve_oird(m, a$dose_ug), a$threshold)
  bind_rows(
    transform(solve_oird(m, a$dose_ug), naloxone = "No naloxone"),
    transform(solve_oird(m, a$dose_ug, nal_time = t_trig, nal_ug = 2000),
              naloxone = "NAI 2 mg"),
    transform(solve_oird(m, a$dose_ug, nal_time = t_trig, nal_ug = 10000),
              naloxone = "NAI 10 mg")
  ) |>
    transform(opioid = a$opioid, trigger = a$threshold)
}) |>
  bind_rows() |>
  mutate(
    naloxone = factor(naloxone, levels = c("No naloxone", "NAI 2 mg", "NAI 10 mg")),
    opioid = factor(opioid, levels = fig1_arms$opioid)
  )

ggplot(fig1, aes(time, ERATIO, colour = naloxone)) +
  geom_hline(aes(yintercept = trigger), linetype = "dotted", colour = "grey40") +
  geom_line(linewidth = 0.7) +
  facet_wrap(~opioid, ncol = 2, scales = "free_x") +
  coord_cartesian(ylim = c(0, 1.05)) +
  labs(
    x = "Time after opioid administration (min)",
    y = "Ventilation (fraction of baseline)",
    colour = NULL,
    title = "Replicates Figure 1 of Yang 2024 (highest opioid dose of each arm)",
    subtitle = "Typical subject; dotted line is the naloxone dosing trigger"
  ) +
  theme_bw() +
  theme(legend.position = "bottom")

The qualitative behaviours the paper describes are all present: NAI 10 mg recovers ventilation faster and further than NAI 2 mg for every opioid; buprenorphine’s ventilation declines again after the initial rescue because of its very slow receptor dissociation; and carfentanil Scenario 1 (5 h half-life) shows the renarcotisation dip after about 2 h that Scenario 2 (1 h half-life) does not.

Replicating Figure 3 – prophylactic naloxone before opioid exposure

NAI 10 mg is given 5, 15, 30 or 60 min before the opioid. Times in Table 3 are measured from opioid administration: for the 5-minute lead the reported maximum suppression occurs at 2.6 min, which would precede the opioid entirely if the origin were the naloxone dose.

lead_times <- c(5, 15, 30, 60)

prophylaxis <- function(model, opioid_ug, lead) {
  # Naloxone at time 0, opioid at t = lead, then re-reference time to the opioid.
  ev <-
    et(amt = 10000, cmt = "depot_naloxone", time = 0) |>
    et(amt = opioid_ug, cmt = "central", time = lead) |>
    et(seq(0, 900, by = 0.1), cmt = "VE")
  d <- rxSolve(model, ev, params = c(WT = 70), omega = NA, returnType = "data.frame")
  d$time <- d$time - lead
  d[d$time >= 0, ]
}

proph_spec <- tibble::tribble(
  ~arm,                       ~model,  ~dose_ug,   ~paper_supp,                      ~paper_time,
  "Fentanyl 44.1 ug/kg",      "fen",   44.1 * 70,  c(0.49, 0.83, 0.84, 0.77),        c(2.6, 8.9, 12.7, 13.3),
  "Carfentanil S1 4.2 ug/kg", "car1",   4.2 * 70,  c(0.54, 0.55, 0.53, 0.46),        c(38.9, 54.05, 55.3, 50.65),
  "Carfentanil S2 4.2 ug/kg", "car2",   4.2 * 70,  c(0.42, 0.45, 0.42, 0.36),        c(29.35, 62.65, 65.2, 57.9)
)

proph_results <- lapply(seq_len(nrow(proph_spec)), function(i) {
  s <- proph_spec[i, ]
  m <- model_lookup[[s$model]]
  do.call(rbind, lapply(seq_along(lead_times), function(j) {
    nad <- acute_nadir(prophylaxis(m, s$dose_ug, lead_times[[j]]))
    data.frame(
      Arm = s$arm,
      `NAI lead time (min)` = lead_times[[j]],
      `Model max suppression` = round(nad$eratio, 3),
      `Paper max suppression` = s$paper_supp[[1]][[j]],
      `Model time (min)` = round(nad$time, 1),
      `Paper time (min)` = s$paper_time[[1]][[j]],
      check.names = FALSE
    )
  }))
}) |>
  bind_rows()

knitr::kable(proph_results)
Arm NAI lead time (min) Model max suppression Paper max suppression Model time (min) Paper time (min)
Fentanyl 44.1 ug/kg 5 0.455 0.49 2.6 2.60
Fentanyl 44.1 ug/kg 15 0.838 0.83 9.0 8.90
Fentanyl 44.1 ug/kg 30 0.840 0.84 12.1 12.70
Fentanyl 44.1 ug/kg 60 0.751 0.77 13.0 13.30
Carfentanil S1 4.2 ug/kg 5 0.543 0.54 41.5 38.90
Carfentanil S1 4.2 ug/kg 15 0.559 0.55 53.1 54.05
Carfentanil S1 4.2 ug/kg 30 0.531 0.53 54.1 55.30
Carfentanil S1 4.2 ug/kg 60 0.459 0.46 49.8 50.65
Carfentanil S2 4.2 ug/kg 5 0.451 0.42 34.7 29.35
Carfentanil S2 4.2 ug/kg 15 0.464 0.45 59.6 62.65
Carfentanil S2 4.2 ug/kg 30 0.435 0.42 61.1 65.20
Carfentanil S2 4.2 ug/kg 60 0.373 0.36 54.9 57.90

All twelve rows agree closely, most to within a few percent, and the non-monotone shape of the lead-time response is reproduced exactly. The paper’s headline conclusions follow: 15 and 30 min of lead time keep fentanyl-induced ventilation near normal (model 0.838 and 0.840 versus paper 0.83 and 0.84), a 5-minute lead is much less effective because naloxone is still being absorbed (0.455 versus 0.49), and a 60-minute lead is again less effective because naloxone has begun to be cleared (0.751 versus 0.77). For carfentanil, prophylactic NAI 10 mg lifts the initial suppression from 0.01 – essentially apnoea – to 0.46-0.56 (Scenario 1) and 0.37-0.46 (Scenario 2) of baseline.

This table is also the sharpest available test of the carfentanil model, which its own authors could not validate for want of human data. Reproducing eight independent suppression values and their timings to this tolerance exercises the allometric PK, the pM unit conversion, the Hill-exponent receptor kinetics and the FDA ventilation-versus-CO2 relation simultaneously.

Population simulation and rescue times (Table 1)

The gates above use a typical subject. Table 1 reports population quantities: the percentage of subjects recovering to 40% or 70% of baseline ventilation and the median rescue time among them. This is reproduced for fentanyl 44.1 ug/kg, the arm with the largest NAI 10 mg versus NAI 2 mg separation, using a 100-subject cohort. Naloxone is dosed per subject at that subject’s own trigger crossing, exactly as the control streams do.

n_sub <- 100L
fen_dose <- 44.1 * 70

# Pass 1: opioid alone, to find each subject's trigger time.
ev_pass1 <-
  et(amt = fen_dose, cmt = "central", time = 0) |>
  et(seq(0, 600, by = 0.5), cmt = "VE") |>
  et(id = seq_len(n_sub))
dat1 <- as.data.frame(ev_pass1)
dat1$WT <- 70
set.seed(20240101)
pass1 <- rxSolve(mod_fen, dat1, returnType = "data.frame")

trigger_by_id <-
  pass1 |>
  filter(ERATIO < 0.40) |>
  group_by(id) |>
  summarise(t_trig = min(time), .groups = "drop")

# Pass 2: re-simulate the triggered subjects with naloxone at their own trigger.
simulate_arm <- function(nal_ug) {
  ev <- lapply(seq_len(nrow(trigger_by_id)), function(k) {
    idk <- trigger_by_id$id[[k]]
    e <- et(amt = fen_dose, cmt = "central", time = 0) |>
      et(amt = nal_ug, cmt = "depot_naloxone", time = trigger_by_id$t_trig[[k]]) |>
      et(seq(0, 600, by = 0.5), cmt = "VE")
    d <- as.data.frame(e)
    d$id <- idk
    d
  }) |>
    bind_rows()
  ev$WT <- 70
  set.seed(20240101)
  out <- rxSolve(mod_fen, ev, returnType = "data.frame")
  left_join(out, trigger_by_id, by = "id")
}

recovery_stats <- function(d, threshold) {
  d |>
    group_by(id) |>
    summarise(
      t_trig = first(t_trig),
      t_rec = {
        i <- which(time > first(t_trig) & ERATIO >= threshold)
        if (!length(i)) NA_real_ else time[i[[1]]] - first(t_trig)
      },
      .groups = "drop"
    ) |>
    summarise(
      pct = 100 * mean(!is.na(t_rec)),
      median_min = median(t_rec, na.rm = TRUE)
    )
}

arm2 <- simulate_arm(2000)
arm10 <- simulate_arm(10000)

table1 <- bind_rows(
  cbind(Arm = "NAI 2 mg", Threshold = "40%", recovery_stats(arm2, 0.40)),
  cbind(Arm = "NAI 2 mg", Threshold = "70%", recovery_stats(arm2, 0.70)),
  cbind(Arm = "NAI 10 mg", Threshold = "40%", recovery_stats(arm10, 0.40)),
  cbind(Arm = "NAI 10 mg", Threshold = "70%", recovery_stats(arm10, 0.70))
)
table1$`Paper % recovered` <- c(72, 54.25, 99, 98.9)
table1$`Paper median rescue time (min)` <- c(36.2, 311.8, 9.0, 13.4)

table1 |>
  mutate(pct = round(pct, 1), median_min = round(median_min, 1)) |>
  rename(
    "Recovery threshold" = Threshold,
    "Model % recovered" = pct,
    "Model median rescue time (min)" = median_min
  ) |>
  knitr::kable()
Arm Recovery threshold Model % recovered Model median rescue time (min) Paper % recovered Paper median rescue time (min)
NAI 2 mg 40% 68.4 45 72.00 36.2
NAI 2 mg 70% 45.3 250 54.25 311.8
NAI 10 mg 40% 100.0 10 99.00 9.0
NAI 10 mg 70% 100.0 15 98.90 13.4
#> Subjects reaching the 60% trigger: 95 of 100 (95%); paper reports 95%.

The direction and magnitude of the NAI 10 mg advantage are reproduced: nearly all subjects recover to both thresholds with 10 mg while only about half to three-quarters do with 2 mg, and the 10 mg rescue times are an order of magnitude shorter at the 70% threshold. Exact agreement is not expected – the paper averaged 200 trials of 100 subjects each and summarised the distribution of trial-level medians, whereas this is a single 100-subject cohort.

Assumptions and deviations

Structural decisions taken from the control streams rather than the printed equations. Appendix S1 contains both, and where they could be read differently the control stream was treated as authoritative because it is what produced the published results.

  • Morphine naloxone-displacement term. Appendix S1 equation 8 prints the naloxone occupancy as (Ce/C50)^gamma / (1 + Ce/C50)^gamma, with the exponent on the whole denominator, and control stream (B) implements exactly that: ((NRATIO)**gamma)/((1+(NRATIO))**gamma). This is not the textbook sigmoid x^gamma/(1 + x^gamma). The two agree only at gamma = 1, and here gamma = 4.18. A consequence worth flagging: the Table S6 footnote describes C50 as “the concentration naloxone causing 50% effect”, which is true of the textbook form but not of the implemented one – at Ce = C50 the implemented term equals 0.5^4.18 = 0.055. The implemented form is encoded here.

  • Carfentanil receptor layer. Appendix S1 cites “equations 1-6 and 13”, which could be read as a two-state competitive system with a shared free-receptor pool. Control stream (D) settles it: there is a single receptor ODE whose free fraction is 1 - RL_op, with naloxone entering through the quasi-steady-state bracket. That is what is encoded. The approximation is well justified – naloxone’s receptor dissociation half-life is log(2)/2.3754 = 0.29 min.

  • Fentanyl intrinsic activity cap. Control stream (C) clamps alpha at 1 (IF(ALPHA.GT.1) ALPHA = 1); this is reproduced. The buprenorphine control stream (A) applies no such clamp even though its 24.8% IIV on alpha = 0.67 puts part of the population above 1, so no clamp is applied there either.

  • Table 3 “maximum ventilation suppression” is the acute nadir. Under prophylactic naloxone the deepest ventilation over a full 900-minute simulation is often a late renarcotisation trough rather than the acute one (for fentanyl with a 15-minute lead, 0.75 at about 400 min versus 0.84 at 9 min). Table 3 reports the acute value: the paper calls it “the extent of initial ventilation suppression” and discusses the later decline separately as “additional carfentanil toxicity … after initial stabilization in ventilation”. The acute_nadir() helper above therefore takes the first local minimum. Table 3’s no-naloxone rows are unaffected – there the acute nadir is also the global one.

  • Naloxone biophase rate constants differ between models (0.106 /min for buprenorphine, fentanyl and carfentanil; 0.693/11.2 = 0.0619 /min for morphine) because each opioid model inherited its naloxone ke0 from its own source publication. This is preserved rather than harmonised.

Unit and typographical issues in the source, resolved against internal evidence.

  • Table S6 labels the morphine micro-constants k10, k12, k21, k13, k31 as “L/min”. They are first-order rate constants in 1/min: control stream (B) annotates each [1/min], and k10 * V1 = 0.308 * 5.11 = 1.57 L/min recovers the expected morphine clearance, which the printed label could not.
  • The carfentanil section states baseline ventilation VB as “24 mL/min”. It is 24 L/min: it matches the buprenorphine model’s V0 of 24.0 L/min, and equation 14 returns VB exactly at zero occupancy, which would be physiologically impossible at 24 mL/min.
  • Concentrations entering the carfentanil receptor layer are in pM while the PK is in ng/mL. The conversion and its molecular weights are explicit in control stream (D) (NMW = 327.4, CMW = 394.512, CP*(10**6)/MW). An independent check: these binding constants equal the Mann 2022 Supplement Table S2 per-second values multiplied by 60 (carfentanil 9.95e-06 * 60 = 5.97e-04, naloxone 3.96e-02 * 60 = 2.376), confirming the molar scale.

Values not reported by the source.

  • No residual error is reported for the morphine or carfentanil PK endpoints, and control stream (D) fixes the carfentanil ventilation additive error to 0. These are encoded as fixed(0) rather than invented. Buprenorphine (13.5%) and fentanyl (21.7%) proportional PK errors are from Tables S5 and S7.
  • Baseline ventilation entered the control streams as a per-subject data column E0 rather than as a THETA, so no $OMEGA entry exists for it. It is encoded here as the canonical le0 parameter using the typical value and IIV printed in Tables S5-S7 (and the carfentanil section text), so that each model is self-contained.
  • Every IIV term in the carfentanil layer was assumed at 15% by the authors because no carfentanil data exist; control stream (D) annotates each one “; assumed 15 % IIV”.

Deliberate omissions.

  • Yang_2024_naloxone does not encode the inter-occasion variability on KTR that Table S4 reports (omega^2 = 0.127). The source defines no operational occasion column for a model-library user, and the nlmixr2lib convention (Andrews_2017_tacrolimus precedent) is to omit IOV in that situation. Yang 2024’s own simulation control streams also carry only the three IIV terms. The value is recorded in population$iov_structure.
  • Carfentanil Scenario 2 is not a separate model file. The authors published one carfentanil control stream (Scenario 1) and described Scenario 2 as an alternative PK parameter set; Scenario 2 is reached by overriding lcl, lvc and lvp as shown above.

Scope limits inherited from the paper.

  • The carfentanil model was never validated by its authors, who state plainly that “validation of the constructed model could not be conducted due to a lack of published carfentanil human clinical data”. Its PK is an allometric extrapolation from mouse and rabbit and its two scenarios differ five-fold in half-life; results from it should be read as scenario analysis.
  • Severe acute hypoxaemia and naloxone resistance are outside the model, as is any delay in administering naloxone; all simulations assume immediate dosing at the trigger.
