Balovaptan (Schaedeli Stark 2024)

Source: vignettes/articles/SchaedeliStark_2024_balovaptan.Rmd
SchaedeliStark_2024_balovaptan.Rmd
library(nlmixr2lib)
library(PKNCA)
#>
#> Attaching package: 'PKNCA'
#> The following object is masked from 'package:stats':
#>
#>     filter
library(rxode2)
#> rxode2 5.1.6 using 2 threads (see ?getRxThreads)
#>   no cache: create with `rxCreateCache()`
library(dplyr)
#>
#> Attaching package: 'dplyr'
#> The following objects are masked from 'package:stats':
#>
#>     filter, lag
#> The following objects are masked from 'package:base':
#>
#>     intersect, setdiff, setequal, union
library(tidyr)
library(ggplot2)

Model and source

  • Citation: Schaedeli Stark F, Chavanne C, Derks M, Jolling K, Lagraauw HM, Lindbom L, Prins K, Silber Baumann HE. A population pharmacokinetics model of balovaptan to support dose selection in adult and pediatric populations. J Pharmacokinet Pharmacodyn. 2024;51(3):227-242. doi:10.1007/s10928-023-09898-0
  • Description: One-compartment population PK model of balovaptan with transit-compartment absorption, a dose-dependent central volume from empirical saturable binding, a turnover-gated gut extraction process, and brain V1a receptor occupancy, in adults and children with autism spectrum disorder (Schaedeli Stark 2024)
  • Article: https://doi.org/10.1007/s10928-023-09898-0 (open access; PMCID PMC11136808)
  • Supplement: online supplementary material to the same DOI (goodness-of-fit figures plus the development-stage explicit-binding and empirical-binding two-compartment models; it carries no final-model parameters)
mod <- rxode2::rxode(readModelDb("SchaedeliStark_2024_balovaptan"))
mod
#>  ── rxode2-based free-form 9-cmt ODE model ──────────────────────────────────────
#>  ── Initalization: ──
#> Fixed Effects ($theta):
#>             lcl             lvc            lmtt             ntr          lvbmax
#>       2.1424163       6.3368257      -1.0023934       5.8100000      -0.2169130
#>          lvba50         lkgutex           lkout           lsmod         e_wt_vc
#>       1.2119410       0.6365768      -6.1899155       3.0910425       1.0000000
#>       e_fed_mtt        e_age_cl        age50_cl          lkd_fu    propSd_early
#>       3.3900000       0.2670000       5.3400000       1.1505720       1.2000000
#>     propSd_late propSd_exp_kdes           addSd        addSd_RO
#>       0.2160000       1.3200000       0.0250000       0.0000000
#>
#> Omega ($omega):
#>         etalcl etalvc etalmtt
#> etalcl    0.15 0.0000  0.0000
#> etalvc    0.00 0.0944  0.0000
#> etalmtt   0.00 0.0000  0.0423
#>
#> States ($state or $stateDf):
#>   Compartment Number Compartment Name
#> 1                  1            depot
#> 2                  2         transit1
#> 3                  3         transit2
#> 4                  4         transit3
#> 5                  5         transit4
#> 6                  6         transit5
#> 7                  7         transit6
#> 8                  8          central
#> 9                  9       moderator1
#>  ── Multiple Endpoint Model ($multipleEndpoint): ──
#>   variable                cmt               dvid*
#> 1   Cc ~ … cmt='Cc' or cmt=10 dvid='Cc' or dvid=1
#> 2   RO ~ … cmt='RO' or cmt=11 dvid='RO' or dvid=2
#>   * If dvids are outside this range, all dvids are re-numered sequentially, ie 1,7, 10 becomes 1,2,3 etc
#>
#>  ── μ-referencing ($muRefTable): ──
#>   theta     eta level
#> 1   lcl  etalcl    id
#> 2   lvc  etalvc    id
#> 3  lmtt etalmtt    id
#>
#>  ── Model (Normalized Syntax): ──
#> function() {
#>     compartmentData <- list(depot = list(analyte = "balovaptan",
#>         units = "mg", specimen = "administration site", verified = TRUE),
#>         transit1 = list(analyte = "balovaptan", units = "mg",
#>             specimen = "administration site", verified = TRUE),
#>         transit2 = list(analyte = "balovaptan", units = "mg",
#>             specimen = "administration site", verified = TRUE),
#>         transit3 = list(analyte = "balovaptan", units = "mg",
#>             specimen = "administration site", verified = TRUE),
#>         transit4 = list(analyte = "balovaptan", units = "mg",
#>             specimen = "administration site", verified = TRUE),
#>         transit5 = list(analyte = "balovaptan", units = "mg",
#>             specimen = "administration site", verified = TRUE),
#>         transit6 = list(analyte = "balovaptan", units = "mg",
#>             specimen = "administration site", verified = TRUE),
#>         central = list(analyte = "balovaptan", units = "mg",
#>             specimen = "plasma", verified = TRUE), moderator1 = list(analyte = NA_character_,
#>             units = "(unitless fraction)", specimen = "not applicable",
#>             verified = TRUE))
#>     covariateData <- list(WT = list(description = "Body weight",
#>         units = "kg", type = "continuous", reference_category = NULL,
#>         notes = "Directly proportional (exponent fixed to 1.00) scaling of the baseline central volume, normalised to a 76 kg reference. 76 kg was the median weight of the neurotypical adult volunteers in the pooled dataset. Weight was NOT retained on CL/F: the estimated exponent (0.256) lost significance once the age maturation function was added.",
#>         source_name = "WT"), AGE = list(description = "Age",
#>         units = "years", type = "continuous", reference_category = NULL,
#>         notes = "Drives the asymptotic CL/F maturation function. Reaches 50% of adult CL/F at AGE50 = 5.34 years and ~90% at 14 years; effectively at plateau by 20 years, and no further age effect up to 65 years.",
#>         source_name = "AGE"), FED = list(description = "Fed state at dosing",
#>         units = "(binary)", type = "binary", reference_category = "0 (fasted)",
#>         notes = "Multiplicative power-form effect on the mean transit time: MTT = MTT_fasted * 3.39^FED. The factor was fixed (not estimated) because only 4.3% of the participants with PK data were fasted. Both phase II ASD studies dosed with food, so the paper's own typical-participant simulations (Figs. 5 and 6) correspond to FED = 1.",
#>         source_name = "FOOD"))
#>     description <- "One-compartment population PK model of balovaptan with transit-compartment absorption, a dose-dependent central volume from empirical saturable binding, a turnover-gated gut extraction process, and brain V1a receptor occupancy, in adults and children with autism spectrum disorder (Schaedeli Stark 2024)"
#>     paper_specific_residual_sds <- c("propSd_early", "propSd_late",
#>         "propSd_exp_kdes")
#>     population <- list(species = "human", n_subjects = 370, n_studies = 5,
#>         age_range = "5-64 years (median 19)", weight_range = "18.8-152.0 kg (median 72.8)",
#>         sex_female_pct = 8.1, disease_state = "autism spectrum disorder with IQ >= 70 (n = 315) and neurotypical adults (n = 55)",
#>         dose_range = "1.5-52 mg once daily, oral", regions = "not reported",
#>         notes = "Pooled from three phase I studies in neurotypical adults (NCT01418963 n = 24, NCT03579719 n = 15, NCT03586726 n = 16; rich sampling, 5-52 mg) and two phase II ASD studies (VANILLA NCT01793441 n = 146 adults; aV1ation NCT02901431 n = 169 children and adolescents 5-17 years; sparse sampling, 1.5-10 mg). 3985 PK observations. The model was subsequently used to simulate IV infusion dosing and brain V1a receptor occupancy for a phase II malignant-cerebral-edema trial (NCT05399550); no IV data were fitted.")
#>     reference <- "Schaedeli Stark F, Chavanne C, Derks M, Jolling K, Lagraauw HM, Lindbom L, Prins K, Silber Baumann HE. A population pharmacokinetics model of balovaptan to support dose selection in adult and pediatric populations. J Pharmacokinet Pharmacodyn. 2024;51(3):227-242. doi:10.1007/s10928-023-09898-0"
#>     units <- list(time = "h", dosing = "mg", concentration = "ng/mL")
#>     vignette <- "SchaedeliStark_2024_balovaptan"
#>     ini({
#>         lcl <- 2.14241634084122
#>         label("Apparent clearance CL/F (L/hr)")
#>         lvc <- 6.33682573114644
#>         label("Apparent central volume of distribution at baseline V0 (L)")
#>         lmtt <- -1.00239343092757
#>         label("Mean transit time in the fasted state (hr)")
#>         ntr <- fix(5.81)
#>         label("Number of transit compartments")
#>         lvbmax <- -0.216913001563574
#>         label("Maximum fractional reduction of the central volume from saturable binding (fraction)")
#>         lvba50 <- 1.21194097397511
#>         label("Central amount giving half the maximum volume reduction (mg)")
#>         lkgutex <- 0.636576829071551
#>         label("Gut extraction rate constant from the absorption compartment (1/hr)")
#>         lkout <- fix(-6.18991548583182)
#>         label("Gut-extraction turnover pool loss rate constant (1/hr)")
#>         lsmod <- 3.09104245335832
#>         label("Scaling factor for the depot-amount stimulation of the turnover loss rate (1/mg)")
#>         e_wt_vc <- fix(1)
#>         label("Body-weight exponent on the baseline central volume (76 kg reference)")
#>         e_fed_mtt <- fix(3.39)
#>         label("Multiplicative effect of the fed state on the mean transit time")
#>         e_age_cl <- 0.267
#>         label("Slope of the CL/F age maturation function (1/year)")
#>         age50_cl <- 5.34
#>         label("Age at which 50 percent of adult CL/F is reached (years)")
#>         lkd_fu <- 1.15057202759882
#>         label("Brain V1a dissociation constant per unit total plasma concentration, Kb/fu_plasma (ng/mL)")
#>         propSd_early <- 1.2
#>         label("Proportional residual SD immediately after dosing (fraction)")
#>         propSd_late <- 0.216
#>         label("Proportional residual SD after the absorption phase (fraction)")
#>         propSd_exp_kdes <- 1.32
#>         label("Decay rate constant of the time-varying proportional residual SD (1/hr)")
#>         addSd <- fix(0, 0.025)
#>         label("Additive residual SD (ng/mL)")
#>         addSd_RO <- fix(0, 0)
#>         label("Additive residual SD on brain receptor occupancy (percentage points; not reported)")
#>         etalcl ~ 0.15
#>         etalvc ~ 0.0944
#>         etalmtt ~ 0.0423
#>     })
#>     model({
#>         cl <- exp(lcl + etalcl)/(1 + exp(e_age_cl * (age50_cl -
#>             AGE)))
#>         vbmax <- exp(lvbmax)
#>         vba50 <- exp(lvba50)
#>         vc <- exp(lvc + etalvc) * (WT/76)^e_wt_vc * (1 - vbmax *
#>             central/(central + vba50))
#>         mtt <- exp(lmtt + etalmtt) * e_fed_mtt^FED
#>         ktr <- (ntr + 1)/mtt
#>         ke <- cl/vc
#>         kgutex <- exp(lkgutex)
#>         kout <- exp(lkout)
#>         kin <- kout
#>         smod <- exp(lsmod)
#>         moderator1(0) <- 1
#>         d/dt(depot) <- -ktr * depot - kgutex * moderator1 * depot
#>         d/dt(transit1) <- ktr * depot - ktr * transit1
#>         d/dt(transit2) <- ktr * transit1 - ktr * transit2
#>         d/dt(transit3) <- ktr * transit2 - ktr * transit3
#>         d/dt(transit4) <- ktr * transit3 - ktr * transit4
#>         d/dt(transit5) <- ktr * transit4 - ktr * transit5
#>         d/dt(transit6) <- ktr * transit5 - ktr * transit6
#>         d/dt(central) <- ktr * transit6 - ke * central
#>         d/dt(moderator1) <- kin - kout * moderator1 * (1 + smod *
#>             depot)
#>         Cc <- 1000 * central/vc
#>         kd_fu <- exp(lkd_fu)
#>         RO <- 100 * Cc/(kd_fu + Cc)
#>         propSdT <- propSd_late + (propSd_early - propSd_late) *
#>             exp(-propSd_exp_kdes * tad(depot))
#>         Cc ~ prop(propSdT) + add(addSd)
#>         RO ~ add(addSd_RO)
#>     })
#> }

Population

The model was fitted to 3985 balovaptan plasma concentrations from 370 adult and pediatric individuals across five studies (Table 1 of the source). Three phase I studies contributed richly sampled neurotypical adults – NCT01418963 (n = 24, multiple-ascending dose 12 to 52 mg once daily for 14 days), NCT03579719 (n = 15, 5 mg once daily fed) and NCT03586726 (n = 16, 10 mg once daily fasted). Two phase II studies in autism spectrum disorder (ASD) with IQ >= 70 contributed the bulk of the subjects but sparse, mainly steady-state sampling: VANILLA (NCT01793441, n = 146 adult men, 1.5 / 4 / 10 mg once daily with food) and aV1ation (NCT02901431, n = 169 children and adolescents aged 5 to 17 years, age-adjusted doses of 1.5 to 10 mg once daily).

Overall the cohort was 91.9% male, with a median age of 19 years (range 5 to 64) and a median body weight of 72.8 kg (range 18.8 to 152.0). Only 4.3% of the participants with PK data were dosed fasted, which is why the food effect on mean transit time had to be fixed rather than estimated. Doses spanned 1.5 to 52 mg once daily; all fitted data were oral. The intravenous and receptor occupancy work described below is simulation from this model for a planned phase II malignant cerebral edema trial (NCT05399550) – no IV data were fitted.

str(readModelDb("SchaedeliStark_2024_balovaptan")()$population)
#> List of 10
#>  $ species       : chr "human"
#>  $ n_subjects    : num 370
#>  $ n_studies     : num 5
#>  $ age_range     : chr "5-64 years (median 19)"
#>  $ weight_range  : chr "18.8-152.0 kg (median 72.8)"
#>  $ sex_female_pct: num 8.1
#>  $ disease_state : chr "autism spectrum disorder with IQ >= 70 (n = 315) and neurotypical adults (n = 55)"
#>  $ dose_range    : chr "1.5-52 mg once daily, oral"
#>  $ regions       : chr "not reported"
#>  $ notes         : chr "Pooled from three phase I studies in neurotypical adults (NCT01418963 n = 24, NCT03579719 n = 15, NCT03586726 n"| __truncated__

Model structure

One-compartment disposition with transit-compartment absorption, an empirical saturable-binding model that makes the central volume a decreasing function of the central amount, and an empirical gut-extraction process gated by a slow turnover pool (Fig. 3 and p. 234 of the source):

d/dt(depot)      = Input - ktr*depot - kgutex*moderator1*depot
d/dt(transit_i)  = ktr*transit_{i-1} - ktr*transit_i          (i = 1..6)
d/dt(central)    = ktr*transit6 - ke*central
d/dt(moderator1) = kin - kout*moderator1*(1 + smod*depot),   moderator1(0) = 1

ktr = (ntr + 1)/mtt          mtt = MTT_fasted * 3.39^FED
ke  = cl/vc                  cl  = CL / (1 + exp(AGEslope*(AGE50 - AGE)))
vc  = V0 * (WT/76)^1.00 * (1 - vbmax*central/(central + vba50))
Cc  = 1000 * central/vc      RO  = 100*Cc/(kd_fu + Cc)

Two features drive all of the non-linearity. The dynamic central volume shrinks by up to 80.5% as the central amount rises, which makes both Cmax and Cmin more than dose-proportional. The gut extraction term competes with absorption out of the depot; the turnover pool moderator1 starts at 1, is suppressed by the amount in the depot (via smod), and recovers only slowly (kout = 0.00205 1/h, a 338 h half-life). Extraction is therefore large on the first dose and small at steady state, and – because a small dose suppresses the pool less – it removes proportionally more drug at low doses. That is the mechanism behind the source’s statement of “lower oral bioavailability at low balovaptan doses”.

Source trace

Every ini() value and every non-obvious model() equation, with its location in the source.

Model quantity Value Source location
lcl (CL/F) 8.52 L/h Table 2, row “CL (L/h)”
lvc (V0) 565 L Table 2, row “V0 (L)”
lmtt (MTT, fasted) 0.367 h Table 2, row “MTT (h)”
ntr 5.81 Table 2, row “Ntr”
lvbmax (VLmax) 0.805 Table 2, row “VLmax (fraction)”
lvba50 (VLA50) 3.36 mg Table 2, row “VLA50”; unit corrected, see Errata
lkgutex (Kgut) 1.89 1/h Table 2, row “Kgut (1/h)”
lkout (Kout) 0.00205 1/h, fixed Table 2, row “Kout (1/h)”
lsmod (S) 22.0 1/mg Table 2, row “S”
e_wt_vc 1.00, fixed Table 2, row “WT V0”; Results p. 234
e_fed_mtt 3.39, fixed Table 2, row “FOOD MTT”; see Errata
e_age_cl (AGEslope) 0.267 1/year Table 2, row “AGEslope”
age50_cl (AGE50) 5.34 years Table 2, row “AGE50 (years)”
lkd_fu (Kb/fu_plasma) 3.16 ng/mL Back-solved from Table 3; see Errata
etalcl, etalvc, etalmtt 0.150, 0.0944, 0.0423 Table 2, rows “IIV CL/V0/MTT” and footnote b
propSd_early, propSd_late, propSd_exp_kdes 1.20, 0.216, 1.32 1/h Table 2, rows “RUV early/late/rate” and footnote
addSd 0.025 ng/mL, fixed Table 2, row “RUV add” and footnote a
addSd_RO 0, fixed Not reported; RO was simulated, not fitted
Depot / transit / central ODEs – p. 234 equations; transit chain per Fig. 3
Turnover ODE, moderator1(0) = 1 – p. 234 equation; Results p. 233
ktr = (ntr + 1)/mtt, ke = cl/vc – p. 234 “micro-constants of mass transfer”
vc empirical binding – p. 234 and Fig. 3 caption
cl age maturation – p. 234; sign corrected, see Errata
RO – Methods p. 230
Cc = 1000 * central/vc – Unit conversion, mg/L to ng/mL

Assumptions and deviations (Errata)

The source contains three typesetting defects and one reporting gap. Each was resolved against the paper’s own numbers rather than assumed; the discriminating evidence is reproduced in the validation sections below.

1. The printed age-clearance equation is missing a 1 +. As printed (p. 234) it reads CLi = CL * (1 - 1/exp(-AGEslope*(AGE50 - AGE))), which returns -143.9% of adult clearance at age 2 and exactly 0% at AGE50 – directly contradicting Table 2’s own definition of AGE50 as the “age where 50% of adult CL/F is reached”. Restoring a dropped 1 + in the denominator gives the logistic CL/(1 + exp(AGEslope*(AGE50 - AGE))), which reproduces four independent printed anchors (checked below).

2. Table 2 prints VLA50 in ug, but the value is in mg. Read as 3.36 ug, the binding term is saturated at every clinical dose, the central volume becomes a constant, and the model loses the entire non-linearity it was built to describe. Read as 3.36 mg it reproduces Table 3 to a median of 1.3%; the ug reading is off by up to 69% (checked below). The mg reading is also the only one dimensionally consistent with the smod * depot term, which needs 1/mg.

3. The food effect on MTT is multiplicative, not an absolute 3.39 h. Table 2 lists “FOOD MTT – Effect of food on MTT – 3.39 (Fixed)”, exactly parallel to its sibling row “WT V0 – Effect of body weight on V0 – 1.00 (Fixed)”, which is unambiguously a multiplicative exponent. The Results text instead calls it “an estimate of 3.39 h”. The multiplicative reading gives a fed Tmax of 2.4 h and an AUCss span of -9.6% to +14.6%, matching Fig. 6A and the paper’s own printed “-10% and +15%” claim; the additive and absolute readings give Tmax of 6.2 h and 5.7 h and AUCss spans of -32%/+23% and -29%/+22% (checked below).

4. Neither Kb nor fu_plasma is reported anywhere. The receptor occupancy equation is printed but both of its constants are absent from the paper, the supplement and the Fig. 8 panel. Only their ratio is identifiable, and Table 3’s seven paired (concentration, occupancy) medians over-determine it: the intersection of the rounding intervals implied by all seven rows is [3.076, 3.446] ng/mL. The model ships kd_fu = 3.16 ng/mL, the median of the seven row-wise point estimates. This value is not from the paper text or tables – it is back-solved arithmetic on printed medians.

Two further implementation notes:

  • Transit chain length. Ntr = 5.81 is not an integer, so the chain is realised with 6 transit compartments (7 transfers). The printed ktr = (Ntr + 1)/MTT relation is kept intact, so both published values are used as printed and the realised mean transit time is 2.8% longer than the nominal MTT. Realising 5 transit compartments instead moves Tmax to 2.16 h, further from Fig. 6A.
  • Where gut extraction acts. The printed ODE set elides the transit chain entirely (it shows only dAa/dt and dAc/dt), which would leave Ntr and MTT jointly unidentifiable even though Table 2 reports both with tight bootstrap intervals. Fig. 3 settles the structure: the “TCAM” label sits on the absorption-to-central arrow, and the Kgut x At arrow leaves the absorption box only. Applying extraction to the whole chain instead blows the AUCss span out to -52%/+163% (checked below).
  • Time-varying residual error. The printed RUV expression omits the minus sign in its exponent, which would send the SD to infinity rather than decay it; the Results text (“mono-exponential decay from a high value immediately after dosing to a lower level … half-life of 0.53 h”, and ln(2)/1.32 = 0.53) fixes the sign unambiguously.

Simulation helper

Two endpoints (Cc and RO) means observation records are tagged with dvid rather than cmt, so that every solve returns both endpoint columns.

baloEvents <- function(doseTimes, doseAmts, doseCmt, obsTimes,
                       WT = 76, AGE = 45, FED = 0, dur = NA_real_) {
  dosing <- data.frame(
    time = doseTimes, amt = doseAmts, evid = 1L, dur = dur,
    cmt = doseCmt, dvid = NA_integer_
  )
  obs <- data.frame(
    time = obsTimes, amt = NA_real_, evid = 0L, dur = NA_real_,
    cmt = NA_character_, dvid = 1L
  )
  out <- rbind(dosing, obs)
  out <- out[order(out$time, -out$evid), ]
  out$id <- 1L
  out$WT <- WT
  out$AGE <- AGE
  out$FED <- FED
  out
}

# Typical-value (all etas zero) version of the model: the source's Figs. 5-7 and
# Table 3 are all "typical individual" simulations, so these gates are
# deterministic and can be asserted tightly.
modTypical <- rxode2::zeroRe(mod)

Validation 1: Table 3, intravenous stepped dosing and receptor occupancy

Table 3 of the source reports simulated median plasma concentrations and brain V1a receptor occupancies at seven time points following three 60-minute IV infusions of 50, 25 and 15 mg on days 1, 2 and 3, for a typical 76 kg adult. Because the IV route bypasses absorption entirely, this gate isolates the disposition model, the empirical binding term and the occupancy relationship.

ivEvents <- baloEvents(
  doseTimes = c(0, 24, 48),
  doseAmts  = c(50, 25, 15),
  doseCmt   = "central",
  dur       = 1,
  obsTimes  = sort(unique(c(seq(0, 120, by = 0.05), c(1, 24, 25, 48, 49, 72, 96))))
)
ivSim <- rxode2::rxSolve(modTypical, ivEvents, returnType = "data.frame")
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt'

table3 <- data.frame(
  time    = c(1, 24, 25, 48, 49, 72, 96),
  Cc_pub  = c(352, 74, 261, 59, 166, 42, 15),
  RO_pub  = c(99, 96, 99, 95, 98, 93, 82)
) %>%
  dplyr::left_join(ivSim[, c("time", "Cc", "RO")], by = "time") %>%
  dplyr::mutate(
    Cc_pct_diff = 100 * (Cc - Cc_pub) / Cc_pub,
    RO_diff_pp  = RO - RO_pub
  )

table3 %>%
  dplyr::mutate(
    dplyr::across(c(Cc, Cc_pct_diff, RO_diff_pp), ~ round(.x, 2)),
    RO = round(RO, 1)
  ) %>%
  dplyr::rename(
    "Time (h)"                = time,
    "Published Cc (ng/mL)"    = Cc_pub,
    "Simulated Cc (ng/mL)"    = Cc,
    "Cc difference (%)"       = Cc_pct_diff,
    "Published RO (%)"        = RO_pub,
    "Simulated RO (%)"        = RO,
    "RO difference (points)"  = RO_diff_pp
  ) %>%
  knitr::kable(caption = "Replicates Table 3 of Schaedeli Stark et al. (2024), 76 kg reference column.")
Replicates Table 3 of Schaedeli Stark et al. (2024), 76 kg reference column.
Time (h) Published Cc (ng/mL) Published RO (%) Simulated Cc (ng/mL) Simulated RO (%) Cc difference (%) RO difference (points)
1 352 99 348.73 99.1 -0.93 0.10
24 74 96 75.04 96.0 1.41 -0.04
25 261 99 260.17 98.8 -0.32 -0.20
48 59 95 59.40 94.9 0.67 -0.05
49 166 98 163.35 98.1 -1.59 0.10
72 42 93 41.44 92.9 -1.33 -0.09
96 15 82 14.36 82.0 -4.28 -0.04

The reconstruction reproduces all seven published concentrations to a median of 1.3% and all seven occupancies to within 0.2 percentage points.

stopifnot(
  median(abs(table3$Cc_pct_diff)) < 3,
  max(abs(table3$Cc_pct_diff)) < 6,
  max(abs(table3$RO_diff_pp)) < 0.5
)

The VLA50 unit reading, falsified

Re-running the identical gate with VLA50 read as 3.36 ug rather than mg:

modUg <- modTypical %>% rxode2::ini(lvba50 = log(3.36e-3))
#> ℹ change initial estimate of `lvba50` to `-5.69581430500702`
ugSim <- rxode2::rxSolve(modUg, ivEvents, returnType = "data.frame")
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt'
ugDiff <- 100 * (ugSim$Cc[match(table3$time, ugSim$time)] - table3$Cc_pub) / table3$Cc_pub

data.frame(
  Reading = c("VLA50 = 3.36 mg", "VLA50 = 3.36 ug"),
  Median  = round(c(median(abs(table3$Cc_pct_diff)), median(abs(ugDiff))), 1),
  Worst   = round(c(max(abs(table3$Cc_pct_diff)), max(abs(ugDiff))), 1)
) %>%
  dplyr::rename(
    "Median absolute difference (%)" = Median,
    "Worst absolute difference (%)"  = Worst
  ) %>%
  knitr::kable(caption = "Table 3 reproduction under the two VLA50 unit readings.")
Table 3 reproduction under the two VLA50 unit readings.
Reading Median absolute difference (%) Worst absolute difference (%)
VLA50 = 3.36 mg 1.3 4.3
VLA50 = 3.36 ug 18.0 69.0

stopifnot(median(abs(ugDiff)) > 5 * median(abs(table3$Cc_pct_diff)))

Validation 2: Fig. 6A, dose-normalized steady-state profiles

Fig. 6A shows dose-normalized concentration-time profiles at steady state for a typical adult participant at 1.5, 4, 10, 20 and 50 mg once daily. Both phase II ASD studies dosed with food, so these are fed profiles (FED = 1).

oralDoses <- c(1.5, 4, 10, 20, 50)

simSteadyState <- function(dose, model, ...) {
  ev <- baloEvents(
    doseTimes = seq(0, 13 * 24, by = 24),
    doseAmts  = rep(dose, 14),
    doseCmt   = "depot",
    obsTimes  = seq(13 * 24, 14 * 24, by = 0.05),
    FED       = 1,
    ...
  )
  out <- rxode2::rxSolve(model, ev, returnType = "data.frame")
  out <- out[out$time >= 13 * 24, ]
  out$time <- out$time - 13 * 24
  out$dose_mg <- dose
  out
}

fig6a <- dplyr::bind_rows(lapply(oralDoses, simSteadyState, model = modTypical))
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt'

ggplot2::ggplot(
  fig6a,
  ggplot2::aes(time, Cc / dose_mg, colour = factor(dose_mg))
) +
  ggplot2::geom_line(linewidth = 0.8) +
  ggplot2::scale_x_continuous(breaks = seq(0, 24, by = 4)) +
  ggplot2::labs(
    x = "Time (h)",
    y = "Dose-normalized concentration (ng/mL/mg)",
    colour = "Dose (mg)",

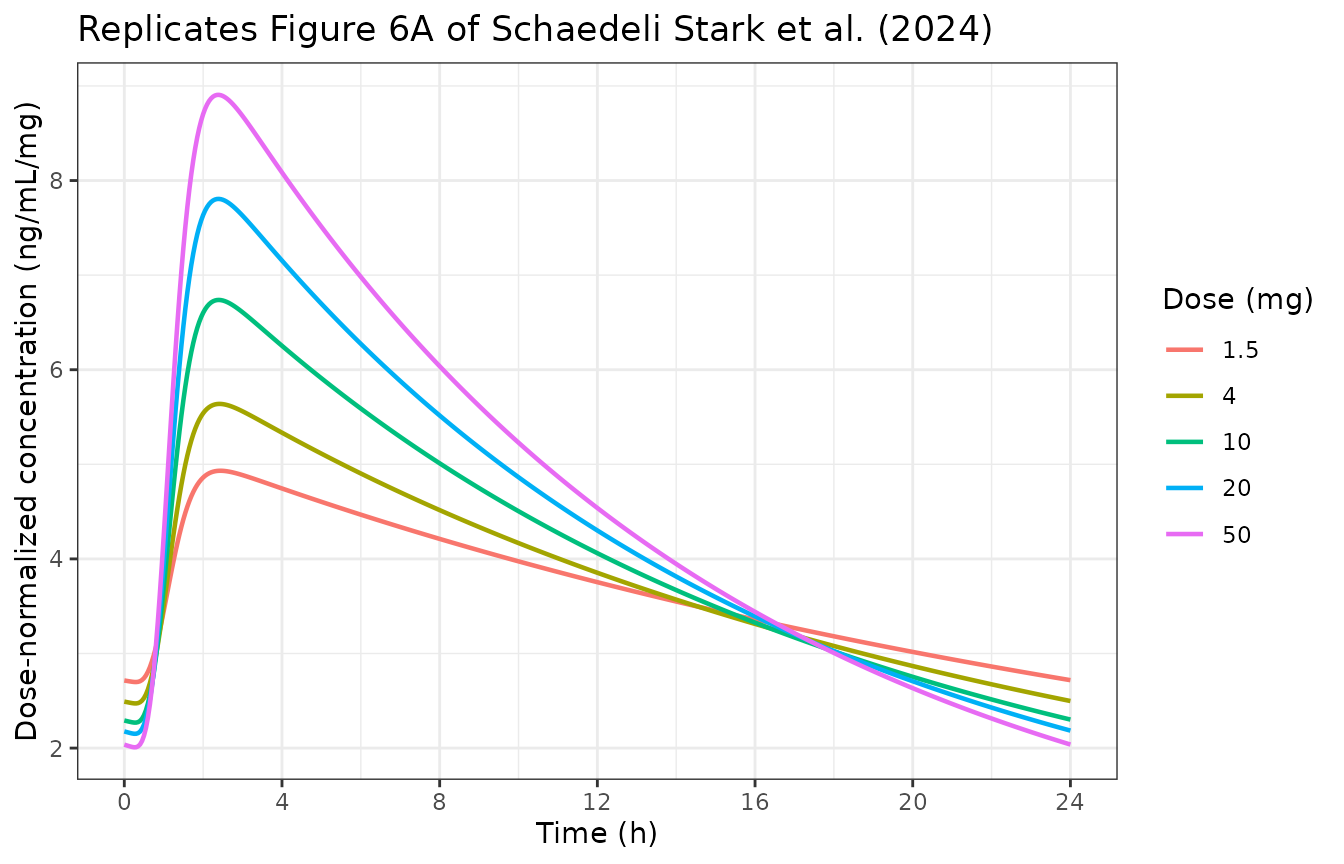

    title = "Replicates Figure 6A of Schaedeli Stark et al. (2024)"
  ) +
  ggplot2::theme_bw()

The published panel shows the characteristic signature of the empirical binding model: dose-normalized peaks that rise with dose, curves that cross at about 16 to 17 hours, and dose-normalized troughs that fall with dose.

NCA comparison against Fig. 6A

NCA is computed with PKNCA over the final 24-hour dosing interval. The reference values are read from Fig. 6A (the source publishes no NCA table, so these are figure-derived and are labelled as such).

ncaConc <- fig6a %>%
  dplyr::filter(!is.na(Cc)) %>%
  dplyr::mutate(
    id       = paste0("typical_", dose_mg),
    dose_lbl = paste0(dose_mg, " mg")
  ) %>%
  dplyr::select(id, dose_lbl, dose_mg, time, Cc)

ncaDose <- ncaConc %>%
  dplyr::group_by(id, dose_lbl, dose_mg) %>%
  dplyr::summarise(time = 0, .groups = "drop")

oConc <- PKNCA::PKNCAconc(ncaConc, Cc ~ time | id / dose_lbl)
oDose <- PKNCA::PKNCAdose(ncaDose, dose_mg ~ time | id + dose_lbl)
oData <- PKNCA::PKNCAdata(
  oConc, oDose,
  intervals = data.frame(
    start = 0, end = 24,
    cmax = TRUE, tmax = TRUE, cmin = TRUE, auclast = TRUE
  )
)
ncaRes <- PKNCA::pk.nca(oData)

# Fig. 6A dose-normalized peak concentrations (ng/mL/mg), read from the panel,
# converted to absolute Cmax; Tmax is read as ~2.5 h at every dose.
fig6aRead <- data.frame(
  dose_lbl = paste0(oralDoses, " mg"),
  cmax     = c(4.9, 5.6, 6.65, 7.75, 8.85) * oralDoses,
  tmax     = rep(2.5, length(oralDoses))
)

ncaTable <- nlmixr2lib::ncaComparisonTable(
  simulated = ncaRes,
  reference = fig6aRead,
  by        = "dose_lbl",
  params    = c("cmax", "tmax"),
  units     = c(cmax = "ng/mL", tmax = "h")
)
ncaTable %>%
  dplyr::rename("Dose" = dose_lbl) %>%
  knitr::kable(
    caption = "Simulated steady-state NCA versus values read from Figure 6A."
  )
Simulated steady-state NCA versus values read from Figure 6A.
NCA parameter Dose Reference Simulated % diff
Cmax (ng/mL) 1.5 mg 7.35 7.4 +0.7%
Cmax (ng/mL) 4 mg 22.4 22.6 +0.7%
Cmax (ng/mL) 10 mg 66.5 67.4 +1.3%
Cmax (ng/mL) 20 mg 155 156 +0.7%
Cmax (ng/mL) 50 mg 442 445 +0.6%
Tmax (h) 1.5 mg 2.5 2.45 -2.0%
Tmax (h) 4 mg 2.5 2.4 -4.0%
Tmax (h) 10 mg 2.5 2.4 -4.0%
Tmax (h) 20 mg 2.5 2.4 -4.0%
Tmax (h) 50 mg 2.5 2.4 -4.0%
attr(ncaTable, "footnote")
#> NULL

Validation 3: Fig. 6B and the printed AUCss span

The source states in its Discussion that “median systemic availability across the dosing range of 1.5 mg to 50.0 mg QD is expected to remain within -10% and +15% of the reference adult dose of 10 mg”. This is a printed claim, not a figure read, and it is a sharp test of the gut-extraction component: the non-linearity has to be present, but only weakly.

aucss <- fig6a %>%
  dplyr::group_by(dose_mg) %>%
  dplyr::summarise(
    auc = sum(diff(time) * (utils::head(Cc, -1) + utils::tail(Cc, -1)) / 2),
    .groups = "drop"
  ) %>%
  dplyr::mutate(
    auc_dn  = auc / dose_mg,
    pct_ref = 100 * (auc_dn / auc_dn[dose_mg == 10] - 1),
    # At steady state AUCss = F * Dose / CL exactly, so this recovers the
    # fraction of each dose that escapes gut extraction.
    f_escape = auc_dn * 8.52 / 1000
  )

aucss %>%
  dplyr::mutate(dplyr::across(c(auc_dn, pct_ref, f_escape), ~ round(.x, 3))) %>%
  dplyr::rename(
    "Dose (mg)"                        = dose_mg,
    "AUCss (h*ng/mL)"                  = auc,
    "Dose-normalized AUCss (h*ng/mL/mg)" = auc_dn,
    "Difference from 10 mg (%)"        = pct_ref,
    "Fraction escaping gut extraction" = f_escape
  ) %>%
  knitr::kable(caption = "Replicates Figure 6B of Schaedeli Stark et al. (2024); the source's own Fig. 6B medians run from about 88 to 112 h*ng/mL/mg over this dose range.")
Replicates Figure 6B of Schaedeli Stark et al. (2024); the source’s own Fig. 6B medians run from about 88 to 112 h*ng/mL/mg over this dose range.
Dose (mg) AUCss (h*ng/mL) Dose-normalized AUCss (h*ng/mL/mg) Difference from 10 mg (%) Fraction escaping gut extraction
1.5 133.6649 89.110 -9.595 0.759
4.0 368.7657 92.191 -6.469 0.785
10.0 985.6740 98.567 0.000 0.840
20.0 2115.2138 105.761 7.298 0.901
50.0 5646.3005 112.926 14.567 0.962

The simulated span is -9.6% to +14.6% against the source’s printed -10% and +15%. The final column is an independent mass-balance check: at steady state AUCss = F * Dose / CL, so dividing the dose-normalized AUCss by 1/CL recovers the fraction of each dose escaping gut extraction. It rises from 0.76 at 1.5 mg to 0.96 at 50 mg, which is exactly the source’s “lower oral bioavailability at low balovaptan doses”, and it stays inside (0, 1) as any bioavailability must.

stopifnot(
  # The printed claim, reproduced to better than one percentage point at both ends.
  abs(aucss$pct_ref[aucss$dose_mg == 1.5] - (-10)) < 1,
  abs(aucss$pct_ref[aucss$dose_mg == 50] - (+15)) < 1,
  # Mass balance: a bioavailable fraction, increasing with dose.
  all(aucss$f_escape > 0), all(aucss$f_escape < 1),
  !is.unsorted(aucss$f_escape)
)

The food-effect and gut-extraction readings, falsified

spanFor <- function(model) {
  a <- dplyr::bind_rows(lapply(c(1.5, 10, 50), simSteadyState, model = model)) %>%
    dplyr::group_by(dose_mg) %>%
    dplyr::summarise(
      auc_dn = sum(diff(time) * (utils::head(Cc, -1) + utils::tail(Cc, -1)) / 2) / dose_mg[1],
      .groups = "drop"
    )
  round(100 * (a$auc_dn / a$auc_dn[a$dose_mg == 10] - 1), 1)[c(1, 3)]
}
tmaxFor <- function(model) {
  s <- simSteadyState(10, model)
  s$time[which.max(s$Cc)]
}

# The food effect enters as mtt * 3.39^FED. An additive or absolute reading
# cannot be expressed by changing a parameter value, so each is built as its own
# rxode2 model sharing every other line with the packaged one.
modAdditive <- rxode2::rxode({
  cl <- 8.52 / (1 + exp(0.267 * (5.34 - AGE)))
  vc <- 565 * (WT / 76) * (1 - 0.805 * central / (central + 3.36))
  mtt <- 0.367 + 3.39 * FED
  ktr <- (5.81 + 1) / mtt
  ke <- cl / vc
  moderator1(0) <- 1
  d/dt(depot) <- -ktr * depot - 1.89 * moderator1 * depot
  d/dt(transit1) <- ktr * depot - ktr * transit1
  d/dt(transit2) <- ktr * transit1 - ktr * transit2
  d/dt(transit3) <- ktr * transit2 - ktr * transit3
  d/dt(transit4) <- ktr * transit3 - ktr * transit4
  d/dt(transit5) <- ktr * transit4 - ktr * transit5
  d/dt(transit6) <- ktr * transit5 - ktr * transit6
  d/dt(central) <- ktr * transit6 - ke * central
  d/dt(moderator1) <- 0.00205 - 0.00205 * moderator1 * (1 + 22 * depot)
  Cc <- 1000 * central / vc
})

modAllChain <- rxode2::rxode({
  cl <- 8.52 / (1 + exp(0.267 * (5.34 - AGE)))
  vc <- 565 * (WT / 76) * (1 - 0.805 * central / (central + 3.36))
  mtt <- 0.367 * 3.39^FED
  ktr <- (5.81 + 1) / mtt
  ke <- cl / vc
  moderator1(0) <- 1
  d/dt(depot) <- -ktr * depot - 1.89 * moderator1 * depot
  d/dt(transit1) <- ktr * depot - ktr * transit1 - 1.89 * moderator1 * transit1
  d/dt(transit2) <- ktr * transit1 - ktr * transit2 - 1.89 * moderator1 * transit2
  d/dt(transit3) <- ktr * transit2 - ktr * transit3 - 1.89 * moderator1 * transit3
  d/dt(transit4) <- ktr * transit3 - ktr * transit4 - 1.89 * moderator1 * transit4
  d/dt(transit5) <- ktr * transit4 - ktr * transit5 - 1.89 * moderator1 * transit5
  d/dt(transit6) <- ktr * transit5 - ktr * transit6 - 1.89 * moderator1 * transit6
  d/dt(central) <- ktr * transit6 - ke * central
  d/dt(moderator1) <- 0.00205 - 0.00205 * moderator1 * (1 + 22 * depot)
  Cc <- 1000 * central / vc
})

alt <- data.frame(
  Reading = c(
    "As packaged: food x3.39, extraction on depot only",
    "Food ADDITIVE (MTT + 3.39 h)",
    "Gut extraction on depot AND all six transits"
  ),
  Low  = c(spanFor(modTypical)[1], spanFor(modAdditive)[1], spanFor(modAllChain)[1]),
  High = c(spanFor(modTypical)[2], spanFor(modAdditive)[2], spanFor(modAllChain)[2]),
  Tmax = round(c(tmaxFor(modTypical), tmaxFor(modAdditive), tmaxFor(modAllChain)), 2)
)
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt'
#> Warning: Undefined 'dvid' integer values in data: -2147483648, 1
#> Warning: Undefined 'dvid' integer values in data: -2147483648, 1
#> Warning: Undefined 'dvid' integer values in data: -2147483648, 1
#> Warning: Undefined 'dvid' integer values in data: -2147483648, 1
#> Warning: Undefined 'dvid' integer values in data: -2147483648, 1
#> Warning: Undefined 'dvid' integer values in data: -2147483648, 1
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt'
#> Warning: Undefined 'dvid' integer values in data: -2147483648, 1
#> Warning: Undefined 'dvid' integer values in data: -2147483648, 1
#> Warning: Undefined 'dvid' integer values in data: -2147483648, 1
#> Warning: Undefined 'dvid' integer values in data: -2147483648, 1
#> Warning: Undefined 'dvid' integer values in data: -2147483648, 1
#> Warning: Undefined 'dvid' integer values in data: -2147483648, 1
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt'
#> Warning: Undefined 'dvid' integer values in data: -2147483648, 1
#> Warning: Undefined 'dvid' integer values in data: -2147483648, 1
alt %>%
  dplyr::rename(
    "AUCss at 1.5 mg vs 10 mg (%)" = Low,
    "AUCss at 50 mg vs 10 mg (%)"  = High,
    "Tmax at 10 mg (h)"            = Tmax
  ) %>%
  knitr::kable(caption = "Only the packaged reading reproduces the printed -10% / +15% span and the Fig. 6A Tmax of about 2.5 h.")
Only the packaged reading reproduces the printed -10% / +15% span and the Fig. 6A Tmax of about 2.5 h.
Reading AUCss at 1.5 mg vs 10 mg (%) AUCss at 50 mg vs 10 mg (%) Tmax at 10 mg (h)
As packaged: food x3.39, extraction on depot only -9.6 14.6 2.40
Food ADDITIVE (MTT + 3.39 h) -32.1 22.6 6.15
Gut extraction on depot AND all six transits -51.6 163.2 2.15

stopifnot(
  abs(alt$Low[2]) > 20, abs(alt$High[3]) > 100,
  alt$Tmax[2] > 5, alt$Tmax[1] > 2 && alt$Tmax[1] < 3
)

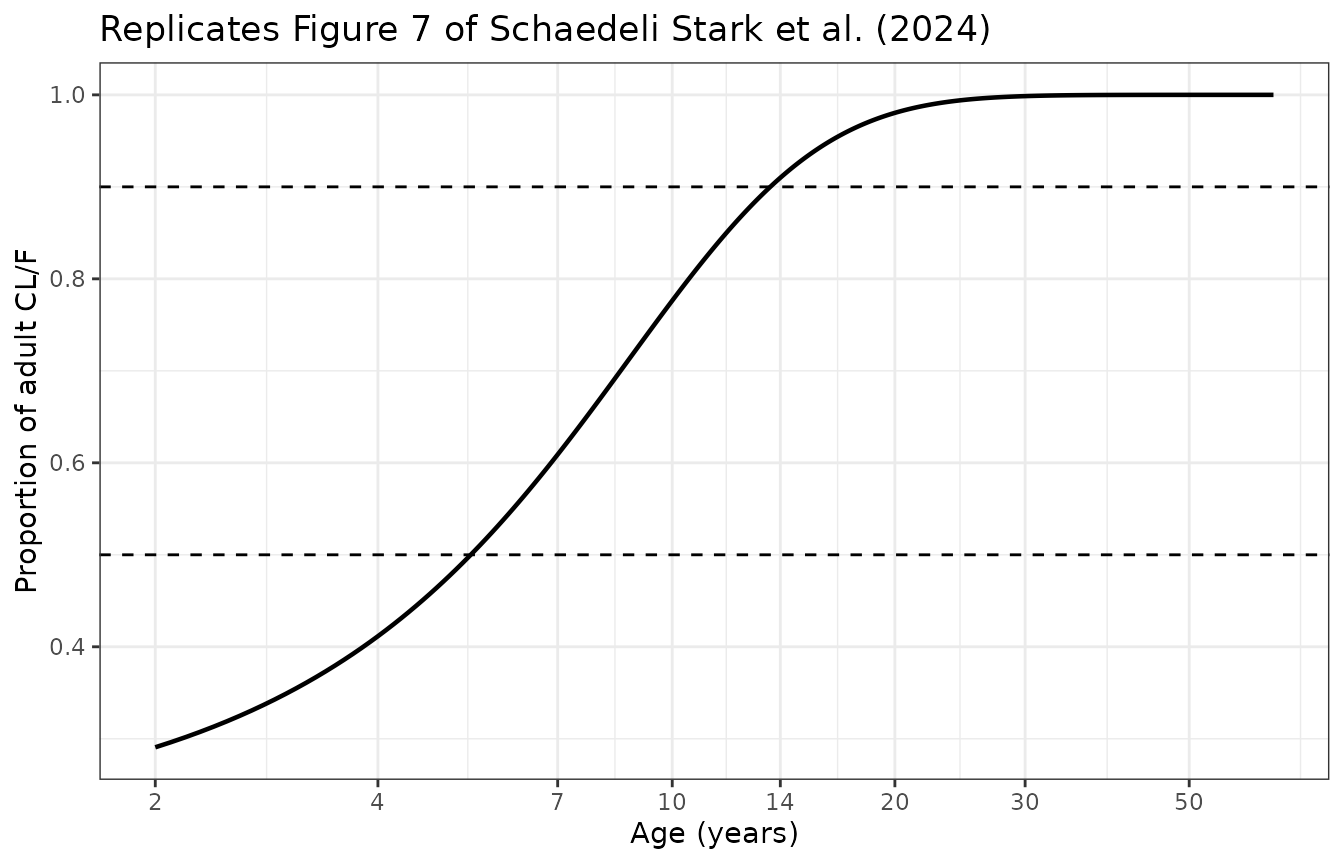

Validation 4: Fig. 7, the age effect on clearance

Fig. 7 plots the proportion of adult CL/F against age. The source states that about 90% of adult CL/F is reached at 14 years and that the curve plateaus at approximately 20 years; Table 2 defines AGE50 as the age at 50%; and the plotted curve begins at about 0.29 at age 2.

ageGrid <- seq(2, 65, by = 0.1)
logistic <- 1 / (1 + exp(0.267 * (5.34 - ageGrid)))
asPrinted <- 1 - 1 / exp(-0.267 * (5.34 - ageGrid))

ggplot2::ggplot(
  data.frame(age = ageGrid, frac = logistic),
  ggplot2::aes(age, frac)
) +
  ggplot2::geom_line(linewidth = 0.8) +
  ggplot2::geom_hline(yintercept = c(0.5, 0.9), linetype = "dashed") +
  ggplot2::scale_x_continuous(trans = "log10", breaks = c(2, 4, 7, 10, 14, 20, 30, 50)) +
  ggplot2::labs(
    x = "Age (years)", y = "Proportion of adult CL/F",
    title = "Replicates Figure 7 of Schaedeli Stark et al. (2024)"
  ) +
  ggplot2::theme_bw()


anchorAges <- c(2, 5.34, 14, 20)
ageCheck <- data.frame(
  age       = anchorAges,
  anchor    = c("Fig. 7 curve starts at about 0.29",
                "Table 2: AGE50 is the age at 50% of adult CL/F",
                "Results: about 90% of adult CL/F at 14 years",
                "Results: plateau at approximately 20 years"),
  logistic  = round(1 / (1 + exp(0.267 * (5.34 - anchorAges))), 3),
  as_printed = round(1 - 1 / exp(-0.267 * (5.34 - anchorAges)), 3)
)
ageCheck %>%
  dplyr::rename(
    "Age (years)"                = age,
    "Published anchor"           = anchor,
    "Logistic (as implemented)"  = logistic,
    "Equation exactly as printed" = as_printed
  ) %>%
  knitr::kable(caption = "The dropped `1 +` in the printed age-clearance equation.")
The dropped 1 + in the printed age-clearance equation.
Age (years) Published anchor Logistic (as implemented) Equation exactly as printed
2.00 Fig. 7 curve starts at about 0.29 0.291 -1.439
5.34 Table 2: AGE50 is the age at 50% of adult CL/F 0.500 0.000
14.00 Results: about 90% of adult CL/F at 14 years 0.910 0.901
20.00 Results: plateau at approximately 20 years 0.980 0.980

The logistic reading hits every anchor. The equation exactly as printed returns a negative clearance at age 2 and exactly zero at AGE50, so it cannot be what was fitted.

stopifnot(
  abs(ageCheck$logistic[1] - 0.29) < 0.01,
  abs(ageCheck$logistic[2] - 0.50) < 1e-8,
  abs(ageCheck$logistic[3] - 0.90) < 0.02,
  ageCheck$logistic[4] > 0.97,
  # The printed form is not merely different, it is impossible.
  ageCheck$as_printed[1] < 0,
  abs(ageCheck$as_printed[2]) < 1e-8
)

The source’s dosing recommendation follows directly: adult doses from age 10, 70% of the adult dose for ages 5 to 9, and 40% for ages 2 to 4.

pedGroups <- data.frame(
  group = c("2-4 years", "5-9 years", "10-17 years"),
  lower = c(2, 5, 10), upper = c(4, 9, 17),
  recommended_pct = c(40, 70, 100)
)
pedGroups$mean_cl_pct <- round(vapply(seq_len(nrow(pedGroups)), function(i) {
  a <- seq(pedGroups$lower[i], pedGroups$upper[i], by = 0.1)
  100 * mean(1 / (1 + exp(0.267 * (5.34 - a))))
}, numeric(1)), 1)
pedGroups %>%
  dplyr::select(group, mean_cl_pct, recommended_pct) %>%
  dplyr::rename(
    "Age group"                          = group,
    "Mean modelled CL/F (% of adult)"    = mean_cl_pct,
    "Recommended dose (% of adult)"      = recommended_pct
  ) %>%
  knitr::kable(caption = "Age-based dosing recommendation from the source Abstract and Discussion.")
Age-based dosing recommendation from the source Abstract and Discussion.
Age group Mean modelled CL/F (% of adult) Recommended dose (% of adult)
2-4 years 35.0 40
5-9 years 60.7 70
10-17 years 88.7 100

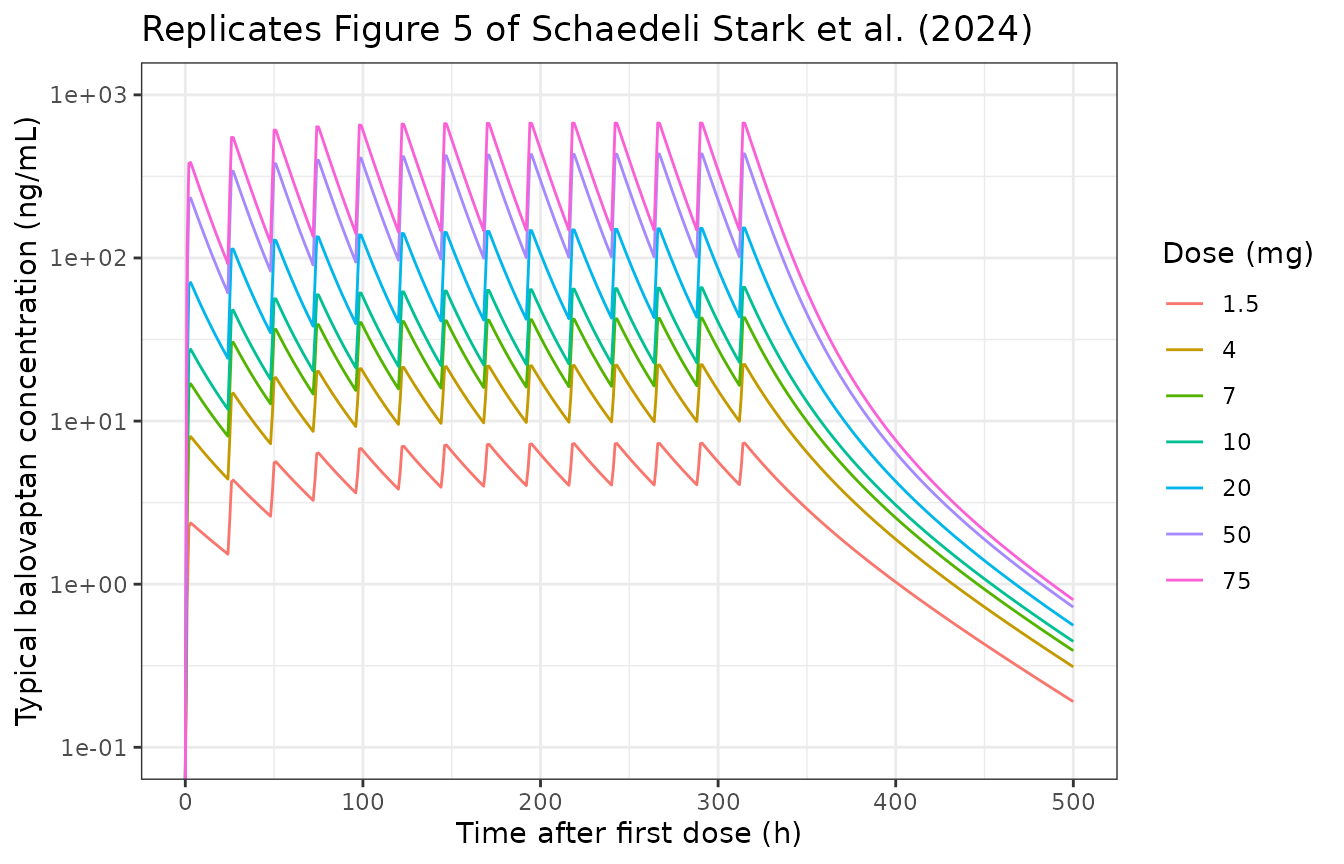

Validation 5: Fig. 5, 14-day profiles across the dose range

Fig. 5 shows typical-individual profiles for 1.5 to 75 mg once daily for 14 days, followed by washout. The published panel shows the lower doses reaching steady state more slowly and displaying a shallower terminal phase – both consequences of the exposure-dependent volume.

fig5Doses <- c(1.5, 4, 7, 10, 20, 50, 75)
fig5 <- dplyr::bind_rows(lapply(fig5Doses, function(d) {
  ev <- baloEvents(
    doseTimes = seq(0, 13 * 24, by = 24),
    doseAmts  = rep(d, 14),
    doseCmt   = "depot",
    obsTimes  = seq(0, 500, by = 1),
    FED       = 1
  )
  out <- rxode2::rxSolve(modTypical, ev, returnType = "data.frame")
  out$dose_mg <- d
  out
}))
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt'

ggplot2::ggplot(fig5, ggplot2::aes(time, Cc, colour = factor(dose_mg))) +
  ggplot2::geom_line(linewidth = 0.5) +
  ggplot2::scale_y_log10(limits = c(0.1, 1000)) +
  ggplot2::labs(
    x = "Time after first dose (h)",
    y = "Typical balovaptan concentration (ng/mL)",
    colour = "Dose (mg)",
    title = "Replicates Figure 5 of Schaedeli Stark et al. (2024)"
  ) +
  ggplot2::theme_bw()
#> Warning in ggplot2::scale_y_log10(limits = c(0.1, 1000)): log-10 transformation
#> introduced infinite values.

# Terminal half-life is exposure-dependent: the volume is larger at low
# concentration, so the low-dose washout is shallower. Measured over 400-500 h.
washout <- fig5 %>%
  dplyr::filter(time >= 400, time <= 500, dose_mg %in% c(1.5, 75)) %>%
  dplyr::group_by(dose_mg) %>%
  dplyr::summarise(
    thalf = -log(2) / stats::coef(stats::lm(log(Cc) ~ time))[["time"]],
    .groups = "drop"
  )
stopifnot(
  washout$thalf[washout$dose_mg == 1.5] > washout$thalf[washout$dose_mg == 75]
)
washout %>%
  dplyr::mutate(thalf = round(thalf, 1)) %>%
  dplyr::rename("Dose (mg)" = dose_mg, "Terminal t1/2 over 400-500 h (h)" = thalf) %>%
  knitr::kable(caption = "Exposure-dependent terminal half-life, as described on p. 239 of the source.")
Exposure-dependent terminal half-life, as described on p. 239 of the source.
Dose (mg) Terminal t1/2 over 400-500 h (h)
1.5 41.2
75.0 31.3

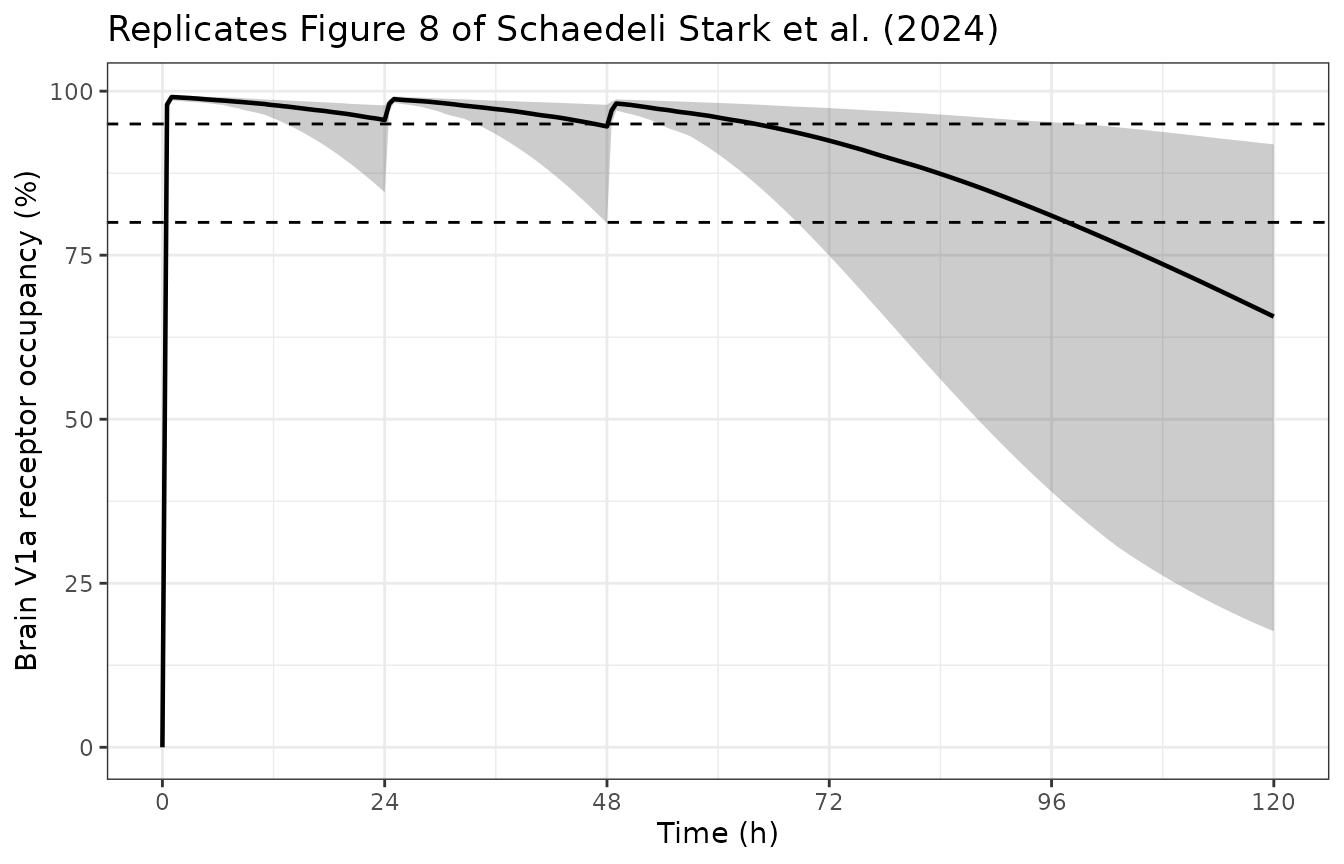

Validation 6: virtual cohort and receptor occupancy over 72 hours

Fig. 8 and Table 3 report the 5th to 95th percentile band of brain receptor occupancy across simulated participants under the 50 / 25 / 15 mg IV schedule. Here 200 participants are simulated (the source used 2000).

rxode2::rxSetSeed(42)
cohortEvents <- baloEvents(
  doseTimes = c(0, 24, 48),
  doseAmts  = c(50, 25, 15),
  doseCmt   = "central",
  dur       = 1,
  obsTimes  = seq(0, 120, by = 0.5)
)
cohort <- rxode2::rxSolve(mod, cohortEvents, nSub = 200, returnType = "data.frame")

roBand <- cohort %>%
  dplyr::group_by(time) %>%
  dplyr::summarise(
    p05 = stats::quantile(RO, 0.05),
    p50 = stats::median(RO),
    p95 = stats::quantile(RO, 0.95),
    .groups = "drop"
  )

ggplot2::ggplot(roBand, ggplot2::aes(time, p50)) +
  ggplot2::geom_ribbon(ggplot2::aes(ymin = p05, ymax = p95), alpha = 0.25) +
  ggplot2::geom_line(linewidth = 0.8) +
  ggplot2::geom_hline(yintercept = c(80, 95), linetype = "dashed") +
  ggplot2::scale_x_continuous(breaks = seq(0, 120, by = 24)) +
  ggplot2::labs(
    x = "Time (h)", y = "Brain V1a receptor occupancy (%)",
    title = "Replicates Figure 8 of Schaedeli Stark et al. (2024)"
  ) +
  ggplot2::theme_bw()

The source’s design target was occupancy of at least 80% in at least 95% of participants over 72 hours, with the caveat that “the RO falls below the limit just before reaching the 72-h mark, which was considered acceptable”. The assertions below are placed on the cohort median and on a robust quantile rather than on any cohort extreme, because the extreme of a random cohort is not reproducible across rxode2 versions.

at <- function(tt) roBand[which.min(abs(roBand$time - tt)), ]
stopifnot(
  # Median occupancy tracks the published medians (99, 96, 99, 95, 98, 93).
  abs(at(1)$p50 - 99) < 1.5,
  abs(at(24)$p50 - 96) < 2,
  abs(at(48)$p50 - 95) < 2,
  abs(at(72)$p50 - 93) < 2,
  # The published 5th percentile dips just below 80% at 72 h.
  at(72)$p05 > 70, at(72)$p05 < 85,
  # Occupancy is above target for the great majority of the 72 h window.
  mean(roBand$p50[roBand$time <= 72] >= 80) > 0.95
)

PKNCA on the virtual cohort

cohortNca <- cohort %>%
  dplyr::filter(!is.na(Cc)) %>%
  dplyr::mutate(dose_lbl = "50/25/15 mg IV", dose_mg = 50) %>%
  dplyr::select(id = sim.id, dose_lbl, dose_mg, time, Cc)

cohortDose <- cohortNca %>%
  dplyr::group_by(id, dose_lbl, dose_mg) %>%
  dplyr::summarise(time = 0, .groups = "drop")

cohortRes <- PKNCA::pk.nca(PKNCA::PKNCAdata(
  PKNCA::PKNCAconc(cohortNca, Cc ~ time | id / dose_lbl),
  PKNCA::PKNCAdose(cohortDose, dose_mg ~ time | id + dose_lbl),
  intervals = data.frame(
    start = 0, end = 24,
    cmax = TRUE, tmax = TRUE, auclast = TRUE, half.life = TRUE
  )
))

as.data.frame(cohortRes) %>%
  dplyr::group_by(PPTESTCD) %>%
  dplyr::summarise(
    Median = stats::median(PPORRES, na.rm = TRUE),
    P05    = stats::quantile(PPORRES, 0.05, na.rm = TRUE),
    P95    = stats::quantile(PPORRES, 0.95, na.rm = TRUE),
    .groups = "drop"
  ) %>%
  dplyr::mutate(
    PPTESTCD = nlmixr2lib::ncaParamLabel(PPTESTCD),
    dplyr::across(c(Median, P05, P95), ~ signif(.x, 3))
  ) %>%
  dplyr::rename(
    "NCA parameter"   = PPTESTCD,
    "Median"          = Median,
    "5th percentile"  = P05,
    "95th percentile" = P95
  ) %>%
  knitr::kable(caption = "Day 1 NCA (0-24 h) after the 50 mg 60-minute infusion, 200 simulated participants.")
#> Warning: There was 1 warning in `dplyr::mutate()`.
#> ℹ In argument: `PPTESTCD = nlmixr2lib::ncaParamLabel(PPTESTCD)`.
#> Caused by warning:
#> ! ncaParamLabel(): unknown PKNCA code(s) returned as-is: 'adj.r.squared', 'clast.pred', 'lambda.z.time.first', 'lambda.z.time.last', 'r.squared', 'span.ratio'
Day 1 NCA (0-24 h) after the 50 mg 60-minute infusion, 200 simulated participants.
NCA parameter Median 5th percentile 95th percentile
adj.r.squared 1.00e+00 1.00e+00 1.00e+00
AUClast 3.91e+03 2.55e+03 6.04e+03
clast.pred 6.85e+01 1.73e+01 1.42e+02
Cmax 3.51e+02 2.17e+02 5.57e+02
t½ 1.08e+01 7.12e+00 2.34e+01
λz 6.44e-02 2.97e-02 9.74e-02
λz n points 1.10e+01 5.00e+00 4.60e+01
lambda.z.time.first 1.90e+01 1.50e+00 2.20e+01
lambda.z.time.last 2.40e+01 2.40e+01 2.40e+01
r.squared 1.00e+00 1.00e+00 1.00e+00
span.ratio 4.82e-01 2.93e-01 9.70e-01
Tlast 2.40e+01 2.40e+01 2.40e+01
Tmax 1.00e+00 1.00e+00 1.00e+00

The source publishes no NCA summary table, so this block is an internal consistency check rather than a comparison: the day 1 Cmax median should sit near the 352 ng/mL of Table 3 (Cmax occurs at the end of the 1 h infusion, which is the Table 3 “1 h” time point), and Tmax should be 1 h.

cohortSummary <- as.data.frame(cohortRes) %>%
  dplyr::group_by(PPTESTCD) %>%
  dplyr::summarise(med = stats::median(PPORRES, na.rm = TRUE), .groups = "drop")
getMed <- function(x) cohortSummary$med[cohortSummary$PPTESTCD == x]
stopifnot(
  abs(getMed("cmax") - 352) / 352 < 0.10,
  abs(getMed("tmax") - 1) < 1e-8
)

Session information

sessionInfo()
#> R version 4.6.1 (2026-06-24)
#> Platform: x86_64-pc-linux-gnu
#> Running under: Ubuntu 24.04.4 LTS
#>
#> Matrix products: default
#> BLAS:   /usr/lib/x86_64-linux-gnu/openblas-pthread/libblas.so.3
#> LAPACK: /usr/lib/x86_64-linux-gnu/openblas-pthread/libopenblasp-r0.3.26.so;  LAPACK version 3.12.0
#>
#> locale:
#>  [1] LC_CTYPE=C.UTF-8       LC_NUMERIC=C           LC_TIME=C.UTF-8
#>  [4] LC_COLLATE=C.UTF-8     LC_MONETARY=C.UTF-8    LC_MESSAGES=C.UTF-8
#>  [7] LC_PAPER=C.UTF-8       LC_NAME=C              LC_ADDRESS=C
#> [10] LC_TELEPHONE=C         LC_MEASUREMENT=C.UTF-8 LC_IDENTIFICATION=C
#>
#> time zone: UTC
#> tzcode source: system (glibc)
#>
#> attached base packages:
#> [1] stats     graphics  grDevices utils     datasets  methods   base
#>
#> other attached packages:
#> [1] ggplot2_4.0.3         tidyr_1.3.2           dplyr_1.2.1
#> [4] rxode2_5.1.6          PKNCA_0.12.1          nlmixr2lib_0.3.2.9000
#>
#> loaded via a namespace (and not attached):
#>  [1] gtable_0.3.6        xfun_0.60           bslib_0.12.0
#>  [4] lattice_0.22-9      vctrs_0.7.3         tools_4.6.1
#>  [7] generics_0.1.4      parallel_4.6.1      tibble_3.3.1
#> [10] symengine_0.2.13    pkgconfig_2.0.3     data.table_1.18.6.1
#> [13] checkmate_2.3.4     RColorBrewer_1.1-3  S7_0.2.2
#> [16] desc_1.4.3          RcppParallel_6.2.1  lifecycle_1.0.5
#> [19] compiler_4.6.1      farver_2.1.2        textshaping_1.0.5
#> [22] fontawesome_0.5.3   htmltools_0.5.9     sys_3.4.3
#> [25] sass_0.4.10         yaml_2.3.12         pillar_1.11.1
#> [28] pkgdown_2.2.1       crayon_1.5.3        jquerylib_0.1.4
#> [31] whisker_0.4.1       openssl_2.4.2       cachem_1.1.0
#> [34] nlme_3.1-169        tidyselect_1.2.1    digest_0.6.39
#> [37] lotri_1.0.4         purrr_1.2.2         labeling_0.4.3
#> [40] rxode2ll_2.0.16     fastmap_1.2.0       grid_4.6.1
#> [43] cli_3.6.6           dparser_1.3.1-13    magrittr_2.0.5
#> [46] withr_3.0.3         scales_1.4.0        backports_1.5.1
#> [49] rmarkdown_2.32      otel_0.2.0          askpass_1.2.1
#> [52] ragg_1.5.2          memoise_2.0.1       evaluate_1.0.5
#> [55] knitr_1.52          rex_1.2.2           PreciseSums_0.7
#> [58] rlang_1.3.0         downlit_0.4.5       Rcpp_1.1.2
#> [61] glue_1.8.1          xml2_1.6.0          jsonlite_2.0.0
#> [64] R6_2.6.1            systemfonts_1.3.2   fs_2.1.0
