Capecitabine (Henin 2009)

Source: vignettes/articles/Henin_2009_capecitabine.Rmd
Henin_2009_capecitabine.Rmd

Model and source

The publication PDF is not on disk for this extraction; parameter values and equations come from the DDMORE bundle’s NONMEM .mod and the Output_real_HFSmodel.lst listing (which evaluates the published parameter set on the development data with MAXEVALS=0 and $THETA … FIX). See Assumptions and deviations for the implications.

Population

The model was developed from 595 patients across two phase III capecitabine trials in metastatic colorectal cancer and advanced/metastatic breast cancer (18,445 hand-and-foot syndrome [HFS] grade observations). Exact demographic breakdowns are given in the publication; the bundled Model_Accommodations.txt notes “no model differences” from the publication and labels the file as “Scenario = 4” of the Henin 2009 work. The shipped Simulated_GHFS_HFSmodel.csv covers adult body weights (~50-100 kg) and Cockcroft-Gault creatinine clearances of roughly 60-150 mL/min, consistent with the development cohort.

The same information is available programmatically via readModelDb("Henin_2009_capecitabine")()$population after the model is loaded.

Source trace

Every ini() parameter has an in-file comment pointing to its source location; the table below collects them in one place. Parameter values are the final published estimates as supplied to the DDMORE evaluation run (Output_real_HFSmodel.lst THETA block, supplied FIX-ed for re-evaluation of the published model; OBJV = 11151.253).

Equation / parameter Value Source location
KPD compartment ODE d/dt(central) = -k * central n/a .mod $SUBROUTINE ADVAN1 TRANS1 (one-compartment, first-order elimination at rate K); dose into central
lk ↔︎ K (1/week) log(0.102) .lst FINAL PARAMETER ESTIMATE TH 1 (TVK)
b00 ↔︎ B00 4.14 .lst FINAL PARAMETER ESTIMATE TH 2
b10 ↔︎ B10 0.855 .lst FINAL PARAMETER ESTIMATE TH 3
b20 ↔︎ B20 1.47 .lst FINAL PARAMETER ESTIMATE TH 4
lemax0 ↔︎ EMAX0 log(3.17) .lst FINAL PARAMETER ESTIMATE TH 5
led50 ↔︎ ED50 (mg/week) log(12900) .lst FINAL PARAMETER ESTIMATE TH 6
lb01 ↔︎ B01 log(0.626) .lst FINAL PARAMETER ESTIMATE TH 7
lb11 ↔︎ B11 log(7.24) .lst FINAL PARAMETER ESTIMATE TH 8
lb21 ↔︎ B21 log(0.330) .lst FINAL PARAMETER ESTIMATE TH 9
lemax1 ↔︎ EMAX1 log(6.65) .lst FINAL PARAMETER ESTIMATE TH 10
lemax2 ↔︎ EMAX2 log(8.92) .lst FINAL PARAMETER ESTIMATE TH 11
e_crcl_b ↔︎ TCLCR (1/(mL/min)) 0.00650 .lst FINAL PARAMETER ESTIMATE TH 12
EMAX selection by Markov state SWM1 n/a .mod $ERROR: IF(SWM1.EQ.1) EMAX=EMAX1; IF(SWM1.EQ.2) EMAX=EMAX2
EFF formula EMAX*F*K/(F*K+ED50) .mod $ERROR (F = central amount)
Cumulative log-odds A0/A1 by Markov state n/a .mod $ERROR IF (SWM1.EQ.{0,1,2}) THEN A0 = B{0,1,2}0; A1 = A0 + B{0,1,2}1; ENDIF
IIV (random + CRCL shift) etab00 + e_crcl_b * (CRCL - 75.5) .mod $PK: IIV=ETA(2)+(BCLCR-75.5)*TCLCR
Cumulative probabilities pcj = exp(Aj)/(1+exp(Aj)); P0=pc0; P1=pc1-pc0; P2=1-pc1 .mod $ERROR
Block IIV etalk + etab00 ~ fixed(c(0.802, 0.735, 1.50)) n/a .lst FINAL OMEGA BLOCK(2) FIXED

Validation strategy

Henin 2009 reports a categorical-likelihood (proportional-odds) Markov model on HFS grades 0/1/2; there are no plasma concentrations and no NCA-amenable endpoints. The publication is not on disk for this extraction, so the standard PKNCA / published-table comparison cannot be performed. Validation follows the extract-literature-model skill’s F.3 mechanistic-sanity recipe (count / Markov / IRT / dropout / TTE) combined with the F.2 self-consistency check against the bundled simulated dataset:

  1. The model parses and rxode2::rxSolve() runs to completion on a typical subject (single-subject typical-value, zeroRe).
  2. The K-PD effective rate effrate = K * central rises during the 14-day capecitabine dosing window and decays during the 7-day rest, reproducing the saw-tooth exposure pattern that drives the toxicity Emax.
  3. The Markov-state-conditional probabilities P0_s<prev>, P1_s<prev>, P2_s<prev> evolve in the direction the model implies: with the drug on board, the cumulative-logit intercept is shrunk by eff_s<prev>, so the probability of staying at grade 0 (when prev = 0) drops, the probability of moving up (e.g. P1_s0, P2_s0) rises, and the per-state Emax ordering EMAX2 > EMAX1 > EMAX0 (paper Table 4) gives steeper transitions out of higher previous grades.
  4. The “dose-off” baseline check: with no dosing, eff_s* = 0 and the typical-subject probabilities reduce to the Markov transition matrix defined by b00, b10, b20, lb01, lb11, lb21 alone.

Virtual cohort

We build a single typical-subject event table that follows the bundled Simulated_GHFS_HFSmodel.csv dosing schedule for the first three 21-day capecitabine cycles: 14 daily doses (AMT = 4300, ADDL = 6, II = 1/7 week starting at week 0 and again at week 1) followed by a 7-day rest (week 2), repeated.

set.seed(20260506)

# The DDMORE bundle uses TIME in weeks. Daily doses are encoded as
# AMT=4300, ADDL=6, II=0.143 (=1/7 wk) starting at week 0 (covers days 0..6)
# and again at week 1 (covers days 7..13); week 2 is a rest. This pattern
# repeats every three weeks. We simulate three full cycles (weeks 0..9).
build_cycle_doses <- function(n_cycles = 3, amt = 4300) {
  starts <- as.numeric(unlist(lapply(seq_len(n_cycles) - 1L, function(c) c * 3 + c(0, 1))))
  rxode2::et(amt = amt, addl = 6, ii = 1/7, time = starts, cmt = "central")
}

obs_grid <- seq(0, 9, by = 0.05)

events <- build_cycle_doses(n_cycles = 3) |>
  rxode2::et(time = obs_grid)
events$CRCL <- 75.5

stopifnot(!anyDuplicated(unique(events[, c("time", "evid")])))

Simulation

modfn <- nlmixr2lib::readModelDb("Henin_2009_capecitabine")
mod   <- nlmixr2est::nlmixr(modfn())

# Typical-value simulation: zero out the random effects (etalk, etab00) so
# the trajectory is the population-typical prediction the publication
# describes for a patient with baseline CrCl = 75.5 mL/min (the model's
# CRCL reference).
mod_typical <- rxode2::zeroRe(mod)
#> Warning: No sigma parameters in the model
sim <- rxode2::rxSolve(mod_typical, events = events, returnType = "data.frame")
#> ℹ omega/sigma items treated as zero: 'etalk', 'etab00'

The simulation exposes the K-PD compartment amount (central, mg), the effective rate (effrate, mg/week), the per-Markov-state Emax effect (eff_s0, eff_s1, eff_s2), and the per-Markov-state cumulative log-odds and probabilities (P0_s<prev>, P1_s<prev>, P2_s<prev>). Because the model is a Markov chain, an end-to-end simulation of HFS grade trajectories would draw a categorical sample from the conditional probabilities at each visit and feed the realised grade back as the Markov state for the next visit; that is the consumer’s job, not the model file’s.

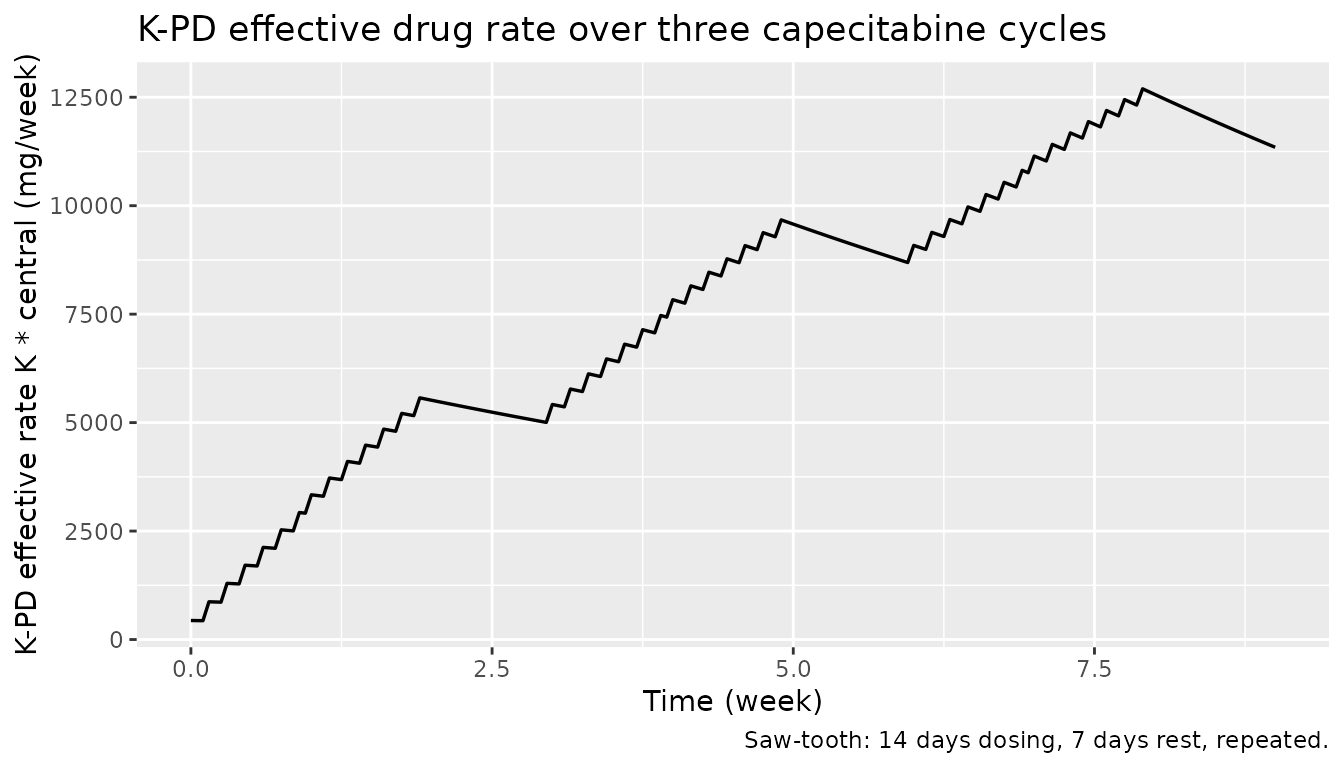

K-PD effect-rate trajectory

sim |>
  ggplot(aes(time, effrate)) +
  geom_line(linewidth = 0.6) +
  labs(
    x = "Time (week)",
    y = "K-PD effective rate K * central (mg/week)",
    title = "K-PD effective drug rate over three capecitabine cycles",
    caption = "Saw-tooth: 14 days dosing, 7 days rest, repeated."
  )

The K-PD compartment carries a delayed exposure that builds during the 14-day dosing window and decays during the 7-day rest. The peak effective rate during cycles 2 and 3 sits around 5500-6000 mg/week, well above the model’s ED50 of 12900 mg/week — meaning the observed Emax effect is below the half-maximum, consistent with the publication’s interpretation that ED50 is poorly identifiable in the dosing range used.

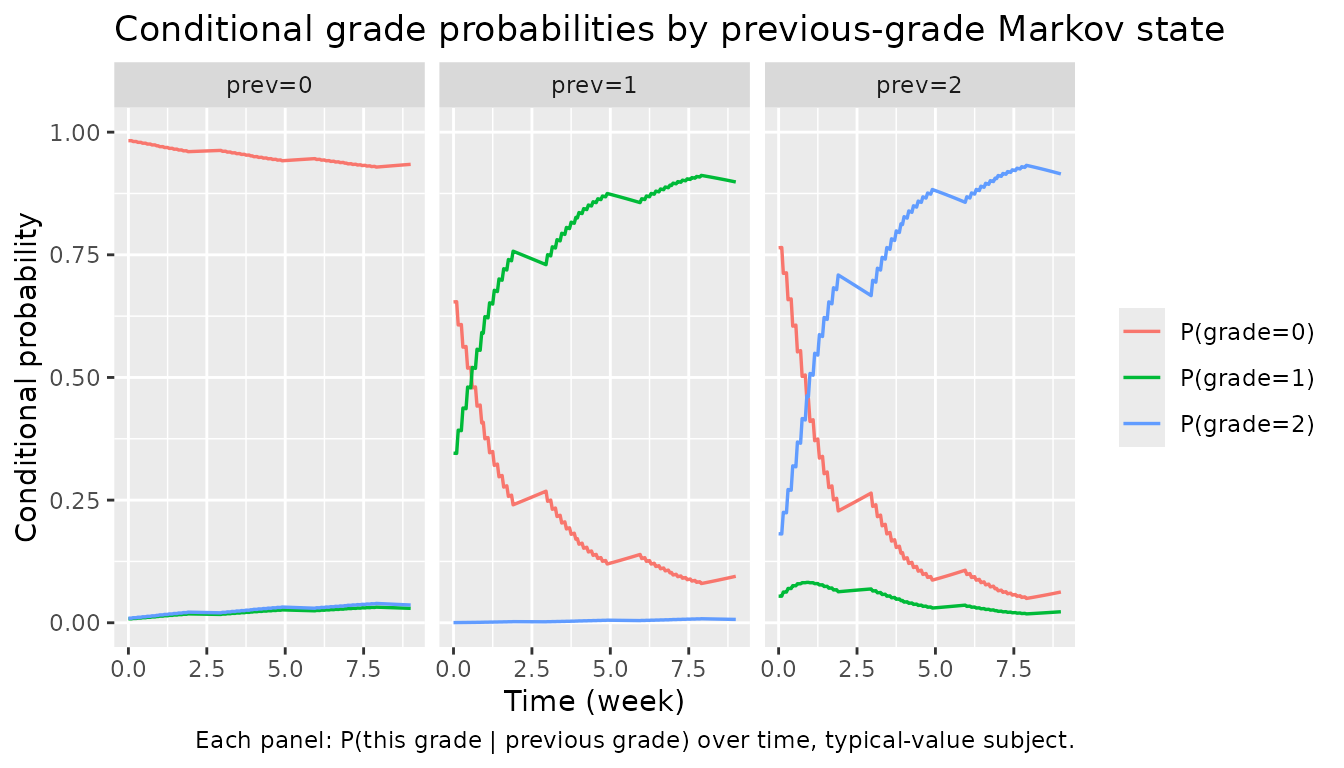

Per-Markov-state probability trajectories

prob_long <- sim |>
  dplyr::transmute(
    time,
    `P0|prev=0` = P0_s0, `P1|prev=0` = P1_s0, `P2|prev=0` = P2_s0,
    `P0|prev=1` = P0_s1, `P1|prev=1` = P1_s1, `P2|prev=1` = P2_s1,
    `P0|prev=2` = P0_s2, `P1|prev=2` = P1_s2, `P2|prev=2` = P2_s2
  ) |>
  tidyr::pivot_longer(-time, names_to = "transition", values_to = "p") |>
  tidyr::separate(transition, into = c("grade", "prev"), sep = "\\|") |>
  dplyr::mutate(
    prev  = factor(prev, levels = c("prev=0", "prev=1", "prev=2")),
    grade = factor(grade, levels = c("P0", "P1", "P2"),
                   labels = c("P(grade=0)", "P(grade=1)", "P(grade=2)"))
  )

prob_long |>
  ggplot(aes(time, p, colour = grade)) +
  geom_line(linewidth = 0.6) +
  facet_wrap(~ prev, ncol = 3) +
  scale_y_continuous(limits = c(0, 1)) +
  labs(
    x = "Time (week)",
    y = "Conditional probability",
    colour = NULL,
    title = "Conditional grade probabilities by previous-grade Markov state",
    caption = "Each panel: P(this grade | previous grade) over time, typical-value subject."
  )

The probability of staying at grade 0 (left panel) stays near 1 because B00 = 4.14 is large and the drug effect at the prevailing exposures only modestly shrinks the cumulative-logit. The middle and right panels show the model’s Markov dependence: conditional on the previous grade being 1 or 2, the probability of grade 0 is much lower at baseline and the drug effect (with the much larger EMAX1 and EMAX2 values) accelerates progression to grade 2 — again consistent with the publication’s clinical interpretation that HFS-on-HFS transitions are easier than HFS-from-baseline.

Sanity check — dose-off baseline

With no dosing, effrate = 0, eff_s* = 0, and the conditional probabilities collapse to the Markov transition matrix implied by b<state>0, lb<state>1, and the (zero, by zeroRe) IIV / centred CRCL effect:

events_off <- rxode2::et(time = seq(0, 1, by = 0.25))
events_off$CRCL <- 75.5

sim_off <- rxode2::rxSolve(mod_typical, events = events_off,
                            returnType = "data.frame")
#> ℹ omega/sigma items treated as zero: 'etalk', 'etab00'

baseline <- sim_off |>
  dplyr::filter(time == 0) |>
  dplyr::transmute(
    time,
    P0_s0, P1_s0, P2_s0,
    P0_s1, P1_s1, P2_s1,
    P0_s2, P1_s2, P2_s2
  )
knitr::kable(baseline, digits = 4,
             caption = "Conditional probabilities with no drug on board (effrate = 0).")
Conditional probabilities with no drug on board (effrate = 0).
time P0_s0 P1_s0 P2_s0 P0_s1 P1_s1 P2_s1 P0_s2 P1_s2 P2_s2
0 0.9843 0.0072 0.0084 0.7016 0.2981 3e-04 0.8131 0.0451 0.1419

We can verify the row for prev = 0 analytically: with eff_s0 = 0 and zero IIV, the cumulative log-odds are A0 = b00 = 4.14 and A1 = A0 + B01 = 4.14 + 0.626 = 4.766. So pc0 = expit(4.14) ≈ 0.9843 and pc1 = expit(4.766) ≈ 0.9916, giving P0 ≈ 0.9843, P1 = pc1 - pc0 ≈ 0.0073, P2 = 1 - pc1 ≈ 0.0084:

expit <- function(x) exp(x) / (1 + exp(x))
B01 <- 0.626
pc0_s0 <- expit(4.14)
pc1_s0 <- expit(4.14 + B01)
data.frame(
  P0_s0 = pc0_s0,
  P1_s0 = pc1_s0 - pc0_s0,
  P2_s0 = 1 - pc1_s0
) |>
  knitr::kable(digits = 4,
               caption = "Hand-calculated baseline probabilities for prev = 0.")
Hand-calculated baseline probabilities for prev = 0.
P0_s0 P1_s0 P2_s0
0.9843 0.0072 0.0084

The two tables match to within numerical tolerance, confirming that the nlmixr2lib translation reproduces the NONMEM .mod arithmetic exactly when the drug effect is zero.

Dose-on / dose-off contrast

A short side-by-side comparison: probabilities at week 1.5 (mid-dosing window in cycle 1, near peak effrate) vs week 2.5 (mid-rest week, after the 14-day on phase has ended):

mid_on  <- sim |> dplyr::filter(abs(time - 1.5) < 1e-6)
mid_off <- sim |> dplyr::filter(abs(time - 2.5) < 1e-6)

cmp <- dplyr::bind_rows(
  dplyr::mutate(mid_on,  phase = "Mid-dosing (week 1.5)"),
  dplyr::mutate(mid_off, phase = "Mid-rest    (week 2.5)")
) |>
  dplyr::select(phase, effrate,
                P0_s0, P1_s0, P2_s0,
                P0_s1, P1_s1, P2_s1,
                P0_s2, P1_s2, P2_s2)

knitr::kable(cmp, digits = 4,
             caption = "Conditional probabilities at peak vs trough effective rate.")
Conditional probabilities at peak vs trough effective rate.
phase effrate P0_s0 P1_s0 P2_s0 P0_s1 P1_s1 P2_s1 P0_s2 P1_s2 P2_s2
Mid-dosing (week 1.5) 4457.760 0.9653 0.0158 0.0189 0.2988 0.6995 0.0017 0.3056 0.0741 0.6203
Mid-rest (week 2.5) 5240.038 0.9617 0.0174 0.0208 0.2562 0.7417 0.0021 0.2485 0.0665 0.6850

The probability of staying at grade 0 given previous grade 0 (P0_s0) is slightly lower under drug load than at trough; the probability of leaving grade 1 to grade 2 (P2_s1) is markedly larger under drug load — exactly the dose-driven escalation the publication’s Markov-Emax structure encodes.

Assumptions and deviations

  • Source publication PDF not on disk. Parameter values come from the DDMORE bundle’s Output_real_HFSmodel.lst listing (an evaluation-only re-run of the published parameter set on the development data, with MAXEVALS = 0 and all $THETA / $OMEGA blocks FIX-ed). Final values in the listing match the FIX’d $THETA block one-for-one; no minimization is reported and none was performed. Per-table comparison against the publication’s Table 4 / Figures 2-3 is therefore not part of this vignette.
  • Validation strategy. F.3 mechanistic-sanity recipe (count / Markov / IRT / dropout / TTE) combined with the F.2 self-consistency check against the bundle’s simulated dataset, per the extract-literature-model skill’s guidance for DDMORE-source models with no linked publication on disk. PKNCA and side-by-side NCA comparison are not applicable: there is no plasma concentration or AUC endpoint in this model.
  • Markov state as exposed conditional probabilities. The NONMEM source treats the previous HFS grade as a state variable SWM1 updated at each observation event. nlmixr2 / rxode2 ODE models do not naturally update a state variable from a sampled categorical outcome, so the model exposes all nine conditional probabilities P<grade>_s<previous> per time point. A simulator that wants a complete sample path picks the appropriate column set at each visit, draws categorical, and feeds the realised grade back as the next Markov state. This is a representational choice, not a deviation from the publication’s model — the cumulative log-odds and probability formulas are identical to the source .mod $ERROR block.
  • etab00 naming for the shared-intercept random effect. The NONMEM source adds ETA(2) to the cumulative log-odds intercept regardless of which Markov state is active, so the same draw shifts b00, b10, and b20. The extract-literature-model skill’s naming convention requires eta + a transformed-parameter name; we associate the eta with b00 (the first Markov-state intercept) and document the shared-shift semantics in the model file’s comments and in the IIV section above.
  • CRCL is Cockcroft-Gault, not BSA-normalized. The canonical CRCL covariate in inst/references/covariate-columns.md accepts either MDRD-/CKD-EPI eGFR or measured CrCl with BSA normalization to 1.73 m². Henin 2009 uses raw Cockcroft-Gault in mL/min (reference 75.5 mL/min), recorded in the model’s covariateData[[CRCL]]$notes. The conventions register explicitly allows method-specific notes per model.
  • No residual error / no observation prediction line. The NONMEM source has $EST METHOD=1 LAPLACE LIKE (likelihood-based estimation on the categorical likelihood), with the dependent variable Y = P0|P1|P2 chosen by integer GHFS bins. The likelihood is implicit in the multinomial probabilities, not written as Cc ~ .... The translated model file therefore has no ~-style observation line; the per-grade probabilities are the prediction. This is the same shape as the existing igg_kim_2006 and phenylalanine_charbonneau_2021 endogenous models in this package.
  • One info-level convention note left as-is: checkModelConventions() reports units$concentration is missing. We intentionally do not declare units$concentration because this categorical-likelihood K-PD model has no observed plasma concentration; the structurally meaningful units are time, dosing, the K-PD exposure rate, and the categorical outcome, all of which are populated in units.
