Model and source

Kang 2020 developed three population PK models for adalimumab, one per study, and nlmixr2lib carries each as its own model file (the paper fit them separately, so they are not collapsed into one file):

Model Study Population
Kang_2020_adalimumab_phase1 Phase 1, NCT02045979 324 healthy men, single 40 mg SC dose
Kang_2020_adalimumab_phase3_base Phase 3 base, NCT02137226 644 RA patients, 40 mg SC q2w x 48 weeks
Kang_2020_adalimumab_phase3_extension Phase 3 extension, NCT02640612 430 RA patients, open-label extension
model_names <- c(
  "Kang_2020_adalimumab_phase1",
  "Kang_2020_adalimumab_phase3_base",
  "Kang_2020_adalimumab_phase3_extension"
)
# readModelDb() returns the model FUNCTION; rxode2::rxode() resolves it to the
# ui exactly once so every downstream accessor ($theta, $population, ...) works.
uis <- lapply(model_names, function(nm) rxode2::rxode(readModelDb(nm)))
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ parameter labels from comments will be replaced by 'label()'
names(uis) <- model_names
  • Citation: Kang J, Eudy-Byrne RJ, Mondick J, Knebel W, Jayadeva G, Liesenfeld K-H. Population pharmacokinetics of adalimumab biosimilar adalimumab-adbm and reference product in healthy subjects and patients with rheumatoid arthritis to assess pharmacokinetic similarity. Br J Clin Pharmacol. 2020;86(11):2274-2285. doi:10.1111/bcp.14330. Parameter estimates from Table 2; structural and covariate model from Section 2.3, Section 3.2.1 and Equations 1-3.
  • Article: https://doi.org/10.1111/bcp.14330 (open access; PMC7576631)

Adalimumab-adbm (Cyltezo) is a biosimilar to Humira. The analysis pooled all treatment arms – biosimilar, US-licensed Humira and EU-approved Humira – and estimated a single apparent clearance per study, then tested treatment as an additional categorical covariate in separate models to demonstrate PK similarity.

Population

pop_row <- function(nm) {
  p <- uis[[nm]]$population
  tibble::tibble(
    Model        = sub("^Kang_2020_adalimumab_", "", nm),
    N            = p$n_subjects,
    Observations = p$n_observations,
    Age          = p$age_range,
    `Weight (kg)` = p$weight_range,
    `Female (%)` = p$sex_female_pct,
    `Disease state` = p$disease_state,
    Dosing       = p$dose_range
  )
}
dplyr::bind_rows(lapply(model_names, pop_row)) |>
  knitr::kable(caption = "Study populations (Kang 2020 Table 1 and Section 3.1).")
Study populations (Kang 2020 Table 1 and Section 3.1).
Model N Observations Age Weight (kg) Female (%) Disease state Dosing
phase1 324 7255 18-55 years 54.9-110 kg 0 healthy single 40 mg subcutaneous dose
phase3_base 644 4342 21-80 years 38.5-139 kg 83 active rheumatoid arthritis, all on background methotrexate 40 mg subcutaneously every 2 weeks for 48 weeks
phase3_extension 430 2192 22-80 years 40.1-137 kg 84 rheumatoid arthritis, having completed the 48-week Phase 3 base study and eligible for long-term adalimumab 40 mg subcutaneously every 2 weeks for 48 weeks, open-label adalimumab-adbm in every arm

The Phase 1 study enrolled healthy men only (100% male, mean age about 30 years, weight 54.9-110 kg), randomised 1:1:1 to a single 40 mg subcutaneous dose of adalimumab-adbm, US-licensed Humira or EU-approved Humira. Both Phase 3 studies enrolled adults with active rheumatoid arthritis on background methotrexate, about 83% female, mean age about 53 years, weight 38.5-139 kg, and were overwhelmingly White (95-97%). Serum adalimumab was measured by a validated ELISA with limits of quantification of 25-2000 ng/mL, and anti-drug antibodies (ADA) by a 3-tier bridging electrochemiluminescence assay whose titres are powers of 2. ADA appeared during treatment in 55% (base) and 52% (extension) of subjects. Baseline demographics are Kang 2020 Table 1; concentration counts are Section 3.1.

The same information is available programmatically as readModelDb("Kang_2020_adalimumab_phase3_base")()$population.

Source trace

The per-parameter origin is recorded as an in-file comment next to each ini() entry in inst/modeldb/specificDrugs/Kang_2020_adalimumab_*.R. The table below collects the structural model and the three parameter sets in one place.

Equation / parameter Phase 1 Phase 3 base Phase 3 extension Source location
Structural model: 2-compartment, sequential zero- then first-order absorption, linear elimination n/a n/a n/a Section 3.2.1 (Phase 1), Section 3.3 (carried over)
IIV form P_i = exp(P_hat + eta_Pi) n/a n/a n/a Equation 1
Residual error C_ij = Chat_ij * (1 + eps_p) + eps_a n/a n/a n/a Equation 2
Covariate form exp(P_hat + theta_cov * log(Cov/Cov_ref)) n/a n/a n/a Equation 3; full CL/F model in Equation 5
lcl (CL/F, L/h) 0.0278 0.0244 0.0195 Tables 2 / 3 / 4, row CL/F (WT/70)^0.75
lvc (Vc/F, L) 2.49 2.96 2.67 Tables 2 / 3 / 4, row Vc/F (WT/70)^1
lq (Q/F, L/h) 0.0708 0.0766 0.0709 Tables 2 / 3 / 4, row Q/F (WT/70)^0.75
lvp (Vp/F, L) 3.74 4.27 3.94 Tables 2 / 3 / 4, row Vp/F (WT/70)^1
lka (ka, 1/h) 0.0108 0.0117 0.0109 Tables 2 / 3 / 4, row ka (h-1)
ld1 (D1, h) 2.96 2.82 2.91 Tables 2 / 3 / 4, row D1 (h)
lfdepot (F) 1 1 1 Structural anchor; every disposition parameter is reported in apparent form and no IV arm was studied

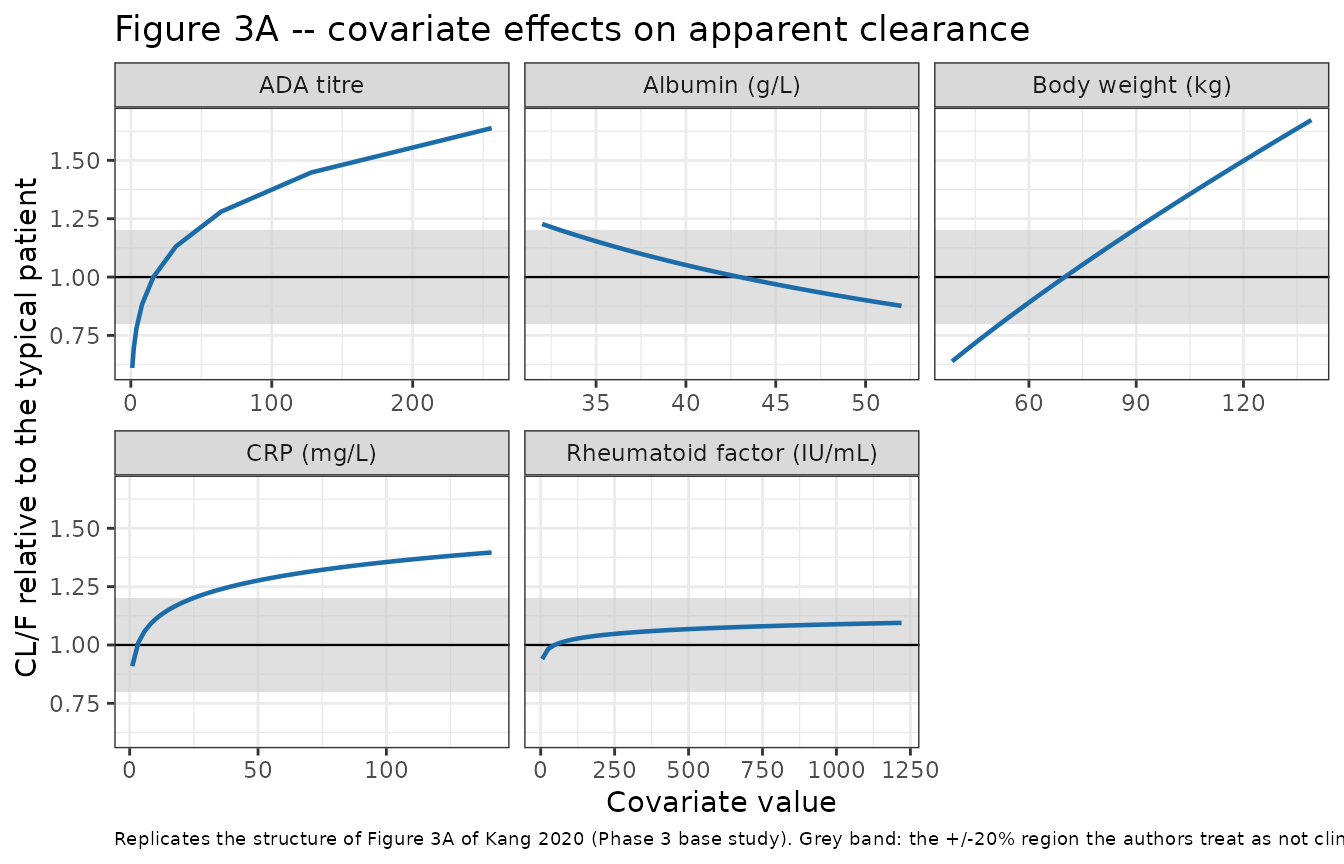

e_wt_cl, e_wt_q 0.75 0.75 0.75 Section 3.2.1 “coefficients fixed at 0.75 for clearance-related PK parameters”; table row labels
e_wt_vc, e_wt_vp 1 1 1 Section 3.2.1 “and 1 for volume-related parameters”; table row labels
e_ada_neg_cl = log(factor) log(0.421) log(0.560) log(0.654) Tables 2 / 3 / 4, row (ADA-) * exp(theta7); Sections 3.2.1 and 3.3
e_ada_titer_cl 0.242 0.178 0.165 Tables 2 / 3 / 4, row (ADA/16)^theta8
e_crp_cl not in model 0.0867 0.0747 Tables 3 / 4, row (CRP/3)^theta9
e_alb_cl not in model -0.693 -0.655 Tables 3 / 4, row (ALB/43)^theta10
e_rf_cl not in model 0.0278 0.0562 Tables 3 / 4, row (BRF/47)^theta11
IIV block (5x5 on CL/F, Vc/F, Q/F, Vp/F, ka), variances and covariances Table 2 Table 3 Table 4 IIV ... and COV ... rows; reported as variances, used directly
propSd sqrt(0.00668) = 0.0817 sqrt(0.0112) = 0.1058 sqrt(0.0367) = 0.1916 Tables 2 / 3 / 4, Proportional residual error (a VARIANCE; printed CV% confirms the square root)
addSd (mg/L) sqrt(0.0198) = 0.141 sqrt(0.529) = 0.727 sqrt(0.399) = 0.632 Tables 2 / 3 / 4, Additive residual error (a VARIANCE; printed SD confirms the square root)

The reference subject is ADA-POSITIVE

The single most important thing to know before using these models is that the paper’s reference covariate set is an ADA-positive subject at a titre of 16, not an ADA-negative subject (Sections 3.2.1 and 3.3). The tabulated CL/F values above therefore describe a minority of the study population – 95% of subjects were ADA-negative at baseline – and the typical ADA-negative clearance is the tabulated value multiplied by the (ADA-) * exp(theta7) factor.

theta_of <- function(nm) {
  ini <- uis[[nm]]$iniDf
  stats::setNames(ini$est[!is.na(ini$ntheta)], ini$name[!is.na(ini$ntheta)])
}
thetas <- lapply(model_names, theta_of)
names(thetas) <- model_names

ada_tab <- dplyr::bind_rows(lapply(model_names, function(nm) {
  th <- thetas[[nm]]
  tibble::tibble(
    Model = sub("^Kang_2020_adalimumab_", "", nm),
    `CL/F at reference (L/h)` = exp(unname(th[["lcl"]])),
    `ADA-negative factor` = exp(unname(th[["e_ada_neg_cl"]])),
    `CL/F if ADA-negative (L/h)` = exp(unname(th[["lcl"]]) + unname(th[["e_ada_neg_cl"]])),
    `CL/F if ADA-negative (L/day)` = 24 * exp(unname(th[["lcl"]]) + unname(th[["e_ada_neg_cl"]]))
  )
}))
knitr::kable(ada_tab, digits = c(0, 4, 3, 4, 3),
             caption = "Reference-covariate CL/F versus the typical ADA-negative CL/F.")
Reference-covariate CL/F versus the typical ADA-negative CL/F.
Model CL/F at reference (L/h) ADA-negative factor CL/F if ADA-negative (L/h) CL/F if ADA-negative (L/day)
phase1 0.0278 0.421 0.0117 0.281
phase3_base 0.0244 0.560 0.0137 0.328
phase3_extension 0.0195 0.654 0.0128 0.306

The ADA-negative column is the quantity that should be compared with published adalimumab clearances of roughly 0.3 L/day; the paper’s own comparison in Section 4.1 against hidradenitis suppurativa (0.028 L/h) and psoriasis (0.021 L/h) is made against the reference-covariate values in the first column.

The paper’s explicit numeric claims about the ADA terms are reproduced exactly by the packaged parameters. All of these are deterministic functions of the ini() values, so they are asserted tightly.

pct_lower <- function(nm) 100 * (1 - exp(unname(thetas[[nm]][["e_ada_neg_cl"]])))

claims <- tibble::tribble(
  ~Claim, ~Published, ~Reproduced,
  "Phase 1: ADA-negative CL/F is 42.1% of the CL/F at titre 16",
  42.1, 100 * exp(unname(thetas[[1]][["e_ada_neg_cl"]])),
  "Phase 3 base: ADA-negative clearance is 44.0% lower than at titre 16",
  44.0, pct_lower(model_names[2]),
  "Phase 3 extension: ADA-negative clearance is 34.6% lower than at titre 16",
  34.6, pct_lower(model_names[3]),
  "Phase 3 base: clearance is about 28% greater at titre 64 than at titre 16",
  28.0, 100 * ((64 / 16)^unname(thetas[[2]][["e_ada_titer_cl"]]) - 1)
)
claims$`Abs. difference` <- abs(claims$Reproduced - claims$Published)
knitr::kable(claims, digits = 2,
             caption = "Kang 2020 in-text ADA claims versus the packaged parameters.")
Kang 2020 in-text ADA claims versus the packaged parameters.
Claim Published Reproduced Abs. difference
Phase 1: ADA-negative CL/F is 42.1% of the CL/F at titre 16 42.1 42.10 0.00
Phase 3 base: ADA-negative clearance is 44.0% lower than at titre 16 44.0 44.00 0.00
Phase 3 extension: ADA-negative clearance is 34.6% lower than at titre 16 34.6 34.60 0.00
Phase 3 base: clearance is about 28% greater at titre 64 than at titre 16 28.0 27.99 0.01

# Deterministic identities computed from ini() values -- no simulation, no RNG,
# so a tight bound is correct here and would catch a mis-transcribed factor.
stopifnot(max(claims$`Abs. difference`) < 0.6)

Virtual cohort

Original observed data are not publicly available. Two cohorts are built below.

  1. A typical-value cohort of six subjects (three models x ADA-negative / ADA-positive at titre 16), each at the paper’s reference covariates, used for the deterministic structural checks and the NCA comparison.
  2. A stochastic cohort of 200 Phase 3 base-study patients whose covariate distributions approximate Kang 2020 Table 1, used for the steady-state simulation.
# set.seed() seeds R's RNG. It does NOT seed rxode2's simulation RNG, and
# rxode2's streams are partitioned PER SOLVER THREAD, so a cohort drawn here is
# reproducible on this machine and different on a machine with a different
# thread count. Every assertion below is therefore written either on a
# deterministic quantity or as a bound that holds for any cohort the model can
# produce.
set.seed(20200914)

# Reference covariates (Kang 2020 Sections 3.2.1 and 3.3): 70 kg, ADA titre 16,
# CRP 3 mg/L, albumin 43 g/L, baseline rheumatoid factor 47 IU/mL.
REF_WT  <- 70
REF_CRP <- 3
REF_ALB <- 43
REF_RF  <- 47
DOSE_MG <- 40

# Time grid: dense through the absorption phase and Tmax (about 5 days for a
# subcutaneous mAb with ka = 0.011 /h), then out to 3000 h, roughly eight
# terminal half-lives, so the AUCinf extrapolation stays small.
t_single <- unique(c(seq(0, 48, by = 2), seq(52, 480, by = 4), seq(500, 3000, by = 20)))

make_single_dose_events <- function(ada_pos, id_offset = 0L) {
  ids <- id_offset + seq_along(ada_pos)
  cov <- tibble::tibble(
    id = ids, ADA_POS = ada_pos, WT = REF_WT, ADA_TITER = 16,
    CRP = REF_CRP, ALB = REF_ALB, RHEUMATOID_FACTOR = REF_RF
  )
  dose <- tibble::tibble(
    id = ids, time = 0, amt = DOSE_MG, evid = 1L, cmt = "depot",
    # rate = -2 tells rxode2 to take the zero-order input duration from
    # dur(depot) in the model, matching the authors' RATE coding.
    rate = -2
  )
  obs <- tidyr::crossing(id = ids, time = t_single) |>
    dplyr::mutate(amt = NA_real_, evid = 0L, cmt = "central", rate = 0)
  dplyr::bind_rows(dose, obs) |>
    dplyr::left_join(cov, by = "id") |>
    dplyr::arrange(id, time, dplyr::desc(evid))
}

ev_typ <- make_single_dose_events(ada_pos = c(1, 0))
stopifnot(!anyDuplicated(unique(ev_typ[, c("id", "time", "evid")])))

Simulation

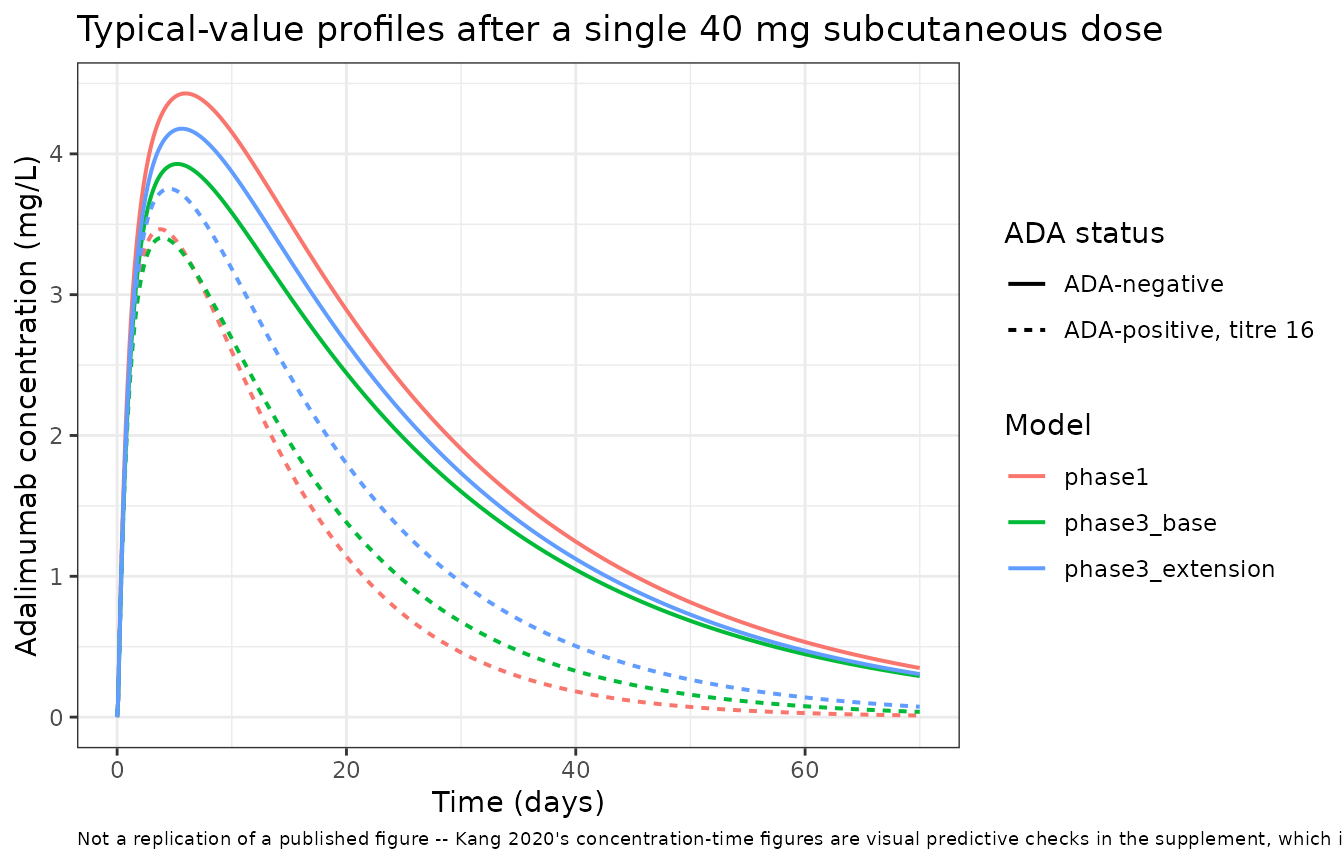

Typical-value single-dose profiles

solve_typical <- function(nm, ev) {
  # omega = NA is mandatory: zeroRe() alone does not stop rxode2 re-using an
  # omega left in the solve options by an earlier stochastic solve of the same
  # compiled ODE system.
  rxode2::rxSolve(
    rxode2::zeroRe(uis[[nm]]), events = ev, omega = NA,
    keep = c("ADA_POS"), returnType = "data.frame"
  ) |>
    dplyr::mutate(model = sub("^Kang_2020_adalimumab_", "", nm))
}

sim_typ <- dplyr::bind_rows(lapply(model_names, solve_typical, ev = ev_typ)) |>
  dplyr::mutate(
    ada = ifelse(ADA_POS == 1, "ADA-positive, titre 16", "ADA-negative"),
    arm = paste0(model, " | ", ada)
  )
#> Warning: multi-subject simulation without without 'omega'
#> Warning: multi-subject simulation without without 'omega'
#> Warning: multi-subject simulation without without 'omega'

# Mechanical guard that the typical-value solve really is typical: CL must be
# constant within each (model, ADA status) arm.
stopifnot(
  sim_typ |>
    dplyr::group_by(arm) |>
    dplyr::summarise(n = dplyr::n_distinct(round(cl, 10)), .groups = "drop") |>
    dplyr::pull(n) |>
    (\(x) all(x == 1L))()
)

# The simulated CL must equal the closed-form covariate model evaluated at the
# reference covariates. This is an exact identity, so the bound is tight.
cl_expected <- function(nm, ada_pos) {
  th <- thetas[[nm]]
  lin <- unname(th[["lcl"]]) + unname(th[["e_ada_neg_cl"]]) * (1 - ada_pos)
  exp(lin) * (REF_WT / 70)^unname(th[["e_wt_cl"]])
}
cl_check <- sim_typ |>
  dplyr::distinct(model, ADA_POS, cl) |>
  dplyr::mutate(
    full = paste0("Kang_2020_adalimumab_", model),
    expected = mapply(cl_expected, full, ADA_POS),
    pct_diff = 100 * (cl - expected) / expected
  )
stopifnot(max(abs(cl_check$pct_diff)) < 1e-8)

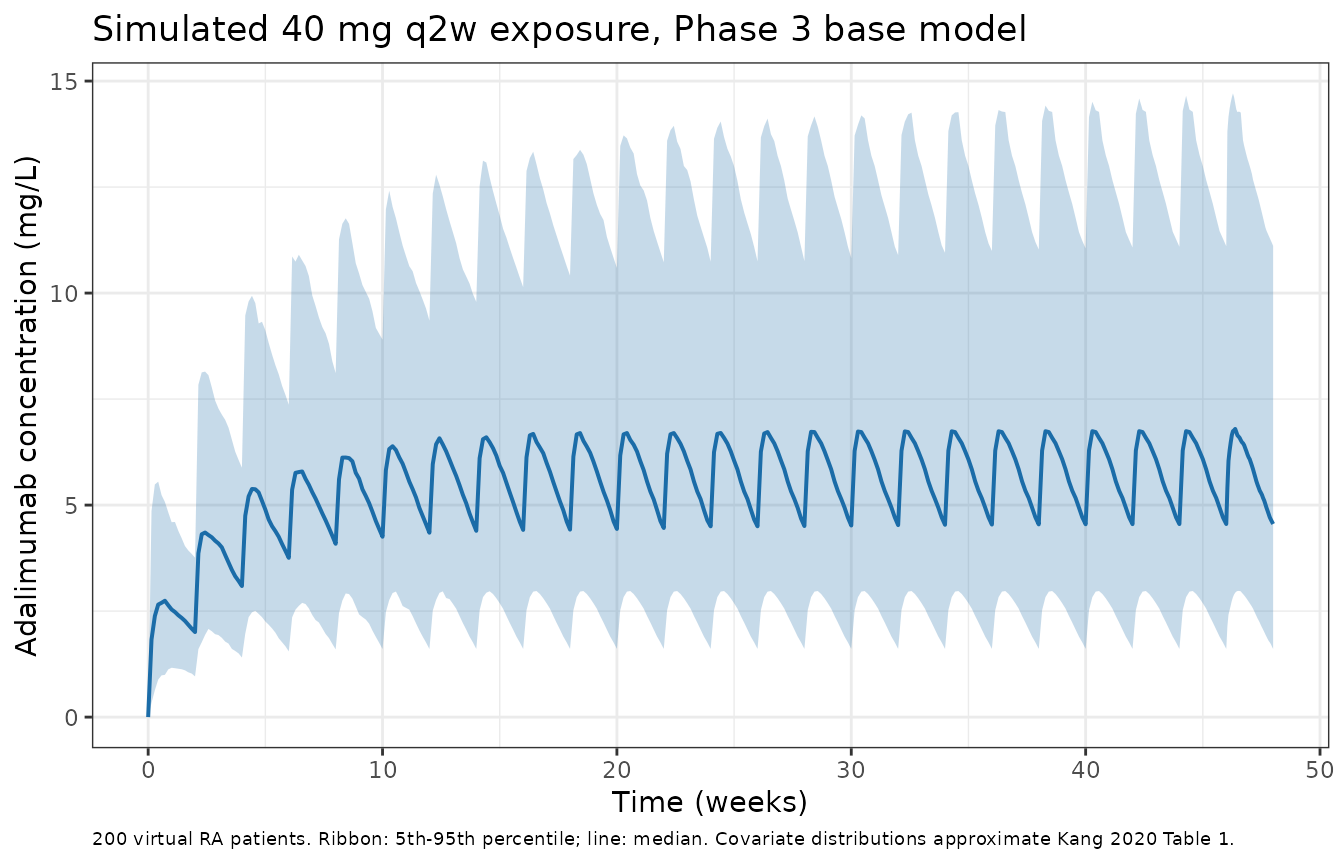

Stochastic Phase 3 base-study cohort at steady state

N_SUB <- 200          # cap is 200 participants per arm
TAU   <- 336          # 14 days in hours
N_DOSE <- 24          # 48 weeks of q2w dosing

# Covariate distributions approximate Kang 2020 Table 1 (phase-3 base columns),
# which report a mean and a range only; the distributional shapes below are an
# assumption of this vignette, documented under "Assumptions and deviations".
rlnorm_mean <- function(n, mean, cv) {
  sdlog <- sqrt(log(cv^2 + 1))
  stats::rlnorm(n, meanlog = log(mean) - sdlog^2 / 2, sdlog = sdlog)
}

subj <- tibble::tibble(
  id = seq_len(N_SUB),
  WT = pmin(pmax(rlnorm_mean(N_SUB, 74, 0.24), 38.5), 139),
  CRP = pmin(pmax(rlnorm_mean(N_SUB, 13.2, 1.2), 1), 141),
  ALB = pmin(pmax(stats::rnorm(N_SUB, 42.5, 3.5), 32), 52),
  RHEUMATOID_FACTOR = pmin(pmax(rlnorm_mean(N_SUB, 130, 1.6), 5), 6080),
  # 55% of subjects developed ADA during the base study (Section 3.1). ADA
  # status is held constant per subject here because the paper reports the ADA
  # titre time course only graphically (Figure 4).
  ADA_POS = stats::rbinom(N_SUB, 1, 0.55)
) |>
  dplyr::mutate(
    # Titres are powers of 2; the reference 16 was the commonly observed value
    # (Section 3.1). ADA-negative subjects carry the reference titre so the
    # titre term cancels, per the model's documented zero-encoding convention.
    ADA_TITER = ifelse(ADA_POS == 1, 2^stats::rbinom(N_SUB, 8, 0.5), 16)
  )

dose_times <- TAU * (seq_len(N_DOSE) - 1)
obs_times <- unique(c(
  seq(0, TAU * N_DOSE, by = 24),                                   # whole course, troughs included
  seq(dose_times[N_DOSE], dose_times[N_DOSE] + TAU, by = 8)        # dense final interval
))

ev_pop <- dplyr::bind_rows(
  tidyr::crossing(id = subj$id, time = dose_times) |>
    dplyr::mutate(amt = DOSE_MG, evid = 1L, cmt = "depot", rate = -2),
  tidyr::crossing(id = subj$id, time = obs_times) |>
    dplyr::mutate(amt = NA_real_, evid = 0L, cmt = "central", rate = 0)
) |>
  dplyr::left_join(subj, by = "id") |>
  dplyr::arrange(id, time, dplyr::desc(evid))

stopifnot(!anyDuplicated(unique(ev_pop[, c("id", "time", "evid")])))
ui_base <- uis[["Kang_2020_adalimumab_phase3_base"]]
# omega is passed explicitly because an earlier zeroRe() solve of the same
# compiled ODE system can otherwise leave a zero omega in the solve options and
# silently collapse all 200 subjects onto one typical patient.
sim_pop <- rxode2::rxSolve(
  ui_base, events = ev_pop, omega = ui_base$omega,
  keep = c("WT", "CRP", "ALB", "RHEUMATOID_FACTOR", "ADA_POS", "ADA_TITER"),
  returnType = "data.frame"
)

# Guard the opposite failure: IIV must actually have been sampled.
stopifnot(dplyr::n_distinct(round(sim_pop$cl, 8)) > 1L)

# Cc is the individual prediction WITHOUT residual error; `sim` carries it.
# Profiles and NCA below deliberately use Cc.
stopifnot(isTRUE(all.equal(sim_pop$Cc, sim_pop$ipredSim)))

Replicate published figures

Figure 3 – covariate effects on apparent clearance

Figure 3 of Kang 2020 plots CL/F relative to the typical patient at the reference covariates, with a grey band marking the +/-20% region the authors treat as not clinically meaningful. The panel below reproduces that structure for the Phase 3 base model over each covariate’s observed range from Table 1 (the paper marks the 5th, 25th, 75th and 95th percentiles, which it reports only graphically).

cl_ratio <- function(nm, WT = REF_WT, ADA_POS = 1, ADA_TITER = 16,
                     CRP = REF_CRP, ALB = REF_ALB, RF = REF_RF) {
  th <- thetas[[nm]]
  g <- function(p) if (p %in% names(th)) unname(th[[p]]) else 0
  ada_ratio <- ADA_POS * (ADA_TITER / 16) + (1 - ADA_POS)
  lin <-
    g("e_ada_neg_cl") * (1 - ADA_POS) +
    g("e_ada_titer_cl") * log(ada_ratio) +
    g("e_crp_cl") * log(CRP / REF_CRP) +
    g("e_alb_cl") * log(ALB / REF_ALB) +
    g("e_rf_cl") * log(RF / REF_RF)
  exp(lin) * (WT / 70)^g("e_wt_cl")
}

nm_base <- "Kang_2020_adalimumab_phase3_base"
cov_grid <- dplyr::bind_rows(
  tibble::tibble(Covariate = "Body weight (kg)", value = seq(38.5, 139, length.out = 60)) |>
    dplyr::mutate(ratio = cl_ratio(nm_base, WT = value)),
  tibble::tibble(Covariate = "ADA titre", value = 2^seq(0, 8, by = 1)) |>
    dplyr::mutate(ratio = cl_ratio(nm_base, ADA_TITER = value)),
  tibble::tibble(Covariate = "CRP (mg/L)", value = seq(1, 141, length.out = 60)) |>
    dplyr::mutate(ratio = cl_ratio(nm_base, CRP = value)),
  tibble::tibble(Covariate = "Albumin (g/L)", value = seq(32, 52, length.out = 60)) |>
    dplyr::mutate(ratio = cl_ratio(nm_base, ALB = value)),
  tibble::tibble(Covariate = "Rheumatoid factor (IU/mL)", value = seq(5, 1220, length.out = 60)) |>
    dplyr::mutate(ratio = cl_ratio(nm_base, RF = value))
)

ggplot(cov_grid, aes(value, ratio)) +
  annotate("rect", xmin = -Inf, xmax = Inf, ymin = 0.8, ymax = 1.2,
           fill = "grey80", alpha = 0.6) +
  geom_hline(yintercept = 1, linewidth = 0.4) +
  geom_line(colour = "#1B6CA8", linewidth = 0.8) +
  facet_wrap(~Covariate, scales = "free_x") +
  labs(
    x = "Covariate value", y = "CL/F relative to the typical patient",
    title = "Figure 3A -- covariate effects on apparent clearance",
    caption = paste(
      "Replicates the structure of Figure 3A of Kang 2020 (Phase 3 base study).",
      "Grey band: the +/-20% region the authors treat as not clinically meaningful.",
      "Reference patient: 70 kg, ADA-positive at titre 16, CRP 3 mg/L,",
      "albumin 43 g/L, rheumatoid factor 47 IU/mL."
    )
  ) +
  theme_bw() +
  theme(plot.caption = element_text(hjust = 0, size = 7))

Kang 2020 Section 3.3 concludes that body weight and ADA titre are the only two covariates whose effect reaches clinical relevance, and that ALB, BRF and CRP are not clinically meaningful “based on the median covariate effect sizes of <+/-20% from the typical CL/F”. The panel reproduces exactly that ordering: at the covariate medians reported in Table 1 the three disease markers move CL/F by only a few percent, whereas weight and ADA titre traverse the band.

# Effect size at each covariate's Table 1 arm-mean, which is what the paper's
# "median covariate effect size" claim is about. These are deterministic
# functions of the ini() values, so the bounds are tight.
median_effects <- tibble::tibble(
  Covariate = c("CRP (13.2 mg/L)", "Albumin (42.5 g/L)", "Rheumatoid factor (130 IU/mL)"),
  `Percent change in CL/F` = 100 * c(
    cl_ratio(nm_base, CRP = 13.2),
    cl_ratio(nm_base, ALB = 42.5),
    cl_ratio(nm_base, RF = 130)
  ) - 100
)
knitr::kable(median_effects, digits = 1,
             caption = "Effect on CL/F at the Table 1 arm-mean covariate value (Phase 3 base model).")
Effect on CL/F at the Table 1 arm-mean covariate value (Phase 3 base model).
Covariate Percent change in CL/F
CRP (13.2 mg/L) 13.7
Albumin (42.5 g/L) 0.8
Rheumatoid factor (130 IU/mL) 2.9

# The paper's claim: each of these stays inside +/-20%.
stopifnot(all(abs(median_effects$`Percent change in CL/F`) < 20))
# ...and body weight and ADA titre do NOT, at the extremes of the observed range.
stopifnot(cl_ratio(nm_base, WT = 139) > 1.2, cl_ratio(nm_base, WT = 38.5) < 0.8)
stopifnot(cl_ratio(nm_base, ADA_POS = 0) < 0.8)

Typical-value concentration-time profiles

sim_typ |>
  # rxSolve returns observation records only (dose rows are dropped), so no
  # evid filter is needed here.
  dplyr::filter(time <= 1680) |>
  ggplot(aes(time / 24, Cc, colour = model, linetype = ada)) +
  geom_line(linewidth = 0.7) +
  labs(
    x = "Time (days)", y = "Adalimumab concentration (mg/L)",
    colour = "Model", linetype = "ADA status",
    title = "Typical-value profiles after a single 40 mg subcutaneous dose",
    caption = paste(
      "Not a replication of a published figure -- Kang 2020's concentration-time",
      "figures are visual predictive checks in the supplement, which is not",
      "distributed with the open-access deposit. Shown for orientation."
    )
  ) +
  theme_bw() +
  theme(plot.caption = element_text(hjust = 0, size = 7))

Steady-state exposure in the Phase 3 base cohort

sim_pop |>
  dplyr::group_by(time) |>
  dplyr::summarise(
    Q05 = stats::quantile(Cc, 0.05, na.rm = TRUE),
    Q50 = stats::quantile(Cc, 0.50, na.rm = TRUE),
    Q95 = stats::quantile(Cc, 0.95, na.rm = TRUE),
    .groups = "drop"
  ) |>
  ggplot(aes(time / 24 / 7, Q50)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.25, fill = "#1B6CA8") +
  geom_line(colour = "#1B6CA8", linewidth = 0.7) +
  labs(
    x = "Time (weeks)", y = "Adalimumab concentration (mg/L)",
    title = "Simulated 40 mg q2w exposure, Phase 3 base model",
    caption = paste(
      "200 virtual RA patients. Ribbon: 5th-95th percentile; line: median.",
      "Covariate distributions approximate Kang 2020 Table 1."
    )
  ) +
  theme_bw() +
  theme(plot.caption = element_text(hjust = 0, size = 7))

PKNCA validation

Single dose, typical value – recovering the published CL/F

For a typical-value solve with F = 1, Dose / AUCinf is exactly the model’s CL/F. That makes NCA on the typical-value profiles a direct, end-to-end check of every transcribed clearance and clearance covariate against Tables 2, 3 and 4 – a mis-transcribed value moves it immediately.

nca_conc <- sim_typ |>
  dplyr::filter(!is.na(Cc)) |>
  dplyr::select(id, time, Cc, arm) |>
  dplyr::mutate(id = paste(arm, id))

# PKNCA needs a time-zero anchor; for an extravascular dose Cc = 0 pre-dose.
nca_conc <- dplyr::bind_rows(
  nca_conc,
  nca_conc |> dplyr::distinct(id, arm) |> dplyr::mutate(time = 0, Cc = 0)
) |>
  dplyr::distinct(id, arm, time, .keep_all = TRUE) |>
  dplyr::arrange(id, time)

nca_dose <- sim_typ |>
  dplyr::distinct(arm, id) |>
  dplyr::mutate(id = paste(arm, id), time = 0, amt = DOSE_MG)

conc_obj <- PKNCA::PKNCAconc(nca_conc, Cc ~ time | arm + id,
                             concu = "mg/L", timeu = "h")
dose_obj <- PKNCA::PKNCAdose(nca_dose, amt ~ time | arm + id, doseu = "mg")

intervals_single <- data.frame(
  start = 0, end = Inf,
  cmax = TRUE, tmax = TRUE, aucinf.obs = TRUE, half.life = TRUE,
  cl.obs = TRUE, aucpext.obs = TRUE
)
nca_single <- PKNCA::pk.nca(
  PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals_single)
)

nca_wide <- as.data.frame(nca_single) |>
  dplyr::select(arm, PPTESTCD, PPORRES) |>
  tidyr::pivot_wider(names_from = PPTESTCD, values_from = PPORRES)

nca_wide |>
  dplyr::mutate(tmax_d = tmax / 24, half.life_d = half.life / 24) |>
  dplyr::select(arm, cmax, tmax_d, aucinf.obs, half.life_d, cl.obs, aucpext.obs) |>
  dplyr::rename(
    "Arm" = arm,
    "Cmax (mg/L)" = cmax,
    "Tmax (day)" = tmax_d,
    "AUC0-inf (mg*h/L)" = aucinf.obs,
    "t1/2 (day)" = half.life_d,
    "CL/F (L/h)" = cl.obs,
    "AUC extrapolated (%)" = aucpext.obs
  ) |>
  knitr::kable(digits = c(0, 3, 2, 1, 2, 5, 2),
               caption = "PKNCA on the typical-value single-dose profiles.")
PKNCA on the typical-value single-dose profiles.
Arm Cmax (mg/L) Tmax (day) AUC0-inf (mg*h/L) t1/2 (day) CL/F (L/h) AUC extrapolated (%)
phase1 | ADA-negative 4.429 6.00 3417.8 16.45 0.01170 0.56
phase1 | ADA-positive, titre 16 3.465 3.83 1438.8 7.53 0.02780 0.00
phase3_base | ADA-negative 3.928 5.17 2927.5 16.38 0.01366 0.54
phase3_base | ADA-positive, titre 16 3.404 4.00 1639.3 9.65 0.02440 0.01
phase3_extension | ADA-negative 4.179 5.67 3136.6 16.09 0.01275 0.50
phase3_extension | ADA-positive, titre 16 3.752 4.50 2051.2 10.89 0.01950 0.04

# The AUCinf extrapolation must be small for cl.obs to be a fair test of CL/F.
stopifnot(all(nca_wide$aucpext.obs < 5))

Comparison against the published clearances

Kang 2020 reports no non-compartmental analysis of its own – the Phase 1 bioequivalence NCA lives in the separate study publication (reference 5) and is not reproduced in this paper. The comparison below is therefore made against the published model clearances in Tables 2, 3 and 4: the reference-covariate CL/F for each ADA-positive arm, and that value multiplied by the published (ADA-) * exp(theta7) factor for each ADA-negative arm.

published <- dplyr::bind_rows(lapply(model_names, function(nm) {
  th <- thetas[[nm]]
  short <- sub("^Kang_2020_adalimumab_", "", nm)
  tibble::tibble(
    arm = c(paste0(short, " | ADA-positive, titre 16"),
            paste0(short, " | ADA-negative")),
    cl.obs = c(exp(unname(th[["lcl"]])),
               exp(unname(th[["lcl"]]) + unname(th[["e_ada_neg_cl"]])))
  )
}))

cmp <- nlmixr2lib::ncaComparisonTable(
  simulated = nca_wide,
  reference = published,
  by = "arm",
  params = "cl.obs",
  units = c(cl.obs = "L/h"),
  tolerance_pct = 20
)
knitr::kable(cmp, caption = "Simulated CL/F (Dose / AUCinf) versus the published model clearances. * differs by >20%.")
Simulated CL/F (Dose / AUCinf) versus the published model clearances. * differs by >20%.
NCA parameter arm Reference Simulated % diff
CL/F (L/h) phase1 | ADA-positive, titre 16 0.0278 0.0278 +0.0%
CL/F (L/h) phase1 | ADA-negative 0.0117 0.0117 -0.0%
CL/F (L/h) phase3_base | ADA-positive, titre 16 0.0244 0.0244 +0.0%
CL/F (L/h) phase3_base | ADA-negative 0.0137 0.0137 -0.0%
CL/F (L/h) phase3_extension | ADA-positive, titre 16 0.0195 0.0195 +0.0%
CL/F (L/h) phase3_extension | ADA-negative 0.0128 0.0128 -0.0%

# Deterministic: a typical-value solve against its own closed form, so the only
# difference is numerical (ODE tolerance plus AUCinf extrapolation). The bound
# is tight on purpose -- any transcription error in lcl, e_ada_neg_cl or e_wt_cl
# moves this by tens of percent.
cl_pct <- nca_wide |>
  dplyr::left_join(published, by = "arm", suffix = c("_sim", "_pub")) |>
  dplyr::mutate(pct_diff = 100 * (cl.obs_sim - cl.obs_pub) / cl.obs_pub)
stopifnot(max(abs(cl_pct$pct_diff)) < 1)

Steady state in the Phase 3 base cohort

ss_start <- dose_times[N_DOSE]
ss_end   <- ss_start + TAU

ss_conc <- sim_pop |>
  dplyr::filter(!is.na(Cc), time >= ss_start, time <= ss_end) |>
  dplyr::select(id, time, Cc) |>
  dplyr::mutate(regimen = "40 mg q2w")

ss_dose <- ev_pop |>
  dplyr::filter(evid == 1) |>
  dplyr::select(id, time, amt) |>
  dplyr::mutate(regimen = "40 mg q2w")

ss_conc_obj <- PKNCA::PKNCAconc(ss_conc, Cc ~ time | regimen + id,
                                concu = "mg/L", timeu = "h")
ss_dose_obj <- PKNCA::PKNCAdose(ss_dose, amt ~ time | regimen + id, doseu = "mg")

# For an extravascular dose the minimum concentration over a dosing interval is
# the end-of-interval value, so `cmin` is the steady-state trough here; PKNCA
# has no `ctau` interval column.
intervals_ss <- data.frame(
  start = ss_start, end = ss_end,
  cmax = TRUE, cmin = TRUE, cav = TRUE, auclast = TRUE
)
nca_ss <- PKNCA::pk.nca(
  PKNCA::PKNCAdata(ss_conc_obj, ss_dose_obj, intervals = intervals_ss)
)

ss_wide <- as.data.frame(nca_ss) |>
  dplyr::select(id, PPTESTCD, PPORRES) |>
  tidyr::pivot_wider(names_from = PPTESTCD, values_from = PPORRES)

ss_wide |>
  dplyr::summarise(dplyr::across(
    c(cmax, cmin, cav, auclast),
    list(
      median = ~stats::median(.x),
      p05 = ~stats::quantile(.x, 0.05),
      p95 = ~stats::quantile(.x, 0.95)
    )
  )) |>
  tidyr::pivot_longer(dplyr::everything(),
                      names_to = c("Parameter", "stat"), names_sep = "_") |>
  tidyr::pivot_wider(names_from = stat, values_from = value) |>
  dplyr::rename("Median" = median, "5th percentile" = p05, "95th percentile" = p95) |>
  knitr::kable(digits = 2,
               caption = "Steady-state NCA over the final 40 mg q2w dosing interval (200 virtual RA patients). Concentrations in mg/L, AUC in mg*h/L.")
Steady-state NCA over the final 40 mg q2w dosing interval (200 virtual RA patients). Concentrations in mg/L, AUC in mg*h/L.
Parameter Median 5th percentile 95th percentile
cmax 6.92 2.98 14.98
cmin 4.55 1.61 11.11
cav 5.79 2.50 12.99
auclast 1945.47 839.94 4364.67

At steady state the closed-form identity AUC0-tau = Dose * F / CL must hold per subject. For the great majority of subjects the two sides differ only by trapezoidal error on the 8 h grid. A minority do not satisfy it, and the reason is physical rather than numerical: IIV Q/F is CV 147% and IIV Vp/F CV 48%, so a few subjects draw a peripheral compartment slow enough that 24 q2w doses (8064 h) is not yet many terminal half-lives, and their AUC0-tau still sits below the steady-state asymptote. The assertion is therefore written on the centre and a robust quantile, not on the maximum – which subject lands in that tail is a property of the draw, and the draw differs with the solver thread count.

cl_by_id <- sim_pop |>
  dplyr::distinct(id, cl)
ss_check <- ss_wide |>
  dplyr::mutate(id = as.integer(as.character(id))) |>
  dplyr::left_join(cl_by_id, by = "id") |>
  dplyr::mutate(pct_diff = 100 * (auclast - DOSE_MG / cl) / (DOSE_MG / cl))

tibble::tibble(
  `Median % difference` = stats::median(ss_check$pct_diff),
  `90th pctile of |% difference|` = stats::quantile(abs(ss_check$pct_diff), 0.9),
  `Max |% difference|` = max(abs(ss_check$pct_diff)),
  `Subjects beyond 2%` = sum(abs(ss_check$pct_diff) > 2)
) |>
  knitr::kable(digits = 3,
               caption = "AUC0-tau at steady state versus Dose / CL, per subject.")
AUC0-tau at steady state versus Dose / CL, per subject.
Median % difference 90th pctile of |% difference| Max |% difference| Subjects beyond 2%
-0.014 0.15 2.778 4

# Structural: a mis-transcribed dose, clearance or allometric exponent shifts
# the whole distribution by tens of percent and blows the median bound at once.
# Envelope: robust to which subjects draw the slow peripheral compartments that
# have not fully accumulated by 8064 h. Realised on one 200-subject draw:
# median -0.020%, 90th percentile 0.19%, max 16.0% (a handful of tail subjects).
# Do NOT tighten these to the realised values -- the tail is cohort-dependent.
stopifnot(
  abs(stats::median(ss_check$pct_diff)) < 1,
  stats::quantile(abs(ss_check$pct_diff), 0.9) < 3
)

Assumptions and deviations

  • The reference subject is ADA-positive. Kang 2020’s reference covariate set is an ADA-positive subject at a titre of 16, so the tabulated CL/F is not the typical population clearance. The model files carry this prominently in covariateData$ADA_POS$reference_category and in the description; it is the most likely thing for a downstream user to get wrong.
  • ADA-negative records carry ADA_TITER = 16. The paper does not state the data-set coding for the titre column on ADA-negative records, but the coding is over-determined by the paper’s own arithmetic: Section 3.2.1 quotes the Table 2 factor 0.421 directly as the ADA-negative-versus-titre-16 clearance ratio, and Section 3.3 does the same for 0.560 and 0.654. A titre of 1 or 0 on those records would add a further theta8 * log(titre/16) term and break those three statements. model() also applies a defensive guard so any titre coding on an ADA-negative record gives the same answer.
  • Inter-occasion variability is not encoded. Table 3 reports an IOV on relative bioavailability for the Phase 3 base study (variance 0.0479, CV 22.1%). The paper never defines the occasions, and dosing ran every 2 weeks for 48 weeks, so there is no published occasion structure to encode. The value is recorded in an ini() comment in Kang_2020_adalimumab_phase3_base.R and omitted from the model. Simulated within-subject variability at steady state is therefore slightly optimistic.
  • The treatment-effect models are not packaged. PK similarity was assessed in three separate models that added treatment arm as a categorical covariate on CL/F (Equation 4). Those models estimated the treatment effect as 1.02 (95% CI 0.981, 1.05) for Humira versus adalimumab-adbm in the base study, and 1.00 (0.940, 1.08) and 0.997 (0.922, 1.08) for the two switching arms versus BI:BI:BI in the extension. The paper reports only the treatment coefficient for those runs, not the accompanying re-estimated parameter set, so they cannot be packaged as standalone models. The estimates are recorded here instead.
  • Bioavailability is a structural anchor. No intravenous arm was studied and every disposition parameter is reported in apparent form, so F is fixed at 1 and CL, Vc, Q, Vp are all apparent. The paper does not state this explicitly; it is inferred from the uniformly apparent parameterisation and from the IOV being described as acting on relative bioavailability.
  • Virtual-cohort covariate distributions are assumed. Kang 2020 Table 1 reports a mean and a range per covariate per arm, not a distribution. The Phase 3 base cohort above draws weight, CRP and rheumatoid factor from log-normal distributions and albumin from a normal distribution, each matched to the reported mean and truncated to the reported range. The ADA-positive fraction is set to the reported 55%.
  • ADA status is held constant per subject. In the source data ADA status and titre are time-varying, and CRP and albumin are time-varying as well. The paper reports the ADA titre time course only graphically (Figure 4) and gives no longitudinal CRP or albumin summaries, so the simulation holds all covariates at their baseline draw. This understates within-subject clearance variability over the 48-week course.
  • Figure 3 percentiles are not reproduced exactly. Kang 2020 Figure 3 marks the 5th, 25th, 75th and 95th percentiles of each observed covariate. Those percentiles appear only in the figure, so the replication above sweeps each covariate over its Table 1 min-max range instead and checks the paper’s clinical-relevance conclusions at the reported arm means.
  • Supplement not on disk. Figures S1-S4 (visual predictive checks for the three studies and weighted residuals versus ADA titre) are not part of the open-access PMC deposit. They contain diagnostics only – every parameter value used here is in main-text Tables 2, 3 and 4 – so no parameter is missing, but the published VPCs could not be reproduced side by side.
  • No published NCA to compare against. This paper reports no non-compartmental analysis; the Phase 1 bioequivalence NCA is in the separate study publication (reference 5). The NCA comparison above is therefore made against the published model clearances rather than against published NCA parameters.
  • All parameter values come from the paper’s main text and tables. No value was digitised from a figure, taken from author correspondence, or carried from an upstream model.
