Papachristos_2020_bevacizumab_pkpd • nlmixr2lib

Model and source

Citation: Papachristos A, Karatza E, Kalofonos H, Karalis V. Pharmacogenetics in Model-Based Optimization of Bevacizumab Therapy for Metastatic Colorectal Cancer. Int J Mol Sci. 2020;21(11):3753. doi:[10.3390/ijms21113753](https://doi.org/10.3390/ijms21113753).
Description: Two-compartment PK plus immediate-response Imax inhibition of free VEGF-A by IV bevacizumab in adults with metastatic colorectal cancer (mCRC), with allometric weight scaling and ICAM-1 / VEGF-A genotype covariate effects (Table 3 of Papachristos 2020).
Modality: Therapeutic anti-VEGF-A monoclonal antibody (humanized IgG1, MW ≈ 149 kDa).

This vignette validates the PK/PD variant (Table 3). Papachristos 2020 also reports a descriptive PK model (Table 1, packaged as Papachristos_2020_bevacizumab_pk) and a binding QSS TMDD model (Table 2, packaged as Papachristos_2020_bevacizumab_qss).

TODO (co-equality framing). The three Papachristos 2020 models are CO-EQUAL final models, not a hierarchical base / extended pair. Each pursues a different objective: descriptive PK, mechanistic target binding, or drug-effect characterization (this vignette). Reviewer please confirm this framing and the choice to package all three.

Errata note (text vs Table)

Section 2.4 of the paper contains a copy-paste error in the covariate-effect equation for inter-compartmental clearance Q. The text reads:

Q = Qpop · exp(0.378) [where] cat takes the value 1 for the mutant … VEGF-A rs699947 gene or 0 for the wild-type.

The numerical value 0.378 is identical to the VEGF-A rs1570360 mutant on Q coefficient from Table 1 (PK model) and is a copy-paste error. Table 3 of the same paper reports the rs699947 effect on Q in the PK/PD model as -0.414, and the surrounding narrative confirms the direction: “Inter-compartmental clearance (Q) was lower in patients with mutant type gene VEGF-A rs699947” (paper section 2.4, paragraph before the equation). The packaged model uses Table 3’s -0.414; the in-file source-trace comment for e_vegfa_rs699947_q flags the text-vs-table discrepancy.

No formal corrigendum has been published at the time of extraction (April 2026).

Population

The Papachristos 2020 cohort comprised 46 adult patients with histologically confirmed metastatic colorectal cancer (ECOG 0-2) treated at a single Greek centre. Baseline demographics (paper section 2.1):

Sex: 61% male, 39% female.
Median (IQR) weight 74.5 kg (64.15-81.75); median (IQR) age 63 years (53-72).
Race / ethnicity: Greek; not formally tabulated.
Dosing: 5 mg/kg IV every 2 weeks (76% of patients) or 7.5 mg/kg IV every 3 weeks (24%).
Sample sizes: 156 bevacizumab + 169 free VEGF-A serum concentrations.

Two SNPs entered the final PK/PD model: ICAM-1 rs1799969 (effect on CL) and VEGF-A rs699947 (effect on Q).

The same metadata is available programmatically via readModelDb("Papachristos_2020_bevacizumab_pkpd")$population.

Source trace

Parameter (model name)	Value	Source
`lcl` (CLpop, L/day)	log(0.388)	Papachristos 2020 Table 3, CLpop
`lv1` (V1pop, L)	log(5.48)	Papachristos 2020 Table 3, V1pop
`lq` (Qpop, L/day)	log(0.315)	Papachristos 2020 Table 3, Qpop
`lv2` (V2, L)	log(8.81)	Papachristos 2020 Table 3, V2(L)
`le0` (E0, ng/L)	log(684)	Papachristos 2020 Table 3, E0pop
`imaxv` (Imax, fraction)	0.951	Papachristos 2020 Table 3, Imaxpop
`lic50` (IC50, mg/L)	log(29.1)	Papachristos 2020 Table 3, IC50pop
`allo_cl` (allometric exponent)	0.78	Papachristos 2020 Table 3, “log(weight/70) on CL”
`e_icam1_rs1799969_cl`	-0.423	Papachristos 2020 Table 3, “ICAM-1 rs1799969 mutant on CL”
`e_vegfa_rs699947_q`	-0.414	Papachristos 2020 Table 3, “VEGF-A rs699947 mutant on Q” — supersedes the text typo “0.378” in section 2.4
`etalcl` variance	0.11424	Papachristos 2020 Table 3, ω_CL = 0.338 (var = SD²)
`etalq` variance	0.36120	Papachristos 2020 Table 3, ω_Q = 0.601
`cov(etalcl, etalq)`	-0.19891	Papachristos 2020 Table 3, ρ(Q,CL) = -0.979 × 0.338 × 0.601
`etalv1` variance	0.03098	Papachristos 2020 Table 3, ω_V1 = 0.176
`etalv2` variance	0.33524	Papachristos 2020 Table 3, ω_V2 = 0.579
`etale0` variance	0.02789	Papachristos 2020 Table 3, ω_E0 = 0.167
`CcpropSd`	0.238	Papachristos 2020 Table 3, σ_BEVA
`EpropSd`	0.264	Papachristos 2020 Table 3, σ_VEGF

Equations (paper section 2.4):

$\mathrm{CL}_i = \mathrm{CL}_\mathrm{pop} \cdot (\mathrm{WT}_i / 70)^{0.78} \cdot \exp(-0.423\,\mathrm{SNP\_ICAM1\_RS1799969}_i) \cdot \exp(\eta_{\mathrm{CL},i})$ $\mathrm{Q}_i = \mathrm{Q}_\mathrm{pop} \cdot \exp(-0.414\,\mathrm{SNP\_VEGFA\_RS699947}_i) \cdot \exp(\eta_{\mathrm{Q},i})$ $\dot A_1 = -k_{el} A_1 - k_{12} A_1 + k_{21} A_2,\qquad \dot A_2 = k_{12} A_1 - k_{21} A_2,\qquad C_c = A_1 / V_1$ $E = E_0 \cdot \left(1 - \frac{I_\mathrm{max} \cdot C_c} {IC_{50} + C_c}\right)$

Virtual cohort

set.seed(2020)
n_subj <- 100

cohort <- tibble(
  ID                  = seq_len(n_subj),
  WT                  = pmin(pmax(rlnorm(n_subj, log(74.5), 0.18), 45), 130),
  SNP_ICAM1_RS1799969 = rbinom(n_subj, 1, 0.20),
  SNP_VEGFA_RS699947  = rbinom(n_subj, 1, 0.52)
)

inf_dur     <- 1.5 / 24            # 90-min infusion (days)
n_doses_q2w <- 6
sim_horizon <- 84                  # 12 weeks total follow-up
dose_times  <- seq(0, by = 14, length.out = n_doses_q2w)
obs_times   <- sort(unique(c(0, seq(0.05, sim_horizon, by = 0.5))))

build_events <- function(pop, mgkg, dose_times, regimen_label) {
  amt_per_subject <- pop$WT * mgkg
  d_dose <- pop |>
    dplyr::mutate(amt = amt_per_subject) |>
    tidyr::crossing(time = dose_times) |>
    dplyr::mutate(evid = 1L, cmt = "central", dur = inf_dur,
                  treatment = regimen_label)
  d_obs_cc <- pop |>
    tidyr::crossing(time = obs_times) |>
    dplyr::mutate(amt = 0, evid = 0L, cmt = "Cc", dur = NA_real_,
                  treatment = regimen_label)
  d_obs_e <- pop |>
    tidyr::crossing(time = obs_times) |>
    dplyr::mutate(amt = 0, evid = 0L, cmt = "E", dur = NA_real_,
                  treatment = regimen_label)
  dplyr::bind_rows(d_dose, d_obs_cc, d_obs_e) |>
    dplyr::rename(id = ID) |>
    dplyr::arrange(id, time, dplyr::desc(evid)) |>
    as.data.frame()
}

events <- build_events(cohort, mgkg = 5, dose_times = dose_times,
                       regimen_label = "5 mg/kg Q2W")

Simulation

mod <- rxode2::rxode2(readModelDb("Papachristos_2020_bevacizumab_pkpd"))
#> ℹ parameter labels from comments will be replaced by 'label()'
sim <- rxode2::rxSolve(mod, events = events,
                       keep = c("treatment"),
                       returnType = "data.frame")

# Endpoint compartments after 2 ODE states: Cc -> CMT 3, E -> CMT 4
sim_cc <- sim |> dplyr::filter(CMT == 3)
sim_e  <- sim |> dplyr::filter(CMT == 4)

Replicate published figures

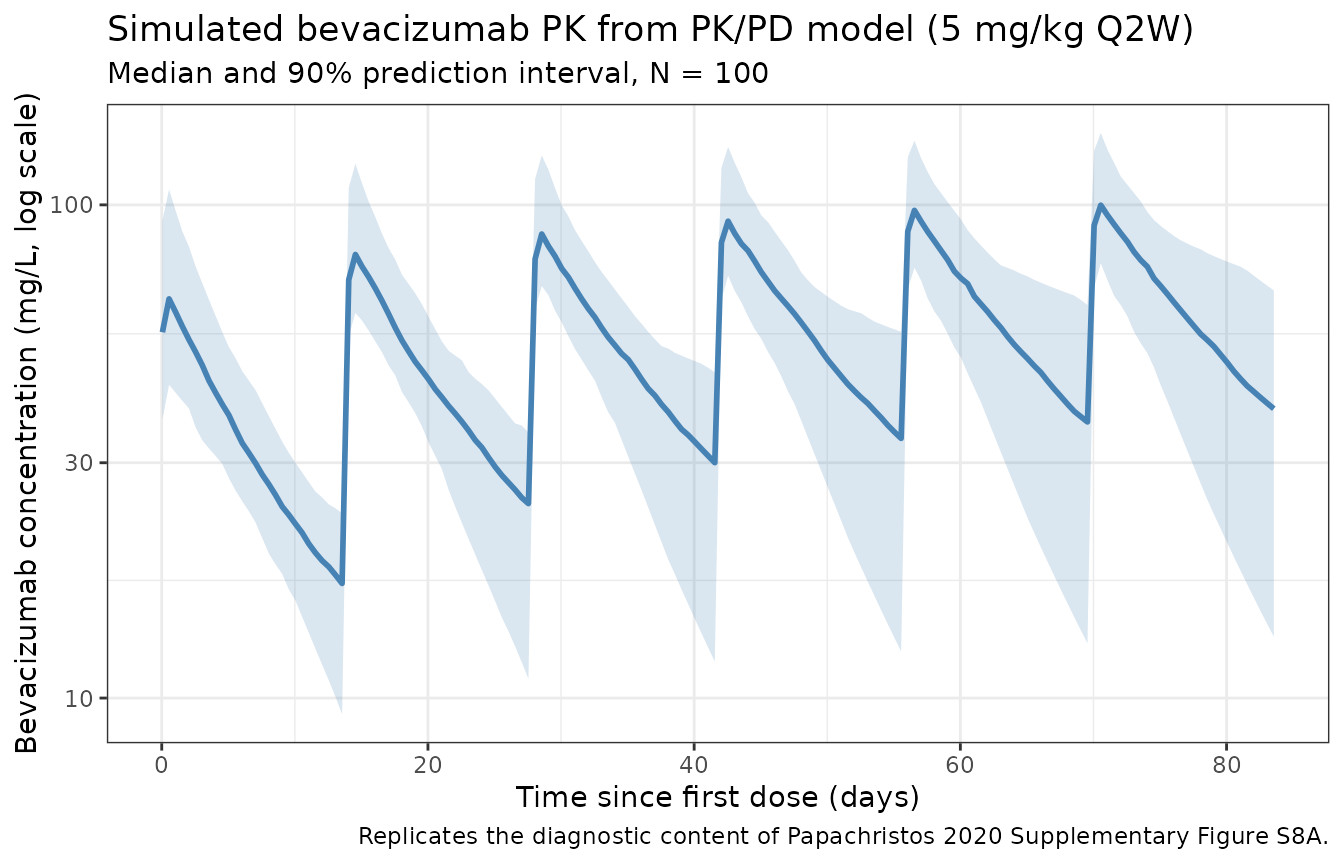

Bevacizumab concentration-time profile (replicates Supplementary Figure S8A diagnostic)

sim_cc_summary <- sim_cc |>
  dplyr::filter(time > 0) |>
  dplyr::group_by(time) |>
  dplyr::summarise(
    median = stats::median(Cc, na.rm = TRUE),
    lo     = stats::quantile(Cc, 0.05, na.rm = TRUE),
    hi     = stats::quantile(Cc, 0.95, na.rm = TRUE),
    .groups = "drop"
  )

ggplot(sim_cc_summary, aes(time, median)) +
  geom_ribbon(aes(ymin = lo, ymax = hi), alpha = 0.2, fill = "steelblue") +
  geom_line(linewidth = 1, colour = "steelblue") +
  scale_y_log10() +
  labs(
    x = "Time since first dose (days)",
    y = "Bevacizumab concentration (mg/L, log scale)",
    title = "Simulated bevacizumab PK from PK/PD model (5 mg/kg Q2W)",
    subtitle = paste0("Median and 90% prediction interval, N = ", n_subj),
    caption = "Replicates the diagnostic content of Papachristos 2020 Supplementary Figure S8A."
  ) +
  theme_bw()

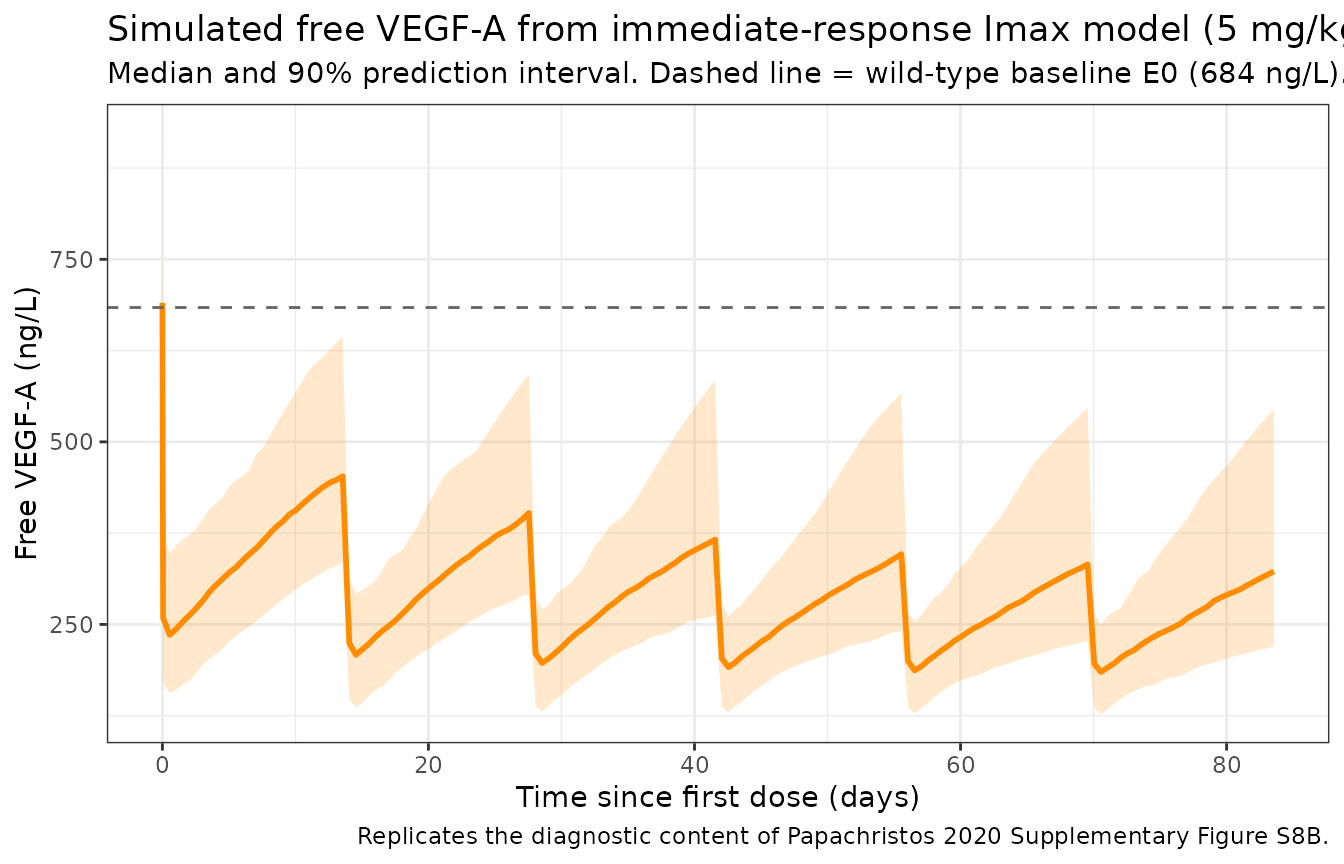

Free VEGF-A inhibition profile (replicates Supplementary Figure S8B diagnostic)

sim_e_summary <- sim_e |>
  dplyr::group_by(time) |>
  dplyr::summarise(
    median = stats::median(E, na.rm = TRUE),
    lo     = stats::quantile(E, 0.05, na.rm = TRUE),
    hi     = stats::quantile(E, 0.95, na.rm = TRUE),
    .groups = "drop"
  )

ggplot(sim_e_summary, aes(time, median)) +
  geom_ribbon(aes(ymin = lo, ymax = hi), alpha = 0.2, fill = "darkorange") +
  geom_line(linewidth = 1, colour = "darkorange") +
  geom_hline(yintercept = 684, linetype = "dashed", colour = "grey40") +
  labs(
    x = "Time since first dose (days)",
    y = "Free VEGF-A (ng/L)",
    title = "Simulated free VEGF-A from immediate-response Imax model (5 mg/kg Q2W)",
    subtitle = "Median and 90% prediction interval. Dashed line = wild-type baseline E0 (684 ng/L).",
    caption = "Replicates the diagnostic content of Papachristos 2020 Supplementary Figure S8B."
  ) +
  theme_bw()

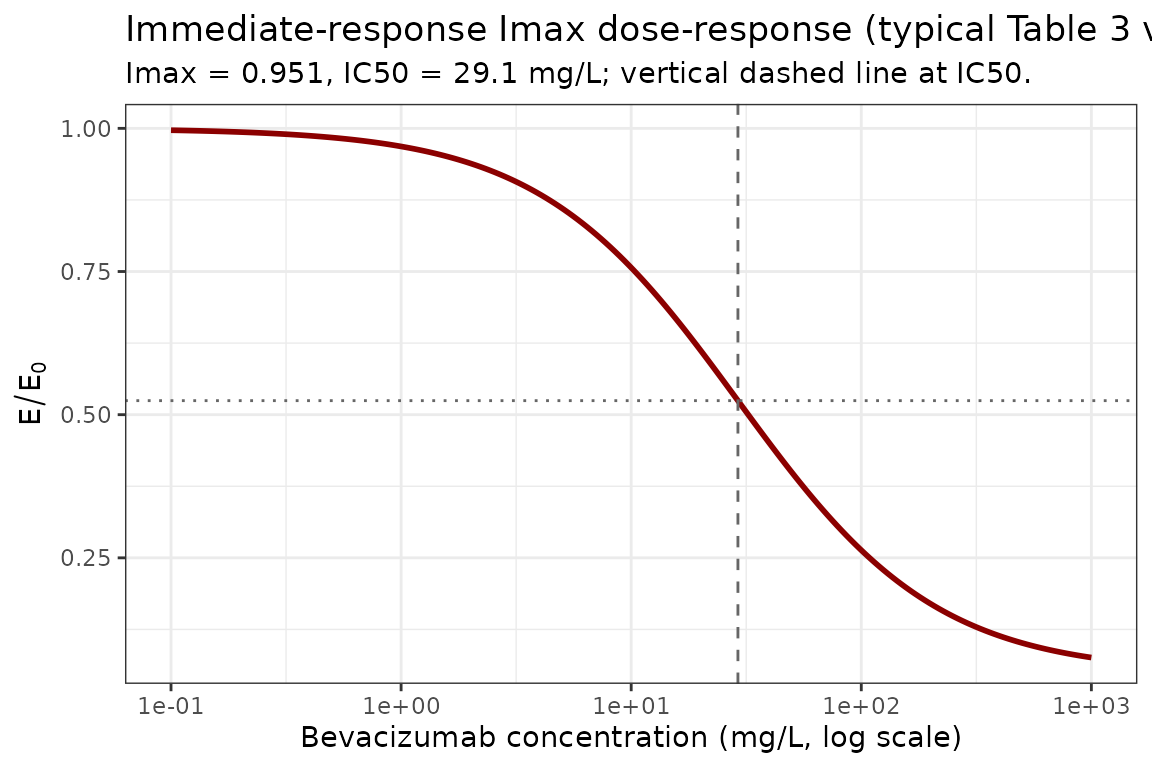

Imax dose-response (typical-value)

The Imax curve as a function of bevacizumab concentration is the identifying signature of this model. The plot below shows the algebraic relationship E / E0 = 1 - Imax * Cc / (IC50 + Cc) using the Table 3 typical values.

imax  <- 0.951
ic50  <- 29.1
cc_grid <- 10^seq(-1, 3, length.out = 200)
ratio   <- 1 - imax * cc_grid / (ic50 + cc_grid)

ggplot(data.frame(Cc = cc_grid, ratio = ratio), aes(Cc, ratio)) +
  geom_line(linewidth = 1, colour = "darkred") +
  geom_vline(xintercept = ic50, linetype = "dashed", colour = "grey40") +
  geom_hline(yintercept = 1 - imax / 2, linetype = "dotted", colour = "grey40") +
  scale_x_log10() +
  labs(
    x = "Bevacizumab concentration (mg/L, log scale)",
    y = expression(E / E[0]),
    title = "Immediate-response Imax dose-response (typical Table 3 values)",
    subtitle = paste0("Imax = ", imax, ", IC50 = ", ic50, " mg/L; vertical dashed line at IC50.")
  ) +
  theme_bw()

PKNCA validation (bevacizumab)

start_ss <- max(dose_times)
end_ss   <- start_ss + 14

conc_df <- sim_cc |>
  dplyr::filter(time >= start_ss, time <= end_ss, !is.na(Cc)) |>
  dplyr::mutate(time_rel = time - start_ss) |>
  dplyr::select(id, treatment, time_rel, Cc)

dose_df <- events |>
  dplyr::filter(treatment == "5 mg/kg Q2W", evid == 1, time == start_ss) |>
  dplyr::mutate(time_rel = 0) |>
  dplyr::select(id, treatment, time_rel, amt)

conc_obj <- PKNCA::PKNCAconc(conc_df, Cc ~ time_rel | treatment + id,
                             concu = "mg/L", timeu = "day")
dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time_rel | treatment + id,
                             doseu = "mg")

intervals <- data.frame(
  start    = 0,
  end      = 14,
  cmax     = TRUE,
  tmax     = TRUE,
  cmin     = TRUE,
  auclast  = TRUE,
  cav      = TRUE
)

nca_data <- PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals)
nca_res  <- PKNCA::pk.nca(nca_data)
