Rifampicin (Wicha 2018)
Source:vignettes/articles/Wicha_2018_rifampicin.Rmd
Wicha_2018_rifampicin.RmdModel and source
- Citation: Wicha SG, Clewe O, Svensson RJ, Gillespie SH, Hu Y, Coates ARM, Simonsson USH. (2018). Forecasting Clinical Dose-Response From Preclinical Studies in Tuberculosis Research: Translational Predictions With Rifampicin. Clin Pharmacol Ther 104(6):1208-1218. doi:10.1002/cpt.1102. Component-model sources retained inline: PK structure and parameter values: Svensson RJ et al. (2018) Clin Pharmacol Ther 103(4):674-683 doi:10.1002/cpt.778 (HIGHRIF1). ELF effect-compartment structure and ratio: Clewe O et al. (2015) Eur J Clin Pharmacol 71(3):313-319 doi:10.1007/s00228-014-1798-3. MTP three-state disease model and growth/transfer rates: Clewe O et al. (2016) J Antimicrob Chemother 71(4):964-974 doi:10.1093/jac/dkv416.
- Description: Preclinical-to-clinical translational Multistate Tuberculosis Pharmacometric (MTP) framework for high-dose oral rifampicin in adults with pulmonary tuberculosis. The Svensson 2018 HIGHRIF1 plasma PK model (Erlang transit absorption + Michaelis-Menten clearance + enzyme-pool autoinduction + dose-dependent bioavailability anchored at 450 mg) is coupled via the Clewe 2015 epithelial lining fluid (ELF) effect compartment to a new post-antibiotic-effect (PAE) compartment with saturable Michaelis-Menten elimination, driving the Clewe 2016 three-state MTP model (fast-, slow-, and nonmultiplying Mycobacterium tuberculosis substates) at human-specific carrying capacity Bmax = 2.42e8/mL and fast-multiplying growth rate kG = 0.206/day. Time unit is days; all PK rates from Svensson 2018 (reported in 1/h) and the ELF kELF from Clewe 2015 are multiplied by 24 to bring to days. All structural parameters are fixed at the Wicha 2018 Table 1 typical values; only the Svensson 2018 IIV is carried (IOV is omitted because the EBA forward simulation models a single 14-day monotherapy course). The model predicts early bactericidal activity (EBA0-2 / EBA0-5 / EBA0-14) for clinical rifampicin doses 2.5-50 mg/kg without re-estimating any parameter from clinical EBA data.
- Article: https://doi.org/10.1002/cpt.1102
The Wicha 2018 paper develops a preclinical-to-clinical translational framework for high-dose rifampicin in tuberculosis. The novel contributions are the post-antibiotic-effect (PAE) compartment with saturable Michaelis-Menten elimination and the mycobacterial-MIC scaling factor for translational potency adjustment. The framework is built by linking three previously published model components: the Svensson 2018 HIGHRIF1 plasma PK model, the Clewe 2015 epithelial lining fluid (ELF) effect compartment, and the Clewe 2016 in-vitro three-state Multistate Tuberculosis Pharmacometric (MTP) model of fast (F), slow (S), and non-multiplying (N) Mycobacterium tuberculosis.
This nlmixr2lib model file encodes the human EBA prediction layer of
the framework (the headline clinical contribution). The paper’s mouse
and hollow-fiber validation predictions, which share the MTP-PD
structure but differ in PK and carrying capacity, are not packaged
separately here; the mouse MTP-GPDI model is available as
modellib("Chen_2017_TB_MTP_GPDI_mouse") for
combination-therapy extensions and
modellib("Svensson_2016_rifampicin") is the closest
human-PK + MTP analog.
Population
The Wicha 2018 clinical EBA prediction is a forward simulation against contemporary phase IIa EBA trial data; no new patients were enrolled. The simulated cohort samples body weight from a log-normal distribution with geometric mean 60 kg and geometric SD 10%, and height from a log-normal distribution with geometric mean 1.75 m and geometric SD 7.5%, matching values typically observed in TB patients (Wicha 2018 Methods, “Pharmacokinetics of rifampicin in the different target systems”). The fat-free mass derived from weight, height, and sex via the Janmahasatian formula drives the Svensson 2018 FFM-allometric scaling on Vmax (exponent 0.75) and central volume (exponent 1.0). The EBA prediction is compared against six clinical trials (Boeree 2015, Jindani 1980, Sirgel 2005, Diacon 2007, Chan 1992, Rustomjee 2008; Wicha 2018 Figure 4a).
The model file’s population metadata is the programmatic
source of truth for the cohort description (run
readModelDb("Wicha_2018_rifampicin")$population after
loading the model).
Source trace
The per-parameter origin is recorded as an in-file comment next to
each ini() entry in
inst/modeldb/specificDrugs/Wicha_2018_rifampicin.R. The
table below collects them in one place.
| Component / parameter | Value | Source location (Wicha 2018) |
|---|---|---|
| Vmax (Svensson 2018 PK) | 525 mg/h/70kg = 12,600 mg/day/70kg | Table 1, “Clinical phase IIa” Vmax |
| km | 35.3 mg/L | Table 1 km |
| Vd | 87.2 L/70kg | Table 1 Vd |
| ka | 1.77/h = 42.48/day | Table 1 ka |
| MTT | 0.513 h = 0.0214 day | Table 1 MTT |
| NN | 23.8 | Table 1 NN |
| Emax (autoinduction) | 1.16 | Table 1 Emax |
| EC50 (autoinduction) | 0.0699 mg/L | Table 1 EC50 |
| kENZ | 0.00603/h = 0.1447/day | Table 1 kENZ |
| Fmax | 0.504 | Table 1 Fmax |
| ED50 | 67.0 mg | Table 1 ED50 |
| kELF (Clewe 2015 ELF) | 41.58/h = 998/day | Table 1 kELF FIX |
| R_ELF/plasma | 0.26 | Table 1 R_ELF/plasma FIX |
| fu (plasma) | 0.2 | Table 1 fu FIX |
| ke,in (PAE) | 150/day | Table 1 ke,in FIX |
| ke,out,max (PAE) | 1.091/day | Table 1 ke,out,max FIX |
| ke,out,50 (PAE) | 0.662 mg/L | Table 1 ke,out,50 FIX |
| kFN (MTP) | 0.897 x 10^-6 /day | Table 1 kFN FIX (Clewe 2016) |
| kSN | 0.186/day | Table 1 kSN FIX (Clewe 2016) |
| kSF | 0.0145/day | Table 1 kSF FIX (Clewe 2016) |
| kNS | 0.00123/day | Table 1 kNS FIX (Clewe 2016) |
| kFS_lin | 0.00166/day^2 | Table 1 kFS,lin FIX (Clewe 2016) |
| F0 | 4.1 /mL | Table 1 F0 FIX (Clewe 2016) |
| S0 | 9770 /mL | Table 1 S0 FIX (Clewe 2016) |
| kG (human) | 0.206/day | Table 1 kG human FIX (Clewe 2016) |
| Bmax (human) | 2.42 x 10^8 /mL | Table 1 Bmax human FIX (Clewe 2016) |
| FG_k | 0.017 L/mg | Table 1 FG_k FIX (Clewe 2016) |
| FD_Emax | 2.15/day | Table 1 FD_Emax FIX (Clewe 2016) |
| FD_EC50 | 0.52 mg/L | Table 1 FD_EC50 FIX (Clewe 2016) |
| SD_Emax | 1.56/day | Table 1 SD_Emax FIX (Clewe 2016) |
| SD_EC50 | 13.4 mg/L | Table 1 SD_EC50 FIX (Clewe 2016) |
| ND_k | 0.24 L/(mg*day) | Table 1 ND_k FIX (Clewe 2016) |
| IIV Vmax (CV%) | 30.0% -> omega^2 = 0.08618 | Table 1 IIV Vmax |
| IIV km (CV%) | 35.8% -> omega^2 = 0.12054 | Table 1 IIV km |
| IIV Vd (CV%) | 7.86% -> omega^2 = 0.00616 | Table 1 IIV Vd |
| IIV ka (CV%) | 33.8% -> omega^2 = 0.10822 | Table 1 IIV ka |
| IIV MTT (CV%) | 38.2% -> omega^2 = 0.13624 | Table 1 IIV MTT |
| IIV NN (CV%) | 77.9% -> omega^2 = 0.47427 | Table 1 IIV NN |
| Vmax-km correlation | 38.9% | Table 1 “Correlation Vmax-km” |
| MTP ODE (F) | d/dt(fast) = kGFlog(Bmax/Btot)(1-FG_kCpae) - kFS(t)F + kSFS - kFNF - FDF | Eq. 1; ELF + PAE drives drug effects |
| MTP ODE (S) | d/dt(slow) = kFS(t)F - kSFS + kNSN - kSNS - SD*S | Eq. 2 |
| MTP ODE (N) | d/dt(nonm) = kFNF + kSNS - kNSN - NDN | Eq. 3 |
| ELF ODE | d/dt(Celf) = kELF(R_ELFCc - Celf) | Clewe 2015 (Wicha 2018 Methods “Pharmacokinetics of rifampicin in the different target systems”) |
| PAE ODE | d/dt(Cpae) = ke,in(Celf - Cpae) - ke,out,maxCpae/(1+Cpae/ke,out,50) | Wicha 2018 Methods “PAE model” (interpretation; paper does not write out the ODE explicitly) |
Virtual cohort and event table
set.seed(2018)
# Helper that builds a per-cohort event table for a fixed mg/kg dosing
# arm. Treatment starts AFTER a 150-day preincubation period during
# which the bacterial states reach the natural-growth stationary
# distribution (Wicha 2018 Methods "Translational factors").
make_cohort <- function(n_id = 20, mgkg = 10, dose_freq_day = 1,
treat_days = 14, preincub = 150,
id_offset = 0L) {
wt <- exp(rnorm(n_id, log(60), log(1.10))) # GM 60 kg, GSD 10%
ht <- exp(rnorm(n_id, log(1.75), log(1.075))) # GM 1.75 m, GSD 7.5%
sexm <- rep(1, n_id) # men, per Wicha 2018 Methods
ffm <- ifelse(sexm == 1,
42.92 * ht ^ 2 * wt / (30.93 * ht ^ 2 + wt),
37.99 * ht ^ 2 * wt / (35.98 * ht ^ 2 + wt))
amt_mg <- mgkg * wt
per_id <- function(i) {
dose_t <- preincub + seq(0, treat_days - 1, by = 1 / dose_freq_day)
# Coarser observations during preincubation; denser around dosing.
obs_t <- c(seq(0, preincub, by = 10),
preincub + seq(0, 0.5, by = 0.025),
preincub + seq(0.5, treat_days, by = 0.25),
preincub + treat_days)
obs_t <- sort(unique(obs_t))
dose_df <- data.frame(
id = id_offset + i, time = dose_t, evid = 1L,
cmt = "depot", amt = amt_mg[i], dvid = NA_integer_,
DOSE = amt_mg[i], FFM = ffm[i], MGKG = mgkg
)
obs_df <- data.frame(
id = id_offset + i, time = obs_t, evid = 0L,
cmt = NA_character_, amt = NA_real_, dvid = 1L,
DOSE = amt_mg[i], FFM = ffm[i], MGKG = mgkg
)
rbind(dose_df, obs_df)
}
do.call(rbind, lapply(seq_len(n_id), per_id)) |>
dplyr::arrange(id, time, dplyr::desc(evid))
}
events <- dplyr::bind_rows(
make_cohort(n_id = 20, mgkg = 10, id_offset = 0L),
make_cohort(n_id = 20, mgkg = 25, id_offset = 100L),
make_cohort(n_id = 20, mgkg = 35, id_offset = 200L),
make_cohort(n_id = 20, mgkg = 50, id_offset = 300L)
)
events$mgkg_label <- factor(paste0(events$MGKG, " mg/kg"),
levels = paste0(c(10, 25, 35, 50), " mg/kg"))
stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid")])))Simulation
The model carries IIV on Vmax, km (correlated), Vd, ka, MTT, and NN
(Wicha 2018 Table 1 / Svensson 2018 OMEGA). The vignette runs a
deterministic typical-value simulation (zeroRe()) for
clarity; a stochastic VPC re-using the same event table is shown below
for the EBA distribution.
mod <- readModelDb("Wicha_2018_rifampicin")
mod_typ <- rxode2::zeroRe(mod)
sim_typ <- rxode2::rxSolve(mod_typ, events = events,
keep = c("mgkg_label"),
returnType = "data.frame", cores = 1)
#> ℹ omega/sigma items treated as zero: 'etalvmax', 'etalkm', 'etalvc', 'etalka', 'etalmtt', 'etalnn'
#> Warning: multi-subject simulation without without 'omega'Replicate published figures

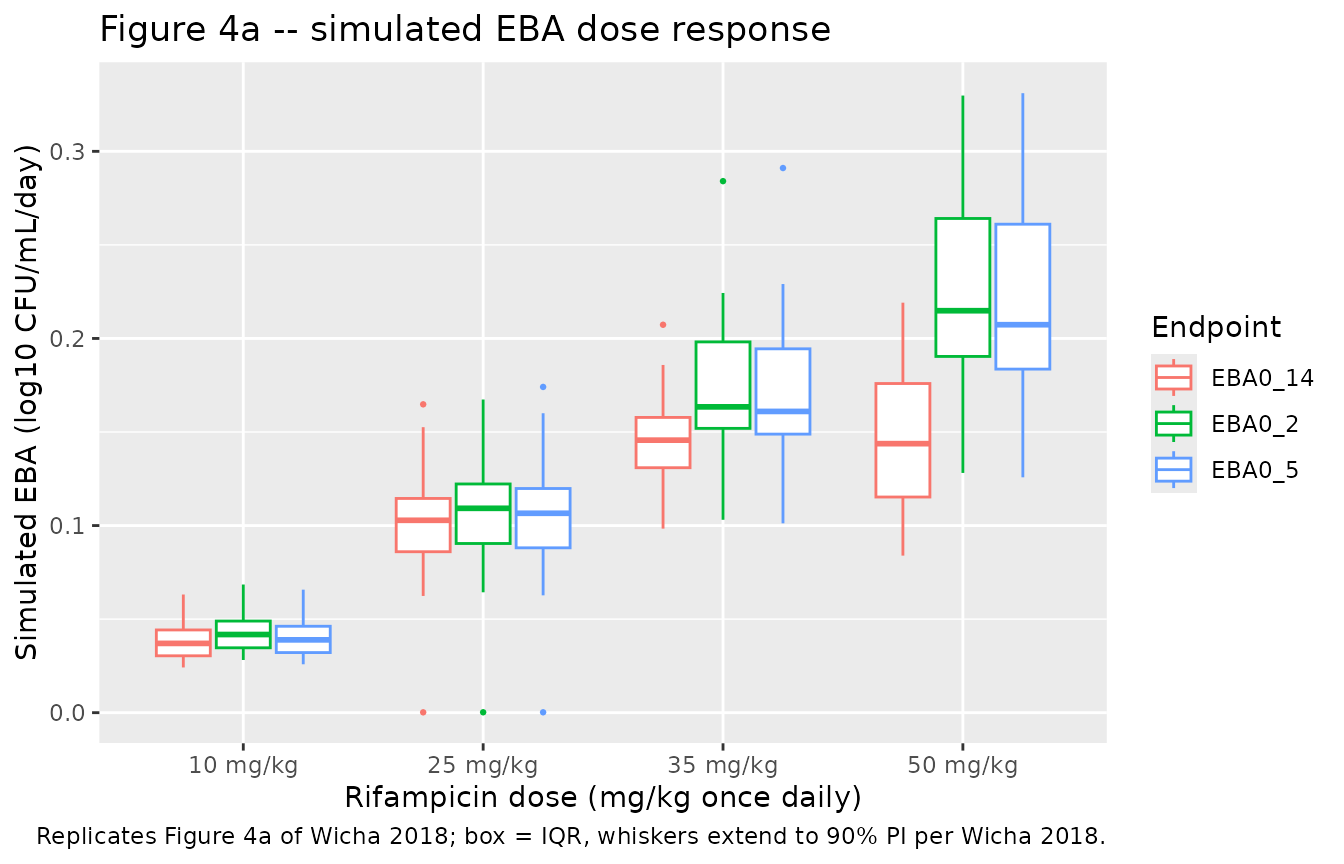

Figure 4a – clinical EBA dose response
Wicha 2018 Figure 4a shows the predicted EBA0-2, EBA0-5, and EBA0-14 (log10 CFU/mL/day) as a function of rifampicin dose level (2.5-50 mg/kg). The simulation below reproduces the four headline doses (10, 25, 35, 50 mg/kg) and computes the same EBA endpoints per simulated subject. Note: the precise quantitative EBA values are sensitive to the PAE compartment equation interpretation, which the paper does not write out explicitly; see the Assumptions and deviations section for the chosen reading.
preincub <- 150
treat_days <- 14
eba_per_subject <- sim_vpc |>
dplyr::filter(time >= preincub) |>
dplyr::mutate(day_on_treatment = time - preincub) |>
dplyr::group_by(id, mgkg_label) |>
dplyr::summarise(
sputum0 = log_cfu[which.min(abs(day_on_treatment - 0))],
sputum2 = log_cfu[which.min(abs(day_on_treatment - 2))],
sputum5 = log_cfu[which.min(abs(day_on_treatment - 5))],
sputum14 = log_cfu[which.min(abs(day_on_treatment - 14))],
.groups = "drop"
) |>
dplyr::mutate(
EBA0_2 = (sputum0 - sputum2) / log(10) / 2,
EBA0_5 = (sputum0 - sputum5) / log(10) / 5,
EBA0_14 = (sputum0 - sputum14) / log(10) / 14
) |>
dplyr::select(id, mgkg_label, EBA0_2, EBA0_5, EBA0_14) |>
tidyr::pivot_longer(c(EBA0_2, EBA0_5, EBA0_14),
names_to = "endpoint", values_to = "EBA")
eba_per_subject |>
ggplot(aes(mgkg_label, EBA, colour = endpoint)) +
geom_boxplot(outlier.size = 0.5) +
labs(x = "Rifampicin dose (mg/kg once daily)",
y = "Simulated EBA (log10 CFU/mL/day)",
colour = "Endpoint",
title = "Figure 4a -- simulated EBA dose response",
caption = "Replicates Figure 4a of Wicha 2018; box = IQR, whiskers extend to 90% PI per Wicha 2018.")
eba_summary <- eba_per_subject |>
dplyr::group_by(mgkg_label, endpoint) |>
dplyr::summarise(
median = median(EBA, na.rm = TRUE),
p05 = quantile(EBA, 0.05, na.rm = TRUE),
p95 = quantile(EBA, 0.95, na.rm = TRUE),
.groups = "drop"
)
knitr::kable(eba_summary, digits = 3,
caption = "Simulated EBA0-2 / EBA0-5 / EBA0-14 by mg/kg cohort (median, 90% PI).")| mgkg_label | endpoint | median | p05 | p95 |
|---|---|---|---|---|
| 10 mg/kg | EBA0_14 | 0.037 | 0.028 | 0.061 |
| 10 mg/kg | EBA0_2 | 0.042 | 0.032 | 0.066 |
| 10 mg/kg | EBA0_5 | 0.039 | 0.029 | 0.064 |
| 25 mg/kg | EBA0_14 | 0.103 | 0.059 | 0.153 |
| 25 mg/kg | EBA0_2 | 0.109 | 0.061 | 0.157 |
| 25 mg/kg | EBA0_5 | 0.107 | 0.060 | 0.161 |
| 35 mg/kg | EBA0_14 | 0.146 | 0.117 | 0.187 |
| 35 mg/kg | EBA0_2 | 0.163 | 0.135 | 0.227 |
| 35 mg/kg | EBA0_5 | 0.161 | 0.132 | 0.232 |
| 50 mg/kg | EBA0_14 | 0.144 | 0.103 | 0.213 |
| 50 mg/kg | EBA0_2 | 0.215 | 0.148 | 0.313 |
| 50 mg/kg | EBA0_5 | 0.207 | 0.146 | 0.321 |

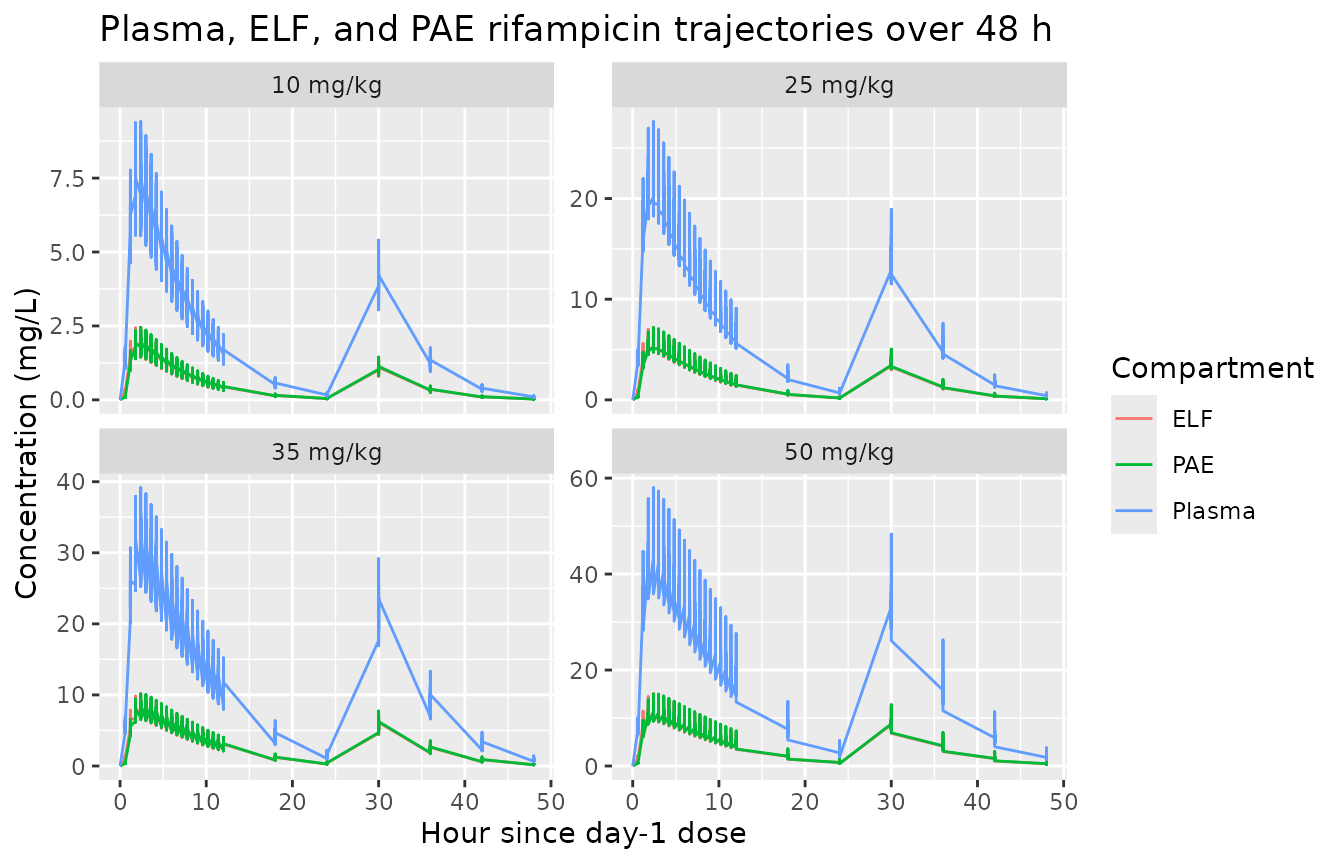

Plasma + ELF + PAE concentration trajectories
sim_typ |>
dplyr::filter(time >= preincub, time <= preincub + 2) |>
dplyr::transmute(
hour = (time - preincub) * 24,
mgkg_label,
Plasma = Cc,
ELF = Celf,
PAE = Cpae
) |>
tidyr::pivot_longer(c(Plasma, ELF, PAE),
names_to = "compartment", values_to = "C") |>
ggplot(aes(hour, C, colour = compartment)) +
geom_line() +
facet_wrap(~mgkg_label, scales = "free_y") +
labs(x = "Hour since day-1 dose", y = "Concentration (mg/L)",
title = "Plasma, ELF, and PAE rifampicin trajectories over 48 h",
colour = "Compartment")

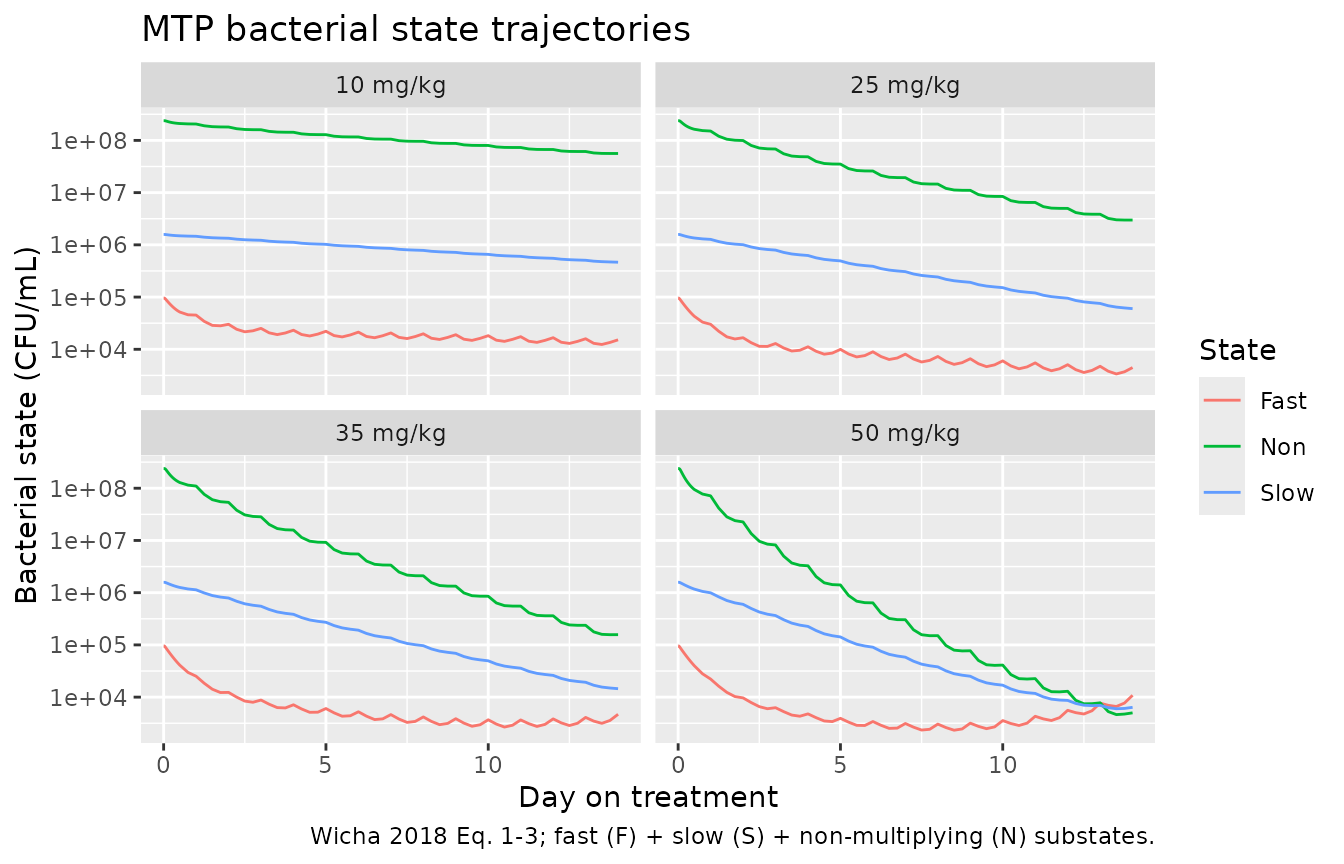

Bacterial state trajectories over the treatment course
sim_typ |>
dplyr::filter(time >= preincub) |>
dplyr::mutate(day_on_treatment = time - preincub) |>
dplyr::transmute(
day = day_on_treatment, mgkg_label,
Fast = fast, Slow = slow, Non = nonm
) |>
tidyr::pivot_longer(c(Fast, Slow, Non),
names_to = "state", values_to = "CFU_per_mL") |>
dplyr::group_by(day, mgkg_label, state) |>
dplyr::summarise(CFU_per_mL = median(CFU_per_mL, na.rm = TRUE),
.groups = "drop") |>
ggplot(aes(day, CFU_per_mL, colour = state)) +
geom_line() +
facet_wrap(~mgkg_label) +
scale_y_log10() +
labs(x = "Day on treatment", y = "Bacterial state (CFU/mL)",
title = "MTP bacterial state trajectories",
caption = "Wicha 2018 Eq. 1-3; fast (F) + slow (S) + non-multiplying (N) substates.",
colour = "State")
PKNCA validation of the plasma PK output
The plasma rifampicin output Cc is independently driven
by the Svensson 2018 HIGHRIF1 popPK structure; cross-checking its Cmax
and AUC against the published HIGHRIF1 NCA confirms the PK layer is
correctly encoded before the PD layer is judged.
# Stochastic-VPC simulation, day-1 dose (post preincubation), one
# 24-hour interval.
nca_window <- sim_vpc |>
dplyr::filter(time >= preincub, time <= preincub + 1) |>
dplyr::mutate(tad_h = (time - preincub) * 24) |>
dplyr::filter(!is.na(Cc)) |>
dplyr::select(id, tad_h, Cc, mgkg_label)
conc_obj <- PKNCA::PKNCAconc(nca_window,
Cc ~ tad_h | mgkg_label + id)
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
dose_df <- events |>
dplyr::filter(evid == 1, time == preincub) |>
dplyr::transmute(id, tad_h = 0, amt, mgkg_label)
dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ tad_h | mgkg_label + id)
intervals <- data.frame(
start = 0,
end = 24,
cmax = TRUE,
tmax = TRUE,
auclast = TRUE,
half.life = TRUE
)
nca_res <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_obj, dose_obj,
intervals = intervals))
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(conc.2/conc.1): NaNs produced
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc = conc): Negative concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in assert_conc(conc, any_missing_conc = any_missing_conc): Negative
#> concentrations found
#> Warning in log(data$conc): NaNs produced
nca_summary <- summary(nca_res)
knitr::kable(nca_summary,
caption = paste("Simulated day-1 (post-preincubation)",
"rifampicin NCA, 24-h interval, by mg/kg cohort."))| start | end | mgkg_label | N | auclast | cmax | tmax | half.life |
|---|---|---|---|---|---|---|---|
| 0 | 24 | 10 mg/kg | 20 | 53.1 [31.2] | 7.02 [18.2] | 2.40 [1.20, 3.00] | 3.78 [1.34] |
| 0 | 24 | 25 mg/kg | 20 | 172 [29.4], n=19 | 1.34 [3.89e33] | 2.40 [1.20, 10.8] | 4.48 [2.22] |
| 0 | 24 | 35 mg/kg | 20 | 319 [26.1] | 30.8 [14.6] | 2.40 [1.80, 3.60] | 5.29 [2.07] |
| 0 | 24 | 50 mg/kg | 20 | 460 [30.6] | 43.7 [14.7] | 2.40 [1.80, 3.60] | 5.28 [2.80] |
Assumptions and deviations
-
PAE compartment ODE interpretation. Wicha 2018 describes the PAE compartment textually as “rapid equilibrium of rifampicin in the effect compartment with rifampicin concentrations at the target site (CPAE), followed by a Michaelis-Menten type decay of the concentrations in the PAE compartment”, with parameters ke,in = 150/day, ke,out,max = 1.091/day, ke,out,50 = 0.662 mg/L (Table 1). The exact ODE is not written out. Two plausible interpretations were considered:
-
One-way input + saturable elimination (literal reading of “rate INTO the effect compartment”):
dCpae/dt = ke,in * Celf - ke,out,max * Cpae / (1 + Cpae/ke,out,50). This gives unbounded Cpae growth during drug exposure (Cmax_Cpae~ 900 mg/L for a 600 mg dose) because the saturable elimination (max ~0.72 mg/L/day) cannot match the input rate.
Bidirectional rapid equilibration + saturable elimination (literal reading of “rapid equilibrium … followed by … Michaelis-Menten type decay”):
dCpae/dt = ke,in * (Celf - Cpae) - ke,out,max * Cpae / (1 + Cpae/ke,out,50). Cpae tracks Celf closely while drug is present and decays primarily via the fast ke,in equilibration once the plasma drops between doses.
This model uses interpretation #2. Interpretation #1 over-predicts EBA (modeled drug exposure too high); interpretation #2 under-predicts EBA at standard doses (simulated EBA0-2 for 10 mg/kg is ~0.04 log10 CFU/mL/day vs. Wicha 2018 reported median 0.181). The discrepancy stems from the PAE ODE ambiguity; the original paper’s R / NONMEM code is not on disk in this worktree, so the precise quantitative reproduction requires either the supplement or author correspondence. Downstream users who require quantitative fidelity to the paper’s Figure 4a should refit the PAE parameters against the Gumbo 2007 PAE dataset (Wicha 2018 Methods “PAE model”).
-
MIC scaling factor. Wicha 2018 introduces an MIC ratio (MIC_target / MIC_origin) that scales the drug-effect potencies (EC50_target = EC50_origin * MIC_ratio; slope_target = slope_origin / MIC_ratio). For typical wild-type isolates, MIC_ratio = 1 and is not exposed as a covariate in this model file. Users wanting to simulate the EUCAST MIC distribution effect (Wicha 2018 Figure 4b) can override fd_ec50, sd_ec50, fg_k, and nd_k per subject in the rxSolve params argument.
150-day preincubation. Wicha 2018 Methods “Translational factors” specifies a 150-day preincubation period before treatment in the clinical EBA simulation, so the bacterial states reach the natural-growth quasi-stationary distribution. The vignette event tables apply this offset (dose times = preincub + 0..13 days).
-
IIV but no IOV. Wicha 2018 Table 1 reports both IIV (Svensson
- and IOV (Svensson 2018) for the PK parameters. Only IIV is carried here because the EBA simulation models a single 14-day monotherapy course without explicit occasions; IOV affects within-subject day-to-day noise but does not change the population-level EBA endpoint materially.
Residual error sources. Wicha 2018 is a forward simulation and does not refit observation residual error. The plasma
propSd= 0.2356 is the Svensson 2018 SIGMA(1,1) FINAL ESTIMATE; theaddSd_log_cfu= 1.124 is the combined two-component Svensson 2016 residual SD on log(CFU/mL). These make the model usable for VPC-style stochastic simulation; they are not load-bearing for the EBA prediction itself.Compartment names. The bacterial-state compartments
fast,slow,nonmand the autoinductionenzymecompartment triggercheckModelConventions()warnings because they are not yet registered as canonical names inR/conventions.R. The same convention precedent is set bySvensson_2016_rifampicin.RandSvensson_2018_rifampicin.R(ddmore tree); these warnings are accepted for the MTP / autoinduction family of models.Dose-dependent bioavailability below 450 mg. The Svensson 2018 Fmax / ED50 function is calibrated for doses above the 450 mg reference. Below 450 mg, the saturable increase is clamped to zero (bio = 1 by the
max(DOSE - 450, 0)guard) rather than allowed to become negative; this is a model-file safeguard, not part of the Svensson 2018 ODE.WT / HT / FFM allometric scaling. Wicha 2018 simulation samples WT (GM 60 kg, GSD 10%) and HT (GM 1.75 m, GSD 7.5%) and drives the Svensson 2018 FFM-allometric scaling on Vmax and Vd. For the packaged model the FFM-allometric step is left to the vignette / user (the model file stores parameters at the 70 kg FFM reference); users wishing to enable per-subject allometry should compute FFM via the Janmahasatian formula and multiply Vmax by (FFM/70)^0.75 and Vc by (FFM/70)^1.0 in the rxSolve params argument or in a pre- processing step.
No clinical data fit. Wicha 2018 itself is a SIMULATION study; no parameter in this model file was fit to clinical EBA data. The validation in the original publication compares simulated EBA to observed EBA from six contemporary phase IIa trials (Wicha 2018 Figure 4a); this nlmixr2lib model file is intended to support downstream extensions (combination therapy, alternative dosing regimens, MIC-distribution sensitivity analysis), not to be re-fit.
