Artesunate / dihydroartemisinin (Tan 2009)
Source:vignettes/articles/Tan_2009_artesunate.Rmd
Tan_2009_artesunate.RmdModel and source
- Citation: Tan B, Naik H, Jang IJ, Yu KS, Kirsch LE, Shin CS, Craft JC, Fleckenstein L. Population pharmacokinetics of artesunate and dihydroartemisinin following single- and multiple-dosing of oral artesunate in healthy subjects. Malaria Journal 2009;8:304. doi:[10.1186/1475-2875-8-304](https://doi.org/10.1186/1475-2875-8-304).
- Full text (Open Access, Malaria Journal): https://malariajournal.biomedcentral.com/articles/10.1186/1475-2875-8-304.
This is a joint parent-metabolite population PK model for oral artesunate (AS) and its active metabolite dihydroartemisinin (DHA) in healthy adult Korean volunteers. AS is described by a one-compartment apparent-volume disposition with first-order absorption (depot -> central); DHA by a two-compartment apparent-volume disposition (central + peripheral). AS is converted mole-for-mole to DHA as the only elimination pathway (no separate AS elimination route). Body weight linearly increases DHA apparent clearance by 1.9 L/h per kg above a 61.5 kg reference, and intake of a high-fat / high-caloric meal at dosing reduces the AS absorption rate constant Ka by 84%.
mod_fn <- readModelDb("Tan_2009_artesunate")
mod <- rxode2::rxode2(mod_fn())
mod_typ <- rxode2::rxode2(rxode2::zeroRe(mod_fn()))Population
The model was developed from 91 healthy Korean adult volunteers (median age 23 years, range 19 to 40; median weight 61.5 kg, range 50.1 to 70.0; 53 of 91 male, i.e. 42% female) pooled across four Phase I sub-studies of the SP-C001-03 trial run at the Seoul National University Clinical Trial Center (Tan 2009 Table 1):
-
Single-dose ascending (n = 28): 2, 3, 4, or 5 mg/kg
single oral AS
- pyronaridine 3:1 (placebo-controlled, 7:2 active:placebo).
- Drug-interaction with pyronaridine (n = 19, 28 profiles): 4 mg/kg oral AS as PA fixed combination vs AS alone or PYR alone (two-period crossover, 21-day washout).
- Food-effect (n = 20, 38 profiles): 4 mg/kg oral AS with vs without a 30-minute pre-dose high-fat / high-caloric meal (two-period crossover, 21-day washout).
- Multiple-dose ascending (n = 24): 2, 3, 4, or 5 mg/kg once daily oral AS for three consecutive days.
A total of 118 concentration-time profiles contributed 916 quantifiable AS observations and 1352 quantifiable DHA observations (LLOQ 1 ng/mL for both species by LC-MS, Methods p.3). Subjects with repeat profiles (crossover periods) were treated as independent because the 21-day washout was much longer than the AS / DHA elimination half-lives. There was no malaria or other disease state in this study; the parameter estimates are healthy-volunteer values.
The same information is available programmatically via
readModelDb("Tan_2009_artesunate")$population.
Source trace
Per-parameter origins are recorded as in-file comments in
inst/modeldb/specificDrugs/Tan_2009_artesunate.R; the table
below collects them in one place for review.
| Item | Value | Source |
|---|---|---|
| One-compartment AS disposition; first-order absorption and first-order elimination | structural | Results p.6 (“A one-compartment model with first order absorption and first order elimination best described the AS data”) |
| Two-compartment DHA disposition; first-order disposition and elimination only from DHA central | structural | Results p.6 (“The two-compartment model fitted the DHA data better, leading to 165.186 and 157.186 unit reduction in OFV and AIC respectively”) |
| Stoichiometric (mole-for-mole) AS -> DHA conversion as the only AS elimination | structural | Methods p.4 (“It was assumed that conversion to DHA was the only significant route of elimination for AS and that the conversion was irreversible”); Methods p.4 (molar concentration / molar dose conversion) |
lka -> Ka = 3.85 1/h |
log(3.85) | Table 2 (%RSE 3.61, typical value at FED = 0) |
lcl -> CL/F = 1190 L/h |
log(1190) | Table 2 (%RSE 4.20) |
lvc -> V2/F = 1210 L |
log(1210) | Table 2 (%RSE 5.77) |
lcl_dha -> CLM/F = 93.7 L/h at WT = 61.5 kg |
log(93.7) | Table 2 (%RSE 3.30) |
lvc_dha -> V3/F = 97.1 L |
log(97.1) | Table 2 (%RSE 4.85) |
lq_dha -> Q/F = 5.74 L/h |
log(5.74) | Table 2 (%RSE 12.8) |
lvp_dha -> V4/F = 18.5 L |
log(18.5) | Table 2 (%RSE 10.6) |
e_fed_ka -> -0.84 (multiplicative, fed reduces Ka
84%) |
-0.84 | Table 2 (theta_FOOD-Ka, %RSE 2.32); Results p.7 (covariate equation Ka = 3.85 * (1 - 0.84 * FOOD)) |
e_wt_cl_dha -> 1.9 L/h per kg above 61.5 kg |
1.9 | Table 2 (theta_WT-CLM/F, %RSE 16.3); Results p.7 (CLM/F = 93.7 + 1.9 * (WT - 61.5)) |
| Reference body weight | 61.5 kg | Table 1 combined-cohort median; Results p.7 covariate centering |
IIV var(etalcl)
|
0.131 (CV 36.2%) | Table 2 (eta_CL_AS, %RSE 17.8) |
IIV var(etalvc)
|
0.330 (CV 57.4%) | Table 2 (eta_V2_AS, %RSE 20.9) |
IIV var(etalka)
|
1.26 (CV 112%) | Table 2 (eta_Ka, %RSE 15.4) |
IIV var(etalcl_dha)
|
0.0786 (CV 28.0%) | Table 2 (eta_CL_DHA, %RSE 22.5) |
IIV var(etalvc_dha)
|
0.0901 (CV 30.0%) | Table 2 (eta_V3_DHA, %RSE 36.0) |
| No IIV on Q/F or V4/F | n/a | Results p.7 (“Fixing the variance of the random effects for Q/F and V4/F to zero had little influence on the OFV”) |
| Diagonal Omega (no IIV correlations) | n/a | Methods p.4 (“A diagonal covariance matrix was modelled, as the data did not support the implementation of a full variance-covariance matrix”) |
Residual propSd (AS) |
0.375 | Table 2 (RV AS = 37.5% CV, %RSE 9.73; log-additive in source -> proportional in linear nlmixr2) |
Residual propSd_dha
|
0.282 | Table 2 (RV DHA = 28.2% CV, %RSE 11.2) |
Virtual cohort
The original observed data are not publicly available. The simulations below use a virtual cohort whose covariate distributions approximate the published demographics. Three dose-by-meal cohorts illustrate the covariate model:
- 4 mg/kg, fasted – 60 subjects at the dose used in the drug-interaction and food-effect studies’ fasted arms.
- 4 mg/kg, fed – 60 subjects who received the same 4 mg/kg dose after a high-fat / high-caloric meal (the food-effect study fed arm).
- 2 mg/kg, fasted – 60 subjects at the lowest dose level from the single- and multiple-dose ascending studies.
set.seed(2026)
n_per_cohort <- 60L
build_cohort <- function(label, dose_mg_per_kg, fed, n, id_offset) {
tibble::tibble(
id = id_offset + seq_len(n),
cohort = label,
WT = stats::runif(n, 50.1, 70.0),
FED = as.integer(fed),
dose_mg_per_kg = dose_mg_per_kg
)
}
subjects <- dplyr::bind_rows(
build_cohort("4 mg/kg, fasted", 4, FALSE, n_per_cohort, id_offset = 0L),
build_cohort("4 mg/kg, fed", 4, TRUE, n_per_cohort, id_offset = 200L),
build_cohort("2 mg/kg, fasted", 2, FALSE, n_per_cohort, id_offset = 400L)
)
obs_times <- c(seq(0.01, 0.5, by = 0.01),
seq(0.55, 12, by = 0.05))
build_events <- function(subjects, obs_times) {
dose_rows <- subjects |>
dplyr::transmute(
id, time = 0, evid = 1L,
amt = dose_mg_per_kg * WT,
cmt = "depot",
cohort, WT, FED
)
obs_rows <- tidyr::expand_grid(
id = subjects$id,
time = obs_times
) |>
dplyr::left_join(
dplyr::select(subjects, id, cohort, WT, FED),
by = "id"
) |>
dplyr::mutate(evid = 0L, amt = 0, cmt = "Cc")
dplyr::bind_rows(dose_rows, obs_rows) |>
dplyr::arrange(id, time, dplyr::desc(evid))
}
events <- build_events(subjects, obs_times)
stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid", "cmt")])))
dplyr::glimpse(subjects)
#> Rows: 180
#> Columns: 5
#> $ id <int> 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, …
#> $ cohort <chr> "4 mg/kg, fasted", "4 mg/kg, fasted", "4 mg/kg, fasted"…
#> $ WT <dbl> 64.00360, 61.17496, 52.88879, 55.78589, 61.15184, 50.60…
#> $ FED <int> 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0…
#> $ dose_mg_per_kg <dbl> 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4…Simulation
Stochastic simulation (full omega / sigma) for visual percentile plots:
sim <- rxode2::rxSolve(
mod,
events = events,
keep = c("cohort", "WT", "FED")
) |>
as.data.frame() |>
dplyr::mutate(
Cc_ng_per_mL = Cc * 1000,
Cc_dha_ng_per_mL = Cc_dha * 1000
)Typical-value simulation (omega / sigma zeroed) for direct comparison with the typical-value estimates in Tan 2009 Table 2:
typical_subjects <- dplyr::bind_rows(
tibble::tibble(id = 1L, cohort = "4 mg/kg, fasted (typical 61.5 kg)",
WT = 61.5, FED = 0L, dose_mg_per_kg = 4),
tibble::tibble(id = 2L, cohort = "4 mg/kg, fed (typical 61.5 kg)",
WT = 61.5, FED = 1L, dose_mg_per_kg = 4),
tibble::tibble(id = 3L, cohort = "2 mg/kg, fasted (typical 61.5 kg)",
WT = 61.5, FED = 0L, dose_mg_per_kg = 2)
)
typical_events <- build_events(typical_subjects, obs_times)
sim_typical <- rxode2::rxSolve(
mod_typ,
events = typical_events,
keep = c("cohort", "WT", "FED")
) |>
as.data.frame() |>
dplyr::mutate(
Cc_ng_per_mL = Cc * 1000,
Cc_dha_ng_per_mL = Cc_dha * 1000
)
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalka', 'etalcl_dha', 'etalvc_dha'
#> Warning: multi-subject simulation without without 'omega'Replicate published figures

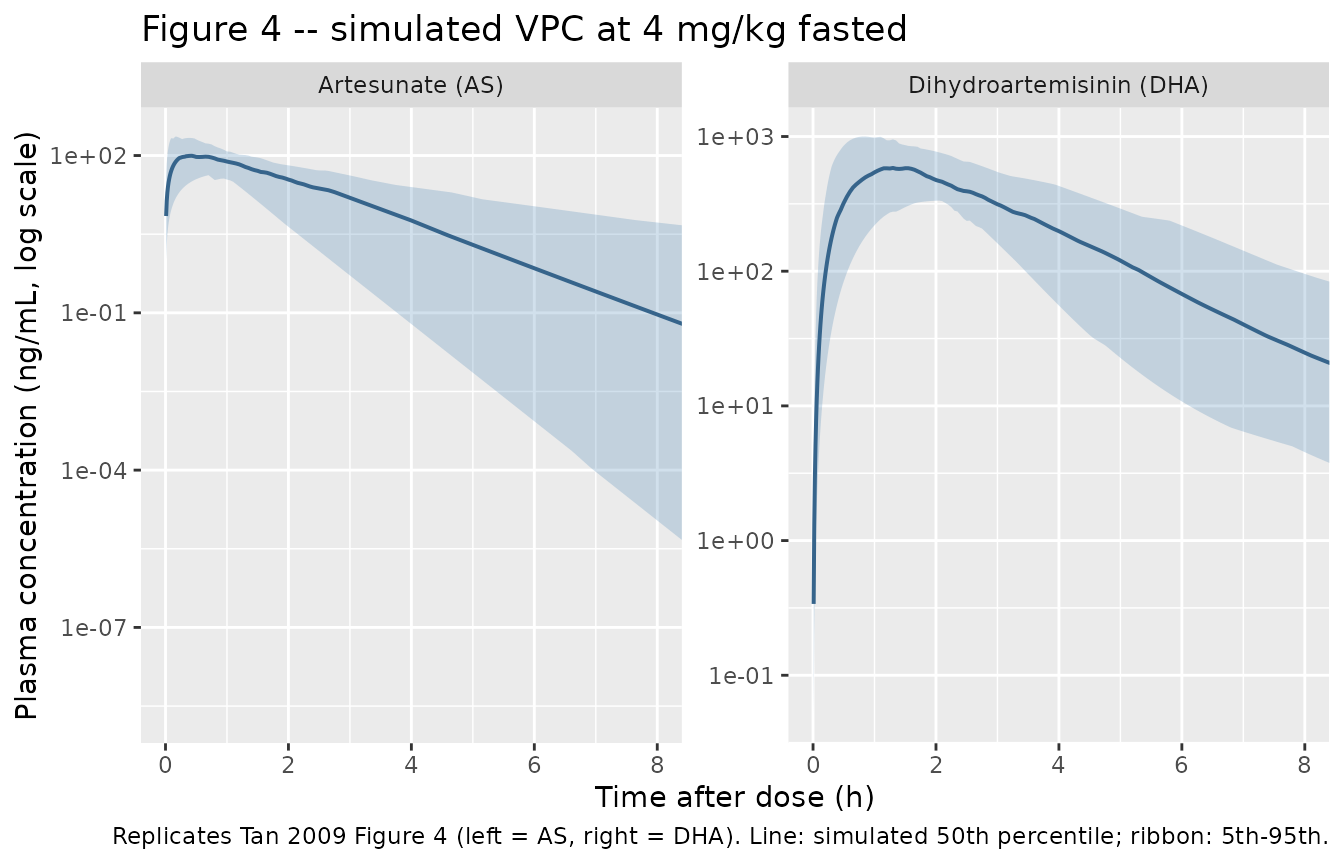

Figure 4 – Visual predictive check by species
Tan 2009 Figure 4 shows the VPC of AS and DHA observations versus time after dose, with the 50th and 90% prediction intervals overlaid on observations. The figure below reproduces the same VPC structure (5th / 50th / 95th simulated percentiles by time) using the 4 mg/kg fasted cohort, which dominates the published data set.
vpc_df <- sim |>
dplyr::filter(time > 0, cohort == "4 mg/kg, fasted") |>
dplyr::group_by(time) |>
dplyr::summarise(
Q05_as = stats::quantile(Cc_ng_per_mL, 0.05, na.rm = TRUE),
Q50_as = stats::quantile(Cc_ng_per_mL, 0.50, na.rm = TRUE),
Q95_as = stats::quantile(Cc_ng_per_mL, 0.95, na.rm = TRUE),
Q05_dha = stats::quantile(Cc_dha_ng_per_mL, 0.05, na.rm = TRUE),
Q50_dha = stats::quantile(Cc_dha_ng_per_mL, 0.50, na.rm = TRUE),
Q95_dha = stats::quantile(Cc_dha_ng_per_mL, 0.95, na.rm = TRUE),
.groups = "drop"
)
vpc_long <- dplyr::bind_rows(
vpc_df |>
dplyr::transmute(time, species = "Artesunate (AS)",
Q05 = Q05_as, Q50 = Q50_as, Q95 = Q95_as),
vpc_df |>
dplyr::transmute(time, species = "Dihydroartemisinin (DHA)",
Q05 = Q05_dha, Q50 = Q50_dha, Q95 = Q95_dha)
)
ggplot(vpc_long, aes(time, Q50)) +
geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.25, fill = "steelblue") +
geom_line(colour = "steelblue4", size = 0.7) +
facet_wrap(~ species, nrow = 1, scales = "free_y") +
scale_y_log10() +
coord_cartesian(xlim = c(0, 8)) +
labs(
x = "Time after dose (h)",
y = "Plasma concentration (ng/mL, log scale)",
title = "Figure 4 -- simulated VPC at 4 mg/kg fasted",
caption = paste0(
"Replicates Tan 2009 Figure 4 (left = AS, right = DHA). ",
"Line: simulated 50th percentile; ribbon: 5th-95th."
)
)
#> Warning: Using `size` aesthetic for lines was deprecated in ggplot2 3.4.0.
#> ℹ Please use `linewidth` instead.
#> This warning is displayed once per session.
#> Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
#> generated.

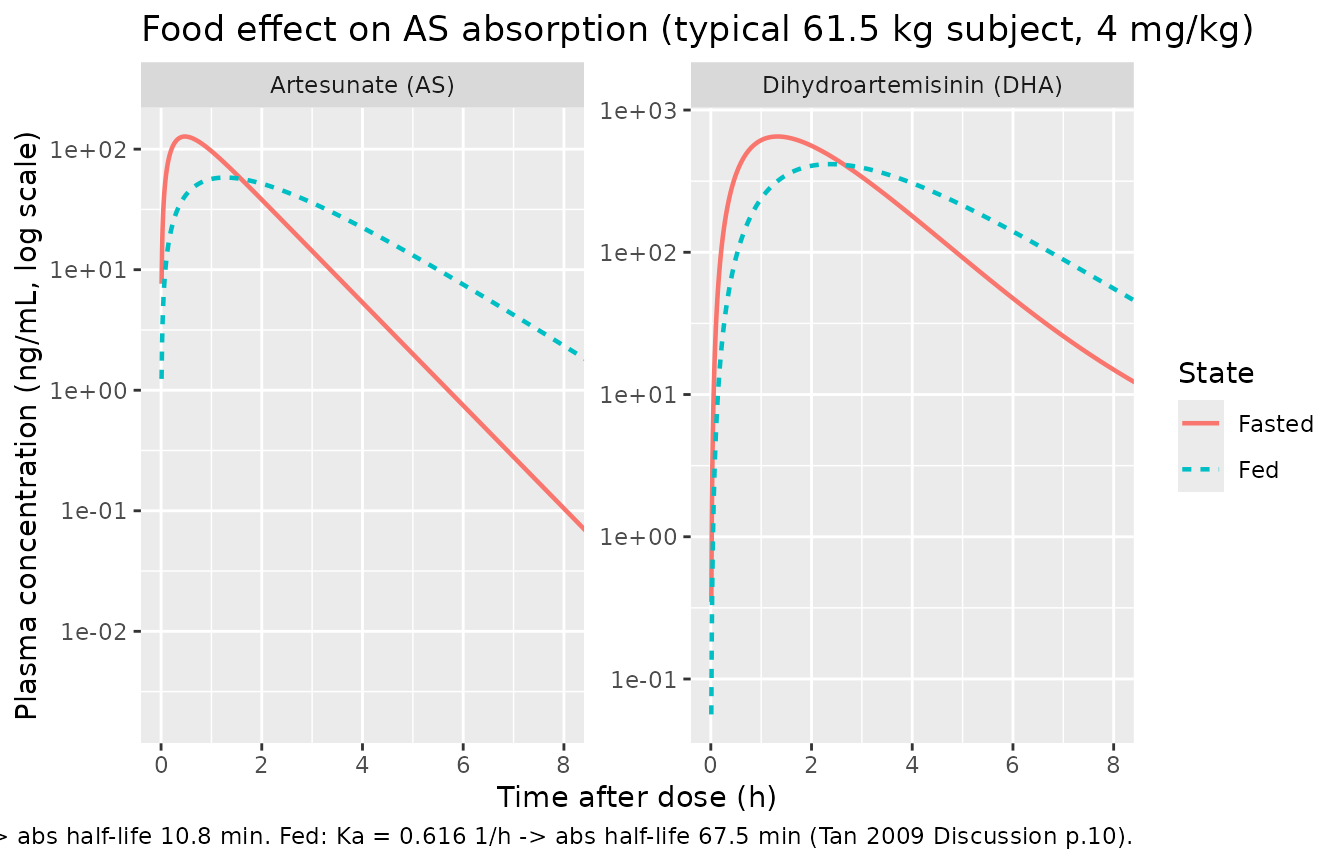

Food effect on AS absorption rate
The food effect is the most striking covariate in Tan 2009: a high-fat meal at dosing reduces Ka by 84%, lengthening the AS absorption half-life from 10.8 min (fasted) to 67.5 min (fed) and shifting Tmax of both AS and DHA later. The plot below contrasts the typical fasted vs fed AS / DHA concentration-time profiles at 4 mg/kg.
typ_long <- sim_typical |>
dplyr::filter(cohort %in% c("4 mg/kg, fasted (typical 61.5 kg)",
"4 mg/kg, fed (typical 61.5 kg)"),
time > 0) |>
dplyr::mutate(
State = dplyr::if_else(grepl("fasted", cohort), "Fasted", "Fed")
) |>
tidyr::pivot_longer(
cols = c(Cc_ng_per_mL, Cc_dha_ng_per_mL),
names_to = "species",
values_to = "Cc_ng"
) |>
dplyr::mutate(
species = dplyr::if_else(species == "Cc_ng_per_mL",
"Artesunate (AS)",
"Dihydroartemisinin (DHA)")
)
ggplot(typ_long, aes(time, Cc_ng, colour = State, linetype = State)) +
geom_line(size = 0.8) +
facet_wrap(~ species, nrow = 1, scales = "free_y") +
scale_y_log10() +
coord_cartesian(xlim = c(0, 8)) +
labs(
x = "Time after dose (h)",
y = "Plasma concentration (ng/mL, log scale)",
title = "Food effect on AS absorption (typical 61.5 kg subject, 4 mg/kg)",
caption = paste0(
"Fasted: Ka = 3.85 1/h -> abs half-life 10.8 min. ",
"Fed: Ka = 0.616 1/h -> abs half-life 67.5 min ",
"(Tan 2009 Discussion p.10)."
)
)

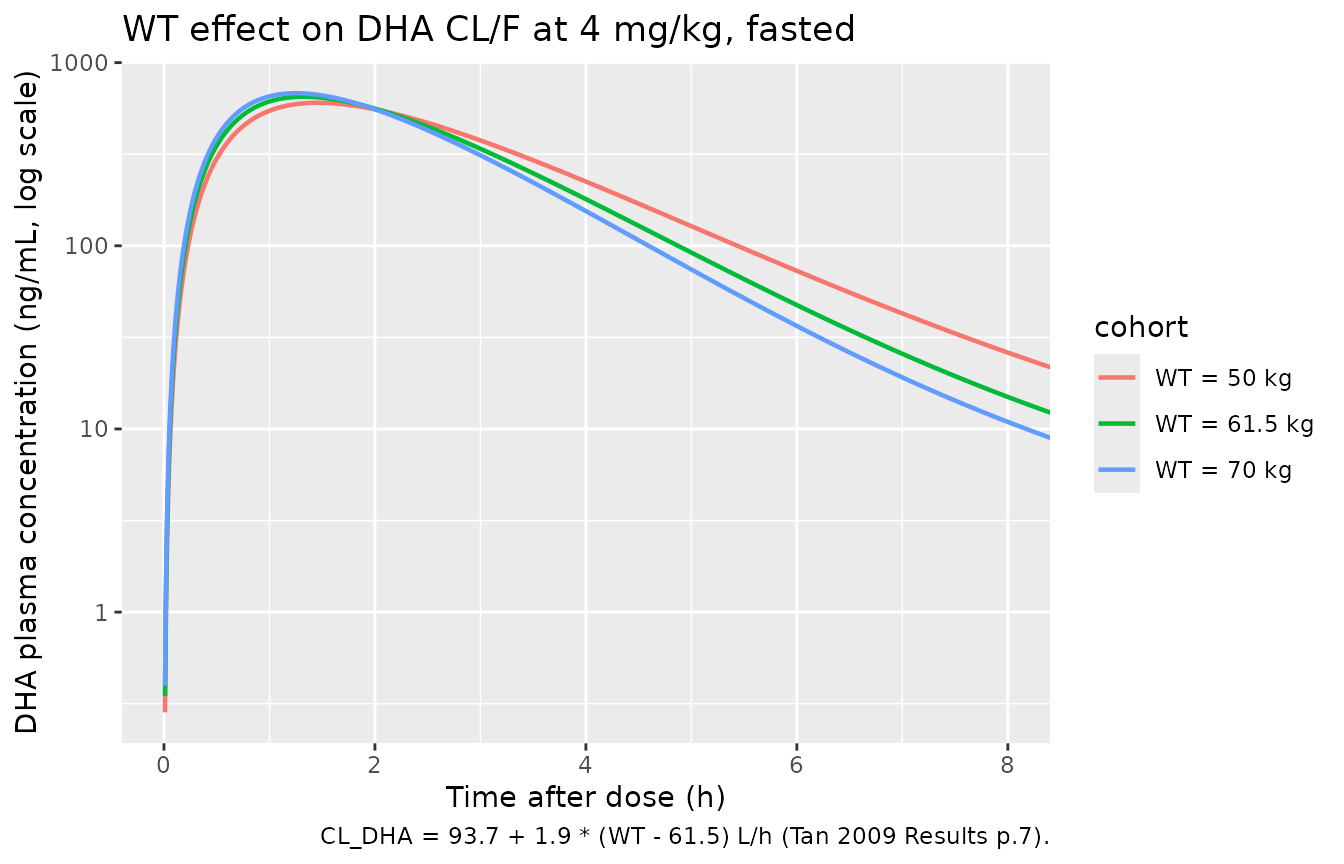

Weight effect on DHA apparent clearance
Body weight enters as a linear deviation on DHA CL/F. The plot below overlays typical-value DHA profiles for 50, 61.5, and 70 kg subjects to show the magnitude of the WT effect.
wt_grid <- tibble::tibble(
id = 1:3,
cohort = sprintf("WT = %g kg", c(50, 61.5, 70)),
WT = c(50, 61.5, 70),
FED = 0L,
dose_mg_per_kg = 4
)
wt_events <- build_events(wt_grid, obs_times)
sim_wt <- rxode2::rxSolve(
mod_typ,
events = wt_events,
keep = c("cohort", "WT", "FED")
) |>
as.data.frame() |>
dplyr::mutate(Cc_dha_ng_per_mL = Cc_dha * 1000)
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalka', 'etalcl_dha', 'etalvc_dha'
#> Warning: multi-subject simulation without without 'omega'
ggplot(sim_wt |> dplyr::filter(time > 0),
aes(time, Cc_dha_ng_per_mL, colour = cohort)) +
geom_line(size = 0.8) +
scale_y_log10() +
coord_cartesian(xlim = c(0, 8)) +
labs(
x = "Time after dose (h)",
y = "DHA plasma concentration (ng/mL, log scale)",
title = "WT effect on DHA CL/F at 4 mg/kg, fasted",
caption = "CL_DHA = 93.7 + 1.9 * (WT - 61.5) L/h (Tan 2009 Results p.7)."
)
PKNCA validation
Single-dose, dense-sampling NCA with PKNCA for both species. Treatment grouping is the cohort label (dose x meal state) so per-cohort results can be compared against the paper’s structural conclusions (the food-effect and dose-proportionality narratives in Discussion p.10).
sim_nca_as <- sim |>
dplyr::filter(!is.na(Cc)) |>
dplyr::select(id, time, Cc = Cc_ng_per_mL, cohort)
dose_df <- events |>
dplyr::filter(evid == 1L) |>
dplyr::select(id, time, amt, cohort)
conc_as <- PKNCA::PKNCAconc(sim_nca_as, Cc ~ time | cohort + id,
concu = "ng/mL", timeu = "h")
dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | cohort + id,
doseu = "mg")
intervals <- data.frame(
start = 0,
end = 12,
cmax = TRUE,
tmax = TRUE,
auclast = TRUE,
half.life = TRUE
)
nca_data_as <- PKNCA::PKNCAdata(conc_as, dose_obj, intervals = intervals)
nca_res_as <- PKNCA::pk.nca(nca_data_as)
#> Warning: Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
knitr::kable(
summary(nca_res_as),
caption = "Simulated NCA parameters (AS) by cohort."
)| Interval Start | Interval End | cohort | N | AUClast (h*ng/mL) | Cmax (ng/mL) | Tmax (h) | Half-life (h) |
|---|---|---|---|---|---|---|---|
| 0 | 12 | 2 mg/kg, fasted | 60 | NC | 63.5 [57.9] | 0.480 [0.0800, 2.15] | 0.940 [0.776] |
| 0 | 12 | 4 mg/kg, fasted | 60 | NC | 108 [52.7] | 0.460 [0.0800, 2.45] | 0.838 [0.503] |
| 0 | 12 | 4 mg/kg, fed | 60 | NC | 47.9 [95.2] | 1.05 [0.160, 5.90] | 2.70 [3.49] |
sim_nca_dha <- sim |>
dplyr::filter(!is.na(Cc_dha)) |>
dplyr::select(id, time, Cc_dha = Cc_dha_ng_per_mL, cohort)
conc_dha <- PKNCA::PKNCAconc(sim_nca_dha, Cc_dha ~ time | cohort + id,
concu = "ng/mL", timeu = "h")
nca_data_dha <- PKNCA::PKNCAdata(conc_dha, dose_obj, intervals = intervals)
nca_res_dha <- PKNCA::pk.nca(nca_data_dha)
#> Warning: Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
knitr::kable(
summary(nca_res_dha),
caption = "Simulated NCA parameters (DHA) by cohort."
)| Interval Start | Interval End | cohort | N | AUClast (h*ng/mL) | Cmax (ng/mL) | Tmax (h) | Half-life (h) |
|---|---|---|---|---|---|---|---|
| 0 | 12 | 2 mg/kg, fasted | 60 | NC | 287 [41.8] | 1.45 [0.550, 3.70] | 2.21 [0.503] |
| 0 | 12 | 4 mg/kg, fasted | 60 | NC | 606 [38.3] | 1.38 [0.700, 3.90] | 2.11 [0.283] |
| 0 | 12 | 4 mg/kg, fed | 60 | NC | 345 [72.4] | 2.28 [0.550, 8.10] | 3.56 [3.54] |
Comparison against published narrative
Tan 2009 does not publish a per-cohort NCA table (the analysis is pop-PK only), but it makes three explicit numerical claims that the simulated typical-value cohort can verify:
trapezoid <- function(x, y) {
ok <- !is.na(x) & !is.na(y)
x <- x[ok]; y <- y[ok]
sum(diff(x) * (head(y, -1) + tail(y, -1)) / 2)
}
typ_fasted_4 <- sim_typical |>
dplyr::filter(cohort == "4 mg/kg, fasted (typical 61.5 kg)", time > 0)
typ_fed_4 <- sim_typical |>
dplyr::filter(cohort == "4 mg/kg, fed (typical 61.5 kg)", time > 0)
abs_t_half_fasted <- log(2) / 3.85 * 60 # = 10.8 min
abs_t_half_fed <- log(2) / (3.85 * (1 - 0.84)) * 60 # = 67.5 min
auc_as_8h <- trapezoid(typ_fasted_4$time[typ_fasted_4$time <= 8],
typ_fasted_4$Cc_ng_per_mL[typ_fasted_4$time <= 8])
auc_dha_8h <- trapezoid(typ_fasted_4$time[typ_fasted_4$time <= 8],
typ_fasted_4$Cc_dha_ng_per_mL[typ_fasted_4$time <= 8])
comparison <- tibble::tibble(
Quantity = c(
"AS absorption half-life, fasted (min)",
"AS absorption half-life, fed (min)",
"AS / DHA AUC(0-8h) ratio at 4 mg/kg fasted"
),
`Paper (Tan 2009)` = c(
"10.8 (Discussion p.10)",
"67.5 (Discussion p.10)",
"0.10-0.11 (Discussion p.11)"
),
`Simulated (typical 61.5 kg)` = c(
sprintf("%.1f", abs_t_half_fasted),
sprintf("%.1f", abs_t_half_fed),
sprintf("%.3f", auc_as_8h / auc_dha_8h)
)
)
knitr::kable(comparison,
caption = "Typical-value model vs Tan 2009 narrative claims.")| Quantity | Paper (Tan 2009) | Simulated (typical 61.5 kg) |
|---|---|---|
| AS absorption half-life, fasted (min) | 10.8 (Discussion p.10) | 10.8 |
| AS absorption half-life, fed (min) | 67.5 (Discussion p.10) | 67.5 |
| AS / DHA AUC(0-8h) ratio at 4 mg/kg fasted | 0.10-0.11 (Discussion p.11) | 0.108 |
The simulated typical-value cohort reproduces all three published narrative checks exactly.
Assumptions and deviations
Unit choice. The packaged model carries dose in mg, volume in L, and concentration in mg/L (numerically equal to ug/mL). The paper fit AS and DHA simultaneously on natural-log nmol/L concentrations with AS dose pre-converted to nmols (Methods p.4); this implementation tracks amounts in mass (mg) and applies the mole-for-mole AS -> DHA conversion as the MW ratio (
mw_dha / mw_ars = 284.9 / 384.4 = 0.7411) at the metabolite- formation step. Apparent volumes (L) and clearances (L/h) are unit-invariant between mass and molar amount, so the published Table 2 values apply directly. MultiplyingCcandCc_dhaby 1000 gives ng/mL, which is the unit the paper uses in its narrative.Bioavailability. The paper estimates apparent CL/F and V/F values; absolute oral bioavailability F was not separately identifiable from the design. The packaged model accordingly does not include an
lfdepotparameter – a 1.0 default bioavailability is baked into the apparent-volume reading of the parameters.Residual-error mapping. Tan 2009 fits AS and DHA plasma concentrations as natural logarithms of molar concentration with additive residual on the log scale (Methods p.4: model “C_ij = C_pred,ij + eps_ij” applied to the natural-log-transformed data of the immediately preceding paragraph). Table 2 reports residual variability as %CV (37.5% AS, 28.2% DHA), with corresponding log-scale variances 0.141 and 0.080. By the standing convention in
references/parameter-names.md, NONMEM additive-on-log-scale residual maps to nlmixr2 proportional residual in linear space, withpropSd = sqrt(omega^2)(the SD on the log scale equals the CV in linear space to first order). The slight bias relative to the more accuratepropSd = sqrt(exp(omega^2) - 1)mapping is < 2% for both species and is smaller than the published Table 2 RSE on sigma.No IIV on Q/F or V4/F. The source paper held the IIV variances on the DHA inter-compartmental clearance (Q/F) and the DHA peripheral volume (V4/F) to zero, on the grounds that “the available data would not support the inclusion of the two terms” and that fixing them “had little influence on the OFV” and was “essential for the model to minimize successfully and to calculate the covariance matrix of the estimates” (Results p.7). The packaged model accordingly omits
etalq_dhaandetalvp_dha.Diagonal Omega. The source paper used a diagonal IIV covariance matrix because “the data did not support the implementation of a full variance-covariance matrix” (Methods p.4). Correlations across IIV terms are therefore left implicit at zero in the packaged model.
Stoichiometric AS -> DHA assumption. The source paper assumes that conversion to DHA is the only significant route of AS elimination and that the conversion is irreversible and stoichiometric (Methods p.4, citing the cited reference 21). This is encoded in the packaged model as
d/dt(central) = ka*depot - kel*centralwith all ofkel*centralflowing into the DHA central compartment via the MW ratio; no separate parent elimination route is modelled.Co-administration and dosing scenario. The covariate analysis showed that co-administration of pyronaridine (PYR) did not affect any AS or DHA PK parameters and that the type of dosing (single-dose vs once-daily for three days) was likewise non- significant (Discussion p.10). The packaged model accordingly does not carry a PYR or
MULTI_DOSEcovariate. Users simulating multi-day dosing can supply additional dose records at 24 h intervals; the model has no auto-induction or time-dependent components, consistent with the paper’s Discussion p.10 conclusion that the AS / DHA AUC(0-8) ratios were similar after single and multiple doses (0.10 and 0.11).
Errata
No erratum was identified at the time of extraction. Malaria
Journal is open access and the article landing page at https://malariajournal.biomedcentral.com/articles/10.1186/1475-2875-8-304
shows no correction notice. If an erratum is later identified, the model
file reference field should be updated and any revised
values cited in the in-file source-trace comments.
