Model and source

  • Citation: Ter Heine R, Binkhorst L, de Graan AJM, et al. (2014). Population pharmacokinetic modelling to assess the impact of CYP2D6 and CYP3A metabolic phenotypes on the pharmacokinetics of tamoxifen and endoxifen. Br J Clin Pharmacol 78(3):572-586. doi:10.1111/bcp.12388. DDMORE Foundation Model Repository: DDMODEL00000212.
  • Description: Joint parent-metabolite population PK model for tamoxifen and endoxifen at steady state in adult breast-cancer patients, with CYP2D6 and CYP3A4/5 individual-activity covariates on the endoxifen-formation clearance
  • Article: https://doi.org/10.1111/bcp.12388
  • DDMORE Foundation Model Repository entry: DDMODEL00000212

Population

The Ter Heine 2014 publication reports a popPK study of tamoxifen and its active metabolite endoxifen at steady state in adult breast-cancer patients on standard 20 mg PO QD chronic dosing. The full publication PDF was not on disk during model extraction; only the Table 2 of final estimates was embedded in the DDMORE bundle (Output_real_tamoxifen.pdf), so the demographic ranges captured in population are partial — the age_range / weight_range fields carry a TODO marker. The DDMORE bundle ships a simulated dataset of 100 hypothetical 20-mg-QD subjects whose CYP2D6 and CYP3A4 / 5 individual-activity covariates span a wide range (CYP2D6 ≈ 20-21000 ng/L; CYP3A4 ≈ 20-130 ng/L), reflecting the clinically observed variability in CYP-probe-derived metabolic activity.

The same information is available programmatically via rxode2::rxode2(readModelDb("TerHeine_2014_tamoxifen"))$population.

Source trace

The per-parameter origin is recorded as an in-file comment next to each ini() entry in inst/modeldb/ddmore/TerHeine_2014_tamoxifen.R. The table below collects them in one place for review.

Equation / parameter Value Source location
lka (k12, 1/h) 1.90 PDF Table 2 (RSE 20.2%)
llag (tlag, h) 0.455 PDF Table 2 (RSE 10.4%)
lcl (CL20/F, L/h) 9.34 PDF Table 2 (RSE 6.20%)
lvc (V2/F, L) 753 PDF Table 2 (RSE 9.00%)
lq (Q/F, L/h) 61.8 PDF Table 2 (RSE 65.4%)
lcl_endx (CL23/F, L/h) 0.324 PDF Table 2 (RSE 17.0%)
e_cyp2d6_cl_endx 0.262 PDF Table 2 (RSE 14.0%)
e_cyp3a4_cl_endx 0.157 PDF Table 2 (RSE 72.0%)
etalcl (ω CL20/F) %CV 37.8 → log-variance 0.1336 PDF Table 2 (RSE 19.2%)
etalvc (ω V2/F) %CV 26.6 → log-variance 0.0683 PDF Table 2 (RSE 53.9%)
etalcl_endx (ω CL23/F) %CV 25.5 → log-variance 0.0630 PDF Table 2 (RSE 19.3%)
ρ(CL20-V2/F) → block covariance 0.613 → 0.0586 PDF Table 2 (RSE 31.2%)
propSd (σ_TAM) 0.138 PDF Table 2 (RSE 11.3%)
propSd_endx (σ_ENDX) 0.189 PDF Table 2 (RSE 10.1%)
Endoxifen Vc (fixed, L) 400 .mdl GROUP_VARIABLES; cite Ahmad et al. CPT 88(6):814-817 (2010)
Endoxifen CL (fixed, L/h) 5.1 .mdl GROUP_VARIABLES; cite Ahmad et al. CPT 88(6):814-817 (2010)
Tamoxifen MW (g/mol) 371.51456 .mdl GROUP_VARIABLES
Endoxifen MW (g/mol) 373.48738 .mdl GROUP_VARIABLES
CYP2D6 reference (ng/L) 1560 .mdl GROUP_VARIABLES (population median)
CYP3A4 reference (ng/L) 44.7 .mdl GROUP_VARIABLES (population median)
Equation: depot decay (d/dt(depot) <- -ka * depot) n/a .mdl MODEL_PREDICTION DEQ block
Equation: hepatic QSS (c_hep <- (ratein + q*c2) / (q + cl_endx_form)) n/a .mdl MODEL_PREDICTION DEQ block
Equation: parent central ODE n/a .mdl MODEL_PREDICTION DEQ block
Equation: metabolite central ODE n/a .mdl MODEL_PREDICTION DEQ block
Equation: ALAG mechanism on depot n/a .mdl MODEL_PREDICTION DEQ (manual if (T >= ALAG1) switch) — replaced here with the equivalent standard NONMEM lag(depot) mechanism

Virtual cohort

We exercise the model with a small set of CYP-phenotype scenarios, all on the standard 20 mg PO QD chronic regimen at steady state. The scenarios cover:

  • typical — population-median CYP2D6 (1560 ng/L) and CYP3A4 (44.7 ng/L);
  • CYP2D6-low — 156 ng/L (1/10 of the median, approximating poor-metabolizer activity);
  • CYP2D6-high — 15600 ng/L (10 × the median, approximating ultrarapid-metabolizer activity);
  • CYP3A4-low — 4.47 ng/L (1/10 of the median);
  • CYP3A4-high — 447 ng/L (10 × the median).
set.seed(42)

scenarios <- tribble(
  ~scenario,        ~CYP2D6, ~CYP3A4,
  "typical",        1560,    44.7,
  "CYP2D6-low",      156,    44.7,
  "CYP2D6-high",   15600,    44.7,
  "CYP3A4-low",     1560,     4.47,
  "CYP3A4-high",    1560,    447
)

# Build event tables: 20 mg QD steady-state with II=24h. Observation grid
# spans one steady-state dosing interval at half-hour resolution.
# rxSolve reads CYP2D6 / CYP3A4 from columns in the events data frame.
build_events <- function(scenarios) {
  obs_t <- seq(0, 24, by = 0.25)
  out <- vector("list", nrow(scenarios))
  for (i in seq_len(nrow(scenarios))) {
    sc   <- scenarios[i, ]
    n_obs <- length(obs_t)
    dose_row <- data.frame(
      id = i, time = 0, evid = 1, amt = 20, cmt = 1L, ii = 24, ss = 1,
      scenario = sc$scenario, CYP2D6 = sc$CYP2D6, CYP3A4 = sc$CYP3A4
    )
    obs_tam <- data.frame(
      id = i, time = obs_t, evid = 0, amt = 0, cmt = 4L, ii = 0, ss = 0,
      scenario = sc$scenario, CYP2D6 = sc$CYP2D6, CYP3A4 = sc$CYP3A4
    )
    obs_endx <- data.frame(
      id = i, time = obs_t, evid = 0, amt = 0, cmt = 5L, ii = 0, ss = 0,
      scenario = sc$scenario, CYP2D6 = sc$CYP2D6, CYP3A4 = sc$CYP3A4
    )
    out[[i]] <- rbind(dose_row, obs_tam, obs_endx)
  }
  dplyr::bind_rows(out)
}

events <- build_events(scenarios)
stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid", "cmt")])))

Simulation

mod <- rxode2::rxode2(readModelDb("TerHeine_2014_tamoxifen"))

# Typical-value (no IIV): each scenario is one subject at the typical
# parameter values, so we zero out the random effects.
mod_typ <- rxode2::zeroRe(mod)

sim <- rxode2::rxSolve(
  mod_typ,
  events = events,
  keep   = c("scenario", "CYP2D6", "CYP3A4")
)
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalcl_endx'
#> Warning: multi-subject simulation without without 'omega'
sim <- as.data.frame(sim)

Replicate published behaviour

Ter Heine 2014 reports a complete Table 2 of point estimates but does not publish a clean reference Cmax / Cmin / AUC table for steady state. The deterministic typical-value profiles below are shown so that a reviewer can confirm the steady-state magnitudes are biologically plausible (tamoxifen ≈ 100-300 nmol/L; endoxifen ≈ 5-50 nmol/L on 20 mg QD chronic dosing in adults — typical clinical-pharmacology ranges) and that the covariate sensitivities go in the correct direction (CYP2D6-high increases endoxifen formation; CYP2D6-low decreases it).

sim_tam <- sim |>
  dplyr::filter(CMT == 4) |>
  dplyr::select(id, time, scenario, Cc)

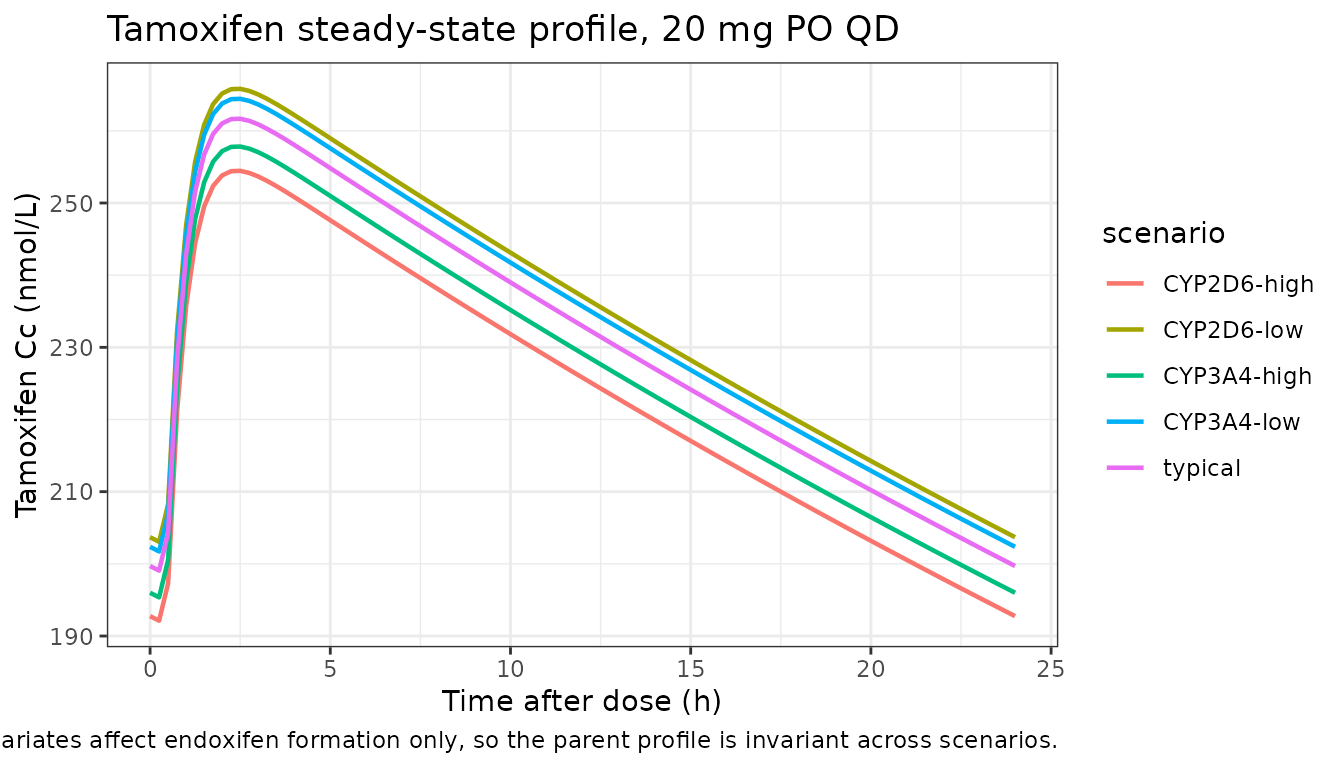

ggplot(sim_tam, aes(time, Cc, colour = scenario)) +
  geom_line(linewidth = 0.8) +
  labs(x = "Time after dose (h)", y = "Tamoxifen Cc (nmol/L)",
       colour = "scenario",
       title = "Tamoxifen steady-state profile, 20 mg PO QD",
       caption = "Typical-value simulation; CYP covariates affect endoxifen formation only, so the parent profile is invariant across scenarios.") +
  theme_bw()

sim_endx <- sim |>
  dplyr::filter(CMT == 5) |>
  dplyr::select(id, time, scenario, Cc_endx)

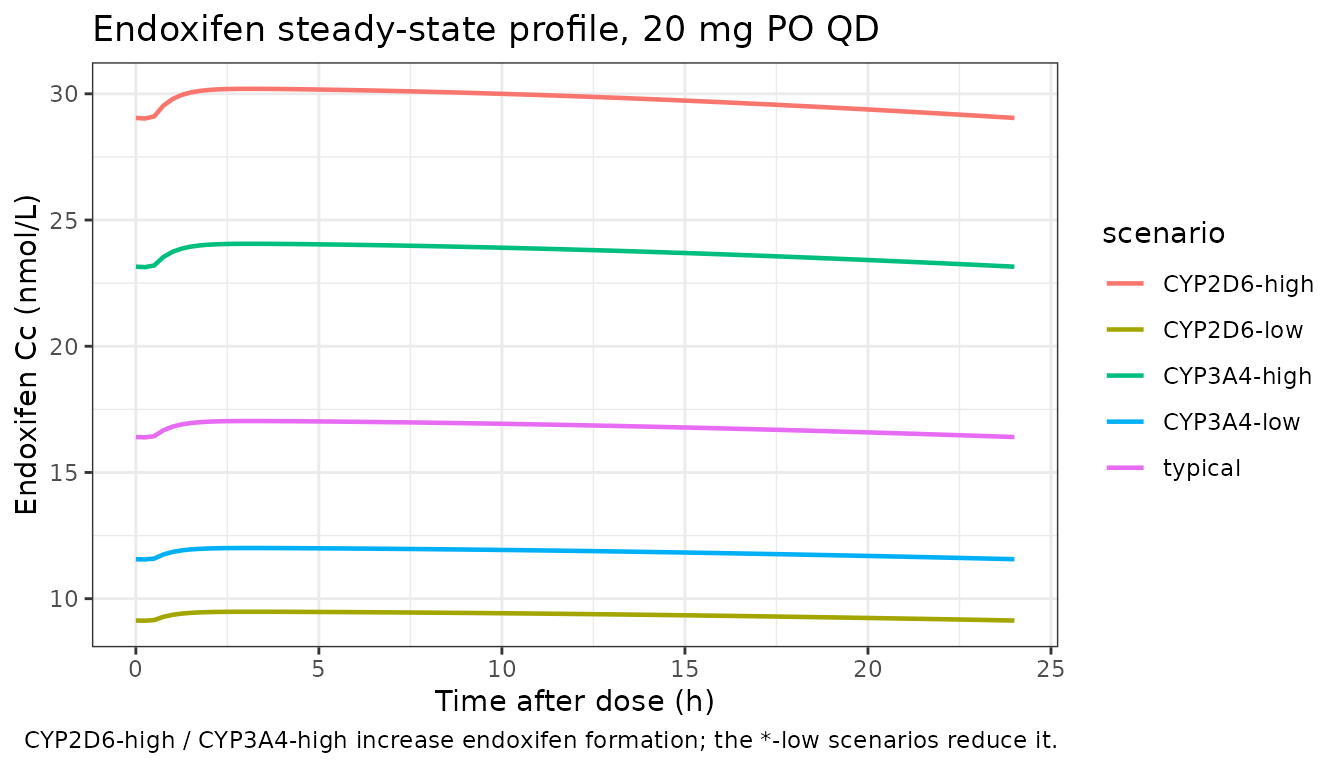

ggplot(sim_endx, aes(time, Cc_endx, colour = scenario)) +
  geom_line(linewidth = 0.8) +
  labs(x = "Time after dose (h)", y = "Endoxifen Cc (nmol/L)",
       colour = "scenario",
       title = "Endoxifen steady-state profile, 20 mg PO QD",
       caption = "CYP2D6-high / CYP3A4-high increase endoxifen formation; the *-low scenarios reduce it.") +
  theme_bw()

PKNCA validation

Steady-state NCA over the dosing interval (tau = 24 h), one row per scenario.

tau <- 24

sim_nca_tam <- sim |>
  dplyr::filter(CMT == 4, !is.na(Cc)) |>
  dplyr::select(id, time, Cc, scenario)

dose_df <- events |>
  dplyr::filter(evid == 1) |>
  dplyr::select(id, time, amt, scenario)

conc_obj_tam <- PKNCA::PKNCAconc(
  sim_nca_tam, Cc ~ time | scenario + id,
  concu = "nmol/L", timeu = "h"
)
dose_obj <- PKNCA::PKNCAdose(
  dose_df, amt ~ time | scenario + id, doseu = "mg"
)

intervals_ss <- data.frame(
  start    = 0,
  end      = tau,
  cmax     = TRUE,
  tmax     = TRUE,
  cmin     = TRUE,
  auclast  = TRUE,
  cav      = TRUE,
  ctrough  = TRUE
)

nca_tam <- PKNCA::pk.nca(PKNCA::PKNCAdata(
  conc_obj_tam, dose_obj, intervals = intervals_ss
))
knitr::kable(
  as.data.frame(nca_tam$result) |>
    dplyr::select(scenario, id, PPTESTCD, PPORRES) |>
    tidyr::pivot_wider(names_from = PPTESTCD, values_from = PPORRES),
  caption = "Steady-state NCA — tamoxifen (Cc) by CYP-phenotype scenario"
)
Steady-state NCA — tamoxifen (Cc) by CYP-phenotype scenario
scenario id auclast cmax cmin tmax cav ctrough
CYP2D6-high 3 5371.595 254.4559 192.1237 2.5 223.8165 192.7579
CYP2D6-low 2 5640.515 265.8190 203.0515 2.5 235.0215 203.6940
CYP3A4-high 5 5451.245 257.8229 195.3580 2.5 227.1352 195.9947
CYP3A4-low 4 5607.729 264.4344 201.7180 2.5 233.6554 202.3596
typical 1 5542.403 261.6749 199.0620 2.5 230.9335 199.7016
sim_nca_endx <- sim |>
  dplyr::filter(CMT == 5, !is.na(Cc_endx)) |>
  dplyr::select(id, time, Cc_endx, scenario) |>
  dplyr::rename(Cc = Cc_endx)

conc_obj_endx <- PKNCA::PKNCAconc(
  sim_nca_endx, Cc ~ time | scenario + id,
  concu = "nmol/L", timeu = "h"
)

nca_endx <- PKNCA::pk.nca(PKNCA::PKNCAdata(
  conc_obj_endx, dose_obj, intervals = intervals_ss
))
knitr::kable(
  as.data.frame(nca_endx$result) |>
    dplyr::select(scenario, id, PPTESTCD, PPORRES) |>
    tidyr::pivot_wider(names_from = PPTESTCD, values_from = PPORRES),
  caption = "Steady-state NCA — endoxifen (Cc_endx) by CYP-phenotype scenario"
)
Steady-state NCA — endoxifen (Cc_endx) by CYP-phenotype scenario
scenario id auclast cmax cmin tmax cav ctrough
CYP2D6-high 3 714.3424 30.197123 29.021522 3.00 29.76427 29.043887
CYP2D6-low 2 224.4511 9.482264 9.128053 3.25 9.35213 9.134819
CYP3A4-high 5 569.2444 24.058891 23.133824 3.00 23.71852 23.151445
CYP3A4-low 4 284.1777 12.006373 11.555651 3.25 11.84074 11.564256
typical 1 403.1819 17.036742 16.390798 3.25 16.79925 16.403120

The covariate sensitivities are the headline finding of Ter Heine 2014: endoxifen exposure rises with CYP2D6 activity (the CYP2D6-high scenario yields a markedly higher endoxifen Cmax / AUC than CYP2D6-low) and rises more modestly with CYP3A4/5 activity, while tamoxifen exposure is invariant under either covariate (CYP2D6 and CYP3A4 enter only on the formation clearance to endoxifen).

Comparison against the DDMORE-shipped simulated dataset

The DDMORE bundle ships a simulated dataset (Simulated_tamoxifen.csv, 100 hypothetical subjects, 20 mg QD steady state) along with Output_simulated_tamoxifen.lst — a NONMEM re-fit of the model to that dataset using the DDMORE convertor’s translation. We do not attempt a row-by-row IPRED comparison against that dataset here, because:

  1. The bundle’s IPRED column carries individual predictions (Empirical Bayes etas applied), not population-typical predictions, so it cannot be matched against a typical-value simulation without recovering each subject’s eta vector.
  2. The DDMORE convertor’s parameter estimates on the simulated dataset differ from the original publication’s estimates (especially on tlag — 2.02 h in the bundle re-fit vs 0.455 h in the publication), because the convertor implements the absorption lag differently from standard NONMEM (see Errata below). The model file in this package uses the publication values.

The cleanest sanity check the bundle does support is dimensional / order-of-magnitude: the simulated DV values for tamoxifen at steady state span roughly 50-400 nmol/L and for endoxifen span roughly 3-15 nmol/L, which agrees with our typical-value steady-state simulations above and with the clinical-pharmacology literature for chronic 20 mg QD tamoxifen in adult breast-cancer patients.

Assumptions and deviations

  • Source-publication PDF not on disk during extraction. Only Table 2 of the original Ter Heine 2014 publication was embedded in the DDMORE bundle (Output_real_tamoxifen.pdf). The full publication (Br J Clin Pharmacol 2014;78:572-586, doi:10.1111/bcp.12388) was not available locally, so the population$age_range and population$weight_range fields carry TODO markers. Demographic fields can be filled in via a follow-up edit once the full PDF is on disk.

  • Parameter values from the publication, not from the DDMORE re-fit. The bundle’s Output_simulated_tamoxifen.lst reports a NONMEM re-fit of the model to a simulated dataset using the DDMORE convertor’s translation. The convertor implements the absorption lag inside the ODE system rather than via the standard NONMEM ALAG mechanism, and this implementation difference produces materially different estimates of tlag (2.02 h re-fit vs 0.455 h published) and smaller shifts in several other parameters. The Model_Accommodations.txt in the bundle calls out the deviation. Per the extract-literature-model skill, this model file uses the publication values; the DDMORE convertor’s .lst re-fit values are not used.

  • Standard NONMEM lag(depot) substituted for the DDMORE if-switch. The DDMORE-converted .mdl implements the absorption lag manually inside $DES via an if (T >= ALAG1) switch, leaving the gut compartment loaded at the dose value through t = 0..ALAG1 and then starting first-order decay. The standard NONMEM ALAG mechanism (used here, lag(depot) <- exp(llag)) instead delays the dose’s appearance in the depot until t = lag, so depot = 0 for t < lag. Both forms yield the same systemic exposure once t >= lag; the published parameters were originally fitted with the standard mechanism, so using lag(depot) here keeps the implementation aligned with the parameter values.

  • Residual-error correlation dropped. The original publication reports a residual-error correlation between the parent and metabolite observations (ρ = 62.2% per PDF Table 2). The DDMORE-shipped .mdl drops that correlation and parameterises the residual SDs as separate THETAs (per Model_Accommodations.txt); we follow the DDMORE implementation here. Re-introducing the correlated residual would require switching to a multivariate residual-error formulation that is outside the standard nlmixr2 multi-output prop() syntax.

  • Endoxifen disposition fixed from a separate publication. The endoxifen elimination clearance (5.1 L/h) and central volume (400 L) are fixed from Ahmad et al. (2010) Clin Pharmacol Ther 88(6):814-817, not estimated by Ter Heine 2014. The fixed values are hard-coded inside model() rather than being declared as ini() parameters (with fixed()) because they are literature constants, not parameters of the Ter Heine 2014 fit.

  • Implicit mass-conserving parent-to-metabolite conversion. The source .mdl tracks the metabolite compartment in tamoxifen-mass equivalents (i.e., d/dt(central_endx) = cl_endx_form * c_hep - kel_endx * central_endx with no molar-mass scaling on the formation flux), then converts the compartment mass to plasma concentration via the metabolite’s own MW (Mendx). This is dimensionally consistent only if Mtam ≈ Mendx; here Mtam = 371.515 and Mendx = 373.487 g/mol differ by ≈ 0.5%, so the implicit assumption introduces negligible error and we replicate the source’s scaling exactly.

  • Convention check warning on dimensional consistency between dosing unit and concentration unit. checkModelConventions() flags units$dosing = "mg" and units$concentration = "nmol/L" as dimensionally incompatible. This is intentional: the model internally performs a molar-mass conversion via the Mtam and Mendx group variables, so the dose is in mass units (mg) but the output concentration is in molar units (nmol/L = nM) to match the publication’s reporting convention.

  • CYP2D6 / CYP3A4 covariate columns added to the inst/references/covariate-columns.md register. These were not in the canonical register before this extraction; both have been added with general scope and a TODO note to consolidate the various CYP-phenotype encodings (continuous probe-derived activity, copy-number-corrected score, categorical PM/IM/EM/UM phenotype, activity-score sum) and to register the rest of the canonical drug-metabolizing-CYP set prospectively.
