Model and source

  • Citation: Diao L, Li S, Ludden T, Gobburu J, Nestorov I, Jiang H. Population pharmacokinetic modelling of recombinant factor IX Fc fusion protein (rFIXFc) in patients with haemophilia B. Clin Pharmacokinet. 2014;53(5):467-477. doi:[10.1007/s40262-013-0129-7](https://doi.org/10.1007/s40262-013-0129-7)
  • Description: Three-compartment population PK model for recombinant factor IX Fc fusion protein (rFIXFc, eftrenonacog alfa, Alprolix) in adolescents and adults with severe to moderate haemophilia B.
  • Article: https://doi.org/10.1007/s40262-013-0129-7 (Open Access)
  • Modality: Fc-fusion factor concentrate, IV infusion.

rFIXFc is an extended half-life FIX concentrate consisting of a single recombinant factor IX molecule covalently fused (with no intervening sequence) to the dimeric Fc domain of human IgG1. The Fc domain binds the neonatal Fc receptor (FcRn), recycling rFIXFc away from lysosomal degradation and prolonging its plasma circulation relative to standard recombinant factor IX. The packaged model is the published Diao 2014 final-model column of Table 3, fit to baseline- and residual-corrected FIX activity from a single-ascending- dose phase 1/2a study and the registrational B-LONG phase 3 study, all in previously treated patients with severe to moderate haemophilia B.

Population

The development cohort comprised 135 patients with haemophilia B (Diao 2014 Table 1; modelling dataset summary in Table 2):

  • 12 patients from a single-ascending-dose phase 1/2a study (NCT00716716) at doses 12.5, 25, 50, or 100 IU/kg rFIXFc.
  • 123 patients from the registrational B-LONG phase 3 study (NCT01027364): weekly Arm 1 (20-100 IU/kg), individualised-interval Arm 2 (starting at 100 IU/kg), on-demand Arm 3 (20-100 IU/kg), and perisurgical Arm 4 (40-100 IU/kg). PK doses were 50 or 100 IU/kg by ~10-min IV infusion.
  • Age 12.1 - 76.8 years (median 31.3 years).
  • Body weight 45.0 - 186.7 kg (median 73.3 kg).
  • Race: 60.7% White, 22.2% Asian, 8.9% Black, 7.4% Other, 0.74% American Indian or Alaska Native.
  • HIV-positive: 3.7%; HCV-positive: 38.5%.
  • All severe to moderate haemophilia B with endogenous FIX activity <= 2 IU/dL; FIX genotype: 55.5% missense, 17.8% nonsense, 13.3% frameshift, 3.0% splice, 10.4% other.
  • Sex: haemophilia B is X-linked recessive, so the cohort is essentially all male.
  • Modelling dataset: 1,400 FIX activity records from 135 baseline PK profiles plus 21 repeat profiles at week 26 (Arm 1 sequential PK subgroup); a separate 1,027-record trough/peak dataset was reserved for external validation.

The same metadata is available programmatically via readModelDb("Diao_2014_rFIXFc")$population.

Source trace

The per-parameter origin is recorded as an in-file comment next to each ini() entry in inst/modeldb/specificDrugs/Diao_2014_rFIXFc.R. The table below collects them in one place for review.

Parameter (model name) Value Source
lcl (typical CL, dL/h) log(2.39) Diao 2014 Table 3: CL = 2.39 dL/h
lvc (typical V1, dL) log(71.4) Diao 2014 Table 3: V1 = 71.4 dL
lq (typical Q2, dL/h) log(1.67) Diao 2014 Table 3: Q2 = 1.67 dL/h
lvp (typical V2, dL) log(87.0) Diao 2014 Table 3: V2 = 87.0 dL
lq2 (typical Q3, dL/h) log(39.3) Diao 2014 Table 3: Q3 = 39.3 dL/h
lvp2 (typical V3, dL) log(39.9) Diao 2014 Table 3: V3 = 39.9 dL
e_wt_cl (BW power on CL) 0.436 Diao 2014 Table 3: BW exponent on CL = 0.436
e_wt_vc (BW power on V1) 0.396 Diao 2014 Table 3: BW exponent on V1 = 0.396
Reference body weight 73 kg Diao 2014 Table 3 typical-patient definition
IIV block etalcl + etalvc c(0.031329, 0.029042, 0.047089) Diao 2014 Table 3: IIV CL = 17.7%, IIV V1 = 21.7%, corr(CL,V1) = 75.6%
etalq (IIV on Q2) 0.128164 Diao 2014 Table 3: IIV Q2 = 35.8%
etalvp (IIV on V2) 0.213444 Diao 2014 Table 3: IIV V2 = 46.2%
etalvp2 (IIV on V3) 0.142129 Diao 2014 Table 3: IIV V3 = 37.7%
propSd (proportional residual) 0.106 Diao 2014 Table 3: proportional residual error = 10.6%
addSd (additive residual, IU/dL) 0.24 Diao 2014 Table 3: additive residual error = 0.24 IU/dL
Equation: d/dt(central) n/a Diao 2014 Fig. 2 (three-compartment IV model schematic)
Equation: d/dt(peripheral1) n/a Diao 2014 Fig. 2
Equation: d/dt(peripheral2) n/a Diao 2014 Fig. 2
Baseline-correction equations n/a Diao 2014 Eqs. 1-2 (residual decay correction and DV definition)

The footnote of Diao 2014 Table 3 states “IIV calculated as sqrt(variance) * 100”, i.e., the reported percentage equals sqrt(omega^2) * 100, so omega^2 = (CV/100)^2. The IIV variances above were computed by squaring 0.177, 0.217, 0.358, 0.462, and 0.377. The CL:V1 covariance was computed as 0.756 * 0.177 * 0.217 = 0.029042.

Inter-occasion variability on CL (15.1% CV) and V1 (17.4% CV) was estimated in the paper from 21 repeat PK profiles at week 26. IOV is not implemented in this static model file; see Assumptions and deviations. IIV on Q3 was evaluated but dropped from the final model (high standard error 87%; Diao 2014 Sec. 3.1).

Virtual cohort

Original observed FIX activity data are not publicly available. The simulations below use a virtual cohort whose demographics approximate the Diao 2014 development population. A single IV dose of either 50 IU/kg or 100 IU/kg rFIXFc is administered at time 0 and FIX activity above baseline is observed over a 14-day window (the longest follow-up sampling time in the phase 1/2a study).

set.seed(2014)

n_per_group <- 200L
make_cohort <- function(n, dose_iu_per_kg, label, id_offset = 0L) {
  tibble(
    ID        = id_offset + seq_len(n),
    WT        = pmin(pmax(rlnorm(n, log(73), 0.27), 45), 187),
    treatment = label,
    dose_iukg = dose_iu_per_kg
  )
}

cohort <- bind_rows(
  make_cohort(n_per_group,  50, "50 IU/kg",  id_offset =   0L),
  make_cohort(n_per_group, 100, "100 IU/kg", id_offset = n_per_group)
)

stopifnot(!anyDuplicated(cohort$ID))
summary(cohort)
#>        ID              WT             treatment     dose_iukg
#>  Min.   :  1.0   Min.   : 45.00   Length   :400   Min.   : 50
#>  1st Qu.:100.8   1st Qu.: 62.70   N.unique :  2   1st Qu.: 50
#>  Median :200.5   Median : 75.84   N.blank  :  0   Median : 75
#>  Mean   :200.5   Mean   : 78.04   Min.nchar:  8   Mean   : 75
#>  3rd Qu.:300.2   3rd Qu.: 90.31   Max.nchar:  9   3rd Qu.:100
#>  Max.   :400.0   Max.   :148.82                   Max.   :100
obs_grid <- c(0, 1 / 6, 0.25, 0.5, 1, 3, 6, 12, 24,
              48, 72, 96, 120, 168, 240, 336)

build_events <- function(pop) {
  dose <- pop |>
    mutate(AMT = WT * dose_iukg) |>
    tidyr::crossing(TIME = 0) |>
    mutate(EVID = 1, CMT = "central", DV = NA_real_)
  obs <- pop |>
    tidyr::crossing(TIME = obs_grid) |>
    mutate(AMT = NA_real_, EVID = 0, CMT = "central", DV = NA_real_)
  bind_rows(dose, obs) |>
    arrange(ID, TIME, desc(EVID)) |>
    as.data.frame()
}

events <- build_events(cohort)

Simulation

Run a stochastic VPC-style simulation (between-subject variability on CL, V1, Q2, V2, V3 included with the correlated CL:V1 block) and a typical-value simulation with the etas zeroed for direct parameter back-checks.

mod <- readModelDb("Diao_2014_rFIXFc")

sim <- rxode2::rxSolve(mod, events = events,
                       keep = c("treatment", "WT", "dose_iukg"),
                       returnType = "data.frame")
#> ℹ parameter labels from comments will be replaced by 'label()'
sim <- sim[sim$time >= 0, ]

mod_typ <- rxode2::zeroRe(mod)
#> ℹ parameter labels from comments will be replaced by 'label()'
sim_typ <- rxode2::rxSolve(mod_typ, events = events,
                           keep = c("treatment", "WT", "dose_iukg"),
                           returnType = "data.frame")
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalq', 'etalvp', 'etalvp2'
#> Warning: multi-subject simulation without without 'omega'
sim_typ <- sim_typ[sim_typ$time >= 0, ]

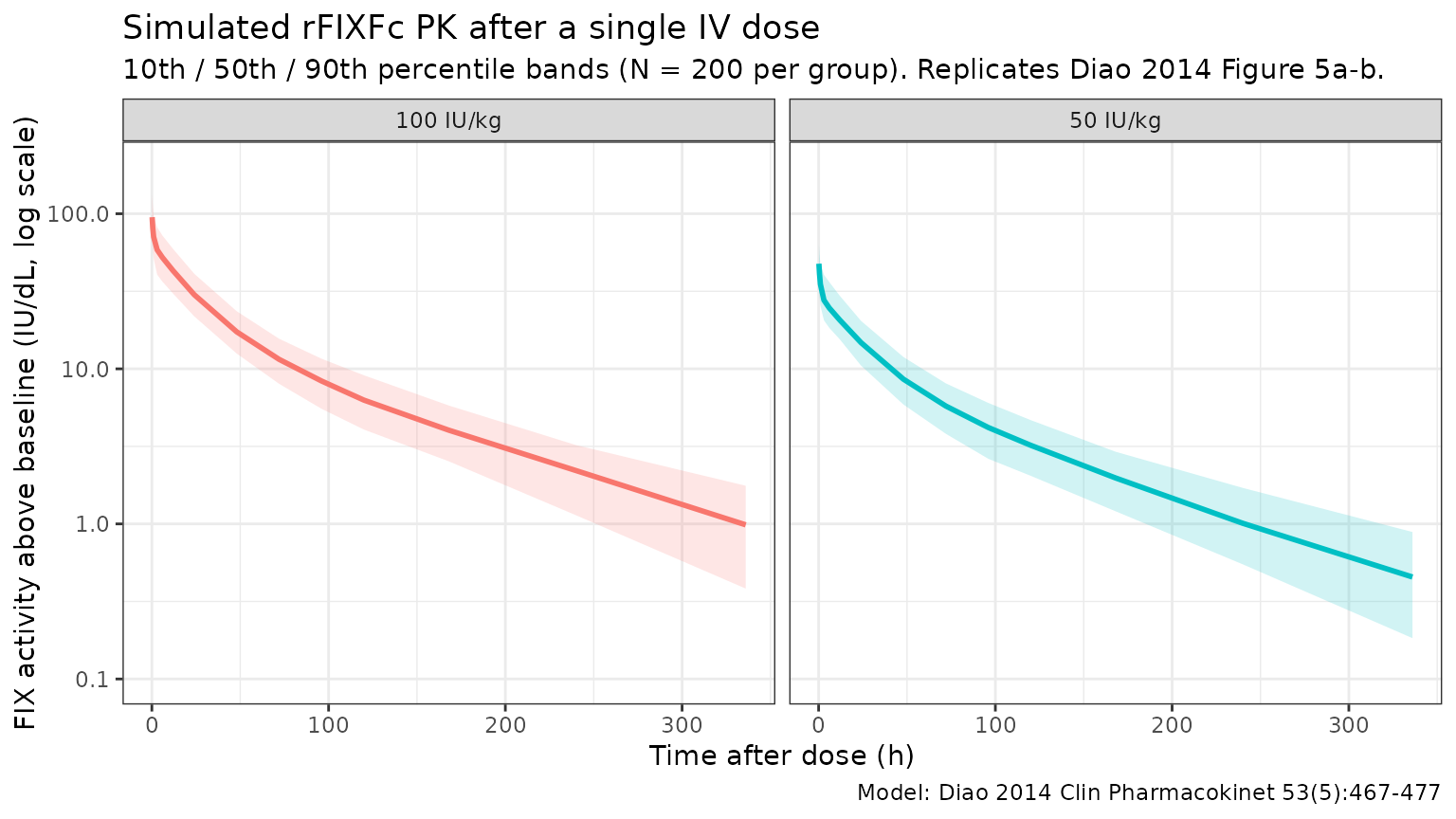

Replicate Figure 5: VPC by dose group

Diao 2014 Figure 5 shows the visual predictive check of the final model stratified by IV PK dose (50 IU/kg in panel a, 100 IU/kg in panel b), plotting the 10th, 50th, and 90th percentile of observed FIX activity against the same percentiles from 1,000 simulated profiles, on a log y-axis from 0.1 to 100 IU/dL over 0 - ~270 h. The figure below reproduces the percentile bands from the packaged model.

sim_summary <- sim |>
  filter(time > 0) |>
  group_by(time, treatment) |>
  summarise(
    p10 = stats::quantile(Cc, 0.10, na.rm = TRUE),
    p50 = stats::quantile(Cc, 0.50, na.rm = TRUE),
    p90 = stats::quantile(Cc, 0.90, na.rm = TRUE),
    .groups = "drop"
  )

ggplot(sim_summary, aes(time, p50, colour = treatment, fill = treatment)) +
  geom_ribbon(aes(ymin = p10, ymax = p90), alpha = 0.18, colour = NA) +
  geom_line(linewidth = 1) +
  facet_wrap(~treatment) +
  scale_y_log10(limits = c(0.1, 200)) +
  labs(
    x        = "Time after dose (h)",
    y        = "FIX activity above baseline (IU/dL, log scale)",
    colour   = "Dose",
    fill     = "Dose",
    title    = "Simulated rFIXFc PK after a single IV dose",
    subtitle = paste0("10th / 50th / 90th percentile bands (N = ", n_per_group,
                      " per group). Replicates Diao 2014 Figure 5a-b."),
    caption  = "Model: Diao 2014 Clin Pharmacokinet 53(5):467-477"
  ) +
  theme_bw() +
  theme(legend.position = "none")

Typical CL and Vss back-check

Diao 2014 reports that for a typical 73 kg patient (the reference subject of the final model), CL = 2.39 dL/h, V1 = 71.4 dL, and steady-state volume of distribution Vss = V1 + V2 + V3 = 71.4 + 87.0 + 39.9 = 198.3 dL. Reproducing those numbers from the typical-value simulation is the simplest possible self-consistency check.

ev_ref <- rxode2::et(amt = 50 * 73, time = 0, cmt = "central") |>
  rxode2::et(0)
sim_ref <- rxode2::rxSolve(
  mod_typ, events = ev_ref,
  params = data.frame(WT = 73),
  returnType = "data.frame"
)
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalq', 'etalvp', 'etalvp2'

ref_pars <- sim_ref[1, c("cl", "vc", "q", "vp", "q2", "vp2"), drop = FALSE]
ref_pars$Vss <- ref_pars$vc + ref_pars$vp + ref_pars$vp2

knitr::kable(
  ref_pars,
  caption = "Typical-value PK parameters for the reference 73 kg patient",
  digits  = c(3, 2, 3, 2, 3, 2, 2)
)
Typical-value PK parameters for the reference 73 kg patient
cl vc q vp q2 vp2 Vss
2.39 71.4 1.67 87 39.3 39.9 198.3

The model returns CL = 2.39 dL/h, V1 = 71.4 dL, Q2 = 1.67 dL/h, V2 = 87 dL, Q3 = 39.3 dL/h, V3 = 39.9 dL, and Vss = V1 + V2 + V3 = 198.3 dL — matching the values reported in Diao 2014 Table 3 (CL = 2.39 dL/h, V1 = 71.4 dL, Q2 = 1.67 dL/h, V2 = 87.0 dL, Q3 = 39.3 dL/h, V3 = 39.9 dL, Vss = 198 dL).

PKNCA validation

Use PKNCA to compute Cmax, AUC0-inf, and terminal half-life by dose group, and compare the simulated terminal half-life against the value reported in Diao 2014. The paper reports a geometric-mean terminal half-life of 81.1 h from the population PK post-hoc estimates (Diao 2014 Discussion, p. 476).

sim_nca <- sim |>
  filter(!is.na(Cc), Cc > 0) |>
  select(id, time, Cc, treatment)

dose_df <- events |>
  filter(EVID == 1) |>
  transmute(id = ID, time = TIME, amt = AMT, treatment)

conc_obj <- PKNCA::PKNCAconc(sim_nca, Cc ~ time | treatment + id,
                             concu = "IU/dL",
                             timeu = "h")
dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | treatment + id,
                             doseu = "IU")

intervals <- data.frame(
  start      = 0,
  end        = Inf,
  cmax       = TRUE,
  tmax       = TRUE,
  aucinf.obs = TRUE,
  half.life  = TRUE,
  clast.obs  = TRUE,
  lambda.z   = TRUE
)

nca_res <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_obj, dose_obj,
                                          intervals = intervals))
#>  ■■■■■■                            18% |  ETA:  8s
#>  ■■■■■■■■■■■■■■■■■■                56% |  ETA:  4s
#>  ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■     93% |  ETA:  1s
nca_tbl <- as.data.frame(nca_res$result)

summary_by_param <- function(param) {
  nca_tbl |>
    filter(PPTESTCD == param) |>
    group_by(treatment) |>
    summarise(
      n        = sum(!is.na(PPORRES)),
      median   = stats::median(PPORRES, na.rm = TRUE),
      q05      = stats::quantile(PPORRES, 0.05, na.rm = TRUE),
      q95      = stats::quantile(PPORRES, 0.95, na.rm = TRUE),
      .groups  = "drop"
    )
}

half_life_summary <- summary_by_param("half.life")
cmax_summary      <- summary_by_param("cmax")
auc_summary       <- summary_by_param("aucinf.obs")

knitr::kable(
  half_life_summary,
  caption = "Simulated rFIXFc terminal half-life (h) by dose group, single IV dose.",
  digits  = c(0, 0, 1, 1, 1)
)
Simulated rFIXFc terminal half-life (h) by dose group, single IV dose.
treatment n median q05 q95
100 IU/kg 200 79.3 49.6 140.7
50 IU/kg 200 76.3 49.0 152.0

knitr::kable(
  cmax_summary,
  caption = "Simulated rFIXFc Cmax (IU/dL) by dose group, single IV dose.",
  digits  = c(0, 0, 1, 1, 1)
)
Simulated rFIXFc Cmax (IU/dL) by dose group, single IV dose.
treatment n median q05 q95
100 IU/kg 200 104.2 69.2 155.2
50 IU/kg 200 52.3 32.4 81.1

knitr::kable(
  auc_summary,
  caption = "Simulated rFIXFc AUC0-inf (IU*h/dL) by dose group, single IV dose.",
  digits  = c(0, 0, 1, 1, 1)
)
Simulated rFIXFc AUC0-inf (IU*h/dL) by dose group, single IV dose.
treatment n median q05 q95
100 IU/kg 200 3153.1 2135.8 4598.1
50 IU/kg 200 1578.2 1029.1 2241.1

Comparison against published values

Diao 2014 reports a geometric-mean terminal half-life of 81.1 h from the population PK post-hoc estimates (Discussion, p. 476). The simulated median half-life should be close to this value; differences > 20% would indicate a coding problem.

geo_mean <- function(x) exp(mean(log(x), na.rm = TRUE))

half_life_50 <- nca_tbl |>
  filter(PPTESTCD == "half.life", treatment == "50 IU/kg")
half_life_100 <- nca_tbl |>
  filter(PPTESTCD == "half.life", treatment == "100 IU/kg")

comparison <- tibble::tribble(
  ~quantity,                                ~simulated,                              ~published,
  "Geo mean half-life, 50 IU/kg (h)",       geo_mean(half_life_50$PPORRES),          81.1,
  "Geo mean half-life, 100 IU/kg (h)",      geo_mean(half_life_100$PPORRES),         81.1
) |>
  mutate(
    pct_diff = round(100 * (simulated - published) / published, 1)
  )

knitr::kable(
  comparison,
  caption = "Simulated vs. Diao 2014 Discussion (p. 476) terminal half-life.",
  digits  = c(0, 1, 1, 1)
)
Simulated vs. Diao 2014 Discussion (p. 476) terminal half-life.
quantity simulated published pct_diff
Geo mean half-life, 50 IU/kg (h) 80.8 81.1 -0.3
Geo mean half-life, 100 IU/kg (h) 81.6 81.1 0.7
