Axatilimab semimechanistic PK/PD model (Yang 2024)

Source: vignettes/articles/Yang_2024_axatilimab.Rmd
Yang_2024_axatilimab.Rmd

Model and source

  • Citation: Yang Y, Sokolov V, Volkova A, et al. Semimechanistic Population PK/PD Modeling of Axatilimab in Healthy Participants and Patients With Solid Tumors or Chronic Graft-Versus-Host Disease. Clin Pharmacol Ther. 2025;117(3):704-714. doi:10.1002/cpt.3503
  • Article: https://doi.org/10.1002/cpt.3503 — Yang et al., Clin Pharmacol Ther 117(3):704-714, 2025 (PubMed PMID 39704205).
  • Supplemental MLXTRAN code: open-access supplement bundled with the article.

This model is a semimechanistic population PK/PD model that integrates axatilimab pharmacokinetics with the dynamics of four pharmacodynamic biomarkers:

  • CSF-1 — the cytokine ligand for CSF-1R; rises sharply during axatilimab dosing as receptor blockade reduces CSF-1 clearance.
  • NCMC — nonclassical CD14+/CD16++ monocytic cell count; the efficacy biomarker, decreased by axatilimab via CSF-1R signaling blockade.
  • AST and CPK — safety / liver-and-muscle enzyme biomarkers, predicted to rise as Kupffer-cell macrophages depleted by axatilimab no longer clear circulating enzymes.

The PK structure is a two-compartment IV disposition model with parallel linear and CSF-1R-mediated saturable elimination. Saturable clearance is parameterized as a Hill-type fractional occupancy in which axatilimab and CSF-1 compete for binding to CSF-1R (Cc_nM/Kd_PK raised to the Hill coefficient Nh = 2.5).

Population

The pooled analysis dataset is 325 participants across four phase 1 / 1-2 / 2 trials:

Study Population N
SNDX-6352-0001 Healthy adults 14
SNDX-6352-0502 Advanced solid tumors 33
SNDX-6352-0503 cGVHD (phase 1/2) 39
AGAVE-201 cGVHD (phase 2 pivotal) 239

Demographics from Yang 2024 Table S3 (continuous) and Table S4 (categorical):

  • Age: median 55 years (range 7-81); 7 cGVHD subjects were children aged 7-15.
  • Body weight: median 73.6 kg (range 18.1-151).
  • Sex: 39.4% female (n=128 / 325).
  • Race: 82.5% White, 5.5% Asian, 4.3% Black, 1.8% Other, 5.8% Unknown.
  • Baseline CSF-1: median 549 pg/mL (range 39-4690 pg/mL).
  • Baseline NCMC: median 19 cells/μL (range 0-202).
  • Baseline AST: median 28 U/L (range 11-164).
  • Baseline CPK: median 63 U/L (range 13-1069).
  • ADA (ever-positive): 40% overall (50% / 36% / 40% in healthy / cancer / cGVHD).

Doses ranged from 0.15 to 6 mg/kg IV, single-dose or every 2 / 4 weeks. The approved cGVHD dose is 0.3 mg/kg Q2W.

The same information is available programmatically via the model’s population metadata (readModelDb("Yang_2024_axatilimab")()$meta$population after the model is loaded).

mod_meta <- readModelDb("Yang_2024_axatilimab")()$meta
str(mod_meta$population, max.level = 1)
#> List of 14
#>  $ n_subjects                  : int 325
#>  $ n_studies                   : int 4
#>  $ age_range                   : chr "7-81 years (7 children aged 7-15 with cGVHD)"
#>  $ age_median                  : chr "55 years"
#>  $ weight_range                : chr "18.1-151 kg"
#>  $ weight_median               : chr "73.6 kg"
#>  $ sex_female_pct              : num 39.4
#>  $ race_ethnicity              : Named num [1:5] 82.5 5.5 4.3 1.8 5.8
#>   ..- attr(*, "names")= chr [1:5] "White" "Asian" "Black" "Other" ...
#>  $ disease_state               : chr "Pooled cohort: 14 healthy adults (SNDX-6352-0001), 33 adults with advanced or metastatic solid tumors (SNDX-635"| __truncated__
#>  $ dose_range                  : chr "0.15 to 6 mg/kg IV; single dose, every 2 weeks (Q2W), or every 4 weeks (Q4W); 0.3 mg/kg Q2W is the approved cGVHD regimen."
#>  $ regions                     : chr "Multi-regional (multi-center US-led trials; phase 1 healthy-volunteer study had EudraCT registration in Europe)."
#>  $ n_observations              :List of 5
#>  $ n_observations_below_LOQ_pct: num 35.5
#>  $ notes                       : chr "Baseline demographics from Yang 2024 Tables S3 and S4. ADA prevalence (ever-positive) 40% overall. Plasma axati"| __truncated__

Source trace

Every ini() value in inst/modeldb/specificDrugs/Yang_2024_axatilimab.R cites a Yang 2024 Table 1 row in its trailing comment. The table below collects the equations and parameter origins for review:

Symbol / equation Value Source location
Cc = central / vc (μg/mL) n/a Yang 2024 Eq. 4
d/dt(central) = -CL*(1+kada*ADA)*Cc - Q*(Cc-Cp) - Vmax*C1*vc*MW_PK/1000 n/a Yang 2024 Eq. 1 (with mg-based unit reformulation; see Errata note 3)
d/dt(peripheral1) = Q*(Cc-Cp) n/a Yang 2024 Eq. 2
C1 = (Cc_nM/Kd_PK)^Nh / (1 + (Cc_nM/Kd_PK)^Nh + CSF1/Kd_CSF1) n/a Yang 2024 Eq. 3
d/dt(csf1) = ksyn_csf1 - kdeg_csf1*csf1 - Vmax*C2 n/a Yang 2024 Eq. 5
ksyn_csf1 = kdeg_csf1*BL_CSF1 + Vmax*BL_C2 n/a Yang 2024 Eq. 6
C2 = (CSF1/Kd_CSF1) / (1 + (Cc_nM/Kd_PK)^Nh + CSF1/Kd_CSF1) n/a Yang 2024 Eq. 7
d/dt(ncmc) = ksyn_ncmc*C2 - kdeg_ncmc*ncmc n/a Yang 2024 Eq. 8
ksyn_ncmc = kdeg_ncmc*BL_NCMC / BL_C2 n/a Yang 2024 Eq. 9
d/dt(ast) and d/dt(cpk) n/a Yang 2024 Eqs. 10-11 (NCMC-driven indirect response)
Vd 3.48 L Table 1
CL 0.007 L/h Table 1
Q 0.015 L/h Table 1
Vp 2.64 L Table 1
Vmax 0.37 nM/h Table 1
Kd_PK 1.11 nM Table 1
Nh (Hill) 2.5 Table 1
BL_CSF1 0.01 nM Table 1
BL_NCMC 16 cells/μL Table 1
kdeg_CSF1 0.002 1/h Table 1
kdeg_NCMC 0.021 1/h Table 1
kada (ADA effect on CL) 0.489 Table 1 (see Errata)
BL_AST 35.5 U/L Table 1
Vmax_AST_NCMC 0.011 1/h Table 1
kdeg_AST 0.002 1/h Table 1
EC50_AST_NCMC 11.8 cells/μL Table 1
BL_CPK 101 U/L Table 1
Vmax_CPK_NCMC 0.02 1/h Table 1
kdeg_CPK 0.001 1/h Table 1
EC50_CPK_NCMC 19.2 cells/μL Table 1
Kd_CSF1 (fixed) 0.048 nM Yang 2024 Methods (Roussel 1988)
Body weight on Vd β = 0.7, ref 73.6 kg Table 1
CSF-1 on CL β = 0.912, ref 549 pg/mL Table 1
CSF-1 on BL_CSF1 β = 0.656 Table 1
Cancer cohort on BL_NCMC β = 1.22 Table 1
Healthy cohort on BL_NCMC β = 0.618 Table 1
CPK on BL_NCMC β = 0.376, ref 63 U/L Table 1
Random effects (omega; squared in ini()) 0.235, 1.09, 0.289, 0.187, 0.868, 0.464, 0.755 Table 1
Residual error (Cc, CSF1, NCMC add, NCMC prop, AST, CPK) 0.375, 0.321, 0.977, 0.676, 0.324, 0.462 Table 1

Errata

The following internal inconsistencies were detected during extraction. The model file uses the value most consistent with the final-model parameter table and the supplemental MLXTRAN code; the discrepancies are recorded here for traceability.

  1. kada value contradiction (page 708 narrative vs Table 1, MLXTRAN, and the formal covariate-effect summary). Page 708 of the published article states “an ADA effect coefficient (kada) of 2.1 (relative standard error (RSE), 2.92%), indicating that axatilimab clearance increased by approximately 3.1-fold when ADA status was positive.” However, Table 1 lists kada = 0.489 (RSE 3.52%, 95% CI 0.455-0.522), the formal covariate-effect summary on page 710 reports a “50.6% (95% CI, 47.0-54.2) increase in CL” with positive ADA status, and the supplemental MLXTRAN code (Supplement 2) implements CL * (1 + k_ada * ADACN) with k_ada = 0.489. The factor (1 + 0.489) gives a 48.9% CL increase, matching the 50.6% covariate-effect summary (the small difference is the additional contribution from baseline CSF-1 covariance). The model file uses kada = 0.489 as the canonical value; the page-708 “2.1 / 3.1-fold” statement is treated as a typographical error.

  2. Figure 3 CSF-1 covariate axis units. Figure 3 of the article labels the CSF-1 covariate axis as “ng/mL” with displayed 90th-percentile = 1060 and 10th-percentile = 325. Table S3 reports baseline CSF-1 in ng/L (= pg/mL) with overall median 549 (range 39-4690). The Figure 3 numerical values match pg/mL (=ng/L), not ng/mL — typical plasma CSF-1 / M-CSF concentrations are 100-2000 pg/mL, and 1060 ng/mL would be three orders of magnitude above physiologic. The model file’s covariateData[[CSF1]]$units is pg/mL with reference value 549 pg/mL (matching Table S3, the dimensionally consistent interpretation).

  3. Unit reformulation of the Vmax amount-rate term. The published Eq. 1 uses Ac (axatilimab amount in μg) and an explicit Vd × MW_PK / convF_PK factor with convF_PK = 0.01/1.5 (the supplement’s MW_PK = 150 kDa representation). The model file works in mg for the central and peripheral1 amounts (so Cc = central / vc is directly in mg/L = μg/mL), and the saturable-clearance amount-rate term is rewritten as Vmax × C1 × vc × MW_PK / 1000 (mg/h). This is mathematically equivalent to Yang 2024 Eq. 1 — Vmax × C1 × vc in (nmol/L/h × L) = nmol/h, and MW_PK / 1000 (= 0.150 mg/nmol) converts nmol/h to mg/h.

Virtual cohort

The original individual-level data are not publicly available; the figures below use small typical-value virtual cohorts whose covariate values match the population medians or the paper-specific reference values.

make_typical <- function(dose_mg_kg, regimen, weight_kg = 75,
                         dis_cancer = 0L, dis_hv = 0L, ada_pos = 0L,
                         CSF1_pgmL = 549, CPK_UL = 63,
                         duration_days = 28, sample_h = 4) {
  # Mass dose: dose_mg_kg * body weight (mg)
  amt_mg <- dose_mg_kg * weight_kg
  ii_h   <- if (regimen == "Q2W") 24 * 14 else 24 * 28
  end_h  <- duration_days * 24

  # Build event table: dose at t=0 (and addl as appropriate), Cc-typed observations
  # over the simulation window so rxSolve can resolve the multi-DVID model.
  n_doses <- floor(end_h / ii_h) + 1
  events <- rxode2::et()
  for (i in seq_len(n_doses)) {
    events <- rxode2::et(events, amt = amt_mg, cmt = "central", evid = 1,
                         time = (i - 1) * ii_h)
  }
  events <- rxode2::et(events, seq(0, end_h, by = sample_h), cmt = "Cc")
  events$WT         <- weight_kg
  events$CSF1       <- CSF1_pgmL
  events$CPK        <- CPK_UL
  events$DIS_CANCER <- dis_cancer
  events$DIS_HV     <- dis_hv
  events$ADA_POS    <- ada_pos
  events$regimen    <- paste0(dose_mg_kg, " mg/kg ", regimen)
  events
}

Simulation

The model is loaded once and used in typical-value (no between-subject variability) form for all figure replications.

mod <- readModelDb("Yang_2024_axatilimab")() |> rxode2::zeroRe()

Replicate Figure 4 — axatilimab + biomarker time courses by dose

Yang 2024 Figure 4 shows the steady-state time course over a single 28-day dosing interval for axatilimab Cc, NCMC, and CSF-1 at four regimens: 0.15 / 0.3 / 1 mg/kg Q2W and 3 mg/kg Q4W. The simulation below carries six dose intervals so the system has approached steady state, then reports the final 28-day window.

sim_one <- function(events) {
  s <- rxode2::rxSolve(mod, events = events, returnType = "data.frame", keep = "regimen")
  # Drop dose-row duplicates that have no Cc value
  s |> dplyr::filter(!is.na(Cc))
}

# Pre-saturation: 12 weeks of repeated dosing followed by a 28-day window
fig4_events <- dplyr::bind_rows(
  sim_one(make_typical(0.15, "Q2W", duration_days = 12 * 7))      |> dplyr::mutate(regimen = "0.15 mg/kg Q2W"),
  sim_one(make_typical(0.30, "Q2W", duration_days = 12 * 7))      |> dplyr::mutate(regimen = "0.3 mg/kg Q2W"),
  sim_one(make_typical(1.00, "Q2W", duration_days = 12 * 7))      |> dplyr::mutate(regimen = "1 mg/kg Q2W"),
  sim_one(make_typical(3.00, "Q4W", duration_days = 12 * 7))      |> dplyr::mutate(regimen = "3 mg/kg Q4W")
)
#> ℹ omega/sigma items treated as zero: 'etalvc', 'etalcl', 'etalvmax', 'etalbl_csf1', 'etalbl_ncmc', 'etalbl_ast', 'etalbl_cpk'
#> ℹ omega/sigma items treated as zero: 'etalvc', 'etalcl', 'etalvmax', 'etalbl_csf1', 'etalbl_ncmc', 'etalbl_ast', 'etalbl_cpk'
#> ℹ omega/sigma items treated as zero: 'etalvc', 'etalcl', 'etalvmax', 'etalbl_csf1', 'etalbl_ncmc', 'etalbl_ast', 'etalbl_cpk'
#> ℹ omega/sigma items treated as zero: 'etalvc', 'etalcl', 'etalvmax', 'etalbl_csf1', 'etalbl_ncmc', 'etalbl_ast', 'etalbl_cpk'

# Restrict to the final 28-day window and re-zero time
fig4 <- fig4_events |>
  dplyr::group_by(regimen) |>
  dplyr::mutate(t_max = max(time)) |>
  dplyr::filter(time >= t_max - 28 * 24) |>
  dplyr::mutate(time_d = (time - (t_max - 28 * 24)) / 24) |>
  dplyr::ungroup() |>
  dplyr::mutate(
    csf1_ngmL = csf1obs,    # observation alias already in ng/mL
    regimen   = factor(regimen, levels = c("0.15 mg/kg Q2W", "0.3 mg/kg Q2W",
                                            "1 mg/kg Q2W",   "3 mg/kg Q4W"))
  )
ggplot(fig4, aes(time_d, Cc)) +
  geom_line(linewidth = 0.8) +
  scale_y_log10() +
  facet_wrap(~ regimen, nrow = 1) +
  labs(x = "Time within steady-state cycle (day)",
       y = "Axatilimab plasma concentration (mg/L = ug/mL)",

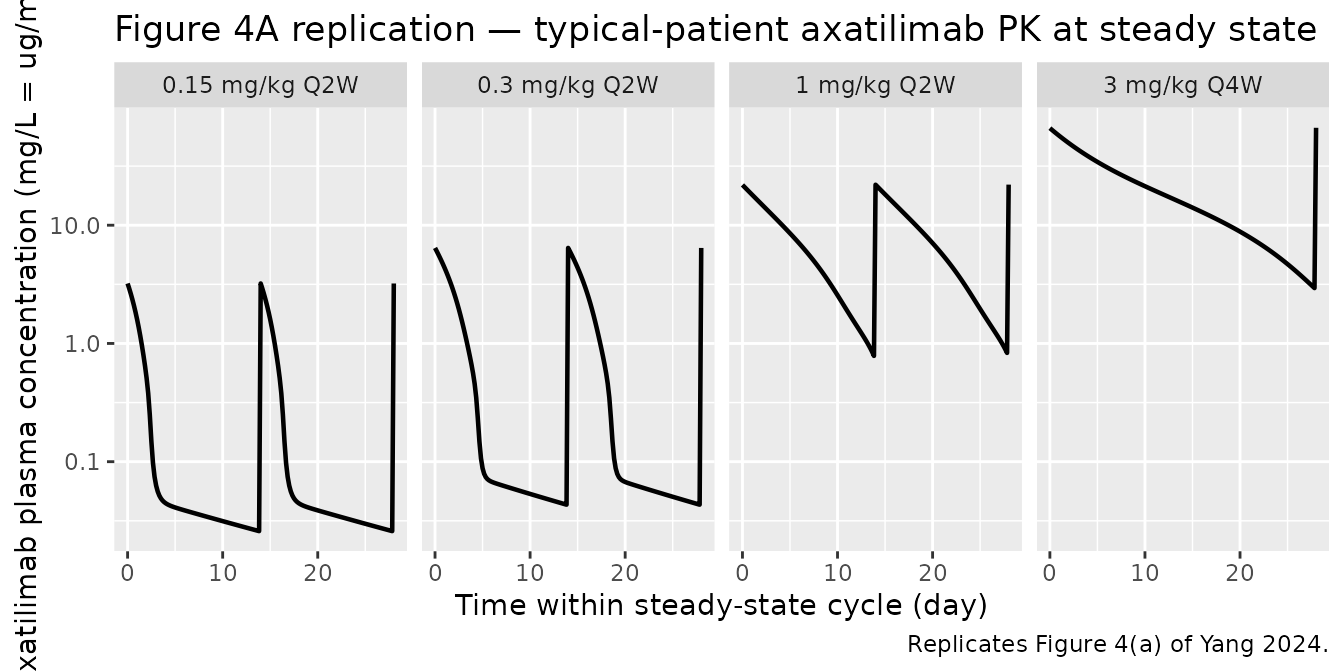

       title  = "Figure 4A replication — typical-patient axatilimab PK at steady state",
       caption = "Replicates Figure 4(a) of Yang 2024.")

ggplot(fig4, aes(time_d, ncmc)) +
  geom_line(linewidth = 0.8, colour = "darkred") +
  facet_wrap(~ regimen, nrow = 1) +
  labs(x = "Time within steady-state cycle (day)",
       y = "NCMC (cells/uL)",

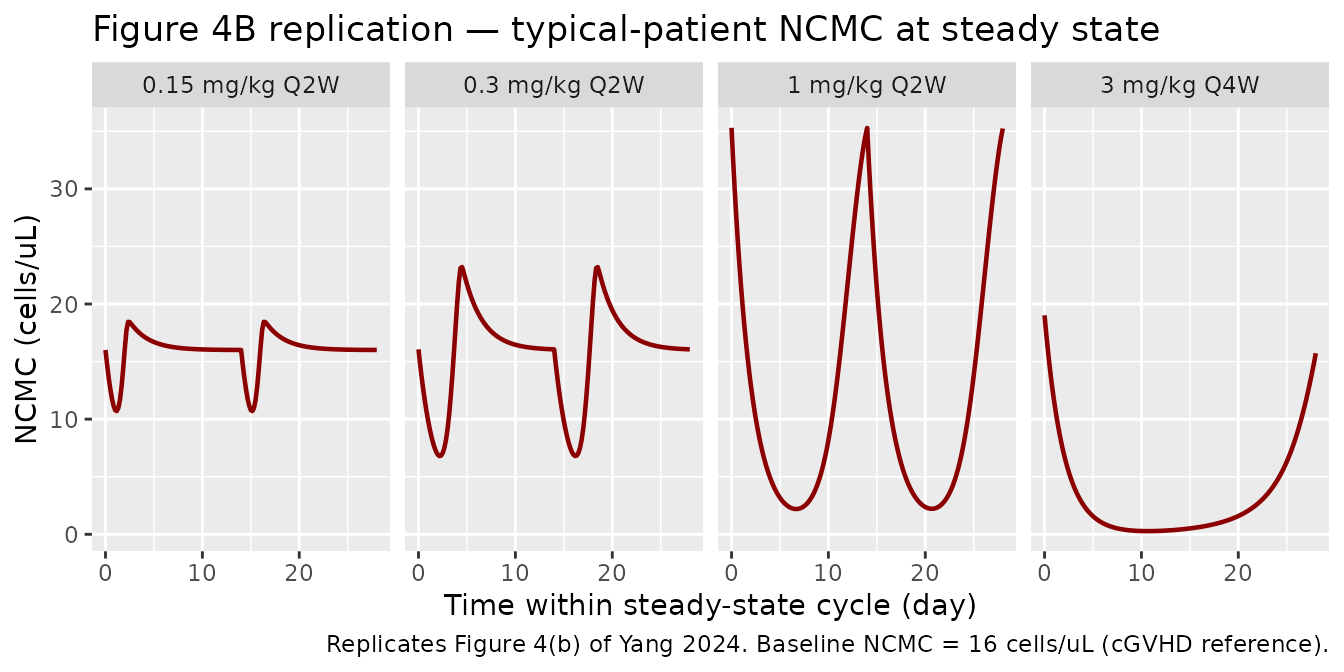

       title  = "Figure 4B replication — typical-patient NCMC at steady state",
       caption = "Replicates Figure 4(b) of Yang 2024. Baseline NCMC = 16 cells/uL (cGVHD reference).")

ggplot(fig4, aes(time_d, csf1_ngmL)) +
  geom_line(linewidth = 0.8, colour = "steelblue") +
  facet_wrap(~ regimen, nrow = 1) +
  labs(x = "Time within steady-state cycle (day)",
       y = "Plasma CSF-1 (ng/mL)",

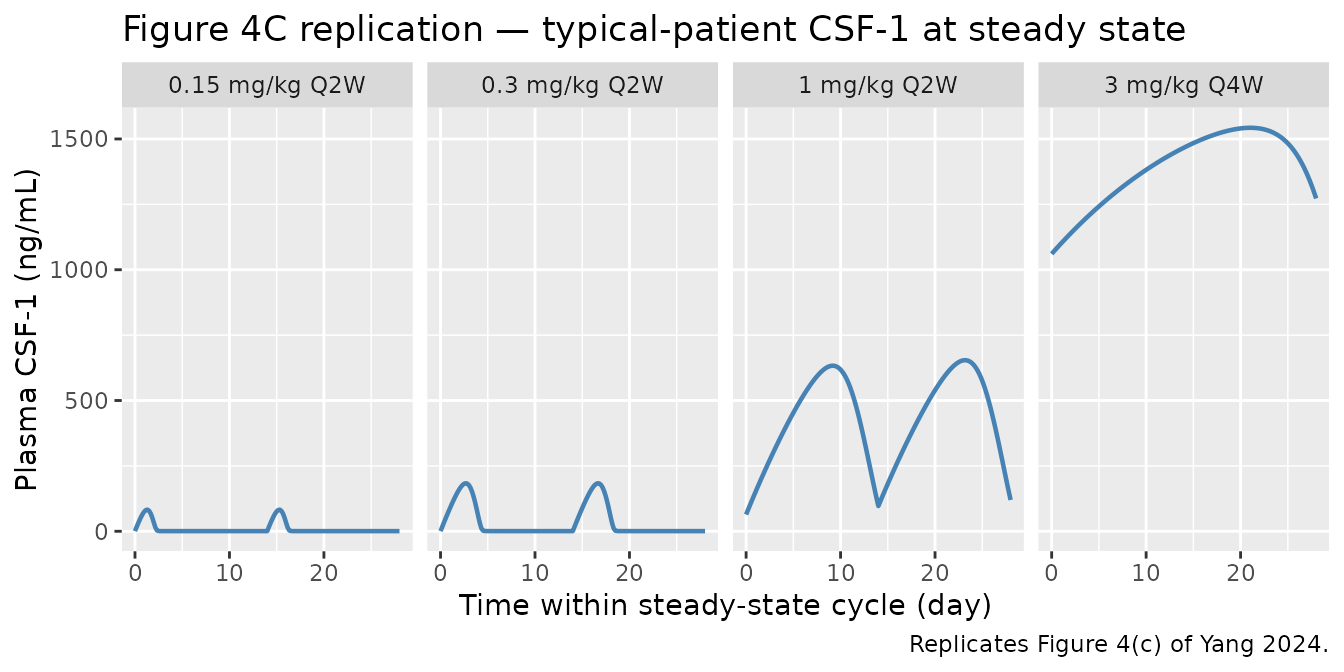

       title  = "Figure 4C replication — typical-patient CSF-1 at steady state",
       caption = "Replicates Figure 4(c) of Yang 2024.")

Cross-check covariate-effect magnitudes (Figure 3 / Table 1)

Yang 2024 Table 1 reports baseline NCMC of 16 / 29.7 / 54.2 cells/μL in cGVHD / healthy / cancer reference patients. The numbers below are typical-value baseline NCMC (the ncmc state at t=0 with no drug) for the three population indicators:

baseline_ncmc <- function(dis_cancer, dis_hv) {
  ev <- rxode2::et(seq(0, 168, by = 24), cmt = "Cc")
  ev$WT <- 75; ev$CSF1 <- 549; ev$CPK <- 63
  ev$DIS_CANCER <- dis_cancer; ev$DIS_HV <- dis_hv; ev$ADA_POS <- 0
  s <- rxode2::rxSolve(mod, ev, returnType = "data.frame")
  s$ncmc[1]
}

tibble::tibble(
  Population = c("cGVHD reference", "Healthy volunteer", "Advanced solid tumor"),
  `BL_NCMC simulated (cells/uL)` = c(
    baseline_ncmc(0L, 0L),
    baseline_ncmc(0L, 1L),
    baseline_ncmc(1L, 0L)
  ),
  `Yang 2024 Table 1` = c(16, 29.7, 54.2)
) |> knitr::kable(digits = 2,
                  caption = "Baseline NCMC by population type (typical patient at median CSF-1 and CPK).")
#> ℹ omega/sigma items treated as zero: 'etalvc', 'etalcl', 'etalvmax', 'etalbl_csf1', 'etalbl_ncmc', 'etalbl_ast', 'etalbl_cpk'
#> ℹ omega/sigma items treated as zero: 'etalvc', 'etalcl', 'etalvmax', 'etalbl_csf1', 'etalbl_ncmc', 'etalbl_ast', 'etalbl_cpk'
#> ℹ omega/sigma items treated as zero: 'etalvc', 'etalcl', 'etalvmax', 'etalbl_csf1', 'etalbl_ncmc', 'etalbl_ast', 'etalbl_cpk'
Baseline NCMC by population type (typical patient at median CSF-1 and CPK).
Population BL_NCMC simulated (cells/uL) Yang 2024 Table 1
cGVHD reference 16.00 16.0
Healthy volunteer 29.68 29.7
Advanced solid tumor 54.20 54.2

ADA-positive CL effect (paper covariate summary: +50.6% CL when ADA = 1):

typical_cl <- function(ada) {
  # Pull individual CL via a unit-volume dose (1 mg) and reading IPRED at first sample
  ev <- rxode2::et(amt = 1, cmt = "central", evid = 1, time = 0) |>
    rxode2::et(c(0, 0.001), cmt = "Cc")
  ev$WT <- 75; ev$CSF1 <- 549; ev$CPK <- 63
  ev$DIS_CANCER <- 0; ev$DIS_HV <- 0; ev$ADA_POS <- ada
  s <- rxode2::rxSolve(mod, ev, returnType = "data.frame")
  unique(s$cl)[1]
}
cl_neg <- typical_cl(0L)
#> ℹ omega/sigma items treated as zero: 'etalvc', 'etalcl', 'etalvmax', 'etalbl_csf1', 'etalbl_ncmc', 'etalbl_ast', 'etalbl_cpk'
cl_pos <- typical_cl(1L)
#> ℹ omega/sigma items treated as zero: 'etalvc', 'etalcl', 'etalvmax', 'etalbl_csf1', 'etalbl_ncmc', 'etalbl_ast', 'etalbl_cpk'
tibble::tibble(
  ADA = c("Negative (ref)", "Positive"),
  `Typical CL (L/h)` = c(cl_neg, cl_pos),
  `Fractional change vs ADA-` = c(0, (cl_pos - cl_neg) / cl_neg)
) |> knitr::kable(digits = 4,
                  caption = "Linear CL by ADA status. Note: the model file's `cl` variable already carries the ADA factor.")
Linear CL by ADA status. Note: the model file’s cl variable already carries the ADA factor.
ADA Typical CL (L/h) Fractional change vs ADA-
Negative (ref) 0.0070 0.000
Positive 0.0104 0.489

Steady-state hold check

With no axatilimab dose, the four biomarker states must hold at their individual baseline values indefinitely (or to numerical tolerance) — this is the standard endogenous-system invariant.

ss_ev <- rxode2::et(seq(0, 4000, by = 48), cmt = "Cc")
ss_ev$WT <- 75; ss_ev$CSF1 <- 549; ss_ev$CPK <- 63
ss_ev$DIS_CANCER <- 0; ss_ev$DIS_HV <- 0; ss_ev$ADA_POS <- 0
ss <- rxode2::rxSolve(mod, ss_ev, returnType = "data.frame")
#> ℹ omega/sigma items treated as zero: 'etalvc', 'etalcl', 'etalvmax', 'etalbl_csf1', 'etalbl_ncmc', 'etalbl_ast', 'etalbl_cpk'

ss_summary <- tibble::tibble(
  Biomarker = c("csf1 (nM)", "ncmc (cells/uL)", "ast (U/L)", "cpk (U/L)"),
  Min       = c(min(ss$csf1), min(ss$ncmc), min(ss$ast), min(ss$cpk)),
  Max       = c(max(ss$csf1), max(ss$ncmc), max(ss$ast), max(ss$cpk)),
  Target    = c(0.01, 16, 35.5, 101)
)
knitr::kable(ss_summary, digits = 6,
             caption = "Biomarker steady-state hold (no axatilimab dose, 4000 h simulation).")
Biomarker steady-state hold (no axatilimab dose, 4000 h simulation).
Biomarker Min Max Target
csf1 (nM) 0.01 0.01 0.01
ncmc (cells/uL) 16.00 16.00 16.00
ast (U/L) 35.50 35.50 35.50
cpk (U/L) 101.00 101.00 101.00

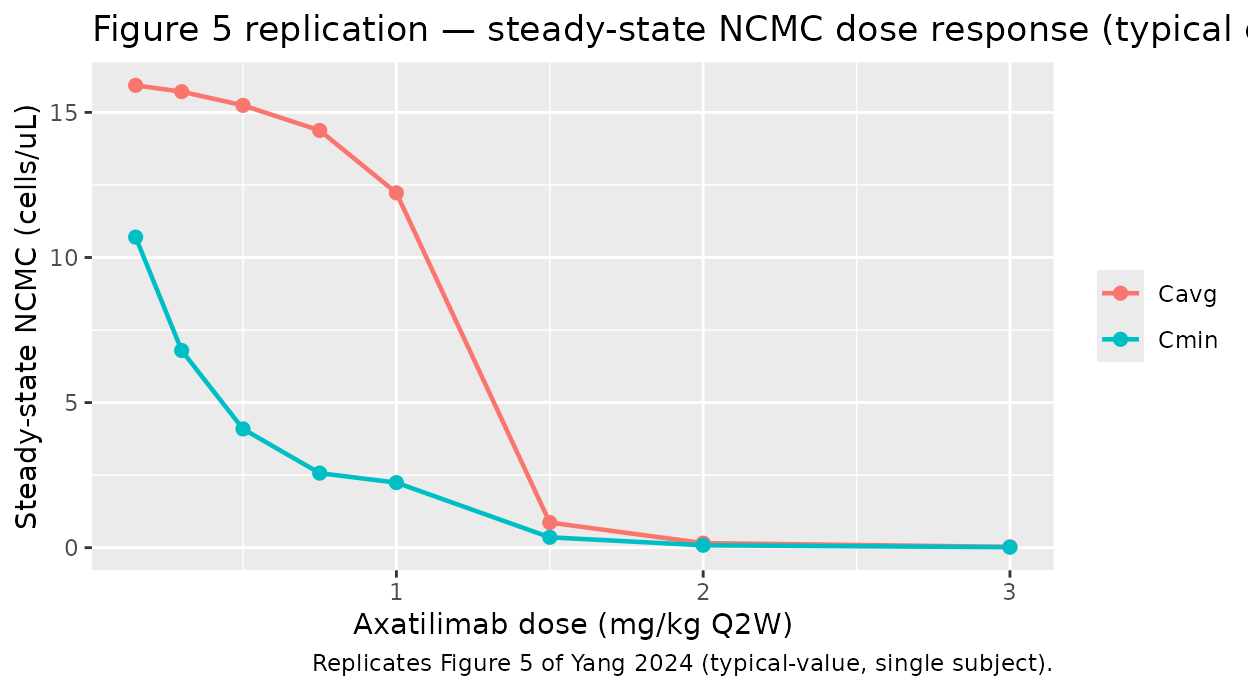

Replicate Figure 5 — steady-state NCMC dose response (Q2W)

Figure 5 of Yang 2024 shows steady-state mean and trough NCMC concentration vs dose for the Q2W regimen. The simulation below sweeps 0.15-3 mg/kg Q2W on a typical cGVHD patient and computes Cavg / Cmin within the final dosing interval after 16 weeks of dosing (eight Q2W cycles is sufficient for convergence given the NCMC turnover halflife log(2) / 0.021 ≈ 33 h).

dose_sweep <- c(0.15, 0.3, 0.5, 0.75, 1, 1.5, 2, 3)

ncmc_metrics <- function(dose_mg_kg) {
  ev_long <- make_typical(dose_mg_kg, regimen = "Q2W", duration_days = 16 * 7)
  s <- rxode2::rxSolve(mod, ev_long, returnType = "data.frame") |>
    dplyr::filter(!is.na(Cc))
  end_h    <- max(s$time)
  s_final  <- s |> dplyr::filter(time >= end_h - 14 * 24)
  tibble::tibble(
    dose = dose_mg_kg,
    cavg = mean(s_final$ncmc),
    cmin = min(s_final$ncmc)
  )
}

fig5 <- purrr::map_dfr(dose_sweep, ncmc_metrics) |>
  tidyr::pivot_longer(c(cavg, cmin), names_to = "metric", values_to = "ncmc") |>
  dplyr::mutate(metric = recode(metric, cavg = "Cavg", cmin = "Cmin"))
#> ℹ omega/sigma items treated as zero: 'etalvc', 'etalcl', 'etalvmax', 'etalbl_csf1', 'etalbl_ncmc', 'etalbl_ast', 'etalbl_cpk'
#> ℹ omega/sigma items treated as zero: 'etalvc', 'etalcl', 'etalvmax', 'etalbl_csf1', 'etalbl_ncmc', 'etalbl_ast', 'etalbl_cpk'
#> ℹ omega/sigma items treated as zero: 'etalvc', 'etalcl', 'etalvmax', 'etalbl_csf1', 'etalbl_ncmc', 'etalbl_ast', 'etalbl_cpk'
#> ℹ omega/sigma items treated as zero: 'etalvc', 'etalcl', 'etalvmax', 'etalbl_csf1', 'etalbl_ncmc', 'etalbl_ast', 'etalbl_cpk'
#> ℹ omega/sigma items treated as zero: 'etalvc', 'etalcl', 'etalvmax', 'etalbl_csf1', 'etalbl_ncmc', 'etalbl_ast', 'etalbl_cpk'
#> ℹ omega/sigma items treated as zero: 'etalvc', 'etalcl', 'etalvmax', 'etalbl_csf1', 'etalbl_ncmc', 'etalbl_ast', 'etalbl_cpk'
#> ℹ omega/sigma items treated as zero: 'etalvc', 'etalcl', 'etalvmax', 'etalbl_csf1', 'etalbl_ncmc', 'etalbl_ast', 'etalbl_cpk'
#> ℹ omega/sigma items treated as zero: 'etalvc', 'etalcl', 'etalvmax', 'etalbl_csf1', 'etalbl_ncmc', 'etalbl_ast', 'etalbl_cpk'

ggplot(fig5, aes(dose, ncmc, colour = metric)) +
  geom_line(linewidth = 0.8) +
  geom_point(size = 2) +
  labs(x = "Axatilimab dose (mg/kg Q2W)",
       y = "Steady-state NCMC (cells/uL)",
       colour = NULL,
       title  = "Figure 5 replication — steady-state NCMC dose response (typical cGVHD patient)",
       caption = "Replicates Figure 5 of Yang 2024 (typical-value, single subject).")

PKNCA validation — single-dose axatilimab Cc

The article does not report a published NCA table for axatilimab, so the PKNCA block here functions as a functional check that the simulated profile produces dimensionally sensible AUC / Cmax under the 0.3 mg/kg single-dose regimen.

single_ev <- rxode2::et(amt = 22.5, cmt = "central", evid = 1, time = 0) |>
  rxode2::et(c(0, 0.5, 1, 2, 4, 8, 12, 24, 48, 72, 96, 168, 240, 336),
             cmt = "Cc")
single_ev$id         <- 1L
single_ev$WT         <- 75
single_ev$CSF1       <- 549
single_ev$CPK        <- 63
single_ev$DIS_CANCER <- 0
single_ev$DIS_HV     <- 0
single_ev$ADA_POS    <- 0
single_ev$regimen    <- "0.3 mg/kg single dose"
sim_sd <- rxode2::rxSolve(mod, single_ev, returnType = "data.frame", keep = "regimen") |>
  dplyr::filter(!is.na(Cc)) |>
  dplyr::mutate(id = 1L)
#> ℹ omega/sigma items treated as zero: 'etalvc', 'etalcl', 'etalvmax', 'etalbl_csf1', 'etalbl_ncmc', 'etalbl_ast', 'etalbl_cpk'

dose_df <- tibble::tibble(id = 1L, time = 0, amt = 22.5, regimen = "0.3 mg/kg single dose")

conc_obj <- PKNCA::PKNCAconc(sim_sd |> dplyr::select(id, time, Cc, regimen),
                             Cc ~ time | regimen + id,
                             concu = "mg/L", timeu = "hr")
dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | regimen + id, doseu = "mg")

intervals <- data.frame(
  start    = 0,
  end      = 336,
  cmax     = TRUE,
  tmax     = TRUE,
  auclast  = TRUE,
  half.life = TRUE
)
nca_res <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals))
nca_res$result |>
  dplyr::select(start, end, PPTESTCD, PPORRES) |>
  knitr::kable(digits = 4,
               caption = "Simulated single-dose 0.3 mg/kg axatilimab NCA, typical cGVHD patient.")
Simulated single-dose 0.3 mg/kg axatilimab NCA, typical cGVHD patient.
start end PPTESTCD PPORRES
0 336 auclast 294.2096
0 336 cmax 6.3808
0 336 tmax 0.0000
0 336 tlast 336.0000
0 336 lambda.z 0.0023
0 336 r.squared 0.9999
0 336 adj.r.squared 0.9998
0 336 lambda.z.time.first 168.0000
0 336 lambda.z.time.last 336.0000
0 336 lambda.z.n.points 3.0000
0 336 clast.pred 0.0392
0 336 half.life 305.1370
0 336 span.ratio 0.5506

Assumptions and deviations

  • Mechanism-specific compartment names. The biomarker states csf1, ncmc, ast, cpk deliberately deviate from the canonical compartment-name list in naming-conventions.md (depot, central, peripheral1, etc.). They were chosen to match the variable names in Yang 2024 Eqs. 5, 8, 10, 11 and the supplemental MLXTRAN code; using the canonical names would obscure the one-to-one mapping with the published equations. nlmixr2lib::checkModelConventions() flags these as warnings (not errors).
  • Initial conditions. All four biomarker states (csf1, ncmc, ast, cpk) are set to their per-individual baseline parameter values (BL_CSF1, BL_NCMC, BL_AST, BL_CPK). PK compartments start at zero (no endogenous axatilimab).
  • Saturable-elimination unit reformulation (mg vs μg). The supplemental MLXTRAN code carries Ac in μg and converts dose with a 1000× factor at the iv() macro. The nlmixr2lib model file works in mg directly so user-facing event tables can use mg without conversion; the Vmax × C1 × vc × MW_PK / 1000 term is mathematically equivalent to Yang 2024 Eq. 1 (Errata note 3).
  • kada interpretation. The internal contradiction documented in Errata note 1 was resolved by using the value consistent with Table 1, the MLXTRAN supplement, and the formal covariate-effect summary (kada = 0.489).
  • CSF-1 covariate units. Pg/mL (not Figure 3’s mislabeled “ng/mL”); see Errata note 2.
  • No FDR / lower-LOQ handling. The analysis dataset uses the M4 method to handle BLOQ samples (Beal 2001); since this vignette runs deterministic typical-value simulations, no BLOQ logic is needed.
  • PKNCA stratification. A single regimen (0.3 mg/kg single dose) is shown; the published article does not report per-regimen NCA, so cross-comparison with paper values is not possible.
  • Reference-value documentation. Continuous covariates (WT, CSF1, CPK) use the overall pooled-cohort medians from Yang 2024 Table S3 (73.6 kg, 549 pg/mL, 63 U/L). The paper does not separately report cohort-stratified medians; using the overall median follows Yang 2024’s own statement that “continuous covariates were adjusted for the population median.”
