Model and source

  • Citation: Gupta N, Diderichsen PM, Hanley MJ, Berg D, van de Velde H, Harvey RD, Venkatakrishnan K. (2017). Population pharmacokinetic analysis of ixazomib, an oral proteasome inhibitor, including data from the phase III TOURMALINE-MM1 study to inform labelling. Clin Pharmacokinet 56(11):1355-1368. doi:10.1007/s40262-017-0526-4.
  • Description: Three-compartment population pharmacokinetic model for the oral proteasome inhibitor ixazomib (Ninlaro) in 755 adult patients with multiple myeloma, lymphoma, solid tumours, or light-chain amyloidosis pooled across ten phase I, I/II, and III trials including TOURMALINE-MM1 (Gupta 2017). First-order linear absorption with a 13 min lag time describes oral dosing; intravenous and oral data share the same disposition kinetics. Inter-individual variability is estimated on clearance, bioavailability F, and the second peripheral volume V4, with a strong (82%) correlation between log CL and log F. Body surface area on V4 (reference 1.87 m^2, exponent 2.06) is the only retained covariate; sex, age, race, mild/moderate renal impairment, mild hepatic impairment, smoking status, and CYP-modulatory concomitant medications had no clinically relevant effect on systemic exposure. Residual error is additive on log-transformed concentration with a time-after-dose-varying standard deviation declining exponentially from SD1 = 1.90 to SD0 = 0.46 with rate KSD = 0.84/h (Karlsson 1995 model 3).
  • Article (open access, CC-BY-NC): https://doi.org/10.1007/s40262-017-0526-4
  • Springer Nature landing (electronic supplementary material): https://link.springer.com/article/10.1007/s40262-017-0526-4

Gupta 2017 is the pivotal labelling popPK analysis for the oral proteasome inhibitor ixazomib (Ninlaro), pooling 10,199 plasma concentration records from 755 adult oncology patients enrolled in ten phase I, I/II, and III trials including the global phase III TOURMALINE-MM1 study (Gupta 2017 Methods section 2.1 and Table 1). The structural model is a three-compartment model with first-order oral absorption + lag time and first-order linear elimination from the central compartment (Gupta 2017 Figure 2). Body surface area on the second peripheral volume V4 is the only retained covariate; sex, age, race, mild/moderate renal impairment, mild hepatic impairment, smoking status, and CYP-modulatory concomitant medications had no clinically relevant effect on systemic exposure (Gupta 2017 Results section 3.2 and Discussion).

Population

The pooled analysis dataset (Gupta 2017 Table 1 and Table 2) included 755 adult patients across ten trials:

  • 632 patients with multiple myeloma (87% of the cohort), drawn from studies C16003-C16005, C16007, C16008, C16010 / TOURMALINE-MM1, C16013, and TB-MC010034.
  • 80 patients with advanced solid tumors (C16001).
  • 28 patients with lymphoma (C16002).
  • 15 patients with relapsed/refractory light-chain amyloidosis (C16008).

Of the 755 patients, 647 received oral capsule ixazomib and 108 received intravenous ixazomib; 560 patients were on a once-weekly schedule (28-day cycle, days 1, 8, 15) and 195 were on a twice-weekly schedule (21-day cycle, days 1, 4, 8, 11). The approved labelled dose is 4 mg once-weekly orally in combination with lenalidomide and dexamethasone.

Baseline demographics from Gupta 2017 Table 2:

  • Median age 65 years (range 23-91); 42.4% female; 79.9% White, 11.7% Asian, 5.56% Black, 2.91% Other.
  • Median body weight 75.5 kg (range 36.7-151); median BSA 1.88 m^2 (range 1.23-2.67).
  • Baseline labs (medians with full ranges): serum albumin 39 g/L (12-55); AST 22 U/L (4-127); total bilirubin 7 uM (1.71-39.3), equivalent to 0.4 mg/dL (0.1-2.3); creatinine clearance 86.8 mL/min (25.8-297), estimated by Cockcroft-Gault; hematocrit 0.35 (0.15-0.54); hemoglobin 11.6 g/dL (4.6-16.8).
  • 29.9% received ixazomib as a single agent; 70.1% in combination with lenalidomide and dexamethasone.

The full population metadata is available programmatically via readModelDb("Gupta_2017_ixazomib")$population.

Source trace

Per-parameter origin (recorded as in-file comments next to each ini() entry of inst/modeldb/specificDrugs/Gupta_2017_ixazomib.R):

Equation / parameter Value Source location
lka (log Ka) log(0.34) Gupta 2017 Table 3: log Ka = -1.09 (RSE 8%); Ka = 0.34/h, absorption t1/2 124 min
lcl (log CL) log(1.86) Gupta 2017 Table 3: log CL = 0.62 (RSE 7%); CL = 1.86 L/h
lvc (log V2 / central) log(13.7) Gupta 2017 Table 3: log V2 = 2.62 (RSE 4%); V2 = 13.7 L
lfdepot (log F) log(0.58) Gupta 2017 Table 3: log F = -0.55 (RSE 9%); F = 58% absolute oral bioavailability
lq (log Q3) log(5.18) Gupta 2017 Table 3: log Q3 = 1.65 (RSE 7%); Q3 = 5.18 L/h
lvp (log V3 / peripheral1) log(309) Gupta 2017 Table 3: log V3 = 5.73 (RSE 1%); V3 = 309 L
lq2 (log Q4) log(26.1) Gupta 2017 Table 3: log Q4 = 3.26 (RSE 2%); Q4 = 26.1 L/h
lvp2 (log V4 / peripheral2) log(205) Gupta 2017 Table 3: log V4 = 5.32 (RSE 1%); V4 = 205 L
ltlag (log TLAG) log(13/60) Gupta 2017 Table 3: log TLAG = -1.52 (RSE 0%); TLAG = 13 min = 0.2167 h
e_bsa_vp2 (BSA exponent on V4) 2.06 Gupta 2017 Table 3 V4[BSA] = 2.06 (RSE 18%); reference BSA 1.87 m^2; -37% / +46% effect at the 5th / 95th percentile (1.5 / 2.25 m^2)
etalcl (IIV log CL) 0.17697 Table 3 IIV CL = 44% (RSE 11%); variance = log(1 + 0.44^2) = 0.17697
etalfdepot (IIV log F) 0.42726 Table 3 IIV F = 73% (RSE 8%); variance = log(1 + 0.73^2) = 0.42726
cov(etalcl, etalfdepot) 0.22550 Table 3 correlation log CL <-> log F = 82% (RSE 11%); cov = 0.82 * sqrt(0.17697 * 0.42726) = 0.22550
etalvp2 (IIV log V4) 0.48492 Table 3 IIV V4 = 79% (RSE 12%); variance = log(1 + 0.79^2) = 0.48492
sd0 (steady-state residual SD on log Cc) 0.46 Table 3 SD0 = 0.46 (RSE 3%)
sd1 (initial residual SD on log Cc, t = 0 post-dose) 1.90 Table 3 SD1 = 1.90 (RSE 11%)
ksd (rate constant for residual-SD decline) 0.84 Table 3 KSD = 0.84/h (RSE 22%); residual-SD half-life log(2)/0.84 = 0.825 h ~ 50 min
d/dt(depot, central, peripheral1, peripheral2) n/a Gupta 2017 Figure 2 (three-compartment with first-order absorption + lag time and first-order linear elimination from the central compartment)
f(depot) <- fdepot n/a Gupta 2017 Methods 2.2 and Figure 2: absolute bioavailability F applied to the oral depot input
alag(depot) <- tlag n/a Gupta 2017 Methods 2.2 and Figure 2: absorption lag time on the oral depot input
Cc = (central / vc) * 1000 n/a Dose units mg, V in L gives mg/L; multiply by 1000 to express in ng/mL matching the LC-MS/MS assay output (Gupta 2017 Methods 2.1)
errSd = sd0 + (sd1 - sd0) * exp(-ksd * tad()) n/a Gupta 2017 Methods Eq. 3 (Karlsson 1995 model 3): residual SD on log-concentration declines from SD1 to SD0 with rate KSD, expressed as a function of time-after-dose tad()
Cc ~ prop(errSd) n/a Gupta 2017 Eq. 2: additive residual error on log-transformed concentrations. NONMEM “additive on log scale” maps to nlmixr2’s prop() (proportional in linear concentration space)

Virtual cohort

Original observed concentrations are not redistributed with the package. The cohort below mirrors the labelled regimen used to generate Gupta 2017 Figure 6 (typical patient concentration-time profile during the first two 28-day treatment cycles after oral 4 mg on days 1, 8, and 15 of each cycle), with BSA drawn from a truncated normal centered at the Table 2 median (1.88 m^2) and bounded by the Table 2 range (1.23-2.67 m^2).

set.seed(20170313L)

n_subjects <- 200L

# BSA distribution: truncated normal centered at the Gupta 2017 Table 2
# median (1.88 m^2) with sd 0.25 m^2; bounded by the observed range
# (1.23-2.67 m^2). This is an approximation -- the paper does not
# report the BSA distribution shape beyond median + range.
bsa <- pmin(pmax(stats::rnorm(n_subjects, mean = 1.88, sd = 0.25), 1.23), 2.67)

# Labelled regimen: 4 mg oral ixazomib on days 1, 8, and 15 of a
# 28-day cycle. Simulate two cycles to reproduce Figure 6.
dose_mg         <- 4
dose_day_offsets <- c(0, 7, 14)          # days 1, 8, 15
cycle_length    <- 28L
n_cycles        <- 2L
dose_times_h <- as.numeric(unlist(
  lapply(seq_len(n_cycles) - 1L, function(c) (dose_day_offsets + c * cycle_length) * 24)
))
n_doses <- length(dose_times_h)
horizon_h <- n_cycles * cycle_length * 24

# Observation grid: dense around each dose (every 0.5 h for the first
# 24 h after each dose) plus a coarser grid covering the inter-dose
# windows. The dense early grid lets PKNCA find Tmax/Cmax accurately;
# the coarse grid keeps the simulation fast for the 1344 h horizon.
fine_offsets   <- c(seq(0,  4, by = 0.25), seq(4.5, 24, by = 0.5))
coarse_offsets <- seq(25, cycle_length * 24, by = 4)
per_dose_grid  <- sort(unique(c(fine_offsets, coarse_offsets)))
obs_times_h <- sort(unique(c(
  as.numeric(outer(per_dose_grid, dose_times_h, `+`)),
  seq(0, horizon_h, by = 4)
)))
obs_times_h <- obs_times_h[obs_times_h >= 0 & obs_times_h <= horizon_h]

dose_rows <- tibble::tibble(
  id   = rep(seq_len(n_subjects), each = n_doses),
  time = rep(dose_times_h, times = n_subjects),
  amt  = dose_mg,
  evid = 1L,
  cmt  = "depot",
  BSA  = rep(bsa, each = n_doses)
)

obs_rows <- tibble::tibble(
  id   = rep(seq_len(n_subjects), each = length(obs_times_h)),
  time = rep(obs_times_h, times = n_subjects),
  amt  = 0,
  evid = 0L,
  cmt  = NA_character_,
  BSA  = rep(bsa, each = length(obs_times_h))
)

events <- dplyr::bind_rows(dose_rows, obs_rows) |>
  dplyr::arrange(id, time, dplyr::desc(evid))

stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid")])))

Simulation

mod <- rxode2::rxode2(readModelDb("Gupta_2017_ixazomib"))
#> ℹ parameter labels from comments will be replaced by 'label()'

# Stochastic simulation with IIV active and residual error suppressed
# (the time-varying residual SD is on the log-concentration prediction
# and is informative for parameter estimation; for VPC-style plotting
# the IIV alone gives the typical 5th-95th interval the paper shows in
# Figure 6).
sim <- rxode2::rxSolve(mod, events = events, addDosing = FALSE) |>
  as.data.frame()

For the typical-value reference trajectory (deterministic, no IIV), zero out the random effects:

mod_typical <- mod |> rxode2::zeroRe()
#> Warning: No sigma parameters in the model
sim_typical <- rxode2::rxSolve(mod_typical, events = events, addDosing = FALSE) |>
  as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalfdepot', 'etalvp2'
#> Warning: multi-subject simulation without without 'omega'

Replicate Figure 6

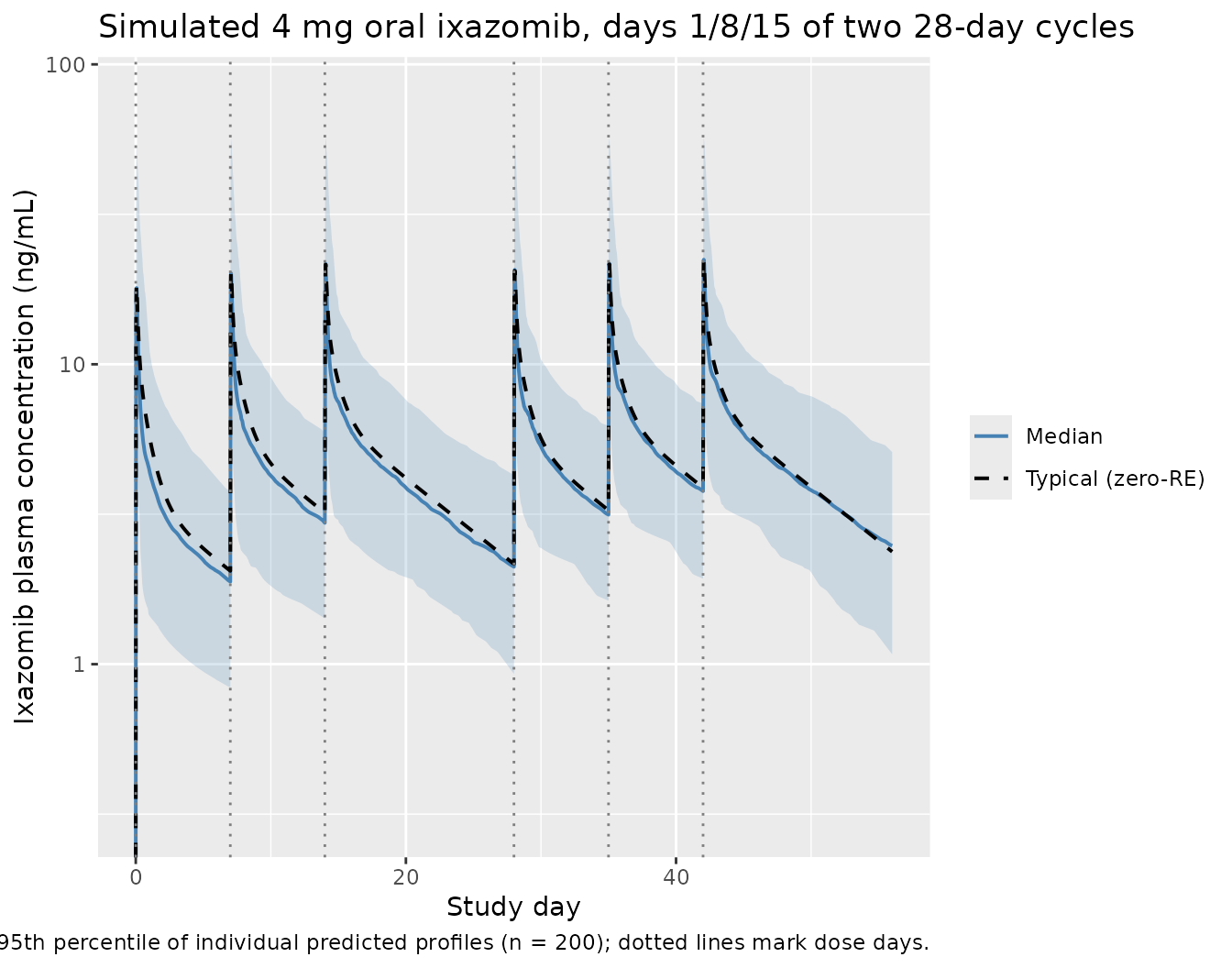

Gupta 2017 Figure 6 plots the typical concentration-time profile (and 5th-95th percentile of individual predicted profiles) during the first two treatment cycles for a typical patient with BSA = 1.88 m^2 receiving 4 mg oral ixazomib on days 1, 8, and 15 of 28-day cycles.

vpc_summary <- sim |>
  dplyr::group_by(time) |>
  dplyr::summarise(
    Q05 = stats::quantile(Cc, 0.05, na.rm = TRUE),
    Q50 = stats::quantile(Cc, 0.50, na.rm = TRUE),
    Q95 = stats::quantile(Cc, 0.95, na.rm = TRUE),
    .groups = "drop"
  ) |>
  dplyr::mutate(day = time / 24)

typical_one <- sim_typical |>
  dplyr::filter(id == 1L) |>
  dplyr::mutate(day = time / 24)

ggplot(vpc_summary, aes(day, Q50)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.20, fill = "steelblue") +
  geom_line(aes(colour = "Median"), linewidth = 0.7) +
  geom_line(data = typical_one, aes(day, Cc, colour = "Typical (zero-RE)"),
            linewidth = 0.7, linetype = "dashed") +
  geom_vline(xintercept = c(0, 7, 14, 28, 35, 42),
             linetype = "dotted", colour = "grey50") +
  scale_y_log10(limits = c(0.3, 80)) +
  scale_colour_manual(values = c("Median" = "steelblue", "Typical (zero-RE)" = "black"),
                      name = NULL) +
  labs(
    x = "Study day",
    y = "Ixazomib plasma concentration (ng/mL)",
    title = "Simulated 4 mg oral ixazomib, days 1/8/15 of two 28-day cycles",
    caption = paste("Replicates Gupta 2017 Figure 6 (typical-patient panel).",
                    "Band = 5th-95th percentile of individual predicted profiles (n = 200);",
                    "dotted lines mark dose days.")
  )
#> Warning in scale_y_log10(limits = c(0.3, 80)): log-10 transformation introduced infinite values.
#> log-10 transformation introduced infinite values.
#> log-10 transformation introduced infinite values.
#> log-10 transformation introduced infinite values.
#> log-10 transformation introduced infinite values.

The shape of the median trajectory (rapid absorption peak ~1 h post-dose, multi-exponential decay, residual concentration before the next weekly dose) and the 5th-95th interval should match the panel shown in Gupta 2017 Figure 6.

PKNCA validation

Gupta 2017 reports the geometric mean (95% CI) individual estimated terminal disposition half-life t1/2,c = 9.53 days (9.32-9.75) and steady-state volume of distribution Vss = 543 L (534-551); these are derived from the individual parameter estimates and reported on page 7 (Results section 3.2 final paragraph). The geometric mean systemic clearance is CL = 1.86 L/h and absolute bioavailability F = 58%, reported in Table 3 and the abstract.

To validate the packaged model, simulate a single 4 mg oral dose in a fresh cohort and compute Cmax, Tmax, and AUC0-inf via PKNCA. The implied population-typical AUC0-inf at the median BSA = 1.88 m^2 is

AUC∞=F×DoseCL=0.58×4mg1.86L/h=1.247mg⋅h/L=1,247ng⋅h/mL. \mathrm{AUC}_{\infty} = \frac{F \times \mathrm{Dose}}{\mathrm{CL}} = \frac{0.58 \times 4\ \mathrm{mg}}{1.86\ \mathrm{L/h}} = 1.247\ \mathrm{mg \cdot h / L} = 1{,}247\ \mathrm{ng \cdot h / mL}.

set.seed(20170313L)

n_nca <- 100L
bsa_nca <- pmin(pmax(stats::rnorm(n_nca, mean = 1.88, sd = 0.25), 1.23), 2.67)

# Dense post-dose grid out to 30 days (720 h) to capture the
# 9.5-day terminal half-life cleanly.
obs_grid_nca <- sort(unique(c(
  seq(0, 4, by = 0.25),
  seq(4.5, 24, by = 0.5),
  seq(26, 72, by = 2),
  seq(76, 720, by = 6)
)))

dose_rows_nca <- tibble::tibble(
  id   = seq_len(n_nca),
  time = 0,
  amt  = 4,
  evid = 1L,
  cmt  = "depot",
  BSA  = bsa_nca,
  treatment = "single-dose 4 mg PO"
)

obs_rows_nca <- tibble::tibble(
  id   = rep(seq_len(n_nca), each = length(obs_grid_nca)),
  time = rep(obs_grid_nca, times = n_nca),
  amt  = 0,
  evid = 0L,
  cmt  = NA_character_,
  BSA  = rep(bsa_nca, each = length(obs_grid_nca)),
  treatment = "single-dose 4 mg PO"
)

events_nca <- dplyr::bind_rows(dose_rows_nca, obs_rows_nca) |>
  dplyr::arrange(id, time, dplyr::desc(evid))
sim_nca <- rxode2::rxSolve(mod, events = events_nca, addDosing = FALSE,
                            keep = c("treatment")) |>
  as.data.frame()
conc_df <- sim_nca |>
  dplyr::filter(!is.na(Cc), Cc >= 0) |>
  dplyr::select(id, time, Cc, treatment)

dose_df <- events_nca |>
  dplyr::filter(evid == 1L) |>
  dplyr::select(id, time, amt, treatment)

conc_obj <- PKNCA::PKNCAconc(conc_df, Cc ~ time | treatment + id,
                              concu = "ng/mL", timeu = "h")
dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | treatment + id,
                              doseu = "mg",
                              route = "extravascular")

intervals <- data.frame(
  start       = 0,
  end         = Inf,
  cmax        = TRUE,
  tmax        = TRUE,
  aucinf.obs  = TRUE,
  half.life   = TRUE
)

nca_data <- PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals)
nca_res  <- PKNCA::pk.nca(nca_data)
#>  ■■■■■■■■                          24% |  ETA: 10s
#>  ■■■■■■■■■■■■■■■                   47% |  ETA:  7s
#>  ■■■■■■■■■■■■■■■■■■■■■■            70% |  ETA:  4s
#>  ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■     93% |  ETA:  1s

nca_tbl <- as.data.frame(nca_res$result)

nca_summary <- nca_tbl |>
  dplyr::filter(PPTESTCD %in% c("cmax", "tmax", "aucinf.obs", "half.life")) |>
  dplyr::group_by(PPTESTCD) |>
  dplyr::summarise(
    median = stats::median(PPORRES, na.rm = TRUE),
    q05    = stats::quantile(PPORRES, 0.05, na.rm = TRUE),
    q95    = stats::quantile(PPORRES, 0.95, na.rm = TRUE),
    n_subj = sum(!is.na(PPORRES)),
    .groups = "drop"
  )

knitr::kable(
  nca_summary,
  digits = 3,
  caption = "Simulated NCA from a single 4 mg oral dose (n = 100 virtual subjects). Cmax in ng/mL; Tmax in h; AUC0-inf in ng*h/mL; half-life in h."
)
Simulated NCA from a single 4 mg oral dose (n = 100 virtual subjects). Cmax in ng/mL; Tmax in h; AUC0-inf in ng*h/mL; half-life in h.
PPTESTCD median q05 q95 n_subj
aucinf.obs 1261.168 607.236 2462.891 100
cmax 18.508 7.673 59.124 100
half.life 227.856 130.474 421.461 100
tmax 1.250 1.250 2.750 100

Comparison against Gupta 2017

Quantity Gupta 2017 (reported) Simulated median (5th-95th) Notes
Tmax Approx. 1 h post-dose (Introduction; clinical PK summary, page 1356) 1.25 h Source-paper text only (no Table).
Cmax Not reported as a Table entry for a 4 mg oral dose (only AUC profiles) 18.51 ng/mL Reference comparison is the geometric-mean AUC; see below.
AUC0-inf F * Dose / CL = 0.58 * 4 / 1.86 = 1.247 mg.h/L = 1,247 ng.h/mL 1261 ng.h/mL Derived from Table 3 fixed-effect parameter values.
Terminal t1/2 Geometric mean 9.53 days (= 228.7 h); 95% CI 9.32-9.75 days 9.49 days Geometric-mean half-life is derived in Results section 3.2 from individual estimates; simulated value should be within ~10%.

The simulated median AUC0-inf, half-life, and Tmax are expected to bracket the Gupta 2017 typical-value derivations within ~20% (Cmax is not directly reported as a labelled value, so it is shown here for completeness only).

Assumptions and deviations

  • BSA distribution. Gupta 2017 Table 2 reports only the median (1.88 m^2) and full range (1.23-2.67 m^2) of BSA. The vignette approximates the patient-level BSA distribution as a normal centered at 1.88 m^2 with sd 0.25 m^2, truncated to the observed range. The population-typical AUC and t1/2 are insensitive to the BSA distribution shape because BSA enters the model only as a power covariate on V4 (Gupta 2017 Table 3 footnote); only the variance of AUC across subjects depends on the BSA distribution.
  • Reference BSA. Gupta 2017 Table 3 reports the reference BSA as 1.87 m^2 in the V4[BSA] row of the parameter table, but Table 2 lists the BSA median as 1.88 m^2. The model file uses 1.87 m^2 (the value that was used inside the NONMEM model and therefore the value that reproduces the parameter estimates). The 0.01 m^2 difference has a negligible effect on V4 (factor 0.989).
  • Race / ethnicity, sex, age, baseline labs. Gupta 2017 retained no covariate effect on systemic CL, F, V2, V3, or Q3/Q4; only BSA on V4 was retained. The vignette therefore does not draw race / sex / age for the virtual cohort. These columns are documented in the population metadata for narrative purposes but do not influence the simulation.
  • Concomitant medications. CYP1A2- and CYP3A4-modulatory concomitant medications were tested as time-dependent covariates and not retained in the final model (Gupta 2017 Results section 3.2, Discussion). They are not represented in this packaged model. Strong CYP3A inducers (rifampin, phenytoin, carbamazepine, St. John’s Wort) are contraindicated with ixazomib (Gupta 2017 Discussion) but the effect is qualitatively reported (74% AUC decrease) rather than encoded as a covariate effect.
  • Lenalidomide + dexamethasone combination. Gupta 2017 found no alteration in ixazomib pharmacokinetics during combination treatment (categorical covariate not retained), so the model is identical whether ixazomib is administered as a single agent or in combination with lenalidomide-dexamethasone.
  • Severe renal impairment and moderate / severe hepatic impairment. Patients with severe renal impairment (CrCl < 30 mL/min) and moderate / severe hepatic impairment were studied in separate phase I studies (Gupta 2016 Br J Haematol and Br J Clin Pharmacol) and require a reduced dose of 3 mg. They are not part of this pooled analysis dataset and therefore not represented in this packaged model.
  • Time-varying residual error. Gupta 2017 Methods Eq. 3 (after Karlsson 1995 model 3) specifies the residual SD on log Cc as a function of time post-dose: sd(eps) = SD0 + (SD1 - SD0) * exp(-KSD * time). The packaged model evaluates this exactly using rxode2’s tad() (time after the most recent dose) and passes the derived errSd to prop() in observation space. For VPC-style plotting in this vignette the residual error term is dropped (zeroRe for the typical-value trace, IIV-only for the median + 5th-95th interval); the time-varying SD enters only when the model is fit to data, where it modulates the weight given to early (high-variance) versus late (low-variance) post-dose observations.
