Efavirenz (Robarge 2017) • nlmixr2lib

Model and source

Citation: Robarge JD, Metzger IF, Lu J, Thong N, Skaar TC, Desta Z, Bies RR (2017). Population pharmacokinetic modeling to estimate the contributions of genetic and nongenetic factors to efavirenz disposition. Antimicrob Agents Chemother 61(1):e01813-16.
Article: https://doi.org/10.1128/AAC.01813-16
ClinicalTrials.gov: https://clinicaltrials.gov/ct2/show/NCT00668395

Two-compartment population PK model fit to 1,132 plasma efavirenz concentrations from 73 HIV-seronegative adult volunteers (1 of 73 had a single 145 h sample, 3 of 73 withdrew early, the rest contributed 14-16 samples) after a single 600 mg oral dose. Absorption is parallel zero-order (fraction F2 = 0.586 of the dose, lag t_lag2 = 0.445 h, duration D2 = 0.675 h) and first-order (fraction F1 = 0.414, lag t_lag1 = 1.97 h, rate k_a = 0.504 1/h). Disposition parameters and their reduced-CYP2B6-metabolizer multiplicative effects on apparent oral clearance were re-estimated alongside fixed allometric exponents of 3/4 (CL/F vs FFM, reference 56 kg) and 1 (V_p/F vs FM, reference 19 kg).

Population

Median (range) baseline characteristics from Robarge 2017 Table 1: age 24 years (18-50), weight 72.7 kg (53.0-103.6), height 1.76 m (1.55-1.98), BMI 24.0 kg/m^2 (17.8-32.2), FFM 56.4 kg (35.6-75.1), FM 18.8 kg (6.3-42.7). Sex was 63% male (46/73). Race distribution: Caucasian 71.2% (52/73), African-American 21.9% (16/73), Asian 4.1% (3/73), Indian 1.4% (1/73), American Indian 1.4% (1/73). 9 of 73 subjects (12%) were clinically obese (BMI > 30 kg/m^2); no morbidly obese subjects (BMI > 40) were enrolled.

CYP2B6 metabolizer status distribution is described in Robarge 2017 Table S1 in the supplemental material (which is not reproduced here). The simulated cohort below uses an approximate 60% / 30% / 10% split across normal / intermediate / slow metabolizers, chosen to approximate typical North American Caucasian + African-American cohorts; see the “Assumptions and deviations” section below.

The same demographics are available programmatically via the model’s metadata (rxode2::rxode(readModelDb("Robarge_2017_efavirenz"))$population).

Source trace

Every entry below is also recorded as an in-file comment next to the corresponding ini() line in inst/modeldb/specificDrugs/Robarge_2017_efavirenz.R.

Equation / parameter	Value	Source location
Two-compartment + parallel zero / first-order absorption (ODEs)	n/a	Robarge 2017 Results “Population PK model” paragraphs 1-2
F1 (first-order absorption fraction; FIXED)	0.414	Robarge 2017 Table 2
F2 = 1 - F1 (zero-order absorption fraction; FIXED)	0.586	Robarge 2017 Table 2
t_lag1 (FIXED, h)	1.97	Robarge 2017 Table 2
k_a (FIXED, 1/h)	0.504	Robarge 2017 Table 2
t_lag2 (FIXED, h)	0.445	Robarge 2017 Table 2
D2 duration of zero-order (FIXED, h)	0.675	Robarge 2017 Table 2
CL/F (typical at FFM = 56 kg, CYP2B6 normal; L/h)	7.52	Robarge 2017 Table 2
V_c/F (L)	125	Robarge 2017 Table 2
V_p/F (typical at FM = 19 kg; L)	374	Robarge 2017 Table 2
Q/F (L/h)	32.3	Robarge 2017 Table 2
Allometric exponent on (FFM/56) for CL/F (FIXED)	3/4	Robarge 2017 Table 2 footnote a; Results “Covariate model development” paragraph 1
Allometric exponent on (FM/19) for V_p/F (FIXED)	1	Robarge 2017 Table 2 footnote a; Results “Covariate model development” paragraph 2
CYP2B6 intermediate-metabolizer factor on CL/F	0.752	Robarge 2017 Table 2
CYP2B6 slow-metabolizer factor on CL/F	0.490	Robarge 2017 Table 2
BSV SD on log-CL/F	0.257	Robarge 2017 Table 2
BSV SD on log-V_c/F	0.318	Robarge 2017 Table 2
BSV SD on log-V_p/F	0.374	Robarge 2017 Table 2
BSV SD on log-Q/F	0.671	Robarge 2017 Table 2
BSV SD on log-t_lag1	0.271	Robarge 2017 Table 2
BSV SD on log-k_a	0.965	Robarge 2017 Table 2
BSV SD on log-t_lag2	0.473	Robarge 2017 Table 2
BSV SD on log-D2	0.703	Robarge 2017 Table 2
Correlation rho(CL/F, V_p/F)	0.196	Robarge 2017 Table 2 footnote c
Correlation rho(Q/F, V_p/F)	0.849	Robarge 2017 Table 2 footnote c
Correlation rho(CL/F, Q/F) (FIXED at 0)	0	Robarge 2017 Table 2 (entry absent from the correlation block)
Proportional residual variance sigma^2_prop	0.016	Robarge 2017 Table 2
Additive residual variance sigma^2_add (nmol/L)^2	4,270	Robarge 2017 Table 2

Virtual cohort

Original observed efavirenz concentrations from the Robarge 2017 trial (ClinicalTrials.gov NCT00668395) are not publicly redistributable here. The simulation below uses a virtual cohort whose covariate distributions approximate the published trial demographics (Robarge 2017 Table 1).

set.seed(20171101L)

# Janmahasatian (2005) FFM formula -- the same closed-form expression
# Robarge 2017 used to derive FFM from total body weight (TBW), height,
# and sex; FM is the residual mass (FM = TBW - FFM). Source:
# Janmahasatian S et al. Clin Pharmacokinet 2005;44(10):1051-1065.
janmahasatian_ffm <- function(tbw_kg, height_m, sex_f) {
  bmi <- tbw_kg / (height_m^2)
  ifelse(
    sex_f == 0,
    # Male:   FFM = 9270 * WT / (6680 + 216 * BMI)
    9270 * tbw_kg / (6680 + 216 * bmi),
    # Female: FFM = 9270 * WT / (8780 + 244 * BMI)
    9270 * tbw_kg / (8780 + 244 * bmi)
  )
}

make_subjects <- function(n_per_group, cyp2b6_label, seed_offset = 0L) {
  withr::with_seed(20171101L + seed_offset, {
    # Sample sex first -- 63% male per Table 1.
    sex_f <- rbinom(n_per_group, 1L, prob = 27 / 73)
    # Sample WT and HT from approximately normal marginals matching Table 1
    # medians and ranges.
    tbw_kg <- pmin(pmax(rnorm(n_per_group, mean = 74.0, sd = 13.4), 53.0), 103.6)
    height_m <- pmin(pmax(rnorm(n_per_group, mean = 1.75, sd = 0.09), 1.55), 1.98)

    ffm_kg <- janmahasatian_ffm(tbw_kg, height_m, sex_f)
    fm_kg  <- pmax(tbw_kg - ffm_kg, 0.5)

    tibble(
      sub        = seq_len(n_per_group),
      sex_f      = sex_f,
      WT         = tbw_kg,
      HT         = height_m,
      FFM        = ffm_kg,
      FM         = fm_kg,
      cyp2b6     = cyp2b6_label,
      CYP2B6_IM  = as.integer(cyp2b6_label == "Intermediate"),
      CYP2B6_SM  = as.integer(cyp2b6_label == "Slow")
    )
  })
}

# CYP2B6 distribution: roughly 60% normal / 30% intermediate / 10% slow,
# chosen to span the three multiplier groups; see Assumptions section.
n_normal  <- 120L
n_interm  <- 60L
n_slow    <- 20L

subjects <- bind_rows(
  make_subjects(n_normal, "Normal",       seed_offset = 0L)  |> mutate(id = sub),
  make_subjects(n_interm, "Intermediate", seed_offset = 1L)  |> mutate(id = n_normal + sub),
  make_subjects(n_slow,   "Slow",         seed_offset = 2L)  |> mutate(id = n_normal + n_interm + sub)
) |>
  select(-sub)

dose_mg     <- 600
obs_times   <- c(0, 0.25, 0.5, 0.75, 1, 1.5, 2, 2.5, 3, 4, 6, 8, 10, 12, 16, 24,
                 36, 48, 72, 96, 120, 144, 192, 240, 288, 336)

build_events <- function(subjects) {
  bind_rows(
    # 1. First-order absorption record: dose -> depot, rate = 0 (instantaneous
    #    bolus into the gut compartment, then first-order absorption via k_a).
    subjects |>
      mutate(time = 0, evid = 1L, amt = dose_mg, cmt = "depot", rate = 0) |>
      select(id, time, evid, amt, cmt, rate, WT, FFM, FM, sex_f, cyp2b6, CYP2B6_IM, CYP2B6_SM),
    # 2. Zero-order absorption record: dose -> central, rate = -2 (modeled
    #    duration via dur(central) = D2). f(central) = 1 - F1 picks the
    #    zero-order fraction; first-order f(depot) = F1 picks the rest.
    subjects |>
      mutate(time = 0, evid = 1L, amt = dose_mg, cmt = "central", rate = -2) |>
      select(id, time, evid, amt, cmt, rate, WT, FFM, FM, sex_f, cyp2b6, CYP2B6_IM, CYP2B6_SM),
    # 3. Observation rows.
    crossing(id = subjects$id, time = obs_times) |>
      left_join(subjects |> select(id, WT, FFM, FM, sex_f, cyp2b6, CYP2B6_IM, CYP2B6_SM), by = "id") |>
      mutate(evid = 0L, amt = 0, cmt = "central", rate = 0)
  ) |>
    arrange(id, time, desc(evid))
}

events <- build_events(subjects)

# Multi-cohort guard: ids must be disjoint across the three CYP2B6 groups.
stopifnot(!anyDuplicated(unique(events[events$evid == 1L, c("id", "time", "cmt")])))

Simulation

mod <- readModelDb("Robarge_2017_efavirenz")

sim <- rxode2::rxSolve(
  mod,
  events = events,
  keep   = c("cyp2b6", "FFM", "FM"),
  returnType = "data.frame"
)
#> ℹ parameter labels from comments will be replaced by 'label()'

sim <- sim |>
  filter(time > 0) |>
  mutate(
    Cc_nmolL = Cc * 1e6 / 315.6745  # mg/L -> nmol/L using MW efavirenz = 315.6745 g/mol
  )

For deterministic, typical-value simulation (to match Robarge 2017 Figure 1 typical-value profile), zero out the BSV via rxode2::zeroRe():

mod_typical <- rxode2::zeroRe(mod)
#> ℹ parameter labels from comments will be replaced by 'label()'

# One reference subject per CYP2B6 group at the cohort median FFM / FM.
ref_subjects <- tibble(
  id        = 1:3,
  cyp2b6    = c("Normal", "Intermediate", "Slow"),
  CYP2B6_IM = c(0L, 1L, 0L),
  CYP2B6_SM = c(0L, 0L, 1L),
  WT        = 72.7,
  FFM       = 56.4,
  FM        = 18.8,
  sex_f     = 0L
)
events_ref <- build_events(ref_subjects)

sim_typical <- rxode2::rxSolve(
  mod_typical,
  events = events_ref,
  keep   = c("cyp2b6"),
  returnType = "data.frame"
) |>
  filter(time > 0) |>
  mutate(Cc_nmolL = Cc * 1e6 / 315.6745)
#> ℹ omega/sigma items treated as zero: 'etalq', 'etalvp', 'etalcl', 'etaldur2', 'etaltlag2', 'etaltlag1', 'etalka', 'etalvc'
#> Warning: multi-subject simulation without without 'omega'

Replicate published figures

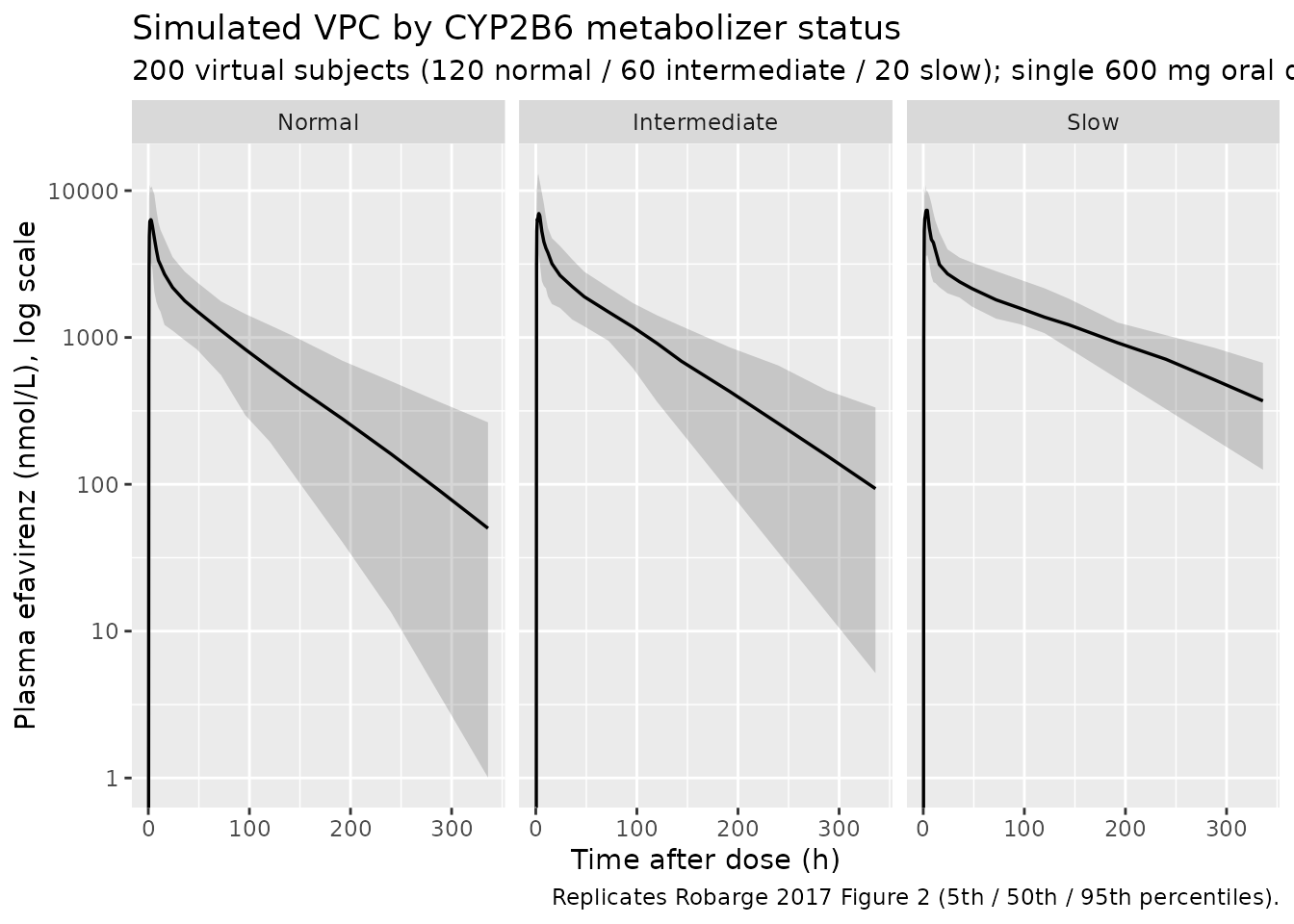

Figure 2 (visual predictive check by CYP2B6 metabolizer status)

Robarge 2017 Figure 2 shows VPCs of plasma efavirenz concentration vs. time for the three CYP2B6 metabolizer phenotypes. The simulated 5th, 50th, and 95th percentiles below are the analogous quantities; CYP2B6-poor subjects (n = 20) have a wider 5-95% band than the normal / intermediate panels, matching the paper’s commentary that prediction intervals are wider for slow metabolizers given the small 6/6 subgroup.

vpc_data <- sim |>
  mutate(cyp2b6 = factor(cyp2b6, levels = c("Normal", "Intermediate", "Slow"))) |>
  group_by(cyp2b6, time) |>
  summarise(
    Q05 = quantile(Cc_nmolL, 0.05, na.rm = TRUE),
    Q50 = quantile(Cc_nmolL, 0.50, na.rm = TRUE),
    Q95 = quantile(Cc_nmolL, 0.95, na.rm = TRUE),
    .groups = "drop"
  )

ggplot(vpc_data, aes(time, Q50)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.20) +
  geom_line(linewidth = 0.6) +
  facet_wrap(~ cyp2b6, ncol = 3) +
  scale_y_log10() +
  labs(
    x        = "Time after dose (h)",
    y        = "Plasma efavirenz (nmol/L), log scale",
    title    = "Simulated VPC by CYP2B6 metabolizer status",
    subtitle = "200 virtual subjects (120 normal / 60 intermediate / 20 slow); single 600 mg oral dose",
    caption  = "Replicates Robarge 2017 Figure 2 (5th / 50th / 95th percentiles)."
  )
#> Warning in scale_y_log10(): log-10 transformation introduced infinite values.
#> log-10 transformation introduced infinite values.
#> log-10 transformation introduced infinite values.

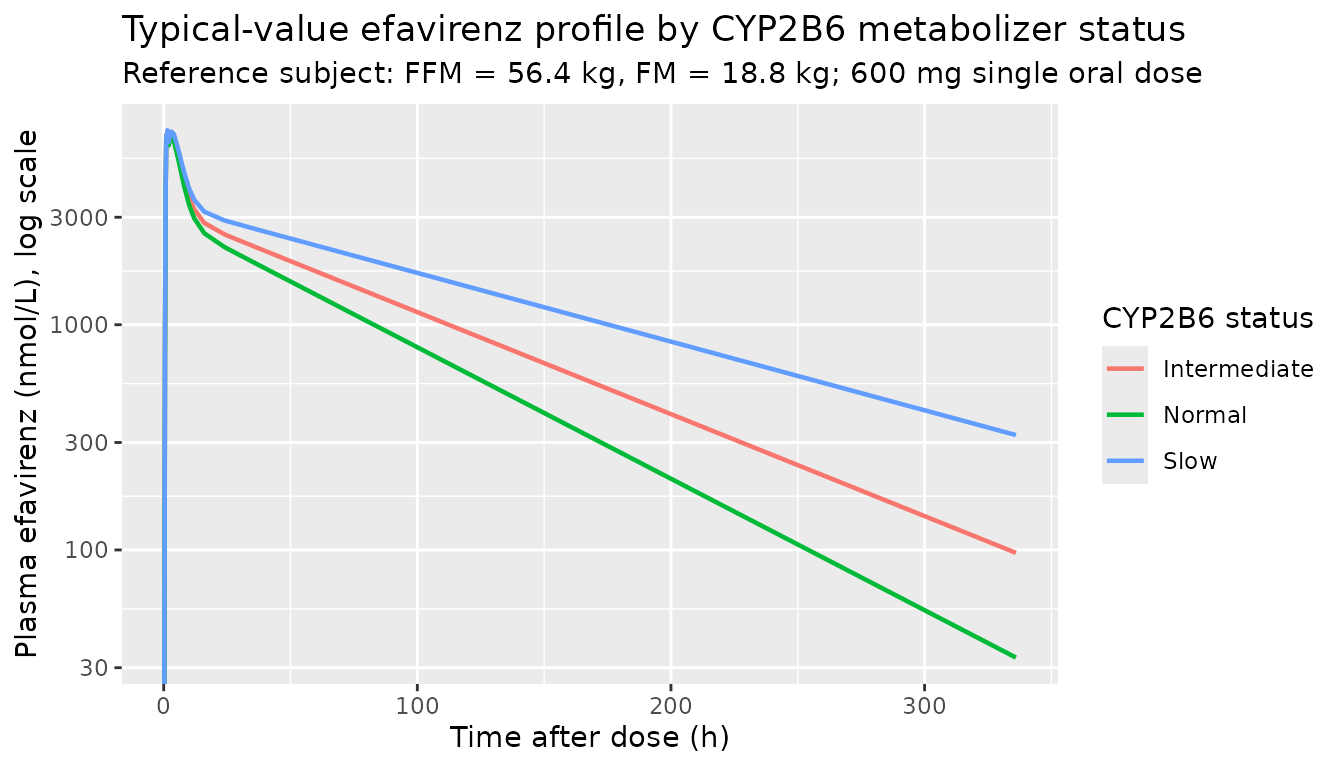

Typical-value reference trajectory

Typical-value (no BSV, no residual) profiles by CYP2B6 group at the cohort median FFM = 56.4 kg and FM = 18.8 kg.

ggplot(sim_typical, aes(time, Cc_nmolL, colour = cyp2b6)) +
  geom_line(linewidth = 0.8) +
  scale_y_log10() +
  labs(
    x = "Time after dose (h)",
    y = "Plasma efavirenz (nmol/L), log scale",
    colour = "CYP2B6 status",
    title = "Typical-value efavirenz profile by CYP2B6 metabolizer status",
    subtitle = "Reference subject: FFM = 56.4 kg, FM = 18.8 kg; 600 mg single oral dose"
  )
#> Warning in scale_y_log10(): log-10 transformation introduced infinite values.

PKNCA validation

PKNCA NCA values stratified by CYP2B6 metabolizer status. Concentrations are in nmol/L (converted from the model’s native mg/L) for direct comparability with Robarge 2017 Figure 2.
