Model and source

  • Citation: Luo M, Chapel S, Sevinsky H, Savant I, Cirincione B, Bertz R, Roy A. Population pharmacokinetics analysis to inform efavirenz dosing recommendations in pediatric HIV patients aged 3 months to 3 years. Antimicrob Agents Chemother. 2016;60(6):3676-3686. doi:10.1128/AAC.02678-15.
  • Description: Two-compartment population PK model with first-order absorption and elimination for oral efavirenz in pediatric HIV-1-infected patients (Luo 2016). Capsule / capsule-sprinkle formulation; body weight is a power covariate on CL/F, Vc/F, and Ka with reference 20 kg. The adult cohort (n = 24 healthy adults) and oral-solution formulation (study-specific Frel) reported in the same paper are documented in the validation vignette but not encoded as separate sub-models.
  • Article: https://doi.org/10.1128/AAC.02678-15

Luo et al. (2016) developed a population pharmacokinetic (popPK) model for efavirenz (EFV) using data from three pediatric HIV-1-infected cohorts (PACTG382, PACTG1021, and AI266922; n = 168) pooled with a healthy-adult relative-bioavailability study (AI266059; n = 24). The packaged model in nlmixr2lib focuses on the pediatric structural model that informed the weight-based dosing recommendations approved for children weighing 3.5 to < 10 kg.

Population

The Luo 2016 updated analysis dataset comprised 4,521 plasma efavirenz concentrations from 192 subjects: 3,289 concentrations (largely sparse sampling) from 168 pediatric patients aged 3 months to 21 years (weight 3.3 to 117 kg), and 1,232 concentrations (intensive sampling) from 24 healthy adults aged 20 to 45 years (weight 59.6 to 98.1 kg). Pediatric race distribution per Luo 2016 Table 2: 33.3% White, 52.4% Black/African- American, 14.3% Other; sex 52.4% female. All PK samples were collected after efavirenz had reached steady state (>= 2 weeks of daily dosing), so autoinduction is treated as fully expressed.

The same information is available programmatically:

str(rxode2::rxode(readModelDb("Luo_2016_efavirenz"))$population)
#> ℹ parameter labels from comments will be replaced by 'label()'
#> List of 13
#>  $ species       : chr "human"
#>  $ n_subjects    : int 168
#>  $ n_studies     : int 3
#>  $ age_range     : chr "0.2-24.7 years (pediatric studies; updated data set)"
#>  $ age_median    : chr "6.73 years (pediatric)"
#>  $ weight_range  : chr "3.3-117 kg"
#>  $ weight_median : chr "25.3 kg (pediatric)"
#>  $ sex_female_pct: num 52.4
#>  $ race_ethnicity: Named num [1:4] 33.3 52.4 14.3 0
#>   ..- attr(*, "names")= chr [1:4] "White" "Black_AA" "Other" "Asian"
#>  $ disease_state : chr "HIV-1 infection on combination antiretroviral therapy. Pediatric patients 3 months to 21 years of age. Patients"| __truncated__
#>  $ dose_range    : chr "Pediatric efavirenz doses ranging from 100 mg QD (children >= 3.5 to < 5 kg) up to a maximum of 1000 mg QD per "| __truncated__
#>  $ regions       : chr "Multi-center pediatric AIDS clinical trials (PACTG382 and PACTG1021 Phase I/II open-label; AI266922 Phase II open-label)."
#>  $ notes         : chr "Updated data set (Luo 2016 Methods 'Study data' paragraph 2): 4521 plasma efavirenz concentrations from 192 sub"| __truncated__

Source trace

Every ini() parameter in inst/modeldb/specificDrugs/Luo_2016_efavirenz.R carries a trailing comment pointing at the source location. The table below collects them in one place for review.

Equation / parameter Value Source location
Structural model: 2-cmt with first-order absorption + elimination n/a Luo 2016 Results ‘Base-model development’ paragraph 1
Reference pediatric subject: WT = 20 kg, age 6 y, non-AA / not Other, PART = 0, PINT = 0 n/a Luo 2016 Table 3 footnote a
lcl = log(4.8) 4.8 L/h Luo 2016 Table 3 final ‘CL_ref,ped’
lvc = log(84.9) 84.9 L Luo 2016 Table 3 final ‘V_C ref,ped’
lvp = log(287) 287 L Luo 2016 Table 3 final ‘V_P ref’ (shared between cohorts)
lq = log(6.01) 6.01 L/h Luo 2016 Table 3 final ‘Q_ref’ (shared between cohorts)
lka = log(0.414) 0.414 1/h Luo 2016 Table 3 final ‘K_a ref’
e_wt_cl = 0.57 unitless Luo 2016 Table 3 final ‘CL_ped,WT’
e_wt_vc = 1.35 unitless Luo 2016 Table 3 final ‘V_C ped,WT’
e_wt_ka = 0.768 unitless Luo 2016 Table 3 final ‘K_a ped,WT’
Covariate functional form P_TV = P1 * (R / R_ref)^P2 n/a Luo 2016 Methods ‘Development of the full model’
IIV etalcl ~ 0.602 log-scale variance Luo 2016 Table 3 final ‘IIV_CL ped’
IIV etalvc ~ 0.234 log-scale variance Luo 2016 Table 3 final ‘IIV_V_C, ped’
IIV etalq ~ 0.695 log-scale variance Luo 2016 Table 3 final ‘IIV_Q’
IIV etalvp ~ 0.296 log-scale variance Luo 2016 Table 3 final ‘IIV_V_P’
IIV etalka ~ 0.202 log-scale variance Luo 2016 Table 3 final ‘IIV_K_a’
Residual Cc ~ lnorm(sqrt(0.461)) log-scale variance 0.461 Luo 2016 Table 3 final ‘Capsule, pediatric studies’; Luo 2016 Methods ‘Base model development’ paragraph 2 for the log-normal residual form

Virtual cohort

Original observed data are not publicly available. The simulations below use virtual pediatric populations whose weight distributions span the weight bands relevant for the Luo 2016 dosing recommendations (3.5 to < 10 kg) plus a 20-kg reference subject for an at-the-reference weight check.

set.seed(20251102)

# Recommended Luo 2016 dose regimens (Discussion / Conclusion paragraph 2):
#   3.5 to <  5  kg: 100 mg QD
#   5   to <  7.5 kg: 150 mg QD
#   7.5 to < 10  kg: 200 mg QD
#   >= 10 kg (existing approved): weight-band-titrated; 20 kg corresponds
#                                 to the >= 15 to < 25 kg adult-equivalent
#                                 band (300 mg QD per the existing pediatric
#                                 dosing table referenced in Luo 2016).
dose_table <- tibble::tribble(
  ~weight_band,     ~wt_kg, ~dose_mg,
  "3.5 to <5 kg",     4.25,    100,
  "5 to <7.5 kg",     6.25,    150,
  "7.5 to <10 kg",    8.75,    200,
  ">=10 kg ref",     20.0,    300
)

tau          <- 24      # QD dosing
n_per_band   <- 100L    # subjects per weight band
n_days_total <- 21      # 3 weeks of QD dosing -> steady state at day 14+ for EFV
end_time     <- n_days_total * tau

# Observation grid covering the final dosing interval at steady state
ss_start <- (n_days_total - 1) * tau          # 480 h
ss_end   <- ss_start + tau                    # 504 h
obs_grid_ss <- ss_start +
  c(0, 0.5, 1, 1.5, 2, 3, 4, 6, 8, 10, 12, 14, 16, 20, 24)

make_cohort <- function(weight_band, wt_kg, dose_mg, n, id_offset) {
  id_vec <- id_offset + seq_len(n)
  # Doses every 24 h up to the day before steady-state observation
  dose_times <- seq(0, ss_start, by = tau)
  doses <- tidyr::expand_grid(id = id_vec, time = dose_times) |>
    dplyr::mutate(
      evid = 1L,
      amt  = dose_mg,
      cmt  = "depot",
      WT   = wt_kg,
      weight_band = weight_band,
      dose_mg     = dose_mg
    )
  obs <- tidyr::expand_grid(id = id_vec, time = obs_grid_ss) |>
    dplyr::mutate(
      evid = 0L,
      amt  = NA_real_,
      cmt  = NA_character_,
      WT   = wt_kg,
      weight_band = weight_band,
      dose_mg     = dose_mg
    )
  dplyr::bind_rows(doses, obs) |>
    dplyr::arrange(id, time, dplyr::desc(evid))
}

events <- dplyr::bind_rows(
  make_cohort("3.5 to <5 kg",  4.25, 100, n_per_band, id_offset =   0L),
  make_cohort("5 to <7.5 kg",  6.25, 150, n_per_band, id_offset = 100L),
  make_cohort("7.5 to <10 kg", 8.75, 200, n_per_band, id_offset = 200L),
  make_cohort(">=10 kg ref",  20.0, 300, n_per_band, id_offset = 300L)
)

stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid")])))

Simulation

mod <- readModelDb("Luo_2016_efavirenz")
sim <- rxode2::rxSolve(
  mod,
  events = events,
  keep   = c("weight_band", "dose_mg")
) |>
  as.data.frame()
#> ℹ parameter labels from comments will be replaced by 'label()'

For deterministic typical-value replication (no IIV, no residual), zero out the random effects:

mod_typical <- mod |> rxode2::zeroRe()
#> ℹ parameter labels from comments will be replaced by 'label()'
sim_typical <- rxode2::rxSolve(
  mod_typical,
  events = events,
  keep   = c("weight_band", "dose_mg")
) |>
  as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalq', 'etalvp', 'etalka'
#> Warning: multi-subject simulation without without 'omega'

Replicate published figure

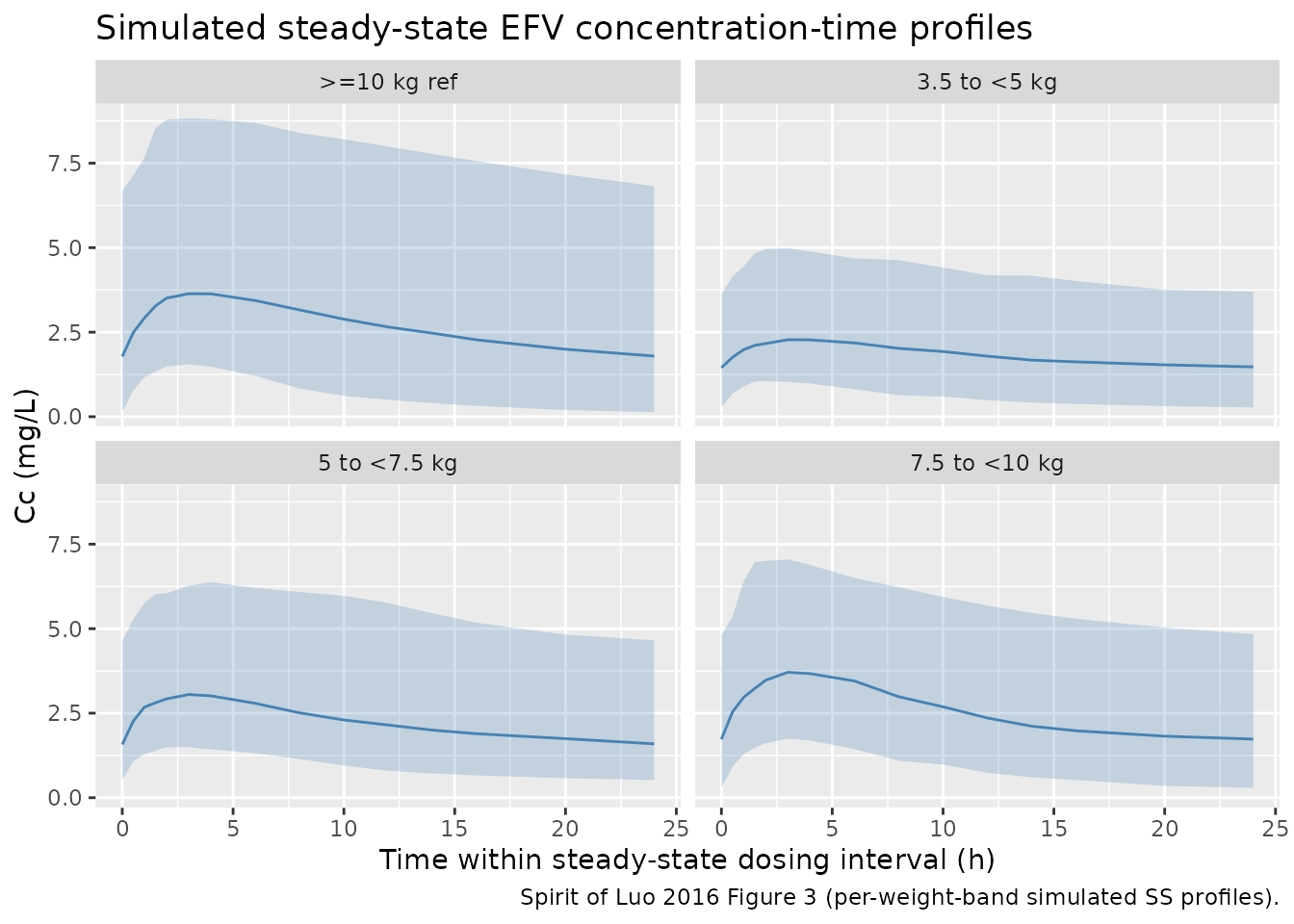

The figure below replicates the qualitative spirit of Luo 2016 Figure 3 (simulated steady-state EFV exposure by weight band at the recommended QD doses). The horizontal reference band shows the adult AUCss target range used by Luo 2016 to anchor the pediatric dose selection (190 to 380 micromolar*hour; converted to mass concentration below).

efv_mw <- 315.7  # g/mol; efavirenz molecular weight (PubChem CID 64139)

# Convert AUC target from uM*h to mg*h/L (= ug*h/mL): uM * MW / 1000
auc_target_low  <- 190 * efv_mw / 1000  # ~60 mg*h/L
auc_target_high <- 380 * efv_mw / 1000  # ~120 mg*h/L

sim |>
  dplyr::filter(time >= ss_start) |>
  dplyr::mutate(time_in_interval = time - ss_start) |>
  dplyr::group_by(time_in_interval, weight_band) |>
  dplyr::summarise(
    Q05 = quantile(Cc, 0.05, na.rm = TRUE),
    Q50 = quantile(Cc, 0.50, na.rm = TRUE),
    Q95 = quantile(Cc, 0.95, na.rm = TRUE),
    .groups = "drop"
  ) |>
  ggplot(aes(time_in_interval, Q50)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.25, fill = "steelblue") +
  geom_line(color = "steelblue") +
  facet_wrap(~weight_band) +
  labs(
    x = "Time within steady-state dosing interval (h)",
    y = "Cc (mg/L)",
    title = "Simulated steady-state EFV concentration-time profiles",
    caption = "Spirit of Luo 2016 Figure 3 (per-weight-band simulated SS profiles)."
  )

PKNCA validation

We compute steady-state NCA over the final dosing interval and compare the simulated mean / median AUCss, Cmax, and Cmin by weight band against the adult target range (Luo 2016 Methods ‘Model-based simulation’) and against the 10 to < 15 kg reference Cmax / Cmin ranges (Luo 2016 Methods, final paragraph).

sim_nca <- sim |>
  dplyr::filter(!is.na(Cc)) |>
  dplyr::select(id, time, Cc, weight_band, dose_mg) |>
  as.data.frame()

dose_df <- events |>
  dplyr::filter(evid == 1) |>
  dplyr::group_by(id, weight_band, dose_mg) |>
  dplyr::summarise(time = max(time), amt = dplyr::last(amt), .groups = "drop") |>
  as.data.frame()

conc_obj <- PKNCA::PKNCAconc(
  sim_nca,
  Cc ~ time | weight_band + id,
  concu = "mg/L",
  timeu = "h"
)
dose_obj <- PKNCA::PKNCAdose(
  dose_df,
  amt ~ time | weight_band + id,
  doseu = "mg"
)

intervals <- data.frame(
  start    = ss_start,
  end      = ss_end,
  cmax     = TRUE,
  tmax     = TRUE,
  cmin     = TRUE,
  auclast  = TRUE,
  cav      = TRUE
)

nca_data <- PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals)
nca_res  <- suppressWarnings(PKNCA::pk.nca(nca_data))

nca_tbl <- as.data.frame(nca_res$result) |>
  dplyr::filter(PPTESTCD %in% c("auclast", "cmax", "cmin", "cav")) |>
  dplyr::group_by(weight_band, PPTESTCD) |>
  dplyr::summarise(
    median = signif(median(PPORRES, na.rm = TRUE), 3),
    q05    = signif(quantile(PPORRES, 0.05, na.rm = TRUE), 3),
    q95    = signif(quantile(PPORRES, 0.95, na.rm = TRUE), 3),
    .groups = "drop"
  ) |>
  tidyr::pivot_wider(
    names_from  = PPTESTCD,
    values_from = c(median, q05, q95),
    names_glue  = "{PPTESTCD}_{.value}"
  )

knitr::kable(nca_tbl, caption = "Simulated steady-state NCA by weight band (final 24 h interval).")
Simulated steady-state NCA by weight band (final 24 h interval).
weight_band auclast_median cav_median cmax_median cmin_median auclast_q05 cav_q05 cmax_q05 cmin_q05 auclast_q95 cav_q95 cmax_q95 cmin_q95
3.5 to <5 kg 44.1 1.84 2.42 1.45 14.1 0.588 1.14 0.271 99.7 4.16 5.01 3.62
5 to <7.5 kg 52.1 2.17 3.09 1.57 23.8 0.993 1.49 0.521 132.0 5.52 6.38 4.64
7.5 to <10 kg 58.3 2.43 3.79 1.73 20.4 0.848 1.74 0.288 136.0 5.68 7.05 4.81
>=10 kg ref 63.8 2.66 3.66 1.78 17.8 0.744 1.57 0.135 186.0 7.77 8.98 6.67

Comparison against published targets

auc_summary <- as.data.frame(nca_res$result) |>
  dplyr::filter(PPTESTCD == "auclast") |>
  dplyr::group_by(weight_band) |>
  dplyr::summarise(
    auc_median_mg_h_L = signif(median(PPORRES, na.rm = TRUE), 3),
    auc_median_uM_h   = signif(median(PPORRES, na.rm = TRUE) / efv_mw * 1000, 3),
    .groups = "drop"
  )

published_targets <- tibble::tibble(
  reference = c(
    "Adult AUCss target lower (median, 600 mg QD)",
    "Adult AUCss target upper (2 x median)",
    "Reference Cmax (10 to <15 kg) lower bound",
    "Reference Cmax (10 to <15 kg) upper bound",
    "Reference Cmin (10 to <15 kg) lower bound",
    "Reference Cmin (10 to <15 kg) upper bound"
  ),
  value     = c(190, 380, 5.2, 8.2, 1.9, 2.9),
  units     = c("uM*h", "uM*h", "mg/L", "mg/L", "mg/L", "mg/L")
)

knitr::kable(auc_summary,
             caption = "Simulated median AUCss by weight band, in mg*h/L and uM*h.")
Simulated median AUCss by weight band, in mgh/L and uMh.
weight_band auc_median_mg_h_L auc_median_uM_h
3.5 to <5 kg 44.1 140
5 to <7.5 kg 52.1 165
7.5 to <10 kg 58.3 185
>=10 kg ref 63.8 202

knitr::kable(published_targets,
             caption = "Luo 2016 reference target ranges.")
Luo 2016 reference target ranges.
reference value units
Adult AUCss target lower (median, 600 mg QD) 190.0 uM*h
Adult AUCss target upper (2 x median) 380.0 uM*h
Reference Cmax (10 to <15 kg) lower bound 5.2 mg/L
Reference Cmax (10 to <15 kg) upper bound 8.2 mg/L
Reference Cmin (10 to <15 kg) lower bound 1.9 mg/L
Reference Cmin (10 to <15 kg) upper bound 2.9 mg/L

Assumptions and deviations

  • Pediatric scope. The packaged model encodes only the pediatric arm of the Luo 2016 joint adult + pediatric analysis. Luo 2016 estimated separate reference values for adult subjects (CL_ref,adult = 3.66 L/h, Vc_ref,adult = 188 L, T_lag,adult = 0.633 h) with their own IIVs (CL variance 0.158, Vc variance 0.132) and their own residual error (variance 0.212). Q and Vp are shared across cohorts and are encoded with their joint point estimates. Adults can be approximated by this packaged model using WT = 80 kg only with substantial bias because the model does not apply the adult-specific reference shift; users who need the adult arm should re-fit with cohort-specific reference values.
  • Formulation scope. The model assumes capsule or capsule-sprinkle formulation (F = 1). Luo 2016 Table 3 reports study-specific oral solution Frel adjustments (PACTG382: -0.346 -> 0.654; PACTG1021: -0.0509 -> 0.949; AI266922: -0.754 -> 0.246). These adjustments fit historical pediatric solution-formulation data and are not encoded here. The capsule-sprinkle formulation was shown bioequivalent to capsules in adults (Luo 2016 Methods, study AI266059).
  • PART covariate not encoded. Luo 2016 Table 3 final model retained a prior-antiretroviral-therapy effect on pediatric CL with point estimate 0.381 +/- 0.401 (SE > estimate; 90% CI crosses 0). The Luo 2016 Discussion explicitly notes “caution should be exercised in interpreting this effect as prior antiretroviral therapy is likely confounded with the effect of study PACTG1021 on CL. Therefore, it could be a study effect instead of the effect of prior antiretroviral therapy.” The pediatric dosing-recommendation simulations in Luo 2016 Figure 3 use the typical pediatric model with PART = 0, so omitting this covariate from the packaged structural model does not affect the headline dosing recommendations.
  • CYP2B6 pharmacogenomic analyses not encoded. Luo 2016 Tables 5 (CYP2B6 covariate on CL) and 6 (mixture model with two metabolizer subgroups) are exploratory ad hoc analyses. The paper concluded the identification of CYP2B6 genetic status is not predictive of EFV exposure for guiding pediatric dosing. A separate Olagunju 2018 efavirenz model in nlmixr2lib (Olagunju_2018_efavirenz) encodes a composite CYP2B6 metabolizer-status covariate on EFV CL/F.
  • Residual error form. Luo 2016 Methods ‘Development of the base model’ explicitly specifies a log-normal residual distribution (Y_obs = Y_pred * exp(eps), eps ~ N(0, sigma^2)). This is encoded as Cc ~ lnorm(expSd) with expSd = sqrt(0.461) = 0.679 for the pediatric capsule / capsule-sprinkle subset. The pediatric oral solution residual (variance 0.784 -> expSd = 0.885) and the adult residual (variance 0.212 -> expSd = 0.460) are documented here for completeness but not encoded.
  • Reference subject demographics. Per Luo 2016 Table 3 footnote a, the reference pediatric subject is male, weight 20 kg, age 6 y, race non-African-American and not Other, no prior antiretroviral therapy, no concomitant protease inhibitor. The packaged model encodes the weight reference 20 kg; the other reference demographics no longer matter once age / sex / race / PINT / PART are dropped from the final model.
  • Bioavailability anchor. No explicit f(depot) is set in model() because for the capsule / capsule-sprinkle scope F = 1 (rxode2 default). All CL, Vc, Vp, Q in this model are apparent oral parameters (CL/F, Vc/F, etc.) per the source paper’s convention for oral dosing.
