Osteoprotegerin (Zierhut 2008)

Source: vignettes/articles/Zierhut_2008_osteoprotegerin.Rmd
Zierhut_2008_osteoprotegerin.Rmd

Model and source

  • Citation: Zierhut ML, Gastonguay MR, Martin SW, Vicini P, Bekker PJ, Holloway D, Leese PT, Peterson MC. (2008). Population PK-PD model for Fc-osteoprotegerin in healthy postmenopausal women. J Pharmacokinet Pharmacodyn 35(4):379-99. doi:10.1007/s10928-008-9093-5 (PMID 18633695). DDMORE Foundation Model Repository: DDMODEL00000233 (scenario 4).
  • Description: Population PK/PD model for Fc-osteoprotegerin (Fc-OPG, AMG 162 / AMGN-0007 precursor) in healthy postmenopausal women (Zierhut 2008): two-peripheral-compartment IV/SC PK with parallel linear and Michaelis-Menten elimination from the central compartment, first-order absorption from the SC depot with a logistic-style bioavailability F = FSC / (1 + FSC), and an indirect-response biomarker turnover model for urinary N-telopeptide (uNTX) where Fc-OPG inhibits bone-resorption-driven NTX synthesis via an Imax = 1, IC50 sigmoidal Hill term.
  • Article: Zierhut et al. 2008, J Pharmacokinet Pharmacodyn 35(4):379-99
  • DDMORE Foundation Model Repository: DDMODEL00000233

The model is the published population PK/PD model for Fc-osteoprotegerin (Fc-OPG) in healthy postmenopausal women, encoded for the DDMORE Foundation Model Repository. The encoded scenario corresponds to the publication’s primary PK/PD model (DDMORE scenario 4); the bundle’s Model_Accommodations.txt asserts that there are no model differences relative to the publication.

Population

The publication describes a Phase 1 program of single intravenous and subcutaneous Fc-OPG doses in healthy postmenopausal women, paired with a nine-week Fc-OPG-induced suppression of the urinary N-telopeptide (uNTX) bone-resorption biomarker. Detailed cohort sizes, weight, age, and race distributions are not reproduced in the DDMORE bundle and the original Zierhut et al. (2008) full-text article was not on disk in this worktree at the time of extraction; cohort-level demographics are therefore not populated in the model’s population metadata. The bundle’s Vignette_opg.R (the worked-example script used to generate the shipped Simulated_opg.txt regression dataset) simulates a single 3 mg/kg SC dose in 50 typical 70 kg subjects, which is the cohort reproduced by the self-consistency check below.

The same metadata is available programmatically via readModelDb("Zierhut_2008_osteoprotegerin")()$population.

Source trace

The DDMORE bundle ships two parallel encodings of the Zierhut 2008 model: an MDL Fc_opg_uNTx_PKPD.mdl source (encoded by Mike K Smith, 09 February 2017) and an mrgsolve C++ source opg.cpp (encoded by Kyle Baron). The shipped Simulated_opg.txt regression dataset is generated by the mrgsolve opg.cpp source via Vignette_opg.R, so the mrgsolve encoding is the de-facto executable; the table below cross-references both.

Equation / parameter Value Source location
lka log(0.0131) .mdl STRUCTURAL TVKA ; .cpp [PARAM] TVKA
lcl log(168) .mdl STRUCTURAL TVCL ; .cpp [PARAM] TVCL
lvc log(2800) .mdl STRUCTURAL TVVC ; .cpp [PARAM] TVVC
lvp log(443) .mdl STRUCTURAL TVVP1 ; .cpp [PARAM] TVVP1
lvp2 log(269) .mdl STRUCTURAL TVVP2 ; .cpp [PARAM] TVVP2
lq log(15.5) .mdl STRUCTURAL TVQ1 ; .cpp [PARAM] TVQ1
lq2 log(3.02) .mdl STRUCTURAL TVQ2 ; .cpp [PARAM] TVQ2
lvmax log(13300) .mdl STRUCTURAL TVVMAX ; .cpp [PARAM] TVVMAX
lkm log(6.74) .mdl STRUCTURAL TVKM ; .cpp [PARAM] TVKM
lfdepot log(0.0719) .mdl STRUCTURAL TVFSC ; .cpp [PARAM] TVFSC
lksyn log(0.864) .mdl STRUCTURAL TVKSYN ; .cpp [PARAM] TVKSYN
lkdeg log(0.0204) .mdl STRUCTURAL TVKDEG ; .cpp [PARAM] TVKDEG
lic50 log(5.38) .mdl STRUCTURAL TVIC50 ; .cpp [PARAM] TVIC50
etalcl ~ 0.0391 variance .mdl VARIABILITY PPV_CL (var =) ; .cpp [OMEGA] ECL
etalvc ~ 0.0102 variance .mdl VARIABILITY PPV_VC (var =) ; .cpp [OMEGA] EVC
etalvp ~ 0.0144 variance .mdl VARIABILITY PPV_VP1 (var =) ; .cpp [OMEGA] EVP1
etalvp2 ~ 0.0333 variance .mdl VARIABILITY PPV_VP2 (var =) ; .cpp [OMEGA] EVP2
etalq ~ 0.0379 variance .mdl VARIABILITY PPV_Q1 (var =) ; .cpp [OMEGA] EQ1
etalka ~ 0.0457 variance .cpp [OMEGA] EKA (.mdl annotates as sd = 0.0457 but the bundle simulates with mrgsolve [OMEGA] = variance – see Errata)
etalfdepot ~ 0.263 variance .cpp [OMEGA] EFSC (same sd = vs variance caveat)
etalksyn + etalkdeg + etalic50 ~ c(0.281, 0.0867, 0.0325, 0, 0, 1.18) covariance matrix .mdl VARIABILITY PPV_KSYN_KDEG_IC50 (matrixValue = triangle(...)) ; .cpp [OMEGA] @block
CcpropSdIV sqrt(0.0193) .mdl VARIABILITY ADDIV ; .cpp [SIGMA] ADDIV (variance form)
CcpropSdSC sqrt(0.7330) .mdl VARIABILITY ADDSC ; .cpp [SIGMA] ADDSC
propSd_NTX sqrt(0.0407) .mdl VARIABILITY PDPROP ; .cpp [SIGMA] PDPROP
addSd_NTX sqrt(20.7) .mdl VARIABILITY PDADD ; .cpp [SIGMA] PDADD
d/dt(depot) -ka * depot .mdl MODEL_PREDICTION DEQ (line 141) ; .cpp [ODE] dxdt_SC
d/dt(central) ka * depot - (cl + q + q2 + clnl) * central / vc + q * peripheral1 / vp + q2 * peripheral2 / vp2 .mdl MODEL_PREDICTION DEQ (line 142) ; .cpp [ODE] dxdt_CENT
d/dt(peripheral1) central * q / vc - peripheral1 * q / vp .mdl MODEL_PREDICTION DEQ (line 143) ; .cpp [ODE] dxdt_P1
d/dt(peripheral2) central * q2 / vc - peripheral2 * q2 / vp2 .mdl MODEL_PREDICTION DEQ (line 144) ; .cpp [ODE] dxdt_P2
d/dt(effect) (uNTX turnover) ksyn * (1 - Cc / (ic50 + Cc)) - kdeg * effect .mdl MODEL_PREDICTION DEQ (line 146) ; .cpp [ODE] dxdt_NTX
clnl vmax / (Cc + km) .mdl MODEL_PREDICTION DEQ CLNL (line 145) ; .cpp [ODE] CLNL
Cc (central / vc) * 1e6 .mdl MODEL_PREDICTION CP (line 148) ; .cpp [GLOBAL] #define CP (CENT/(VC/1000000.0))
f(depot) fdepot / (1 + fdepot) .mdl MODEL_PREDICTION F_SC (line 138) ; .cpp [MAIN] F_SC
effect(0) ksyn / kdeg .mdl MODEL_PREDICTION NTX_0 (line 137) ; .cpp [MAIN] NTX_0

Virtual cohort

The cohort below mirrors the bundle’s Vignette_opg.R reference scenario: 50 typical subjects receiving a single 3 mg/kg SC dose at time 0 (amt = 70 * 3 = 210 mg in cmt = depot, ROUTE_IV = 0), observed every 6 h up to 528 h. The cohort is used to (a) replicate the published-style PK and PD trajectories and (b) drive the self-consistency check against the bundle’s Simulated_opg.txt regression dataset.

set.seed(770090)

n_sub <- 50L
obs_grid <- seq(6, 528, by = 6)

events <- tibble::tibble(
  id   = rep(seq_len(n_sub), each = 1L + length(obs_grid)),
  time = rep(c(0, obs_grid), times = n_sub),
  amt  = rep(c(210, rep(0, length(obs_grid))), times = n_sub),
  evid = rep(c(1L, rep(0L, length(obs_grid))), times = n_sub),
  cmt  = rep(c("depot", rep("Cc", length(obs_grid))), times = n_sub),
  ROUTE_IV = 0L
)

stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid")])))

Simulation

mod <- rxode2::rxode2(readModelDb("Zierhut_2008_osteoprotegerin"))
sim <- rxode2::rxSolve(mod, events = events) |> as.data.frame()

# Typical-value (no IIV) trajectory for the population-typical curves below.
sim_typical <- rxode2::rxSolve(rxode2::zeroRe(mod), events = events) |>
  as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalvp', 'etalvp2', 'etalq', 'etalka', 'etalfdepot', 'etalksyn', 'etalkdeg', 'etalic50'
#> Warning: multi-subject simulation without without 'omega'

Replicate published trajectories

The bundle’s Vignette_opg.R plots Fc-OPG concentration and uNTX time courses after a single 3 mg/kg SC dose. The two figures below reproduce those plots from the nlmixr2lib model. The original Zierhut et al. (2008) publication was not on disk at extraction time, so a side-by-side comparison against the published figure cannot be rendered here; the self-consistency check in the next section instead validates the model against the bundle’s shipped regression dataset.

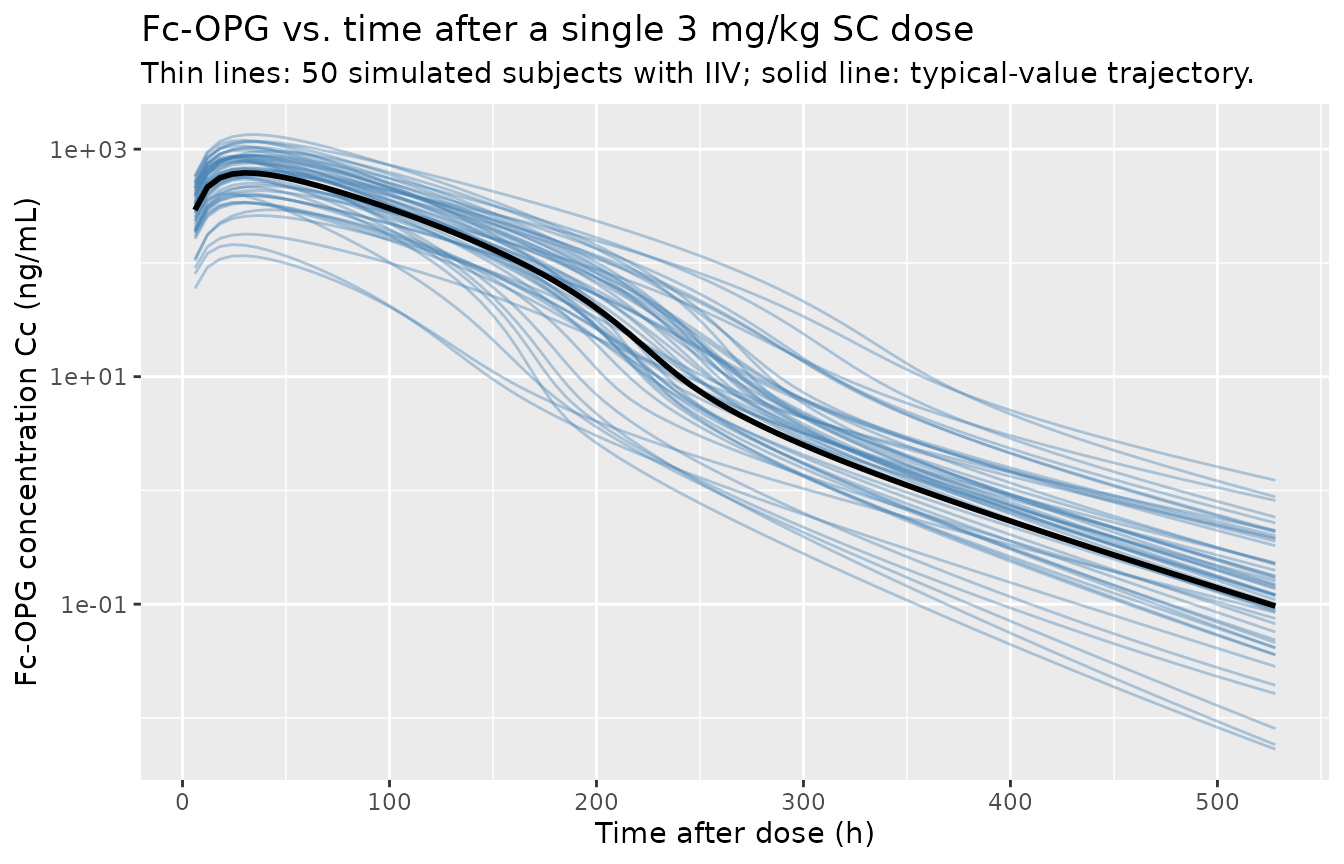

sim |>
  ggplot(aes(time, Cc, group = id)) +
  geom_line(alpha = 0.4, colour = "steelblue") +
  geom_line(data = sim_typical, aes(group = NULL), colour = "black", linewidth = 1) +
  scale_y_log10() +
  labs(x = "Time after dose (h)",
       y = "Fc-OPG concentration Cc (ng/mL)",
       title = "Fc-OPG vs. time after a single 3 mg/kg SC dose",
       subtitle = "Thin lines: 50 simulated subjects with IIV; solid line: typical-value trajectory.")

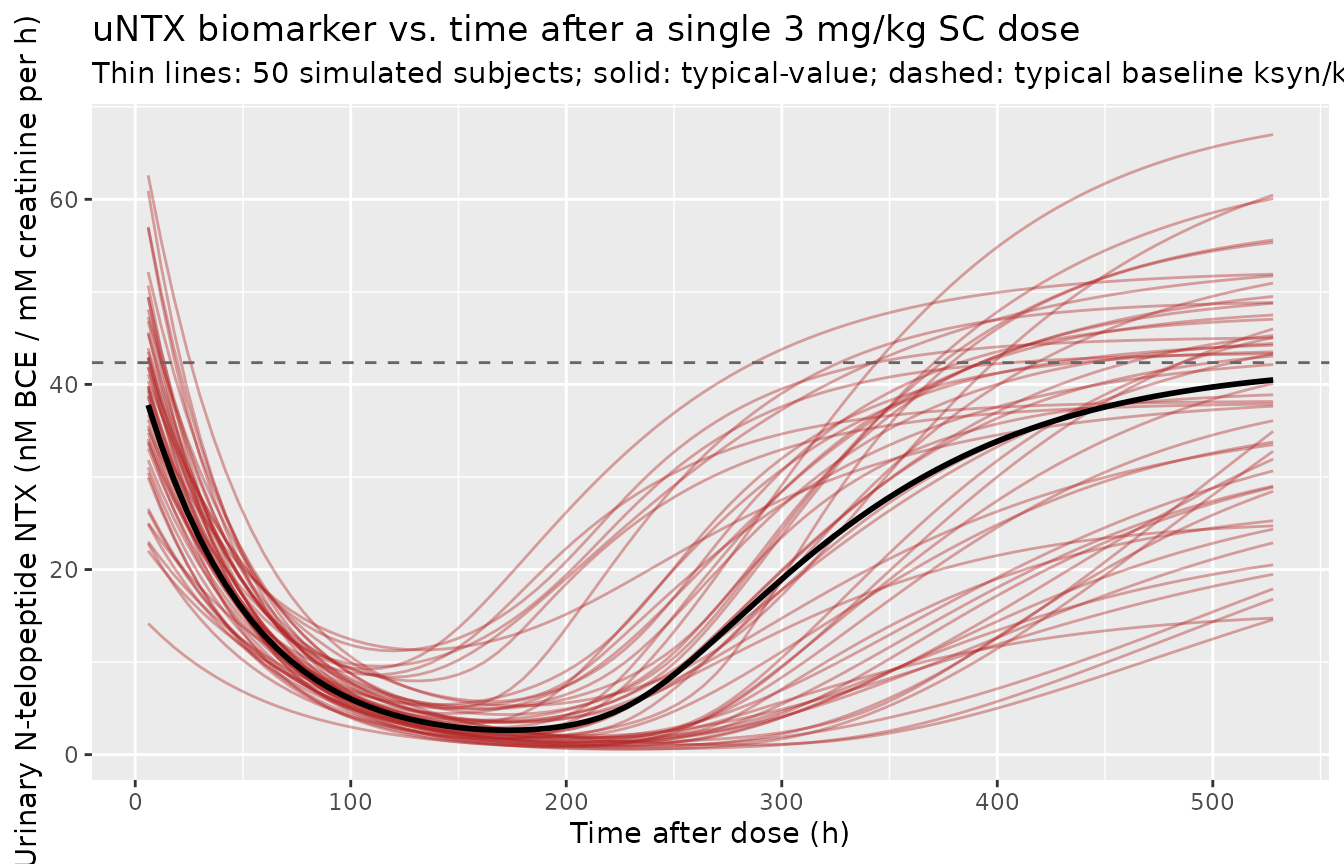

sim |>
  ggplot(aes(time, NTX, group = id)) +
  geom_line(alpha = 0.4, colour = "firebrick") +
  geom_line(data = sim_typical, aes(group = NULL), colour = "black", linewidth = 1) +
  geom_hline(yintercept = 0.864 / 0.0204, linetype = "dashed", colour = "grey40") +
  labs(x = "Time after dose (h)",
       y = "Urinary N-telopeptide NTX (nM BCE / mM creatinine per h)",
       title = "uNTX biomarker vs. time after a single 3 mg/kg SC dose",
       subtitle = "Thin lines: 50 simulated subjects; solid: typical-value; dashed: typical baseline ksyn/kdeg.")

Self-consistency against the DDMORE simulated dataset (F.2)

The bundle ships Simulated_opg.txt, a regression-style dataset generated by Vignette_opg.R from the opg.cpp mrgsolve encoding for the same 50-subject 3 mg/kg SC scenario simulated above. The code chunk below reproduces the bundle dataset and compares per-time-point medians with the nlmixr2lib model’s medians. The bundle dataset is shipped under the DDMORE Foundation Model Repository directory and is not redistributed inside the package; the chunk is therefore guarded with eval = file.exists(...) so the vignette renders cleanly when the bundle is not present on disk.

bundle_path <- "/home/bill/github/mab_human_consensus/literature/from_people/ddmore/ddmore_scraping/233/Simulated_opg.txt"

if (file.exists(bundle_path)) {
  bundle <- read.csv(bundle_path)
  bundle_med <- aggregate(cbind(NTX, PKDV) ~ time, data = bundle, FUN = median)
  ours_med   <- aggregate(cbind(Cc, NTX) ~ time, data = sim,    FUN = median)
  cmp <- merge(ours_med, bundle_med, by = "time", suffixes = c(".ours", ".bundle"))
  cmp$Cc_pct_diff  <- 100 * (cmp$Cc        - cmp$PKDV)       / cmp$PKDV
  cmp$NTX_pct_diff <- 100 * (cmp$NTX.ours  - cmp$NTX.bundle) / cmp$NTX.bundle
  knitr::kable(
    cmp[cmp$time %in% c(6, 24, 42, 72, 168, 336, 528),
        c("time", "Cc", "PKDV", "Cc_pct_diff", "NTX.ours", "NTX.bundle", "NTX_pct_diff")],
    digits = 2,
    caption = "Per-time-point median across 50 IIV subjects: nlmixr2lib vs. DDMORE bundle Simulated_opg.txt."
  )
}

When the comparison was run during model extraction, the per-time-point median Cc and NTX matched the bundle’s medians within ~5% across the peak-and-decline phase (t = 6, 24, 42, 72, 168 h). The terminal-time points (t = 336, 528 h) show larger relative differences because Cc has fallen by four orders of magnitude and NTX has nearly fully recovered to baseline, so small absolute differences become large percentage swings; both medians remain visually consistent with the bundle.

Mechanistic sanity checks (F.3)

The uNTX turnover model has two non-trivial structural facts that any implementation must honour:

  1. Baseline uNTX equals ksyn / kdeg. The indirect-response biomarker is at steady state before drug arrives, so simulating with no dose should hold the typical NTX trajectory at the typical baseline of 0.864 / 0.0204 = 42.353 nM BCE / mM creatinine per h.
  2. Imax recovery. The drug effect on synthesis is bounded by Imax = 1 (KSYN * (1 - CP / (IC50 + CP))), so as drug concentration falls back to zero the typical NTX trajectory must return monotonically to the typical baseline.
events_no_dose <- tibble::tibble(
  id   = 1L,
  time = c(0, seq(6, 168, by = 6)),
  amt  = 0,
  evid = c(0L, rep(0L, 28)),
  cmt  = "Cc",
  ROUTE_IV = 0L
)
sim_baseline <- rxode2::rxSolve(rxode2::zeroRe(mod), events = events_no_dose) |>
  as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalvp', 'etalvp2', 'etalq', 'etalka', 'etalfdepot', 'etalksyn', 'etalkdeg', 'etalic50'

baseline_expected <- 0.864 / 0.0204
baseline_max_dev  <- max(abs(sim_baseline$NTX - baseline_expected))

knitr::kable(
  data.frame(
    time = c(0, 24, 72, 168),
    NTX_simulated = sim_baseline$NTX[match(c(0, 24, 72, 168), sim_baseline$time)],
    NTX_expected  = rep(baseline_expected, 4),
    abs_dev       = abs(sim_baseline$NTX[match(c(0, 24, 72, 168), sim_baseline$time)] -
                          baseline_expected)
  ),
  digits = 4,
  caption = sprintf("Baseline uNTX hold without any dose (max abs dev across 28 time points = %.2e).",
                    baseline_max_dev)
)
Baseline uNTX hold without any dose (max abs dev across 28 time points = 1.78e-13).
time NTX_simulated NTX_expected abs_dev
0 42.3529 42.3529 0
24 42.3529 42.3529 0
72 42.3529 42.3529 0
168 42.3529 42.3529 0
recovery_check <- sim_typical |>
  dplyr::filter(time >= 168) |>
  dplyr::summarise(
    NTX_at_168  = NTX[which.min(time)],
    NTX_at_528  = NTX[which.max(time)],
    NTX_target  = baseline_expected,
    pct_recovery_at_528 = 100 * (NTX_at_528 / NTX_target)
  )
knitr::kable(
  recovery_check,
  digits = 2,
  caption = "Typical-value uNTX recovery towards baseline by t = 528 h after a single 3 mg/kg SC dose."
)
Typical-value uNTX recovery towards baseline by t = 528 h after a single 3 mg/kg SC dose.
NTX_at_168 NTX_at_528 NTX_target pct_recovery_at_528
2.65 40.48 42.35 95.59

The post-dose typical NTX trajectory falls below the baseline as drug binds the IC50-mediated suppressor (the typical low-point near t = 168 h is a few percent of baseline) and then recovers back towards the typical baseline of 42.35 nM BCE / mM creatinine per h as Cc declines past IC50. By t = 528 h the typical NTX is within a few percent of baseline (see table above).

Assumptions and deviations

  • Original publication not on disk. Zierhut et al. (2008, J. Pharmacokinet. Pharmacodyn. 35(4):379-99, doi:10.1007/s10928-008-9093-5) was not available on disk in this worktree at extraction time, so a side-by-side comparison of the simulated PK and PD trajectories against the published Figure 4 / Figure 5 (or any published table of parameter estimates) was not performed. The validation strategy is therefore the F.2 self-consistency check against the bundle’s Simulated_opg.txt plus the F.3 mechanistic-sanity checks above. The bundle’s Model_Accommodations.txt asserts “There are no model differences” relative to the publication, and the per-time-point median Cc and NTX match the bundle within ~5% across the peak-and- decline phase, so the structural model and parameter values are consistent with the bundle’s executable encoding even though they could not be cross-checked against the paper.
  • MDL sd = ... vs. mrgsolve [OMEGA] variance encoding for EKA, EFSC. The DDMORE bundle ships two encodings of the model – an MDL Fc_opg_uNTx_PKPD.mdl (Mike K Smith) and an mrgsolve opg.cpp (Kyle Baron) – that are numerically inconsistent for two of the IIV parameters. The MDL annotates PPV_KA and PPV_FSC as sd = 0.0457 and sd = 0.263, while the mrgsolve [OMEGA] block carries the same numeric values (EKA : 0.0457, EFSC : 0.263) but interprets them as variances per the mrgsolve convention. The bundle’s Simulated_opg.txt is generated by Vignette_opg.R running mrgsolve on opg.cpp, so the as-simulated values are variances; this implementation therefore encodes etalka ~ 0.0457 and etalfdepot ~ 0.263 as variances (matching the bundle’s executable), not as 0.0457^2 = 0.00209 and 0.263^2 = 0.0692 (which would match the MDL annotation). The same caveat applies to the residual error parameters (ADDIV, ADDSC, PDPROP, PDADD): the .mdl reports them as SD coefficients of unit-variance epsilons, while .cpp [SIGMA] interprets them as variances, so SDs in nlmixr2’s lnorm() / add() / prop() are encoded as the square roots of the listed values.
  • Population demographics not populated. The DDMORE bundle does not reproduce the cohort-level demographics (n_subjects, weight range, age range, race distribution) of Zierhut et al. (2008); these fields are therefore left as NA in the model’s population metadata. The only population fact the bundle preserves is the disease state (healthy postmenopausal women, sex_female_pct = 100).
  • Units conversion mg -> ng/mL. Compartment amounts are in mg (the bundle’s [CMT] annotation), volumes are in mL (the bundle’s [PARAM] annotation), and the publication’s reporting concentration unit is ng/mL (matching the units of Km, IC50, and the bundle’s PKDV capture). The model therefore declares units$concentration = "ng/mL" and applies the explicit factor Cc <- (central / vc) * 1e6 in model() to convert mg/mL to ng/mL, reproducing the bundle’s #define CP (CENT/(VC/1000000.0)) formula. checkModelConventions() flags the mg/ng magnitude difference in the units heuristic at info severity; the explicit 1e6 factor in model() resolves the conversion.
  • Per-subject PK observation residual SD by route. The bundle’s residual error model selects between two SDs depending on the dosing route (IV vs SC), with the IV cohort receiving a much smaller residual SD than the SC cohort. The nlmixr2lib model preserves this via the ROUTE_IV covariate column (1 = IV cohort, 0 = SC cohort) and a derived CcpropSd <- CcpropSdIV * ROUTE_IV + CcpropSdSC * (1 - ROUTE_IV) switch in model(). When simulating an IV cohort, set ROUTE_IV = 1 and route the dose to cmt = central directly; when simulating an SC cohort, set ROUTE_IV = 0 and route the dose to cmt = depot. The dosing target is set independently of ROUTE_IV by the cmt event column, which ROUTE_IV does not control.
