Model and source

  • Citation: Frey N, Grange S, Woodworth T. Population pharmacokinetic analysis of tocilizumab in patients with rheumatoid arthritis. J Clin Pharmacol. 2010;50(7):754-766. doi:10.1177/0091270009350623
  • Description: Two-compartment population PK model for tocilizumab in adults with moderate-to-severe rheumatoid arthritis (Frey 2010), with parallel first-order linear and Michaelis-Menten elimination from the central compartment.
  • Article: J Clin Pharmacol. 2010;50(7):754-766

Population

Frey 2010 pooled data from four phase III studies — OPTION (N = 396), TOWARD (N = 718), RADIATE (N = 341), and AMBITION (N = 338) — into a final population PK dataset of 1793 adults with moderate-to-severe rheumatoid arthritis (RA). The dataset contained 7415 serum tocilizumab concentrations after 4 or 8 mg/kg one-hour intravenous infusions every 4 weeks for 24 weeks (Frey 2010 Methods, p754; Results, p757). The four trials together cover patients with inadequate response to methotrexate (OPTION), inadequate response to traditional DMARDs (TOWARD), inadequate response to anti-TNF therapy (RADIATE), and tocilizumab monotherapy (AMBITION).

Baseline demographics (Frey 2010 Table I, p758): median age 52-54 years (range 18-89), 81-84% female, median body weight 67-73 kg (range 38-150), median BSA 1.7-1.8 m^2, median serum albumin 38-39 g/L (range 24-50), median creatinine clearance 104-113 mL/min, median total serum protein 73-75 g/L, median HDL cholesterol 54 mg/dL, median rheumatoid factor 92-117 U/mL (range 15-11800), 78-84% non-smokers. Race composition is 72-90% White / 9-13% Asian (highest in OPTION) / 0-5% Black / 2-10% American Indian or Alaskan Native / 2-5% Other across the four trials.

The same information is available programmatically via readModelDb("Frey_2010_tocilizumab")$population.

Source trace

Every structural parameter, covariate effect, IIV element, and residual-error term below is taken from Frey 2010 Tables II and III. The reference covariate values are: BSA = 1.8 m^2, male sex, HDL-C = 54 mg/dL, log(RF) = 4.7 (equivalently RF ~110 U/mL), total protein = 74 g/L, albumin = 38 g/L, creatinine clearance = 106 mL/min, and non-smoker.

Equation / parameter Value Source location
lcl (CL) log(0.3) L/day Table II, “CL, L/d” row
lvc (V1) log(3.5) L Table II, “V1, L” row
lq (Q) log(0.2) L/day Table II, “Q, L/d” row
lvp (V2) log(2.9) L Table II, “V2, L” row
lvm (Vm) log(7.5) mg/day Table II, “VM, mg/d” row
lkm (Km) log(2.7) ug/mL Table II, “KM, ug/mL” row
e_bsa_cl (BSA/1.8 exponent on CL) 0.7 Table II “BSA on CL” / Table III equation
e_sexf_cl (female fractional change on CL) -0.16 Table II “Sex (female, %) on CL” = -16%
e_hdlc_cl (HDLC/54 exponent on CL) -0.2 Table II “HDL-C on CL” / Table III equation
e_lrf_cl (log(RF)/log(110) exponent on CL) 0.1 Table II “Logarithm of RF on CL” / Table III
e_tpro_v1 (TPRO/74 exponent on V1) -1.1 Table II “Total protein on V1” / Table III
e_alb_v1 (ALB/38 exponent on V1) 0.7 Table II “Albumin on V1” / Table III
e_alb_vm (ALB/38 exponent on Vm) -0.4 Table II “Albumin on VM” / Table III
e_crcl_vm (CRCL/106 exponent on Vm) 0.2 Table II “Creatinine CL on VM” / Table III
e_smk_vm (smoker fractional change on Vm) 0.11 Table II “Smoking on VM” = +11%
var(etalcl) log(1 + 0.39^2) = 0.1416 Table II IIV section: CL CV 39%
var(etalvc) log(1 + 0.37^2) = 0.1284 Table II: V1 CV 37%
var(etalvp) log(1 + 0.66^2) = 0.3614 Table II: V2 CV 66%
var(etalvm) log(1 + 0.54^2) = 0.2562 Table II: Vm CV 54%
cor(etalcl, etalvc) 0.6 Table II “COV(eta_CL : eta_V1), r”
cor(etalcl, etalvp) -0.1 Table II “COV(eta_CL : eta_V2), r”
cor(etalcl, etalvm) -0.5 Table II “COV(eta_CL : eta_VM), r”
cor(etalvc, etalvp) 0.5 Table II “COV(eta_V1 : eta_V2), r”
cor(etalvc, etalvm) 0.2 Table II “COV(eta_V1 : eta_VM), r”
cor(etalvp, etalvm) 0.2 Table II “COV(eta_V2 : eta_VM), r”
propSd 0.22 Table II “Proportional” residual row, 22% (see Errata)
addSd 2.4 ug/mL Table II “Additive” residual row, 2.4 ug/mL (see Errata)
Structure (2-cmt + parallel linear + MM elimination from central) n/a Methods p756-757; Results p757-759; Figure 5

Parameterization notes

  • Two-compartment IV with parallel linear and Michaelis-Menten elimination. Frey 2010 fits a 2-compartment model with first-order linear clearance CL (L/day) and saturable Michaelis-Menten elimination with Vm (mg/day) and Km (ug/mL) acting on the central compartment. There is no depot compartment because tocilizumab is administered as a 1-hour IV infusion; in the model file the dose enters the central compartment directly.
  • CV% to log-normal variance. Frey 2010 Table II reports between-subject variability as CV% on the linear-parameter scale and the off-diagonal correlations between etas as Pearson r. The conversion omega^2 = log(1 + CV^2) gives the log-normal variance; off-diagonal covariances are computed as r_ij * sqrt(omega_i^2 * omega_j^2).
  • Log-RF covariate. Frey 2010 fits the rheumatoid-factor effect on the natural-log scale using a power-of-ratio form (LRF / 4.7)^0.1 where LRF = log(RF). The canonical column RHEUMATOID_FACTOR carries the raw RF in U/mL; the model equation applies the log transform internally as (log(RHEUMATOID_FACTOR) / log(110))^e_lrf_cl, which is algebraically identical to the paper’s form because log(110) ~= 4.7.
  • CRCL units. Frey 2010 uses raw creatinine clearance in mL/min (the paper’s Table III equation VM = 7.5 * (CRCL/106)^0.2), with reference 106 mL/min. The canonical CRCL column is normally documented as BSA-normalized (mL/min/1.73 m^2); for Frey 2010 the column carries the raw CrCl in mL/min and BSA enters the model separately on linear CL. The per-model covariateData[[CRCL]]$notes documents this deviation.

Errata

The published Table II (Frey 2010 p759) lists the residual-error standard deviations with swapped Greek-letter subscripts:

Table II row label Reported in column “Estimate”
Additive (sigma_prop), ug/mL 2.4
Proportional (sigma_add), % 22

The row labels and units (additive 2.4 ug/mL; proportional 22%) are correct and unambiguous. The parenthetical Greek subscripts sigma_prop / sigma_add are interchanged relative to the residual-error equation in the Methods (p756), where eps1 is the proportional error (variance sigma^2_prop) and eps2 is the additive error (variance sigma^2_add). The model file uses the values in the unambiguous rows: propSd = 0.22 and addSd = 2.4 ug/mL.

A second, smaller notational issue: Frey 2010 Figure 1 (p760) labels its y-axis panels for Vm as VM (mg/h), while Table II and the Results narrative report VM = 7.5 mg/d. The model file uses the per-day value (mg/day), consistent with the table and the text. This may be a figure-axis-label slip rather than a value error.

Virtual cohort

The simulations below use a virtual cohort whose covariate distributions approximate the Frey 2010 Table I demographics. No subject-level observed data were released with the paper.

set.seed(20260428)

# Cohort size: 200 subjects per dose arm gives stable 5/50/95 percentile
# bands for the Figure 4 / Figure 3 reproduction and the PKNCA distribution
# summaries.
n_subj <- 200

clamp <- function(x, lo, hi) pmin(pmax(x, lo), hi)

cohort <- tibble::tibble(
  id  = seq_len(n_subj),
  WT  = clamp(rnorm(n_subj, mean = 70,  sd = 17),   38, 150),
  BSA = clamp(rnorm(n_subj, mean = 1.8, sd = 0.22), 1.3, 2.7),
  SEXF = rbinom(n_subj, 1, 0.82),
  HDLC = clamp(rnorm(n_subj, mean = 54, sd = 14),   23, 135),
  RHEUMATOID_FACTOR = pmax(rlnorm(n_subj, log(110), 0.9), 15),
  TPRO = clamp(rnorm(n_subj, mean = 74, sd = 5),    57, 96),
  ALB  = clamp(rnorm(n_subj, mean = 38, sd = 4),    24, 50),
  CRCL = clamp(rnorm(n_subj, mean = 106, sd = 35),  27, 317),
  SMOKE = rbinom(n_subj, 1, 0.18)
)

Two regimens are simulated in parallel: 4 mg/kg and 8 mg/kg one-hour IV infusions every 4 weeks (Q4W). Six Q4W doses (168 days, ~8 elimination half-lives in the linear range; reference t1/2 ~21 days per Frey 2010 Discussion p762) place the final cycle safely at steady state.

tau     <- 28              # Q4W dosing interval (days)
inf_dur <- 1 / 24          # 1-hour IV infusion duration (days)
n_doses <- 6
dose_days <- seq(0, tau * (n_doses - 1), by = tau)

build_events <- function(cohort, dose_mgkg, treatment) {
  ev_dose <- cohort |>
    tidyr::crossing(time = dose_days) |>
    dplyr::mutate(amt = dose_mgkg * WT,         # mg/kg * kg = mg
                  cmt = "central",
                  evid = 1L,
                  dur  = inf_dur,
                  treatment = treatment)
  ss_start <- tau * (n_doses - 1)
  ss_end   <- ss_start + tau
  obs_days <- sort(unique(c(
    seq(0, 56, by = 1),                # daily over the first 2 cycles
    seq(56, ss_start, by = 3),         # every 3 days through the build-up
    seq(ss_start, ss_end, by = 0.5),   # half-day grid for the SS cycle / NCA
    dose_days + inf_dur,               # peak-near-end-of-infusion
    dose_days + 1, dose_days + 7, dose_days + 14
  )))
  ev_obs <- cohort |>
    tidyr::crossing(time = obs_days) |>
    dplyr::mutate(amt = 0, cmt = NA_character_, evid = 0L,
                  dur = NA_real_, treatment = treatment)
  dplyr::bind_rows(ev_dose, ev_obs) |>
    dplyr::arrange(id, time, dplyr::desc(evid)) |>
    dplyr::select(id, time, amt, cmt, evid, dur, treatment,
                  WT, BSA, SEXF, HDLC, RHEUMATOID_FACTOR,
                  TPRO, ALB, CRCL, SMOKE)
}

events <- dplyr::bind_rows(
  build_events(cohort, 4, "4 mg/kg Q4W"),
  build_events(cohort |> dplyr::mutate(id = id + n_subj), 8, "8 mg/kg Q4W")
)
stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid")])))

Simulation

mod <- rxode2::rxode2(readModelDb("Frey_2010_tocilizumab"))
conc_unit <- mod$units[["concentration"]]
keep_cols <- c("WT", "BSA", "SEXF", "HDLC", "RHEUMATOID_FACTOR",
               "TPRO", "ALB", "CRCL", "SMOKE", "treatment")

sim <- lapply(split(events, events$treatment), function(ev) {
  out <- rxode2::rxSolve(mod, events = ev, keep = keep_cols)
  as.data.frame(out)
}) |> dplyr::bind_rows()

Replicate published figures

Figure 4 — concentration-time profile by dose

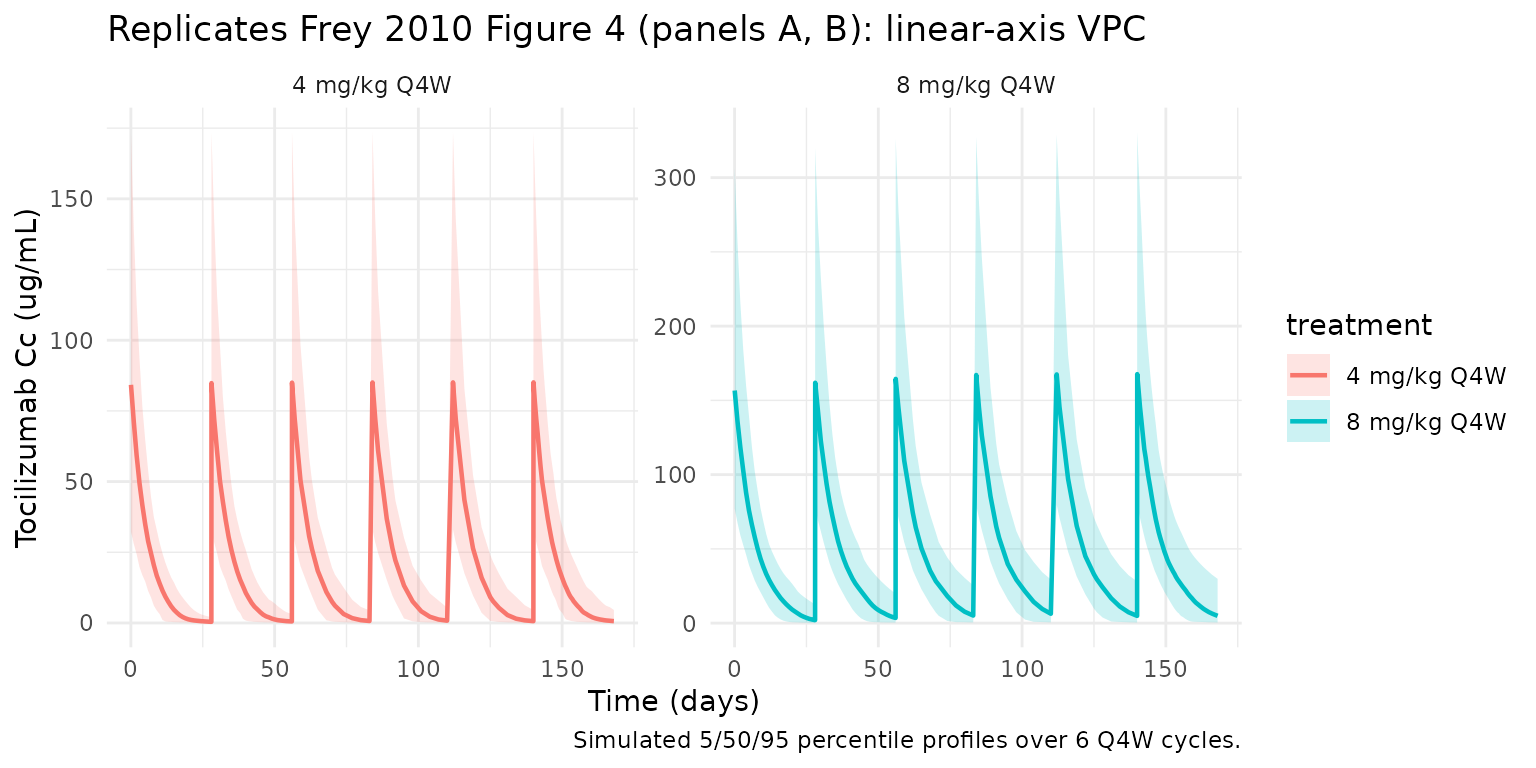

Frey 2010 Figure 4 (p762) shows mean and 5th/95th-percentile simulated tocilizumab serum concentrations over 24 weeks of treatment, separately for 4 mg/kg Q4W (panels A and C) and 8 mg/kg Q4W (panels B and D); panels A/B use a linear y-axis and C/D a log y-axis. The block below replicates the linear-scale panels A and B.

vpc <- sim |>
  dplyr::filter(!is.na(Cc), time > 0, time <= tau * n_doses) |>
  dplyr::group_by(treatment, time) |>
  dplyr::summarise(
    Q05 = quantile(Cc, 0.05, na.rm = TRUE),
    Q50 = quantile(Cc, 0.50, na.rm = TRUE),
    Q95 = quantile(Cc, 0.95, na.rm = TRUE),
    .groups = "drop"
  )

ggplot(vpc, aes(time, Q50, colour = treatment, fill = treatment)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.2, colour = NA) +
  geom_line(linewidth = 0.8) +
  facet_wrap(~treatment, scales = "free_y") +
  labs(
    x = "Time (days)",
    y = paste0("Tocilizumab Cc (", conc_unit, ")"),
    title = "Replicates Frey 2010 Figure 4 (panels A, B): linear-axis VPC",
    caption = "Simulated 5/50/95 percentile profiles over 6 Q4W cycles."
  ) +
  theme_minimal()

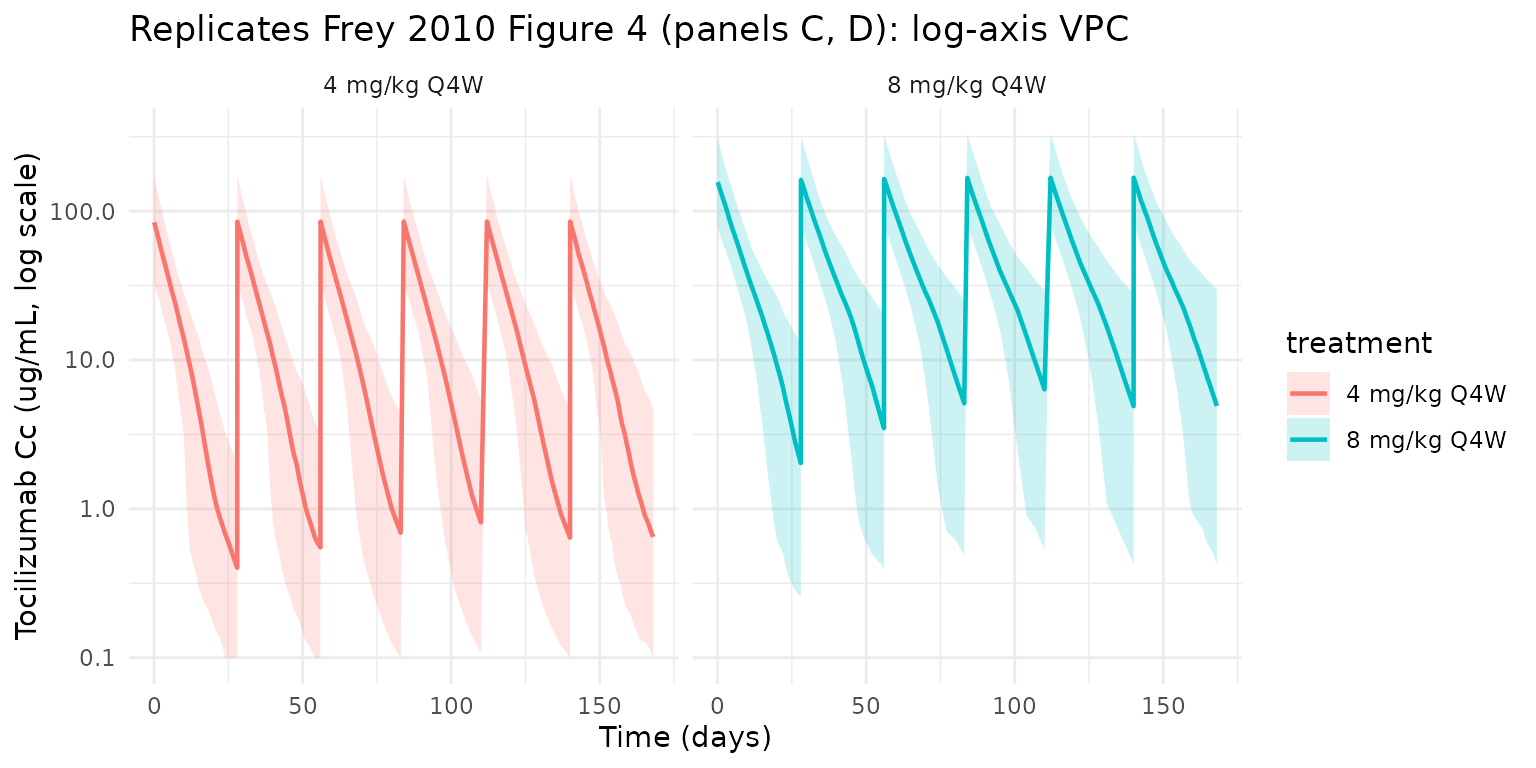

The same simulation on a log y-axis reproduces the dynamic range shown in Frey 2010 Figure 4 panels C and D, where the 4 mg/kg trough drops well below the 8 mg/kg trough because the nonlinear (Vm/Km) clearance pathway saturates less completely at the lower dose.

ggplot(vpc, aes(time, Q50, colour = treatment, fill = treatment)) +
  geom_ribbon(aes(ymin = pmax(Q05, 0.1), ymax = Q95),
              alpha = 0.2, colour = NA) +
  geom_line(linewidth = 0.8) +
  facet_wrap(~treatment) +
  scale_y_log10() +
  labs(
    x = "Time (days)",
    y = paste0("Tocilizumab Cc (", conc_unit, ", log scale)"),
    title = "Replicates Frey 2010 Figure 4 (panels C, D): log-axis VPC"
  ) +
  theme_minimal()

PKNCA validation

Non-compartmental analysis of the final (steady-state) Q4W dosing interval gives Cmax, Cmin (Ctrough), and AUC0-tau per simulated subject and dose group. The per-subject results are then summarised as a mean +/- SD, which is the format reported in Frey 2010 Table IV.

ss_start <- tau * (n_doses - 1)
ss_end   <- ss_start + tau

nca_conc <- sim |>
  dplyr::filter(time >= ss_start, time <= ss_end, !is.na(Cc)) |>
  dplyr::mutate(time_nom = time - ss_start) |>
  dplyr::select(id, time = time_nom, Cc, treatment)

# One representative dose per subject per arm at the start of the SS cycle.
nca_dose <- events |>
  dplyr::filter(evid == 1, time == ss_start) |>
  dplyr::mutate(time = 0) |>
  dplyr::select(id, time, amt, treatment)

conc_obj <- PKNCA::PKNCAconc(nca_conc, Cc ~ time | treatment + id)
dose_obj <- PKNCA::PKNCAdose(nca_dose, amt ~ time | treatment + id)

intervals <- data.frame(
  start   = 0,
  end     = tau,
  cmax    = TRUE,
  cmin    = TRUE,
  tmax    = TRUE,
  auclast = TRUE,
  cav     = TRUE
)

nca_res <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals))
#>  ■■■■■■■■■■■■■■                    42% |  ETA:  2s
summary(nca_res)
#>  start end   treatment   N     auclast        cmax        cmin
#>      0  28 4 mg/kg Q4W 200  477 [55.7] 82.2 [53.0] 0.672 [180]
#>      0  28 8 mg/kg Q4W 200 1240 [49.1]  165 [46.9]  3.95 [240]
#>                     tmax         cav
#>  0.0417 [0.0417, 0.0417] 17.0 [55.7]
#>  0.0417 [0.0417, 0.0417] 44.2 [49.1]
#>
#> Caption: auclast, cmax, cmin, cav: geometric mean and geometric coefficient of variation; tmax: median and range; N: number of subjects

Comparison against Frey 2010 Table IV

Table IV of Frey 2010 (p762) reports simulated steady-state mean (SD) AUC, Cmax, and Cmin after 48 weeks of treatment. The values below are the mean per-subject NCA results from this vignette’s 6-cycle simulation; because accumulation is small at Q4W dosing (~1.1-1.2x for AUC and Cmax, ~2x for Cmin per Table IV) the 6-cycle vs 12-cycle comparison is dominated by the within-cycle PK rather than residual accumulation.

nca_long <- as.data.frame(nca_res$result)

per_subj <- nca_long |>
  dplyr::filter(PPTESTCD %in% c("cmax", "cmin", "auclast")) |>
  tidyr::pivot_wider(id_cols = c(treatment, id),
                     names_from = PPTESTCD, values_from = PPORRES) |>
  dplyr::mutate(auclast_h = auclast * 24)   # day*ug/mL -> h*ug/mL

ss_summary <- per_subj |>
  dplyr::group_by(treatment) |>
  dplyr::summarise(
    Cmax_sim_mean = mean(cmax, na.rm = TRUE),
    Cmax_sim_sd   = sd(cmax,   na.rm = TRUE),
    Cmin_sim_mean = mean(cmin, na.rm = TRUE),
    Cmin_sim_sd   = sd(cmin,   na.rm = TRUE),
    AUC_sim_mean  = mean(auclast_h, na.rm = TRUE) / 1000,  # in 10^3 h*ug/mL
    AUC_sim_sd    = sd(auclast_h,   na.rm = TRUE) / 1000,
    .groups = "drop"
  )

published <- tibble::tibble(
  treatment     = c("4 mg/kg Q4W", "8 mg/kg Q4W"),
  AUC_pub_mean  = c(13,  35),    # 10^3 h*ug/mL
  AUC_pub_sd    = c(5.8, 16),
  Cmax_pub_mean = c(88,  183),   # ug/mL
  Cmax_pub_sd   = c(41,  86),
  Cmin_pub_mean = c(1.5, 9.7),   # ug/mL
  Cmin_pub_sd   = c(2.1, 11)
)

comparison <- ss_summary |>
  dplyr::left_join(published, by = "treatment") |>
  dplyr::mutate(
    Cmax_pct_diff = 100 * (Cmax_sim_mean - Cmax_pub_mean) / Cmax_pub_mean,
    Cmin_pct_diff = 100 * (Cmin_sim_mean - Cmin_pub_mean) / Cmin_pub_mean,
    AUC_pct_diff  = 100 * (AUC_sim_mean  - AUC_pub_mean)  / AUC_pub_mean
  ) |>
  dplyr::select(treatment,
                AUC_pub_mean,  AUC_sim_mean,  AUC_pct_diff,
                Cmax_pub_mean, Cmax_sim_mean, Cmax_pct_diff,
                Cmin_pub_mean, Cmin_sim_mean, Cmin_pct_diff)

knitr::kable(comparison, digits = 2,
  caption = paste("Simulated vs. Frey 2010 Table IV mean steady-state",
                  "AUC (10^3 h*ug/mL), Cmax (ug/mL), and Cmin (ug/mL).",
                  "Published values: 4 mg/kg AUC 13 (5.8), Cmax 88 (41),",
                  "Cmin 1.5 (2.1); 8 mg/kg AUC 35 (16), Cmax 183 (86),",
                  "Cmin 9.7 (11)."))
Simulated vs. Frey 2010 Table IV mean steady-state AUC (10^3 h*ug/mL), Cmax (ug/mL), and Cmin (ug/mL). Published values: 4 mg/kg AUC 13 (5.8), Cmax 88 (41), Cmin 1.5 (2.1); 8 mg/kg AUC 35 (16), Cmax 183 (86), Cmin 9.7 (11).
treatment AUC_pub_mean AUC_sim_mean AUC_pct_diff Cmax_pub_mean Cmax_sim_mean Cmax_pct_diff Cmin_pub_mean Cmin_sim_mean Cmin_pct_diff
4 mg/kg Q4W 13 12.98 -0.12 88 92.60 5.22 1.5 1.35 -9.70
8 mg/kg Q4W 35 33.01 -5.68 183 182.59 -0.23 9.7 8.30 -14.41

Assumptions and deviations

  • Virtual-cohort covariate distributions. Body weight, BSA, HDL-C, RF (log-normal), total protein, albumin, and creatinine clearance are drawn from independent truncated-normal or log-normal distributions with parameters approximating the Frey 2010 Table I medians and observed ranges. Smoking is drawn from a Bernoulli with p=0.18 to match the ~18% smoker prevalence in Frey 2010 Results (p759). The simulator treats the covariates as independent, whereas in the source data BSA, weight, BMI, total protein, and albumin are correlated; the approximation is acceptable because the resulting marginal distributions match the Table I summaries within 1 SD.
  • No subject-level observed data. Frey 2010 does not release subject-level concentrations; the validation reproduces Table IV summary statistics and Figure 4’s VPC bands rather than overlaying observed points.
  • Simulation horizon. This vignette simulates 6 Q4W doses (168 days) instead of the 12-dose / 48-week horizon of Frey 2010 Table IV. Accumulation ratios reported in Table IV (~1.1-1.2x for AUC and Cmax, ~2x for Cmin) are small because the dosing interval exceeds three linear-range half-lives; the difference between dose 6 and dose 12 at steady state is therefore negligible for the mean comparison.
  • CRCL units. The canonical CRCL covariate column carries raw creatinine clearance in mL/min for this model (Frey 2010’s parameterization), not the BSA-normalized mL/min/1.73 m^2 form used by some other models in the package. See the per-model covariateData[[CRCL]]$notes.
  • Residual-error label swap. The model uses propSd = 0.22, addSd = 2.4 ug/mL; the Frey 2010 Table II header swaps the sigma_prop / sigma_add Greek subscripts but the row labels and values are unambiguous. See the Errata section above.
  • Dosing assumption. Doses are administered as 1-hour IV infusions with dur = 1/24 day, matching Frey 2010 Methods (p754). The difference between bolus and 1-hour infusion at sampling times beyond the infusion is negligible given the ~21-day terminal half-life.
