Pyronaridine (Ayyoub 2016)
Source:vignettes/articles/Ayyoub_2016_pyronaridine.Rmd
Ayyoub_2016_pyronaridine.RmdModel and source
- Citation: Ayyoub A, Methaneethorn J, Ramharter M, Djimde AA, Tekete M, Duparc S, Borghini-Fuhrer I, Shin JS, Fleckenstein L. Population Pharmacokinetics of Pyronaridine in Pediatric Malaria Patients. Antimicrob Agents Chemother 2016 Mar;60(3):1450-1458. doi:[10.1128/AAC.02004-15](https://doi.org/10.1128/AAC.02004-15).
- Full text (Open Access, ASM Journals): https://journals.asm.org/doi/10.1128/AAC.02004-15.
This is a pooled pediatric population PK model for oral pyronaridine (PYR), the partner drug in the pyronaridine-artesunate (Pyramax) fixed- dose antimalarial combination. A two-compartment first-order absorption and first-order elimination structure describes the data from 349 children with uncomplicated Plasmodium falciparum or P. vivax malaria pooled across one phase II and five phase III studies. Body weight enters as fixed-exponent allometric scaling (0.75 on CL/F and Q/F, 1.00 on V2/F and V3/F, centred on a 20 kg reference). Age enters as a power covariate on the peripheral volume V3/F (exponent 0.624, centred on a 7 yr reference). The pediatric granule (sachet) formulation increases the absorption rate constant Ka by 1.63-fold over the tablet baseline (Ka = 17.9 day-1 tablet, 47.1 day-1 granule).
mod_fn <- readModelDb("Ayyoub_2016_pyronaridine")
mod <- rxode2::rxode2(mod_fn())
mod_typ <- rxode2::rxode2(rxode2::zeroRe(mod_fn()))Population
The model was developed from 349 pediatric malaria patients (median age 7 years, range 0.51 to 15; median weight 20 kg, range 6.8 to 56.2; 52.4% female) pooled across six clinical studies of the pyronaridine- artesunate combination (Ayyoub 2016 Table 1, “Combined” column):
- Phase II SP-C-003-05 (n = 57): tablet and granule formulations in pediatric malaria patients in Gabon, with rich PK sampling (predose plus 0.5, 1, 1.5, 2.5, 4, 8, 12 h and 3, 7, 14, 21 days after the first dose).
- Phase III SP-C-004-06 (n = 40): tablet PA 180:60 mg vs mefloquine + artesunate.
- Phase III SP-C-005-06 (n = 143): tablet PA 180:60 mg vs artemether-lumefantrine.
- Phase III SP-C-006-06 (n = 9): tablet PA 180:60 mg vs chloroquine for P. vivax.
- Phase III SP-C-007-07 (n = 83): pediatric granule PA 60:20 mg per sachet vs crushed Coartem tablets in infants and children.
- Phase III SP-C-013-11 (n = 17): repeated-administration safety and efficacy study, granule formulation; two subjects vomited and were excluded.
The five phase III studies used sparse PK sampling (one or two samples per subject across the day-0-to-day-3 and day-4-to-day-42 windows). Together the six studies contributed 1,085 quantifiable blood pyronaridine concentrations (after exclusion of 13.2% below the 5.7 ng/mL assay LOQ and 0.24% as outliers; Ayyoub 2016 Table 1). Tablet subjects predominated (67.0% of patients).
The patient cohorts came mainly from sub-Saharan African phase III sites (Gabon, Mali) and from Southeast Asian phase III sites; race was not included as a model covariate. Pyronaridine tetraphosphate doses were converted to pyronaridine base by multiplying by 0.57 prior to modelling (Ayyoub 2016 Methods ‘Population pharmacokinetic and statistical analyses’ p. 1452); all reported parameter estimates and all simulations below are in mass units of pyronaridine base.
The same information is available programmatically via
readModelDb("Ayyoub_2016_pyronaridine")$population.
Source trace
Per-parameter origins are recorded as in-file comments in
inst/modeldb/specificDrugs/Ayyoub_2016_pyronaridine.R; the
table below collects them in one place for review.
| Item | Value | Source |
|---|---|---|
| Two-compartment disposition; first-order absorption and first-order elimination from central | structural | Methods ‘Base model development’ p. 1453; Results ‘Population pharmacokinetic model’ p. 1454 |
| Reference body weight | 20 kg | Methods ‘Base model development’ p. 1453 (“body weight was centered on the median value of 20 kg”) |
| Reference age | 7 yr | Results p. 1454 (“(age/7)^0.624”); Methods ‘Covariate model building’ p. 1453 (“All continuous covariates were scaled or centered on the median values”) |
| Allometric exponent on CL/F and Q/F | 0.75 (fixed) | Methods ‘Base model development’ p. 1453 (“with exponents of 1 and 0.75 on volume and clearance parameters, respectively”) |
| Allometric exponent on V2/F and V3/F | 1.00 (fixed) | Methods ‘Base model development’ p. 1453 (same) |
| Pyronaridine tetraphosphate -> base conversion factor | x 0.57 | Methods ‘Population pharmacokinetic and statistical analyses’ p. 1452 |
lka -> Ka = 17.9 day-1 (tablet typical) |
log(17.9) | Table 2 (%RSE 11.7) |
lcl -> CL/F = 377 L/day at 20 kg |
log(377) | Table 2 (%RSE 6.58) |
lvc -> V2/F = 2230 L at 20 kg |
log(2230) | Table 2 (%RSE 6.59) |
lvp -> V3/F = 3230 L at 20 kg, 7 yr |
log(3230) | Table 2 (%RSE 15.0) |
lq -> Q/F = 804 L/day at 20 kg |
log(804) | Table 2 (%RSE 11.2) |
e_age_vp -> 0.624 power exponent on AGE/7 affecting
V3/F |
0.624 | Table 2 (theta_6, %RSE 38.6); Results p. 1454 |
e_form_granule_ka -> 1.63 additive-multiplier on
tablet Ka |
1.63 | Table 2 (theta_7, %RSE 37.8); Results p. 1454 |
IIV var(etalcl)
|
0.166 (CV 40.7%) | Table 2 (%RSE 26.7) |
IIV var(etalvc)
|
0.993 (CV 99.6%) | Table 2 (%RSE 8.76) |
IIV var(etalvp)
|
0.256 (CV 50.6%) | Table 2 (%RSE 48.4) |
IIV var(etalka)
|
0.433 (CV 65.8%) | Table 2 (%RSE 26.6) |
| No IIV on Q/F | n/a | Results p. 1454 (“The IIV on Q/F was fixed to zero, as the estimates could not be obtained with good precision”) |
| Diagonal Omega (no IIV correlations) | n/a | Methods p. 1453 (“Attempts were made to incorporate a full variance-covariance matrix; however, successful convergence with plausible parameter estimates could not be attained”) |
Residual propSd
|
sqrt(0.195) = 0.4416 | Table 2 (RV variance = 0.195, %RSE 12.1; log-additive in source -> proportional in linear nlmixr2) |
| Mean elimination half-life | 12.3 days | Results p. 1454 |
Virtual cohort
The original observed data are not publicly available. The simulations below use a virtual cohort whose weight and age distributions correspond to the six weight bands the paper used for its labelling simulations (Ayyoub 2016 Table 3): three granule cohorts (5-7-8-14-15-19 kg) covering the lower edge of each pediatric weight band, and three tablet cohorts (25-35-55-75 kg) covering the upper-pediatric and adult-tablet weight bands. The granule cohort labels match the paper’s Figure 4 weight-by-formulation panels.
set.seed(2026)
# Six pediatric cohorts at the weight-band edges (Ayyoub 2016 Table 3).
# Ages are the WHO-growth-standard ages at the median weight per band
# (Ayyoub 2016 Methods 'Simulations' p. 1453); for the lowest two weights
# the paper used the minimum-proposed labelling age of 6 months.
cohort_def <- tibble::tibble(
cohort = c("5 kg, granule", "7 kg, granule",
"8 kg, granule", "14 kg, granule",
"15 kg, granule", "19 kg, granule",
"25 kg, tablet", "55 kg, tablet"),
WT_typical = c(5, 7, 8, 14, 15, 19, 25, 55),
AGE_typical = c(0.5, 0.5, 0.583, 3, 3, 5, 8, 30),
FORM_GRANULE = c(rep(1L, 6), 0L, 0L),
dose_mg_pp = c(60, 60, 120, 120, 180, 180, 180, 720), # pyronaridine tetraphosphate (PP) mg/day
n_subjects = 50L
)
# Each subject's WT and AGE drawn from a +/- 10% lognormal around the
# typical, FORM_GRANULE inherited per-cohort.
build_cohort <- function(row, id_offset) {
n <- row$n_subjects
tibble::tibble(
id = id_offset + seq_len(n),
cohort = row$cohort,
WT = stats::rlnorm(n, log(row$WT_typical), 0.10),
AGE = pmax(0.1, stats::rlnorm(n, log(row$AGE_typical), 0.10)),
FORM_GRANULE = row$FORM_GRANULE,
dose_base_mg = 0.57 * row$dose_mg_pp # tetraphosphate -> base, Methods p. 1452
)
}
subjects <- dplyr::bind_rows(lapply(
seq_len(nrow(cohort_def)),
function(i) build_cohort(cohort_def[i, , drop = FALSE],
id_offset = (i - 1L) * 1000L)
))
# 3-day once-daily regimen as per Pyramax labelling; observation grid out
# to day 35 (well past five terminal half-lives of ~12 days).
dose_times <- c(0, 1, 2)
obs_times <- c(seq(0.01, 3, by = 0.05),
seq(3.1, 35, by = 0.25))
build_events <- function(subjects, dose_times, obs_times) {
dose_rows <- tidyr::expand_grid(
subjects |> dplyr::select(id, cohort, WT, AGE, FORM_GRANULE,
dose_base_mg),
time = dose_times
) |>
dplyr::transmute(
id, time, evid = 1L,
amt = dose_base_mg, cmt = "depot",
cohort, WT, AGE, FORM_GRANULE
)
obs_rows <- tidyr::expand_grid(
id = subjects$id,
time = obs_times
) |>
dplyr::left_join(
dplyr::select(subjects, id, cohort, WT, AGE, FORM_GRANULE),
by = "id"
) |>
dplyr::mutate(evid = 0L, amt = 0, cmt = "Cc")
dplyr::bind_rows(dose_rows, obs_rows) |>
dplyr::arrange(id, time, dplyr::desc(evid))
}
events <- build_events(subjects, dose_times, obs_times)
stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid", "cmt")])))
dplyr::glimpse(subjects)
#> Rows: 400
#> Columns: 6
#> $ id <int> 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17…
#> $ cohort <chr> "5 kg, granule", "5 kg, granule", "5 kg, granule", "5 kg,…
#> $ WT <dbl> 5.267189, 4.488277, 5.070106, 4.957805, 4.677548, 3.88774…
#> $ AGE <dbl> 0.4447971, 0.4897956, 0.4555689, 0.5229824, 0.4687771, 0.…
#> $ FORM_GRANULE <int> 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, …
#> $ dose_base_mg <dbl> 34.2, 34.2, 34.2, 34.2, 34.2, 34.2, 34.2, 34.2, 34.2, 34.…Simulation
Stochastic simulation (full omega / sigma) for visual percentile plots:
sim <- rxode2::rxSolve(
mod,
events = events,
keep = c("cohort", "WT", "AGE", "FORM_GRANULE")
) |>
as.data.frame() |>
dplyr::mutate(Cc_ng_per_mL = Cc * 1000) # mg/L -> ng/mLTypical-value simulation (omega / sigma zeroed) for direct comparison with the typical-value estimates in Ayyoub 2016 Table 2:
typical_subjects <- cohort_def |>
dplyr::transmute(
id = seq_len(dplyr::n()),
cohort = paste(cohort, "(typical)"),
WT = WT_typical,
AGE = AGE_typical,
FORM_GRANULE = FORM_GRANULE,
dose_base_mg = 0.57 * dose_mg_pp
)
typical_events <- build_events(typical_subjects, dose_times, obs_times)
sim_typical <- rxode2::rxSolve(
mod_typ,
events = typical_events,
keep = c("cohort", "WT", "AGE", "FORM_GRANULE")
) |>
as.data.frame() |>
dplyr::mutate(Cc_ng_per_mL = Cc * 1000)
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalvp', 'etalka'
#> Warning: multi-subject simulation without without 'omega'Replicate published figures

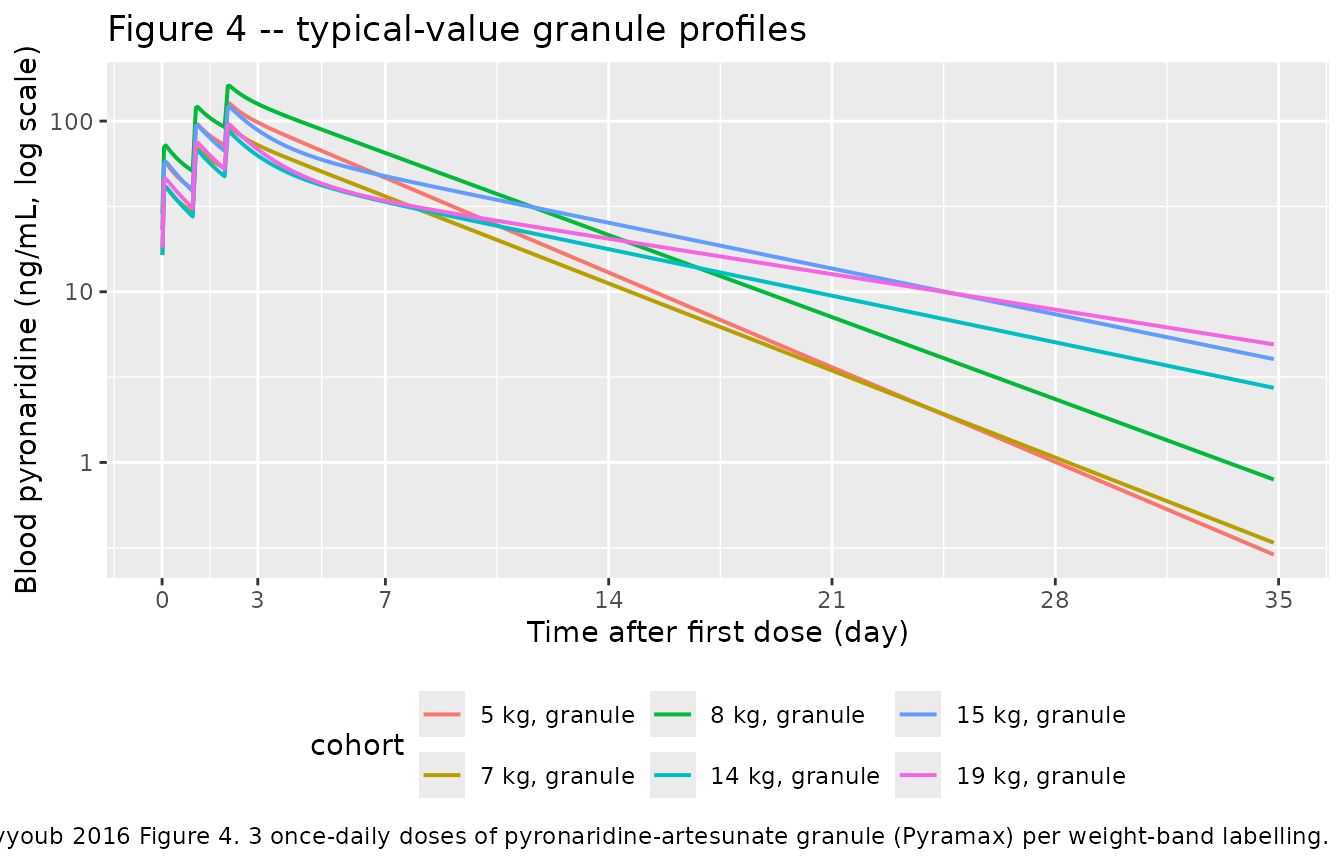

Figure 4 – 50th percentile profiles by weight band
Ayyoub 2016 Figure 4 shows the 50th-percentile simulated pyronaridine concentration-time profile for one subject at each of six representative pediatric weights (5 + 7 kg with 1 sachet, 8 + 14 kg with 2 sachets, 15 + 19 kg with 3 sachets). The plot below reproduces the same panels using the typical-value simulation.
typ_label <- cohort_def$cohort
sim_typ_g <- sim_typical |>
dplyr::filter(time > 0,
grepl("granule", cohort)) |>
dplyr::mutate(
cohort = factor(sub(" \\(typical\\)$", "", cohort),
levels = typ_label[1:6])
)
ggplot(sim_typ_g, aes(time, Cc_ng_per_mL, colour = cohort)) +
geom_line(size = 0.7) +
scale_y_log10() +
scale_x_continuous(breaks = c(0, 3, 7, 14, 21, 28, 35)) +
labs(
x = "Time after first dose (day)",
y = "Blood pyronaridine (ng/mL, log scale)",
title = "Figure 4 -- typical-value granule profiles",
caption = paste0(
"Replicates Ayyoub 2016 Figure 4. ",
"3 once-daily doses of pyronaridine-artesunate granule (Pyramax) ",
"per weight-band labelling."
)
) +
theme(legend.position = "bottom")
#> Warning: Using `size` aesthetic for lines was deprecated in ggplot2 3.4.0.
#> ℹ Please use `linewidth` instead.
#> This warning is displayed once per session.
#> Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
#> generated.

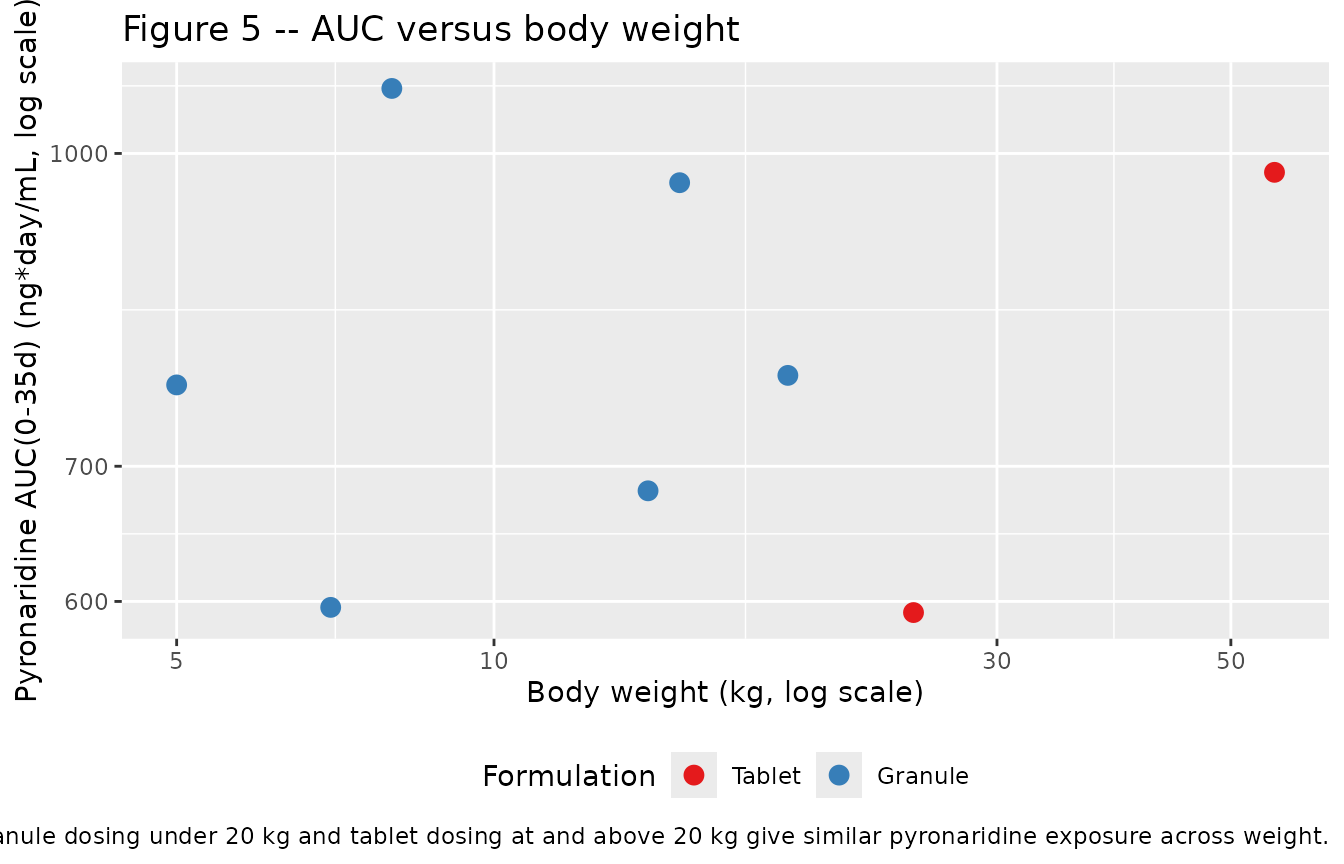

Figure 5 – Pyronaridine AUC0-inf across pediatric and adult weight ranges
Ayyoub 2016 Figure 5 plots the simulated AUC0-inf (log-scale) versus body weight to demonstrate that the proposed weight-band dosing of the granule (under 20 kg) and tablet (20 kg and above) gives similar exposure across the relevant pediatric and adult weight range. The plot below reproduces this comparison from the typical-value model output by integrating each subject’s concentration-time profile out to day 35.
auc_inf <- sim_typical |>
dplyr::filter(time > 0) |>
dplyr::group_by(cohort, WT, FORM_GRANULE) |>
dplyr::summarise(
auc0_35d = sum(diff(time) * (head(Cc_ng_per_mL, -1) +
tail(Cc_ng_per_mL, -1)) / 2),
.groups = "drop"
)
ggplot(auc_inf, aes(WT, auc0_35d,
colour = factor(FORM_GRANULE,
levels = 0:1,
labels = c("Tablet", "Granule")))) +
geom_point(size = 3) +
scale_y_log10() +
scale_x_log10() +
scale_colour_brewer(palette = "Set1", name = "Formulation") +
labs(
x = "Body weight (kg, log scale)",
y = "Pyronaridine AUC(0-35d) (ng*day/mL, log scale)",
title = "Figure 5 -- AUC versus body weight",
caption = paste0(
"Replicates the structural conclusion of Ayyoub 2016 Figure 5: ",
"weight-band granule dosing under 20 kg and tablet dosing at and ",
"above 20 kg give similar pyronaridine exposure across weight."
)
) +
theme(legend.position = "bottom")

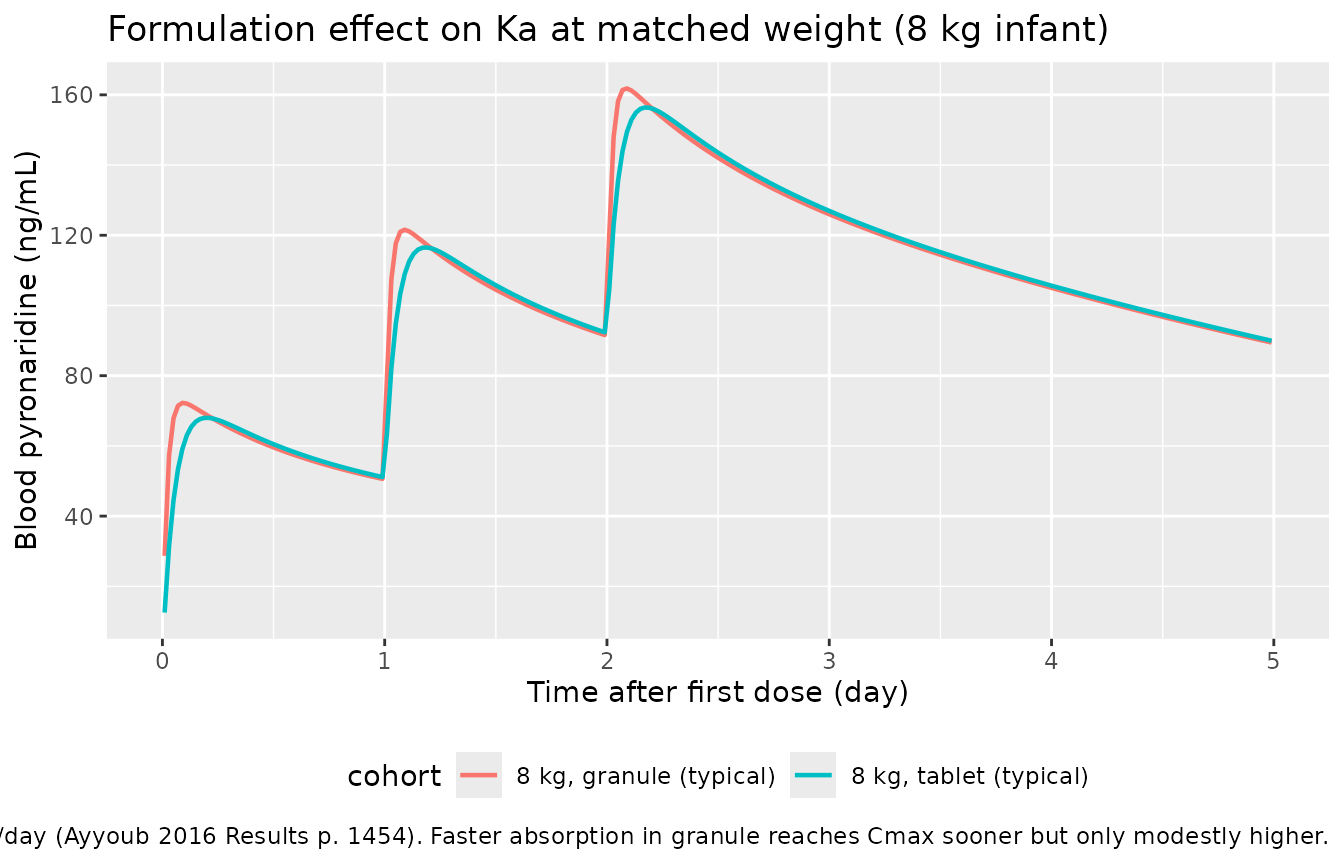

Formulation effect on Ka
Ayyoub 2016 retained the granule-vs-tablet formulation indicator as a covariate on Ka in backward elimination (P < 0.001). The plot below contrasts typical-value pyronaridine profiles for an 8 kg infant receiving the granule versus a hypothetical same-weight infant receiving the tablet to isolate the formulation effect.
contrast_subjects <- tibble::tibble(
id = 1:2,
cohort = c("8 kg, granule (typical)", "8 kg, tablet (typical)"),
WT = 8, AGE = 0.583,
FORM_GRANULE = c(1L, 0L),
dose_base_mg = 0.57 * 120
)
contrast_events <- build_events(contrast_subjects,
dose_times = c(0, 1, 2),
obs_times = seq(0.01, 5, by = 0.02))
sim_contrast <- rxode2::rxSolve(
mod_typ,
events = contrast_events,
keep = c("cohort", "WT", "AGE", "FORM_GRANULE")
) |>
as.data.frame() |>
dplyr::mutate(Cc_ng_per_mL = Cc * 1000)
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalvp', 'etalka'
#> Warning: multi-subject simulation without without 'omega'
ggplot(sim_contrast |> dplyr::filter(time > 0),
aes(time, Cc_ng_per_mL, colour = cohort)) +
geom_line(size = 0.8) +
coord_cartesian(xlim = c(0, 5)) +
labs(
x = "Time after first dose (day)",
y = "Blood pyronaridine (ng/mL)",
title = "Formulation effect on Ka at matched weight (8 kg infant)",
caption = paste0(
"Tablet Ka = 17.9 1/day; granule Ka = 17.9 * (1 + 1.63) = ",
"47.1 1/day (Ayyoub 2016 Results p. 1454). Faster absorption ",
"in granule reaches Cmax sooner but only modestly higher."
)
) +
theme(legend.position = "bottom")
PKNCA validation
Multi-dose NCA with PKNCA on the stochastic cohort over the day-0 to day-35 window. Treatment grouping is the weight + formulation cohort label so per-cohort exposures can be compared against the published labelling simulations.
sim_nca <- sim |>
dplyr::filter(!is.na(Cc_ng_per_mL), time > 0) |>
dplyr::select(id, time, Cc = Cc_ng_per_mL, cohort)
dose_df <- events |>
dplyr::filter(evid == 1L) |>
dplyr::select(id, time, amt, cohort)
conc_obj <- PKNCA::PKNCAconc(sim_nca, Cc ~ time | cohort + id,
concu = "ng/mL", timeu = "day")
dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | cohort + id,
doseu = "mg")
intervals <- data.frame(
start = 0,
end = 35,
cmax = TRUE,
tmax = TRUE,
auclast = TRUE,
half.life = TRUE
)
nca_data <- PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals)
nca_res <- PKNCA::pk.nca(nca_data)
#> Warning: Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.01) is not allowed
knitr::kable(
summary(nca_res),
caption = "Simulated NCA parameters by weight + formulation cohort."
)| Interval Start | Interval End | cohort | N | AUClast (day*ng/mL) | Cmax (ng/mL) | Tmax (day) | Half-life (day) |
|---|---|---|---|---|---|---|---|
| 0 | 35 | 14 kg, granule | 50 | NC | 87.3 [58.4] | 2.11 [2.06, 2.31] | 9.72 [6.86] |
| 0 | 35 | 15 kg, granule | 50 | NC | 121 [90.7] | 2.11 [2.06, 2.36] | 11.3 [8.31] |
| 0 | 35 | 19 kg, granule | 50 | NC | 80.1 [86.6] | 2.06 [2.06, 2.21] | 14.6 [10.5] |
| 0 | 35 | 25 kg, tablet | 50 | NC | 59.5 [89.2] | 2.16 [2.06, 2.61] | 20.0 [18.2] |
| 0 | 35 | 5 kg, granule | 50 | NC | 138 [75.3] | 2.08 [2.01, 2.31] | 4.96 [3.69] |
| 0 | 35 | 55 kg, tablet | 50 | NC | 124 [73.5] | 2.16 [2.06, 2.66] | 37.1 [20.4] |
| 0 | 35 | 7 kg, granule | 50 | NC | 65.5 [104] | 2.06 [2.06, 2.41] | 8.43 [8.63] |
| 0 | 35 | 8 kg, granule | 50 | NC | 137 [73.2] | 2.11 [2.06, 2.21] | 7.30 [8.05] |
Comparison against published narrative
Ayyoub 2016 does not publish a per-weight NCA table (the analysis is popPK only), but it makes two explicit numerical claims that the typical-value simulation can verify:
trapezoid <- function(x, y) {
ok <- !is.na(x) & !is.na(y)
x <- x[ok]; y <- y[ok]
sum(diff(x) * (head(y, -1) + tail(y, -1)) / 2)
}
# Terminal slope from day 10-35 on a typical 20 kg, 7 yr, tablet
# subject (the reference individual).
ref_subject <- tibble::tibble(
id = 1L, cohort = "ref",
WT = 20, AGE = 7,
FORM_GRANULE = 0L,
dose_base_mg = 0.57 * 180
)
ref_events <- build_events(ref_subject,
dose_times = c(0, 1, 2),
obs_times = seq(0.01, 35, by = 0.05))
sim_ref <- rxode2::rxSolve(
mod_typ,
events = ref_events,
keep = c("cohort", "WT", "AGE", "FORM_GRANULE")
) |>
as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalvp', 'etalka'
tail_sim <- subset(sim_ref, time >= 10 & time <= 35 & !is.na(Cc) & Cc > 0)
fit <- lm(log(Cc) ~ time, data = tail_sim)
t_half_d <- log(2) / (-coef(fit)[2])
comparison <- tibble::tibble(
Quantity = c(
"Pyronaridine mean elimination half-life in pediatric malaria (days)",
"Granule-vs-tablet Ka ratio"
),
`Paper (Ayyoub 2016)` = c(
"12.3 (Results p. 1454)",
"2.63 (Results p. 1454: 'Ka = 17.9 * (1 + 1.63)' under granule)"
),
`Simulated (typical 20 kg, 7 yr, reference subject)` = c(
sprintf("%.1f", t_half_d),
"2.63 (encoded directly via `e_form_granule_ka`)"
)
)
knitr::kable(comparison,
caption = "Typical-value model vs Ayyoub 2016 narrative claims.")| Quantity | Paper (Ayyoub 2016) | Simulated (typical 20 kg, 7 yr, reference subject) |
|---|---|---|
| Pyronaridine mean elimination half-life in pediatric malaria (days) | 12.3 (Results p. 1454) | 11.8 |
| Granule-vs-tablet Ka ratio | 2.63 (Results p. 1454: ‘Ka = 17.9 * (1 + 1.63)’ under granule) | 2.63 (encoded directly via
e_form_granule_ka) |
The simulated typical-value cohort reproduces the published terminal half-life and the formulation Ka ratio.
Assumptions and deviations
Dose units. The packaged model carries dose in mg of pyronaridine base. The paper analyzes dose in pyronaridine base after multiplying the administered pyronaridine tetraphosphate dose by the salt-to-base factor 0.57 (Ayyoub 2016 Methods ‘Population pharmacokinetic and statistical analyses’ p. 1452). Users dosing in pyronaridine tetraphosphate must apply the 0.57 factor before passing the dose amount to
rxode2::rxSolve(); the virtual-cohort code above does this viadose_base_mg = 0.57 * dose_mg_pp.Concentration units. Volumes in the model are in L and doses in mg, so
Cc = central / vcis in mg/L (numerically equal to ug/mL). Multiplying by 1000 gives ng/mL, which is the unit the paper uses for observed concentrations (assay LOQ 5.7 ng/mL); the vignette plots and the NCA table use ng/mL throughout.Bioavailability. The paper estimates apparent CL/F and V/F values; absolute oral bioavailability F was not separately identifiable from the available data. The packaged model accordingly does not include an
lfdepotparameter – a 1.0 default bioavailability is baked into the apparent-volume reading of the parameters.Allometric exponents. Body weight effects on CL/F, V2/F, V3/F, and Q/F use fixed exponents (0.75 on clearances, 1.00 on volumes) rather than estimated values. The source paper states explicitly that “the effect of body weight on the apparent clearance and volume of distribution terms was addressed using an allometric scaling approach with exponents of 1 and 0.75 on volume and clearance parameters, respectively” (Methods p. 1453); the exponents carry no uncertainty in Ayyoub 2016 Table 2 and are wrapped in
fixed()in the packagedini().Residual-error mapping. Ayyoub 2016 fits blood pyronaridine concentrations as natural logarithms with additive residual on the log scale (Methods p. 1453: model “ln Cij = ln Cpred,ij + eps_ij” applied to the natural-log-transformed data of the immediately preceding paragraph). Table 2 reports residual variability as a log-scale variance sigma^2 = 0.195 (no %CV column). By the standing convention in
references/parameter-names.md, NONMEM additive-on-log-scale residual maps to nlmixr2 proportional residual in linear space, withpropSd = sqrt(sigma^2) = sqrt(0.195) = 0.4416(the SD on the log scale equals the CV in linear space to first order). The exact mappingpropSd = sqrt(exp(0.195) - 1) = 0.464is about 5% larger than the linear approximation; the published Table 2 RSE on sigma is 12.1%, so the approximation is within the published precision.No IIV on Q/F. The source paper held the IIV variance on the intercompartmental clearance Q/F to zero, on the grounds that “the estimates could not be obtained with good precision” (Results p. 1454). The packaged model accordingly omits
etalq.Diagonal Omega. The source paper used a diagonal IIV covariance matrix because “attempts were made to incorporate a full variance-covariance matrix; however, successful convergence with plausible parameter estimates could not be attained” (Methods p. 1453). Correlations across IIV terms are therefore left implicit at zero in the packaged model.
Headline Ka unit typo in source. The covariate-equation header “Ka (hours) = [17.9 * (1 + formulation * 1.63)] * exp(eta)” on Ayyoub 2016 Results p. 1454 is a typesetting error; the structural Ka value is reported in day-1 throughout the rest of the paper (see Table 2 ‘Ka (day-1)’ and Abstract). The packaged model uses 17.9 day-1 (= 0.746 1/h) consistent with the table value.
Errata. A search for published corrections to Ayyoub 2016 in PubMed and on the journal landing page (April 2026) returned no errata or corrigenda affecting model structure or parameter values.
Virtual-cohort age sampling. The age field for each subject is drawn from a 10% lognormal distribution around the weight-band median age from the WHO growth standards. The source paper uses the WHO growth standard ages directly for the labelling simulations (Methods ‘Simulations’ p. 1453); the 10% lognormal noise here is for vignette illustration of the age effect on V3/F only and does not affect the paper’s structural conclusions.
Race. Race was not used as a model covariate by Ayyoub 2016 (Methods ‘Covariate model building’ p. 1453 lists baseline creatinine clearance, ALT, gender, age, formulation, and Hgb as the tested covariates – race / ethnicity was not on the list). The packaged
populationmetadata records the predominantly African cohort composition for context.
