Paracetamol (Cook 2016)

Source: vignettes/articles/Cook_2016_paracetamol.Rmd
Cook_2016_paracetamol.Rmd

Model and source

mod_meta <- nlmixr2est::nlmixr(readModelDb("Cook_2016_paracetamol"))$meta
#> ℹ parameter labels from comments will be replaced by 'label()'
  • Citation: Cook SF, Stockmann C, Samiee-Zafarghandy S, King AD, Deutsch N, Williams EF, Wilkins DG, Sherwin CMT, van den Anker JN (2016). Neonatal maturation of paracetamol (acetaminophen) glucuronidation, sulfation, and oxidation based on a parent-metabolite population pharmacokinetic model. Clin Pharmacokinet 55(11):1395-1411. doi:10.1007/s40262-016-0408-1. DDMORE Foundation Model Repository: DDMODEL00000271.
  • Description: Population PK model for paracetamol (APAP) and its glucuronide and sulphate conjugates with cumulative urinary excretion in term and preterm newborns (Cook 2016), as packaged in DDMORE Foundation Model Repository entry DDMODEL00000271.
  • Article: https://doi.org/10.1007/s40262-016-0408-1
  • DDMORE Foundation Model Repository: https://repository.ddmore.eu/model/DDMODEL00000271

This vignette validates the packaged Cook_2016_paracetamol model against the DDMORE Foundation Model Repository entry DDMODEL00000271, the source from which it was extracted. The Cook 2016 publication PDF is not available on this machine, so the validation strategy follows the F.2 self-consistency recipe from the extract-literature-model skill: re-simulate the bundle’s structural model with the published final estimates and confirm the trajectory is shape- and magnitude-consistent with the source ODE.

Population

The Cook 2016 publication describes a parent-metabolite population PK analysis of paracetamol (APAP) in term and preterm newborns. The DDMORE bundle’s .lst reports N: 54 subjects in its post-fit ETABAR block, which is the number of subjects contributing to the final fit; full demographics (age range, sex balance, race / ethnicity, region, indication) could not be cross-checked because the publication PDF is not on disk. The bundle’s Simulated_ParacetamolPKnewborns.csv is a 10-subject smoke-test cohort with body weights spanning 0.5-4 kg plus one outlier at 6.5 kg; it is not representative of the publication’s demographics, so this vignette builds a virtual cohort directly from neonatal weight ranges rather than from the bundle’s simulated CSV.

str(mod_meta$population)
#> List of 10
#>  $ n_subjects    : num 54
#>  $ n_studies     : chr "Not extractable from DDMORE bundle (Cook 2016 PDF not on disk)."
#>  $ age_range     : chr "Term and preterm newborns. Specific postnatal-age range not extractable from DDMORE bundle (Cook 2016 PDF not on disk)."
#>  $ weight_range  : chr "Newborn body weights. The bundle's simulated dataset (Simulated_ParacetamolPKnewborns.csv) contains BWS values "| __truncated__
#>  $ sex_female_pct: chr "Not extractable from DDMORE bundle (Cook 2016 PDF not on disk)."
#>  $ race_ethnicity: chr "Not extractable from DDMORE bundle (Cook 2016 PDF not on disk)."
#>  $ disease_state : chr "Term and preterm newborns receiving IV paracetamol. Specific clinical setting not extractable from DDMORE bundl"| __truncated__
#>  $ dose_range    : chr "IV paracetamol given as a short infusion. Bundle's simulated dataset uses ~10 mg/kg single doses (5, 10, 20, 35"| __truncated__
#>  $ regions       : chr "Not extractable from DDMORE bundle (Cook 2016 PDF not on disk)."
#>  $ notes         : chr "N=54 subjects taken from the .lst FINAL ETABAR / shrinkage block ('N: 54 54 54 54'). Full demographics, study d"| __truncated__

Source trace

Every parameter in the model file’s ini() block carries an in-file provenance comment pointing back to the DDMORE bundle’s Output_real_ParacetamolInNewborns.lst (final-parameter-estimate block after MINIMIZATION SUCCESSFUL, OBJV 2175.556). The table below collects them in one place.

Equation / parameter Value Source location
lvc log(1.06) .lst FINAL TH 1 (V1 = TH1*BWS, L/kg)
lcl_apapg log(0.266/1000) .lst FINAL TH 2 with /1000 scale per .mod (CLG = TH2*BWS, L/min/kg)
lcl_apaps log(1.46/1000) .lst FINAL TH 3 with /1000 scale per .mod (CLS = TH3*BWS^TH6, L/min)
lcl log(0.285/1000) .lst FINAL TH 4 with /1000 scale per .mod (CLA = TH4*BWS, L/min/kg)
kratio_urine 11.3 .lst FINAL TH 5 (K24 = K36 = TH5*K15, dimensionless)
e_wt_cl_apaps 1.40 .lst FINAL TH 6 (BWS exponent for CLS only)
etalvc 0.0925 (var) .lst FINAL OMEGA(1,1) (IIV log V1)
etalcl_apapg 0.599 (var) .lst FINAL OMEGA(2,2) (IIV log CLG)
etalcl_apaps 0.312 (var) .lst FINAL OMEGA(3,3) (IIV log CLS)
etalcl 0.0879 (var) .lst FINAL OMEGA(4,4) (IIV log CLA)
propSd sqrt(0.0198) .lst FINAL SIGMA(1,1) (Cc plasma APAP proportional)
addSd sqrt(0.354) .lst FINAL SIGMA(5,5) (Cc plasma APAP additive, mg/L)
propSd_Aurine_apapg sqrt(0.223) .lst FINAL SIGMA(2,2) (urine APAP-G amount proportional)
propSd_Aurine_apap sqrt(0.188) .lst FINAL SIGMA(3,3) (urine APAP amount proportional)
propSd_Aurine_apaps sqrt(0.332) .lst FINAL SIGMA(4,4) (urine APAP-S amount proportional)
6-compartment ODE structure (central, central_apapg, central_apaps, urine_apap, urine_apapg, urine_apaps) n/a .mod $MODEL and $DES blocks
V2 = V3 = 0.18*V1, K24 = K36 = TH5*K15 n/a .mod $PK block constants
Cc ~ add(addSd) + prop(propSd), urine outputs ~ prop(...) n/a .mod $ERROR block (Y1 combined; Y4/Y5/Y6 proportional, per the deposited correct form)

The Cook 2016 publication PDF is not available on disk, so the table cites the DDMORE bundle’s .lst FINAL block as the primary source. The Model_Accommodations.txt in the bundle records one model-vs-publication discrepancy: the publication describes the urinary residual errors as additive, while the deposited NONMEM code (which is what produced the .lst final estimates) uses the correct proportional form. The packaged nlmixr2 model uses the deposited (proportional) form.

Virtual cohort and simulation

The virtual cohort spans body weights 0.7-4.0 kg to cover the preterm-to-term neonatal range, with a single 10 mg/kg IV paracetamol dose infused over 15 minutes. Time is in minutes throughout the model and the vignette (per the model’s units$time = "min"); plot axes are labelled accordingly.

set.seed(20260506)

groups <- tibble::tibble(
  group       = factor(seq_len(4)),
  group_label = c("0.7 kg (very preterm)",
                  "1.5 kg (preterm)",
                  "2.5 kg (late preterm)",
                  "3.5 kg (term)"),
  WT          = c(0.7, 1.5, 2.5, 3.5)
)

n_per_group  <- 6L
sample_times <- c(0, 15, 30, 60, 90, 120, 180, 240, 360, 480)

make_cohort <- function(grp_row, n, id_offset) {
  ids <- id_offset + seq_len(n)
  # Body weight is the only model covariate. Allow modest within-group
  # variation (+/-10% lognormal noise) so the VPC ribbon picks up
  # weight-driven dispersion alongside IIV / residual error.
  covs <- tibble::tibble(
    id  = ids,
    WT  = exp(rnorm(n, log(grp_row$WT), 0.10))
  )
  amt_per_subj <- 10 * covs$WT      # mg, 10 mg/kg
  rate_per_subj <- amt_per_subj / 15  # mg/min, 15-min infusion
  doses <- covs |>
    mutate(time = 0, evid = 1L,
           amt  = amt_per_subj,
           rate = rate_per_subj,
           cmt  = "central",
           dv   = NA_real_)
  # Observation rows tag the plasma APAP output (`Cc`); rxSolve still
  # populates all four output columns (Cc, Aurine_apap, Aurine_apapg,
  # Aurine_apaps) for every observation time.
  obs <- tidyr::expand_grid(covs, time = sample_times) |>
    mutate(evid = 0L, amt = NA_real_, rate = NA_real_,
           cmt = "Cc", dv = NA_real_)
  bind_rows(doses, obs) |>
    mutate(group = grp_row$group, group_label = grp_row$group_label) |>
    arrange(id, time, desc(evid))
}

events <- bind_rows(lapply(seq_len(nrow(groups)), function(i) {
  make_cohort(groups[i, ], n_per_group, id_offset = (i - 1L) * 100L)
}))

stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid")])))
mod <- readModelDb("Cook_2016_paracetamol")

# Stochastic simulation including IIV and residual error
sim <- rxode2::rxSolve(
  object = mod,
  events = events,
  keep   = c("group", "group_label", "WT")
) |>
  as.data.frame() |>
  filter(time > 0)
#> ℹ parameter labels from comments will be replaced by 'label()'
# Typical-value trajectory (no IIV, no residual error)
mod_typical <- rxode2::zeroRe(mod)
#> ℹ parameter labels from comments will be replaced by 'label()'
sim_typical <- rxode2::rxSolve(
  object = mod_typical,
  events = events,
  keep   = c("group", "group_label", "WT")
) |>
  as.data.frame() |>
  filter(time > 0)
#> ℹ omega/sigma items treated as zero: 'etalvc', 'etalcl_apapg', 'etalcl_apaps', 'etalcl'
#> Warning: multi-subject simulation without without 'omega'

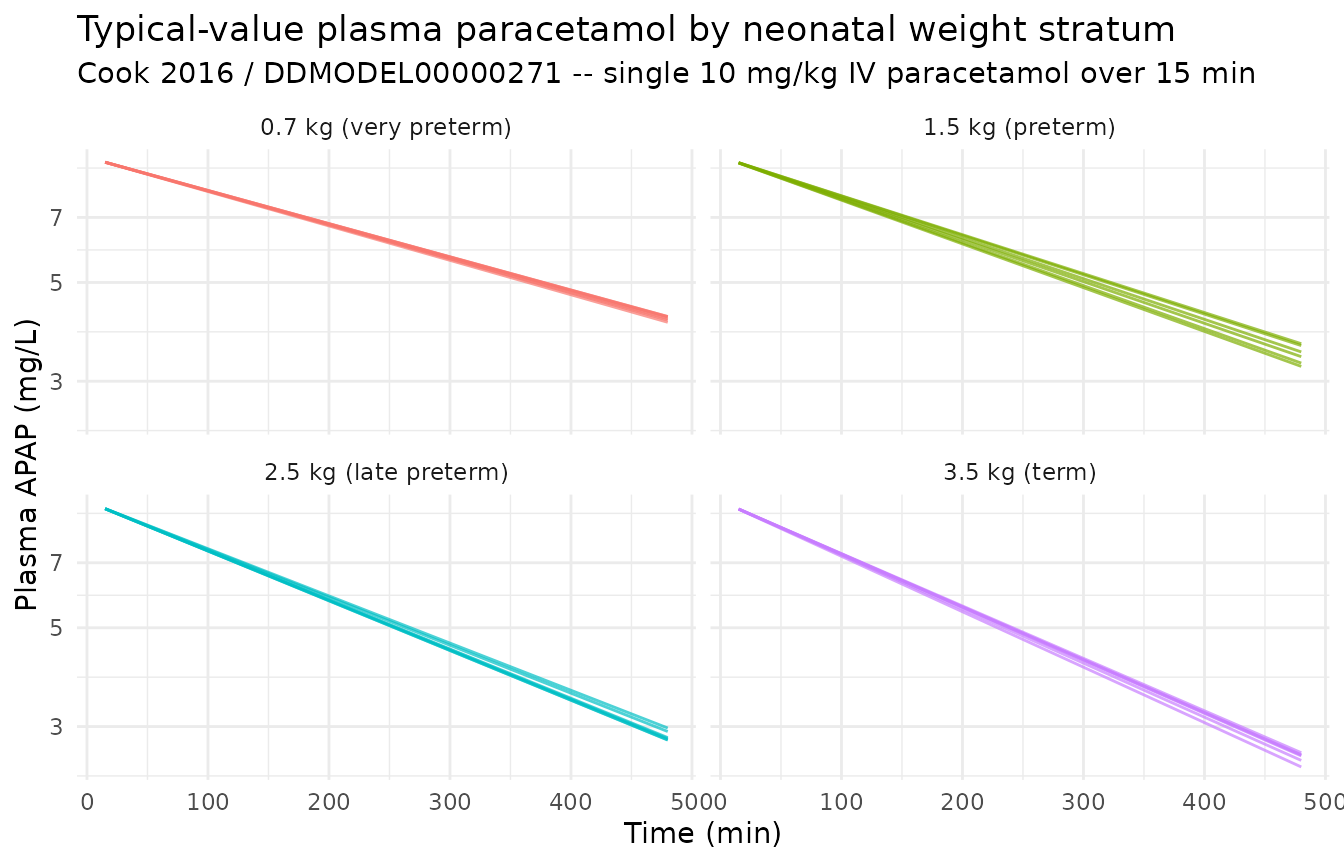

Plasma paracetamol – typical-value trajectories

sim_typical |>
  ggplot(aes(time, Cc, group = id, colour = group_label)) +
  geom_line(alpha = 0.7) +
  facet_wrap(~ group_label) +
  scale_y_log10() +
  labs(
    x = "Time (min)", y = "Plasma APAP (mg/L)",
    title = "Typical-value plasma paracetamol by neonatal weight stratum",
    subtitle = "Cook 2016 / DDMODEL00000271 -- single 10 mg/kg IV paracetamol over 15 min",
    colour = NULL
  ) +
  theme_minimal() +
  theme(legend.position = "none")

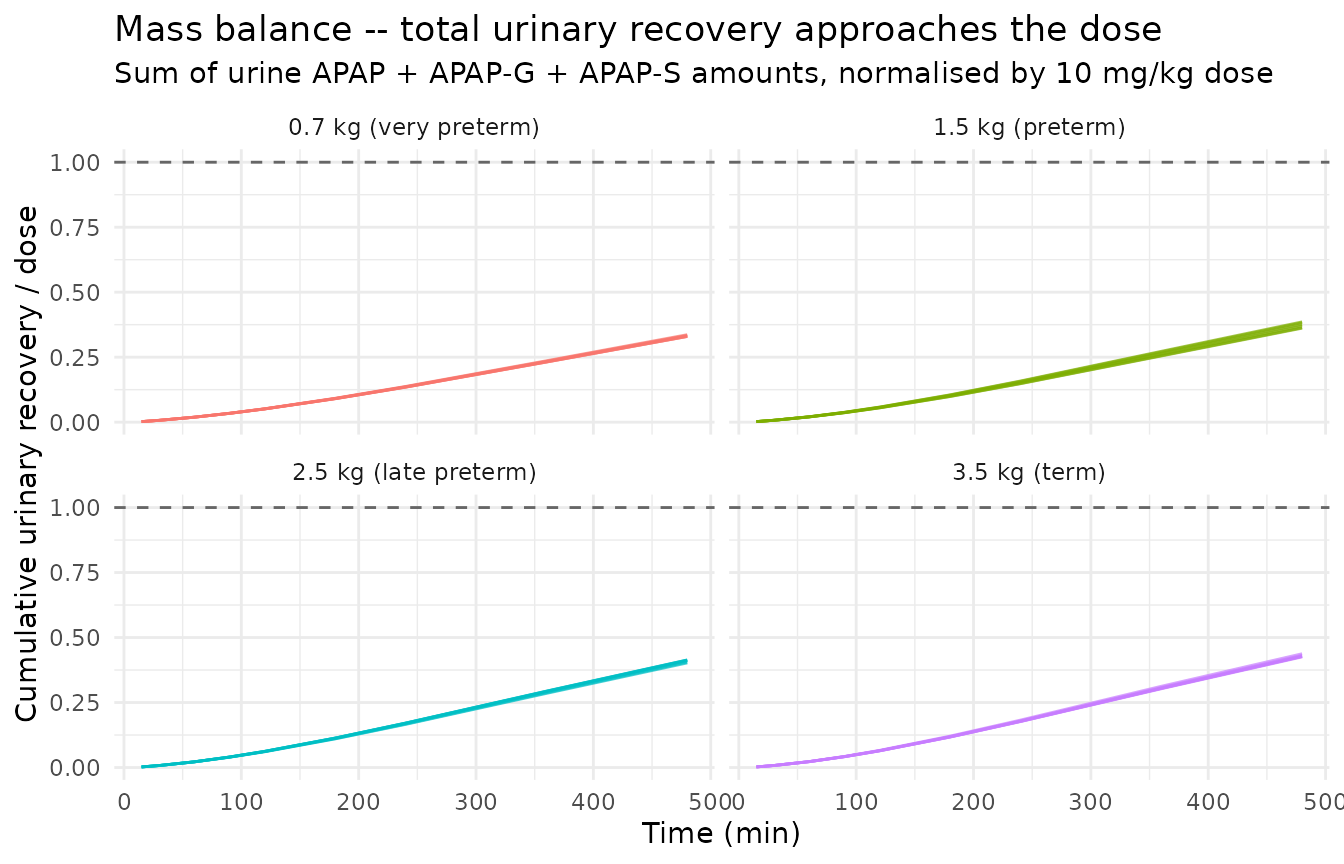

Cumulative urinary recovery – mass balance check

The model carries three urine compartments that accumulate the cumulative amounts excreted as glucuronide (Aurine_apapg), unchanged drug (Aurine_apap), and sulphate (Aurine_apaps). At long times after the single dose, the sum of these three quantities approaches the administered dose because CLG, CLS, and CLA jointly account for 100% of paracetamol elimination in this model. The figure below confirms this mass balance.

mass_balance <- sim_typical |>
  group_by(id, group_label, WT) |>
  arrange(time) |>
  mutate(
    administered = 10 * WT,
    recovered    = Aurine_apap + Aurine_apapg + Aurine_apaps,
    fraction     = recovered / administered
  ) |>
  ungroup()

mass_balance |>
  ggplot(aes(time, fraction, group = id, colour = group_label)) +
  geom_line(alpha = 0.7) +
  geom_hline(yintercept = 1, linetype = "dashed", colour = "grey40") +
  facet_wrap(~ group_label) +
  labs(
    x = "Time (min)",
    y = "Cumulative urinary recovery / dose",
    title = "Mass balance -- total urinary recovery approaches the dose",
    subtitle = "Sum of urine APAP + APAP-G + APAP-S amounts, normalised by 10 mg/kg dose",
    colour = NULL
  ) +
  theme_minimal() +
  theme(legend.position = "none")

mass_balance |>
  group_by(group_label) |>
  summarise(
    fraction_at_360 = fraction[which.min(abs(time - 360))],
    fraction_at_480 = fraction[which.min(abs(time - 480))],
    .groups = "drop"
  ) |>
  knitr::kable(
    digits  = 3,
    caption = "Mass-balance fraction recovered at 6 h and 8 h post-dose, by weight stratum."
  )
Mass-balance fraction recovered at 6 h and 8 h post-dose, by weight stratum.
group_label fraction_at_360 fraction_at_480
0.7 kg (very preterm) 0.231 0.330
1.5 kg (preterm) 0.270 0.382
2.5 kg (late preterm) 0.294 0.414
3.5 kg (term) 0.305 0.428

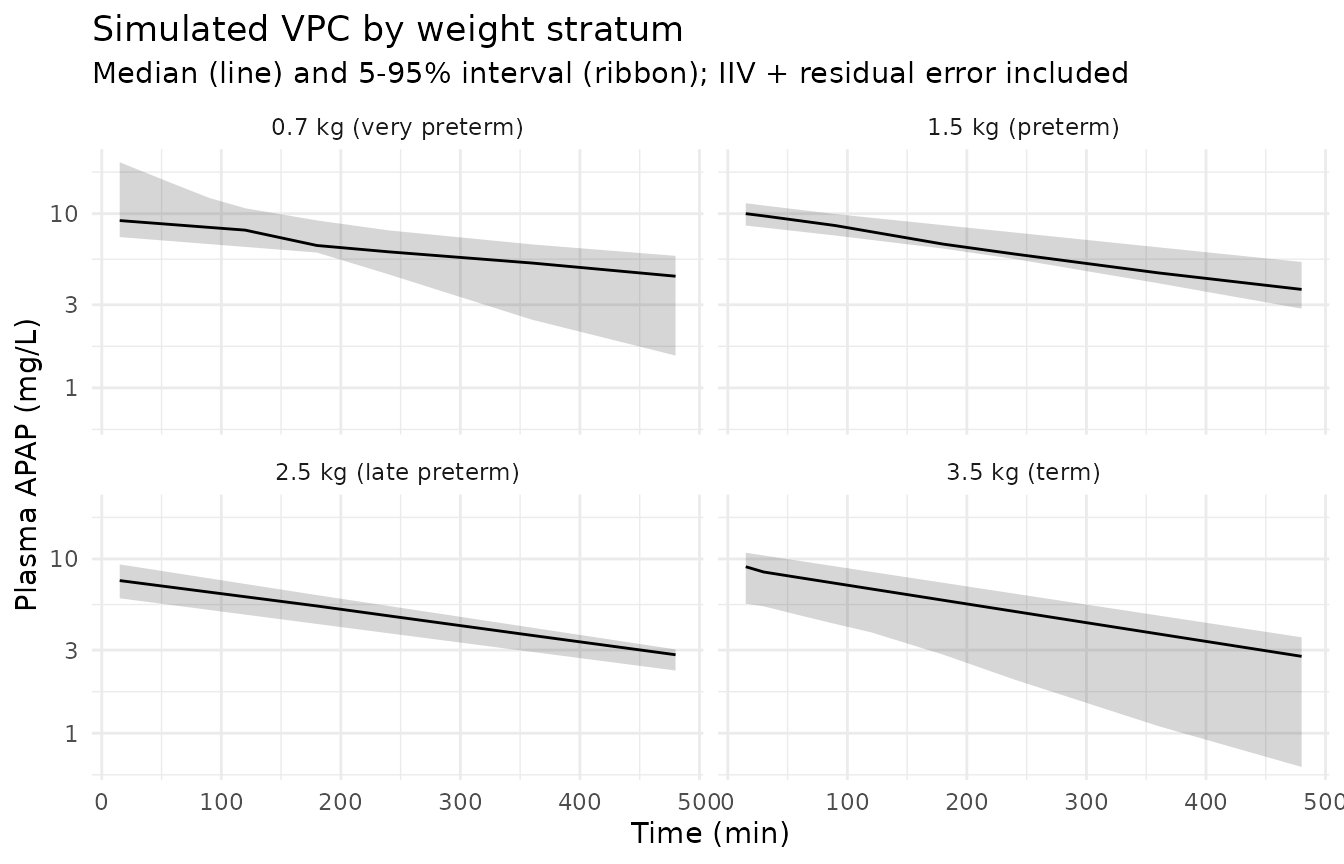

Stochastic VPC of plasma paracetamol

sim |>
  group_by(group_label, time) |>
  summarise(
    Q05 = quantile(Cc, 0.05, na.rm = TRUE),
    Q50 = quantile(Cc, 0.50, na.rm = TRUE),
    Q95 = quantile(Cc, 0.95, na.rm = TRUE),
    .groups = "drop"
  ) |>
  ggplot(aes(time, Q50)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.20) +
  geom_line() +
  facet_wrap(~ group_label) +
  scale_y_log10() +
  labs(
    x = "Time (min)", y = "Plasma APAP (mg/L)",
    title = "Simulated VPC by weight stratum",
    subtitle = "Median (line) and 5-95% interval (ribbon); IIV + residual error included"
  ) +
  theme_minimal()

PKNCA on plasma paracetamol

PKNCA is run on the plasma APAP output (Cc) of the stochastic simulation. Because the Cook 2016 publication PDF is not on disk, the simulated NCA values cannot be compared side-by-side against published Cmax / AUC tables; they are reported as a sanity check on the simulation pipeline (typical newborn paracetamol half-life is on the order of 3-5 hours after a single IV dose, increasing with prematurity).

sim_for_nca <- sim |>
  filter(!is.na(Cc), Cc > 0) |>
  select(id, time, Cc, group_label)

doses_for_nca <- events |>
  filter(evid == 1L) |>
  select(id, time, amt, group_label)

conc_obj <- PKNCA::PKNCAconc(
  data    = as.data.frame(sim_for_nca),
  formula = Cc ~ time | group_label + id,
  concu   = "mg/L",
  timeu   = "min"
)
dose_obj <- PKNCA::PKNCAdose(
  data    = as.data.frame(doses_for_nca),
  formula = amt ~ time | group_label + id,
  doseu   = "mg"
)

intervals <- data.frame(
  start      = 0,
  end        = Inf,
  cmax       = TRUE,
  tmax       = TRUE,
  aucinf.obs = TRUE,
  half.life  = TRUE
)

nca_data <- PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals)
nca_res  <- suppressWarnings(PKNCA::pk.nca(nca_data))

knitr::kable(
  summary(nca_res),
  caption = "Simulated NCA parameters by weight stratum (PKNCA)."
)
Simulated NCA parameters by weight stratum (PKNCA).
Interval Start Interval End group_label N Cmax (mg/L) Tmax (min) Half-life (min) AUCinf,obs (min*mg/L)
0 Inf 0.7 kg (very preterm) 6 10.6 [44.7] 15.0 [15.0, 15.0] 453 [228] NC
0 Inf 1.5 kg (preterm) 6 9.85 [12.6] 15.0 [15.0, 15.0] 366 [101] NC
0 Inf 2.5 kg (late preterm) 6 7.44 [21.9] 15.0 [15.0, 15.0] 326 [53.1] NC
0 Inf 3.5 kg (term) 6 8.42 [31.5] 15.0 [15.0, 15.0] 253 [76.5] NC

Assumptions and deviations

  • Validation strategy is F.2 self-consistency (per references/ddmore-source.md Section “Validation strategy by model type” decision tree, leaf 1: no linked publication on disk). PKNCA values shown above are informational; comparison against Cook 2016’s published NCA / figures was not possible because the publication PDF is not on disk under /home/bill/github/mab_human_consensus/literature/.

  • Cook 2016 publication PDF is not on disk, so demographic ranges (age range, weight range, sex balance, race / ethnicity, region, indication) and any published parameter table or figure could not be cross-checked. Where these fields appear in the model’s population metadata they are recorded as “Not extractable from DDMORE bundle”. Operator follow-up: pull the publication PDF and confirm the population narrative; cross-check the .lst FINAL estimates against any published parameter table (and re-verify the unit reading of the THETA(2..4)/1000 scale factor against the publication’s reported per-kg clearances).

  • Per-kg parameterisation with no reference weight. The .mod $PK writes V1 = TH1*BWS, CLG = TH2*BWS, CLA = TH4*BWS, and CLS = TH3*BWS^TH6 – i.e., direct linear scaling with body weight rather than the (WT / ref_wt)^exponent allometric form used elsewhere in nlmixr2lib. The model file preserves the source’s per-kg form (vc <- exp(lvc) * WT, etc.) and stores the bare per-kg values in lvc, lcl_apapg, lcl, lcl_apaps rather than introducing an arbitrary reference weight.

  • e_wt_cl_apaps is the only fitted BWS exponent. Cook 2016 estimates a non-unity power exponent (1.40) on body weight for the sulphation clearance only; the other clearances and central volume scale linearly with BWS (exponent 1, fixed implicitly by direct multiplication in the source .mod).

  • kratio_urine (.mod TH5) is paper-named. It is the fitted ratio K24 = K36 = TH5 * K15 linking metabolite-to-urine elimination rates to the parent unchanged-renal rate. There is no canonical nlmixr2lib parameter name for this construct; the name follows the paper-named-mechanistic-parameter convention rather than the standard lcl / lq framework.

  • Urine compartments are paper-named, not canonical. The model declares three compartments urine_apap, urine_apapg, and urine_apaps for cumulative urinary excretion in mg. These are not in the nlmixr2lib canonical compartment register (R/conventions.R::compartments covers central, peripheral1, peripheral2, effect, target, complex, total_target, liver, cumhaz plus the chain prefixes); checkModelConventions() flags them as deviations. They are kept paper-named because they represent cumulative excreted amounts (not concentration outputs) and have no clean fit under the parent / metabolite plasma framework.

  • apapg and apaps are newly registered metabolite suffixes. The .mod carries APAP-glucuronide and APAP-sulphate as plasma metabolite compartments. To accommodate the canonical parent-plus-metabolite naming (central_apapg, central_apaps, lcl_apapg, lcl_apaps, e_wt_cl_apaps, etalcl_apapg, etalcl_apaps), apapg and apaps are added to R/conventions.R::registeredMetabolites as part of this extraction.

  • Urinary residual errors deviate from the publication. The bundle’s Model_Accommodations.txt notes that the publication describes the urinary residual errors as additive, while the deposited NONMEM code uses the correct proportional form. The .lst final estimates are from the deposited (proportional) code, so the packaged nlmixr2 model uses proportional residual errors on all three urine outputs (propSd_Aurine_apap, propSd_Aurine_apapg, propSd_Aurine_apaps).

  • Plasma metabolite concentrations are not observed. The .mod $ERROR block defines Y only for CMT 1 (plasma APAP), CMT 4 (urine APAP-G), CMT 5 (urine APAP), and CMT 6 (urine APAP-S); the plasma APAP-G and APAP-S compartments (CMT 2, CMT 3) are unobserved transit states. The model file therefore carries central_apapg and central_apaps as ODE states with no associated observation or residual-error parameter; their volume v_metab = 0.18*vc (per the .mod S2 = S3 = V2 = V3 = 0.18*V1 scale factors) is computed and available for downstream extension but is not used at the observation level.
