Finafloxacin (Taubert 2018)

Source: vignettes/articles/Taubert_2018_finafloxacin.Rmd
Taubert_2018_finafloxacin.Rmd

Model and source

  • Citation: Taubert M, Luckermann M, Vente A, Dalhoff A, Fuhr U. Population pharmacokinetics of finafloxacin in healthy volunteers and patients with complicated urinary tract infections. Antimicrob Agents Chemother. 2018;62(4):e02328-17. doi:10.1128/AAC.02328-17
  • Description: Two-compartment population PK model for finafloxacin (a novel fluoroquinolone with enhanced antibacterial activity at acidic pH) with linear elimination, parallel first-order plus zero-order oral absorption (each with its own absorption lag time), an additive renal + non-renal clearance decomposition, and a cumulative-urinary excretion compartment. Built from pooled data of 266 subjects across three trials: 127 healthy volunteers (Trial I oral 25-1,000 mg/day; Trial II IV 200-1,000 mg/day) and 139 patients with complicated urinary tract infections (Trial III IV 800 mg/day, 60-min infusions). Covariates: body surface area on the central volume of distribution (power form, exponent 1.50, reference 1.829 m^2) and healthy / patient cohort status (DIS_HEALTHY) on both the renal and non-renal clearance arms. The paper-reported total apparent clearance (20.9 L/h healthy; -29% in patients) and population-specific fraction renally excreted (FER1 = 0.40 healthy, FER2 = 0.21 patient) are re-parameterised into the canonical lcl_renal + lcl_nonren additive decomposition; the typical values are anchored to DIS_HEALTHY = 0 (patient reference) per the inst/references/covariate-columns.md DIS_HEALTHY convention. The IIV translation between the paper and the re-parameterised forms is documented in the validation vignette Assumptions and deviations (Taubert 2018).
  • Article: https://doi.org/10.1128/AAC.02328-17

Population

Taubert 2018 fit a unified population PK model to pooled data from 266 subjects across three trials (paper Table 1):

  • Trial I (n = 77): healthy adult volunteers receiving oral finafloxacin 25-1,000 mg/day (single and multiple ascending doses); median weight 75.3 kg (61-97.7), median height 176.7 cm (161-190), median age 42.5 years (19-55), 71 male.
  • Trial II (n = 50): healthy adult volunteers receiving IV finafloxacin 200-1,000 mg/day; median weight 76.5 kg (50.9-112.4), median height 174.5 cm (138-200), median age 41.5 years (19-63), 42 male.
  • Trial III (n = 139): hospitalised patients with complicated urinary tract infections or acute complicated / uncomplicated pyelonephritis receiving IV finafloxacin 800 mg/day for 5 or 10 days (60-min short infusions); median weight 73.5 kg (64-140), median height 164 cm (145-186), median age 61 years (19-90), 21 male.

A total of 3,235 plasma samples and 633 urine samples were modelled (ClinicalTrials.gov NCT01928433). The same information is available programmatically via readModelDb("Taubert_2018_finafloxacin")$population.

Source trace

The per-parameter origin is recorded as an in-file comment next to each ini() entry in inst/modeldb/specificDrugs/Taubert_2018_finafloxacin.R. The table below collects them in one place for review.

Equation / parameter Value Source location
lcl_renal log(3.12) (= log(20.9 * 0.71 * 0.21)) Table 3 (CL_total, patient effect, FER2)
lcl_nonren log(11.72) (= log(20.9 * 0.71 * 0.79)) Table 3 (CL_total, patient effect, 1 - FER2)
lvc log(46.9) Table 3 (Vc)
lq log(2.80) Table 3 (Q)
lvp log(43.1) Table 3 (Vp)
e_bsa_vc 1.50 Table 3 (BSA on Vc)
e_dis_healthy_cl_renal log(8.36 / 3.12) = 0.985 Table 3 (FER1 / FER2, with patient CL effect)
e_dis_healthy_cl_nonren log(12.54 / 11.72) = 0.068 Table 3 ((1 - FER1) / (1 - FER2), with patient CL effect)
lfdepot log(0.75) Table 3 oral (F)
logitf1st logit(0.77) Table 3 oral (f1st)
lka log(6.61) Table 3 oral (Ka)
ltlag1 log(0.22) Table 3 oral (LAG1)
ld0 log(7.77) Table 3 oral (D0)
ltlag2 log(0.54) Table 3 oral (LAG2)
etalcl_renal log(1 + 0.57^2) combined CL_total IIV (54%) + FER1 IIV (19%)
etalcl_nonren log(1 + 0.54^2) Table 3 (IIV on CL_total)
etalvc, etalq, etalvp log(1 + CV^2) Table 3 (IIV %CV per parameter)
oral absorption IIVs log(1 + CV^2) Table 3 oral (IIV %CV per parameter)
addSd, propSd 0.001, 0.24 Table 3 (IV plasma RUV)
addSd_urineAmt, propSd_urineAmt 0.001, 0.33 Table 3 (IV urine RUV)
Two-compartment ODE structure n/a Methods, Population pharmacokinetic analysis
Parallel first-order + zero-order absorption n/a Results, Oral absorption model
Urinary excretion compartment n/a Methods (output compartment for renal arm)

Virtual cohort

The original observed data are not publicly available. The simulations below use two virtual cohorts whose covariate distributions approximate the Trial II (healthy IV) and Trial III (patient IV) demographics from Table 1.

set.seed(20180101)

make_cohort <- function(n, wt_mu, wt_sd, ht_mu, ht_sd, pct_female, dis_healthy, id_offset = 0L) {
  tibble(
    id          = id_offset + seq_len(n),
    WT          = pmax(40, rnorm(n, mean = wt_mu, sd = wt_sd)),
    HT          = pmax(140, rnorm(n, mean = ht_mu, sd = ht_sd)),
    SEXF        = rbinom(n, size = 1, prob = pct_female / 100),
    DIS_HEALTHY = dis_healthy
  ) |>
    mutate(BSA = sqrt(WT * HT / 3600))
}

n_per_cohort <- 200L

cohort_healthy <- make_cohort(
  n          = n_per_cohort,
  wt_mu      = 76.5,
  wt_sd      = 12.0,
  ht_mu      = 174.5,
  ht_sd      = 9.0,
  pct_female = 16.0,
  dis_healthy = 1L,
  id_offset  = 0L
) |>
  mutate(cohort = "Healthy (Trial II)")

cohort_patient <- make_cohort(
  n          = n_per_cohort,
  wt_mu      = 73.5,
  wt_sd      = 15.0,
  ht_mu      = 164.0,
  ht_sd      = 9.0,
  pct_female = 85.0,
  dis_healthy = 0L,
  id_offset  = n_per_cohort
) |>
  mutate(cohort = "Patient (Trial III)")

cohorts <- bind_rows(cohort_healthy, cohort_patient)

Each subject receives 800 mg IV finafloxacin once daily as a 60-min infusion (rate = amt / duration = 800 mg/h) for seven days; observations are sampled densely across the final dosing interval to characterise steady-state PK.

dose_times <- seq(0, 24 * 6, by = 24)
obs_times  <- c(
  seq(24 * 6, 24 * 6 + 1, by = 0.05),
  seq(24 * 6 + 1.1, 24 * 6 + 23.9, by = 0.5),
  24 * 7
)

dose_rows <- cohorts |>
  tidyr::crossing(time = dose_times) |>
  mutate(
    evid = 1,
    amt  = 800,
    cmt  = "central",
    rate = 800,
    dv   = NA_real_
  )

obs_rows <- cohorts |>
  tidyr::crossing(time = obs_times) |>
  mutate(
    evid = 0,
    amt  = NA_real_,
    cmt  = "Cc",
    rate = 0,
    dv   = NA_real_
  )

events <- bind_rows(dose_rows, obs_rows) |>
  arrange(id, time, desc(evid))

stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid")])))

Simulation

mod <- readModelDb("Taubert_2018_finafloxacin")

sim <- rxode2::rxSolve(
  mod,
  events = events,
  keep   = c("cohort", "WT", "HT", "BSA", "DIS_HEALTHY")
) |>
  as.data.frame() |>
  dplyr::filter(time >= 24 * 6)
#> ℹ parameter labels from comments will be replaced by 'label()'

Replicate published figures

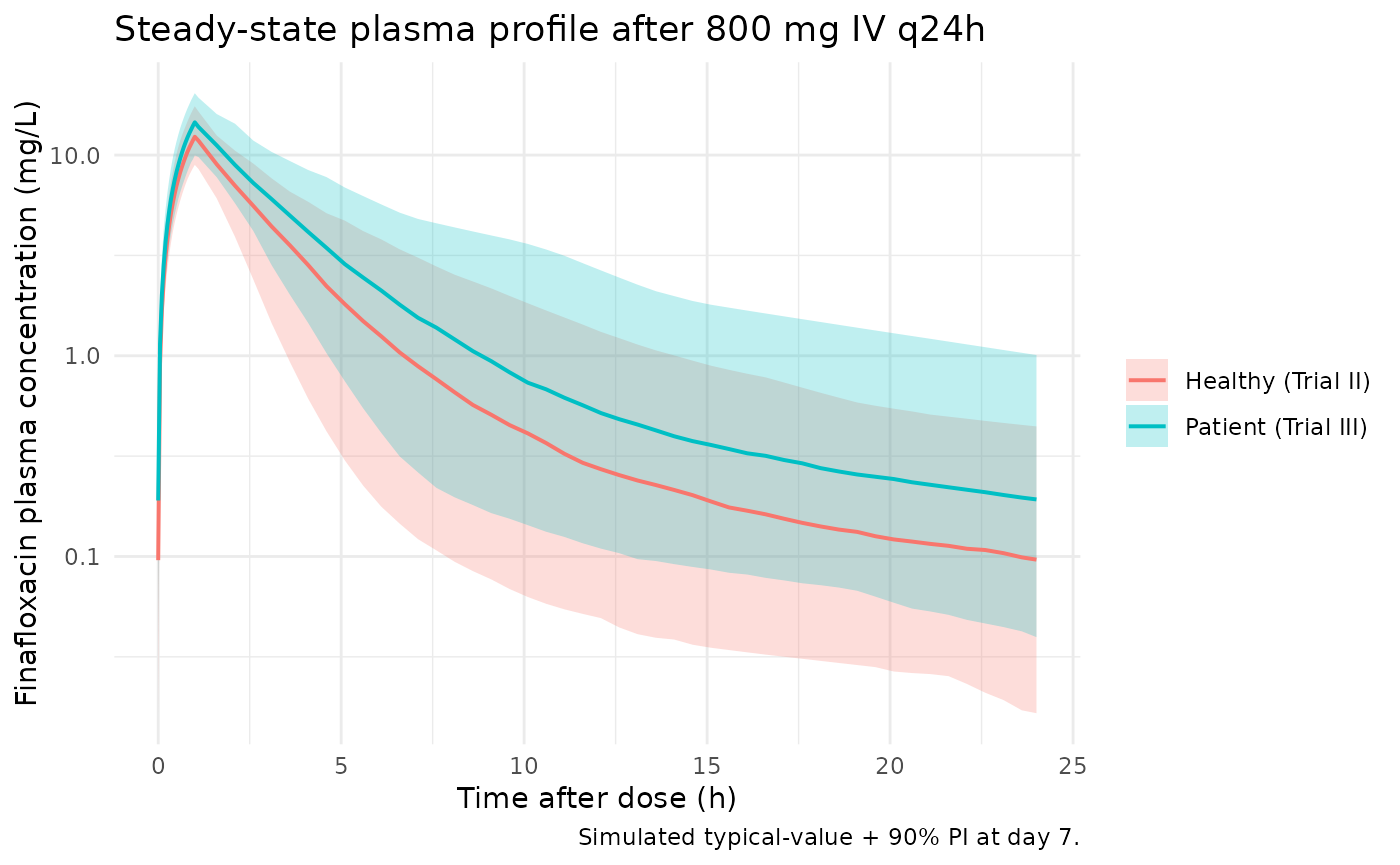

# Replicates the steady-state concentration-time pattern visible in Figure 1
# (b, c) and Figure 3 of Taubert 2018: median + 90% prediction interval at
# steady state for healthy volunteers (Trial II) vs. cUTI patients (Trial III).
sim |>
  mutate(time_h = time - 24 * 6) |>
  group_by(cohort, time_h) |>
  summarise(
    Q05 = quantile(Cc, 0.05, na.rm = TRUE),
    Q50 = quantile(Cc, 0.50, na.rm = TRUE),
    Q95 = quantile(Cc, 0.95, na.rm = TRUE),
    .groups = "drop"
  ) |>
  ggplot(aes(time_h, Q50, fill = cohort, colour = cohort)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.25, colour = NA) +
  geom_line(linewidth = 0.7) +
  scale_y_log10() +
  labs(
    x = "Time after dose (h)",
    y = "Finafloxacin plasma concentration (mg/L)",
    fill   = NULL,
    colour = NULL,
    title  = "Steady-state plasma profile after 800 mg IV q24h",
    caption = "Simulated typical-value + 90% PI at day 7."
  ) +
  theme_minimal()

PKNCA validation

Use PKNCA to compute Cmax, Tmax, AUC, and half-life on the simulated final dosing interval (24*6 < time <= 24*7) so the results align with the steady-state Table 4 of Taubert 2018.

sim_nca <- sim |>
  dplyr::filter(time > 24 * 6) |>
  dplyr::mutate(time_h = time - 24 * 6) |>
  dplyr::filter(!is.na(Cc)) |>
  dplyr::select(id, time = time_h, Cc, cohort, WT)

conc_obj <- PKNCA::PKNCAconc(sim_nca, Cc ~ time | cohort + id)

dose_df <- cohorts |>
  dplyr::mutate(time = 0, amt = 800)

dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | cohort + id)

intervals <- data.frame(
  start         = 0,
  end           = 24,
  cmax          = TRUE,
  tmax          = TRUE,
  auclast       = TRUE,
  half.life     = TRUE
)

nca_data <- PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals)
nca_res  <- PKNCA::pk.nca(nca_data)
