Diao_2016_daclizumab_cd56bright • nlmixr2lib

library(nlmixr2lib)
library(rxode2)
#> rxode2 5.0.2 using 2 threads (see ?getRxThreads)
#>   no cache: create with `rxCreateCache()`
library(dplyr)
#>
#> Attaching package: 'dplyr'
#> The following objects are masked from 'package:stats':
#>
#>     filter, lag
#> The following objects are masked from 'package:base':
#>
#>     intersect, setdiff, setequal, union
library(tidyr)
library(ggplot2)
library(PKNCA)
#>
#> Attaching package: 'PKNCA'
#> The following object is masked from 'package:stats':
#>
#>     filter

Daclizumab HYP CD56 bright NK cell expansion PK/PD model

CD56 bright natural killer (NK) cells expand during daclizumab high-yield process (HYP) treatment, hypothesized to result from increased availability of T-cell-derived IL-2 once daclizumab HYP blocks the high-affinity IL-2 receptor on activated T cells. Diao et al. (2016) characterized the expansion using an indirect-response model in which daclizumab HYP serum concentration stimulates the zero-order production rate (Kin) of CD56 bright NK cells (% of total lymphocytes) via a saturable Smax function; the elimination rate constant Kout is expressed via the baseline (Kout = Kin / NK_baseline) and is therefore not independently estimated.

The PK backbone is inherited from Othman 2014 (two-compartment first-order SC absorption with lag, allometric weight scaling); see the companion Othman_2014_daclizumab vignette for the PK details.

Citation: Diao L, Hang Y, Othman AA, et al. Br J Clin Pharmacol. 2016;82(5):1333-1342.
Article: https://doi.org/10.1111/bcp.13051
PMID: 27333593

Population

The pooled PK/PD analysis included 1405 RRMS subjects with 9630 CD56 bright NK cell records from four daclizumab HYP clinical studies (Diao 2016 Table 2):

Study	Subjects	NK records
205MS201 / SELECT and 205MS202 / SELECTION	561	5071
205MS302 / OBSERVE	107	922
205MS301 / DECIDE	737	3637

The median (mean) baseline CD56 bright NK percentage is 0.6% (0.75%) of total lymphocytes (Diao 2016 Results, NK section). The library implementation uses the median as the baseline structural value; users fitting the model to data can override cd56baseline in ini().

Source trace

Equation / parameter	Value	Source
PK backbone (`lka`, `lcl`, `lvc`, `lvp`, `lq`, `lfdepot`, `lalag`, `allo_*`, `e_dose_50mg_f`, PK IIV, `CcpropSd`, `CcaddSd`)	Othman 2014 Table 2 values	inherited from `Othman_2014_daclizumab.R`
`lcd56Kin` (Kin)	4.12e-04 %/h (= 0.009888 %/day)	Diao 2016 Table 4
`etalcd56Kin` (Kin IIV)	omega^2 0.66022 (CV 97%)	Diao 2016 Table 4
`lcd56Smax` (Smax)	7.89 (unitless)	Diao 2016 Table 4
`etalcd56Smax` (Smax IIV)	omega^2 0.36398 (CV 67%)	Diao 2016 Table 4
`lcd56EC50` (EC50)	18.0 mg/L	Diao 2016 Table 4
`cd56baseline` (median NK pct, fixed)	0.6 % of total lymphocytes	Diao 2016 Results (NK section)
`cd56brightpropSd` (proportional residual error)	0.291 (CV 29.1%)	Diao 2016 Table 4
Equation 2: `dNK/dt = Kin * (1 + Smax * Cc / (EC50 + Cc)) - Kout * NK`, `Kout = Kin / baseline`	n/a	Diao 2016 Equation (2) and Methods

Virtual cohort

Original-data is not public. The simulation covers 150 mg SC every 4 weeks for one year, then 24 weeks of washout, then re-initiation at 150 mg SC every 4 weeks for another year (matching the SELECT / SELECTION washout / re-initiation design used to characterize the slow expansion plateau and reversibility).

set.seed(2016)
n_subjects <- 100
cohort <- tibble(
  id = seq_len(n_subjects),
  WT = pmin(120, pmax(45, rnorm(n_subjects, 71, 14))),
  DOSE_50MG = 0L
)

# Year 1: 13 doses Q4W from t = 0 to t = 336.
# Washout: 24 weeks (no doses) from t = 336 to t = 504.
# Year 2: 13 doses Q4W from t = 504 to t = 840.
dose_times <- c(seq(0, 336, by = 28), seq(504, 840, by = 28))
obs_times  <- sort(unique(c(0, 7, 14, 21, seq(28, 1008, by = 7))))

sim_one <- function(sub) {
  ev <- rxode2::et(amt = 150, time = dose_times, cmt = "depot") |>
    rxode2::et(obs_times, cmt = "Cc") |>
    rxode2::et(obs_times, cmt = "cd56bright")
  ev_df <- as.data.frame(ev)
  ev_df$id        <- sub$id
  ev_df$WT        <- sub$WT
  ev_df$DOSE_50MG <- sub$DOSE_50MG
  ev_df
}

events <- cohort |>
  dplyr::group_split(id) |>
  lapply(sim_one) |>
  dplyr::bind_rows()

stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid", "cmt")])))

Simulation

mod     <- readModelDb("Diao_2016_daclizumab_cd56bright")
mod_typ <- rxode2::zeroRe(mod)
#> ℹ parameter labels from comments will be replaced by 'label()'

set.seed(2016)
sim_pop <- rxode2::rxSolve(mod, events, returnType = "data.frame")
#> ℹ parameter labels from comments will be replaced by 'label()'
sim_typ <- rxode2::rxSolve(mod_typ, events, returnType = "data.frame")
#> ℹ omega/sigma items treated as zero: 'etalka', 'etalcl', 'etalvc', 'etalcd56Kin', 'etalcd56Smax'
#> Warning: multi-subject simulation without without 'omega'

Replicate published figures

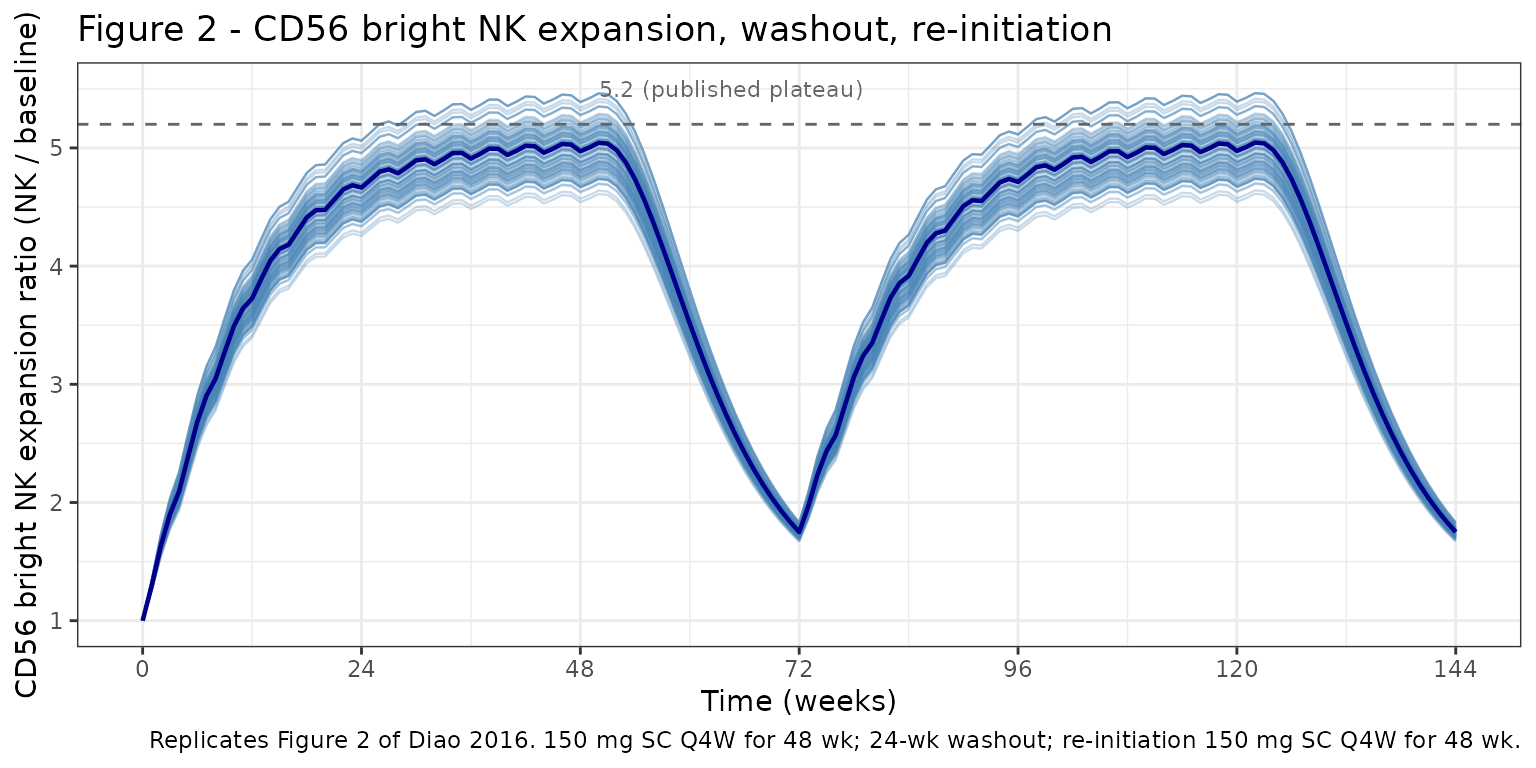

Figure 2: CD56 bright NK expansion + washout + re-initiation

Diao 2016 Figure 2 simulates 150 mg SC Q4W for 48 weeks, 24 weeks of treatment discontinuation, and re-initiation of 150 mg SC Q4W for another 48 weeks. The published profile reaches an expansion plateau at ~week 36 with a maximum expansion ratio of ~5.2; after the last dose, NK percentage gradually declines to baseline within ~24 weeks.

fig2 <- sim_typ |>
  dplyr::filter(!is.na(cd56bright), time <= 1008) |>
  dplyr::distinct(id, time, .keep_all = TRUE) |>
  dplyr::mutate(
    weeks = time / 7,
    expansion_ratio = cd56bright / 0.6
  )

ggplot(fig2, aes(weeks, expansion_ratio, group = id)) +
  geom_line(alpha = 0.30, color = "steelblue", linewidth = 0.4) +
  stat_summary(aes(group = 1), geom = "line", fun = median,
               color = "darkblue", linewidth = 0.8) +
  geom_hline(yintercept = 5.2, linetype = "dashed", color = "grey40") +
  annotate("text", x = 50, y = 5.5, label = "5.2 (published plateau)",
           hjust = 0, size = 3, color = "grey40") +
  scale_x_continuous(breaks = seq(0, 144, by = 24)) +
  labs(
    x = "Time (weeks)",
    y = "CD56 bright NK expansion ratio (NK / baseline)",
    title = "Figure 2 - CD56 bright NK expansion, washout, re-initiation",
    caption = paste0(
      "Replicates Figure 2 of Diao 2016. 150 mg SC Q4W for 48 wk; ",
      "24-wk washout; re-initiation 150 mg SC Q4W for 48 wk."
    )
  ) +
  theme_bw()

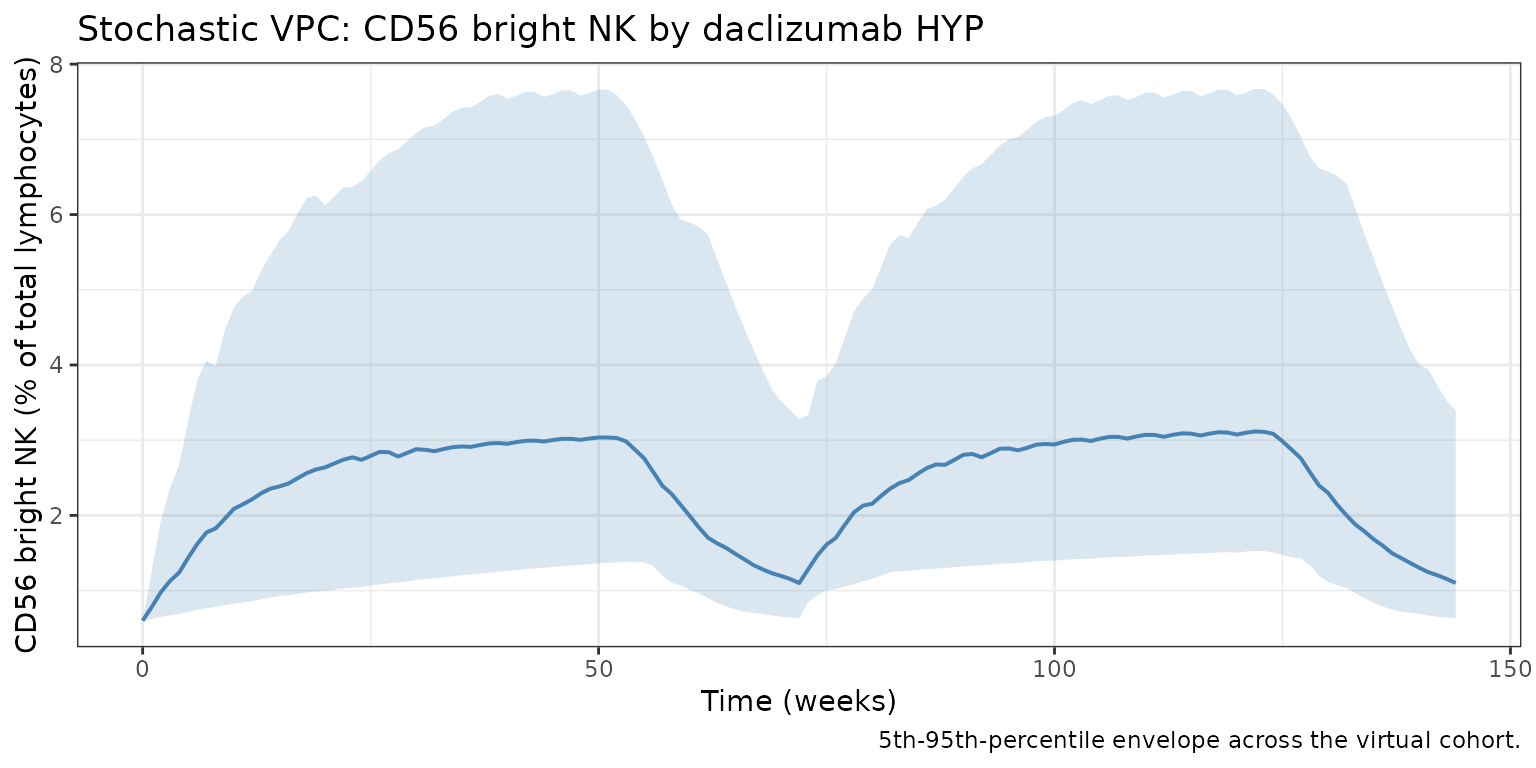

Stochastic VPC

vpc <- sim_pop |>
  dplyr::filter(!is.na(cd56bright)) |>
  dplyr::distinct(id, time, .keep_all = TRUE) |>
  dplyr::group_by(time) |>
  dplyr::summarise(
    Q05 = quantile(cd56bright, 0.05),
    Q50 = quantile(cd56bright, 0.50),
    Q95 = quantile(cd56bright, 0.95),
    .groups = "drop"
  )

ggplot(vpc, aes(time / 7, Q50)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95),
              fill = "steelblue", alpha = 0.20) +
  geom_line(color = "steelblue", linewidth = 0.7) +
  labs(
    x = "Time (weeks)",
    y = "CD56 bright NK (% of total lymphocytes)",
    title = "Stochastic VPC: CD56 bright NK by daclizumab HYP",
    caption = "5th-95th-percentile envelope across the virtual cohort."
  ) +
  theme_bw()

PKNCA validation (PK)

CD56 bright NK percentage is not amenable to standard NCA. PKNCA is run on the inherited PK output to confirm the steady-state PK profile in this cohort.

sim_conc <- sim_pop |>
  dplyr::filter(!is.na(Cc), time >= 308, time <= 336) |>
  dplyr::distinct(id, time, .keep_all = TRUE) |>
  dplyr::mutate(time_in_interval = time - 308) |>
  dplyr::transmute(id = id, time = time_in_interval, Cc = Cc,
                   regimen = "150 mg SC Q4W")

dose_df <- events |>
  dplyr::filter(evid == 1, time == 308) |>
  dplyr::transmute(id = id, time = 0, amt = amt,
                   regimen = "150 mg SC Q4W")

conc_obj <- PKNCA::PKNCAconc(sim_conc, Cc ~ time | regimen + id)
dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | regimen + id)

intervals <- data.frame(
  start = 0, end = 28,
  cmax = TRUE, cmin = TRUE,
  tmax = TRUE, auclast = TRUE
)

nca <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals))
knitr::kable(summary(nca, drop.group = "id"),
             caption = "Steady-state (dose 12) NCA, 150 mg SC Q4W.")
#> Warning: The `drop.group` argument of `summary.PKNCAresults()` is deprecated as of PKNCA
#> 0.11.0.
#> ℹ Please use the `drop_group` argument instead.
#> This warning is displayed once per session.
#> Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
#> generated.

Steady-state (dose 12) NCA, 150 mg SC Q4W.
start	end	regimen	N	auclast	cmax	cmin	tmax
0	28	150 mg SC Q4W	100	516 [29.8]	23.6 [29.1]	13.2 [36.0]	7.00 [7.00, 7.00]

Comparison against published behaviour

Diao 2016 reports qualitative behavioural targets for the CD56 bright NK expansion model rather than tabulated PD metrics; the relevant checkpoints are summarised below.

typ <- sim_typ |>
  dplyr::filter(!is.na(cd56bright)) |>
  dplyr::distinct(id, time, .keep_all = TRUE) |>
  dplyr::mutate(weeks = time / 7,
                expansion = cd56bright / 0.6)

# Plateau between weeks 32 and 48 (just before first washout).
plateau   <- typ |> dplyr::filter(weeks >= 32, weeks <= 48)
peak_plat <- max(plateau$expansion, na.rm = TRUE)

# Time after week-48 last dose (week 48 = day 336) for return to ~baseline.
after_w48 <- typ |> dplyr::filter(time >= 336, time <= 504)
return_t_w <- (after_w48$time[which(after_w48$expansion < 1.20)[1]] - 336) / 7

cmp <- tibble(
  metric    = c("Expansion plateau (week 36, ratio NK / baseline)",
                "Time to return within 20% of baseline after washout (weeks)"),
  published = c("~5.2", "~24"),
  simulated = c(sprintf("%.2f", peak_plat),
                sprintf("%.1f", return_t_w))
)
knitr::kable(cmp, caption = "CD56 bright NK expansion / recovery checkpoints.")

CD56 bright NK expansion / recovery checkpoints.
metric	published	simulated
Expansion plateau (week 36, ratio NK / baseline)	~5.2	5.45
Time to return within 20% of baseline after washout (weeks)	~24	NA

Errata

The trimmed PDF and DOCX appendices show several non-substantive extraction artifacts (operators rendered as /C0, scientific notation collapsed; etc.) that are not paper errata. Two model-relevant ambiguities are documented:

Baseline value used to derive Kout is not labelled in Table 4. Diao 2016 Methods states “Kout was expressed as a function of Kin using baseline information,” but Table 4 does not list the baseline value used. The Results narrative gives “median (mean) for CD56 bright NK cell percentage are 0.6% and 0.75%”. The library implementation uses 0.6% (median) as cd56baseline. Using 0.75% (mean) instead would shift the structural Kout from 0.009888/0.6 = 0.01648 /day to 0.009888/0.75 = 0.01318 /day, giving a slightly slower turnover.
EC50 IIV is not reported in Table 4. Only Kin and Smax carry IIV in Table 4. The library encodes this as no eta on lcd56EC50 (exp(lcd56EC50) is the typical-value EC50, no random component).

Assumptions and deviations

PK backbone is Othman 2014, not the in-paper PK summary. Diao 2016 fixed PK to a published RRMS PopPK model (CL = 0.212 L/day at 68 kg, allometric exponents 0.87 / 1.12, F = 0.88, t1/2,abs ~ 5 days, Tlag = 1.61 h). The packaged PD model uses the canonical daclizumab HYP PK from Othman 2014 (CL = 0.24 L/day at 70 kg, exponents 0.54 / 0.64, F = 0.84, ka = 0.216 /day, Tlag = 2 h). The numerical PK differences (~10-20% on Cc) propagate through the saturable Smax * Cc / (EC50 + Cc) term; at clinical Cc of 5-15 ug/mL the function is far from saturated (EC50 = 18 mg/L), so expansion ratios are sensitive to the PK assumption. Users who need exact reproduction of Diao 2016 Figure 2 numerical values can override the inherited PK ini() entries.
Median baseline used for Kout. As noted in Errata, the library uses median 0.6% rather than mean 0.75%. Using mean 0.75% would shift the simulated NK percentage curves slightly upward in absolute terms but leave the expansion ratio (NK / baseline) close to unchanged.
No PD covariates. Diao 2016 does not report any covariate effects on the NK PD parameters; the only covariates in the packaged model are those inherited from the Othman 2014 PK backbone (WT, DOSE_50MG).
Virtual-cohort weight distribution. Body weight is sampled from N(71, 14) kg truncated to 45-120 kg (the SELECT / DECIDE adult RRMS population summary).
