Theophylline (Yano 1993)

Source: vignettes/articles/Yano_1993_theophylline.Rmd
Yano_1993_theophylline.Rmd

Model and source

  • Citation: Yano I, Tanigawara Y, Yasuhara M, Okumura K, Kawakatsu K, Nishimura K, Hori R. Population Pharmacokinetics of Theophylline. II: Intravenous Infusion to Patients with Stable Chronic Airway Obstruction. Biol Pharm Bull. 1993;16(5):501-505. doi:10.1248/bpb.16.501
  • Description: One-compartment IV-infusion population PK model for theophylline (Yano 1993 Paper II) in 55 adult inpatients with stable chronic airway obstruction; clearance and volume of distribution are log-linear functions of arterial PaCO2 and a binary hepatic-dysfunction indicator.
  • Article: Biol Pharm Bull 1993;16(5):501-505

Population

Fifty-five adult inpatients with stable chronic airway obstruction participated at the Chest Disease Research Institute, Kyoto University (Yano 1993 Patient Description, page 501; Table I, page 502). The cohort included 12 chronic asthma, 20 chronic pulmonary emphysema, 25 diffuse panbronchiolitis, 2 chronic bronchitis, and 1 other (2 patients were complicated with two disease types). Pulmonary function tests indicated mild-to-moderate airway obstruction. Mean age was 59.0 +/- 11.6 years (range 22-80), mean weight 49.3 +/- 11.6 kg (range 28-77), mean height 158.3 +/- 10.0 cm (range 136-182). 35 of 55 were male (sex-female 36.4 %). Baseline blood-gas and laboratory measurements were PaO2 71.4 +/- 11.4 mmHg, PaCO2 42.5 +/- 6.8 mmHg, blood pH 7.402 +/- 0.029, hematocrit 41.6 +/- 4.9 %, serum albumin 4.2 +/- 0.5 g/dL. 5 of 55 patients had hepatic dysfunction by clinician judgment or AST/ALT > 30 IU/L; 11 of 55 were current smokers. Patients received a single IV short infusion of aminophylline 250 mg (= 200 mg theophylline) in 100 mL saline or 250 mL 5 % glucose; infusion duration ranged 13-120 min (mean 0.517 +/- 0.250 h). 276 serum concentrations were drawn pre-dose, immediately after infusion, and up to 10 h post-infusion (3-7 per patient).

The same information is available programmatically via readModelDb("Yano_1993_theophylline")$population.

Source trace

Per-parameter origin is recorded as an in-file comment next to each ini() entry in inst/modeldb/specificDrugs/Yano_1993_theophylline.R. The table below collects them for review.

Equation / parameter Value Source location
Structural model One-compartment IV infusion, Eq. 1 (page 502) Pharmacokinetic and Statistical Model, page 502. Authors selected one-compartment over two-compartment because the data showed virtually mono-exponential decline (Figure 2, page 502).
CL_j = exp(P1 + P3*HF + P5*PaCO2) [L/h/kg] Eq. 7, page 504 Table III, page 504. The final regression model selected by forward likelihood-ratio testing.
V_d,j = exp(P2 + P4*PaCO2) [L/kg] Eq. 8, page 504 Table III, page 504.
lcl (P1) -3.78 (95 % CI -4.13, -3.43) Table III row P1, page 504. Log CL per kg at PaCO2 = 0 mmHg, no hepatic dysfunction.
lvc (P2) -1.12 (95 % CI -1.34, -0.896) Table III row P2, page 504. Log Vd per kg at PaCO2 = 0 mmHg.
e_hepimp_cl (P3) -0.525 (95 % CI -0.897, -0.153) Table III row P3, page 504. Hepatic dysfunction reduces theophylline CL; 1 - exp(-0.525) = 0.408 reproduces the paper’s “complication of hepatic dysfunction reduced the theophylline CL by 40.8 %” (Discussion, page 504).
e_paco2_cl (P5) 0.0233 mmHg^-1 (95 % CI 0.0158, 0.0308) Table III row P5, page 504. PaCO2 increases CL on a log scale.
e_paco2_vc (P4) 0.00934 mmHg^-1 (95 % CI 0.00430, 0.0144) Table III row P4, page 504. PaCO2 increases Vd on a log scale.
etalcl IIV (omega^2) log(1 + 0.385^2) ~ 0.1383 Table III row “Inter-individual variability in CL (%)” = 38.5 % (95 % CI 27.5, 46.9), page 504. Converted to log-scale variance via omega^2 = log(1 + CV^2). Proportional IIV per Eq. 2, page 502.
etalvc IIV (omega^2) log(1 + 0.125^2) ~ 0.01552 Table III row “Inter-individual variability in V_d (%)” = 12.5 % (95 % CI 8.7, 15.4), page 504.
propSd 0.106 (10.6 %) Table III row “Residual variability in concentrations (%)” = 10.6 % (95 % CI 8.5, 12.3), page 504. Proportional residual error per Eq. 2 row C_ij = C_pred,ij*(1 + eps_ij), page 502.
Body-size scaling Linear on WT (exponent 1) Eq. 4 page 503 + Results page 503: theta1 = 1, theta2 = 0 not rejected. CL and Vd parameters are reported per kg of body weight (Table III) and the model multiplies by WT to obtain total CL [L/h] and Vc [L].
Covariate-screening pathway Stepwise forward selection, Table II, page 503 Final retained covariates: HF (CL), PaCO2 (CL, Vd). Screened-but-not-retained: smoking, age, albumin, hematocrit, blood pH, PaO2.

Virtual cohort

Original observed data are not publicly available. The cohort below approximates the Yano 1993 Table I demographics for the 55-patient cohort, expanded to 200 virtual subjects to give a well-resolved median + percentile envelope on the Figure 2 replication.

set.seed(19931001) # paper received 1992-10-01 (page 501)

n_subj <- 200L

# Generate body weights truncated to the paper's 28-77 kg range; mean 49.3 kg.
# Sex distribution: 35 M / 20 F per Table I -> sex-female 36.4 %.
# PaCO2 distribution: mean 42.5 mmHg, SD 6.8, range 31-71 (Table I).
# HEPIMP rate: 5/55 -> 9.1 %; per Table I no patient had both HEPIMP and SMOKE.
cohort <- tibble(
  id     = seq_len(n_subj),
  WT     = pmin(pmax(rnorm(n_subj, mean = 49.3, sd = 11.6), 28), 77),
  PACO2  = pmin(pmax(rnorm(n_subj, mean = 42.5, sd = 6.8), 31),  71),
  HEPIMP = as.integer(runif(n_subj) < 5 / 55),
  AGE    = pmin(pmax(rnorm(n_subj, mean = 59.0, sd = 11.6), 22), 80),
  SEXF   = as.integer(runif(n_subj) < 20 / 55),
  treatment = factor("Aminophylline 250 mg IV (200 mg theophylline)")
)

Build the dosing + sampling event table. The paper administered a 250 mg aminophylline (200 mg theophylline) IV short infusion over 13-120 min; sample times spanned pre-dose, end-of-infusion, and up to 10 h post-infusion. Use a typical 30-minute infusion duration for the simulation (paper mean 0.517 h).

infusion_dur <- 0.5 # hours; paper mean 0.517 +/- 0.250 (Table I)
dose_amt     <- 200 # mg theophylline (250 mg aminophylline = 200 mg theophylline)

obs_times <- sort(unique(c(
  seq(0, 1, by = 0.05),     # dense during and immediately after infusion
  seq(1.25, 4, by = 0.25),
  seq(4.5, 10, by = 0.5)
)))

dose_rows <- cohort |>
  mutate(time = 0, amt = dose_amt, dur = infusion_dur,
         cmt = "central", evid = 1L)

obs_rows <- cohort |>
  tidyr::crossing(time = obs_times) |>
  mutate(amt = 0, dur = 0, cmt = NA_character_, evid = 0L)

events <- bind_rows(dose_rows, obs_rows) |>
  select(id, time, amt, dur, cmt, evid, WT, PACO2, HEPIMP, AGE, SEXF, treatment) |>
  arrange(id, time, desc(evid))

stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid")])))

Simulation

mod <- rxode2::rxode2(readModelDb("Yano_1993_theophylline"))
sim <- rxode2::rxSolve(mod, events = events,
                       keep = c("WT", "PACO2", "HEPIMP", "treatment"))

Typical-value (no IIV) simulation for the Table III “standard patient” comparison (PaCO2 = 42.5 mmHg, no hepatic dysfunction, 49.3 kg):

mod_typ <- mod |> rxode2::zeroRe()

typ_cohort <- tibble(
  id     = 1L,
  WT     = 49.3,
  PACO2  = 42.5,
  HEPIMP = 0L,
  treatment = factor("Aminophylline 250 mg IV (200 mg theophylline)")
)
typ_doses <- typ_cohort |> mutate(time = 0, amt = dose_amt, dur = infusion_dur,
                                  cmt = "central", evid = 1L)
typ_obs   <- typ_cohort |> tidyr::crossing(time = obs_times) |>
              mutate(amt = 0, dur = 0, cmt = NA_character_, evid = 0L)
typ_events <- bind_rows(typ_doses, typ_obs) |>
  select(id, time, amt, dur, cmt, evid, WT, PACO2, HEPIMP, treatment) |>
  arrange(id, time, desc(evid))

sim_typ <- rxode2::rxSolve(mod_typ, events = typ_events,
                           keep = c("WT", "PACO2", "HEPIMP", "treatment"))
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc'

Replicate published figures

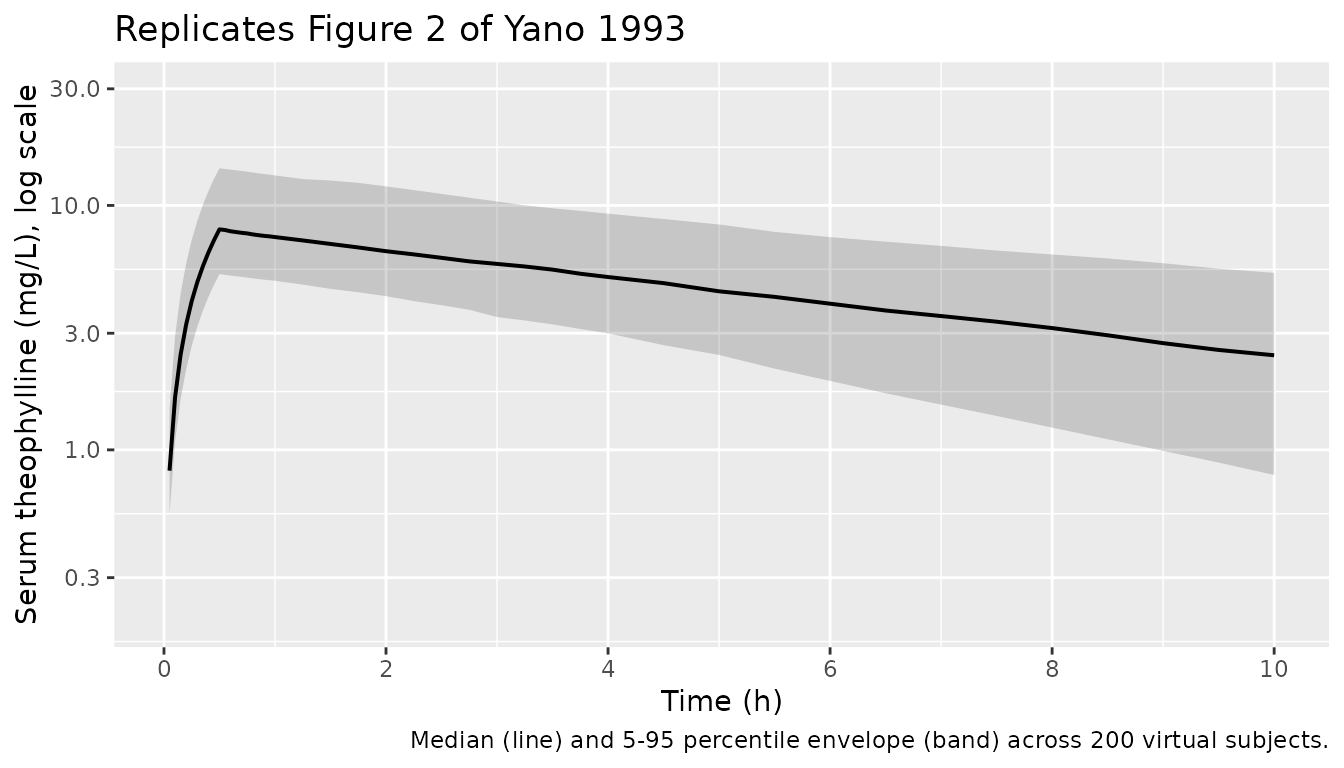

Figure 2 – Serum concentration vs. time profiles

Figure 2 of Yano 1993 plots the individual theophylline serum concentration vs. time profiles for all 55 patients (semi-log; dotted lines highlight the 5 patients with hepatic dysfunction). The simulated cohort summary below reproduces that shape, with the 5-50-95 percentile envelope across simulated subjects.

sim_summary <- sim |>
  filter(!is.na(Cc), Cc > 0) |>
  group_by(time) |>
  summarise(
    Q05 = quantile(Cc, 0.05),
    Q50 = quantile(Cc, 0.50),
    Q95 = quantile(Cc, 0.95),
    .groups = "drop"
  )

ggplot(sim_summary, aes(time, Q50)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.2) +
  geom_line(linewidth = 0.7) +
  scale_y_log10(limits = c(0.2, 30)) +
  scale_x_continuous(breaks = seq(0, 12, by = 2)) +
  labs(x = "Time (h)", y = "Serum theophylline (mg/L), log scale",
    title = "Replicates Figure 2 of Yano 1993",
    caption = sprintf("Median (line) and 5-95 percentile envelope (band) across %d virtual subjects.", n_subj))

Effect of PaCO2 and hepatic dysfunction on typical concentrations

Stratify the typical-value simulation across three PaCO2 levels (paper Table I range 31-71 mmHg) at HEPIMP = 0, and a fourth stratum at PaCO2 = 42.5 mmHg with HEPIMP = 1 to show the 40.8 % CL reduction reported on page 504. The Yano 1993 paper does not include this figure explicitly, but the covariate effects are derived directly from Table III Eqs. 7-8.

strata <- expand.grid(
  PACO2  = c(31, 42.5, 60),
  HEPIMP = c(0L, 1L),
  KEEP.OUT.ATTRS = FALSE,
  stringsAsFactors = FALSE
) |> as_tibble() |>
  mutate(id = row_number(),
         WT = 49.3,
         label = sprintf("PaCO2=%g, HEPIMP=%d", PACO2, HEPIMP))

strata_doses <- strata |> mutate(time = 0, amt = dose_amt, dur = infusion_dur,
                                 cmt = "central", evid = 1L)
strata_obs   <- strata |> tidyr::crossing(time = obs_times) |>
                  mutate(amt = 0, dur = 0, cmt = NA_character_, evid = 0L)
strata_events <- bind_rows(strata_doses, strata_obs) |>
  select(id, time, amt, dur, cmt, evid, WT, PACO2, HEPIMP, label) |>
  arrange(id, time, desc(evid))

sim_strata <- rxode2::rxSolve(mod_typ, events = strata_events,
                              keep = c("WT", "PACO2", "HEPIMP", "label"))
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc'
#> Warning: multi-subject simulation without without 'omega'

ggplot(sim_strata |> filter(!is.na(Cc), Cc > 0),
       aes(time, Cc, colour = label, linetype = factor(HEPIMP))) +
  geom_line(linewidth = 0.7) +
  scale_y_log10() +
  labs(x = "Time (h)", y = "Typical serum theophylline (mg/L), log scale",
       title = "Typical-value sensitivity to PaCO2 and hepatic dysfunction",
       linetype = "HEPIMP",
       colour = "Stratum",
       caption = "Each line is the no-IIV simulation for one PaCO2 / HEPIMP combination at WT = 49.3 kg (population mean).")

PKNCA validation

Compute single-dose NCA parameters using PKNCA per virtual subject. The treatment grouping is a single dose level (all 200 mg as theophylline); the per-subject NCA summary below is compared against the typical CL, Vd and elimination half-life implied by Table III.

sim_nca <- sim |>
  filter(!is.na(Cc), Cc > 0) |>
  select(id, time, Cc, treatment)

conc_obj <- PKNCA::PKNCAconc(as.data.frame(sim_nca), Cc ~ time | treatment + id)

dose_df <- events |>
  filter(evid == 1) |>
  select(id, time, amt, treatment) |>
  as.data.frame()

dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | treatment + id)

intervals <- data.frame(
  start      = 0,
  end        = 10,
  cmax       = TRUE,
  tmax       = TRUE,
  aucinf.obs = TRUE,
  half.life  = TRUE,
  cl.obs     = TRUE,
  vss.obs    = TRUE
)

nca_data <- PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals)
nca_res  <- suppressMessages(PKNCA::pk.nca(nca_data))
