Moxifloxacin (Hong 2015)

Source: vignettes/articles/Hong_2015_moxifloxacin.Rmd
Hong_2015_moxifloxacin.Rmd

Model and source

  • Citation: Hong T, Han S, Lee J, Jeon S, Park GJ, Park WS, Lim KS, Chung JY, Yu KS, Yim DS. Pharmacokinetic-pharmacodynamic analysis to evaluate the effect of moxifloxacin on QT interval prolongation in healthy Korean male subjects. Drug Des Devel Ther. 2015 Feb 26;9:1233-1245. doi:10.2147/DDDT.S79772. PMID 25750523.
  • Description: Sequential population PK + PD (QT-interval) model for single-dose oral moxifloxacin (400 mg or 800 mg, Avelox tablets) in healthy adult Korean male volunteers (Hong 2015): a two-compartment first-order absorption PK model with a lag time and a dose-dependent absorption rate constant (different Ka for 400 mg vs 800 mg), followed by an individually corrected QT-interval PD model that adds two mixed-effect cosine circadian components (24 h and 6 h), a first-order-decaying placebo (water-intake) effect, and an Emax drug effect on QT prolongation.
  • Article (open access, CC-BY-NC): https://doi.org/10.2147/DDDT.S79772
  • PubMed Central mirror: https://www.ncbi.nlm.nih.gov/pmc/articles/PMC4348063/

Hong 2015 is an open-access analysis that pools data from three thorough-QT (TQT) studies of moxifloxacin (400 mg or 800 mg PO single dose, with placebo control) in healthy adult Korean males. The structural model has two layers:

  1. PK submodel - a two-compartment first-order absorption model with an absorption lag time and a dose-dependent absorption rate constant (Ka1 = 16.7 1/h at 400 mg, Ka2 = 1.90 1/h at 800 mg; Hong 2015 Methods “PK model” paragraph 2 + Table 3).
  2. PD submodel - an individually-corrected QT interval (QTcI) model with four additive components (Hong 2015 Methods “PD model”):
    • a mesor baseline QTcm,
    • two mixed-effect cosine circadian terms with periods 24 h and 6 h,
    • a first-order-decaying placebo effect tied to the 240 mL water intake that accompanies every dose, and
    • an Emax drug effect on plasma moxifloxacin concentration.

No PK or PD covariate (age, height, weight, lean body mass, genotype) cleared the forward-addition / backward-elimination significance threshold; the final model carries no covariate effects on its structural parameters. The only covariate column the packaged model needs is DOSE (in mg per record), which selects between the two estimated absorption rate constants.

Population

Hong 2015 pooled data from three TQT studies in Korea (Hong 2015 Methods “Study design and subjects” + Table 1; ClinicalTrials.gov NCT01756521):

  • N = 33 healthy adult male Korean volunteers completed the PK arm; 660 plasma moxifloxacin concentrations were analysed.
  • N = 27 subjects contributed PD / QT data (6 lost to ECG-archive errors); 810 baseline + 513 placebo + 540 drug-effect QT-interval observations.
  • All subjects were male; age 20-40 years (mean 26.4, SD 4.8); weight mean 68.3 kg (SD 6.3); lean body mass mean 52.1 kg (SD 3.4).
  • Each subject crossed over among three single-dose treatment periods (placebo / 400 mg / 800 mg) in a William’s-square design with 1-week washout, with ECGs taken on a 24 h schedule on a baseline day (day 1) and a treatment day (day 2) starting at 08:00 local time. Time t = 0 in the model is 08:00.

The same information is available programmatically: readModelDb("Hong_2015_moxifloxacin")$population.

Source trace

The per-parameter origin is recorded as in-file comments next to each ini() entry of inst/modeldb/specificDrugs/Hong_2015_moxifloxacin.R. The table below collates them for review.

Parameter (nlmixr2lib) Value Source location
PK structural (Table 3)
lka log(16.7) Table 3 Ka1 = 16.7 1/h (%RSE 45.5) - reference 400 mg dose
e_dose_ka log(1.90 / 16.7) Table 3 Ka2 = 1.90 1/h (%RSE 17.5) - log-scale shift for 800 mg vs 400 mg
lcl log(11.8) Table 3 CL/F = 11.8 L/h (%RSE 6.29)
lvc log(173) Table 3 V2/F = 173 L (%RSE 3.17)
lq log(5.62) Table 3 Q/F = 5.62 L/h (%RSE 19.2)
lvp log(47.1) Table 3 V3/F = 47.1 L (%RSE 19.0)
lalag log(0.46) Table 3 alag = 0.46 h (%RSE 17.1)
PK random (Table 3)
etalcl+etalvc block(0.07037, 0.04215, 0.02983) Table 3: omega_CL = 27.0%, omega_V2 = 17.4%, rho_CL-V2 = 0.92
etalka 0.6521 Table 3 omega_Ka = 95.9% CV; log(1 + 0.959^2)
propSd 0.140 Table 3 prop residual = 14.0% (%RSE 11.1)
PD structural - baseline + circadian (Table 4)
lqtcm log(406) Table 4 QTcm = 406 ms (%RSE 0.69)
la log(0.26) Table 4 a = 0.26 (%RSE 5.45) - heart-rate correction exponent
lam24 log(0.0090) Table 4 aM24 = 0.0090 (%RSE 19.0) - fractional amplitude, 24 h
lam6 log(0.0045) Table 4 aM6 = 0.0045 (%RSE 16.7) - fractional amplitude, 6 h
ac24 1.11 Table 4 AC24 = 1.11 h (%RSE 53.4)
ac6 4.65 Table 4 AC6 = 4.65 h (%RSE 3.33)
PD structural - placebo (Table 5)
pe -5.31 Table 5 PE = -5.31 ms (%RSE 24.5)
lkpl log(0.06) Table 5 k = 0.06 1/h (%RSE 47.2)
PD structural - drug effect (Table 5)
lemax log(34.7) Table 5 Emax = 34.7 ms (%RSE 19.5)
lec50 log(3920) Table 5 EC50 = 3920 ng/mL (%RSE 29.3)
PD random (Tables 4 + 5)
etalqtcm 0.001459 Table 4 omega_QTcm = 3.82% CV
etala 0.037808 Table 4 omega_a = 19.6% CV
etalam24 0.622848 Table 4 omega_aM24 = 93.0% CV
etaac24 5.231836 Table 4 omega_AC24 = 206% (additive, hours); see Assumptions
etape 26.453569 Table 5 omega_PE = 96.9% (additive, ms); see Assumptions
etalkpl 0.872446 Table 5 omega_k = 118% CV
etalemax 0.102829 Table 5 omega_Emax = 32.9% CV
propSd_QTc 0.0152 Table 5 drug-effect block: 1.52% prop residual
Equations
d/dt(depot, central, peripheral1) n/a Two-compartment first-order absorption (Hong 2015 Methods “PK model”)
alag(depot) <- alag_dose n/a Absorption lag time (Hong 2015 Table 3 “alag”)
Cc = 1000 * central / vc n/a Plasma moxifloxacin in ng/mL (dose mg / V L * 1000)
qtb_c = qtcm * (1 + am24*cos(2*pi*(t-ac24)/24) + am6*cos(2*pi*(t-ac6)/6)) n/a Circadian model (Hong 2015 Methods “Circadian rhythm model”)
pe_t = pe_i * exp(-kpl * tad()) n/a First-order placebo decay (Hong 2015 Methods “Placebo effect model”)
e_drug = emax * Cc / (ec50 + Cc) n/a Drug Emax (Hong 2015 Methods “Drug effect model”)
QTc = qtb_c + pe_t + e_drug n/a Total QTcI observation

Virtual cohort

Original observed concentrations and QT intervals are not redistributed with the package. The cohort below mirrors the Hong 2015 study design (a 27-subject PD subset crossed over 400 mg and 800 mg single-dose periods) and runs both dose levels through the same simulated population.

set.seed(20150226L)

n_per_arm <- 50L

obs_hours <- c(0.05, seq(0.25, 4, by = 0.25), seq(4.5, 24, by = 0.5))

make_cohort <- function(dose_mg, id_offset) {
  ids <- id_offset + seq_len(n_per_arm)

  dose_rows <- tibble::tibble(
    id   = ids,
    time = 0,
    amt  = dose_mg,
    evid = 1L,
    cmt  = "depot",
    DOSE = dose_mg
  )

  obs_rows <- tidyr::expand_grid(id = ids, time = obs_hours) |>
    dplyr::mutate(amt = 0, evid = 0L, cmt = "Cc", DOSE = dose_mg)

  dplyr::bind_rows(dose_rows, obs_rows) |>
    dplyr::arrange(id, time, dplyr::desc(evid))
}

events <- dplyr::bind_rows(
  make_cohort(400, id_offset = 0L)        |> dplyr::mutate(treatment = "400 mg"),
  make_cohort(800, id_offset = n_per_arm) |> dplyr::mutate(treatment = "800 mg")
)

stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid", "cmt")])))

Simulation

mod <- rxode2::rxode2(readModelDb("Hong_2015_moxifloxacin"))
#> ℹ parameter labels from comments will be replaced by 'label()'

sim <- rxode2::rxSolve(
  mod,
  events = events,
  keep   = c("treatment", "DOSE")
) |>
  as.data.frame()

For the typical-value reference trajectory (deterministic, no IIV) used to replicate the published figure, zero out the random effects:

mod_typical <- mod |> rxode2::zeroRe()

sim_typical <- rxode2::rxSolve(
  mod_typical,
  events = events,
  keep   = c("treatment", "DOSE")
) |>
  as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalka', 'etalqtcm', 'etala', 'etalam24', 'etaac24', 'etape', 'etalkpl', 'etalemax'
#> Warning: multi-subject simulation without without 'omega'

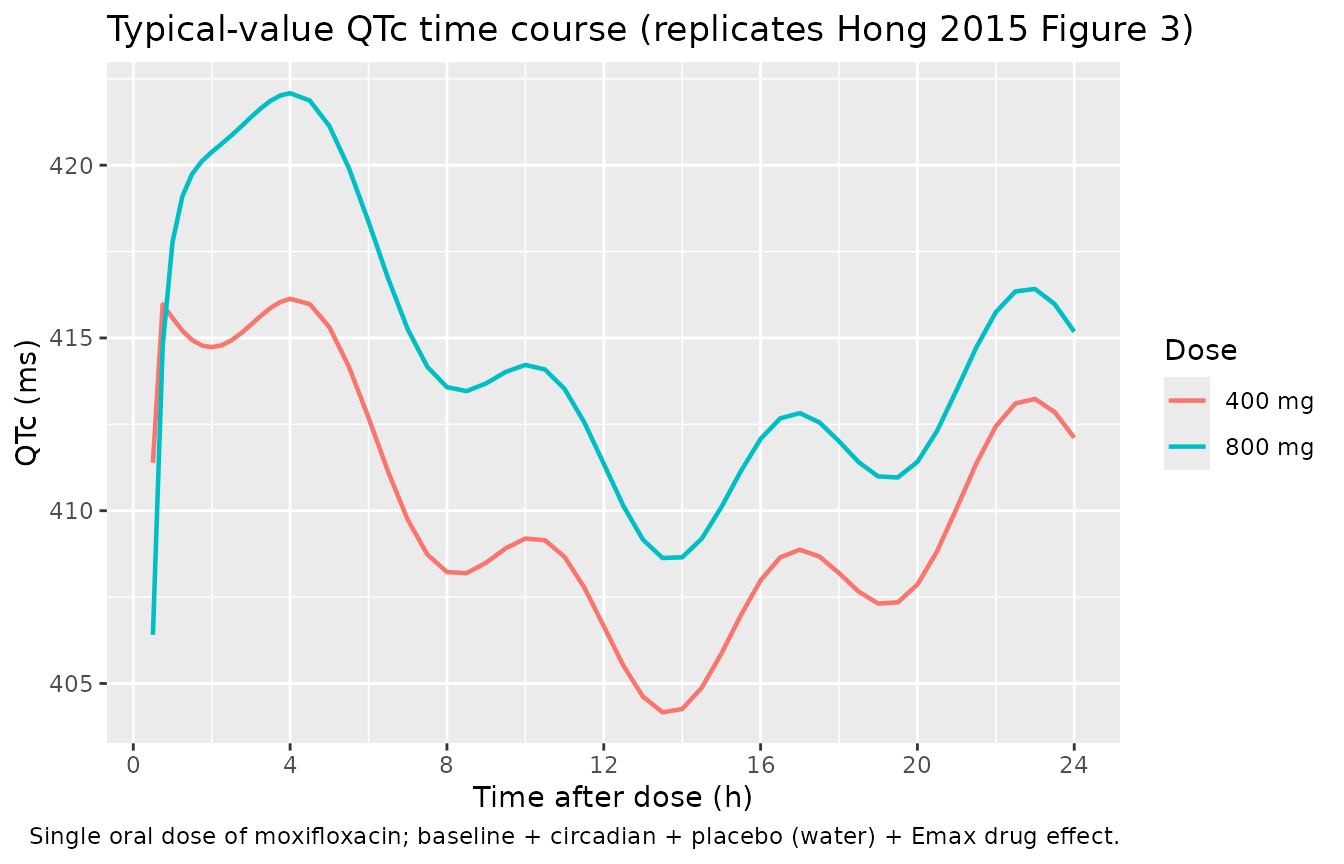

Replicate Figure 3 - typical QTc time course by dose

Hong 2015 Figure 3 shows the model-predicted average QTc interval following single-dose 400 mg and 800 mg moxifloxacin over 24 h. The deterministic (zero-RE) trajectory below replicates the shape of that figure.

fig3 <- sim_typical |>
  dplyr::filter(id %in% c(1L, n_per_arm + 1L)) |>
  dplyr::group_by(treatment, time) |>
  dplyr::summarise(QTc = mean(QTc, na.rm = TRUE), .groups = "drop") |>
  dplyr::filter(!is.na(QTc))

ggplot(fig3, aes(time, QTc, colour = treatment)) +
  geom_line(linewidth = 0.8) +
  scale_x_continuous(breaks = c(0, 4, 8, 12, 16, 20, 24)) +
  labs(
    x = "Time after dose (h)",
    y = "QTc (ms)",
    colour = "Dose",
    title = "Typical-value QTc time course (replicates Hong 2015 Figure 3)",
    caption = "Single oral dose of moxifloxacin; baseline + circadian + placebo (water) + Emax drug effect."
  )

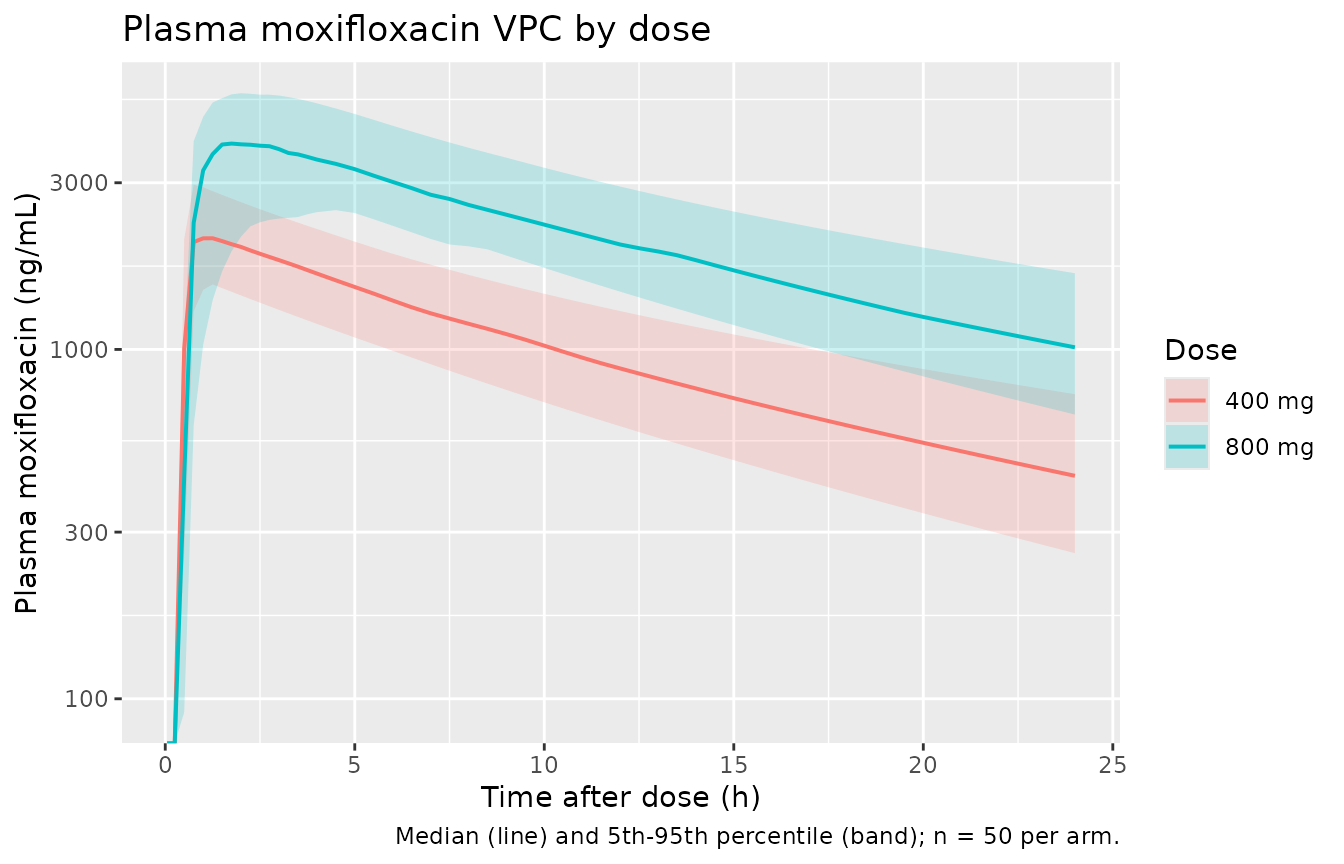

Stochastic VPC of Cc by dose

vpc_cc <- sim |>
  dplyr::filter(!is.na(Cc)) |>
  dplyr::group_by(treatment, time) |>
  dplyr::summarise(
    Q05 = stats::quantile(Cc, 0.05, na.rm = TRUE),
    Q50 = stats::quantile(Cc, 0.50, na.rm = TRUE),
    Q95 = stats::quantile(Cc, 0.95, na.rm = TRUE),
    .groups = "drop"
  )

ggplot(vpc_cc, aes(time, Q50, colour = treatment, fill = treatment)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.20, colour = NA) +
  geom_line(linewidth = 0.7) +
  scale_y_log10() +
  labs(
    x = "Time after dose (h)",
    y = "Plasma moxifloxacin (ng/mL)",
    colour = "Dose", fill = "Dose",
    title = "Plasma moxifloxacin VPC by dose",
    caption = paste("Median (line) and 5th-95th percentile (band);",
                    "n =", n_per_arm, "per arm.")
  )
#> Warning in scale_y_log10(): log-10 transformation introduced infinite values.
#> log-10 transformation introduced infinite values.
#> log-10 transformation introduced infinite values.
#> log-10 transformation introduced infinite values.

PKNCA validation
