Droperidol (Foo 2016)

Source: vignettes/articles/Foo_2016_droperidol.Rmd
Foo_2016_droperidol.Rmd

Model and source

  • Citation: Foo LK, Duffull SB, Calver L, Schneider J, Isbister GK. Population pharmacokinetics of intramuscular droperidol in acutely agitated patients. Br J Clin Pharmacol. 2016;82(6):1550-1556. doi:10.1111/bcp.13093.
  • Description: Two-compartment population PK model with first-order absorption for intramuscular droperidol in 41 acutely agitated adults presenting to the emergency department (Foo 2016). Absorption rate constant ka and its IIV are fixed (ka = 10 1/h, omega_ka^2 = 1) because the available samples did not characterise absorption. A single shared random effect drives both CL and Vc (Table 2 footnote a: ‘The same random effect was used for both Vc and CL’); Q and Vp have no IIV. No covariates were retained – coingestion of alcohol was screened but not associated with CL or Vc, and patient weight was not available (Methods).
  • Article: https://doi.org/10.1111/bcp.13093

Population

Foo 2016 fit the model to a 41-patient subgroup of an Australian emergency-department randomised controlled trial (ACTRN12607000527460) comparing droperidol and midazolam for sedation of patients with acute behavioural disturbance. Twenty-seven of the 41 (66%) were female, the median age was 33 years (range 16-62), and the primary reasons for presentation were threatened or deliberate self-harm (44%), alcohol intoxication (41%), drug-induced delirium (10%), and psychosis (5%). Seventeen received a single 5 mg intramuscular dose of droperidol and 24 received 10 mg; 5 of 41 received additional droperidol after the index dose. Patient weight was not available, so allometric or linear weight scaling could not be tested. A total of 128 plasma samples were drawn (median 3 per patient, range 1-7) using either a geometrically-spaced empirical design (5, 10, 30 min, 1, 2, 4, 8 h) or a POPT-optimised design (5, 25, 40, 70 min, 2, 4, 10 h). Droperidol was quantified by HPLC-UV with a lower limit of quantification of 5 ug/L; four observations were below this LLOQ (in four different subjects) and were handled by the M6 method. See Foo 2016 Table 1 for the full baseline summary; the same information is available programmatically via readModelDb("Foo_2016_droperidol")$population.

Source trace

The per-parameter origin is recorded as an in-file comment next to each ini() entry in inst/modeldb/specificDrugs/Foo_2016_droperidol.R. The table below collects them in one place. Table 2 of the paper duplicates the parameter label “Vp” for the second and fifth rows; the abstract disambiguates (“clearance of 41.9 l h-1 and volume of distribution of the central compartment of, 73.6 l”), so the 73.6 L row is Vc and the 79.8 L row is Vp.

Equation / parameter Final value Source location
lka (ka, FIXED) 10 1/h Table 2 (F = fixed); Results paragraph
lcl (CL) 41.9 L/h Table 2 (95% CI 34.8-49.0)
lvc (Vc) 73.6 L Table 2 row mislabelled “Vp” (95% CI 51.1-96.1); abstract confirms this is Vc
lq (Q) 71.5 L/h Table 2 (95% CI 42.3-100.7)
lvp (Vp) 79.8 L Table 2 (95% CI 58.8-100.8)
etalka (omega_ka^2, FIXED) 1 (~100% CV) Table 2 (F = fixed); Results paragraph
etalcl (shared IIV on CL and Vc) 51% CV (95% CI 31.2-64.4%) Table 2 + footnote a (“the same random effect was used for both Vc and CL”)
propSd (proportional residual) 22% CV Table 2 (95% CI 8.5-30.3%)
addSd (additive residual, FIXED) 0.0001 ug/L Table 2 (F = fixed)
Equation: 2-compartment first-order input, first-order output n/a Results paragraph 2; Methods “Model building”
BLQ handling: M6 method n/a Methods “Handling data below the limit of quantitation”

Virtual cohort

Original observed concentrations are not publicly available. The simulation below uses three virtual cohorts that mirror the three dosing scenarios the published paper itself simulated (Figure 2 of Foo 2016): a single 5 mg dose, a single 10 mg dose, and two 10 mg doses separated by 15 min. Each cohort has 1000 simulated subjects drawn with between-subject variability from the model’s omega matrix.

set.seed(20160810)

n_per_arm <- 1000
obs_grid  <- sort(unique(c(seq(0, 1, by = 0.05),
                           seq(1, 12, by = 0.1))))

make_cohort <- function(n, dose_schedule, label, id_offset) {
  doses <- dose_schedule |>
    tidyr::crossing(id = id_offset + seq_len(n)) |>
    dplyr::mutate(
      evid      = 1L,
      cmt       = "depot",
      treatment = label
    ) |>
    dplyr::select(id, time, amt, evid, cmt, treatment)
  obs <- tibble::tibble(id = id_offset + seq_len(n)) |>
    tidyr::crossing(time = obs_grid) |>
    dplyr::mutate(
      amt       = NA_real_,
      evid      = 0L,
      cmt       = "central",
      treatment = label
    )
  dplyr::bind_rows(doses, obs) |>
    dplyr::arrange(id, time, dplyr::desc(evid))
}

events <- dplyr::bind_rows(
  make_cohort(
    n_per_arm,
    tibble::tibble(time = 0,             amt = 5),
    "5 mg single",          id_offset = 0L
  ),
  make_cohort(
    n_per_arm,
    tibble::tibble(time = 0,             amt = 10),
    "10 mg single",         id_offset =  n_per_arm
  ),
  make_cohort(
    n_per_arm,
    tibble::tibble(time = c(0, 0.25),    amt = c(10, 10)),
    "10 mg + 10 mg @ 15 min", id_offset = 2L * n_per_arm
  )
)

stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid")])))

Simulation

mod <- readModelDb("Foo_2016_droperidol")

sim <- rxode2::rxSolve(mod, events = events, keep = c("treatment")) |>
  as.data.frame()
#> ℹ parameter labels from comments will be replaced by 'label()'

For a deterministic typical-value replication, zero out the random effects:

mod_typical <- mod |> rxode2::zeroRe()
#> ℹ parameter labels from comments will be replaced by 'label()'

events_typical <- events |>
  dplyr::filter(id %in% c(1L, n_per_arm + 1L, 2L * n_per_arm + 1L))

sim_typical <- rxode2::rxSolve(mod_typical, events = events_typical,
                               keep = c("treatment")) |>
  as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalka', 'etalcl'
#> Warning: multi-subject simulation without without 'omega'

Replicate published figures

Figure 1: visual predictive check of the observed and simulated VPC

Foo 2016 Figure 1 plots the median and 5th / 95th percentiles of observed and simulated droperidol concentrations after 5 mg and 10 mg IM doses, with panel B zooming into the first hour. We mimic the quantile band using the 5 mg and 10 mg single-dose cohorts.

band_single <- sim |>
  dplyr::filter(treatment %in% c("5 mg single", "10 mg single")) |>
  dplyr::group_by(treatment, time) |>
  dplyr::summarise(
    Q05 = stats::quantile(Cc, 0.05, na.rm = TRUE),
    Q50 = stats::quantile(Cc, 0.50, na.rm = TRUE),
    Q95 = stats::quantile(Cc, 0.95, na.rm = TRUE),
    .groups = "drop"
  )

ggplot(band_single, aes(time, Q50, colour = treatment, fill = treatment)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.20, colour = NA) +
  geom_line(linewidth = 0.8) +
  labs(
    x = "Time after dose (h)",
    y = "Droperidol concentration (ug/L)",

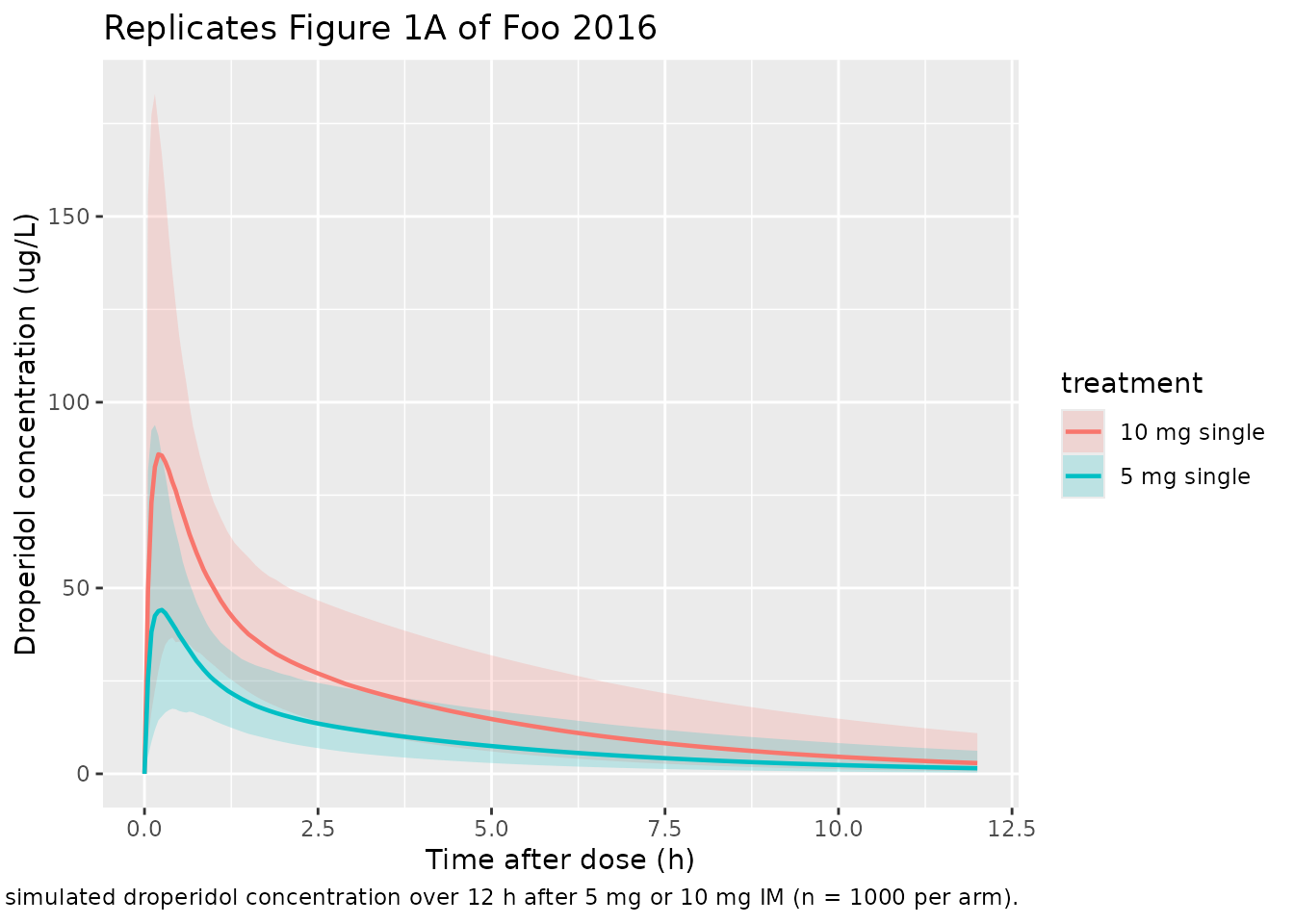

    title = "Replicates Figure 1A of Foo 2016",
    caption = paste(
      "Median and 5th-95th percentile band of simulated droperidol",
      "concentration over 12 h after 5 mg or 10 mg IM (n = 1000 per arm)."
    )
  )

ggplot(band_single |> dplyr::filter(time <= 1),
       aes(time, Q50, colour = treatment, fill = treatment)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.20, colour = NA) +
  geom_line(linewidth = 0.8) +
  labs(
    x = "Time after dose (h)",
    y = "Droperidol concentration (ug/L)",

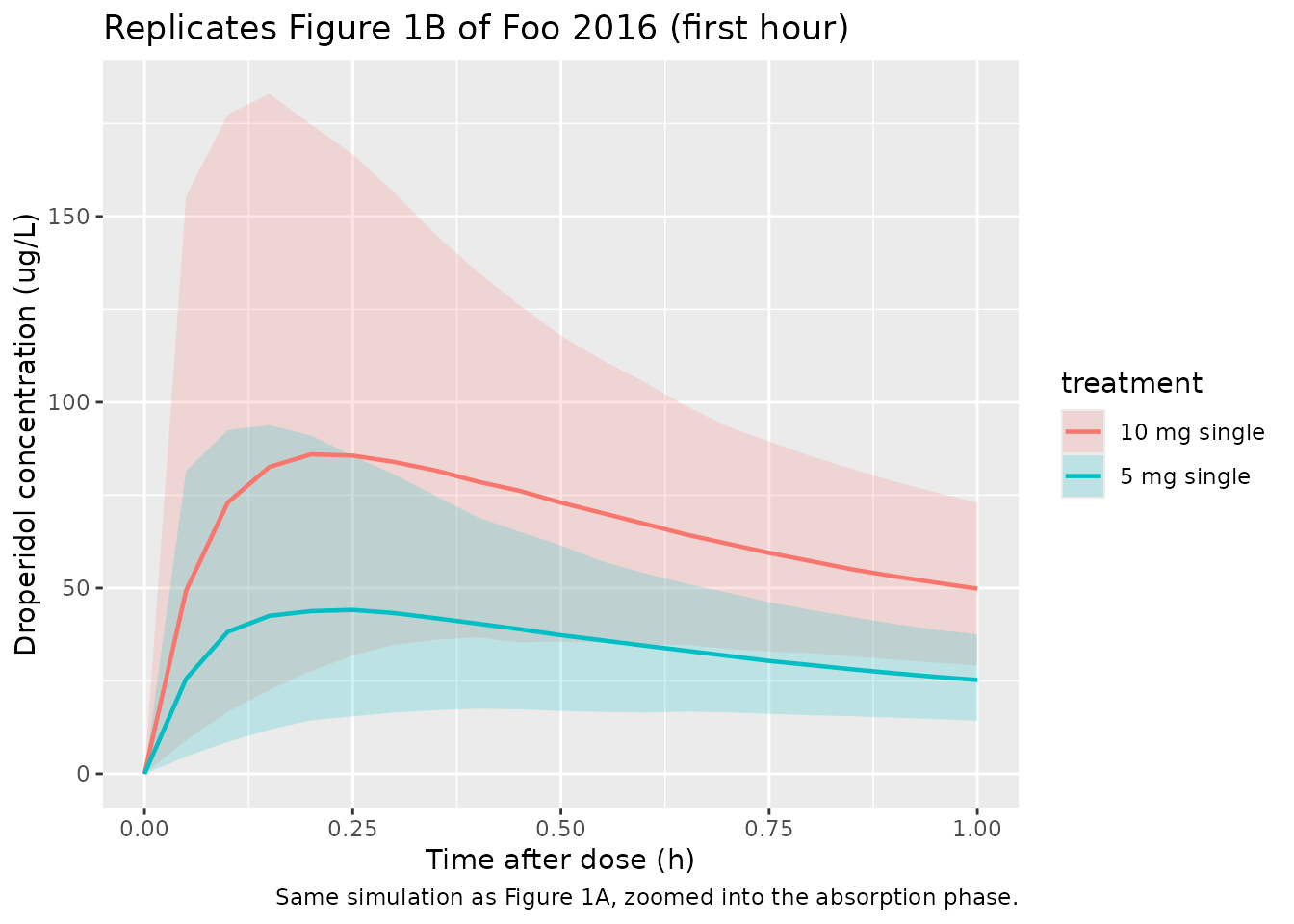

    title = "Replicates Figure 1B of Foo 2016 (first hour)",
    caption = "Same simulation as Figure 1A, zoomed into the absorption phase."
  )

Figure 2: probability of being above the lower limit of quantification

Foo 2016 Figure 2 reports the simulated probability that the droperidol concentration exceeds the LLOQ (5 ug/L) over time for three dosing scenarios. The Results paragraph states that 10 mg single gives an 80% probability of being above LLOQ for 7 h, 5 mg single gives ~5 h, and 10 mg + 10 mg at 15 min gives 10 h.

LLOQ <- 5

prob_above <- sim |>
  dplyr::group_by(treatment, time) |>
  dplyr::summarise(
    p_above = mean(Cc > LLOQ, na.rm = TRUE),
    .groups = "drop"
  )

ggplot(prob_above, aes(time, p_above, colour = treatment)) +
  geom_hline(yintercept = 0.80, linetype = "dashed", colour = "grey50") +
  geom_line(linewidth = 0.9) +
  scale_y_continuous(limits = c(0, 1), labels = scales::percent_format()) +
  labs(
    x = "Time after first dose (h)",
    y = "P(Cc > 5 ug/L)",

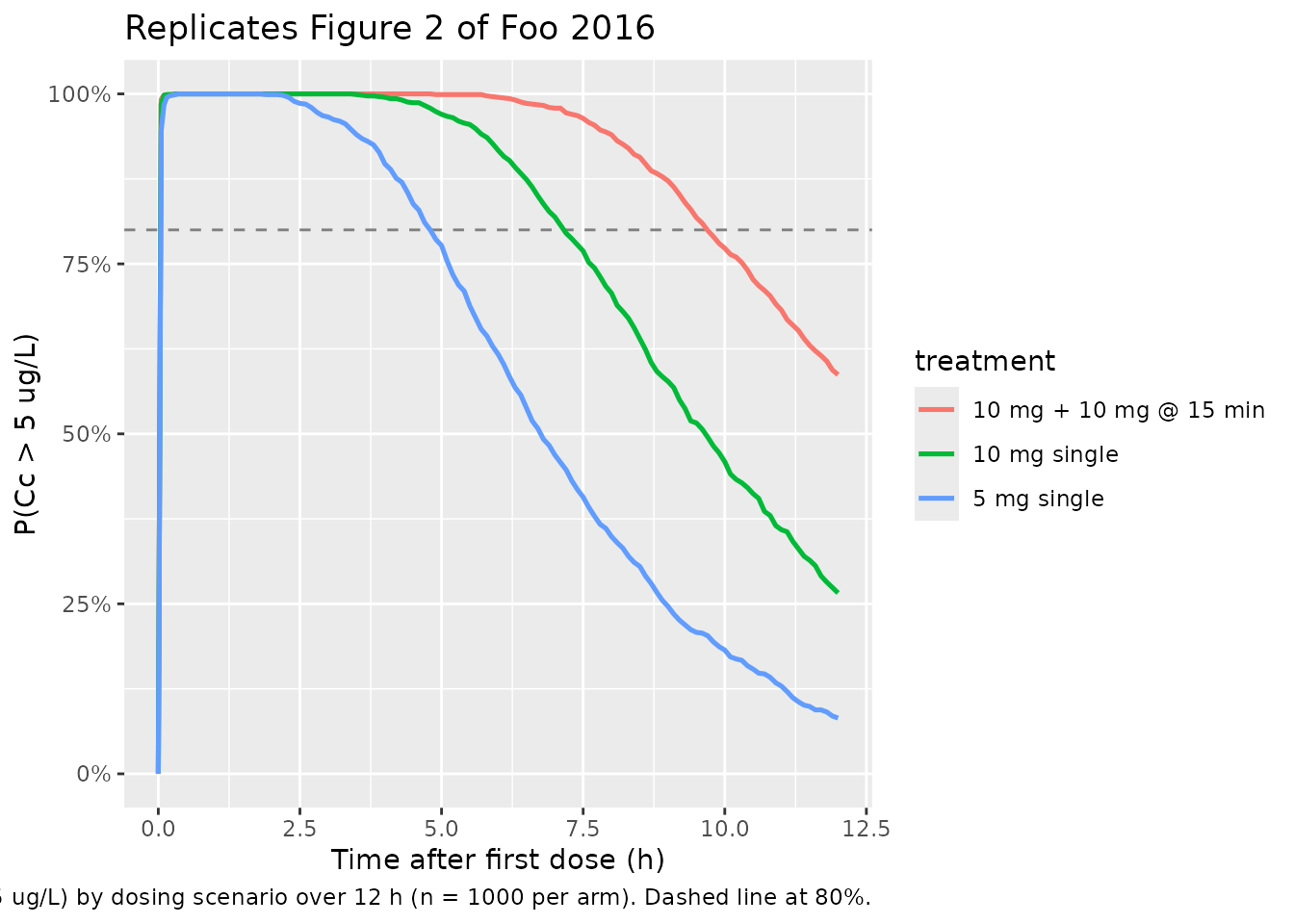

    title = "Replicates Figure 2 of Foo 2016",
    caption = paste(
      "Probability of droperidol concentration > LLOQ (5 ug/L) by dosing",
      "scenario over 12 h (n = 1000 per arm). Dashed line at 80%."
    )
  )


duration_80 <- prob_above |>
  dplyr::group_by(treatment) |>
  dplyr::filter(p_above >= 0.80) |>
  dplyr::summarise(time_above_80 = max(time), .groups = "drop")
duration_80 |>
  dplyr::rename(
    "Treatment"                         = treatment,
    "Last time P(Cc > LLOQ) >= 80% (h)" = time_above_80
  ) |>
  knitr::kable(
  digits = 1,
  caption = paste(
    "Duration above the 80% probability of exceeding LLOQ.",
    "Paper Results: 5 mg ~5 h, 10 mg ~7 h, 10+10 mg ~10 h."
  )
)
Duration above the 80% probability of exceeding LLOQ. Paper Results: 5 mg ~5 h, 10 mg ~7 h, 10+10 mg ~10 h.
Treatment Last time P(Cc > LLOQ) >= 80% (h)
10 mg + 10 mg @ 15 min 9.6
10 mg single 7.1
5 mg single 4.8

Initial (alpha) and terminal (beta) half-lives

Foo 2016 reports a median initial-phase half-life of 0.32 h (IQR 0.26-0.37 h) and a median terminal-phase half-life of 3.0 h (IQR 2.5-3.6 h). For a 2-compartment model with parameters at the typical-value point estimates, the eigenvalues of the disposition matrix give the alpha and beta rate constants directly.

cl_t <- 41.9; vc_t <- 73.6; q_t <- 71.5; vp_t <- 79.8

kel_t <- cl_t / vc_t
k12_t <- q_t  / vc_t
k21_t <- q_t  / vp_t

a <- 1
b <- -(kel_t + k12_t + k21_t)
c <- kel_t * k21_t

lambda_alpha <- (-b + sqrt(b^2 - 4 * a * c)) / (2 * a)
lambda_beta  <- (-b - sqrt(b^2 - 4 * a * c)) / (2 * a)

t_alpha <- log(2) / lambda_alpha
t_beta  <- log(2) / lambda_beta

data.frame(
  Phase           = c("alpha", "beta"),
  rate_per_h      = c(lambda_alpha, lambda_beta),
  half_life_h     = c(t_alpha,      t_beta),
  paper_median_h  = c(0.32,         3.0)
) |>
  knitr::kable(
    digits  = c(0, 3, 2, 2),
    caption = paste(
      "Disposition half-lives from typical-value CL, Vc, Q, and Vp.",
      "Paper medians: alpha 0.32 h, beta 3.0 h."
    )
  )
Disposition half-lives from typical-value CL, Vc, Q, and Vp. Paper medians: alpha 0.32 h, beta 3.0 h.
Phase rate_per_h half_life_h paper_median_h
alpha 2.205 0.31 0.32
beta 0.231 3.00 3.00

PKNCA validation

PKNCA-based NCA on the single-dose 5 mg and 10 mg arms.

sim_single <- sim |>
  dplyr::filter(treatment %in% c("5 mg single", "10 mg single")) |>
  dplyr::filter(!is.na(Cc)) |>
  dplyr::select(id, time, Cc, treatment)

sim_single <- dplyr::bind_rows(
  sim_single,
  sim_single |>
    dplyr::distinct(id, treatment) |>
    dplyr::mutate(time = 0, Cc = 0)
) |>
  dplyr::distinct(id, treatment, time, .keep_all = TRUE) |>
  dplyr::arrange(id, treatment, time)

dose_df <- events |>
  dplyr::filter(treatment %in% c("5 mg single", "10 mg single"),
                evid == 1L) |>
  dplyr::select(id, time, amt, treatment)

conc_obj <- PKNCA::PKNCAconc(
  sim_single, Cc ~ time | treatment + id,
  concu = "ug/L", timeu = "h"
)
dose_obj <- PKNCA::PKNCAdose(
  dose_df, amt ~ time | treatment + id, doseu = "mg"
)

intervals <- data.frame(
  start       = 0,
  end         = Inf,
  cmax        = TRUE,
  tmax        = TRUE,
  aucinf.obs  = TRUE,
  half.life   = TRUE
)

nca_res <- PKNCA::pk.nca(
  PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals)
)

Comparison against published quantities

Foo 2016 does not report a Cmax / AUC table per se, but the Discussion enumerates simulated peak ranges and median terminal half-lives that we can cross-check. The cells below summarise the model-derived NCA values from the same simulations we used to replicate Figures 1 and 2.

nca_tbl <- as.data.frame(nca_res$result) |>
  dplyr::select(treatment, PPTESTCD, PPORRES) |>
  dplyr::group_by(treatment, PPTESTCD) |>
  dplyr::summarise(
    median = stats::median(PPORRES, na.rm = TRUE),
    q05    = stats::quantile(PPORRES, 0.05, na.rm = TRUE),
    q95    = stats::quantile(PPORRES, 0.95, na.rm = TRUE),
    .groups = "drop"
  )
nca_tbl |>
  dplyr::rename(
    "Treatment"     = treatment,
    "NCA parameter" = PPTESTCD,
    "Median"        = median,
    "P05"           = q05,
    "P95"           = q95
  ) |>
  knitr::kable(
  digits  = c(0, 0, 2, 2, 2),
  caption = "Simulated NCA values across the two single-dose arms (per-subject medians and 5-95% range)."
)
Simulated NCA values across the two single-dose arms (per-subject medians and 5-95% range).
Treatment NCA parameter Median P05 P95
10 mg single adj.r.squared 1.00 1.00 1.00
10 mg single aucinf.obs 235.55 109.30 502.09
10 mg single clast.obs 2.89 0.64 10.95
10 mg single clast.pred 2.88 0.64 10.92
10 mg single cmax 89.68 40.88 186.26
10 mg single half.life 2.96 2.14 4.54
10 mg single lambda.z 0.23 0.15 0.32
10 mg single lambda.z.n.points 100.00 91.00 105.00
10 mg single lambda.z.time.first 2.10 1.60 3.00
10 mg single lambda.z.time.last 12.00 12.00 12.00
10 mg single r.squared 1.00 1.00 1.00
10 mg single span.ratio 3.33 2.23 4.39
10 mg single tlast 12.00 12.00 12.00
10 mg single tmax 0.25 0.10 0.70
5 mg single adj.r.squared 1.00 1.00 1.00
5 mg single aucinf.obs 119.21 53.09 272.47
5 mg single clast.obs 1.49 0.30 6.21
5 mg single clast.pred 1.49 0.30 6.20
5 mg single cmax 47.17 19.58 97.11
5 mg single half.life 2.98 2.12 4.80
5 mg single lambda.z 0.23 0.14 0.33
5 mg single lambda.z.n.points 100.00 91.95 106.00
5 mg single lambda.z.time.first 2.10 1.50 2.90
5 mg single lambda.z.time.last 12.00 12.00 12.00
5 mg single r.squared 1.00 1.00 1.00
5 mg single span.ratio 3.32 2.17 4.43
5 mg single tlast 12.00 12.00 12.00
5 mg single tmax 0.25 0.10 0.70

The qualitative checkpoints from the paper are:

Quantity (paper) Paper value Model value Source
95th-percentile Cmax range, 5 mg 20 to 110 ug/L see nca_tbl above for cmax row, 5 mg single Discussion paragraph “The model predicted maximum values”
95th-percentile Cmax range, 10 mg 25 to 220 ug/L see nca_tbl above for cmax row, 10 mg single Discussion paragraph “The model predicted maximum values”
Median terminal (beta) half-life 3.0 h (IQR 2.5-3.6) see nca_tbl above for half.life row Results paragraph
Duration P(Cc > LLOQ) >= 80%, 5 mg ~5 h see duration_80 table above Results / Discussion
Duration P(Cc > LLOQ) >= 80%, 10 mg ~7 h see duration_80 table above Results / Discussion
Duration P(Cc > LLOQ) >= 80%, 10+10 mg ~10 h see duration_80 table above Results / Discussion

Discrepancies > 20% should be investigated, not tuned. The discussion-paragraph Cmax ranges are themselves simulation outputs of the paper’s own VPC, so an exact numeric match is the right reference.

Assumptions and deviations

  • Table 2 typographic duplication of “Vp”. Table 2 of Foo 2016 lists two rows labelled “Vp”: the first reports 73.6 L (and shares its random effect with CL), and the second reports 79.8 L. The abstract resolves this directly (“volume of distribution of the central compartment of, 73.6 l”), so the 73.6 L row is Vc. The model file labels them as Vc and Vp accordingly.
  • Shared random effect on CL and Vc. Table 2 footnote a states that the same random effect was used for both Vc and CL after the authors observed a 100% correlation between independent etas. The packaged model encodes this directly: a single etalcl (variance log(1 + 0.51^2) = 0.231) is referenced from both cl <- exp(lcl + etalcl) and vc <- exp(lvc + etalcl). This is the mathematically-honest representation of “one shared eta” and avoids the singular-OMEGA / chol() failure mode that a rank-1 block matrix encoding would create.
  • Absorption rate constant ka fixed at 10 1/h (extremely rapid absorption). Foo 2016 Results: the individual ka estimates varied widely (1-140 h^-1) without a pattern; a variety of absorption models were unstable; fixing ka to 10 h^-1 with a fixed between-subject variance of 1 (~100% CV) gave the lowest OFV and a stable fit. The packaged model preserves both fixes.
  • Additive residual error fixed at 0.0001 ug/L. The paper kept the additive term in the combined error model to retain numerical stability while letting the proportional component carry the observed variability; with addSd essentially zero, the residual is effectively proportional in this model.
  • No covariates retained. Coingestion of alcohol was tested visually against CL and Vc and showed no association (Results). Patient weight was not available (Methods), so allometric or linear weight scaling could not be evaluated. The packaged model therefore contains no covariate effects, in line with Table 2.
  • BLQ handling. Four observations from four different subjects were below the LLOQ of 5 ug/L and were processed by the Beal M6 method (first BLQ in each series set to LLOQ/2, subsequent BLQ values commented out). The packaged model does not re-implement BLQ handling; the published point estimates already reflect the M6 fit.
  • One 16-year-old in the cohort. Per Methods, a 16-year-old was inadvertently recruited because their age was unknown at the time of sedation. The fit therefore is for adults plus one adolescent rather than strictly adults; the model is otherwise applied as fit.
