Metronidazole CNS minimal PBPK (Chauzy 2022)

Source: vignettes/articles/Chauzy_2022_metronidazole_pbpk.Rmd
Chauzy_2022_metronidazole_pbpk.Rmd

Model and source

  • Citation: Chauzy A, Bouchene S, Aranzana-Climent V, Clarhaut J, Adier C, Gregoire N, Couet W, Dahyot-Fizelier C, Marchand S. A Minimal Physiologically Based Pharmacokinetic Model to Characterize CNS Distribution of Metronidazole in Neuro Care ICU Patients. Antibiotics (Basel). 2022;11(10):1293. doi:10.3390/antibiotics11101293
  • Description: PBPK (minimal, CNS). Unbound metronidazole in plasma, brain extracellular fluid (ECF) and cerebrospinal fluid (CSF) of brain-injured neuro-ICU adults (Chauzy 2022): a blood compartment with a linear total blood clearance, exchanging by perfusion with one lumped non-CNS tissue compartment and with a three-compartment CNS (brain vasculature, brain ECF, cranial CSF). The CNS compartments are linked by passive permeability-surface-area products across the blood-brain and blood-CSF barriers, ECF-to-CSF bulk flow, CSF sink flow back to the brain vasculature, and drainage of CSF through an external ventricular drain (EVD). Volumes and flows are fixed physiological values; only the tissue partition coefficient, clearance and residual errors were estimated.
  • Article: https://doi.org/10.3390/antibiotics11101293 (open access)
  • Supplement: Figures S1-S4 and Tables S1-S3, available from the article page.

Population

Eight brain-injured adults in the neurointensive care unit of the University Hospital of Poitiers (France) contributed the data (Table 3): all male, aged 34-73 years, weighing 75-115 kg, 172-180 cm tall, with creatinine clearance 84-306 mL/min. Admission diagnoses were traumatic brain injury (4), subarachnoid haemorrhage (3) and ventricular haemorrhage (1). All received metronidazole 500 mg every 8 h as a 30-min intravenous infusion for a lung infection and were sampled at steady state after at least 2 days of treatment. Four patients (Table 3 patients 1-4) had a brain microdialysis probe in a frontal lobe and contributed plasma and brain ECF dialysate concentrations; four (patients 5-8) had an external ventricular drain (EVD) and contributed plasma and EVD-collected CSF concentrations. All modelled concentrations are unbound: plasma by ultrafiltration, dialysate after correction for the per-patient in vivo probe recovery.

The same information is available programmatically via readModelDb("Chauzy_2022_metronidazole_pbpk")()$population.

Source trace

The per-parameter origin is recorded as an in-file comment next to each ini() entry in inst/modeldb/specificDrugs/Chauzy_2022_metronidazole_pbpk.R. The table below collects them in one place.

Equation / parameter Value Source location
lcl (CL) log(7.28) L/h Table 1 (estimated)
lkp_rest (Kp) log(0.796) Table 1 (estimated)
fd 0.86 (fixed) Table 1, footnote b
ps_ecf (PS_ECF) 6.4 L/h (fixed) Table 1, footnote c; Methods 4.2 (Simcyp prediction)
ps_csf (PS_CSF) 3.2 L/h (fixed) Table 1, footnote d (half of PS_ECF)
co 312 L/h Table 4
q_brain 42 L/h Table 4
q_bulk 0.0105 L/h Table 4
q_sink_physio 0.024 L/h Table 4
v_blood 5.85 L Table 4
v_brain_vasc 0.0637 L Table 4
v_ecf 0.24 L Table 4
v_csf 0.130 L Table 4
bpr (B/P) 0.82 Table 4 (PK-Sim prediction)
etalcl 0.11681 = log(0.352^2 + 1) Table 1, IIV 35.2 %CV
propSd, addSd 0.144, 1.18 mg/L Table 1, plasma residual error
propSd_Cecf 0.228 Table 1, ECF residual error
propSd_Ccsf 0.282 Table 1, CSF residual error
v_tissue = WT - V_blood - V_brain,vasc - V_ECF - V_CSF n/a Methods 4.2, text under Eq. 2
d/dt(central) (blood) n/a Eq. 1
d/dt(res_tis) (non-CNS tissue) n/a Eq. 2
d/dt(brain_vascular) n/a Eq. 3
d/dt(brain_ecf) n/a Eq. 4
d/dt(auc_brain_ecf) (dialysate integral) n/a Eq. 5
d/dt(brain_csf) n/a Eq. 6
q_sink = max(0, Qsink,physio - QEVD) n/a Eq. 7; Figure 4 caption for the floor at 0
d/dt(evd) (EVD collection bag) n/a Eq. 8
Cc = unbound blood / B/P n/a Methods 4.2 (B/P conversion)

Event-table helper

The model needs two covariates on every row: body weight WT (kg), which sets the non-CNS tissue volume, and the EVD drain flow CSF_DRAIN_VOL_24H (mL/24h; 0 without a drain). The paper’s EVD flow QEVD in L/h converts as CSF_DRAIN_VOL_24H = QEVD * 24000.

Doses are 500 mg infused over 0.5 h (1000 mg/h) every 8 h for 7 days, which puts the last interval (160-168 h) at steady state (the elimination half-life is about 7 h). Observation rows carry dvid = 1 and no compartment: the model has three endpoints, and every endpoint column is returned at every observation row.

mod <- readModelDb("Chauzy_2022_metronidazole_pbpk")
mod_typical <- rxode2::zeroRe(mod)

make_events <- function(id, wt, drain, obs_times, n_dose = 21L, treatment = "500 mg q8h") {
  doses <- tibble(
    time = 8 * (seq_len(n_dose) - 1), evid = 1L, amt = 500, rate = 1000,
    cmt = "central", dvid = NA_integer_
  )
  obs <- tibble(
    time = obs_times, evid = 0L, amt = 0, rate = 0,
    cmt = NA_character_, dvid = 1L
  )
  bind_rows(doses, obs) |>
    arrange(time, desc(evid)) |>
    mutate(id = id, WT = wt, CSF_DRAIN_VOL_24H = drain, treatment = treatment) |>
    relocate(id)
}

ss_grid <- seq(160, 168, by = 0.05)

Typical-patient profiles (Figure 2)

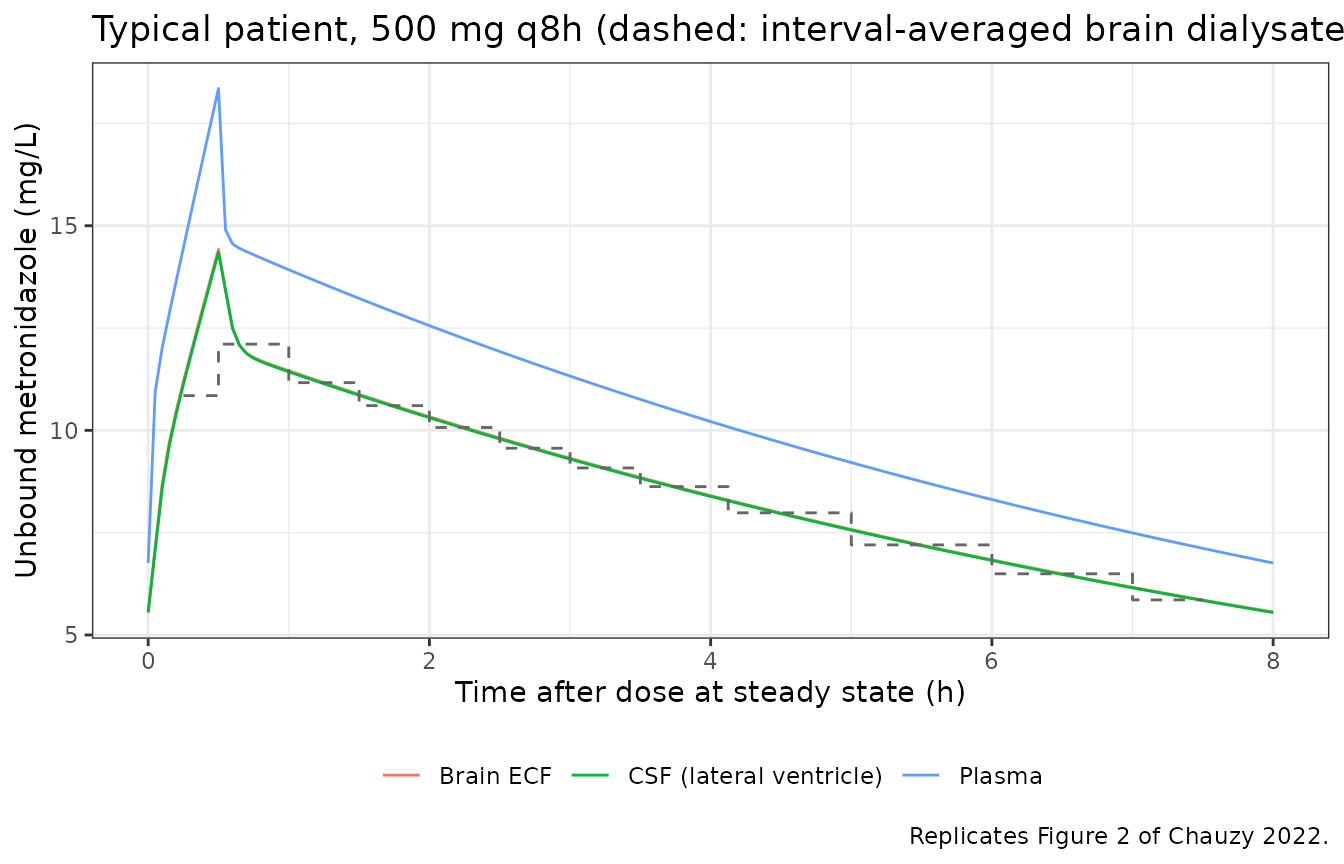

Figure 2 of the paper shows the typical-patient profiles after 500 mg q8h in unbound plasma, brain ECF, brain dialysate, CSF in the lateral ventricle and EVD-collected CSF. The typical patient below weighs 85 kg (the Table 3 median) and has no drain; the dialysate is the interval average of the brain ECF concentration over the paper’s collection schedule (0.5 h intervals for the first 4 h, then 1 h), read off the auc_brain_ecf integrator (Eq. 5).

ev_typ <- make_events(1L, wt = 85, drain = 0, obs_times = ss_grid)
sim_typ <- rxode2::rxSolve(mod_typical, ev_typ, returnType = "data.frame") |>
  mutate(tad = round(time - 160, 2))
#> ℹ omega/sigma items treated as zero: 'etalcl'

breaks <- c(seq(0, 4, by = 0.5), 5:8)
dialysate <- sim_typ |>
  filter(tad %in% breaks) |>
  arrange(tad) |>
  transmute(
    t_mid = (tad + lag(tad)) / 2,
    conc = (auc_brain_ecf - lag(auc_brain_ecf)) / (tad - lag(tad))
  ) |>
  filter(!is.na(conc))

sim_typ |>
  select(tad, Plasma = Cc, `Brain ECF` = Cecf, `CSF (lateral ventricle)` = Ccsf) |>
  pivot_longer(-tad, names_to = "matrix", values_to = "conc") |>
  ggplot(aes(tad, conc, colour = matrix)) +
  geom_line() +
  geom_step(
    data = dialysate, aes(t_mid, conc), inherit.aes = FALSE,
    colour = "grey40", linetype = "dashed", direction = "mid"
  ) +
  labs(
    x = "Time after dose at steady state (h)", y = "Unbound metronidazole (mg/L)",
    colour = NULL,
    title = "Typical patient, 500 mg q8h (dashed: interval-averaged brain dialysate)",
    caption = "Replicates Figure 2 of Chauzy 2022."
  ) +
  theme_bw() +
  theme(legend.position = "bottom")

As in the paper, the brain ECF and CSF profiles are almost superimposed and slightly flatter than plasma.

Per-patient predicted AUCs (Table S1)

Table S1 lists, for every patient, the steady-state AUC over one dosing interval predicted from that patient’s individual profile in plasma, brain dialysate and CSF. Clearance is the only parameter with between-subject variability, and at steady state the plasma AUC is Dose / (CL * B/P) and does not depend on body weight. Each patient’s clearance can therefore be recovered exactly from their predicted plasma AUC. Simulating with that clearance and the patient’s Table 3 weight then predicts the ECF and CSF AUCs from the model structure and the fixed physiological parameters alone, which is a direct test of Eqs. 1-7 against the authors’ own NONMEM output. The EVD patients use their mean Table S3 drain flow (collected volume over collection time). Table S3 numbers the EVD patients 1-4; they are Table 3 patients 5-8 in the same order (their supplement totals rank with the observed CSF AUCs of Table S1), and they are coded 5-8 below.

# Table S3: drain flow QEVD (L/h) and measured bag concentration (mg/L) per
# collection interval; NA where the table reports 'nd' / 'na'.
s3 <- tibble::tribble(
  ~patient, ~t1, ~t2, ~qevd, ~cevd_obs,
  5L, 0, 0.5, 0.003, 10.1, 5L, 0.5, 1, 0.001, 10.7, 5L, 1, 1.5, 0, NA,
  5L, 1.5, 2, 0.003, 10.6, 5L, 2, 3, 0.016, 10.1, 5L, 3, 4, 0.0025, 15.2,
  5L, 4, 5, 0.009, 8.81, 5L, 5, 6, 0.013, 11.0, 5L, 6, 7, NA, NA,
  5L, 7, 8, 0.019, 10.7,
  6L, 0, 0.5, 0.005, 15.5, 6L, 0.5, 1, 0.007, 14.7, 6L, 1, 1.5, 0.006, 15.8,
  6L, 1.5, 2, 0.040, 19.2, 6L, 2, 2.5, 0.034, 20.4, 6L, 2.5, 3, 0.018, 20.3,
  6L, 3, 3.5, 0.012, 19.7, 6L, 3.5, 4, 0.012, 19.9, 6L, 4, 5, 0.011, 19.2,
  6L, 5, 6, 0.010, 13.2, 6L, 6, 7, 0.007, 17.7, 6L, 7, 8, 0.0045, 17.7,
  7L, 0, 0.5, 0.008, 6.85, 7L, 0.5, 1, 0.008, 6.28, 7L, 1, 1.5, 0.010, 9.66,
  7L, 1.5, 2, 0.017, 6.68, 7L, 2, 2.5, 0.009, 4.99, 7L, 2.5, 3, 0.008, 7.80,
  7L, 3, 3.5, NA, NA, 7L, 3.5, 4, 0.014, 6.42, 7L, 4, 5, 0.002, 5.59,
  7L, 5, 6, 0.013, 4.70, 7L, 6, 7, 0.003, NA, 7L, 7, 8, 0.007, 2.43,
  8L, 0, 0.5, 0.013, 9.23, 8L, 0.5, 1, 0.010, 8.14, 8L, 1, 1.5, 0.010, 9.03,
  8L, 1.5, 2, 0.006, 16.0, 8L, 2, 3, 0.012, 14.9, 8L, 3, 4, 0.015, 12.9,
  8L, 4, 5, 0.010, 12.1, 8L, 5, 6, 0.015, 10.1, 8L, 6, 7, 0.010, 6.50,
  8L, 7, 8, 0.006, 4.91
)

mean_flow <- s3 |>
  filter(!is.na(qevd)) |>
  group_by(patient) |>
  summarise(drain_lph = sum(qevd * (t2 - t1)) / sum(t2 - t1), .groups = "drop")

s1 <- tibble::tribble(
  ~patient, ~wt, ~aucp_pub, ~auce_pub, ~aucc_pub,
  1L,  90, 70.6,  56.3,  56.0,
  2L,  90, 111.4, 88.9,  88.4,
  3L,  77, 78.0,  62.3,  61.9,
  4L,  79, 57.2,  45.7,  45.4,
  5L,  90, 100.5, 80.2,  79.8,
  6L,  80, 147.3, 117.6, 116.9,
  7L, 115, 50.0,  40.0,  39.7,
  8L,  75, 109.7, 87.6,  87.1
) |>
  left_join(mean_flow, by = "patient") |>
  mutate(
    drain_lph = coalesce(drain_lph, 0),
    cl_ind = 500 / (aucp_pub * 0.82)
  )
stopifnot(sum(s1$drain_lph > 0) == 4L)

trap <- function(t, y) sum(diff(t) * (head(y, -1) + tail(y, -1)) / 2)

s1_sim <- bind_rows(lapply(seq_len(nrow(s1)), function(i) {
  ev <- make_events(s1$patient[i], s1$wt[i], s1$drain_lph[i] * 24000, ss_grid)
  o <- rxode2::rxSolve(mod_typical, ev,
    params = c(lcl = log(s1$cl_ind[i])),
    returnType = "data.frame"
  )
  tibble(
    patient = s1$patient[i],
    aucp_sim = trap(o$time, o$Cc),
    auce_sim = trap(o$time, o$Cecf),
    aucc_sim = trap(o$time, o$Ccsf)
  )
}))
#> ℹ omega/sigma items treated as zero: 'etalcl'
#> ℹ omega/sigma items treated as zero: 'etalcl'
#> ℹ omega/sigma items treated as zero: 'etalcl'
#> ℹ omega/sigma items treated as zero: 'etalcl'
#> ℹ omega/sigma items treated as zero: 'etalcl'
#> ℹ omega/sigma items treated as zero: 'etalcl'
#> ℹ omega/sigma items treated as zero: 'etalcl'
#> ℹ omega/sigma items treated as zero: 'etalcl'

s1_cmp <- s1 |>
  left_join(s1_sim, by = "patient") |>
  mutate(
    pct_p = 100 * (aucp_sim / aucp_pub - 1),
    pct_e = 100 * (auce_sim / auce_pub - 1),
    pct_c = 100 * (aucc_sim / aucc_pub - 1)
  )

s1_cmp |>
  select(patient, aucp_pub, aucp_sim, auce_pub, auce_sim, pct_e, aucc_pub, aucc_sim, pct_c) |>
  rename(
    "Patient" = patient,
    "Plasma, Table S1" = aucp_pub, "Plasma, model" = aucp_sim,
    "ECF, Table S1" = auce_pub, "ECF, model" = auce_sim, "ECF % diff" = pct_e,
    "CSF, Table S1" = aucc_pub, "CSF, model" = aucc_sim, "CSF % diff" = pct_c
  ) |>
  knitr::kable(
    digits = 1,
    caption = "Steady-state AUC over one dosing interval (mg*h/L): Table S1 individual predictions vs. the packaged model with each patient's back-calculated clearance."
  )
Steady-state AUC over one dosing interval (mg*h/L): Table S1 individual predictions vs. the packaged model with each patient’s back-calculated clearance.
Patient Plasma, Table S1 Plasma, model ECF, Table S1 ECF, model ECF % diff CSF, Table S1 CSF, model CSF % diff
1 70.6 70.6 56.3 57.8 2.7 56.0 57.6 2.9
2 111.4 111.4 88.9 91.2 2.6 88.4 91.0 2.9
3 78.0 78.0 62.3 63.9 2.5 61.9 63.7 2.9
4 57.2 57.2 45.7 46.8 2.5 45.4 46.7 2.9
5 100.5 100.4 80.2 82.1 2.4 79.8 81.9 2.7
6 147.3 146.9 117.6 120.2 2.2 116.9 119.9 2.6
7 50.0 50.0 40.0 40.9 2.2 39.7 40.8 2.8
8 109.7 109.5 87.6 89.6 2.3 87.1 89.4 2.6

# Deterministic comparison (no random effects): the plasma column reproduces
# by construction; ECF and CSF sit 2.2-3.1% above Table S1 for every patient
# (see 'Assumptions and deviations'). A mis-transcribed volume, flow or
# permeability, or a mis-wired ODE term, moves these ratios by far more.
stopifnot(
  max(abs(s1_cmp$pct_p)) < 0.5,
  max(abs(s1_cmp$pct_e)) < 4,
  max(abs(s1_cmp$pct_c)) < 4
)

The model reproduces the per-patient ECF and CSF AUCs within 2-3%, the same for every patient. The residual offset is a constant ratio rather than scatter and is discussed under Assumptions and deviations.

EVD collection-bag concentrations (Table S3, Figure S1)

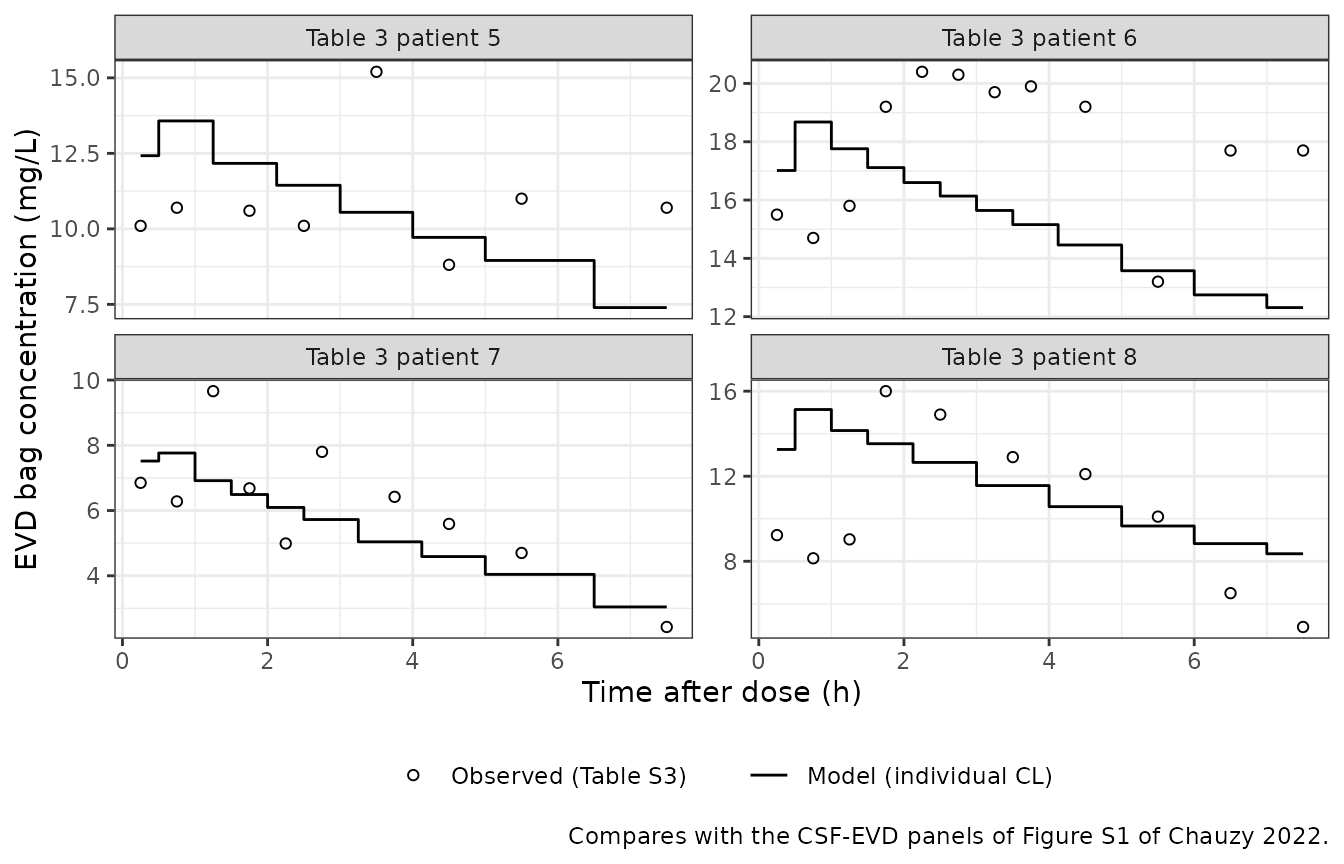

Table S3 lists, for each EVD patient and each collection interval, the volume collected, the derived drain flow QEVD and the measured bag concentration. Below, each patient is simulated with their back-calculated clearance from Table S1 and the interval-by-interval drain flow of Table S3 as a time-varying covariate. The predicted bag concentration for an interval is the amount drained over it (the evd state, Eq. 8) divided by the volume collected.


evd_pred <- bind_rows(lapply(5:8, function(p) {
  pt <- filter(s1, patient == p)
  tab <- filter(s3, patient == p)
  # Intervals without a recorded flow ('nd' / 'na' in Table S3) take the
  # patient's mean flow; before the PK interval the mean flow is used too.
  q_mean <- pt$drain_lph
  q_int <- ifelse(is.na(tab$qevd), q_mean, tab$qevd)
  obs_t <- 160 + sort(unique(c(tab$t1, tab$t2)))
  ev <- make_events(p, pt$wt, q_mean * 24000, sort(unique(c(obs_t, ss_grid))))
  # Time-varying drain flow: last observation carried forward within each
  # collection interval of the PK day.
  idx <- findInterval(ev$time - 160, tab$t1, rightmost.closed = TRUE)
  in_pk <- ev$time >= 160 & ev$time < 168 & idx > 0
  ev$CSF_DRAIN_VOL_24H[in_pk] <- q_int[idx[in_pk]] * 24000
  o <- rxode2::rxSolve(mod_typical, ev,
    params = c(lcl = log(pt$cl_ind)),
    returnType = "data.frame"
  ) |>
    mutate(tad = round(time - 160, 2))
  evd_at <- function(t) o$evd[match(t, o$tad)]
  tab |>
    mutate(
      vol_L = q_int * (t2 - t1),
      cevd_pred = ifelse(vol_L > 0, (evd_at(t2) - evd_at(t1)) / vol_L, NA_real_)
    )
}))
#> ℹ omega/sigma items treated as zero: 'etalcl'
#> ℹ omega/sigma items treated as zero: 'etalcl'
#> ℹ omega/sigma items treated as zero: 'etalcl'
#> ℹ omega/sigma items treated as zero: 'etalcl'

evd_pred |>
  filter(!is.na(cevd_obs)) |>
  ggplot(aes((t1 + t2) / 2)) +
  geom_point(aes(y = cevd_obs, shape = "Observed (Table S3)")) +
  geom_step(aes(y = cevd_pred, linetype = "Model (individual CL)"), direction = "mid") +
  facet_wrap(~ paste("Table 3 patient", patient), scales = "free_y") +
  scale_shape_manual(values = 1) +
  labs(
    x = "Time after dose (h)", y = "EVD bag concentration (mg/L)",
    shape = NULL, linetype = NULL,
    caption = "Compares with the CSF-EVD panels of Figure S1 of Chauzy 2022."
  ) +
  theme_bw() +
  theme(legend.position = "bottom")


evd_ratio <- evd_pred |>
  filter(!is.na(cevd_obs), !is.na(cevd_pred)) |>
  group_by(patient) |>
  summarise(gm_ratio = exp(mean(log(cevd_pred / cevd_obs))), .groups = "drop")
knitr::kable(
  evd_ratio |> rename("Table 3 patient" = patient, "Geometric mean predicted / observed" = gm_ratio),
  digits = 2,
  caption = "Predicted vs. observed EVD bag concentrations per patient."
)
Predicted vs. observed EVD bag concentrations per patient.
Table 3 patient Geometric mean predicted / observed
5 0.98
6 0.88
7 0.95
8 1.18

# Deterministic. Against measured data the residual CV is 28% (Table 1), and
# the per-patient Table S1 predicted / observed CSF AUC ratios are 0.83-1.06.
stopifnot(all(evd_ratio$gm_ratio > 0.7 & evd_ratio$gm_ratio < 1.3))

The drain carries away only a small fraction of the dose: summed over one dosing interval, the predicted amount drained is 0.13, 0.31, 0.07, 0.2% of the 500 mg dose for patients 5-8. The paper reports that 0.1-0.4% of the dose was recovered in the collection bag (Discussion).

Visual predictive check (Figure 1)

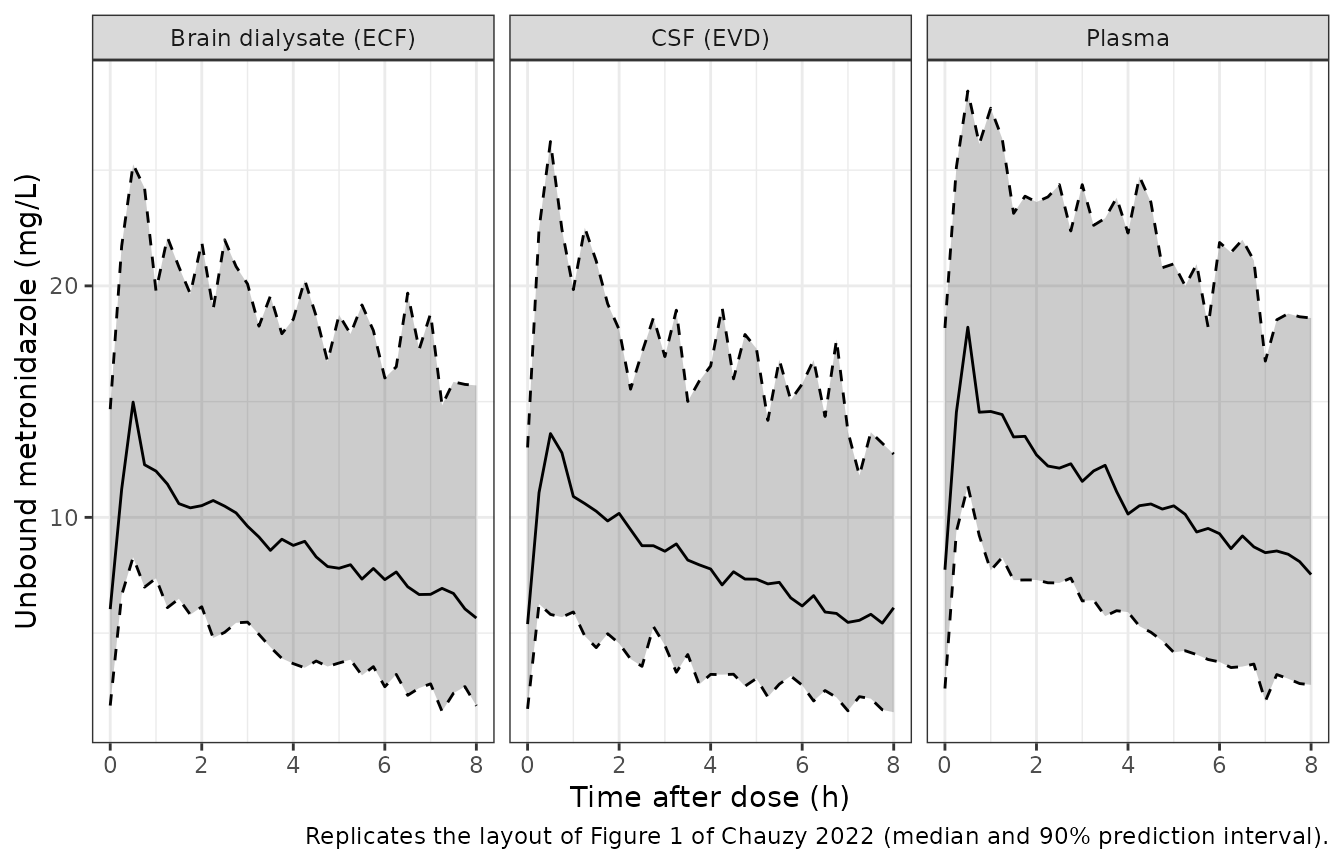

Figure 1 is a VPC of the final model in plasma, brain dialysate and EVD CSF. The virtual cohort below has 100 patients without a drain (the microdialysis group) and 100 with a constant drain flow of 0.010 L/h (240 mL/24h, the middle of the Table S3 range), with body weight uniform over the Table 3 range of 75-115 kg. Between-subject variability is on clearance only; the bands include residual error.

rxode2::rxSetSeed(20221022)
set.seed(20221022)
n_arm <- 100L
cohort <- tibble(
  id = seq_len(2 * n_arm),
  WT = runif(2 * n_arm, 75, 115),
  group = rep(c("Microdialysis", "EVD"), each = n_arm),
  drain = rep(c(0, 240), each = n_arm)
)
events_vpc <- bind_rows(lapply(seq_len(nrow(cohort)), function(i) {
  make_events(cohort$id[i], cohort$WT[i], cohort$drain[i], seq(160, 168, by = 0.25),
    treatment = cohort$group[i]
  )
}))
stopifnot(!anyDuplicated(unique(events_vpc[, c("id", "time", "evid")])))

sim_vpc <- rxode2::rxSolve(mod, events_vpc, keep = c("treatment"), returnType = "data.frame")

vpc_long <- bind_rows(
  sim_vpc |> filter(treatment == "Microdialysis") |>
    transmute(id, time, matrix = "Plasma", ipred = Cc),
  sim_vpc |> filter(treatment == "Microdialysis") |>
    transmute(id, time, matrix = "Brain dialysate (ECF)", ipred = Cecf),
  sim_vpc |> filter(treatment == "EVD") |>
    transmute(id, time, matrix = "CSF (EVD)", ipred = Ccsf)
)
# Simulated observations: each matrix's individual prediction plus its own
# Table 1 residual error.
ruv <- c("Plasma" = 0.144, "Brain dialysate (ECF)" = 0.228, "CSF (EVD)" = 0.282)
vpc_long <- vpc_long |>
  mutate(
    sd = ifelse(matrix == "Plasma", sqrt(1.18^2 + (0.144 * ipred)^2), ruv[matrix] * ipred),
    obs_sim = ipred + sd * rnorm(n())
  )

vpc_long |>
  group_by(matrix, time) |>
  summarise(
    Q05 = quantile(obs_sim, 0.05), Q50 = quantile(obs_sim, 0.5), Q95 = quantile(obs_sim, 0.95),
    .groups = "drop"
  ) |>
  ggplot(aes(time - 160, Q50)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.25) +
  geom_line() +
  geom_line(aes(y = Q05), linetype = "dashed") +
  geom_line(aes(y = Q95), linetype = "dashed") +
  facet_wrap(~matrix) +
  labs(
    x = "Time after dose (h)", y = "Unbound metronidazole (mg/L)",
    caption = "Replicates the layout of Figure 1 of Chauzy 2022 (median and 90% prediction interval)."
  ) +
  theme_bw()

Sensitivity analyses (Figures 3 and 4)

The paper varied the BBB/BCSFB permeabilities (100-500%), the brain ECF volume (100-140%) and the cerebral blood flow (20-100%) one at a time after a single 500 mg infusion, and found the CNS profiles almost unchanged (Figure 3). Figure 4 varied the drain flow from 0 to 0.04 L/h with the same conclusion.

ev_sd <- make_events(1L, wt = 85, drain = 0, obs_times = seq(0, 24, by = 0.1), n_dose = 1L)
run_sd <- function(params = NULL, drain = 0, label) {
  ev <- ev_sd
  ev$CSF_DRAIN_VOL_24H <- drain
  rxode2::rxSolve(mod_typical, ev, params = params, returnType = "data.frame") |>
    transmute(time, Cecf, Ccsf, scenario = label)
}
sens <- bind_rows(
  run_sd(label = "Reference"),
  run_sd(c(ps_ecf = 5 * 6.4, ps_csf = 5 * 3.2), label = "PS x 5"),
  run_sd(c(v_ecf = 1.4 * 0.24), label = "V_ECF x 1.4"),
  run_sd(c(q_brain = 0.2 * 42), label = "Q_brain x 0.2"),
  run_sd(drain = 0.04 * 24000, label = "QEVD 0.04 L/h")
)
#> ℹ omega/sigma items treated as zero: 'etalcl'
#> ℹ omega/sigma items treated as zero: 'etalcl'
#> ℹ omega/sigma items treated as zero: 'etalcl'
#> ℹ omega/sigma items treated as zero: 'etalcl'
#> ℹ omega/sigma items treated as zero: 'etalcl'

sens |>
  pivot_longer(c(Cecf, Ccsf), names_to = "matrix", values_to = "conc") |>
  mutate(matrix = recode(matrix, Cecf = "Brain ECF", Ccsf = "CSF")) |>
  ggplot(aes(time, conc, colour = scenario)) +
  geom_line() +
  facet_wrap(~matrix) +

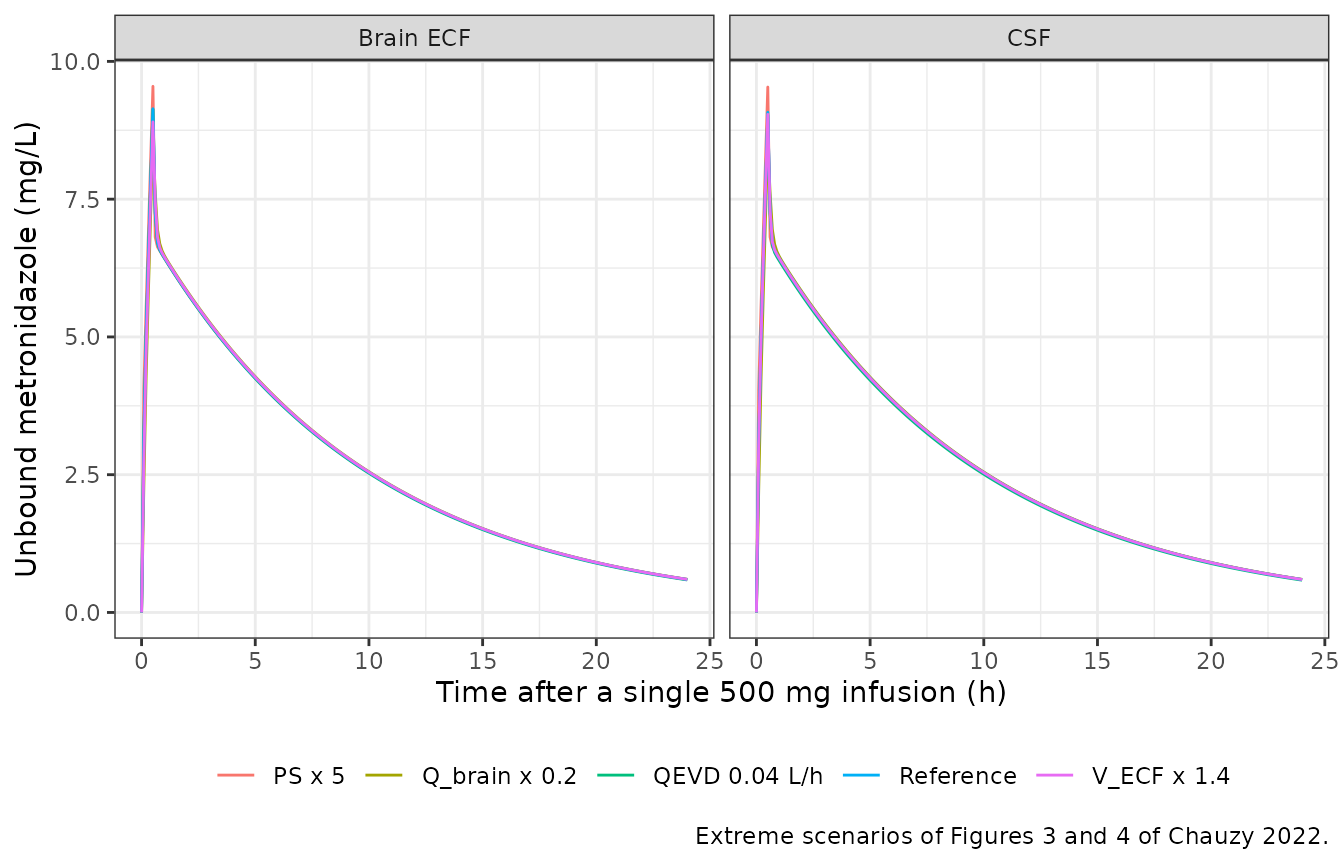

  labs(
    x = "Time after a single 500 mg infusion (h)", y = "Unbound metronidazole (mg/L)",
    colour = NULL,
    caption = "Extreme scenarios of Figures 3 and 4 of Chauzy 2022."
  ) +
  theme_bw() +
  theme(legend.position = "bottom")


sens_summary <- sens |>
  group_by(scenario) |>
  summarise(cmax_ecf = max(Cecf), cmax_csf = max(Ccsf), .groups = "drop") |>
  mutate(
    pct_ecf = 100 * (cmax_ecf / cmax_ecf[scenario == "Reference"] - 1),
    pct_csf = 100 * (cmax_csf / cmax_csf[scenario == "Reference"] - 1)
  )
knitr::kable(
  sens_summary |> rename(
    "Scenario" = scenario, "ECF Cmax (mg/L)" = cmax_ecf, "CSF Cmax (mg/L)" = cmax_csf,
    "ECF % change" = pct_ecf, "CSF % change" = pct_csf
  ),
  digits = 2
)
Scenario ECF Cmax (mg/L) CSF Cmax (mg/L) ECF % change CSF % change
PS x 5 9.55 9.53 4.45 5.03
QEVD 0.04 L/h 9.13 9.03 -0.11 -0.57
Q_brain x 0.2 8.59 8.52 -6.08 -6.11
Reference 9.14 9.08 0.00 0.00
V_ECF x 1.4 8.90 9.04 -2.61 -0.43

# The paper's conclusion is that none of these perturbations changes the CNS
# profiles of metronidazole materially. Deterministic solves.
stopifnot(
  nrow(sens_summary) == 5L,
  max(abs(sens_summary$pct_ecf)) < 10,
  max(abs(sens_summary$pct_csf)) < 10
)

PKNCA validation

Steady-state exposure over the last dosing interval of the VPC cohort, one PKNCA analysis per matrix, compared with the mean of the eight individual predicted AUCs of Table S1. The reference is a mean of empirical-Bayes predictions in eight patients, so agreement within about 10% is all that can be expected.

nca_conc <- bind_rows(
  sim_vpc |> filter(treatment == "Microdialysis") |>
    transmute(id, time, conc = Cc, analyte = "Plasma", treatment),
  sim_vpc |> filter(treatment == "Microdialysis") |>
    transmute(id, time, conc = Cecf, analyte = "Brain ECF", treatment),
  sim_vpc |> filter(treatment == "EVD") |>
    transmute(id, time, conc = Ccsf, analyte = "CSF", treatment)
) |>
  filter(!is.na(conc))
# Time-zero anchor: drug-naive before the first dose.
nca_conc <- bind_rows(
  nca_conc,
  nca_conc |> distinct(id, analyte, treatment) |> mutate(time = 0, conc = 0)
) |>
  distinct(id, analyte, treatment, time, .keep_all = TRUE) |>
  arrange(id, analyte, time)

dose_df <- events_vpc |>
  filter(evid == 1) |>
  transmute(id, time, amt, treatment)

conc_obj <- PKNCA::PKNCAconc(nca_conc, conc ~ time | treatment + id / analyte)
dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | treatment + id)
intervals <- data.frame(start = 160, end = 168, auclast = TRUE, cmax = TRUE, cmin = TRUE)
nca_res <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals))

published <- tibble::tribble(
  ~analyte, ~auclast,
  "Plasma", 90.6,
  "Brain ECF", 72.3,
  "CSF", 71.9
)
sim_long <- as.data.frame(nca_res$result) |>
  filter(PPTESTCD %in% c("auclast", "cmax", "cmin"))
cmp <- nlmixr2lib::ncaComparisonTable(
  simulated = sim_long,
  reference = published,
  by = "analyte",
  params = "auclast",
  units = c(auclast = "mg*h/L"),
  tolerance_pct = 20
)
knitr::kable(cmp, caption = "Simulated (cohort median) vs. Table S1 mean predicted AUC over one steady-state dosing interval. * differs by >20%.")
Simulated (cohort median) vs. Table S1 mean predicted AUC over one steady-state dosing interval. * differs by >20%.
NCA parameter analyte Reference Simulated % diff
AUClast (mg*h/L) Plasma 90.6 87 -4.0%
AUClast (mg*h/L) Brain ECF 72.3 71.2 -1.5%
AUClast (mg*h/L) CSF 71.9 66.9 -6.9%

sim_long |>
  group_by(analyte, PPTESTCD) |>
  summarise(median = median(PPORRES), p05 = quantile(PPORRES, 0.05), p95 = quantile(PPORRES, 0.95), .groups = "drop") |>
  rename("Matrix" = analyte, "Parameter" = PPTESTCD, "Median" = median, "5th pct" = p05, "95th pct" = p95) |>
  knitr::kable(digits = 1, caption = "Steady-state NCA of the virtual cohort (mg/L, mg*h/L).")
Steady-state NCA of the virtual cohort (mg/L, mg*h/L).
Matrix Parameter Median 5th pct 95th pct
Brain ECF auclast 71.2 42.7 143.0
Brain ECF cmax 14.5 11.4 23.8
Brain ECF cmin 6.2 2.7 14.6
CSF auclast 66.9 33.7 127.8
CSF cmax 13.9 10.0 21.2
CSF cmin 5.5 2.1 13.2
Plasma auclast 87.0 52.1 174.6
Plasma cmax 18.4 14.6 29.8
Plasma cmin 7.6 3.3 17.8

auc_med <- sim_long |>
  filter(PPTESTCD == "auclast") |>
  group_by(analyte) |>
  summarise(med = median(PPORRES), .groups = "drop") |>
  left_join(published, by = "analyte")
# The cohort median AUC is Dose / (CL * B/P) at the typical CL (83.8 mg*h/L in
# plasma) scaled by the median eta draw; with 100 subjects per arm the median
# eta has SD ~0.04, so +-4% is noise and a CL or B/P transcription error
# (tens of percent) is not.
stopifnot(nrow(auc_med) == 3L, all(abs(auc_med$med / auc_med$auclast - 1) < 0.2))

Assumptions and deviations

  • Non-CNS tissue volume. The paper closes the body-weight balance V_blood + V_tissue + V_brain,vasc + V_ECF + V_CSF = TBW. Body weight in kg is read as litres (density 1 kg/L), so v_tissue is computed per patient from WT.
  • Observation scale. The model state is the unbound blood concentration; the measured unbound plasma concentrations were converted to blood with the PK-Sim B/P ratio of 0.82 for fitting. The packaged Cc is the unbound plasma concentration, Cc = c_blood / bpr, and the plasma additive residual error of 1.18 mg/L is applied on that plasma scale as the parameter name in Table 1 (‘sigma add,plasma’) indicates. Brain ECF and CSF predictions are the compartment concentrations themselves.
  • Implied B/P. The deterministic Table S1 check above reproduces every patient’s ECF and CSF AUC 2.2-3.1% higher than the paper’s individual predictions, a constant ratio across all eight patients. The paper’s own Table S1 ratio of predicted ECF to predicted plasma AUC is 0.798-0.800 for every patient, while Eqs. 1-4 with B/P = 0.82 give 0.819 (the brain compartments sit 0.2% below blood at steady state). The authors’ predictions are therefore consistent with an effective B/P of about 0.80 rather than the 0.82 printed in Table 4; a slightly larger offset in the CSF/ECF ratio (0.994 in Table S1 vs. 0.997 here) suggests the fitted code may also differ slightly in the CSF sink term. The printed 0.82 is kept; the offset changes predicted CNS exposure relative to plasma by under 3%.
  • CSF sink flow floor. Eq. 7 sets Qsink = Qsink,physio - QEVD. The model floors it at zero when the drain flow exceeds 0.024 L/h, which is how the paper states it treated that case (Figure 4 caption, Discussion). Table S3 contains intervals up to 0.040 L/h.
  • Drain flow covariate. The paper’s QEVD (L/h, measured per collection interval) is supplied as the canonical CSF_DRAIN_VOL_24H in mL/24h (QEVD * 24000). Intervals in Table S3 without a recorded flow (‘nd’, ‘na’) and the days before the PK interval use the patient’s mean flow; the Table S3 patients 1-4 are Table 3 patients 5-8 (identified from the ranking of their supplement totals against the observed CSF AUCs of Table S1).
  • Dialysate and EVD bag. Eq. 5 (dialysate as the integral of the ECF concentration over a collection interval) and Eq. 8 (drug accumulating in the collection bag) are provided as the bookkeeping states auc_brain_ecf and evd. Both accumulate from time zero: an interval value is the difference between its end and start, divided by the interval length (dialysate) or the collected volume (bag). The residual errors for ECF and CSF in Table 1 apply to these interval quantities; the Cecf and Ccsf endpoints carry them on the instantaneous concentrations.
  • IIV scale. The 35.2 %CV on clearance is converted with omega^2 = log(CV^2 + 1); the paper does not state the conversion it used.
  • Alternative model with estimated permeabilities. Table 2 and Table S2 report a variant in which PS_ECF (0.904 L/h) and PS_CSF (0.398 L/h) were estimated (with Kp 0.767, CL 7.18 L/h, fd 0.823 and similar residual errors). The paper retains the Simcyp-predicted values as the final model and states that both give similar CNS profiles (Figure S2); the variant can be simulated by overriding ps_ecf, ps_csf, lkp_rest, lcl and fd through rxSolve(params = ).
  • No correction notice for this article was found as of 2026-10-10.
