Bictegravir whole-body PBPK in ageing adults (Stader 2021)

Source: vignettes/articles/Stader_2021_bictegravir_pbpk.Rmd
Stader_2021_bictegravir_pbpk.Rmd

Model and source

  • Citation: Stader F, Courlet P, Decosterd LA, Battegay M, Marzolini C. Physiologically-Based Pharmacokinetic Modeling Combined with Swiss HIV Cohort Study Data Supports No Dose Adjustment of Bictegravir in Elderly Individuals Living With HIV. Clin Pharmacol Ther. 2021;109(4):1025-1029. doi:10.1002/cpt.2178. Model code: Supplementary Material s002 (CPT_Matlab_Code, Matlab source of the PBPK framework including Drug/DrugLibrary/bictegravir.m); drug parameters: Supplementary Table S1.
  • Description: PBPK (whole-body, Stader et al. Matlab 2017a framework, as deposited with the paper). Oral bictegravir (single-agent tablet) in adults aged 20 to 99 years, used to predict the continuous effect of ageing on bictegravir pharmacokinetics in people living with HIV. Sixteen organs (lung, adipose, bone, brain, gonads, heart, kidney, muscle, skin, thymus, gut, spleen, pancreas, liver, lymph node and a remaining tissue) with vascular (_vas), interstitial (_ew) and intracellular (_iw) sub-compartments (the gut carries vascular and interstitial only), venous and arterial blood, and a compartmental absorption and transit (CAT) gut of stomach plus duodenum, jejunum, ileum and colon, each with luminal fluid, an uptake layer and enterocytes: 63 ODEs. Organ weights, blood flows, lymph flows, haematocrit, albumin, GFR, microsomal protein per gram liver, hepatic CYP3A4 / UGT1A1 and intestinal CYP3A4 abundances and GI transit times are age-, sex-, height- and weight-dependent regressions from the deposited virtual-population generator; the generator’s per-subject random draws are carried as fixed etas so that rxSolve() with etas sampled reproduces the virtual population. Distribution by Rodgers and Rowland partitioning with permeability-limited cellular uptake; hepatic elimination by CYP3A4, UGT1A1 and an unassigned pathway, intestinal CYP3A4 metabolism in the enterocytes, and GFR-scaled renal clearance. Cc is the framework’s reported plasma concentration, which the deposited code reads from the venous-blood state.
  • Article: https://doi.org/10.1002/cpt.2178 (open access, PMC8048864)
  • Supplement: Supporting Information s001 (Tables S1-S4, Figures S1-S2) and s002 (CPT_Matlab_Code, the complete Matlab source of the PBPK framework as run for the paper, including the bictegravir drug file Drug/DrugLibrary/bictegravir.m).

Stader et al. used their in-house whole-body PBPK framework (Matlab 2017a) to ask whether bictegravir needs a dose adjustment in elderly people living with HIV. The paper describes the framework in a paragraph and gives the bictegravir inputs in Table S1; the model equations, the virtual-population generator and every system parameter are in the deposited Matlab code, which is the source of this implementation. Every equation in the model file cites the Matlab file it comes from.

Population

The bictegravir drug model was built against published phase I data in healthy volunteers who received 5-600 mg bictegravir as single doses or once daily (Table S2; Gallant et al. 2017), and was verified against therapeutic drug monitoring (TDM) samples from the Swiss HIV Cohort Study: 60 young people living with HIV (mean age 42.2 years, range 22.8-54.7) and 32 elderly people living with HIV (mean 63.8 years, range 55.0-81.1), all on 50 mg bictegravir with no CYP3A or UGT1A1 inhibitor or inducer (Results; Table 1). The paper then predicted bictegravir pharmacokinetics after seven 50 mg doses in 500 virtual individuals (50% women) per 5-year age band from 20 to 99 years (Methods; Figure 1c; Table S3).

A PBPK model has no fitted population: its “population” is a virtual one, drawn by the framework’s generator from age- and sex-dependent regressions. The same information is available programmatically via the model’s population metadata (readModelDb("Stader_2021_bictegravir_pbpk")()$population).

Source trace

Drug parameters (the ini() block) come from the deposited drug file Drug/DrugLibrary/bictegravir.m, which Table S1 reprints (rounded) with the same references. All are fixed inputs, not estimates.

Parameter Value Source location
logp 1.28 bictegravir.m DRUG.logP; Table S1 ‘logP’
pka 9.81 (monoprotic acid) bictegravir.m DRUG.pka1, DRUG.type; Table S1 ‘pKa 1’ 9.8, ‘ma’
bp 0.64 bictegravir.m DRUG.BP; Table S1 ‘BP’
fu 0.0025 (albumin) bictegravir.m DRUG.fu; Table S1 ‘fup’
papp 24.6 x 1e-6 cm/s bictegravir.m DRUG.Papp; Table S1 ‘Papp’
jin_all 0.7 bictegravir.m DRUG.JinScalarAll; Table S1 ‘Tissue Scalar All’ (optimized)
jin_liver 2.0 bictegravir.m DRUG.JinScalar(liver); Table S1 ‘Tissue Scalar LI’ (optimized)
clint_cyp3a4 0.114 uL/min/pmol bictegravir.m DRUG.CLint_CYP_1(CYP3A4); Table S1 (retrograde)
clint_ugt1a1 0.292 uL/min/pmol bictegravir.m DRUG.CLint_UGT_1(UGT1A1); Table S1 (retrograde)
clint_hep 3.993 uL/min/mg bictegravir.m DRUG.CLint; Table S1 ‘Unspecified’ (retrograde)
lcl_renal log(0.0043 L/h) bictegravir.m DRUG.CLrenal; Table S1 ‘CLrenal’ 0.004
33 eta* terms (CV/100)^2 normrnd(Mean, (CV/100)*Mean) draws of Population/PBPK_Population_Tissue.m, _Liver.m, _GIT.m
Model component Source location (s002 CPT_Matlab_Code/)
BSA, height and weight draws Population/PBPK_Population_Demographics.m
Haematocrit, albumin, organ weights, remaining-tissue balance Population/PBPK_Population_Tissue.m (‘Blood parameters’, ‘Organ weights’)
Organ densities, tissue composition, vascular fractions, sub-compartment volumes, pH Population/PBPK_Population_Tissue.m
Cardiac output, regional blood flows, lymph flows, GFR Population/PBPK_Population_Tissue.m
MPPGL, hepatic CYP3A4 and UGT1A1 abundance Population/PBPK_Population_Liver.m
GI segment volumes, lengths, surfaces, enterocyte volumes, transit times, intestinal CYP3A4 Population/PBPK_Population_GIT.m
Rodgers and Rowland Kpu, fup, fuint, fucel, CLin/CLout Drug/PBPK_Drug_distribution.m
Scalar handling (Jin, Fin, kPerUP) Drug/PBPK_Drug_PostProcessing.m
Peff, CLab Drug/PBPK_Drug_absorption.m
CLint scaling, renal clearance Drug/PBPK_Drug_elimination.m
All 63 ODEs PBPK_ODE_solution.m (rhs_function)
Reported concentration Cc PBPK_ExtractConcentration.m (CONC.VB)
AUC, half-life and CL/F definitions PBPK_PostProcessing.m (Calc_PKparaT, Calc_PKparaINF)

A mechanical check by the maintainers confirmed that every numeric literal in the model’s model() block appears in the deposited Matlab code, and that the composition, density, vascular-fraction, lymph-fraction and pH values of all 16 organs match the Matlab assignments organ by organ.

Virtual population

The helpers below re-implement the framework’s generator: integer ages from a Weibull distribution (scale 61.73, shape 1.55) restricted to the study age range, an exact sex split, normal height (CV 3.8%) and weight (CV 15.2%) around the age- and sex-specific means, reset to the means when the BMI falls outside 18.5-30 kg/m^2 (PBPK_Population_Demographics.m). The 33 physiological random draws are the model’s etas; they are drawn here in base R from the model’s own omega and passed as data columns to the typical-value model, so every cohort in this article is fixed by set.seed() alone and identical on any machine and thread count.

mod <- readModelDb("Stader_2021_bictegravir_pbpk")
ui <- rxode2::rxode(mod)
#> ℹ parameter labels from comments will be replaced by 'label()'
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etamppgl_redraw, etacyp3a4_liver_redraw, etaugt1a1_liver_redraw, etagastric, etasitt_redraw, etacolt_redraw, etacyp3a4_gut_redraw
#> as a work-around try putting the mu-referenced expression on a simple line
mod_tv <- rxode2::zeroRe(ui)
#> Warning: No sigma parameters in the model
#> some etas defaulted to non-mu referenced, possible parsing error: etamppgl_redraw, etacyp3a4_liver_redraw, etaugt1a1_liver_redraw, etagastric, etasitt_redraw, etacolt_redraw, etacyp3a4_gut_redraw
#> as a work-around try putting the mu-referenced expression on a simple line
omega_sd <- sqrt(diag(ui$omega))

gen_cohort <- function(n, age_min, age_max, prop_fem = 0.5, id_offset = 0L) {
  draw_age <- function(k) round(61.73 * (-log(1 - runif(k)))^(1 / 1.55))
  age <- draw_age(n)
  bad <- age < age_min | age > age_max
  while (any(bad)) {
    age[bad] <- draw_age(sum(bad))
    bad <- age < age_min | age > age_max
  }
  n_fem <- round(n * prop_fem)
  sexf <- rep(c(1, 0), c(n_fem, n - n_fem))[sample.int(n)]
  ht_mean <- -0.0039 * age^2 + 0.238 * age - 12.5 * sexf + 176
  ht <- rnorm(n, ht_mean, 0.038 * ht_mean)
  wt_mean <- -0.0039 * age^2 + 1.12 * ht + 0.611 * age - 0.424 * sexf - 137
  wt <- rnorm(n, wt_mean, 0.152 * wt_mean)
  bmi <- wt / (ht / 100)^2
  reset <- bmi < 18.5 | bmi > 30
  ht[reset] <- ht_mean[reset]
  wt[reset] <- wt_mean[reset]
  etas <- as.data.frame(matrix(
    rnorm(n * length(omega_sd), sd = rep(omega_sd, each = n)),
    nrow = n, dimnames = list(NULL, names(omega_sd))
  ))
  cbind(data.frame(id = id_offset + seq_len(n), AGE = age, SEXF = sexf, HT = ht, WT = wt), etas)
}

make_events <- function(cohort, dose, n_doses, obs_times, tau = 24, label) {
  doses <- tidyr::crossing(id = cohort$id, time = tau * (seq_len(n_doses) - 1)) |>
    mutate(amt = dose, evid = 1L, cmt = "stomach")
  obs <- tidyr::crossing(id = cohort$id, time = obs_times) |>
    mutate(amt = 0, evid = 0L, cmt = "venous")
  bind_rows(doses, obs) |>
    left_join(cohort, by = "id") |>
    mutate(treatment = label) |>
    arrange(id, time, desc(evid))
}

Mass balance (typical 30-year-old man)

The model is carried in drug amounts, so dose = drug in the body + drug eliminated. Liver metabolism, gut-wall metabolism and renal clearance are integrated from the returned flux terms and faecal loss is the a_feces state. This is a deterministic check on the ODE bookkeeping, so it is tight.

age <- 30
ht <- -0.0039 * age^2 + 0.238 * age + 176
wt <- -0.0039 * age^2 + 1.12 * ht + 0.611 * age - 137
ev_mb <- bind_rows(
  data.frame(id = 1L, time = 0, amt = 50, evid = 1L, cmt = "stomach"),
  data.frame(id = 1L, time = seq(0, 120, by = 0.02), amt = 0, evid = 0L, cmt = "venous")
) |>
  mutate(AGE = age, SEXF = 0, HT = ht, WT = wt)
mb <- rxode2::rxSolve(mod_tv, ev_mb, rtol = 1e-10, atol = 1e-12, returnType = "data.frame")
#> ℹ omega/sigma items treated as zero: 'etahct', 'etahsa', 'etaw_adipose', 'etaw_bone', 'etaw_brain', 'etaw_gonads', 'etaw_heart', 'etaw_kidney', 'etaw_muscle', 'etaw_skin', 'etaw_thymus', 'etaw_gut', 'etaw_spleen', 'etaw_pancreas', 'etaw_liver', 'etaw_lnode', 'etaw_blood', 'etaco', 'etaltot', 'etagfr', 'etamppgl', 'etamppgl_redraw', 'etacyp3a4_liver', 'etacyp3a4_liver_redraw', 'etaugt1a1_liver', 'etaugt1a1_liver_redraw', 'etagastric', 'etasitt', 'etasitt_redraw', 'etacolt', 'etacolt_redraw', 'etacyp3a4_gut', 'etacyp3a4_gut_redraw'
states <- rxode2::rxState(mod_tv)
trap <- function(x, y) c(0, cumsum(diff(x) * (head(y, -1) + tail(y, -1)) / 2))
mb <- mb |>
  mutate(
    in_body = rowSums(across(all_of(setdiff(states, "a_feces")))),
    met_liver = trap(time, clint_liver * ci_liver * fucel_liver),
    met_gut = trap(time, (clmet_duodenum * cent_duodenum + clmet_jejunum * cent_jejunum +
      clmet_ileum * cent_ileum) * fucel_gut),
    renal = trap(time, cl_r * cv_kidney),
    total = in_body + a_feces + met_liver + met_gut + renal
  )
mb_err <- max(abs(mb$total - 50)) / 50
mb_end <- tail(mb, 1)
knitr::kable(
  data.frame(
    Route = c("Remaining in body", "Hepatic metabolism", "Gut-wall metabolism", "Renal", "Faeces"),
    `Amount at 120 h (mg)` = signif(c(mb_end$in_body, mb_end$met_liver, mb_end$met_gut, mb_end$renal, mb_end$a_feces), 4),
    check.names = FALSE
  ),
  caption = sprintf("Fate of a 50 mg dose; maximum mass-balance error %.1e of the dose.", mb_err)
)
Fate of a 50 mg dose; maximum mass-balance error 6.6e-06 of the dose.
Route Amount at 120 h (mg)
Remaining in body 2.516e-01
Hepatic metabolism 4.951e+01
Gut-wall metabolism 1.445e-02
Renal 2.276e-01
Faeces 3.000e-07
# Measured 6.6e-6; trapezoidal integration of the fluxes on a 0.02 h grid is
# the limit. A dropped or duplicated flux term moves this by whole percent.
stopifnot(mb_err < 1e-3)

Hepatic metabolism removes about 99% of the dose and renal excretion 0.46%. The paper assigns 1% of the clinically observed clearance to the renal route (0.0043 L/h, Table S1); the framework applies that clearance to the kidney blood concentration, and gut-wall CYP3A4 metabolism is negligible because the enterocytes release bictegravir to the gut tissue far faster than they metabolise it.

Phase I verification (Table S2, Figure S1)

The paper simulated 10 trials of 10 virtual individuals (50% women) for each phase I regimen (Methods). The framework’s user-choice file defaults to ages 20-50 years for such runs, which is used here. Multiple-dose arms receive 14 once-daily doses and are evaluated over the last dosing interval.

set.seed(20210401)
obs_single <- c(0, seq(0.25, 12, by = 0.25), seq(13, 48, by = 1), seq(50, 240, by = 2))
obs_multi <- c(seq(0, 312, by = 2), 312 + c(seq(0.25, 12, by = 0.25), seq(13, 24, by = 1)))
arms <- list(
  list(label = "50 mg single", dose = 50, n_doses = 1, obs = obs_single),
  list(label = "50 mg QD", dose = 50, n_doses = 14, obs = obs_multi),
  list(label = "75 mg single", dose = 75, n_doses = 1, obs = obs_single),
  list(label = "75 mg QD", dose = 75, n_doses = 14, obs = obs_multi)
)
events_p1 <- bind_rows(lapply(seq_along(arms), function(i) {
  a <- arms[[i]]
  make_events(gen_cohort(100, 20, 50, id_offset = (i - 1L) * 100L), a$dose, a$n_doses, a$obs, label = a$label)
}))
stopifnot(!anyDuplicated(unique(events_p1[, c("id", "time", "evid")])))
sim_p1 <- rxode2::rxSolve(mod_tv, events_p1, keep = "treatment", returnType = "data.frame")
#> ℹ omega/sigma items treated as zero: 'etahct', 'etahsa', 'etaw_adipose', 'etaw_bone', 'etaw_brain', 'etaw_gonads', 'etaw_heart', 'etaw_kidney', 'etaw_muscle', 'etaw_skin', 'etaw_thymus', 'etaw_gut', 'etaw_spleen', 'etaw_pancreas', 'etaw_liver', 'etaw_lnode', 'etaw_blood', 'etaco', 'etaltot', 'etagfr', 'etamppgl', 'etamppgl_redraw', 'etacyp3a4_liver', 'etacyp3a4_liver_redraw', 'etaugt1a1_liver', 'etaugt1a1_liver_redraw', 'etagastric', 'etasitt', 'etasitt_redraw', 'etacolt', 'etacolt_redraw', 'etacyp3a4_gut', 'etacyp3a4_gut_redraw'
stopifnot(!anyNA(sim_p1$Cc))

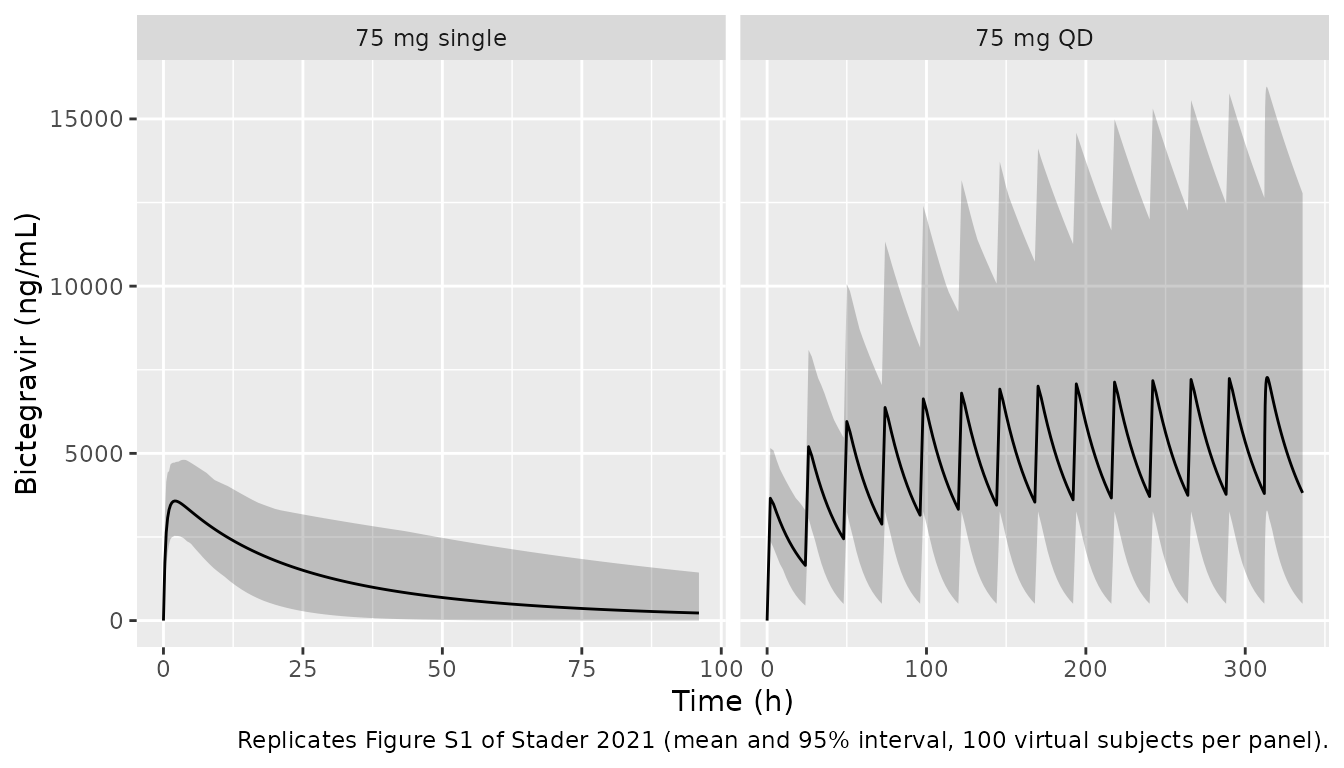

# Replicates Figure S1 of Stader 2021: 75 mg single (a) and once-daily (b)
# dosing in healthy volunteers, mean and 95% interval of the virtual
# population (observed phase I data not reproduced here).
sim_p1 |>
  filter(treatment %in% c("75 mg single", "75 mg QD")) |>
  mutate(treatment = factor(treatment, c("75 mg single", "75 mg QD"))) |>
  group_by(treatment, time) |>
  summarise(
    mean = mean(Cc), lo = quantile(Cc, 0.025), hi = quantile(Cc, 0.975),
    .groups = "drop"
  ) |>
  filter(!(treatment == "75 mg single" & time > 96)) |>
  ggplot(aes(time, mean)) +
  geom_ribbon(aes(ymin = lo, ymax = hi), alpha = 0.25) +
  geom_line() +
  facet_wrap(~treatment, scales = "free_x") +
  labs(
    x = "Time (h)", y = "Bictegravir (ng/mL)",
    caption = "Replicates Figure S1 of Stader 2021 (mean and 95% interval, 100 virtual subjects per panel)."
  )

nca_run <- function(sim, events, intervals) {
  conc <- sim |>
    filter(!is.na(Cc)) |>
    select(id, time, Cc, treatment)
  conc <- bind_rows(conc, conc |> distinct(id, treatment) |> mutate(time = 0, Cc = 0)) |>
    distinct(id, treatment, time, .keep_all = TRUE) |>
    arrange(id, treatment, time)
  dose <- events |>
    filter(evid == 1) |>
    select(id, time, amt, treatment)
  PKNCA::pk.nca(PKNCA::PKNCAdata(
    PKNCA::PKNCAconc(conc, Cc ~ time | treatment + id),
    PKNCA::PKNCAdose(dose, amt ~ time | treatment + id),
    intervals = intervals
  ))
}
iv_single <- data.frame(start = 0, end = Inf, cmax = TRUE, tmax = TRUE, aucinf.obs = TRUE, half.life = TRUE)
iv_multi <- data.frame(start = 312, end = 336, cmax = TRUE, tmax = TRUE, auclast = TRUE, half.life = TRUE)
single_arms <- c("50 mg single", "75 mg single")
nca_s <- nca_run(
  filter(sim_p1, treatment %in% single_arms), filter(events_p1, treatment %in% single_arms), iv_single
)
nca_m <- nca_run(
  filter(sim_p1, !treatment %in% single_arms), filter(events_p1, !treatment %in% single_arms), iv_multi
)

# The paper reports arithmetic means, so aggregate the same way (ncaComparisonTable
# would otherwise use medians).
mean_wide <- function(nca) {
  as.data.frame(nca$result) |>
    filter(PPTESTCD %in% c("cmax", "aucinf.obs", "auclast", "half.life")) |>
    group_by(treatment, PPTESTCD) |>
    summarise(PPORRES = mean(PPORRES, na.rm = TRUE), .groups = "drop") |>
    pivot_wider(names_from = PPTESTCD, values_from = PPORRES)
}
# Table S2, 'predicted' columns (mean of 100 virtual subjects). The single-dose
# AUC is the framework's AUCinf (Calc_PKparaINF); the multiple-dose AUC is
# over the last 24 h interval.
ref_s <- tibble::tribble(
  ~treatment, ~cmax, ~aucinf.obs, ~half.life,
  "50 mg single", 2469, 67347, 19.1,
  "75 mg single", 3799, 102670, 18.5
)
ref_m <- tibble::tribble(
  ~treatment, ~cmax, ~auclast, ~half.life,
  "50 mg QD", 4122, 69162, 18.9,
  "75 mg QD", 6367, 107029, 19.4
)
cmp_p1 <- bind_rows(
  nlmixr2lib::ncaComparisonTable(mean_wide(nca_s), ref_s, by = "treatment",
    units = c(cmax = "ng/mL", aucinf.obs = "ng*h/mL", half.life = "h")),
  nlmixr2lib::ncaComparisonTable(mean_wide(nca_m), ref_m, by = "treatment",
    units = c(cmax = "ng/mL", auclast = "ng*h/mL", half.life = "h"))
)
knitr::kable(cmp_p1,
  caption = "Phase I regimens: simulated vs. Stader 2021 Table S2 predicted means. * differs by >20%.",
  align = c("l", "l", "r", "r", "r")
)
Phase I regimens: simulated vs. Stader 2021 Table S2 predicted means. * differs by >20%.
NCA parameter treatment Reference Simulated % diff
Cmax (ng/mL) 50 mg single 2470 2360 -4.4%
Cmax (ng/mL) 75 mg single 3800 3660 -3.6%
AUC0-∞ (obs) (ng*h/mL) 50 mg single 67300 72300 +7.4%
AUC0-∞ (obs) (ng*h/mL) 75 mg single 103000 119000 +16.1%
t½ (h) 50 mg single 19.1 19.5 +1.9%
t½ (h) 75 mg single 18.5 20.8 +12.5%
Cmax (ng/mL) 50 mg QD 4120 3950 -4.1%
Cmax (ng/mL) 75 mg QD 6370 7340 +15.3%
AUClast (ng*h/mL) 50 mg QD 69200 64000 -7.5%
AUClast (ng*h/mL) 75 mg QD 107000 131000 +22.0%*
t½ (h) 50 mg QD 18.9 17 -10.1%
t½ (h) 75 mg QD 19.4 23.1 +18.9%

Both columns are means of 100-subject virtual cohorts drawn from right-skewed distributions (hepatic CYP3A4 abundance alone has an 81% CV, and subjects drawn near the enzyme and microsomal-protein minima have AUCs several-fold above the median), so two such means differ by sampling alone. The paper’s own dose-normalised AUCs in Table S2 range from 1,270 to 1,462 ng*h/mL per mg across its separately drawn cohorts for the same reason. The table below therefore compares each simulated AUC mean with the paper’s using both standard errors: the paper’s (its printed SD over 100 subjects) and the simulation’s.

auc_ci <- bind_rows(
  as.data.frame(nca_s$result) |> filter(PPTESTCD == "aucinf.obs"),
  as.data.frame(nca_m$result) |> filter(PPTESTCD == "auclast")
) |>
  group_by(treatment) |>
  summarise(
    mean = mean(PPORRES), se = sd(PPORRES) / sqrt(n()),
    .groups = "drop"
  ) |>
  left_join(
    # Table S2 predicted AUC mean and SD (100 virtual subjects per regimen).
    tibble::tribble(
      ~treatment, ~paper, ~paper_sd,
      "50 mg single", 67347, 31128,
      "75 mg single", 102670, 54206,
      "50 mg QD", 69162, 39887,
      "75 mg QD", 107029, 66315
    ),
    by = "treatment"
  ) |>
  mutate(z = (mean - paper) / sqrt(se^2 + (paper_sd / sqrt(100))^2))
auc_ci |>
  transmute(
    Regimen = treatment,
    `Simulated mean AUC (ng*h/mL)` = signif(mean, 3),
    `SE (ng*h/mL)` = signif(se, 2),
    `Table S2 mean (SE) (ng*h/mL)` = paste0(paper, " (", signif(paper_sd / 10, 2), ")"),
    `Difference / combined SE` = round(z, 2)
  ) |>
  knitr::kable(caption = "Simulated AUC means vs. Stader 2021 Table S2, scaled by the combined standard error of the two means.")
Simulated AUC means vs. Stader 2021 Table S2, scaled by the combined standard error of the two means.
Regimen Simulated mean AUC (ng*h/mL) SE (ng*h/mL) Table S2 mean (SE) (ng*h/mL) Difference / combined SE
50 mg QD 64000 3100 69162 (4000) -1.03
50 mg single 72300 5700 67347 (3100) 0.77
75 mg QD 131000 11000 107029 (6600) 1.84
75 mg single 119000 8400 102670 (5400) 1.65
# Every difference is within 3 combined standard errors; a mis-specified
# clearance shifts all four regimens together by far more.
stopifnot(nrow(auc_ci) == 4L, all(abs(auc_ci$z) < 3))
pd <- as.numeric(gsub("[%*+]", "", cmp_p1[["% diff"]]))
# Both sides are means of 100-subject virtual cohorts, so they differ by
# sampling noise; the half-life column is also sensitive to the fitting
# window. Mis-transcribed clearances, volumes or doses move these by far more.
stopifnot(length(pd) == 12L, all(is.finite(pd)))
stopifnot(abs(median(pd)) < 10, max(abs(pd)) < 30)

Because the model is linear, exposure is exactly dose-proportional, as in the framework (the paper’s predicted Table S2 AUC/dose varies only by cohort, 1,270-1,462 ng*h/mL per mg). The paper attributes its observed Cmax under-prediction at 5 mg and over-prediction at 600 mg to non-linear absorption that the framework does not model (Discussion).

one <- gen_cohort(1, 20, 50)
dp <- lapply(c(25, 100), function(d) {
  s <- rxode2::rxSolve(mod_tv, make_events(one, d, 1, obs_single, label = paste(d, "mg")), returnType = "data.frame")
  sum(diff(s$time) * (head(s$Cc, -1) + tail(s$Cc, -1)) / 2)
})
#> ℹ omega/sigma items treated as zero: 'etahct', 'etahsa', 'etaw_adipose', 'etaw_bone', 'etaw_brain', 'etaw_gonads', 'etaw_heart', 'etaw_kidney', 'etaw_muscle', 'etaw_skin', 'etaw_thymus', 'etaw_gut', 'etaw_spleen', 'etaw_pancreas', 'etaw_liver', 'etaw_lnode', 'etaw_blood', 'etaco', 'etaltot', 'etagfr', 'etamppgl', 'etamppgl_redraw', 'etacyp3a4_liver', 'etacyp3a4_liver_redraw', 'etaugt1a1_liver', 'etaugt1a1_liver_redraw', 'etagastric', 'etasitt', 'etasitt_redraw', 'etacolt', 'etacolt_redraw', 'etacyp3a4_gut', 'etacyp3a4_gut_redraw'
#> ℹ omega/sigma items treated as zero: 'etahct', 'etahsa', 'etaw_adipose', 'etaw_bone', 'etaw_brain', 'etaw_gonads', 'etaw_heart', 'etaw_kidney', 'etaw_muscle', 'etaw_skin', 'etaw_thymus', 'etaw_gut', 'etaw_spleen', 'etaw_pancreas', 'etaw_liver', 'etaw_lnode', 'etaw_blood', 'etaco', 'etaltot', 'etagfr', 'etamppgl', 'etamppgl_redraw', 'etacyp3a4_liver', 'etacyp3a4_liver_redraw', 'etaugt1a1_liver', 'etaugt1a1_liver_redraw', 'etagastric', 'etasitt', 'etasitt_redraw', 'etacolt', 'etacolt_redraw', 'etacyp3a4_gut', 'etacyp3a4_gut_redraw'
stopifnot(abs(dp[[2]] / dp[[1]] / 4 - 1) < 1e-4)

Verification against Swiss HIV Cohort Study TDM data (Table 1, Figure 1a-b)

Young (20-55 years) and elderly (55-85 years) virtual cohorts receive 50 mg once daily to steady state (14 doses); the last 24 h interval is analysed. The individual TDM observations are not public, so only the predictions are reproduced.

set.seed(20210402)
obs_ss <- c(seq(0, 312, by = 4), 312 + c(seq(0.25, 12, by = 0.25), seq(13, 24, by = 1)))
events_hiv <- bind_rows(
  make_events(gen_cohort(100, 20, 55, id_offset = 1000L), 50, 14, obs_ss, label = "Young (20-55 y)"),
  make_events(gen_cohort(100, 55, 85, id_offset = 2000L), 50, 14, obs_ss, label = "Elderly (55-85 y)")
)
stopifnot(!anyDuplicated(unique(events_hiv[, c("id", "time", "evid")])))
sim_hiv <- rxode2::rxSolve(mod_tv, events_hiv, keep = "treatment", returnType = "data.frame")
#> ℹ omega/sigma items treated as zero: 'etahct', 'etahsa', 'etaw_adipose', 'etaw_bone', 'etaw_brain', 'etaw_gonads', 'etaw_heart', 'etaw_kidney', 'etaw_muscle', 'etaw_skin', 'etaw_thymus', 'etaw_gut', 'etaw_spleen', 'etaw_pancreas', 'etaw_liver', 'etaw_lnode', 'etaw_blood', 'etaco', 'etaltot', 'etagfr', 'etamppgl', 'etamppgl_redraw', 'etacyp3a4_liver', 'etacyp3a4_liver_redraw', 'etaugt1a1_liver', 'etaugt1a1_liver_redraw', 'etagastric', 'etasitt', 'etasitt_redraw', 'etacolt', 'etacolt_redraw', 'etacyp3a4_gut', 'etacyp3a4_gut_redraw'
stopifnot(!anyNA(sim_hiv$Cc))

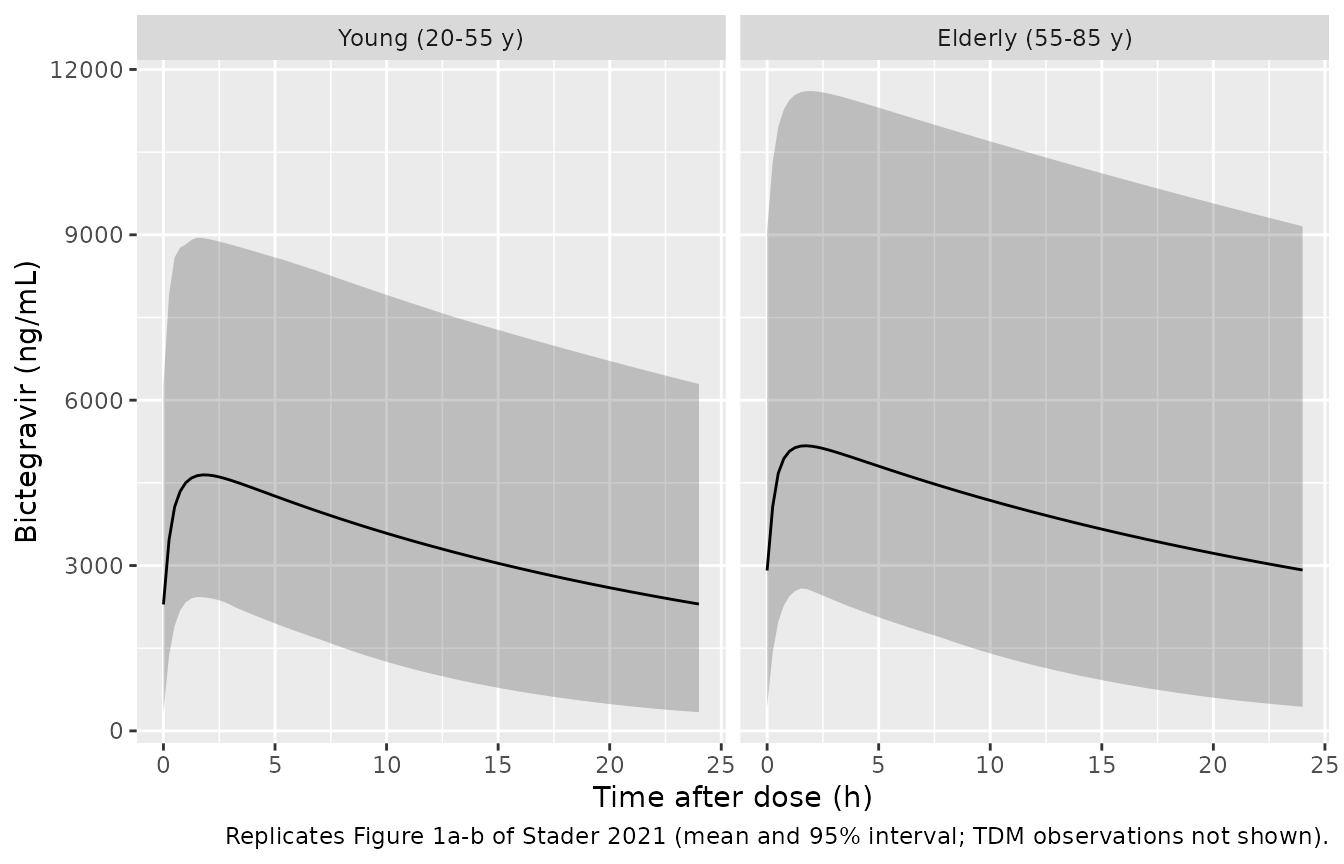

# Replicates Figure 1a-b of Stader 2021: steady-state profile over one dosing
# interval, mean and 95% interval of each virtual cohort.
sim_hiv |>
  filter(time >= 312) |>
  mutate(tad = time - 312, treatment = factor(treatment, c("Young (20-55 y)", "Elderly (55-85 y)"))) |>
  group_by(treatment, tad) |>
  summarise(mean = mean(Cc), lo = quantile(Cc, 0.025), hi = quantile(Cc, 0.975), .groups = "drop") |>
  ggplot(aes(tad, mean)) +
  geom_ribbon(aes(ymin = lo, ymax = hi), alpha = 0.25) +
  geom_line() +
  facet_wrap(~treatment) +
  labs(
    x = "Time after dose (h)", y = "Bictegravir (ng/mL)",
    caption = "Replicates Figure 1a-b of Stader 2021 (mean and 95% interval; TDM observations not shown)."
  )

nca_hiv <- nca_run(sim_hiv, events_hiv, iv_multi)
# Table 1, 'predicted' rows (arithmetic mean).
ref_hiv <- tibble::tribble(
  ~treatment, ~cmax, ~auclast, ~half.life,
  "Young (20-55 y)", 4626, 79703, 18.9,
  "Elderly (55-85 y)", 4971, 89423, 27.9
)
cmp_hiv <- nlmixr2lib::ncaComparisonTable(mean_wide(nca_hiv), ref_hiv, by = "treatment",
  units = c(cmax = "ng/mL", auclast = "ng*h/mL", half.life = "h"))
knitr::kable(cmp_hiv,
  caption = "Young vs. elderly PLWH: simulated vs. Stader 2021 Table 1 predicted means. * differs by >20%.",
  align = c("l", "l", "r", "r", "r")
)
Young vs. elderly PLWH: simulated vs. Stader 2021 Table 1 predicted means. * differs by >20%.
NCA parameter treatment Reference Simulated % diff
Cmax (ng/mL) Young (20-55 y) 4630 4700 +1.7%
Cmax (ng/mL) Elderly (55-85 y) 4970 5230 +5.3%
AUClast (ng*h/mL) Young (20-55 y) 79700 81700 +2.6%
AUClast (ng*h/mL) Elderly (55-85 y) 89400 96000 +7.3%
t½ (h) Young (20-55 y) 18.9 21.1 +11.4%
t½ (h) Elderly (55-85 y) 27.9 25.9 -7.1%
pd_hiv <- as.numeric(gsub("[%*+]", "", cmp_hiv[["% diff"]]))
stopifnot(length(pd_hiv) == 6L, all(is.finite(pd_hiv)))
stopifnot(abs(median(pd_hiv)) < 12, max(abs(pd_hiv)) < 35)

The paper’s CL/F column in Table 1 equals the dose divided by the mean AUC (50,000 / 79,703 = 0.627 L/h young; 50,000 / 89,423 = 0.559 L/h elderly), so it adds no independent information beyond the AUC row.

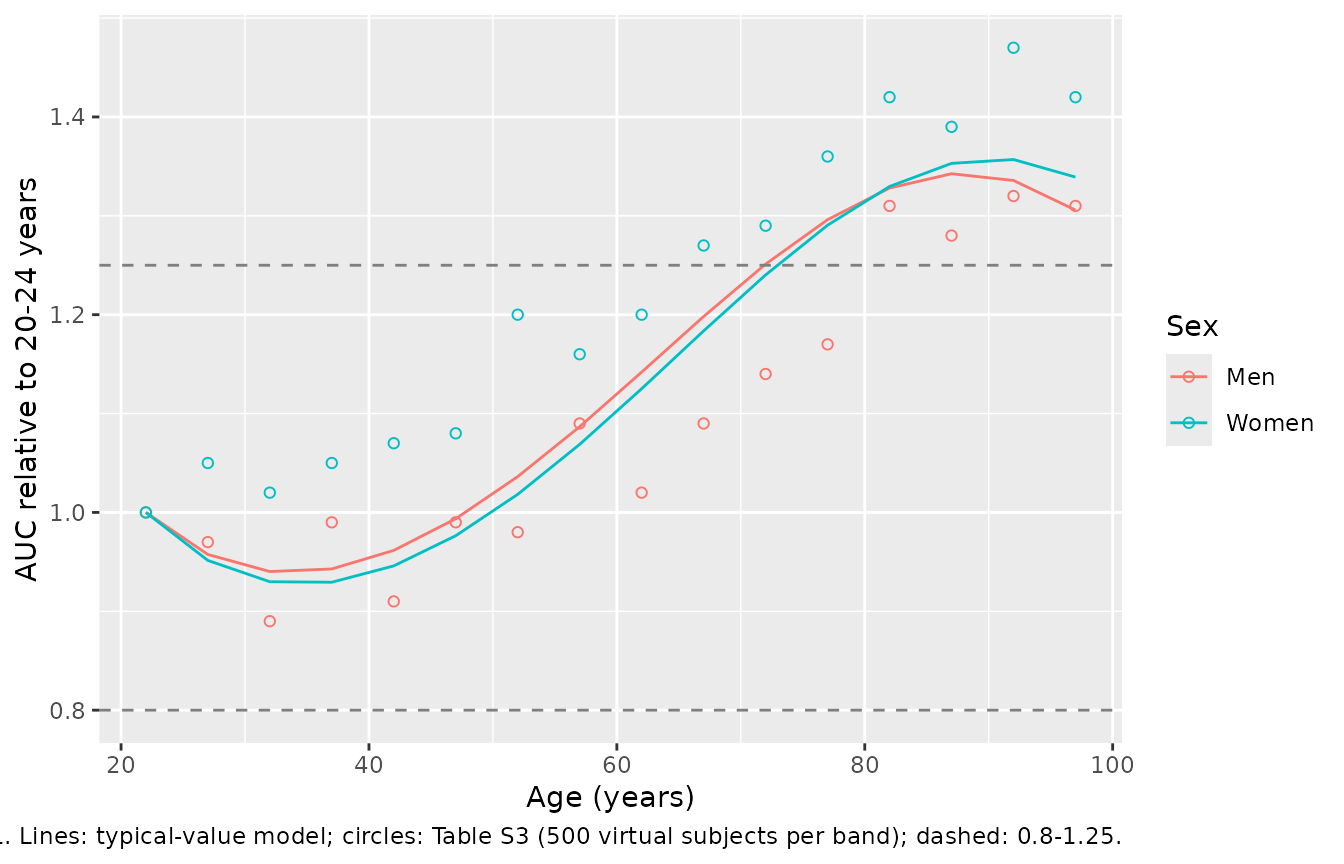

Continuous effect of ageing (Figure 1c, Table S3)

The ageing analysis is reproduced with a deterministic typical-value solve per 5-year age band (at the band midpoint, with the generator’s mean height and weight) and sex, after seven once-daily 50 mg doses, normalised to the 20-24-year band. The paper’s values are means of 500 virtual individuals per band, so their band-to-band scatter (visible in the women’s column) is sampling noise that a typical-value solve does not have.

bands <- seq(20, 95, by = 5)
tv <- tidyr::crossing(band = bands, SEXF = c(0, 1)) |>
  mutate(
    id = seq_len(n()), AGE = band + 2,
    HT = -0.0039 * AGE^2 + 0.238 * AGE - 12.5 * SEXF + 176,
    WT = -0.0039 * AGE^2 + 1.12 * HT + 0.611 * AGE - 0.424 * SEXF - 137
  )
ev_age <- bind_rows(
  tidyr::crossing(id = tv$id, time = seq(0, 144, by = 24)) |> mutate(amt = 50, evid = 1L, cmt = "stomach"),
  tidyr::crossing(id = tv$id, time = seq(144, 168, by = 0.1)) |> mutate(amt = 0, evid = 0L, cmt = "venous")
) |>
  left_join(select(tv, id, AGE, SEXF, HT, WT), by = "id") |>
  arrange(id, time, desc(evid))
sim_age <- rxode2::rxSolve(mod_tv, ev_age, returnType = "data.frame")
#> ℹ omega/sigma items treated as zero: 'etahct', 'etahsa', 'etaw_adipose', 'etaw_bone', 'etaw_brain', 'etaw_gonads', 'etaw_heart', 'etaw_kidney', 'etaw_muscle', 'etaw_skin', 'etaw_thymus', 'etaw_gut', 'etaw_spleen', 'etaw_pancreas', 'etaw_liver', 'etaw_lnode', 'etaw_blood', 'etaco', 'etaltot', 'etagfr', 'etamppgl', 'etamppgl_redraw', 'etacyp3a4_liver', 'etacyp3a4_liver_redraw', 'etaugt1a1_liver', 'etaugt1a1_liver_redraw', 'etagastric', 'etasitt', 'etasitt_redraw', 'etacolt', 'etacolt_redraw', 'etacyp3a4_gut', 'etacyp3a4_gut_redraw'
age_pk <- sim_age |>
  group_by(id) |>
  summarise(cmax = max(Cc), auc = sum(diff(time) * (head(Cc, -1) + tail(Cc, -1)) / 2)) |>
  left_join(tv, by = "id") |>
  group_by(SEXF) |>
  mutate(r_cmax = cmax / cmax[band == 20], r_auc = auc / auc[band == 20]) |>
  ungroup()

# Table S3 (Cmax and AUCt ratios to the 20-24-year band).
s3 <- tibble::tibble(
  band = bands,
  cmax_0 = c(1.00, 0.97, 0.91, 0.99, 0.92, 0.98, 0.97, 1.04, 1.00, 1.05, 1.09, 1.11, 1.21, 1.20, 1.24, 1.21),
  cmax_1 = c(1.00, 1.03, 1.00, 1.01, 1.02, 1.02, 1.10, 1.08, 1.11, 1.16, 1.18, 1.22, 1.27, 1.27, 1.34, 1.27),
  auc_0 = c(1.00, 0.97, 0.89, 0.99, 0.91, 0.99, 0.98, 1.09, 1.02, 1.09, 1.14, 1.17, 1.31, 1.28, 1.32, 1.31),
  auc_1 = c(1.00, 1.05, 1.02, 1.05, 1.07, 1.08, 1.20, 1.16, 1.20, 1.27, 1.29, 1.36, 1.42, 1.39, 1.47, 1.42)
) |>
  pivot_longer(-band, names_to = c("metric", "SEXF"), names_sep = "_", values_to = "paper") |>
  mutate(SEXF = as.numeric(SEXF))
age_cmp <- age_pk |>
  select(band, SEXF, cmax = r_cmax, auc = r_auc) |>
  pivot_longer(c(cmax, auc), names_to = "metric", values_to = "model") |>
  left_join(s3, by = c("band", "SEXF", "metric"))
stopifnot(nrow(age_cmp) == 64L, !anyNA(age_cmp$paper))
age_diff <- abs(age_cmp$model - age_cmp$paper)
age_worst <- age_cmp[which.max(age_diff), ]

age_cmp |>
  filter(metric == "auc") |>
  mutate(Sex = ifelse(SEXF == 1, "Women", "Men")) |>
  ggplot(aes(band + 2, model, colour = Sex)) +
  geom_line() +
  geom_point(aes(y = paper), shape = 1) +
  geom_hline(yintercept = c(0.8, 1.25), linetype = "dashed", colour = "grey50") +
  labs(
    x = "Age (years)", y = "AUC relative to 20-24 years",
    caption = paste(
      "Replicates Figure 1c of Stader 2021. Lines: typical-value model;",
      "circles: Table S3 (500 virtual subjects per band); dashed: 0.8-1.25."
    )
  )

age_cmp |>
  mutate(Sex = ifelse(SEXF == 1, "Women", "Men"), metric = toupper(metric)) |>
  filter(band %in% c(20, 40, 60, 70, 80, 90)) |>
  transmute(
    Metric = metric, Sex, `Age band` = paste0(band, "-", band + 4),
    `Model ratio` = round(model, 2), `Table S3 ratio` = paper
  ) |>
  arrange(Metric, Sex) |>
  knitr::kable(caption = "Selected age bands: typical-value ratio vs. Stader 2021 Table S3.")
Selected age bands: typical-value ratio vs. Stader 2021 Table S3.
Metric Sex Age band Model ratio Table S3 ratio
AUC Men 20-24 1.00 1.00
AUC Men 40-44 0.96 0.91
AUC Men 60-64 1.14 1.02
AUC Men 70-74 1.25 1.14
AUC Men 80-84 1.33 1.31
AUC Men 90-94 1.34 1.32
AUC Women 20-24 1.00 1.00
AUC Women 40-44 0.95 1.07
AUC Women 60-64 1.13 1.20
AUC Women 70-74 1.24 1.29
AUC Women 80-84 1.33 1.42
AUC Women 90-94 1.36 1.47
CMAX Men 20-24 1.00 1.00
CMAX Men 40-44 0.95 0.92
CMAX Men 60-64 1.06 1.00
CMAX Men 70-74 1.14 1.09
CMAX Men 80-84 1.20 1.21
CMAX Men 90-94 1.23 1.24
CMAX Women 20-24 1.00 1.00
CMAX Women 40-44 0.93 1.02
CMAX Women 60-64 1.04 1.11
CMAX Women 70-74 1.13 1.18
CMAX Women 80-84 1.20 1.27
CMAX Women 90-94 1.25 1.34

# Deterministic solve against noisy 500-subject means. Achieved: mean |diff|
# 0.058, worst 0.18 (AUC, women 50-54 years, where Table S3 jumps from 1.08 to
# 1.20 and back to 1.16). A dropped age term in a clearance pathway flattens
# the whole curve and moves the 80+ ratios by 0.2-0.3.
stopifnot(mean(abs(age_cmp$model - age_cmp$paper)) < 0.08)
stopifnot(max(abs(age_cmp$model - age_cmp$paper)) < 0.25)
old <- filter(age_cmp, metric == "auc", band >= 80)
stopifnot(all(old$model > 1.2), all(abs(old$model - old$paper) < 0.15))

Across all 64 Cmax and AUC ratios the typical-value model differs from Table S3 by 0.058 on average and by at most 0.18 (AUC, women, 50-54 years). The model reproduces the paper’s conclusion: bictegravir AUC rises by about 30-40% from the youngest to the oldest adults, with the same age dependence in men and women.

Assumptions and deviations

  • Source of the implementation. The paper describes the framework only in outline; every equation and system parameter is taken from the deposited Matlab code (Supplementary s002), which is the code the authors ran. The drug inputs agree with Table S1 to its printed rounding.
  • Reported concentration is the venous-blood state. The framework stores blood concentrations in its vascular compartments (the vascular-to-interstitial flux divides them by BP) and reports CONC.VB * MW, the venous-blood value, as the plasma concentration without a blood:plasma conversion. Cc reproduces that as-run output, so it matches the paper’s predictions (Tables 1 and S2). A true plasma concentration under the same model would be Cc / 0.64.
  • As-run quirks kept. (i) The Fin scalar is read from the stacked scalar array one row too early, so the pancreas receives the liver’s influx scalar (2.0) as its vascular-to-interstitial scalar and every other tissue 1.
    1. The remaining tissue’s density, composition and vascular fraction are weighted means that include the remaining tissue itself at its initial value of 1. (iii) The remaining-tissue blood flow does not subtract the brain flow. (iv) Heart blood flows outside 0-12% of cardiac output are replaced by 0.04% (men) or 0.05% (women). (v) The min/max truncation of the tissue generator only operates for populations of one or two subjects, so draws are untruncated for the paper’s populations; the liver and gut generators do truncate, with a single redraw at one tenth of the CV. All are reproduced because they are what generated the published numbers.
  • One simplification of the as-run code. The framework’s Rodgers and Rowland albumin-binding term (KaPR) uses the unbound fraction of the first virtual subject for every subject. A per-subject rxode2 model cannot refer to another subject, so each subject uses its own unbound fraction. The effect is confined to the partition coefficients, which set the rate (not the extent) of cellular distribution in this framework.
  • Constant enzyme abundances. The framework integrates CYP and UGT abundances as ODE states so that perpetrator drugs can induce or inactivate them. With bictegravir alone (no inhibition or induction) those states stay at their initial abundances, so they are carried as constants.
  • Settings not recorded in the paper. The deposited PBPK_UserChoice.m holds the last-used settings, not the settings of each published run. The phase I cohorts here use its default age range (20-50 years); the multiple-dose arms run 14 once-daily doses to steady state (the ageing analysis uses the paper’s seven doses). The renal-clearance CV (15%) is one draw per simulation in the framework, shared by all subjects, and is not represented; renal clearance is 1% of the total.
  • Uniform gastric emptying. The gastric emptying time is uniform on 0.25-1.00 h in the code (its comment says 0.25-0.4 h); the code’s range is used, encoded as phi(etagastric) of a standard normal eta.
  • Covariates. Height and weight are individual covariates rather than model-internal draws, so users can supply real values; the cohort helper above reproduces the generator’s draws.
  • Literature check. No correction notice for this article was found on EuropePMC as of 2026-09-28.
