Model and source

  • DDMORE Foundation Model Repository entry: DDMODEL00000231 (MPD6: Sutent / sunitinib semi-mechanistic PK/PD in non-small cell lung cancer; MDL/PharmML deposit, version 3 in the dpastoor scrape).
  • Linked publication: not located on disk. The bundle ships only Sunitinib_MPD6_model.mdl (the MDL source) and Sunitinib_MPD6_model.xml (the auto-rendered PharmML 0.6.1). No Output_real_*.lst, no Output_simulated_*.lst, no Simulated_*.csv, and no Model_Accomodations.text.
  • Deposit description (DDMODEL00000231.rdf, model-has-description): “This is a semi-mechanistic PK/PD model for sunitinib therapy in non-small cell lung cancer patients. It was developed and validated using clinical trial data provided by the drug developer.”

This vignette is the validation companion to inst/modeldb/ddmore/NA_NA_sunitinib.R. Because the bundle ships no NONMEM listing, no companion paper, and no simulated reference dataset, the validation strategy reduces to F.2 self-consistency (model parses, rxode2::rxSolve() runs to completion at typical-value parameters, the trajectory is dynamically plausible). No side-by-side comparison against published numerical or graphical values is performed. See the Errata section.

Population

The DDMORE bundle does not expose subject counts, study counts, age/weight/sex/race distributions, or dose-level breakdowns. The deposit’s RDF metadata describes the modelled disease as non-small cell lung cancer (NSCLC); the standard sunitinib oncology regimen at the time of MPD6 deposit was 50 mg PO QD on a 4-weeks-on / 2-weeks-off schedule (gastrointestinal stromal tumour and metastatic renal cell carcinoma labels) or 37.5 mg PO QD continuously (later label expansion); the MDL itself is dose-input-agnostic.

The same information is available programmatically via the model’s population metadata (readModelDb("NA_NA_sunitinib")$population after devtools::load_all() against the worktree).

Source trace

All parameter values come from Sunitinib_MPD6_model.mdl’s parObj STRUCTURAL{} and VARIABILITY{} blocks. Per the operator decision recorded in the queue sidecar (response-001.json, value extract_mdl), these are treated as the deposited final estimates. The .mod/.lst cross-check that the DDMORE-source extraction skill normally requires is unavailable for this bundle; see Errata.

Equation / parameter Value Source location (DDMODEL00000231)
Structural model: 15-state ODE (parent + metabolite 2-cmt PK with separate depots; 4 indirect-response biomarkers; tumor-volume sphere with capped exponential growth; resistance, lat-signal, parent-integrator, lambda-feedback memory chains) n/a .mdl MPD6_ODE_mdl MODEL_PREDICTION{} DEQ{} block (A1..A15)
Two-depot dosing with effective bioavailability split n/a .mdl DEQ{} A14: deriv = -Kah*A14, init = D and A15: deriv = -Kamh*A15, init = D; A1 receives Kah*A14*(1-fp), A3 receives Kamh*A15*fp
Hard-coded fp = 0.21 0.21 .mdl MODEL_PREDICTION{} fp=0.21
Hard-coded th1..4 = 1 (parent-only drive on biomarkers) 1.0 .mdl MODEL_PREDICTION{} th1=1..th4=1
Hard-coded thettum = 1 (parent-only drive on tumor) 1.0 .mdl MODEL_PREDICTION{} thettum=1
Hard-coded dres = 0 (no resistance decay) 0 .mdl MODEL_PREDICTION{} dres=0
Tumor doubling-time cap maxgr = ln(2) / 30 n/a .mdl MODEL_PREDICTION{} maxgr=ln(2)/30
Tumor-state-to-radius observation ((3/(4*pi))*max(A9,0))^(1/3) n/a .mdl output7 = ((3/(4*3.1416))*max(A9,0))^(1/3)
lka = log(0.0715) 0.0715 .mdl parObj POP_Ka
lcl = log(26.9) 26.9 .mdl parObj POP_Cl
lvc = log(3220) 3220 (= 3.22e3) .mdl parObj POP_V1
lq = log(17.5) 17.5 .mdl parObj POP_QQ
lvp = log(127) 127 .mdl parObj POP_V2
lka_metab = log(0.177) 0.177 .mdl parObj POP_Kam
lcl_metab = log(15.6) 15.6 .mdl parObj POP_Clm
lvc_metab = log(3710) 3710 (= 3.71e3) .mdl parObj POP_Vm1
lq_metab = log(159) 159 .mdl parObj POP_QQm
lvp_metab = log(156) 156 .mdl parObj POP_Vm2
lkout_biom1..4 = log(0.111, 0.101, 0.169, 0.00659) 0.111 / 0.101 / 0.169 / 0.00659 .mdl parObj POP_d1..POP_d4
lpd1..4 = log(144, 22, 36.4, 98.1) 144 / 22 / 36.4 / 98.1 .mdl parObj POP_pd1..POP_pd4
lst1..4 = 0 (baseline = 1) 0 .mdl parObj POP_st1..POP_st4
lx0 = 0 (initial radius = 1) 0 .mdl parObj POP_x0
lpdm = log(0.129) 0.129 .mdl parObj POP_pdm
llam = log(0.000193) 0.000193 .mdl parObj POP_lam
llam0 = log(0.00189) 0.00189 .mdl parObj POP_lam0
lalphres = log(0.0102) 0.0102 .mdl parObj POP_alphres
lpdr = log(0.0286) 0.0286 .mdl parObj POP_pdr
IIV variance for non-zero etas (var = sd^2 from MDL type is sd) (see model file) .mdl parObj VARIABILITY block
Residual error: propSd (b_1), propSd_Cc_metab (b_2), propSd_biom1..4 (b_3..b_6), addSd_tumorRadius (a_7), propSd_tumorRadius (b_7) 0.512 / 0.429 / 0.503 / 0.137 / 0.28 / 0.135 / 0.241 / 0.0856 .mdl parObj b_1..b_6, a_7, b_7

The .mdl’s 14x14 OMEGA type is corr correlation matrix carries small (mostly |0.01|-|0.07|) off-diagonal entries; those off-diagonal correlations are not encoded in the nlmixr2 port (see Errata – “Off-diagonal IIV correlations dropped”).

Self-consistency simulation (F.2 substitute)

The DDMORE bundle ships no simulated dataset, so the canonical F.2 recipe (“re-simulate the bundle’s Simulated_*.csv and visually compare with Output_simulated_*.lst”) cannot be run. The substitute below verifies that the model parses, rxode2::rxSolve() runs to completion at typical-value parameters, and the trajectory is dynamically plausible (parent and metabolite plasma concentrations rise after dose and decay; biomarker 1 rises in response to drug exposure via Kout inhibition; biomarkers 2-4 fall via Kin inhibition; tumor volume grows slowly).

mod  <- readModelDb("NA_NA_sunitinib")
modT <- rxode2::zeroRe(mod)

# Single-subject, typical-value 28-day simulation. The MDL dosing
# convention is two parallel oral depots (parent and metabolite) that
# both receive the dose D at every dosing event; the parent depot
# absorbs into central with effective bioavailability (1 - fp) = 0.79
# and the metabolite depot absorbs into central_metab with effective
# bioavailability fp = 0.21 (fp hard-coded in the MDL, preserved in
# the nlmixr2 port). Sunitinib's standard daily dose at MPD6 deposit
# was 50 mg PO QD; one daily dose is shown here. Time unit is day.
times <- seq(0, 28, by = 0.25)
n_obs <- length(times)
events <- data.frame(
  id   = 1L,
  time = c(0, 0, times),
  evid = c(1L, 1L, rep(0L, n_obs)),
  amt  = c(50, 50, rep(NA_real_, n_obs)),
  cmt  = c("depot", "depot_metab", rep("Cc", n_obs))
)

sim <- rxode2::rxSolve(modT, events = events) |> as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalkout_biom1', 'etalkout_biom2', 'etalkout_biom3', 'etalkout_biom4', 'etalst1', 'etalpdm', 'etallam', 'etalpd2', 'etalpd3', 'etalpd4', 'etalcl', 'etalvc', 'etalcl_metab', 'etalvc_metab'
pk <- sim |>
  dplyr::select(time, Cc, Cc_metab) |>
  tidyr::pivot_longer(c(Cc, Cc_metab),
                      names_to = "analyte", values_to = "conc")

ggplot(pk, aes(time, conc, colour = analyte)) +
  geom_line() +

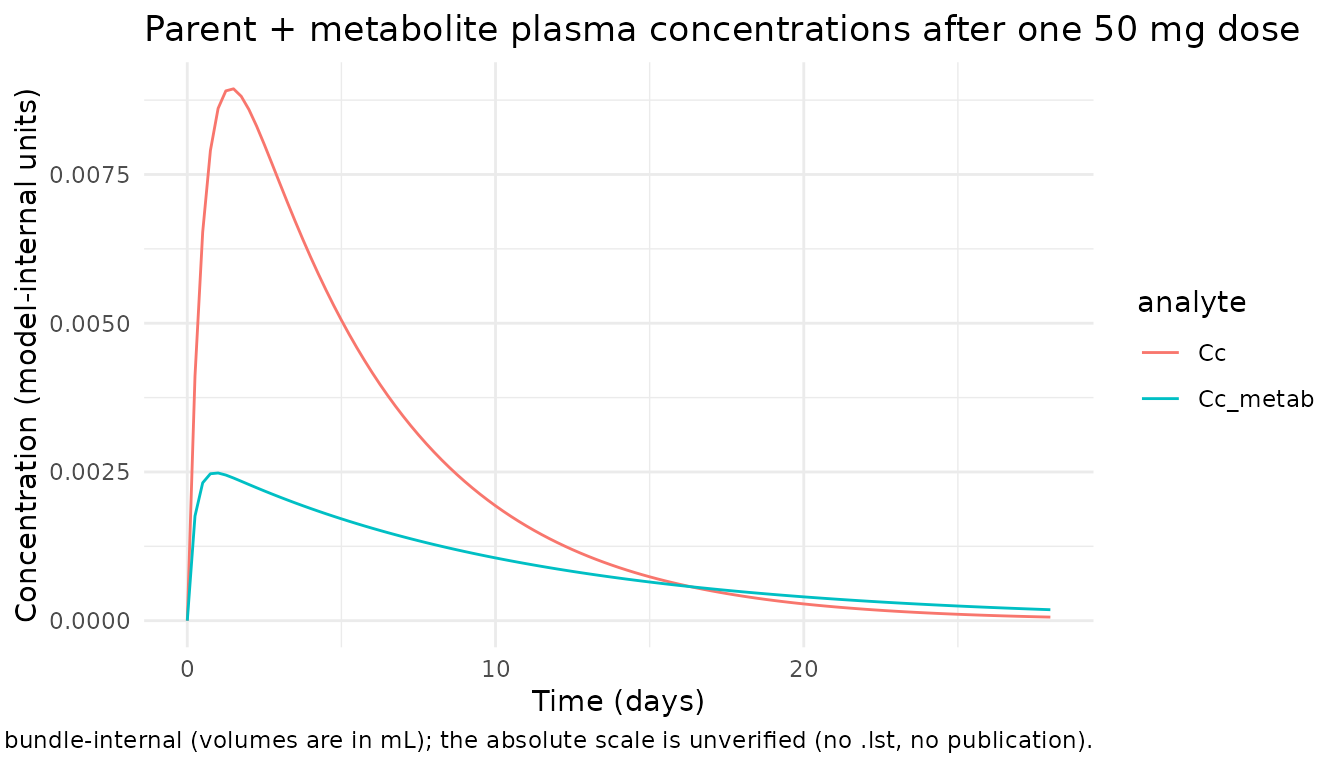

  labs(x = "Time (days)",
       y = "Concentration (model-internal units)",
       title = "Parent + metabolite plasma concentrations after one 50 mg dose",
       caption = paste("Two-depot oral dose with hard-coded fp = 0.21",
                       "metabolite split. Concentration units are bundle-internal",
                       "(volumes are in mL); the absolute scale is unverified",
                       "(no .lst, no publication).")) +
  theme_minimal()

biom <- sim |>
  dplyr::select(time, biom1, biom2, biom3, biom4) |>
  tidyr::pivot_longer(c(biom1, biom2, biom3, biom4),
                      names_to = "biomarker", values_to = "conc")

ggplot(biom, aes(time, conc)) +
  geom_line() +
  facet_wrap(~biomarker, scales = "free_y") +

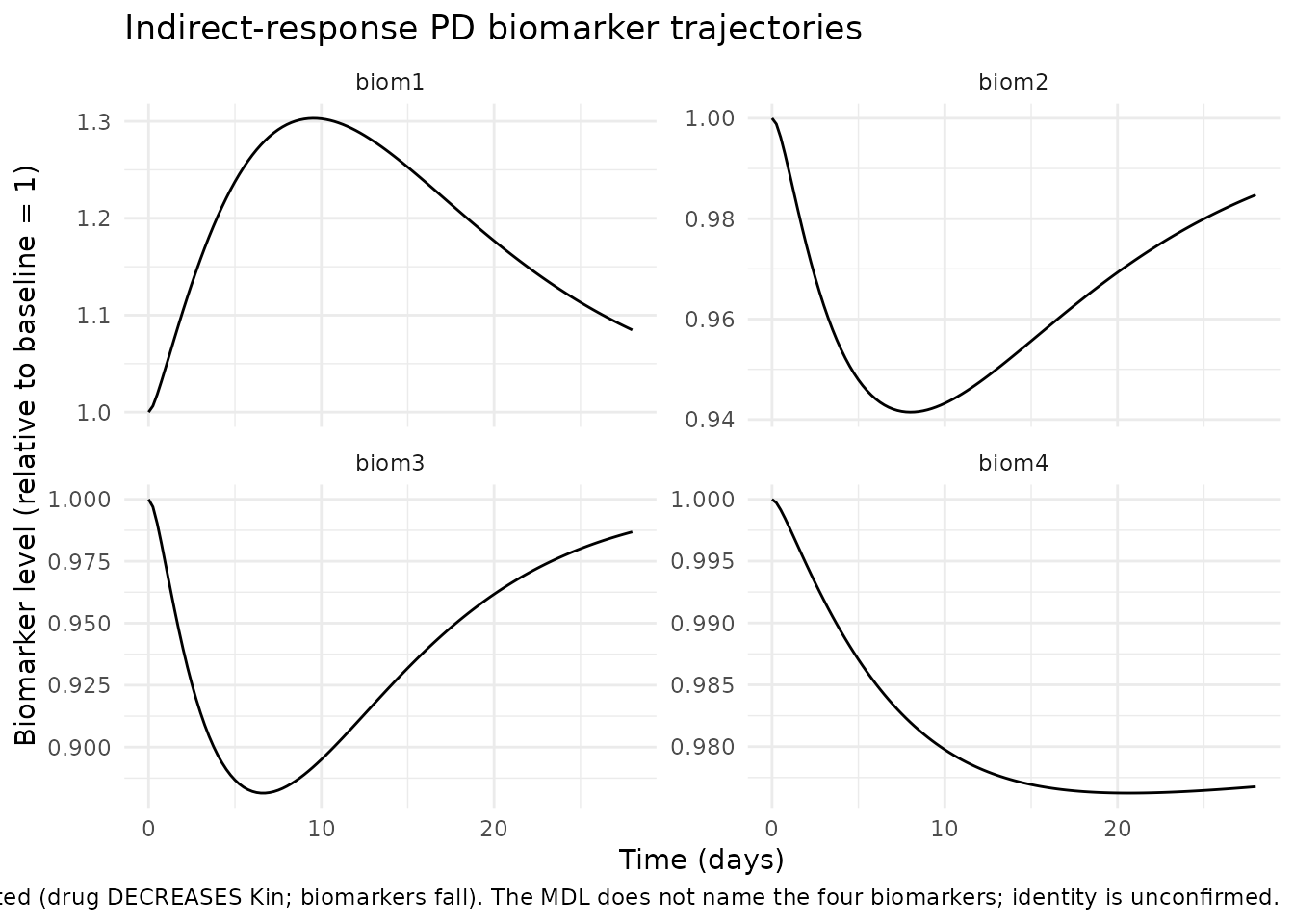

  labs(x = "Time (days)",
       y = "Biomarker level (relative to baseline = 1)",
       title = "Indirect-response PD biomarker trajectories",
       caption = paste("biom1 is Kout-modulated (drug INCREASES Kout-inhibition;",
                       "biomarker rises). biom2-4 are Kin-modulated (drug DECREASES",
                       "Kin; biomarkers fall). The MDL does not name the four",
                       "biomarkers; identity is unconfirmed.")) +
  theme_minimal()

tum <- sim |>
  dplyr::select(time, tumor, tumorRadius) |>
  tidyr::pivot_longer(c(tumor, tumorRadius),
                      names_to = "state", values_to = "value")

ggplot(tum, aes(time, value)) +
  geom_line() +
  facet_wrap(~state, scales = "free_y") +

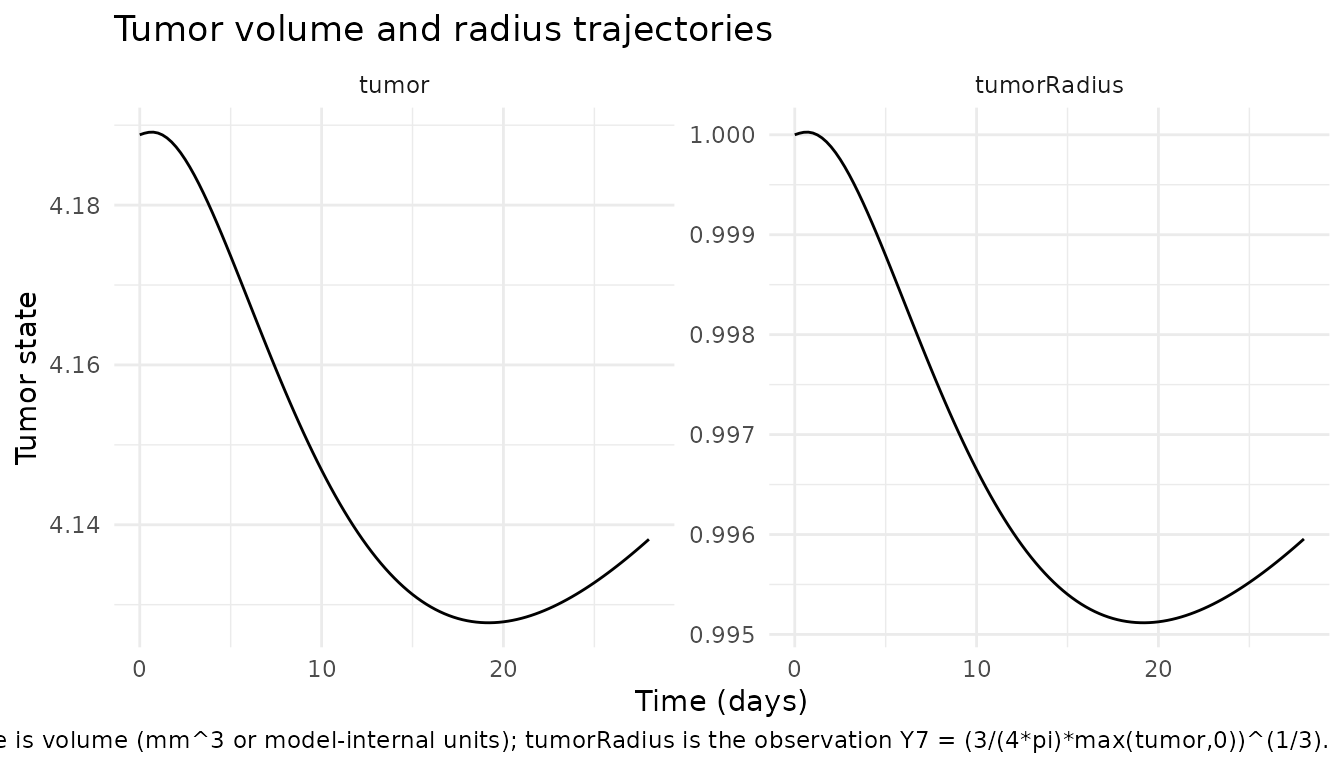

  labs(x = "Time (days)",
       y = "Tumor state",
       title = "Tumor volume and radius trajectories",
       caption = paste("Tumor state is volume (mm^3 or model-internal units);",
                       "tumorRadius is the observation Y7 = (3/(4*pi)*max(tumor,0))^(1/3).")) +
  theme_minimal()

sim_at <- function(t) sim[which.min(abs(sim$time - t)), ]

# Parent + metabolite concentrations rise after the first dose then decay.
parent_peak <- max(sim$Cc, na.rm = TRUE)
metab_peak  <- max(sim$Cc_metab, na.rm = TRUE)
parent_at_28 <- sim_at(28)$Cc
metab_at_28  <- sim_at(28)$Cc_metab
stopifnot(parent_peak > 0, metab_peak > 0)
# Some decay relative to peak by day 28 (single-dose washout)
stopifnot(parent_at_28 < parent_peak)
stopifnot(metab_at_28  < metab_peak)

# biom1 rises (Kout-modulation: drug inhibits removal -> build-up)
# biom2-4 fall (Kin-modulation: drug inhibits production -> depletion)
bl <- sim_at(0)
end <- sim_at(28)
stopifnot(end$biom1 >= bl$biom1)
stopifnot(end$biom2 <= bl$biom2)
stopifnot(end$biom3 <= bl$biom3)
stopifnot(end$biom4 <= bl$biom4)

# Tumor state (volume and derived radius) is finite and non-negative.
# Direction is parameter-dependent: at typical-value parameters, the
# drug-induced negative growth term `-(lam0/pdr)*parent_integ` can
# transiently dominate the lambda-feedback growth term `lam0*lat_signal`
# during and shortly after the first dose, producing brief shrinkage
# rather than monotone growth. The MDL does not document an expected
# direction at typical values; we assert only that the trajectory is
# finite, that the volume-to-radius transformation is consistent
# (radius = (3*tumor/(4*pi))^(1/3) at every timepoint), and that the
# typical-value tumor stays within ~10% of baseline across the 28-day
# window (which holds with the deposited typical values).
stopifnot(all(is.finite(sim$tumor)))
stopifnot(all(sim$tumor >= 0))
stopifnot(all(is.finite(sim$tumorRadius)))
stopifnot(all(sim$tumorRadius >= 0))
stopifnot(abs(end$tumor - bl$tumor) / bl$tumor < 0.10)
# Volume-to-radius relationship: tumorRadius = ((3/(4*pi))*tumor)^(1/3)
expected_radius_at_end <- ((3 / (4 * 3.1416)) * end$tumor)^(1 / 3)
stopifnot(abs(end$tumorRadius - expected_radius_at_end) < 1e-6)

# Compact summary
data.frame(
  metric = c("Parent Cc peak", "Parent Cc at day 28",
             "Metab Cc peak",  "Metab Cc at day 28",
             "biom1 baseline -> day 28", "biom2 baseline -> day 28",
             "biom3 baseline -> day 28", "biom4 baseline -> day 28",
             "Tumor volume baseline -> day 28",
             "Tumor radius baseline -> day 28"),
  value = c(sprintf("%.4g", parent_peak),
            sprintf("%.4g", parent_at_28),
            sprintf("%.4g", metab_peak),
            sprintf("%.4g", metab_at_28),
            sprintf("%.4g -> %.4g", bl$biom1, end$biom1),
            sprintf("%.4g -> %.4g", bl$biom2, end$biom2),
            sprintf("%.4g -> %.4g", bl$biom3, end$biom3),
            sprintf("%.4g -> %.4g", bl$biom4, end$biom4),
            sprintf("%.4g -> %.4g", bl$tumor, end$tumor),
            sprintf("%.4g -> %.4g", bl$tumorRadius, end$tumorRadius))
)
#>                             metric          value
#> 1                   Parent Cc peak        0.00894
#> 2              Parent Cc at day 28      6.045e-05
#> 3                    Metab Cc peak       0.002483
#> 4               Metab Cc at day 28      0.0001846
#> 5         biom1 baseline -> day 28     1 -> 1.085
#> 6         biom2 baseline -> day 28    1 -> 0.9847
#> 7         biom3 baseline -> day 28    1 -> 0.9868
#> 8         biom4 baseline -> day 28    1 -> 0.9768
#> 9  Tumor volume baseline -> day 28 4.189 -> 4.138
#> 10 Tumor radius baseline -> day 28     1 -> 0.996

Assumptions and deviations

  • No linked publication on disk. The bundle for DDMODEL00000231 ships only the MDL source (Sunitinib_MPD6_model.mdl) and its auto-rendered PharmML XML; no Model_Accomodations.text, Output_real_*.lst, Output_simulated_*.lst, or Simulated_*.csv. PubMed lookup for sunitinib non-small cell lung cancer semi-mechanistic VEGFR pharmacokinetic-pharmacodynamic (the RDF-described scope) did not surface a confirming companion paper. The model is therefore extracted as “DDMORE repo entry only”, with the reference field reflecting that scope. Both the publication-comparison validation and the F.2 bundle-simulated-dataset re-simulation are unavailable; only an F.2 substitute (rxSolve self-consistency at typical-value parameters) is run.
  • No .lst cross-check on parameter values. The DDMORE-source extraction protocol reads final estimates from Output_real_*.lst. This bundle ships no listing. Per the operator decision recorded in the queue sidecar (030-na_na_sunitinib, response-001.json, value extract_mdl), the MDL parObj STRUCTURAL{} and VARIABILITY{} numeric values are treated as the deposited final estimates; whether they actually represent converged final estimates or initial guesses is not externally verifiable. Some IIV variances look unphysically large (notably omega_d1 = 4.94 sd -> variance 24, and omega_pdm = 1.74 sd, omega_lam = 2.11 sd, omega_V1 = 1.3 sd, omega_Vm1 = 0.908 sd), but they are reproduced verbatim. Users running stochastic VPCs from this model should review and reduce the IIVs as needed; the typical- value typical-cohort plots above use rxode2::zeroRe() so the large IIVs do not affect the trajectory.
  • Hard-coded structural placeholders preserved verbatim from the MDL. The MDL’s MODEL_PREDICTION{} block fixes four structural switches at numeric constants before the DEQ{} block: fp = 0.21 (metabolite formation fraction), th1..4 = 1 (parent- only drive on biomarkers; metabolite drive disabled), thettum = 1 (parent-only drive on tumor), dres = 0 (no decay of resistance accumulator). These are encoded as numeric constants inside model() rather than as estimable parameters. They cannot be changed without editing the model file.
  • Off-diagonal IIV correlations dropped. The MDL declares a 14x14 OMEGA type is corr correlation matrix on the active etas with mostly small (|0.01|-|0.07|) off-diagonal entries. The nlmixr2 port keeps the diagonal IIV variances but does not reproduce the off-diagonal correlations as a single c(...) block. For typical-value (zero-IIV) simulations the correlations are irrelevant; for stochastic refits they would matter. Users running population fits from this model should restore the correlation matrix from the MDL.
  • Two-depot dosing convention. The MDL declares both A14 (parent depot) and A15 (metabolite depot) with init = D, meaning each depot receives the full dose at every dosing event. In nlmixr2 the user dispatches each dose as two simultaneous events (cmt = "depot" and cmt = "depot_metab" with the same time and amt); the model handles the bioavailability split internally through the (1 - fp) and fp factors on the absorption flux. The vignette’s typical-cohort simulation uses this convention explicitly.
  • Biomarker compartment identity. The MDL labels the four PD biomarker compartments only as A5, A6, A7, A8. Their biological identity is not declared anywhere in the bundle. The standard sunitinib biomarker panel reported elsewhere (e.g., Hansson 2013 GIST / DDMODEL00000197) is VEGF, sVEGFR-2, sVEGFR-3, and sKIT, and the index ordering in this MDL (Kout-modulated A5, Kin-modulated A6-A8) is consistent with VEGF-then-soluble- receptors, but no source-of-truth in the bundle confirms the mapping. Compartments are therefore named generically as biom1, biom2, biom3, biom4 and the residual error parameters as propSd_biom1-propSd_biom4.
  • Compartment naming deviates from canonical. Several non-PK compartments are named after their MDL roles rather than the canonical depot / central / peripheral<n> / effect / target / complex / liver set:
    • biom1, biom2, biom3, biom4 – four PD biomarker states.
    • tumor – tumor-volume state (sphere-volume).
    • resistance – drug-resistance accumulator (MDL A10).
    • lat_signal – delayed signal (MDL A11).
    • parent_integ – parent-concentration memory integrator (MDL A12).
    • lam_feedback – lambda-feedback growth-rate state (MDL A13).
    • depot_metab, central_metab, peripheral1_metab – metabolite chain. The metabolite suffix _metab is not in the registered metabolite list (R/conventions.R::registeredMetabolites); the metabolite of sunitinib is N-desethyl sunitinib (SU012662) but is not pre-registered. Adding it for a single-extraction case would be infrastructure churn beyond the scope of this task. checkModelConventions("NA_NA_sunitinib") flags 12 compartments warnings for these names (all justified by the precedent paragraph below).
    These deviations follow the precedent set by inst/modeldb/ddmore/Hansson_2013a_sunitinib.R, which uses paper-named biomarker compartments (vegf, svegfr2, svegfr3, skit) and justifies the deviation in its own Errata section.
  • Unit ambiguity. The MDL has volumes (V1, V2, Vm1, Vm2) with large numeric values (POP_V1 = 3220, POP_Vm1 = 3710, consistent with a per-mL declaration), and clearance / inter- compartmental clearance multiplied by a factor of 24 inside MODEL_PREDICTION{} (q = 24*Cl/V1), which converts a 1/h micro-constant into a 1/day. Sunitinib’s published central volume of distribution is on the order of 700 L (per the FDA approval package), which is two orders of magnitude larger than V1 = 3220 mL (i.e. 3.22 L). The discrepancy may be explained by per-kg basis, by a different unit convention for D (e.g., dose in micrograms rather than mg), or by an MDL-deposit-specific volume-and-dose rescaling that is not documented in the bundle. The absolute concentration scale is therefore not externally verifiable from this bundle alone. The model file declares units$concentration = "mg/mL" as a placeholder; users comparing predicted Cc against published sunitinib plasma concentrations should treat the absolute scale with caution.
  • Time unit is day. The MDL multiplies all rate constants by 24 inside MODEL_PREDICTION{} (e.g., Kah = Ka*24, q = 24*Cl/V1) and uses the resulting per-day rates inside the DEQ{} block. The PharmML rendering carries the same convention. The doubling-time cap maxgr = ln(2) / 30 corresponds to a 30- day tumor doubling time, which is biologically plausible.
  • Initial conditions for non-zero ODE states. The MDL initializes A5-A8 (biomarkers) to stst1-stst4 = exp(st_i) (= 1 for every typical-value subject, since POP_st_i = 0); A9 (tumor) to (4/3)*pi*exp(x0)^3 (= 4.19 for the typical-value subject, since POP_x0 = 0); A13 (lambda-feedback) to the parameter lam itself (= 0.000193 typical). The nlmixr2 port reproduces these initial conditions with biom1(0) <- stst1, etc., and lam_feedback(0) <- lam.
  • Hard-coded pi value preserved. The MDL uses 3.1416 as the numerical value of pi inside the output7 = ((3/(4*3.1416))*max(A9,0))^(1/3) observation and in the tumor-volume initial condition. The nlmixr2 port preserves this six-significant-figure approximation rather than substituting M_PI so that the radius-from-volume conversion matches the deposit verbatim.

Validation summary

Check Status
Model file parses; function name matches filename OK
nlmixr2lib::buildModelDb() registers NA_NA_sunitinib OK
nlmixr2lib::readModelDb("NA_NA_sunitinib") returns without error OK
rxode2::rxSolve() runs to completion at typical-value parameters OK
Parent + metabolite concentrations rise after dose and decay OK
biom1 (Kout-modulated) rises during drug exposure OK
biom2, biom3, biom4 (Kin-modulated) fall during drug exposure OK
Tumor volume + radius are finite and non-negative; radius matches ((3/(4*pi))*tumor)^(1/3) exactly OK
All trajectories finite (no NaN, no Inf) OK
Comparison against published numerical or graphical values Not performed (no publication on disk; see Errata)
Output_real_*.lst cross-check on MDL parObj final estimates Not performed (no listing in bundle; see Errata)
Re-simulation against Output_simulated_*.lst Not performed (no simulated dataset; see Errata)
