Rheumatoid arthritis DAS28 MBMA of seven approved drugs (Leil 2021)

Source: vignettes/articles/Leil_2021_rheumatoidArthritis_das28_mbma.Rmd
Leil_2021_rheumatoidArthritis_das28_mbma.Rmd

Model and source

  • Citation: Leil TA, Lu Y, Bouillon-Pichault M, Wong R, Nowak M. Model-Based Meta-Analysis Compares DAS28 Rheumatoid Arthritis Treatment Effects and Suggests an Expedited Trial Design for Early Clinical Development. Clin Pharmacol Ther. 2021;109(2):517-527. doi:10.1002/cpt.2023. Parameter estimates are in Supplementary Table S3 (CPT-109-517-s001.docx); the structural model is main-text Equations 6-10 and 12.
  • Description: MBMA. Longitudinal model-based meta-analysis of the change from baseline in the 28-joint Disease Activity Score (DAS28, on the DAS28-CRP scale) for seven approved rheumatoid arthritis drugs (abatacept, adalimumab, certolizumab, etanercept, rituximab, tocilizumab, tofacitinib) on a background of conventional synthetic DMARDs, fitted in NONMEM 7.3 to 994 study-arm-mean records from 130 randomized trials (197 arms, 27,355 patients). The arm-mean change from baseline is the sum of a sigmoid Hill-in-time placebo (background-therapy) response, a hyperbolic drug-specific Emax-in-time treatment effect and a linear disease-progression term. Placebo Emax depends on baseline DAS28 and disease duration, placebo ET50 on baseline DAS28, the placebo Hill coefficient on a low-male-proportion indicator (male < 18.5 percent) and the progression slope on the trial year. Between-trial and between-arm random effects and the residual error are all scaled by sqrt(100 / N_ARM). Drug arms are selected with per-drug arm indicators (all zero = background-therapy placebo arm). Suitable simulation scope is study-arm-mean DAS28 change-from-baseline trajectories, NOT individual patients.
  • Article: https://doi.org/10.1002/cpt.2023 (open access, PMC7894503)
  • Supplement: Supporting Information of the article (Supplementary Tables S1-S3, Figures S1-S3); the parameter estimates are in Table S3.

Leil et al. pooled longitudinal, study-arm-mean change from baseline in the 28-joint Disease Activity Score (DAS28) for seven approved rheumatoid arthritis (RA) drugs and the background-therapy (placebo) control arms of their trials. DAS28-ESR records were first converted to the DAS28-CRP scale with a linear mixed-effects regression (Eq. 1; DAS28-CRP = 0.899 x DAS28-ESR - 0.194), so the model output is on the DAS28-CRP scale.

Population

The analysis used the Quantify RA Clinical Outcomes Database (Certara, version 03/08/2018). The MBMA data set had 994 arm-mean records from 197 arms of 130 randomized controlled trials in 27,355 patients with active RA on stable background csDMARDs (mostly methotrexate): 91 active arms of seven drugs at their approved maintenance regimens, and 106 background-therapy control arms. Trial-mean baseline characteristics (Leil 2021 Table 2, weighted means of arm means) were: baseline DAS28-CRP 4.9-5.9 by drug (range 3.7-6.5), age 51-53 years, 17-21 percent male, disease duration 5.3-9.9 years. Most arms enrolled methotrexate inadequate responders; prior biologic exposure was allowed.

str(readModelDb("Leil_2021_rheumatoidArthritis_das28_mbma")()$population)
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: eta_study_emax_pbo, eta_study_hill_pbo, eta_study_emax_drug, eta_study_hill_drug, eta_study_slope, eta_arm_emax_drug
#> as a work-around try putting the mu-referenced expression on a simple line
#> List of 12
#>  $ species       : chr "human"
#>  $ n_subjects    : int 27355
#>  $ n_studies     : int 130
#>  $ age_range     : chr "trial-mean age 45-61 years (weighted mean of arm means 51-53 by drug; Leil 2021 Table 2)"
#>  $ weight_range  : chr "not reported"
#>  $ sex_female_pct: num 81
#>  $ race_ethnicity: chr "not reported"
#>  $ disease_state : chr "adults with active moderate-to-severe rheumatoid arthritis on stable background csDMARDs (predominantly methotr"| __truncated__
#>  $ dose_range    : chr "approved maintenance regimens only: abatacept 10 mg/kg IV q4w or 125 mg SC qw; adalimumab 40 mg SC q2w; certoli"| __truncated__
#>  $ regions       : chr "multinational (published trials 1994-2018, Quantify RA Clinical Outcomes Database v03/08/2018)"
#>  $ baseline      : chr "trial-mean baseline DAS28-CRP 3.7-6.5 (weighted mean 4.9-5.9 by drug); disease duration 0.24-14 years; 0-45 per"| __truncated__
#>  $ notes         : chr "Study-arm-level MBMA: 994 arm-mean DAS28 change-from-baseline records from 197 arms (91 active, 106 background-"| __truncated__

Model structure

For trial i, arm j and time t (weeks), Leil 2021 Equation 12 is

dDAS28(t) = -[ Emax,pbo x t^g / (ET50,pbo^g + t^g) + Emax,drug x t^g,drug / (ET50,drug^g,drug + t^g,drug) ] + PROG x t + (N/100)^-0.5 x eps

with a Hill-in-time placebo response, a drug-specific Emax-in-time treatment effect (the placebo-corrected effect), and a linear progression (worsening) term. Placebo Emax and the residual error are additive-normal, the other parameters log-normal. Every random effect is scaled by (N/100)^-0.5 (Equations 7 and 8), so arms and trials with more patients vary less. In the packaged model this is wN = sqrt(100 / N_ARM).

Continuous covariates enter as theta x log(COV / COVmed) (Eq. 9) and binary ones as theta x IND (Eq. 10), added on the parameter scale for placebo Emax and in the exponent for the log-normal parameters.

The model is algebraic in time. The arms of one trial can therefore be entered as rows of a single id, one row per arm and time point, which gives them the same between-trial random effects. The simulations below use this layout.

Source trace

Equation / parameter Value Source location
Structural model (Hill placebo + Emax drug + progression) n/a Eqs. 6 and 12; Results (‘A term for progression … was added’)
Inter-trial variability forms, (N/100)^-0.5 weighting n/a Eqs. 7, 8; Methods
Covariate forms n/a Eqs. 9, 10; Methods
emax_pbo 2.4 Table S3, Emax Placebo
let50_pbo log(26.7) Table S3, ET50 Placebo
lhill_pbo log(0.568) Table S3, gamma_placebo
lslope log(0.103) Table S3, Slope of DAS28 progression (DAS28 units/year)
lemax_abatacept … lemax_tofacitinib log(1.3), log(0.946), log(1.24), log(1.3), log(1.57), log(2.34), log(1.09) Table S3, Emax per drug
let50_abatacept … let50_tofacitinib log(3.42), log(2.4), log(2.2), log(2.9), log(13.5), log(4.24), log(1.77) Table S3, ET50 per drug
lhill_drug fixed(log(1)) Not tabulated; inferred from Table 3 (see below)
e_das28_emax_pbo 1.60 Table S3, Emax,placebo ~ baseline DAS28
e_tdiag_emax_pbo -0.133 Table S3, Emax,placebo ~ disease duration
e_das28_et50_pbo 1.30 Table S3, ET50,placebo ~ baseline DAS28
e_lowmale_hill_pbo -0.176 Table S3, gamma_placebo ~ male participants < 18.5%
e_year_slope -397 Table S3, Slope of DAS28 progression ~ trial year
eta_study_emax_pbo 0.828^2 Table S3 between-study SD (additive)
eta_study_hill_pbo 0.617^2 Table S3 between-study SD (proportional)
eta_study_emax_drug 0.272^2 Table S3 between-study SD (proportional)
eta_study_hill_drug 0.555^2 Table S3 between-study SD (proportional)
eta_study_slope 1.00^2 Table S3 between-study SD (proportional)
eta_arm_emax_drug 0.231^2 Table S3 between-arm SD in Emax,drug (proportional)
addSd 0.101 Table S3 residual within-arm SD (additive)
Covariate centring 6.2 (DAS28), 8.2 years, 19 percent male n/a Table 3 footnote b / Figure 3 caption (typical trial)
Covariate centring 2013 (trial year) n/a Median publication year of the 130 trials in Table S1

Typical-trial replication of Table 3

Table 3 of the paper gives the estimated decrease from baseline in DAS28 at 4, 12, 24 and 48 weeks for a typical trial (19 percent male, 53 years, disease duration 8.2 years, baseline DAS28 6.2): the placebo value is corrected for baseline only, and the drug values are also placebo-corrected. The typical trial is simulated here with the random effects set to zero, each drug arm sharing a trial id with its own placebo arm.

mod <- rxode2::rxode2(readModelDb("Leil_2021_rheumatoidArthritis_das28_mbma"))
#> ℹ parameter labels from comments will be replaced by 'label()'
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: eta_study_emax_pbo, eta_study_hill_pbo, eta_study_emax_drug, eta_study_hill_drug, eta_study_slope, eta_arm_emax_drug
#> as a work-around try putting the mu-referenced expression on a simple line
drugs <- c(
  "ABATACEPT", "ADALIMUMAB", "CERTOLIZUMAB", "ETANERCEPT",
  "RITUXIMAB", "TOCILIZUMAB", "TOFACITINIB"
)

# One trial per drug; each trial has a placebo arm and one drug arm.
make_trials <- function(times, drug_set, n_arm = 100) {
  expand_grid(drug = drug_set, arm = c("PLACEBO", "DRUG"), time = times) |>
    mutate(
      id = match(drug, drug_set),
      evid = 0L,
      N_ARM = n_arm,
      SCORE_DAS28CRP = 6.2,
      T_DIAG_RA = 8.2,
      SEXF_PCT = 81,
      YEAR_PUB = 2013
    ) |>
    arrange(id, time, arm)
}
add_arm_indicators <- function(d) {
  for (x in drugs) d[[x]] <- as.integer(d$arm == "DRUG" & d$drug == x)
  d
}

ev_typ <- make_trials(c(0, 4, 12, 24, 48), drugs) |> add_arm_indicators()
sim_typ <- rxSolve(
  zeroRe(mod), ev_typ,
  keep = c("drug", "arm"), returnType = "data.frame"
)
#> Warning: No sigma parameters in the model
#> some etas defaulted to non-mu referenced, possible parsing error: eta_study_emax_pbo, eta_study_hill_pbo, eta_study_emax_drug, eta_study_hill_drug, eta_study_slope, eta_arm_emax_drug
#> as a work-around try putting the mu-referenced expression on a simple line
#> ℹ omega/sigma items treated as zero: 'eta_study_emax_pbo', 'eta_study_hill_pbo', 'eta_study_emax_drug', 'eta_study_hill_drug', 'eta_study_slope', 'eta_arm_emax_drug'
#> Warning: multi-subject simulation without without 'omega'

typ <- sim_typ |>
  select(drug, arm, time, das28cfb) |>
  pivot_wider(names_from = arm, values_from = das28cfb) |>
  mutate(effect = PLACEBO - DRUG)

published <- tribble(
  ~drug, ~`4`, ~`12`, ~`24`, ~`48`,
  "ABATACEPT", 0.715, 1.02, 1.14, 1.22,
  "ADALIMUMAB", 0.607, 0.801, 0.871, 0.911,
  "CERTOLIZUMAB", 0.802, 1.04, 1.13, 1.18,
  "ETANERCEPT", 0.794, 1.06, 1.17, 1.23,
  "RITUXIMAB", 0.368, 0.75, 1.02, 1.24,
  "TOCILIZUMAB", 1.14, 1.73, 1.99, 2.15,
  "TOFACITINIB", 0.756, 0.949, 1.01, 1.05,
  "Placebo", 0.576, 0.872, 1.07, 1.25
) |>
  pivot_longer(-drug, names_to = "time", values_to = "published") |>
  mutate(time = as.numeric(time))

sim_tab <- bind_rows(
  typ |> filter(time > 0) |> transmute(drug, time, simulated = effect),
  typ |>
    filter(time > 0, drug == drugs[1]) |>
    transmute(drug = "Placebo", time, simulated = -PLACEBO)
)
cmp <- inner_join(sim_tab, published, by = c("drug", "time")) |>
  mutate(pct_diff = 100 * (simulated - published) / published)

cmp |>
  mutate(simulated = signif(simulated, 3), pct_diff = round(pct_diff, 1)) |>
  rename(
    "Arm" = drug, "Week" = time, "Simulated decrease" = simulated,
    "Table 3 median" = published, "Difference (%)" = pct_diff
  ) |>
  knitr::kable()
Arm Week Simulated decrease Table 3 median Difference (%)
ABATACEPT 4 0.701 0.715 -2.0
ABATACEPT 12 1.010 1.020 -0.8
ABATACEPT 24 1.140 1.140 -0.2
ABATACEPT 48 1.210 1.220 -0.5
ADALIMUMAB 4 0.591 0.607 -2.6
ADALIMUMAB 12 0.788 0.801 -1.6
ADALIMUMAB 24 0.860 0.871 -1.3
ADALIMUMAB 48 0.901 0.911 -1.1
CERTOLIZUMAB 4 0.800 0.802 -0.2
CERTOLIZUMAB 12 1.050 1.040 0.8
CERTOLIZUMAB 24 1.140 1.130 0.5
CERTOLIZUMAB 48 1.190 1.180 0.5
ETANERCEPT 4 0.754 0.794 -5.1
ETANERCEPT 12 1.050 1.060 -1.2
ETANERCEPT 24 1.160 1.170 -0.9
ETANERCEPT 48 1.230 1.230 -0.3
RITUXIMAB 4 0.359 0.368 -2.5
RITUXIMAB 12 0.739 0.750 -1.5
RITUXIMAB 24 1.000 1.020 -1.5
RITUXIMAB 48 1.230 1.240 -1.2
TOCILIZUMAB 4 1.140 1.140 -0.4
TOCILIZUMAB 12 1.730 1.730 -0.1
TOCILIZUMAB 24 1.990 1.990 -0.1
TOCILIZUMAB 48 2.150 2.150 0.0
TOFACITINIB 4 0.756 0.756 0.0
TOFACITINIB 12 0.950 0.949 0.1
TOFACITINIB 24 1.020 1.010 0.5
TOFACITINIB 48 1.050 1.050 0.1
Placebo 4 0.601 0.576 4.4
Placebo 12 0.908 0.872 4.2
Placebo 24 1.120 1.070 4.3
Placebo 48 1.300 1.250 4.3
drug_cmp <- filter(cmp, drug != "Placebo")
stopifnot(
  # Tocilizumab: the gamma_drug = 1 reading reproduces all four printed
  # digits, which is what pins the untabulated drug Hill coefficient.
  all(abs(filter(drug_cmp, drug == "TOCILIZUMAB")$pct_diff) < 0.5),
  # Every drug and time point within 6 % of the Table 3 median (Table 3
  # summarises a distribution that includes parameter uncertainty, so the
  # typical value and the median need not coincide exactly).
  all(abs(drug_cmp$pct_diff) < 6),
  # Placebo: within 6 % at every time point.
  all(abs(filter(cmp, drug == "Placebo")$pct_diff) < 6)
)

The drug effects agree with Table 3 to within about 5 percent and the tocilizumab row to all printed digits. The typical placebo response is about 4 percent larger than the Table 3 medians at every time point, i.e. a constant factor: the time course is right but the typical-trial placebo Emax comes out about 2.40 rather than about 2.31. The data-set medians used to centre the covariates are not printed, so the Table 3 typical trial may sit slightly away from the centring values (see Assumptions and deviations).

Figure 3: 24-week time courses

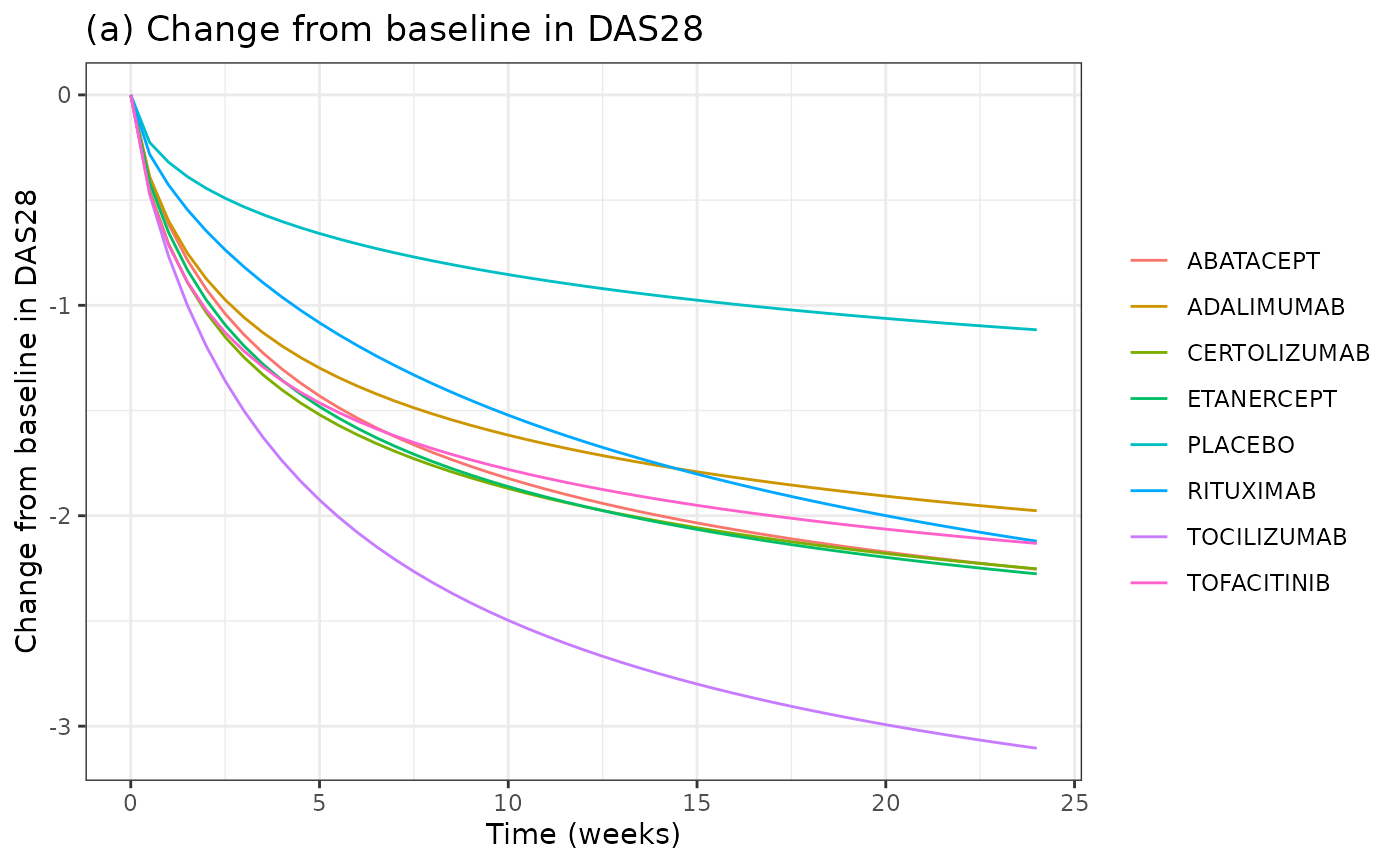

Replicates Figure 3 of Leil 2021: (a) the change from baseline in DAS28 for each drug arm and placebo, and (b) the placebo-corrected treatment effect, in the typical trial.

ev_fig3 <- make_trials(seq(0, 24, by = 0.5), drugs) |> add_arm_indicators()
sim_fig3 <- rxSolve(
  zeroRe(mod), ev_fig3,
  keep = c("drug", "arm"), returnType = "data.frame"
)
#> Warning: No sigma parameters in the model
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: eta_study_emax_pbo, eta_study_hill_pbo, eta_study_emax_drug, eta_study_hill_drug, eta_study_slope, eta_arm_emax_drug
#> as a work-around try putting the mu-referenced expression on a simple line
#> ℹ omega/sigma items treated as zero: 'eta_study_emax_pbo', 'eta_study_hill_pbo', 'eta_study_emax_drug', 'eta_study_hill_drug', 'eta_study_slope', 'eta_arm_emax_drug'
#> Warning: multi-subject simulation without without 'omega'

fig3 <- sim_fig3 |>
  select(drug, arm, time, das28cfb) |>
  pivot_wider(names_from = arm, values_from = das28cfb)

fig3a <- bind_rows(
  fig3 |> transmute(arm = drug, time, value = DRUG),
  fig3 |> filter(drug == drugs[1]) |> transmute(arm = "PLACEBO", time, value = PLACEBO)
)
ggplot(fig3a, aes(time, value, colour = arm)) +
  geom_line() +
  labs(
    x = "Time (weeks)", y = "Change from baseline in DAS28",
    colour = NULL, title = "(a) Change from baseline in DAS28"
  ) +
  theme_bw()

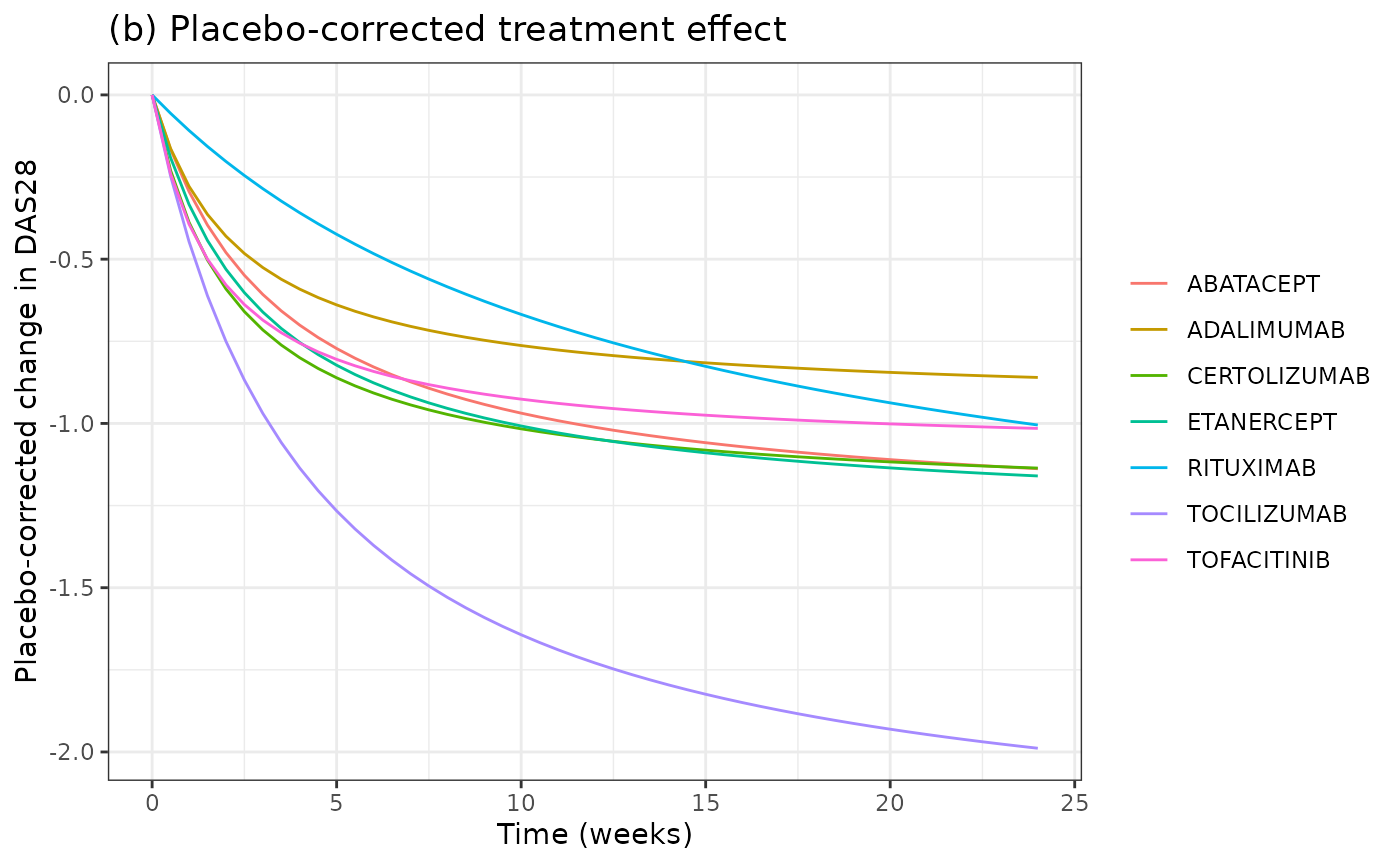

ggplot(fig3, aes(time, DRUG - PLACEBO, colour = drug)) +
  geom_line() +
  labs(
    x = "Time (weeks)", y = "Placebo-corrected change in DAS28",
    colour = NULL, title = "(b) Placebo-corrected treatment effect"
  ) +
  theme_bw()

Between-trial variability (Figure 2)

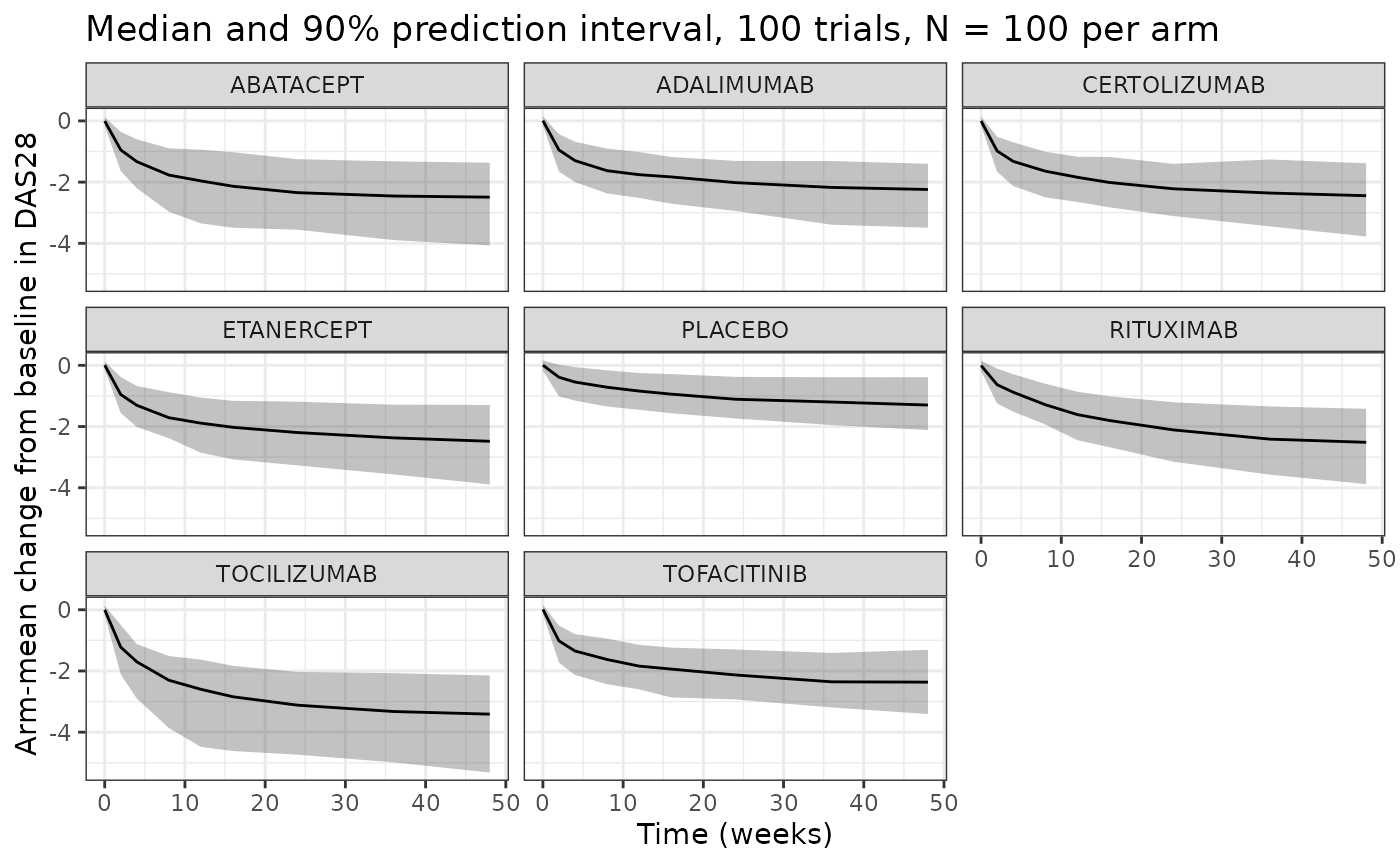

Figure 2 of the paper shows the observed trial means with the model’s 90 percent prediction interval. A stochastic simulation of 100 trials per drug, each with a placebo arm and a drug arm of 100 patients, gives the spread of arm-mean responses implied by the between-trial, between-arm and residual variability.

rxSetSeed(20210202)
n_trial <- 100
ev_sto <- make_trials(c(0, 2, 4, 8, 12, 16, 24, 36, 48), drugs) |>
  add_arm_indicators()
ev_sto <- bind_rows(lapply(seq_len(n_trial), function(k) {
  mutate(ev_sto, trial = k, id = (k - 1L) * length(drugs) + id)
})) |>
  arrange(id, time, arm)

sim_sto <- rxSolve(
  mod, ev_sto,
  keep = c("drug", "arm", "trial"), returnType = "data.frame"
)

sto_sum <- sim_sto |>
  mutate(group = ifelse(arm == "PLACEBO", "PLACEBO", drug)) |>
  group_by(group, time) |>
  summarise(
    median = median(sim),
    lo = quantile(sim, 0.05),
    hi = quantile(sim, 0.95),
    .groups = "drop"
  )

ggplot(sto_sum, aes(time, median)) +
  geom_ribbon(aes(ymin = lo, ymax = hi), alpha = 0.3) +
  geom_line() +
  facet_wrap(~group) +
  labs(
    x = "Time (weeks)", y = "Arm-mean change from baseline in DAS28",
    title = "Median and 90% prediction interval, 100 trials, N = 100 per arm"
  ) +
  theme_bw()

# Centre of the stochastic placebo-corrected effect at week 24 against the
# deterministic typical value. Placebo Emax is additive-normal and the drug
# Emax log-normal, so the medians should sit close to the typical values;
# the check is on the median, not on the extremes, of the simulated trials.
sto_eff <- sim_sto |>
  filter(time == 24) |>
  select(id, drug, arm, das28cfb) |>
  pivot_wider(names_from = arm, values_from = das28cfb) |>
  group_by(drug) |>
  summarise(median_effect = median(PLACEBO - DRUG), .groups = "drop") |>
  inner_join(
    typ |> filter(time == 24) |> select(drug, typical = effect),
    by = "drug"
  )
knitr::kable(sto_eff, digits = 3)
drug median_effect typical
ABATACEPT 1.131 1.138
ADALIMUMAB 0.893 0.860
CERTOLIZUMAB 1.046 1.136
ETANERCEPT 1.106 1.160
RITUXIMAB 1.066 1.005
TOCILIZUMAB 2.004 1.989
TOFACITINIB 0.965 1.015
stopifnot(all(abs(sto_eff$median_effect / sto_eff$typical - 1) < 0.15))

Covariate effects

The Discussion quantifies the placebo-response covariates in words. The baseline-DAS28 effect on the time to maximum placebo response (‘~24 percent per DAS28 unit’) follows from the exponent 1.30:

et50_ratio <- (7.2 / 6.2)^1.30
et50_ratio
#> [1] 1.214571
stopifnot(abs(et50_ratio - 1.24) < 0.03)

# Progression slope versus trial year (DAS28 units per year).
data.frame(year = c(2000, 2005, 2010, 2013, 2016)) |>
  mutate(slope = 0.103 * (year / 2013)^-397) |>
  knitr::kable(digits = 4)
year slope
2000 1.3487
2005 0.5005
2010 0.1862
2013 0.1030
2016 0.0570

PKNCA

Not applicable: the model has no drug concentrations. It is an arm-level MBMA of a disease-activity score driven by time since the start of treatment, and the validation above compares against the paper’s own model-derived Table 3 and Figure 3.

Assumptions and deviations

  • Drug Hill coefficient. Equations 6 and 12 contain gamma_drug and Table S3 gives its between-trial SD (0.555), but no typical value is listed among the fixed effects. A typical value of 1 reproduces the tocilizumab row of Table 3 to all printed digits at 4, 12, 24 and 48 weeks and the other drugs to within about 5 percent, so lhill_drug is fixed at log(1).
  • Emax units. Table S3 footnote a calls Emax ‘maximum reduction in DAS28 as a proportion of the baseline value’, but the values (placebo 2.4, tocilizumab 2.34) cannot be fractions of a baseline near 6, and absolute DAS28 units reproduce Table 3. Encoded in DAS28 units.
  • Covariate centring. Equation 9 centres continuous covariates on the data-set median, which is not printed. Baseline DAS28 (6.2), disease duration (8.2 years) and percent male (19) are centred on the typical trial of Table 3 footnote b and Figure 3, which the Methods describe as based on the median values across trials. The Table 3 time course confirms the baseline-DAS28 centre (the placebo ET50 is unchanged there), but the constant 4 percent excess of the typical placebo response suggests the disease-duration centre (or the Table 3 summary) differs slightly.
  • Trial-year centring and magnitude. The trial-year centre is not printed. 2013, the median publication year of the 130 trials of Table S1, is used. The estimated exponent (-397) makes the slope change about 2.7-fold per 5 years around the centre. The Discussion’s ‘~0.31 DAS28 units/year in 2000 vs ~0.0025 DAS28 units/year in 2016’ implies a 124-fold change over 16 years, which no centring year reproduces with the Table S3 exponent (it gives a fixed 23.6-fold ratio). The Table S3 estimate and Equation 9 are used as printed.
  • Low-male indicator. The Methods parenthetical codes percent male ‘< 18.5% = 0; >= 18.5% = 1’, but Table S3 labels the effect ‘gamma_placebo ~ male participants < 18.5%’, and the Table 3 typical trial (19 percent male) is reproduced only with the unmodified gamma_placebo. The indicator is therefore 1 for arms with fewer than 18.5 percent men.
  • Discussion percentages for placebo Emax. The Discussion’s ‘~0.7 percent per DAS28 unit’ (baseline DAS28) and ‘~0.8 percent per 5 years’ (disease duration) are not reproduced by the Table S3 coefficients under the stated equation (1.60 x log(7.2/6.2) = 0.24 DAS28 units, about 10 percent of the placebo Emax). The estimates are used as printed.
  • Sample-size weighting. The paper scales between-trial effects by the trial’s mean arm size and between-arm and residual terms by the arm’s own size; the packaged model uses N_ARM for both, which is exact for trials with equal-sized arms.
  • Shared drug-Emax random effects. The between-trial and between-arm random effects on the drug Emax (eta_study_emax_drug, eta_arm_emax_drug) act on whichever of the seven per-drug Emax values the arm selects, as in the paper, so they have no single matching fixed effect; checkModelConventions() reports this as two naming warnings.
  • Progression time unit. The slope is reported in DAS28 units per year and ET50 in weeks; time in weeks is converted with 365.25 / 7 weeks per year.
  • Not packaged. The DAS28-ESR to DAS28-CRP regression (Eq. 1), the CRP vs ESR regression (Eq. 4) and the within-arm SD model used for the clinical trial simulations of Figure 4 (Eq. 11; only partially reported) are not part of the model file. Figure 4 is therefore not replicated.
  • The model describes arm-mean trajectories, not individual patients.
