Anti-CD19 CAR T-cell therapy and cytokine release syndrome (Hardiansyah 2019)

Source: vignettes/articles/Hardiansyah_2019_CART_crs_qsp.Rmd
Hardiansyah_2019_CART_crs_qsp.Rmd

Model and source

  • Citation: Hardiansyah D, Ng CM (2019). Quantitative systems pharmacology model of chimeric antigen receptor T-cell therapy. Clinical and Translational Science 12(4):343-349. doi:10.1111/cts.12636. Equations 1-9 and Tables S1-S2 are in the Supplementary File (CTS-12-343-s001.docx in the PMC6662387 open-access package). Fit to CART and cytokine kinetics digitized from Kalos et al. 2011 (Sci Transl Med 3:95ra73; doi:10.1126/scitranslmed.3002842).
  • Article: Clin Transl Sci 12(4):343-349

Hardiansyah and Ng present the first quantitative systems pharmacology (QSP) model able to describe observed clinical kinetics of chimeric antigen receptor T cells (CART) together with the pro-inflammatory cytokines that drive cytokine release syndrome (CRS). The model was fit to two patients with advanced chronic lymphocytic leukaemia (CLL) treated with anti-CD19 CART in Kalos et al. 2011 (UPN1 and UPN3; UPN2 was excluded because concurrent corticosteroids masked the cytokine response).

The paper’s central finding is that the magnitude of CART expansion and of the cytokine response tracks baseline disease burden far more closely than the administered CART dose – the opposite of the dose-limited toxicity pattern of conventional cytotoxic chemotherapy.

Table S2 reports a complete, independent set of seven estimated parameters per subject, so the two subjects are carried as two model files that share this vignette:

model_names <- c(
  UPN1 = "Hardiansyah_2019_CART_upn1_qsp",
  UPN3 = "Hardiansyah_2019_CART_upn3_qsp"
)
uis <- lapply(model_names, function(n) rxode2::rxode(readModelDb(n)))
names(uis) <- names(model_names)
vapply(uis, function(u) length(u$state), integer(1))
#> UPN1 UPN3
#>    8    8

Population

pop <- uis$UPN1$population
knitr::kable(
  data.frame(
    Field = c("Species", "Subjects (this file)", "Disease state", "Dose", "Disease burden"),
    Value = c(
      pop$species, as.character(pop$n_subjects), pop$disease_state,
      pop$dose_range, pop$disease_burden
    )
  ),
  caption = "UPN1 population metadata (Hardiansyah 2019 Methods; Kalos 2011)."
)
UPN1 population metadata (Hardiansyah 2019 Methods; Kalos 2011).
Field Value
Species human
Subjects (this file) 1
Disease state advanced, chemotherapy-resistant chronic lymphocytic leukaemia (CLL)
Dose 1.1e9 anti-CD19 CART cells total, split 10% / 30% / 60% over days 0, 1 and 2
Disease burden 4.14e9 CLL B cells in peripheral blood at baseline

UPN3 received a 79-fold lower CART dose (1.4e7 vs 1.1e9 cells) and carried a 4.5-fold lower baseline burden (9.3e8 vs 4.14e9 CLL B cells in peripheral blood). Both received the same 3-day split-dose schedule (10% / 30% / 60%).

Source trace

Every equation and parameter below comes from the Supplementary File (CTS-12-343-s001.docx in the PMC6662387 open-access package). The main article is a Brief Report containing no equations and no parameter values.

trace <- tibble::tribble(
  ~Quantity,                          ~Source,
  "d/dt(b_pb)",                       "Supplement Eq. 1",
  "d/dt(il6), d/dt(il10)",            "Supplement Eqs. 2-3",
  "d/dt(ifng) and the IL-10 inhibition bracket", "Supplement Eq. 4",
  "d/dt(carte_pb), d/dt(carte_t)",    "Supplement Eqs. 5-6",
  "d/dt(cartm_pb), d/dt(cartm_t)",    "Supplement Eqs. 7-8 (see Errata)",
  "f(B) saturation function",         "Supplement Eq. 9",
  "d_IL6, d_IL10, a_G, b_G, d_IFNg",  "Table S1 (cytokine block)",
  "r_M, d_CARTM, a_M, k_in, k_out, h", "Table S1 (CAR T-cell block)",
  "r_B, d_B",                         "Table S1 (B-cells CLL block)",
  "P_IL6, P_IL10, P_IFNg",            "Table S2",
  "r_E, d_CARTE, a_E, K_BC",          "Table S2",
  "Baseline disease burden (b_pb(0))", "Main text Figure 2 caption",
  "CART dose and 10/30/60% split",    "Supplement DATA section; Methods",
  "Baseline IL-6 / IL-10 / IFN-gamma", "DIGITIZED from Figure 1b (see Errata)"
)
knitr::kable(trace, caption = "Source location for every equation and parameter.")
Source location for every equation and parameter.
Quantity Source
d/dt(b_pb) Supplement Eq. 1
d/dt(il6), d/dt(il10) Supplement Eqs. 2-3
d/dt(ifng) and the IL-10 inhibition bracket Supplement Eq. 4
d/dt(carte_pb), d/dt(carte_t) Supplement Eqs. 5-6
d/dt(cartm_pb), d/dt(cartm_t) Supplement Eqs. 7-8 (see Errata)
f(B) saturation function Supplement Eq. 9
d_IL6, d_IL10, a_G, b_G, d_IFNg Table S1 (cytokine block)
r_M, d_CARTM, a_M, k_in, k_out, h Table S1 (CAR T-cell block)
r_B, d_B Table S1 (B-cells CLL block)
P_IL6, P_IL10, P_IFNg Table S2
r_E, d_CARTE, a_E, K_BC Table S2
Baseline disease burden (b_pb(0)) Main text Figure 2 caption
CART dose and 10/30/60% split Supplement DATA section; Methods
Baseline IL-6 / IL-10 / IFN-gamma DIGITIZED from Figure 1b (see Errata)
ini_tab <- uis$UPN1$iniDf |>
  dplyr::select(name, est, fix, label) |>
  dplyr::mutate(
    `Natural scale` = ifelse(
      grepl("^l", name) & !grepl("^label", name),
      signif(exp(est), 4), signif(est, 4)
    )
  ) |>
  dplyr::rename(Parameter = name, Estimate = est, Fixed = fix, Label = label)
knitr::kable(ini_tab, caption = "UPN1 ini() block. Parameters prefixed `l` are on the log scale.")
UPN1 ini() block. Parameters prefixed l are on the log scale.
Parameter Estimate Fixed Label Natural scale
ldil6 1.3762440 TRUE IL-6 natural elimination rate constant (1/day) 3.960e+00
ldil10 1.5432981 TRUE IL-10 natural elimination rate constant (1/day) 4.680e+00
ldifng 0.4121097 TRUE IFN-gamma natural elimination rate constant (1/day) 1.510e+00
ag 0.5900000 TRUE Asymptotic residual IFN-gamma secretion under maximal IL-10 inhibition (unitless) 5.900e-01
lbg 6.4769724 TRUE IL-10 concentration giving half-maximal inhibition of IFN-gamma secretion (pg/mL) 6.500e+02
lrm -2.9778924 TRUE Memory CART natural growth rate constant (1/day) 5.090e-02
ldcartm -0.8964881 TRUE Memory CART death rate constant in peripheral blood (1/day) 4.080e-01
lam 0.0000000 TRUE Activation rate constant, memory CART to effector CART (1/day) 1.000e+00
lkin 4.3409442 TRUE CART distribution rate constant, peripheral blood to tissue (1/day) 7.678e+01
lkout 0.6097656 TRUE CART distribution rate constant, tissue to peripheral blood (1/day) 1.840e+00
lh 11.5129255 TRUE Half-saturation constant of the B-cell saturation function f(B) (1e9 cells) 1.000e+05
lrb -4.6777409 TRUE CLL B-cell natural reproduction rate constant (1/day) 9.300e-03
ldb -4.8796070 TRUE CLL B-cell natural death rate constant (1/day) 7.600e-03
lpil6 -6.3199686 FALSE CART-driven IL-6 production rate constant (pg/uL per 1e15 cell^2 per day) 1.800e-03
lpil10 -7.2644302 FALSE CART-driven IL-10 production rate constant (pg/uL per 1e15 cell^2 per day) 7.000e-04
lpifng -8.1117281 FALSE CART-driven IFN-gamma production rate constant (pg/uL per 1e15 cell^2 per day) 3.000e-04
lre 2.7825391 FALSE Effector CART replication rate constant (1 per 1e9 cells per day) 1.616e+01
ldcarte 3.1372318 FALSE Effector CART elimination rate constant (1/day) 2.304e+01
lae -3.7297014 FALSE Activation rate constant, effector CART to memory CART (1/day) 2.400e-02
lkbc -1.6607312 FALSE Effector-CART-mediated CLL B-cell killing rate constant (1 per 1e9 cells per day) 1.900e-01
bl_il6 1.7000000 TRUE Baseline IL-6 concentration (pg/mL) – figure-derived 1.700e+00
bl_il10 4.5000000 TRUE Baseline IL-10 concentration (pg/mL) – figure-derived 4.500e+00
bl_ifng 2.3000000 TRUE Baseline IFN-gamma concentration (pg/mL) – figure-derived 2.300e+00
lb0 1.4206958 TRUE Baseline CLL B-cell disease burden in peripheral blood (1e9 cells) 4.140e+00

Simulation setup

The CART infusion enters the effector compartment (carte_pb) as three dose records. Observation rows are written on b_pb, an actual ODE state – the algebraic observable cart_pb is returned as an output column at those rows.

cart_events <- function(dose_1e9, times = seq(0, 350, by = 0.1)) {
  rxode2::et(amt = 0.1 * dose_1e9, cmt = "carte_pb", time = 0) |>
    rxode2::et(amt = 0.3 * dose_1e9, cmt = "carte_pb", time = 1) |>
    rxode2::et(amt = 0.6 * dose_1e9, cmt = "carte_pb", time = 2) |>
    rxode2::et(times, cmt = "b_pb")
}

# Doses in units of 1e9 cells (Supplement DATA section).
doses <- c(UPN1 = 1.1, UPN3 = 0.014)

solve_subject <- function(subj, params = NULL, ...) {
  out <- rxode2::rxSolve(
    uis[[subj]], cart_events(doses[[subj]]),
    params = params,
    # rxode2's ODE -> linCmt auto-conversion is not appropriate for this
    # 8-state mechanistic system.
    useLinCmt = FALSE,
    atol = 1e-12, rtol = 1e-10, maxsteps = 1e6,
    returnType = "data.frame", ...
  )
  # rxSolve drops `id` for a single subject.
  if (is.null(out$id)) out$id <- 1L
  out$subject <- subj
  out
}

sim <- dplyr::bind_rows(lapply(names(model_names), solve_subject))
stopifnot(nrow(sim) > 0, !anyNA(sim$cart_pb), all(sim$cart_pb >= 0))

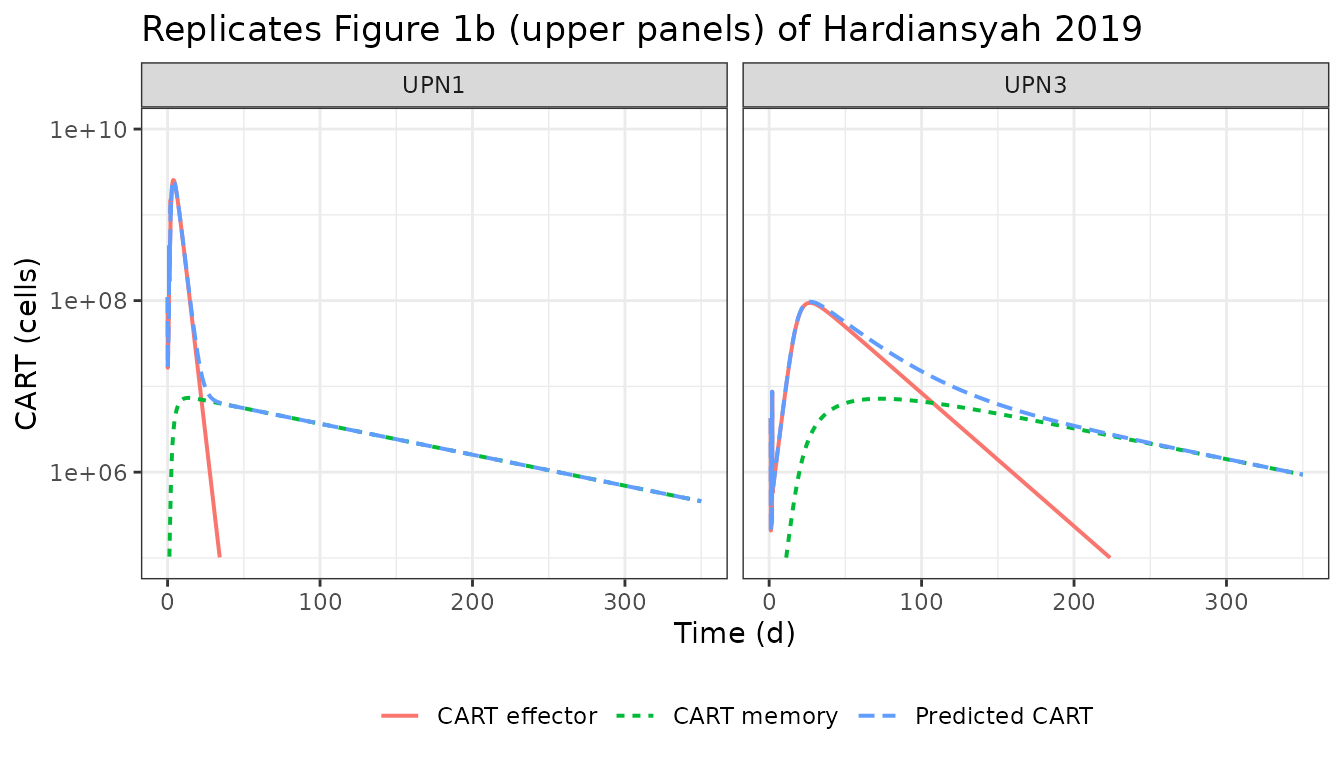

Replicating Figure 1b – CART kinetics

Replicates the two upper panels of Figure 1b of Hardiansyah 2019: effector, memory and total CART in peripheral blood.

cart_long <- sim |>
  dplyr::select(subject, time, carte_pb, cartm_pb, cart_pb) |>
  tidyr::pivot_longer(c(carte_pb, cartm_pb, cart_pb),
                      names_to = "series", values_to = "cells") |>
  dplyr::mutate(
    series = factor(series, levels = c("carte_pb", "cartm_pb", "cart_pb"),
                    labels = c("CART effector", "CART memory", "Predicted CART")),
    cells = cells * 1e9
  ) |>
  dplyr::filter(cells > 1e4)

ggplot(cart_long, aes(time, cells, colour = series, linetype = series)) +
  geom_line(linewidth = 0.7) +
  scale_y_log10(limits = c(1e5, 1e10)) +
  facet_wrap(~subject) +
  labs(x = "Time (d)", y = "CART (cells)", colour = NULL, linetype = NULL,
       title = "Replicates Figure 1b (upper panels) of Hardiansyah 2019") +
  theme_bw() + theme(legend.position = "bottom")
#> Warning: Removed 783 rows containing missing values or values outside the scale range
#> (`geom_line()`).

The paper prints no numeric CART table, so the published curves were digitized from Figure 1b and compared against the solve. These are deterministic solves (the model carries no IIV), so the only error is digitization of a six-decade log axis.

peak_of <- function(subj, col) {
  s <- sim[sim$subject == subj, ]
  c(value = max(s[[col]]), time = s$time[which.max(s[[col]])])
}

cart_cmp <- tibble::tribble(
  ~Subject, ~Quantity,              ~Digitized,
  "UPN1",   "Peak total CART",      2.3,
  "UPN1",   "Peak memory CART",     7.0e-3,
  "UPN3",   "Peak total CART",      0.12,
  "UPN3",   "Peak memory CART",     7.5e-3
) |>
  dplyr::mutate(
    Simulated = c(
      peak_of("UPN1", "cart_pb")[["value"]], peak_of("UPN1", "cartm_pb")[["value"]],
      peak_of("UPN3", "cart_pb")[["value"]], peak_of("UPN3", "cartm_pb")[["value"]]
    ),
    `Ratio sim/fig` = round(Simulated / Digitized, 2)
  )
knitr::kable(cart_cmp, digits = 5,
             caption = "Peak CART (units of 1e9 cells) vs values digitized from Figure 1b.")
Peak CART (units of 1e9 cells) vs values digitized from Figure 1b.
Subject Quantity Digitized Simulated Ratio sim/fig
UPN1 Peak total CART 2.3000 2.54950 1.11
UPN1 Peak memory CART 0.0070 0.00734 1.05
UPN3 Peak total CART 0.1200 0.09690 0.81
UPN3 Peak memory CART 0.0075 0.00718 0.96

# Digitization of a six-decade log axis is worth roughly a factor of 1.5;
# a mis-transcribed rate constant or a wrong unit convention moves these by
# orders of magnitude (see the mutation controls below), so a factor-1.5
# band is a gate that can still go red.
stopifnot(all(cart_cmp$`Ratio sim/fig` > 1 / 1.5),
          all(cart_cmp$`Ratio sim/fig` < 1.5))

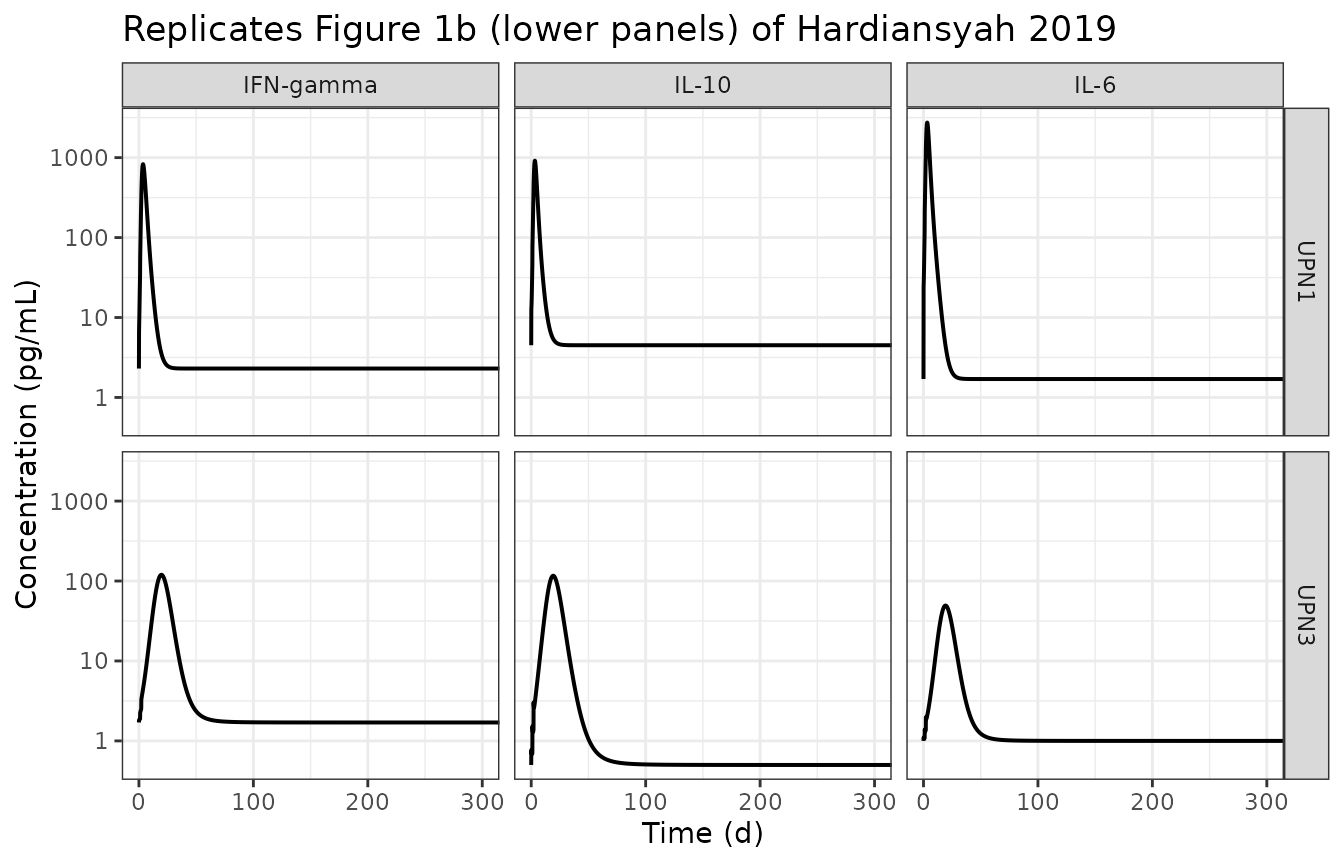

Replicating Figure 1b – cytokine kinetics

Replicates the six lower panels of Figure 1b.

cyt_long <- sim |>
  dplyr::select(subject, time, il6, il10, ifng) |>
  tidyr::pivot_longer(c(il6, il10, ifng), names_to = "cytokine", values_to = "pg_mL") |>
  dplyr::mutate(cytokine = factor(cytokine, levels = c("ifng", "il10", "il6"),
                                  labels = c("IFN-gamma", "IL-10", "IL-6")))

ggplot(cyt_long, aes(time, pg_mL)) +
  geom_line(linewidth = 0.7) +
  scale_y_log10() +
  facet_grid(subject ~ cytokine) +
  coord_cartesian(xlim = c(0, 300)) +
  labs(x = "Time (d)", y = "Concentration (pg/mL)",
       title = "Replicates Figure 1b (lower panels) of Hardiansyah 2019") +
  theme_bw()

cyt_cmp <- tibble::tribble(
  ~Subject, ~Cytokine,   ~Column, ~Digitized,
  "UPN1",   "IL-6",      "il6",   2800,
  "UPN1",   "IL-10",     "il10",   550,
  "UPN1",   "IFN-gamma", "ifng",   700,
  "UPN3",   "IL-6",      "il6",     50,
  "UPN3",   "IL-10",     "il10",   150,
  "UPN3",   "IFN-gamma", "ifng",   110
) |>
  dplyr::rowwise() |>
  dplyr::mutate(
    Simulated = peak_of(Subject, Column)[["value"]],
    `Peak day` = round(peak_of(Subject, Column)[["time"]], 1),
    `Ratio sim/fig` = round(Simulated / Digitized, 2)
  ) |>
  dplyr::ungroup() |>
  dplyr::select(-Column)
knitr::kable(cyt_cmp, digits = 1,
             caption = "Peak cytokine concentration (pg/mL) vs values digitized from Figure 1b.")
Peak cytokine concentration (pg/mL) vs values digitized from Figure 1b.
Subject Cytokine Digitized Simulated Peak day Ratio sim/fig
UPN1 IL-6 2800 2744.7 3.3 1.0
UPN1 IL-10 550 915.3 3.2 1.7
UPN1 IFN-gamma 700 828.4 3.6 1.2
UPN3 IL-6 50 49.3 19.2 1.0
UPN3 IL-10 150 116.4 19.2 0.8
UPN3 IFN-gamma 110 119.6 19.6 1.1

stopifnot(all(cyt_cmp$`Ratio sim/fig` > 1 / 1.8),
          all(cyt_cmp$`Ratio sim/fig` < 1.8))

The paper reports that the inflammatory response peaks “between 15 and 23 days postinfusion”. That statement covers UPN3; UPN1’s simulated cytokine peaks fall earlier (see the Peak day column), which tracks UPN1’s much faster effector expansion and burden crash.

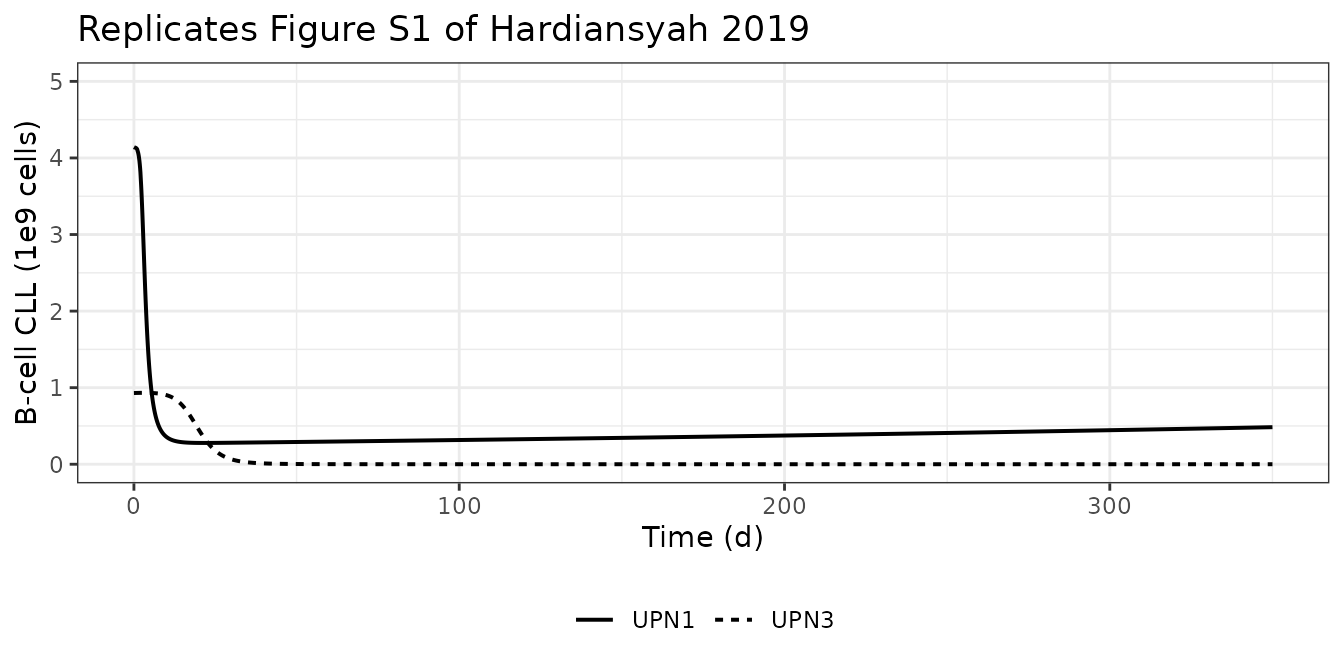

Replicating Figure S1 – CLL B-cell kinetics

Figure S1 is the one panel in the paper drawn on a linear axis, in units of 1e9 cells, and is therefore the most precise digitization target available.

ggplot(sim, aes(time, b_pb, linetype = subject)) +
  geom_line(linewidth = 0.7) +
  coord_cartesian(ylim = c(0, 5)) +
  labs(x = "Time (d)", y = "B-cell CLL (1e9 cells)", linetype = NULL,
       title = "Replicates Figure S1 of Hardiansyah 2019") +
  theme_bw() + theme(legend.position = "bottom")

at_time <- function(subj, tt, col) {
  s <- sim[sim$subject == subj, ]
  s[[col]][which.min(abs(s$time - tt))]
}
b_cmp <- tibble::tribble(
  ~Subject, ~Time, ~`Digitized (Fig S1)`,
  "UPN1",      0,  4.14,
  "UPN1",     50,  0.30,
  "UPN1",    350,  0.45,
  "UPN3",      0,  0.93
) |>
  dplyr::rowwise() |>
  dplyr::mutate(Simulated = at_time(Subject, Time, "b_pb")) |>
  dplyr::ungroup()
knitr::kable(b_cmp, digits = 3, caption = "CLL B cells in peripheral blood (1e9 cells).")
CLL B cells in peripheral blood (1e9 cells).
Subject Time Digitized (Fig S1) Simulated
UPN1 0 4.14 4.140
UPN1 50 0.30 0.291
UPN1 350 0.45 0.484
UPN3 0 0.93 0.930

# Baselines are exact (they are ini() parameters); the two plateau readings
# come off a linear axis and are good to about +/- 0.1 units.
stopifnot(
  abs(at_time("UPN1", 0, "b_pb") - 4.14) < 1e-8,
  abs(at_time("UPN3", 0, "b_pb") - 0.93) < 1e-8,
  abs(at_time("UPN1", 50, "b_pb") - 0.30) < 0.1,
  abs(at_time("UPN1", 350, "b_pb") - 0.45) < 0.1
)

Structural checks

These are deterministic identities implied by the equations, so they are asserted tightly.

Cytokine baselines are a true steady state

The supplement defines P_endo = d * baseline. With no CART present each cytokine must sit exactly on its baseline for all time.

no_dose <- rxode2::rxSolve(
  uis$UPN1, rxode2::et(seq(0, 350, by = 1), cmt = "b_pb"),
  useLinCmt = FALSE, atol = 1e-12, rtol = 1e-10,
  returnType = "data.frame"
)
bl <- c(il6 = 1.7, il10 = 4.5, ifng = 2.3)   # UPN1 ini() baselines
drift <- vapply(names(bl), function(k) max(abs(no_dose[[k]] - bl[[k]])), numeric(1))
drift
#>  il6 il10 ifng
#>    0    0    0
stopifnot(all(drift < 1e-8))

Without CART the B-cell burden must grow at exactly r_B - d_B:

k_obs <- unname(coef(lm(log(no_dose$b_pb) ~ no_dose$time))[2])
c(observed = k_obs, expected = 9.30e-3 - 7.60e-3)
#> observed expected
#>   0.0017   0.0017
stopifnot(abs(k_obs - (9.30e-3 - 7.60e-3)) < 1e-6)

Cell mass balance

The a_E / a_M interconversion and the k_in / k_out distribution move cells between pools; only growth and death may change the total. Suppressing all four growth and death rates therefore turns the four CAR T-cell states into a closed system whose total must equal the cumulative infused dose exactly, at every time point.

s1 <- sim[sim$subject == "UPN1", ]
inert <- solve_subject("UPN1", params = c(
  lre = log(1e-12), ldcarte = log(1e-12),
  lrm = log(1e-12), ldcartm = log(1e-12)
))
total_cart <- inert$carte_pb + inert$carte_t + inert$cartm_pb + inert$cartm_t
infused <- ifelse(inert$time < 1, 0.11, ifelse(inert$time < 2, 0.44, 1.10))
max(abs(total_cart - infused) / infused)
#> [1] 1.21963e-11
stopifnot(max(abs(total_cart - infused) / infused) < 1e-8)

# The gate is not vacuous: the interconversion it is testing is still
# running, so a non-conserving transfer term would break the balance.
max(inert$cartm_pb)
#> [1] 0.004587688
stopifnot(max(inert$cartm_pb) > 1e-3)

Tissue/blood distribution reaches the k_in / k_out ratio

late <- s1[s1$time > 250, ]
ratio <- median(late$cartm_t / late$cartm_pb)
c(observed = ratio, expected = 76.78 / 1.84)
#> observed expected
#> 41.91782 41.72826
# Deterministic solve; the 0.45% achieved is quasi-equilibrium residual, not
# sampling noise, so the bound is tight.
stopifnot(abs(ratio / (76.78 / 1.84) - 1) < 0.02)

The terminal decline of total CART is therefore governed not by d_CARTM (0.408/d) but by d_CARTM diluted across the tissue reservoir:

k_term <- -unname(coef(lm(log(late$cart_pb) ~ late$time))[2])
f_pb <- 1 / (1 + 76.78 / 1.84)
c(observed = k_term, predicted = (4.08e-1 - 5.09e-2) * f_pb)
#>    observed   predicted
#> 0.008320657 0.008357466
stopifnot(abs(k_term / ((4.08e-1 - 5.09e-2) * f_pb) - 1) < 0.02)

This is what produces the slow, nearly log-linear terminal CART phase of Figure 1b – a half-life of about 83 days rather than the ~1.7 days a naive reading of d_CARTM would suggest.

Mutation controls for the two Errata decisions

Two defects in the supplement had to be resolved before the model would reproduce the authors’ own figures. Each resolution is demonstrated here by re-solving with the literal printed reading and showing it fails.

mut <- function(par, value) {
  out <- solve_subject("UPN1", params = setNames(value, par))
  max(out$cartm_pb)
}
mutation_tab <- tibble::tribble(
  ~Reading,                                                ~`Peak memory CART (1e9 cells)`,
  "As implemented (h numerically 1e5 in b_pb units)",      max(s1$cartm_pb),
  "h read literally as 1e5 CELLS (= 1e-4 model units)",    mut("lh", log(1e-4)),
  "h as 1e5 cells/mL x 5 L blood (= 0.5 model units)",     mut("lh", log(0.5)),
  "Digitized from Figure 1b",                              7.0e-3
)
knitr::kable(mutation_tab, digits = 8)
Reading Peak memory CART (1e9 cells)
As implemented (h numerically 1e5 in b_pb units) 0.00734449
h read literally as 1e5 CELLS (= 1e-4 model units) 0.00000077
h as 1e5 cells/mL x 5 L blood (= 0.5 model units) 0.00228830
Digitized from Figure 1b 0.00700000

# The literal "1e5 cells" reading collapses the memory pool by >3 orders of
# magnitude, so Figure 1b falsifies it outright.
stopifnot(mut("lh", log(1e-4)) < max(s1$cartm_pb) / 1000)

# The blood-volume reading -- the obvious way to rescue the printed
# "Cells/ml" unit -- is also falsified, though less dramatically: it
# undershoots Figure 1b's memory peak by a factor of ~3, well outside the
# factor-1.5 digitization band the CART gate above uses.
stopifnot(mut("lh", log(0.5)) < 7.0e-3 / 2)

# Peak TOTAL CART barely moves across all three readings (the effector arm
# dominates it: 2.5495 vs 2.5499, a relative change of 1.5e-4), while the
# memory pool moves 3-fold and then 9500-fold. That contrast is why this
# control is stated on cartm_pb and not on total CART -- a gate on the
# total could not tell the three readings apart at all.
cart_total_h05 <- max(solve_subject("UPN1", params = c(lh = log(0.5)))$cart_pb)
stopifnot(
  abs(cart_total_h05 / max(s1$cart_pb) - 1) < 1e-3,
  max(s1$cartm_pb) / mut("lh", log(0.5)) > 3
)

The second defect is Eq. 7’s gain term. Printed as + a_E * CARTM_PB * (1 - f(B)), the memory pool has no source at all: with CARTM(0) = 0 every term in Eq. 7 is proportional to cartm_pb, so the state is identically zero forever.

eq7_printed <- rxode2::rxode2({
  fb <- b_pb / (b_pb + h)
  d/dt(b_pb) <- rb * b_pb - db * b_pb - kbc * carte_pb * b_pb
  d/dt(carte_pb) <- re * carte_pb * b_pb - dcarte * carte_pb -
    kin * carte_pb + kout * carte_t -
    ae * carte_pb * (1 - fb) + am * cartm_pb * fb
  d/dt(carte_t) <- kin * carte_pb - kout * carte_t
  # Eq. 7 exactly as printed in the supplement:
  d/dt(cartm_pb) <- rm_ * cartm_pb - dcartm * cartm_pb -
    kin * cartm_pb + kout * cartm_t +
    ae * cartm_pb * (1 - fb) - am * cartm_pb * fb
  d/dt(cartm_t) <- kin * cartm_pb - kout * cartm_t
})

pars_printed <- c(
  rb = 9.30e-3, db = 7.60e-3, kbc = 0.19, re = 16.16, dcarte = 23.04,
  ae = 2.4e-2, am = 1, rm_ = 5.09e-2, dcartm = 4.08e-1,
  kin = 76.78, kout = 1.84, h = 1e5
)
out_printed <- rxode2::rxSolve(
  eq7_printed, pars_printed, cart_events(doses[["UPN1"]]),
  inits = c(b_pb = 4.14, carte_pb = 0, carte_t = 0, cartm_pb = 0, cartm_t = 0),
  atol = 1e-12, rtol = 1e-10, maxsteps = 1e6, returnType = "data.frame"
)
max(out_printed$cartm_pb)
#> [1] 0
# Every term in the printed Eq. 7 is proportional to cartm_pb, so with
# cartm_pb(0) = 0 the derivative is identically zero. The bound is 1e-12
# rather than exact 0 only to stay independent of solver round-off; the
# implemented form gives 7.3e-3, nine orders of magnitude higher.
stopifnot(max(out_printed$cartm_pb) < 1e-12)

The memory pool is exactly zero, which also zeroes the a_M feedback term in Eq. 5 and removes the entire memory arm the paper’s Figure 1b plots. The implemented gain term + a_E * carte_pb * (1 - f(B)) is the one labelled on the Figure 1a arrow and the one the prose describes.

NCA on the CART cellular kinetics

Hardiansyah 2019 validates the model externally against CART peak concentration and AUC from time 0 to 28 days (Figure 2a, against Mueller et al. 2017). Those are the NCA metrics computed here with PKNCA.

nca_conc <- sim |>
  dplyr::filter(!is.na(cart_pb)) |>
  dplyr::transmute(id = subject, treatment = subject, time = time, conc = cart_pb)
stopifnot(all(c("UPN1", "UPN3") %in% nca_conc$id),
          all(tapply(nca_conc$time, nca_conc$id, min) == 0))

nca_dose <- sim |>
  dplyr::distinct(subject) |>
  dplyr::transmute(id = subject, treatment = subject, time = 0,
                   dose = unname(doses[subject]))

o_conc <- PKNCA::PKNCAconc(nca_conc, conc ~ time | treatment + id)
o_dose <- PKNCA::PKNCAdose(nca_dose, dose ~ time | treatment + id)
o_data <- PKNCA::PKNCAdata(
  o_conc, o_dose,
  intervals = data.frame(start = 0, end = 28, cmax = TRUE, tmax = TRUE, auclast = TRUE)
)
res <- as.data.frame(PKNCA::pk.nca(o_data, verbose = FALSE))

nca_tab <- res |>
  dplyr::select(id, PPTESTCD, PPORRES) |>
  tidyr::pivot_wider(names_from = PPTESTCD, values_from = PPORRES) |>
  dplyr::rename("Subject" = id, "Cmax (1e9 cells)" = cmax,
                "Tmax (d)" = tmax, "AUC0-28 (1e9 cell.d)" = auclast)
knitr::kable(nca_tab, digits = 3,
             caption = "NCA on simulated peripheral-blood CART, matching the metrics the paper validates externally (Figure 2a).")
NCA on simulated peripheral-blood CART, matching the metrics the paper validates externally (Figure 2a).
Subject AUC0-28 (1e9 cell.d) Cmax (1e9 cells) Tmax (d)
UPN1 14.663 2.550 3.8
UPN3 1.069 0.097 27.2

stopifnot(nrow(nca_tab) == 2L, all(nca_tab$`Cmax (1e9 cells)` > 0))

The paper’s Figure 2a compares log-transformed mean and SD of these quantities against observed CLL values; it prints no numeric table, so no numeric side-by-side comparison against published NCA is possible. The ordering the paper relies on – UPN1’s far larger expansion – is reproduced:

stopifnot(
  nca_tab$`Cmax (1e9 cells)`[nca_tab$Subject == "UPN1"] >
    nca_tab$`Cmax (1e9 cells)`[nca_tab$Subject == "UPN3"]
)

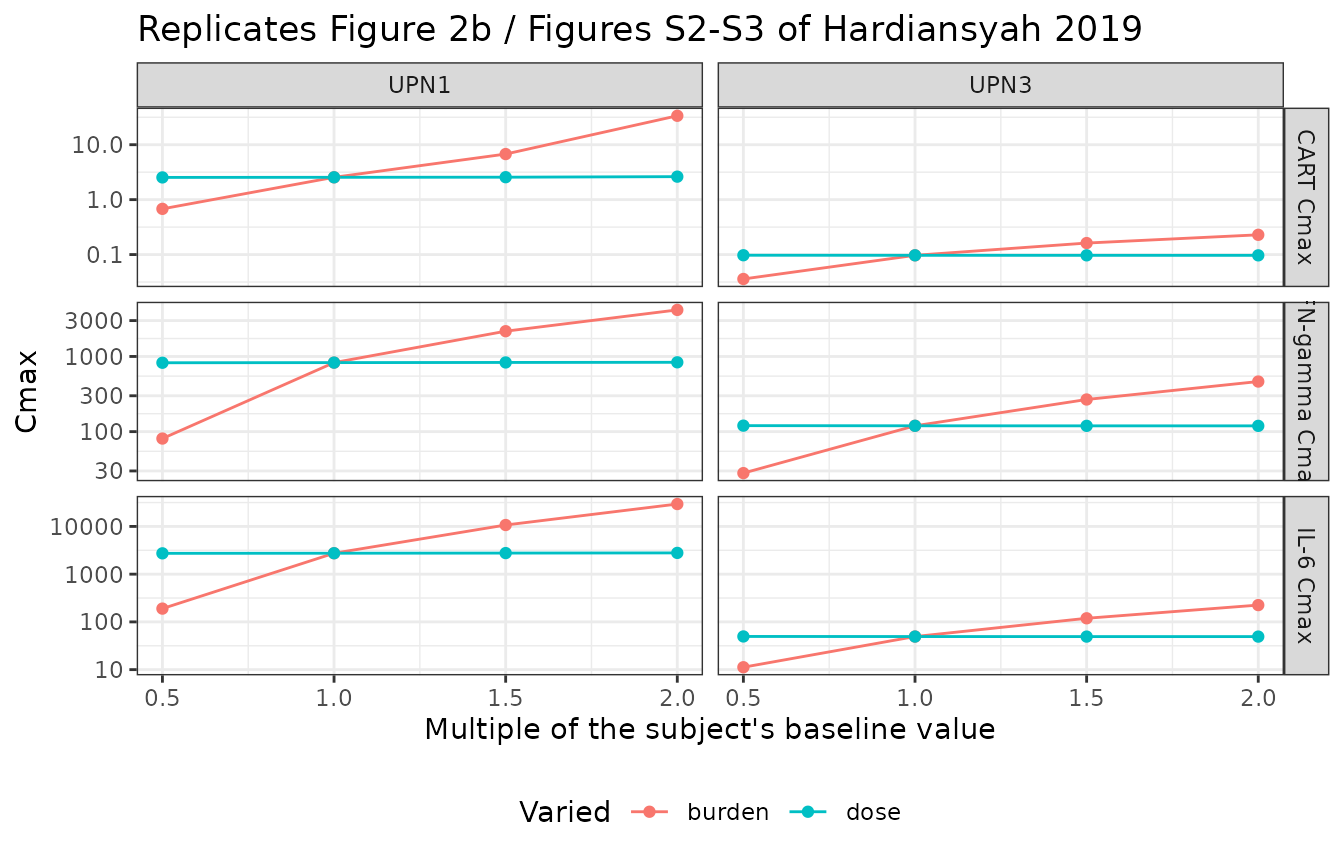

Replicating Figure 2b – disease burden versus dose

The paper’s central claim: cytokine and CART peaks scale with baseline disease burden, not with administered dose. Figure 2b simulates 0.5x, 1x, 1.5x and 2x each subject’s baseline burden and dose.

mult <- c(0.5, 1, 1.5, 2)

sweep_one <- function(subj, m, what) {
  b0 <- if (what == "burden") uis[[subj]]$theta[["lb0"]] + log(m) else uis[[subj]]$theta[["lb0"]]
  d <- if (what == "dose") doses[[subj]] * m else doses[[subj]]
  out <- rxode2::rxSolve(
    uis[[subj]], cart_events(d, times = seq(0, 120, by = 0.1)),
    params = c(lb0 = b0), useLinCmt = FALSE,
    atol = 1e-12, rtol = 1e-10, maxsteps = 1e6, returnType = "data.frame"
  )
  data.frame(
    subject = subj, varied = what, multiplier = m,
    cart_cmax = max(out$cart_pb), ifng_cmax = max(out$ifng),
    il6_cmax = max(out$il6)
  )
}

sweep <- dplyr::bind_rows(lapply(names(model_names), function(s)
  dplyr::bind_rows(lapply(c("burden", "dose"), function(w)
    dplyr::bind_rows(lapply(mult, function(m) sweep_one(s, m, w)))))))

sweep_long <- sweep |>
  tidyr::pivot_longer(c(cart_cmax, ifng_cmax, il6_cmax),
                      names_to = "metric", values_to = "cmax") |>
  dplyr::mutate(metric = factor(metric, levels = c("cart_cmax", "ifng_cmax", "il6_cmax"),
                                labels = c("CART Cmax", "IFN-gamma Cmax", "IL-6 Cmax")))

ggplot(sweep_long, aes(multiplier, cmax, colour = varied)) +
  geom_line() + geom_point() +
  scale_y_log10() +
  facet_grid(metric ~ subject, scales = "free_y") +
  labs(x = "Multiple of the subject's baseline value", y = "Cmax",
       colour = "Varied",
       title = "Replicates Figure 2b / Figures S2-S3 of Hardiansyah 2019") +
  theme_bw() + theme(legend.position = "bottom")

fold <- sweep_long |>
  dplyr::group_by(subject, varied, metric) |>
  dplyr::summarise(`Fold change 0.5x -> 2x` = max(cmax) / min(cmax), .groups = "drop") |>
  tidyr::pivot_wider(names_from = varied, values_from = `Fold change 0.5x -> 2x`) |>
  dplyr::rename("Varying burden" = burden, "Varying dose" = dose)
knitr::kable(fold, digits = 2,
             caption = "Fold change in Cmax across a 4-fold change in baseline burden vs in dose.")
Fold change in Cmax across a 4-fold change in baseline burden vs in dose.
subject metric Varying burden Varying dose
UPN1 CART Cmax 49.49 1.03
UPN1 IFN-gamma Cmax 51.41 1.01
UPN1 IL-6 Cmax 155.09 1.02
UPN3 CART Cmax 6.37 1.00
UPN3 IFN-gamma Cmax 16.52 1.01
UPN3 IL-6 Cmax 20.03 1.01

# The paper's qualitative claim, asserted on every subject x metric pair:
# burden moves the peak more than dose does. Both sides are deterministic
# solves, so these bounds are set just outside the achieved values
# (burden 6.4-155x, dose 1.004-1.033x) rather than loosened for noise.
stopifnot(all(fold$`Varying burden` > fold$`Varying dose`))
# Cytokine peaks in particular are nearly dose-insensitive.
cyt <- fold[fold$metric != "CART Cmax", ]
stopifnot(all(cyt$`Varying dose` < 1.2), all(cyt$`Varying burden` > 5))

Across a 4-fold change, the cytokine peaks move by 17- to 155-fold when the burden is varied and by under 3% when the dose is varied. That is exactly the asymmetry the paper reports, and it is the mechanistic basis for its conclusion that CRS risk is a disease-burden phenomenon rather than a dose phenomenon.

The mechanism is visible in the equations: CART expansion is r_E * carte_pb * b_pb, so the burden enters the growth rate of the effector pool while the dose enters only its initial condition. An exponential growth rate beats a linear scaling of the starting value, and cytokine secretion is in turn proportional to the b_pb * carte_pb product, which carries the burden twice.

Assumptions and deviations

Errata and resolved source defects

The main article contains no equations and no parameter values; everything was taken from the Supplementary File. That file carries three defects that had to be resolved before the model would reproduce the authors’ own published figures. None was resolved by tuning – each was settled against Figure 1a, Figure 1b or Figure S1, and the two consequential ones carry mutation controls above.

  1. Equation 7’s gain term is a typographical error. As printed, the memory CART equation gains + a_E * CARTM_PB * (1 - f(B)). This breaks the flux pairing that the a_M terms obey (Eq. 5 loses exactly what Eq. 7 gains), and it makes cartm_pb identically zero for all time, which the mutation control above confirms numerically. The implemented term is + a_E * carte_pb * (1 - f(B)), which is what Figure 1a labels on that arrow and what the supplement’s prose describes.

  2. h cannot be used with the printed Cells/ml unit. Every other cell quantity in the model is a total count in units of 1e9 cells (Figure S1’s y-axis is explicitly “B-cell CLL (1e9 cells)”), and the supplement gives no blood volume with which to convert. All three readings were solved and compared against Figure 1b’s memory CART peak (mutation control above). Implementing h = 1e5 numerically in those same units reproduces that peak to within 5%; reading it as an absolute 1e5 cells collapses the memory pool by more than three orders of magnitude; and rescuing the printed Cells/ml by multiplying through a nominal 5 L blood volume – the most natural objection to the choice made here – undershoots the peak by a factor of about 3, also outside the digitization band. Peak total CART moves by only 1.5e-4 relative across all three readings, so the memory pool is the only quantity that discriminates them. The consequence is that f(B) is effectively 0 over the whole simulated range, so memory formation runs at full rate throughout and the a_M mobilisation term is inactive – a note worth carrying, because it means the saturation switch the supplement describes mechanistically is not actually exercised by the published parameter set.

  3. Two unit labels in the parameter tables are inconsistent with the equations they feed. Table S2 gives a_E as 1/1e9 cell d, but a_E appears in exactly the same structural position as a_M, which Table S1 gives as 1/d; a_E is implemented as 1/d. Table S1 gives b_G in ng, but b_G is added to an IL-10 concentration in b_G/(IL10 + b_G); it is implemented as 650 pg/mL, which reproduces Figure 1b’s IFN-gamma peaks (a ng/mL reading removes the IL-10 inhibition entirely and overshoots UPN1’s IFN-gamma peak by ~50%).

Figure-derived parameters

The six cytokine baselines (bl_il6, bl_il10, bl_ifng for each subject) appear in neither Table S1 nor Table S2 nor the main text. The supplement defines P_endo = d * Baseline Cytokine, with the baseline taken from the source data of Kalos et al. 2011, whose supplementary tables are not open access (PMC3393096). They were therefore digitized from the post-therapy plateau of the fitted line in each panel of Figure 1b, which by the supplement’s own definition equals P_endo / d. Read off a six-decade log axis, they are worth roughly +/- 30%. They set the pre- and post-treatment floor of each cytokine curve; the CRS-relevant peak is two to three orders of magnitude above the floor and is essentially insensitive to them.

The supplement also distinguishes P_endo at t = 0 (from the baseline at time zero) from P_endo at t > 0 (from the mean post-therapy baseline). Since the t = 0 form applies only at a single instant it affects nothing but the initial condition, and the two values are not separately readable from the figure. A single baseline per cytokine is used for both, which means the first few simulated days may sit below the observed points for UPN1 IL-10 in particular.

Other assumptions

  • No variability. The parenthesised percentages in Table S2 are estimation precision (%RSE) on an individual fit – the main text describes them as “estimated with good precision (percentage of coefficient of variation < 50)” – not between-subject variability. The paper reports no IIV and no residual-error model, so the extraction carries none and every solve here is deterministic.
  • Two files, one model. Table S2 reports a complete independent set of seven parameters per subject, so UPN1 and UPN3 are separate model files sharing one structure and one vignette.
  • Baseline disease burden as a parameter. b_pb(0) is encoded as a fixed model parameter (lb0) rather than a covariate column, so no new canonical covariate name was introduced.
  • External validation is not reproduced numerically. Figure 2a (CART Cmax and AUC0-28 against Mueller 2017) and Figures S2-S3 (burden versus Cmax trends in ALL) are presented graphically with no numeric table, so the comparisons here are against digitized values and against the qualitative trends the paper states.
  • Cytokine specimen. The paper says “peripheral blood” without specifying serum or plasma, so compartmentData records whole blood.
