ui <- rxode2::rxode(readModelDb("Geerts_2018_amyloidNeurotransmission_qsp"))
ui$state
#> [1] "abeta40" "abeta42" "neuron"  "synapse"
  • Citation: Geerts H, Spiros A, Roberts P (2018). Impact of amyloid-beta changes on cognitive outcomes in Alzheimer’s disease: analysis of clinical trials using a quantitative systems pharmacology model. Alzheimer’s Research & Therapy 10:14. doi:10.1186/s13195-018-0343-5. The cortical network platform that converts the coupling variables encoded here into an ADAS-Cog readout is Roberts PD, Spiros A, Geerts H (2012) Alzheimers Res Ther 4(6):50 (reference [16] of the 2018 paper) and is NOT encoded in this file.
  • Article (open access): https://doi.org/10.1186/s13195-018-0343-5
  • PMCID: PMC5797372. The paper has no supplementary information, and “Availability of data and materials” states that no datasets were generated or analysed. Every value below is therefore from the main text.

Geerts, Spiros and Roberts asked why amyloid-lowering trials in Alzheimer’s disease keep failing. Their answer is a quantitative systems pharmacology argument: low-order amyloid-beta 40 (A-beta40) aggregates are neurostimulatory over a limited dose range, so indiscriminate amyloid lowering in a patient whose amyloid load is already low removes a benefit rather than a toxin.

What this file encodes, and what it cannot

The published model has two layers, and only the first is portable.

Layer 1 – extracted here. The paper’s own calibrated amyloid layer: linear A-beta40 and A-beta42 deposition, linear cortical neuron and synapse loss, and the two closed-form coupling equations that turn the A-beta loads into neurophysiological readouts (Equations 1A, 1B and 2, with the parameter set fixed in Results). Every constant is printed in the paper.

Layer 2 – NOT portable. The transfer function from those readouts to an ADAS-Cog score is a biophysically realistic cortical network of 80 glutamatergic pyramidal cells and 40 GABAergic interneurons with full dopaminergic, serotonergic, noradrenergic and cholinergic modulation, simulated in NEURON Release 7.2. It is a proprietary In Silico Biosciences platform described in the upstream reference (Roberts, Spiros & Geerts 2012, Alzheimers Res Ther 4:50), and this paper writes down neither its equations nor its parameters.

The model therefore outputs gNmdaRel and a7Rel, not ADAS-Cog. Figures 2, 3, 4a, 5 and 6 of the paper are ADAS-Cog predictions and cannot be reproduced numerically. What can be checked – and is checked below – is that the amyloid layer reproduces the paper’s own arithmetic exactly, and that the mechanism the paper’s conclusions rest on emerges from it.

Population

pop <- ui$population
knitr::kable(
  data.frame(Field = names(pop), Value = unlist(lapply(pop, as.character))),
  row.names = FALSE
)
Field Value
species human (in silico virtual patients)
n_subjects NA
n_studies NA
disease_state Two simulated populations. (1) Mild-to-moderate Alzheimer’s disease, MMSE 18-24, followed for 78 weeks – the calibration population of the upstream ADAS-Cog platform. (2) Minimal / mild cognitive impairment (MCI), simulated as a 3% decrease in synapse and neuron density plus a 30% INCREASE in cholinergic tone.
dose_range No dosing events. Amyloid-lowering interventions enter as the fractional reduction in A-beta deposition rate reported as clinical target engagement (Results, ‘Therapeutic amyloid-beta interventions’): verubecestat / BACE inhibitor 80-90% (A-beta40) and 60-80% (A-beta42); semagacestat / gamma-secretase inhibitor 30-50% and 15-30%; solanezumab 5-10% and 30-50%.
notes No individual-level cohort: this is a deterministic typical-value QSP model. The upstream cortical network was calibrated against 28 retrospective historical treatment outcomes (placebo from the flurbiprofen / tarenflurbil trials at 72 weeks; donepezil and rivastigmine at 2 doses x 3 time points; galantamine at 3 doses x 3 time points; SB742457 at 2 doses x 2 time points) in mild-to-moderate AD, giving R-squared above 0.6 (Results / Methods ‘Calibration of the network’, citing reference [16]). The coupling parameters encoded here were then constrained against three independent clinical datasets: baseline ADAS-Cog in A-beta+ vs A-beta- MCI subjects (Doraiswamy 2014 Mol Psychiatry, reference [17] Table 1: 10.8 vs 8.5, with normal elderly controls at 5.6 and 4.1); the scopolamine dose-response in MCI (Lim 2015 Neurobiol Aging, reference [18]); and the APOE effect on placebo cognitive trajectory in AD (Samtani 2015, reference [19]). Absolute baseline ADAS-Cog is 20-22 in the AD population depending on APOE genotype, and 4.5 for healthy cognitively normal controls in the MCI model. No datasets were generated or analysed by the paper itself (‘Availability of data and materials’).

There is no individual-level cohort: this is a deterministic typical-value QSP model with no IIV and no residual error. The upstream cortical network was calibrated against 28 retrospective historical treatment outcomes in mild-to-moderate AD (MMSE 18-24, 78 weeks), and the coupling parameters encoded here were then constrained against three independent clinical datasets – baseline ADAS-Cog in A-beta-positive versus A-beta-negative MCI subjects, the scopolamine dose-response in MCI, and the APOE effect on placebo cognitive trajectory.

Source trace

Equations

Model code Source Published form
gNmdaRel (branch abeta40 <= x0_ab40) Equation (1A) g(x,y) = g0 * [1 + delta*(x/x0) - y*alpha*]
gNmdaRel (branch abeta40 > x0_ab40) Equation (1B) g(x,y) = g0 * [1 + delta + (x0-x)*alpha - y*alpha*]
a7Rel Equation (2) alpha7(x,y) activation = alpha7 activation0 * [1 - beta*(x+y)]
d/dt(abeta40), d/dt(abeta42) Methods, “Alzheimer pathology and amyloid deposition” “arbitrarily set at 1 unit/13 weeks for both A-beta40 and A-beta42 … this value assumes linear growth”
apoeDep Methods, “APOE genotype” 1.50 / 1.00 / 0.50 units per 13 weeks for APOE4+/+, +/-, -/-
apoeSyn Methods, “APOE genotype” synapse density -20% (APOE4+/+) and +20% (APOE4-/-) vs the heterozygote
d/dt(neuron), d/dt(synapse) Methods, “Alzheimer pathology and amyloid deposition” “linear loss of neurons (at 0.35%/week) and synapses (0.04%/week)”
cholTone Methods / Results 30% cholinergic deficit (AD); 30% compensatory increase (MCI)
abetaPos Figure 2 legend “A-beta- subjects with x <= 2 and y <= 2, A-beta+ subjects with x > 2 and y > 2”
fracRed40, fracRed42 Results, “Therapeutic amyloid-beta interventions” “Patients on the active drugs have a proportionally lower A-beta40 and A-beta42 increase according to their biomarker change”

x is the A-beta40 load and y the A-beta42 load. Note that in both branches the A-beta42 term carries alpha* (alpha_ab42); only the (x0 - x) term in (1B) carries alpha (alpha_ab40). The two branches agree at x = x0, where both reduce to g0 * [1 + delta - y*alpha*].

Parameters

knitr::kable(
  ui$iniDf |>
    dplyr::select(name, est, fix, label) |>
    dplyr::rename(
      "Parameter" = name, "Value" = est, "Fixed" = fix, "Description" = label
    ),
  row.names = FALSE, digits = 6
)
Parameter Value Fixed Description
x0_ab40 2.000000 TRUE A-beta40 load at the maximal positive NMDA effect, x0 (A-beta load units)
delta_g 0.025000 TRUE Maximal relative increase in NMDA conductance from A-beta40, delta (unitless)
alpha_ab40 0.002000 TRUE Slope of NMDA conductance decline above x0 per A-beta40 unit, alpha (1/unit)
alpha_ab42 0.002000 TRUE Slope of NMDA conductance decline per A-beta42 unit, alpha* (1/unit)
beta_a7 0.030000 TRUE Coupling factor of summed A-beta load on alpha-7 nAChR activation, beta (1/unit)
abetaCutoff 3.000000 TRUE A-beta+ / A-beta- classification cutoff on each load axis (A-beta load units)
kdep40 0.076923 TRUE A-beta40 deposition rate in the APOE4+/- heterozygote (load units/week)
kdep42 0.076923 TRUE A-beta42 deposition rate in the APOE4+/- heterozygote (load units/week)
e_apoe4_kdep 0.500000 TRUE Fractional change in A-beta deposition rate per APOE4 allele above the heterozygote (unitless)
klossNeuron 0.003500 TRUE Linear cortical neuron loss rate, fraction of baseline density per week (1/week)
klossSynapse 0.000400 TRUE Linear cortical synapse loss rate, fraction of baseline density per week (1/week)
e_apoe4_syn 0.200000 TRUE Fractional change in baseline synapse density per APOE4 allele above the heterozygote (unitless)
SW_MCI 0.000000 TRUE Scenario switch: 0 = mild-to-moderate AD (default), 1 = MCI population
densLossMci 0.030000 TRUE Baseline neuron and synapse density decrease in the MCI population (unitless fraction)
cholDefAd 0.300000 TRUE Cholinergic tone deficit in the mild-to-moderate AD population (unitless fraction)
cholIncMci 0.300000 TRUE Compensatory cholinergic tone increase in the MCI population (unitless fraction)
abeta40Bl 4.000000 TRUE Baseline A-beta40 load at trial start (A-beta load units)
abeta42Bl 4.000000 TRUE Baseline A-beta42 load at trial start (A-beta load units)
fracRed40 0.000000 TRUE Fractional reduction of the A-beta40 deposition rate by treatment, 0 = placebo (unitless)
fracRed42 0.000000 TRUE Fractional reduction of the A-beta42 deposition rate by treatment, 0 = placebo (unitless)

Every parameter is fixed(): the paper reports a single calibrated parameterisation and estimates nothing from a user’s data.

The coupling set (x0_ab40 = 2, delta_g = 0.025, beta_a7 = 0.03, alpha_ab40 = 0.002, alpha_ab42 = 0.002) is the final set, from the closing sentence of Results “Sensitivity analysis”. The paper quotes two earlier sets that this supersedes: an exploratory set in “Constraining system parameters using clinical data” (delta = 0.015, alpha = 0.0015, alpha* = 0.00035, beta = 0.025) and the Figure 3 set (delta = 0.025, alpha = 0.002, alpha* = 0.002, beta unstated).

Units

Symbol Units Note
abeta40, abeta42 arbitrary A-beta load units 1 unit = the A-beta accumulated in 13 weeks by an APOE4+/- heterozygote; discretized 0-16 in the paper
kdep40, kdep42 load units / week 1/13 per week
neuron, synapse dimensionless fraction of that subject’s trial-baseline density
klossNeuron, klossSynapse 1 / week fraction of baseline lost per week
x0_ab40, abetaCutoff load units positions on the A-beta40 axis
delta_g dimensionless relative conductance increment
alpha_ab40, alpha_ab42, beta_a7 1 / load unit slopes per load unit
gNmdaRel, a7Rel dimensionless ratios to the A-beta-free reference (g0, activation0)

Dimensional check on each ODE: d/dt(abeta40) is [load units/week] x [dimensionless] x [dimensionless] = [load units]/[week]. d/dt(synapse) is [1/week] x [dimensionless] = 1/[week], matching a dimensionless state per week. In Equations (1A)/(1B)/(2) every additive term is dimensionless: delta_g and delta_g*(x/x0) directly, and alpha*y, alpha*(x0-x), beta*(x+y) as [1/load unit] x [load units].

Setting up solves

The model has no dosing events; the A-beta pools start at a baseline load and grow. Baseline loads, treatment effect and APOE genotype are supplied as columns of the event table.

solve_arm <- function(times = seq(0, 78, by = 13), apoe4 = 1,
                      bl40 = 4, bl42 = 4, f40 = 0, f42 = 0, mci = 0) {
  ev <- data.frame(
    id = 1L, time = times, evid = 0L, amt = NA_real_,
    APOE4_COUNT = apoe4, abeta40Bl = bl40, abeta42Bl = bl42,
    fracRed40 = f40, fracRed42 = f42, SW_MCI = mci
  )
  out <- rxode2::rxSolve(ui, ev, returnType = "data.frame")
  if (is.null(out$id)) out$id <- 1L
  out
}

Validation

Every quantity below is deterministic – the model has no random effects, so these are exact-value checks rather than tolerance bands on a simulated cohort.

1. A-beta deposition and the APOE genotype effect

dep <- vapply(0:2, function(a) diff(solve_arm(c(0, 13), apoe4 = a)$abeta40), numeric(1))
syn <- vapply(0:2, function(a) solve_arm(0, apoe4 = a)$synapse, numeric(1))
neu <- vapply(0:2, function(a) solve_arm(0, apoe4 = a)$neuron, numeric(1))

knitr::kable(
  data.frame(
    Genotype = c("APOE4-/-", "APOE4+/-", "APOE4+/+"),
    `A-beta units per 13 wk (model)` = dep,
    `A-beta units per 13 wk (paper)` = c(0.50, 1.00, 1.50),
    `Baseline synapse density (model)` = syn,
    `Baseline synapse density (paper)` = c(1.20, 1.00, 0.80),
    check.names = FALSE
  ),
  row.names = FALSE
)
Genotype A-beta units per 13 wk (model) A-beta units per 13 wk (paper) Baseline synapse density (model) Baseline synapse density (paper)
APOE4-/- 0.5 0.5 1.2 1.2
APOE4+/- 1.0 1.0 1.0 1.0
APOE4+/+ 1.5 1.5 0.8 0.8

stopifnot(
  isTRUE(all.equal(dep, c(0.50, 1.00, 1.50))),
  isTRUE(all.equal(syn, c(1.20, 1.00, 0.80))),
  # Geerts 2018 applies the APOE synaptic-density effect to SYNAPSES ONLY.
  isTRUE(all.equal(neu, c(1, 1, 1)))
)

2. Disease-state settings

ad <- solve_arm(0, mci = 0)
mci <- solve_arm(0, mci = 1)
stopifnot(
  isTRUE(all.equal(ad$cholTone, 0.70)),   # 30% cholinergic deficit
  isTRUE(all.equal(mci$cholTone, 1.30)),  # 30% compensatory increase
  isTRUE(all.equal(mci$neuron, 0.97)),    # 3% decrease in neuron density
  isTRUE(all.equal(mci$synapse, 0.97))    # 3% decrease in synapse density
)

3. Linear neurodegeneration

prog <- solve_arm(seq(0, 78, by = 13))
stopifnot(
  isTRUE(all.equal(prog$neuron, 1 - 0.0035 * prog$time)),
  isTRUE(all.equal(prog$synapse, 1 - 0.0004 * prog$time))
)

At 78 weeks the model has lost 27.3% of cortical neurons and 3.12% of synapses, matching 0.35%/week and 0.04%/week over 78 weeks.

4. Equations (1A) / (1B): the biphasic A-beta40 response

The defining property of the model – the one the paper’s conclusions rest on – is that NMDA conductance rises with A-beta40 up to x0 and falls thereafter.

grid <- expand.grid(abeta40Bl = seq(0, 16, by = 0.25), abeta42Bl = c(0, 4, 8, 16))
grid$id <- seq_len(nrow(grid))
ev_grid <- data.frame(
  id = grid$id, time = 0, evid = 0L, amt = NA_real_, APOE4_COUNT = 1,
  abeta40Bl = grid$abeta40Bl, abeta42Bl = grid$abeta42Bl,
  fracRed40 = 0, fracRed42 = 0, SW_MCI = 0
)
surf <- rxode2::rxSolve(ui, ev_grid, returnType = "data.frame")

ggplot(surf, aes(abeta40, gNmdaRel, colour = factor(abeta42))) +
  geom_line(linewidth = 0.8) +
  geom_vline(xintercept = 2, linetype = "dashed") +
  labs(
    x = "A-beta40 load (model units)",
    y = expression(g / g[0]~"(relative e-e NMDA conductance)"),
    colour = "A-beta42 load",

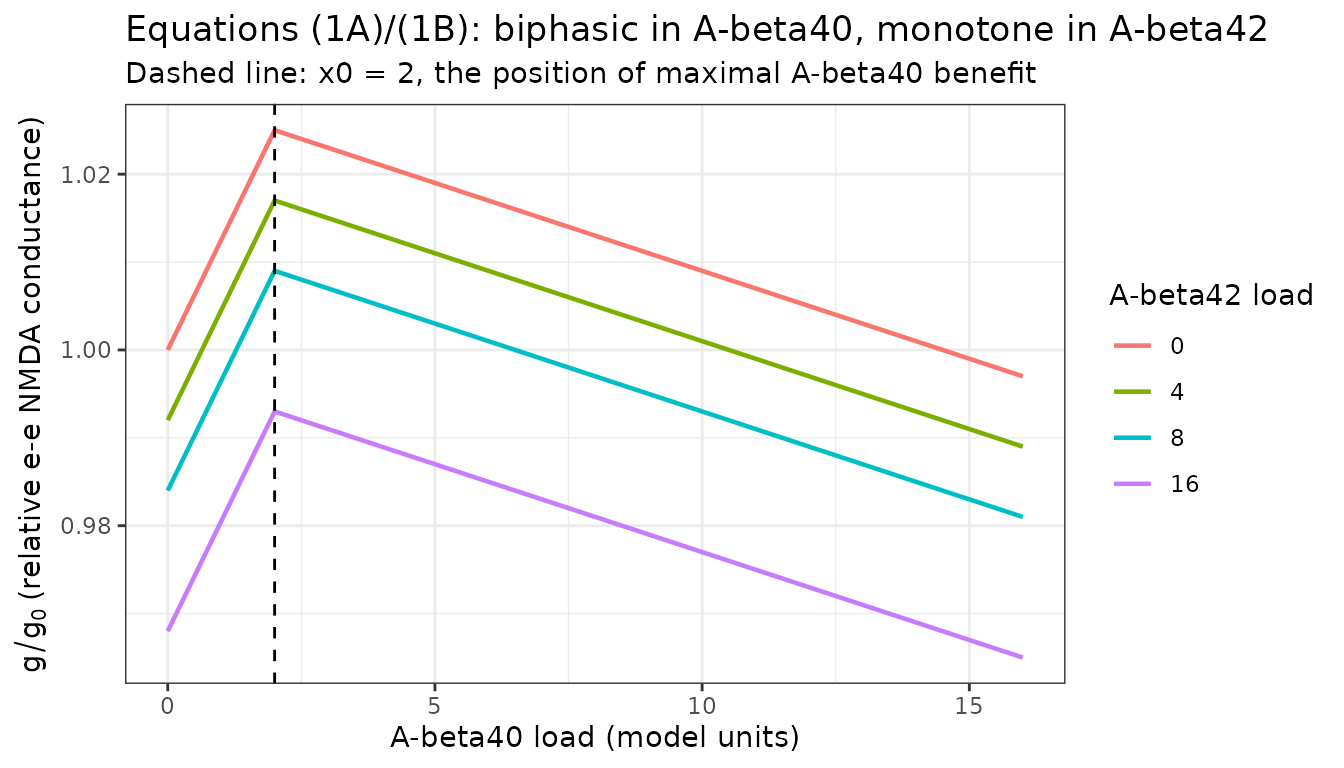

    title = "Equations (1A)/(1B): biphasic in A-beta40, monotone in A-beta42",
    subtitle = "Dashed line: x0 = 2, the position of maximal A-beta40 benefit"
  ) +
  theme_bw()

at_y0 <- surf[surf$abeta42 == 0, ]
peak <- at_y0[which.max(at_y0$gNmdaRel), ]
# Peak sits exactly at x0 and reaches exactly 1 + delta.
stopifnot(
  isTRUE(all.equal(peak$abeta40, 2)),
  isTRUE(all.equal(peak$gNmdaRel, 1.025))
)
# Strictly increasing below x0, strictly decreasing above it.
lo <- at_y0[at_y0$abeta40 <= 2, "gNmdaRel"]
hi <- at_y0[at_y0$abeta40 >= 2, "gNmdaRel"]
stopifnot(all(diff(lo) > 0), all(diff(hi) < 0))
# Continuous at the x = x0 branch point, and each branch approaches it at its
# own published slope: (1A) rises at delta/x0 = 0.0125 per load unit, (1B)
# falls at alpha = 0.002 per load unit. Testing both one-sided slopes is
# strictly stronger than testing the gap alone -- a gap test with a fixed
# epsilon cannot distinguish a discontinuity from the branch's own slope.
g_at <- function(v) solve_arm(0, bl40 = v, bl42 = 0)$gNmdaRel
g0 <- g_at(2)
for (eps in c(1e-2, 1e-3, 1e-4)) {
  stopifnot(
    isTRUE(all.equal((g0 - g_at(2 - eps)) / eps, 0.025 / 2, tolerance = 1e-6)),
    isTRUE(all.equal((g0 - g_at(2 + eps)) / eps, 0.002, tolerance = 1e-6))
  )
}
# Both one-sided limits converge on the same value, so the branches meet.
stopifnot(abs(g_at(2 - 1e-6) - g_at(2 + 1e-6)) < 1e-7)
# Monotone decreasing in A-beta42 at every A-beta40 load, with slope -alpha*.
by_y <- surf |>
  dplyr::filter(abeta40 == 4) |>
  dplyr::arrange(abeta42)
stopifnot(
  isTRUE(all.equal(
    diff(by_y$gNmdaRel) / diff(by_y$abeta42), rep(-0.002, nrow(by_y) - 1)
  ))
)

With delta_g = 0 the beneficial arm disappears entirely – the paper’s key sensitivity result, which it uses to argue that a neurostimulatory A-beta40 effect is necessary to reproduce three independent clinical datasets.

no_delta <- vapply(
  c(0, 1, 2, 4, 8, 16),
  function(v) {
    ev <- data.frame(
      id = 1L, time = 0, evid = 0L, amt = NA_real_, APOE4_COUNT = 1,
      abeta40Bl = v, abeta42Bl = 0, fracRed40 = 0, fracRed42 = 0,
      SW_MCI = 0, delta_g = 0
    )
    rxode2::rxSolve(ui, ev, returnType = "data.frame")$gNmdaRel
  },
  numeric(1)
)
stopifnot(all(diff(no_delta) <= 0), no_delta[1] == 1)

5. Equation (2): alpha-7 nicotinic coupling

a7 <- surf |> dplyr::mutate(total = abeta40 + abeta42)
stopifnot(isTRUE(all.equal(a7$a7Rel, 1 - 0.03 * a7$total)))

a7Rel depends only on the summed load, as the paper specifies (“here the effects for the two A-beta forms are identical”).

6. The paper’s own worked deposition example

Results, “Therapeutic amyloid-beta interventions”: “in the case of a low dose of GSI, a 40% reduction in A-beta40 and a 20% reduction in A-beta42 corresponds to an increase of 0.6 units along the A-beta40 axis and 0.80 units along the A-beta42 axis/13 weeks.”

gsi <- solve_arm(c(0, 13), f40 = 0.40, f42 = 0.20)
stopifnot(
  isTRUE(all.equal(diff(gsi$abeta40), 0.60)),
  isTRUE(all.equal(diff(gsi$abeta42), 0.80))
)

This fixes the treatment mechanism unambiguously: the reported target engagement scales the deposition rate, not the standing load.

7. Independent check against the published 3x3 weighting factors

The paper queries its discrete 17x17 outcome matrix by averaging a 3x3 neighbourhood with weights chosen so that “the mass average of the A-beta load corresponds to the actual load”. For a patient starting at x = y = 4 on low-dose BACE-I (80% A-beta40 and 60% A-beta42 reduction) it publishes weights of 0.73 / 0.33 / -0.06 on A-beta40 units 4, 5, 6 and 0.64 / 0.33 / 0.03 on A-beta42.

Those weights were not used to build this model, so reproducing the loads they imply is an independent test of the deposition ODE, the APOE reference rate, and the fractional-reduction mechanism together.

pts <- c(4, 5, 6)
w40 <- c(0.73, 0.33, -0.06)
w42 <- c(0.64, 0.33, 0.03)
bace <- solve_arm(c(0, 13), bl40 = 4, bl42 = 4, f40 = 0.80, f42 = 0.60)

knitr::kable(
  data.frame(
    Species = c("A-beta40", "A-beta42"),
    `Weight sum (paper)` = c(sum(w40), sum(w42)),
    `Mass-average load (paper)` = c(sum(w40 * pts), sum(w42 * pts)),
    `Load after 13 wk (model)` = c(bace$abeta40[2], bace$abeta42[2]),
    check.names = FALSE
  ),
  row.names = FALSE, digits = 3
)
Species Weight sum (paper) Mass-average load (paper) Load after 13 wk (model)
A-beta40 1 4.21 4.2
A-beta42 1 4.39 4.4

stopifnot(
  # The published weights are a partition of unity, as a mass average requires.
  isTRUE(all.equal(sum(w40), 1)), isTRUE(all.equal(sum(w42), 1)),
  # Model loads match the paper's implied mass-average loads. The residual is
  # the paper's own rounding of the weights to two decimals (4.21 vs 4.20 and
  # 4.39 vs 4.40); 0.02 still fails on a mis-stated rate or reduction, which
  # would move these by 0.2-1.0 units.
  abs(sum(w40 * pts) - bace$abeta40[2]) < 0.02,
  abs(sum(w42 * pts) - bace$abeta42[2]) < 0.02
)

8. The central mechanistic claim: the sign of the treatment effect flips with baseline load

The paper’s conclusion is that amyloid lowering harms patients whose baseline amyloid load is low, because the placebo patient’s A-beta40 would otherwise climb through the stimulatory range towards x0, and helps patients whose load is already high. That claim lives entirely in Layer 1, so it can be tested here directly on the conductance readout.

arms <- data.frame(
  arm = c("BACE-I (verubecestat)", "GSI (semagacestat)", "Solanezumab"),
  f40 = c(0.85, 0.40, 0.075),
  f42 = c(0.70, 0.225, 0.40)
)

contrast <- lapply(c(0, 1, 8), function(bl) {
  pl <- solve_arm(seq(0, 78, by = 13), bl40 = bl, bl42 = bl)
  lapply(seq_len(nrow(arms)), function(i) {
    tr <- solve_arm(seq(0, 78, by = 13), bl40 = bl, bl42 = bl,
                    f40 = arms$f40[i], f42 = arms$f42[i])
    data.frame(
      baseline = bl, arm = arms$arm[i], time = tr$time,
      delta = tr$gNmdaRel - pl$gNmdaRel
    )
  }) |> dplyr::bind_rows()
}) |> dplyr::bind_rows()

contrast$baseline_lab <- factor(
  contrast$baseline,
  levels = c(0, 1, 8),
  labels = c("baseline 0 units (A-beta-)", "baseline 1 unit (A-beta-)",
             "baseline 8 units (A-beta+)")
)

ggplot(contrast, aes(time, delta, colour = arm)) +
  geom_hline(yintercept = 0, linewidth = 0.4) +
  geom_line(linewidth = 0.8) +
  facet_wrap(~baseline_lab) +
  annotate("rect", xmin = 10, xmax = 35, ymin = -Inf, ymax = Inf, alpha = 0.08) +
  labs(
    x = "Trial week",
    y = "Change in g/g0 versus placebo",
    colour = NULL,

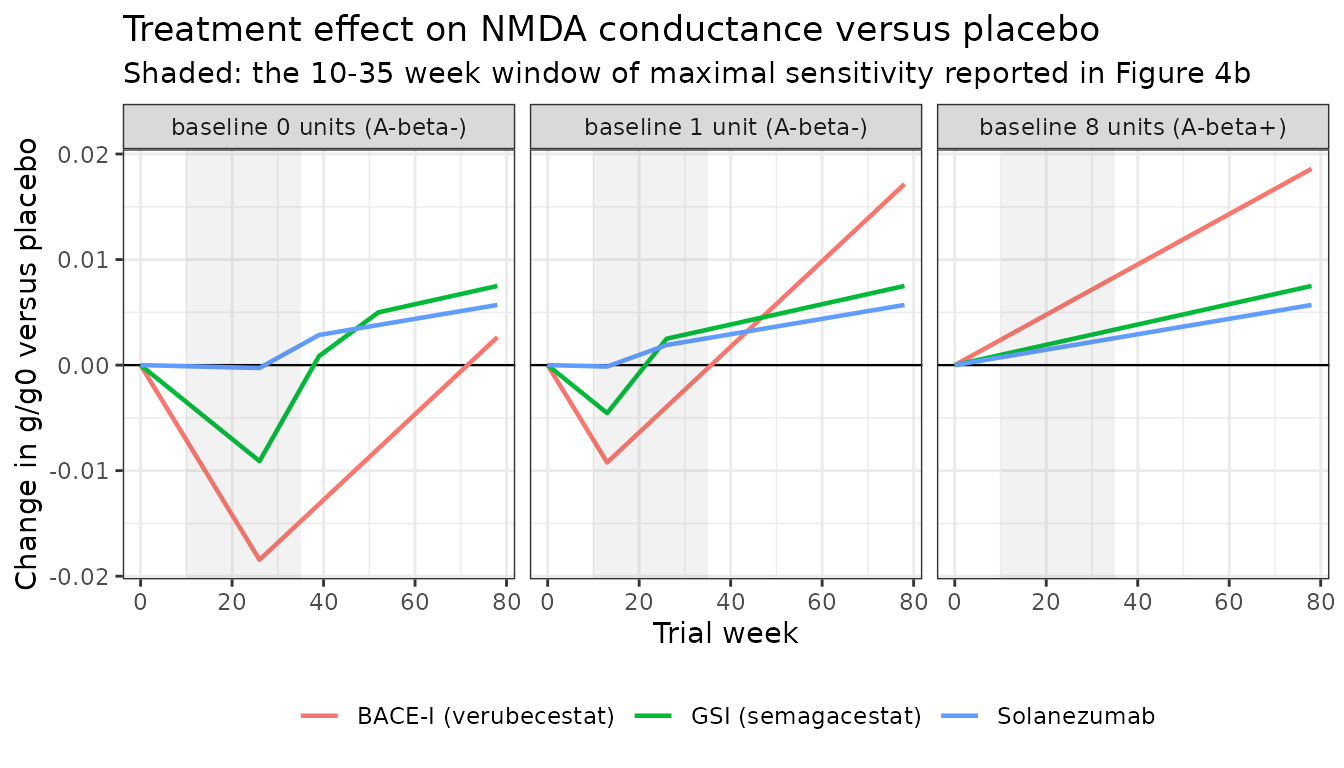

    title = "Treatment effect on NMDA conductance versus placebo",
    subtitle = "Shaded: the 10-35 week window of maximal sensitivity reported in Figure 4b"
  ) +
  theme_bw() +
  theme(legend.position = "bottom")

bace_only <- contrast[contrast$arm == "BACE-I (verubecestat)", ]
b0 <- bace_only[bace_only$baseline == 0, ]
b1 <- bace_only[bace_only$baseline == 1, ]
b8 <- bace_only[bace_only$baseline == 8, ]

stopifnot(
  # A-beta-negative baselines: BACE-I LOWERS conductance versus placebo through
  # the early and middle trial -- the paper's "reducing A-beta40 has a negative
  # effect because the stimulatory A-beta40 effect ... is lost".
  b0$delta[b0$time == 26] < 0,
  b1$delta[b1$time == 26] < 0,
  # A-beta-positive baseline: strictly beneficial at every post-baseline visit,
  # and growing with time ("most significantly at later time points").
  all(b8$delta[b8$time > 0] > 0),
  all(diff(b8$delta) > 0),
  # The worst deficit at zero baseline falls inside the paper's own 10-35 week
  # window of maximal sensitivity to A-beta-mediated conductance change.
  b0$time[which.min(b0$delta)] >= 10,
  b0$time[which.min(b0$delta)] <= 35
)

knitr::kable(
  data.frame(
    Baseline = c("0 units", "1 unit", "8 units"),
    `Week of largest |effect|` = c(
      b0$time[which.max(abs(b0$delta))],
      b1$time[which.max(abs(b1$delta))],
      b8$time[which.max(abs(b8$delta))]
    ),
    `Effect at 26 wk` = c(
      b0$delta[b0$time == 26], b1$delta[b1$time == 26], b8$delta[b8$time == 26]
    ),
    `Effect at 78 wk` = c(
      b0$delta[b0$time == 78], b1$delta[b1$time == 78], b8$delta[b8$time == 78]
    ),
    check.names = FALSE
  ),
  row.names = FALSE, digits = 5
)
Baseline Week of largest |effect| Effect at 26 wk Effect at 78 wk
0 units 26 -0.01845 0.00265
1 unit 78 -0.00395 0.01715
8 units 78 0.00620 0.01860

Three of the paper’s qualitative conclusions fall out of the amyloid layer alone:

  1. At an A-beta-negative baseline the BACE inhibitor reduces glutamatergic conductance relative to placebo through the first half of the trial.
  2. At an A-beta-positive baseline every intervention raises it, and the benefit grows monotonically with time.
  3. The largest effect at zero baseline lands at week 26, inside the 10-35 week window of maximal sensitivity the paper reports independently in Figure 4b.

9. APOE genotype trajectories

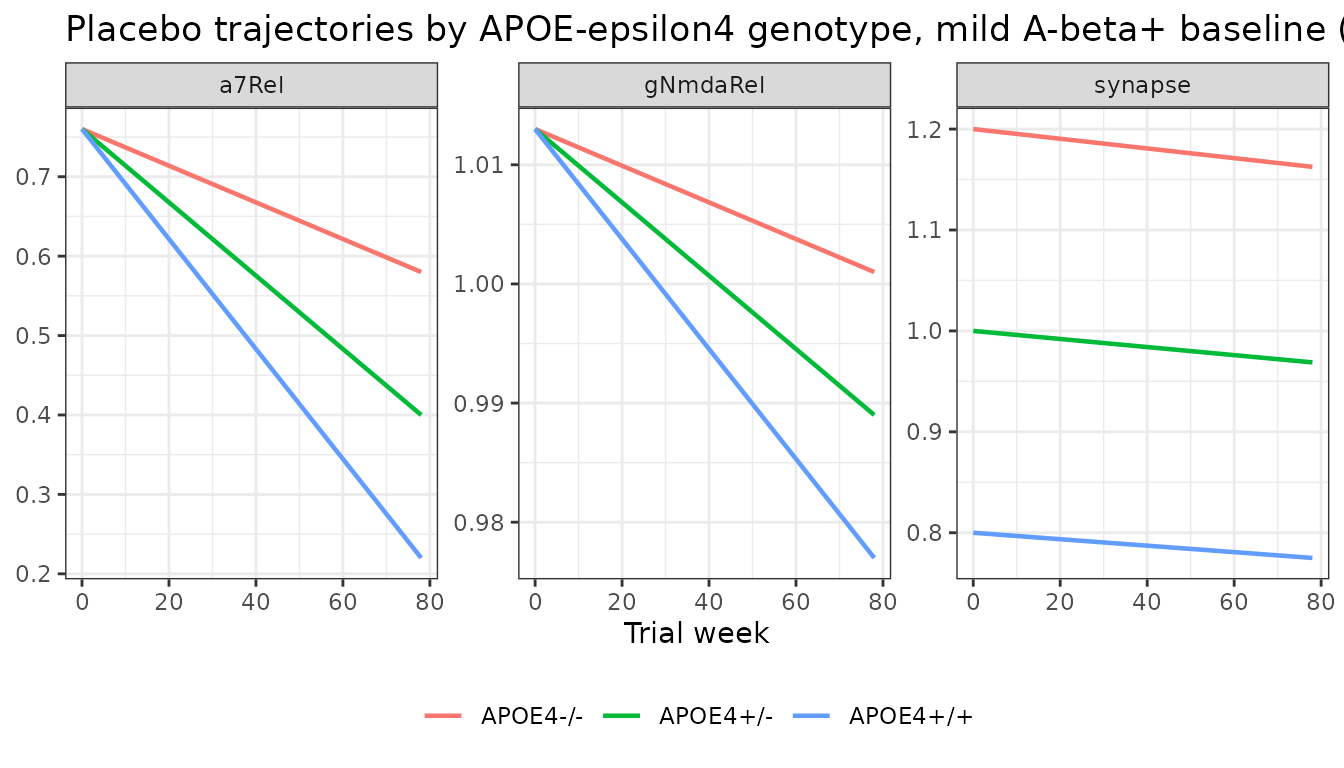

The portable analogue of Figure 4a. The paper’s version plots ADAS-Cog; this plots the conductance readout that drives it.

apoe <- lapply(0:2, function(a) {
  s <- solve_arm(seq(0, 78, by = 2), apoe4 = a)
  data.frame(
    time = s$time, genotype = c("APOE4-/-", "APOE4+/-", "APOE4+/+")[a + 1],
    gNmdaRel = s$gNmdaRel, a7Rel = s$a7Rel, synapse = s$synapse
  )
}) |> dplyr::bind_rows()

apoe |>
  tidyr::pivot_longer(c(gNmdaRel, a7Rel, synapse)) |>
  ggplot(aes(time, value, colour = genotype)) +
  geom_line(linewidth = 0.8) +
  facet_wrap(~name, scales = "free_y") +
  labs(x = "Trial week", y = NULL, colour = NULL,
       title = "Placebo trajectories by APOE-epsilon4 genotype, mild A-beta+ baseline (4 units)") +
  theme_bw() +
  theme(legend.position = "bottom")

end <- apoe[apoe$time == 78, ]
stopifnot(
  # Faster A-beta deposition in APOE4+/+ drives both readouts lower by 78 weeks.
  end$a7Rel[end$genotype == "APOE4+/+"] < end$a7Rel[end$genotype == "APOE4+/-"],
  end$a7Rel[end$genotype == "APOE4+/-"] < end$a7Rel[end$genotype == "APOE4-/-"],
  # Synapse density ordering is set by the APOE baseline effect and preserved.
  end$synapse[end$genotype == "APOE4+/+"] < end$synapse[end$genotype == "APOE4-/-"]
)

Assumptions and deviations

  • The ADAS-Cog layer is not encoded, and cannot be. Figures 2, 3, 4a, 5 and 6 of the paper report ADAS-Cog values produced by the NEURON cortical network. That network’s equations and parameters are not in this paper. No ADAS-Cog value anywhere in the paper is reproducible from this file, and none is asserted above. The model’s outputs are the coupling variables that the network consumes.
  • Absolute conductance is relative, not absolute. Equations (1A)/(1B)/(2) define g and alpha7 activation as multiples of the A-beta-free references g0 and activation0, whose absolute values are network-internal. gNmdaRel and a7Rel are those ratios.
  • The A-beta “unit” is arbitrary and the SUVR mapping is not implemented. The paper anchors 3 model units to a florbetapir SUVR of 1.34 and assumes “a linear relationship above and below this cutoff value”, but reports only cohort-average SUVRs either side (1.0 and 1.5) rather than a second point mapping. Those averages do not determine the two slopes, so no units-to-SUVR conversion is encoded; the 1.34 anchor is recorded in the model description only.
  • cholTone is reported, not used. Cholinergic tone is an input to the cortical network, not to Equations (1A)/(1B)/(2). It is surfaced so the disease-state setting is visible, but it drives nothing in this file.
  • Erratum – an internal inconsistency in the paper, resolved by its own arithmetic. Methods states the A-beta deposition rate as “1 unit/13 weeks” twice (in “Alzheimer pathology and amyloid deposition” and in “APOE genotype”). The Discussion restates the genotype-specific rates as “1.5 units/13 weeks, 1 unit/week and 0.5 units/13 weeks for the APOE4+/+, APOE4+/- and APOE4-/- genotype” – “per week” rather than “per 13 weeks”, and for the heterozygote only. The Methods value is used here. Beyond being stated twice and flanked in the same Discussion sentence by two “/13 weeks” values, it is the only reading consistent with the paper’s own Results arithmetic: check 6 above (the worked GSI example) and check 7 (the published 3x3 weighting factors) both reproduce exactly at 1 unit per 13 weeks and would be wrong by 13-fold at 1 unit per week. Treated as a typographical slip in the Discussion, not a modelling choice.
  • Deviation – persistence of the low-baseline harm. The paper states that at a low baseline load BACE inhibition worsens cognition “over the whole trial duration” (Figure 6a). In the amyloid layer the conductance deficit is transient: it is largest at week 26 and reverses sign by week 78 at a zero baseline (measured above) and by week 39 at a 1-unit baseline. The direction and the timing of the peak effect reproduce; the persistence does not. The most likely mechanism is Layer 2 – the paper evaluates its discrete 17x17 matrix through a 3x3 weighted average whose weights can be negative, over a network response that Figure 4b shows is itself non-monotonic in disease stage. This is recorded as a known disagreement rather than hidden by loosening the check.
  • Disease state is a switch, not a covariate. SW_MCI follows the QSP scenario-switch convention (as in Ivanova_2024_synucleinopathy_qsp) because the paper defines MCI and mild-to-moderate AD as two simulation settings of a deterministic platform, not as a fitted per-subject covariate. A downstream user fitting to data should map it to the canonical DIS_AD_MCI.
  • APOE effects are centred on the heterozygote. APOE4_COUNT is the canonical column, but Geerts 2018 states both APOE effects relative to the APOE4+/- heterozygote rather than to the non-carrier, so the model centres on APOE4_COUNT = 1. Both published effects are exactly linear in allele count, which is why the additive canonical is used rather than the APOE4_HET + APOE4_HOM pair.
  • Treatment target engagement is reported as a range. The paper gives 80-90% / 60-80% (verubecestat), 30-50% / 15-30% (semagacestat) and 5-10% / 30-50% (solanezumab) for A-beta40 / A-beta42. fracRed40 and fracRed42 default to 0 (placebo); the figures above use the midpoint of each published range, which is an editorial choice of this vignette and not a value the paper states.
  • No IIV and no residual error. None is reported; the model is deterministic. Do not pass omega = NA to rxSolve() – there is no IIV to suppress and rxode2 errors on it.
