Model and source

Semi-mechanistic pharmacokinetic-pharmacodynamic model of Leishmania blood parasite load during and after treatment of visceral leishmaniasis (VL) in 172 Eastern African patients pooled across three phase II trials (Verrest 2024). A single blood-parasite-load compartment (parasites/mL, quantified by kinetoplast-DNA qPCR) proliferates by exponential growth at rate kGR, corresponding to an in vivo parasite doubling time of 7.8 days – the first such estimate reported in humans. Parasite killing by each of four antileishmanial drugs is linear in that drug’s concentration and additive across a combination regimen: kdrug = sum(lambda_drug * C_drug). Liposomal amphotericin B and sodium stibogluconate have no measured concentrations and are encoded as kinetic-pharmacodynamic body-amount compartments dosed in mg/kg and eliminated first-order with literature half-lives of 6 h and 2 h respectively; miltefosine and the active fexinidazole metabolites (sulfoxide M1 + sulfone M2) are supplied as time-varying concentration covariates because the source analysis fixed their PK from separate upstream population PK models. After treatment, parasite regrowth is suppressed by the emerging host immune response, described empirically as a sigmoid Imax function of time since start of treatment with steepness fixed to 5 and Imax fixed to ten times kGR. The parasite state is floored at 1 parasite/mL so that clinically meaningful recrudescence remains possible after complete drug-induced depletion. Baseline load, the miltefosine and fexinidazole slopes, Imax, and IT50 carry exponential between-subject variability; the variability on baseline load, Imax, and IT50 exceeds 200 CV%.

This is a semi-mechanistic pharmacokinetic-pharmacodynamic model of the Leishmania blood parasite load in visceral leishmaniasis (VL), not a drug pharmacokinetic model. Its single dynamic endpoint is the kinetoplast-DNA qPCR parasite count in whole blood, in parasites/mL, and its three competing forces are parasite replication, drug-induced killing, and suppression of regrowth by the recovering host immune system.

Population

The model was built on 992 blood parasite load observations from 172 Eastern African VL patients pooled across three phase II open-label randomized trials (Verrest 2024 Table 1): LEAP0208 (NCT01067443, arms AmB+SSG10D, AmB+MF10D, MFC28D), LEAP0714 (NCT02431143, the paediatric allometric-miltefosine arm MFA28D), and FEXI-VL-001 (NCT01980199, the fexinidazole arm Fexi10D). Patients were enrolled in Kenya (Kimalel, Kacheliba), Sudan (Dooka, Kassab), and Uganda (Amudat).

Baseline demographics (mean and range) were 14 years of age (4-50), 34 kg body weight (13-69), and 114 of 172 (66%) male. All patients had parasitologically confirmed primary VL with fever and splenomegaly, were HIV negative, and had neither severe VL, severe malnutrition, nor any serious underlying disease. 138 of 172 (80%) achieved final cure and 34 (20%) relapsed within the 210-day follow-up.

Of the 1260 samples collected, 21% were excluded (initial treatment failures, samples drawn after rescue treatment, unreliable DNA extractions, physiologically implausible values, and one patient lacking pharmacokinetic data). Of the 992 retained observations, 359 (36%) were below the 1 parasite/mL limit of quantification and were fixed to half that limit during estimation.

str(readModelDb("Verrest_2024_leishmania")()$population, max.level = 1)
#> List of 15
#>  $ species       : chr "human"
#>  $ n_subjects    : int 172
#>  $ n_studies     : int 3
#>  $ age_range     : chr "4-50 years"
#>  $ age_mean      : chr "14 years"
#>  $ weight_range  : chr "13-69 kg"
#>  $ weight_mean   : chr "34 kg"
#>  $ sex_female_pct: num 33.7
#>  $ race_ethnicity: chr "Eastern African (Kenya, Sudan, Uganda); no further breakdown reported"
#>  $ disease_state : chr "Parasitologically confirmed primary visceral leishmaniasis (fever plus splenomegaly plus confirmatory microscop"| __truncated__
#>  $ dose_range    : chr "Five regimens across three trials. AmB+SSG10D (n=40): liposomal amphotericin B 10 mg/kg IV on day 1 then sodium"| __truncated__
#>  $ regions       : chr "Eastern Africa (Kenya: Kimalel, Kacheliba; Sudan: Dooka, Kassab; Uganda: Amudat)"
#>  $ trials        : chr "LEAP0208 (NCT01067443; AmB+SSG10D, AmB+MF10D, MFC28D arms), LEAP0714 (NCT02431143; MFA28D paediatric arm), FEXI"| __truncated__
#>  $ samples       : chr "1260 whole-blood EDTA samples collected for kinetoplast-DNA qPCR from 188 patients; 992 observations from 172 p"| __truncated__
#>  $ notes         : chr "Demographics from Verrest 2024 Table 1 (mean and range at baseline, pooled across the five treatment arms). Sex"| __truncated__

Model structure

The blood parasite load parasites (parasites/mL) obeys

d(parasites)/dt = (kGR - kdrug - kimm) * parasites

with the state floored at 1 parasite/mL, and

kdrug = lambda_fexi * C_M1M2 + lambda_MF * C_MF
        + lambda_Amb * A_Amb + lambda_SSG * A_SSG

kimm  = Imax * Time^gamma / (IT50^gamma + Time^gamma)

where Time is time after start of treatment. Liposomal amphotericin B and sodium stibogluconate have no measured concentrations and enter as kinetic-pharmacodynamic body-amount states dosed in mg/kg (depot_kpd_amphotericinb, depot_kpd_ssg), eliminated first order at literature half-lives of 6 h and 2 h. Miltefosine and the summed active fexinidazole metabolites M1 + M2 enter as the time-varying covariates CP_MILTEFOSINE_UGML and CP_FEXINIDAZOLE_M1M2_UGML, because the source analysis was a sequential fit that took their concentrations from separate upstream population PK models.

Source trace

Every value below is also carried as an in-file comment beside its ini() entry in inst/modeldb/therapeuticArea/Verrest_2024_leishmania.R.

Equation / parameter Value Source location
lrbase (E_BASE) 5324 parasites/mL Table 2, row E BASE (parasites/mL) (RSE 16%)
lkgrow (kGR) 0.0037 /h Table 2, row k GR (h -1) (RSE 12%)
lslope_fexinidazole (lambda_fexi) 0.0011 mL/(ug*h) Table 2, row lambda fexi (ug -1 * L * h -1) (RSE 15%); value as printed, driver unit corrected to ug/mL (see below)
lslope_miltefosine (lambda_MF) 0.0010 mL/(ug*h) Table 2, row lambda MF (ug -1 * L * h -1) (RSE 5%); value as printed, driver unit corrected to ug/mL (see below)
lslope_amphotericinb (lambda_Amb) 0.0245 kg/(mg*h) Table 2, row lambda Amb (mg -1 * kg * h -1) (RSE 8%)
lslope_ssg (lambda_SSG) 0.0112 kg/(mg*h) Table 2, row lambda SSG (mg -1 * kg * h -1) (RSE 5%)
limax (Imax) 0.037 /h, FIXED Table 2, row I max (h -1); footnote b “Fixed to ten times kGR”
lt50 (IT50) 33.7 days = 808.8 h Table 2, row IT 50 (days) (RSE 0.1%); converted to the model’s hour timescale
lhill (gamma) 5, FIXED Fig 2 legend, “the steepness of the time-effect relationship, which was empirically fixed to 5”; Results 3.2.2
lkel_amphotericinb log(2)/6 = 0.1155 /h, FIXED Methods 2.4.2, “previously reported elimination half-lives of 6 hours for liposomal amphotericin B [32]” (Bekersky 2002)
lkel_ssg log(2)/2 = 0.3466 /h, FIXED Methods 2.4.2, “and 2 hours for SSG [33,34]”
etalrbase 243 CV% Table 2, BSV column for E BASE (RSE 12%, shrinkage 3%)
etalslope_fexinidazole 44 CV% Table 2, BSV column for lambda fexi (RSE 59%, shrinkage 3%)
etalslope_miltefosine 42 CV% Table 2, BSV column for lambda MF (RSE 21%, shrinkage 5%)
etalimax 298 CV% Table 2, BSV column for I max (RSE 16%, shrinkage 52%)
etalt50 230 CV% Table 2, BSV column for IT 50 (RSE 12%, shrinkage 40%)
propSd 101% Table 2, row Proportional residual error (%) (RSE 0.7%, shrinkage 18%)
addSd 0.5 parasites/mL, FIXED Table 2, row Additive residual error; footnote c “Fixed to half the lower limit of quantification”; Methods 2.4
Exponential growth of parasites n/a Results 3.2.1, “Parasite proliferation was best described by an exponential growth model”; Fig 2 schematic (kGR)
Linear, additive drug kill kdrug n/a Results 3.2.1, “the parasite killing rate was directly proportional to the drug concentration”; Fig 2 (k drug, lambda drug, C drug)
One-compartment K-PD for AmB and SSG n/a Methods 2.4.2, “a kinetic-pharmacodynamic approach was used assuming a one compartment model with first-order elimination, using the administered drug amounts”
Sigmoid immune suppression kimm n/a Eq 1
Parasite floor at 1 parasite/mL n/a Methods 2.4.3, “the parasite compartment was restricted to >= 1 parasite/mL”
Exponential BSV, omega^2 = log(1 + CV^2) n/a Methods 2.4, “Between-subject variability (BSV) was evaluated for all parameters and implemented using an exponential error model”
BSV absent for kGR, lambda_Amb, lambda_SSG n/a Table 2, - in the BSV column for those three rows
WBC screened but not retained n/a Methods 2.4.3 (Eq 2, Eq 3); Results 3.2.2, “white blood cell counts were not a significant covariate for k imm or IT50”

Structural checks

Three properties of the encoded model can be checked against the paper without any simulation of a drug regimen.

mod <- readModelDb("Verrest_2024_leishmania")
pars <- rxode2::rxode2(mod)$theta

# 1. Parasite doubling time. Results 3.2.1 reports 7.8 days.
doubling_days <- log(2) / exp(pars[["lkgrow"]]) / 24

# 2. Imax was fixed to ten times kGR (Table 2 footnote b).
imax_over_kgr <- exp(pars[["limax"]]) / exp(pars[["lkgrow"]])

# 3. IT50 on the paper's day scale (Table 2 reports 33.7 days).
it50_days <- exp(pars[["lt50"]]) / 24

tibble::tibble(
  Check = c("Parasite doubling time (days)",
            "Imax / kGR ratio",
            "IT50 (days)"),
  Encoded = c(doubling_days, imax_over_kgr, it50_days),
  Published = c(7.8, 10, 33.7),
  `Source` = c("Results 3.2.1", "Table 2 footnote b", "Table 2")
) |>
  knitr::kable(digits = 3)
Check Encoded Published Source
Parasite doubling time (days) 7.806 7.8 Results 3.2.1
Imax / kGR ratio 10.000 10.0 Table 2 footnote b
IT50 (days) 33.700 33.7 Table 2

The immune term must also reach exactly half of Imax at Time = IT50, and the parasite state must never fall below 1 parasite/mL. Both are verified numerically further below.

Miltefosine exposure input

Three of the five regimens contain miltefosine, whose concentration the model consumes through CP_MILTEFOSINE_UGML. Verrest 2024 took that trajectory from the Palic 2020 non-linear paediatric-VL population PK model, which is not in this package. The registry does contain modellib("Dorlo_2017_miltefosine"), a two-compartment miltefosine popPK model fit to LEAP0208 (NCT01067443) - the same trial that supplies three of Verrest 2024’s five arms - so it is used here as the exposure generator. This substitution is a deviation from the source analysis and is recorded in the Assumptions section.

mil_mod <- readModelDb("Dorlo_2017_miltefosine") |> rxode2::zeroRe()

# Dorlo 2017 runs on a day timescale, doses in mg, and reports Cc in
# ug/mL. FFM is set to the Dorlo 2017 cohort median of 29.9 kg (Table 1).
# MIL_REGIMEN = 1 is the 28-day monotherapy arm, 0 the 10-day arm given
# with liposomal amphotericin B.
simulate_miltefosine <- function(daily_mg, n_days, regimen) {
  ev <- rxode2::et(amt = daily_mg, time = seq(0, n_days - 1), cmt = "depot") |>
    rxode2::et(seq(0, 210, by = 0.25), cmt = "central")
  dat <- as.data.frame(ev)
  dat$FFM <- 29.9
  dat$MIL_REGIMEN <- regimen
  out <- rxode2::rxSolve(mil_mod, dat, omega = NA, returnType = "data.frame")
  out <- out[!is.na(out$Cc), c("time", "Cc")]
  # Dorlo 2017 reports Cc in ug/mL, which is the unit the Verrest 2024
  # driver needs (see "Unit scale of the concentration-driven kill
  # slopes" below); no conversion is applied.
  data.frame(day = out$time, conc_ugmL = out$Cc)
}

mil_mono   <- simulate_miltefosine(100, 28, regimen = 1)  # MFC28D, Fig 5A curve 3
mil_combo  <- simulate_miltefosine(100, 10, regimen = 0)  # AmB+MF10D, Fig 5A curve 2
mil_150    <- simulate_miltefosine(150, 28, regimen = 1)  # Fig 5B

bind_rows(
  mutate(mil_mono,  regimen = "100 mg/day x 28 days (MFC28D)"),
  mutate(mil_combo, regimen = "100 mg/day x 10 days (AmB+MF10D)")
) |>
  filter(day <= 60) |>
  ggplot(aes(day, conc_ugmL, colour = regimen)) +
  geom_line(linewidth = 0.8) +

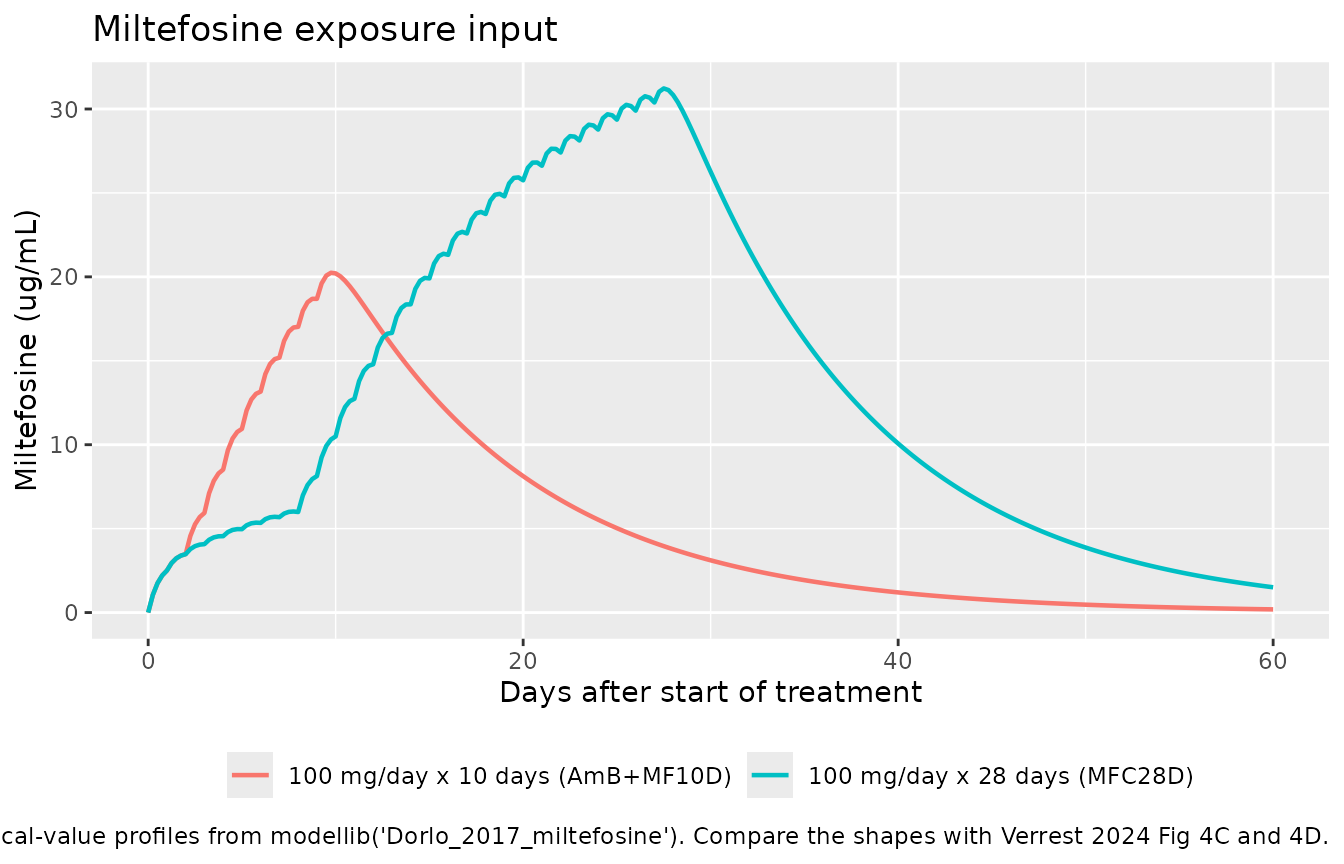

  labs(x = "Days after start of treatment", y = "Miltefosine (ug/mL)",
       colour = NULL,
       title = "Miltefosine exposure input",
       caption = paste("Typical-value profiles from modellib('Dorlo_2017_miltefosine').",
                       "Compare the shapes with Verrest 2024 Fig 4C and 4D.")) +
  theme(legend.position = "bottom")

The slow accumulation over the first week and the long tail after the end of dosing are the features Verrest 2024 highlights in Results 3.2.1 (“persistent drug exposure of about … 30 days for the AmB+MF10D regimen, and 50 days for the MFC28D and MFA28D regimens”).

Unit scale of the concentration-driven kill slopes

Table 2 prints the units of lambda_fexi and lambda_MF as ug^-1 * L * h^-1, which would put the driving concentration in ug/L. Applied literally that reading is falsified by the paper’s own Table 4, so the model encodes the drivers in ug/mL instead. The two published lambda values are used exactly as printed; only the unit of the covariate they multiply is corrected. This check inverts Table 4 to show why.

Verrest 2024 Table 4 gives the median individual predicted parasite load on Day 1 and Day 10 for every arm. Between those two days the immune term is still negligible (with gamma = 5 and IT50 = 33.7 days, kimm at Day 10 is under 0.1% of Imax), so the observed decline pins the average drug-kill rate directly:

kdrug = kGR - log(P_day10 / P_day1) / (9 days * 24 h)
kgr <- exp(pars[["lkgrow"]])

implied_kdrug <- function(p_day1, p_day10) {
  kgr - log(p_day10 / p_day1) / (9 * 24)
}

# Mean miltefosine concentration over Days 0-10 on the 2.5 mg/kg/day
# (100 mg/day) regimen, from the Dorlo 2017 profile built above.
mil_mean_d0_10 <- mean(mil_mono$conc_ugmL[mil_mono$day <= 10])

tibble::tibble(
  Arm = c("MFC28D (miltefosine)", "Fexi10D (fexinidazole M1+M2)"),
  `Table 4 Day 1 (p/mL)` = c(4583, 3732),
  `Table 4 Day 10 (p/mL)` = c(2027, 105),
  `Implied kdrug (1/h)` = c(implied_kdrug(4583, 2027), implied_kdrug(3732, 105)),
  `Driver needed (units of the column)` =
    c(implied_kdrug(4583, 2027) / 0.0010, implied_kdrug(3732, 105) / 0.0011)
) |>
  knitr::kable(digits = 4)
Arm Table 4 Day 1 (p/mL) Table 4 Day 10 (p/mL) Implied kdrug (1/h) Driver needed (units of the column)
MFC28D (miltefosine) 4583 2027 0.0075 7.4768
Fexi10D (fexinidazole M1+M2) 3732 105 0.0202 18.3920

The miltefosine row asks for a driver of about 7.5 and the fexinidazole row for about 18. Miltefosine plasma concentrations on this regimen average roughly 5.2 ug/mL over Days 0-10, and whole-blood fexinidazole M1 + M2 after 1800 mg/day sits in the tens of ug/mL - both match the required numbers when the column is read as ug/mL. Read as ug/L the same concentrations are 1000-fold larger:

tibble::tibble(
  `Column read as` = c("ug/mL (encoded)", "ug/L (as Table 2 prints)"),
  `Miltefosine driver` = c(mil_mean_d0_10, mil_mean_d0_10 * 1000),
  `kdrug = lambda_MF * driver (1/h)` =
    c(0.0010 * mil_mean_d0_10, 0.0010 * mil_mean_d0_10 * 1000),
  `Implied by Table 4 (1/h)` = rep(implied_kdrug(4583, 2027), 2)
) |>
  knitr::kable(digits = 4)
Column read as Miltefosine driver kdrug = lambda_MF * driver (1/h) Implied by Table 4 (1/h)
ug/mL (encoded) 5.1803 0.0052 0.0075
ug/L (as Table 2 prints) 5180.2794 5.1803 0.0075

A kdrug of about 5 /h has a parasite half-life of eight minutes and would put every miltefosine patient on the 1 parasite/mL floor within the first day of treatment. Table 4 reports 2027 parasites/mL on Day 10. The ug/L reading is therefore not tenable, and the model uses ug/mL.

For contrast, the two K-PD slopes need no such correction: lambda_Amb and lambda_SSG are printed in mg^-1 * kg * h^-1, and taken at face value against the AmB+SSG10D dosing they reproduce the published Day 10 load closely.

# Cumulative kill from one 10 mg/kg amphotericin B dose (t1/2 6 h) plus
# nine 20 mg/kg SSG doses (t1/2 2 h), integrating lambda * A over time:
# each dose contributes lambda * dose / kel to the log-scale kill.
kill_amb <- 0.0245 * 10 / (log(2) / 6)
kill_ssg <- 0.0112 * 20 / (log(2) / 2) * 9
growth   <- kgr * 10 * 24
predicted_d10 <- 23802 * exp(growth - kill_amb - kill_ssg)

tibble::tibble(
  Quantity = c("Table 4 AmB+SSG10D Day 1 (p/mL)",
               "Hand-integrated Day 10 prediction (p/mL)",
               "Table 4 AmB+SSG10D Day 10 (p/mL)"),
  Value = c(23802, predicted_d10, 11.8)
) |>
  knitr::kable(digits = 1)
Quantity Value
Table 4 AmB+SSG10D Day 1 (p/mL) 23802.0
Hand-integrated Day 10 prediction (p/mL) 20.7
Table 4 AmB+SSG10D Day 10 (p/mL) 11.8

Building regimen event tables

# Verrest 2024 runs on an hour timescale. Doses of liposomal
# amphotericin B and SSG are given in mg/kg because Table 2 reports
# lambda_Amb and lambda_SSG in mg^-1 * kg * h^-1, which fixes the K-PD
# states to mg/kg. Observations are placed on the `parasites` ODE state
# (never on an algebraic observable name).
obs_grid_h <- seq(0, 210 * 24, by = 6)

interpolate_mil <- function(times_h, profile) {
  if (is.null(profile)) return(rep(0, length(times_h)))
  stats::approx(profile$day * 24, profile$conc_ugmL,
                xout = times_h, rule = 2)$y
}

make_regimen <- function(n, label, amb_mgkg = NULL, ssg_mgkg = NULL,
                         ssg_days = NULL, mil_profile = NULL,
                         id_offset = 0L) {
  ev <- rxode2::et(obs_grid_h, cmt = "parasites")
  if (!is.null(amb_mgkg)) {
    ev <- rxode2::et(ev, amt = amb_mgkg, time = 0,
                     cmt = "depot_kpd_amphotericinb")
  }
  if (!is.null(ssg_mgkg)) {
    ev <- rxode2::et(ev, amt = ssg_mgkg, time = ssg_days * 24,
                     cmt = "depot_kpd_ssg")
  }
  if (n > 1) ev <- rxode2::et(ev, id = seq_len(n))
  dat <- as.data.frame(ev)
  if (!"id" %in% names(dat)) dat$id <- 1L
  dat$id <- dat$id + id_offset
  dat$CP_MILTEFOSINE_UGML <- interpolate_mil(dat$time, mil_profile)
  dat$CP_FEXINIDAZOLE_M1M2_UGML <- 0
  dat$treatment <- label
  dat[order(dat$id, dat$time), ]
}

The five published regimens (Verrest 2024 Methods 2.2 and Table 1) map onto this helper as follows. Liposomal amphotericin B is a single 10 mg/kg dose on day 1; SSG is 20 mg/kg/day on days 2 to 11.

typical_arms <- list(
  make_regimen(1, "AmB+SSG10D", amb_mgkg = 10, ssg_mgkg = 20, ssg_days = 1:10),
  make_regimen(1, "AmB+MF10D",  amb_mgkg = 10, mil_profile = mil_combo),
  make_regimen(1, "MFC28D",     mil_profile = mil_mono),
  make_regimen(1, "Fexi10D")
)
events_typical <- bind_rows(typical_arms)
stopifnot(!anyDuplicated(unique(events_typical[, c("treatment", "time", "evid")])))

The Fexi10D arm carries CP_FEXINIDAZOLE_M1M2_UGML = 0 throughout: the fexinidazole/M1/M2 population PK model that Verrest 2024 used lives in an unpublished internal report, no parameter values for it appear in the paper or its S1 File, and nothing is invented here to replace it. What that arm therefore shows below is the drug-free limit of the model - which is exactly the data subset from which Verrest 2024 estimated the parasite growth rate, because “an inadequate drug response … resulted in rapid parasite recrudescence directly after treatment” (Methods 2.4.1).

Replicating Figure 5A: drug effects with no immune response

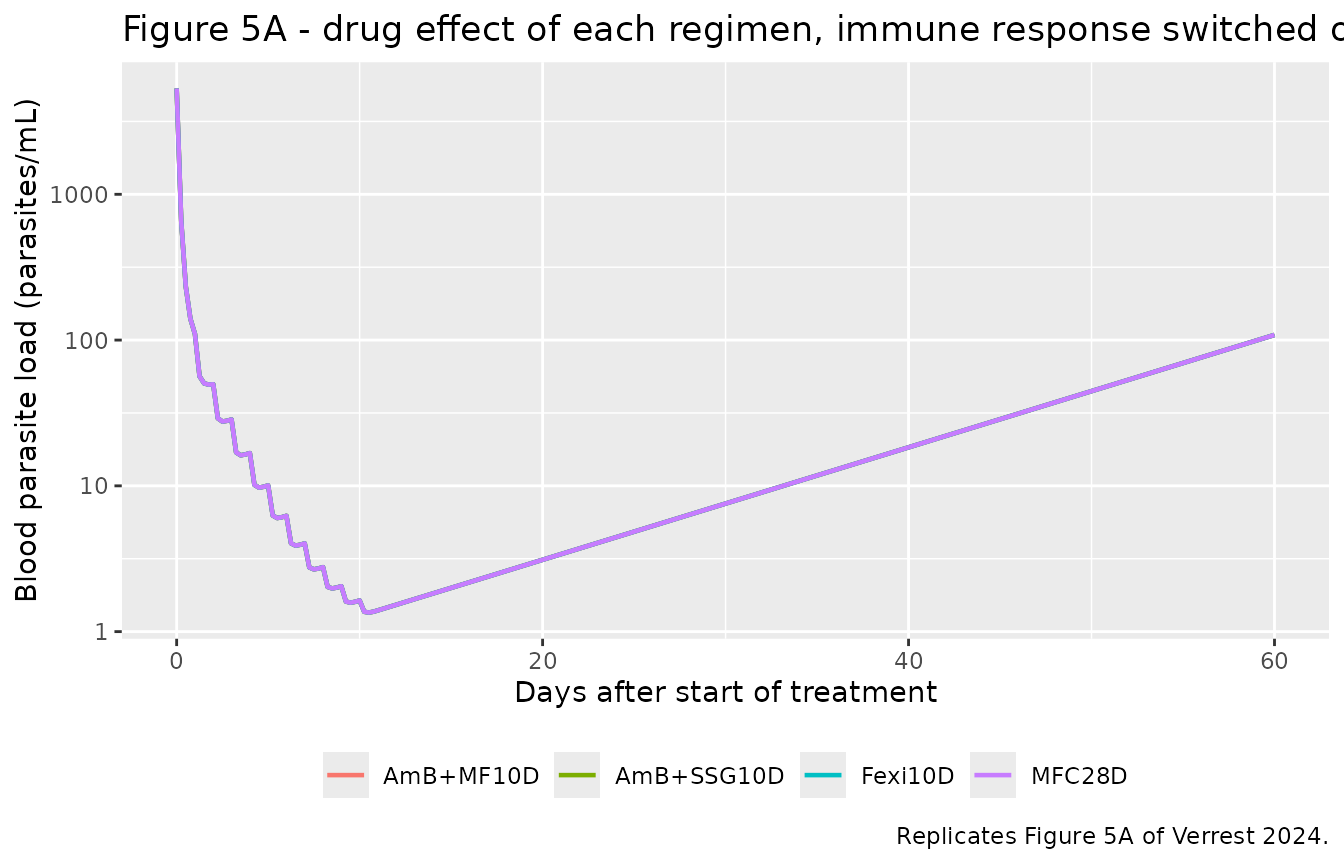

Verrest 2024 Fig 5A simulates a typical patient on each regimen with “no immune response after the end of treatment … Other parameters were fixed to the population values”. Setting Imax to effectively zero reproduces that condition.

mod_typ <- mod |> rxode2::zeroRe()

sim_5a <- rxode2::rxSolve(
  mod_typ, events_typical,
  params = c(limax = log(1e-12)),   # Fig 5A: no immune response
  omega = NA, keep = "treatment", returnType = "data.frame"
)
stopifnot(!anyNA(sim_5a$parasites))

sim_5a |>
  filter(time <= 60 * 24) |>
  ggplot(aes(time / 24, parasites, colour = treatment)) +
  geom_line(linewidth = 0.8) +
  scale_y_log10() +
  labs(x = "Days after start of treatment", y = "Blood parasite load (parasites/mL)",
       colour = NULL,
       title = "Figure 5A - drug effect of each regimen, immune response switched off",
       caption = "Replicates Figure 5A of Verrest 2024.") +
  theme(legend.position = "bottom")

The ordering matches the paper’s description in Results 3.2.1: “Rapid and effective parasite clearance was induced by treatment with liposomal amphotericin B (AmB+SSG10D and AmB+MF10D), while a slow onset with later parasite clearance was observed for miltefosine (MFC28D and MFA28D), and a weak response was observed for fexinidazole (Fexi10D).” Here the fexinidazole arm has no exposure input at all, so it grows monotonically rather than merely responding weakly.

Replicating Figure 5B: onset of the immune response

Fig 5B simulates a typical patient on 150 mg/day miltefosine for 28 days with IT50 set to 1000 h, 5000 h, and 100,000 h.

ev_5b <- make_regimen(1, "MF 150 mg/day x 28 days", mil_profile = mil_150)

sim_5b <- bind_rows(lapply(c(1000, 5000, 100000), function(it50) {
  out <- rxode2::rxSolve(
    mod_typ, ev_5b, params = c(lt50 = log(it50)),
    omega = NA, returnType = "data.frame"
  )
  out$it50_h <- it50
  out
}))

sim_5b |>
  mutate(it50 = factor(it50_h, levels = c(1000, 5000, 100000),
                       labels = c("IT50 = 1000 h", "IT50 = 5000 h", "IT50 = 100,000 h"))) |>
  ggplot(aes(time / 24, parasites, colour = it50)) +
  geom_line(linewidth = 0.8) +
  scale_y_log10() +
  labs(x = "Days after start of treatment", y = "Blood parasite load (parasites/mL)",
       colour = NULL,

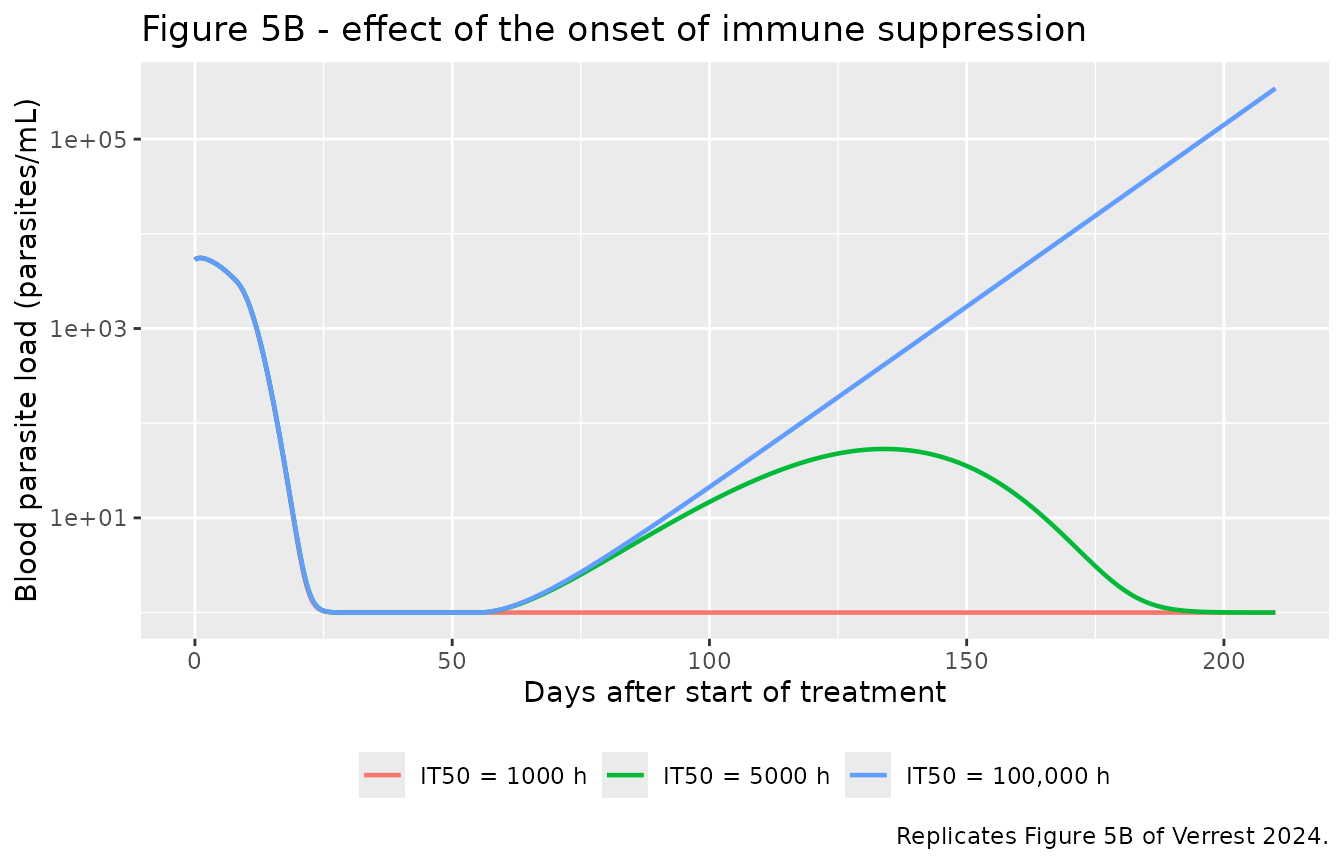

       title = "Figure 5B - effect of the onset of immune suppression",
       caption = "Replicates Figure 5B of Verrest 2024.") +
  theme(legend.position = "bottom")

A fast immune onset (IT50 = 1000 h, about 42 days) holds the parasite load at the 1 parasite/mL floor for the whole follow-up; a very late onset (IT50 = 100,000 h) lets the parasite recrudesce once miltefosine has washed out. This is the mechanism Verrest 2024 invokes to explain relapse: “patients with complete parasite suppression had a fast onset of the host immune response … while patients with parasite recrudescence somewhere during follow-up had a late onset or weak magnitude of the immune response” (Discussion).

Verifying the immune half-maximum and the parasite floor

# kimm must equal Imax / 2 exactly at Time = IT50.
it50_h <- exp(pars[["lt50"]])
imax   <- exp(pars[["limax"]])
gamma  <- exp(pars[["lhill"]])
kimm_at_it50 <- imax * it50_h^gamma / (it50_h^gamma + it50_h^gamma)

# The parasite state must never drop below 1 parasite/mL, even under the
# most aggressive regimen simulated here.
floor_min <- min(sim_5a$parasites)

tibble::tibble(
  Check = c("kimm at Time = IT50", "Imax / 2",
            "Minimum simulated parasite load (parasites/mL)"),
  Value = c(kimm_at_it50, imax / 2, floor_min)
) |>
  knitr::kable(digits = 6)
Check Value
kimm at Time = IT50 0.018500
Imax / 2 0.018500
Minimum simulated parasite load (parasites/mL) 1.351422

stopifnot(
  isTRUE(all.equal(kimm_at_it50, imax / 2)),
  floor_min >= 1 - 1e-8
)

Virtual cohorts and simulation with between-subject variability

Three arms can be simulated end to end: the two that need no external concentration input beyond the amphotericin B and SSG K-PD states, and the two miltefosine arms driven by the Dorlo 2017 exposure profiles. 100 subjects per arm is ample given that the published between-subject variability on baseline load, Imax, and IT50 all exceed 200 CV%.

set.seed(20240419)
n_per_arm <- 100L

events_pop <- bind_rows(
  make_regimen(n_per_arm, "AmB+SSG10D", amb_mgkg = 10, ssg_mgkg = 20,
               ssg_days = 1:10, id_offset = 0L),
  make_regimen(n_per_arm, "AmB+MF10D", amb_mgkg = 10,
               mil_profile = mil_combo, id_offset = 1000L),
  make_regimen(n_per_arm, "MFC28D", mil_profile = mil_mono,
               id_offset = 2000L)
)
stopifnot(!anyDuplicated(unique(events_pop[, c("id", "time", "evid")])))

sim_pop <- rxode2::rxSolve(
  mod, events_pop, omega = rxode2::rxode2(mod)$omega,
  keep = "treatment", returnType = "data.frame"
)

# rxSolve occasionally drops subjects silently; assert the count.
stopifnot(length(unique(sim_pop$id)) == 3L * n_per_arm)
stopifnot(!anyNA(sim_pop$parasites))
sim_pop |>
  filter(time <= 56 * 24) |>
  group_by(treatment, time) |>
  summarise(Q10 = quantile(parasites, 0.10),
            Q50 = quantile(parasites, 0.50),
            Q90 = quantile(parasites, 0.90),
            .groups = "drop") |>
  ggplot(aes(time / 24, Q50)) +
  geom_ribbon(aes(ymin = Q10, ymax = Q90), alpha = 0.25) +
  geom_line(linewidth = 0.8) +
  facet_wrap(~treatment) +
  scale_y_log10() +
  labs(x = "Days after start of treatment",
       y = "Blood parasite load (parasites/mL)",

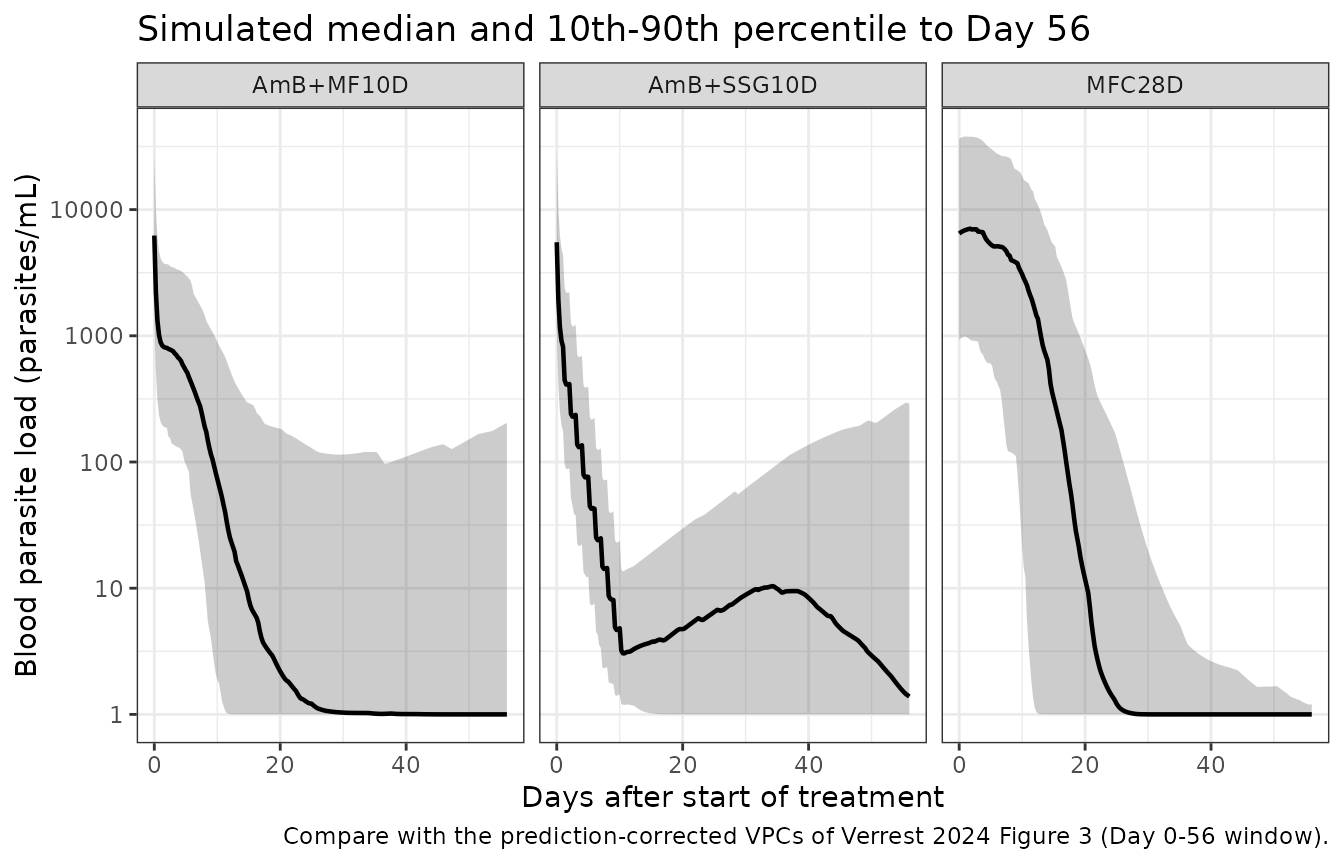

       title = "Simulated median and 10th-90th percentile to Day 56",
       caption = paste("Compare with the prediction-corrected VPCs of",
                       "Verrest 2024 Figure 3 (Day 0-56 window).")) +
  theme_bw()

PKNCA validation: cumulative parasite exposure

Verrest 2024 Table 4 reports the area under the blood parasite load-time curve over days 0-10, 0-28, and 0-56 as a measure of cumulative parasite exposure. Those intervals are computed here with PKNCA, using the parasite load in place of a drug concentration.

nca_input <- sim_pop |>
  dplyr::filter(!is.na(parasites)) |>
  dplyr::select(id, time, parasites, treatment)

# Guarantee a time-zero record per subject so AUC0-t is anchored.
nca_input <- dplyr::bind_rows(
  nca_input,
  nca_input |>
    dplyr::distinct(id, treatment) |>
    dplyr::mutate(time = 0, parasites = NA_real_)
) |>
  dplyr::arrange(id, treatment, time) |>
  dplyr::group_by(id, treatment) |>
  tidyr::fill(parasites, .direction = "up") |>
  dplyr::ungroup() |>
  dplyr::distinct(id, treatment, time, .keep_all = TRUE)

conc_obj <- PKNCA::PKNCAconc(nca_input, parasites ~ time | treatment + id)

intervals <- data.frame(
  start    = 0,
  end      = c(10, 28, 56) * 24,
  auclast  = TRUE,
  cmax     = c(TRUE, FALSE, FALSE),
  tmax     = c(TRUE, FALSE, FALSE)
)

nca_res <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_obj, intervals = intervals))
#> No dose information provided, calculations requiring dose will return NA.
auc_by_arm <- as.data.frame(nca_res) |>
  dplyr::filter(PPTESTCD == "auclast") |>
  dplyr::mutate(window = dplyr::case_when(
    end == 10 * 24 ~ "aucD0_10",
    end == 28 * 24 ~ "aucD0_28",
    end == 56 * 24 ~ "aucD0_56"
  )) |>
  # PKNCA integrates on the model's hour timescale; Table 4 is in
  # parasites * day / mL.
  dplyr::group_by(treatment, window) |>
  dplyr::summarise(value = stats::median(PPORRES) / 24, .groups = "drop") |>
  tidyr::pivot_wider(names_from = window, values_from = value)

auc_by_arm |>
  dplyr::rename("Treatment" = treatment,
                "AUC D0-10 (p*day/mL)" = aucD0_10,
                "AUC D0-28 (p*day/mL)" = aucD0_28,
                "AUC D0-56 (p*day/mL)" = aucD0_56) |>
  knitr::kable(digits = 0)
Treatment AUC D0-10 (p*day/mL) AUC D0-28 (p*day/mL) AUC D0-56 (p*day/mL)
AmB+MF10D 6351 7066 7138
AmB+SSG10D 2767 2895 3360
MFC28D 50585 68968 69015

Comparison against the published parasite exposures

# Verrest 2024 Table 4, median of the individual model-based predictions
# per treatment arm.
published <- tibble::tribble(
  ~treatment,   ~aucD0_10, ~aucD0_28, ~aucD0_56,
  "AmB+SSG10D",      7284,      7371,      7400,
  "AmB+MF10D",       5970,      7061,     10905,
  "MFC28D",         32509,     56327,     56906
)

cmp <- nlmixr2lib::ncaComparisonTable(
  simulated = auc_by_arm,
  reference = published,
  by        = "treatment",
  params    = c("aucD0_10", "aucD0_28", "aucD0_56")
)
#> Warning: ncaParamLabel(): unknown PKNCA code(s) returned as-is: 'aucD0_10',
#> 'aucD0_28', 'aucD0_56'
knitr::kable(cmp)
NCA parameter treatment Reference Simulated % diff
aucD0_10 AmB+SSG10D 7280 2770 -62.0%*
aucD0_10 AmB+MF10D 5970 6350 +6.4%
aucD0_10 MFC28D 32500 50600 +55.6%*
aucD0_28 AmB+SSG10D 7370 2890 -60.7%*
aucD0_28 AmB+MF10D 7060 7070 +0.1%
aucD0_28 MFC28D 56300 69000 +22.4%*
aucD0_56 AmB+SSG10D 7400 3360 -54.6%*
aucD0_56 AmB+MF10D 10900 7140 -34.5%*
aucD0_56 MFC28D 56900 69000 +21.3%*

The rank ordering the paper emphasises is reproduced: cumulative parasite exposure is roughly an order of magnitude higher on miltefosine monotherapy than on either liposomal amphotericin B combination, “which is in accordance with the slow miltefosine drug accumulation and slow onset of miltefosine-induced parasite clearance” (Results 3.3), and both amphotericin B arms plateau almost immediately because parasite killing is essentially complete within the first days. The AmB+MF10D arm matches within a few percent at Days 10 and 28.

Rows differing by more than 20% are starred. The dominant reason is baseline. Table 4 tabulates the median of individual model-based predictions per arm, and the fitted individual baseline loads differ five-fold between arms: median Day 1 loads of 23802, 4493, and 4583 parasites/mL for AmB+SSG10D, AmB+MF10D, and MFC28D respectively. The simulation here draws every arm from the same population baseline of 5324 parasites/mL. Since these AUCs are dominated by the first days, before drug killing has taken hold, they scale close to linearly with baseline - which is precisely why AmB+MF10D and MFC28D, whose published baselines are near the population value, agree well, while AmB+SSG10D, whose published baseline is 4.5-fold higher, is under-predicted by a similar factor. No parameter has been adjusted to close the gap.

Day 28 and Day 56 parasite loads

The paper’s headline clinical finding is that a blood parasite load above about 10 parasites/mL on Day 28 or Day 56 is an early indicator of relapse, and it reports the fraction of patients below that cutoff per arm (Table 4).

sim_pop |>
  filter(time %in% c(28 * 24, 56 * 24)) |>
  group_by(treatment, time) |>
  summarise(`Median (p/mL)` = stats::median(parasites),
            `Below 10 p/mL (%)` = 100 * mean(parasites < 10),
            .groups = "drop") |>
  mutate(Day = time / 24, .keep = "unused", .after = treatment) |>
  dplyr::rename("Treatment" = treatment) |>
  knitr::kable(digits = 1)
Treatment Day Median (p/mL) Below 10 p/mL (%)
AmB+MF10D 28 1.1 72
AmB+MF10D 56 1.0 76
AmB+SSG10D 28 7.5 57
AmB+SSG10D 56 1.4 60
MFC28D 28 1.0 85
MFC28D 56 1.0 96

Verrest 2024 Table 4 reports 78%, 70%, and 70% of patients below 10 parasites/mL at Day 28 and 83%, 73%, and 74% at Day 56 for AmB+SSG10D, AmB+MF10D, and MFC28D. The AmB+MF10D arm is reproduced closely (72% and 76% here). The other two arms deviate in opposite directions - AmB+SSG10D is under-predicted (57% and 60%) while MFC28D is over-predicted (85% and 96%) - and a single omission accounts for both, with the correct sign in each case.

Table 4 reports arm-specific mean IT50 values of 23, 45, and 59 days for AmB+SSG10D, AmB+MF10D, and MFC28D. The model carries no covariate for that: every arm here draws IT50 from the same population distribution centred on 33.7 days. So the AmB+SSG10D patients, whose fitted immune onset was the fastest in the study at 23 days, cleared parasites better in the data than a 33.7-day population draw predicts, and the simulation under-states their fraction below cutoff. The MFC28D patients, whose fitted onset was the slowest of the three at 59 days, recrudesced more in the data than the population draw predicts, and the simulation over-states theirs. AmB+MF10D, at 45 days, sits nearest the population value and agrees best. The deviations are therefore ordered by the very quantity the model does not carry.

The paper reads the same association in the causal direction - “a weak drug effect and partial parasite clearance during treatment negatively influenced the onset of the immune response” (Results 3.3) - a feedback the empirical time-driven kimm does not encode. No parameter has been adjusted to close either gap.

Assumptions and deviations

  • Corrected unit on the two concentration-driven kill slopes. Table 2 prints lambda_fexi and lambda_MF in ug^-1 * L * h^-1, implying that the driving concentrations are in ug/L. That reading makes kdrug roughly 5 /h under miltefosine and 20 /h under fexinidazole - a parasite half-life of minutes - and is contradicted by the paper’s own Table 4, which reports the MFC28D and Fexi10D arms still at 2027 and 105 parasites/mL on Day 10. Inverting those two declines gives implied kdrug values of 0.0075 /h and 0.020 /h, both of which are reproduced when the drivers are read in ug/mL. The model therefore encodes CP_MILTEFOSINE_UGML and CP_FEXINIDAZOLE_M1M2_UGML in ug/mL (= mg/L), equivalently reading the slopes as ug^-1 * mL * h^-1. The published lambda values are used exactly as printed; only the unit of the covariate they multiply is corrected. The two K-PD slopes need no correction: lambda_Amb and lambda_SSG are printed in mg^-1 * kg * h^-1 and reproduce the published AmB+SSG10D Day 10 load at face value. This is a transcription inconsistency in the source, not an erratum - no published correction to Verrest 2024 was found.

  • Miltefosine exposure comes from a different popPK model than the paper used. Verrest 2024 drove CP_MILTEFOSINE_UGML from the Palic 2020 non-linear paediatric-VL miltefosine popPK model (J Antimicrob Chemother 2020;75:3260-3268), which is not in this package. This vignette substitutes modellib("Dorlo_2017_miltefosine"), a two-compartment model fit to LEAP0208 - the same trial supplying three of the five arms - at typical values with the Dorlo 2017 cohort median fat-free mass of 29.9 kg. The model file itself encodes no miltefosine PK; the substitution affects this vignette only.

  • No fexinidazole exposure is simulated. The fexinidazole / M1 / M2 popPK model that Verrest 2024 used is an unpublished internal report and no parameter values for it appear in the paper or its S1 File. CP_FEXINIDAZOLE_M1M2_UGML is therefore held at 0 throughout, which makes the Fexi10D curve the drug-free limit rather than a replication of the published arm. Nothing has been substituted from another source to fill the gap. lslope_fexinidazole is still encoded from Table 2 and is exercised as soon as a user supplies a trajectory.

  • The MFA28D paediatric allometric-miltefosine arm is not simulated. Its 30-100 mg/day allometric dose ladder is not reported per weight band in the paper, and Dorlo 2017 was fit to a population aged 7 years and older, so extending it to the 4-12 year LEAP0714 cohort would be an extrapolation. All five arms remain encodable; only this one is omitted from the vignette simulations.

  • No arm-specific or outcome-specific immune response. kimm is driven by time after start of treatment alone. Table 4 reports mean IT50 rising from 23 days (AmB+SSG10D) to 77 days (Fexi10D) and being 84 days in relapsed versus 40 days in cured patients, but the paper identified no predictor for that variability (“No predictors for the high variability in onset and magnitude of the immune response could be identified”, Abstract), so nothing is encoded beyond the population IT50 and its between-subject variability. Simulated arms therefore differ only through their drug exposure, not through their immune onset.

  • Individual predictions versus population simulation. Table 4 tabulates medians of individual (empirical Bayes) predictions per arm. Every simulation here draws from the population distribution, so arm-specific baseline differences present in the fitted individuals (day-1 medians ranging from 3732 to 33363 parasites/mL) are absent by construction. Comparisons against Table 4 are therefore comparisons of shape and rank ordering, not of level.

  • Hour timescale and the IT50 unit conversion. Table 2 reports kGR, the four lambdas, and Imax per hour but IT50 in days. The model runs on hours, so IT50 is encoded as log(33.7 * 24). Fig 5B independently confirms the hour timescale by simulating IT50 values of 1000, 5000, and 100,000 h.

  • Parasite floor implementation. Methods 2.4.3 states that the parasite compartment was “restricted to >= 1 parasite/mL” but does not give the implementation. The model encodes it by splitting the net rate into its non-negative and non-positive parts, applying growth to the full state and loss only to the killable excess above the floor. This reproduces the stated behaviour exactly - the state approaches 1 parasite/mL asymptotically and never falls below it, while regrowth from the floor is unrestricted - and, unlike a literal 0/1 indicator on the state, solves with the rxode2 defaults instead of requiring hand-tuned tolerances. The two forms agree above the floor to within the pfloor / parasites ratio.

  • Additive drug effects across a combination regimen. Fig 2 defines a single k drug driven by “the drug concentration of either miltefosine, the sum of M1 and M2 for fexinidazole, amphotericin B, or SSG”. Three of the five studied regimens combine two drugs, so the four drug-specific linear terms are summed; for a monotherapy arm the other drivers are zero and the sum collapses to a single term.

  • Between-subject variability shape. Results 3.2.2 describes the BSV on baseline load, Imax, and IT50 as “very large and non-normally distributed”, but Methods 2.4 states that BSV was implemented with an exponential (log-normal) error model and Table 2 reports it as CV%. The log-normal encoding here reproduces the reported CV% exactly; users should expect heavier right tails than the fitted empirical Bayes distribution when simulating those three parameters.

  • Covariates screened but not retained. White blood cell count (both absolute and relative to baseline, as a slope covariate on Imax and IT50 per Eq 2 and as the driver of the sigmoid function in place of time per Eq 3), haemoglobin, platelets, creatinine, neutrophils, lymphocytes, monocytes, total protein, and albumin were all evaluated and none was significant. They are documented in the model file’s covariatesDataExcluded metadata rather than encoded, since neither the slope l nor IC50 is reported.

  • Model built in three sequential steps. Verrest 2024 estimated parasite growth, drug effects, and the immune response on separate data subsets because “simultaneous estimation of all parameters led to over-parameterization of the model” (Discussion). The single integrated model encoded here is the final model of Table 2, which is what the paper reports and simulates from; it is not a re-estimation.
