Extended cardiovascular systems (CVS) model, rat (Snelder 2014)

Source: vignettes/articles/Snelder_2014_cardiovascular_rat.Rmd
Snelder_2014_cardiovascular_rat.Rmd

Model and source

  • Citation: Snelder N, Ploeger BA, Luttringer O, Rigel DF, Fu F, Beil M, Stanski DR, Danhof M. Drug effects on the CVS in conscious rats: separating cardiac output into heart rate and stroke volume using PKPD modelling. Br J Pharmacol. 2014 Nov;171(22):5076-5092. doi:10.1111/bph.12824. PMCID PMC4253457.
  • Article (open access): Br J Pharmacol 2014;171(22):5076-5092 (PMCID PMC4253457)

Snelder 2014 challenged the cardiovascular system of conscious rats with eight drugs of deliberately diverse mechanism – amiloride, amlodipine, atropine, enalapril, fasudil, hydrochlorothiazide (HCTZ), prazosin and propranolol – and analysed every animal and every compound simultaneously in one NONMEM run. The design separates system-specific parameters, which every compound must share, from drug-specific parameters. Two rat strains were used: the spontaneously hypertensive rat (SHR) and its normotensive control strain, the Wistar-Kyoto (WKY) rat.

The paper’s structural contribution is to parse cardiac output into heart rate and stroke volume. Where the Snelder 2013 predecessor had two turnover states (CO and TPR), this model has three:

  • HR, heart rate (beats/min)
  • SVT, the stroke-volume turnover state (mL/beat) – written SV* in the paper
  • TPR, total peripheral resistance (mmHg/(mL/min))

all three suppressed by a single shared linear negative feedback of MAP. Actual stroke volume adds a direct inverse log-linear coupling to heart rate, SV = SVT * (1 - HR_SV * ln(HR / BSL_HR)), representing the shortening of left-ventricular filling time as the cardiac interval shortens; then CO = HR * SV and MAP = CO * TPR. Two 24 h cosines multiply the HR and TPR production rates, and an exponentially decaying handling artefact – brief manual restraint and oral gavage – transiently raises both.

The production rate constants are not estimated: they are derived from the baselines and dissipation rate constants so the system sits at its reported baseline (Equation 5). The feedback constant is likewise not a free per-strain parameter: it is a power function of the animal’s own baseline MAP (Equation 9), which is how the paper’s finding that feedback is roughly twice as strong in normotensive as in hypertensive rats is expressed.

Relationship to the two sibling models in nlmixr2lib

nlmixr2lib ships two other members of the Snelder CVS family, and their parameter sets must not be mixed.

Model Structure Feedback Circadian Provenance
Snelder_2013_cardiovascular_rat 2 states (CO, TPR) two constants, FB1 on CO and FB2 on TPR five-harmonic cosine, additive on MAP fitted, SHR only
Snelder_2014_cardiovascular_rat (this file) 3 states (HR, SVT, TPR) one shared constant, a power function of individual BSL_MAP two cosines, multiplicative on Kin_HR and Kin_TPR fitted, SHR + WKY
Fu_2023_cardiovascular_qsp 3 states (HR, SVT, TPR) one shared constant, fixed at 0.0029 two cosines, multiplicative inherits this paper’s system parameters, with a hypothetical drug

Fu_2023_cardiovascular_qsp is a stochastic-simulation-and-re-estimation identifiability study that fixes the system parameters to “the parameter values from the published CVS model”. Its vignette records that “the Snelder 2013, 2014 papers that supply the rat baseline values are not on disk”. This extraction closes that gap for the 2014 paper: every value below is transcribed from the primary source. Fu 2023’s Supplemental S1 NONMEM control stream is used in one place only – to settle whether Table 5’s IIV and residual “CV%” columns are standard deviations or the log-normal sqrt(exp(omega) - 1) form – and that use is flagged explicitly where it occurs.

Population

pop <- nlmixr2lib::readModelDb("Snelder_2014_cardiovascular_rat")()$population
tibble::tibble(
  Field = names(pop),
  Value = vapply(pop, function(x) paste(as.character(x), collapse = "; "), character(1))
) |>
  knitr::kable(caption = "Study population (Snelder 2014 Methods and Table 1)")
Study population (Snelder 2014 Methods and Table 1)
Field Value
species rat (male spontaneously hypertensive rat, SHR, and male normotensive Wistar-Kyoto rat, WKY; both Taconic Farms)
n_subjects 12
n_studies 2
study_names Study 1 (single administrations of different doses on separate days, one vehicle day first; MAP, HR and SV measured with CO and TPR derived; amiloride, amlodipine, enalapril, fasudil, hydrochlorothiazide or prazosin; SHR and WKY rats); Study 2 (single, sequential or combined administration of atropine 10 mg/kg and/or propranolol 30 mg/kg with a 3 h interval; SHR only, 8 rats)
age_range 41-54 weeks (SHR) and 35-38 weeks (WKY) at time of study.
weight_range 367-504 g (SHR) and 499-600 g (WKY).
sex_female_pct 0
sex_notes All animals were male (Methods, ‘Animals’).
disease_state Spontaneous (genetic) hypertension in the SHR arm (BSL_MAP = 155 mmHg) versus normotension in the WKY arm (BSL_MAP = 102 mmHg); no induced disease model. Snelder 2014 states in the Conclusions that applications of the identified system-parameter set are limited to SHR and WKY rats.
dose_range Study 1 (p.o., one dose per day on separate days after a vehicle day): amiloride 10 mg/kg; amlodipine 0.3, 1, 3, 10 mg/kg; enalapril 3, 10, 30 mg/kg; fasudil 3, 10, 30 mg/kg; hydrochlorothiazide 0.1, 0.3, 1, 3 mg/kg (first occasion) and 10, 30 mg/kg (second occasion); prazosin 0.04, 0.2, 1, 5 mg/kg. Study 2 (p.o.): atropine 10 mg/kg and propranolol 30 mg/kg, alone, sequentially 3 h apart, or combined. All compounds were given by oral gavage at 2 mL/kg.
regions Preclinical; in-life work at Novartis Institutes for BioMedical Research, East Hanover, NJ, USA, with modelling at Leiden Academic Centre for Drug Research, The Netherlands.
instrumentation Rats were surgically instrumented with BOTH an ascending-aortic transit-time flow probe and a femoral-artery catheter / radiotransmitter (as in Snelder et al. 2013a), giving continuous MAP, HR and CO. Flow cables were disconnected between 1700 h and 0700 h, so overnight only MAP and HR were captured. On experiment days baseline data were collected 0700-1000 h, drug was given at 1000 h (and at 1300 h in Study 2), and collection continued to 1700 h. Rats were housed on a 12 h light/dark cycle with lights on 0600-1800 h.
n_ode_states 5
notes Ten SHR and two WKY rats were used across both studies, with repeated experiments in the same animals over periods of up to 6 months and sufficient washout between them, so the per-compound counts in Table 1 reflect reuse rather than distinct animals. Data from one SHR in Study 2 were excluded because it learned to disconnect its flow cable and responded far more strongly than the others. SV and TPR were never estimated directly: experimentally they were derived from the measured MAP, CO and HR, and in the modelling BSL_HR, BSL_MAP and BSL_CO were the estimated parameters with BSL_SV and BSL_TPR derived from them. Only HR, MAP and CO carry residual-error models for the same reason. The system was initialised at t = 0 h and pharmacological intervention started at t = 336 h (two weeks, determined empirically) so that the circadian oscillation had settled into its oscillating steady state before dosing; since dosing occurred at 1000 h clock time, model time t = 0 corresponds to 1000 h. Propranolol was administered and modelled but its effect was too small to quantify, so it contributes no drug-specific parameters and no covariate column.

Ten SHR and two WKY rats in total, aged 41-54 weeks (SHR) and 35-38 weeks (WKY), 367-504 g and 499-600 g respectively. All were male. Animals were reused across compounds over periods of up to 6 months with washout between experiments, so the per-compound counts in Table 1 are not distinct animals. Each rat carried both an ascending-aortic transit-time flow probe and a femoral-artery catheter/radiotransmitter, giving continuous MAP, HR and CO; SV and TPR were derived from those three, both experimentally and in the model. Data from one SHR were excluded because it learned to disconnect its flow cable.

Housing was a 12 h light/dark cycle with lights on 0600-1800 h. Baseline data were collected 0700-1000 h, drug was given at 1000 h (and again at 1300 h in Study 2), and collection continued to 1700 h.

Source trace

Every value in inst/modeldb/therapeuticArea/Snelder_2014_cardiovascular_rat.R comes from the locations below; the same references appear as # comments on each ini() line.

A convenient property of Snelder 2014 Table 5 is that it reports the estimate, the relative standard error and the 95% confidence interval for every parameter. Those three are redundant – estimate * (1 +/- 1.96 * RSE / 100) must reproduce the printed interval – so the table validates its own transcription. The check is run in code below and covers all 19 estimated parameters.

System-specific parameters (Table 5)

Model parameter Paper symbol Value Fixed? RSE % 95% CI Source
lrbase_HR_shr BSL_HR_SHR 310 beats/min 1.12 303 - 317 Table 5
lrbase_HR_wky BSL_HR_WKY 323 beats/min 1.61 313 - 333 Table 5
lrbase_MAP_shr BSL_MAP_SHR 155 mmHg 0.684 153 - 157 Table 5
lrbase_MAP_wky BSL_MAP_WKY 102 mmHg 0.884 100 - 104 Table 5
lrbase_CO_shr BSL_CO_SHR 69.0 mL/min 4.17 63.4 - 74.6 Table 5
lrbase_CO_wky BSL_CO_WKY 129 mL/min 1.47 125 - 133 Table 5
lkout_HR kout_HR 11.6 1/h 19.1 7.27 - 15.9 Table 5
lkout_SV kout_SV 0.126 1/h 30.7 0.0501 - 0.202 Table 5
lkout_TPR kout_TPR 3.58 1/h 29.1 1.54 - 5.62 Table 5
lfb0 FB0 0.00290 1/mmHg 5.93 0.00256 - 0.00324 Table 5
e_bslmap_fb FB0_MAP -1.98 10.6 -2.39 - -1.57 Table 5; Equation 9
lhrsv HR_SV 0.312 15.6 0.216 - 0.408 Table 5
lkhd kHD 4.70 1/h 8.19 3.95 - 5.45 Table 5
lphd_HR P_HR 0.632 9.67 0.512 - 0.752 Table 5
lphd_TPR P_TPR 0.331 12.9 0.247 - 0.415 Table 5
hor_HR hor_HR 8.73 h 3.10 8.20 - 9.26 Table 5
amp_HR amp_HR 0.0918 5.15 0.0825 - 0.101 Table 5
hor_TPR hor_TPR 19.3 h 1.92 18.6 - 20.0 Table 5
amp_TPR_ratio amp_TPR 1 (= amp_HR) FIX Table 5 row “ampTPR: Fixed to ampHR”

BSL_SV and BSL_TPR are derived, not estimated: the Data analysis section states that “the BSL_MAP and BSL_CO and BSL_HR were estimated and BSL_SV and BSL_TPR were derived from these parameters”, via BSL_SV = BSL_CO / BSL_HR and BSL_TPR = BSL_MAP / BSL_CO.

Drug-specific parameters (Table 5, with site and direction from Table 4)

The site of action and the direction of each effect come from Table 4’s “Effect” column and are restated verbatim in the Figure 3, S1 and S2 captions. Table 5 reports only the magnitude, so the model file keeps every number byte-identical to the table and applies the sign in model().

Compound Site Direction Form Parameters Source
Amiloride SV inhibit Emax, Emax FIX 1 EC50 245 ng/mL (RSE 25.1, CI 125-365) Table 5; Table 4; Fig. S1 caption
Amlodipine TPR inhibit Emax, Emax FIX 1 EC50 82.8 ng/mL (RSE 4.99, CI 74.7-90.9) Table 5; Table 4; Fig. 3 caption
Atropine HR stimulate linear SL 0.00149 per ng/mL (RSE 32.3, CI 0.000547-0.00243) Table 5; Table 4; Fig. S2 caption
Enalapril TPR and SV inhibit Emax, Emax FIX 1, effect cmt EC50 1200 ng/mL (RSE 4.03, CI 1110-1290); ke0 0.163 1/h (RSE 5.07, CI 0.147-0.179) Table 5; Table 4; Fig. S1 caption
Fasudil TPR inhibit Emax, Emax FIX 1 EC50 0.172 ng/mL (RSE 18.4, CI 0.110-0.234) Table 5; Table 4; Fig. S1 caption
HCTZ SV inhibit Emax, Emax FIX 1 EC50 28900 ng/mL (RSE 7.65, CI 24600-33200) Table 5; Table 4; Fig. S1 caption
Prazosin TPR inhibit power SL 0.328 (RSE 5.58, CI 0.292-0.364); POW 0.0910 (RSE 6.05, CI 0.0802-0.102) Table 5; Table 4; Fig. S1 caption
Propranolol HR inhibit – none: “the effect of propranolol was too small to be quantified” Results, Drug effects

Emax is fixed to 1 for the five Emax compounds. Table 3 Assumption 2: “For compounds for which the maximum effect was not observed, complete inhibition (i.e. Emax = 1) was assumed at infinite concentrations to ensure identification of the EC50 parameter.” Each Table 5 sub-heading repeats it.

Two drug-specific parameters in Table 5 are not carried in the model file because they belong to literature PK models the paper does not otherwise publish: atropine’s Ka (1.17 1/h) and prazosin’s Ka (fixed to 99 1/h, stated in the Results rather than tabulated). Neither reconstructs a concentration-time profile on its own; see Assumptions and deviations.

Variability (Table 5)

Model parameter Paper row Reported Encoded
etalrbase_HR BSL_HR (CV%) 6.1 variance 0.003721
etalrbase_MAP BSL_MAP (CV%) 3.7 variance 0.001369
etalrbase_CO BSL_CO (CV%) 22.7 variance 0.051529
propSd_HR Prop. Res. Error HR (CV%) 7.8 SD 0.078
propSd_MAP Prop. Res. Error MAP (CV%) 6.0 SD 0.060
propSd_CO Prop. Res. Error CO (CV%) 6.9 SD 0.069

IIV is on the three estimated baselines only (Results: “interindividual variations in the baseline values of the parameters, BSL_HR, BSL_MAP and BSL_CO, were allowed”), and residual error is proportional on the three measured readouts only (“The residual errors of TPR and SV were derived from these parameters”), which is why SV and TPR are exposed as outputs with no error model.

The IIV encoding turns on whether Table 5’s “CV%” is sqrt(omega) * 100 or the exact log-normal sqrt(exp(omega) - 1) * 100. Those differ by 2.5% for BSL_CO, which is small but not nothing. Fu 2023 Supplemental S1, a NONMEM control stream that re-encodes this same model, settles it: its $OMEGA values are 0.00372, 0.00137 and 0.0515, whose square roots are exactly 6.1%, 3.7% and 22.7%. The model file therefore uses variance = (CV / 100)^2; the identity is checked in code below.

Equations

Model line Paper
d/dt(hr), d/dt(svt), d/dt(tpr) Equation 6 (= Equation 4 with the drug term added)
sv <- svt * (1 - hrsv * log(hr / bsl_HR)); co <- hr * sv; map <- co * tpr Equation 2
cr_HR, cr_TPR Equation 3
hd_HR, hd_TPR, d/dt(handling) Equation 4
kin_HR, kin_SV, kin_TPR Equation 5

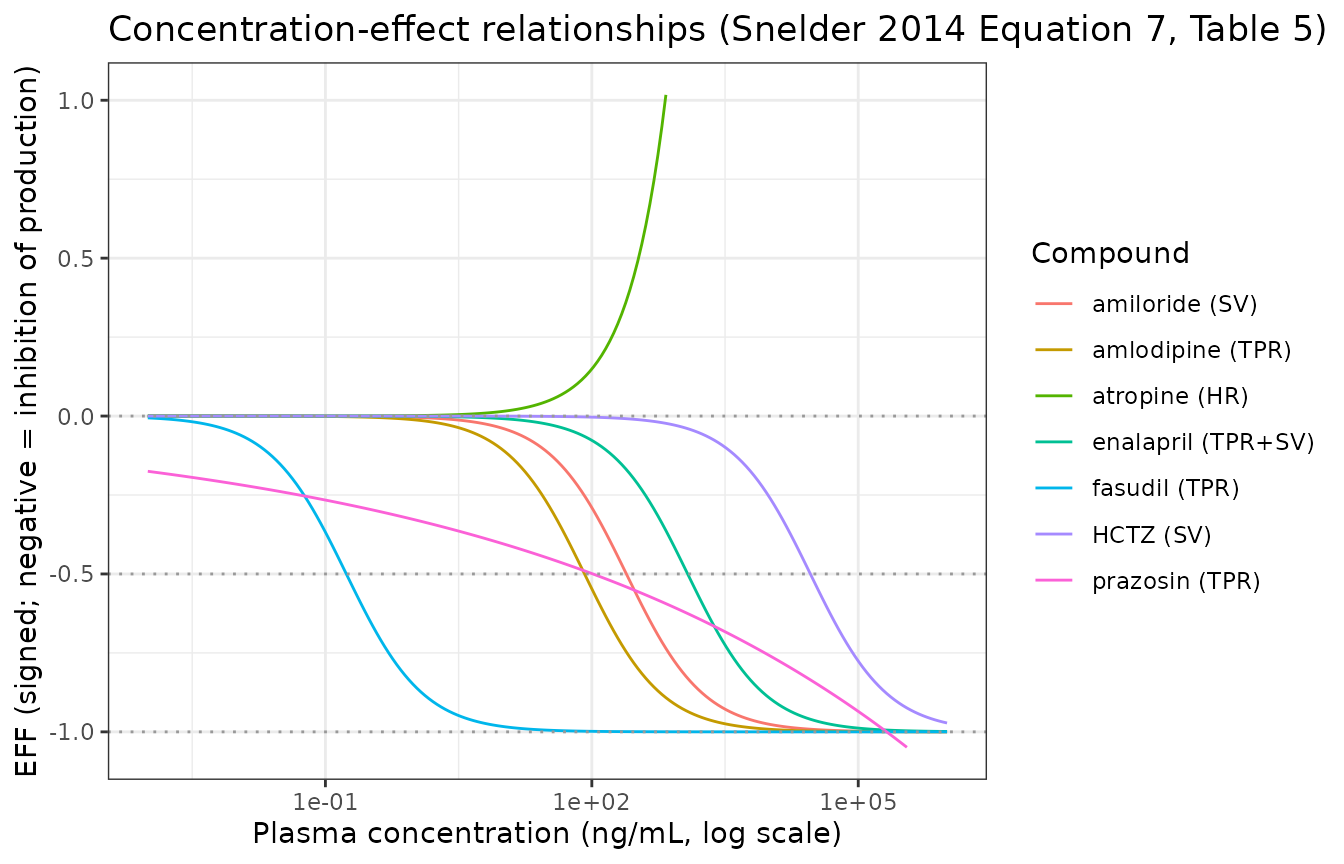

eff_HR, eff_SV, eff_TPR Equations 6 and 7
d/dt(effect) Equation 8
fb <- exp(lfb0) * (bsl_MAP / 155)^e_bslmap_fb Equation 9
bsl_SV, bsl_TPR Data analysis narrative

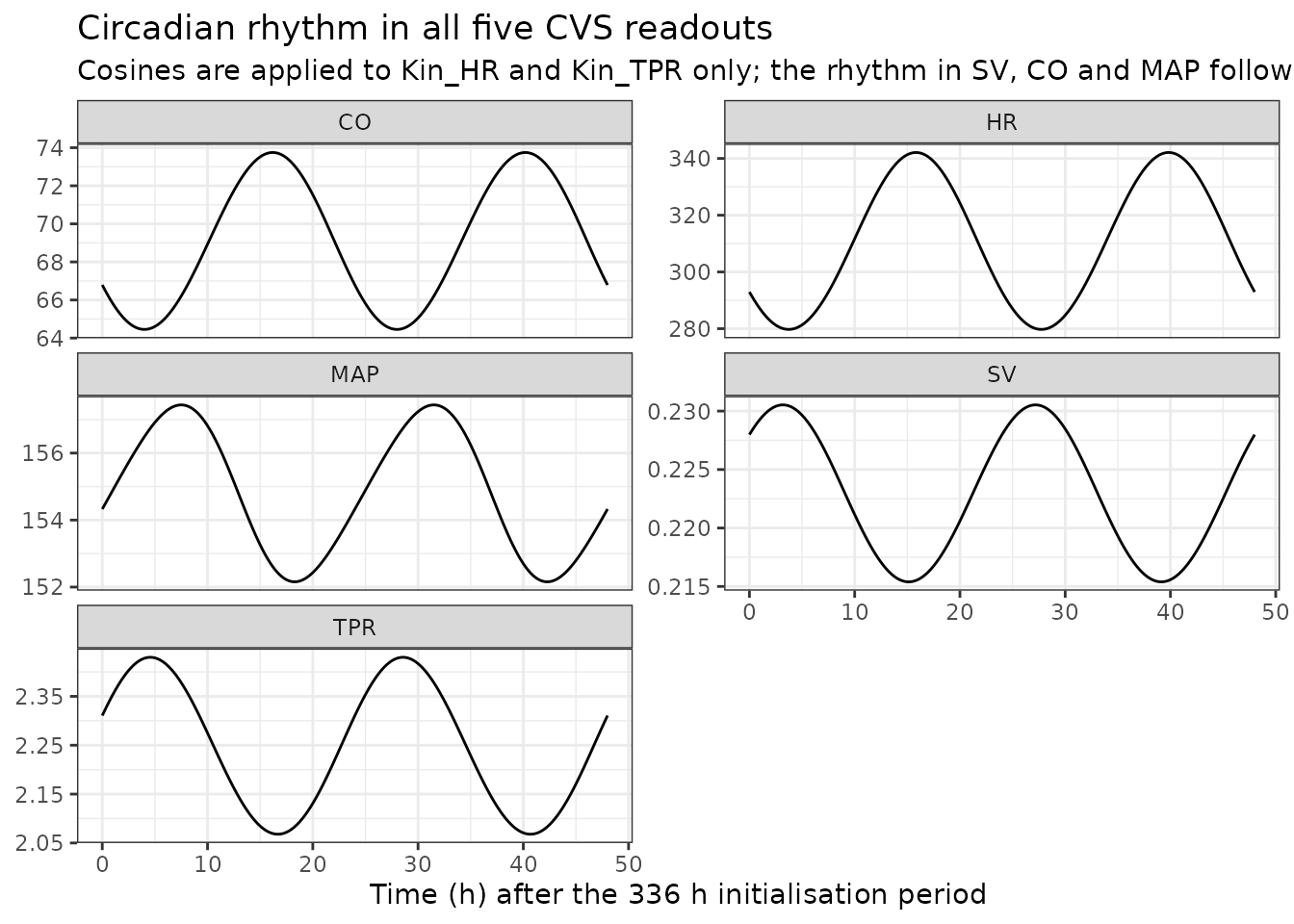

Note the asymmetry in Equation 6, which is the paper’s own: the circadian rhythm and the handling effect act on HR and TPR only, while all three states receive the MAP feedback and can receive a drug effect. SV has no circadian term of its own – the paper points out that the rhythm observed in SV, CO and MAP follows from the feedback and the HR coupling rather than being modelled directly.

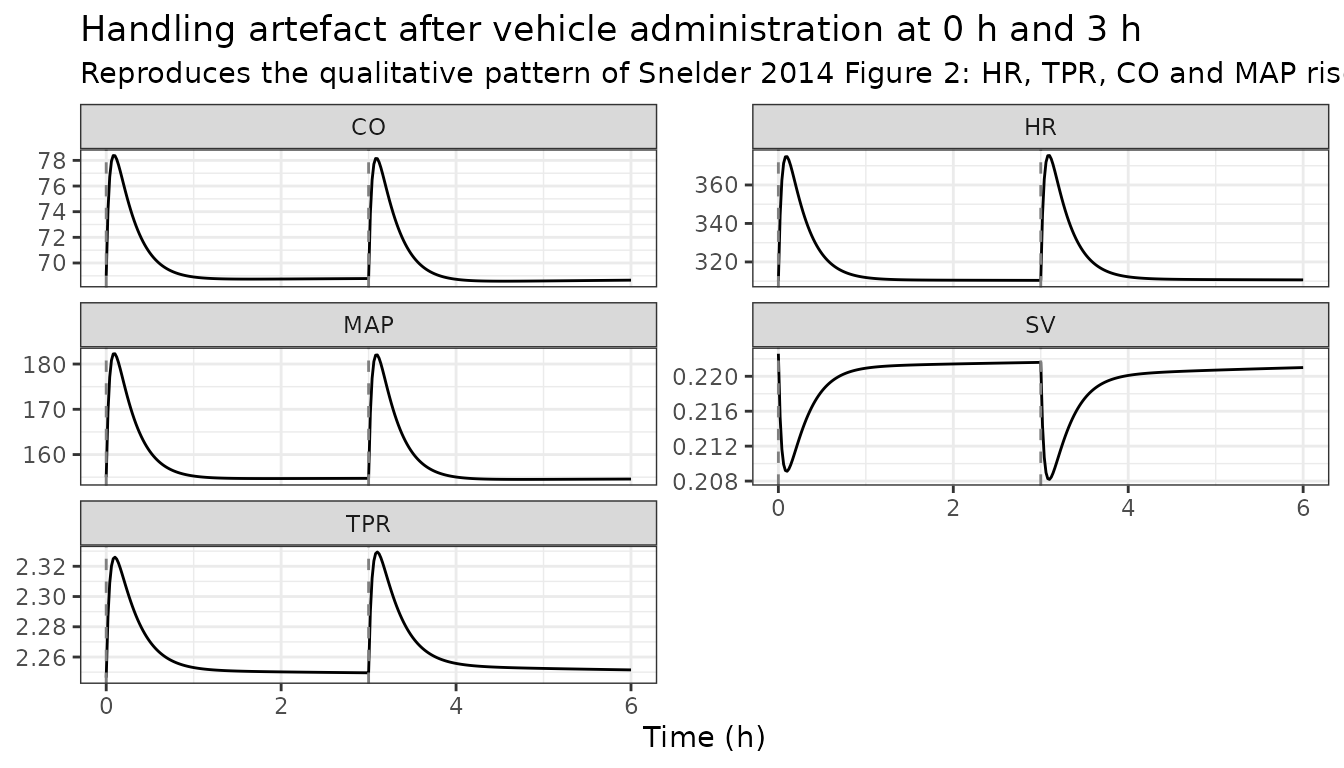

Handling effect: closed form vs ODE state

Equation 4 writes the handling artefact as HD_X = P_X * exp(-kHD * (t - tHD)) for t > tHD. The model file realises it as a first-order decay state receiving a unit impulse at each handling event. For a single event the two are the same function; for the repeated handling of Study 2 (dosing at 1000 h and again at 1300 h) the ODE superposes correctly, whereas the closed form as printed covers one tHD only. Both properties are verified below. The practical consequence for a user is that handling events are supplied as amt = 1, evid = 1, cmt = "handling" dose records.

Dimensional analysis

Term Units of the factors Result
kin_HR = kout_HR * bsl_HR / fb_bsl (1/h) * (beats/min) / 1 (beats/min)/h
d/dt(hr) = kin_HR * (1 + cr_HR) * (1 - fb * map) * (1 + eff_HR + hd_HR) - kout_HR * hr (beats/min)/h * 1 * 1 * 1 - (1/h)*(beats/min) (beats/min)/h
fb * map (1/mmHg) * mmHg unitless
fb = exp(lfb0) * (bsl_MAP / 155)^e_bslmap_fb (1/mmHg) * (mmHg/mmHg)^unitless 1/mmHg
cr_HR = amp_HR * cos(2 * pi * (t + hor_HR) / 24) 1 * cos(h/h) unitless
hd_HR = phd_HR * handling 1 * 1 unitless
sv = svt * (1 - hrsv * log(hr / bsl_HR)) (mL/beat) * (1 - 1 * log(1)) mL/beat
co = hr * sv (beats/min) * (mL/beat) mL/min
map = co * tpr (mL/min) * mmHg/(mL/min) mmHg
eff_HR = slope_atropine * CP_ATROPINE_NGML (mL/ng) * (ng/mL) unitless
Emax terms emax * C / (ec50 + C) 1 * (ng/mL)/(ng/mL) unitless
d/dt(effect) = ke0 * (C - effect) (1/h) * (ng/mL) (ng/mL)/h
d/dt(handling) = -khd * handling (1/h) * 1 1/h

One published unit is inconsistent as printed. Table 5 labels the prazosin power coefficient SL as (ng mL-1)-1, but for EFF = SL * C^POW to be unitless SL must carry (ng/mL)^-POW, i.e. (ng/mL)^-0.0910. The value is used exactly as printed and the label is not “corrected” – the file reproduces the paper – but the discrepancy is recorded here and in the parameter’s label().

Load the model and set up

mod <- nlmixr2lib::readModelDb("Snelder_2014_cardiovascular_rat")
ui  <- rxode2::rxode2(mod)
#> ℹ parameter labels from comments will be replaced by 'label()'
tv  <- rxode2::zeroRe(ui)   # typical-value model: etas and residual error zeroed
rxode2::rxSetSeed(20261102)

# Published values, restated here so every check below compares against the
# PAPER rather than against the model file it is meant to be testing.
pub <- list(
  BSL_HR_SHR = 310, BSL_MAP_SHR = 155, BSL_CO_SHR = 69.0,
  BSL_HR_WKY = 323, BSL_MAP_WKY = 102, BSL_CO_WKY = 129,
  kout_HR = 11.6, kout_SV = 0.126, kout_TPR = 3.58,
  FB0 = 0.00290, FB0_MAP = -1.98, HR_SV = 0.312,
  kHD = 4.70, P_HR = 0.632, P_TPR = 0.331,
  hor_HR = 8.73, amp_HR = 0.0918, hor_TPR = 19.3,
  EC50_amiloride = 245, EC50_amlodipine = 82.8, SL_atropine = 0.00149,
  EC50_enalapril = 1200, ke0_enalapril = 0.163, EC50_fasudil = 0.172,
  EC50_hctz = 28900, SL_prazosin = 0.328, POW_prazosin = 0.0910,
  CV_BSL_HR = 6.1, CV_BSL_MAP = 3.7, CV_BSL_CO = 22.7,
  CV_res_HR = 7.8, CV_res_MAP = 6.0, CV_res_CO = 6.9
)

CP_COLS <- c("CP_AMILORIDE_NGML", "CP_AMLODIPINE_NGML", "CP_ATROPINE_NGML",
             "CP_ENALAPRIL_NGML", "CP_FASUDIL_NGML", "CP_HCTZ_NGML",
             "CP_PRAZOSIN_NGML")

The model is a multi-endpoint model with three observed readouts, so observation records name the endpoint in cmt ("HR", "MAP", "CO"); the solver returns every derived quantity, including the unobserved SV and TPR, as columns alongside them. Handling events are dose records into the handling state.

# Build an event table: observations of the three measured readouts on a regular
# grid, optional handling impulses, all seven exposure columns defaulting to 0.
cvs_events <- function(tmax, by = 0.05, strain = 1, handling_times = numeric(0),
                       exposure = list()) {
  tt  <- seq(0, tmax, by = by)
  obs <- do.call(rbind, lapply(c("HR", "MAP", "CO"), function(e) {
    data.frame(time = tt, amt = NA_real_, evid = 0L, cmt = e)
  }))
  if (length(handling_times) > 0) {
    obs <- rbind(obs, data.frame(time = handling_times, amt = 1,
                                 evid = 1L, cmt = "handling"))
  }
  obs$id <- 1L
  obs$STRAIN_SHR <- strain
  for (nm in CP_COLS) obs[[nm]] <- 0
  for (nm in names(exposure)) obs[[nm]] <- exposure[[nm]]
  obs[order(obs$time, obs$evid), ]
}

# Solve the typical-value model and return one row per time point.
cvs_solve <- function(ev, ...) {
  s <- rxode2::rxSolve(tv, ev, omega = NA, returnType = "data.frame",
                       addDosing = FALSE, ...)
  keep <- c("time", "HR", "MAP", "CO", "SV", "TPR", "effect", "handling",
            "bsl_HR", "bsl_MAP", "bsl_CO", "bsl_SV", "bsl_TPR", "fb",
            "kin_HR", "kin_SV", "kin_TPR")
  unique(s[, keep])
}

1. Table 5 validates its own transcription

Every estimated parameter in Table 5 is printed with a value, an RSE and a 95% confidence interval. The Wald interval value * (1 +/- 1.96 * RSE/100) must reproduce the printed bounds, so a mistyped digit in any one of the three shows up immediately. This check covers all 19 estimated parameters.

tab5 <- tibble::tribble(
  ~parameter,      ~value,   ~rse,    ~llci,     ~ulci,
  "BSL_HR_SHR",     310,     1.12,     303,       317,
  "BSL_MAP_SHR",    155,     0.684,    153,       157,
  "BSL_CO_SHR",      69.0,   4.17,      63.4,      74.6,
  "BSL_HR_WKY",     323,     1.61,     313,       333,
  "BSL_MAP_WKY",    102,     0.884,    100,       104,
  "BSL_CO_WKY",     129,     1.47,     125,       133,
  "kout_HR",         11.6,  19.1,        7.27,     15.9,
  "kout_SV",          0.126, 30.7,       0.0501,    0.202,
  "kout_TPR",         3.58, 29.1,        1.54,      5.62,
  "FB0",              0.00290, 5.93,     0.00256,   0.00324,
  "FB0_MAP",         -1.98,  10.6,      -2.39,     -1.57,
  "HR_SV",            0.312, 15.6,       0.216,     0.408,
  "kHD",              4.70,   8.19,      3.95,      5.45,
  "P_HR",             0.632,  9.67,      0.512,     0.752,
  "P_TPR",            0.331, 12.9,       0.247,     0.415,
  "hor_HR",           8.73,   3.10,      8.20,      9.26,
  "amp_HR",           0.0918, 5.15,      0.0825,    0.101,
  "hor_TPR",         19.3,    1.92,     18.6,      20.0,
  "EC50_amiloride", 245,     25.1,     125,       365,
  "EC50_amlodipine", 82.8,    4.99,     74.7,      90.9,
  "SL_atropine",      0.00149, 32.3,     0.000547,  0.00243,
  "EC50_enalapril", 1200,     4.03,   1110,      1290,
  "ke0_enalapril",     0.163,  5.07,     0.147,     0.179,
  "EC50_fasudil",      0.172, 18.4,      0.110,     0.234,
  "EC50_hctz",     28900,     7.65,  24600,     33200,
  "SL_prazosin",       0.328,  5.58,     0.292,     0.364,
  "POW_prazosin",      0.0910, 6.05,     0.0802,    0.102
)

# Every number in Table 5 is printed to three significant figures, so the
# comparison tolerance is set by that rounding rather than chosen by hand. One
# unit in the last printed place is `ulp()`; the reconstructed width can differ
# from the printed one by up to half a ulp on each bound, plus the propagated
# effect of rounding the estimate and the RSE themselves.
ulp <- function(x) 10^(floor(log10(abs(x))) - 2)

tab5 <- tab5 |>
  dplyr::mutate(
    se            = abs(value) * rse / 100,
    wald_low      = value - 1.96 * se,
    wald_high     = value + 1.96 * se,
    printed_width = ulci - llci,
    wald_width    = wald_high - wald_low,
    tol           = 1.25 * ((ulp(llci) + ulp(ulci)) / 2 +
                              2 * 1.96 * (ulp(value) / 2 * rse / 100 +
                                            abs(value) * ulp(rse) / 100 / 2)),
    ok            = abs(wald_width - printed_width) <= tol,
    headroom      = tol / abs(wald_width - printed_width)
  )

tab5 |>
  dplyr::transmute(Parameter = parameter, Value = value, `RSE %` = rse,
                   `Printed CI` = sprintf("%.4g to %.4g", llci, ulci),
                   `Wald CI from RSE` = sprintf("%.4g to %.4g", wald_low, wald_high),
                   `Width discrepancy` = sprintf("%.3g", abs(wald_width - printed_width)),
                   `Rounding tolerance` = sprintf("%.3g", tol),
                   OK = ok) |>
  knitr::kable(caption = "Snelder 2014 Table 5 is internally redundant: the RSE reconstructs the printed 95% CI for every estimated parameter, to within the rounding of the printed numbers.")
Snelder 2014 Table 5 is internally redundant: the RSE reconstructs the printed 95% CI for every estimated parameter, to within the rounding of the printed numbers.
Parameter Value RSE % Printed CI Wald CI from RSE Width discrepancy Rounding tolerance OK
BSL_HR_SHR 3.10e+02 1.120 303 to 317 303.2 to 316.8 0.39 1.35 TRUE
BSL_MAP_SHR 1.55e+02 0.684 153 to 157 152.9 to 157.1 0.156 1.27 TRUE
BSL_CO_SHR 6.90e+01 4.170 63.4 to 74.6 63.36 to 74.64 0.079 0.152 TRUE
BSL_HR_WKY 3.23e+02 1.610 313 to 333 312.8 to 333.2 0.385 1.37 TRUE
BSL_MAP_WKY 1.02e+02 0.884 100 to 104 100.2 to 103.8 0.465 1.27 TRUE
BSL_CO_WKY 1.29e+02 1.470 125 to 133 125.3 to 132.7 0.567 1.32 TRUE
kout_HR 1.16e+01 19.100 7.27 to 15.9 7.257 to 15.94 0.0552 0.144 TRUE
kout_SV 1.26e-01 30.700 0.0501 to 0.202 0.05018 to 0.2018 0.000267 0.00175 TRUE
kout_TPR 3.58e+00 29.100 1.54 to 5.62 1.538 to 5.622 0.00378 0.0284 TRUE
FB0 2.90e-03 5.930 0.00256 to 0.00324 0.002563 to 0.003237 5.88e-06 1.47e-05 TRUE
FB0_MAP -1.98e+00 10.600 -2.39 to -1.57 -2.391 to -1.569 0.00273 0.0199 TRUE
HR_SV 3.12e-01 15.600 0.216 to 0.408 0.2166 to 0.4074 0.00121 0.0024 TRUE
kHD 4.70e+00 8.190 3.95 to 5.45 3.946 to 5.454 0.00893 0.0157 TRUE
P_HR 6.32e-01 9.670 0.512 to 0.752 0.5122 to 0.7518 0.000432 0.00164 TRUE
P_TPR 3.31e-01 12.900 0.247 to 0.415 0.2473 to 0.4147 0.00062 0.00238 TRUE
hor_HR 8.73e+00 3.100 8.2 to 9.26 8.2 to 9.26 0.00087 0.0154 TRUE
amp_HR 9.18e-02 5.150 0.0825 to 0.101 0.08253 to 0.1011 3.26e-05 0.000723 TRUE
hor_TPR 1.93e+01 1.920 18.6 to 20 18.57 to 20.03 0.0526 0.134 TRUE
EC50_amiloride 2.45e+02 25.100 125 to 365 124.5 to 365.5 1.06 2.47 TRUE
EC50_amlodipine 8.28e+01 4.990 74.7 to 90.9 74.7 to 90.9 0.00366 0.158 TRUE
SL_atropine 1.49e-03 32.300 0.000547 to 0.00243 0.0005467 to 0.002433 3.58e-06 1.84e-05 TRUE
EC50_enalapril 1.20e+03 4.030 1110 to 1290 1105 to 1295 9.57 13.8 TRUE
ke0_enalapril 1.63e-01 5.070 0.147 to 0.179 0.1468 to 0.1792 0.000395 0.00141 TRUE
EC50_fasudil 1.72e-01 18.400 0.11 to 0.234 0.11 to 0.234 6.02e-05 0.00212 TRUE
EC50_hctz 2.89e+04 7.650 2.46e+04 to 3.32e+04 2.457e+04 to 3.323e+04 66.5 151 TRUE
SL_prazosin 3.28e-01 5.580 0.292 to 0.364 0.2921 to 0.3639 0.000255 0.00147 TRUE
POW_prazosin 9.10e-02 6.050 0.0802 to 0.102 0.08021 to 0.1018 0.000218 0.000725 TRUE

cat(sprintf("all %d parameters consistent: %s (tightest row: %s, %.2fx headroom)\n",
            nrow(tab5), all(tab5$ok),
            tab5$parameter[which.min(tab5$headroom)], min(tab5$headroom)))
#> all 27 parameters consistent: TRUE (tightest row: EC50_enalapril, 1.44x headroom)

stopifnot(
  # Every reconstructed interval width matches the printed one within rounding.
  all(tab5$ok),
  # The printed estimate lies strictly inside its own printed interval.
  all(tab5$value > tab5$llci & tab5$value < tab5$ulci),
  # And the printed interval is symmetric about the estimate, as a Wald interval
  # must be -- asymmetry would mean the interval is not the one the RSE implies.
  all(abs((tab5$ulci - tab5$value) - (tab5$value - tab5$llci)) <=
        tab5$tol + ulp(tab5$value))
)

This matters most for EC50_fasudil = 0.172 ng/mL, which is roughly 1900-fold away from the 321 ng/mL that Snelder 2013 reported for the same compound on the same experimental platform. Because 0.172 reconstructs its own printed interval (0.110 to 0.234) exactly, the value is not a transcription or PDF-extraction artefact: it is what the paper reports. See Assumptions and deviations.

2. Baseline steady-state hold

With no drug, no handling and the circadian amplitude set to zero, the system must sit exactly at its reported baseline forever – that is what Equation 5 constructs Kin to guarantee. This is run in both strains, because the strain enters through three different baselines and, via Equation 9, through the feedback constant as well.

ss_check <- function(strain) {
  s <- cvs_solve(cvs_events(48, by = 0.25, strain = strain), params = c(amp_HR = 0))
  tibble::tibble(
    Strain = if (strain == 1) "SHR" else "WKY",
    HR = s$HR[1], MAP = s$MAP[1], CO = s$CO[1], SV = s$SV[1], TPR = s$TPR[1],
    `max drift HR`  = max(abs(s$HR  - s$HR[1])),
    `max drift MAP` = max(abs(s$MAP - s$MAP[1])),
    `max drift CO`  = max(abs(s$CO  - s$CO[1]))
  )
}
ss <- dplyr::bind_rows(ss_check(1), ss_check(0))
knitr::kable(ss, digits = 6,
             caption = "Baseline steady-state hold over 48 h with the circadian rhythm switched off.")
Baseline steady-state hold over 48 h with the circadian rhythm switched off.
Strain HR MAP CO SV TPR max drift HR max drift MAP max drift CO
SHR 310 155 69 0.222581 2.246377 0 0 0
WKY 323 102 129 0.399381 0.790698 0 0 0

stopifnot(
  # The state does not move at all: this is an exact algebraic fixed point.
  max(ss$`max drift HR`, ss$`max drift MAP`, ss$`max drift CO`) < 1e-8,
  # And it sits on the published baselines.
  abs(ss$HR[1]  - pub$BSL_HR_SHR)  < 1e-6,
  abs(ss$MAP[1] - pub$BSL_MAP_SHR) < 1e-6,
  abs(ss$CO[1]  - pub$BSL_CO_SHR)  < 1e-6,
  abs(ss$HR[2]  - pub$BSL_HR_WKY)  < 1e-6,
  abs(ss$MAP[2] - pub$BSL_MAP_WKY) < 1e-6,
  abs(ss$CO[2]  - pub$BSL_CO_WKY)  < 1e-6
)

The fixed point is not a coincidence of the numbers: at HR = BSL_HR the HR-on-SV coupling term is 1 - HR_SV * ln(1) = 1, so SV = BSL_SV and MAP = BSL_HR * BSL_SV * BSL_TPR = BSL_CO * BSL_TPR = BSL_MAP. Substituting into Equation 5 gives production = kout_X * BSL_X exactly, cancelling the loss term for each of the three states.

3. Derived baselines BSL_SV and BSL_TPR

derived <- tibble::tibble(
  Strain  = c("SHR", "WKY"),
  BSL_HR  = c(pub$BSL_HR_SHR,  pub$BSL_HR_WKY),
  BSL_MAP = c(pub$BSL_MAP_SHR, pub$BSL_MAP_WKY),
  BSL_CO  = c(pub$BSL_CO_SHR,  pub$BSL_CO_WKY)
) |>
  dplyr::mutate(
    `BSL_SV = BSL_CO/BSL_HR`   = BSL_CO / BSL_HR,
    `BSL_TPR = BSL_MAP/BSL_CO` = BSL_MAP / BSL_CO,
    `model SV`  = ss$SV,
    `model TPR` = ss$TPR
  )
knitr::kable(derived, digits = 6,
             caption = "BSL_SV and BSL_TPR are derived from the three estimated baselines.")
BSL_SV and BSL_TPR are derived from the three estimated baselines.
Strain BSL_HR BSL_MAP BSL_CO BSL_SV = BSL_CO/BSL_HR BSL_TPR = BSL_MAP/BSL_CO model SV model TPR
SHR 310 155 69 0.222581 2.246377 0.222581 2.246377
WKY 323 102 129 0.399381 0.790698 0.399381 0.790698

stopifnot(
  max(abs(derived$`BSL_SV = BSL_CO/BSL_HR`   - derived$`model SV`))  < 1e-9,
  max(abs(derived$`BSL_TPR = BSL_MAP/BSL_CO` - derived$`model TPR`)) < 1e-9
)

The paper’s own qualitative statement follows: SHR have a lower BSL_SV and a higher BSL_TPR than WKY rats.

stopifnot(
  derived$`model SV`[1]  < derived$`model SV`[2],
  derived$`model TPR`[1] > derived$`model TPR`[2]
)

4. Equation 9: feedback declines with baseline MAP

Equation 9 is FB = FB0 * (IBSL_MAP / TVBSL_MAP_SHR)^FB0_MAP, with TVBSL_MAP_SHR = 155 mmHg, the SHR typical value, used as the reference for both strains. The paper reports the consequence rather than the WKY number: “Overall, the feedback is about twofold higher in WKY rats as compared with SHR.” That statement is the check.

fb_pub <- function(bsl_map) pub$FB0 * (bsl_map / pub$BSL_MAP_SHR)^pub$FB0_MAP
fb_tab <- tibble::tibble(
  Strain      = c("SHR", "WKY"),
  BSL_MAP     = c(pub$BSL_MAP_SHR, pub$BSL_MAP_WKY),
  `FB (Eq 9)` = fb_pub(c(pub$BSL_MAP_SHR, pub$BSL_MAP_WKY)),
  `FB (model)` = ss$MAP * 0 + c(
    cvs_solve(cvs_events(1, by = 0.5, strain = 1), params = c(amp_HR = 0))$fb[1],
    cvs_solve(cvs_events(1, by = 0.5, strain = 0), params = c(amp_HR = 0))$fb[1]
  )
) |>
  dplyr::mutate(`1 - FB*BSL_MAP` = 1 - `FB (model)` * BSL_MAP)
knitr::kable(fb_tab, digits = 6,
             caption = "Feedback constant by strain (Equation 9, reference 155 mmHg).")
Feedback constant by strain (Equation 9, reference 155 mmHg).
Strain BSL_MAP FB (Eq 9) FB (model) 1 - FB*BSL_MAP
SHR 155 0.002900 0.002900 0.550500
WKY 102 0.006641 0.006641 0.322629

ratio <- fb_tab$`FB (model)`[2] / fb_tab$`FB (model)`[1]
cat(sprintf("WKY / SHR feedback ratio: %.3f\n", ratio))
#> WKY / SHR feedback ratio: 2.290

stopifnot(
  # The model reproduces Equation 9 evaluated by hand.
  max(abs(fb_tab$`FB (model)` - fb_tab$`FB (Eq 9)`)) < 1e-12,
  # "About twofold higher in WKY rats" (Results, SHR versus WKY rats).
  ratio > 1.8 && ratio < 2.8,
  # The production-rate multiplier must stay positive in both strains or the
  # steady-state Kin of Equation 5 would be negative.
  all(fb_tab$`1 - FB*BSL_MAP` > 0)
)

The 1 - FB*BSL_MAP column is worth noting for anyone simulating large perturbations: it is 0.55 in SHR but only 0.32 in WKY rats, so the normotensive strain has appreciably less headroom before the production term would change sign.

5. Flux balance at the fixed point

At the (non-oscillating) baseline, production and loss must cancel exactly for each of the three turnover states. Done symbolically from the published values, independent of the solver.

flux <- function(bsl_map, bsl_hr, bsl_co) {
  fb  <- fb_pub(bsl_map)
  bsl <- c(HR = bsl_hr, SV = bsl_co / bsl_hr, TPR = bsl_map / bsl_co)
  kout <- c(HR = pub$kout_HR, SV = pub$kout_SV, TPR = pub$kout_TPR)
  kin  <- kout * bsl / (1 - fb * bsl_map)
  tibble::tibble(State = names(bsl),
                 `Kin (Eq 5)` = unname(kin),
                 Production   = unname(kin * (1 - fb * bsl_map)),
                 Loss         = unname(kout * bsl),
                 Net          = unname(kin * (1 - fb * bsl_map) - kout * bsl))
}
fl <- dplyr::bind_rows(
  dplyr::mutate(flux(pub$BSL_MAP_SHR, pub$BSL_HR_SHR, pub$BSL_CO_SHR), Strain = "SHR"),
  dplyr::mutate(flux(pub$BSL_MAP_WKY, pub$BSL_HR_WKY, pub$BSL_CO_WKY), Strain = "WKY")
) |>
  dplyr::select(Strain, State, `Kin (Eq 5)`, Production, Loss, Net)
knitr::kable(fl, digits = 8,
             caption = "Production and loss fluxes cancel at baseline. Note that Kin is the zero-order rate CONSTANT of Equation 5; the production FLUX is Kin * (1 - FB*MAP), which is what must equal the loss.")
Production and loss fluxes cancel at baseline. Note that Kin is the zero-order rate CONSTANT of Equation 5; the production FLUX is Kin * (1 - FB*MAP), which is what must equal the loss.
Strain State Kin (Eq 5) Production Loss Net
SHR HR 6.532243e+03 3.596000e+03 3.596000e+03 0
SHR SV 5.094489e-02 2.804516e-02 2.804516e-02 0
SHR TPR 1.460859e+01 8.042029e+00 8.042029e+00 0
WKY HR 1.161334e+04 3.746800e+03 3.746800e+03 0
WKY SV 1.559748e-01 5.032198e-02 5.032198e-02 0
WKY TPR 8.773847e+00 2.830698e+00 2.830698e+00 0

# The solver's own Kin values must equal the hand computation from Equation 5.
ms  <- cvs_solve(cvs_events(1, by = 0.5, strain = 1), params = c(amp_HR = 0))
kin_shr <- fl$`Kin (Eq 5)`[fl$Strain == "SHR"]
names(kin_shr) <- fl$State[fl$Strain == "SHR"]
stopifnot(
  max(abs(fl$Net)) < 1e-9,
  abs(ms$kin_HR[1]  - kin_shr[["HR"]])  < 1e-9,
  abs(ms$kin_SV[1]  - kin_shr[["SV"]])  < 1e-9,
  abs(ms$kin_TPR[1] - kin_shr[["TPR"]]) < 1e-9
)

6. Circadian rhythm (Equation 3)

Two 24 h cosines multiply the HR and TPR production rates. The paper reports the amplitude as 0.09, “indicating that the variation in Kin_HR and Kin_TPR is maximally 9% during the day”, and states that the two horizontal displacements are significantly different, “even if one of the cosines would have been replaced by a sine (i.e. a shift of 12 h)”.

circ <- cvs_solve(cvs_events(336 + 48, by = 0.25, strain = 1))
last48 <- circ[circ$time >= 336, ]

circ_summary <- tibble::tibble(
  Readout = c("HR", "MAP", "CO", "SV", "TPR"),
  Mean    = vapply(c("HR", "MAP", "CO", "SV", "TPR"),
                   function(v) mean(last48[[v]]), numeric(1)),
  Min     = vapply(c("HR", "MAP", "CO", "SV", "TPR"),
                   function(v) min(last48[[v]]), numeric(1)),
  Max     = vapply(c("HR", "MAP", "CO", "SV", "TPR"),
                   function(v) max(last48[[v]]), numeric(1))
) |>
  dplyr::mutate(`Peak-to-trough, % of mean` = 100 * (Max - Min) / Mean)
knitr::kable(circ_summary, digits = 3,
             caption = "Oscillating steady state over the last 48 h before intervention.")
Oscillating steady state over the last 48 h before intervention.
Readout Mean Min Max Peak-to-trough, % of mean
HR 310.326 279.734 342.098 20.096
MAP 154.812 152.157 157.438 3.412
CO 69.060 64.453 73.749 13.460
SV 0.223 0.215 0.231 6.790
TPR 2.248 2.068 2.430 16.108

last48 |>
  dplyr::select(time, HR, MAP, CO, SV, TPR) |>
  tidyr::pivot_longer(-time, names_to = "Readout", values_to = "Value") |>
  ggplot2::ggplot(ggplot2::aes(time - 336, Value)) +
  ggplot2::geom_line() +
  ggplot2::facet_wrap(~Readout, scales = "free_y", ncol = 2) +
  ggplot2::labs(x = "Time (h) after the 336 h initialisation period",
                y = NULL,
                title = "Circadian rhythm in all five CVS readouts",
                subtitle = "Cosines are applied to Kin_HR and Kin_TPR only; the rhythm in SV, CO and MAP follows from the feedback") +
  ggplot2::theme_bw()

# The circadian rhythm is imposed on the production rates with amplitude 0.0918,
# so no readout's oscillation may exceed roughly twice that in relative terms.
stopifnot(all(circ_summary$`Peak-to-trough, % of mean` < 2 * 100 * pub$amp_HR * 1.2))

# Equation 5 sets Kin ignoring the rhythm, so the paper expects the oscillation
# to sit AROUND the baseline rather than on it. Confirm the mean is close.
mean_dev <- abs(circ_summary$Mean[circ_summary$Readout == "MAP"] / pub$BSL_MAP_SHR - 1)
cat(sprintf("mean MAP over the last 48 h is %.3f%% from BSL_MAP\n", 100 * mean_dev))
#> mean MAP over the last 48 h is 0.121% from BSL_MAP
stopifnot(mean_dev < 0.01)

# Phase. The production-rate cosines peak where 2*pi*(t + hor)/24 is a multiple
# of 2*pi, i.e. at t = 24 - hor (mod 24): 15.27 h for HR and 4.70 h for TPR. The
# STATE peak lags the production peak, so allow a couple of hours.
peak_hr  <- (last48$time[which.max(last48$HR)])  %% 24
peak_tpr <- (last48$time[which.max(last48$TPR)]) %% 24
cat(sprintf("HR state peaks at t mod 24 = %.2f h (Kin_HR peak %.2f h)\n",
            peak_hr, (24 - pub$hor_HR) %% 24))
#> HR state peaks at t mod 24 = 15.75 h (Kin_HR peak 15.27 h)
cat(sprintf("TPR state peaks at t mod 24 = %.2f h (Kin_TPR peak %.2f h)\n",
            peak_tpr, (24 - pub$hor_TPR) %% 24))
#> TPR state peaks at t mod 24 = 4.50 h (Kin_TPR peak 4.70 h)
stopifnot(
  abs(peak_hr  - (24 - pub$hor_HR)  %% 24) < 2,
  abs(peak_tpr - (24 - pub$hor_TPR) %% 24) < 2
)

Because dosing happened at 1000 h clock time and the paper started pharmacological intervention at t = 336 h, which is exactly 14 x 24 h, model time t = 0 corresponds to 1000 h. On that clock the HR production rate peaks at 0116 h and the TPR production rate at 1442 h – HR in the dark phase and TPR in the light phase, which is the expected direction for a nocturnal species on the paper’s 0600-1800 h light cycle. This is a consistency observation, not a paper claim.

7. Handling effect (Equation 4)

h1 <- cvs_solve(cvs_events(6, by = 0.02, handling_times = 0), params = c(amp_HR = 0))
h2 <- cvs_solve(cvs_events(6, by = 0.02, handling_times = c(0, 3)), params = c(amp_HR = 0))

closed_1 <- exp(-pub$kHD * h1$time)
closed_2 <- exp(-pub$kHD * h2$time) +
  ifelse(h2$time >= 3, exp(-pub$kHD * (h2$time - 3)), 0)

cat(sprintf("single event : max |ODE state - exp(-kHD*t)| = %.2e\n",
            max(abs(h1$handling - closed_1))))
#> single event : max |ODE state - exp(-kHD*t)| = 1.42e-08
cat(sprintf("two events   : max |ODE state - superposition| = %.2e\n",
            max(abs(h2$handling - closed_2))))
#> two events   : max |ODE state - superposition| = 1.31e-07
cat(sprintf("handling half-life = %.4f h (ln(2)/kHD = %.4f h)\n",
            stats::approx(h1$handling, h1$time, xout = 0.5)$y, log(2) / pub$kHD))
#> handling half-life = 0.1477 h (ln(2)/kHD = 0.1475 h)

stopifnot(
  max(abs(h1$handling - closed_1)) < 1e-6,
  max(abs(h2$handling - closed_2)) < 1e-6,
  abs(stats::approx(h1$handling, h1$time, xout = 0.5)$y - log(2) / pub$kHD) < 1e-3
)

h2 |>
  dplyr::select(time, HR, MAP, CO, SV, TPR) |>
  tidyr::pivot_longer(-time, names_to = "Readout", values_to = "Value") |>
  ggplot2::ggplot(ggplot2::aes(time, Value)) +
  ggplot2::geom_line() +
  ggplot2::geom_vline(xintercept = c(0, 3), linetype = "dashed", colour = "grey50") +
  ggplot2::facet_wrap(~Readout, scales = "free_y", ncol = 2) +
  ggplot2::labs(x = "Time (h)", y = NULL,
                title = "Handling artefact after vehicle administration at 0 h and 3 h",
                subtitle = "Reproduces the qualitative pattern of Snelder 2014 Figure 2: HR, TPR, CO and MAP rise, SV falls") +
  ggplot2::theme_bw()

The paper’s description of the artefact (Methods, “Data analysis”) is that handling “caused a temporary increase in HR, TPR, CO and MAP and decrease in SV that was independent of drug exposure”. The model reproduces all five directions even though the handling term appears only on the HR and TPR production rates: the SV fall is a consequence of the direct HR-on-SV coupling, and the CO and MAP rises follow from the products.

peak <- function(v) h1[[v]][which.max(abs(h1[[v]] - h1[[v]][1]))]
dirs <- tibble::tibble(
  Readout   = c("HR", "TPR", "CO", "MAP", "SV"),
  Baseline  = vapply(c("HR", "TPR", "CO", "MAP", "SV"), function(v) h1[[v]][1], numeric(1)),
  Extreme   = vapply(c("HR", "TPR", "CO", "MAP", "SV"), peak, numeric(1))
) |>
  dplyr::mutate(`% change at the extreme` = 100 * (Extreme / Baseline - 1))
knitr::kable(dirs, digits = 4,
             caption = "Direction of the handling effect on each readout (single event at t = 0).")
Direction of the handling effect on each readout (single event at t = 0).
Readout Baseline Extreme % change at the extreme
HR 310.0000 374.7209 20.8777
TPR 2.2464 2.3260 3.5451
CO 69.0000 78.3787 13.5923
MAP 155.0000 182.2729 17.5954
SV 0.2226 0.2091 -6.0462

stopifnot(
  dirs$`% change at the extreme`[dirs$Readout == "HR"]  > 0,
  dirs$`% change at the extreme`[dirs$Readout == "TPR"] > 0,
  dirs$`% change at the extreme`[dirs$Readout == "CO"]  > 0,
  dirs$`% change at the extreme`[dirs$Readout == "MAP"] > 0,
  dirs$`% change at the extreme`[dirs$Readout == "SV"]  < 0
)

8. Enalapril effect compartment (Equation 8)

Equation 8 is dCe/dt = ke0 * (C - Ce). Under a step input of C held constant the analytical solution is Ce(t) = C * (1 - exp(-ke0 * t)), and the time to reach half the plateau is ln(2)/ke0, which the Results report as “the half-life of this additional delay was 4.3 h”.

ev  <- cvs_events(48, by = 0.05, exposure = list(CP_ENALAPRIL_NGML = pub$EC50_enalapril))
ec  <- cvs_solve(ev, params = c(amp_HR = 0))
ana <- pub$EC50_enalapril * (1 - exp(-pub$ke0_enalapril * ec$time))

t_half <- stats::approx(ec$effect, ec$time, xout = pub$EC50_enalapril / 2)$y
cat(sprintf("max |Ce(ODE) - Ce(analytic)| = %.2e ng/mL\n", max(abs(ec$effect - ana))))
#> max |Ce(ODE) - Ce(analytic)| = 3.87e-06 ng/mL
cat(sprintf("half-time to plateau = %.3f h; ln(2)/ke0 = %.3f h; paper reports 4.3 h\n",
            t_half, log(2) / pub$ke0_enalapril))
#> half-time to plateau = 4.252 h; ln(2)/ke0 = 4.252 h; paper reports 4.3 h

stopifnot(
  max(abs(ec$effect - ana)) < 1e-3,
  abs(t_half - log(2) / pub$ke0_enalapril) < 0.01,
  abs(t_half - 4.3) < 0.15
)

9. Concentration-effect forms (Equation 7)

Each compound’s EFF must have the defining property of its published form: an Emax curve reaches Emax/2 at its own EC50; the linear form is proportional to concentration with the published slope; the power form has the published exponent. This checks that the log-scale lec50_* entries were exponentiated correctly and that the signs are the ones Table 4 specifies.

emax_form  <- function(cc, ec50) cc / (ec50 + cc)
conc <- 10^seq(-3, 6, length.out = 200)

ce <- dplyr::bind_rows(
  tibble::tibble(Compound = "amiloride (SV)",  Conc = conc,
                 EFF = -emax_form(conc, pub$EC50_amiloride)),
  tibble::tibble(Compound = "amlodipine (TPR)", Conc = conc,
                 EFF = -emax_form(conc, pub$EC50_amlodipine)),
  tibble::tibble(Compound = "enalapril (TPR+SV)", Conc = conc,
                 EFF = -emax_form(conc, pub$EC50_enalapril)),
  tibble::tibble(Compound = "fasudil (TPR)",   Conc = conc,
                 EFF = -emax_form(conc, pub$EC50_fasudil)),
  tibble::tibble(Compound = "HCTZ (SV)",       Conc = conc,
                 EFF = -emax_form(conc, pub$EC50_hctz)),
  tibble::tibble(Compound = "atropine (HR)",   Conc = conc,
                 EFF = pub$SL_atropine * conc),
  tibble::tibble(Compound = "prazosin (TPR)",  Conc = conc,
                 EFF = -pub$SL_prazosin * conc^pub$POW_prazosin)
)

ce |>
  dplyr::filter(EFF >= -1.05, EFF <= 1.05) |>
  ggplot2::ggplot(ggplot2::aes(Conc, EFF, colour = Compound)) +
  ggplot2::geom_line() +
  ggplot2::geom_hline(yintercept = c(-1, -0.5, 0), linetype = "dotted", colour = "grey60") +
  ggplot2::scale_x_log10() +
  ggplot2::labs(x = "Plasma concentration (ng/mL, log scale)",
                y = "EFF (signed; negative = inhibition of production)",
                title = "Concentration-effect relationships (Snelder 2014 Equation 7, Table 5)") +
  ggplot2::theme_bw()


# Emax forms: EFF = -0.5 exactly at the published EC50.
half <- c(amiloride = pub$EC50_amiloride, amlodipine = pub$EC50_amlodipine,
          enalapril = pub$EC50_enalapril, fasudil = pub$EC50_fasudil,
          hctz = pub$EC50_hctz)
stopifnot(max(abs(-emax_form(half, half) - (-0.5))) < 1e-12)

# Linear form: doubling the concentration doubles the effect.
stopifnot(abs(pub$SL_atropine * 2000 - 2 * (pub$SL_atropine * 1000)) < 1e-15)

# Power form: the exponent is recovered from the slope on the log-log scale.
pw <- diff(log(pub$SL_prazosin * c(10, 1000)^pub$POW_prazosin)) / diff(log(c(10, 1000)))
stopifnot(abs(pw - pub$POW_prazosin) < 1e-12)

# Prazosin's effect is far from maximal over the studied range, which is the
# paper's stated reason for preferring the power form.
cat(sprintf("prazosin EFF magnitude at 1 / 100 / 10000 ng/mL: %.3f / %.3f / %.3f\n",
            pub$SL_prazosin * 1^pub$POW_prazosin,
            pub$SL_prazosin * 100^pub$POW_prazosin,
            pub$SL_prazosin * 10000^pub$POW_prazosin))
#> prazosin EFF magnitude at 1 / 100 / 10000 ng/mL: 0.328 / 0.499 / 0.758
stopifnot(pub$SL_prazosin * 10000^pub$POW_prazosin < 1)

Fasudil’s EC50 of 0.172 ng/mL puts its curve four orders of magnitude to the left of every other compound in the plot. That is the discrepancy discussed in Assumptions and deviations, shown here rather than hidden.

10. Signature profiles: the direction of every drug effect

Snelder 2014’s central claim is that the site of action of a compound can be identified from the pattern of changes across MAP, CO, HR, SV and TPR – the “signature profile” of Figure 4 – and Table 4 plus the Figure 3, S1 and S2 captions state the expected pattern for each compound. This check drives each compound at a constant exposure and compares all five directions against the published description. It is deliberately PK-free: the directions are properties of the system model, not of the concentration-time profile.

drug_exposure <- list(
  amiloride  = list(CP_AMILORIDE_NGML  = pub$EC50_amiloride),
  amlodipine = list(CP_AMLODIPINE_NGML = pub$EC50_amlodipine),
  atropine   = list(CP_ATROPINE_NGML   = 300),
  enalapril  = list(CP_ENALAPRIL_NGML  = pub$EC50_enalapril),
  fasudil    = list(CP_FASUDIL_NGML    = pub$EC50_fasudil),
  hctz       = list(CP_HCTZ_NGML       = pub$EC50_hctz),
  prazosin   = list(CP_PRAZOSIN_NGML   = 1)
)

sig_one <- function(nm) {
  s <- cvs_solve(cvs_events(72, by = 0.1, exposure = drug_exposure[[nm]]),
                 params = c(amp_HR = 0))
  n <- nrow(s)
  tibble::tibble(
    Compound = nm,
    HR  = 100 * (s$HR[n]  / s$HR[1]  - 1),
    SV  = 100 * (s$SV[n]  / s$SV[1]  - 1),
    TPR = 100 * (s$TPR[n] / s$TPR[1] - 1),
    CO  = 100 * (s$CO[n]  / s$CO[1]  - 1),
    MAP = 100 * (s$MAP[n] / s$MAP[1] - 1)
  )
}
sig <- dplyr::bind_rows(lapply(names(drug_exposure), sig_one))

sig |>
  dplyr::mutate(Site = c("SV", "TPR", "HR", "TPR + SV", "TPR", "SV", "TPR"),
                Direction = c("inhibit", "inhibit", "stimulate", "inhibit",
                              "inhibit", "inhibit", "inhibit")) |>
  dplyr::select(Compound, Site, Direction, HR, SV, TPR, CO, MAP) |>
  knitr::kable(digits = 2,
               caption = "Per cent change from baseline after 72 h of constant exposure. Site and direction are Snelder 2014 Table 4.")
Per cent change from baseline after 72 h of constant exposure. Site and direction are Snelder 2014 Table 4.
Compound Site Direction HR SV TPR CO MAP
amiloride SV inhibit 18.02 -44.04 18.02 -33.96 -22.06
amlodipine TPR inhibit 18.02 11.92 -40.99 32.08 -22.06
atropine HR stimulate 35.58 -15.20 -6.30 14.97 7.72
enalapril TPR + SV inhibit 35.59 -38.64 -32.20 -16.80 -43.59
fasudil TPR inhibit 18.02 11.92 -40.99 32.08 -22.06
hctz SV inhibit 18.02 -44.04 18.02 -33.96 -22.06
prazosin TPR inhibit 10.29 6.92 -25.89 17.92 -12.60
get <- function(nm, v) sig[[v]][sig$Compound == nm]

stopifnot(
  # Figure S1 caption, SV-acting compounds: "Amiloride and HCTZ have an
  # inhibiting effect on SV. Therefore, SV and, consequently, CO, decrease ...
  # As a result of the indirect feedback, HR and TPR increase. MAP changes in
  # the same direction as the initial effect."
  all(vapply(c("amiloride", "hctz"), function(d) {
    get(d, "SV") < 0 && get(d, "CO") < 0 && get(d, "HR") > 0 &&
      get(d, "TPR") > 0 && get(d, "MAP") < 0
  }, logical(1))),

  # Figure 3 / S1 captions, TPR-acting compounds: "TPR decreases ... As a result
  # of the indirect feedback, HR, SV and CO increase ... MAP decreases."
  all(vapply(c("amlodipine", "fasudil", "prazosin"), function(d) {
    get(d, "TPR") < 0 && get(d, "HR") > 0 && get(d, "SV") > 0 &&
      get(d, "CO") > 0 && get(d, "MAP") < 0
  }, logical(1))),

  # Figure S2 caption, atropine: "Atropine has a stimulating effect on HR.
  # Therefore, HR and, consequently, CO, increase ... As a result of the
  # indirect feedback, SV and TPR decrease. MAP changes in the same direction
  # as the initial effect."
  get("atropine", "HR")  > 0, get("atropine", "CO")  > 0,
  get("atropine", "SV")  < 0, get("atropine", "TPR") < 0,
  get("atropine", "MAP") > 0,

  # Figure S1 caption, enalapril: it inhibits TPR AND SV, so unlike the pure
  # TPR-acting compounds "the initial decrease in SV is not reversed by the
  # indirect feedback".
  get("enalapril", "TPR") < 0, get("enalapril", "SV") < 0,
  get("enalapril", "MAP") < 0,

  # Figure 4: "inhibition of HR, SV or TPR always results in a decrease in MAP,
  # demonstrating that homeostatic feedback cannot be stronger than the primary
  # effect." Every inhibitory compound lowers MAP; the one stimulator raises it.
  all(sig$MAP[sig$Compound != "atropine"] < 0),
  sig$MAP[sig$Compound == "atropine"] > 0
)

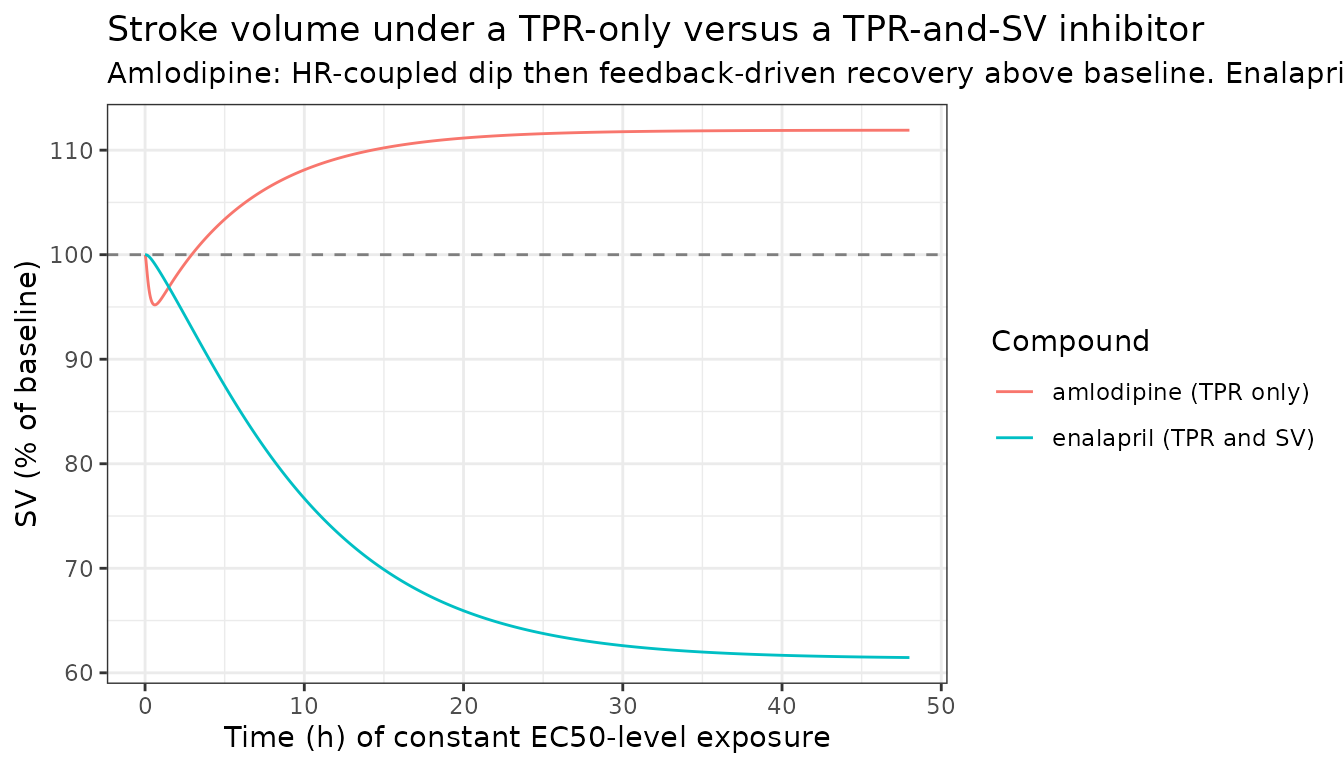

The transient SV dip under a TPR-acting compound

Figure 3’s caption calls out a second-order feature: under amlodipine “the initial decrease in SV is related to the direct inverse relationship between HR and SV”, and Figure S1 adds that “subsequently, this decrease is reversed by the indirect feedback”. The model must therefore take SV below baseline first and above baseline later – a sign change that the 72 h endpoint of the table above cannot see.

amlo <- cvs_solve(cvs_events(48, by = 0.02,
                             exposure = list(CP_AMLODIPINE_NGML = pub$EC50_amlodipine)),
                  params = c(amp_HR = 0))
enal <- cvs_solve(cvs_events(48, by = 0.02,
                             exposure = list(CP_ENALAPRIL_NGML = pub$EC50_enalapril)),
                  params = c(amp_HR = 0))

dplyr::bind_rows(
  dplyr::mutate(amlo, Compound = "amlodipine (TPR only)"),
  dplyr::mutate(enal, Compound = "enalapril (TPR and SV)")
) |>
  dplyr::mutate(`SV, % of baseline` = 100 * SV / SV[1]) |>
  dplyr::group_by(Compound) |>
  dplyr::mutate(`SV, % of baseline` = 100 * SV / dplyr::first(SV)) |>
  dplyr::ungroup() |>
  ggplot2::ggplot(ggplot2::aes(time, `SV, % of baseline`, colour = Compound)) +
  ggplot2::geom_line() +
  ggplot2::geom_hline(yintercept = 100, linetype = "dashed", colour = "grey50") +
  ggplot2::labs(x = "Time (h) of constant EC50-level exposure", y = "SV (% of baseline)",
                title = "Stroke volume under a TPR-only versus a TPR-and-SV inhibitor",
                subtitle = "Amlodipine: HR-coupled dip then feedback-driven recovery above baseline. Enalapril: no recovery.") +
  ggplot2::theme_bw()


cat(sprintf("amlodipine SV: minimum %.2f%% of baseline at t = %.2f h, final %.2f%%\n",
            100 * min(amlo$SV) / amlo$SV[1], amlo$time[which.min(amlo$SV)],
            100 * amlo$SV[nrow(amlo)] / amlo$SV[1]))
#> amlodipine SV: minimum 95.20% of baseline at t = 0.62 h, final 111.91%
cat(sprintf("enalapril  SV: minimum %.2f%% of baseline, final %.2f%%\n",
            100 * min(enal$SV) / enal$SV[1],
            100 * enal$SV[nrow(enal)] / enal$SV[1]))
#> enalapril  SV: minimum 61.46% of baseline, final 61.46%

stopifnot(
  # Amlodipine: dips below baseline, then recovers above it.
  min(amlo$SV) < amlo$SV[1],
  amlo$SV[nrow(amlo)] > amlo$SV[1],
  # Enalapril: the SV effect is direct, so there is no recovery above baseline.
  enal$SV[nrow(enal)] < enal$SV[1]
)

Figure 4: the MAP delay is longer for an SV effect than for a TPR effect

The other Figure 4 claim is about timing rather than direction: “the delay between the stimulus and the response for MAP was longer for the drug effect on SV as compared with TPR.” The model’s mechanism for this is kout_SV = 0.126 1/h against kout_TPR = 3.58 1/h, a 28-fold difference in dissipation rate.

t90 <- function(s) {
  d <- s$MAP - s$MAP[1]
  s$time[which(abs(d) >= abs(0.9 * d[nrow(s)]))[1]]
}
delay <- tibble::tibble(
  Compound = names(drug_exposure),
  Site     = c("SV", "TPR", "HR", "TPR + SV", "TPR", "SV", "TPR"),
  `t90 of the MAP change (h)` = vapply(names(drug_exposure), function(nm) {
    t90(cvs_solve(cvs_events(120, by = 0.05, exposure = drug_exposure[[nm]]),
                  params = c(amp_HR = 0)))
  }, numeric(1))
)
knitr::kable(delay, digits = 2,
             caption = "Time to 90% of the final MAP change under constant exposure.")
Time to 90% of the final MAP change under constant exposure.
Compound Site t90 of the MAP change (h)
amiloride SV 15.95
amlodipine TPR 0.25
atropine HR 0.05
enalapril TPR + SV 17.45
fasudil TPR 0.25
hctz SV 15.95
prazosin TPR 0.25

sv_only  <- delay$`t90 of the MAP change (h)`[delay$Site == "SV"]
tpr_only <- delay$`t90 of the MAP change (h)`[delay$Site == "TPR"]
stopifnot(
  # Every SV-acting compound is slower than every TPR-acting compound.
  min(sv_only) > max(tpr_only),
  # And by a wide margin, not a marginal one.
  min(sv_only) / max(tpr_only) > 5
)

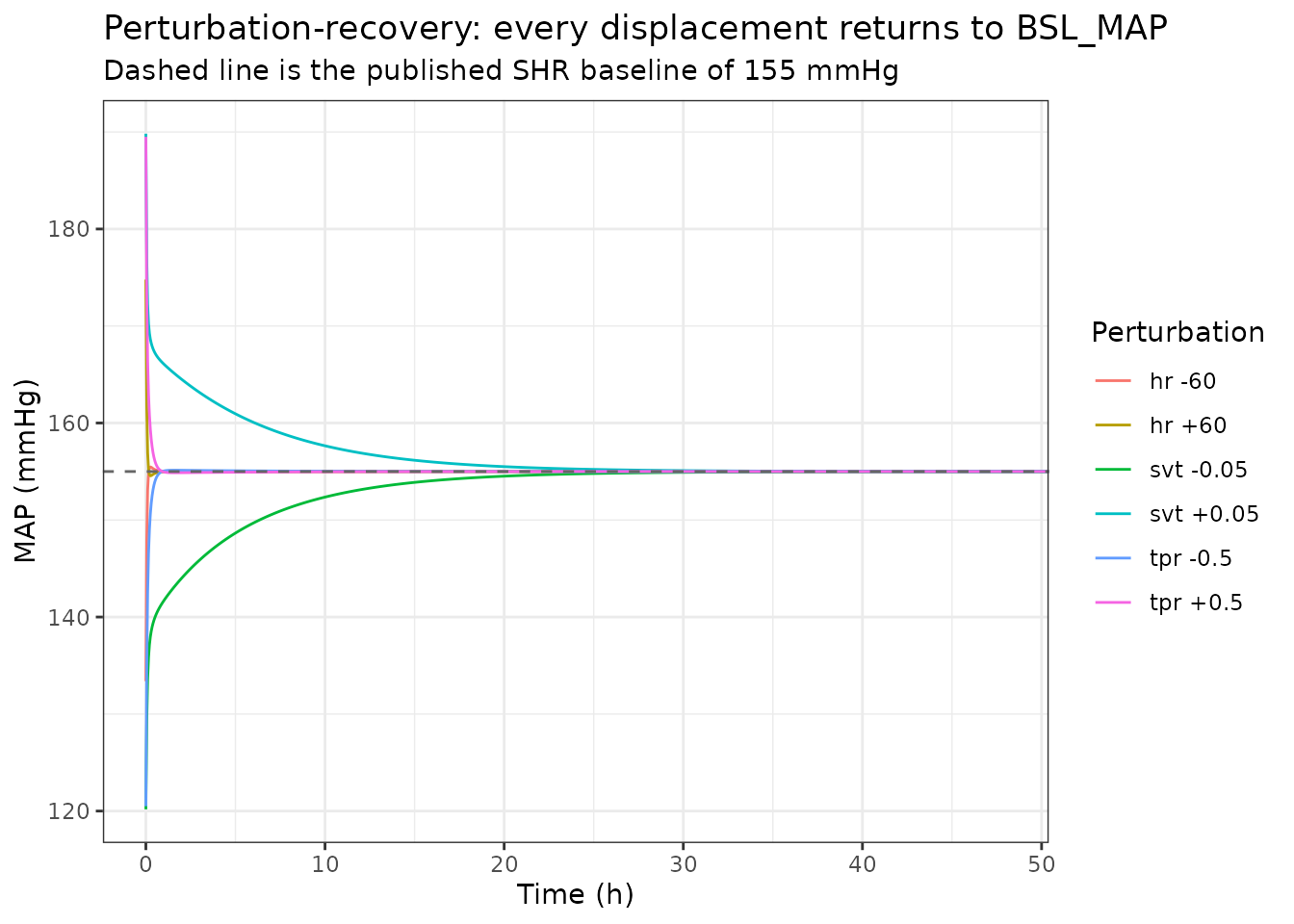

11. Perturbation-recovery

Displacing a state away from baseline must bring the whole coupled system back. Because hr(0), svt(0) and tpr(0) are set inside model(), they override rxSolve(inits = ); the displacement is therefore applied as a bolus dose record on the ODE state itself.

perturb <- function(state, amount) {
  ev <- cvs_events(72, by = 0.05)
  ev <- rbind(ev, data.frame(
    time = 0, amt = amount, evid = 1L, cmt = state, id = 1L, STRAIN_SHR = 1,
    CP_AMILORIDE_NGML = 0, CP_AMLODIPINE_NGML = 0, CP_ATROPINE_NGML = 0,
    CP_ENALAPRIL_NGML = 0, CP_FASUDIL_NGML = 0, CP_HCTZ_NGML = 0,
    CP_PRAZOSIN_NGML = 0
  ))
  s <- cvs_solve(ev[order(ev$time, ev$evid), ], params = c(amp_HR = 0))
  dplyr::mutate(s, Perturbation = sprintf("%s %+g", state, amount))
}

pert <- dplyr::bind_rows(
  perturb("hr",  60),  perturb("hr",  -60),
  perturb("svt", 0.05), perturb("svt", -0.05),
  perturb("tpr", 0.5), perturb("tpr", -0.5)
)

pert |>
  dplyr::select(time, MAP, Perturbation) |>
  ggplot2::ggplot(ggplot2::aes(time, MAP, colour = Perturbation)) +
  ggplot2::geom_line() +
  ggplot2::geom_hline(yintercept = pub$BSL_MAP_SHR, linetype = "dashed", colour = "grey40") +
  ggplot2::coord_cartesian(xlim = c(0, 48)) +
  ggplot2::labs(x = "Time (h)", y = "MAP (mmHg)",
                title = "Perturbation-recovery: every displacement returns to BSL_MAP",
                subtitle = "Dashed line is the published SHR baseline of 155 mmHg") +
  ggplot2::theme_bw()


recovery <- pert |>
  dplyr::group_by(Perturbation) |>
  dplyr::summarise(
    `MAP at t = 0`  = dplyr::first(MAP),
    `MAP at t = 72` = dplyr::last(MAP),
    `HR at t = 72`  = dplyr::last(HR),
    `TPR at t = 72` = dplyr::last(TPR),
    .groups = "drop"
  )
knitr::kable(recovery, digits = 4,
             caption = "State at the end of a 72 h recovery after a bolus displacement.")
State at the end of a 72 h recovery after a bolus displacement.
Perturbation MAP at t = 0 MAP at t = 72 HR at t = 72 TPR at t = 72
hr +60 174.7876 155.0000 310.0000 2.2464
hr -60 133.3893 155.0000 310.0000 2.2464
svt +0.05 189.8188 155.0001 309.9999 2.2464
svt -0.05 120.1812 154.9999 310.0001 2.2464
tpr +0.5 189.5000 155.0000 310.0000 2.2464
tpr -0.5 120.5000 155.0000 310.0000 2.2464

stopifnot(
  # Every arm returns to the published baseline.
  max(abs(recovery$`MAP at t = 72` - pub$BSL_MAP_SHR)) < 1e-3,
  max(abs(recovery$`HR at t = 72`  - pub$BSL_HR_SHR))  < 1e-3,
  # And the perturbations really did move MAP away from baseline to begin with.
  max(abs(recovery$`MAP at t = 0` - pub$BSL_MAP_SHR)) > 1
)

12. Inter-individual variability

A cohort of 200 rats per strain – well above the paper’s 12, but the point is to recover the published variance rather than to reproduce the study – is simulated with no drug, no handling and the circadian rhythm switched off, and the baseline distribution of each readout is compared with Table 5.

iiv_cohort <- function(strain, n = 200) {
  ev <- cvs_events(1, by = 0.5, strain = strain)
  s  <- rxode2::rxSolve(ui, ev, nSub = n, params = c(amp_HR = 0),
                        returnType = "data.frame", addDosing = FALSE)
  b <- s[s$time == 0, ]
  b <- b[!duplicated(b$sim.id), ]
  tibble::tibble(
    Strain = if (strain == 1) "SHR" else "WKY",
    Readout = c("BSL_HR", "BSL_MAP", "BSL_CO"),
    `Simulated mean` = c(mean(b$HR), mean(b$MAP), mean(b$CO)),
    `Simulated CV %` = c(100 * sd(b$HR) / mean(b$HR),
                         100 * sd(b$MAP) / mean(b$MAP),
                         100 * sd(b$CO) / mean(b$CO)),
    `Table 5 CV %` = c(pub$CV_BSL_HR, pub$CV_BSL_MAP, pub$CV_BSL_CO),
    `Table 5 typical value` = if (strain == 1) {
      c(pub$BSL_HR_SHR, pub$BSL_MAP_SHR, pub$BSL_CO_SHR)
    } else {
      c(pub$BSL_HR_WKY, pub$BSL_MAP_WKY, pub$BSL_CO_WKY)
    }
  )
}
iiv <- dplyr::bind_rows(iiv_cohort(1), iiv_cohort(0))
knitr::kable(iiv, digits = 3,
             caption = "Simulated baseline distribution (200 rats per strain) against Snelder 2014 Table 5.")
Simulated baseline distribution (200 rats per strain) against Snelder 2014 Table 5.
Strain Readout Simulated mean Simulated CV % Table 5 CV % Table 5 typical value
SHR BSL_HR 310.155 5.709 6.1 310
SHR BSL_MAP 155.353 3.398 3.7 155
SHR BSL_CO 69.707 24.409 22.7 69
WKY BSL_HR 324.079 5.752 6.1 323
WKY BSL_MAP 101.579 3.711 3.7 102
WKY BSL_CO 133.310 23.382 22.7 129

The arithmetic identity that fixes the IIV scale is checked separately from the simulation, because it is exact while a 200-subject sample is not.

scale_check <- tibble::tibble(
  Parameter = c("BSL_HR", "BSL_MAP", "BSL_CO"),
  `Table 5 CV %` = c(pub$CV_BSL_HR, pub$CV_BSL_MAP, pub$CV_BSL_CO),
  `Fu 2023 S1 $OMEGA` = c(0.00372, 0.00137, 0.0515)
) |>
  dplyr::mutate(
    `sqrt(omega) as CV %`            = 100 * sqrt(`Fu 2023 S1 $OMEGA`),
    `sqrt(exp(omega)-1) as CV %`     = 100 * sqrt(exp(`Fu 2023 S1 $OMEGA`) - 1),
    `variance encoded in the file`   = (`Table 5 CV %` / 100)^2
  )
knitr::kable(scale_check, digits = 5,
             caption = "Table 5's CV% is sqrt(omega), not the exact log-normal form: Fu 2023's re-encoding of this model settles the ambiguity.")
Table 5’s CV% is sqrt(omega), not the exact log-normal form: Fu 2023’s re-encoding of this model settles the ambiguity.
Parameter Table 5 CV % Fu 2023 S1 $OMEGA sqrt(omega) as CV % sqrt(exp(omega)-1) as CV % variance encoded in the file
BSL_HR 6.1 0.00372 6.09918 6.10486 0.00372
BSL_MAP 3.7 0.00137 3.70135 3.70262 0.00137
BSL_CO 22.7 0.05150 22.69361 22.98895 0.05153

err_sqrt <- abs(scale_check$`sqrt(omega) as CV %`        - scale_check$`Table 5 CV %`)
err_lnorm <- abs(scale_check$`sqrt(exp(omega)-1) as CV %` - scale_check$`Table 5 CV %`)
cat(sprintf("BSL_CO: |sqrt(omega) - 22.7| = %.4f, |sqrt(exp(omega)-1) - 22.7| = %.4f (%.0fx worse)\n",
            err_sqrt[3], err_lnorm[3], err_lnorm[3] / err_sqrt[3]))
#> BSL_CO: |sqrt(omega) - 22.7| = 0.0064, |sqrt(exp(omega)-1) - 22.7| = 0.2890 (45x worse)

stopifnot(
  # The rounded Fu 2023 omegas and the file's (CV/100)^2 agree to the rounding.
  max(abs(scale_check$`variance encoded in the file` -
            scale_check$`Fu 2023 S1 $OMEGA`)) < 5e-5,
  # sqrt(omega) reproduces the printed CV% to the rounding of the omegas.
  max(err_sqrt) < 0.02,
  # The exact log-normal form does not, and the gap grows with omega, so BSL_CO
  # is what makes the two readings distinguishable at all. The two forms agree
  # to second order, so the discriminating statement is relative, not absolute.
  err_lnorm[3] / err_sqrt[3] > 10,
  err_lnorm[3] > max(err_sqrt)
)

# The simulated cohort is a sanity check, not a precision check: with n = 200 the
# standard error of a CV estimate is about CV / sqrt(2n), roughly 5% relative, so
# assert on the centre with generous room rather than on any per-rat extreme.
stopifnot(
  all(abs(iiv$`Simulated CV %` / iiv$`Table 5 CV %` - 1) < 0.35),
  all(abs(iiv$`Simulated mean` / iiv$`Table 5 typical value` - 1) < 0.05)
)

13. No PKNCA validation

PKNCA is not used in this vignette and no NCA parameters are computed. There is nothing to integrate: the model has no drug compartment, no dose of drug and no concentration-time profile of its own. Snelder 2014 took every plasma profile from a separate literature PK model (Table 2) and published no PK parameter values, so exposure enters the packaged model as seven time-varying CP_<drug>_NGML covariate columns that a user must supply. The validation route above is the one appropriate to a mechanistic turnover model: steady-state hold, derived-baseline identities, closed-form agreement for the circadian, handling and effect-compartment sub-models, flux balance, perturbation-recovery, and reproduction of the published direction and relative timing of every drug effect.

Assumptions and deviations

Exposure is an input, not a model output. Snelder 2014 Table 2 names the literature PK model behind each compound’s concentration-time profile (Segre 1998, Stopher 1988, Perlstein 2002, Lin 1988 with Li 2007, Ikegaki 2001, Asdaq & Inamdar 2009, Hamilton 1985, van Steeg 2010 with Belpaire 1990) and prints no CL, V, Ka, F or lag time for any of them. The packaged model therefore has no internal PK and no dosing compartment for drug; concentrations are supplied through the seven CP_<drug>_NGML covariate columns, in ng/mL to match the Table 5 potency units. This is the same treatment the sibling Snelder_2013_cardiovascular_rat model uses. The paper’s own caution applies: “the PK models were descriptive and the PK and drug-specific PD parameters should only be interpreted in the context of this model.”

Two PK parameters in Table 5 are not carried. Atropine’s Ka (1.17 1/h, estimated simultaneously with the PD) and prazosin’s Ka (fixed to 99 1/h, stated in the Results rather than tabulated) are absorption constants of literature PK models whose disposition parameters the paper does not publish. A Ka alone does not reconstruct a profile, and the model has no absorption compartment for them to act in, so they are recorded in the relevant covariateData notes rather than in ini(). Nothing in the packaged model depends on them.

Propranolol carries no parameters. It was dosed at 30 mg/kg p.o. in Study 2 and modelled, but “the effect of propranolol was too small to be quantified” (Results, Drug effects), so it has no row in Table 5. It is therefore absent from both ini() and covariateData – there is nothing to encode. Note that Snelder_2013_cardiovascular_rat does carry propranolol parameters, from a different study design (continuous dosing at 1 mg/mL in drinking water).

Fasudil’s EC50 differs ~1900-fold from the 2013 companion paper. Snelder 2014 Table 5 gives 0.172 ng/mL; Snelder 2013 Table 6 gives 321 ng/mL for the same compound, in the same laboratory, at the same 3-30 mg/kg oral doses, with the same literature PK source. Neither paper mentions the difference. Section 1 above shows that 0.172 reconstructs its own printed RSE and confidence interval exactly, so it is not a transcription or PDF-extraction artefact; the model file transcribes the paper as published and does not reconcile the two. The practical consequence for a user is that a fasudil concentration-time profile constructed to be consistent with one paper’s potency scale must not be reused with the other’s.

Effect direction comes from Table 4, not Table 5. Equation 6 applies the drug through the factor (1 + EFF), so EFF must be negative for the six inhibitory compounds and positive for atropine. Table 5 reports magnitudes only (Emax “fixed to 1”, SL 0.328), so the sign is written explicitly in model() with the Table 4 “Effect” column and the Figure 3 / S1 / S2 captions as the source. This differs from Fu_2023_cardiovascular_qsp, which folds the sign into a signed emax parameter; the choice here keeps every ini() number byte-identical to the printed table. Section 10 verifies all five directions per compound against the published captions.

The handling effect is encoded as an ODE state rather than the printed closed form. Equation 4 writes HD_X = P_X * exp(-kHD * (t - tHD)) for a single handling time tHD. The model file uses a first-order decay state that receives a unit impulse at each handling event. Section 7 shows the two are numerically identical for one event; for the repeated handling of Study 2 (1000 h and 1300 h) the ODE superposes, which the printed single-tHD form does not express. Handling events are supplied as amt = 1, evid = 1, cmt = "handling" dose records; a dataset with no such records simply has no handling artefact.

IIV scale. Table 5 reports IIV as “CV%” without stating the formula. The file encodes variance = (CV/100)^2 on the basis of Fu 2023 Supplemental S1, which re-encodes this same model as a NONMEM control stream with $OMEGA 0.00372 / 0.00137 / 0.0515 – exactly the squares of 6.1% / 3.7% / 22.7%. This is the one place where a source other than Snelder 2014 was consulted, and it settles an interpretation rather than supplying a value. Section 12 shows the check.

The circadian reference time. Equation 3’s cosines are functions of the model time t. The paper initialised the system at t = 0 and began pharmacological intervention at t = 336 h, and states that dosing took place at 1000 h clock time; since 336 h is exactly 14 x 24 h, model t = 0 corresponds to 1000 h. The model file does not enforce this – t is whatever the user’s dataset says – but a dataset whose time origin is not 1000 h will place the circadian peaks at the wrong clock time. Section 6 records the resulting peak times and notes that they are consistent with a nocturnal species on the paper’s light cycle; that consistency is an observation of ours, not a claim of the paper’s.

amp_TPR is fixed, not estimated. Table 5’s row reads “ampTPR: Fixed to ampHR” with no value, RSE or interval, because the two amplitudes “could not be distinguished”. The file encodes this as amp_TPR_ratio <- fixed(1).

Prazosin’s published slope unit is dimensionally inconsistent. Table 5 labels SL as (ng mL-1)-1, which is exact only if POW = 1; for EFF = SL * C^POW to be unitless, SL must carry (ng/mL)^-POW. The value is used as printed and the equation reproduces the paper; the label discrepancy is recorded in the parameter label() and in the dimensional-analysis table above, not silently corrected. Note also that the power form is unbounded above, unlike an Emax form, so it must not be extrapolated far beyond the studied 0.04-5 mg/kg range.

The strain covariate is STRAIN_SHR, newly registered. Snelder 2014 expresses the strain through _SHR / _WKY suffixes on the Table 5 baseline rows rather than as a dataset column. The packaged model uses a binary STRAIN_SHR column (1 = SHR, 0 = WKY) to select the baseline triple, registered as a rat member of the existing STRAIN_<GROUP> family. The strain does not enter the feedback constant directly: the twofold-stronger feedback in WKY rats emerges from Equation 9 acting on their lower baseline MAP, as Section 4 shows.

No re-fit of the HR-and-MAP-only analysis. The paper’s second aim – showing that the site of action can be identified from HR and MAP measurements alone – required re-estimating each compound with the system parameters fixed, and reported that amlodipine’s EC50 came back as 84.9 ng/mL (95% CI 75.4-94.4) against 82.8 (74.7-90.9) from the full data. That is an estimation result, not a simulation result, and is not reproduced here; the packaged model carries the final full-data parameter set of Table 5.

No IIV on WKY-specific baselines. The three IIV terms are applied to the selected log baseline regardless of strain, because Table 5 reports one CV% per baseline rather than one per strain per baseline. The paper gives no basis for strain-specific variances.
