Cardiovascular systems (CVS) model, rat (Snelder 2013)

Source: vignettes/articles/Snelder_2013_cardiovascular_rat.Rmd
Snelder_2013_cardiovascular_rat.Rmd

Model and source

  • Citation: Snelder N, Ploeger BA, Luttringer O, Rigel DF, Webb RL, Feldman D, Fu F, Beil M, Jin L, Stanski DR, Danhof M. PKPD modelling of the interrelationship between mean arterial BP, cardiac output and total peripheral resistance in conscious rats. Br J Pharmacol. 2013 Aug;169(7):1510-1524. doi:10.1111/bph.12190. PMCID:PMC3724108. A later re-use of the Snelder CVS framework (with the heart-rate / stroke-volume split of Snelder 2014 and its own parameter set) is packaged as modellib(‘Fu_2023_cardiovascular_qsp’).
  • Article (open access): Br J Pharmacol 2013;169(7):1510-1524 (PMCID PMC3724108)

Snelder 2013 challenged the cardiovascular system of conscious male spontaneously hypertensive rats (SHR) with six antihypertensive compounds of deliberately diverse mechanism – enalapril, fasudil, amlodipine and prazosin (primary effect on total peripheral resistance) and propranolol and hydrochlorothiazide (primary effect on cardiac output) – and analysed all of them simultaneously in one NONMEM run. The point of that design was to separate system-specific parameters, which must be shared by every compound, from drug-specific parameters. The paper then verified the separation directly: dropping any one compound from the fit left every system parameter unchanged except FB1, which depends on the amlodipine data.

The structure is two coupled indirect-response (turnover) states:

  • CO, cardiac output (mL/min)
  • TPR, total peripheral resistance (mmHg/(mL/min))

whose production rates are each suppressed by a linear negative feedback of mean arterial pressure, with MAP = CO * TPR plus a five-harmonic cosine circadian rhythm. The production rate constants are not estimated: they are derived from the baselines, the dissipation rate constants and the feedback constants so that the system sits at the reported baseline (Equation 3). A drug inhibits the production rate of its primary state through an Emax function of plasma concentration (Equations 4 and 6).

Relationship to Fu_2023_cardiovascular_qsp

nlmixr2lib already ships modellib("Fu_2023_cardiovascular_qsp"), which is a later and structurally different member of the same Snelder CVS family: it splits CO into heart rate and stroke volume (the Snelder 2014 extension), uses one shared feedback constant rather than two, applies the circadian rhythm multiplicatively to the production rates of HR and TPR rather than additively to MAP, and carries its own parameter set (BSL_MAP 155 mmHg, BSL_CO 69 mL/min, FB 0.0029 1/mmHg). The Fu 2023 vignette notes that “the Snelder 2013, 2014 papers that supply the rat baseline values are not on disk”. This extraction closes that gap for the 2013 paper: the values below are transcribed from the primary source, not from a downstream re-use.

Do not mix the two parameter sets. They describe different model structures fitted to different data.

Population

pop <- nlmixr2lib::readModelDb("Snelder_2013_cardiovascular_rat")()$population
tibble::tibble(Field = names(pop),
               Value = vapply(pop, function(x) paste(as.character(x), collapse = "; "),
                              character(1))) |>
  knitr::kable(caption = "Study population (Snelder 2013 Methods and Table 2)")
Study population (Snelder 2013 Methods and Table 2)
Field Value
species rat (male spontaneously hypertensive rat, SHR; Taconic Farms)
n_subjects 12
n_studies 2
study_names Study 1 (multiple-dose telemetry; MAP only; enalapril, fasudil, amlodipine or propranolol once daily for 6 days, n = 5 SHR per drug drawn from 10 animals); Study 2 (single ascending doses on separate days; MAP and CO, with TPR derived; amlodipine, prazosin or hydrochlorothiazide, n = 2 SHR)
age_range 21-45 weeks at time of study.
weight_range 269 to 490 g.
sex_female_pct 0
sex_notes All animals were male (Methods, ‘Animals’).
disease_state Spontaneous (genetic) hypertension; the SHR strain is hypertensive at baseline (BSL_MAP = 147 mmHg) with no induced disease model. Snelder 2013 states explicitly (Discussion) that the identified system-parameter set is specific to the SHR strain and that applications using these values are limited to that strain.
dose_range Study 1: enalapril 30 mg/kg p.o. QD x 6, fasudil 30 mg/kg p.o. QD x 6, amlodipine 10 mg/kg p.o. QD x 6, propranolol 1 mg/mL in drinking water. Study 2: amlodipine 0.3, 1, 3, 10 mg/kg p.o.; prazosin 0.04, 0.2, 1, 5 mg/kg p.o.; hydrochlorothiazide 0.1, 0.3, 1, 3 mg/kg p.o., one dose per day on separate days after a vehicle day.
regions Preclinical; Novartis Institutes for BioMedical Research, East Hanover, NJ, USA (in-life) with modelling at Leiden Academic Centre for Drug Research / LAP&P Consultants BV, The Netherlands.
instrumentation Study 1: femoral-artery catheter / radiotransmitter (DSI PA-C40), BP recorded 15 s every 10 min. Study 2: ascending-aortic transit-time flow probe (Transonic 2.5PS or 3PS) plus femoral catheter / radiotransmitter; MAP, heart rate, stroke volume, CO and TPR derived for all beats and averaged over consecutive 2 min intervals. Study 2 animals were reused for up to 6 months with washout between experiments.
n_ode_states 2
notes The total number of animals was 12 (10 in Study 1, 2 in Study 2); the per-drug n = 5 of Table 2 therefore reflects reuse of the Study 1 animals across compounds. TPR was never measured directly: in the experiments it was derived from measured MAP and CO, and in the modelling BSL_MAP and BSL_TPR were the estimated parameters with BSL_CO derived from them ‘for reasons of model stability’ (Data analysis). CO was measured only in Study 2, and among the two CO-acting compounds only hydrochlorothiazide had CO measured – which is why kout_TPR and FB2 remain strongly correlated (-0.984) in the final fit.

Twelve male SHR in total (10 in Study 1, 2 in Study 2), 21-45 weeks old and 269-490 g. Study 1 recorded MAP only, by radiotelemetry, during 6 days of once-daily oral dosing preceded by baseline and vehicle days and followed by 6 washout days. Study 2 added an ascending-aortic transit-time flow probe so that CO could be measured, and gave four ascending single doses on separate days. TPR was never measured: experimentally it was computed from MAP and CO, and in the model BSL_MAP and BSL_TPR were the estimated parameters with BSL_CO derived as their quotient “for reasons of model stability”.

Source trace

Every value in inst/modeldb/therapeuticArea/Snelder_2013_cardiovascular_rat.R comes from the locations below; the same references appear as # comments on each ini() line.

System-specific parameters (Snelder 2013 Table 5)

Model parameter Paper symbol Value Fixed? SE CV% 95% CI Source
lrbase_MAP BSL_MAP 147 mmHg 1.38 0.939 144 - 150 Table 5
lrbase_TPR BSL_TPR 2.32 mmHg/(mL/min) 0.132 5.69 2.06 - 2.58 Table 5
lkout_CO kout_CO 99 1/h FIX Table 5; Results (“could not be estimated accurately … fixed to a high value”)
lkout_TPR kout_TPR 0.260 1/h 0.129 49.6 0.00716 - 0.513 Table 5
lfb_CO FB1 0.00378 1/mmHg 0.000148 3.92 0.00349 - 0.00407 Table 5
lfb_TPR FB2 0.00492 1/mmHg 0.00101 20.5 0.00294 - 0.00690 Table 5

BSL_CO is derived, not estimated: BSL_CO = BSL_MAP / BSL_TPR = 147 / 2.32 = 63.36 mL/min.

Circadian rhythm (Equation 2; Results, “Model development”)

Model parameter Harmonic Period Value Fixed?
amp_MAP1 1 24 h 3.17 mmHg
amp_MAP2 2 12 h 0 FIX
amp_MAP3 3 8 h -2.03 mmHg
amp_MAP4 4 6 h 1.15 mmHg
amp_MAP5 5 4.8 h 1.63 mmHg
amp_MAP6 6 4 h 0 FIX
amp_MAP7 7 24/7 h 1.28 mmHg
amp_MAP8 8 3 h 0 FIX
amp_MAP9 9 24/9 h 0 FIX
amp_MAP10 10 2.4 h 0 FIX
hor_MAP – – not reported, anchored at 0 h FIX

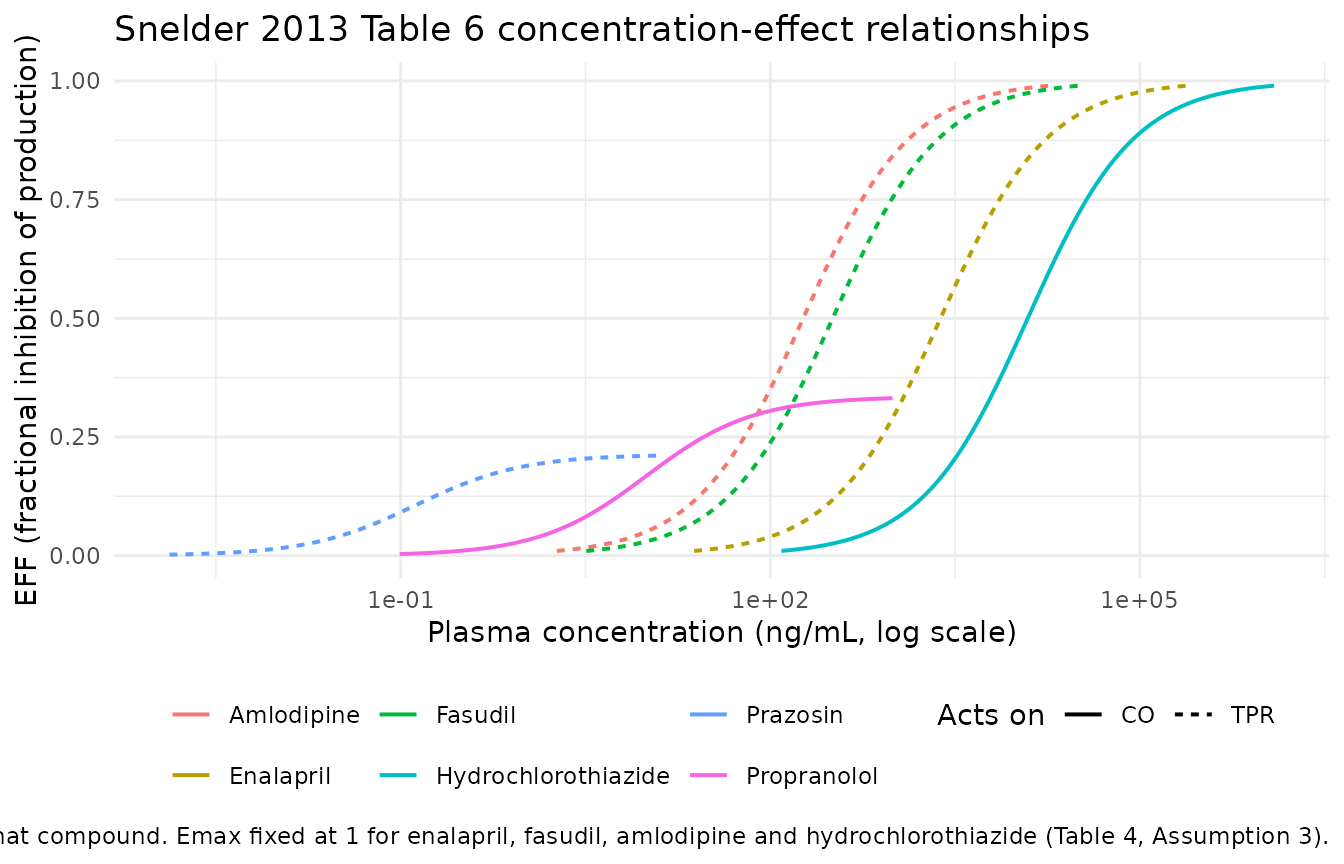

Drug-specific parameters (Snelder 2013 Table 6, with the site of action from Table 1)

Compound Acts on emax_* Fixed? lic50_* (ng/mL) CV% of IC50
Enalapril TPR 1 FIX 2410 15.5
Fasudil TPR 1 FIX 321 18.8
Amlodipine TPR 1 FIX 185 14.2
Prazosin TPR 0.213 0.133 109.8
Propranolol CO 0.335 9.82 38.7
Hydrochlorothiazide CO 1 FIX 12300 6.34

Emax was fixed at 1 for the four compounds whose maximum effect was never reached (Table 4, Assumption 3), so that IC50 stayed identifiable. Table 5’s last column shows the whole system-parameter set re-estimated with amlodipine’s Emax fixed at 0.8 instead of 1: nothing moves materially.

Equations

Model code Source
bsl_CO <- bsl_MAP / bsl_TPR Data analysis (“BSL_CO was derived from these parameters”)
kin_CO <- -kout_CO * bsl_CO / (-1 + fb1 * bsl_CO * bsl_TPR) Equation 3 (verbatim)
kin_TPR <- kout_TPR * (kin_CO*fb1*bsl_TPR + kout_CO) * bsl_TPR / (kin_CO*fb1*bsl_TPR + kout_CO - fb2*kin_CO*bsl_TPR) Equation 3 (verbatim)
circ_MAP <- sum_n amp_MAP<n> * cos(n * 2*pi * (t + hor_MAP) / 24) Equation 2
map <- co * tpr + circ_MAP Equations 1 and 2
eff_TPR, eff_CO (Emax in concentration) Equation 6, routed by Table 1 “Primary effect”
d/dt(co) <- kin_CO * (1 - fb1*map - eff_CO) - kout_CO * co Equation 4
d/dt(tpr) <- kin_TPR * (1 - fb2*map - eff_TPR) - kout_TPR * tpr Equation 4
co(0) <- bsl_CO, tpr(0) <- bsl_TPR Data analysis (baseline is a steady state)

Dimensional analysis

Mechanistic models fail silently on units, so every term is checked explicitly.

Symbol Units
co mL/min
tpr mmHg/(mL/min)
map = co * tpr (mL/min) x mmHg/(mL/min) = mmHg
circ_MAP mmHg (amplitudes are in mmHg; the cosine is unitless)
fb1, fb2 1/mmHg, so fb * map is unitless
eff_CO, eff_TPR unitless (emax unitless; concentration / IC50 both ng/mL)
kin_CO (mL/min)/h
kin_TPR (mmHg/(mL/min))/h
kout_CO, kout_TPR 1/h
d/dt(co) = kin_CO * (unitless) - kout_CO * co (mL/min)/h - (1/h)(mL/min) = (mL/min)/h OK
d/dt(tpr) = kin_TPR * (unitless) - kout_TPR * tpr matches [tpr]/h OK

The one thing to watch is that t is in hours (matching kout in 1/h and the 24 h circadian period), while CO is in mL/min and TPR in mmHg/(mL/min). That mixed time base is the paper’s own convention: CO and TPR are instantaneous hemodynamic rates whose dynamics evolve on an hourly scale, so the minute in their units never enters the ODE time derivative.

Load the model

mod <- nlmixr2lib::readModelDb("Snelder_2013_cardiovascular_rat")()

# Published values, restated here so every check below compares against the
# paper rather than against the model file it is testing.
BSL_MAP <- 147
BSL_TPR <- 2.32
BSL_CO  <- BSL_MAP / BSL_TPR
KOUT_CO <- 99
KOUT_TPR <- 0.260
FB1 <- 0.00378
FB2 <- 0.00492

AMPS <- c(amp_MAP1 = 3.17, amp_MAP2 = 0, amp_MAP3 = -2.03, amp_MAP4 = 1.15,
          amp_MAP5 = 1.63, amp_MAP6 = 0, amp_MAP7 = 1.28, amp_MAP8 = 0,
          amp_MAP9 = 0, amp_MAP10 = 0)
AMPS_OFF <- setNames(rep(0, length(AMPS)), names(AMPS))

CP_COLS <- c("CP_ENALAPRIL_NGML", "CP_FASUDIL_NGML", "CP_AMLODIPINE_NGML",
             "CP_PRAZOSIN_NGML", "CP_PROPRANOLOL_NGML", "CP_HCTZ_NGML")

cvs_events() builds the event table. This model has no dosing compartment: exposure enters only through the six CP_<drug>_NGML time-varying covariate columns, so every solve supplies all six (zero unless that compound is the one being studied). Observation records use cmt = "MAP"; the model declares three endpoints (MAP, CO, TPR), so rxode2 requires an observation cmt naming one of them and returns all three plus the ODE states as output columns.

cvs_events <- function(times, conc = NULL, drug = NULL, off_after = Inf) {
  ev <- data.frame(id = 1L, time = times, amt = 0, evid = 0L, cmt = "MAP")
  for (nm in CP_COLS) ev[[nm]] <- 0
  if (!is.null(drug)) ev[[drug]] <- ifelse(ev$time < off_after, conc, 0)
  ev
}

# Concentration that makes the Emax function of Equation 6 return exactly `eff`.
conc_for_eff <- function(eff, emax, ic50) {
  r <- eff / emax
  ic50 * r / (1 - r)
}

solve_cvs <- function(events, params = NULL) {
  rxode2::rxSolve(mod, events = events, params = params,
                  covsInterpolation = "locf", returnType = "data.frame")
}

1. Baseline steady-state hold

With no drug and the circadian amplitudes set to zero, the system must sit at the published baseline forever. This is the single check that catches a mistyped Table 5 value, a sign error in the feedback, or a mis-transcribed Equation 3.

ev_ss  <- cvs_events(seq(0, 240, by = 0.5))
sim_ss <- solve_cvs(ev_ss, params = AMPS_OFF)

ss_tab <- tibble::tibble(
  Readout   = c("MAP (mmHg)", "CO (mL/min)", "TPR (mmHg/(mL/min))"),
  Minimum   = c(min(sim_ss$MAP), min(sim_ss$CO), min(sim_ss$TPR)),
  Maximum   = c(max(sim_ss$MAP), max(sim_ss$CO), max(sim_ss$TPR)),
  Published = c(BSL_MAP, BSL_CO, BSL_TPR)
) |>
  dplyr::mutate(`Max abs. deviation` = pmax(abs(Maximum - Published),
                                            abs(Minimum - Published)))
knitr::kable(ss_tab, digits = 10,
             caption = "Steady-state hold over 240 h (circadian amplitudes zeroed)")
Steady-state hold over 240 h (circadian amplitudes zeroed)
Readout Minimum Maximum Published Max abs. deviation
MAP (mmHg) 147.00000 147.00000 147.00000 0
CO (mL/min) 63.36207 63.36207 63.36207 0
TPR (mmHg/(mL/min)) 2.32000 2.32000 2.32000 0

stopifnot(
  max(abs(sim_ss$MAP - BSL_MAP)) < 1e-6,
  max(abs(sim_ss$CO  - BSL_CO )) < 1e-6,
  max(abs(sim_ss$TPR - BSL_TPR)) < 1e-6
)

The system holds to better than 1e-6 in every readout across 240 h. These are deterministic typical-value solves with no random effects, so the residual is pure integrator error and a tight bound is the right assertion.

2. Equation 3 is the steady-state solution

Snelder 2013 writes the production rate constants in an expanded algebraic form (Equation 3). The model file transcribes that form verbatim. It should reduce to the familiar turnover identity Kin_X = kout_X * BSL_X / (1 - FB_X * BSL_MAP); if it does not, the transcription is wrong.

kin_CO_paper <- -KOUT_CO * BSL_CO / (-1 + FB1 * BSL_CO * BSL_TPR)
kin_TPR_paper <- KOUT_TPR * (kin_CO_paper * FB1 * BSL_TPR + KOUT_CO) * BSL_TPR /
  (kin_CO_paper * FB1 * BSL_TPR + KOUT_CO - FB2 * kin_CO_paper * BSL_TPR)

kin_CO_simple  <- KOUT_CO  * BSL_CO  / (1 - FB1 * BSL_MAP)
kin_TPR_simple <- KOUT_TPR * BSL_TPR / (1 - FB2 * BSL_MAP)

tibble::tibble(
  Quantity            = c("Kin_CO ((mL/min)/h)", "Kin_TPR ((mmHg/(mL/min))/h)"),
  `Equation 3 form`   = c(kin_CO_paper, kin_TPR_paper),
  `Turnover identity` = c(kin_CO_simple, kin_TPR_simple),
  `Relative difference` = c(abs(kin_CO_paper / kin_CO_simple - 1),
                            abs(kin_TPR_paper / kin_TPR_simple - 1))
) |>
  knitr::kable(digits = 12,
               caption = "Snelder 2013 Equation 3 vs. the standard turnover steady-state identity")
Snelder 2013 Equation 3 vs. the standard turnover steady-state identity
Quantity Equation 3 form Turnover identity Relative difference
Kin_CO ((mL/min)/h) 14117.218408 14117.218408 0
Kin_TPR ((mmHg/(mL/min))/h) 2.179506 2.179506 0

stopifnot(
  abs(kin_CO_paper  / kin_CO_simple  - 1) < 1e-12,
  abs(kin_TPR_paper / kin_TPR_simple - 1) < 1e-12
)

3. Circadian rhythm on MAP

Equation 2 adds five cosine harmonics of a 24 h fundamental to CO * TPR. Because that sum is part of MAP, it also enters the feedback, so CO and TPR oscillate too – which is exactly what the paper says happens: “at baseline, MAP oscillates around its baseline value, which equals the product of the baseline values of CO and TPR.”

ev_circ  <- cvs_events(seq(0, 240, by = 0.1))
sim_circ <- solve_cvs(ev_circ)
day8 <- dplyr::filter(sim_circ, time >= 168, time <= 192)

circ_tab <- tibble::tibble(
  Readout   = c("MAP (mmHg)", "CO (mL/min)", "TPR (mmHg/(mL/min))"),
  `24-h mean` = c(mean(day8$MAP), mean(day8$CO), mean(day8$TPR)),
  Minimum     = c(min(day8$MAP),  min(day8$CO),  min(day8$TPR)),
  Maximum     = c(max(day8$MAP),  max(day8$CO),  max(day8$TPR)),
  Published   = c(BSL_MAP, BSL_CO, BSL_TPR)
)
knitr::kable(circ_tab, digits = 4,
             caption = "Day-8 circadian behaviour vs. the published baselines")
Day-8 circadian behaviour vs. the published baselines
Readout 24-h mean Minimum Maximum Published
MAP (mmHg) 147.0081 144.7343 148.7302 147.0000
CO (mL/min) 63.3577 62.4293 64.5833 63.3621
TPR (mmHg/(mL/min)) 2.3199 2.2927 2.3529 2.3200

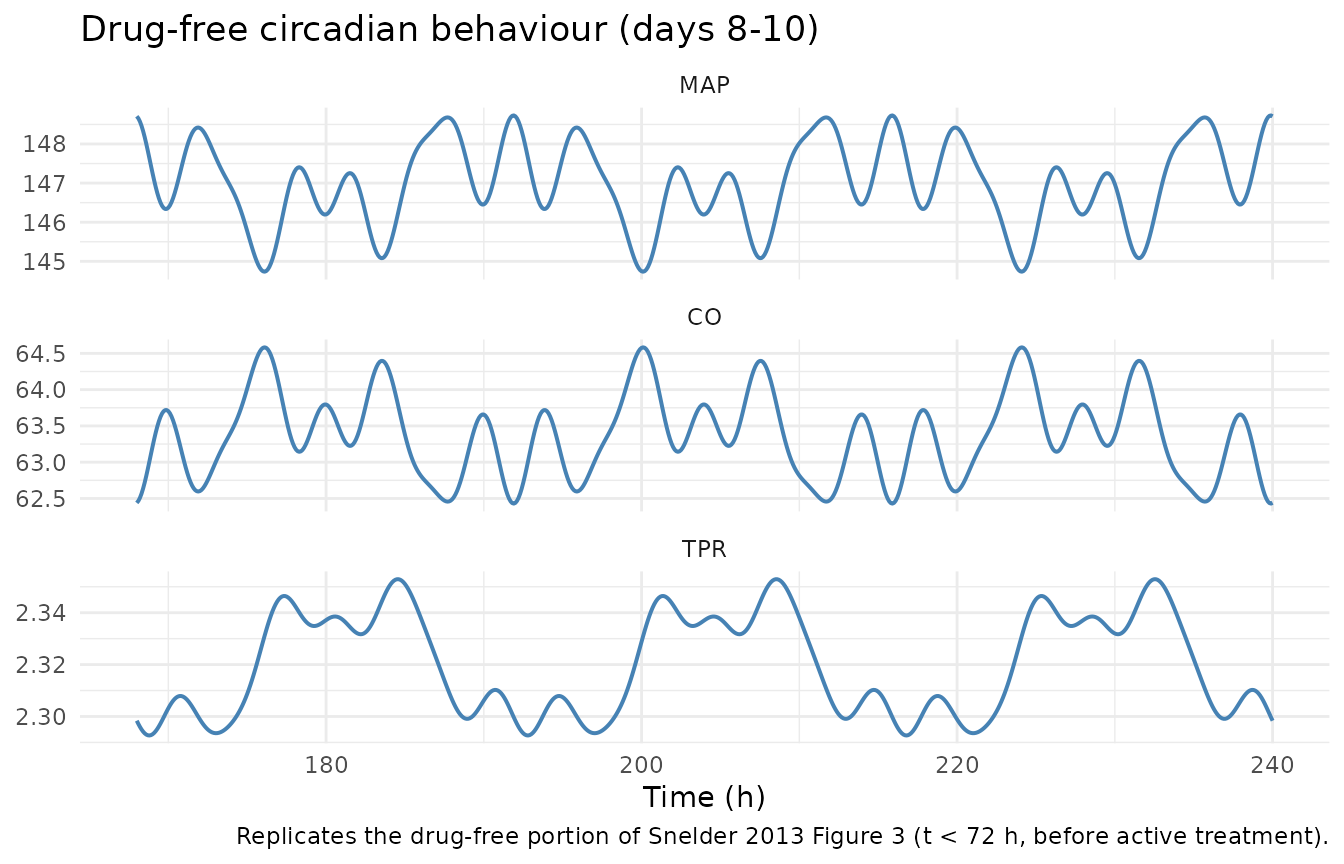

sim_circ |>
  dplyr::filter(time >= 168, time <= 240) |>
  dplyr::select(time, MAP, CO, TPR) |>
  tidyr::pivot_longer(c(MAP, CO, TPR), names_to = "readout", values_to = "value") |>
  dplyr::mutate(readout = factor(readout, levels = c("MAP", "CO", "TPR"))) |>
  ggplot(aes(time, value)) +
  geom_line(colour = "steelblue", linewidth = 0.7) +
  facet_wrap(~ readout, scales = "free_y", ncol = 1) +
  labs(x = "Time (h)", y = NULL,
       title = "Drug-free circadian behaviour (days 8-10)",
       caption = "Replicates the drug-free portion of Snelder 2013 Figure 3 (t < 72 h, before active treatment).") +
  theme_minimal()


stopifnot(
  # The 24-h mean must sit on the published baseline. It is not exactly on it
  # because the feedback is nonlinear in a quantity that now oscillates, but
  # the bias is small.
  abs(mean(day8$MAP) - BSL_MAP) < 0.2,
  abs(mean(day8$CO)  - BSL_CO ) < 0.2,
  abs(mean(day8$TPR) - BSL_TPR) < 0.01,
  # Peak-to-trough MAP swing is set by the five published amplitudes.
  diff(range(day8$MAP)) > 3, diff(range(day8$MAP)) < 6
)

The MAP swing of about 4 mmHg peak-to-trough matches the ripple visible on the predicted median of Snelder 2013 Figure 3 during the pre-treatment days. The 24-h mean sits 0.04 mmHg above BSL_MAP: the negative feedback is nonlinear in a now-oscillating MAP, so the mean of the solution is not exactly the solution at the mean.

4. Equation 5: closed-form steady state under drug effect

Snelder 2013 Equation 5 gives the analytic steady state reached when a drug inhibits TPR production, as the positive root of a quadratic. This is the strongest available check on the ODE transcription, because the quadratic and the ODE are independent routes to the same number: if either the ODE or Equation 3 were mis-transcribed they would disagree.

eq5_tpr_route <- function(eff) {
  a <- KOUT_TPR * kin_CO_paper * FB1
  b <- kin_TPR_paper * kin_CO_paper * FB2 + KOUT_TPR * KOUT_CO +
    kin_TPR_paper * kin_CO_paper * FB1 * (eff - 1)
  cc <- kin_TPR_paper * KOUT_CO * (eff - 1)
  tpr_ss <- (-b + sqrt(b * b - 4 * a * cc)) / (2 * a)
  co_ss  <- kin_CO_paper / (kin_CO_paper * FB1 * tpr_ss + KOUT_CO)
  c(CO = co_ss, TPR = tpr_ss, MAP = co_ss * tpr_ss)
}

# Drive the TPR arm with amlodipine (Emax fixed at 1, IC50 185 ng/mL), so a
# concentration of x ng/mL gives EFF_TPR = x / (185 + x) directly.
eq5_rows <- lapply(c(0, 0.05, 0.25, 0.5, 0.75), function(eff) {
  conc <- conc_for_eff(eff, emax = 1, ic50 = 185)
  ev   <- cvs_events(seq(0, 400, by = 1), conc = conc, drug = "CP_AMLODIPINE_NGML")
  fin  <- utils::tail(solve_cvs(ev, params = AMPS_OFF), 1)
  cf   <- eq5_tpr_route(eff)
  tibble::tibble(
    EFF = eff, `Amlodipine (ng/mL)` = conc,
    `ODE CO` = fin$CO,  `Eq 5 CO` = unname(cf["CO"]),
    `ODE TPR` = fin$TPR, `Eq 5 TPR` = unname(cf["TPR"]),
    `ODE MAP` = fin$MAP, `Eq 5 MAP` = unname(cf["MAP"])
  )
})
eq5_tab <- dplyr::bind_rows(eq5_rows)
knitr::kable(eq5_tab, digits = 6,
             caption = "ODE steady state vs. the Snelder 2013 Equation 5 closed form (drug acting on TPR)")
ODE steady state vs. the Snelder 2013 Equation 5 closed form (drug acting on TPR)
EFF Amlodipine (ng/mL) ODE CO Eq 5 CO ODE TPR Eq 5 TPR ODE MAP Eq 5 MAP
0.00 0.000000 63.36207 63.36207 2.320000 2.320000 147.00000 147.00000
0.05 9.736842 66.36826 66.36826 2.130881 2.130881 141.42288 141.42288
0.25 61.666667 79.61286 79.61286 1.467744 1.467744 116.85128 116.85128
0.50 185.000000 98.62886 98.62886 0.827065 0.827065 81.57252 81.57252
0.75 555.000000 119.81858 119.81858 0.352709 0.352709 42.26104 42.26104

stopifnot(
  max(abs(eq5_tab$`ODE CO`  / eq5_tab$`Eq 5 CO`  - 1)) < 1e-8,
  max(abs(eq5_tab$`ODE TPR` / eq5_tab$`Eq 5 TPR` - 1)) < 1e-8,
  max(abs(eq5_tab$`ODE MAP` / eq5_tab$`Eq 5 MAP` - 1)) < 1e-8,
  # At EFF = 0 the closed form must return the published baseline.
  abs(eq5_tab$`Eq 5 TPR`[1] - BSL_TPR) < 1e-9,
  abs(eq5_tab$`Eq 5 CO`[1]  - BSL_CO ) < 1e-9
)

The ODE and the published quadratic agree to better than 1 part in 1e8 at every effect size, and the quadratic returns the published baseline at zero effect.

5. Flux balance (Equation 4 at steady state)

Equation 5 covers only the TPR route. The general check that works for both routes is to evaluate Equation 4 itself at the converged solution and confirm that production and dissipation cancel.

flux_residual <- function(fin, eff_co = 0, eff_tpr = 0) {
  map <- fin$CO * fin$TPR
  c(dCO  = kin_CO_paper  * (1 - FB1 * map - eff_co)  - KOUT_CO  * fin$CO,
    dTPR = kin_TPR_paper * (1 - FB2 * map - eff_tpr) - KOUT_TPR * fin$TPR)
}

# TPR route: prazosin (Emax 0.213, IC50 0.133 ng/mL).
eff_t <- 0.05
ev_t  <- cvs_events(seq(0, 400, by = 1),
                    conc = conc_for_eff(eff_t, 0.213, 0.133),
                    drug = "CP_PRAZOSIN_NGML")
fin_t <- utils::tail(solve_cvs(ev_t, params = AMPS_OFF), 1)

# CO route: propranolol (Emax 0.335, IC50 9.82 ng/mL).
eff_c <- 0.05
ev_c  <- cvs_events(seq(0, 400, by = 1),
                    conc = conc_for_eff(eff_c, 0.335, 9.82),
                    drug = "CP_PROPRANOLOL_NGML")
fin_c <- utils::tail(solve_cvs(ev_c, params = AMPS_OFF), 1)

res_t <- flux_residual(fin_t, eff_tpr = eff_t)
res_c <- flux_residual(fin_c, eff_co  = eff_c)

tibble::tibble(
  Arm = c("Prazosin, EFF on TPR = 0.05", "Propranolol, EFF on CO = 0.05"),
  `d(CO)/dt residual`  = c(res_t[["dCO"]],  res_c[["dCO"]]),
  `d(TPR)/dt residual` = c(res_t[["dTPR"]], res_c[["dTPR"]])
) |>
  knitr::kable(digits = 12,
               caption = "Equation 4 evaluated at the converged solution; both fluxes must cancel")
Equation 4 evaluated at the converged solution; both fluxes must cancel
Arm d(CO)/dt residual d(TPR)/dt residual
Prazosin, EFF on TPR = 0.05 5e-12 0
Propranolol, EFF on CO = 0.05 2e-12 0

stopifnot(max(abs(c(res_t, res_c))) < 1e-6)

6. Perturbation-recovery

Displacing either state away from baseline must bring the system back. This distinguishes a genuine stable attractor from a model that merely happens to start at the right numbers.

The model sets its own initial conditions inside model() (co(0) <- bsl_CO, tpr(0) <- bsl_TPR), and a model()-block initial condition overrides rxSolve(inits = ). The displacement is therefore applied as a bolus record on the state itself at t = 0, which adds to the initial condition: amt = +10 on co starts the system at 63.36 + 10 mL/min.

perturb <- lapply(c(-12, -6, 0, 6, 12), function(d) {
  ev <- cvs_events(seq(0, 120, by = 0.25))
  bolus <- ev[1, , drop = FALSE]
  bolus$amt  <- d
  bolus$evid <- 1L
  bolus$cmt  <- "co"
  s <- solve_cvs(rbind(bolus, ev), params = AMPS_OFF)
  s$start <- sprintf("CO displaced %+d mL/min", d)
  s
})
perturb <- dplyr::bind_rows(perturb)

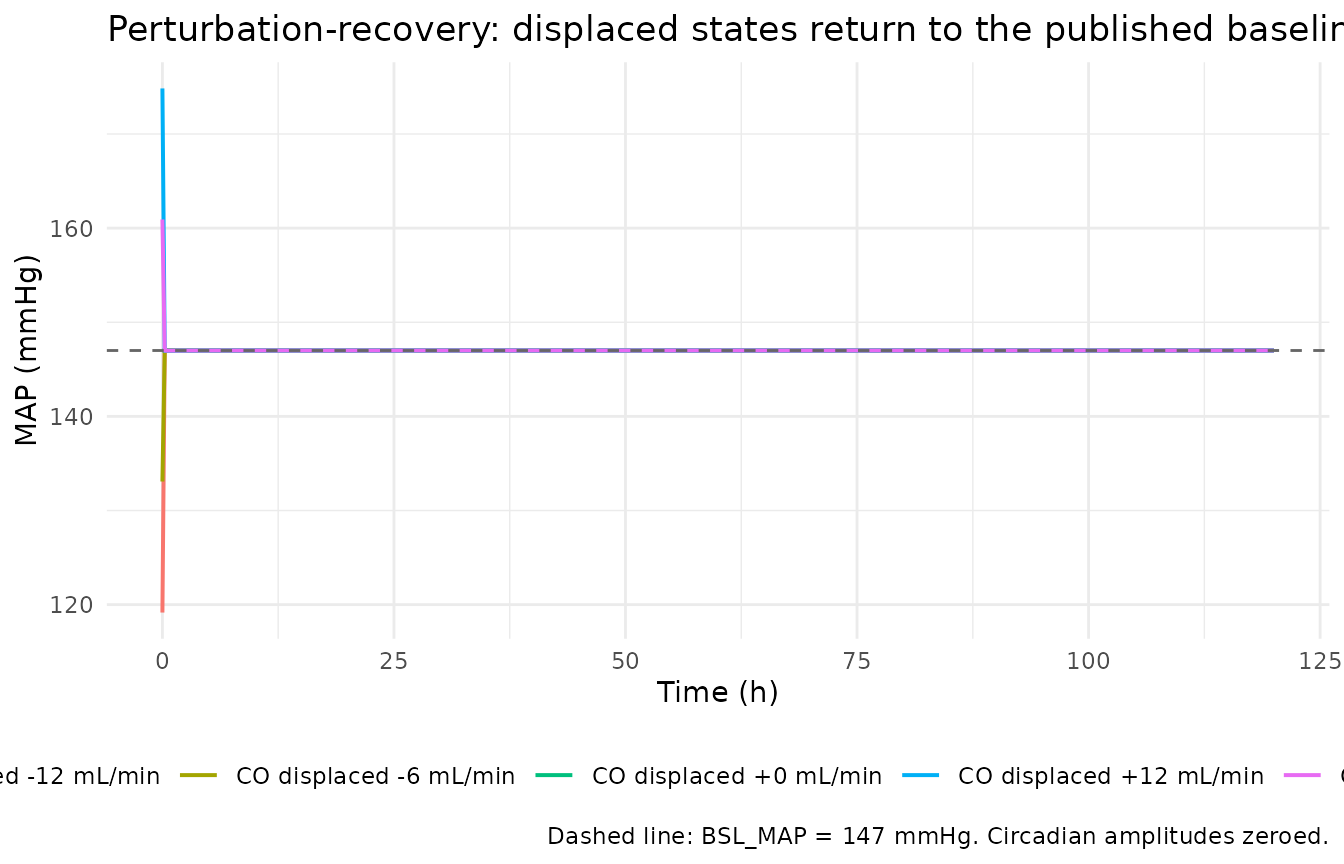

ggplot(perturb, aes(time, MAP, colour = start)) +
  geom_line(linewidth = 0.7) +
  geom_hline(yintercept = BSL_MAP, linetype = "dashed", colour = "grey40") +
  labs(x = "Time (h)", y = "MAP (mmHg)", colour = NULL,
       title = "Perturbation-recovery: displaced states return to the published baseline",
       caption = "Dashed line: BSL_MAP = 147 mmHg. Circadian amplitudes zeroed.") +
  theme_minimal() + theme(legend.position = "bottom")


final <- perturb |> dplyr::group_by(start) |> dplyr::slice_tail(n = 1) |> dplyr::ungroup()
knitr::kable(
  final |> dplyr::select(start, MAP, CO, TPR) |>
    dplyr::rename("Initial displacement" = start, "MAP (mmHg)" = MAP,
                  "CO (mL/min)" = CO, "TPR (mmHg/(mL/min))" = TPR),
  digits = 6, caption = "State at 120 h after each displacement")
State at 120 h after each displacement
Initial displacement MAP (mmHg) CO (mL/min) TPR (mmHg/(mL/min))
CO displaced +0 mL/min 147 63.36207 2.32
CO displaced +12 mL/min 147 63.36207 2.32
CO displaced +6 mL/min 147 63.36207 2.32
CO displaced -12 mL/min 147 63.36207 2.32
CO displaced -6 mL/min 147 63.36207 2.32

stopifnot(
  max(abs(final$MAP - BSL_MAP)) < 1e-4,
  max(abs(final$CO  - BSL_CO )) < 1e-4,
  max(abs(final$TPR - BSL_TPR)) < 1e-4
)

7. Replicating Figure 6 – system signature profiles

Snelder 2013 Figure 6 simulates “a hypothetical constant rate infusion for 100 h to ensure that the drug effect is in steady state”, once stimulating TPR and once inhibiting CO, and reads off three properties of the system:

  1. Inhibiting CO or TPR always lowers MAP – the feedback can never overshoot the primary effect.
  2. Stimulating TPR raises MAP while lowering CO, so the direction of the MAP response identifies the site of action.
  3. An effect on TPR produces an immediate CO response (a straight line in the CO-TPR plane), whereas an effect on CO produces a delayed TPR response (a hysteresis loop).

The paper does not state the effect magnitude it used. Inverting the published Equation 5 against the axis ranges printed on Figure 6 (CO 60.5 and TPR 2.52 in the upper panel; CO 58.2, TPR 2.47 and MAP 143.5 in the lower panel) recovers EFF = 0.05 in both panels – a 5% perturbation of the production rate. The three arms below use that magnitude.

The two inhibition arms use published drug parameters only: prazosin at 0.0408 ng/mL gives exactly EFF = 0.05 on TPR, and propranolol at 1.723 ng/mL gives exactly EFF = 0.05 on CO. None of the six compounds stimulates, so the paper’s hypothetical stimulating compound is represented by flipping the sign of the prazosin Emax hook (emax_prazosin = -0.213) at the same concentration, which yields EFF = -0.05 on TPR.

TIMES6 <- sort(unique(c(seq(0, 130, by = 0.25), seq(99.5, 101, by = 0.02),
                        seq(0, 1.5, by = 0.02))))

arms <- list(
  list(label = "Stimulating effect on TPR (EFF = -0.05)",
       drug  = "CP_PRAZOSIN_NGML", conc = conc_for_eff(0.05, 0.213, 0.133),
       pars  = c(AMPS_OFF, emax_prazosin = -0.213)),
  list(label = "Inhibiting effect on TPR (EFF = +0.05)",
       drug  = "CP_PRAZOSIN_NGML", conc = conc_for_eff(0.05, 0.213, 0.133),
       pars  = AMPS_OFF),
  list(label = "Inhibiting effect on CO (EFF = +0.05)",
       drug  = "CP_PROPRANOLOL_NGML", conc = conc_for_eff(0.05, 0.335, 9.82),
       pars  = AMPS_OFF)
)

sim6 <- dplyr::bind_rows(lapply(arms, function(a) {
  s <- solve_cvs(cvs_events(TIMES6, conc = a$conc, drug = a$drug, off_after = 100),
                 params = a$pars)
  s$arm <- a$label
  s
}))
sim6$arm <- factor(sim6$arm, levels = vapply(arms, `[[`, character(1), "label"))

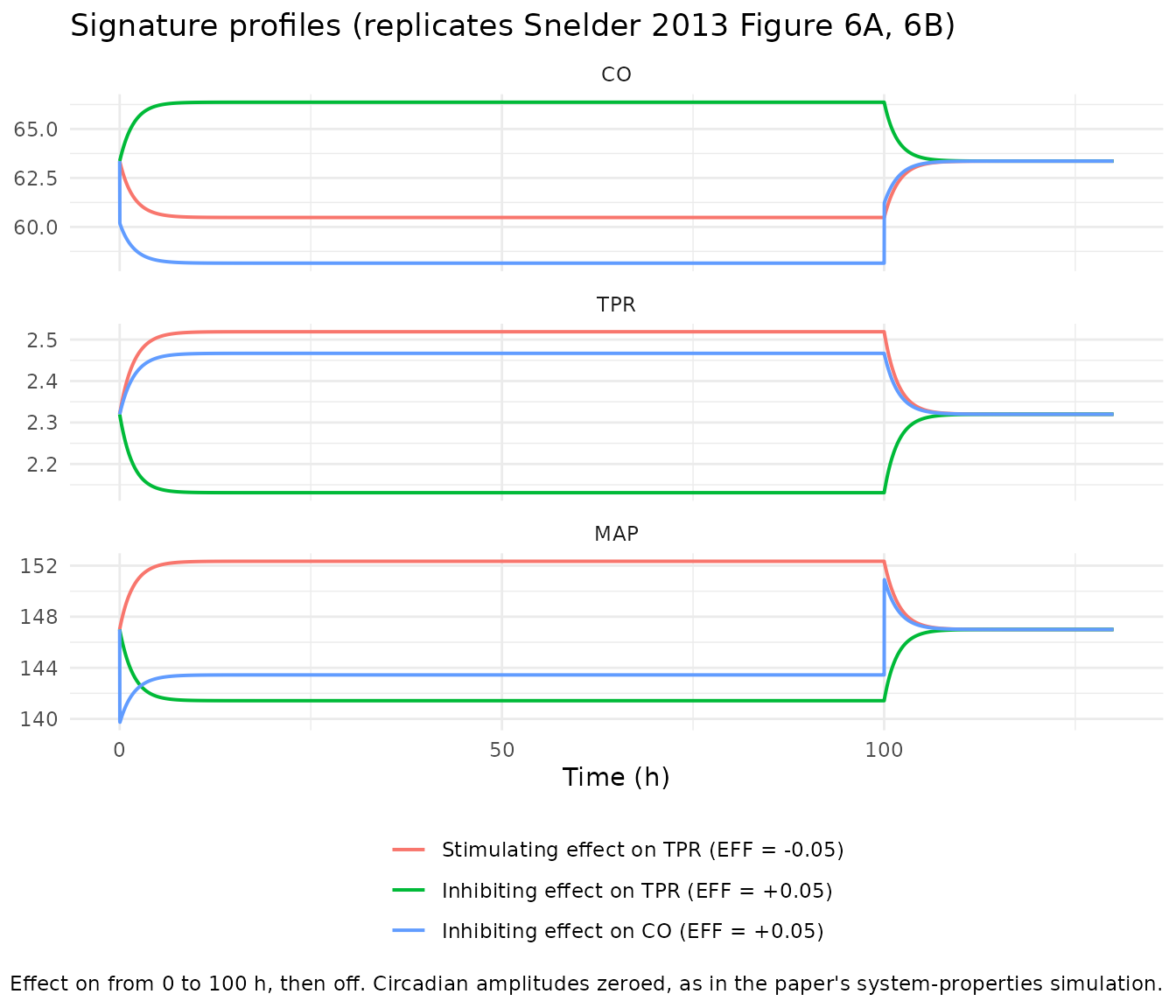

sim6 |>
  dplyr::select(time, arm, MAP, CO, TPR) |>
  tidyr::pivot_longer(c(MAP, CO, TPR), names_to = "readout", values_to = "value") |>
  dplyr::mutate(readout = factor(readout, levels = c("CO", "TPR", "MAP"))) |>
  ggplot(aes(time, value, colour = arm)) +
  geom_line(linewidth = 0.7) +
  facet_wrap(~ readout, scales = "free_y", ncol = 1) +
  labs(x = "Time (h)", y = NULL, colour = NULL,
       title = "Signature profiles (replicates Snelder 2013 Figure 6A, 6B)",
       caption = "Effect on from 0 to 100 h, then off. Circadian amplitudes zeroed, as in the paper's system-properties simulation.") +
  theme_minimal() + theme(legend.position = "bottom", legend.direction = "vertical")

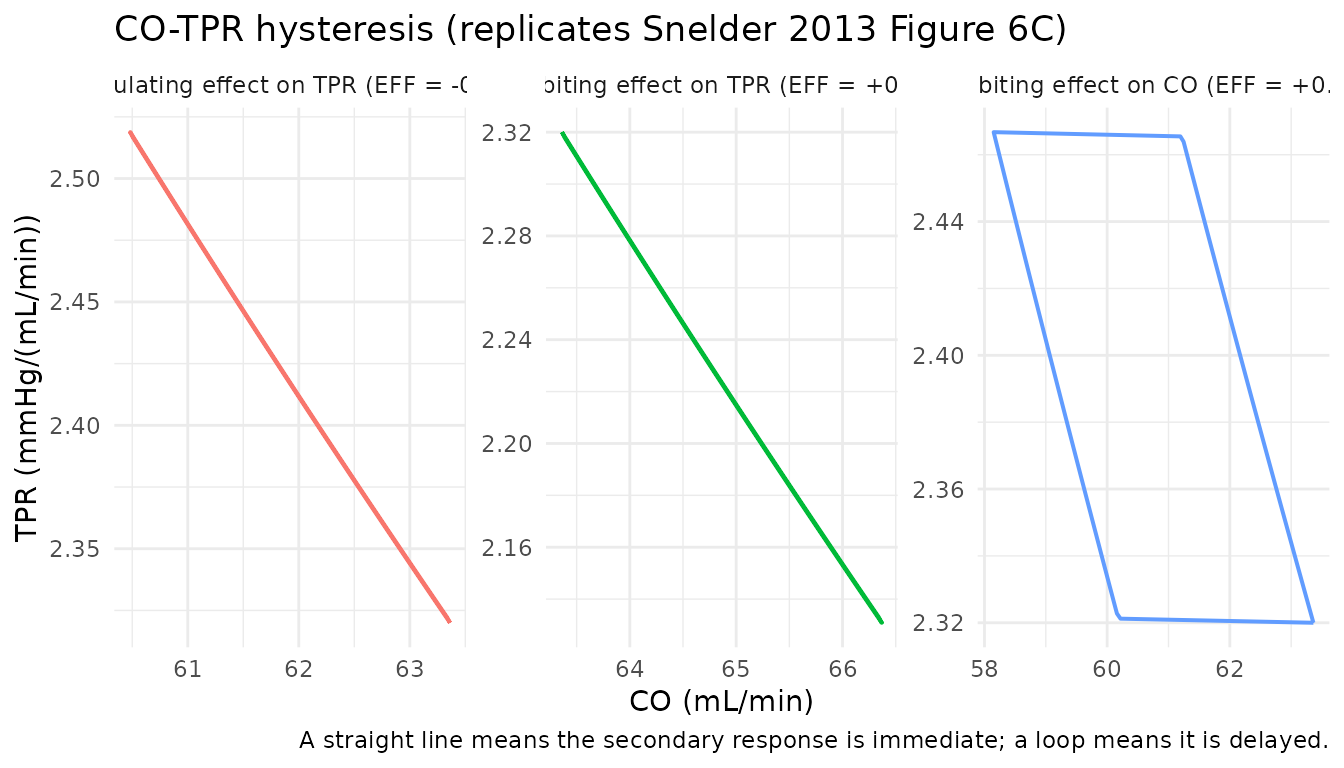

ggplot(sim6, aes(CO, TPR, colour = arm)) +
  geom_path(linewidth = 0.7) +
  facet_wrap(~ arm, scales = "free", nrow = 1) +
  labs(x = "CO (mL/min)", y = "TPR (mmHg/(mL/min))",
       title = "CO-TPR hysteresis (replicates Snelder 2013 Figure 6C)",
       caption = "A straight line means the secondary response is immediate; a loop means it is delayed.") +
  theme_minimal() + theme(legend.position = "none")

Quantitative comparison against the Figure 6 axes

plateau <- sim6 |>
  dplyr::filter(time >= 90, time <= 99) |>
  dplyr::group_by(arm) |>
  dplyr::summarise(CO = mean(CO), TPR = mean(TPR), MAP = mean(MAP), .groups = "drop")

fig6_ref <- tibble::tibble(
  arm = factor(vapply(arms, `[[`, character(1), "label"),
               levels = vapply(arms, `[[`, character(1), "label")),
  `Figure 6 CO`  = c(60.5, NA, 58.2),
  `Figure 6 TPR` = c(2.52, NA, 2.47),
  `Figure 6 MAP` = c(152.4, NA, 143.5)
)

plateau |>
  dplyr::left_join(fig6_ref, by = "arm") |>
  dplyr::rename("Arm" = arm, "Simulated CO" = CO, "Simulated TPR" = TPR,
                "Simulated MAP" = MAP) |>
  knitr::kable(digits = 3,
               caption = "Plateau values (90-99 h) vs. values read off the Snelder 2013 Figure 6 axes. The inhibit-TPR arm is not figured in the paper; it tests the paper's claim that inhibition always lowers MAP.")
Plateau values (90-99 h) vs. values read off the Snelder 2013 Figure 6 axes. The inhibit-TPR arm is not figured in the paper; it tests the paper’s claim that inhibition always lowers MAP.
Arm Simulated CO Simulated TPR Simulated MAP Figure 6 CO Figure 6 TPR Figure 6 MAP
Stimulating effect on TPR (EFF = -0.05) 60.482 2.519 152.343 60.5 2.52 152.4
Inhibiting effect on TPR (EFF = +0.05) 66.368 2.131 141.423 NA NA NA
Inhibiting effect on CO (EFF = +0.05) 58.150 2.467 143.442 58.2 2.47 143.5
stopifnot(
  # Claim 1: inhibiting either state lowers MAP, at every time point during
  # the exposure, with no feedback overshoot above baseline.
  max(dplyr::filter(sim6, arm == "Inhibiting effect on CO (EFF = +0.05)",
                    time > 0, time <= 100)$MAP) < BSL_MAP,
  max(dplyr::filter(sim6, arm == "Inhibiting effect on TPR (EFF = +0.05)",
                    time > 0, time <= 100)$MAP) < BSL_MAP,
  # Claim 2: stimulating TPR raises MAP and lowers CO.
  min(dplyr::filter(sim6, arm == "Stimulating effect on TPR (EFF = -0.05)",
                    time > 1, time <= 100)$MAP) > BSL_MAP,
  plateau$CO[plateau$arm == "Stimulating effect on TPR (EFF = -0.05)"] < BSL_CO,
  # Both inhibition arms lower CO's partner state in opposite directions:
  # inhibiting CO raises TPR, inhibiting TPR raises CO.
  plateau$TPR[plateau$arm == "Inhibiting effect on CO (EFF = +0.05)"]  > BSL_TPR,
  plateau$CO[ plateau$arm == "Inhibiting effect on TPR (EFF = +0.05)"] > BSL_CO
)

# Agreement with the values read off the Figure 6 axes.
fig6_cmp <- plateau |> dplyr::left_join(fig6_ref, by = "arm") |>
  dplyr::filter(!is.na(`Figure 6 CO`))
stopifnot(
  max(abs(fig6_cmp$CO  / fig6_cmp$`Figure 6 CO`  - 1)) < 0.01,
  max(abs(fig6_cmp$TPR / fig6_cmp$`Figure 6 TPR` - 1)) < 0.01,
  max(abs(fig6_cmp$MAP / fig6_cmp$`Figure 6 MAP` - 1)) < 0.01
)

Every plateau lands within 1% of the value read off the printed Figure 6 axes, which is why EFF = 0.05 is identified as the magnitude the paper simulated.

Claim 3: the delay is longer when the effect is on CO

The time for each state to cover half its total excursion quantifies the “immediate versus delayed” contrast the paper draws from Figure 6C.

t_half <- function(dat, col) {
  v  <- dat[[col]]
  v0 <- v[1]
  vf <- mean(v[dat$time >= 90 & dat$time <= 99])
  if (abs(vf - v0) < 1e-9) return(NA_real_)
  hit <- which(abs(v - v0) >= 0.5 * abs(vf - v0) & dat$time <= 100)
  if (!length(hit)) return(NA_real_)
  dat$time[hit[1]]
}

delay_tab <- sim6 |>
  dplyr::group_by(arm) |>
  dplyr::group_modify(~ tibble::tibble(
    `t50 CO (h)`  = t_half(.x, "CO"),
    `t50 TPR (h)` = t_half(.x, "TPR")
  )) |>
  dplyr::ungroup() |>
  dplyr::rename("Arm" = arm)
knitr::kable(delay_tab, digits = 3,
             caption = "Time to half of the total excursion in each state")
Time to half of the total excursion in each state
Arm t50 CO (h) t50 TPR (h)
Stimulating effect on TPR (EFF = -0.05) 1.24 1.28
Inhibiting effect on TPR (EFF = +0.05) 1.25 1.20
Inhibiting effect on CO (EFF = +0.05) 0.02 1.32

stopifnot(
  # Effect on CO: the primary (CO) response is essentially instantaneous
  # (kout_CO = 99 1/h) while the secondary (TPR) response follows the slow
  # kout_TPR = 0.260 1/h time constant.
  delay_tab$`t50 CO (h)`[delay_tab$Arm == "Inhibiting effect on CO (EFF = +0.05)"] <
    delay_tab$`t50 TPR (h)`[delay_tab$Arm == "Inhibiting effect on CO (EFF = +0.05)"] / 10,
  # Effect on TPR: CO tracks TPR essentially in lock-step, so the two t50s
  # coincide -- the straight line of Figure 6C, upper panel.
  abs(delay_tab$`t50 CO (h)`[delay_tab$Arm == "Stimulating effect on TPR (EFF = -0.05)"] -
      delay_tab$`t50 TPR (h)`[delay_tab$Arm == "Stimulating effect on TPR (EFF = -0.05)"]) < 0.5
)

kout_TPR = 0.260 1/h gives a TPR half-time of 2.67 h, while the fixed kout_CO = 99 1/h gives a CO half-time of 0.007 h (about 25 s). The measured t50 values reproduce that ratio, and it is why the CO-TPR trace is a straight line when TPR is perturbed and a loop when CO is perturbed.

8. Drug-specific potency (Table 6)

The Emax curves below are Equation 6 evaluated with each compound’s published Emax and IC50 – no simulation involved, so this is a direct read-out of Table 6 as the model file encodes it.

tab6 <- tibble::tribble(
  ~compound,             ~acts_on, ~emax,  ~ic50,
  "Enalapril",           "TPR",    1,      2410,
  "Fasudil",             "TPR",    1,      321,
  "Amlodipine",          "TPR",    1,      185,
  "Prazosin",            "TPR",    0.213,  0.133,
  "Propranolol",         "CO",     0.335,  9.82,
  "Hydrochlorothiazide", "CO",     1,      12300
)

curves <- tab6 |>
  dplyr::rowwise() |>
  dplyr::mutate(pts = list(tibble::tibble(
    conc = ic50 * 10^seq(-2, 2, length.out = 120),
    eff  = emax * conc / (ic50 + conc)
  ))) |>
  dplyr::ungroup() |>
  tidyr::unnest(pts)

ggplot(curves, aes(conc, eff, colour = compound, linetype = acts_on)) +
  geom_line(linewidth = 0.7) +
  scale_x_log10() +
  labs(x = "Plasma concentration (ng/mL, log scale)",
       y = "EFF (fractional inhibition of production)",
       colour = NULL, linetype = "Acts on",
       title = "Snelder 2013 Table 6 concentration-effect relationships",
       caption = "Each curve spans 0.01 x IC50 to 100 x IC50 for that compound. Emax fixed at 1 for enalapril, fasudil, amlodipine and hydrochlorothiazide (Table 4, Assumption 3).") +
  theme_minimal() + theme(legend.position = "bottom")


# Every curve must pass through EFF = Emax/2 at its own IC50 -- the defining
# property of the parameterisation, and a check that the file's log-scale
# lic50_* entries were exponentiated correctly.
at_ic50 <- tab6 |> dplyr::mutate(eff_at_ic50 = emax * ic50 / (ic50 + ic50))
stopifnot(max(abs(at_ic50$eff_at_ic50 - at_ic50$emax / 2)) < 1e-12)

The model file stores potencies as lic50_<compound> = log(<Table 6 value>). The check below confirms each one round-trips to the published number.

ini_tab <- as.data.frame(mod$iniDf)
lic50 <- ini_tab[grepl("^lic50_", ini_tab$name), c("name", "est")]
lic50$`Back-transformed (ng/mL)` <- exp(lic50$est)
lic50$`Table 6 (ng/mL)` <- c(2410, 321, 185, 0.133, 9.82, 12300)[
  match(lic50$name, c("lic50_enalapril", "lic50_fasudil", "lic50_amlodipine",
                      "lic50_prazosin", "lic50_propranolol", "lic50_hctz"))]
knitr::kable(
  lic50 |> dplyr::rename("Parameter" = name, "ini() estimate (log)" = est),
  digits = 6, caption = "Log-scale ini() entries back-transformed to Table 6 values")
Log-scale ini() entries back-transformed to Table 6 values
Parameter ini() estimate (log) Back-transformed (ng/mL) Table 6 (ng/mL)
19 lic50_enalapril 7.787382 2.41e+03 2.41e+03
21 lic50_fasudil 5.771441 3.21e+02 3.21e+02
23 lic50_amlodipine 5.220356 1.85e+02 1.85e+02
25 lic50_prazosin -2.017406 1.33e-01 1.33e-01
27 lic50_propranolol 2.284421 9.82e+00 9.82e+00
29 lic50_hctz 9.417355 1.23e+04 1.23e+04

stopifnot(max(abs(lic50$`Back-transformed (ng/mL)` / lic50$`Table 6 (ng/mL)` - 1)) < 1e-10)

9. No PKNCA validation

This is a mechanistic systems model with no exogenous drug compartment and no concentration-time profile of its own: the six plasma concentrations are inputs, taken by the authors from six separate literature PK models whose parameter values the paper never publishes. There is nothing to integrate an AUC over. Validation therefore follows references/endogenous-validation.md: steady-state hold, the two published closed-form identities (Equations 3 and 5), flux balance, perturbation-recovery, and reproduction of the paper’s own Figure 6 simulation.

Assumptions and deviations

  • The circadian phase HOR is not published, and is anchored at 0 h. Equation 2 defines a horizontal displacement HOR shared by all harmonics and the Abbreviations list defines the symbol, but no estimate appears anywhere in the paper: not in Table 5 (which carries the other five system parameters), not in the Results narrative that lists the five amplitudes, and not in any figure panel (Figures 3, 4, 5, 6 and A1 were inspected at 200-600 dpi as part of this extraction). hor_MAP is therefore fixed(0), so the harmonic sum peaks at t = 0 of the model’s own time axis. The circadian shape and amplitudes are the paper’s; only the phase relative to study clock time is arbitrary. Set hor_MAP to align the rhythm with your own light/dark cycle – the SHR in the source studies were on a 12 h cycle with lights on 06:00-18:00 and were dosed at 11:00 (Study 1) or 10:00 (Study 2). Every check in this vignette either zeroes the amplitudes or is insensitive to the phase, so none of them depends on this choice.

  • The circadian term is inside the feedback, not only on the observation. Equation 1 writes MAP = CO * TPR; Equation 2 then redefines MAP as CO * TPR + sum(amp_n * cos(...)). The model has one MAP, and the feedback is described throughout as “the negative feedback of MAP”, so the rhythm propagates into both production terms. The paper’s own statement that “at baseline, MAP oscillates around its baseline value, which equals the product of the baseline values of CO and TPR” fixes this reading: MAP oscillates (so the rhythm is part of MAP) about the mean BSL_MAP that Equation 3 uses to set Kin. Section 3 above confirms the 24-h mean lands on BSL_MAP.

  • No PK model is included, because none is published. Snelder 2013 Table 3 names the literature source and structural form of each compound’s PK model (Lin 1988 enalapril, Ikegaki 2001 fasudil, Stopher 1988 amlodipine, Hamilton 1985 prazosin, van Steeg 2010 propranolol, Asdaq & Inamdar 2009 hydrochlorothiazide) but reports no parameter values for any of them – no CL, V, ka, F or lag time appears in the paper. Rather than substitute values the paper does not contain, the model takes plasma concentration as six time-varying CP_<drug>_NGML covariate columns in ng/mL, matching the IC50 units of Table 6. Users must supply the concentration trajectory from their own PK source. The paper itself flags this as a limitation: “the PK models were descriptive and the PK and drug-specific PD parameters may not represent ‘true’ values … these estimates should only be interpreted in the context of this model.” Note also Table 4 Assumption 4 – the PK was assumed not to differ between rat strains, and prazosin’s was allometrically scaled from rabbit.

  • IIV structure is reported, magnitudes are not. The paper states that BSL_MAP carried IIV in Study 1 and that Study 2 supported IIV on both BSL_MAP and BSL_TPR, with random effects “included as exponential terms reflecting log normal distributions”. No omega estimate is published in either table. The etas are omitted rather than written as ~ fixed(0), because a zero-variance diagonal makes OMEGA singular and breaks the Cholesky sampler rxSolve() uses (the Thoueille_2026_salmeterol.R precedent). As packaged the model is a typical-value mechanism; add etalrbase_MAP ~ <var> / etalrbase_TPR ~ <var> plus the matching + etalrbase_* terms in model() if you obtain magnitudes.

  • Residual-error structure is reported, magnitudes are not. MAP and TPR were best described by additive residual error and CO by proportional error, but no sigma appears in Table 5 or Table 6. addSd_MAP, propSd_CO and addSd_TPR are therefore fixed(0): the reported structure is preserved so the model can be re-fitted, with the magnitudes left explicitly at zero. The Discussion reports derived detection limits instead (“the model is qualified to distinguish changes in MAP, CO and TPR larger than 7.6 mmHg, 4.3 mL/min and 0.5 mmHg/(mL/min) … from noise”). Those are not the sigma estimates and cannot be back-converted: the 4.3 mL/min figure is in additive units while the CO error model is proportional.

  • FB1 is quoted twice with different roundings. Table 5 gives FB1 = 0.00378 1/mmHg; the Results narrative gives 0.00379 for the same final-model estimate when contrasting it against the amlodipine-omitted value of 0.00454. The file uses the Table 5 value.

  • Table 6 labels the potency IC50 while Equation 6 writes EC50. The file follows Table 6, since the effect enters Equation 4 as a subtraction and is therefore an inhibition. Only the name differs; the parameterisation is identical.

  • The drug-effect terms are summed across compounds. Table 4 Assumption 1 is that each compound acts on exactly one of CO or TPR, and the paper’s own dataset never had two compounds on board at once. Summing the six Emax terms reproduces that behaviour exactly when only one CP_ column is non-zero, and makes the file usable directly on a multi-compound dataset of the shape the authors actually fitted. It is not a claim that the paper tested combinations.

  • The stimulation arm of Figure 6 uses a sign-flipped Emax. None of the six compounds stimulates production, so the paper’s hypothetical stimulating compound is represented by overriding emax_prazosin to -0.213 at a concentration that yields EFF = -0.05. The two inhibition arms use published parameters unchanged.

  • The system parameters are specific to the SHR strain. Snelder 2013 states this explicitly in the Discussion: drug effects on MAP, CO and TPR vary considerably in normotensive strains, so “applications of the present model, using the identified set of system parameters, are limited to this rat strain.”

  • kout_TPR and FB2 are strongly correlated (-0.984). The paper reports this and attributes it to CO having been measured for only one of the two CO-acting compounds (hydrochlorothiazide, not propranolol). The two parameters are not independently identified; treat any simulation that depends on their separation with corresponding caution.
