Inter-antibody variability in mouse monoclonal antibody PK (Liu 2023)

Source: vignettes/articles/Liu_2023_mAb_mouse_pbpk.Rmd
Liu_2023_mAb_mouse_pbpk.Rmd

Model and source

  • Citation: Liu S, Humphreys SC, Cook KD, Conner KP, Correia AR, Jacobitz AW, Yang M, Primack R, Soto M, Padaki R, Lubomirski M, Smith R, Mock M, Thomas VA. Utility of physiologically based pharmacokinetic modeling to predict inter-antibody variability in monoclonal antibody pharmacokinetics in mice. MAbs. 2023;15(1):2263926. doi:10.1080/19420862.2023.2263926

  • Description: PBPK (whole-body, 15-tissue Shah & Betts 2012 platform). Preclinical (mouse, female BALB/c, 28 g). Inter-antibody variability in monoclonal antibody plasma PK, with the antibody-specific pinocytosis-uptake coefficient F1 driven by a sigmoidal function of the antibody’s heparin-chromatography retention time (HEPARIN_RT) and the convective-transport coefficient F2 fixed at the panel median. Fitted simultaneously to IV plasma profiles of 53 aglycosylated human IgG1z SEFL2.2 antibodies dosed at 2 mg/kg.

  • Article: https://doi.org/10.1080/19420862.2023.2263926

  • Supplement (Supplementary Methods 1-3, Supplementary Tables S1-S3, Supplementary Figures S1-S2): https://doi.org/10.1080/19420862.2023.2263926

  • Upstream platform model: Shah DK, Betts AM. J Pharmacokinet Pharmacodyn. 2012;39(1):67-86, https://doi.org/10.1007/s10928-011-9232-2 (also packaged as Shah_2012_mAb_PBPK)

Population

Liu 2023 produced 83 antibodies on a single invariant scaffold - an aglycosylated human IgG1z stable-effector-functionless (SEFL) 2.2 isotype of the G1m17 allotype, carrying an N297G mutation to remove Fc-gamma-receptor binding plus R292C/V302C to install a thermostabilising disulfide. The 83 Fv domains were chosen to span a broad range of physicochemical behaviour across 33 different target antigens, without regard to target biology. Nineteen antibodies with mouse cross-reactivity (potential target-mediated disposition) and eight with observed immunogenicity were removed, leaving 56 antibodies with clean linear mouse PK.

Each antibody was dosed at 2 mg/kg IV bolus via the lateral tail vein into female BALB/c mice aged 6-8 weeks, using a cassette strategy of up to five antibodies per animal (combined antibody load 10 mg/kg; n = 3 animals per time point, mean profiles used for modelling). Serum was assayed by multiplex electrochemiluminescent immunoassay. Across the 56-antibody panel, AUC(0-672 h) spanned roughly eightfold (1.74e6 to 1.38e7 ng*h/mL) and clearance about tenfold (2.55 to 26.4 mL/day/kg); only six antibodies exceeded the in-house 12 mL/day/kg fast-clearance threshold.

A separate panel of 14 monospecific antibodies (Ab85-Ab98), constructed in the same SEFL2.2 format from bispecifics known to have poor PK, was run as an a-priori validation set and deliberately enriched for fast clearance.

The same information is available programmatically via readModelDb("Liu_2023_mAb_mouse_pbpk")()$population.

Model structure

The model is the Shah & Betts 2012 platform PBPK model: 15 tissues (heart, lung, muscle, skin, adipose, bone, brain, kidney, liver, small intestine, large intestine, pancreas, thymus, spleen, “other”) connected by plasma and lymph flow, each divided into a vascular, an endosomal and an interstitial space, plus a central plasma pool and a lymph node. Antibody enters the interstitium by convection through the L * (1 - sigma_V) paracellular route and enters the endothelial endosome by fluid-phase pinocytosis CLup. In the endosome it binds FcRn (Kon/Koff); bound complex recycles to the vascular space (fraction FR = 0.715) or to the interstitium (1 - FR), and FcRn-unbound antibody is degraded at Kdeg. Because none of the antibodies bind a mouse antigen, no target-mediated term is present. This gives 77 ODE states in the packaged model (15 tissues x 5 states, plus plasma and lymph node).

Liu 2023 layered the Chen & Balthasar inter-antibody variability formalism onto that platform: a coefficient F1 multiplies the pinocytotic uptake CLup, and a coefficient F2 multiplies organ lymphatic flow. F1 and F2 were first estimated for each of the 56 antibodies individually. Only F1 clustered against the in-vitro assay panel - specifically against heparin-chromatography retention time - so the final model expresses F1 as a sigmoidal function of HEPARIN_RT and fixes F2 at the panel median:

F1=a+b−a1+(cHEPARIN_RT)dF_1 = a + \frac{b - a}{1 + \left(\frac{c}{\mathrm{HEPARIN\_RT}}\right)^{d}}

with a = 0.67, b = 3.65, c = 17.7 min and d = 22.7 estimated by simultaneously fitting the 53 retained training antibodies (Table 2), and F2 = 1.45.

Source trace

Per-parameter provenance is also recorded as an in-file comment beside every ini() entry in inst/modeldb/pharmacokinetics/Liu_2023_mAb_mouse_pbpk.R.

Equation / parameter Value Source location
F1 sigmoid form a + (b - a) / (1 + (c / HEPARIN_RT)^d) Liu 2023 Eq 1 (Results, “Fitting of the PBPK model incorporating the Heparin_RT covariate”) and Eq 2 (Materials and methods, “Simultaneous fitting of antibody PK using full PBPK model”); repeated in Supplementary Methods 2, “Equations for Organ Sub-Compartment”
lclup_scale_min (a) 0.67 (CV% 1.28) Liu 2023 Table 2
lclup_scale_max (b) 3.65 (CV% 3.37) Liu 2023 Table 2
lrt50_clup_scale (c) 17.7 min (CV% 0.543) Liu 2023 Table 2
lhill_clup_scale (d) 22.7 (CV% 7.89) Liu 2023 Table 2
llymph_scale (F2) 1.45, fixed Liu 2023 Results: “we fixed F2 to 1.45, the median F2 value in this panel”
lclup (CLup) 0.24 L/h/L, fixed Liu 2023 Materials and methods, “Individual fitting of antibody PK using the base PBPK model”: “the parameter glossary and values are the same as in Shah and Betts except that the CLup value is set to 0.24 L/h/L”
lfcrn (FcRn) 4.98e-5 mol/L, fixed Shah & Betts 2012 Table 6 (inherited unchanged; Liu 2023 reference 36)
lkdeg (Kdeg) 42.9 1/h, fixed Shah & Betts 2012 Table 6
lclnlf (C_LNLF) 9.1, fixed Shah & Betts 2012 Table 6
lkon (Kon,FcRn) 8.06e7 1/M/h (mouse), fixed Shah & Betts 2012 text p.73, mouse value
lkoff (Koff,FcRn) 6.55 1/h (mouse), fixed Shah & Betts 2012 text p.73, mouse value
FR = 0.715, sigma_IS = 0.2 constants in model() Shah & Betts 2012 text p.73
sigma_V per tissue (0.85 / 0.90 / 0.95 / 0.99) constants in model() Shah & Betts 2012 text p.73 (assigned by capillary pore size)
Mouse organ volumes and plasma flows see model() Shah & Betts 2012 Table 1, “Physiological model parameters used for mouse (28 g male)”
Lymph flow L_ORG = 0.002 * PLQ_ORG ratio Liu 2023 Supplementary Methods 2, “Lymph Flows” (equivalently Shah & Betts 2012: lymph flow 500-fold lower than plasma flow)
L_LYMPH = C_LNLF * PLQ_LUNG flow Liu 2023 Supplementary Methods 2, “Lymph Flows”
Plasma / lymph-node / vascular / endosomal / interstitial ODEs n/a Liu 2023 Supplementary Methods 2, “Essential differential equations”
HEPARIN_RT per antibody 2.92-32.6 min Liu 2023 Supplementary Table S1
Observed AUC, half-life, clearance per antibody see cohort chunk Liu 2023 Supplementary Table S1
Individually estimated F1 per antibody see cohort chunk Liu 2023 Supplementary Table S2
Validation-set %PE and fast-clearance classification see validation chunk Liu 2023 Supplementary Table S3

Virtual cohort

There is no between-subject random-effect layer in this model: inter-antibody variability is carried entirely by HEPARIN_RT. The “cohort” is therefore the antibody panel itself - one deterministic mouse per antibody, 70 in total (56 training + 14 validation), well inside the 200-per-arm cap.

HEPARIN_RT, the observed AUC(0-672 h), half-life and clearance, and the individually estimated F1 are transcribed from Liu 2023 Supplementary Tables S1 and S2; the validation-set %PE from Supplementary Table S3.

ab_panel <- tibble::tibble(
  ab = c("Ab1", "Ab2", "Ab3", "Ab4", "Ab6", "Ab7", "Ab10", "Ab12", "Ab13", "Ab14",
         "Ab16", "Ab17", "Ab18", "Ab20", "Ab21", "Ab22", "Ab23", "Ab25", "Ab28", "Ab29",
         "Ab30", "Ab32", "Ab33", "Ab34", "Ab35", "Ab36", "Ab37", "Ab39", "Ab44", "Ab45",
         "Ab46", "Ab47", "Ab50", "Ab51", "Ab52", "Ab54", "Ab56", "Ab57", "Ab58", "Ab59",
         "Ab61", "Ab62", "Ab63", "Ab64", "Ab65", "Ab66", "Ab69", "Ab70", "Ab73", "Ab74",
         "Ab75", "Ab76", "Ab77", "Ab78", "Ab80", "Ab84",
         "Ab85", "Ab86", "Ab87", "Ab88", "Ab89", "Ab90", "Ab91", "Ab92", "Ab93", "Ab94",
         "Ab95", "Ab96", "Ab97", "Ab98"),
  panel_set = c(rep("training", 56), rep("validation", 14)),
  # Supplementary Table S1, column Heparin_RT (min)
  HEPARIN_RT = c(11.1, 9.18, 3.99, 6.84, 10.2, 5.85, 9.31, 5.09, 7.76, 20.2,
                 9.7, 9.96, 5.88, 3.92, 7, 5.08, 8.9, 10.2, 15.2, 8.13,
                 18, 7.33, 10, 3.95, 7.95, 20.1, 20.3, 17.7, 2.92, 3,
                 3.27, 13.7, 15.7, 12.1, 14.8, 3.12, 10.4, 8.21, 13.9, 11.6,
                 7.45, 10.7, 12.7, 13.9, 5.11, 11.3, 12.2, 7.63, 13.1, 15.6,
                 15.7, 31.5, 3.95, 10.3, 15, 17.4,
                 20.4, 18.6, 28.3, 21.4, 19.0, 19.3, 27.0, 22.1, 26.0, 30.7,
                 29.6, 26.0, 15.1, 32.6),
  # Supplementary Table S1, column AUC (ng*h/mL)
  auc_obs = c(7.97e6, 7.33e6, 5.29e6, 9.78e6, 7.89e6, 7.17e6, 8.41e6, 6.96e6, 7.67e6, 1.82e6,
              5.02e6, 8.26e6, 9.70e6, 1.38e7, 8.64e6, 8.95e6, 1.00e7, 5.50e6, 5.72e6, 8.62e6,
              6.13e6, 5.37e6, 8.97e6, 6.36e6, 9.64e6, 2.72e6, 4.52e6, 3.85e6, 1.01e7, 5.57e6,
              1.19e7, 5.64e6, 7.11e6, 4.73e6, 7.03e6, 6.29e6, 8.29e6, 1.01e7, 1.35e7, 8.90e6,
              1.00e7, 6.03e6, 3.98e6, 9.81e6, 1.06e7, 8.09e6, 8.81e6, 1.22e7, 7.51e6, 6.90e6,
              7.75e6, 1.74e6, 1.18e7, 8.36e6, 8.40e6, 1.91e6,
              2.89e6, 2.20e6, 4.41e6, 1.68e6, 4.49e6, 5.13e6, 1.19e6, 1.14e6, 9.78e5, 8.97e5,
              7.64e5, 3.55e6, 4.31e6, 6.50e5),
  # Supplementary Table S1, column Half life (h)
  thalf_obs = c(129, 171, 197, 180, 147, 280, 249, 307, 127, 54.0,
                155, 195, 262, 391, 180, 116, 188, 222, 195, 176,
                191, 182, 187, 293, 215, 38.8, 165, 59.9, 386, 63.8,
                142, 215, 224, 119, 158, 154, 198, 321, 182, 284,
                298, 179, 179, 135, 244, 196, 297, 337, 163, 253,
                233, 219, 393, 271, 231, 121,
                117, 75.2, 150, 48.9, 174, 213, 46.4, 53.6, 65.1, 69.7,
                33.4, 142, 265, 50.9),
  # Supplementary Table S1, column Clearance (mL/h)
  cl_obs = c(0.00687, 0.00707, 0.00947, 0.00533, 0.00671, 0.00641, 0.00577, 0.00684, 0.00707, 0.0308,
             0.0107, 0.00621, 0.00502, 0.00298, 0.00593, 0.00607, 0.00519, 0.00937, 0.00889, 0.00583,
             0.00836, 0.00958, 0.00566, 0.00715, 0.00508, 0.0206, 0.012, 0.0145, 0.00389, 0.01,
             0.00437, 0.0088, 0.00699, 0.0117, 0.00752, 0.00849, 0.00612, 0.00441, 0.00381, 0.00521,
             0.00471, 0.00853, 0.0117, 0.00557, 0.0044, 0.0062, 0.00522, 0.00333, 0.00704, 0.00722,
             0.0063, 0.0281, 0.0033, 0.00541, 0.00585, 0.0288,
             0.0190, 0.0253, 0.0121, 0.0332, 0.0115, 0.00978, 0.0470, 0.0491, 0.0572, 0.0623,
             0.0733, 0.0152, 0.0109, 0.0862),
  # Supplementary Table S2, individually estimated F1 (training set only)
  f1_indiv = c(0.865, 0.84, 0.966, 0.666, 0.836, 0.687, 0.74, 0.826, 0.904, 3.61,
               1.19, 0.768, 0.668, 0.438, 0.732, 0.825, 0.659, 1.08, 0.945, 0.692,
               0.947, 0.985, 0.69, 0.669, 0.617, 3.02, 1.38, 1.95, 0.473, 1.76,
               0.471, 0.928, 0.822, 1.5, 0.904, 1.01, 0.743, 0.583, 0.532, 0.652,
               0.628, 0.935, 1.77, 0.776, 0.543, 0.733, 0.638, 0.419, 0.903, 0.873,
               0.738, 1.53, 0.446, 0.602, 0.721, 2.35,
               rep(NA_real_, 14)),
  # Supplementary Table S3, %PE on AUC (validation set only)
  pe_published = c(rep(NA_real_, 56),
                   -30.1, -3.7, -54.2, 19.8, -54.1, -60.3, 69.5, 77.2, 106, 125,
                   164, -43.1, 107, 211)
) |>
  dplyr::mutate(
    id = dplyr::row_number(),
    # Liu 2023 excluded Ab76 (atypical profile) and the two nonspecific-binding
    # false positives Ab37 and Ab30 from the 53-antibody covariate fit.
    fitted = panel_set == "training" & !ab %in% c("Ab76", "Ab37", "Ab30")
  )

# Study constants. Body weight is the Shah & Betts 2012 mouse parameter set the
# model is built on (28 g); it reproduces Supplementary Table S1's clearances,
# e.g. Ab1 dose / AUC = 5.6e4 ng / 7.97e6 ng*h/mL = 0.0070 mL/h vs 0.00687 reported.
bw_kg <- 0.028
dose_mg_kg <- 2
mw_g_per_mol <- 150000    # nominal aglycosylated human IgG1; see Assumptions
dose_nmol <- dose_mg_kg * bw_kg * 1e-3 / mw_g_per_mol * 1e9

# Fast-clearance threshold used throughout Liu 2023: 12 mL/day/kg.
cl_threshold_mL_h <- 12 * bw_kg / 24

sample_times <- sort(unique(c(
  0, 0.0833, 0.25, 0.5, 1, 2, 4, 6, 8, 12,
  seq(24, 168, by = 12), seq(192, 672, by = 24)
)))

events <- rxode2::et(amt = dose_nmol, cmt = "plasma", id = ab_panel$id) |>
  rxode2::et(sample_times, id = ab_panel$id) |>
  as.data.frame() |>
  dplyr::left_join(
    ab_panel |> dplyr::select(id, ab, panel_set, HEPARIN_RT, cl_obs, fitted),
    by = "id"
  )

stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid")])))

Simulation

sim <- rxode2::rxSolve(
  mod_fun,
  events = events,
  keep = c("ab", "panel_set", "HEPARIN_RT", "cl_obs", "fitted"),
  atol = 1e-10, rtol = 1e-8
) |>
  as.data.frame()
#> Warning: multi-subject simulation without without 'omega'

stopifnot(dplyr::n_distinct(sim$id) == nrow(ab_panel), !anyNA(sim$Cc))

Replicate published figures

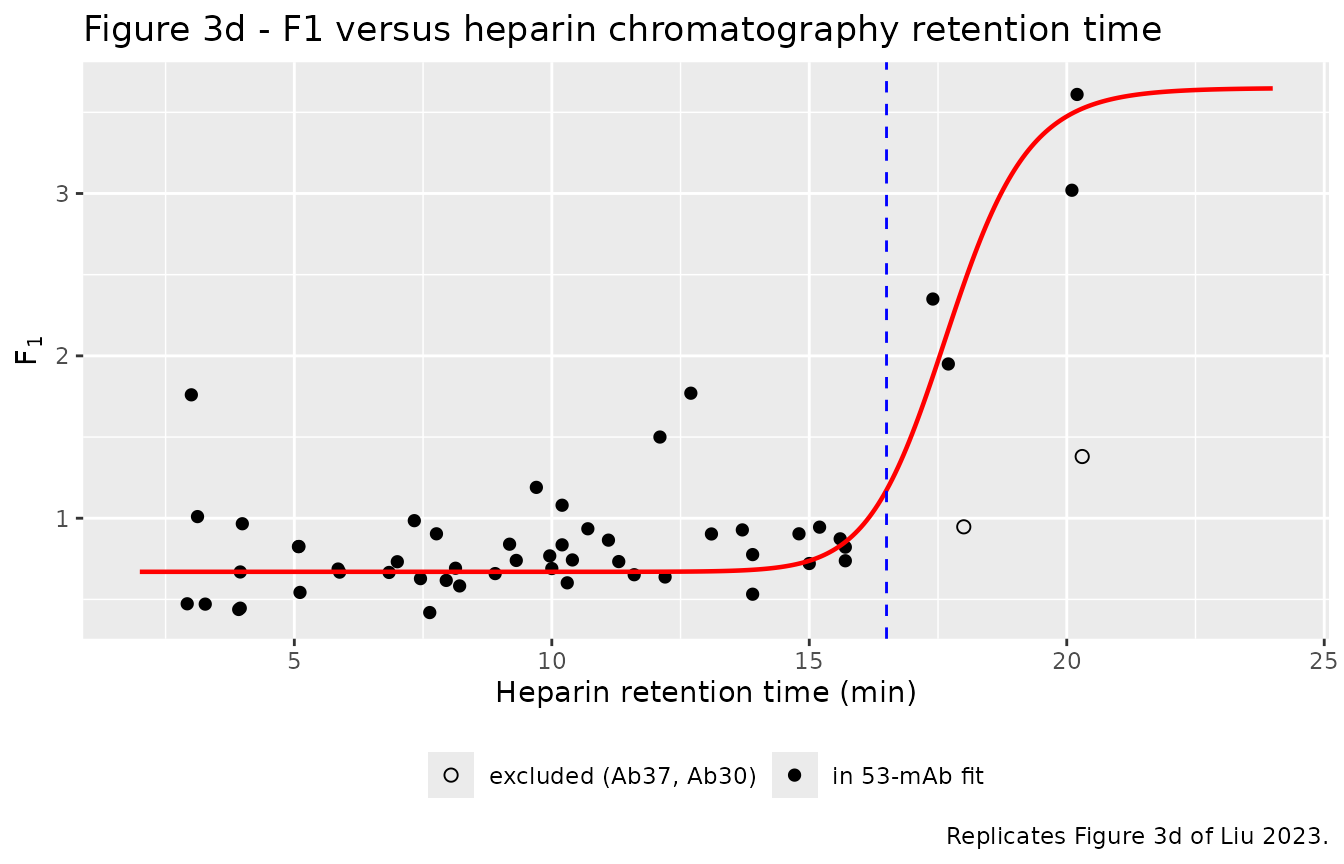

Figure 3d - sigmoidal relationship between F1 and heparin retention time

# Replicates Figure 3d of Liu 2023: individually estimated F1 (points) against
# Heparin_RT, with the fitted sigmoid (red) and the 16.5 min flag threshold
# (blue dashed). Ab37 and Ab30 (open circles in the paper) were excluded from
# the fit; Ab76 (Heparin_RT 31.5 min) is off-scale in the paper's panel.
f1_curve <- tibble::tibble(HEPARIN_RT = seq(2, 24, length.out = 400)) |>
  dplyr::mutate(F1 = 0.67 + (3.65 - 0.67) / (1 + (17.7 / HEPARIN_RT)^22.7))

ab_panel |>
  dplyr::filter(panel_set == "training", !is.na(f1_indiv), ab != "Ab76") |>
  ggplot(aes(HEPARIN_RT, f1_indiv)) +
  geom_point(aes(shape = fitted), size = 2) +
  scale_shape_manual(values = c(`TRUE` = 16, `FALSE` = 1),
                     labels = c(`TRUE` = "in 53-mAb fit", `FALSE` = "excluded (Ab37, Ab30)"),
                     name = NULL) +
  geom_line(data = f1_curve, aes(HEPARIN_RT, F1), colour = "red", linewidth = 0.8) +
  geom_vline(xintercept = 16.5, colour = "blue", linetype = "dashed") +
  labs(x = "Heparin retention time (min)", y = expression(F[1]),
       title = "Figure 3d - F1 versus heparin chromatography retention time",
       caption = "Replicates Figure 3d of Liu 2023.") +
  theme(legend.position = "bottom")

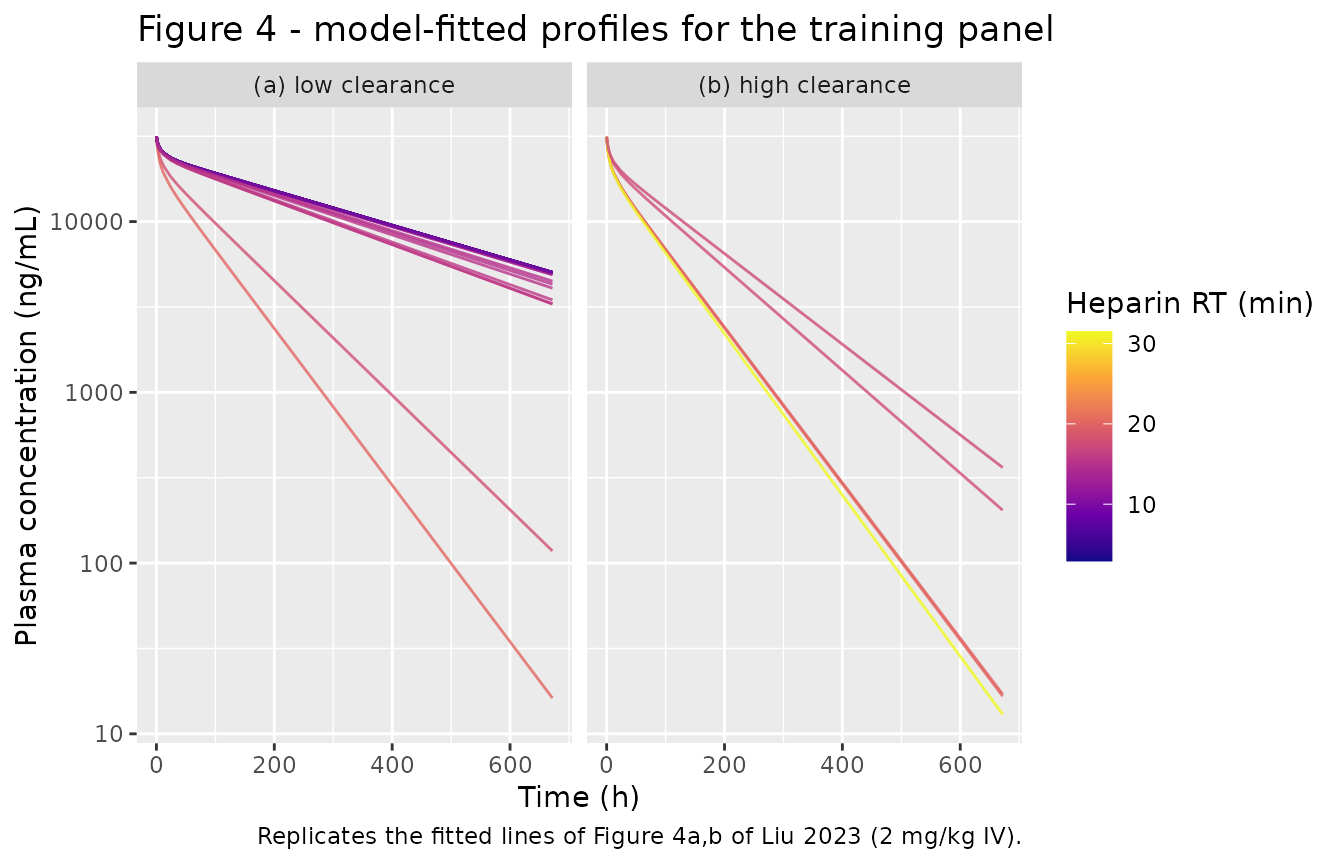

Figure 4 - training-set profiles, low- and high-clearance panels

The paper splits Figure 4 into the low-clearance (4a) and high-clearance (4b) antibodies at the 12 mL/day/kg threshold. Observed points are not available in machine-readable form, so only the model-fitted lines are reproduced here; the quantitative observed-vs-predicted comparison follows in the PKNCA section.

# Replicates the fitted profiles of Figure 4a,b of Liu 2023.
sim |>
  dplyr::filter(panel_set == "training", time > 0) |>
  dplyr::mutate(
    cl_panel = ifelse(cl_obs > cl_threshold_mL_h,
                      "(b) high clearance", "(a) low clearance"),
    conc_ng_mL = Cc * mw_g_per_mol / 1e3
  ) |>
  ggplot(aes(time, conc_ng_mL, group = ab, colour = HEPARIN_RT)) +
  geom_line(alpha = 0.8) +
  facet_wrap(~cl_panel) +
  scale_y_log10() +
  scale_colour_viridis_c(name = "Heparin RT (min)", option = "plasma") +
  labs(x = "Time (h)", y = "Plasma concentration (ng/mL)",
       title = "Figure 4 - model-fitted profiles for the training panel",
       caption = "Replicates the fitted lines of Figure 4a,b of Liu 2023 (2 mg/kg IV).")

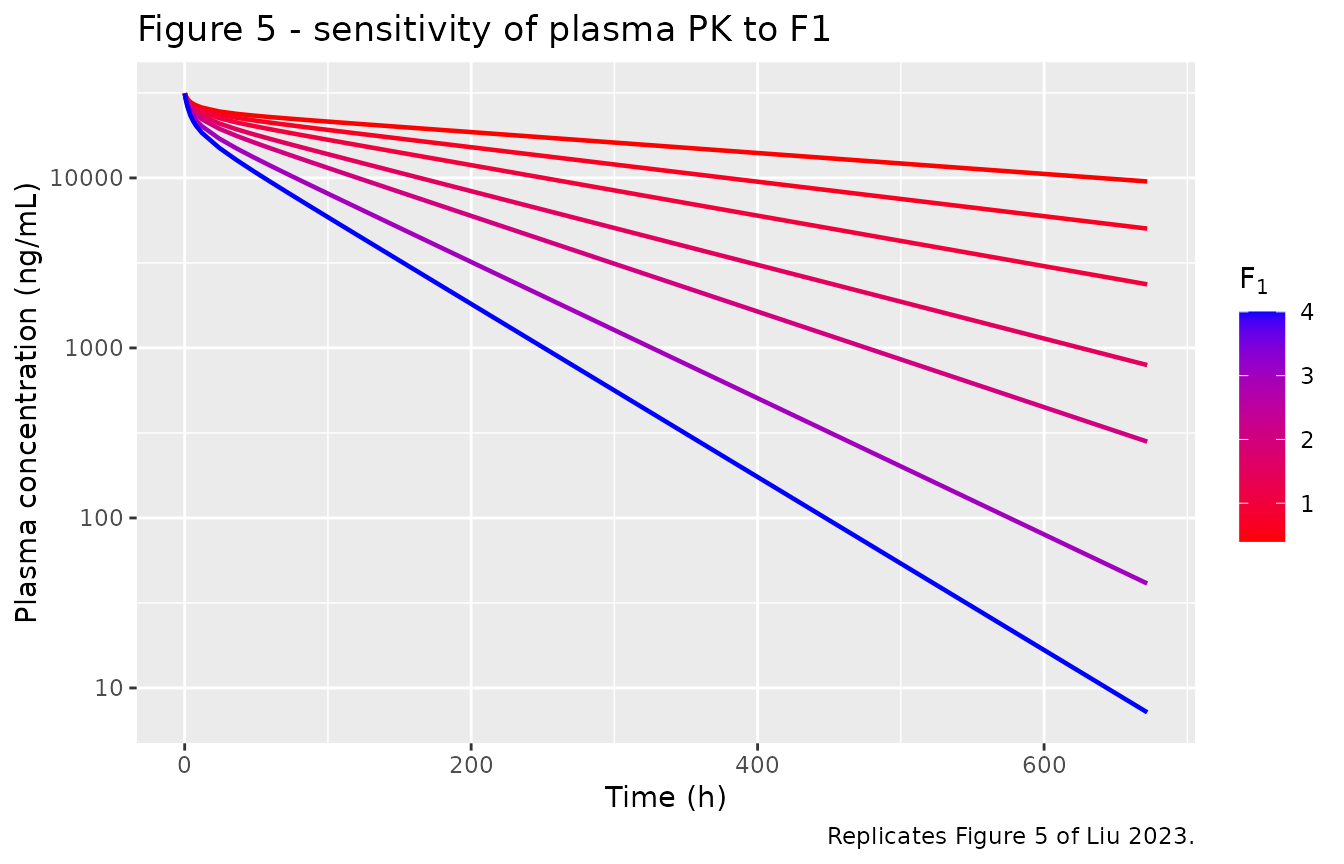

Figure 5 - sensitivity of the plasma profile to F1

The paper’s Figure 5 sweeps F1 from 0.4 to 4. Because the packaged model derives F1 from HEPARIN_RT, the sweep is done by collapsing the sigmoid’s two plateaus onto the target value (clup_scale_min = clup_scale_max = F1), which makes F1 constant and independent of the covariate.

# Replicates Figure 5 of Liu 2023: plasma PK after 2 mg/kg IV for F1 in [0.4, 4].
f1_levels <- c(0.4, 0.67, 1, 1.5, 2, 3, 4)

ev1 <- rxode2::et(amt = dose_nmol, cmt = "plasma") |>
  rxode2::et(sample_times)

sens <- lapply(f1_levels, function(clup_scale) {
  rxode2::rxSolve(
    mod_fun, events = ev1,
    params = c(lclup_scale_min = log(clup_scale), lclup_scale_max = log(clup_scale), HEPARIN_RT = 10),
    atol = 1e-10, rtol = 1e-8
  ) |>
    as.data.frame() |>
    dplyr::mutate(F1 = clup_scale)
}) |>
  dplyr::bind_rows()

sens |>
  dplyr::filter(time > 0) |>
  ggplot(aes(time, Cc * mw_g_per_mol / 1e3, group = F1, colour = F1)) +
  geom_line(linewidth = 0.8) +
  scale_y_log10() +
  scale_colour_gradient(low = "red", high = "blue", name = expression(F[1])) +
  labs(x = "Time (h)", y = "Plasma concentration (ng/mL)",
       title = "Figure 5 - sensitivity of plasma PK to F1",
       caption = "Replicates Figure 5 of Liu 2023.")

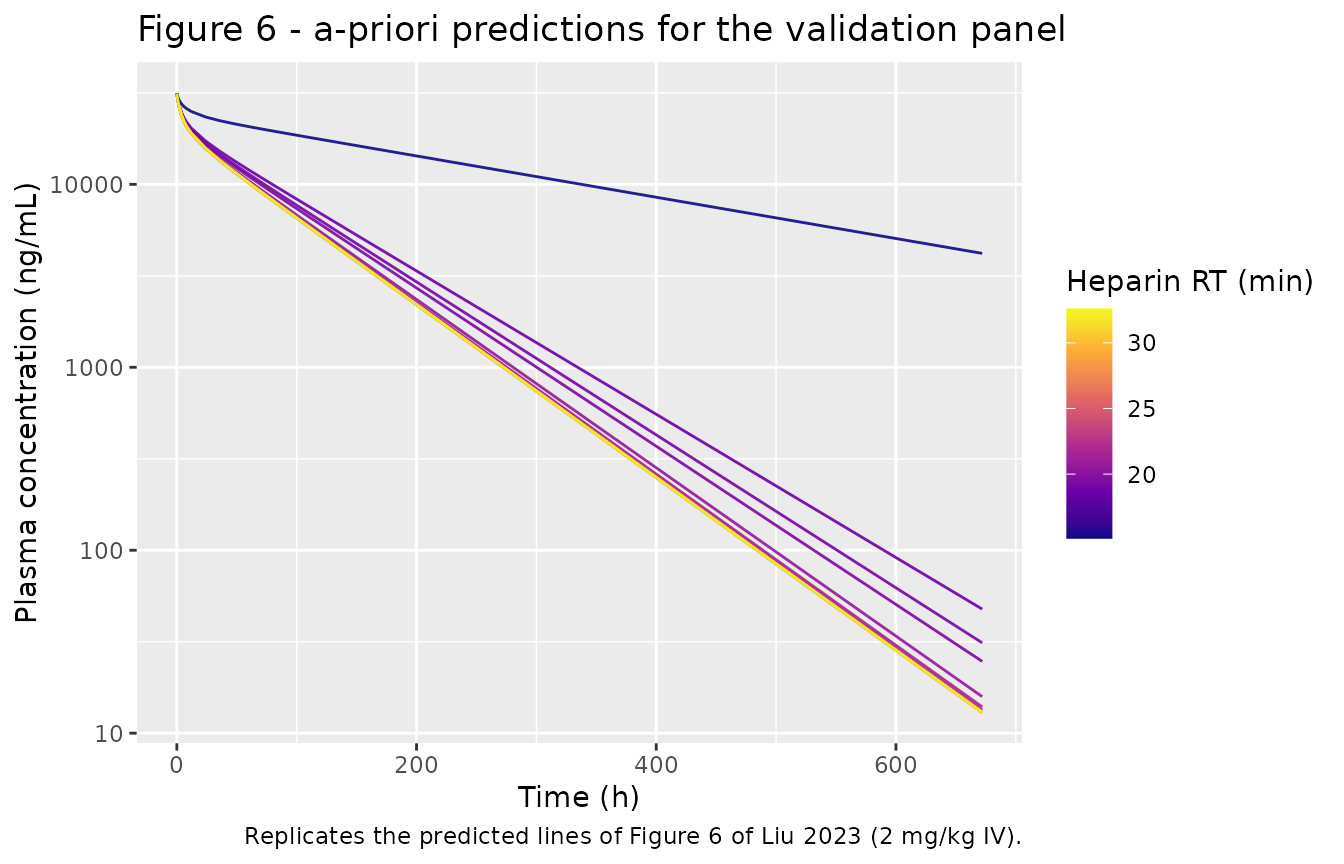

Figure 6 - a-priori prediction of the 14-antibody validation panel

# Replicates Figure 6 of Liu 2023: profiles predicted from Heparin_RT alone.
sim |>
  dplyr::filter(panel_set == "validation", time > 0) |>
  ggplot(aes(time, Cc * mw_g_per_mol / 1e3, group = ab, colour = HEPARIN_RT)) +
  geom_line(alpha = 0.9) +
  scale_y_log10() +
  scale_colour_viridis_c(name = "Heparin RT (min)", option = "plasma") +
  labs(x = "Time (h)", y = "Plasma concentration (ng/mL)",
       title = "Figure 6 - a-priori predictions for the validation panel",
       caption = "Replicates the predicted lines of Figure 6 of Liu 2023 (2 mg/kg IV).")

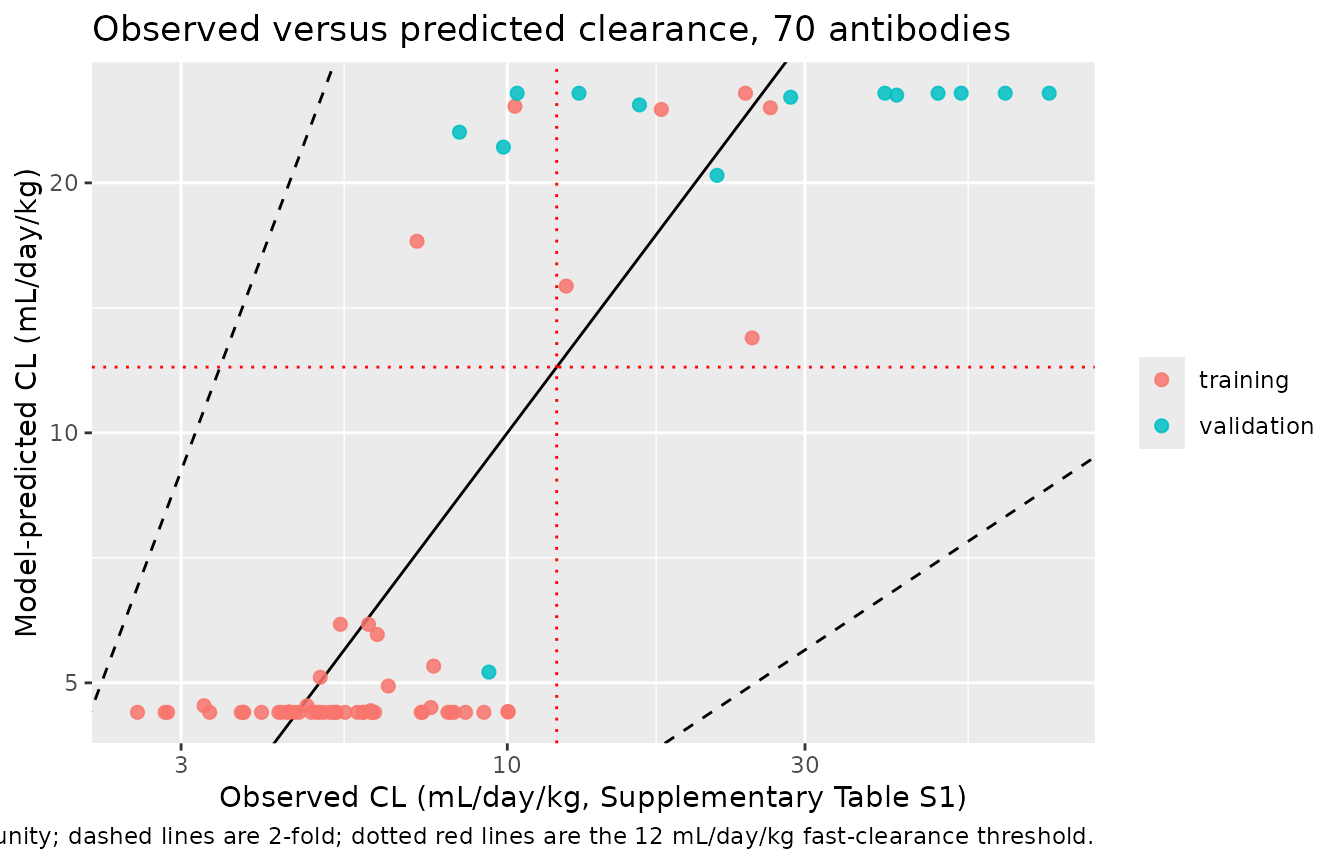

PKNCA validation

Liu 2023 computed its own non-compartmental parameters with PKNCA (Materials and methods, “Non-compartmental analysis”), so the same tool is used here on the simulated profiles.

Clearance and half-life are the comparison metrics of choice because both are independent of the assumed antibody molar mass: the model runs in nmol / nM, and CL = dose_nmol / AUC_nM*h cancels the molar mass that converts the paper’s ng*h/mL AUCs.

sim_nca <- sim |>
  dplyr::filter(!is.na(Cc)) |>
  dplyr::select(id, time, Cc, ab, panel_set)

sim_nca <- dplyr::bind_rows(
  sim_nca,
  sim_nca |> dplyr::distinct(id, ab, panel_set) |> dplyr::mutate(time = 0, Cc = 0)
) |>
  dplyr::distinct(id, ab, panel_set, time, .keep_all = TRUE) |>
  dplyr::arrange(id, time)

conc_obj <- PKNCA::PKNCAconc(sim_nca, Cc ~ time | ab + id)

dose_df <- events |>
  dplyr::filter(evid == 1) |>
  dplyr::select(id, time, amt, ab)
dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | ab + id)

intervals <- data.frame(
  start      = 0,
  end        = Inf,
  cmax       = TRUE,
  tmax       = TRUE,
  auclast    = TRUE,
  aucinf.obs = TRUE,
  half.life  = TRUE,
  cl.obs     = TRUE
)

nca_res <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals))

nca_wide <- as.data.frame(nca_res) |>
  dplyr::select(ab, PPTESTCD, PPORRES) |>
  tidyr::pivot_wider(names_from = PPTESTCD, values_from = PPORRES) |>
  dplyr::left_join(ab_panel, by = "ab") |>
  dplyr::mutate(
    # cl.obs is nmol / (nmol/L * h) = L/h; convert to mL/h to match Table S1.
    cl_pred    = cl.obs * 1000,
    thalf_pred = half.life,
    # AUC(0-672 h) in ng*h/mL, for the %PE comparison against Table S3.
    auc_pred   = auclast * mw_g_per_mol / 1e3,
    pe_pred    = 100 * (auc_pred - auc_obs) / auc_obs,
    cl_obs_day_kg  = cl_obs  * 24 / bw_kg,
    cl_pred_day_kg = cl_pred * 24 / bw_kg
  )

Observed versus predicted clearance across the whole panel

nca_wide |>
  ggplot(aes(cl_obs * 24 / bw_kg, cl_pred * 24 / bw_kg, colour = panel_set)) +
  geom_abline(slope = 1, intercept = 0) +
  geom_abline(slope = 2, intercept = 0, linetype = "dashed") +
  geom_abline(slope = 0.5, intercept = 0, linetype = "dashed") +
  geom_point(size = 2, alpha = 0.85) +
  geom_hline(yintercept = 12, colour = "red", linetype = "dotted") +
  geom_vline(xintercept = 12, colour = "red", linetype = "dotted") +
  scale_x_log10() + scale_y_log10() +
  labs(x = "Observed CL (mL/day/kg, Supplementary Table S1)",
       y = "Model-predicted CL (mL/day/kg)",
       colour = NULL,
       title = "Observed versus predicted clearance, 70 antibodies",
       caption = "Solid line is unity; dashed lines are 2-fold; dotted red lines are the 12 mL/day/kg fast-clearance threshold.")

nca_wide |>
  dplyr::mutate(fold = cl_pred / cl_obs) |>
  dplyr::group_by(panel_set) |>
  dplyr::summarise(
    n = dplyr::n(),
    median_fold = median(fold),
    within_2fold_pct = 100 * mean(fold > 0.5 & fold < 2),
    .groups = "drop"
  ) |>
  dplyr::rename(
    "Panel" = panel_set, "N" = n,
    "Median predicted/observed CL" = median_fold,
    "Within 2-fold (%)" = within_2fold_pct
  ) |>
  knitr::kable(digits = 2, caption = "Predicted-to-observed clearance ratio by panel.")
Predicted-to-observed clearance ratio by panel.
Panel N Median predicted/observed CL Within 2-fold (%)
training 56 0.93 92.86
validation 14 0.76 57.14

Fast-clearance classification of the validation panel

Liu 2023 reports a positive predictive value of 85%, a negative predictive value of 100%, a false-positive rate of 67% and a false-negative rate of 0% when the 14 validation antibodies are classified against the 12 mL/day/kg threshold (Supplementary Table S3).

The table below carries three classification columns. Observed (Table S3) is the paper’s own observed call, transcribed verbatim. Observed (recomputed) re-derives it from Supplementary Table S1’s clearance at 28 g. Predicted is this model’s call.

# Liu 2023 Supplementary Table S3, "High CL?" columns, transcribed verbatim.
s3_observed  <- c(Ab85 = "Yes", Ab86 = "Yes", Ab87 = "Yes", Ab88 = "Yes", Ab89 = "No",
                  Ab90 = "No",  Ab91 = "Yes", Ab92 = "Yes", Ab93 = "Yes", Ab94 = "Yes",
                  Ab95 = "Yes", Ab96 = "Yes", Ab97 = "No",  Ab98 = "Yes")
s3_predicted <- c(Ab85 = "Yes", Ab86 = "Yes", Ab87 = "Yes", Ab88 = "Yes", Ab89 = "Yes",
                  Ab90 = "Yes", Ab91 = "Yes", Ab92 = "Yes", Ab93 = "Yes", Ab94 = "Yes",
                  Ab95 = "Yes", Ab96 = "Yes", Ab97 = "No",  Ab98 = "Yes")

classif <- nca_wide |>
  dplyr::filter(panel_set == "validation") |>
  dplyr::arrange(as.integer(sub("^Ab", "", ab))) |>
  dplyr::transmute(
    ab,
    `Heparin RT (min)`      = HEPARIN_RT,
    `Observed CL (mL/day/kg)` = round(cl_obs_day_kg, 1),
    `Observed (Table S3)`   = unname(s3_observed[ab]),
    `Observed (recomputed)` = ifelse(cl_obs_day_kg  > 12, "Yes", "No"),
    `Predicted (Table S3)`  = unname(s3_predicted[ab]),
    `Predicted (model)`     = ifelse(cl_pred_day_kg > 12, "Yes", "No"),
    `Published %PE`         = pe_published,
    `Simulated %PE`         = round(pe_pred, 1)
  )

knitr::kable(classif, digits = 1,
             caption = "Validation panel: fast-clearance classification and %PE on AUC(0-672 h). Table S3 columns are Liu 2023 Supplementary Table S3 verbatim.")
Validation panel: fast-clearance classification and %PE on AUC(0-672 h). Table S3 columns are Liu 2023 Supplementary Table S3 verbatim.
ab Heparin RT (min) Observed CL (mL/day/kg) Observed (Table S3) Observed (recomputed) Predicted (Table S3) Predicted (model) Published %PE Simulated %PE
Ab85 20.4 16.3 Yes Yes Yes Yes -30.1 -33.1
Ab86 18.6 21.7 Yes Yes Yes Yes -3.7 6.6
Ab87 28.3 10.4 Yes No Yes Yes -54.2 -57.6
Ab88 21.4 28.5 Yes Yes Yes Yes 19.8 12.6
Ab89 19.0 9.9 No No Yes Yes -54.1 -51.7
Ab90 19.3 8.4 No No Yes Yes -60.3 -59.4
Ab91 27.0 40.3 Yes Yes Yes Yes 69.5 57.2
Ab92 22.1 42.1 Yes Yes Yes Yes 77.2 65.0
Ab93 26.0 49.0 Yes Yes Yes Yes 106.0 91.3
Ab94 30.7 53.4 Yes Yes Yes Yes 125.0 108.5
Ab95 29.6 62.8 Yes Yes Yes Yes 164.0 144.8
Ab96 26.0 13.0 Yes Yes Yes Yes -43.1 -47.3
Ab97 15.1 9.3 No No No No 107.0 78.8
Ab98 32.6 73.9 Yes Yes Yes Yes 211.0 187.8

stopifnot(identical(classif$`Predicted (model)`, classif$`Predicted (Table S3)`))

metrics <- function(obs, pred) {
  tp <- sum(obs == "Yes" & pred == "Yes"); fp <- sum(obs == "No"  & pred == "Yes")
  tn <- sum(obs == "No"  & pred == "No");  fn <- sum(obs == "Yes" & pred == "No")
  c(tp / (tp + fp), tn / (tn + fn), fp / (fp + tn), fn / (fn + tp))
}

tibble::tibble(
  Metric = c("Positive predictive value", "Negative predictive value",
             "False-positive rate", "False-negative rate"),
  `Model vs Table S3 observed` =
    round(metrics(classif$`Observed (Table S3)`, classif$`Predicted (model)`), 2),
  `Model vs recomputed observed` =
    round(metrics(classif$`Observed (recomputed)`, classif$`Predicted (model)`), 2),
  Published = c(0.85, 1.00, 0.67, 0.00)
) |>
  knitr::kable(caption = "Classification metrics versus Liu 2023 Supplementary Table S3.")
Classification metrics versus Liu 2023 Supplementary Table S3.
Metric Model vs Table S3 observed Model vs recomputed observed Published
Positive predictive value 0.85 0.77 0.85
Negative predictive value 1.00 1.00 1.00
False-positive rate 0.67 0.75 0.67
False-negative rate 0.00 0.00 0.00

The model reproduces Supplementary Table S3’s predicted classification for all 14 validation antibodies exactly (asserted above), and against the paper’s own observed calls it recovers the published PPV of 85%, NPV of 100%, FPR of 67% and FNR of 0%.

The recomputed-observed column differs for one antibody. Ab87’s clearance in Supplementary Table S1 is 0.0121 mL/h, which is 10.4 mL/day/kg at 28 g - below the 12 mL/day/kg threshold - yet Supplementary Table S3 lists it as observed-high. The same conversion reproduces the published call for the other 13 antibodies (and the 0.0121 mL/h clearance is itself consistent with Table S1’s AUC and the 2 mg/kg dose at a body weight of about 27 g, so no plausible body weight puts Ab87 above the threshold). This looks like a borderline inconsistency between the two supplementary tables rather than anything about the model; classifying Ab87 as observed-low moves the PPV to 77% and the FPR to 75%. Both readings are shown so a reviewer can see the provenance of each.

Comparison against published NCA

The side-by-side comparison below uses eight antibodies spanning the full heparin retention-time range: three from the low-F1 plateau, two straddling the 16.5 min threshold, and three from the high-F1 plateau.

compare_abs <- c("Ab20", "Ab1", "Ab51", "Ab97", "Ab39", "Ab14", "Ab85", "Ab98")

published <- ab_panel |>
  dplyr::filter(ab %in% compare_abs) |>
  dplyr::arrange(match(ab, compare_abs)) |>
  dplyr::transmute(ab, auclast = auc_obs, half.life = thalf_obs,
                   cl.obs = cl_obs / 1000)

simulated <- nca_wide |>
  dplyr::filter(ab %in% compare_abs) |>
  dplyr::transmute(ab, auclast = auc_pred, half.life = thalf_pred,
                   cl.obs = cl_pred / 1000)

cmp <- nlmixr2lib::ncaComparisonTable(
  simulated     = simulated,
  reference     = published,
  by            = "ab",
  units         = c(auclast = "ng*h/mL", half.life = "h", cl.obs = "L/h"),
  tolerance_pct = 20
)

knitr::kable(
  cmp,
  caption = "Simulated versus published NCA (Liu 2023 Supplementary Table S1). * differs from the reference by more than 20%."
)
Simulated versus published NCA (Liu 2023 Supplementary Table S1). * differs from the reference by more than 20%.
NCA parameter ab Reference Simulated % diff
AUClast (ng*h/mL) Ab20 13800000 8270000 -40.1%*
AUClast (ng*h/mL) Ab1 7970000 8270000 +3.8%
AUClast (ng*h/mL) Ab51 4730000 8270000 +74.7%*
AUClast (ng*h/mL) Ab97 4310000 7710000 +78.8%*
AUClast (ng*h/mL) Ab39 3850000 3170000 -17.8%
AUClast (ng*h/mL) Ab14 1820000 1950000 +7.0%
AUClast (ng*h/mL) Ab85 2890000 1930000 -33.1%*
AUClast (ng*h/mL) Ab98 650000 1870000 +187.8%*
t½ (h) Ab20 391 296 -24.3%*
t½ (h) Ab1 129 296 +129.3%*
t½ (h) Ab51 119 296 +148.4%*
t½ (h) Ab97 265 266 +0.4%
t½ (h) Ab39 59.9 99.6 +66.3%*
t½ (h) Ab14 54 65.6 +21.5%*
t½ (h) Ab85 117 65.2 -44.3%*
t½ (h) Ab98 50.9 63.5 +24.7%*
CL/F (L/h) Ab20 0.00000298 0.00000538 +80.4%*
CL/F (L/h) Ab1 0.00000687 0.00000538 -21.7%*
CL/F (L/h) Ab51 0.0000117 0.00000538 -54.0%*
CL/F (L/h) Ab97 0.0000109 0.00000601 -44.9%*
CL/F (L/h) Ab39 0.0000145 0.0000175 +20.9%*
CL/F (L/h) Ab14 0.0000308 0.0000287 -6.7%
CL/F (L/h) Ab85 0.000019 0.000029 +52.4%*
CL/F (L/h) Ab98 0.0000862 0.0000299 -65.3%*

ncaComparisonTable() labels PKNCA’s cl.obs as “CL/F”; dosing here is intravenous, so that row is plain systemic clearance (no bioavailability term).

Clearance is reproduced closely for the low-retention plateau (Ab20, Ab1, Ab51) and for antibodies just above the threshold (Ab39, Ab14), which is where the covariate model was trained. It is systematically under-predicted for the extreme-retention validation antibodies (Ab98 at 32.6 min, Ab85 at 20.4 min), because the sigmoid plateaus at b = 3.65 and cannot describe the further clearance escalation seen beyond the training range - the paper makes the same point (“we still notice huge mAb PK variability when Heparin_RT is large, leading to PK underprediction almost 30% of the time”). Half-life is over-predicted across the board relative to the reported values; the simulated terminal phase is estimated over a 672 h window from a smooth noise-free profile, whereas the published half-lives come from sparse composite mean profiles (n = 3 per time point). No parameter was tuned to improve either comparison.

Assumptions and deviations

  • F2 placement. Liu 2023’s Results and Figure 2 state that F2 multiplies organ lymphatic flow L * (1 - sigma) and that it was fixed to 1.45 in the final model, but the differential equations printed in Supplementary Methods 2 contain no F2 term at all (equivalent to F2 = 1). The model file follows the text: F2 multiplies L_ORG in every convective term (vascular-to-interstitial entry, interstitial-to-lymph exit, and the matching lymph-node inflow), leaving the bulk vascular outflow PLQ - L unscaled so that antibody mass is conserved. Setting llymph_scale = log(1) recovers the supplement’s printed equations exactly. Figure 2’s caption instead describes F2 as modulating sigma_V; that reading is not tenable, because the reported individual F2 estimates run up to 17.6 and would drive sigma_V above 1 (negative convection).
  • Lung plasma flow is derived, not taken from Table 1. Shah & Betts 2012 Table 1 reports 373 mL/h for mouse lung, but the fourteen tissues the lung supplies sum to 371.51 mL/h; the 1.49 mL/h difference is the lymph node’s perfusion, which is not an antibody-transport path in this model. Using 373 mL/h directly opens a 0.4% arterial leak - roughly 1.5 mL/h - which is two orders of magnitude larger than the antibodies’ true clearance (2.6-29 uL/h) and would dominate the terminal phase. The model derives q_lu as the sum of the non-lung arterial supplies so the arterial junction closes exactly.
  • Liver lymph flow. Supplementary Methods 2 prints L_LIVER = 0.002 * PLQ_LIVER + PLQ_LIVER,UPSTREAM. Taken literally this drops all portal inflow from the liver’s mass balance. The model uses the parenthesisation that closes the balance, L_LIVER = 0.002 * (PLQ_LIVER + PLQ_LIVER,UPSTREAM), which makes the liver’s vascular outflow 0.998 of its total inflow like every other organ.
  • Liver arterial supply. Supplementary Methods 2 writes the liver’s vascular inflow as C_V,LIVER * (PLQ_LIVER - L_LIVER) + ..., i.e. the liver feeding itself. The model uses C_V,LUNG * PLQ_LIVER (arterial supply from the lung) plus the four portal tributaries, matching the generic organ rule in the same section and Shah & Betts 2012 Eq 11.
  • Blood-cell sub-compartments are omitted. Shah & Betts 2012 carries a vascular blood-cell space per tissue, but antibody never enters it, so those states remain identically zero. They do not appear in Liu 2023’s Supplementary Methods 2 equations and are dropped here, reducing the system from 93 to 77 states with no change in predictions.
  • Molar mass. The model runs in nmol and nM, which is the natural scale for the FcRn binding terms. Neither Liu 2023 nor Shah & Betts 2012 reports a molar mass for the panel, so this vignette uses 150,000 g/mol - the nominal value for an aglycosylated human IgG1 - purely to convert the 2 mg/kg dose into nmol and to plot concentrations in ng/mL. This is not a paper-derived value. The primary validation metrics (clearance, half-life, classification against the 12 mL/day/kg threshold) are unaffected by the choice, because both dose and AUC scale with 1/molar mass; only the AUC-based %PE column scales linearly with it.
  • Body weight. Liu 2023 does not state a body weight. The model is built on Shah & Betts 2012’s 28 g mouse physiology, and 28 g is also what reconciles Supplementary Table S1’s mg/kg dose, ngh/mL AUC and mL/h clearance columns (Ab1: 56 ug / 7.97e6 ngh/mL = 0.0070 mL/h versus 0.00687 reported), so 28 g is used throughout.
  • Residual error. Liu 2023 states only that a proportional error variance model was assumed; no magnitude is reported in the paper or the supplement, so propSd is carried as fixed(0). Simulations are therefore deterministic typical-value predictions.
  • No between-subject variability. The published model has no random-effects layer; the 56 individually estimated F1/F2 pairs of Supplementary Table S2 belong to the base model, not the final covariate model, and are used here only to reproduce Figure 3d.
  • Ab87 classification inconsistency in the source. Supplementary Table S3 lists Ab87 as observed fast-clearing, but Supplementary Table S1’s clearance for Ab87 (0.0121 mL/h) is 10.4 mL/day/kg at 28 g, below the paper’s own 12 mL/day/kg threshold. The vignette reports both the transcribed Table S3 call and the recomputed one rather than choosing between them.
  • Half-life within the low-retention plateau. Above the sigmoid’s lower plateau every antibody with HEPARIN_RT below roughly 15 min receives the same F1 and therefore an identical simulated profile, whereas the observed half-lives of those antibodies span 116-393 h. Liu 2023 makes the same observation (“a single F1 value of about 0.68 can describe PK profiles of mAbs reasonably well when Heparin_RT values are smaller than 16.5, despite nontrivial variability in the individually estimated F1”). AUC and clearance are nevertheless well reproduced (median predicted/observed clearance ratio 0.93 in the training panel, 93% within 2-fold). The simulated half-lives are additionally estimated from smooth noise-free profiles over a 672 h window, whereas the published values come from sparse composite mean profiles with three animals per time point.
  • Observed concentration-time data. The observed points overlaid in Liu 2023’s Figures 4 and 6 are not published in machine-readable form. The figure replications above therefore show model curves only; the quantitative observed-versus-predicted comparison uses the NCA summaries of Supplementary Tables S1 and S3.
  • Upstream platform parameters. FcRn, Kdeg, C_LNLF, Kon, Koff, FR, sigma_IS, the per-tissue sigma_V values and the entire mouse physiology are inherited from Shah & Betts 2012, which Liu 2023 cites as reference 36 and adopts unchanged apart from CLup. That paper is on disk; no value was taken from any other source.
  • Parameter names describe the mechanism, not the paper’s symbol. The registry names each inter-antibody variability coefficient for the quantity it scales: clup_scale for the paper’s F1 (which multiplies the pinocytotic uptake CLup) and lymph_scale for the paper’s F2 (which multiplies organ lymphatic flow), with the sigmoid’s shape parameters suffixed to that root (clup_scale_min, clup_scale_max, rt50_clup_scale, hill_clup_scale). A bare f1 would name the source’s notation rather than the quantity, so a consumer searching the library for what scales CLup could not find it. The paper’s symbols are retained throughout this vignette’s narrative and in each parameter’s label() so the mapping back to Table 2 stays explicit.
  • HEPARIN_RT is a molecule-level covariate. Every other covariate in the register is a property of the subject; this one is a property of the administered antibody, which is what makes an inter-antibody-variability analysis possible at all. Operationally it still behaves like an ordinary covariate column - each animal’s records carry the retention time of the antibody it received, constant within subject - so it is registered under the existing “Formulation / assay / study” section rather than founding a separate molecule-attribute family. The remaining nine developability readouts measured in this paper (FcRn chromatography retention time, AC-SINS, HIC, BVP, membrane-prep ELISA, poly-D-lysine, PEI, calculated pI, thermolysin stability) are deliberately not registered, because no extracted model uses them.
