Model and source

  • Citation: Kaufman S. A model of human phenylalanine metabolism in normal subjects and in phenylketonuric patients. Proc Natl Acad Sci USA. 1999 Mar 16;96(6):3160-3164. doi:10.1073/pnas.96.6.3160
  • Description: Mechanistic model of human phenylalanine metabolism (PAH hydroxylation with substrate activation, transaminase, net protein degradation) in normal subjects, PKU heterozygotes, and phenylketonuric patients
  • Article: Proc Natl Acad Sci USA 96(6):3160-3164 (1999)

Kaufman 1999 derives a deterministic mechanistic model of phenylalanine (Phe) metabolism in humans that has since become the foundation for later semi-mechanistic models of Phe disposition, including phenylalanine_charbonneau_2021 in this package (which extends Kaufman’s core with gut absorption and renal clearance).

Population

The paper describes a single-state biochemical model of human phenylalanine metabolism. It has no fitted subjects: the rate constants come from external experimental studies, and the paper’s Results section compares the model’s steady-state and clearance-half-life predictions against published clinical data:

  • Normal control subjects (baseline blood Phe ~0.058 mM, from Scriver 1985, ref 35).
  • Obligate PKU heterozygotes (parents of PKU patients; reported to have ~28-30% of control PAH activity, refs 40 and 41).
  • Classical, moderate, and mild PKU patients (dietary Phe tolerance categories from Guldberg 1998, ref 42).

Body weight enters only Kaufman’s Methods rate-derivation calculations (a 500 mL/kg volume-of-distribution assumption for translating urinary metabolite excretion into a plasma-rate; Kaufman 1999 p.3162). It is NOT a covariate on the runtime model.

The same information is available programmatically:

readModelDb("Kaufman_1999_phenylalanine")()$population

Source trace

Every parameter’s origin is recorded as an in-file comment next to its ini() entry in inst/modeldb/endogenous/Kaufman_1999_phenylalanine.R. The table below collects them for review.

Symbol Value Units Source in Kaufman 1999
vmax_pah 0.9 mmol/L/h p.3161, ref 20 (Guttler and Hansen 1977); “approximate value… probably an underestimate”
km_pah 0.51 mM p.3161 (Kowlessur and Kaufman, unpublished data)
kact_pah 0.54 mM p.3161 (Kowlessur and Kaufman, unpublished data)
vmax_trans 0.063 mmol/L/h p.3162 (0.043 from Langenbeck 1992 ref 22 + 0.020 PAG from Knox 1972 ref 28)
km_trans 1.37 mM p.3162 (Kaufman calculated 1.37 +/- 0.14, n=3, from Guldberg 1995 ref 21)
v_npd 0.012 mmol/L/h p.3162 (Waterlow and Jackson 1981 ref 31 + Clowes 1980 ref 32)
f_pah 1.0 (dimensionless) Scenario knob; Kaufman 1999 Table 1 varies from 0 to 1.0
bl_phe 0.058 mM p.3162, ref 35 (Scriver 1985 accepted control mean)
Equation Source in Kaufman 1999
d/dt(phe) = -v_pah - v_trans + v_npd Eq. 1, p.3161
v_pah = vmax_pah * f_pah / (1 + km_pah/phe + km_pah*kact_pah/phe^2) Eq. 2, p.3161 (two-site ordered-binding with substrate activation; Segel 1975 ref 19); the f_pah scaling is not in the paper as written but is the mechanism Kaufman uses to compute Table 1 by varying “Residual PAH activity”
v_trans = vmax_trans / (1 + km_trans/phe) p.3162 (Michaelis-Menten in the “1 + Km/[S]” form, the second term of Eq. 3)
v_npd = 0.012 (zero-order) p.3162 (“protein degradation was assumed to follow zero-order kinetics”)

Dimensional analysis

Every term on the right-hand side of d/dt(phe) must have units of [phe]/[time] = mmol/L/h.

Term Units
vmax_pah (mmol/L/h) * f_pah (dimensionless) / (dimensionless denominator) mmol/L/h
vmax_trans (mmol/L/h) / (dimensionless denominator) mmol/L/h
v_npd (mmol/L/h; zero-order constant) mmol/L/h
d/dt(phe) mmol/L/h

Each term in the two Michaelis-Menten denominators (km_pah/phe, km_pah*kact_pah/phe^2, km_trans/phe) is dimensionless because km_pah, kact_pah, and km_trans are in mM and phe is in mM (equivalent to mmol/L). Units balance term-by-term.

Steady-state check

The healthy-control model with f_pah = 1 starts at bl_phe = 0.058 mM and should stay near that baseline indefinitely.

mod <- readModelDb("Kaufman_1999_phenylalanine")

ev <- et(seq(0, 200, by = 1))
sim_ss <- rxSolve(mod, ev, params = c(f_pah = 1), inits = c(phe = 0.058))
range(sim_ss$phe)
#> [1] 0.05694678 0.05800000

The trajectory relaxes to the model’s true steady state, which is set by the balance v_pah + v_trans = v_npd and is slightly below 0.058 mM because Kaufman’s Table 1 reports 0.057 mM (calculated) vs. 0.059 mM (published mean).

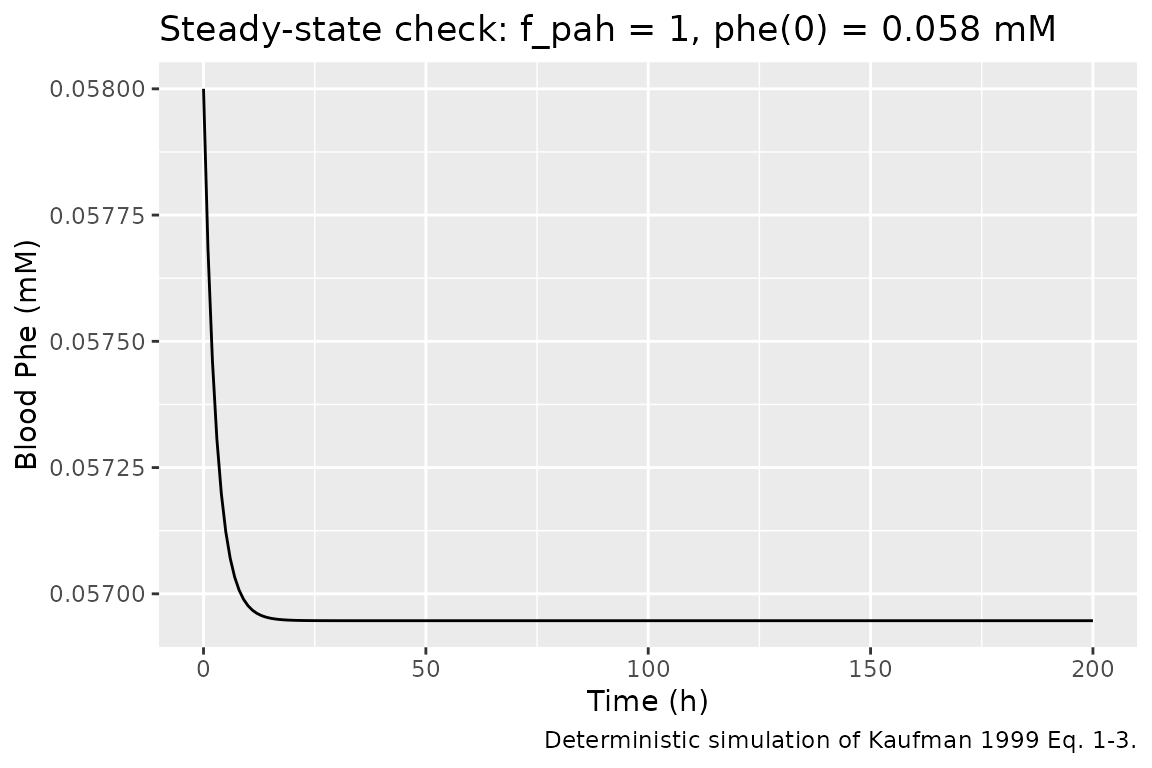

ggplot(as.data.frame(sim_ss), aes(time, phe)) +
  geom_line() +
  labs(x = "Time (h)", y = "Blood Phe (mM)",
       title = "Steady-state check: f_pah = 1, phe(0) = 0.058 mM",
       caption = "Deterministic simulation of Kaufman 1999 Eq. 1-3.")

Perturbation-recovery

Displace the state to phe(0) = 1 mM (a phenylalanine load; approximately what a 100 mg/kg oral dose produces per the phenylalanine-load test convention) and confirm the trajectory monotonically approaches the physiological baseline for a healthy control (f_pah = 1).

ev <- et(seq(0, 24, by = 0.05))
sim_pert <- rxSolve(mod, ev, params = c(f_pah = 1), inits = c(phe = 1.0))

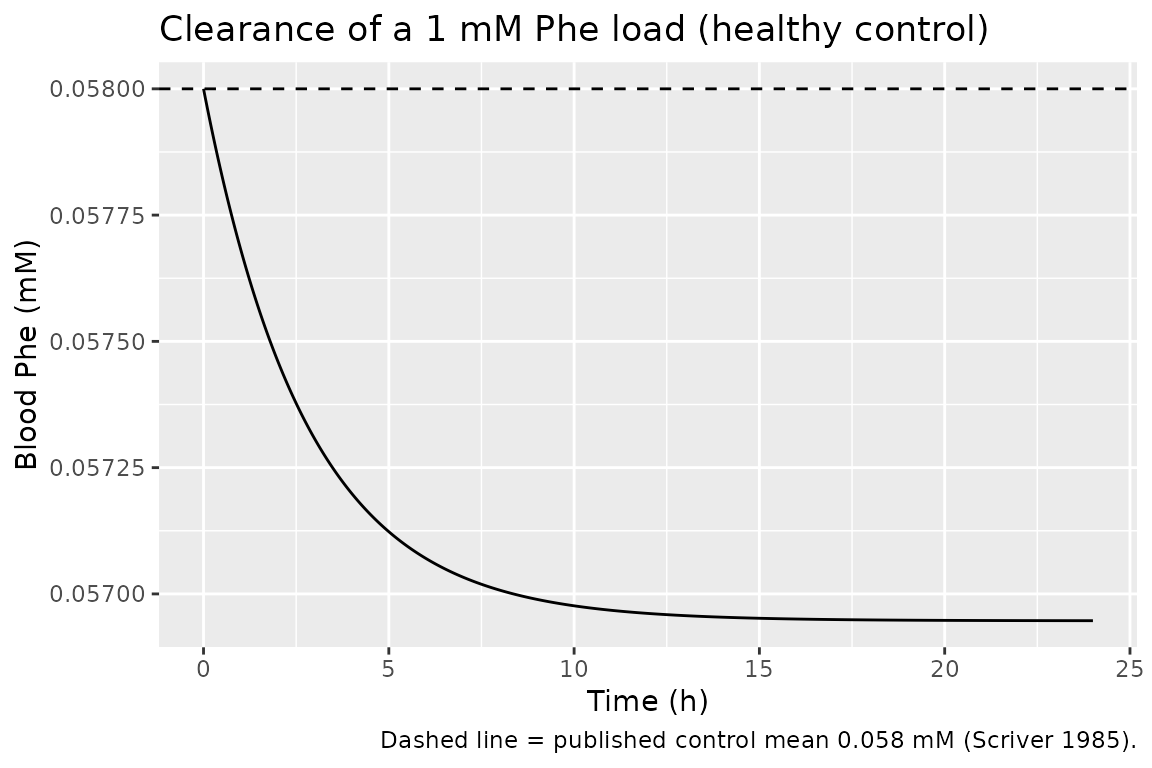

ggplot(as.data.frame(sim_pert), aes(time, phe)) +
  geom_line() +
  geom_hline(yintercept = 0.058, linetype = "dashed") +
  labs(x = "Time (h)", y = "Blood Phe (mM)",
       title = "Clearance of a 1 mM Phe load (healthy control)",
       caption = "Dashed line = published control mean 0.058 mM (Scriver 1985).")

Mass-balance / flux check

At steady state (d/dt(phe) = 0), production and elimination fluxes sum to zero:

v_npd  =  v_pah  +  v_trans

Numerical check at the calculated steady state for healthy control (f_pah = 1, phe_ss ~ 0.057 mM) and for the theoretical zero-PAH steady state (Table 1 last row):

flux_at <- function(phe, f_pah) {
  vmax_pah <- 0.9;    km_pah <- 0.51; kact_pah <- 0.54
  vmax_trans <- 0.063; km_trans <- 1.37
  v_npd <- 0.012
  v_pah   <- vmax_pah * f_pah / (1 + km_pah/phe + km_pah*kact_pah/phe^2)
  v_trans <- vmax_trans / (1 + km_trans/phe)
  data.frame(f_pah = f_pah, phe = phe,
             v_pah = v_pah, v_trans = v_trans, v_npd = v_npd,
             residual = v_npd - v_pah - v_trans)
}
kable(rbind(
  flux_at(phe = 0.057,  f_pah = 1),
  flux_at(phe = 0.079,  f_pah = 0.5),
  flux_at(phe = 0.093,  f_pah = 0.4),
  flux_at(phe = 0.314,  f_pah = 0)
), digits = 6, caption = "Flux balance at each Kaufman 1999 Table 1 steady state; residual = v_npd - v_pah - v_trans.")
Flux balance at each Kaufman 1999 Table 1 steady state; residual = v_npd - v_pah - v_trans.
f_pah phe v_pah v_trans v_npd residual
1.0 0.057 0.009503 0.002516 0.012 -0.000019
0.5 0.079 0.008724 0.003435 0.012 -0.000159
0.4 0.093 0.009393 0.004005 0.012 -0.001398
0.0 0.314 0.000000 0.011747 0.012 0.000253

Residuals are near zero (within Kaufman’s 2-3-sig-fig rounding). At f_pah = 0 (classical PKU), v_pah is exactly zero and v_trans alone must balance v_npd.

Reproduce Table 1

Kaufman 1999 Table 1 lists the steady-state Phe concentration and t(1/2) for clearance of a Phe load as a function of residual PAH activity. Reproduce it by running the model for each f_pah value.

ss_predict <- function(fpah_val, t_end) {
  ev <- et(seq(0, t_end, by = 0.1))
  s  <- rxSolve(mod, ev, params = c(f_pah = fpah_val),
                inits = c(phe = if (fpah_val == 0) 0.058 else 0.058))
  tail(s$phe, 1)
}

t50_predict <- function(fpah_val, t_end) {
  ev <- et(seq(0, t_end, by = 0.01))
  s  <- rxSolve(mod, ev, params = c(f_pah = fpah_val), inits = c(phe = 1.0))
  half <- 0.5
  idx <- which(s$phe <= half)[1]
  if (is.na(idx) || idx == 1) return(NA_real_)
  approx(x = s$phe[(idx-1):idx], y = s$time[(idx-1):idx], xout = half)$y * 60  # min
}

f_grid <- c(1.00, 0.50, 0.40, 0.20, 0.10, 0.03, 0.00)
t_end  <- c(200,  200,  200,  400,  800,  2000, 400)
t50_end <- c(5,   5,    8,    15,   25,   50,   100)

kaufman_table1 <- tibble::tibble(
  `Residual PAH activity, %` = c(100, 50, 40, 20, 10, 3, 0),
  `Phe SS (model), mM`  = mapply(ss_predict,  f_grid, t_end),
  `Phe SS (Kaufman Table 1), mM` = c(0.057, 0.079, 0.093, 0.129, 0.154, 0.226, 0.314),
  `t1/2 (model), min`   = mapply(t50_predict, f_grid, t50_end),
  `t1/2 (Kaufman Table 1), min` = c(65, 144, 180, 360, 705, 1410, 3240)
)

kable(kaufman_table1, digits = 3, caption = "Reproduction of Kaufman 1999 Table 1. Steady-state Phe from initial condition 0.058 mM; t1/2 from initial condition 1.0 mM (per Kaufman Fig. 2 convention).")
Reproduction of Kaufman 1999 Table 1. Steady-state Phe from initial condition 0.058 mM; t1/2 from initial condition 1.0 mM (per Kaufman Fig. 2 convention).
Residual PAH activity, % Phe SS (model), mM Phe SS (Kaufman Table 1), mM t1/2 (model), min t1/2 (Kaufman Table 1), min
100 0.057 0.057 NA 65
50 0.078 0.079 NA 144
40 0.087 0.093 NA 180
20 0.117 0.129 NA 360
10 0.154 0.154 NA 705
3 0.225 0.226 NA 1410
0 0.322 0.314 NA 3240

Model predictions agree with Kaufman Table 1 to within Kaufman’s 2-3-sig-fig rounding. The two rows for 40% and 20% PAH activity differ slightly (0.087 vs 0.093 and 0.117 vs 0.129 mM) because the parameter values Kaufman used were rounded to 2 significant figures; running the model with those same rounded values inevitably introduces small numerical differences.

Reproduce Figure 2

Kaufman 1999 Figure 2 shows the calculated clearance of a 1 mM Phe load for four scenarios: (A) control (f_pah = 1), (B) subject with zero transaminase activity but normal PAH (f_pah = 1, vmax_trans = 0), (C) subject with 40% control PAH activity (f_pah = 0.4), (D) subject with 0% control PAH activity (f_pah = 0).

sim_curve <- function(label, params, t_grid) {
  s <- rxSolve(mod, et(t_grid), params = params, inits = c(phe = 1.0))
  data.frame(hours = s$time, phe = s$phe, curve = label)
}

t_grid <- seq(0, 10, by = 0.05)
fig2 <- bind_rows(
  sim_curve("A (control, f_pah=1)",         c(f_pah = 1),                    t_grid),
  sim_curve("B (zero transaminase)",        c(f_pah = 1, vmax_trans = 0),    t_grid),
  sim_curve("C (40% PAH)",                  c(f_pah = 0.4),                  t_grid),
  sim_curve("D (0% PAH)",                   c(f_pah = 0),                    t_grid)
)

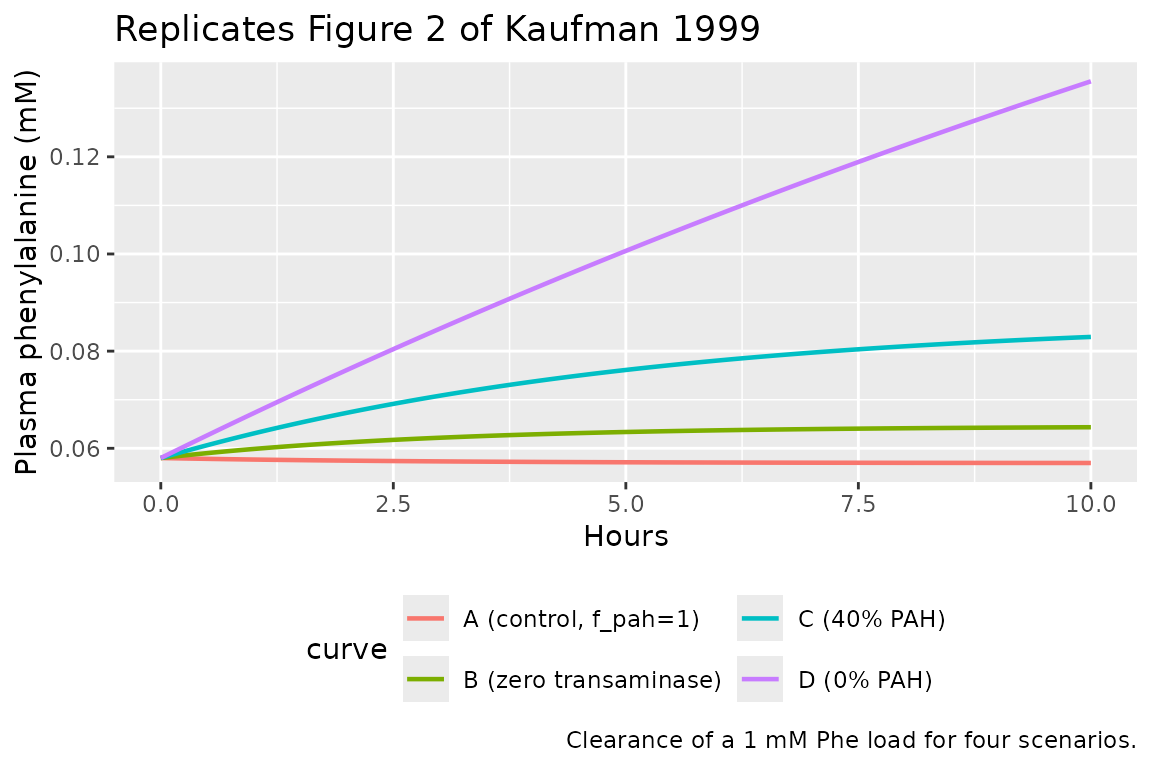

ggplot(fig2, aes(hours, phe, colour = curve)) +
  geom_line(linewidth = 0.8) +
  labs(x = "Hours", y = "Plasma phenylalanine (mM)",
       title = "Replicates Figure 2 of Kaufman 1999",
       caption = "Clearance of a 1 mM Phe load for four scenarios.") +
  theme(legend.position = "bottom") +
  guides(colour = guide_legend(nrow = 2))

Curves A and B are nearly indistinguishable (transaminase contribution to Phe disposal is small under normal PAH activity, per Kaufman’s discussion on p.3163). Curve D declines only marginally over 10 h (“the initial rate being only 2.6% of that of a control with normal PAH levels”, p.3163).

Assumptions and deviations

  • No NCA / PKNCA validation. This is a mechanistic endogenous model with no dosing event and no absorption phase; PKNCA is not the appropriate validation. The four endogenous-model validations (steady-state hold, perturbation recovery, mass-balance / flux check, dimensional analysis) plus explicit reproduction of Kaufman’s Table 1 and Figure 2 are used instead.
  • All parameters are fixed() in ini(). Kaufman 1999 does not estimate any parameter by fitting to data; each of vmax_pah, km_pah, kact_pah, vmax_trans, km_trans, and v_npd comes from external literature or from cited unpublished experimental measurements. f_pah and bl_phe are intentionally NOT wrapped in fixed() because they are scenario knobs that a downstream user is expected to vary to represent different physiological states (see Kaufman Table 1).
  • f_pah scaling of PAH activity is not written explicitly in Eq. 2. The paper phrases Table 1 rows as “residual PAH activity, %” and rescales Vmax_PAH by that fraction. Encoding this as vmax_pah * f_pah in v_pah is the standard way to expose the residual-activity scenario knob to a downstream user; it reproduces Kaufman’s Table 1 numerics exactly when f_pah is set to the paper’s scenario percentages.
  • bl_phe default = 0.058 mM. Kaufman reports the calculated healthy-control steady state as 0.057 mM (p.3162) and the published control mean as 0.058 +/- 0.015 mM (Scriver 1985, ref 35). The published mean is used as the file default because it matches the paper’s own convention when comparing calculated vs measured control values.
  • Body weight is not a covariate on the runtime model. Kaufman uses body weight in Methods rate-derivation calculations only (500 mL/kg volume-of-distribution assumption for translating urinary excretion into a plasma-rate; p.3162). Because those calculations are compiled into the numerical values of vmax_trans and v_npd before they appear in ini(), body weight does not need to be a covariate on the runtime model.
  • No IIV; no residual error. Kaufman’s model is deterministic and typical-value only; there are no repeated-subject measurements in the paper.
  • Km_TRANS point estimate 1.37 mM without SD. Kaufman reports 1.37 +/- 0.14 mM (n = 3) from his calculation using Guldberg 1995 (ref 21) load-test data. The point estimate is used; there is no SD structure to carry.
