SARS-CoV-2 / influenza vaccine immunodynamics (Desikan 2022)

Source: vignettes/articles/Desikan_2022_covidVaccine.Rmd
Desikan_2022_covidVaccine.Rmd

Model and source

  • Citation: Desikan R, Linderman SL, Davis C, Zarnitsyna VI, Ahmed H, Antia R (2022). Vaccine models predict rules for updating vaccines against evolving pathogens such as SARS-CoV-2 and influenza in the context of pre-existing immunity. Frontiers in Immunology 13:985478.
  • Article: https://doi.org/10.3389/fimmu.2022.985478
  • Supplementary MATLAB code (used as the authoritative source for the ODE system and dose events): Frontiers Data Sheet 1 archive attached to the article; the driver MS_plots.m renders Figures 2A / 3 / 4A / 4B / 5 and SI Figure 1, calling model.m (ODE right-hand side) and one function per vaccination sequence (WW.m, OO.m, WWO.m, WWWWW.m, WWOOO.m, WWOW.m, WWWO.m).

Population and biological context

The model is a species-agnostic mechanistic description of the humoral recall response to a two-strain vaccine sequence. The two vaccine antigens (WU = ancestral SARS-CoV-2 Wuhan strain and OM = the Omicron BA.1 variant in the paper’s applications) share a conserved epitope class C and each carries a variant-unique epitope class (W on WU, O on OM). The paper calibrates the model qualitatively against three sources:

  • Mouse two-dose primary vaccination (Ying et al. 2022, cited in Desikan et al. 2022 as ref 19). BALB/c mice receive either WU-WU or OM-OM at 21-day intervals; neutralising titres against both WU and OM are reported. The paper reproduces this pattern in Figure 2A with a two-dose simulation at Ag_dose = 1e3 and interval 21 days.
  • Rhesus macaque three-dose Moderna mRNA-1273 vs mRNA-Omicron booster study (Gagne et al. 2022, ref 28). Primates first receive two doses of the WU vaccine, followed by a third boost (WU or OM). Figure 3 of Desikan et al. reproduces the observed anti-S IgG dynamics using the WWWWW and WWOOO simulations at Ag_dose = 1e5, vaccinations at days (0, 4, 41, 75, 100) * 7 = (0, 28, 287, 525, 700).
  • Human clinical datasets (Khan et al. 2022, ref 30; Ellebedy et al. 2014, ref 32; Goel et al. 2021, ref 8; Regev-Yochay et al. 2022, ref 31). Figure 2B reproduces the modest saturation of anti-Spike antibody titres across successive mRNA boosters. Figure 2C reproduces the OAS pattern in a WU- vaccinated Omicron-infected cohort. Figure 5 reproduces the observation from the Ellebedy et al. 2014 H5N1 vaccine trial (H5 head vs H1 stem fold-change after prime vs boost) using the same WWOOO CoV-2 simulation, exploiting the structural analogy between H5-Head / H1-Stem and OM-unique / conserved epitope classes.

Programmatic access to the population metadata is available via readModelDb("Desikan_2022_covidVaccine")()$population.

Source trace

Model equations and parameter values were transcribed from the paper’s Materials and Methods (Table 1 and unnumbered equations for the WU response, with the OM response derived by symmetry) and from the authors’ supplementary MATLAB code (Data Sheet 1). The table below collects the per-parameter and per-equation origin in one place.

Element Value Source location
k_bind 5e-4 s^-1 day^-1 Table 1 row k (antibody-antigen binding rate constant); model.m line 5 k = param(1)
d_ag 1 day^-1 Table 1 row d_Ag (decay rate of free and bound antigen); model.m line 6 d = param(2)
d_ab 0.1 day^-1 Table 1 row d_Ab (decay rate of antibody); model.m line 7 da = param(3)
lambda_b 1 day^-1 Table 1 row for max B-cell proliferation (l in the docling-parsed table; symbol lambda in the equations); model.m line 8 s = param(4)
phi 100 (scaled units s) Table 1 row for antigen amount that half-maximally stimulates B-cell proliferation; model.m line 9 phi = param(5)
p_ab 0.1 day^-1 Table 1 row p (antibody production rate per unit B cell); model.m line 10 p = param(6)
d_b ln(2)/47 day^-1 approx 0.01475 Table 1 row d_B (B-cell decay rate; 47-day half-life anchored to Cromer et al. 2021); model.m line 11 db = param(7); MS_plots.m line 14 db = log(2)/47
f_b 0.075 Table 1 row for fractional stimulation of B cells in secondary responses by non-homotypic antigen (paper symbol f); model.m line 12 fb = param(8)
m_conserved 1 Table 1 row m:n = 1:5 (number of conserved-epitope classes per antigen); MS_plots.m line 16 Shared = 1
n_unique 5 Table 1 row m:n = 1:5 (number of unique-epitope classes per antigen); MS_plots.m line 17 Unique = 5
Ag_dose vaccinations #1, #2 1e5 (scaled units s) Table 1 row for antigen dose vaccinations #1 and #2; MS_plots.m line 23 Ag_dose = 10^5; WW.m / WWWWW.m first dose
Ag_dose vaccinations #3-#5 0.5e5 (scaled units s) Table 1 row for antigen dose vaccinations #3, #4 and #5; WWWWW.m line 36 +0.5*Ag_dose
Vaccination times (Gagne) days (0, 28, 287, 525, 700) Table 1 row for time of vaccinations #1 - #5 = (0, 4, 41, 75, 100) * 7; MS_plots.m line 21 TT = [0 4 41 75 100 125].*7
Naive Bc(0) = Ac(0) m_conserved = 1 WW.m lines 17, 20 Bc_0 = Shared*10^0, Ac_0 = Shared*10^0
Naive Bw(0), Aw(0) at first WU dose n_unique = 5 (seed) WW.m lines 18, 21 Bw_0 = Unique*10^0, Aw_0 = Unique*10^0; encoded in this file via one-shot dose events at the first WU vaccination time
Naive Bv(0), Av(0) at first OM dose n_unique = 5 (seed) OO.m lines 19, 22 and the reset in WWOOO.m line 36 ... Unique*10^0 yB(end,12:13) Unique*10^0; encoded via one-shot dose events at the first OM vaccination time
Detection floor (H5N1 comparison) 5000 AU Materials and Methods paragraph after Table 1: “antibody detection threshold as 5 x 10^3 AU”; MS_plots.m line 433 detection_limit = 5*10^3
ODE: d/dt(agW) see model model.m line 33
ODE: d/dt(agV) see model model.m line 34
ODE: d/dt(agWw) see model model.m line 35
ODE: d/dt(agWc) see model model.m line 36
ODE: d/dt(agWwc) see model model.m line 37
ODE: d/dt(agVv) see model model.m line 38
ODE: d/dt(agVc) see model model.m line 39
ODE: d/dt(agVvc) see model model.m line 40
ODE: d/dt(Bc) see model model.m line 41
ODE: d/dt(Bw) see model model.m line 42
ODE: d/dt(Bv) see model model.m line 43
ODE: d/dt(Ac) see model model.m line 44
ODE: d/dt(Aw) see model model.m line 45
ODE: d/dt(Av) see model model.m line 46
Observable Ab_WU = m_conserved * Ac + n_unique * Aw n/a MS_plots.m line 63 Shared*YY5(end,12) + Unique*YY5(end,13); identical form appears in every Ab_WU plot call
Observable Ab_OM = m_conserved * Ac + n_unique * Av n/a MS_plots.m line 65 Shared*YY5(end,12) + Unique*YY5(end,14); identical form appears in every Ab_OM plot call
Observable Ab_uniqueOM = n_unique * Av n/a MS_plots.m line 360 Unique.*YY2(:,14) (Figure 4B)
Observable Ab_conserved = m_conserved * Ac n/a MS_plots.m line 361 Shared.*YY2(:,12) (Figure 4B)

Dimensional analysis

The model uses dimensionless “scaled concentration” units (s in Table 1); the initial concentration of B cells is rescaled to 1 and the paper states that at steady state antibody = B cell (so d_ab / p_ab = 0.1 / 0.1 = 1 forces Ac(steady) = Bc(steady) = m_conserved when there is no antigen). Time is in days throughout.

ODE term Right-hand-side units
-k_bind * agW * (Aw + Ac) (s^-1 day^-1) * s * s = s / day – matches d/dt(agW) if agW carries s. Actually all state variables carry s, and k_bind absorbs the extra s^-1 to make the bimolecular collision rate (s * s)/day / s = s/day.
-d_ag * agW (1/day) * s = s / day.
+k_bind * agW * Aw Same as first row.
-d_ab * Aw (1/day) * s = s / day.
+p_ab * Bw (1/day) * s = s / day.
-d_b * Bc (1/day) * s = s / day.
lambda_b * Bc * (Ag_sum)/(phi + Ag_sum) (1/day) * s * dimensionless = s / day. phi carries the same s units as the antigen sum inside the saturating dose-response.

The observables Ab_WU, Ab_OM, Ab_uniqueWU, Ab_uniqueOM and Ab_conserved are all dimensionless multiplicity-weighted linear combinations of Ac, Aw and Av (each in s units). All figures in the paper display these on log-linear axes in “arbitrary units (AU)”.

Simulation helpers

The model exposes 14 dosable compartments. Each vaccination consists of (a) a bolus dose event on the appropriate free-antigen compartment (agW for WU vaccinations, agV for OM vaccinations) plus, at the first respective vaccination time, a one-shot seed dose of n_unique = 5 on each of Bw / Aw (for WU) or Bv / Av (for OM). This exactly reproduces the naive-precursor initial conditions in WW.m / OO.m and the state resets at the first OM exposure in WWO.m / WWOOO.m in the paper’s supplementary code.

mod <- readModelDb("Desikan_2022_covidVaccine")

n_unique_val <- 5     # multiplicity of unique epitopes (from Table 1 m:n = 1:5)

# Build the event table for a vaccination schedule.
#   schedule    : character vector of "W" or "O" (WU or OM vaccine per dose)
#   dose_times  : numeric vector of dose times (days), same length as schedule
#   dose_amts   : numeric vector of dose amounts (scaled units s)
#   obs_grid    : numeric vector of observation times (days)
build_schedule <- function(schedule, dose_times, dose_amts, obs_grid) {
  stopifnot(length(schedule) == length(dose_times),
            length(schedule) == length(dose_amts))
  ev <- rxode2::et()
  seededWU <- FALSE
  seededOM <- FALSE
  for (i in seq_along(schedule)) {
    tv  <- dose_times[i]
    amt <- dose_amts[i]
    if (schedule[i] == "W") {
      ev <- ev |>
        rxode2::et(amt = amt, time = tv, cmt = "agW", evid = 1L)
      if (!seededWU) {
        ev <- ev |>
          rxode2::et(amt = n_unique_val, time = tv, cmt = "Bw", evid = 1L) |>
          rxode2::et(amt = n_unique_val, time = tv, cmt = "Aw", evid = 1L)
        seededWU <- TRUE
      }
    } else if (schedule[i] == "O") {
      ev <- ev |>
        rxode2::et(amt = amt, time = tv, cmt = "agV", evid = 1L)
      if (!seededOM) {
        ev <- ev |>
          rxode2::et(amt = n_unique_val, time = tv, cmt = "Bv", evid = 1L) |>
          rxode2::et(amt = n_unique_val, time = tv, cmt = "Av", evid = 1L)
        seededOM <- TRUE
      }
    } else {
      stop("schedule entries must be 'W' or 'O'")
    }
  }
  ev |> rxode2::et(obs_grid)
}

Steady-state and pre-vaccination baseline check

Before any vaccination, only the conserved-epitope-specific B cells and antibodies (Bc, Ac) are present, at their naive levels (m_conserved = 1). With no antigen the B-cell dose-response term is zero, so Bc decays first-order at d_b = ln(2)/47 (47-day half-life). Ac is fed by p_ab * Bc and lost at rate d_ab = 0.1 /day; because d_ab / p_ab = 1, the paper’s “antibody = B cell at steady state” holds at any true steady state where Bc is constant, but during free decay Ac slightly leads Bc because Ac equilibrates ~7x faster than Bc decays (d_ab / d_b = 0.1 / 0.01475 = 6.8). Confirm the 47-day Bc half-life and the absence of any W- or V-specific pool by running the model with no vaccination events.

ev_null <- rxode2::et() |>
  rxode2::et(seq(0, 200, by = 1))
sim_null <- rxode2::rxSolve(mod, ev_null, cores = 1L) |> as.data.frame()

baseline_summary <- sim_null |>
  dplyr::filter(time %in% c(0, 47, 94, 141, 200)) |>
  dplyr::select(time, Bc, Ac, Bw, Aw, Bv, Av, Ab_WU, Ab_OM)
baseline_summary
#>   time         Bc         Ac Bw Aw Bv Av      Ab_WU      Ab_OM
#> 1    0 1.00000000 1.00000000  0  0  0  0 1.00000000 1.00000000
#> 2   47 0.50000000 0.58492181  0  0  0  0 0.58492181 0.58492181
#> 3   94 0.25000000 0.29323330  0  0  0  0 0.29323330 0.29323330
#> 4  141 0.12500000 0.14662368  0  0  0  0 0.14662368 0.14662368
#> 5  200 0.05236261 0.06142084  0  0  0  0 0.06142084 0.06142084

Assertions:

  • Bc(0) = Ac(0) = 1 exactly (naive levels).
  • Bc(47) approx 0.5 (47-day half-life).
  • Bw, Aw, Bv, Av are exactly zero throughout (no seeding dose).
  • Ac(t) stays within [Bc(t), (d_ab / (d_ab - d_b)) * Bc(t)] approx [Bc, 1.173 * Bc] (the analytic transient bound).
stopifnot(baseline_summary$Bc[baseline_summary$time == 0] == 1)
stopifnot(baseline_summary$Ac[baseline_summary$time == 0] == 1)
Bc_47   <- baseline_summary$Bc[baseline_summary$time == 47]
stopifnot(abs(Bc_47 - 0.5) < 5e-3)                                # 47-day half-life
stopifnot(all(baseline_summary$Bw == 0, baseline_summary$Aw == 0,
              baseline_summary$Bv == 0, baseline_summary$Av == 0)) # no W or V seeding
d_ab_over_diff <- 0.1 / (0.1 - log(2) / 47)                        # ~1.173
Ac_over_Bc <- baseline_summary$Ac / baseline_summary$Bc
stopifnot(all(Ac_over_Bc >= 1 - 1e-3))                              # Ac >= Bc during decay
stopifnot(all(Ac_over_Bc <= d_ab_over_diff * (1 + 1e-3)))           # bounded above by analytic limit

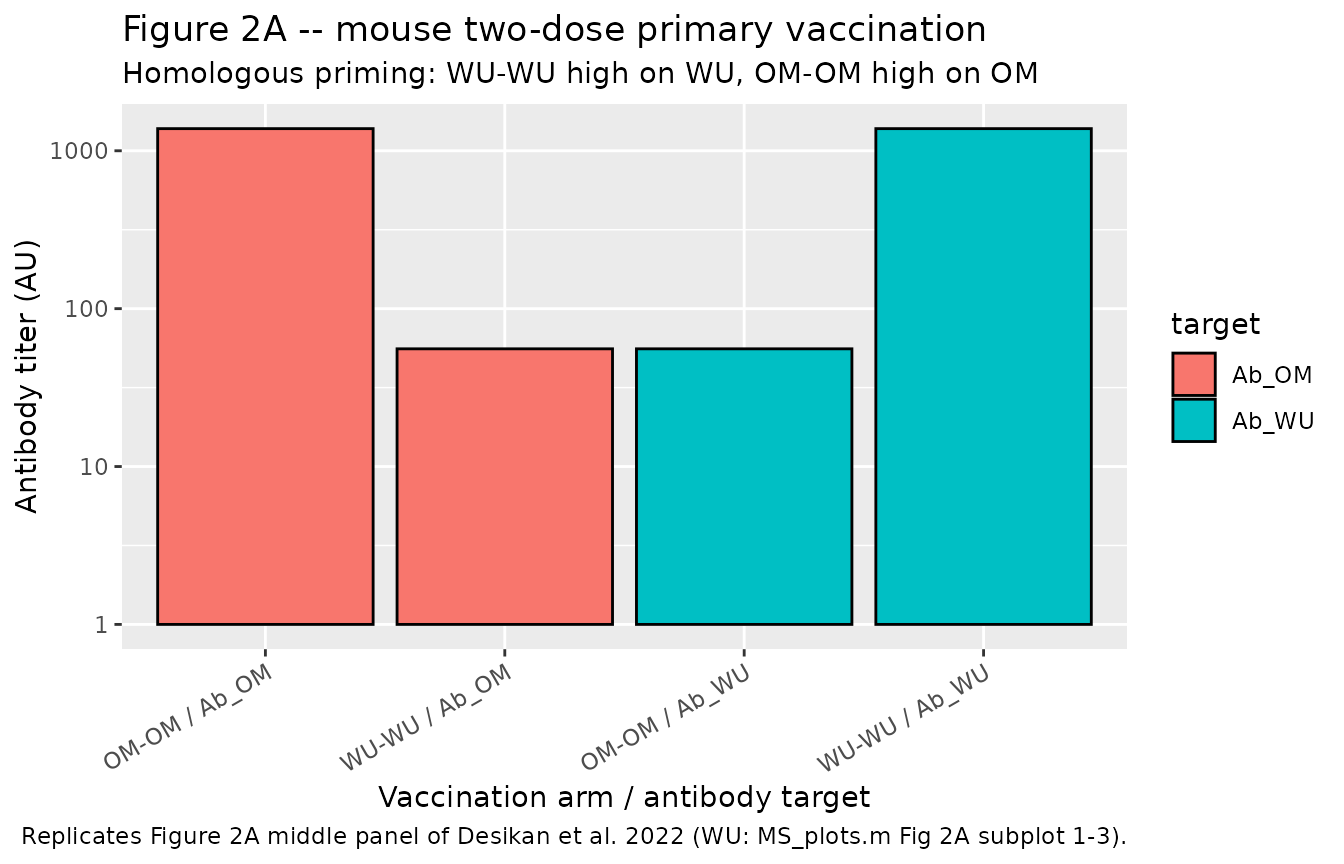

Figure 2A – mouse two-dose homologous priming (Ying et al. 2022)

Figure 2A of Desikan et al. compares the simulated WU-WU (two-dose WU vaccine) and OM-OM (two-dose OM vaccine) end-of-experiment antibody titres, reproducing the observation from Ying et al. 2022 that WU-WU elicits high anti-WU / low anti-OM titres and OM-OM elicits the opposite. The paper uses the “mouse schedule” from MS_plots.m line 33: Ag_dose2 = 1e3, doses at t = 0 and 21 days, sampled at t = 36 days.

mouse_grid  <- seq(0, 36, by = 0.1)
mouse_amts  <- c(1e3, 1e3)
mouse_times <- c(0, 21)

ev_WW <- build_schedule(c("W", "W"), mouse_times, mouse_amts, mouse_grid)
ev_OO <- build_schedule(c("O", "O"), mouse_times, mouse_amts, mouse_grid)

sim_WW <- rxode2::rxSolve(mod, ev_WW, cores = 1L) |> as.data.frame() |>
  dplyr::mutate(arm = "WU-WU")
sim_OO <- rxode2::rxSolve(mod, ev_OO, cores = 1L) |> as.data.frame() |>
  dplyr::mutate(arm = "OM-OM")

fig2A_bars <- dplyr::bind_rows(
  tibble::tibble(arm = "WU-WU", target = "Ab_WU",
                 titer = sim_WW$Ab_WU[which.max(sim_WW$time)]),
  tibble::tibble(arm = "WU-WU", target = "Ab_OM",
                 titer = sim_WW$Ab_OM[which.max(sim_WW$time)]),
  tibble::tibble(arm = "OM-OM", target = "Ab_WU",
                 titer = sim_OO$Ab_WU[which.max(sim_OO$time)]),
  tibble::tibble(arm = "OM-OM", target = "Ab_OM",
                 titer = sim_OO$Ab_OM[which.max(sim_OO$time)])
)

ggplot(fig2A_bars, aes(interaction(arm, target, sep = " / "), titer,
                       fill = target)) +
  geom_col(colour = "black") +
  scale_y_log10() +
  labs(x = "Vaccination arm / antibody target", y = "Antibody titer (AU)",
       title = "Figure 2A -- mouse two-dose primary vaccination",
       subtitle = "Homologous priming: WU-WU high on WU, OM-OM high on OM",
       caption = "Replicates Figure 2A middle panel of Desikan et al. 2022 (WU: MS_plots.m Fig 2A subplot 1-3).") +
  theme(axis.text.x = element_text(angle = 30, hjust = 1))

Quantitative check: model outputs at t = 36 should be mirror-symmetric between the WU-WU and OM-OM arms (the model is structurally symmetric between W and V sides).

tail_WW <- dplyr::filter(sim_WW, time == 36)
tail_OO <- dplyr::filter(sim_OO, time == 36)
stopifnot(abs(tail_WW$Ab_WU - tail_OO$Ab_OM) < 1e-6)
stopifnot(abs(tail_WW$Ab_OM - tail_OO$Ab_WU) < 1e-6)
# Homologous / heterologous titer ratio should be at least an order of
# magnitude at the end of the second dose (paper Fig 2A LHS: ratio ~55).
stopifnot(tail_WW$Ab_WU / tail_WW$Ab_OM > 10)

Figures 3, 4A, 4B – primate WWWWW vs WWOOO (Gagne et al. 2022)

Figure 3 of Desikan et al. reproduces the observed pattern in Gagne et al. that WU-WU-WU and WU-WU-OM give similar anti-OM titres at the third dose. Figure 4A extends this with two additional boosts (doses #4 and #5) and shows that OM titres progressively pull away between the WWWWW and WWOOO simulations as additional OM vaccinations are added. Figure 4B shows that the additional OM titre comes almost entirely from the unique-epitope Av response, not from the conserved-epitope Ac response.

The reference schedule is defined in Table 1 and MS_plots.m line 21: vaccinations at days (0, 28, 287, 525, 700), with doses (1e5, 1e5, 0.5e5, 0.5e5, 0.5e5). The simulation runs to day 875.

gagne_grid  <- seq(0, 875, by = 0.5)
gagne_amts  <- c(1e5, 1e5, 0.5e5, 0.5e5, 0.5e5)
gagne_times <- c(0, 28, 287, 525, 700)

ev_WWWWW <- build_schedule(c("W","W","W","W","W"), gagne_times, gagne_amts,
                           gagne_grid)
ev_WWOOO <- build_schedule(c("W","W","O","O","O"), gagne_times, gagne_amts,
                           gagne_grid)

sim_WWWWW <- rxode2::rxSolve(mod, ev_WWWWW, cores = 1L) |>
  as.data.frame() |>
  dplyr::mutate(arm = "WU-WU-WU-WU-WU")
sim_WWOOO <- rxode2::rxSolve(mod, ev_WWOOO, cores = 1L) |>
  as.data.frame() |>
  dplyr::mutate(arm = "WU-WU-OM-OM-OM")

sim_all <- dplyr::bind_rows(sim_WWWWW, sim_WWOOO) |>
  dplyr::select(arm, time, Ab_WU, Ab_OM, Ab_uniqueOM, Ab_conserved) |>
  tidyr::pivot_longer(Ab_WU:Ab_conserved, names_to = "target",
                      values_to = "titer")

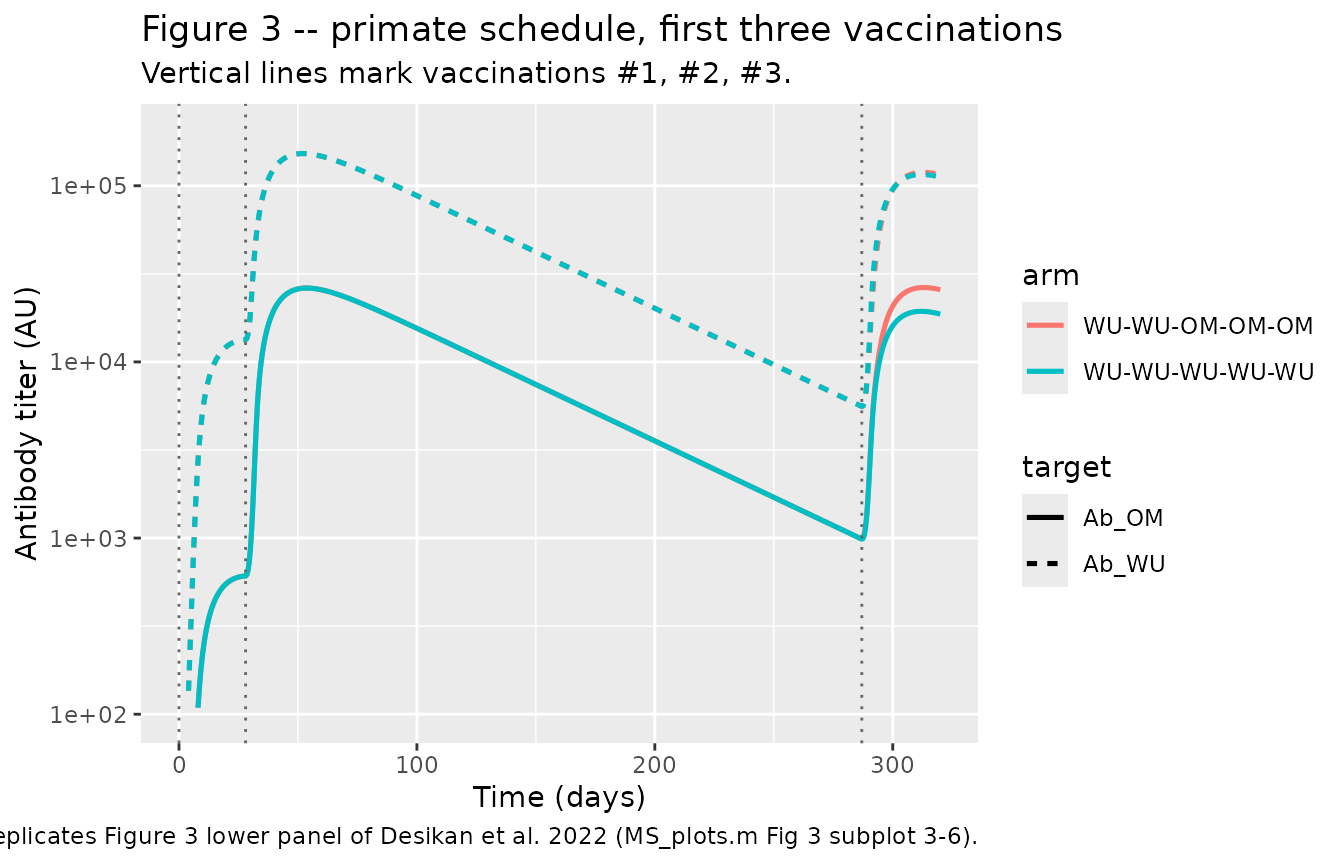

Figure 3 – WU-WU-WU vs WU-WU-OM (day 0 - day ~300)

sim_all |>
  dplyr::filter(time <= 320, target %in% c("Ab_WU", "Ab_OM")) |>
  ggplot(aes(time, titer, colour = arm, linetype = target)) +
  geom_line(linewidth = 0.9) +
  scale_y_log10(limits = c(1e2, 10 ^ 5.3)) +
  geom_vline(xintercept = gagne_times[1:3], linetype = "dotted",
             colour = "grey40") +
  labs(x = "Time (days)", y = "Antibody titer (AU)",
       title = "Figure 3 -- primate schedule, first three vaccinations",
       subtitle = "Vertical lines mark vaccinations #1, #2, #3.",
       caption = "Replicates Figure 3 lower panel of Desikan et al. 2022 (MS_plots.m Fig 3 subplot 3-6).")
#> Warning: Removed 48 rows containing missing values or values outside the scale range
#> (`geom_line()`).

Quantitative check: at day 300 (just after vaccination #3), the WWWWW arm and the WWOOO arm should have very similar Ab_OM Cmax (paper conclusion: “vaccination #3 with the OM-vaccine does not elicit higher antibody titres to OM than vaccination #3 with the WU-vaccine”).

peak_after_dose3 <- function(sim) {
  s <- sim[sim$time > 287 & sim$time < 525, ]
  data.frame(Ab_OM_max = max(s$Ab_OM), Ab_WU_max = max(s$Ab_WU))
}
p3_WWWWW <- peak_after_dose3(sim_WWWWW)
p3_WWOOO <- peak_after_dose3(sim_WWOOO)
p3_ratio <- p3_WWOOO$Ab_OM_max / p3_WWWWW$Ab_OM_max
cat(sprintf("Dose-3 Ab_OM Cmax ratio (OM-vac / WU-vac) = %.2f\n", p3_ratio))
#> Dose-3 Ab_OM Cmax ratio (OM-vac / WU-vac) = 1.36
stopifnot(p3_ratio > 1)        # OM vaccine gives at least a slight boost
stopifnot(p3_ratio < 3)        # but not a large one (paper: ~1.3x)

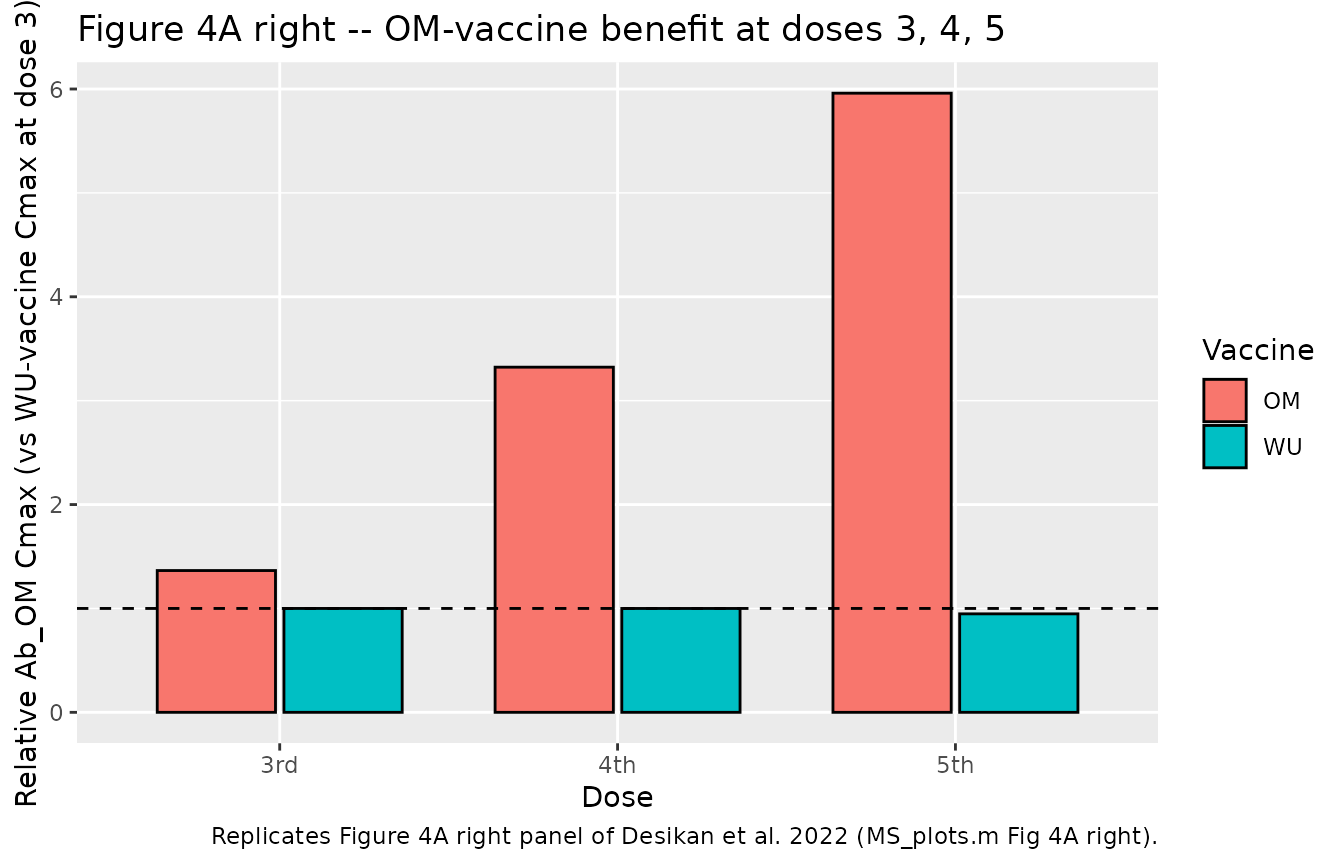

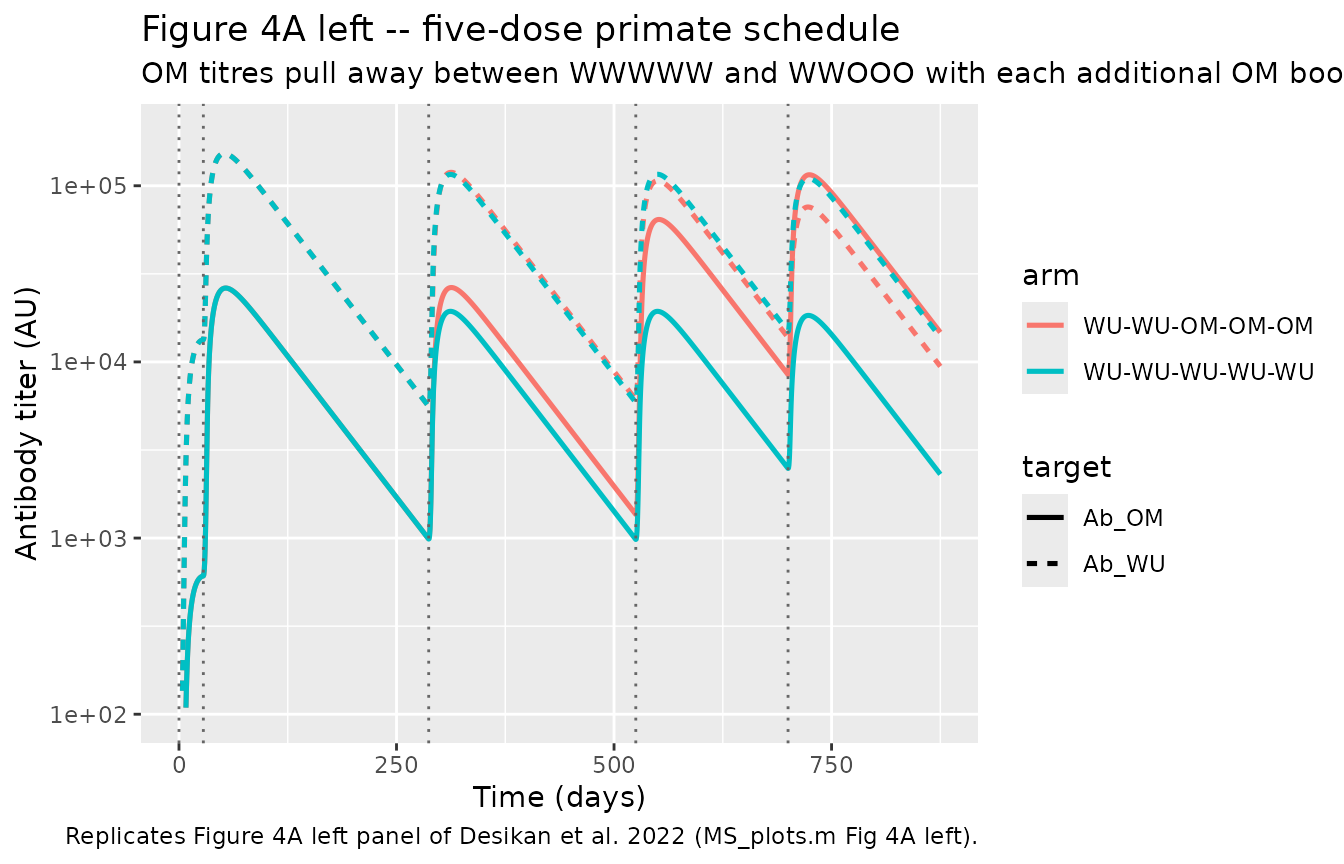

Figure 4A – five-dose simulation with fold-boost bar plot

sim_all |>
  dplyr::filter(target %in% c("Ab_WU", "Ab_OM")) |>
  ggplot(aes(time, titer, colour = arm, linetype = target)) +
  geom_line(linewidth = 0.9) +
  scale_y_log10(limits = c(1e2, 10 ^ 5.3)) +
  geom_vline(xintercept = gagne_times, linetype = "dotted", colour = "grey40") +
  labs(x = "Time (days)", y = "Antibody titer (AU)",
       title = "Figure 4A left -- five-dose primate schedule",
       subtitle = "OM titres pull away between WWWWW and WWOOO with each additional OM boost.",
       caption = "Replicates Figure 4A left panel of Desikan et al. 2022 (MS_plots.m Fig 4A left).")
#> Warning: Removed 48 rows containing missing values or values outside the scale range
#> (`geom_line()`).

Figure 4A right (fold-boost bar plot). Each bar is the Cmax of Ab_OM in the inter-dose interval, normalised by the WWWWW Cmax after dose 3.

peak_in_interval <- function(sim, target, t_lo, t_hi) {
  s <- sim[sim$time > t_lo & sim$time < t_hi, ]
  max(s[[target]])
}

yy3_WW <- peak_in_interval(sim_WWWWW, "Ab_OM", gagne_times[3], gagne_times[4])
yy3_OO <- peak_in_interval(sim_WWOOO, "Ab_OM", gagne_times[3], gagne_times[4])
yy4_WW <- peak_in_interval(sim_WWWWW, "Ab_OM", gagne_times[4], gagne_times[5])
yy4_OO <- peak_in_interval(sim_WWOOO, "Ab_OM", gagne_times[4], gagne_times[5])
yy5_WW <- peak_in_interval(sim_WWWWW, "Ab_OM", gagne_times[5], 875)
yy5_OO <- peak_in_interval(sim_WWOOO, "Ab_OM", gagne_times[5], 875)

fig4A_right <- tibble::tibble(
  Dose = factor(rep(c("3rd", "4th", "5th"), each = 2),
                levels = c("3rd", "4th", "5th")),
  Vaccine = rep(c("WU", "OM"), 3),
  Relative_titer_vs_OM = c(yy3_WW / yy3_WW, yy3_OO / yy3_WW,
                           yy4_WW / yy3_WW, yy4_OO / yy3_WW,
                           yy5_WW / yy3_WW, yy5_OO / yy3_WW)
)

ggplot(fig4A_right, aes(Dose, Relative_titer_vs_OM, fill = Vaccine)) +
  geom_col(position = position_dodge(width = 0.75), colour = "black",
           width = 0.7) +
  geom_hline(yintercept = 1, linetype = "dashed") +
  labs(y = "Relative Ab_OM Cmax (vs WU-vaccine Cmax at dose 3)",
       title = "Figure 4A right -- OM-vaccine benefit at doses 3, 4, 5",
       caption = "Replicates Figure 4A right panel of Desikan et al. 2022 (MS_plots.m Fig 4A right).")


fig4A_right
#> # A tibble: 6 × 3
#>   Dose  Vaccine Relative_titer_vs_OM
#>   <fct> <chr>                  <dbl>
#> 1 3rd   WU                     1
#> 2 3rd   OM                     1.36
#> 3 4th   WU                     1.000
#> 4 4th   OM                     3.32
#> 5 5th   WU                     0.948
#> 6 5th   OM                     5.96

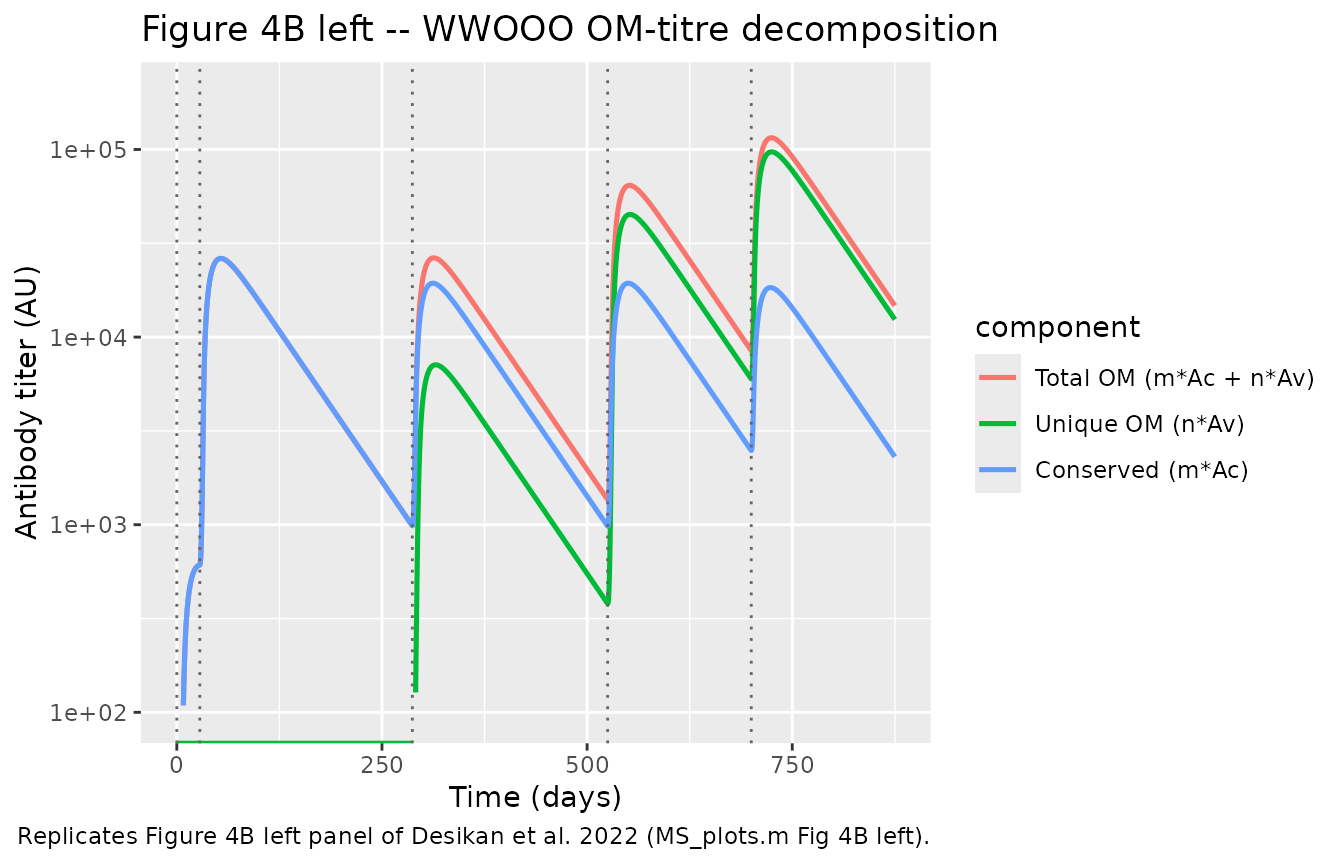

Figure 4B – unique vs conserved epitope contributions (WWOOO)

Figure 4B decomposes the total Ab_OM titre into contributions from the OM- unique epitope class (Av) and the conserved epitope class (Ac). The paper’s key claim is that the fold-boost at doses #4 and #5 is driven almost entirely by the OM-unique arm (the conserved arm has saturated).

sim_WWOOO |>
  dplyr::select(time, Ab_OM, Ab_uniqueOM, Ab_conserved) |>
  tidyr::pivot_longer(Ab_OM:Ab_conserved, names_to = "component",
                      values_to = "titer") |>
  dplyr::mutate(component = factor(component,
                                    levels = c("Ab_OM", "Ab_uniqueOM", "Ab_conserved"),
                                    labels = c("Total OM (m*Ac + n*Av)",
                                               "Unique OM (n*Av)",
                                               "Conserved (m*Ac)"))) |>
  ggplot(aes(time, titer, colour = component)) +
  geom_line(linewidth = 0.9) +
  scale_y_log10(limits = c(1e2, 10 ^ 5.3)) +
  geom_vline(xintercept = gagne_times, linetype = "dotted", colour = "grey40") +
  labs(x = "Time (days)", y = "Antibody titer (AU)",
       title = "Figure 4B left -- WWOOO OM-titre decomposition",
       caption = "Replicates Figure 4B left panel of Desikan et al. 2022 (MS_plots.m Fig 4B left).")
#> Warning in scale_y_log10(limits = c(100, 10^5.3)): log-10 transformation
#> introduced infinite values.
#> Warning: Removed 32 rows containing missing values or values outside the scale range
#> (`geom_line()`).

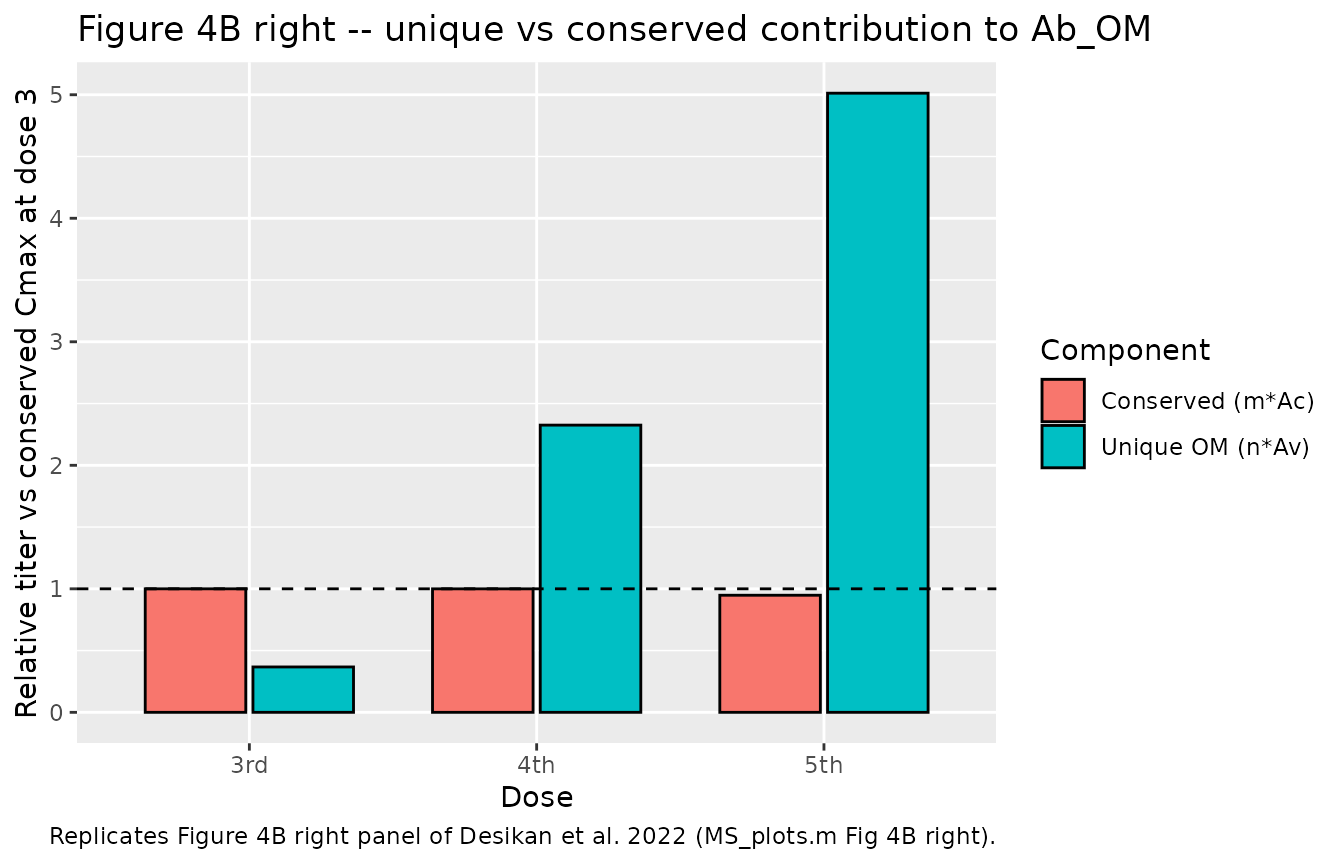

Figure 4B right (fold-boost bar plot of unique vs conserved contributions, normalised by conserved Cmax at dose 3):

uy3 <- peak_in_interval(sim_WWOOO, "Ab_uniqueOM", gagne_times[3], gagne_times[4])
cy3 <- peak_in_interval(sim_WWOOO, "Ab_conserved", gagne_times[3], gagne_times[4])
uy4 <- peak_in_interval(sim_WWOOO, "Ab_uniqueOM", gagne_times[4], gagne_times[5])
cy4 <- peak_in_interval(sim_WWOOO, "Ab_conserved", gagne_times[4], gagne_times[5])
uy5 <- peak_in_interval(sim_WWOOO, "Ab_uniqueOM", gagne_times[5], 875)
cy5 <- peak_in_interval(sim_WWOOO, "Ab_conserved", gagne_times[5], 875)

fig4B_right <- tibble::tibble(
  Dose      = factor(rep(c("3rd", "4th", "5th"), each = 2),
                     levels = c("3rd", "4th", "5th")),
  Component = rep(c("Unique OM (n*Av)", "Conserved (m*Ac)"), 3),
  Relative_titer_vs_conserved_dose3 = c(uy3 / cy3, cy3 / cy3,
                                        uy4 / cy3, cy4 / cy3,
                                        uy5 / cy3, cy5 / cy3)
)

ggplot(fig4B_right, aes(Dose, Relative_titer_vs_conserved_dose3, fill = Component)) +
  geom_col(position = position_dodge(width = 0.75), colour = "black",
           width = 0.7) +
  geom_hline(yintercept = 1, linetype = "dashed") +
  labs(y = "Relative titer vs conserved Cmax at dose 3",
       title = "Figure 4B right -- unique vs conserved contribution to Ab_OM",
       caption = "Replicates Figure 4B right panel of Desikan et al. 2022 (MS_plots.m Fig 4B right).")


fig4B_right
#> # A tibble: 6 × 3
#>   Dose  Component        Relative_titer_vs_conserved_dose3
#>   <fct> <chr>                                        <dbl>
#> 1 3rd   Unique OM (n*Av)                             0.367
#> 2 3rd   Conserved (m*Ac)                             1
#> 3 4th   Unique OM (n*Av)                             2.33
#> 4 4th   Conserved (m*Ac)                             1.000
#> 5 5th   Unique OM (n*Av)                             5.01
#> 6 5th   Conserved (m*Ac)                             0.948

Quantitative check: at dose 3, the unique-epitope contribution should be much smaller than the conserved-epitope contribution; by dose 5 the unique contribution should have overtaken it by roughly 5-fold.

u_over_c_dose3 <- uy3 / cy3
u_over_c_dose5 <- uy5 / cy5
cat(sprintf("Dose 3 unique/conserved ratio = %.2f (small)\n", u_over_c_dose3))
#> Dose 3 unique/conserved ratio = 0.37 (small)
cat(sprintf("Dose 5 unique/conserved ratio = %.2f (large)\n", u_over_c_dose5))
#> Dose 5 unique/conserved ratio = 5.29 (large)
stopifnot(u_over_c_dose3 < 1)     # dose 3: conserved dominates
stopifnot(u_over_c_dose5 > 4)     # dose 5: unique overwhelmingly dominates

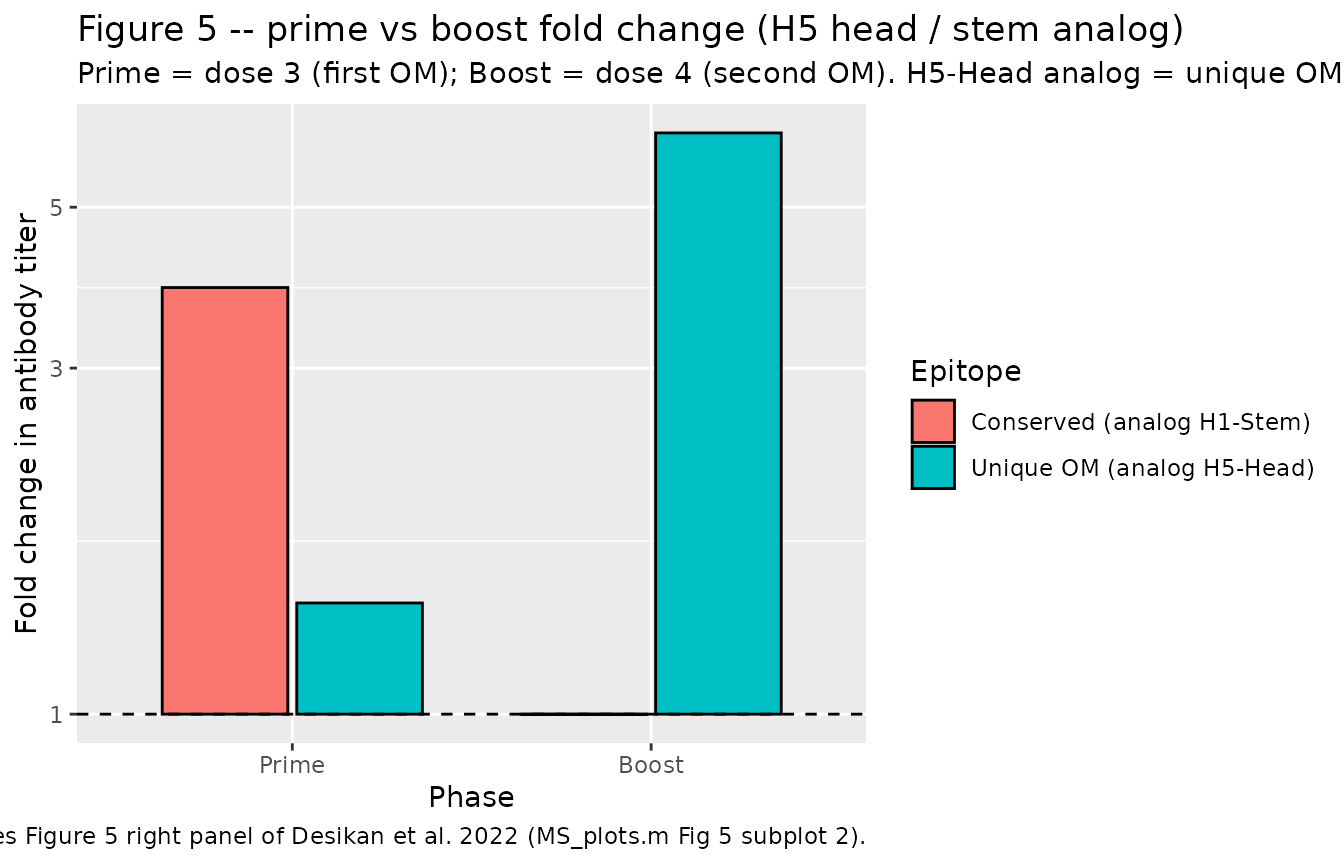

Figure 5 – H5N1 prime vs boost (Ellebedy et al. 2014)

Figure 5 of Desikan et al. maps the CoV-2 WWOOO simulation onto the Ellebedy 2014 H5N1 vaccine study by identifying the H5-head with the OM-unique epitope class and the H1-stem with the conserved epitope class. Under this mapping: prime = first OM exposure (dose 3 in the CoV-2 simulation) and boost = second OM exposure (dose 4). The paper reports the observed fold-change in each compartment relative to a 5000-AU detection floor.

detection_floor <- 5000

# Pre-dose-3 conserved Ac titer (yy2(2) in MS_plots.m):
Ac_pre_dose3 <- sim_WWOOO$Ab_conserved[which.min(abs(sim_WWOOO$time -
                                                       (gagne_times[3] - 0.01)))]
yy2_1 <- detection_floor
yy2_2 <- max(detection_floor, Ac_pre_dose3)

# Cmax values in each inter-dose interval:
yy3 <- c(uniqueOM  = peak_in_interval(sim_WWOOO, "Ab_uniqueOM",
                                       gagne_times[3], gagne_times[4]),
         conserved = peak_in_interval(sim_WWOOO, "Ab_conserved",
                                       gagne_times[3], gagne_times[4]))
yy4 <- c(uniqueOM  = peak_in_interval(sim_WWOOO, "Ab_uniqueOM",
                                       gagne_times[4], gagne_times[5]),
         conserved = peak_in_interval(sim_WWOOO, "Ab_conserved",
                                       gagne_times[4], gagne_times[5]))

fig5 <- tibble::tibble(
  Phase = factor(rep(c("Prime", "Boost"), each = 2),
                 levels = c("Prime", "Boost")),
  Epitope = rep(c("Unique OM (analog H5-Head)",
                  "Conserved (analog H1-Stem)"), 2),
  Fold_change = c(yy3["uniqueOM"] / yy2_1, yy3["conserved"] / yy2_2,
                  yy4["uniqueOM"] / yy3["uniqueOM"],
                  yy4["conserved"] / yy3["conserved"])
)

ggplot(fig5, aes(Phase, Fold_change, fill = Epitope)) +
  geom_col(position = position_dodge(width = 0.75), colour = "black",
           width = 0.7) +
  geom_hline(yintercept = 1, linetype = "dashed") +
  scale_y_log10() +
  labs(y = "Fold change in antibody titer",
       title = "Figure 5 -- prime vs boost fold change (H5 head / stem analog)",
       subtitle = "Prime = dose 3 (first OM); Boost = dose 4 (second OM). H5-Head analog = unique OM; H1-Stem analog = conserved.",
       caption = "Replicates Figure 5 right panel of Desikan et al. 2022 (MS_plots.m Fig 5 subplot 2).")


fig5
#> # A tibble: 4 × 3
#>   Phase Epitope                    Fold_change
#>   <fct> <chr>                            <dbl>
#> 1 Prime Unique OM (analog H5-Head)       1.42
#> 2 Prime Conserved (analog H1-Stem)       3.87
#> 3 Boost Unique OM (analog H5-Head)       6.33
#> 4 Boost Conserved (analog H1-Stem)       1.000

Quantitative check: at prime (first OM), the unique-epitope fold-change should be small (paper: H5 head prime fold change ~1-3), and the conserved-epitope fold-change should be moderate (paper: H1 stem prime fold change ~5-20); at boost (second OM) the unique-epitope fold-change should be larger than at prime, and the conserved-epitope fold-change should be near 1.

# Boost unique OM fold-change should be larger than prime unique OM fold-change
stopifnot(fig5$Fold_change[fig5$Phase == "Boost" &
                            fig5$Epitope == "Unique OM (analog H5-Head)"] >
          fig5$Fold_change[fig5$Phase == "Prime" &
                            fig5$Epitope == "Unique OM (analog H5-Head)"])
# Boost conserved fold-change should be modest (saturated response)
stopifnot(fig5$Fold_change[fig5$Phase == "Boost" &
                            fig5$Epitope == "Conserved (analog H1-Stem)"] < 5)

Assumptions and deviations

  • All model constants are FIXED, and there is no IIV or residual error. The model is presented and used as a deterministic mechanistic framework; the paper does not fit any parameters to per-subject longitudinal data. If a downstream user wishes to add IIV (e.g., to explore parameter sensitivity), the natural targets are k_bind, lambda_b, phi and f_b, with all other values held at literature-anchored biology (antigen and antibody half-lives; B-cell half-life from Cromer et al. 2021).
  • Seeding of naive precursors via one-shot dose events. In the MATLAB supplement, WU-unique-specific B cells and antibodies are initialised at Unique = 5 at t = 0 when the first vaccination is WU (files WW.m, WWWWW.m, WWOOO.m, WWO.m, WWOW.m, WWWO.m) and OM-unique-specific B cells and antibodies are initialised at 5 at t = 0 when the first vaccination is OM (OO.m, O.m), or reset to 5 at the first OM exposure when it comes after WU-priming (WWO / WWOOO / WWOW). This state manipulation is encoded here as one-shot bolus dose events on the Bw / Aw / Bv / Av compartments at the appropriate vaccination times (the build_schedule() helper takes care of this). The Bc / Ac naive m_conserved level is set as an initial condition in the model file (Bc(0) = Ac(0) = m_conserved) because it is common to every scenario.
  • Ag_dose unit is dimensionless. Table 1 defines the antigen dose in “scaled concentration units (s)”; the paper does not tie this to a specific clinical dose in mg or ug of mRNA / spike protein. Users wishing to compare simulations across mouse / primate / human cohorts should treat Ag_dose as a species-scaled amount rather than a universal quantity.
  • Multi-species applicability. The model is species-agnostic; the same parameter set is used for mouse (Ying 2022 - Figure 2A), primate (Gagne 2022
    • Figures 3, 4A, 4B) and human (Khan 2022 - Figure 2C; Ellebedy 2014 - Figure 5) cohorts. The paper motivates this by qualitative pattern matching (paper Discussion: “at this stage, the experimental data does not include precise measurements … the results of simpler models can typically be more robust than those of complex models”). The vignette here reproduces Figures 2A (mouse), 3, 4A, 4B (primate) and 5 (H5N1 human analog); Figure 2C (Khan 2022 human OAS) uses the same model with a different schedule and is not separately reproduced.
  • Figures not reproduced. Figure 1 (schematic), Figure 2B (Goel / Regev- Yochay saturation plot), Figure 2C (Khan 2022 vaccinated-vs-unvaccinated Omicron infection), and SI Figure 1 (WWOW / WWWO alternate schedules) are used in the paper for context or additional scenarios; they are supported by the same model with different build_schedule() inputs but are omitted here to keep the render time bounded.
